Features:
- Double-Sided Inserts with Two Cutting Edges: Each insert can be rotated two times, significantly reducing machining costs.
- High Positive Rake Angle: Enables higher cutting speeds and faster material removal.
- Unique Corner Design: Reduces cutting forces, extends tool life, and enhances surface finish quality.
- Versatile Applications: Ideal for slope milling, helical milling, and machining large flat surfaces.
- Uses Carbide TiALN coated LNMU030312R-JM inserts.

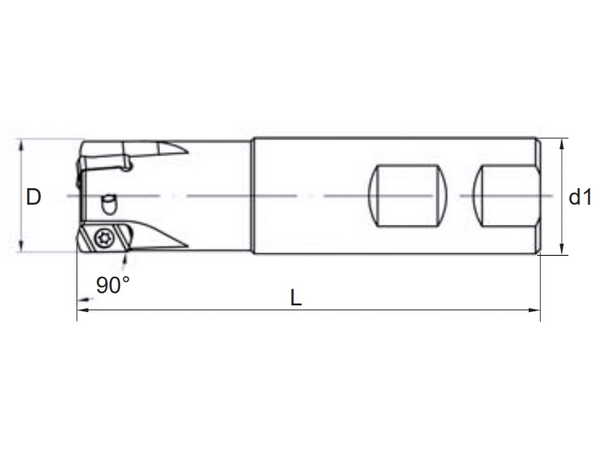

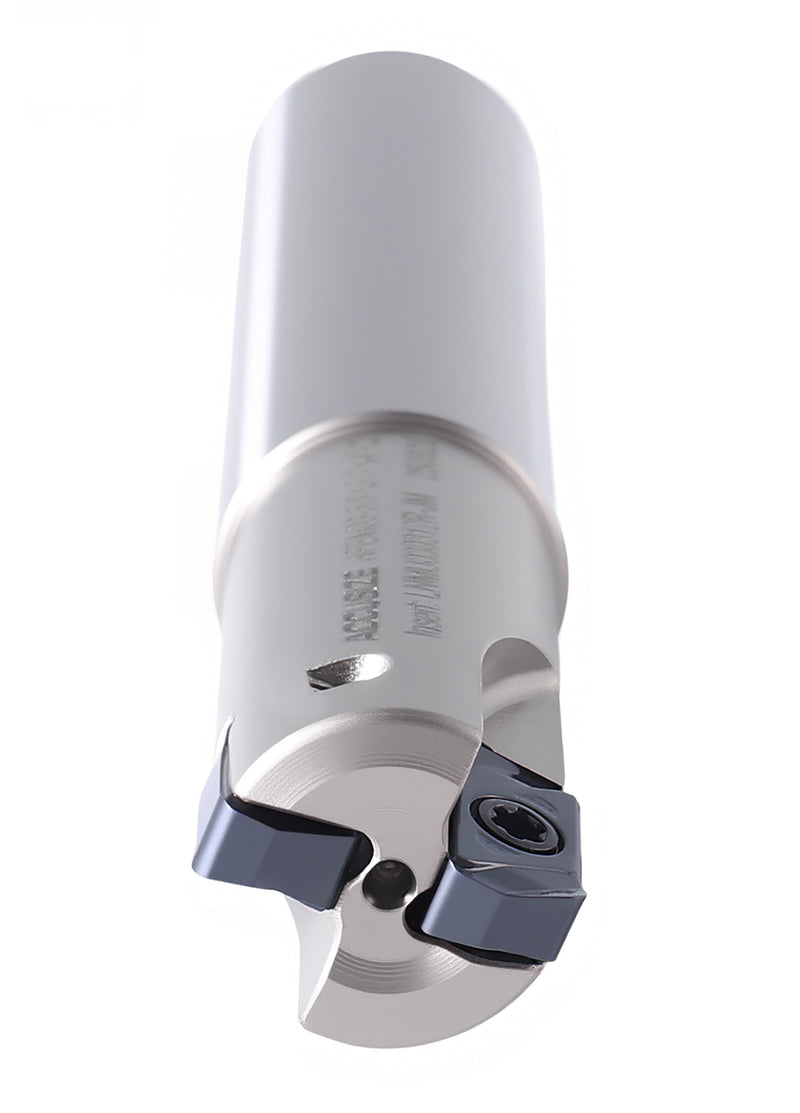

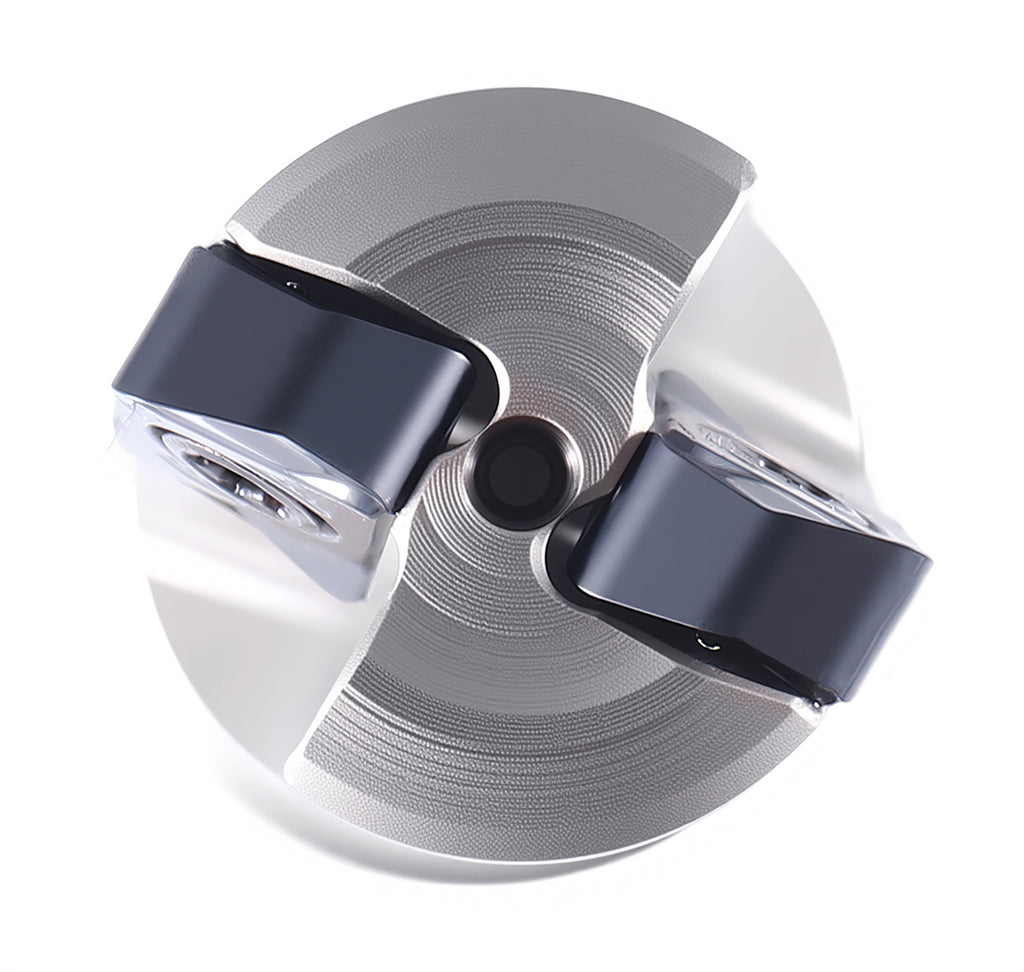

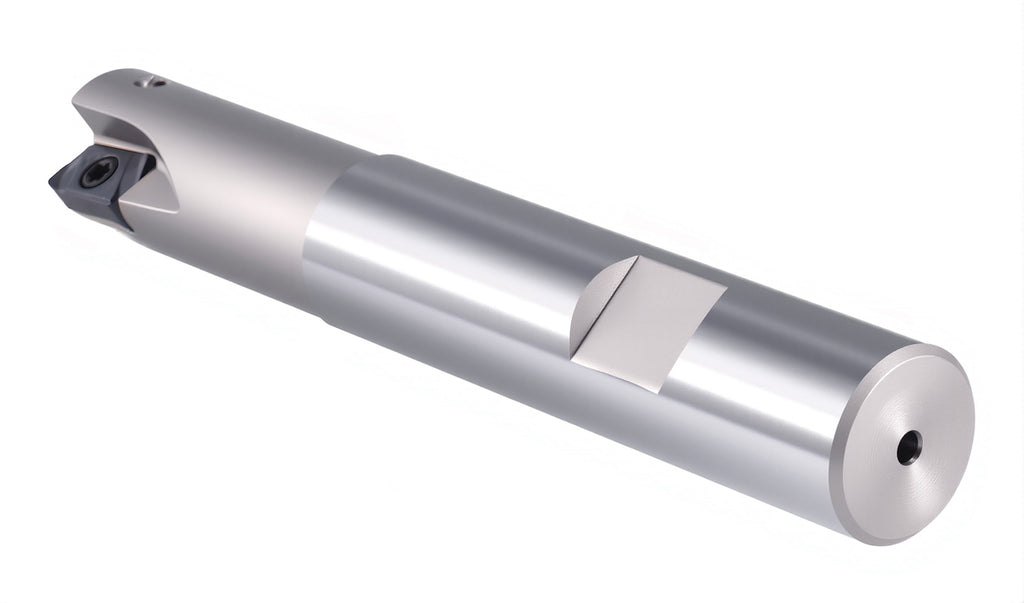

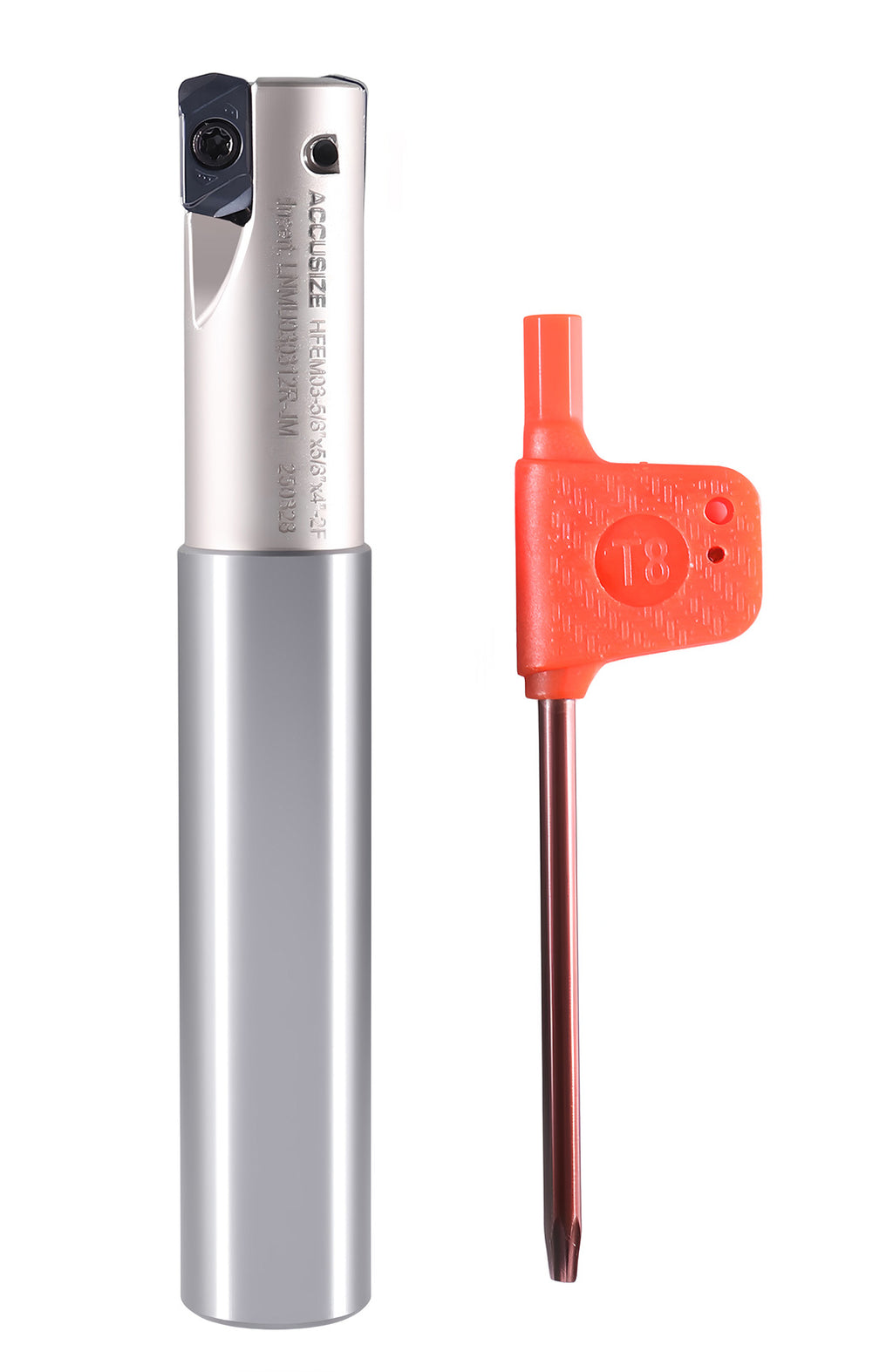

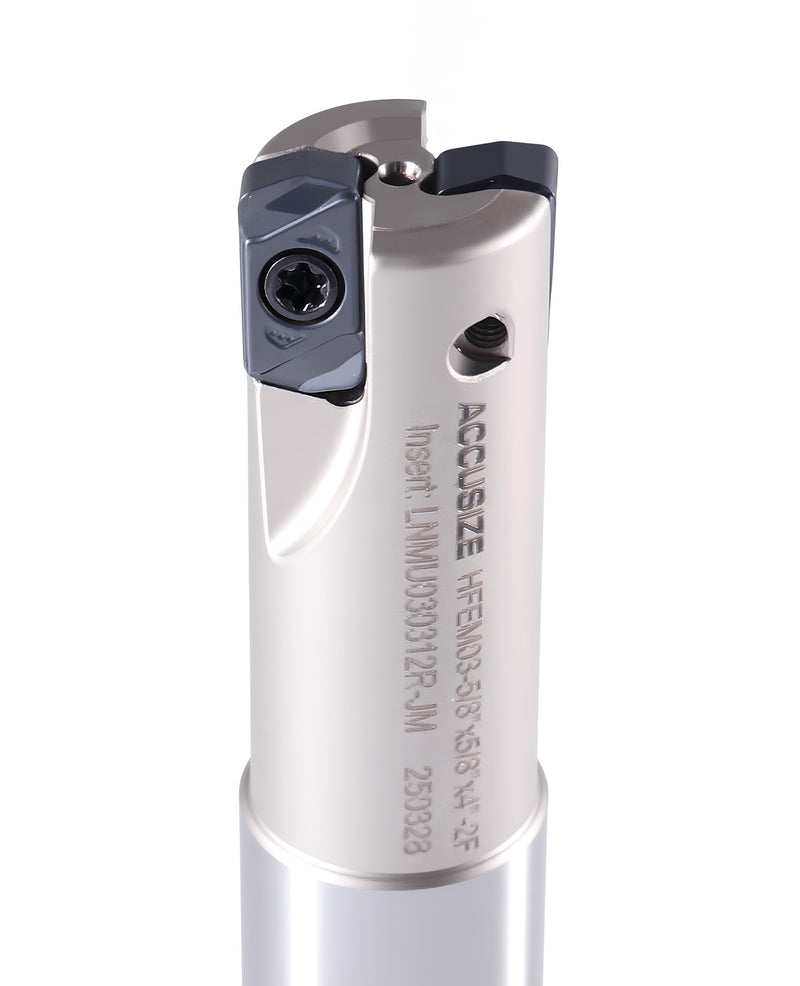

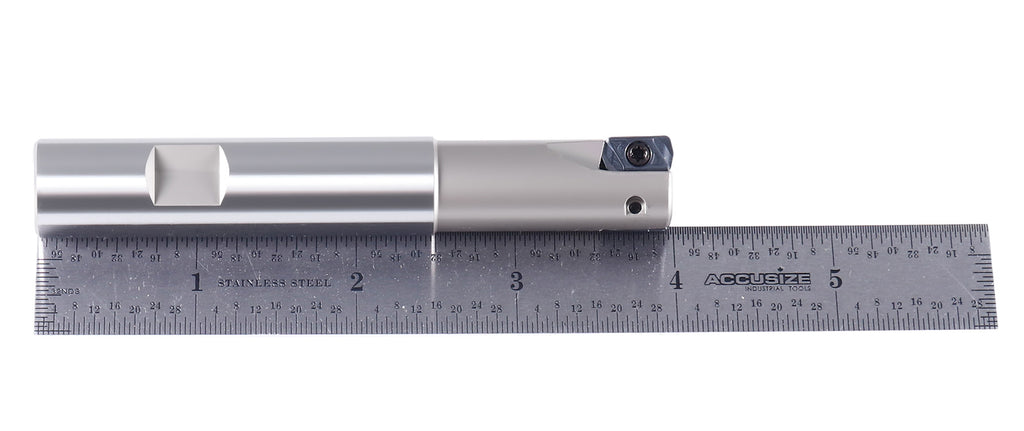

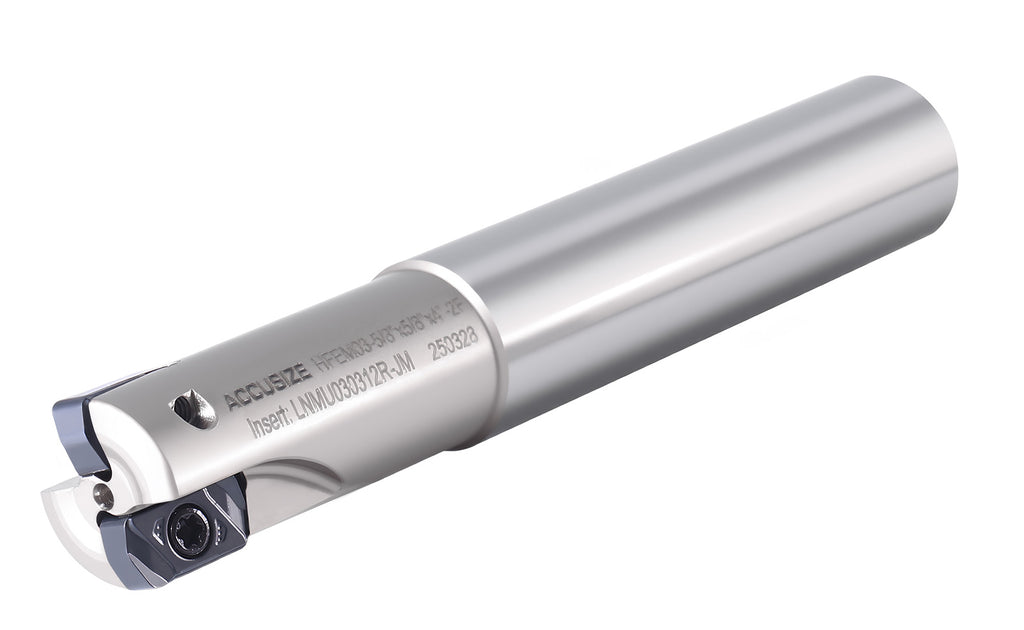

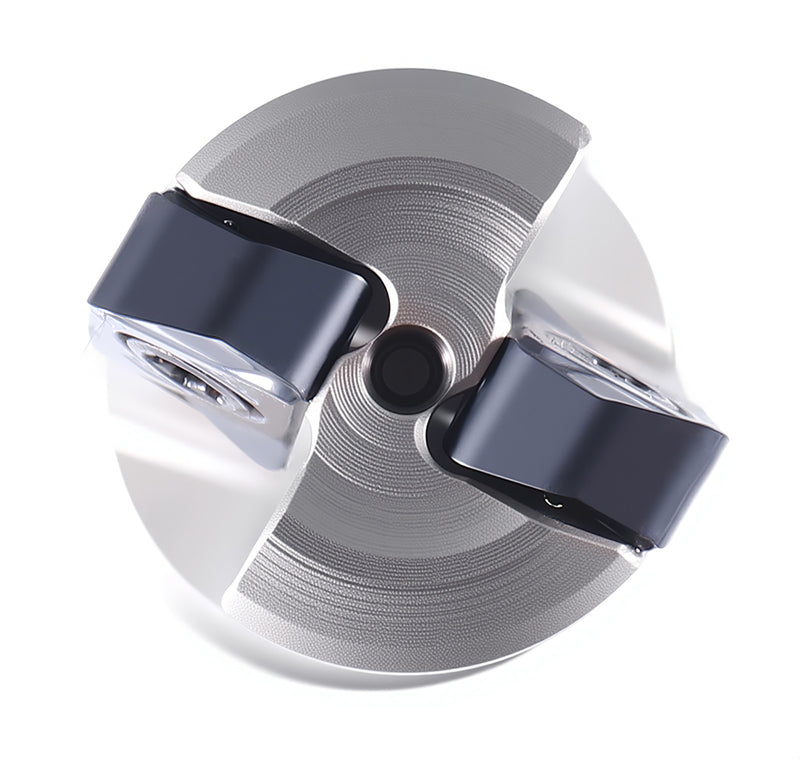

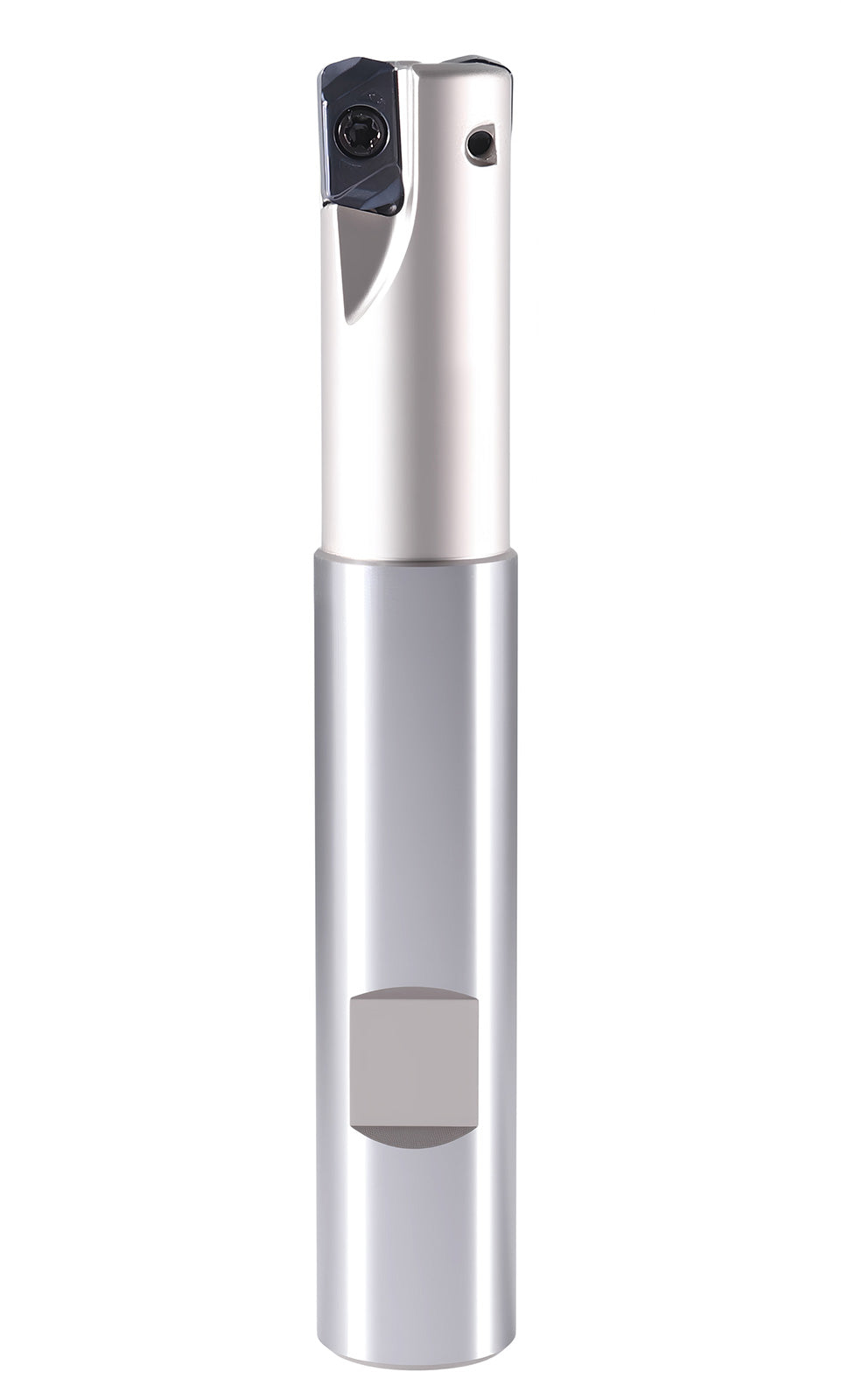

Item Cutting Diameter (D) Shank (d1) OAL (L) No. of Flutes Insert Insert Screw HFEM-0058 5/8" 5/8" 4" 2 LNMU030312R-JM
(6128-0001)
M2.5 x 8
(0046-2508x10)

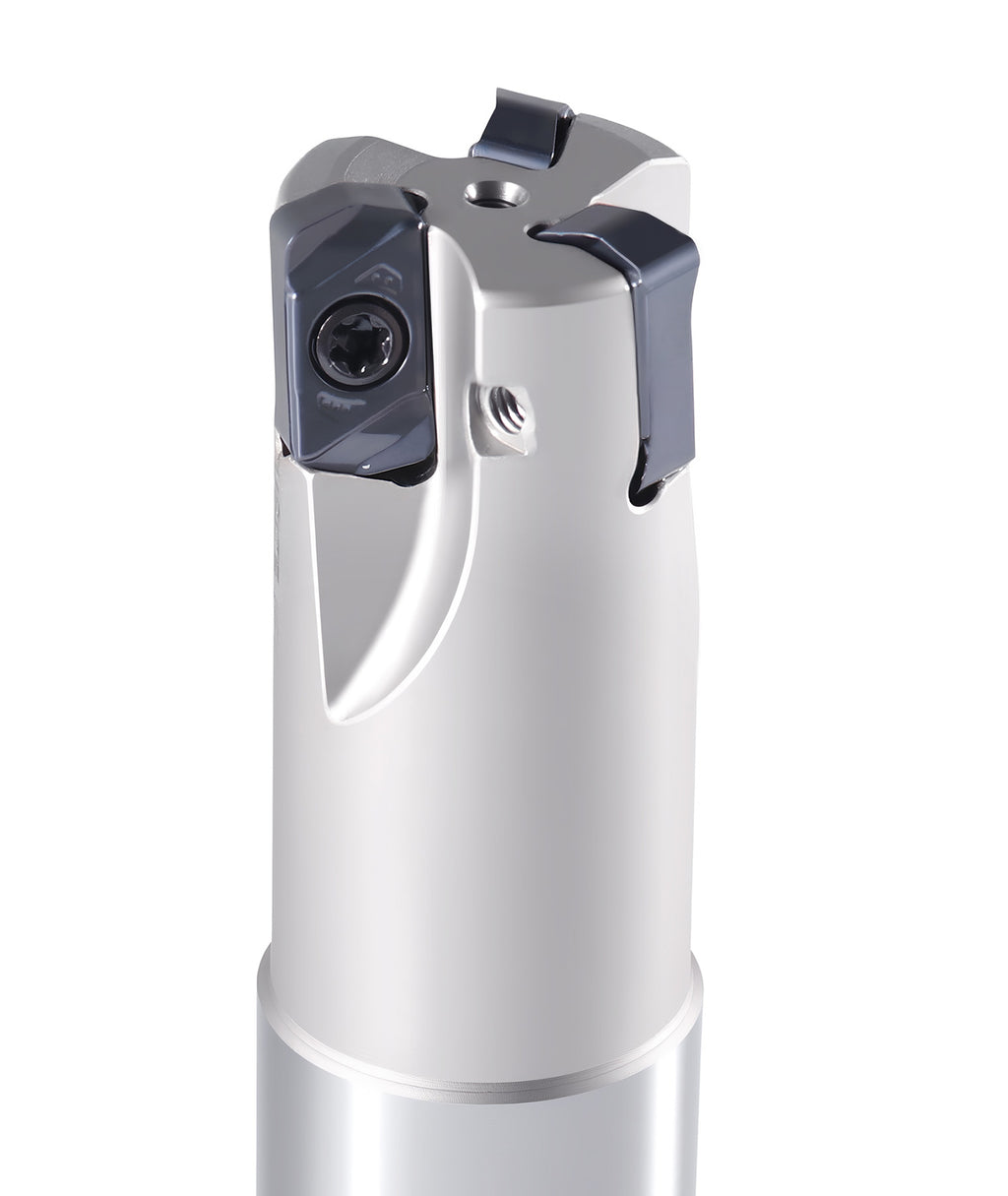

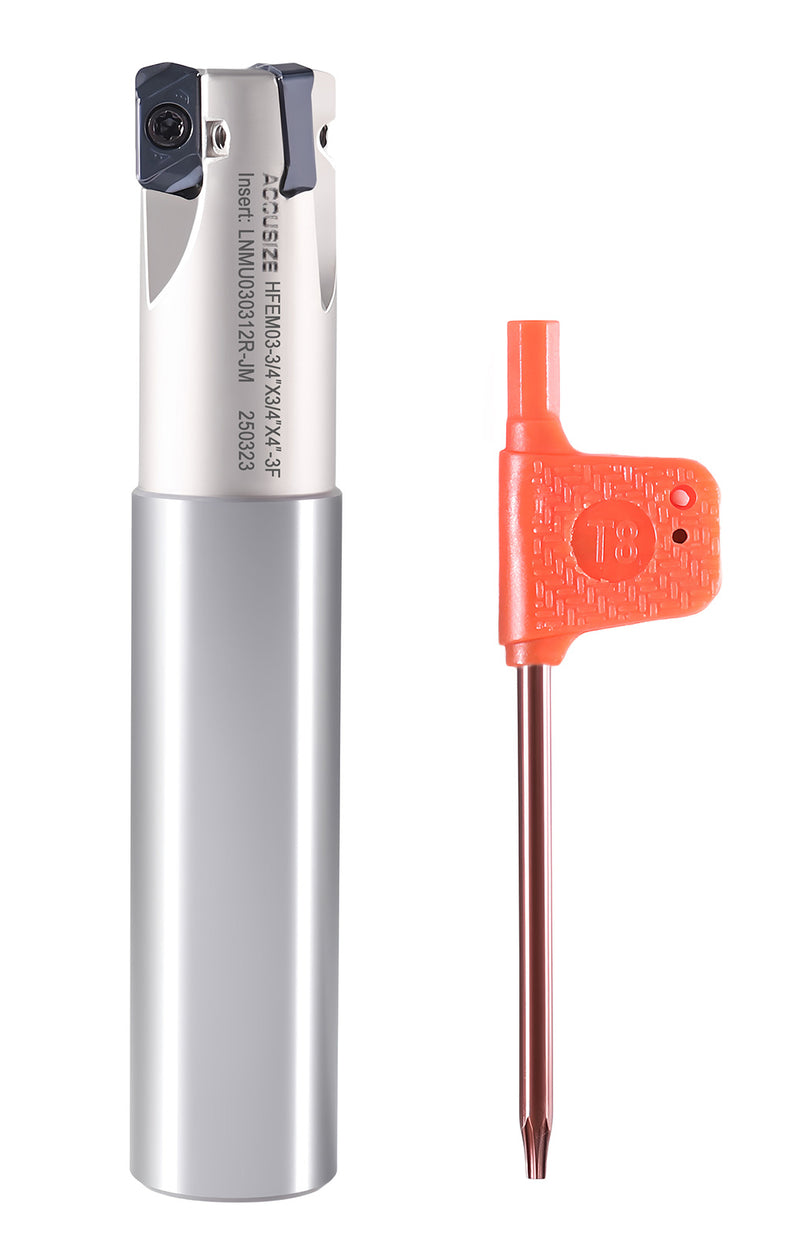

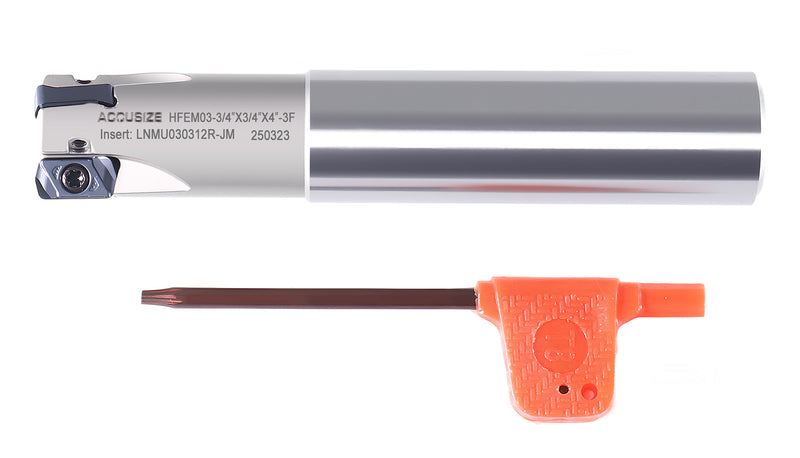

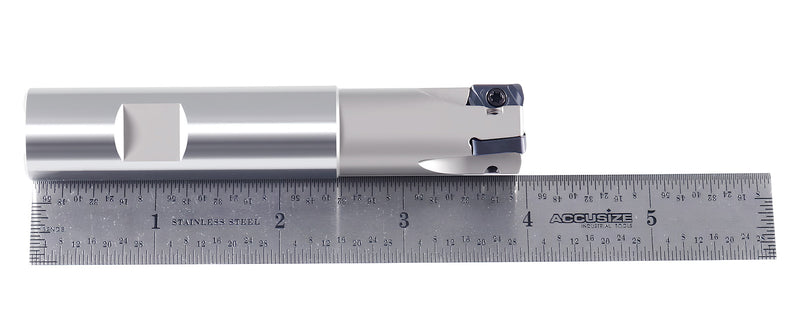

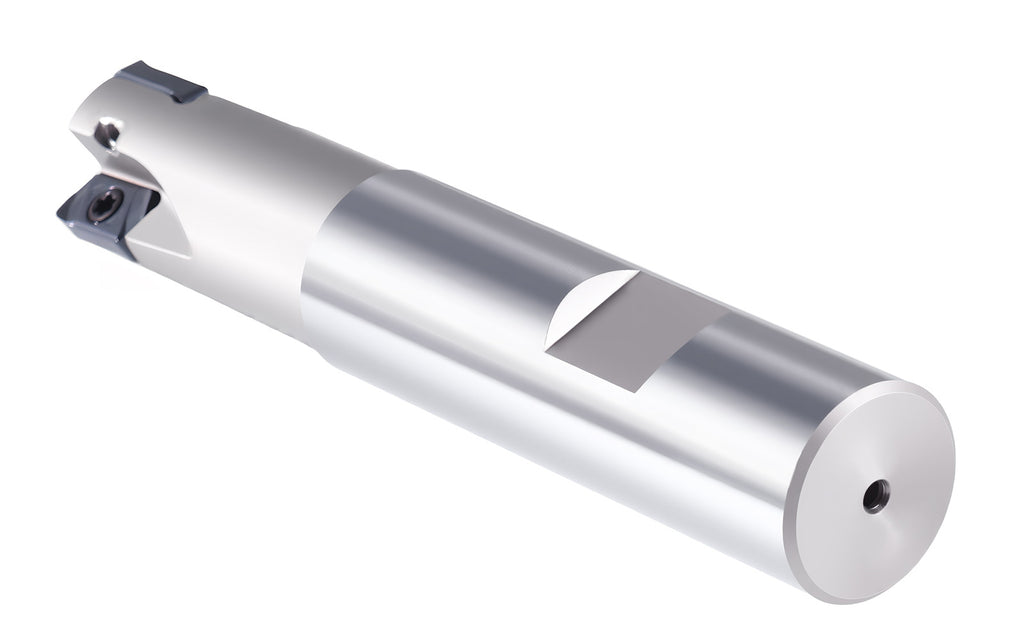

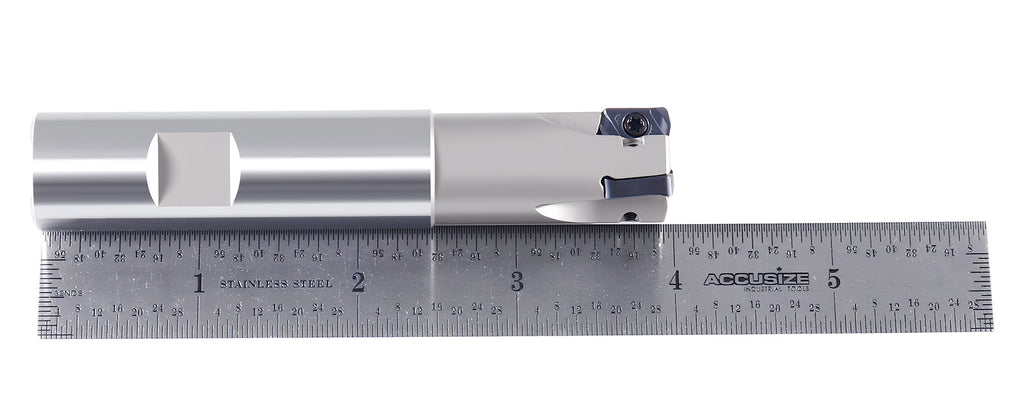

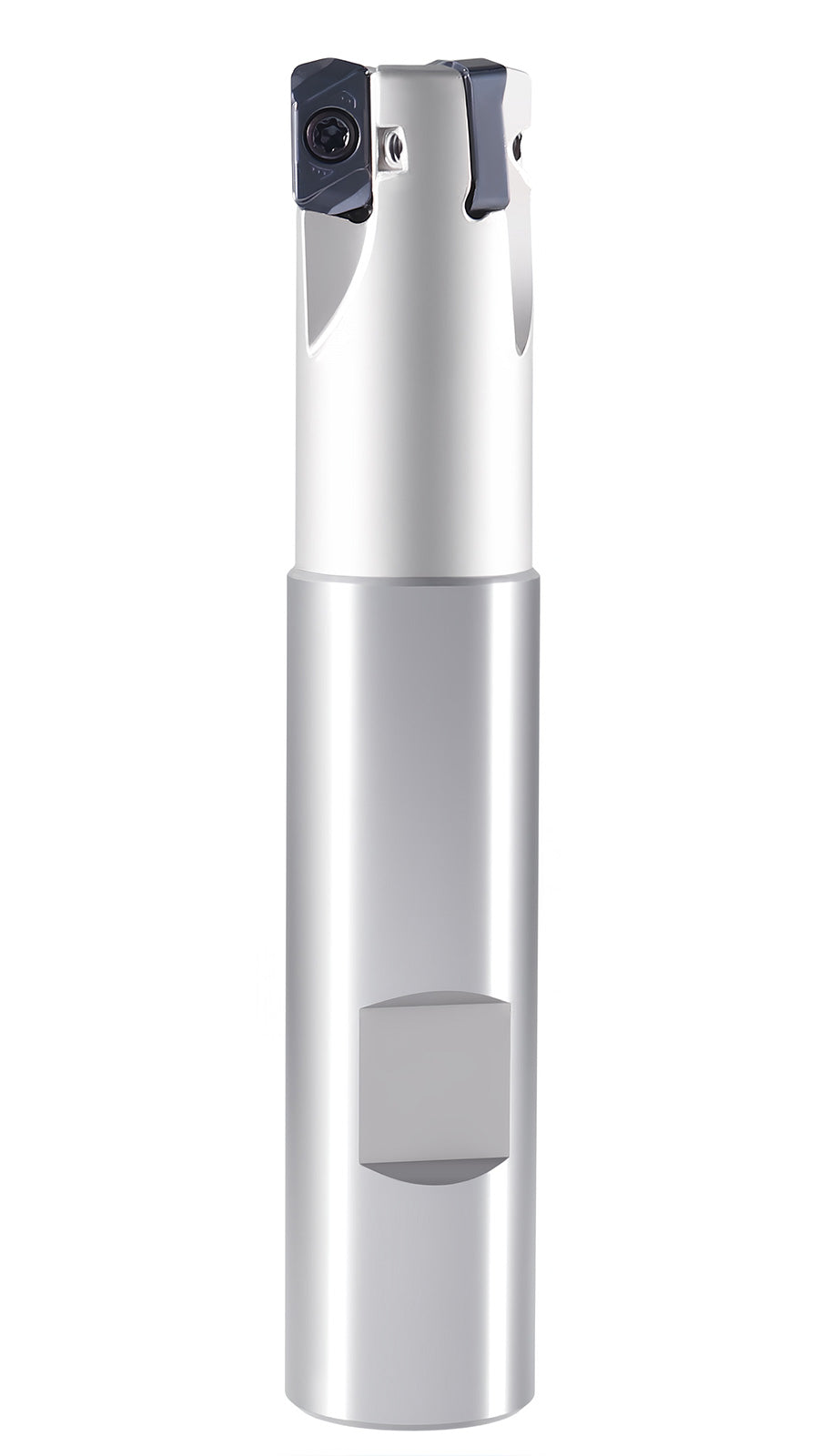

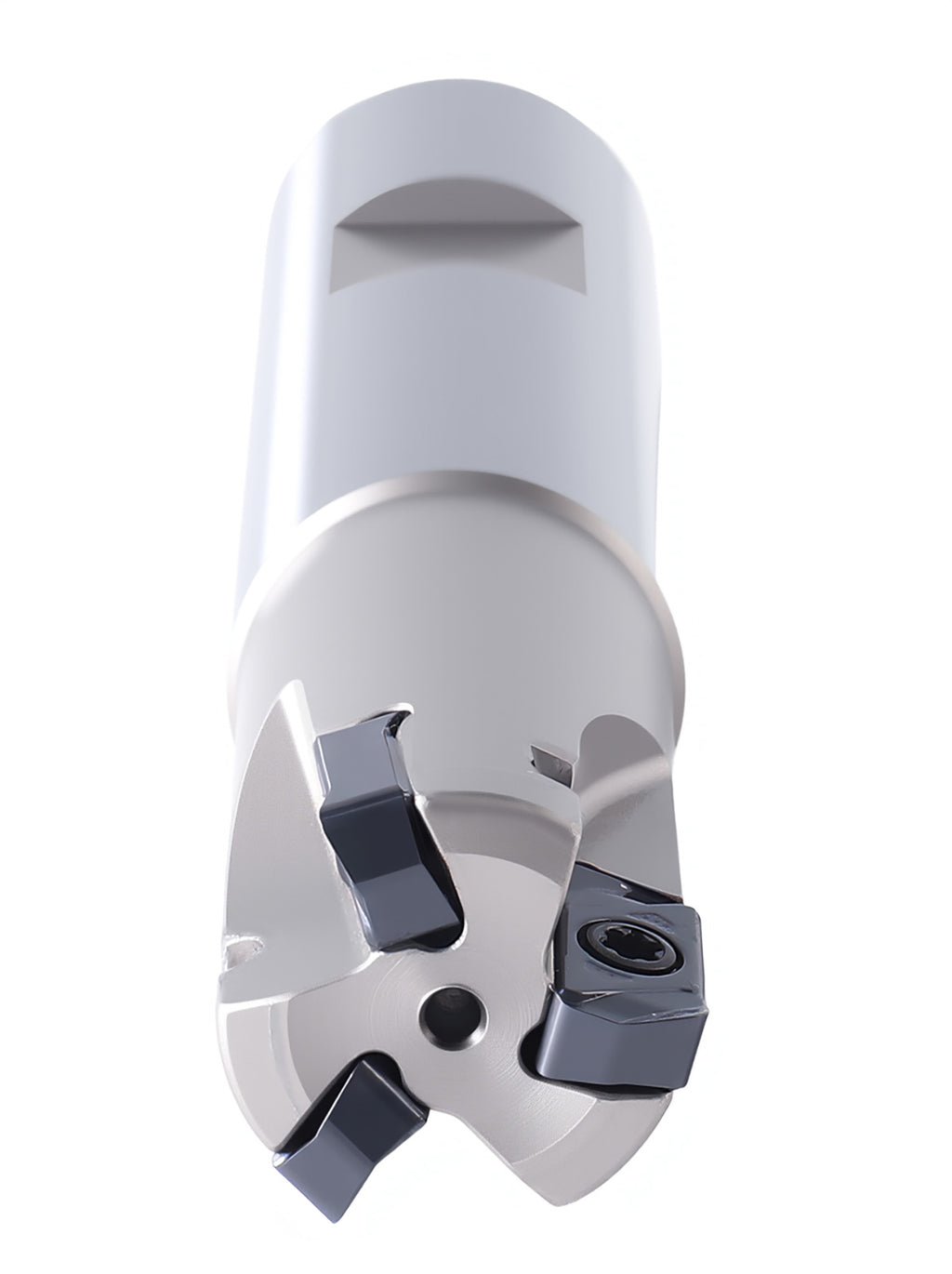

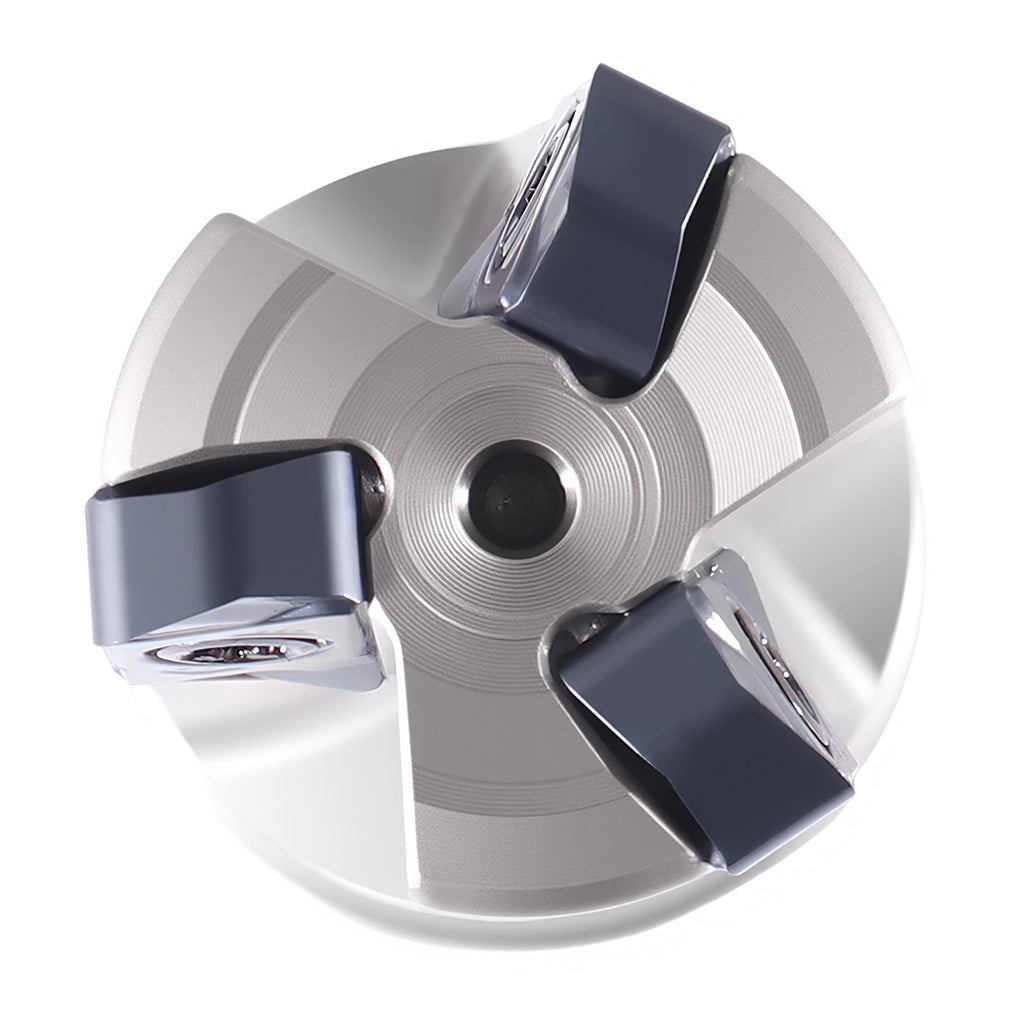

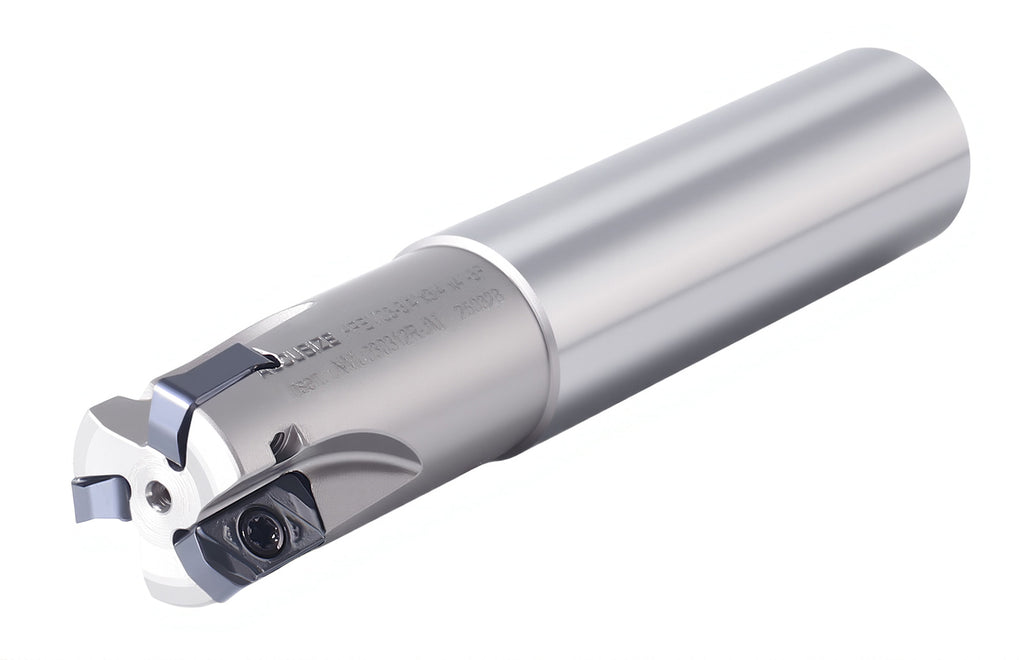

HFEM-0034 3/4" 3/4" 4" 3 LNMU030312R-JM
(6128-0001)
M2.5 x 8
(0046-2508x10)

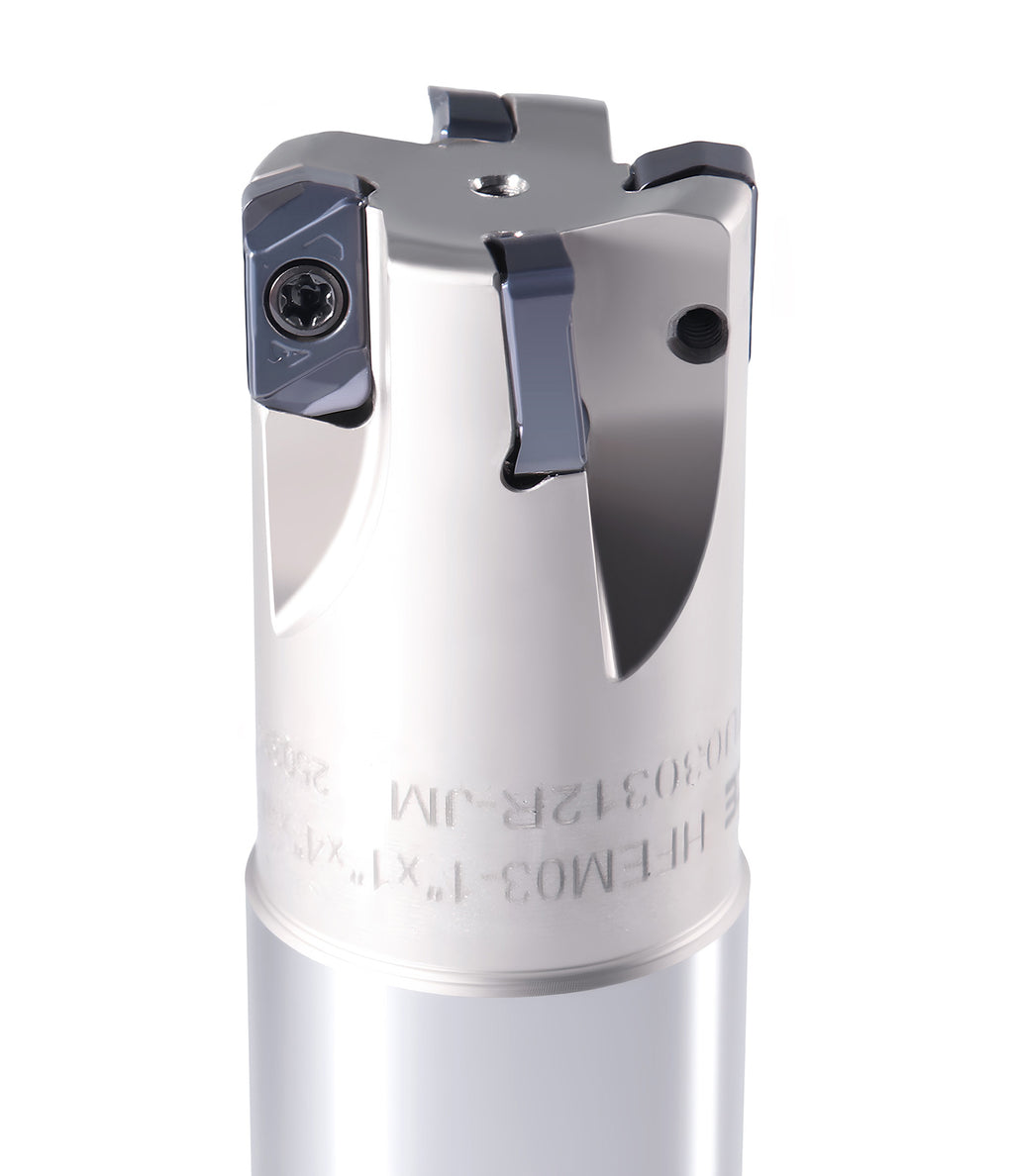

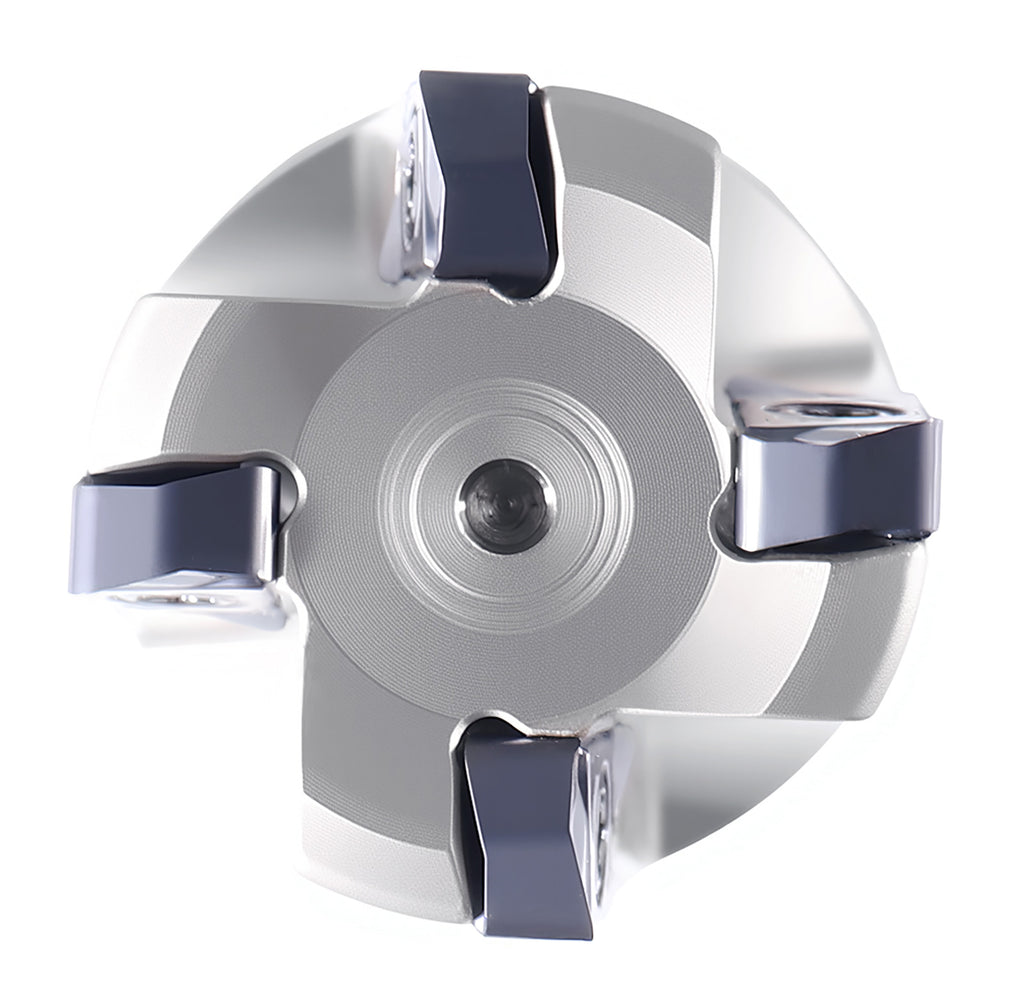

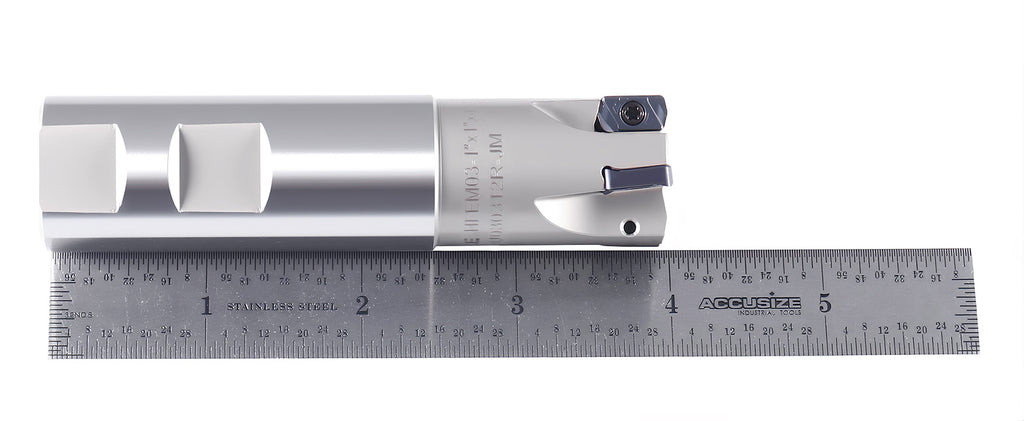

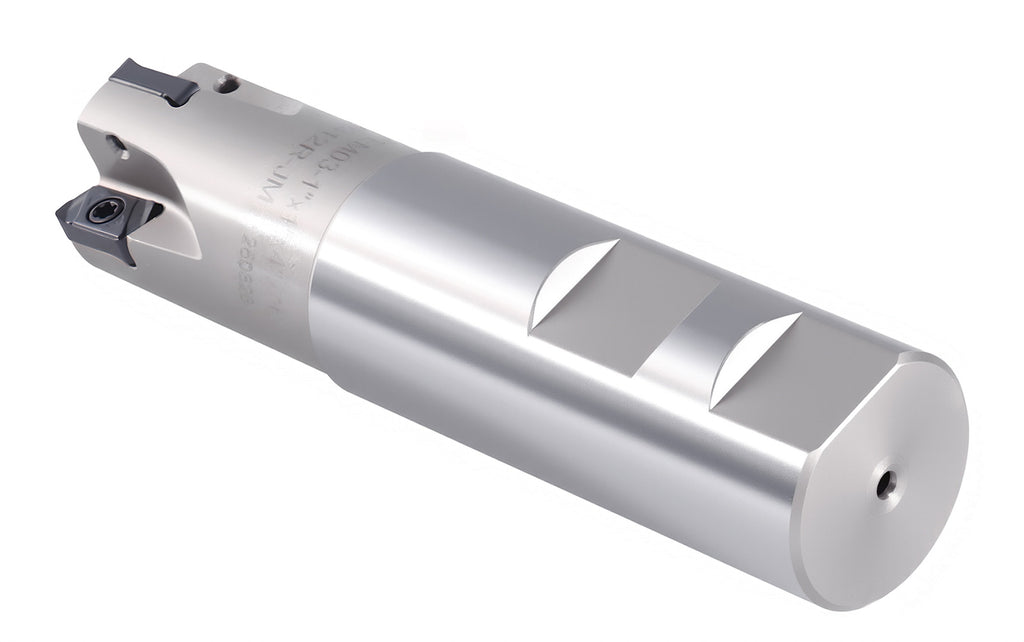

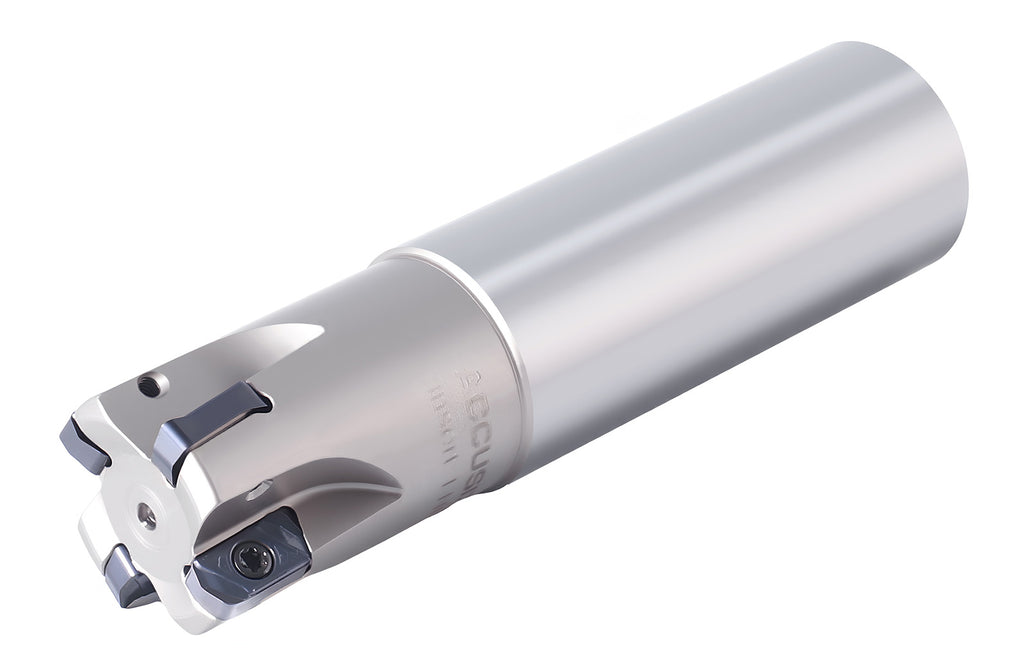

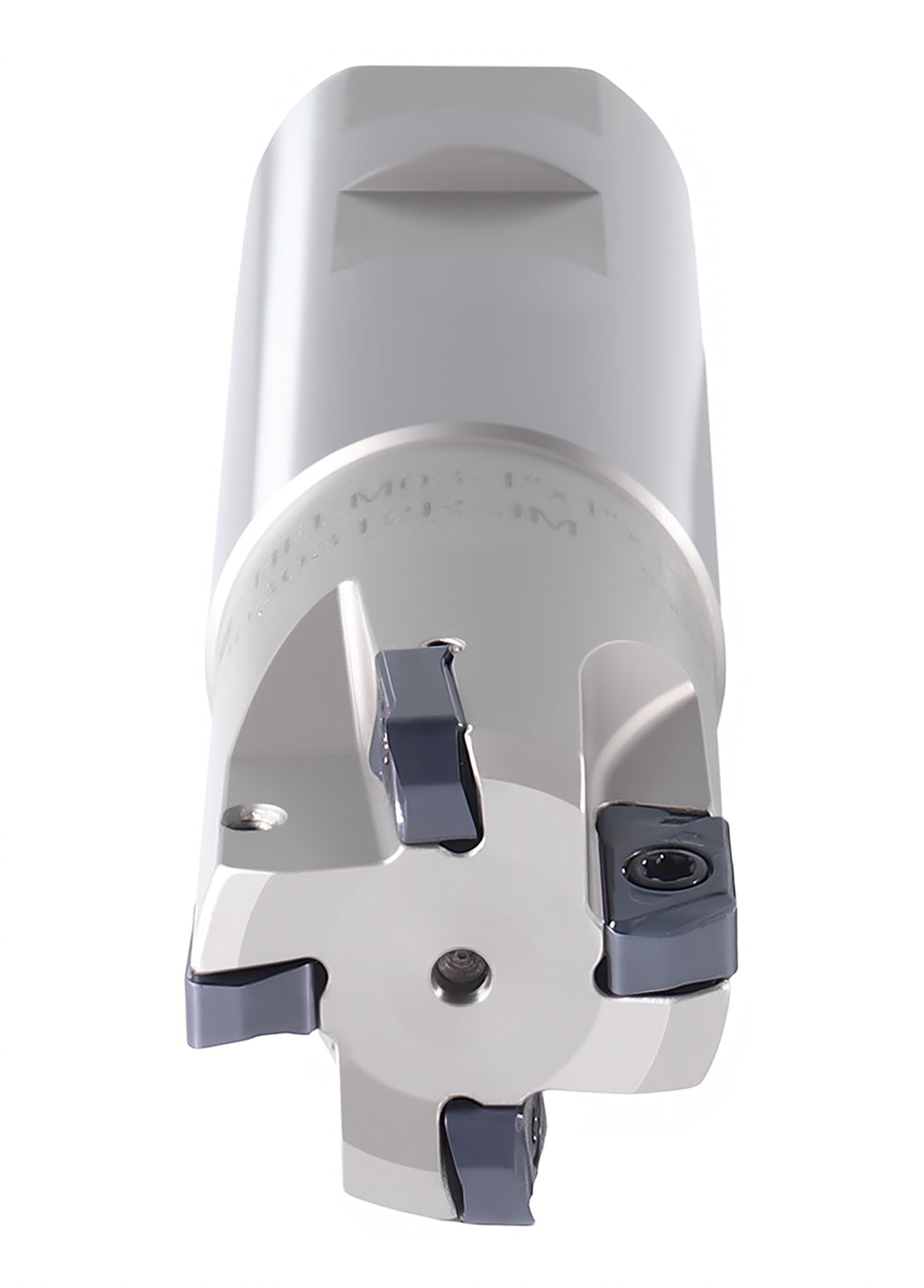

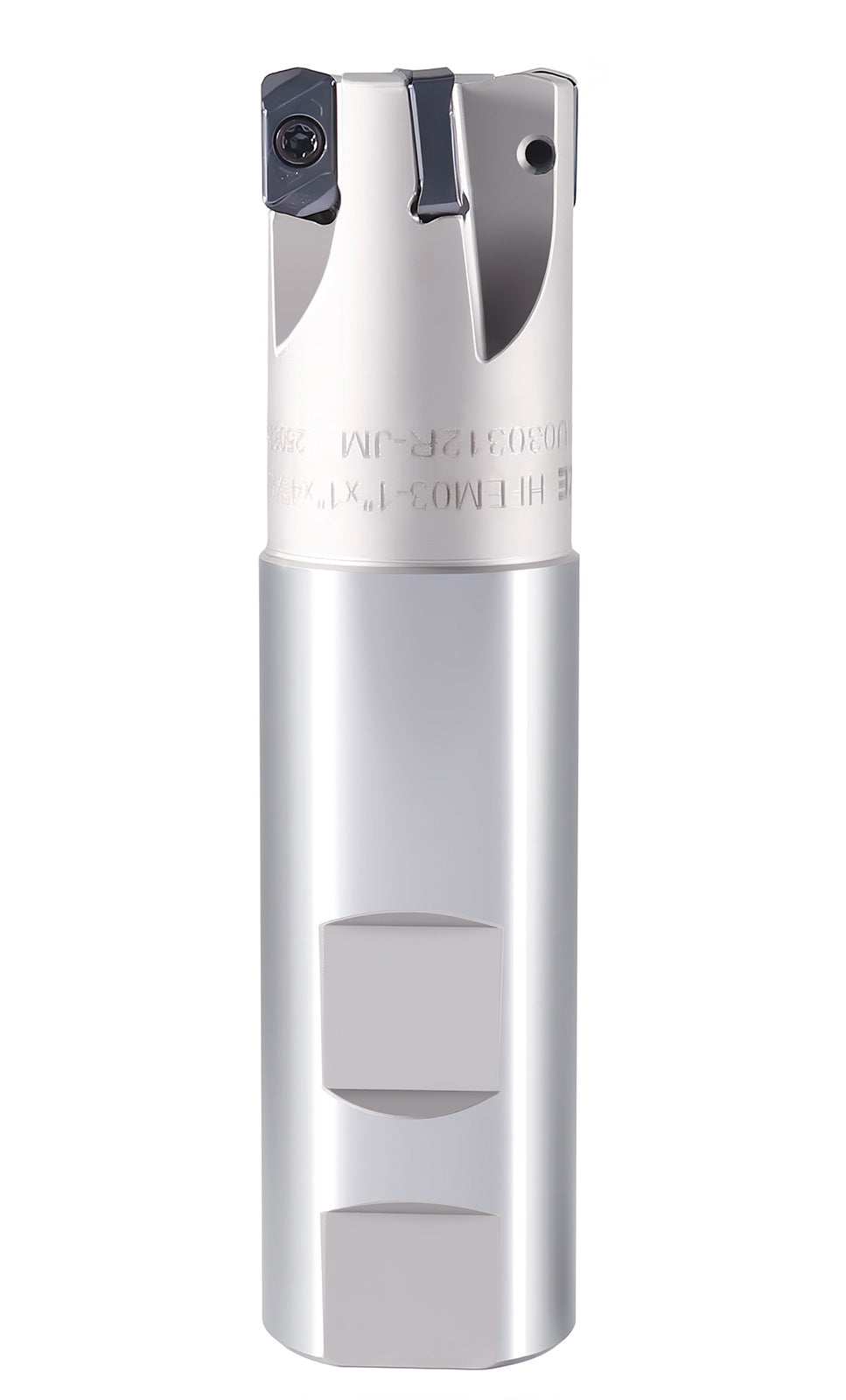

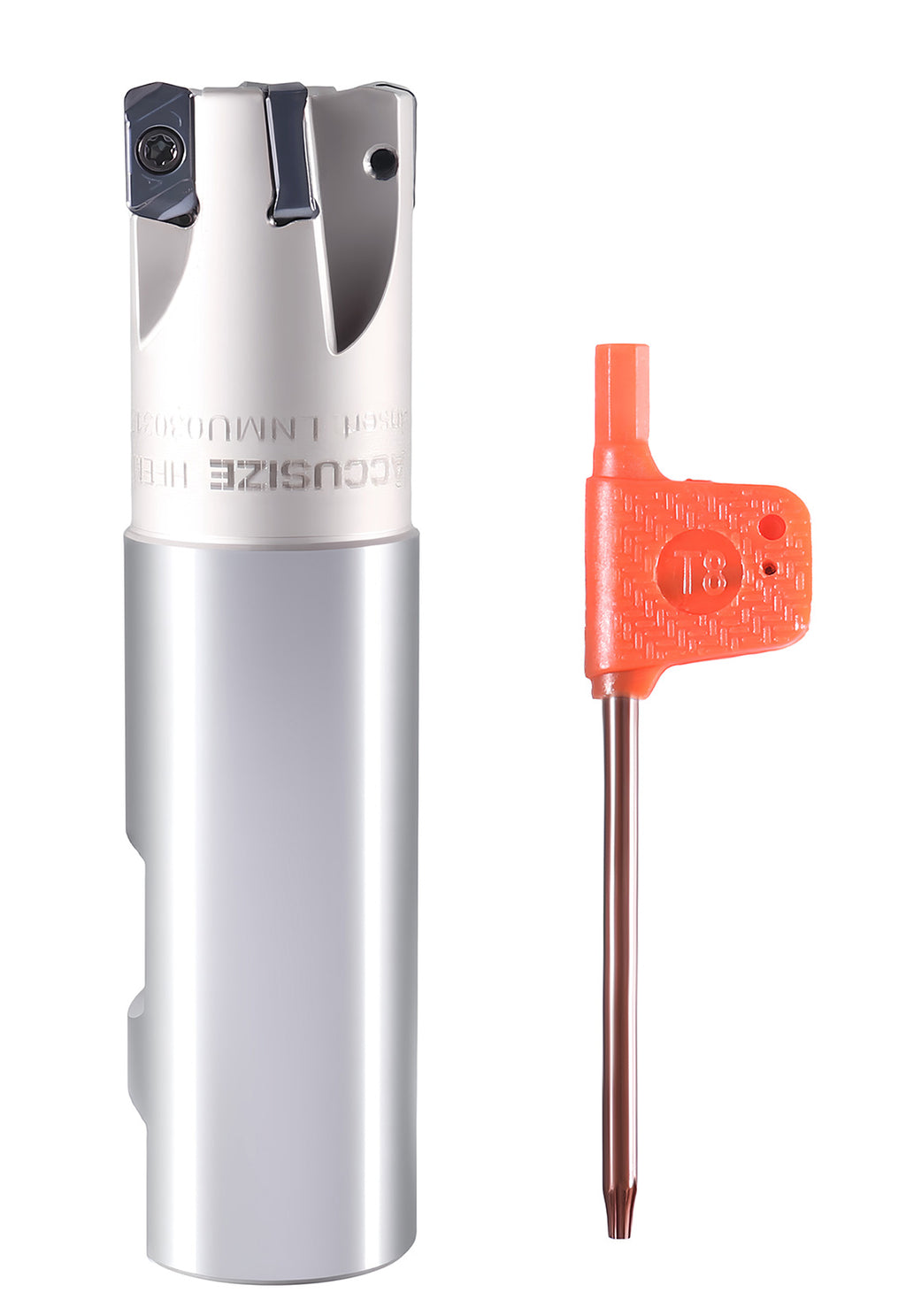

HFEM-0001 1" 1" 4" 4 LNMU030312R-JM
(6128-0001)
M2.5 x 8
(0046-2508x10)

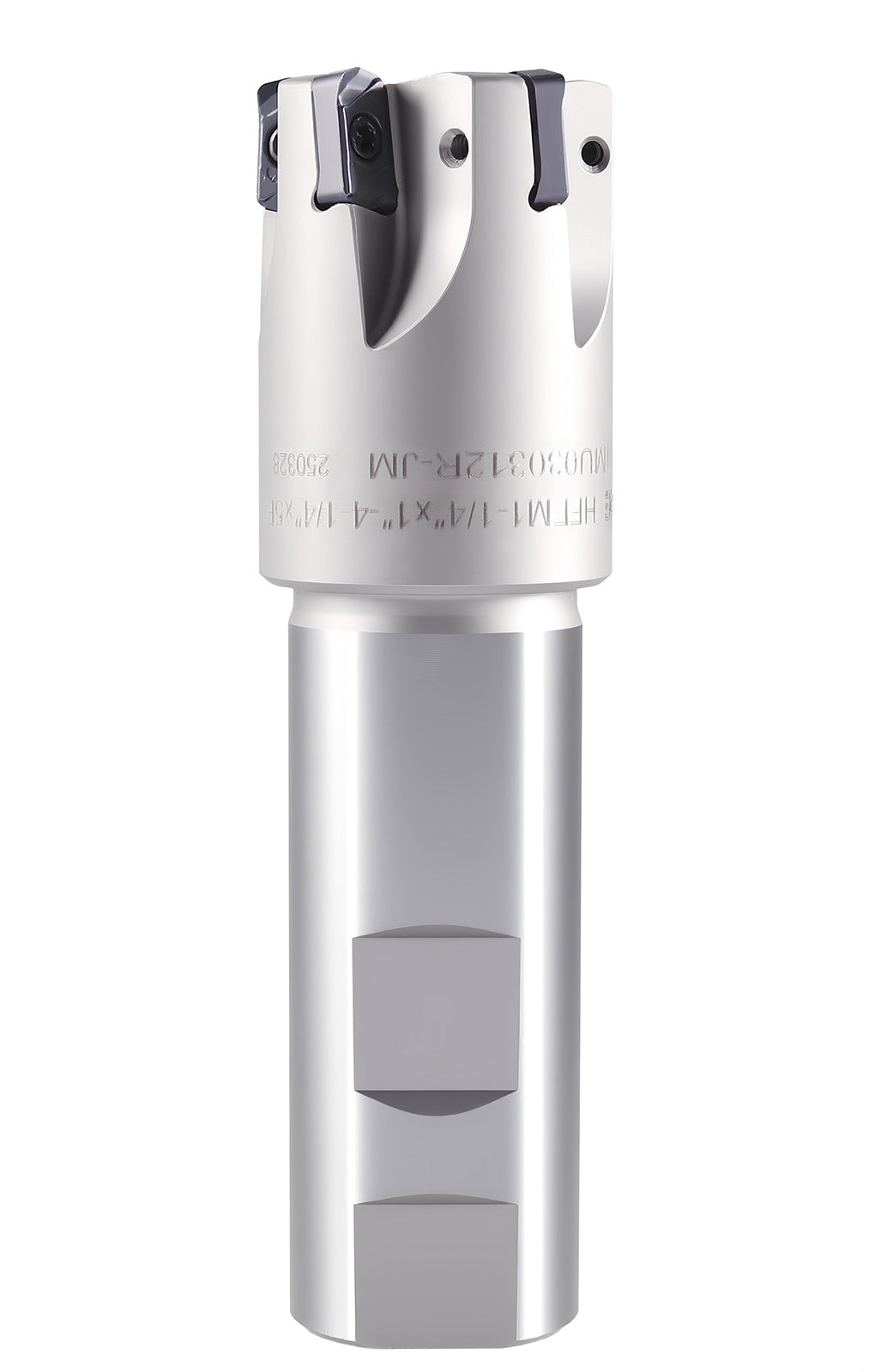

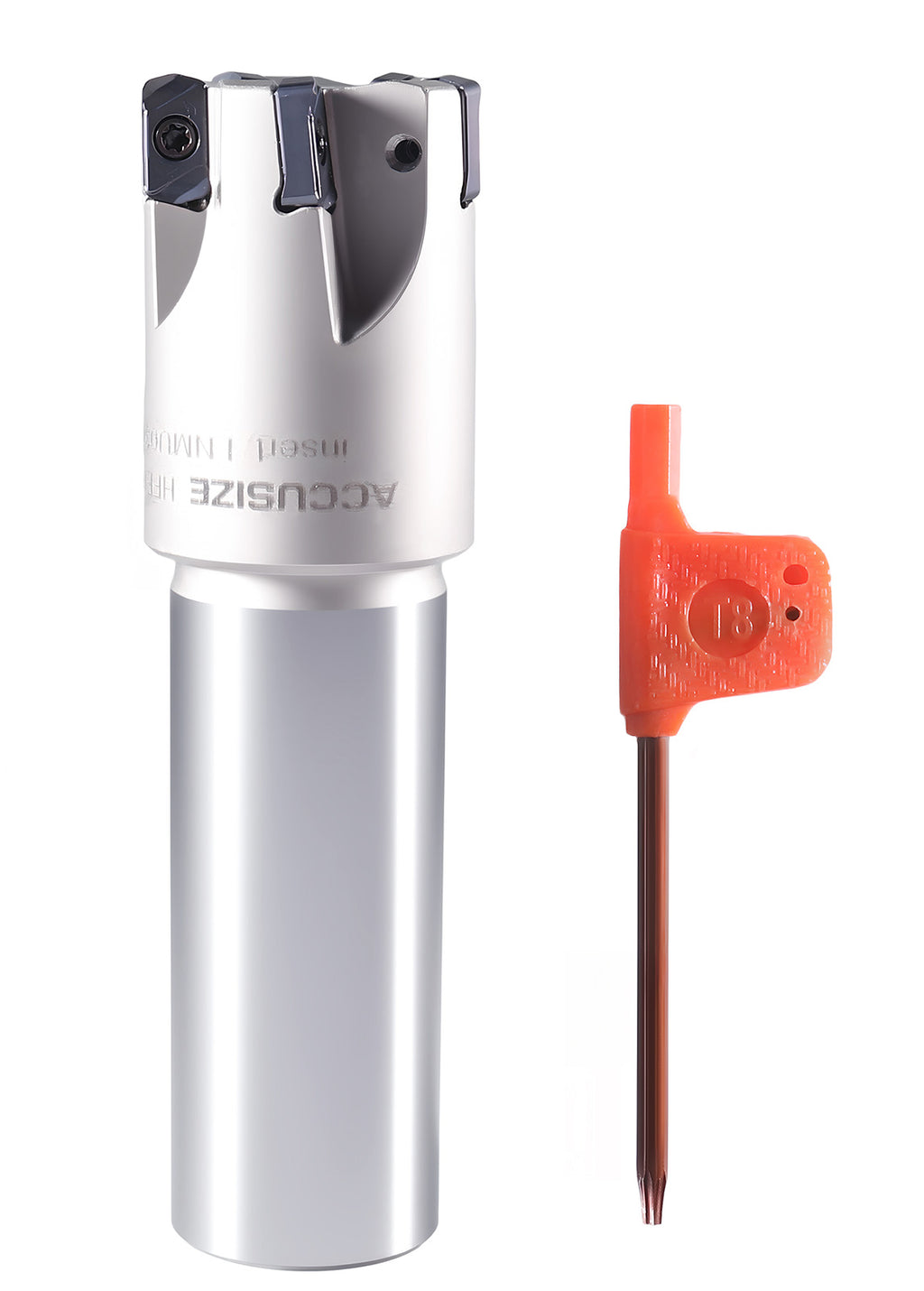

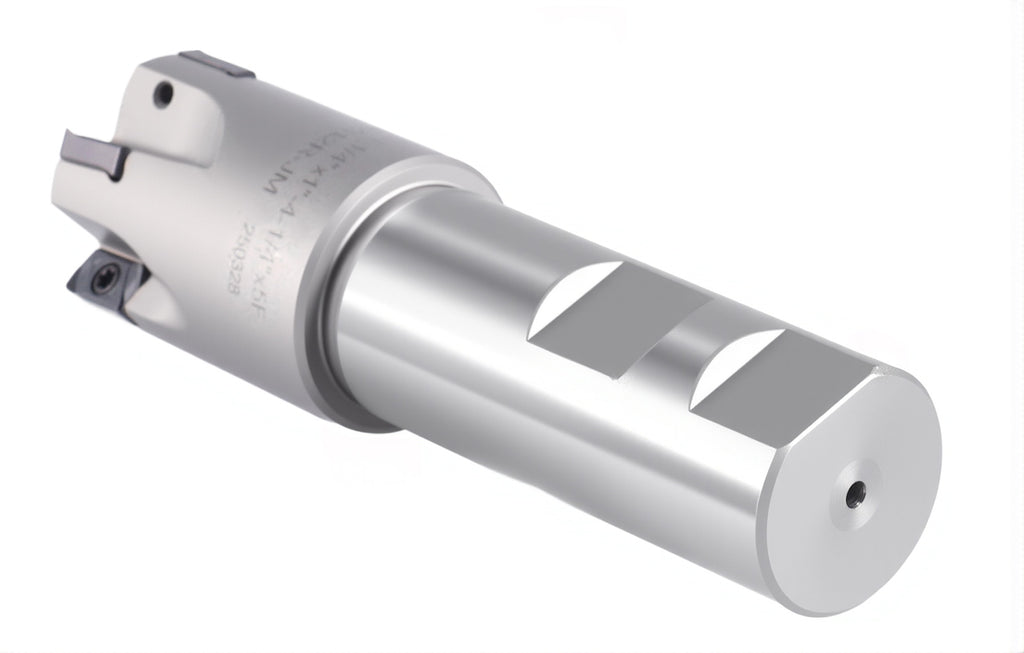

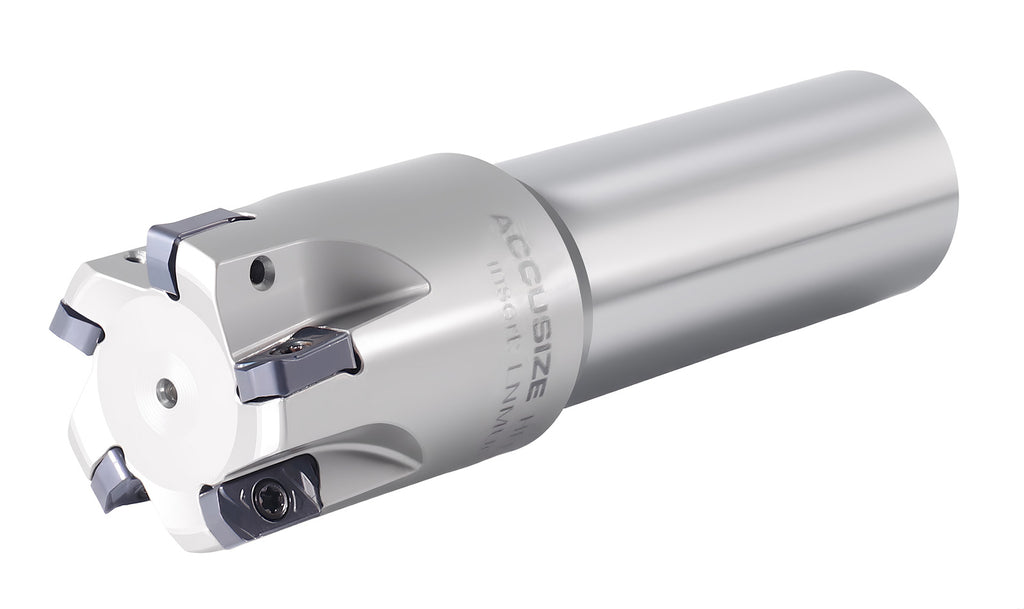

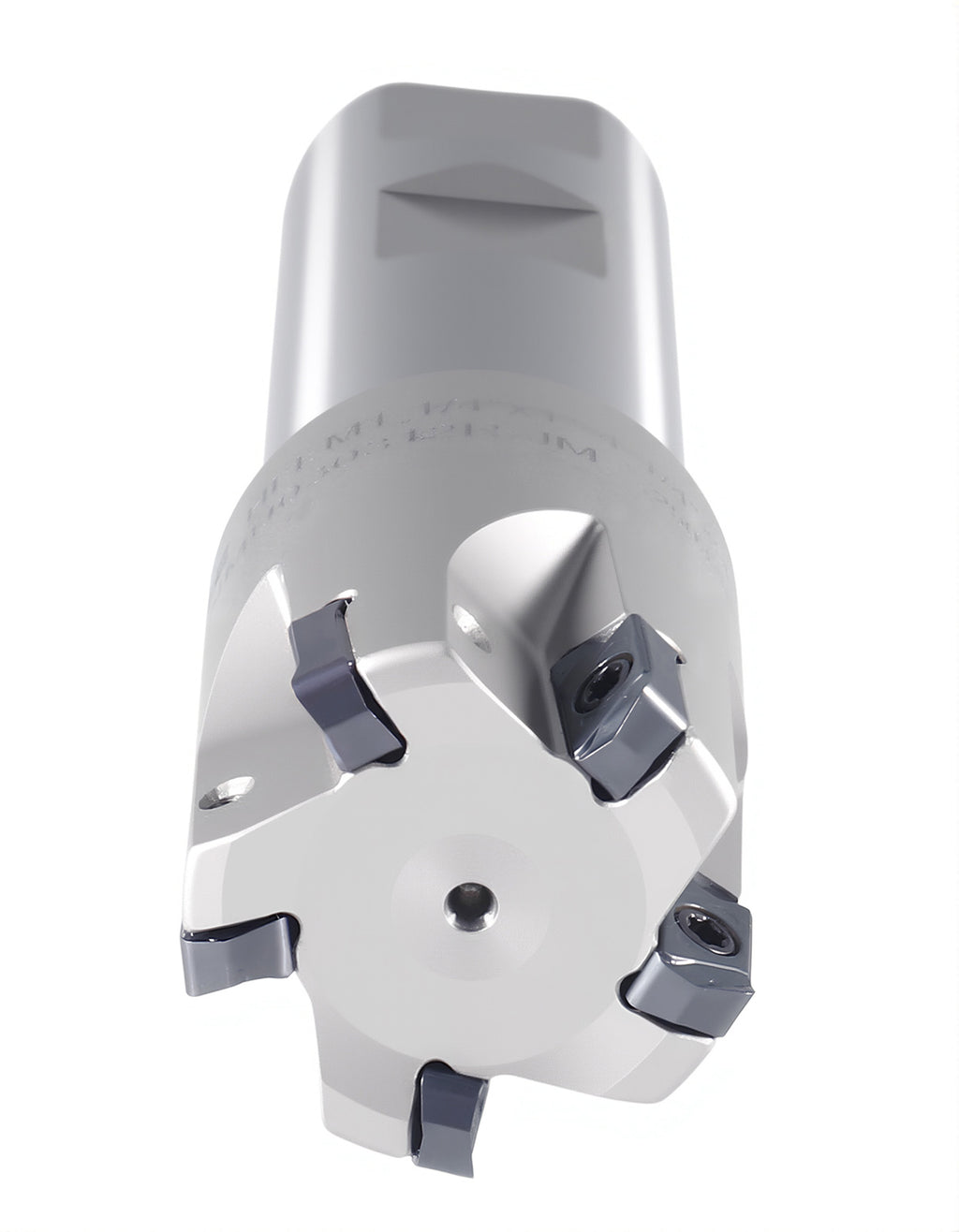

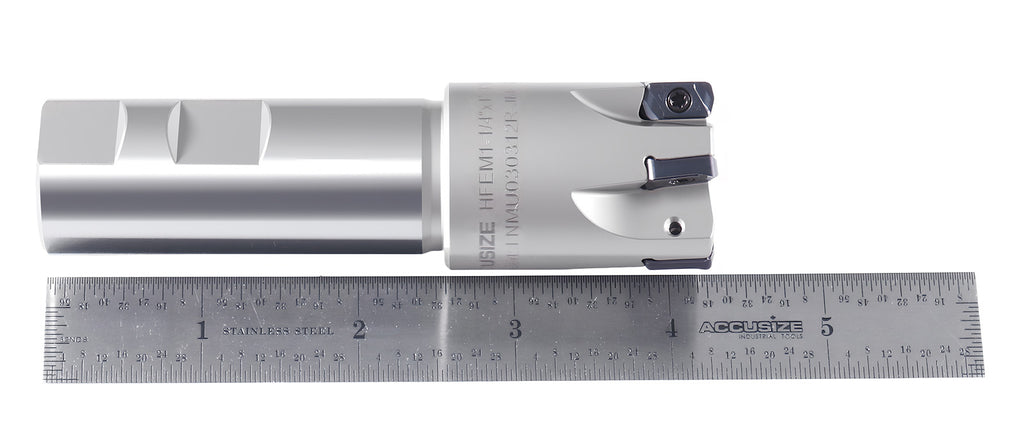

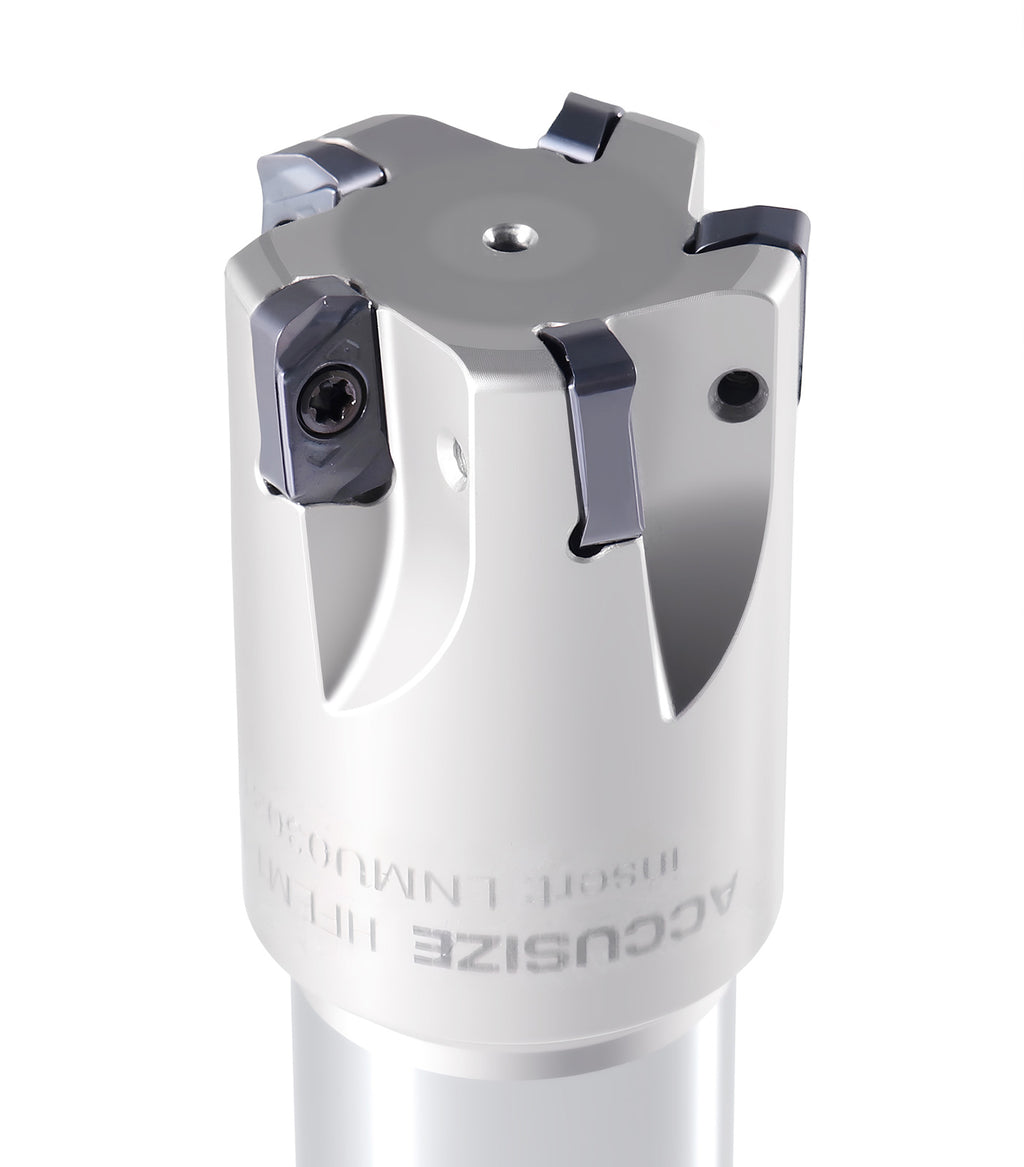

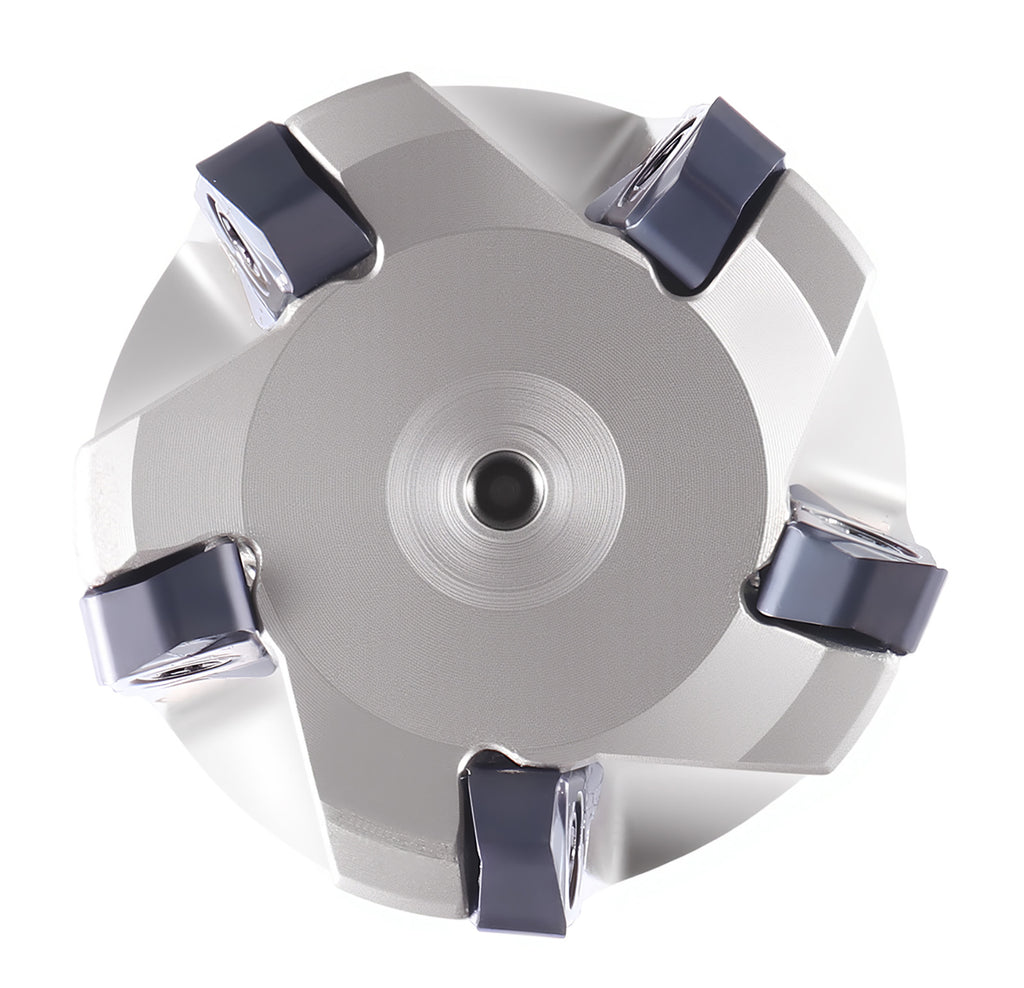

HFEM-1114 1-1/4" 1" 4-1/4" 5 LNMU030312R-JM
(6128-0001)
M2.5 x 8
(0046-2508x10)

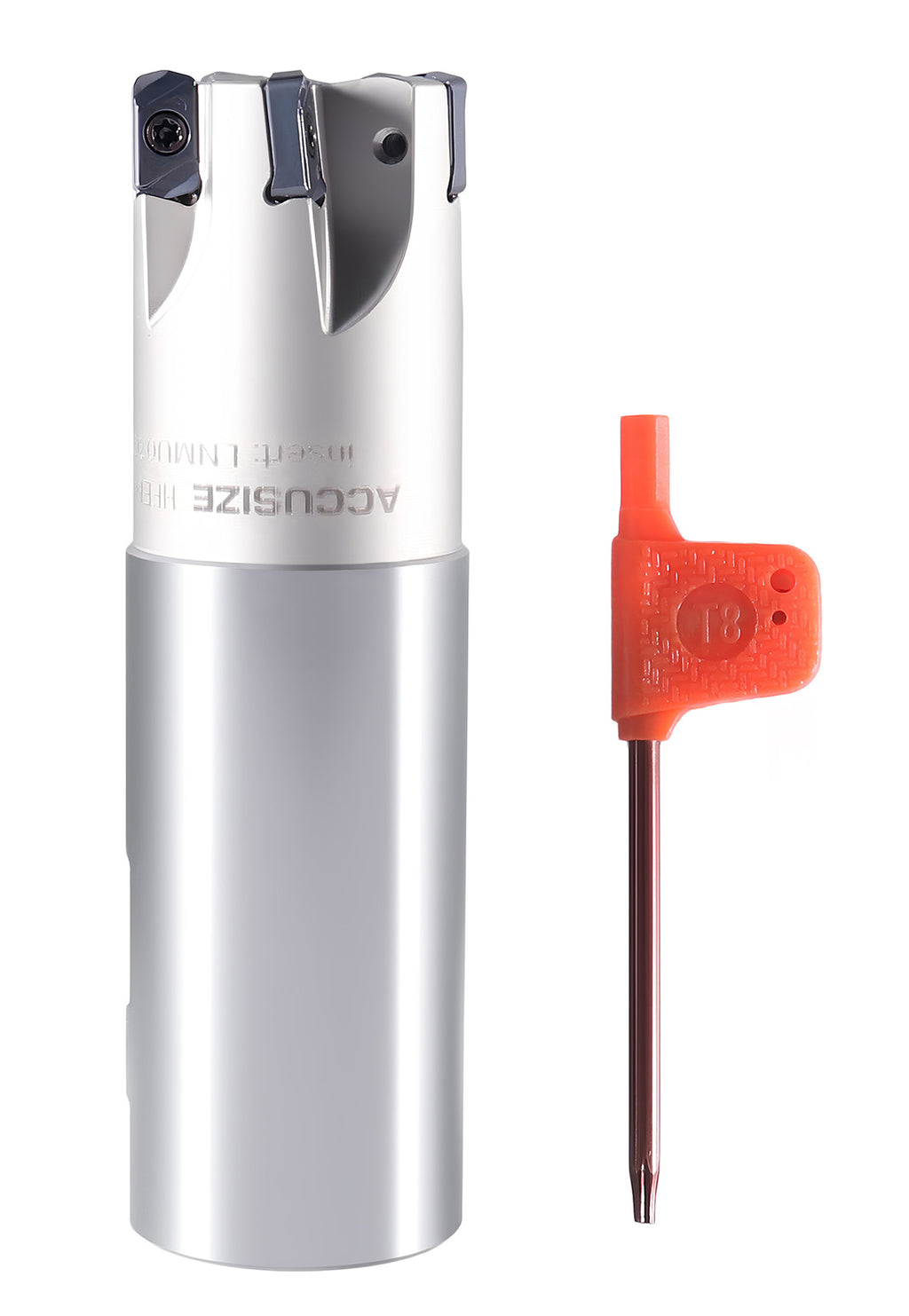

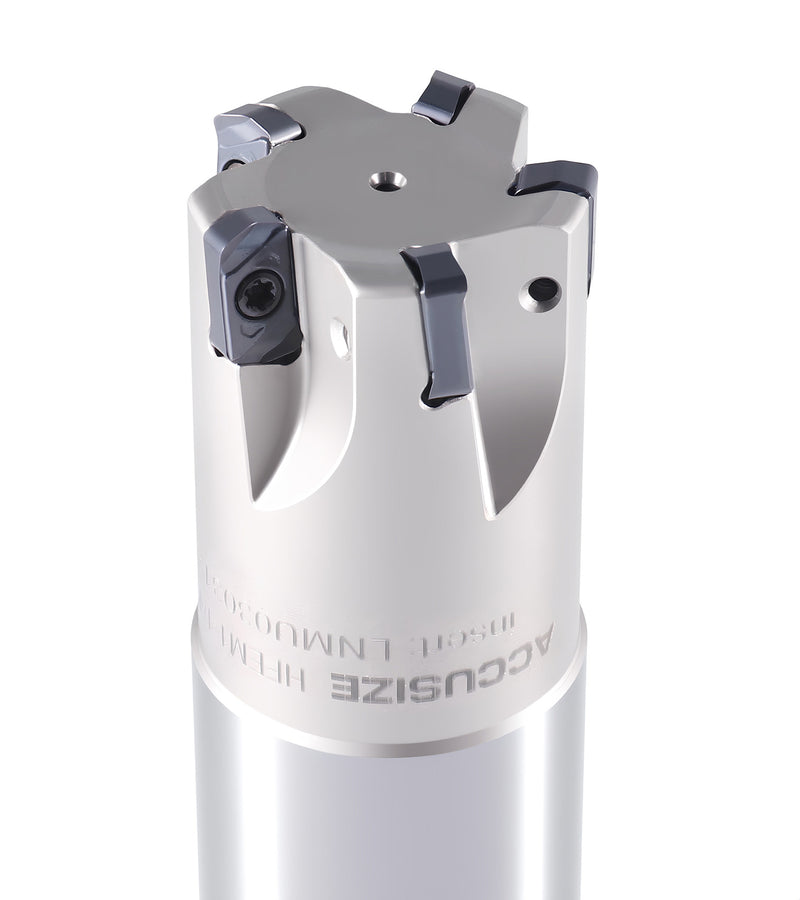

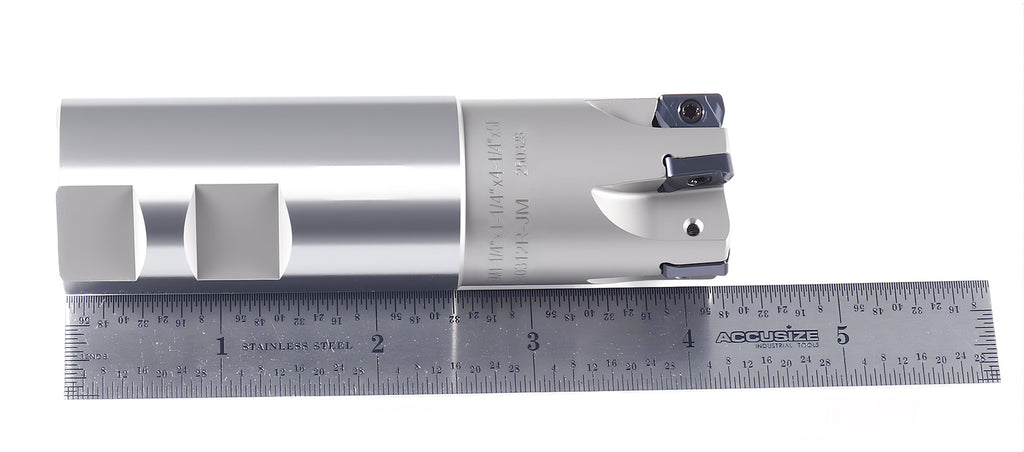

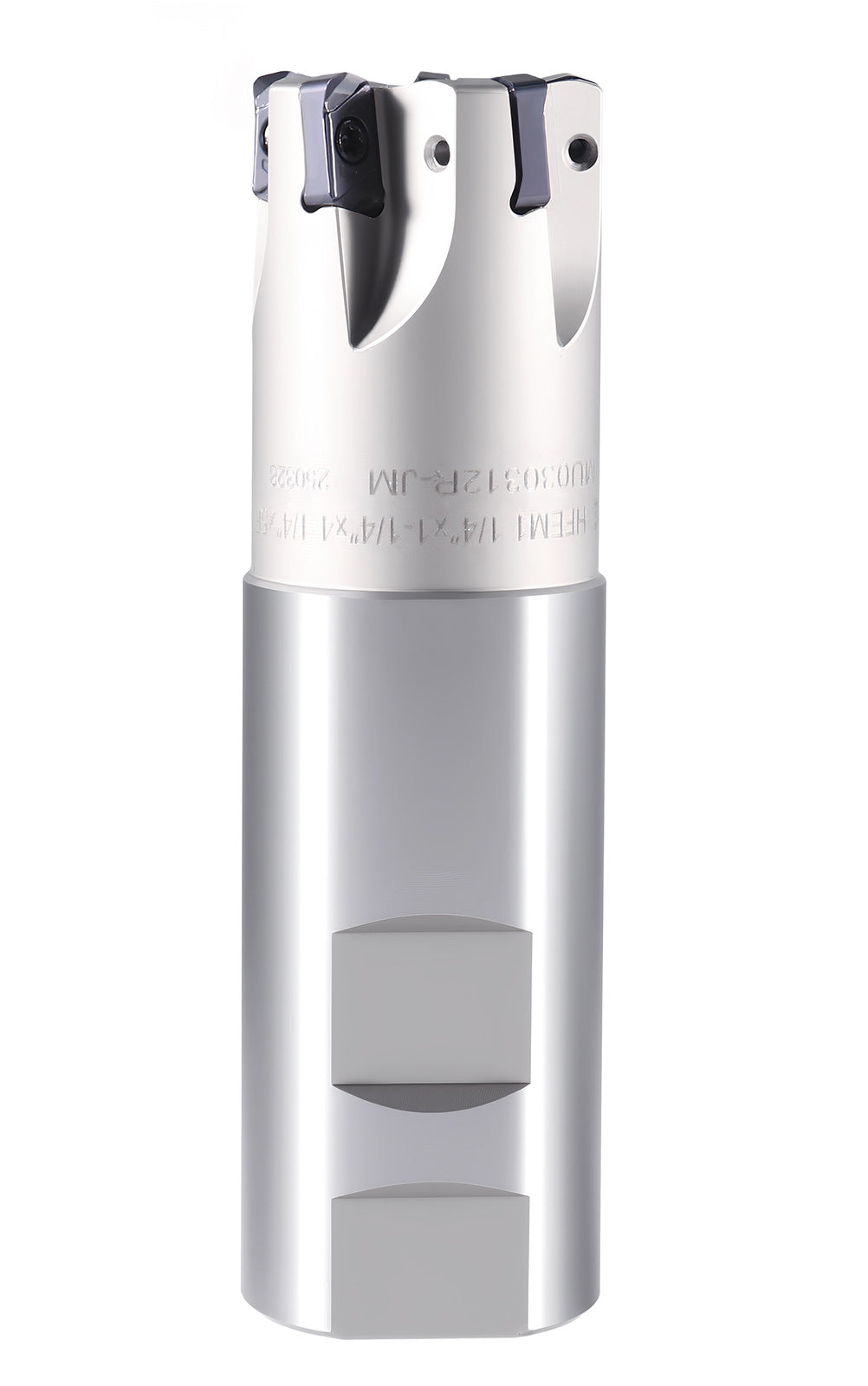

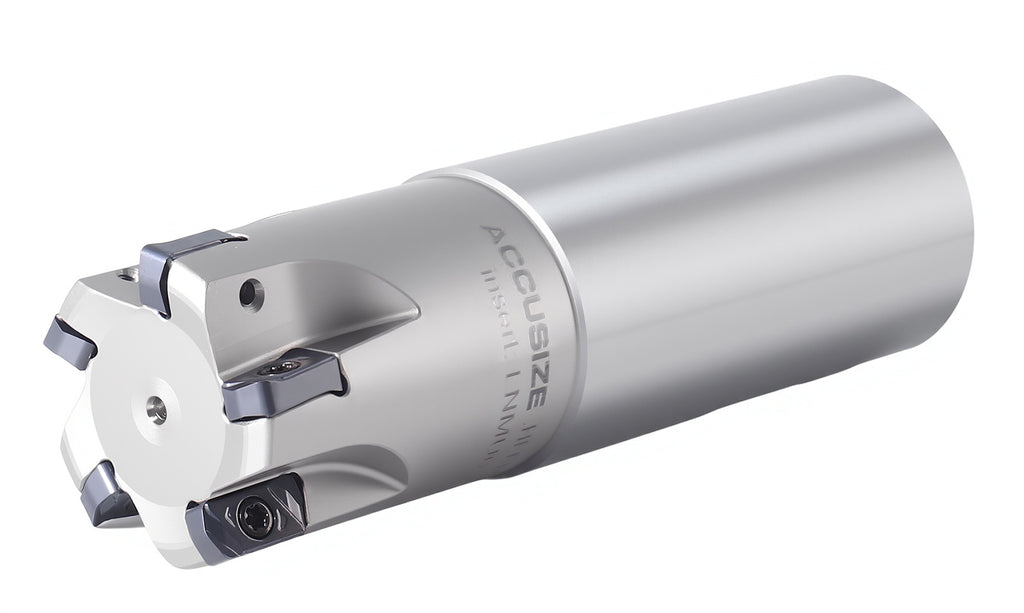

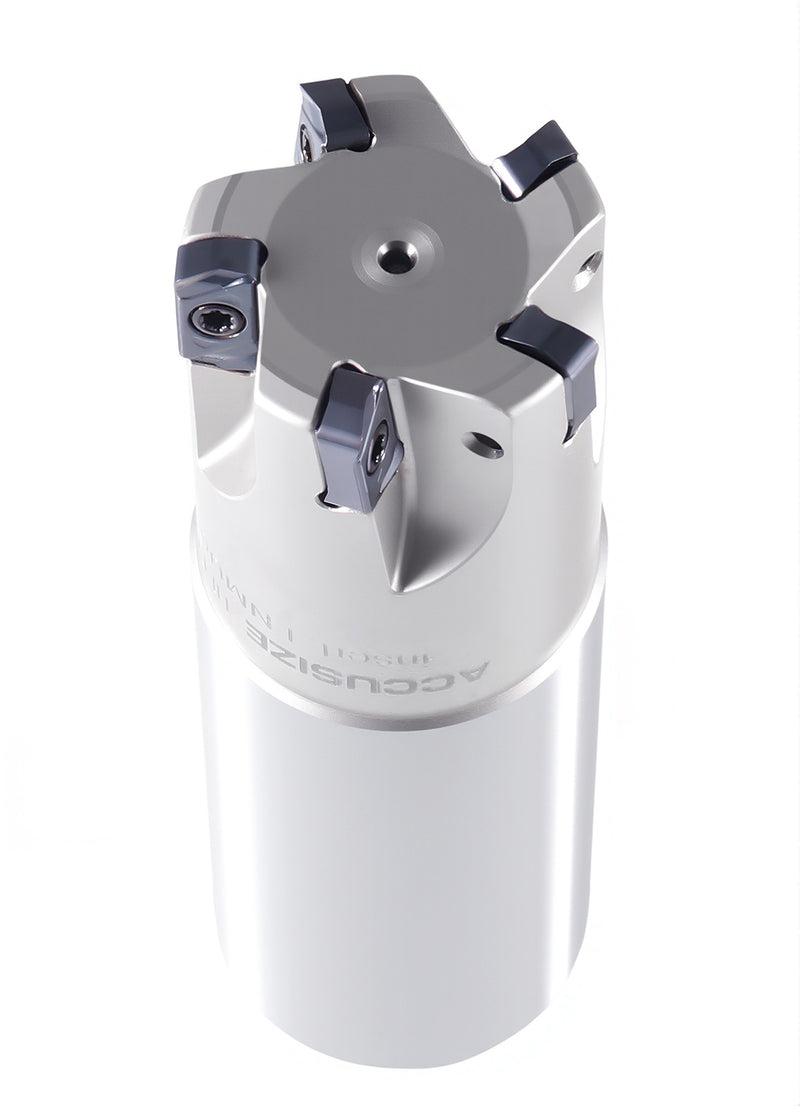

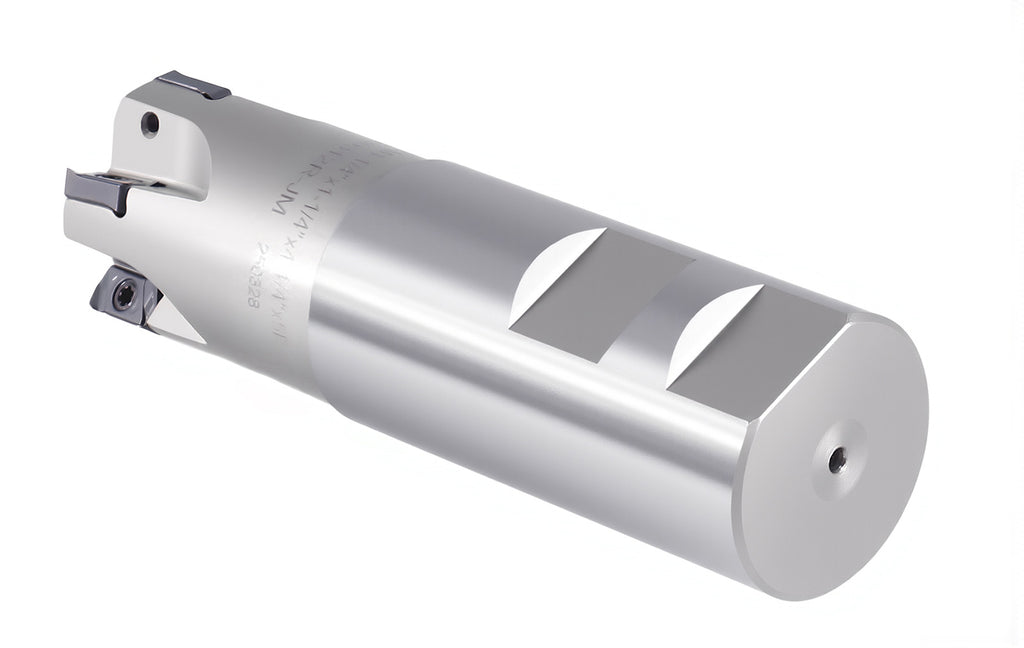

HFEM-2114 1-1/4" 1-1/4" 4-1/4" 5 LNMU030312R-JM
(6128-0001)
M2.5 x 8
(0046-2508x10)

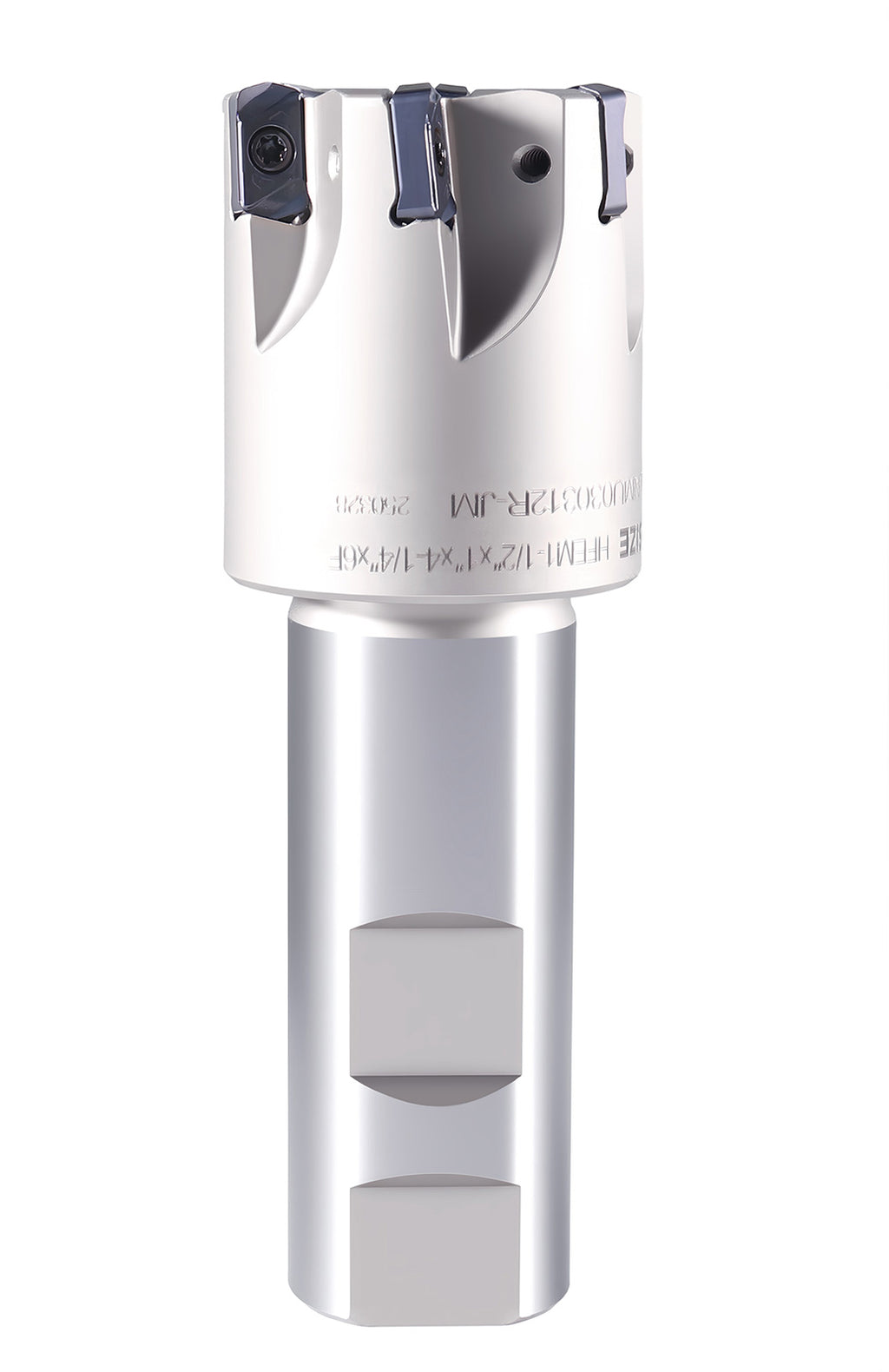

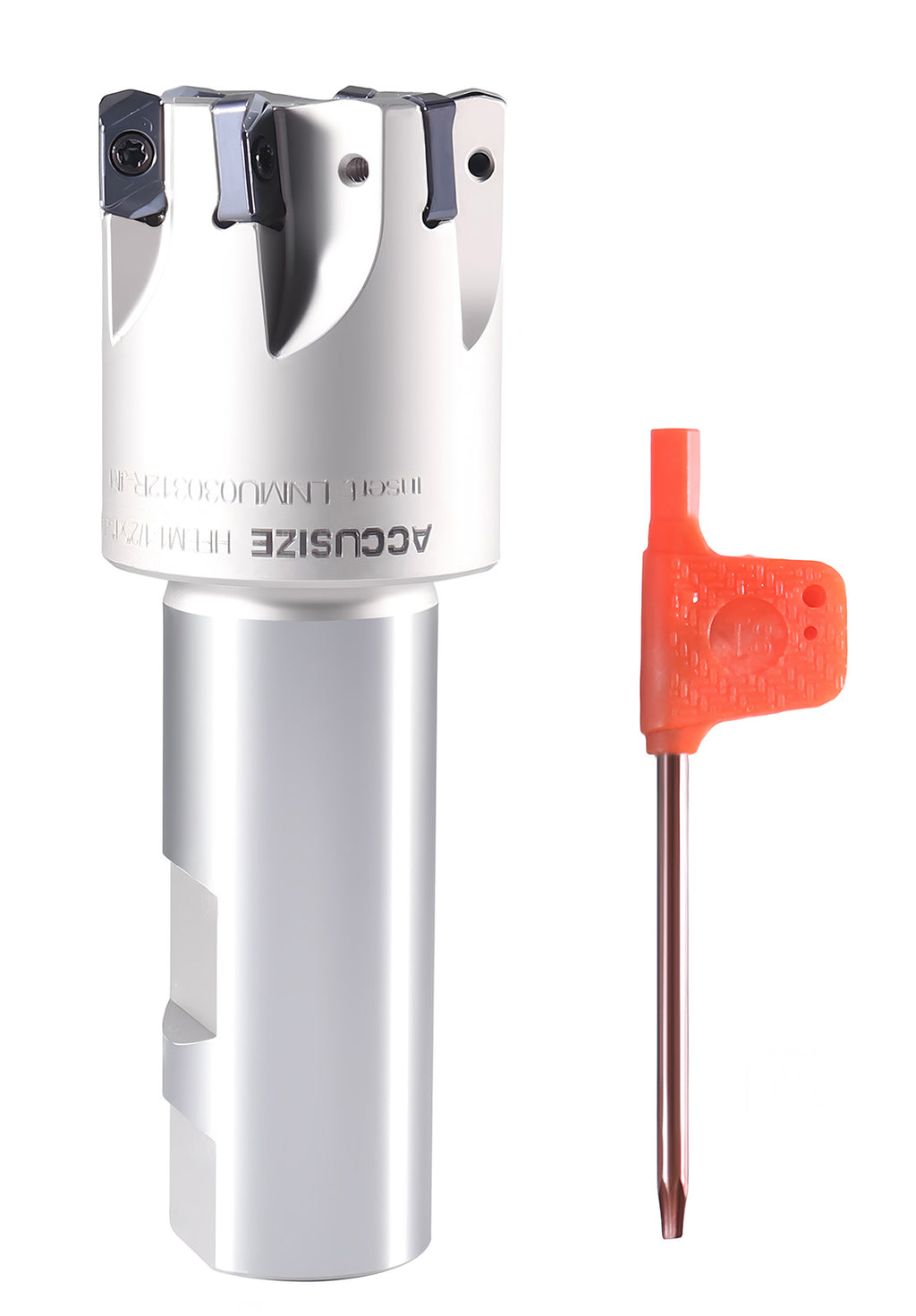

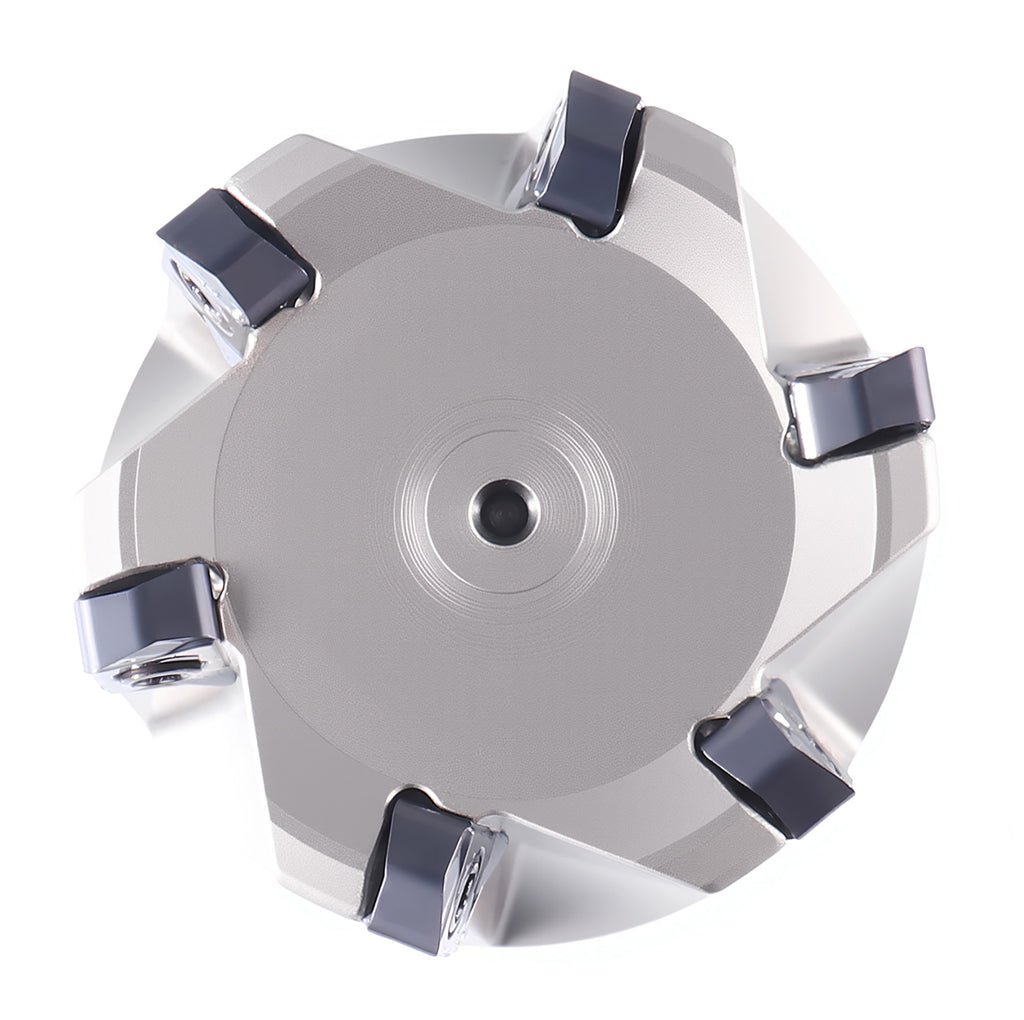

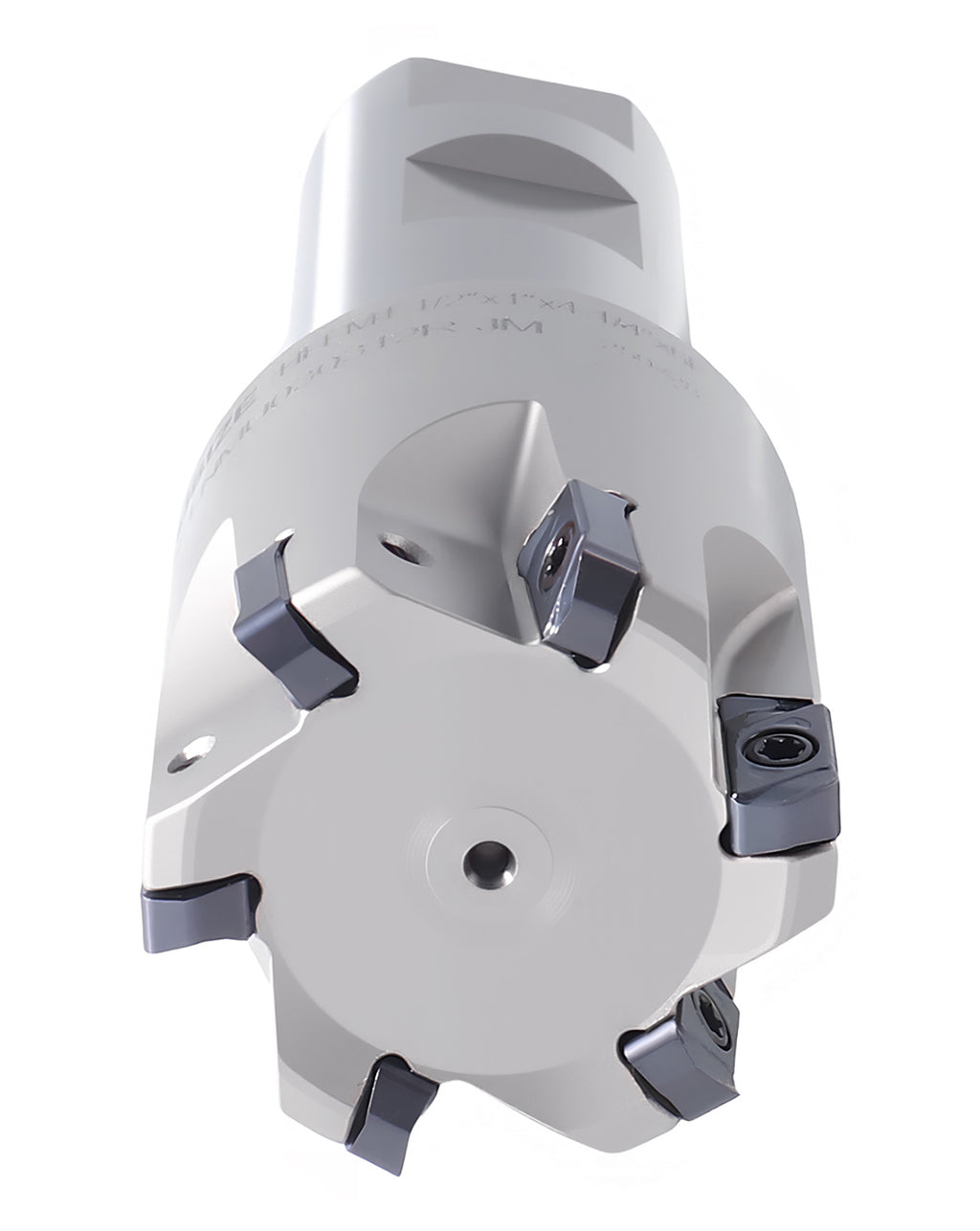

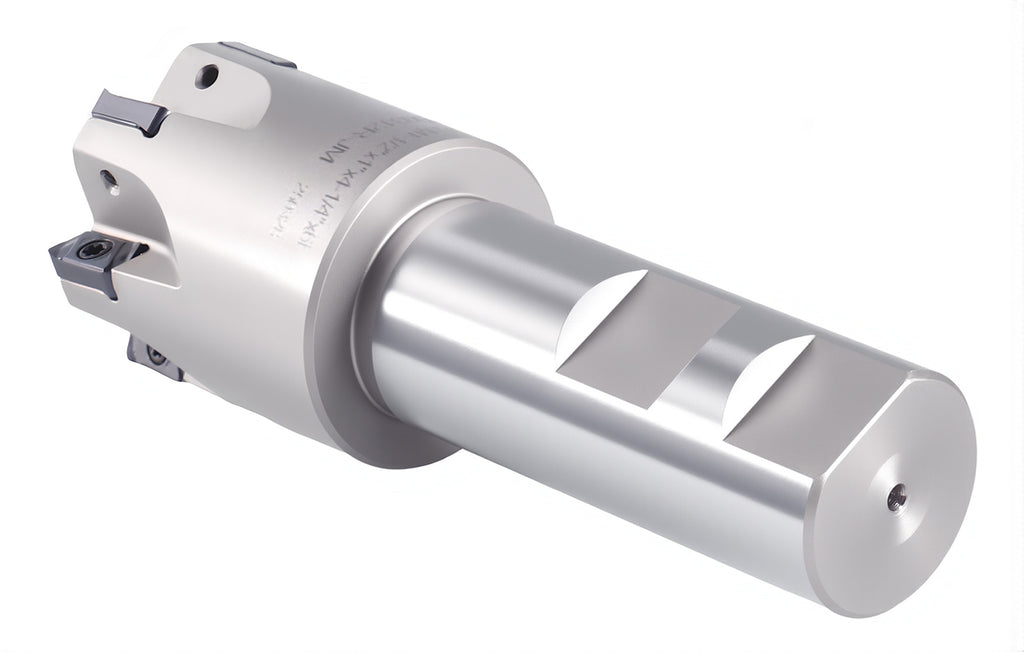

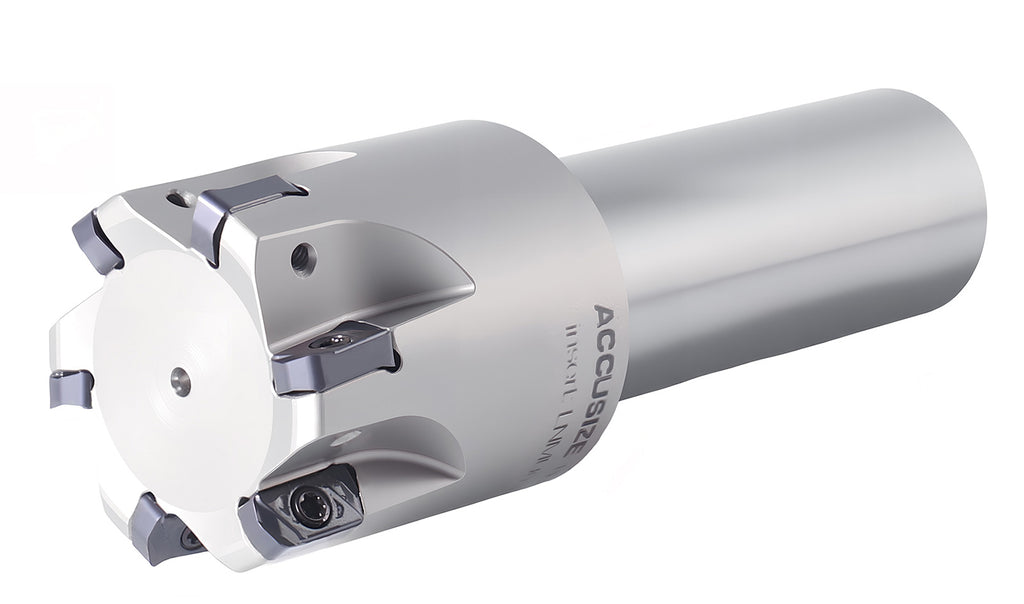

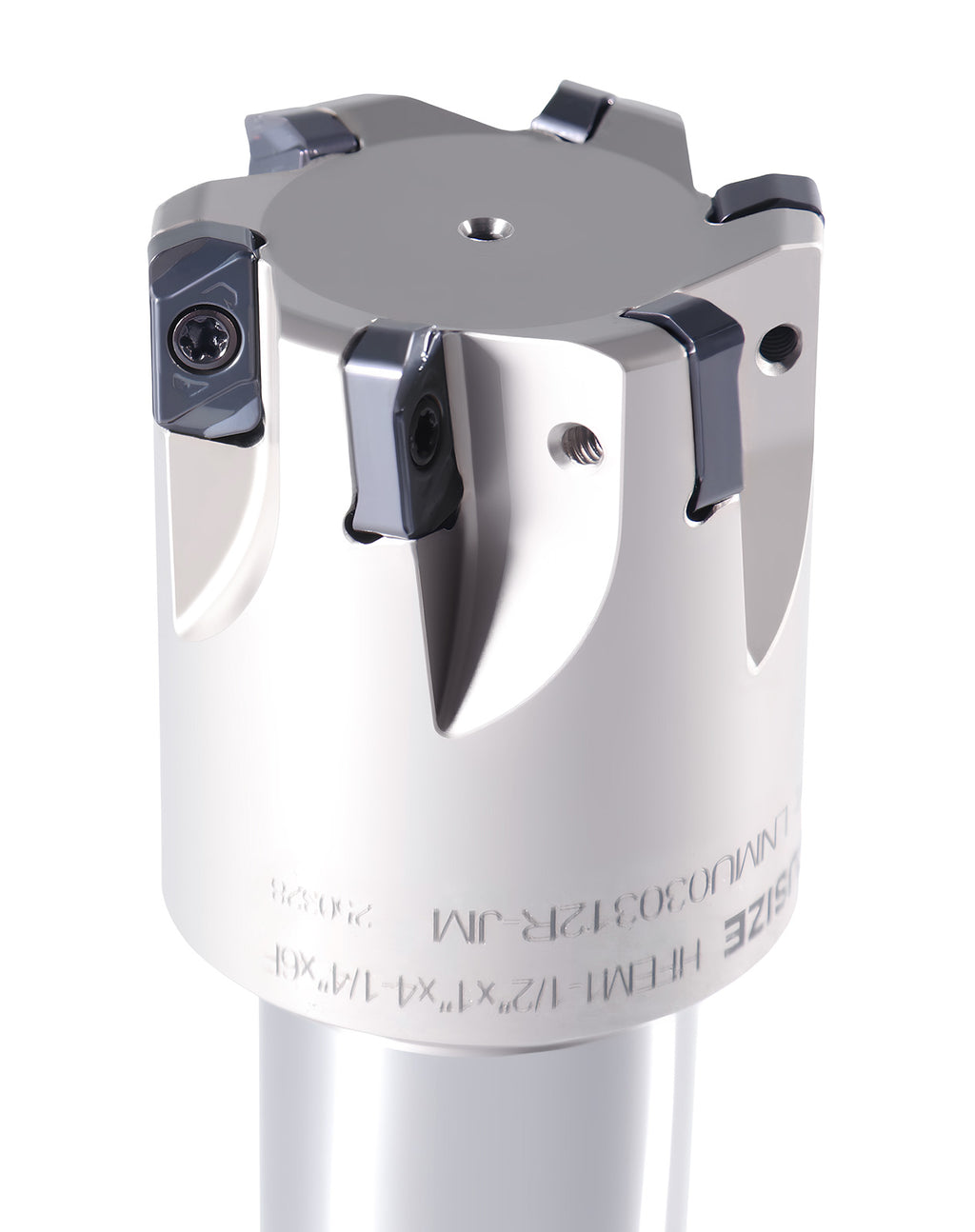

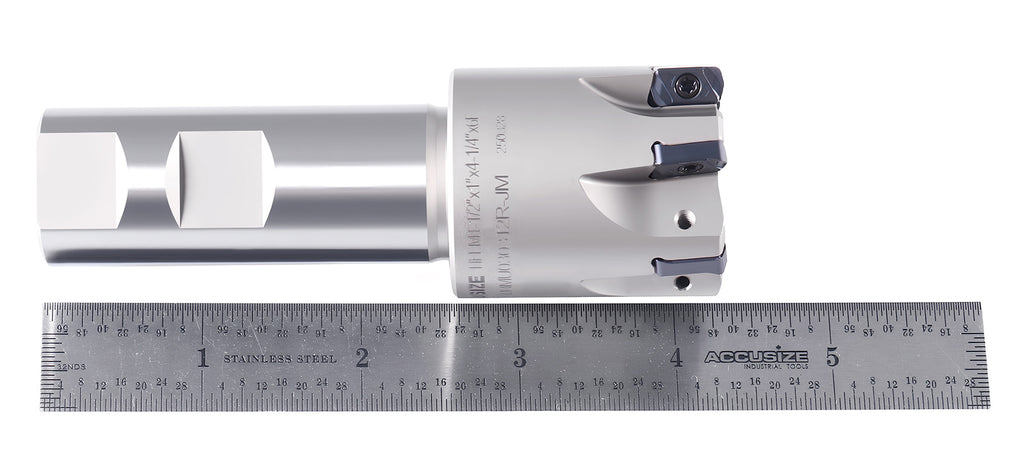

HFEM-1112 1-1/2" 1" 4-1/4" 6 LNMU030312R-JM
(6128-0001)
M2.5 x 8
(0046-2508x10)

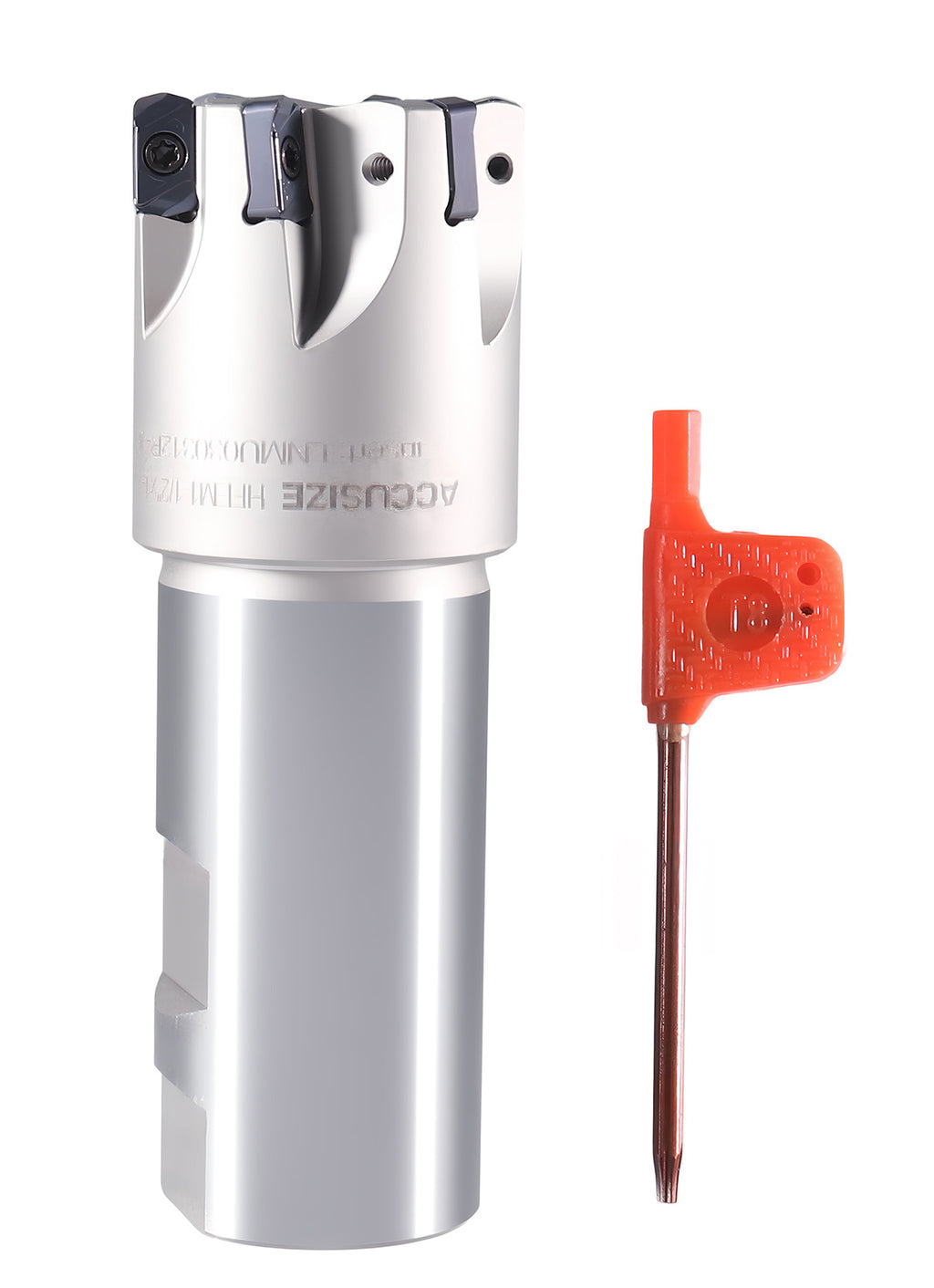

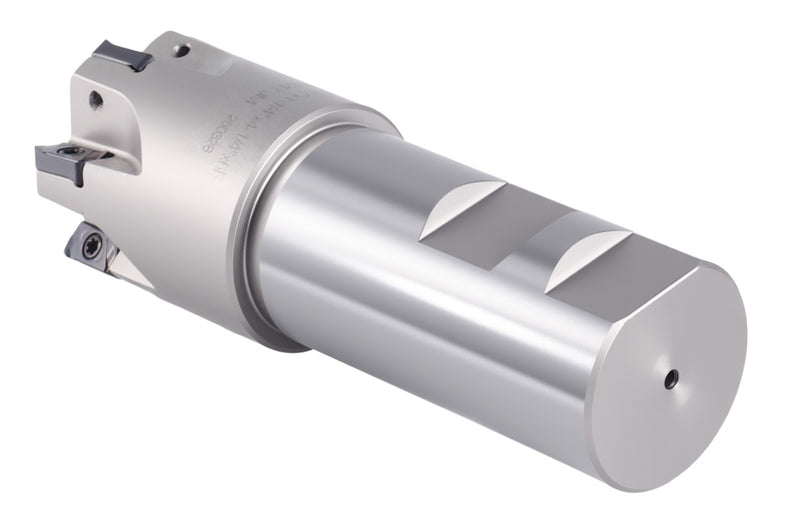

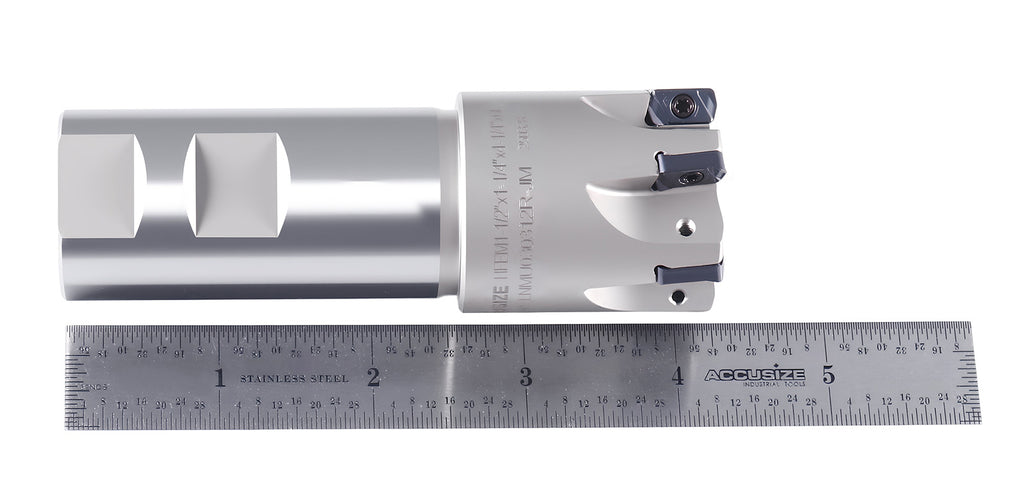

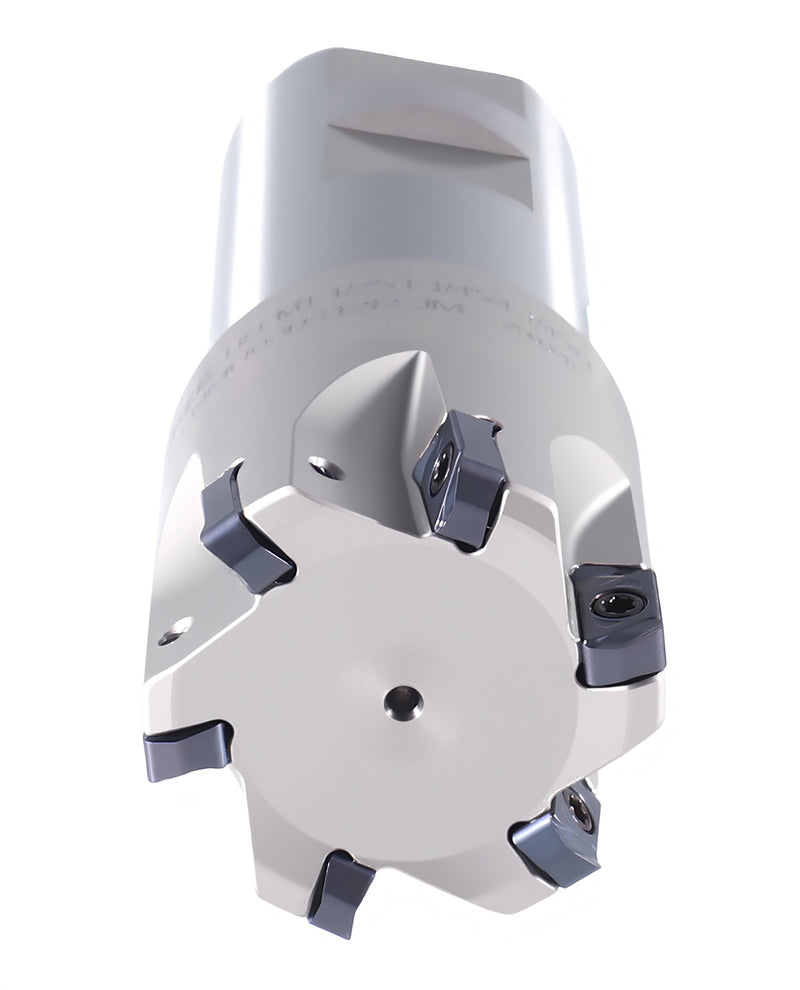

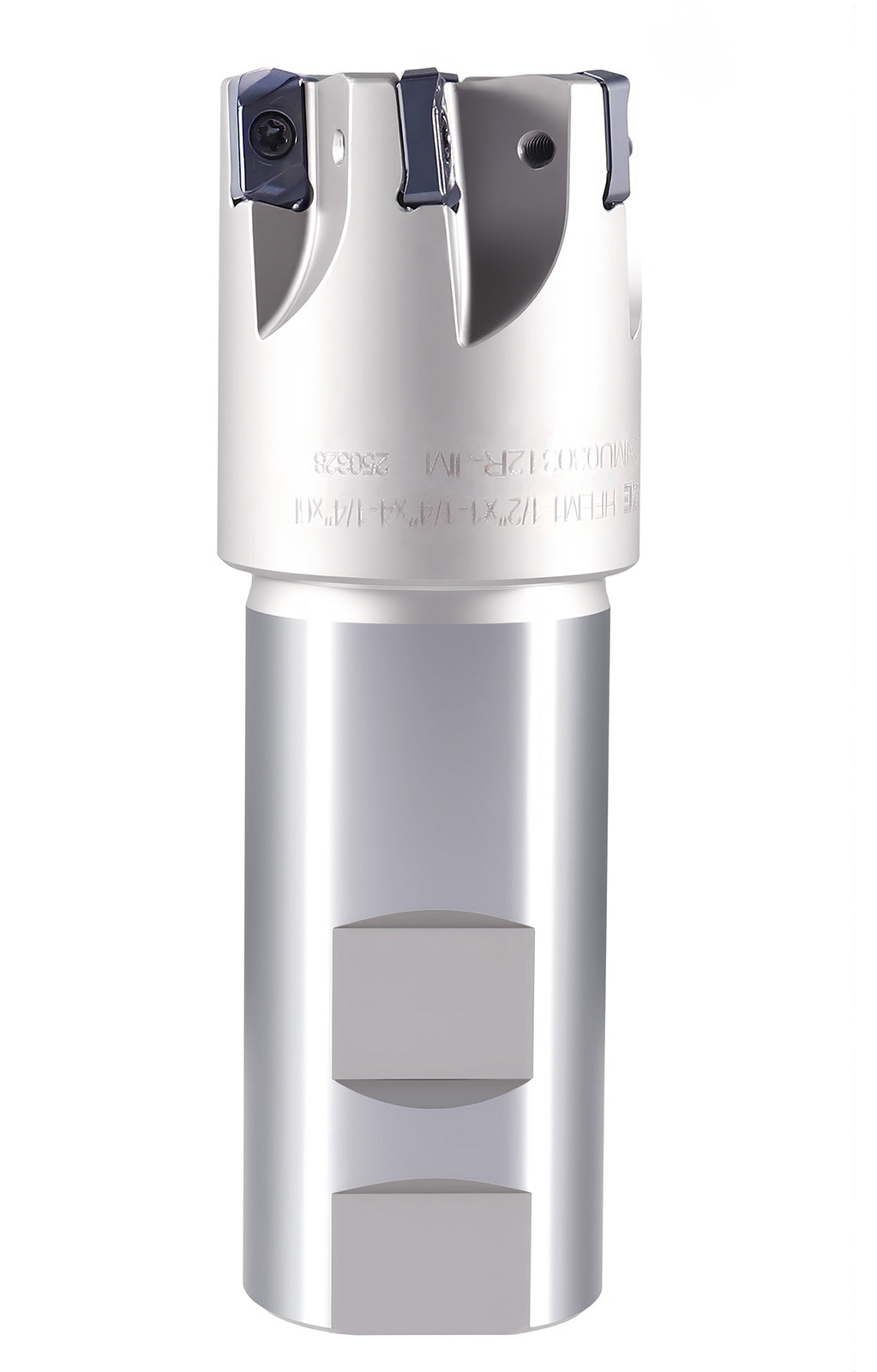

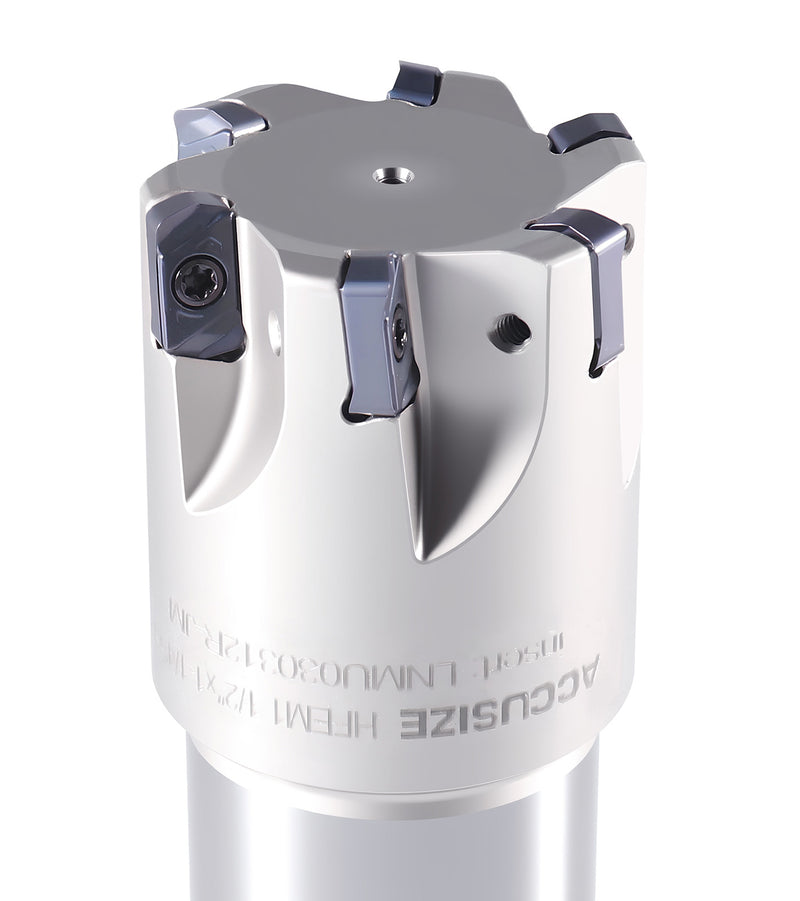

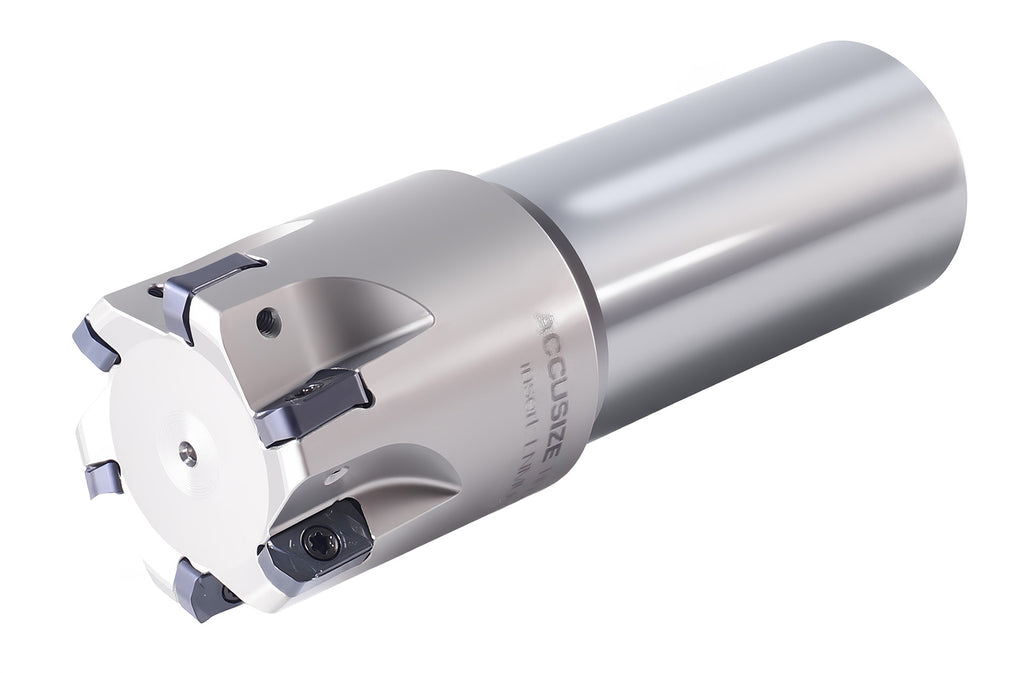

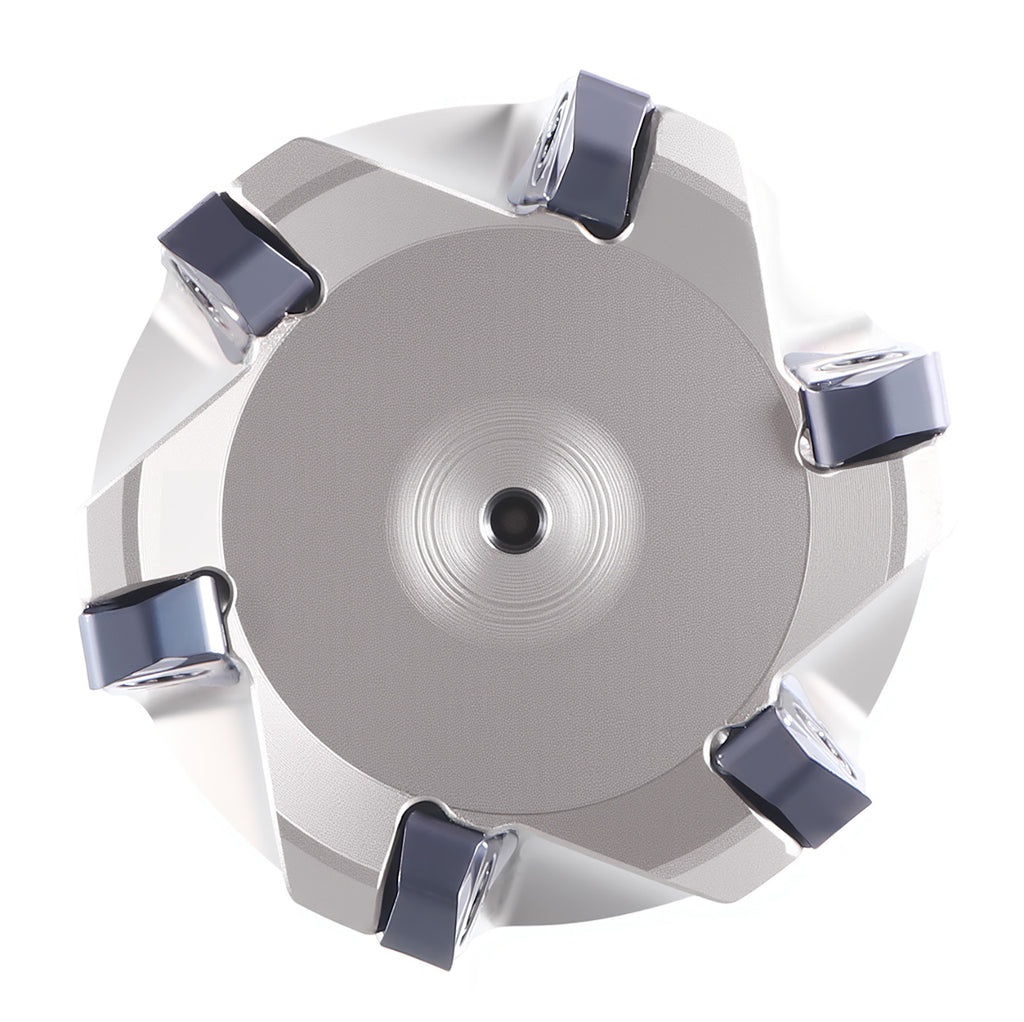

HFEM-2112 1-1/2" 1-1/4" 4-1/4" 6 LNMU030312R-JM
(6128-0001)
M2.5 x 8
(0046-2508x10)

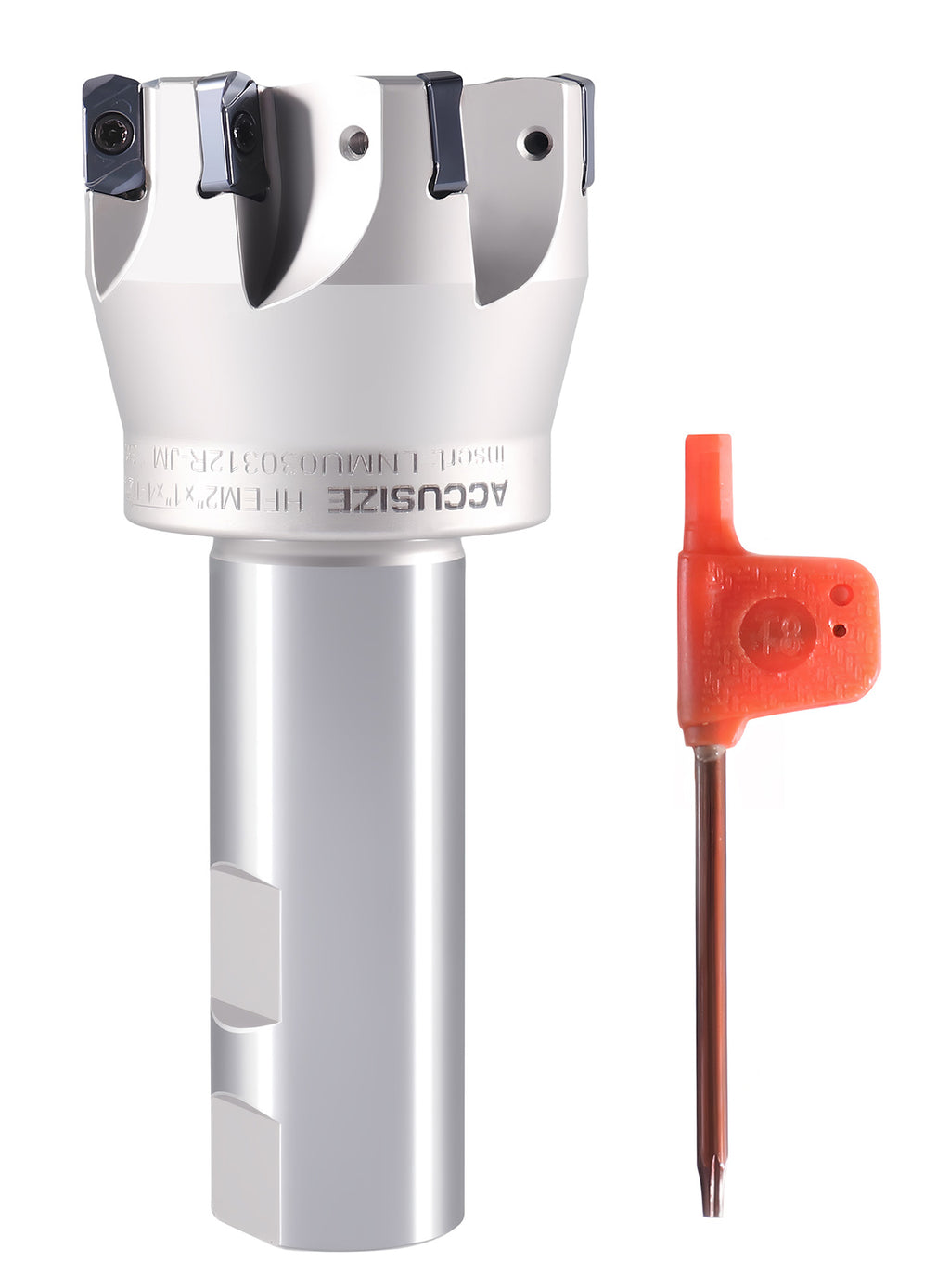

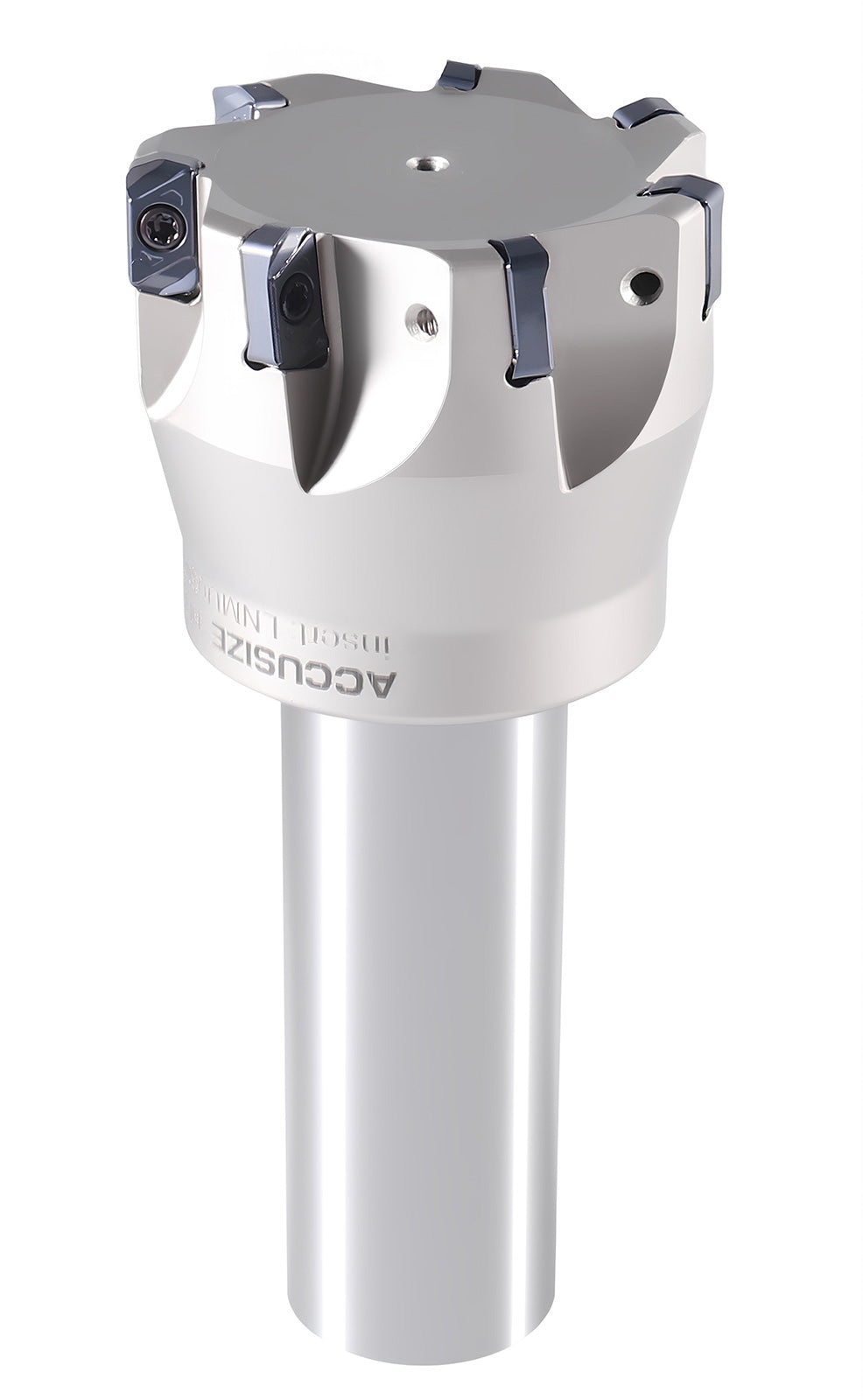

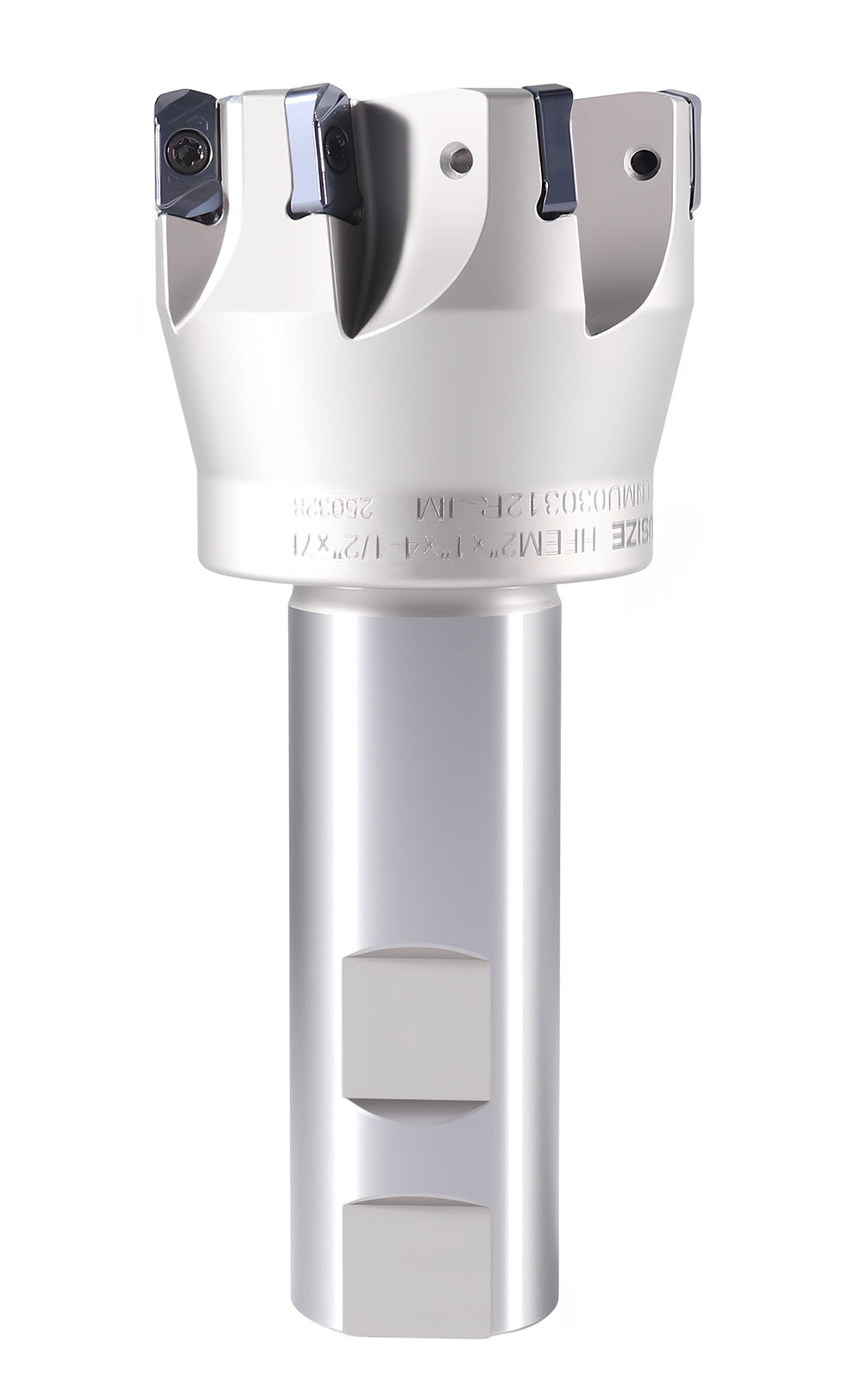

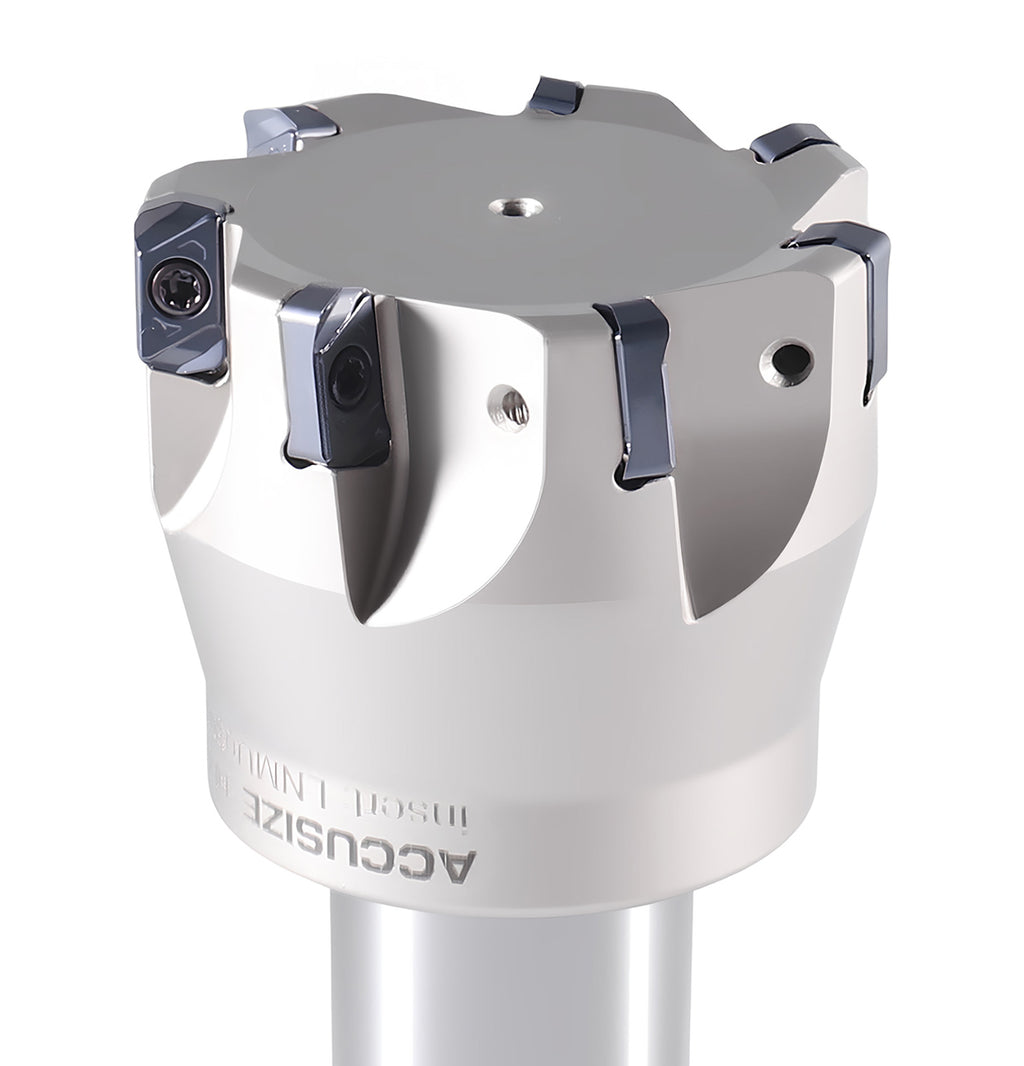

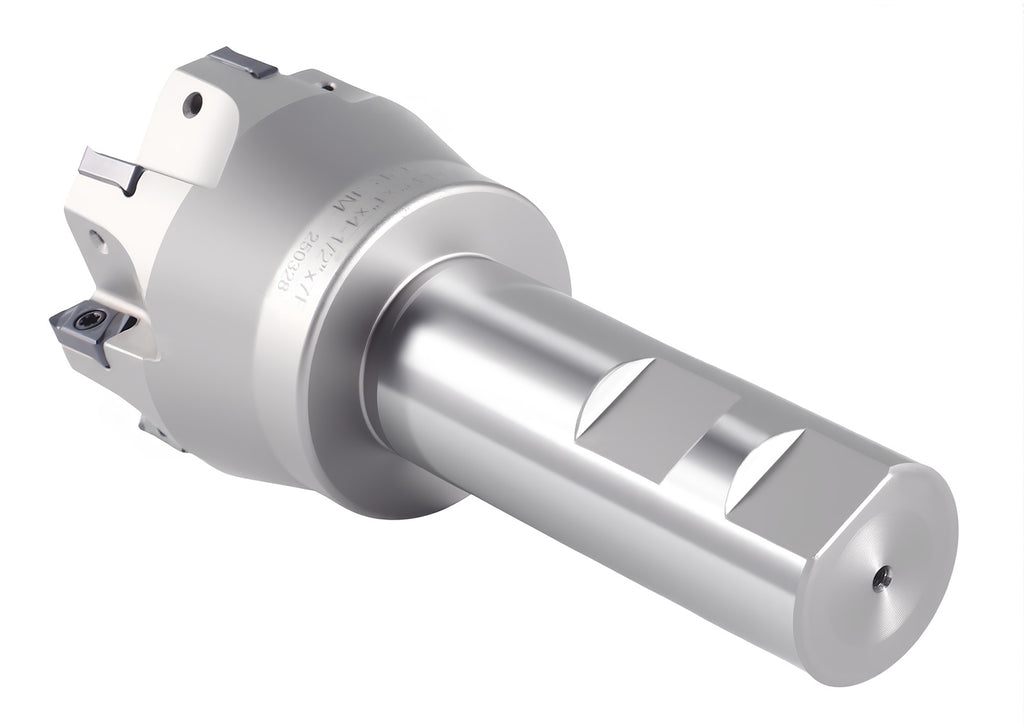

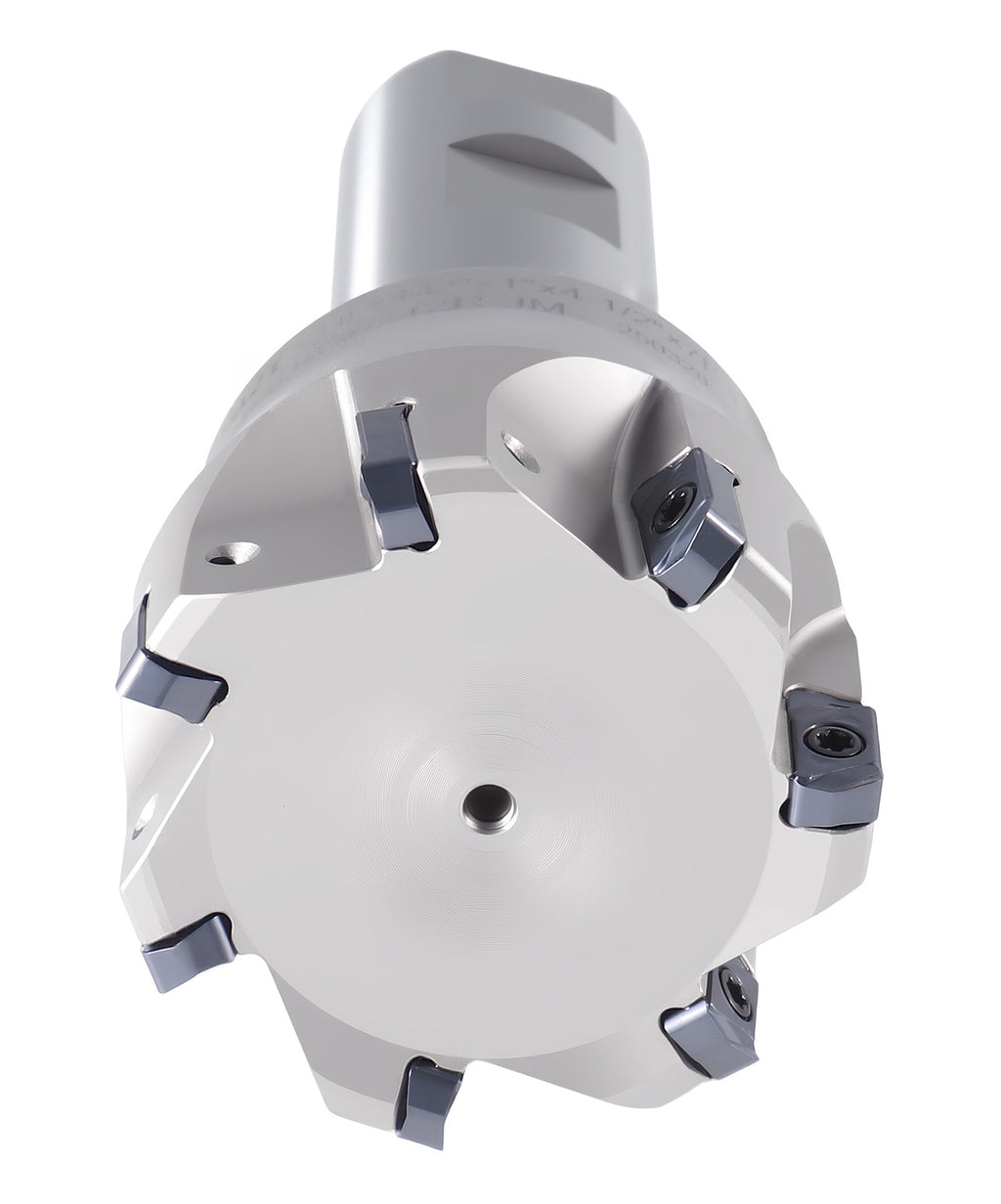

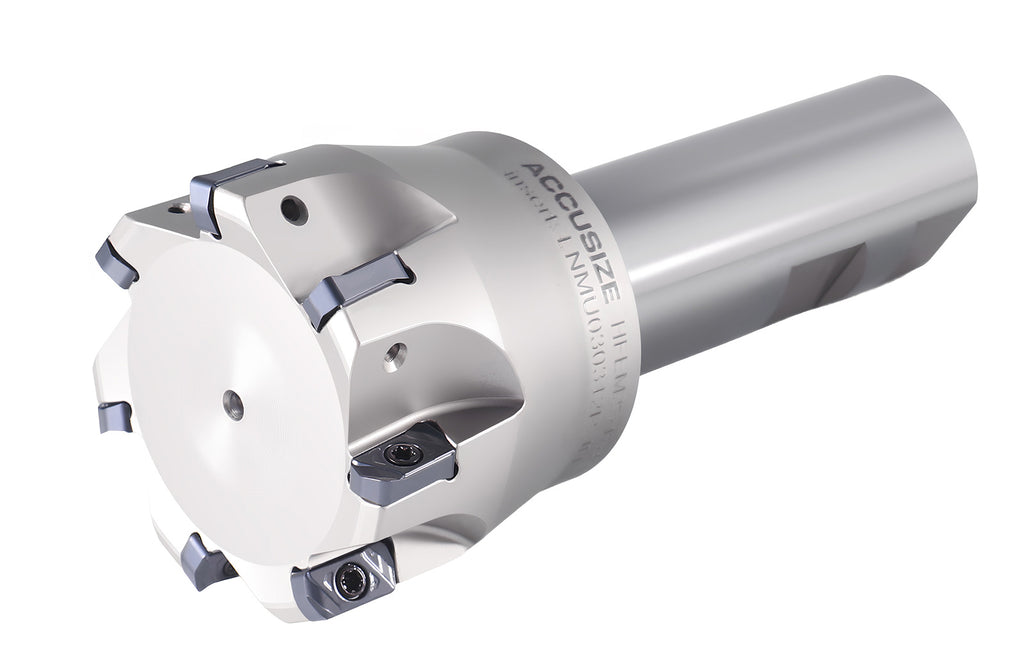

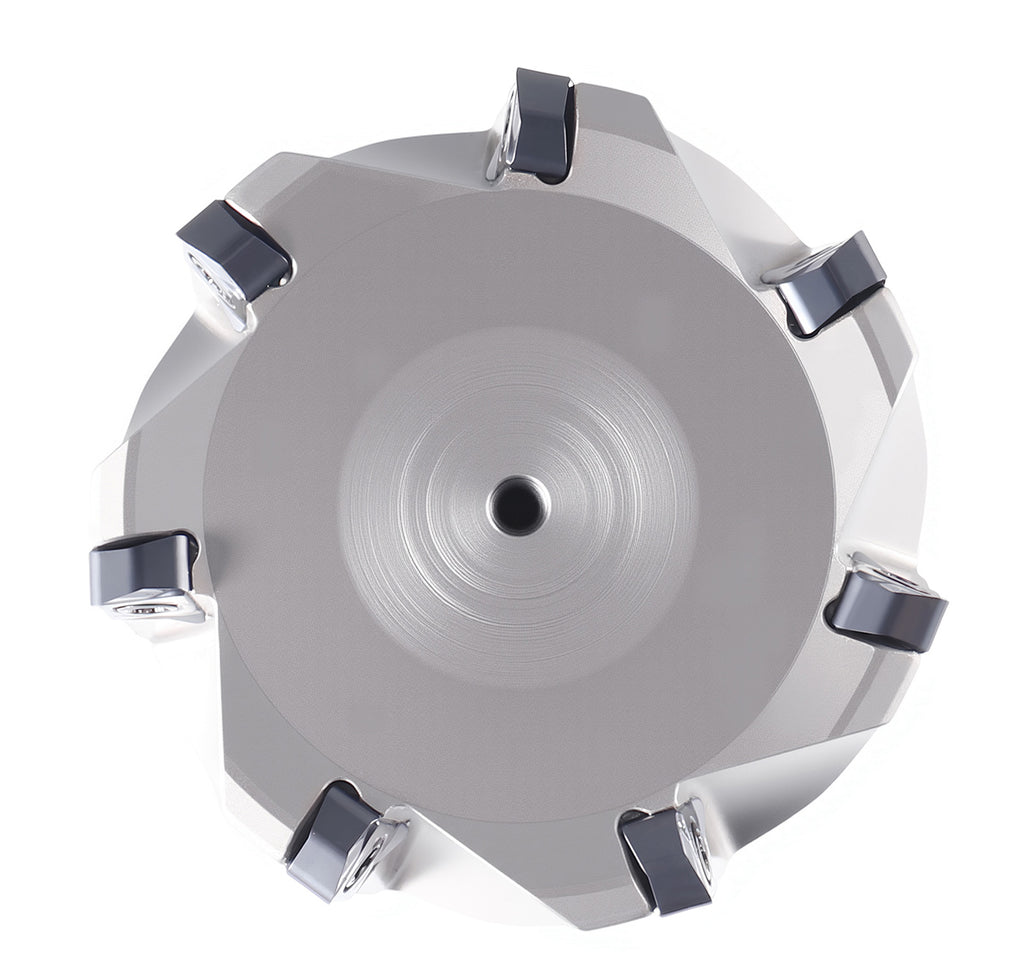

HFEM-1002 2" 1" 4-1/2" 7 LNMU030312R-JM
(6128-0001)
M2.5 x 8
(0046-2508x10)

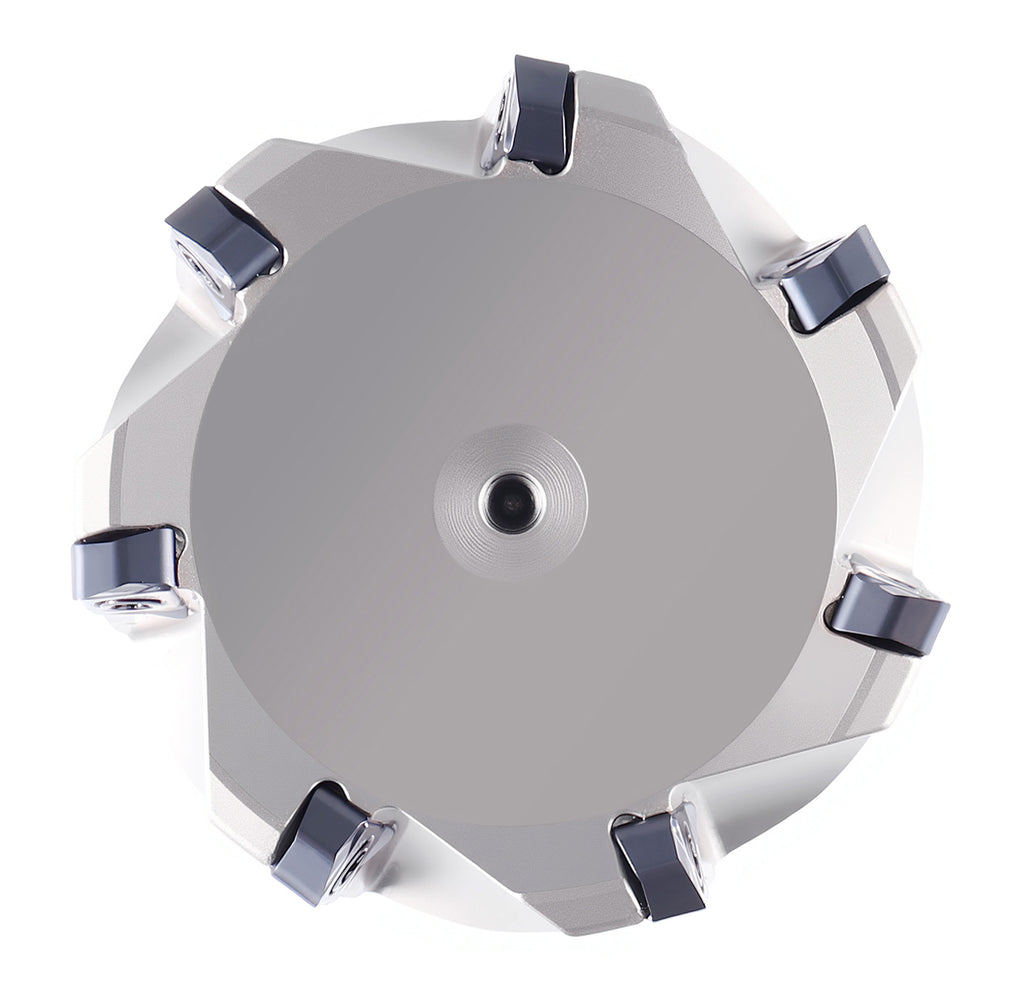

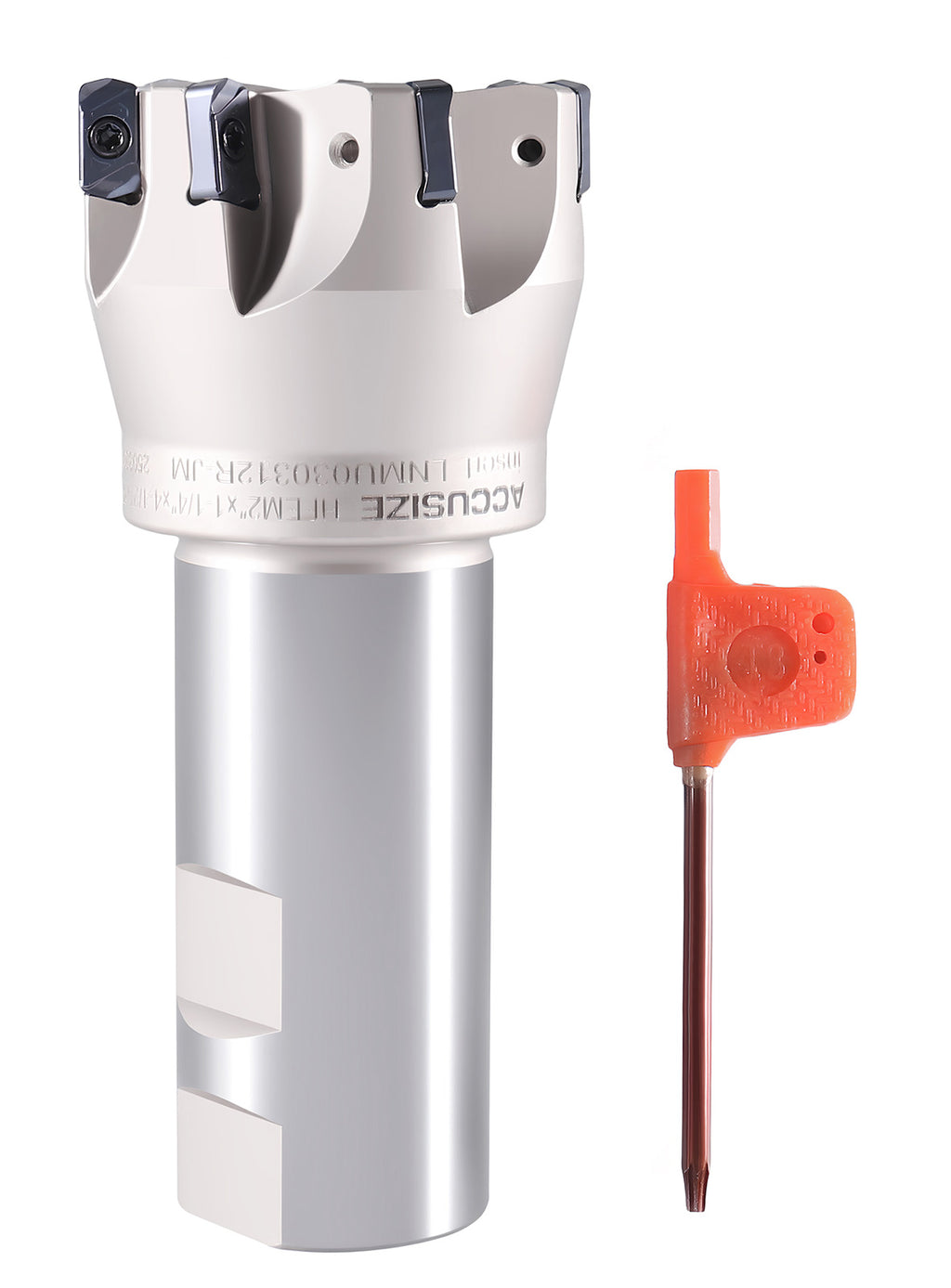

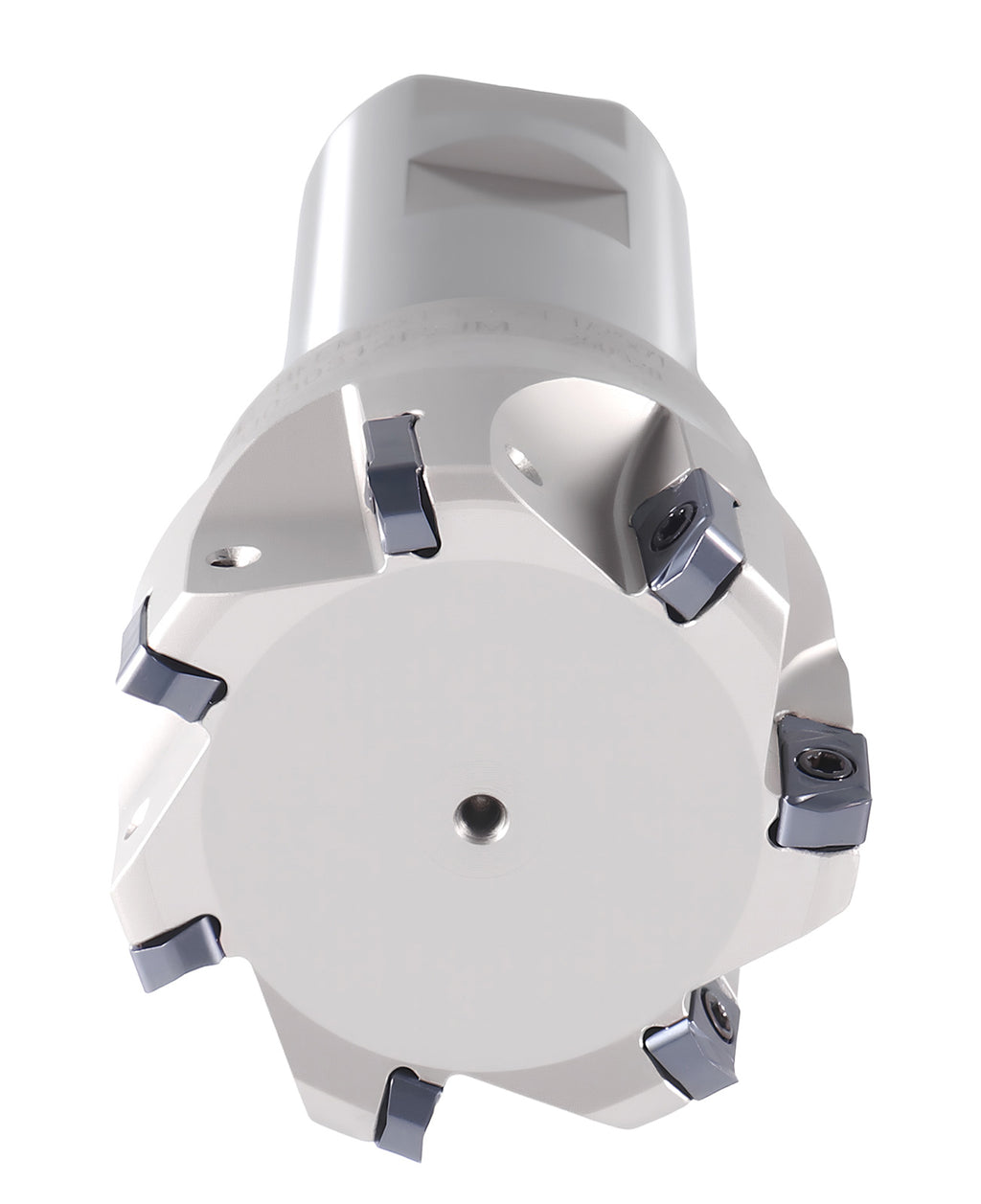

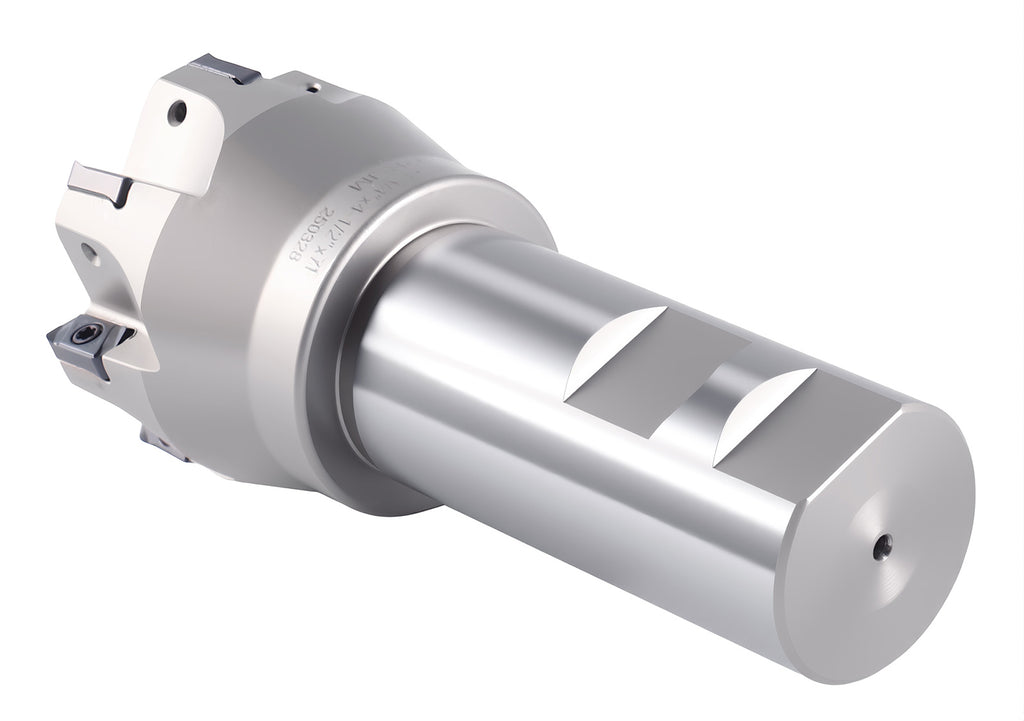

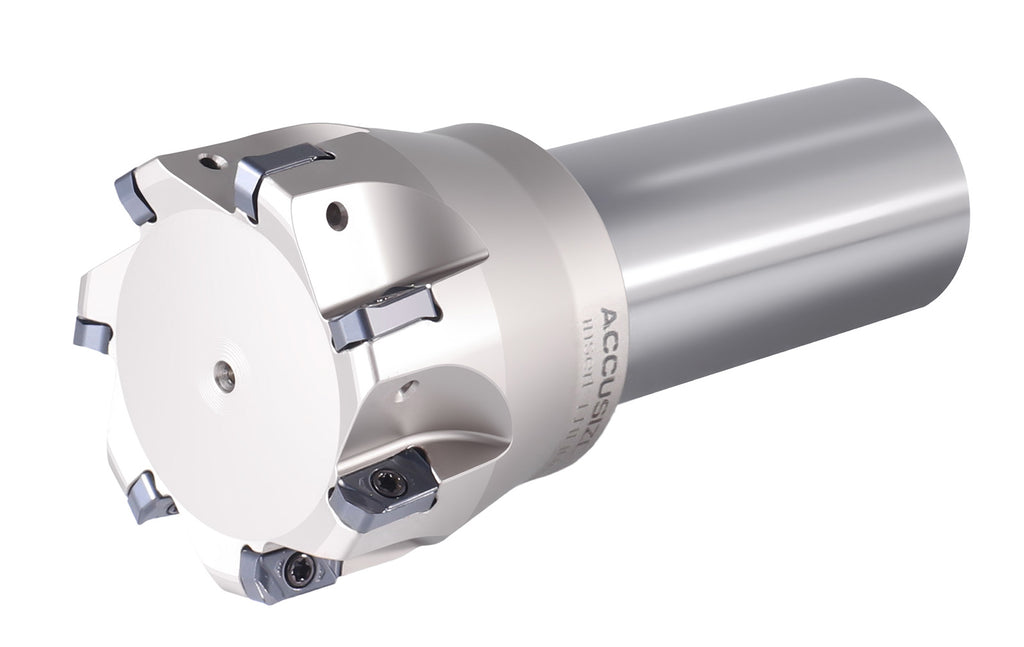

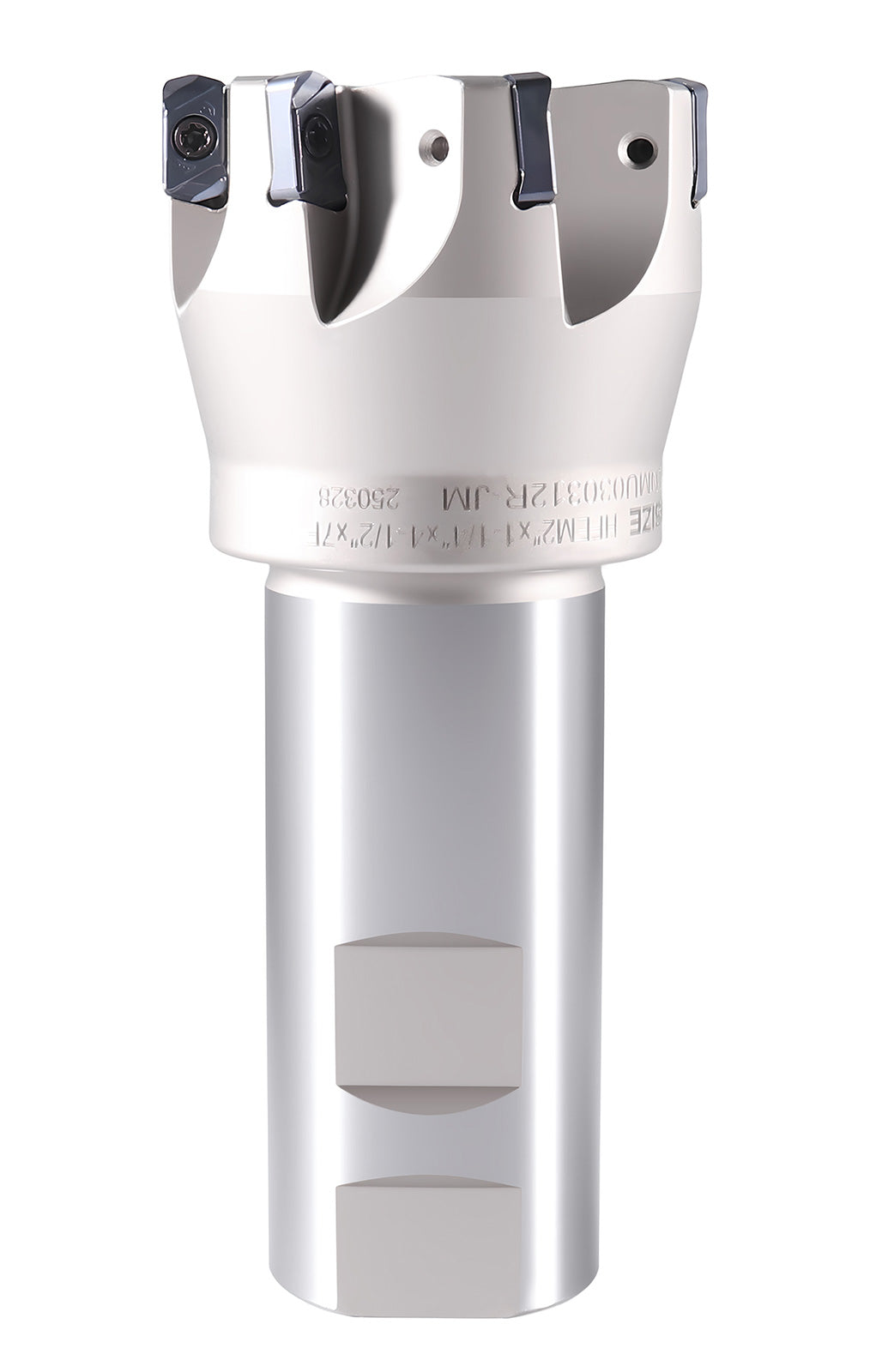

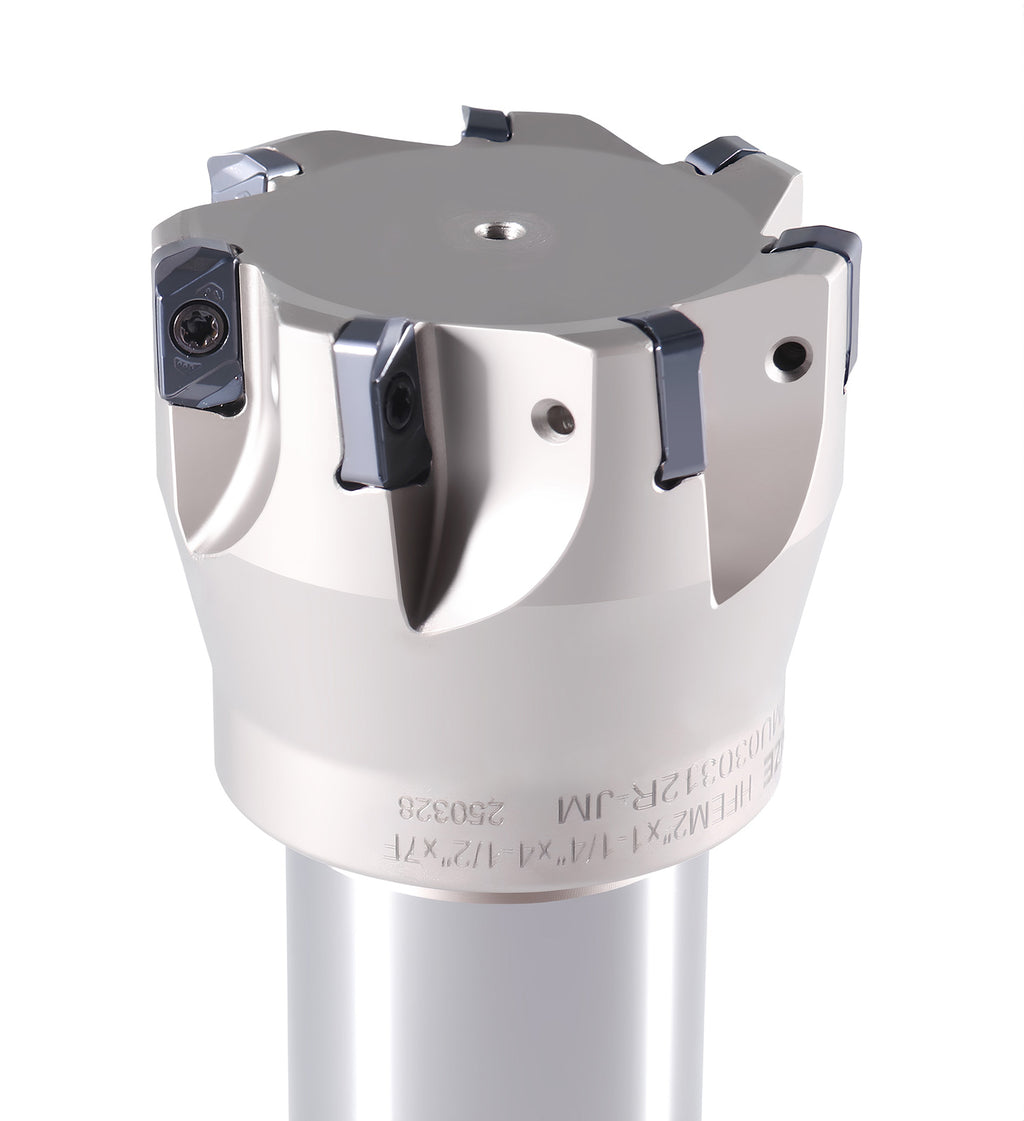

HFEM-2002 2" 1-1/4" 4-1/2" 7 LNMU030312R-JM
(6128-0001)
M2.5 x 8
(0046-2508x10)
-
