Features:
- The material of the holder is upgraded, more rigid, with better cutting stability and better resistance against wearing
- Smooth finish on each turning tool holder marked with tool holder style and shank size

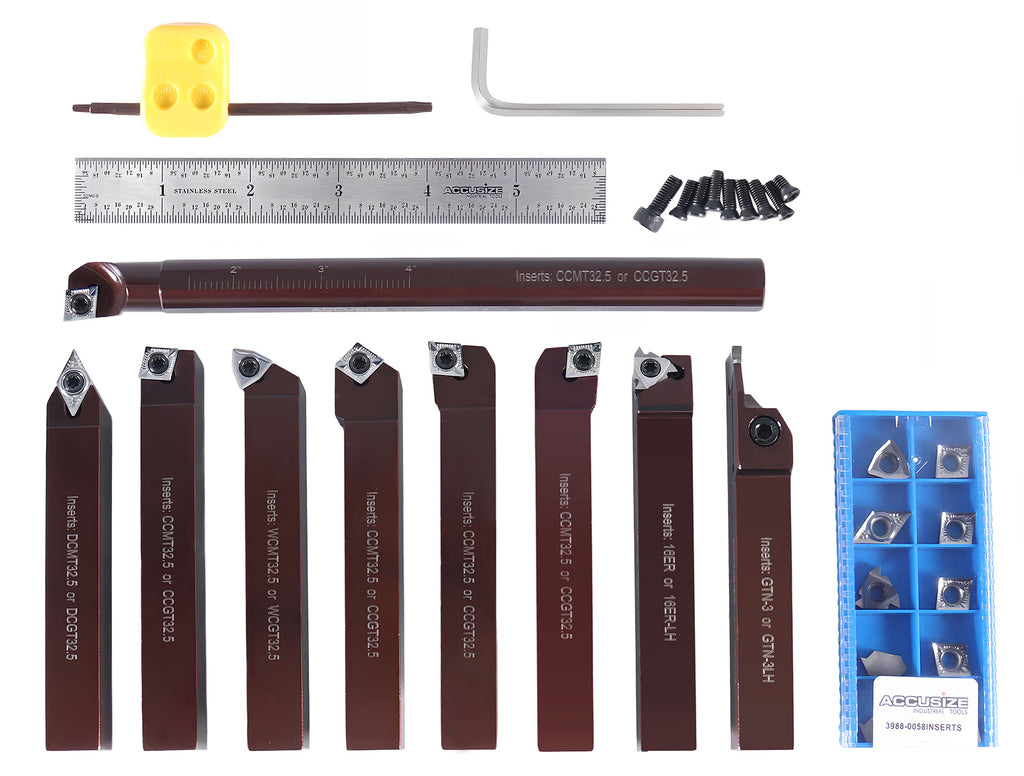

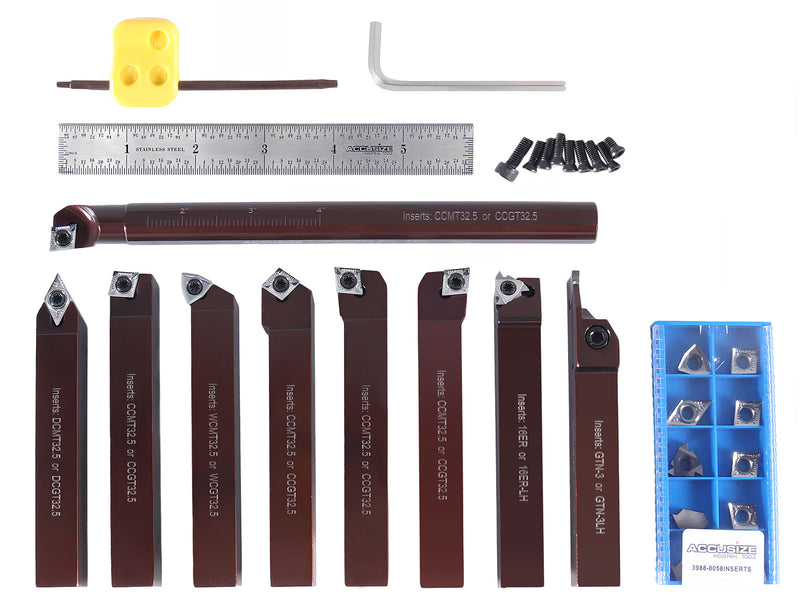

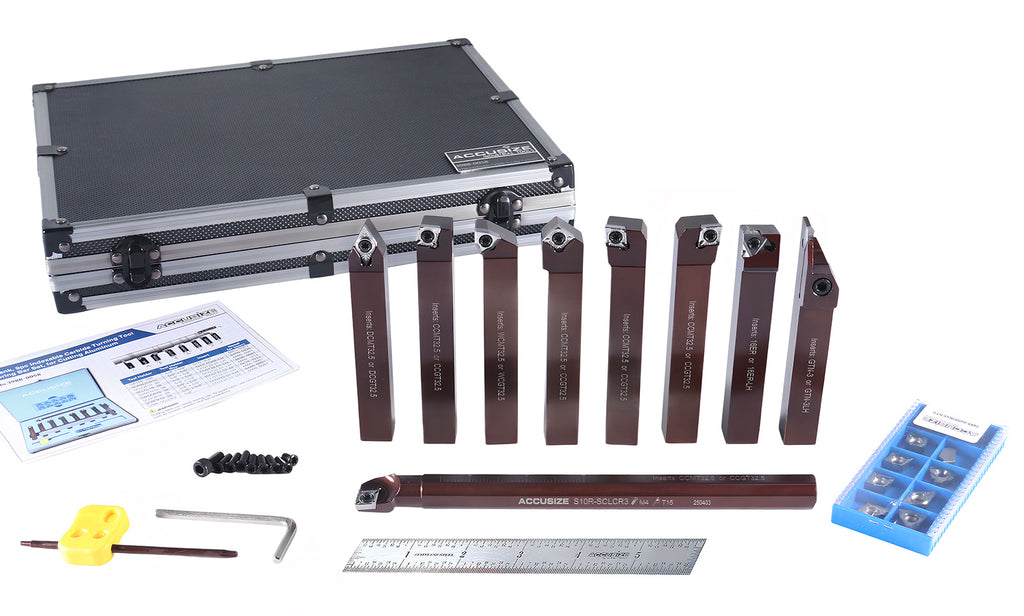

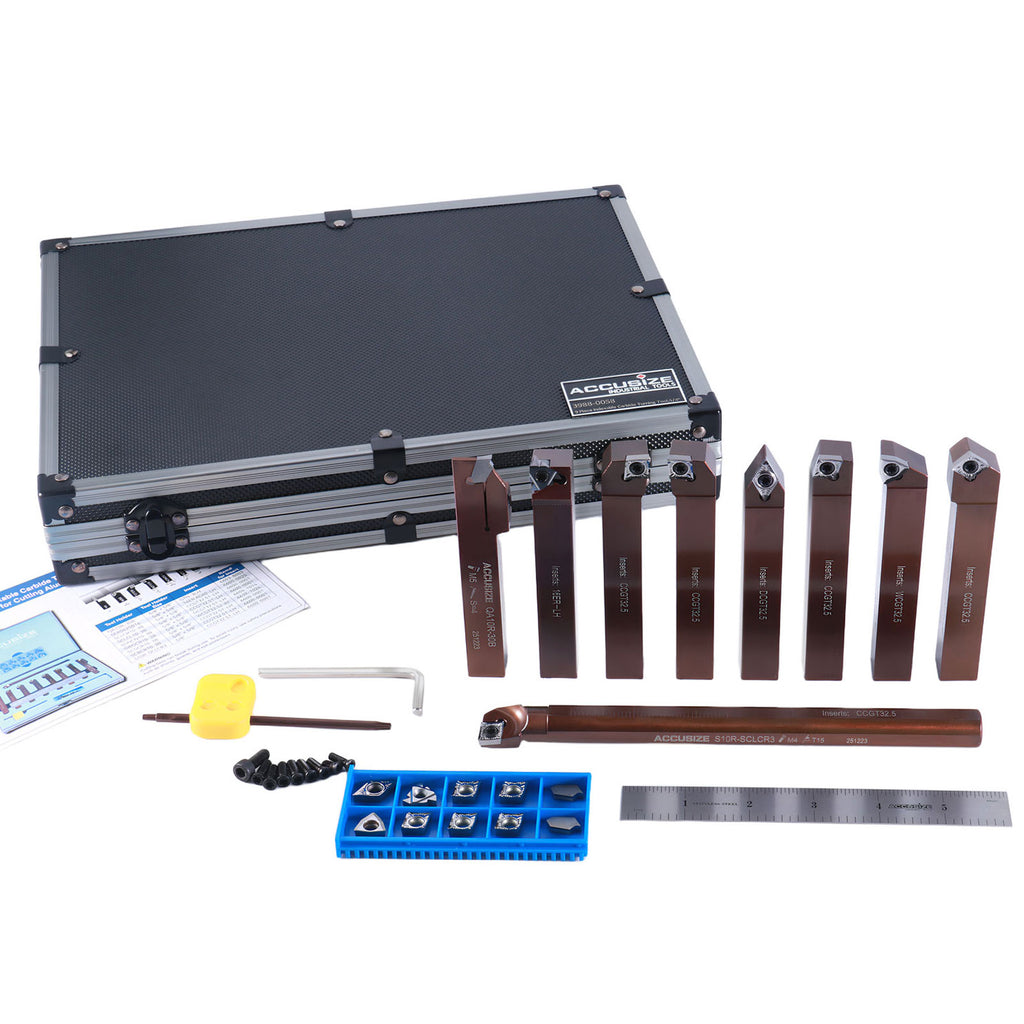

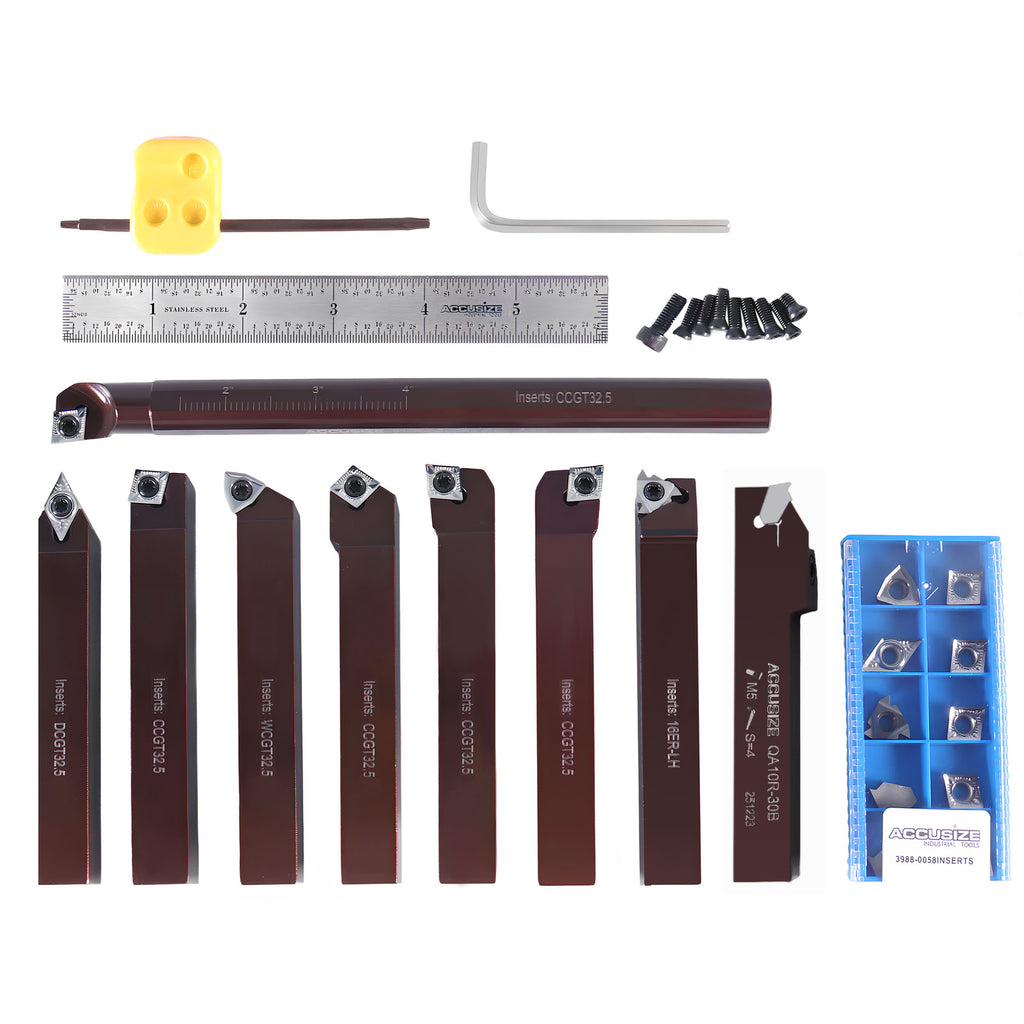

Set includes:

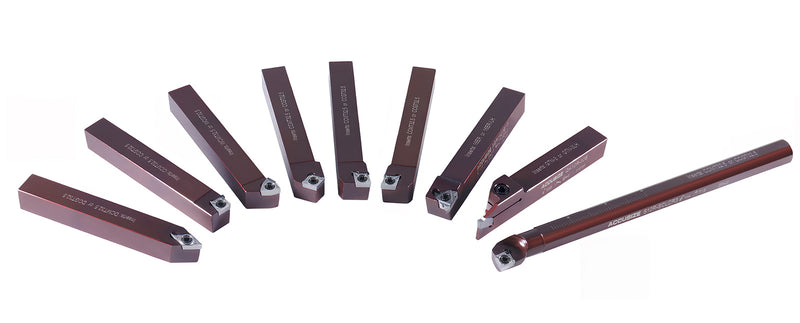

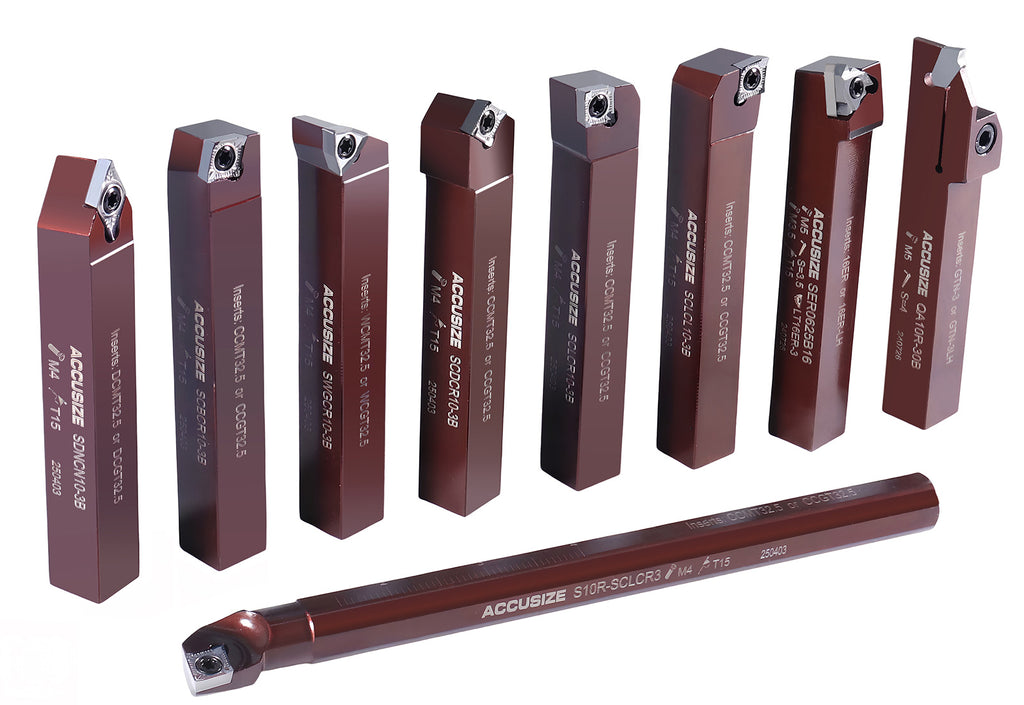

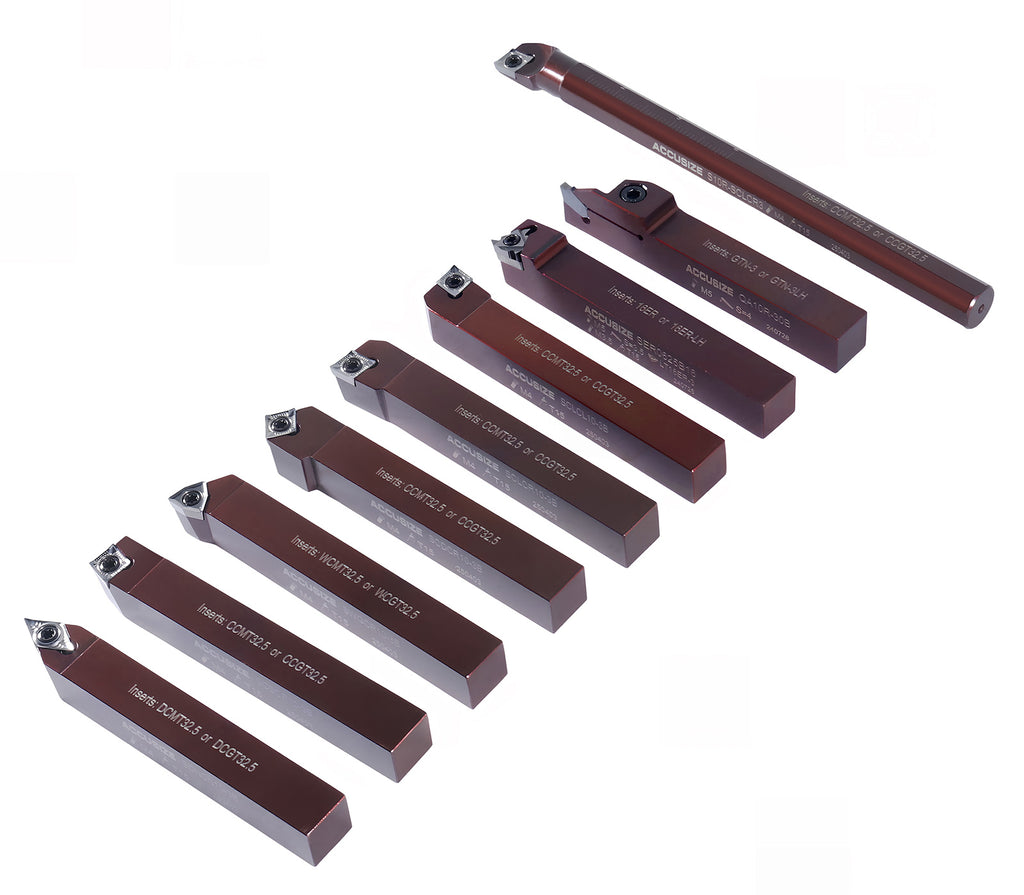

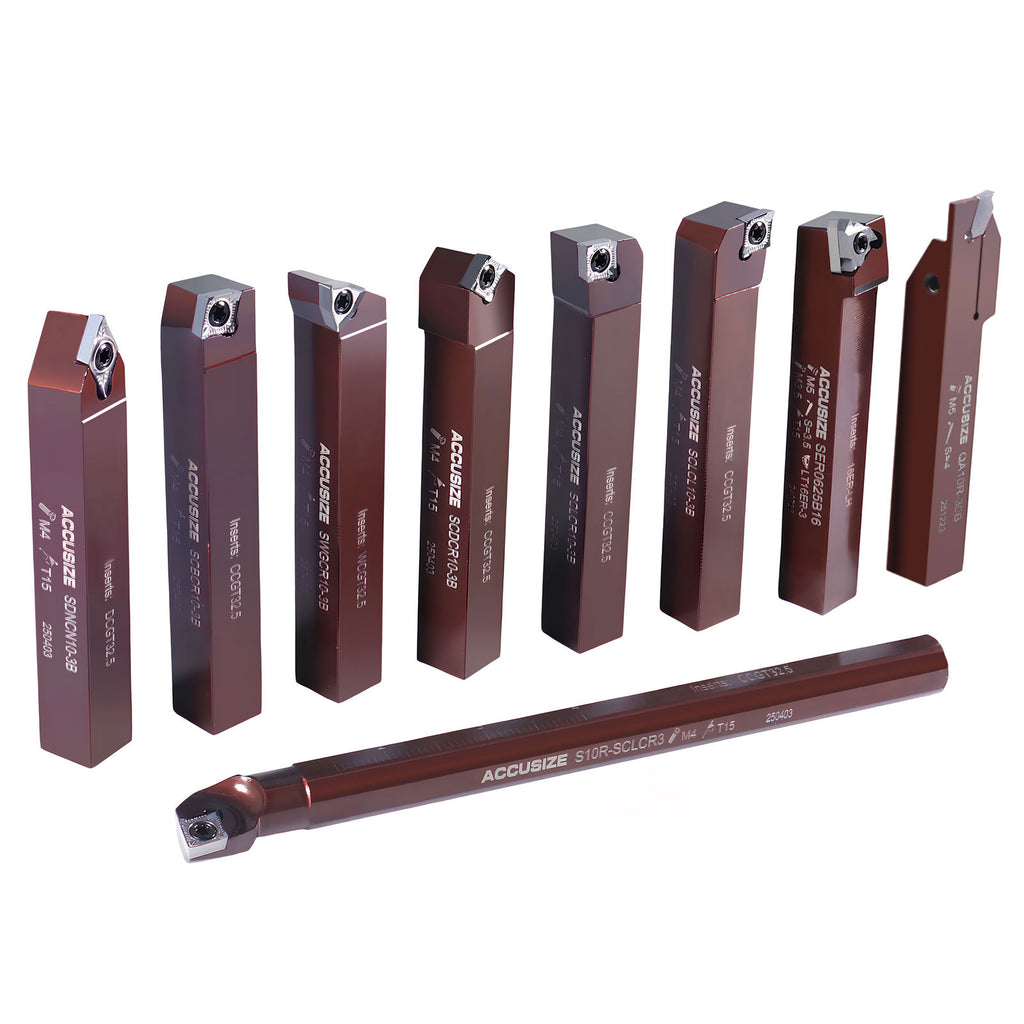

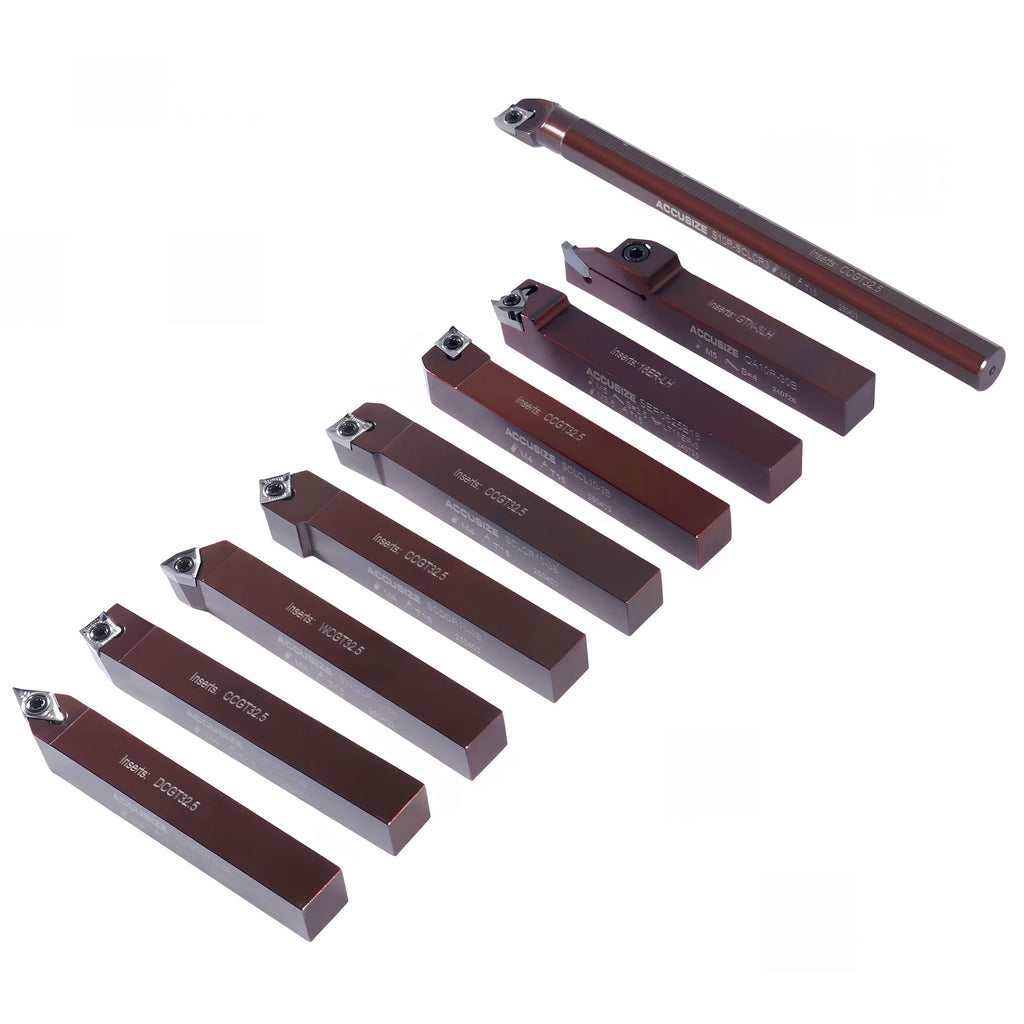

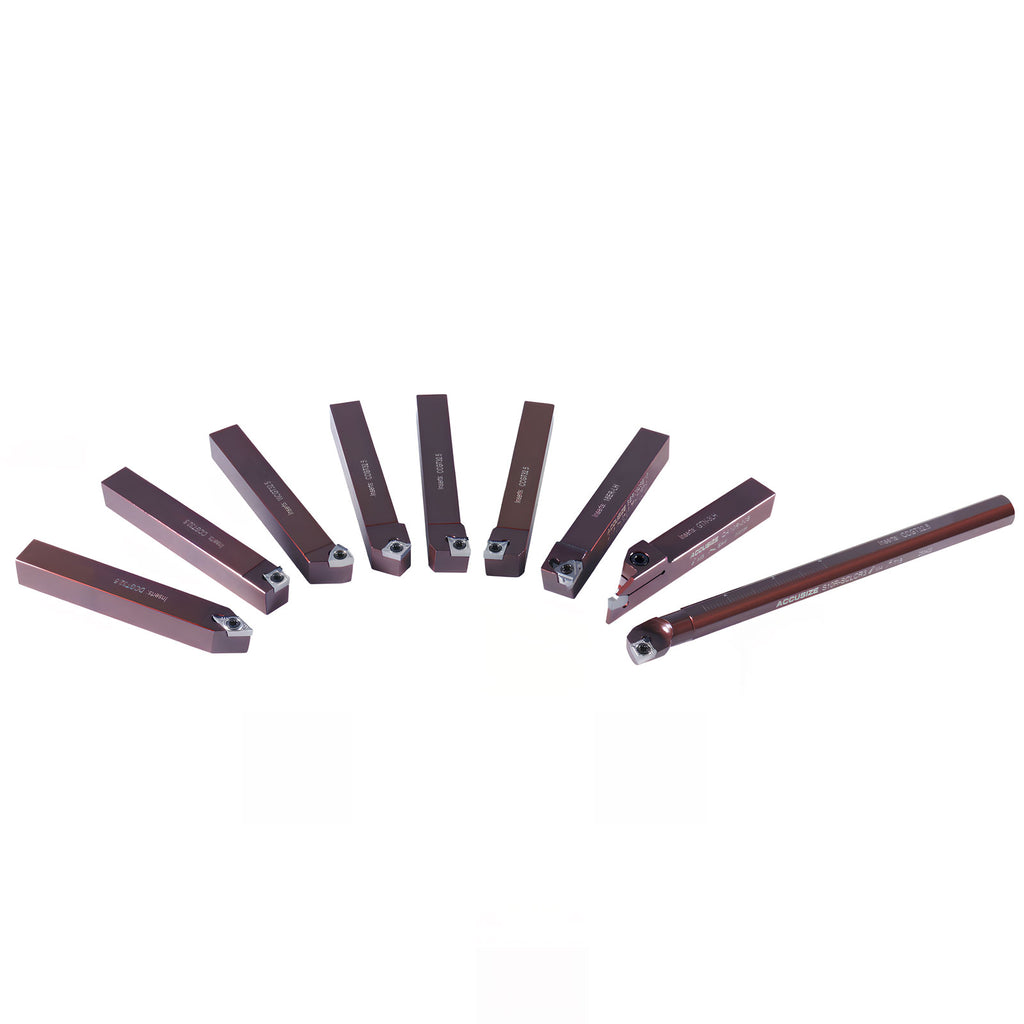

- 9pcs indexable turning tool holders
- 9pcs carbide inserts for cutting aluminum
- Additional 10pcs carbide inserts for cutting aluminum
- 2pcs GTN-3LH
- 1pc 16ER AG60-LH
- 5pcs CCGT32.51-LH
- 1pc DCGT32.51-LH
- 1pc WCGT32.52-AF
- 9pcs extra screws
- 1pc stainless steel rigid ruler, 6" 4R
- Free keys

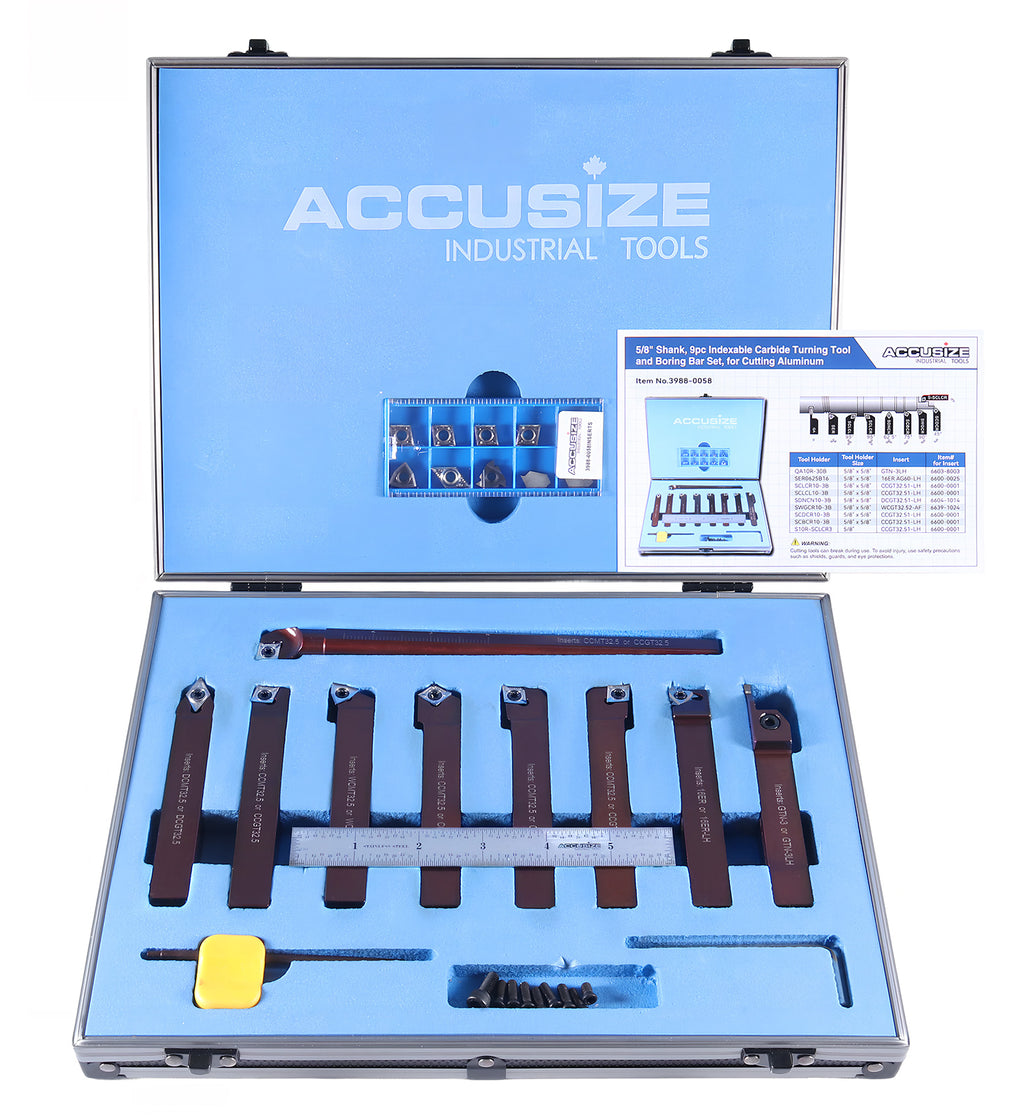

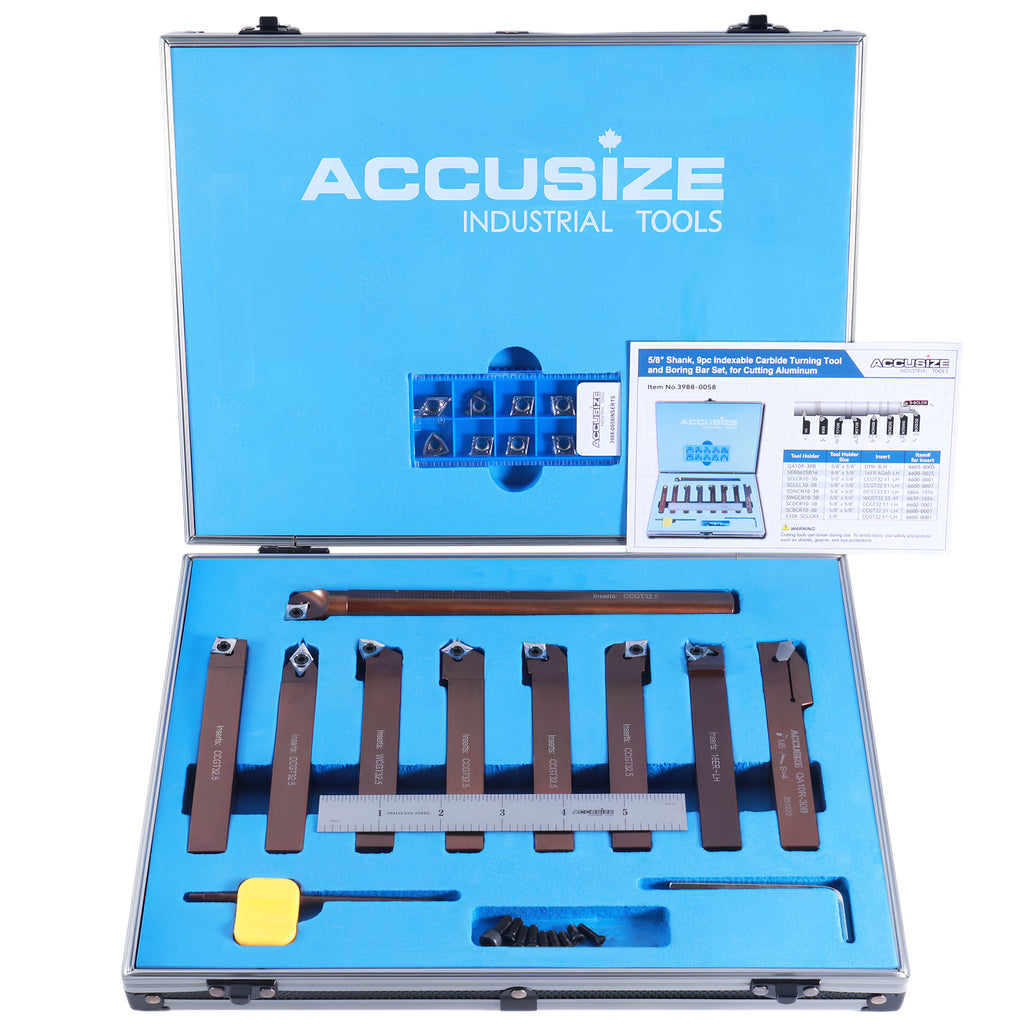

- In a fitted aluminum case
** For purchasing additional inserts, you may find the corresponding Insert SKU below:

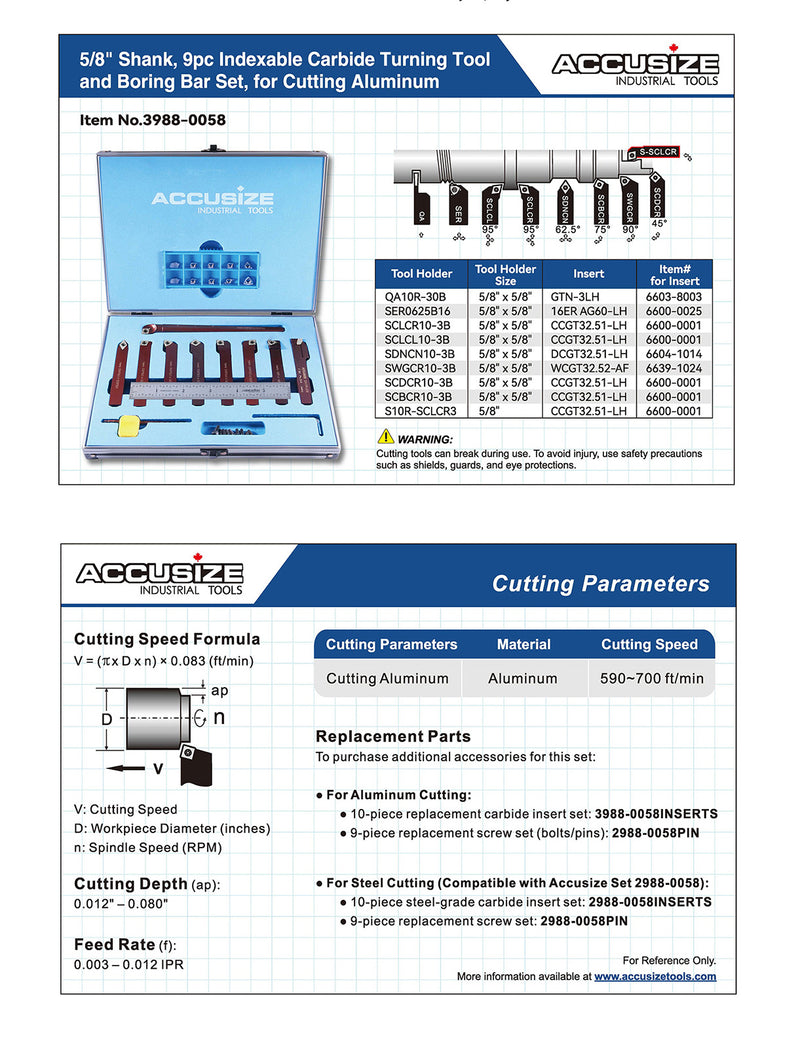

Name Tool Holder Rake Angle Insert Insert SKU Insert Screw
(SKU)
Wrench Mini Bore Overall Length Cutoff QA10R-30B 0° GTN-3LH 6603-8003 GB70-85/ M5×12
(0047-5012)
S3 - 4-1/2'' External Threading SER0625B16 0° 16ER AG60-LH 6600-0025 M3.5×12
(0046-3512)
T15/S3.5 Turning Tools SCLCR10-3B 95° CCGT32.51-LH 6600-0001
M4×12
(0046-4012)
SCLCL10-3B 95° CCGT32.51-LH 6600-0001
M4×12
(0046-4012)
SDNCN10-3B 62.5° DCGT32.51-LH 6604-1014 M4×12
(0046-4012)
SWGCR10-3B 90° WCGT32.52-AF 6639-1024 M4×12
(0046-4012)
SCDCR10-3B 45° CCGT32.51-LH 6600-0001
M4×12
(0046-4012)
SCBCR10-3B 75° CCGT32.51-LH 6600-0001
M4×12
(0046-4012)
Boring Bar S10R-SCLCR3 95° CCGT32.51-LH 6600-0001
M4×8
(0046-4008)
13/16" 8" Specification of the QA10R-30B cut-off holder:
Shank Size: 5/8"
Tool Holder: QA10R-30B
Tool Holder Size (H x B): 5/8 x 5/8"
OAL (L): 4-1/2"
Insert: GTN-3
Insert Screw: M5 x 12
F: 0.637"
T: 0.728"
W: 0.118"
Maximum Depth: 0.728"
