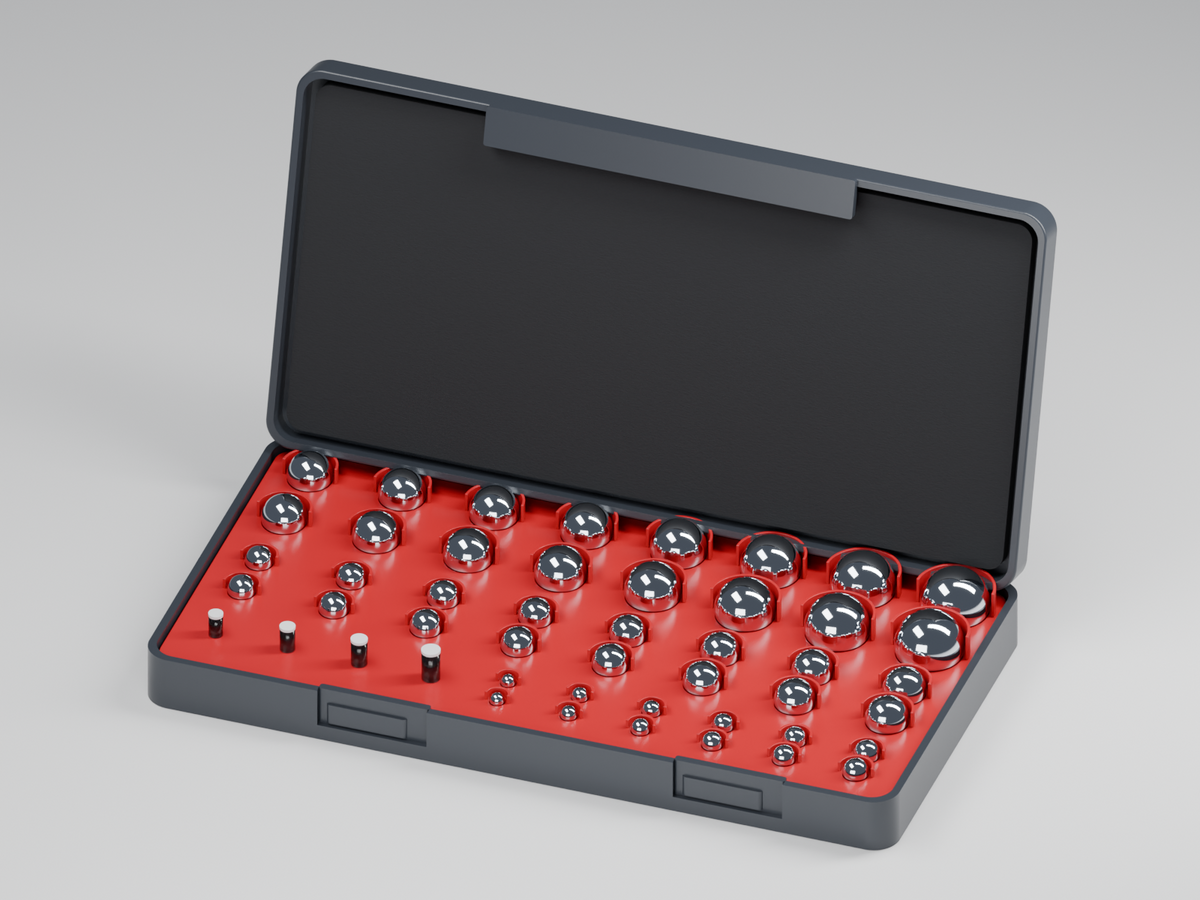

Coming soon52-Piece Precision Chrome Steel Gage Ball Set, 1/8"–1", 3600-5100
Product No. 3600-5100
Twenty-six pairs of ground and lapped chrome steel balls, ready for dimensional checks, comparative measurements and tooling setups.
Availability will be announced. Contact us for product enquiries.
Ask about availability Explore the specifications
Designed for the inspection bench
Spherical contact. Practical measurement.
Ground and lapped
Chrome steel balls provide spherical contact for dimensional inspection.
Pairs for setup work
Two balls of each nominal size support comparative measurements and paired-contact setups.
Organised for the bench
A fitted case and red insert keep the set together between jobs.
Applications
Six ways to use a precision ball.
Rendered application studies illustrate the measuring principle. Cutaways expose contact geometry; tools and workpieces are not included.
Micrometer measuring faces
Compare readings at selected positions on the measuring faces.
Curved-wall thickness
Use a ball to contact the curved inside surface of a part with a flat outside reference.
Centre-drill depth
Seat a ball in the centre hole to compare its axial position to a datum.
Seat depth
Compare a seated ball’s protrusion or depth relative to a reference face.
Collet setup
Ball spacers can support a collet-boring setup using a suitable retention method.
Tapered bores
Compare the seating positions of two known ball diameters to evaluate taper geometry.
Technical reference
Specifications
- Pieces
- 52
- Pairs
- 26
- Diameter range
- 1/8–1 in.
- Material
- Chrome steel
- Finish
- Ground and lapped
- Hardness
- HRC 63 (manufacturer stated)
- Accuracy grade
- Grade 24 / ISO 3290 (manufacturer stated)
- Storage
- Fitted carrying case
Inside the set
52 precision chrome steel gage balls in 26 same-size pairs, supplied in a fitted carrying case.
Grade 24 (ISO 3290) and HRC 63 are manufacturer-stated specifications.
