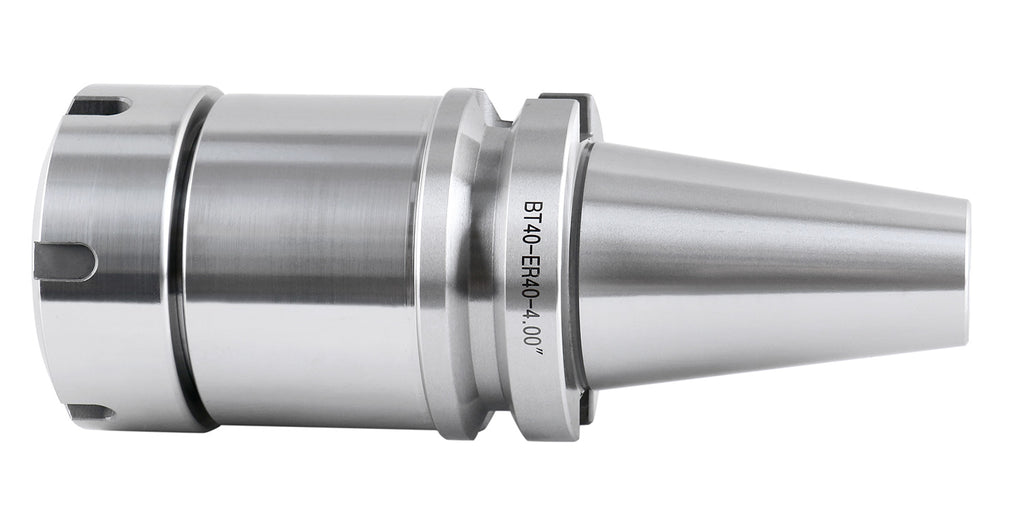

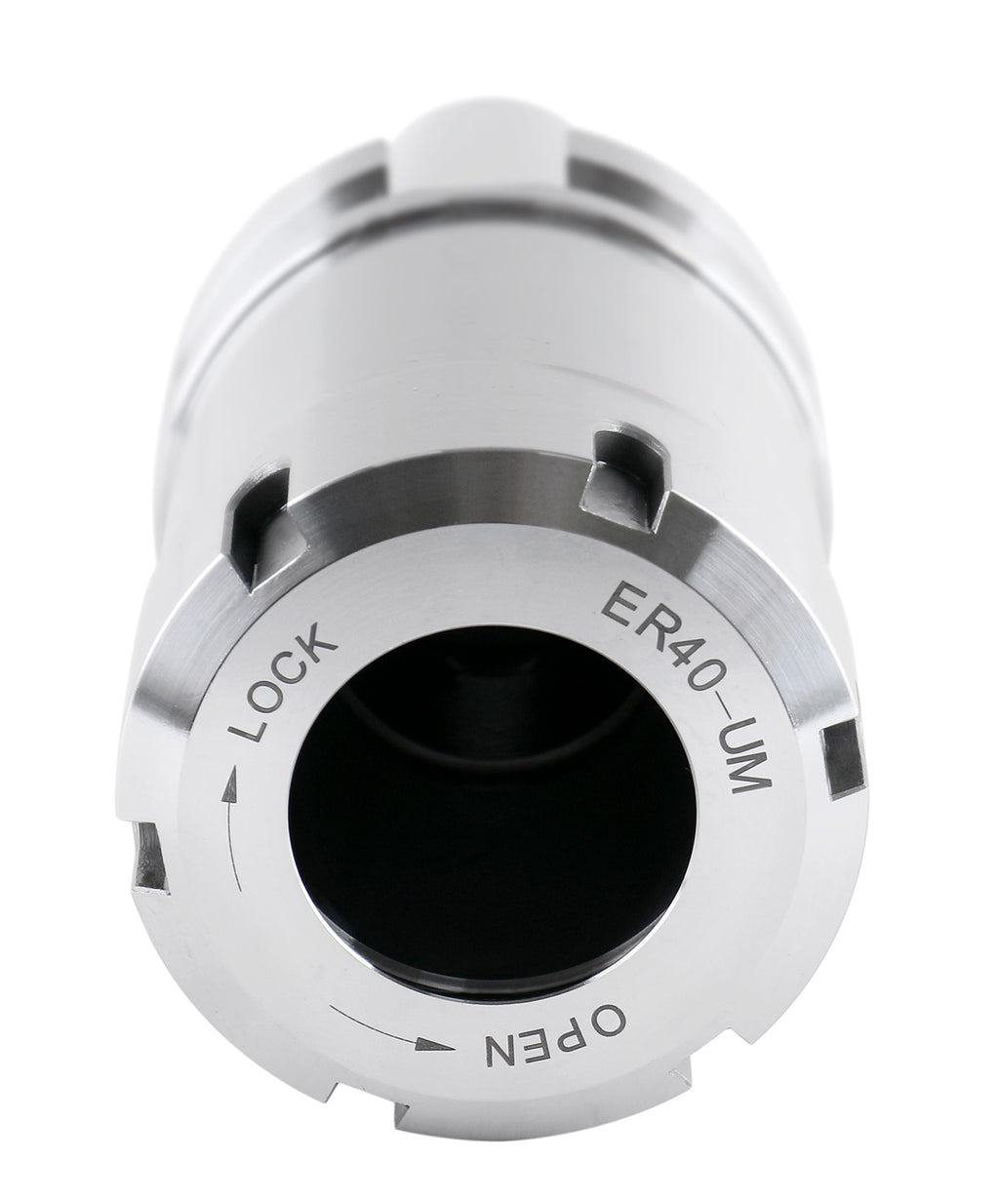

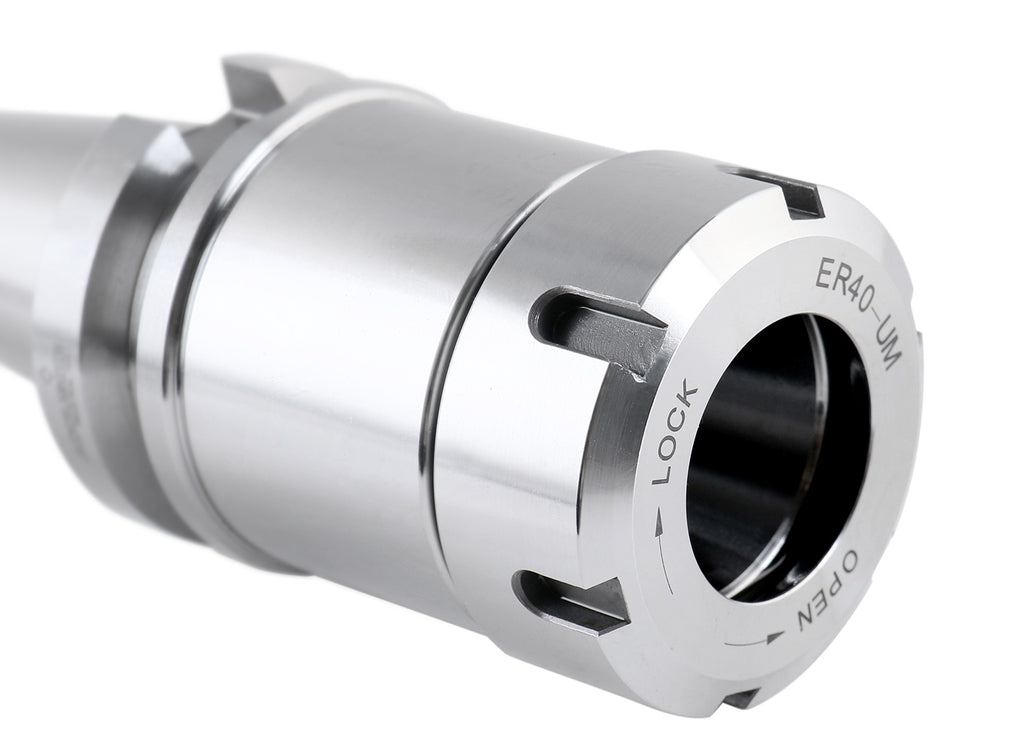

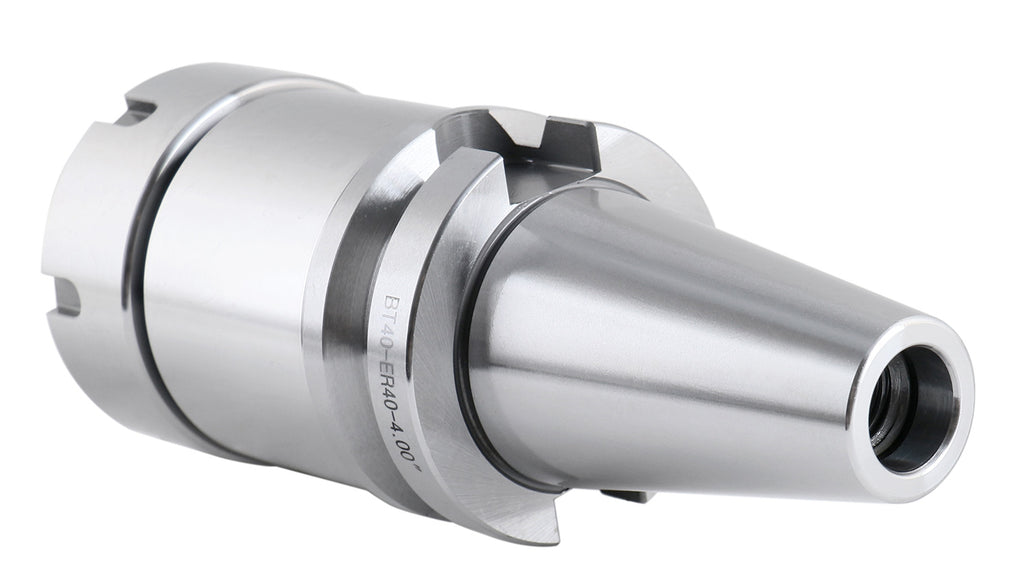

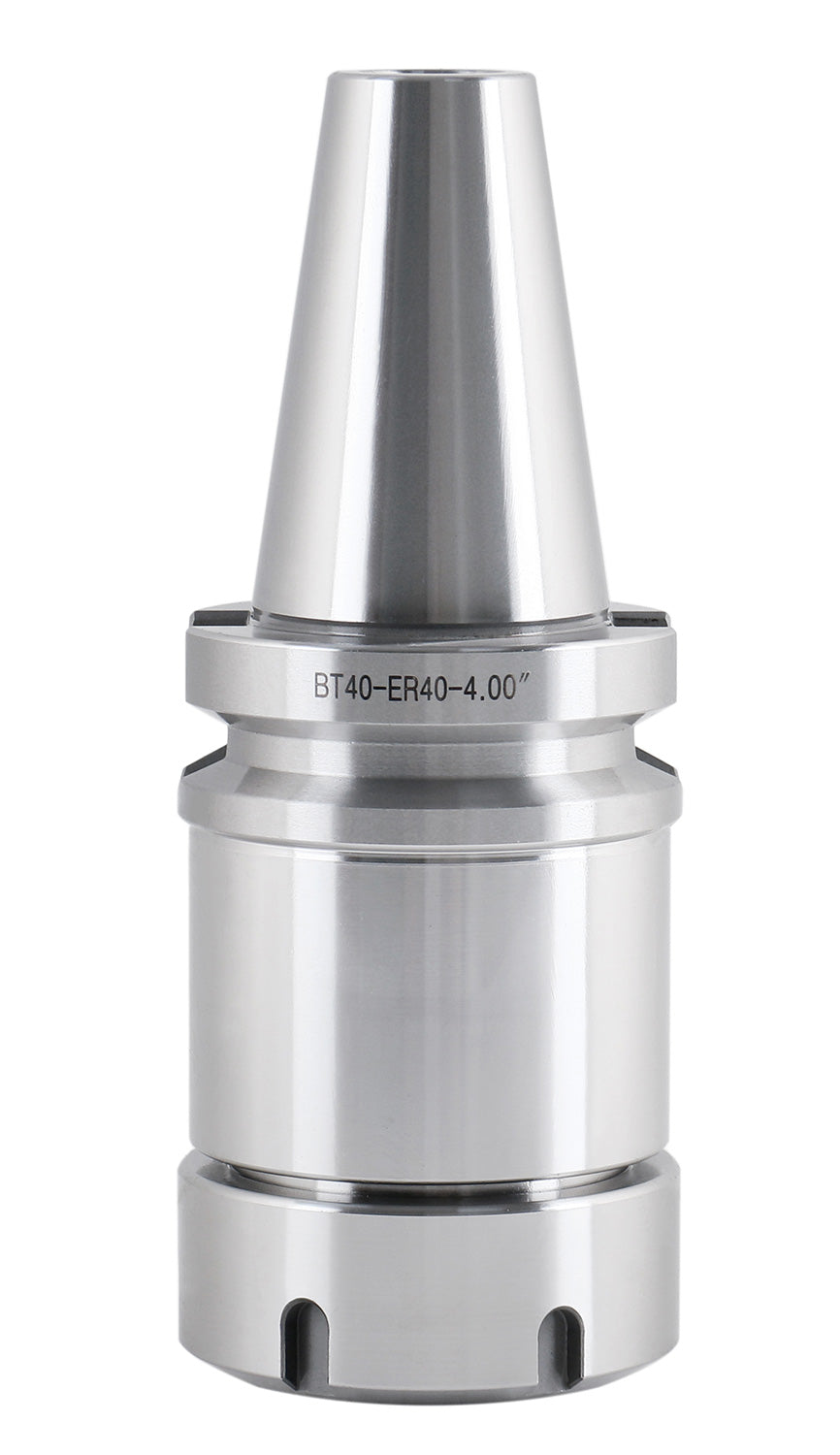

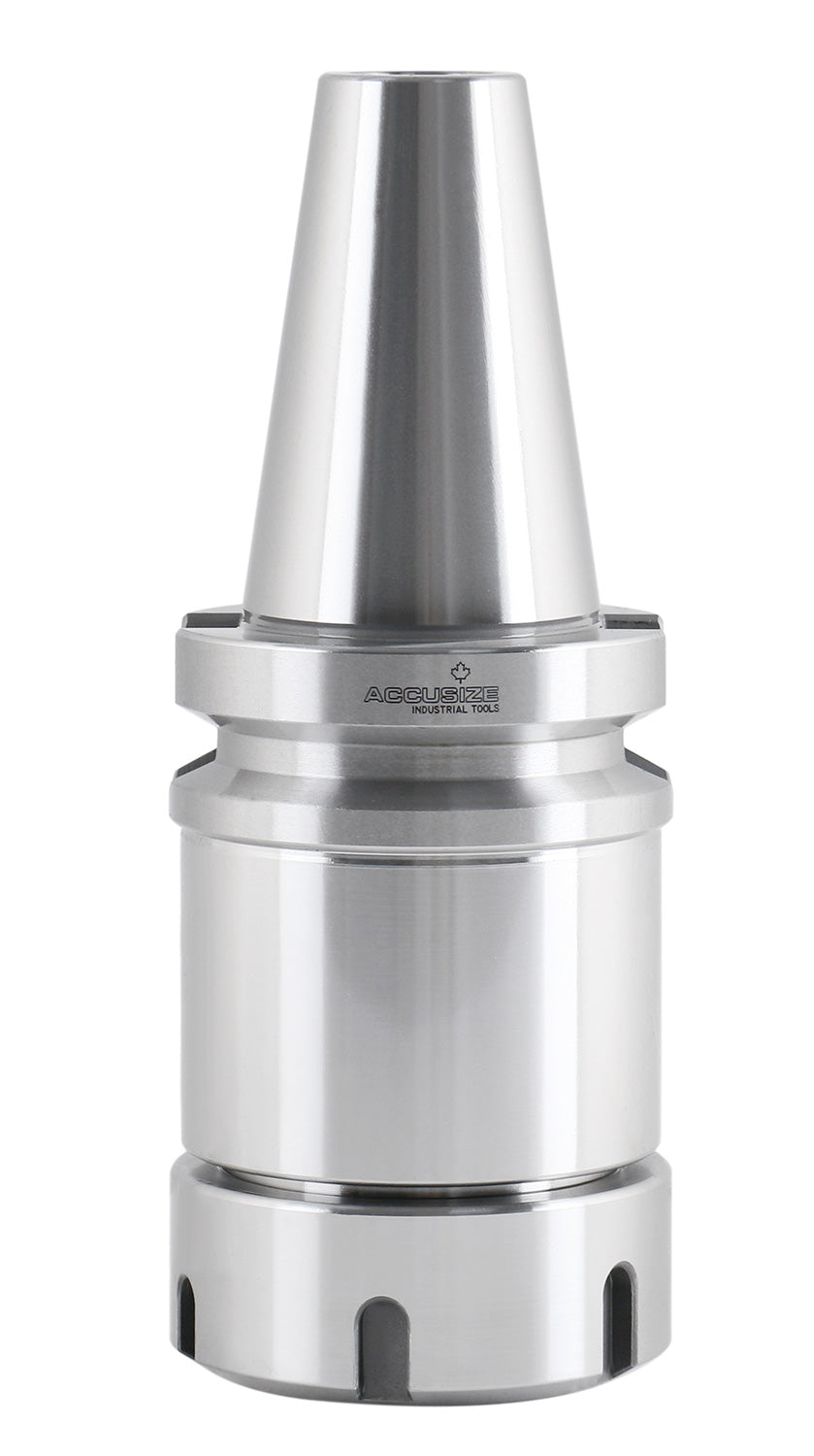

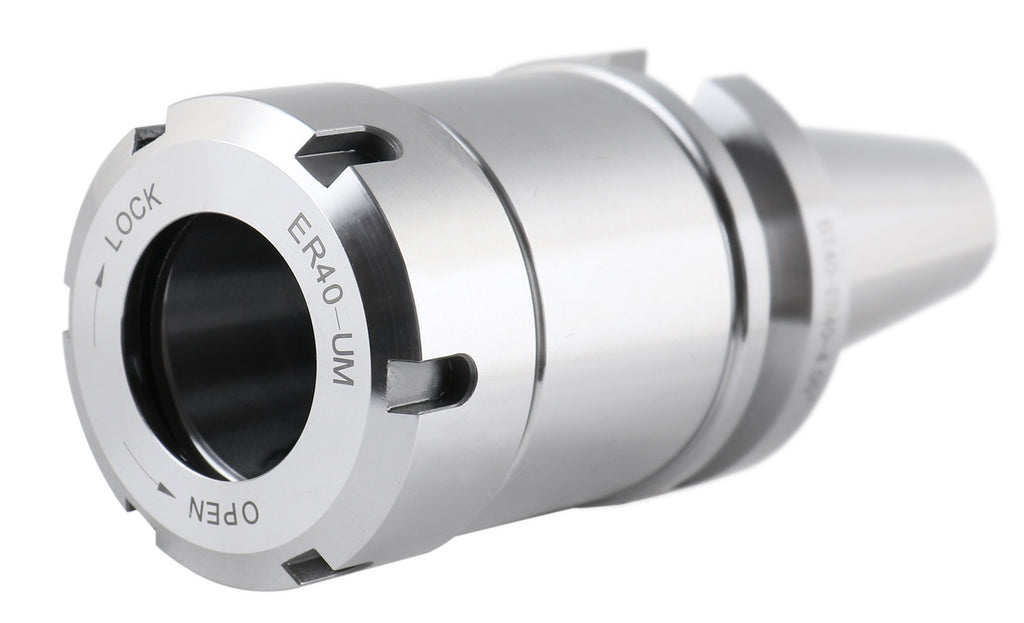

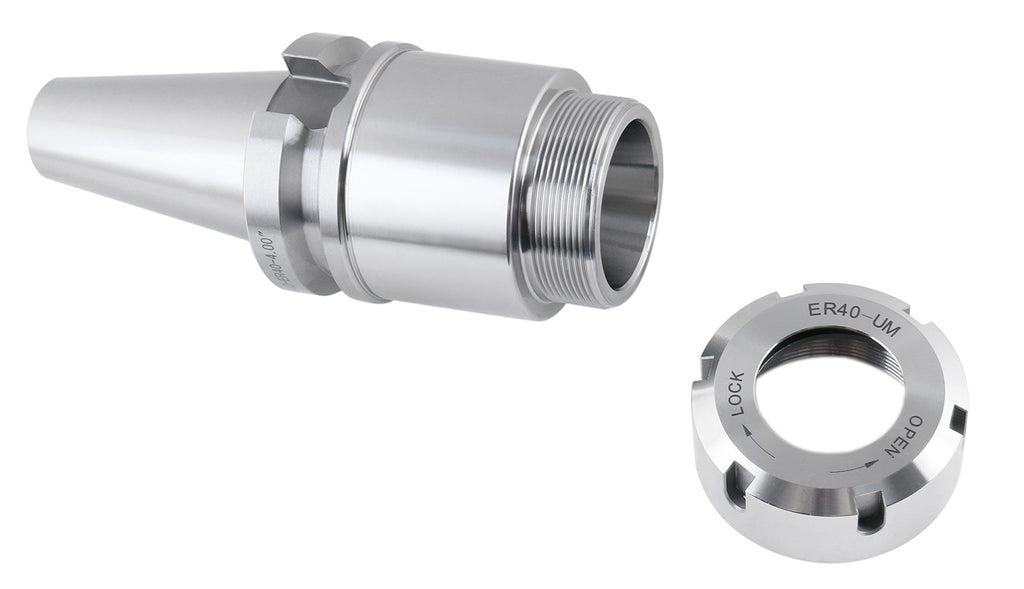

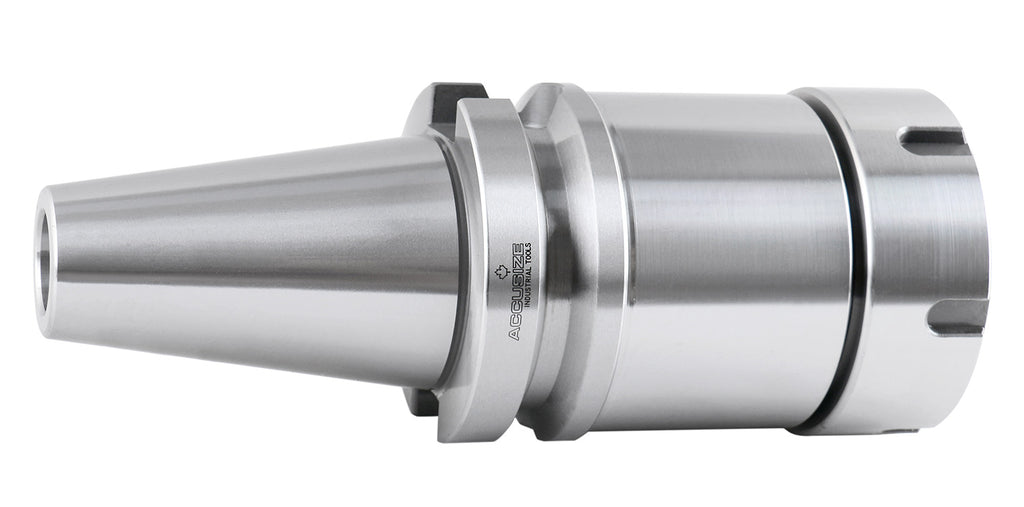

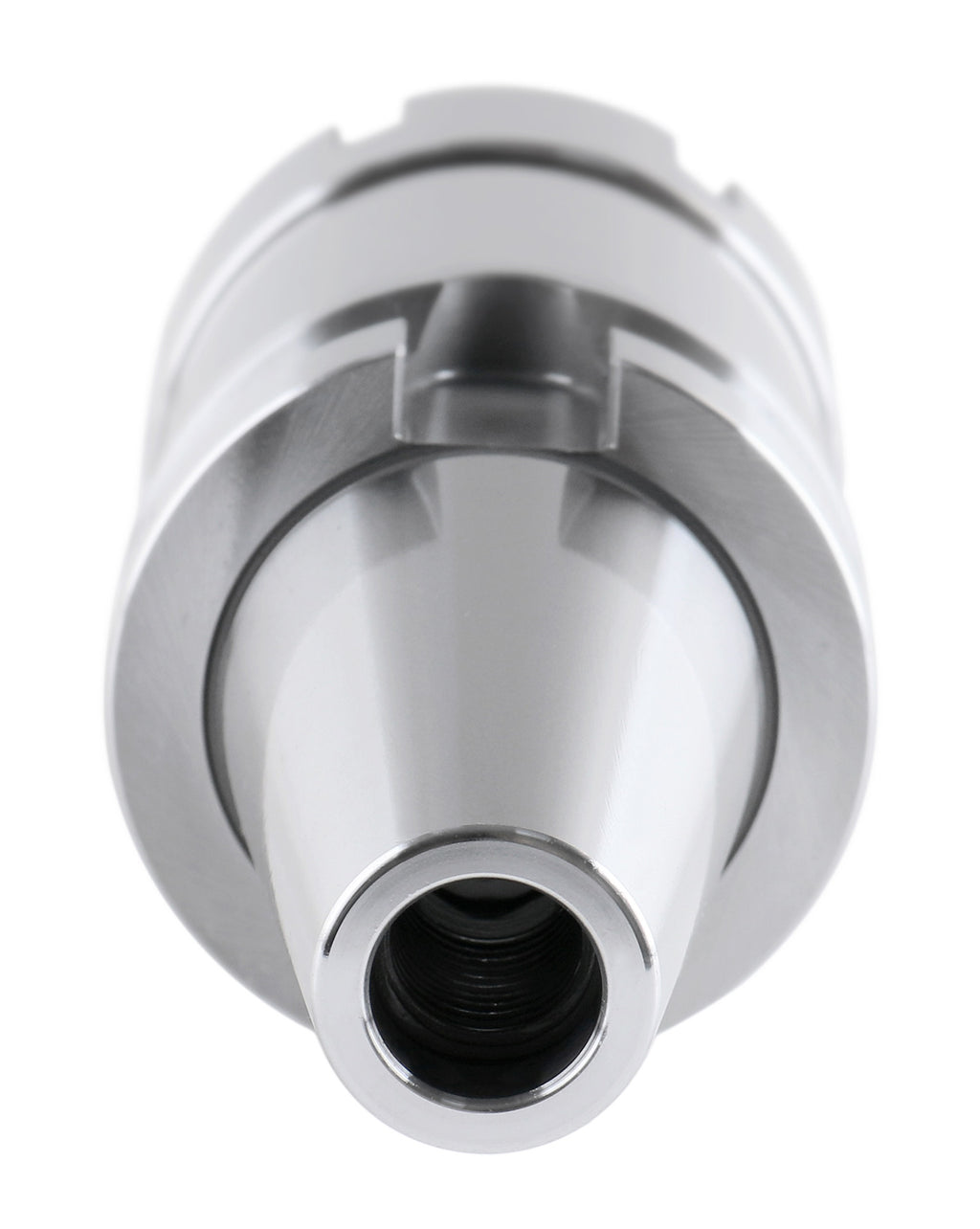

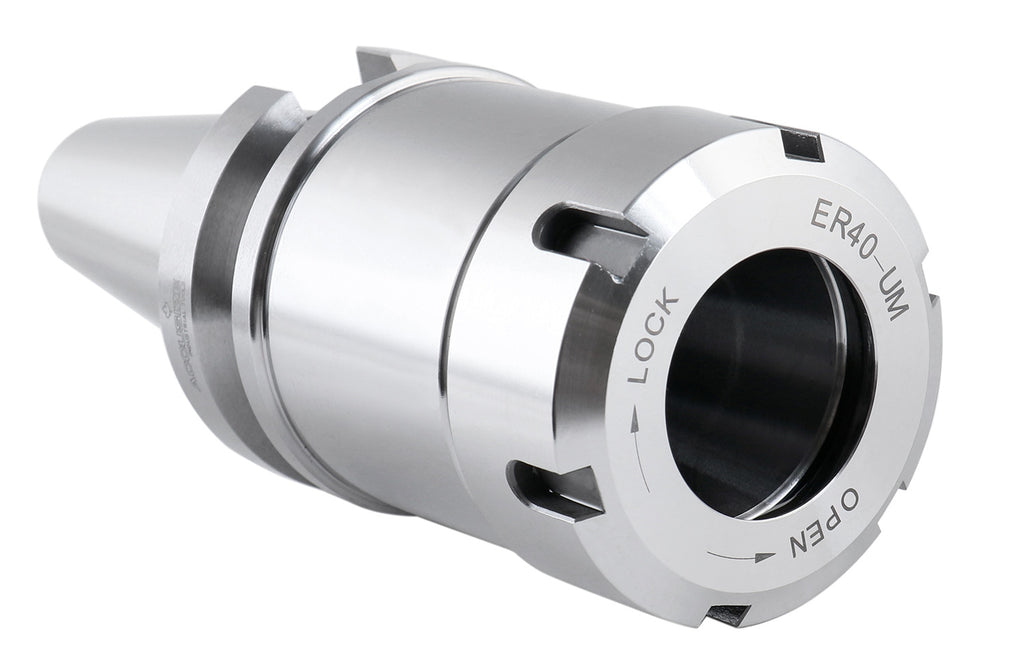

Bt40 V-Flange Collet Chuck for Er40 Collets, Draw Bar Thread M16x2, 8000 RPM, with A Projection Length 4'', 1608-0040

Cat40 V-Flange Collet Chuck for Er32 Collets, Draw Bar Thread 5/8-11'', 8000 RPM, with A Projection Length 2.76'', 1601-0015

Cat40 V-Flange Collet Chuck for Er16 Collets, Draw Bar Thread 5/8-11'', 8000 RPM, with A Projection Length 4'', 1601-0010

Cat40 V-Flange Collet Chuck for Er20 Collets, Draw Bar Thread 5/8-11'', 8000 RPM, with A Projection Length 4'', 1601-0030

Rouler l'image pour zoomer

V-bride CNC ER mandrins

Name: V-bride CNC ER mandrins
Brand: Accusize Industrial Tools
SKU: 1601-0005
Price: 57.78 USD
Availability: InStock

Accusize Industrial ToolsSKU: 1601-0005

Taille des mandrins à pince: CAT40 ER16 2.76" (1601-0005)

Variante

Prix:

$57.78

Frais delivraison calculés à la caisse

Currency:

USD

Stock:

En stock

Quantité:

Partager ce produit

WARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.

For more information, visit www.P65Warnings.ca.gov

Modes de paiement

Vos informations de paiement sont gérées de manière sécurisée. Nous ne stockons ni ne pouvons récupérer votre numéro de carte bancaire.

Sécurité

Pays

Province

Code postal

CAT40 V-Flange Collet Chucks

For ER16, ER32, ER20 and ER40 Collet.
Made of alloy forged steel, Hardened to HRC 52-56.
RPM: 8000
Wrench not included.
TIR: 0.00012"
Draw Bar Thread:
- CAT40: 5/8-11"
- BT40: M16x2

Item	Taper	Collet Size	Collet Nut Style	Projection Length	Range
1601-0005	CAT40	ER-16	Hex	2.76"	1/32"-3/8"
1601-0010	CAT40	ER-16	Hex	4"	1/32"-3/8"
1601-0025	CAT40	ER-20	Hex	2.76"	1/16"-1/2"
1601-0030	CAT40	ER-20	Hex	4"	1/16"-1/2"
1601-0015	CAT40	ER-32	Slotted	2.76"	3/32"-25/32"
1601-0020	CAT40	ER-32	Slotted	4"	3/32"-25/32"
1601-0035	CAT40	ER-40	Slotted	2.76"	1/8"-1"
1601-0040	CAT40	ER-40	Slotted	4"	1/8"-1"
1608-0016	BT40	ER-16	Slotted	4"	1/32"-3/8"
1608-0040	BT40	ER-40	Hex	4"	1/8"-1"

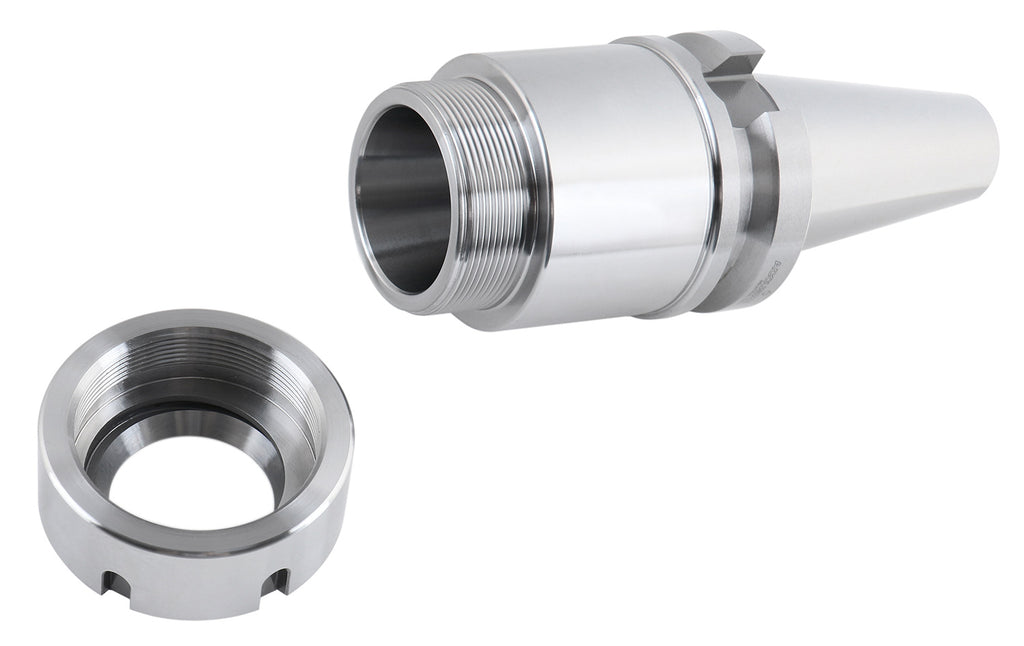

Design, Assemble, and Dissemble of ER Collet Nut


Eccentric Design, ISO 15488:2003(E)	Assemble	Inspection	Dissemble
The inside of the ER collet nut is intentionally designed like off-centering to help mount the ER collet much easier. It is in accordance with the requirements listed in ISO 15488:2003(E). If it is made symmetrical, the ER collet with the diameter larger than the inside size of the collet nut cannot be installed.	Insert the ER collet into the nut at an angle. Lock it onto the eccentric groove of the collet nut and push it in. (Insert the cutter right after the step, before connect it to the holder/chuck/arbor.)	Inspect the RPM of the ER collet, ER collet nut, ER collet holder/chuck/arbor, etc.	Take out the tool bit, press the end of the ER collet until the collet off the position. Push it out of the nut. (after take out the nut out of the holder.)
