MDJN R/L Toolholders with DNMG432 Carbide Inserts
- 3° side cutting edge angle
- For turning, facing and copying
- Accept negative 55° diamond DNMG DNMA inserts
- With 10 pcs of DNMG432 Carbide Inserts
Item
SKU#
Right/Left Hand Tool holder
(SKU#)
Shank Square (A & B) F OAL
(C)Inserts Finger Clamp Clamp Screw Locking Pins Shims Inserts
(SKU#)
I.C. T 2302-5020INS Right MDJN R-16-4D
(2302-5020)
1" 1.25" 6" 1/2" 3/16" CL-30 XNS0829 NL-0617 D1504B With 10 DNMG CVD Coated
(2206-1028)
2302-6020INS Left MDJN L-16-4D
(2302-6020)
1" 1.25" 6" 1/2" 3/16" CL-30 XNS0829 NL-0617 D1504B With 10 DNMG CVD Coated
(2206-1028)
Carbide Inserts

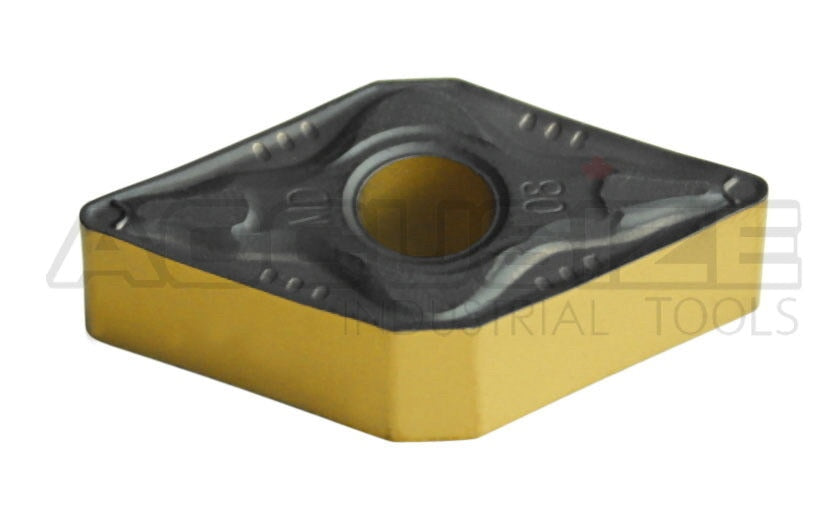

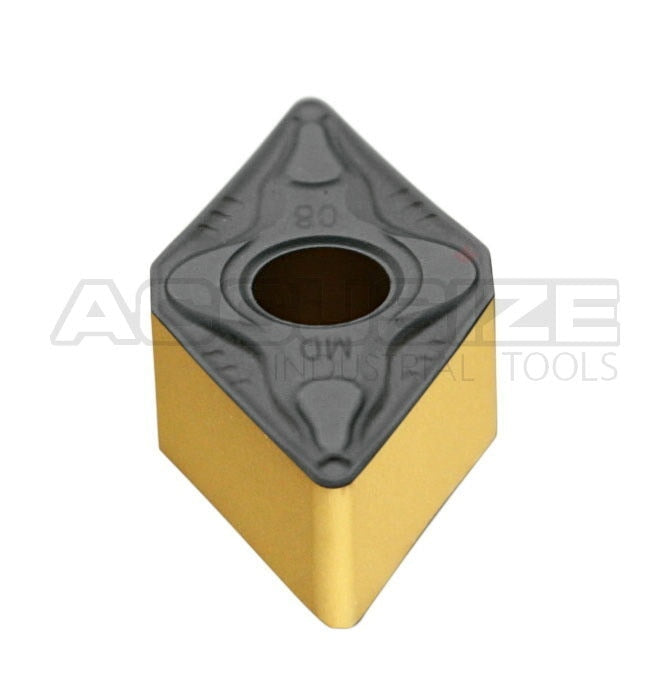

DNMG432 Carbide Inserts CVD Coated Black/Yellow 10 ps/box, #2206-1028
- CVD Coated
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- DNMG
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: finish
Product features
- BPS101 Black/Yellow
- Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness.
- Can bear high temperatures.
- For steel and steel castings finishing to roughing processing.
- Continue cutting to light-interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed.
- For hard materials, continuous cutting and light-interrupted cutting from finishing to roughing.
- Wet and dry processing.

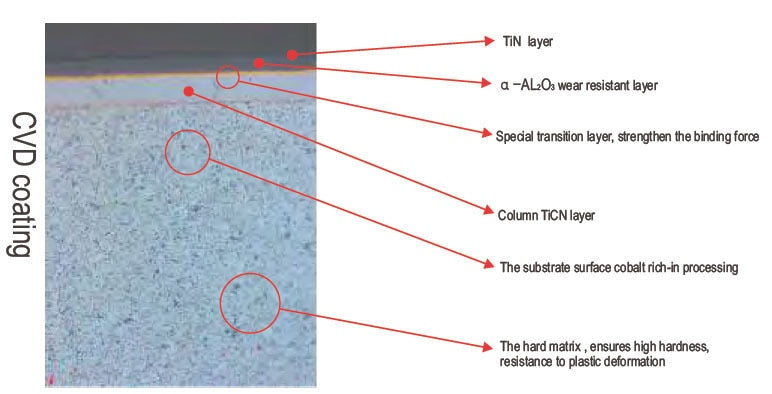

- The combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping.
- Preferred choice chip breaker on General Purpose Finishing

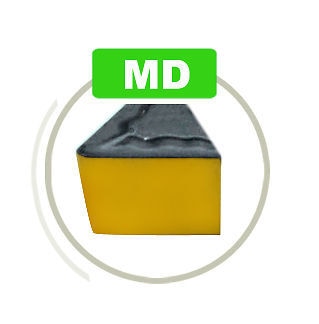

Features of chip breaker
- For medium-duty turning
- With the broad capability for steel, stainless steel, gray and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
Item # ANSI # I.S.O. # I.C Thickness Hole Radius 2206-1028 DNMG432-MD DNMG150608-MD 1/2'' 1/4'' 13/64'' 1/32''
