ADVANCED END MILL TOOL GRINDER CUTTERMASTER PROFESSIONAL JOURNEYMAN JX

CuttermastersSKU: CM-JX

Price:
$6,034.00

Shipping calculated at checkout

Currency:
CAD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

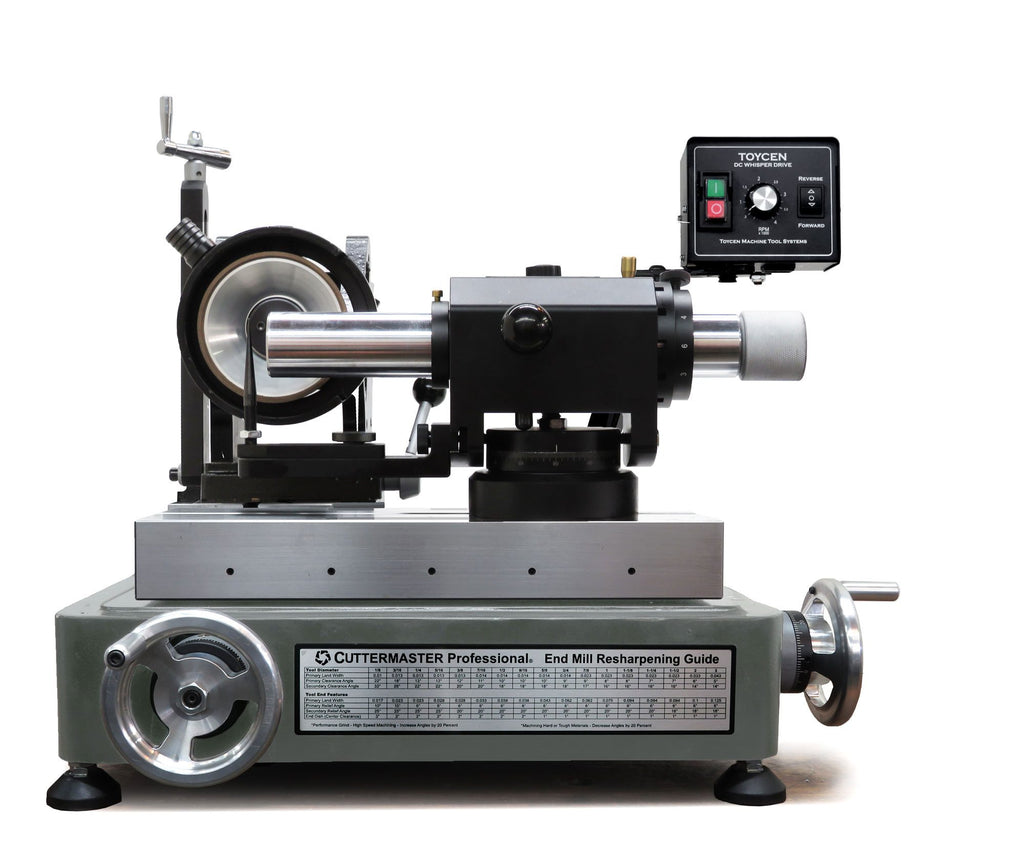

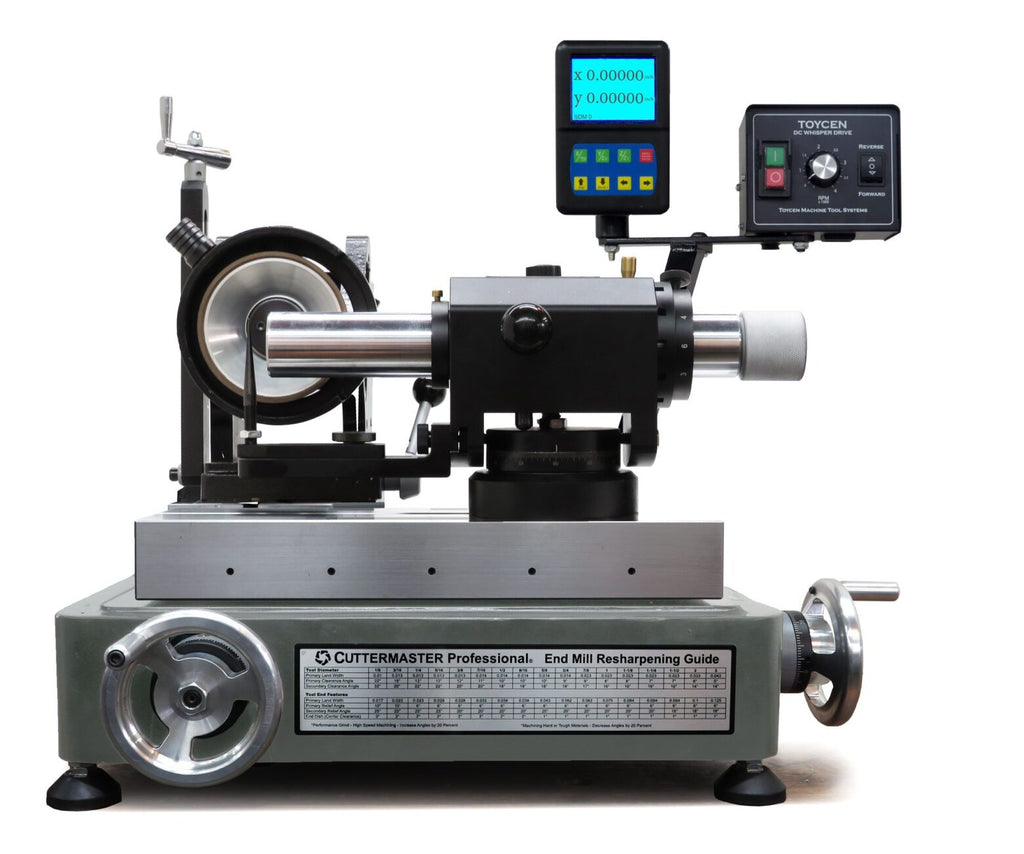

The 2022 Journeyman End Mill Sharpener is a good blend of old and new.  The state-of-the-art silent DC drive on the old reliable CUTTERMASTER frame is compatible with all legacy CUTTERMASTER accessories. Easy to set up with the best air spindle on the market. The Journeyman is our most capable grinder on the stock Cuttermaster motor configuration.

The JX features an 82mm 130V DC 500 watt  500 to 4500 RPM, on a rotate and tilt base with a Tower mounted Toycen DC whisper Drive control,

This is the bare machine and comes complete with collets and an aluminum oxide grinding wheel – everything you need to get started grinding ends and flutes.  We recommend one or two of our resin bond CBN (for high-speed steel tools) and diamond (for carbide) cup wheels to upgrade your sharpening system.  Choose our Production Support Package which is a great deal on resin bond cup wheels, wheel truing device, countersink and step drill cams and a plated face wheel.

The Patented Multi-Axis, Torque Compensating DC Motor Head with whisper drive helps to eliminate tool burning (and you can hear what you’re doing).

Production Support Packages

Journeyman Operations


Journeyman Specifications

Air Bearing Stroke 10.5″ (266.7mm)
Air Bearing Swing Over Table 9.8″ (248.92)
Cutting Tool Capacity 2″ shank, 9.8″ O.D.
Flute Length 10.5″
T-Slot Dimension 0.8″ (20.32mm) x 0.5″ (12.7mm) x 0.67″ (17.018mm)
Table Feed Gradations 0.001″ (0.02mm)
X-Axis Table Travel 6″ (152.4mm)
Y-Axis Table Travel 3″ (76.2mm) + sildes back & forth 6″ (152.4mm)
X-Axis Table Working Space 16.5″ (419.1mm) x 5.5″ (139.7mm)
Y-Axis Table Working space 13″ (330.2) x 5.5″ (139.7)
Wheel 5″ x 1.25″ cup or 6″ dish with Z-axis
Motor Tilt +35° -8°
Motor 1/3 hp, 3450 rpm, 110v / 60Hz or 220v 50Hz
Net Weight 180lbs (82Kg)
Gross Weight 232lb (106Kg)
Machine Dimensions excluding handles 21″ x 20″ x 21″
Shipping Dimensions 30″ x 28″ x 29″, 200lbs
