Description

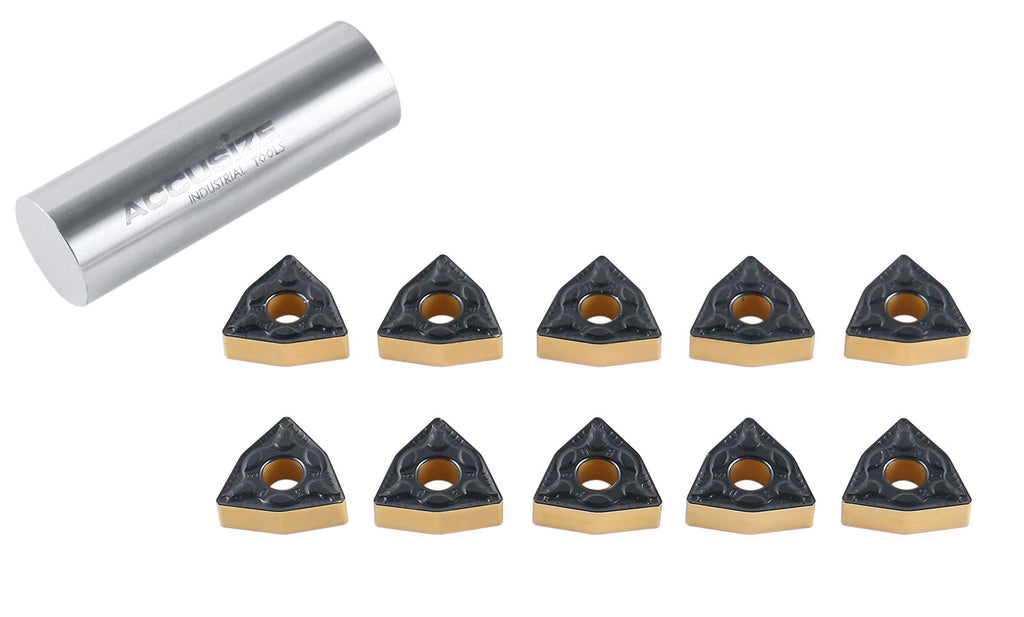

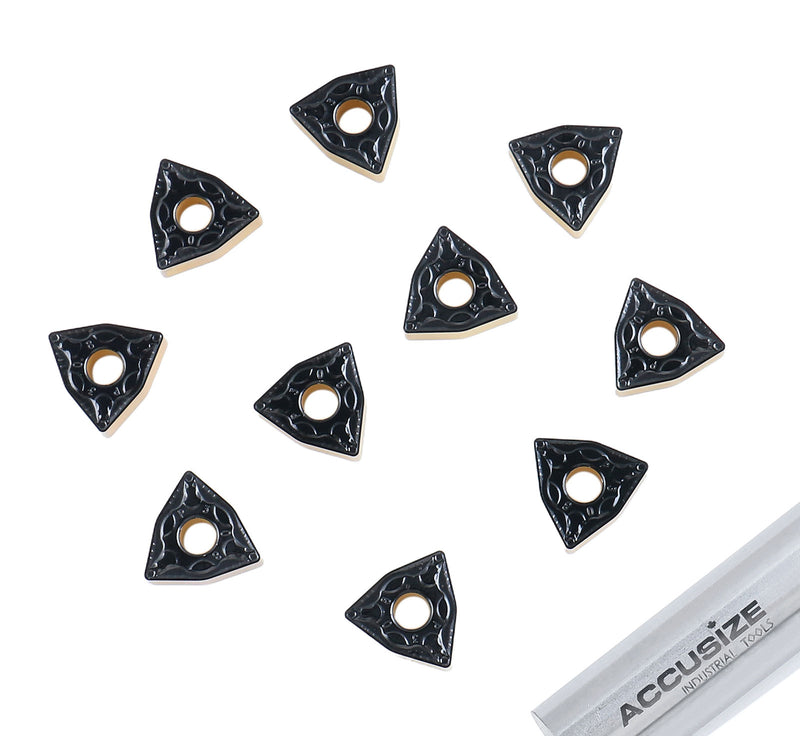

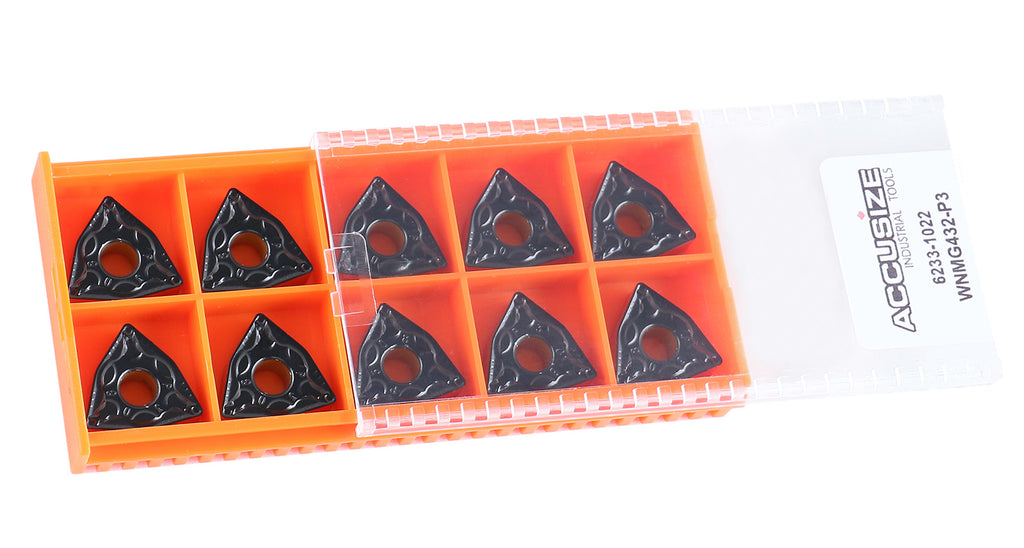

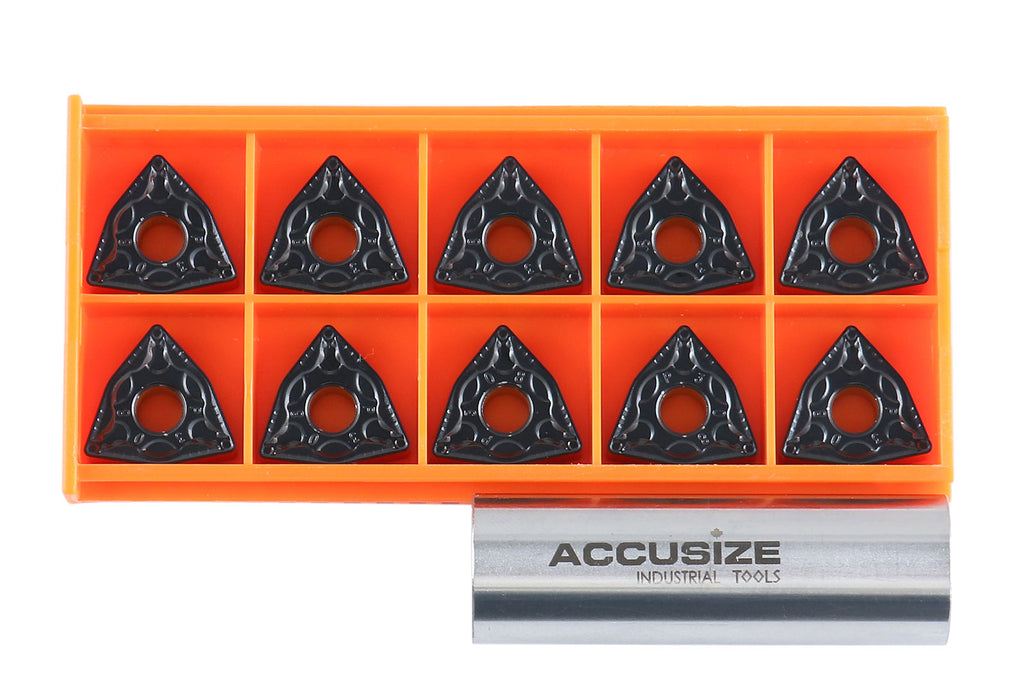

Carbide inserts, CVD Coating, WNMG, Black/Yellow, 10 ps/box
A WNMG insert is a double-sided trigon insert with a positive rake angle that varies along the edge to negative in order to prevent chipping. When a cutting edge of the WNMG insert, a turning insert, becomes dull, you just need to rotate the insert in the holder to use the sharp edge. CVD (chemical vapor deposition) coated inserts work much longer and are able to run at faster speeds than uncoated inserts and are highly wear-resistant.
- For Turning & Boring
- Material: Carbide
- Coating: CVD Al2O3 TICN
- Insert Grade: BPS101
- Chip Breaker: MD
- Machining Parts Material: Steel
- Machining Process: finish
Features
- Grade for finish turning.
- Substrate having excellent resistance to thermal crack and plastic deformation, strong resistance to chipping.
- New coating technology, can withstand high temperature when machining with or without coolant; long tool life.
- The outermost side is yellow color TiN coating, which ensures the performance of the coating and makes wear conditions easier to identify.
- Composite coatings provide increased wear resistance and service life for cutting edges.
- TiCN enhances coating adhesion, thereby ensuring edge strength.
- The matrix adopts layer distribution cemented carbide to ensure wear resistance at the same time, provides excellent resistance to plastic deformation and edge toughness.
Item # | Product # | ANSI # | I.S.O. # | I.C. | Thickness | Hole | Radius |

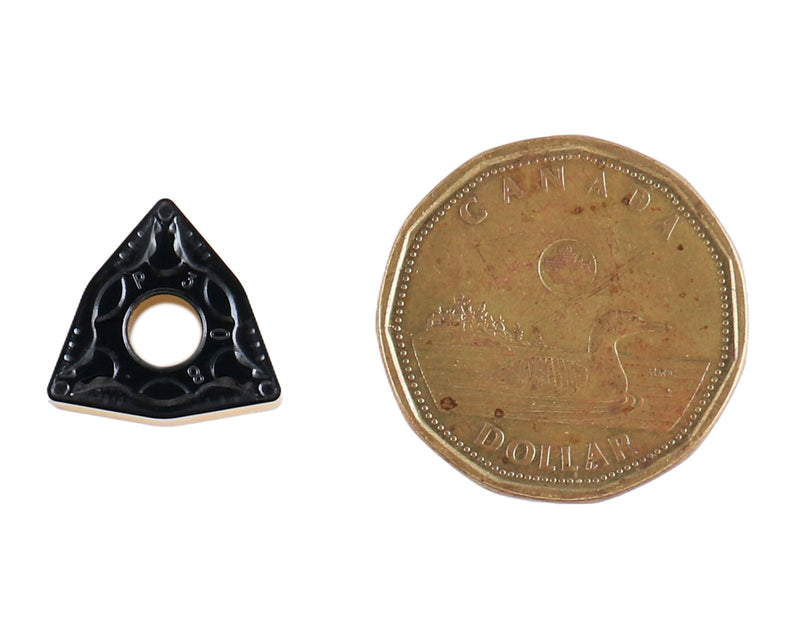

6233-1022 | 2233-1022 | WNMG432-MD | WNMG080408-MD | 1/2'' | 3/16'' | 13/64'' | 1/32'' |
