U.S. & Metric Thread Measuring Wire Sets, #EG06-1002


Price:
$37.00

Shipping calculated at checkout

Currency:
CAD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

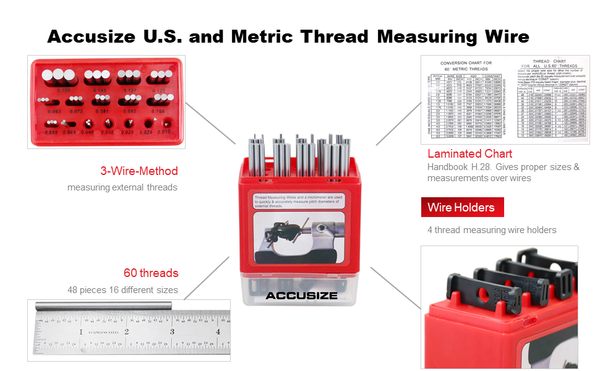

  • U.S. & Metric Thread Measuring Wire Sets, #EG06-1002

    • 48 pieces 16 different sizes for all 60° threads.
    • Measures all threads from 3 to 48 threads per inch and all metric from 0.5mm to 6mm pitch.
    • 3 wire method of measuring external threads.
    • Wires are fitted in a plastic case stamped with sizes.
    • Laminated chart complied from the U.S. Standard
    • Handbook H.28. gives proper sizes & measurements over wires.
    • Comes with 4 wire holders
    • Each holder has 2 pair of holes
    • Each pair of holes for different size of wire
    • Make pitch diameter measuring much easier

    EG06-1002

    EG06-1002 Features

    EG06-1002-3-WIRE-METHOD-SCHEMA

    3-wire-method of checking pitch diameter of screw threads

    • M: measurement over wires
    • E: pitch diameter of thread
    • D: basic major or outside diameter
    • W: wire diameter
    • P: thread pitch
    • M = E +Const
    • E = M - Const
    • Const.= 3W-86603p (found in chart)

    * The maximum and minimum pitch diameter(E) for each class of thread can be found in machinery handbook



    Conversion Chart

    Conversion Chart For 60° Metric Threads

    Thread Chart for All U.S. 60° Threads

    PITCH
    MM
    WIRE SIZE ADD CONSTANT
    MM INCH MM INCH MM INCH
    0.5 .4572 .≤180 .6138 .02417 .9386 .03695
    0.6 .4572 .≤180 .4623 .01820 .8520 .03354
    0.7 .4572 .≤180 .3107 .01223 .7654 .03013
    0.75 .4572 .≤180 .2349 .00925 .7221 .02843
    0.8 .6096 .0240 .6164 .02427 1.1360 .04472
    1.0 .6096 .0240 .3133 .01233 .9628 .03790
    1.25 .7366 .0290 .3154 .01242 1.1273 .04438
    1.5 1.0160 .0400 .7747 .03050 1.7490 .06886
    1.75 1.0160 .0400 .3958 .01558 1.5324 .06033
    2.0 1.1430 .0450 .3979 .01567 1.6969 .06681
    2.5 1.3970 .0550 .4021 .01583 2.0259 .07976
    3.0 1.6002 .0630 .2540 .01000 2.2025 .08671
    3.5 2.0574 .0810 .8678 .03416 3.1411 .12367
    4.0 2.3368 .0920 .9482 .03733 3.5463 .13952
    4.5 2.7432 .1080 1.4096 .05550 4.3325 .17057
    5.0 2.7432 .1080 .6519 .02566 3.8995 .15352
    5.5 3.0480 .1200 .8085 .03183 4.3808 .17247
    6.0 3.2258 .1270 .5841 .02300 4.4812 .17643

    Select the proper wire size for either the number of threads per inch (US) or thread pitch (Metric)Metric
    Measured pitch die (E) equals measurement over wires(M) minus decimal in “CONSTâ€?column
    Note: Basic P.D. equals basic major diameter plus decimal in “ADDâ€?column minus decimal in “CONSTâ€?column

    THREADS
    PER IN.
    WIRE SIZE ADD CONST THREADS
    PER IN.
    WIRE
    SIZE
    ADD CONST
    48 .018 .02243 .03596 11 1/2 .055 .03321 .08969
    44 .018 .01956 .03432 11 .055 .02722 .08627
    40 .018 .01611 .03235 10 .055 .01345 .07840
    36 .018 .01190 .02994 9 .063 .02061 .09277
    32 .024 .02464 .04494 8 .072 .02656 .10775
    28 .024 .01787 .04107 7 1/2 .081 .04093 .12753
    27 .024 .01587 .03993 7 .081 .02649 .11928
    24 .029 .02385 .05092 6 .092 .02341 .13166
    20 .029 .01122 .04370 5 1/2 .108 .04845 .16654
    18 .032 .0≤180 .04789 5 .120 .05689 .18679
    16 .040 .02528 .06587 4 1/2 .127 .04421 .18855
    14 .040 .01175 .05814 4 .143 .05011 .21249
    13 .045 .01842 .06838 3 1/2 .185 .12199 .30756
    12 .055 .03870 .09283 3 .185 .04982 .26632

    1 inch = 25.4mm

    1 mm = .03937 inch
