3-Axis Digital Read Out DRO Glass Scale Kit for Milling Machine on Knee (X, Y, Z)

for Mill Size:: 10 x 54" (3028-1636)

Shipping calculated at checkout

In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Estimate shipping

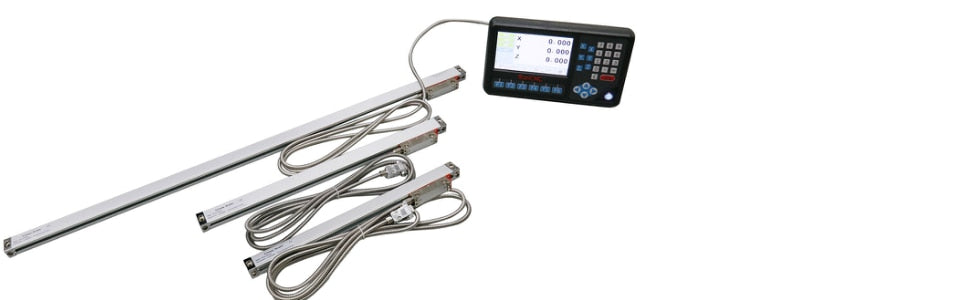

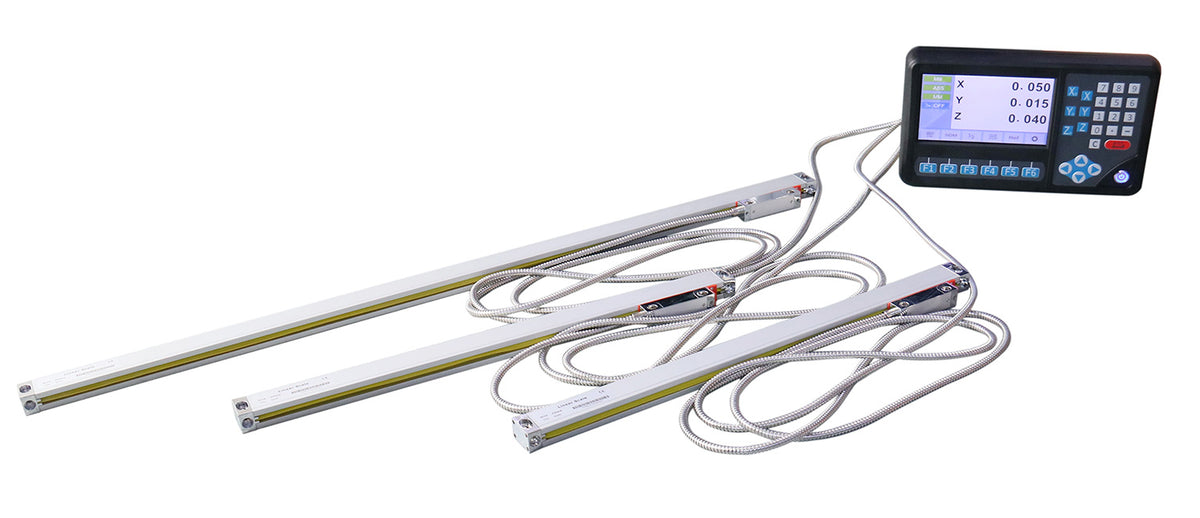

3-Axis Digital Read Out for Milling Machine on Knee (X, Y, Z)

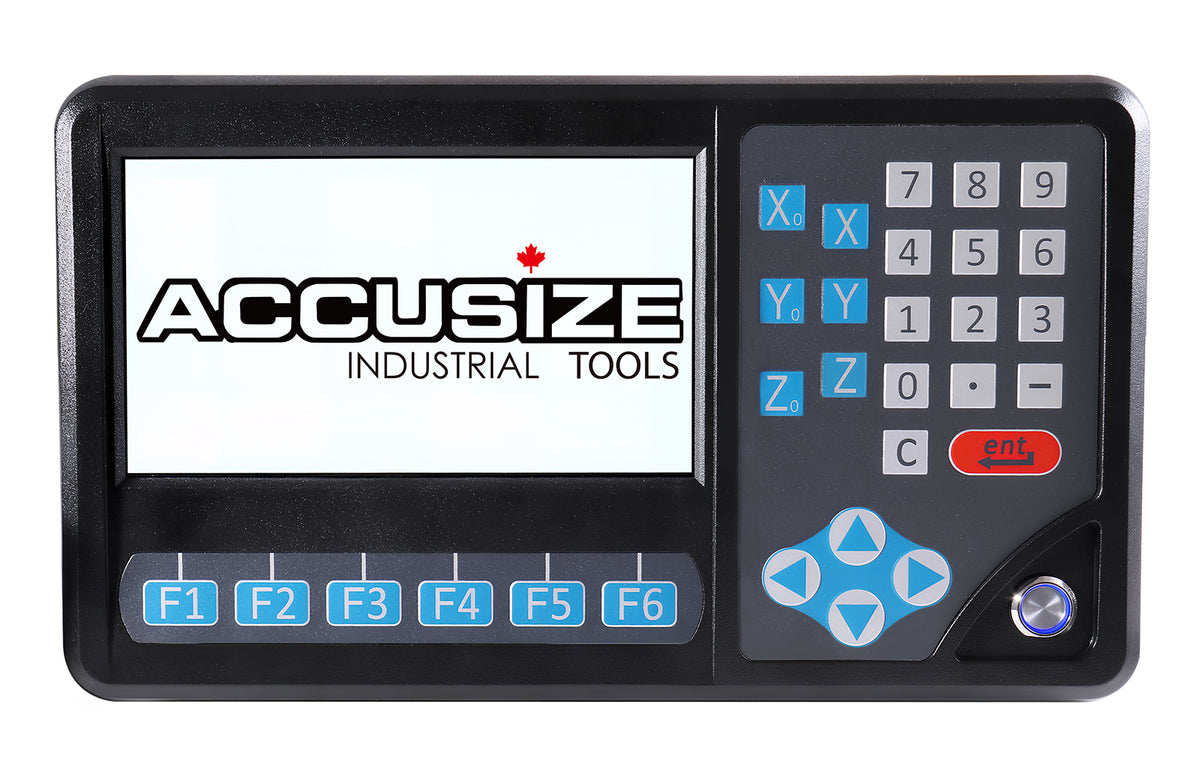

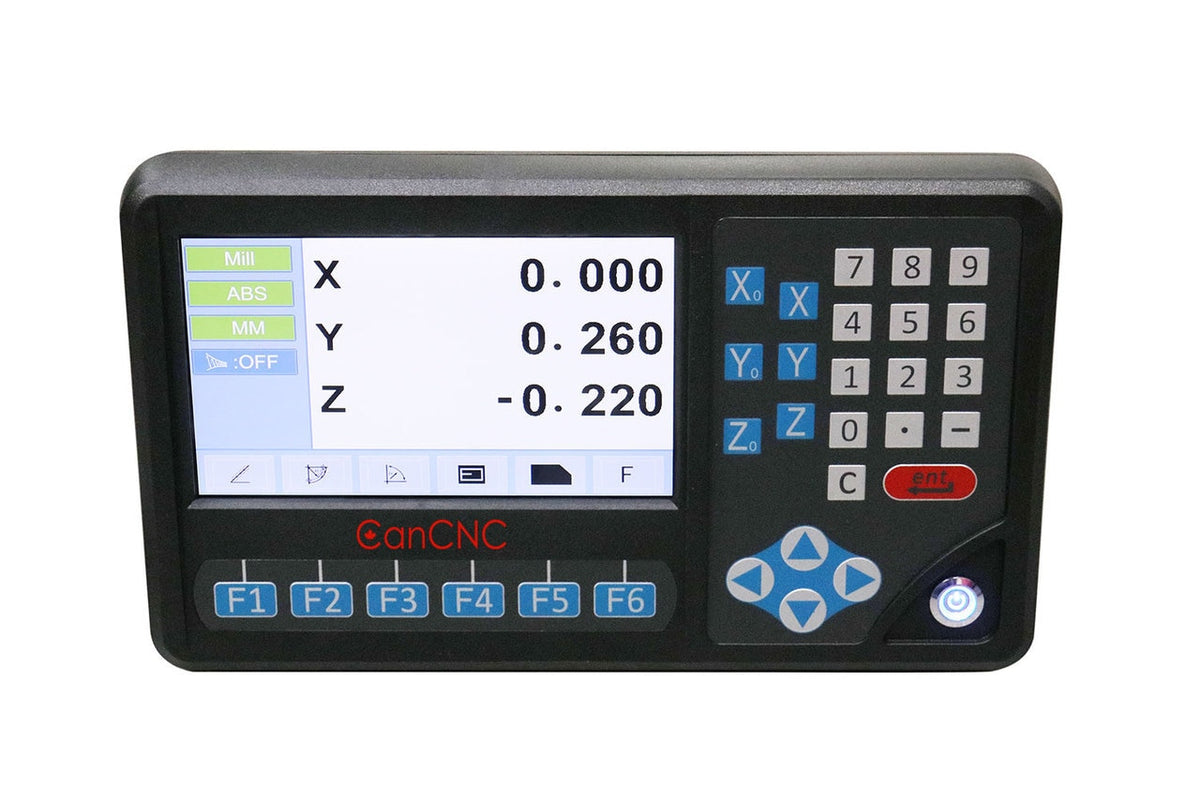

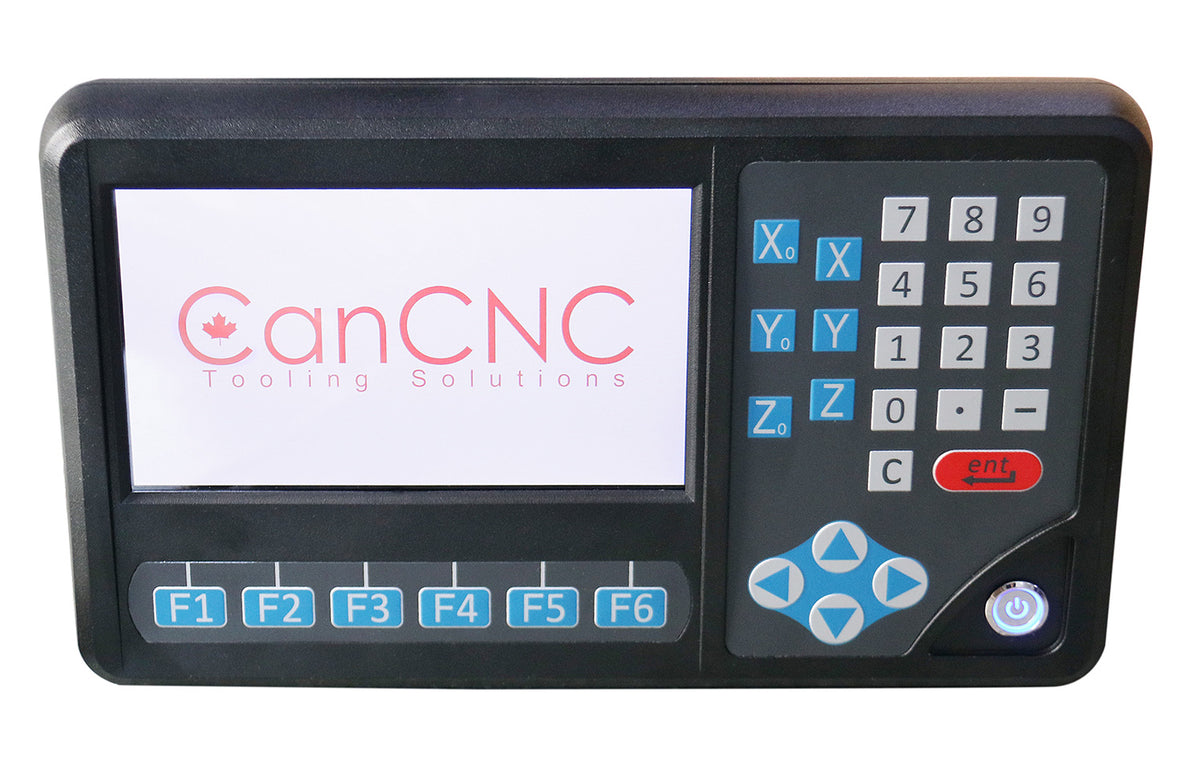

Specifications of D80 Digital Readout

  • Voltage range: AC80V-260V / 50HZ-60HZ
  • Power dissipation: 15W(D80, D100)
  • Working temperature: -10°C - 60°C
  • Coordinate display: D80(Max.5 Axes)
  • Times frequency: 4X
  • Input signal: 5v TTL/RS422
  • Input frequency: ≤4MHZ
  • Operating keypad: Mechanical Keypad
  • Resolution: 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 2.5μm, 5μm, 10μm, 50μm
  • 7" true color LCD screen, easy to recognizing
  • Saving the drawing function, the DRO allows saving the drawings into the system which makes the machining to be much more convenient
  • Special previewing of the drawing function, after setting well the parameters, the DRO will display the machined well effect which makes the operating be more visual
  • Displaying the tool's current position function, during the machining, the system will display the tool's current position according to the drawing which makes the machining be much easier
  • Help function, during the machining, if there is any doubt, pressing the help button will help you to solve
  • Custom settings for the shortcut keys, the operator can set the shortcut keys according to his operating habit

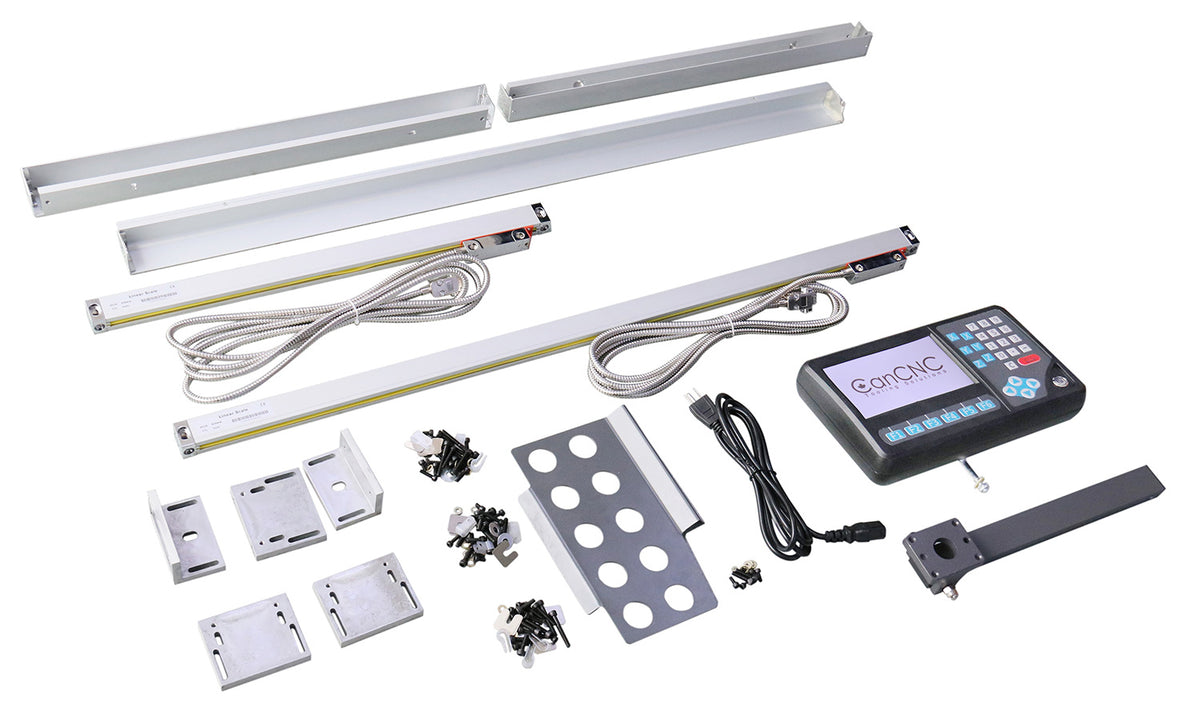

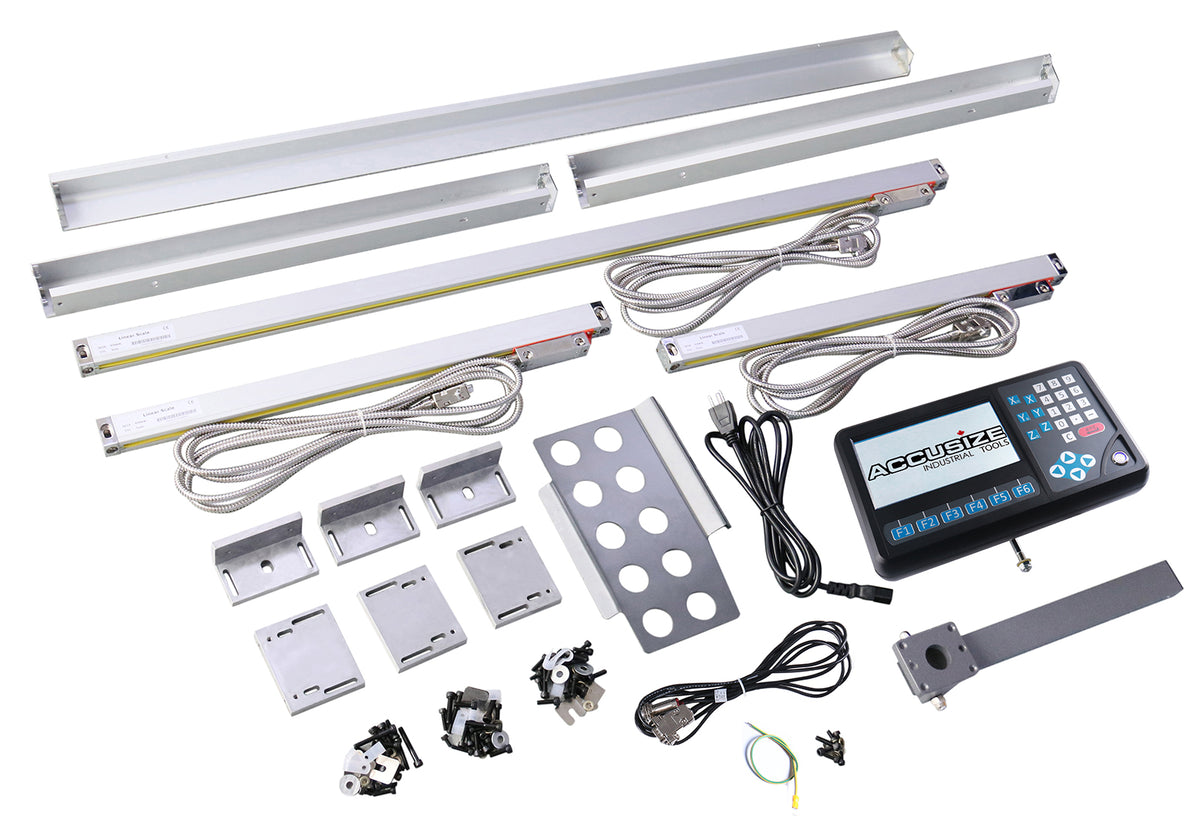

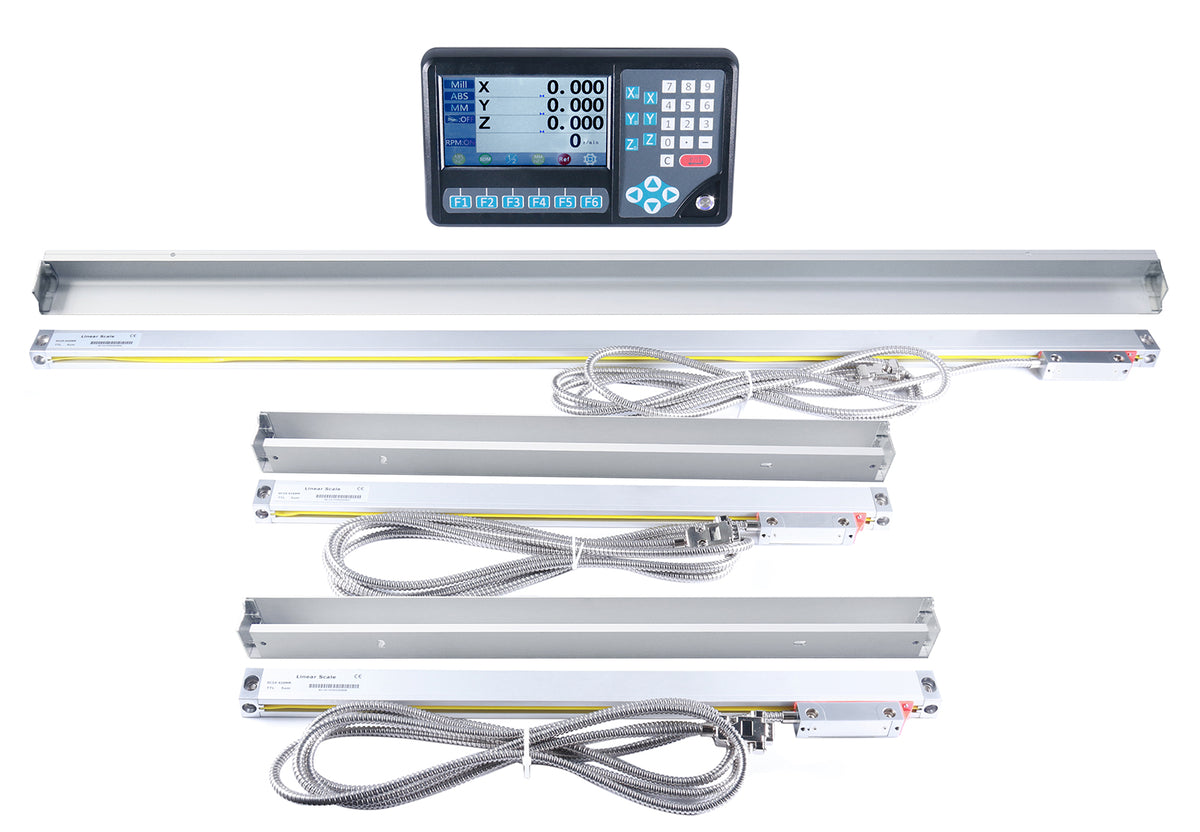

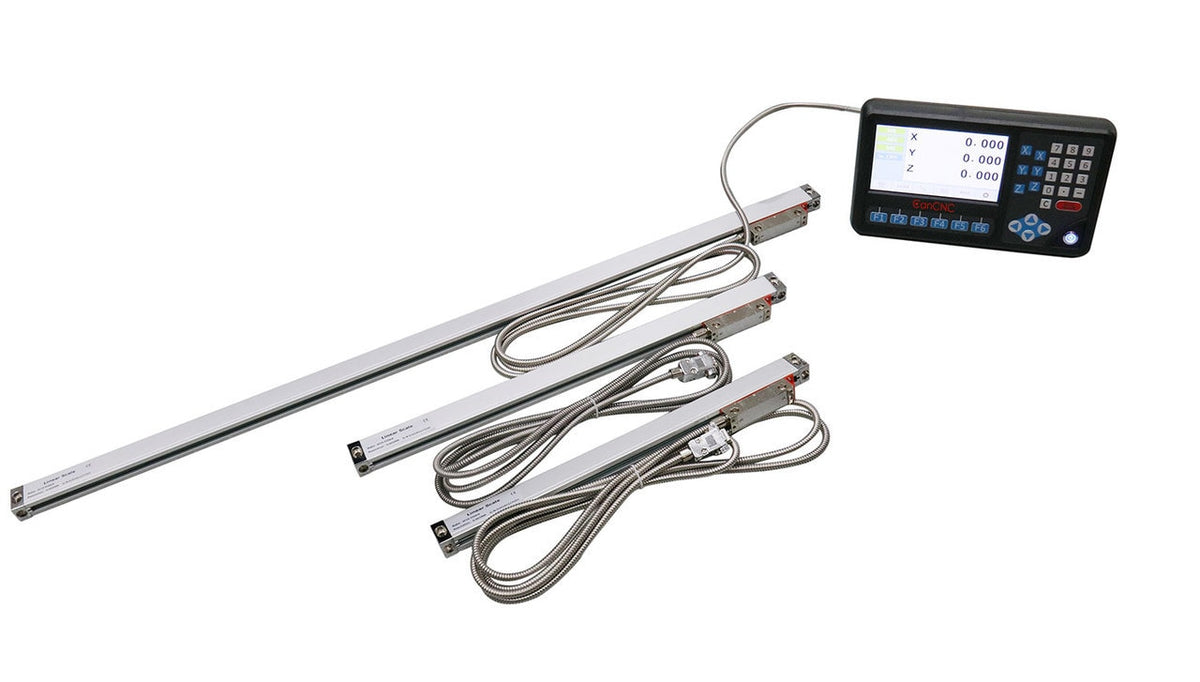

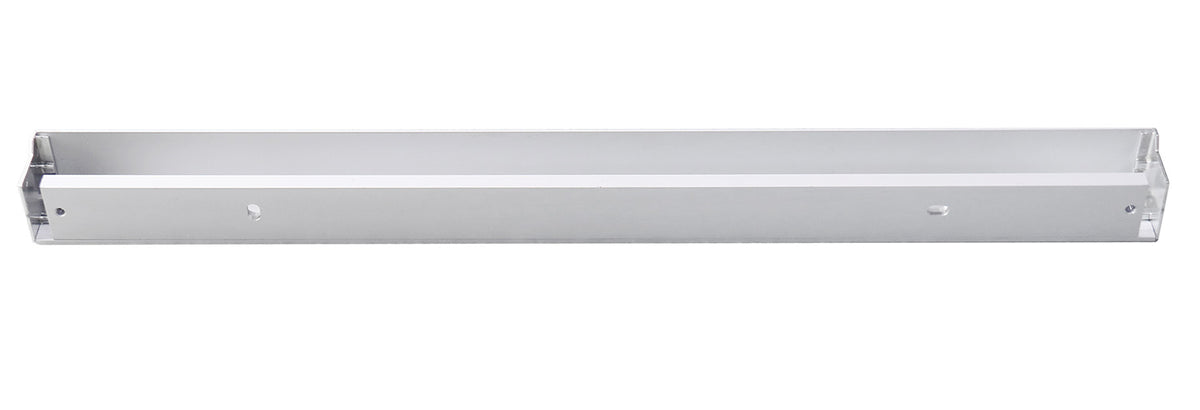

Kit Includes:

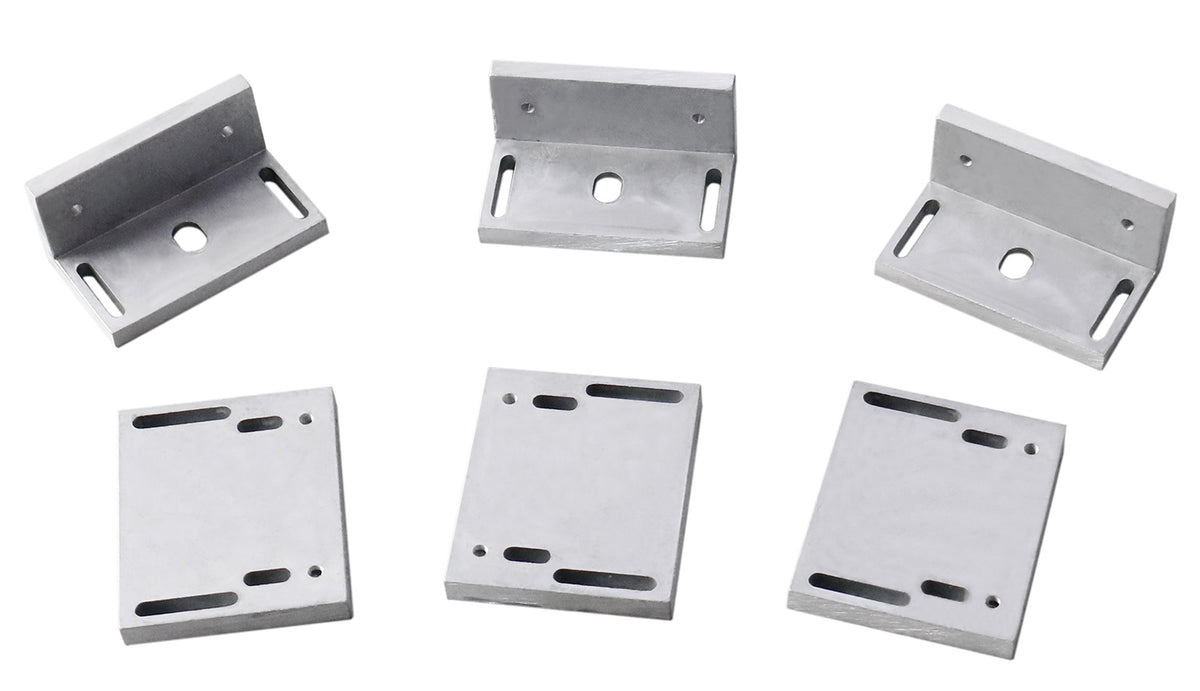

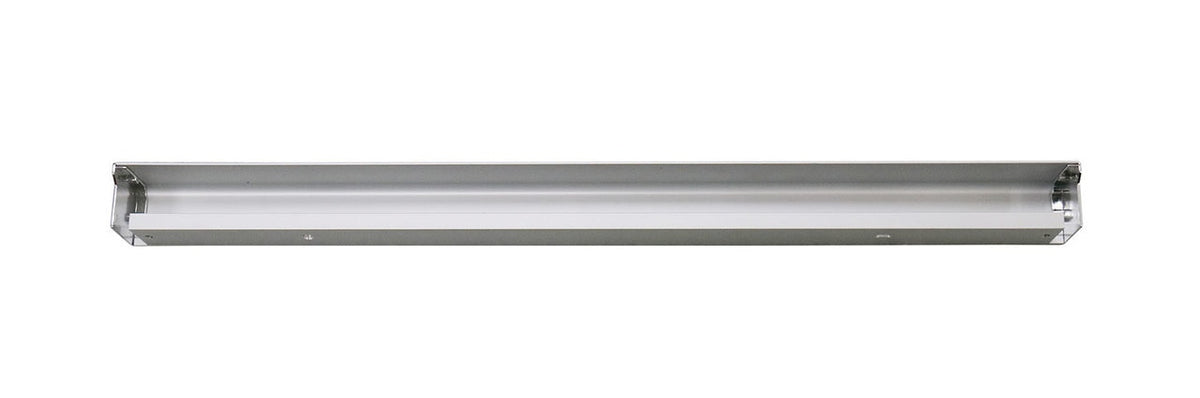

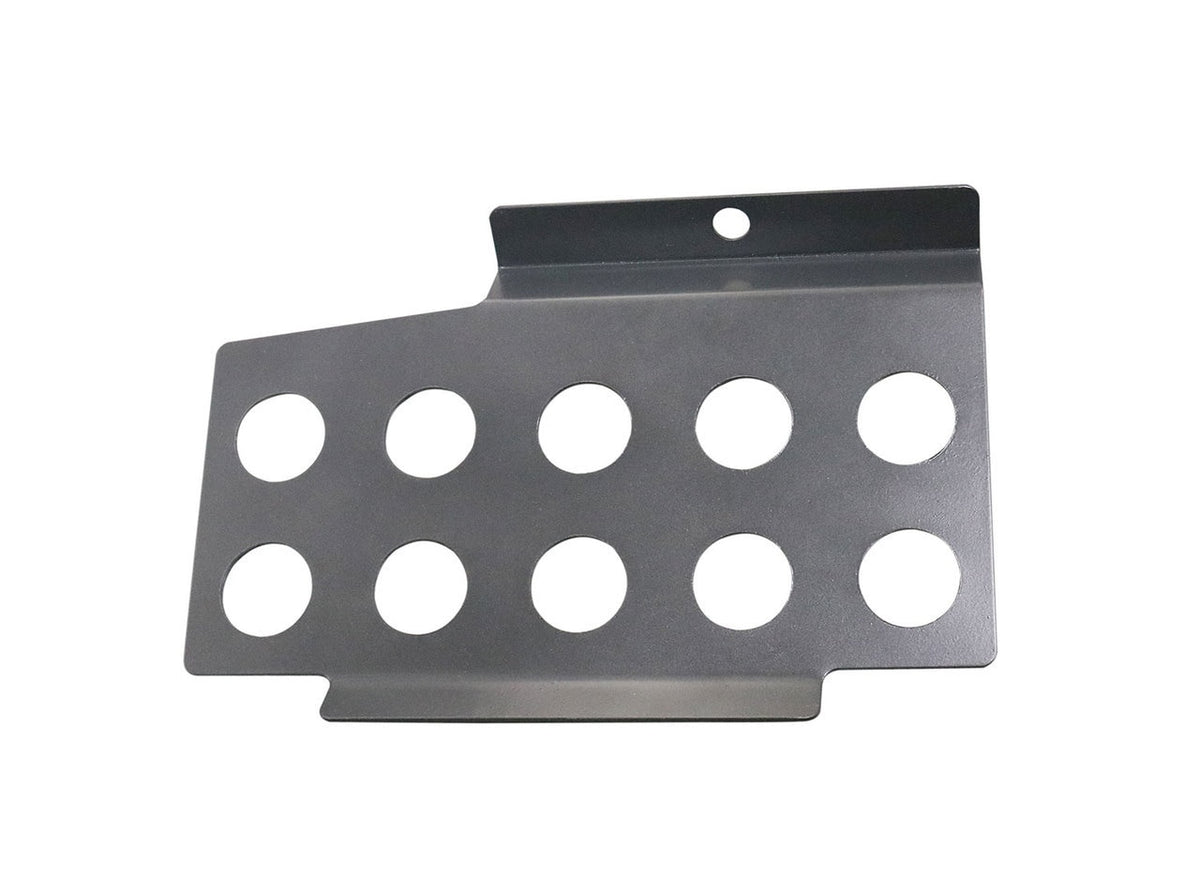

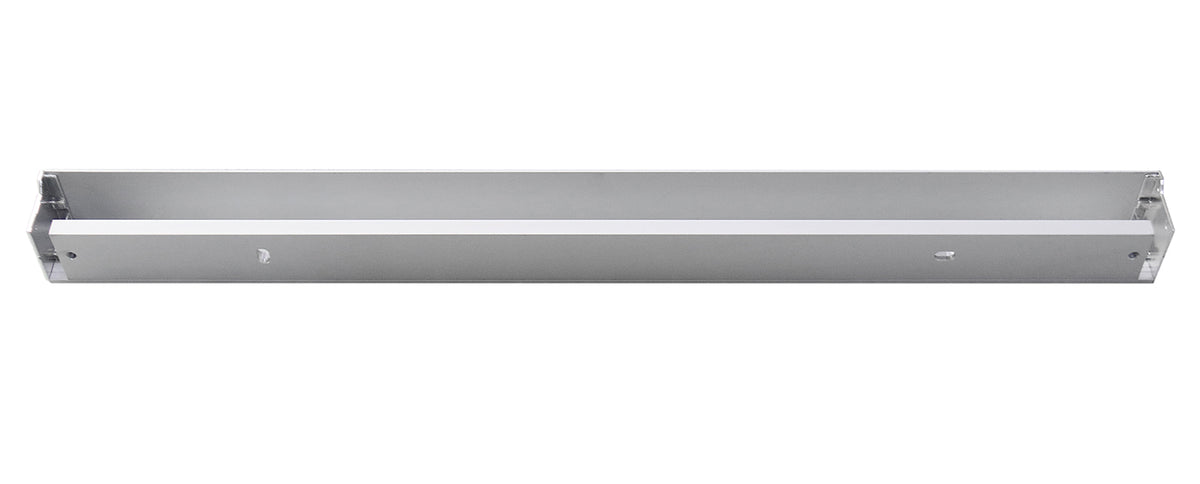

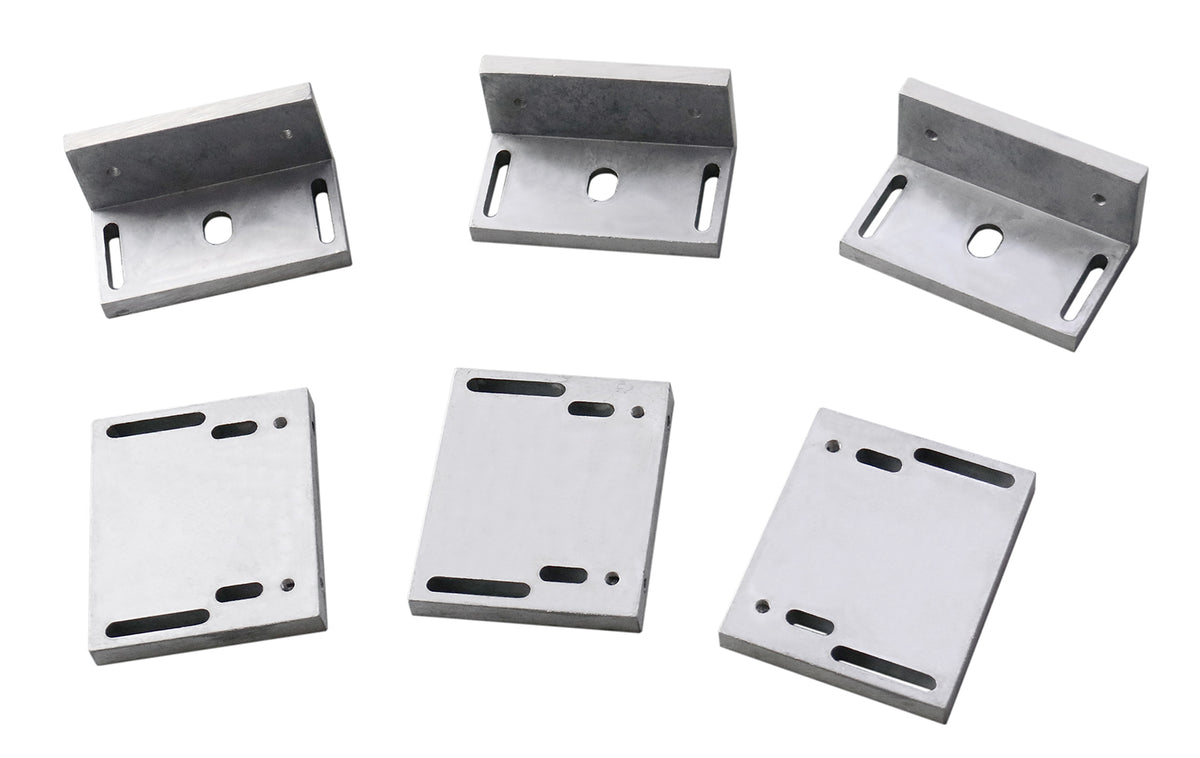

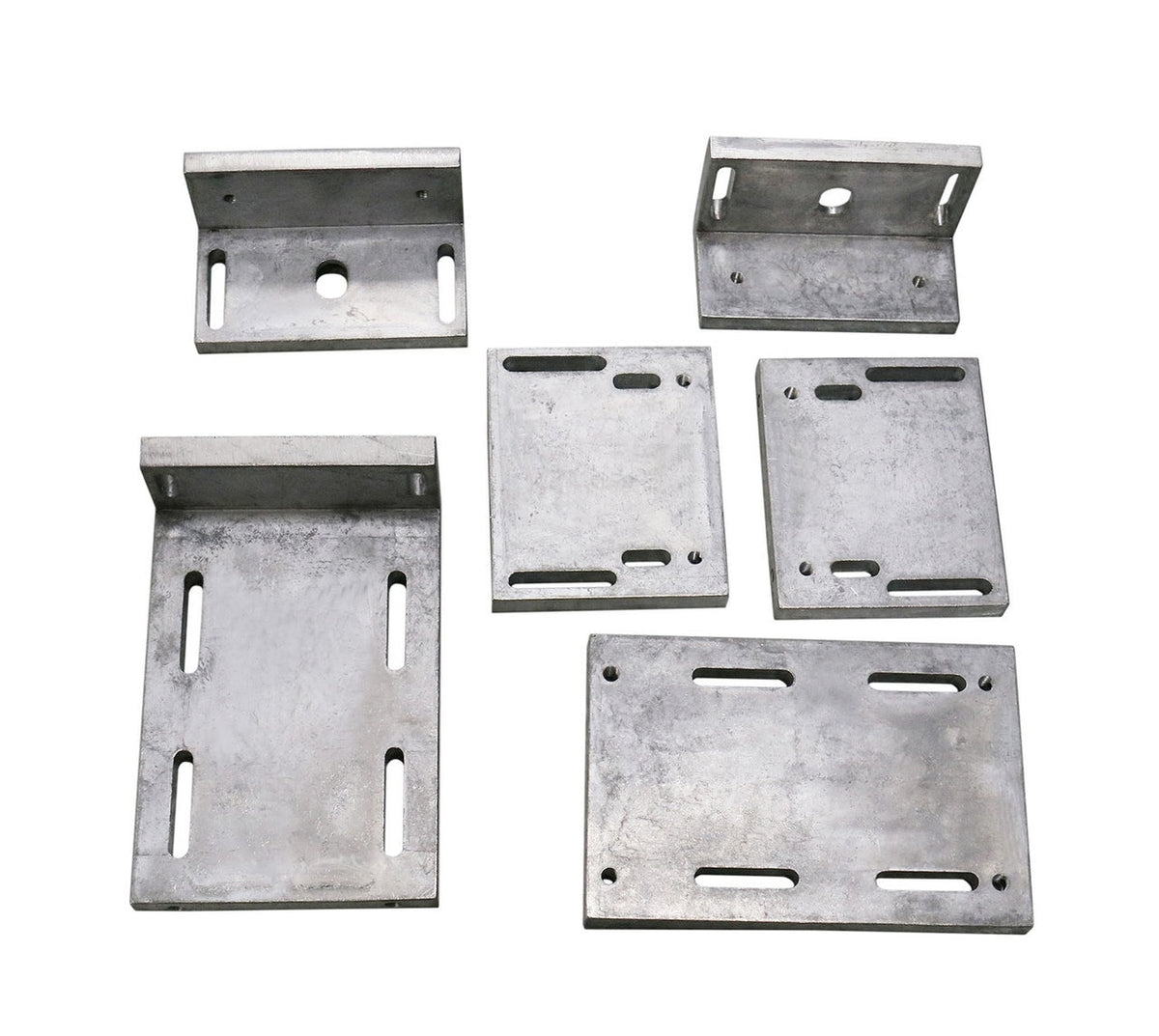

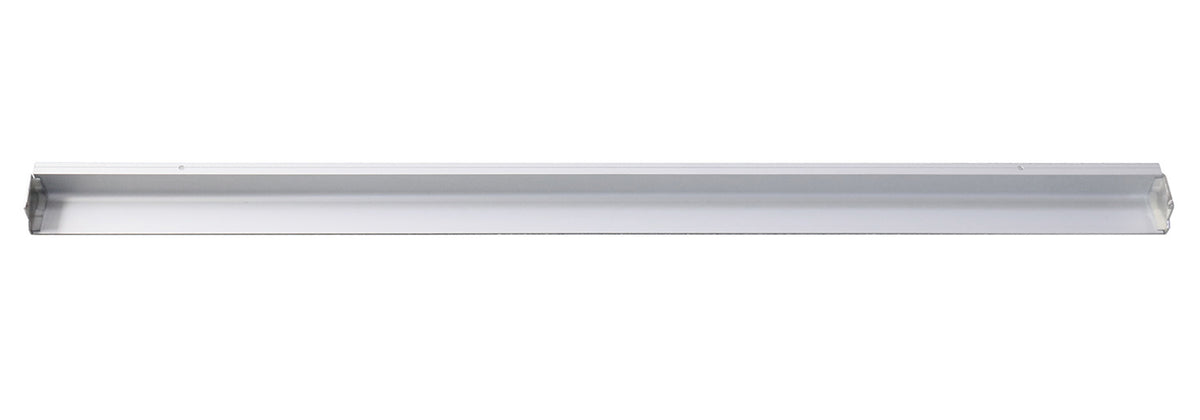

  1. All mounting hardware

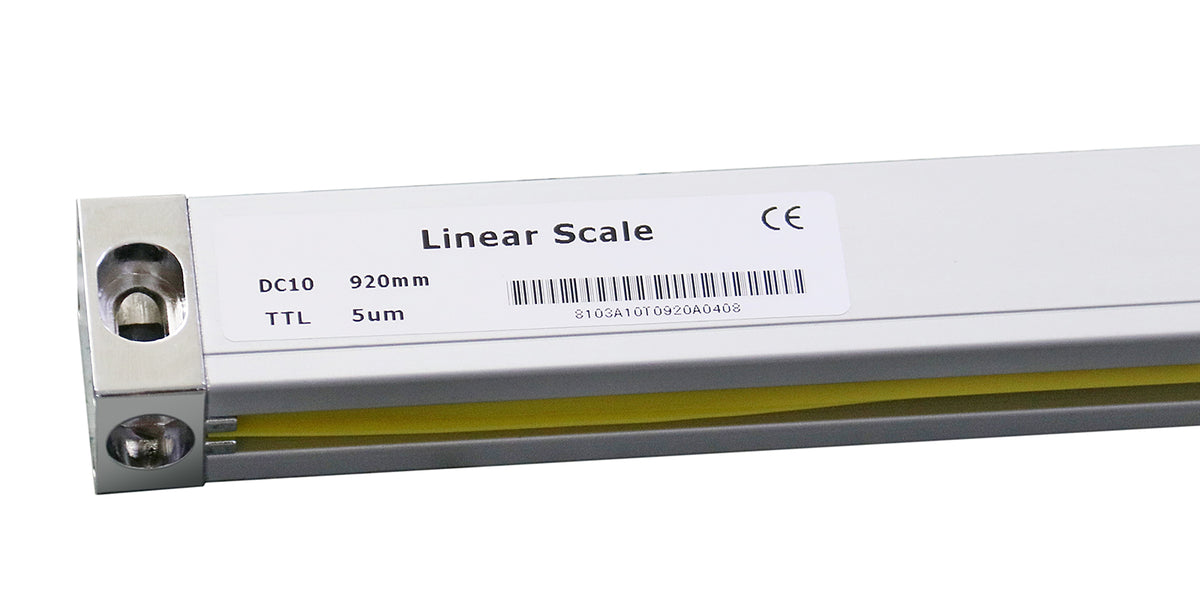

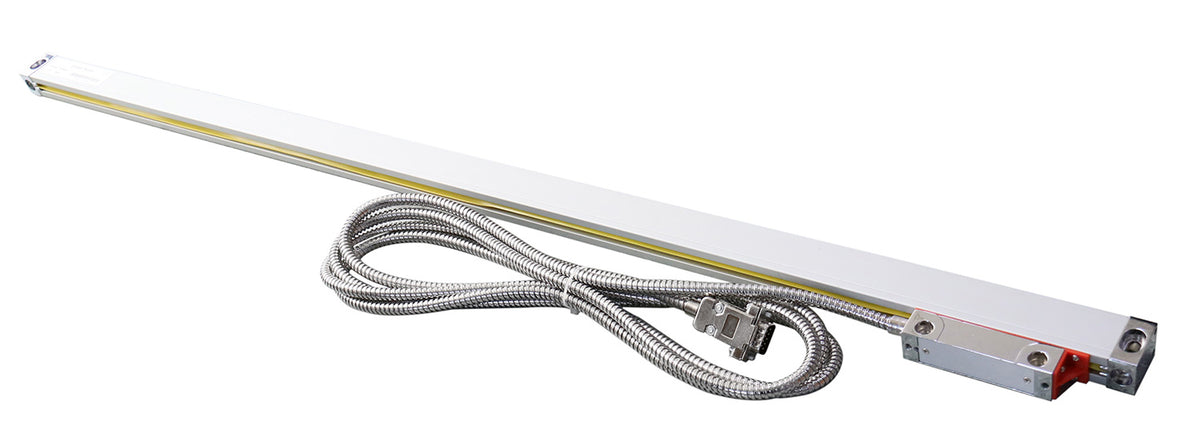

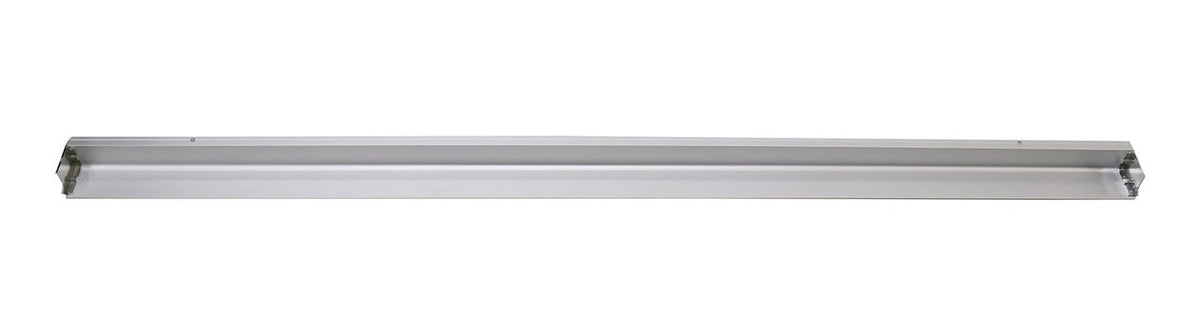

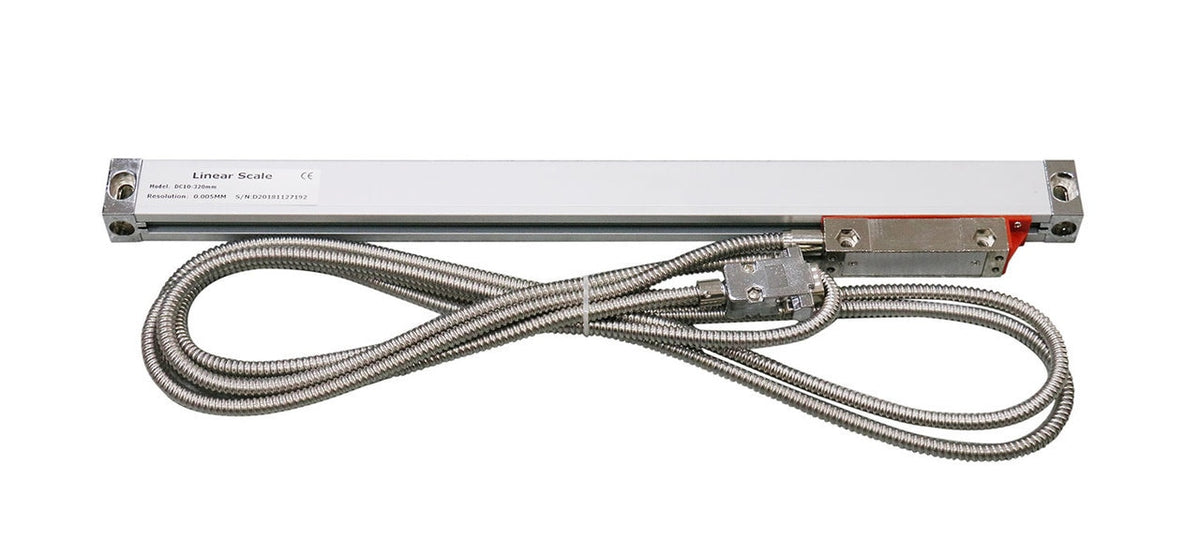

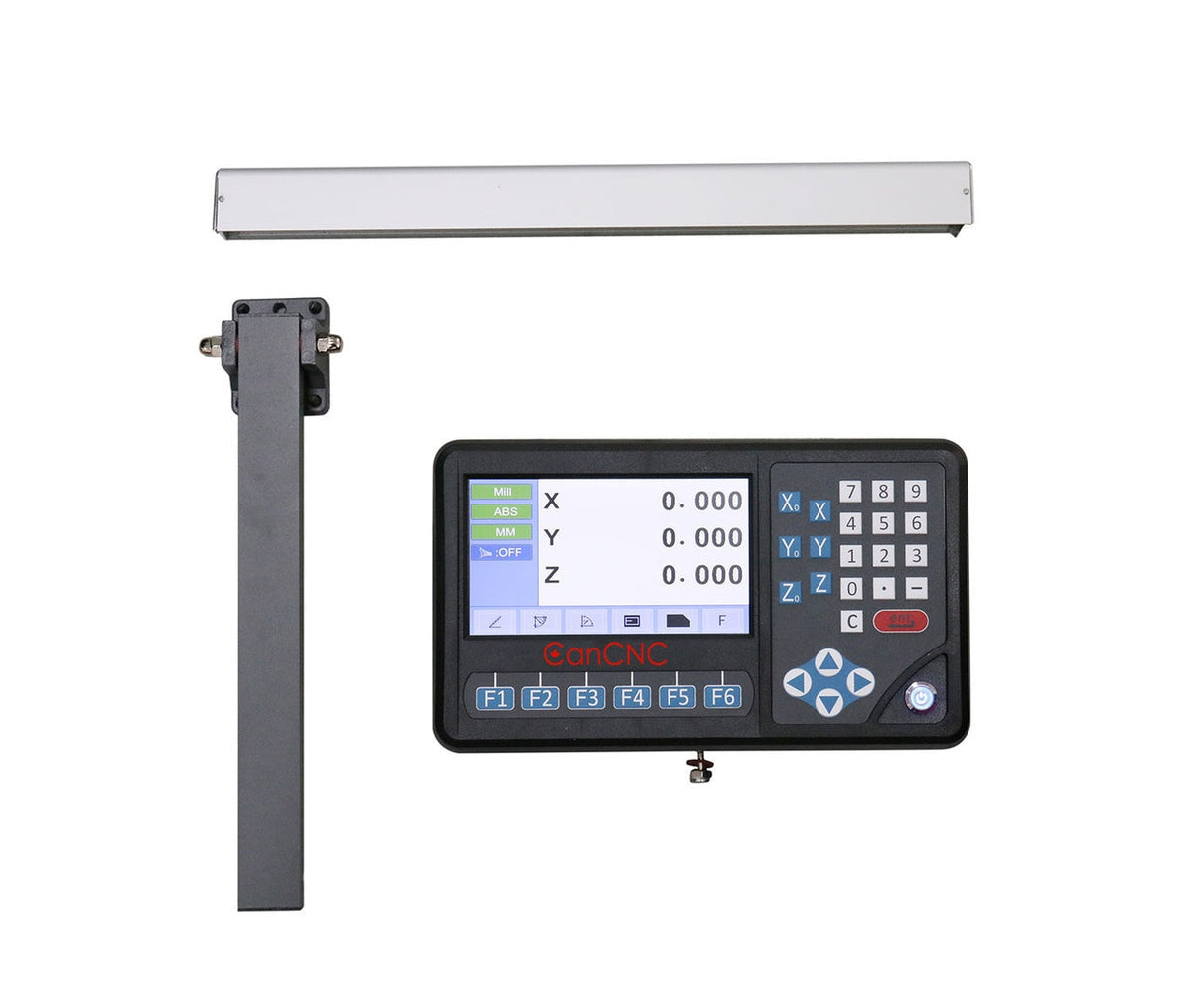

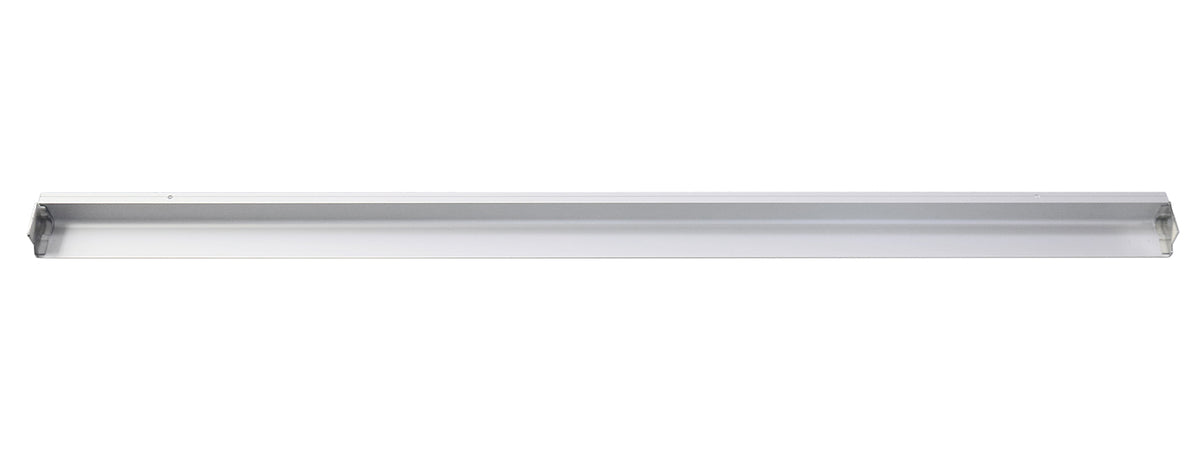

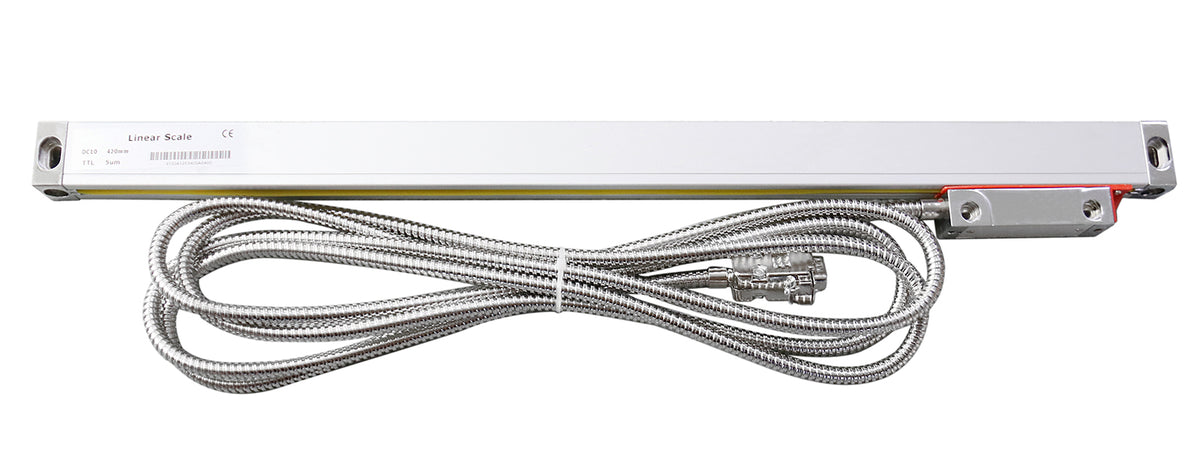

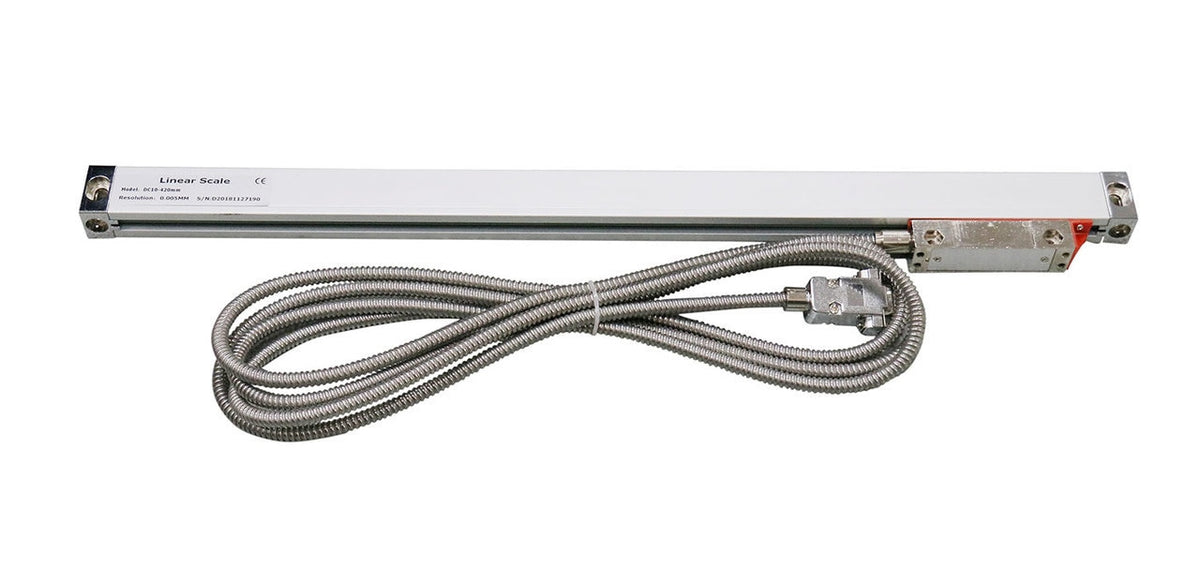

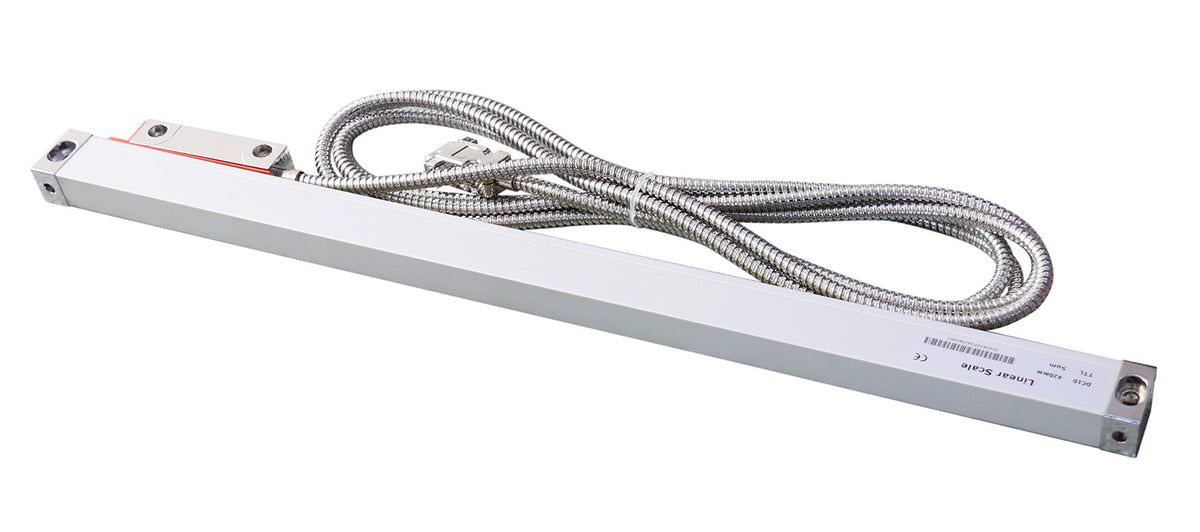

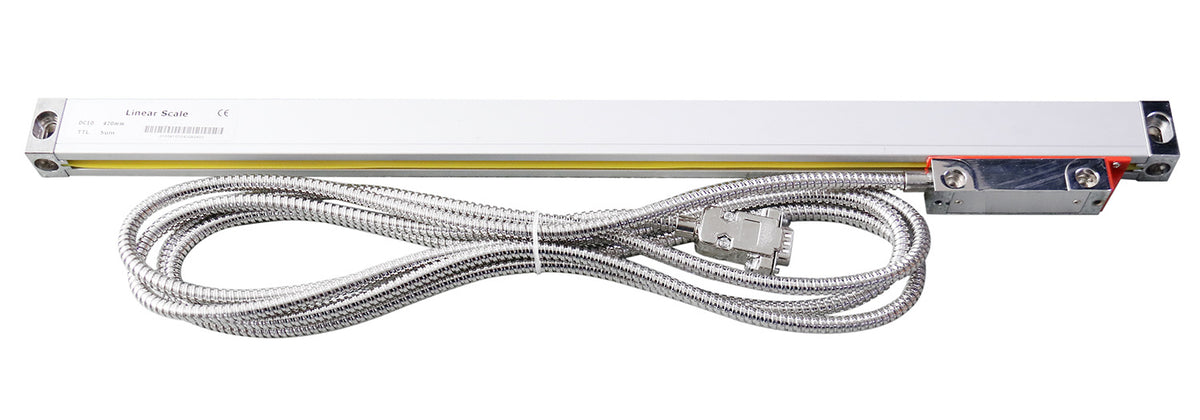

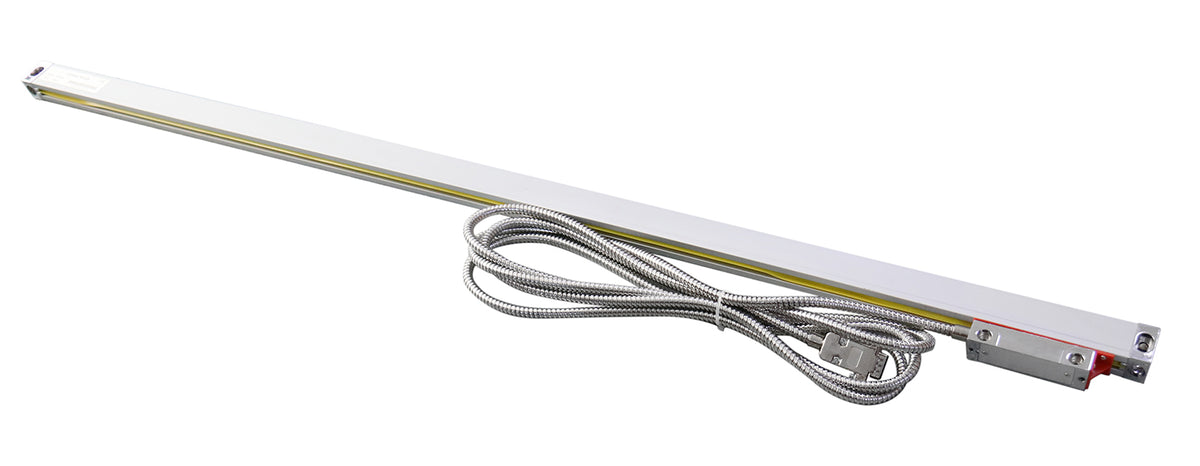

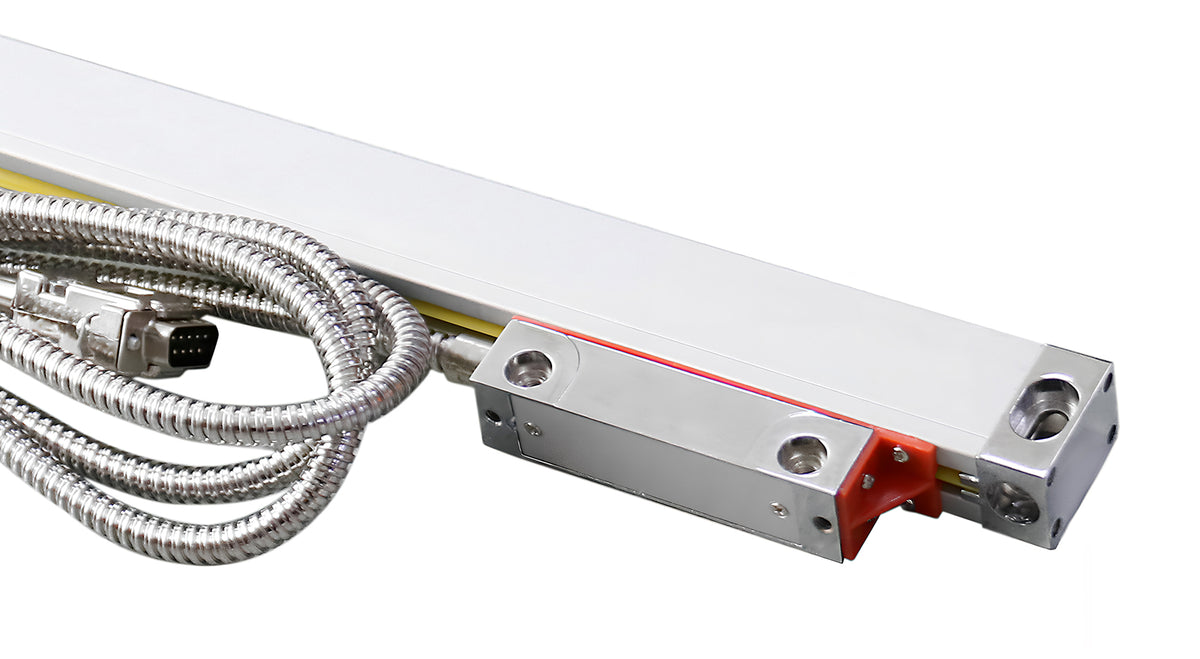

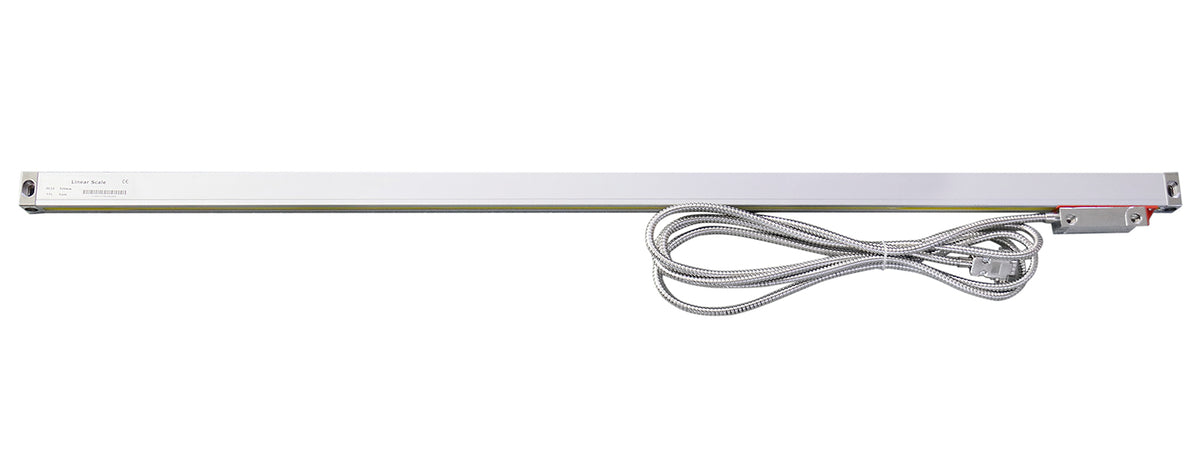

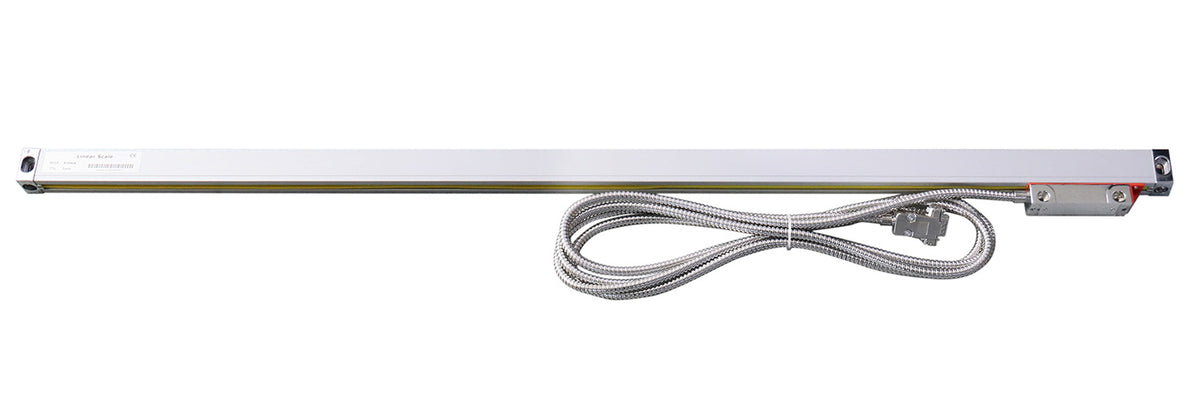

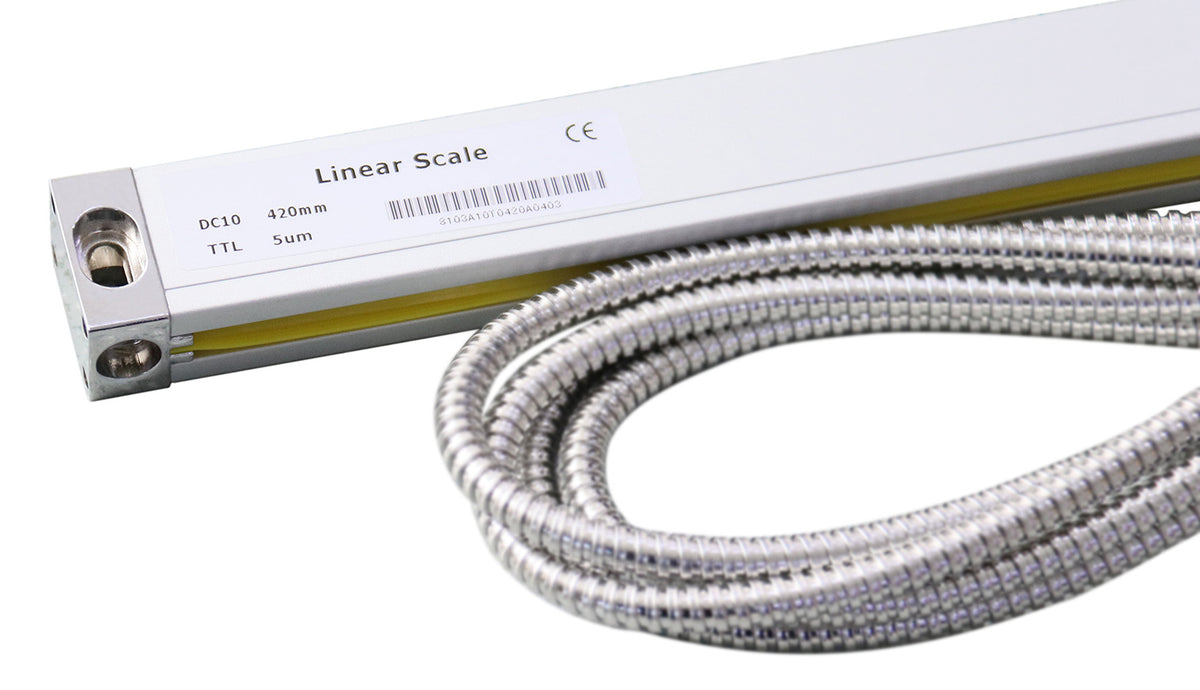

  2. Three Linear glass scales

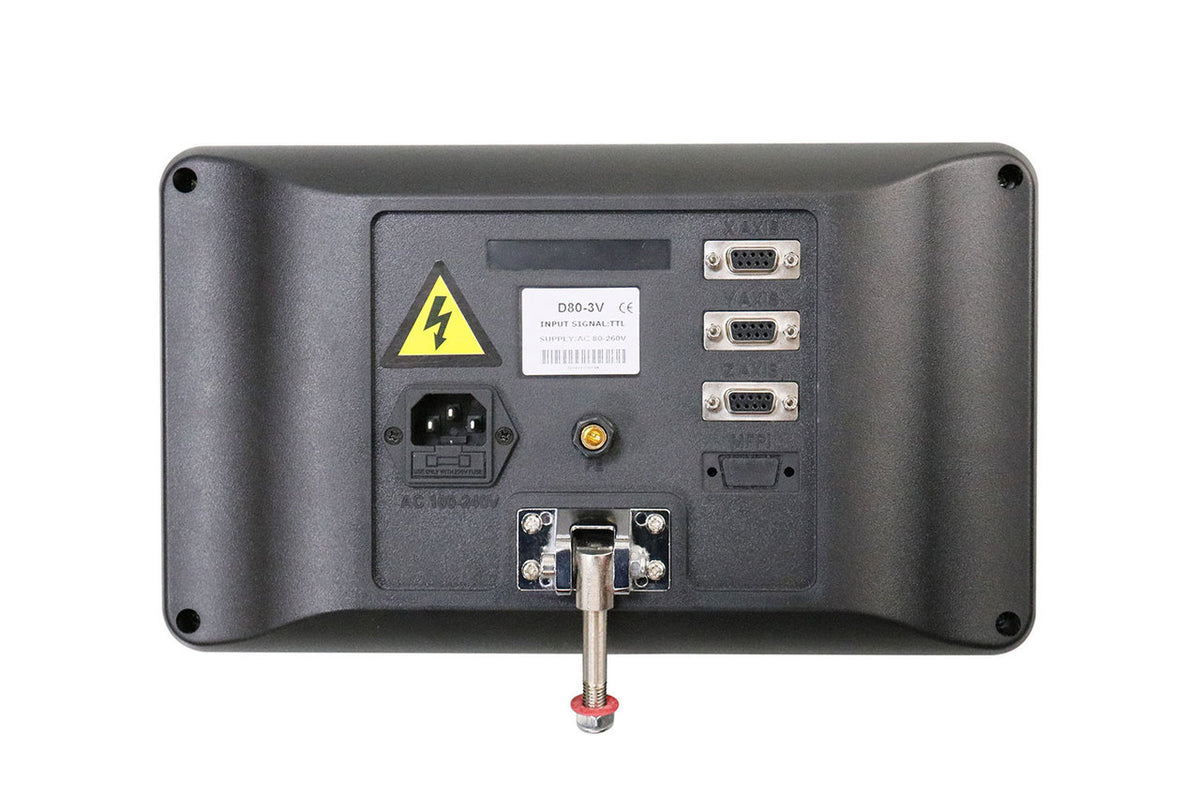

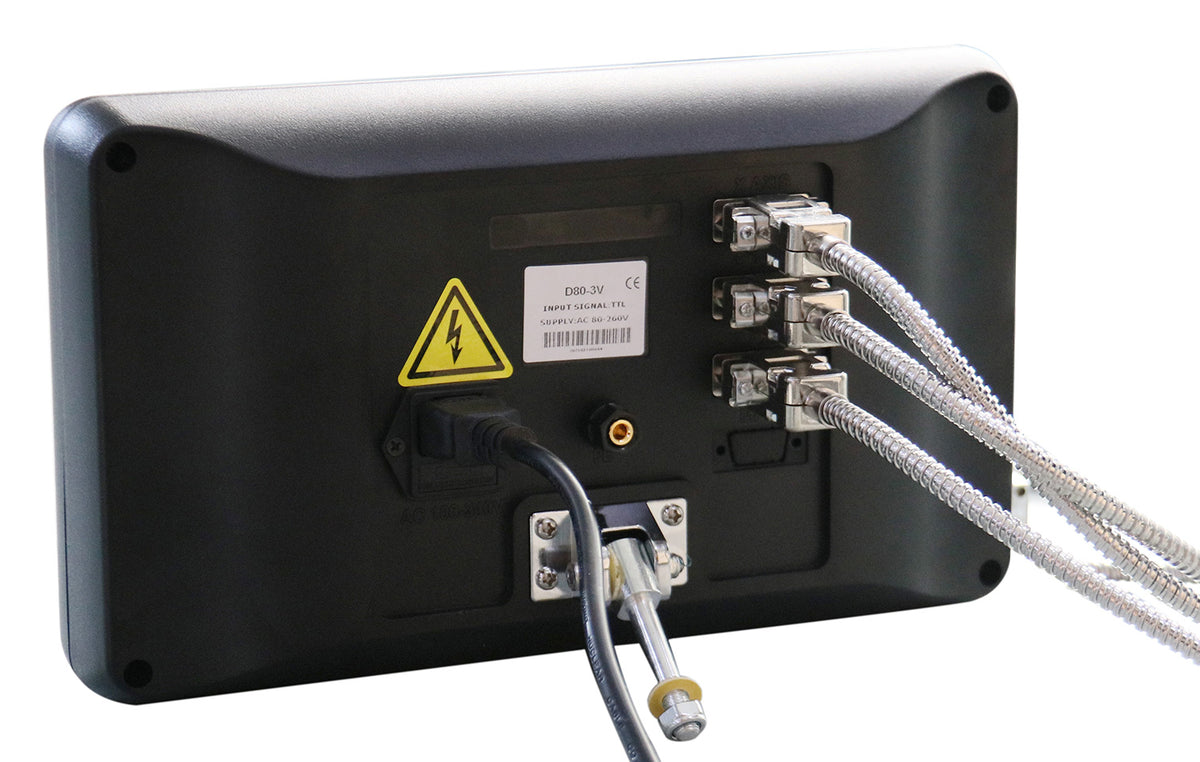

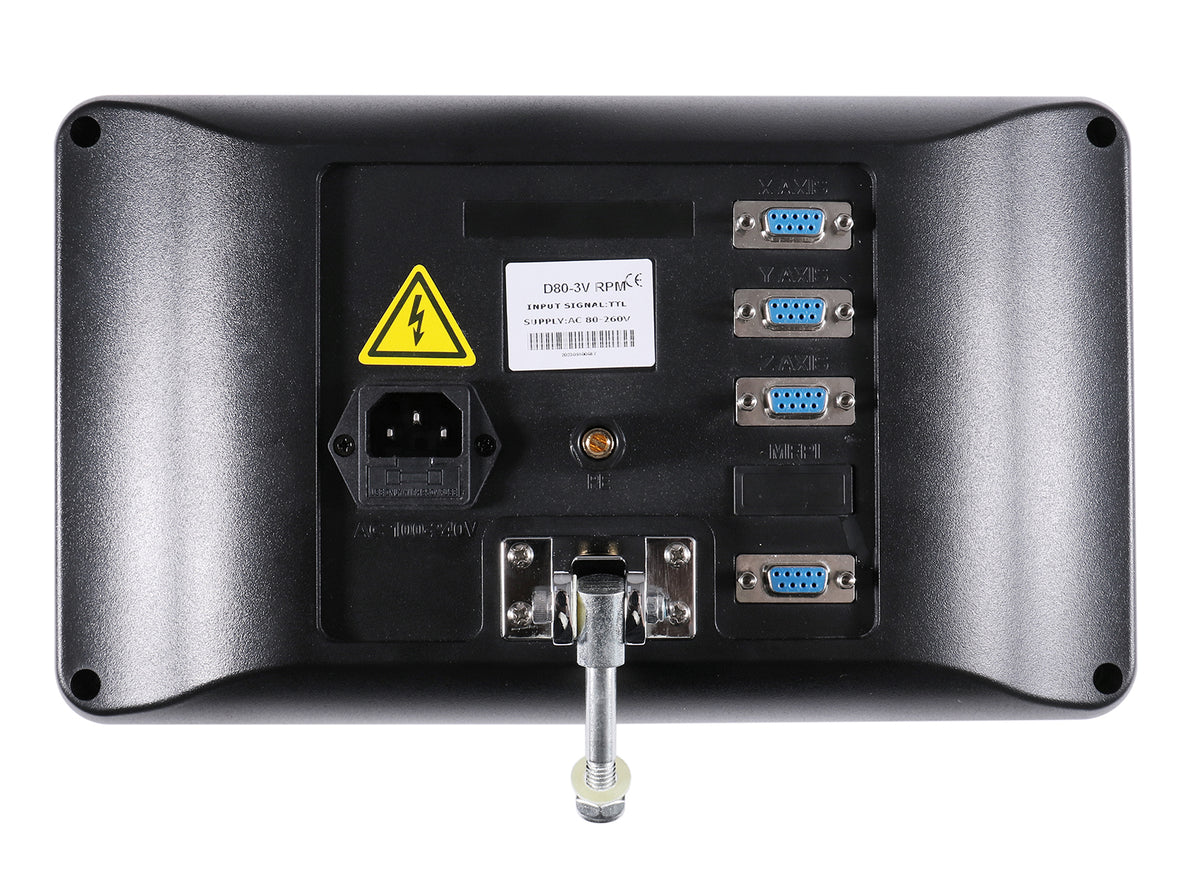

  3. One standard DRO Counter (#D80-3V)
  4. Operating manual

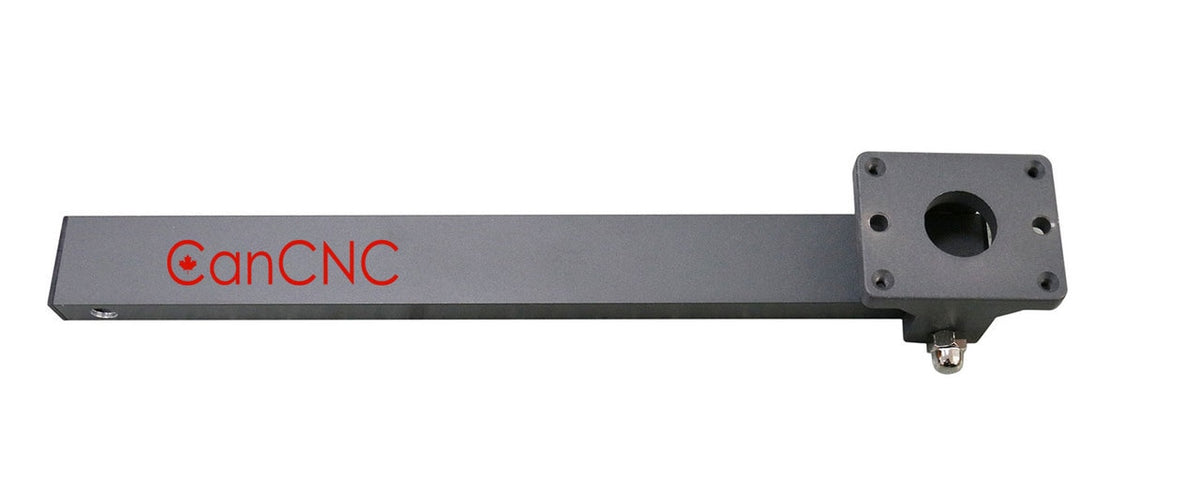

  5. Mounting arm for DRO
Item Mill Size Travel Overall Length of Scale
3028-1230 9 x 40" 12 x 30 x 16" 17 x 35 x 21"
3028-1232 9 x 42" 12 x 32 x 16" 17 x 37 x 21"
3028-1236 9 x 49" 12 x 36 x 16" 17 x 41 x 21"
3028-1240 9 x 58" 12 x 40 x 16" 17 x 45 x 21"
3028-1632 10 x 42" 16 x 32 x 16" 21 x 37 x 21"

PCD Function



Linear Scale & DRO System Installation Manual

Linear Scale & DRO System Installation Manual

D80 DRO Operation Manual

D80 DRO Operation Manual
