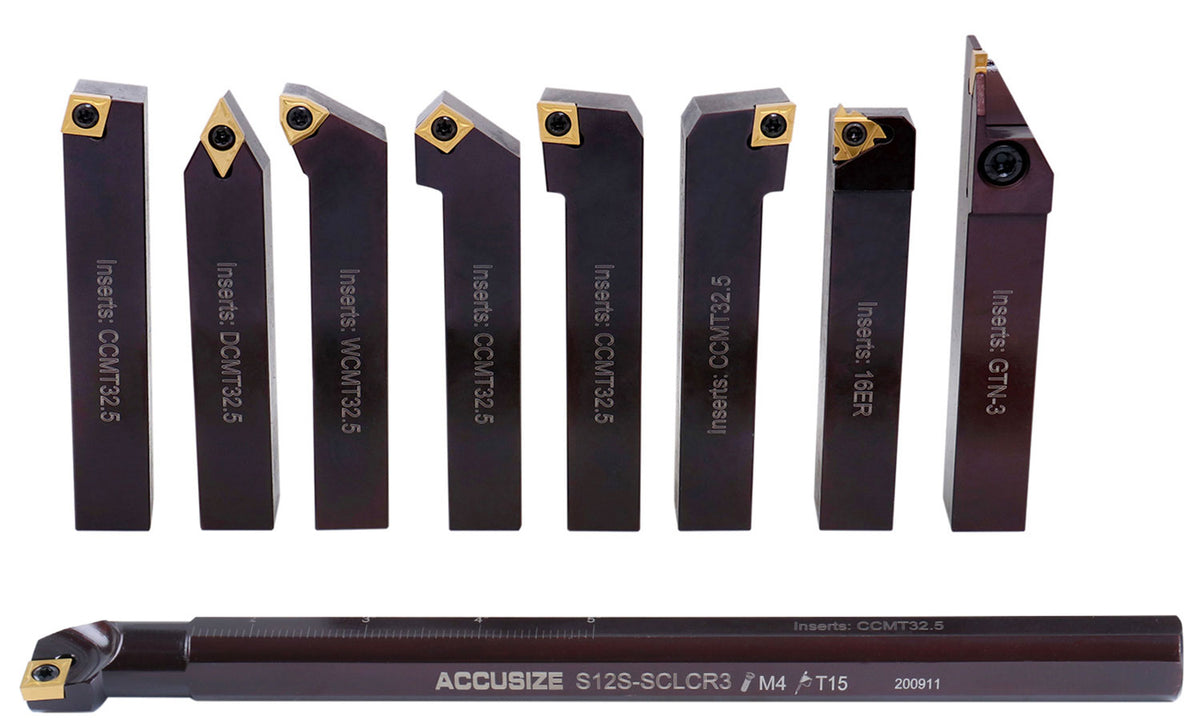

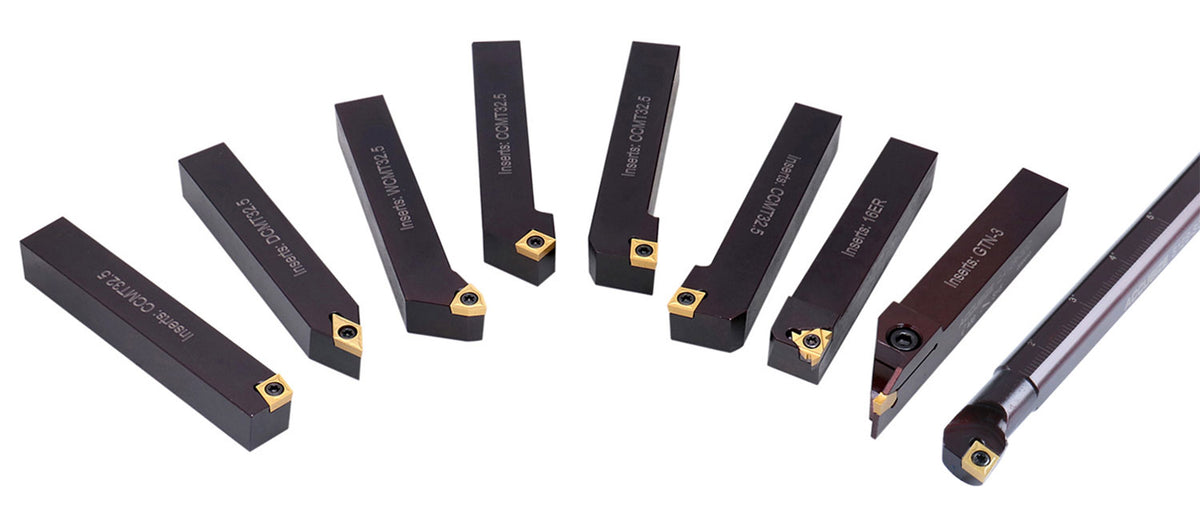

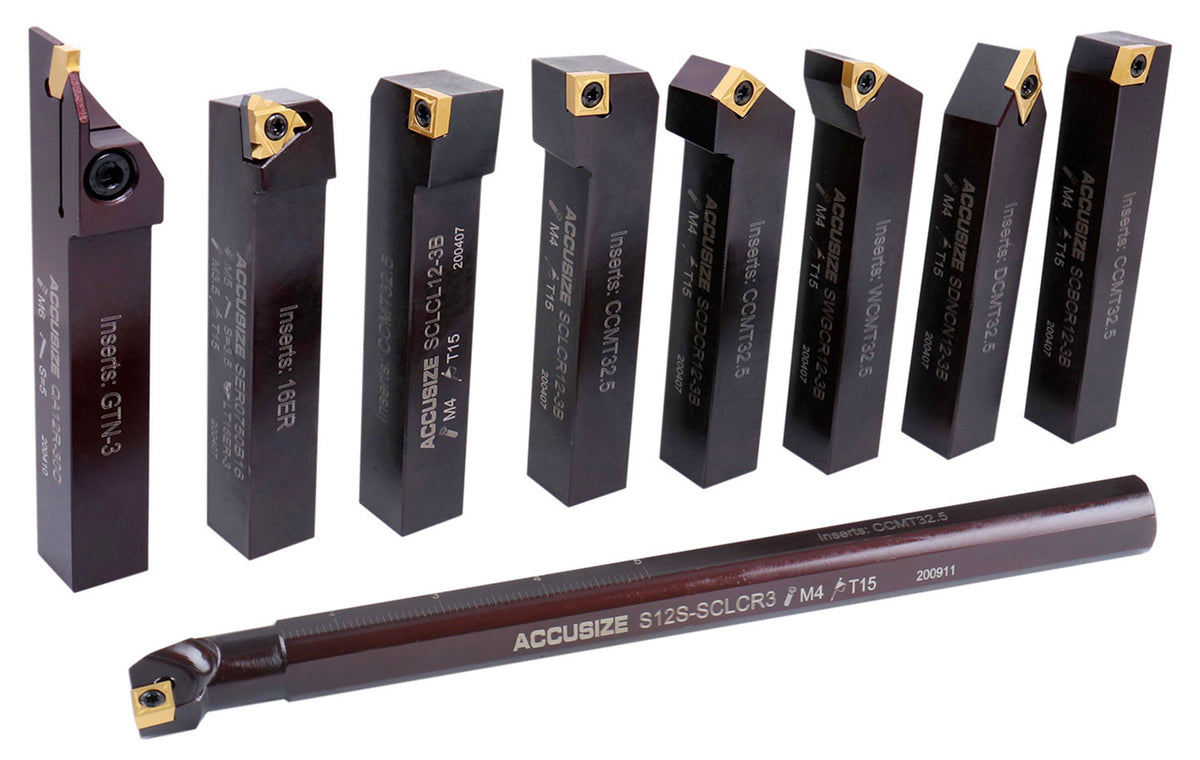

3/4" 9 Pieces Lathe Tool Set, Indexable Carbide Turning Tools and Boring Bar, 2988-0034
- Black oxide smooth finish on each turning tool holder marked with tool holder style and shank size.
- Each tool holder comes with a C6 TiN Coated carbide insert for cutting steel with positive rake cutting angle and built-in chip breaker great for general purpose cutting action.
- Insert screw and wrench included.

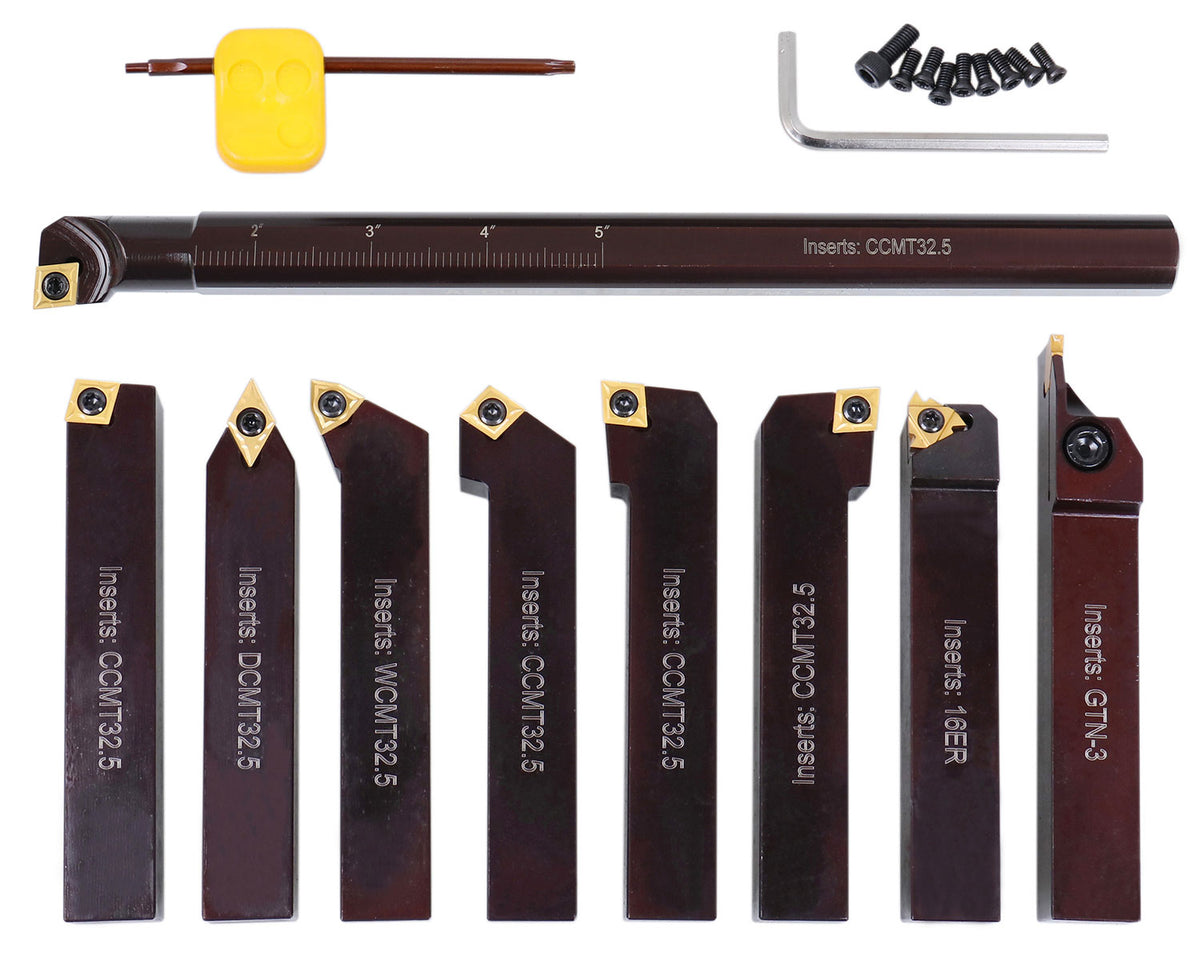

- 9pc indexable turning tool holder and indexable boring bar
- 9pc TiN Coated C6 carbide insert
- 9pc hex screw.
- 1pc hexagon key.

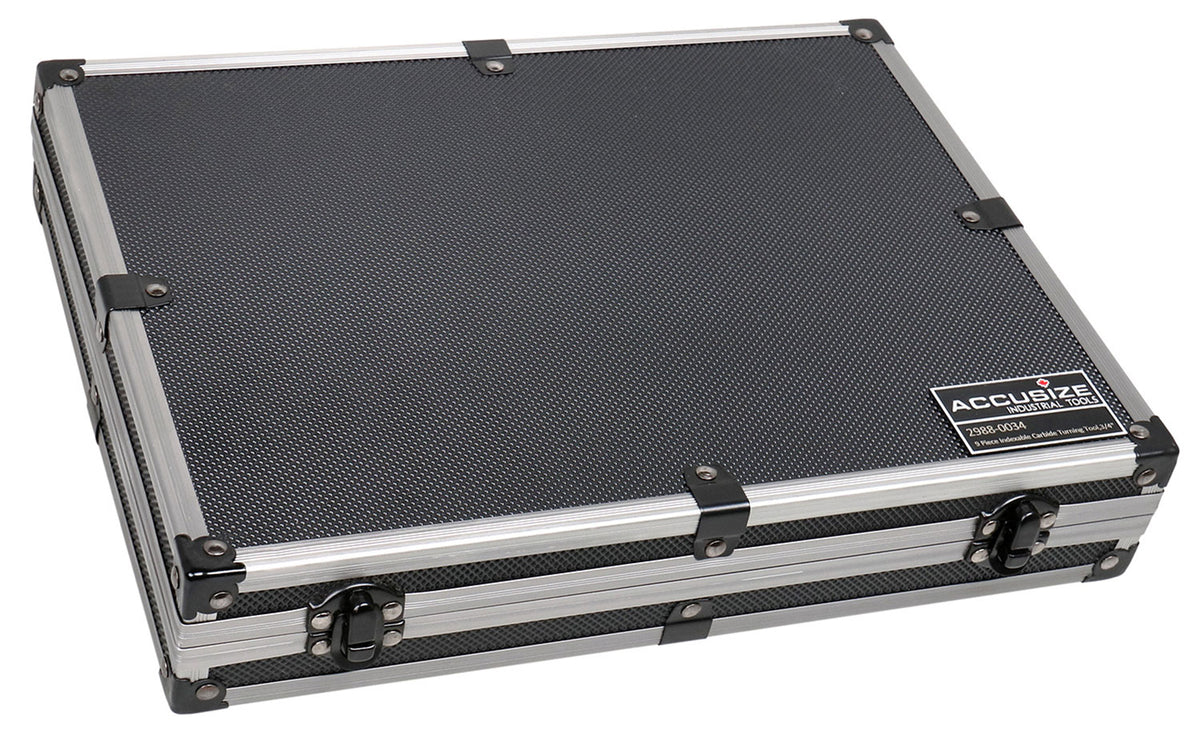

- Aluminum fitting case.

** For purchasing additional inserts, you may find the corresponding Insert SKU below:
- Threading range of 16ER AG60 = 48-8 TPI / 0.5-3.0 mm

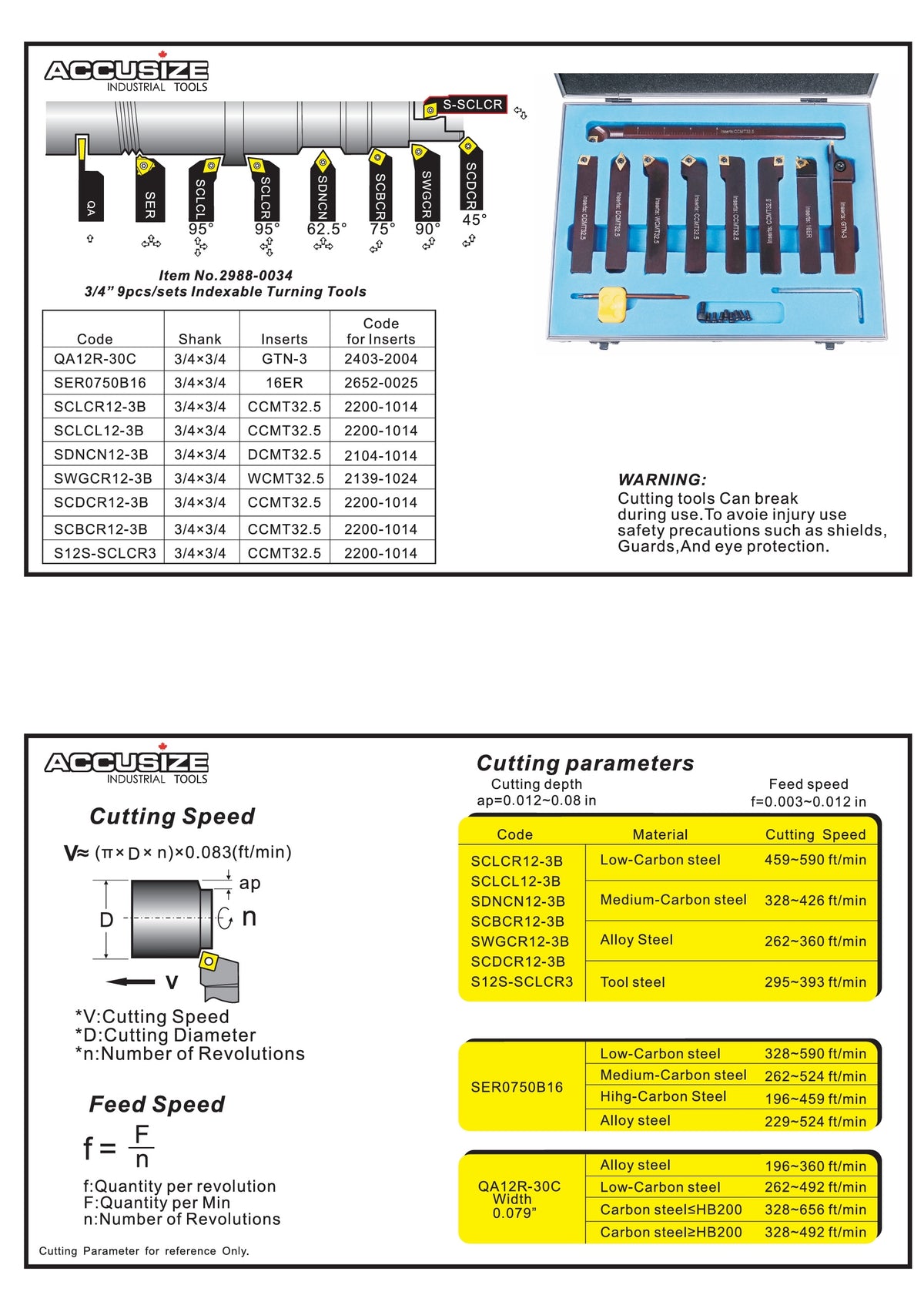

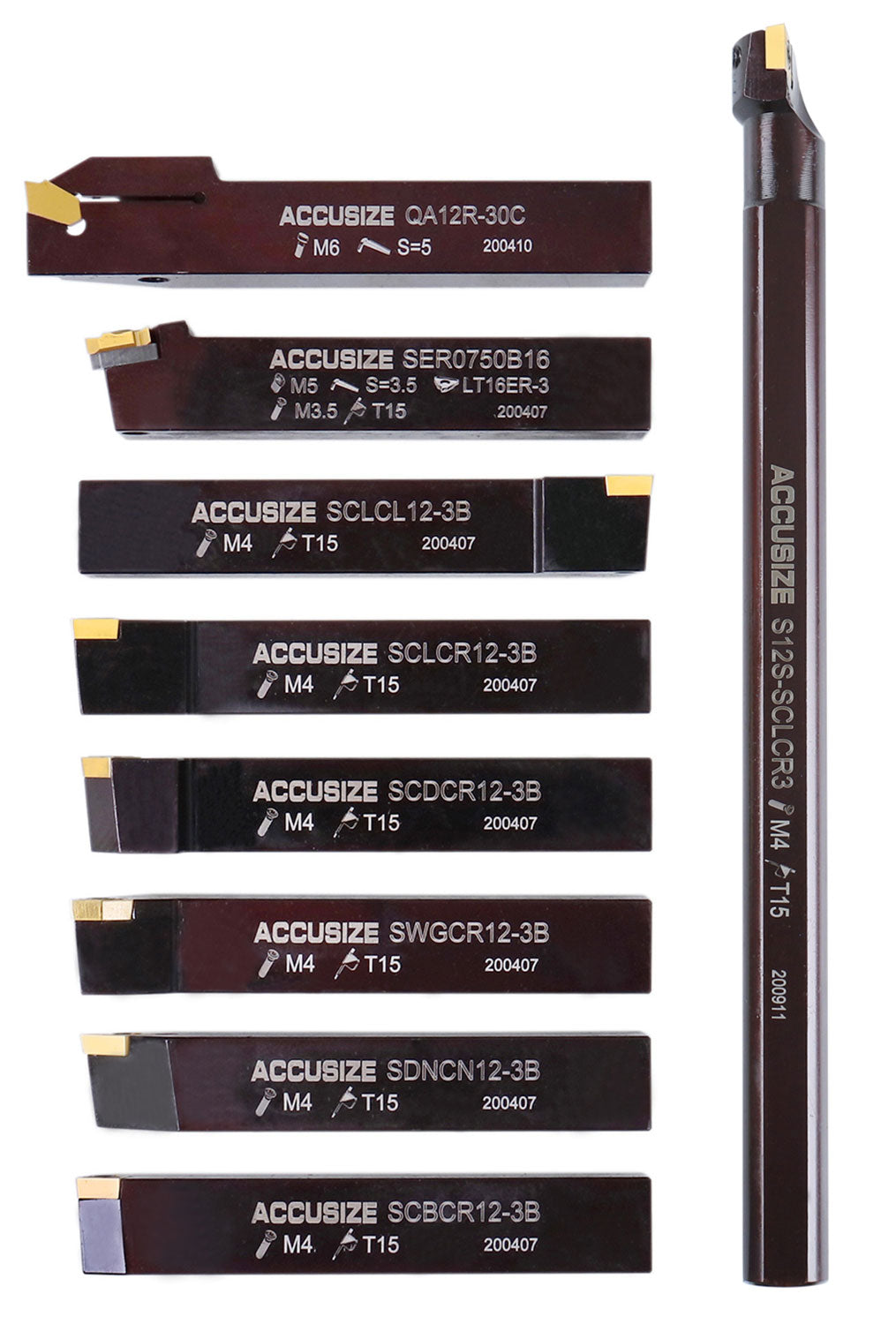

| Name | Code | Rake Angle | Insert | Coated Insert, SKU | Insert Screw | Wrench | Mini Bore | Overall Length |
| Cutoff | QA12R-30C | 0° | GTN-3 | TiN Coated, 2403-2004 |
GB70-85/ M6x16 (0047-6016) |
S3 | - | 5'' |
| External Threading | SER0750B16 | 0° | 16ER AG60 | TiN Coated, 2652-0025 |
M3.5x11 |
T15/S3.5 | 4-1/2'' | |

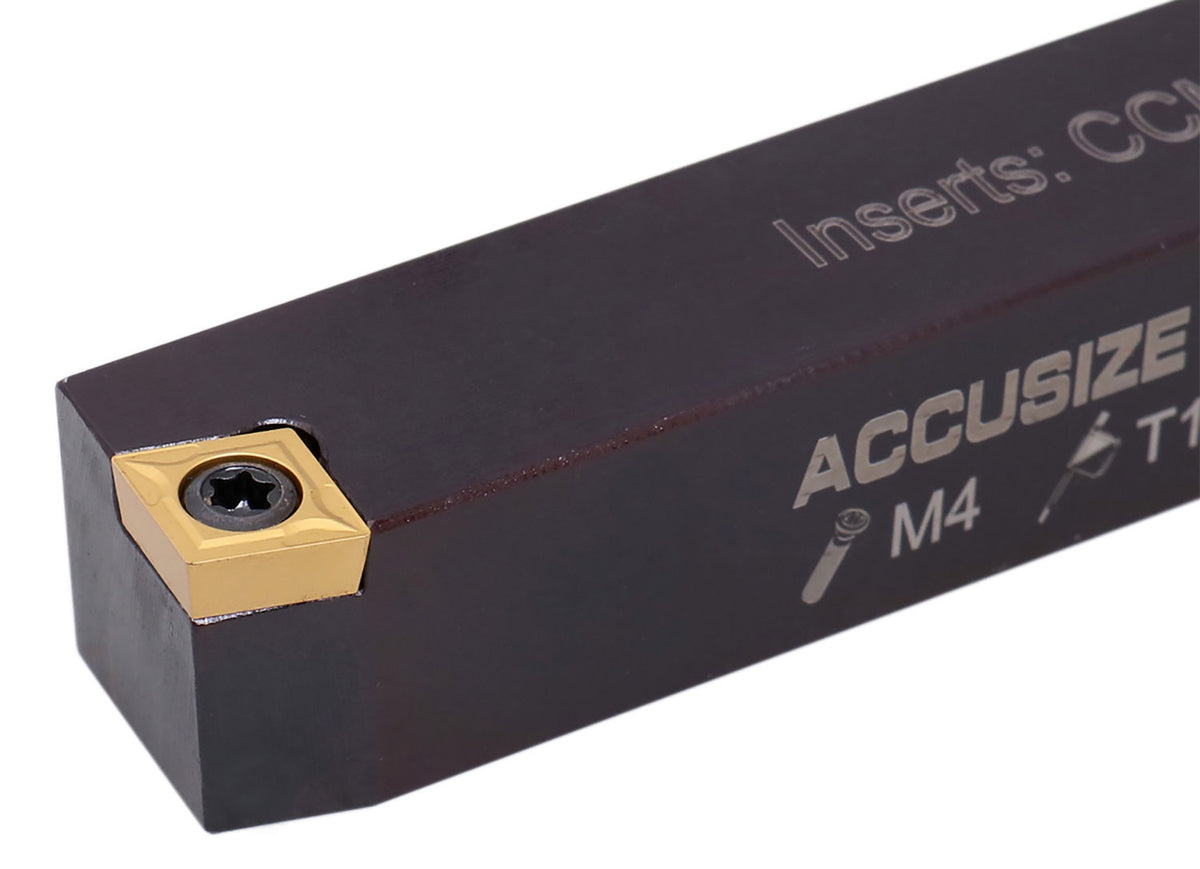

| Turning Tools | SCLCR12-3B | 95° | CCMT32.5 | CVD Coated, 2200-1014 |
M4x12 (0046-4012) |
|||
| SCLCL12-3B | 95° | |||||||

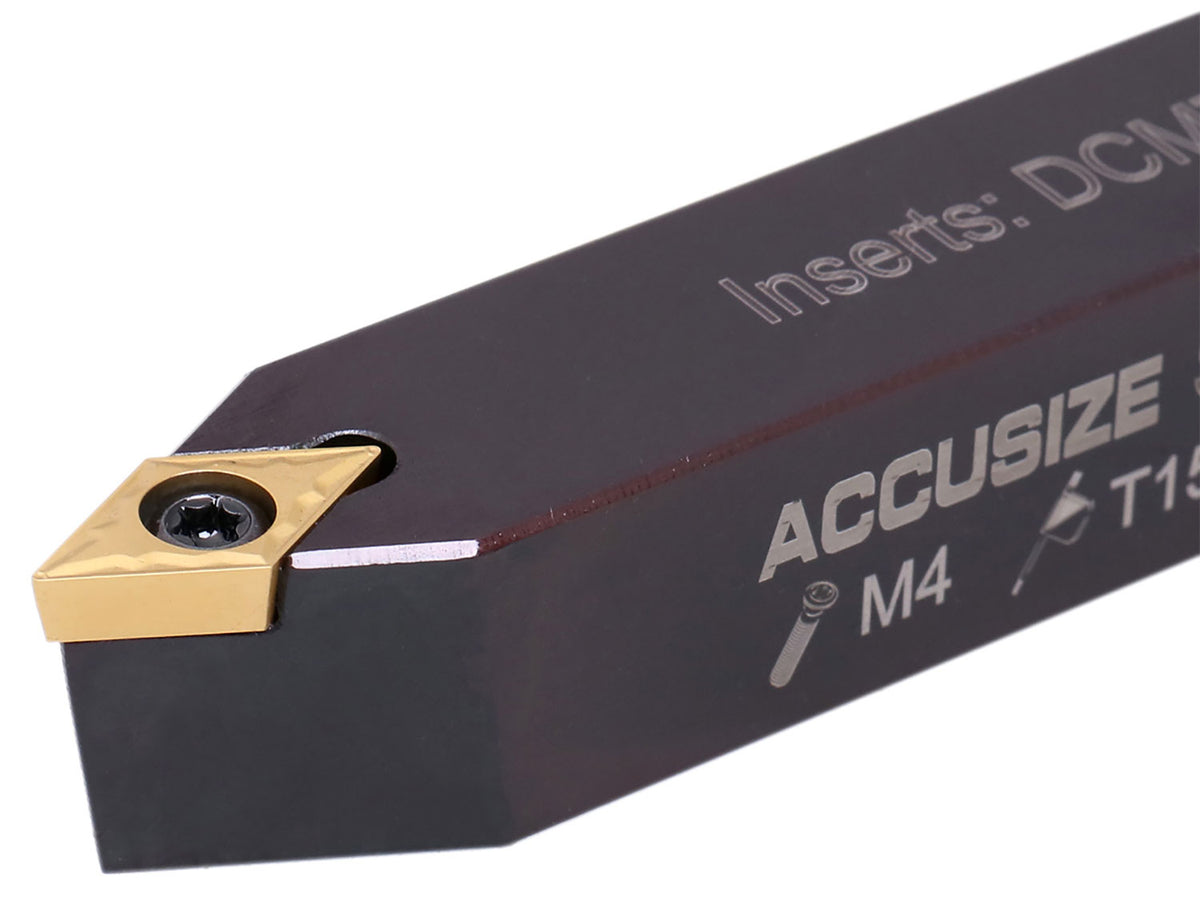

| SDNCN12-3B | 62.5° | DCMT32.5 | TiN Coated, 2104-1014 | |||||

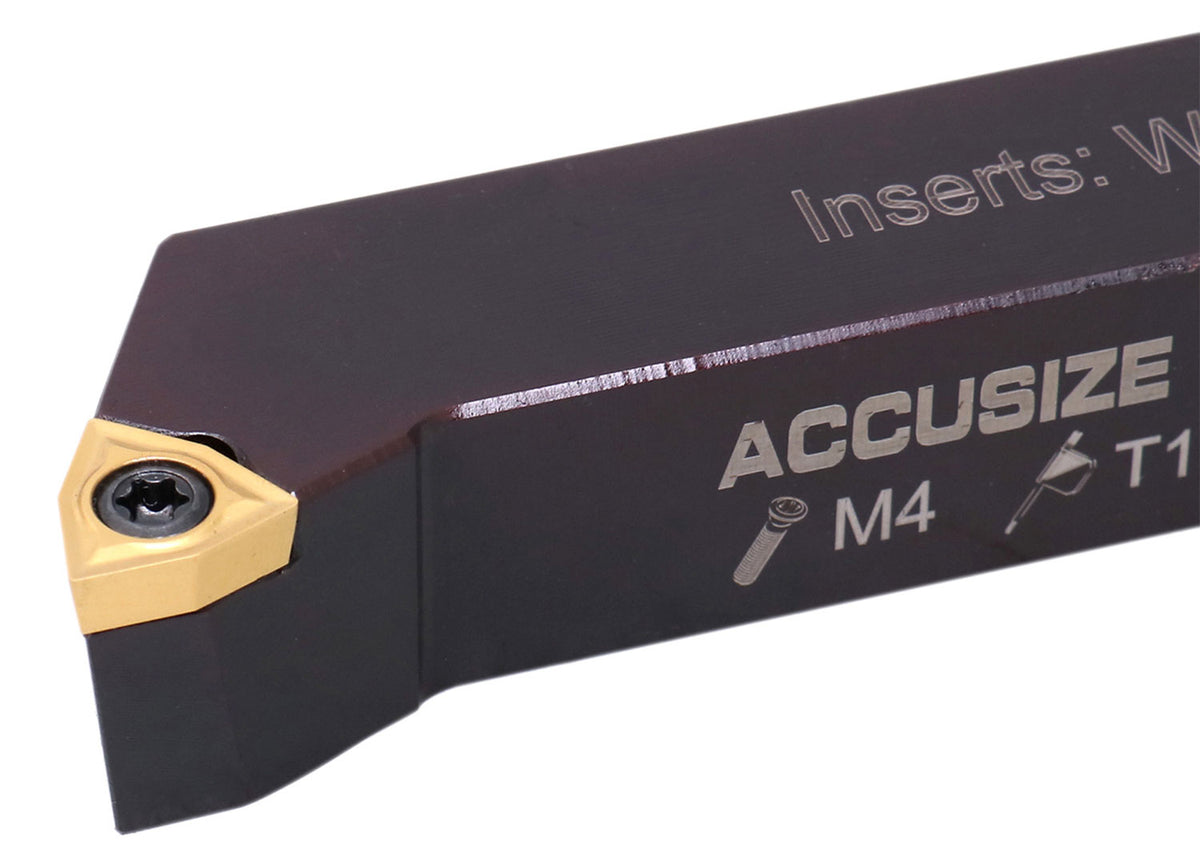

| SWGCR12-3B | 90° | WCMT32.5 | TiN Coated, 2139-1024 | |||||
| SCDCR12-3B | 45° | CCMT32.5 | CVD Coated, 2200-1014 | |||||
| SCBCR12-3B | 75° | |||||||

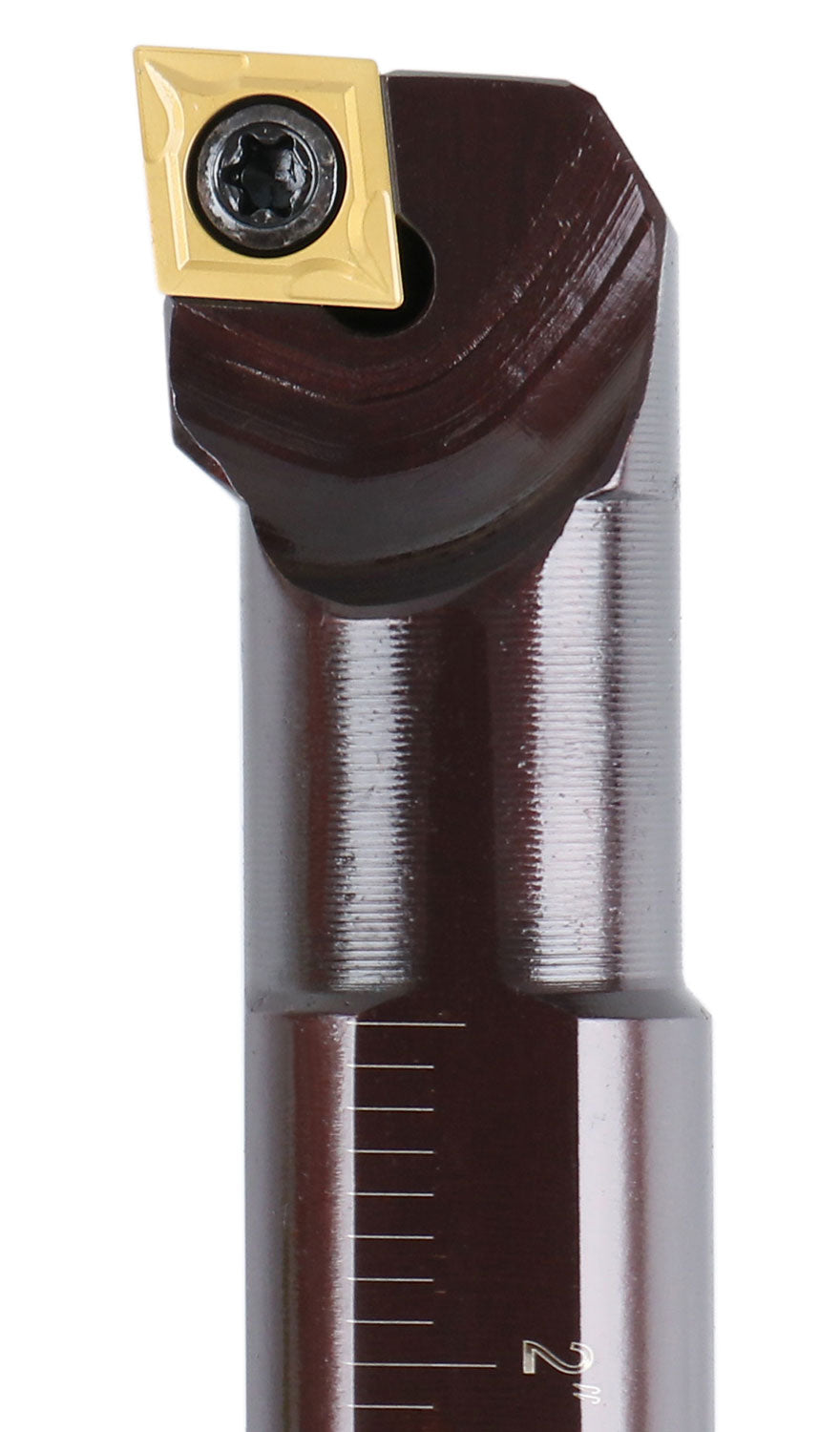

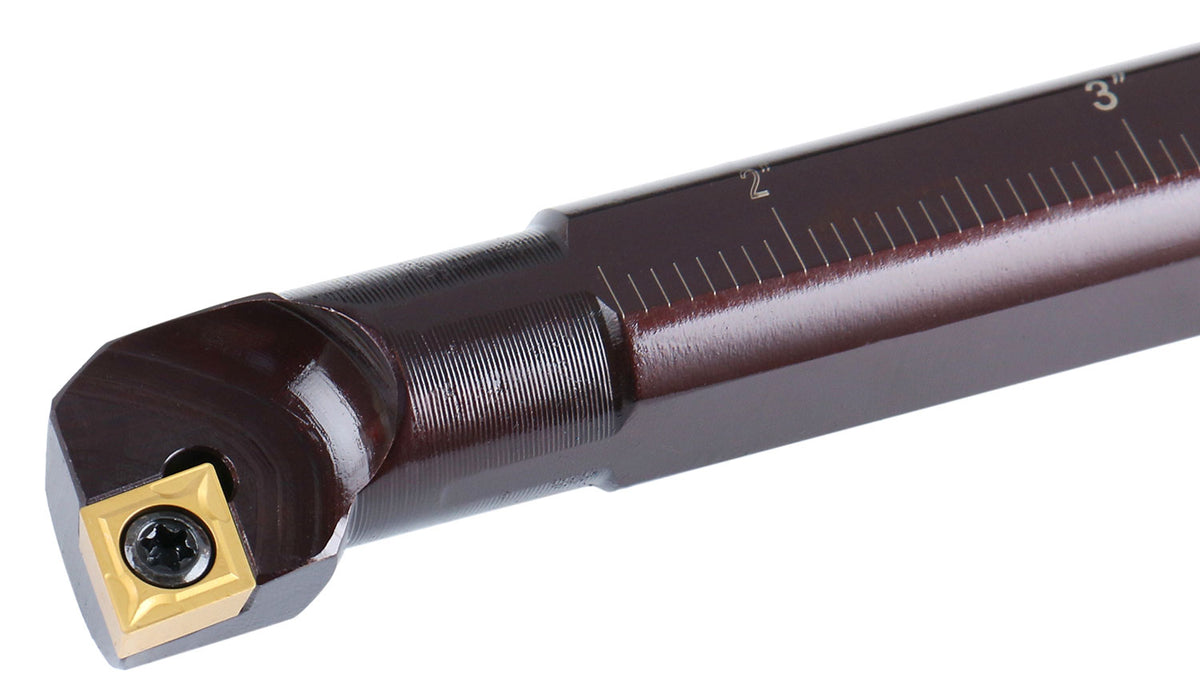

| Boring Bar | S12S-SCLCR3 | 95° |
M4x8 (0046-4008) |
1" | 10" |
Specification of the QA12R-30C cut-off holder:
Shank Size: 3/4"
Tool Holder: QA12R-30C
Tool Holder Size (H x B): 3/4 x 3/4"
OAL (L): 5"
Insert: GTN-3
Insert Screw: M6 x 16
F: 0.762"
T: 0.866"
W: 0.118"
Maximum Depth: 0.866"
