Description

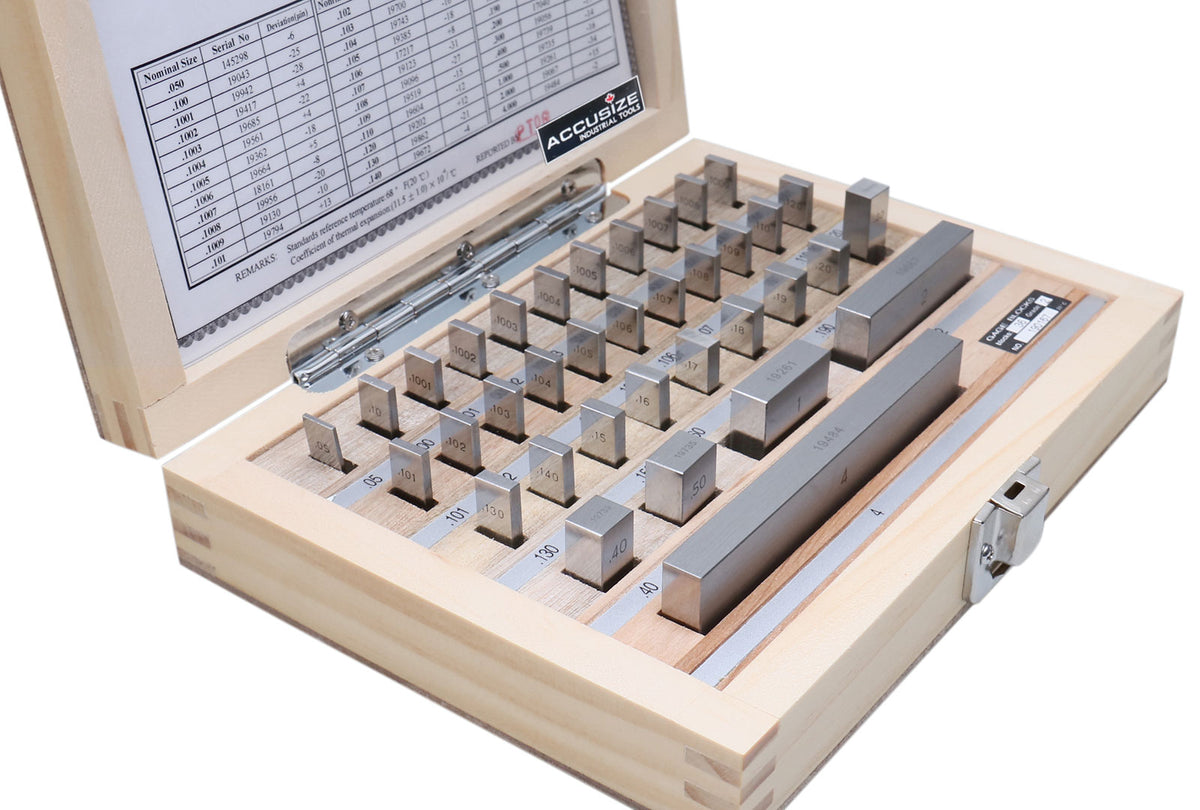

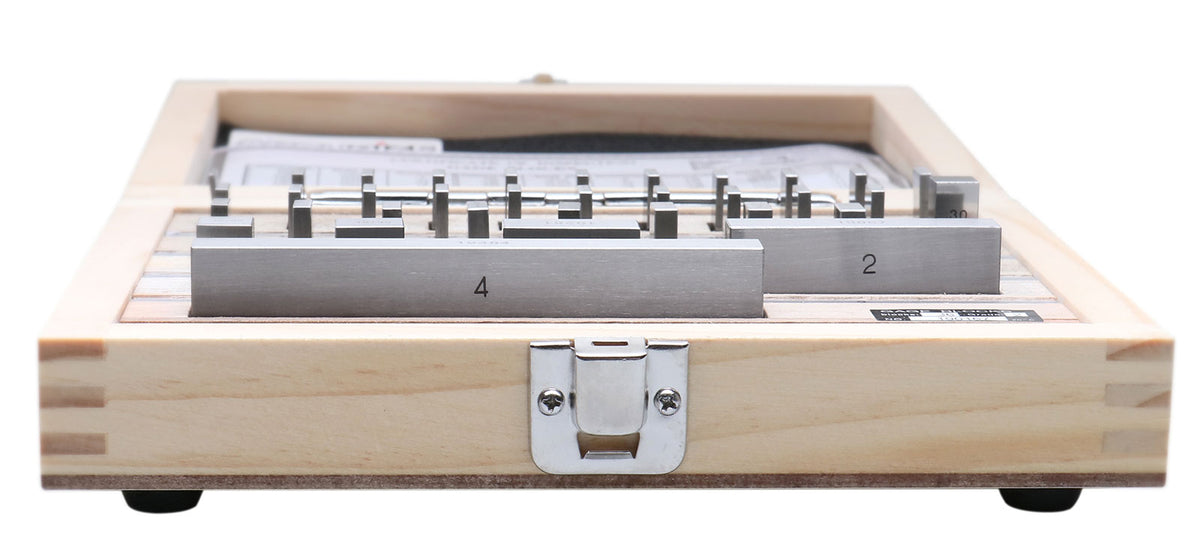

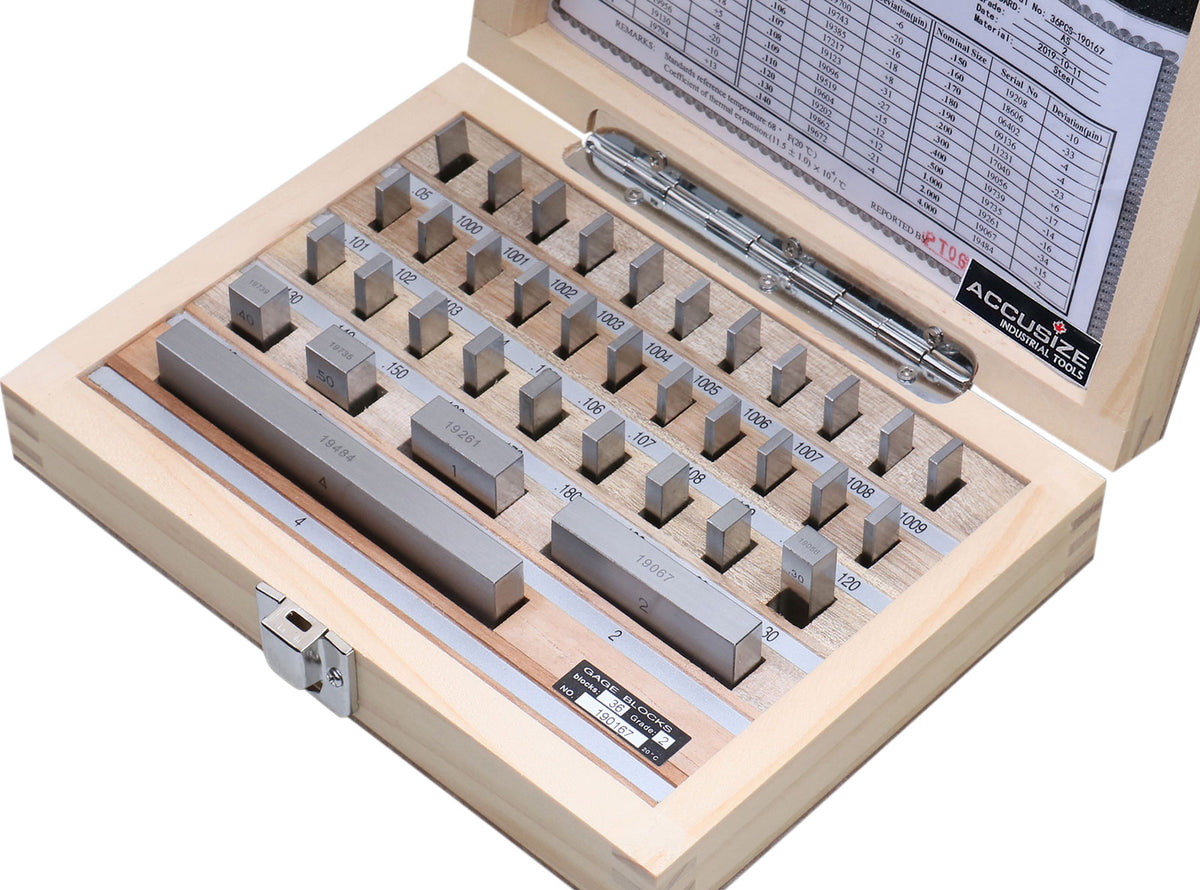

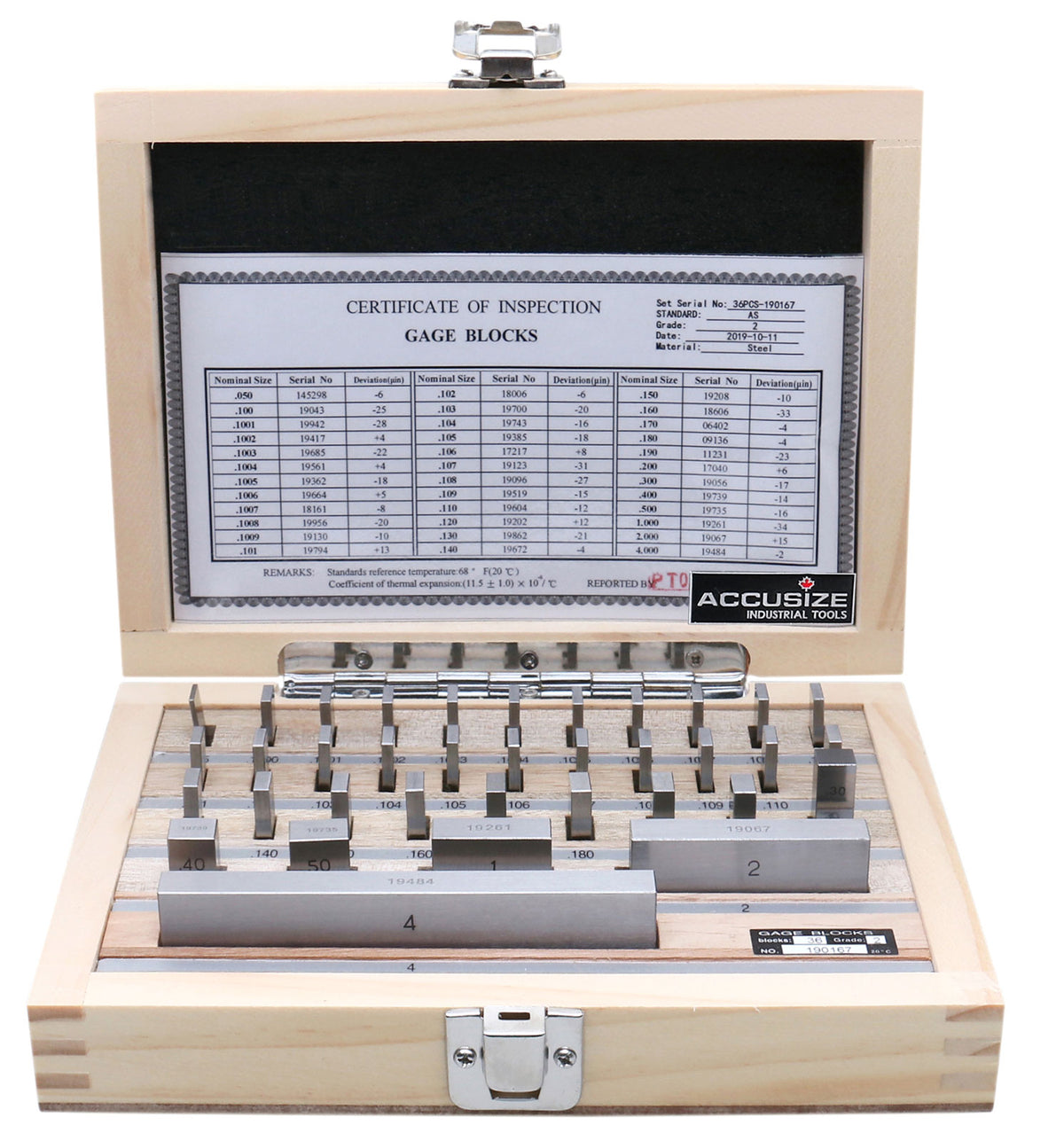

36PCS STEEL GAGE BLOCK SET, GRADE AS-2 ASME B89.1.9-2002, WITH MFG’S CERTIFICATE, #0036-6001
- Manufactured under carefully controlled conditions allowing for the highest degrees of accuracy when used at a temperature of 68 degrees F. ( 20 C).

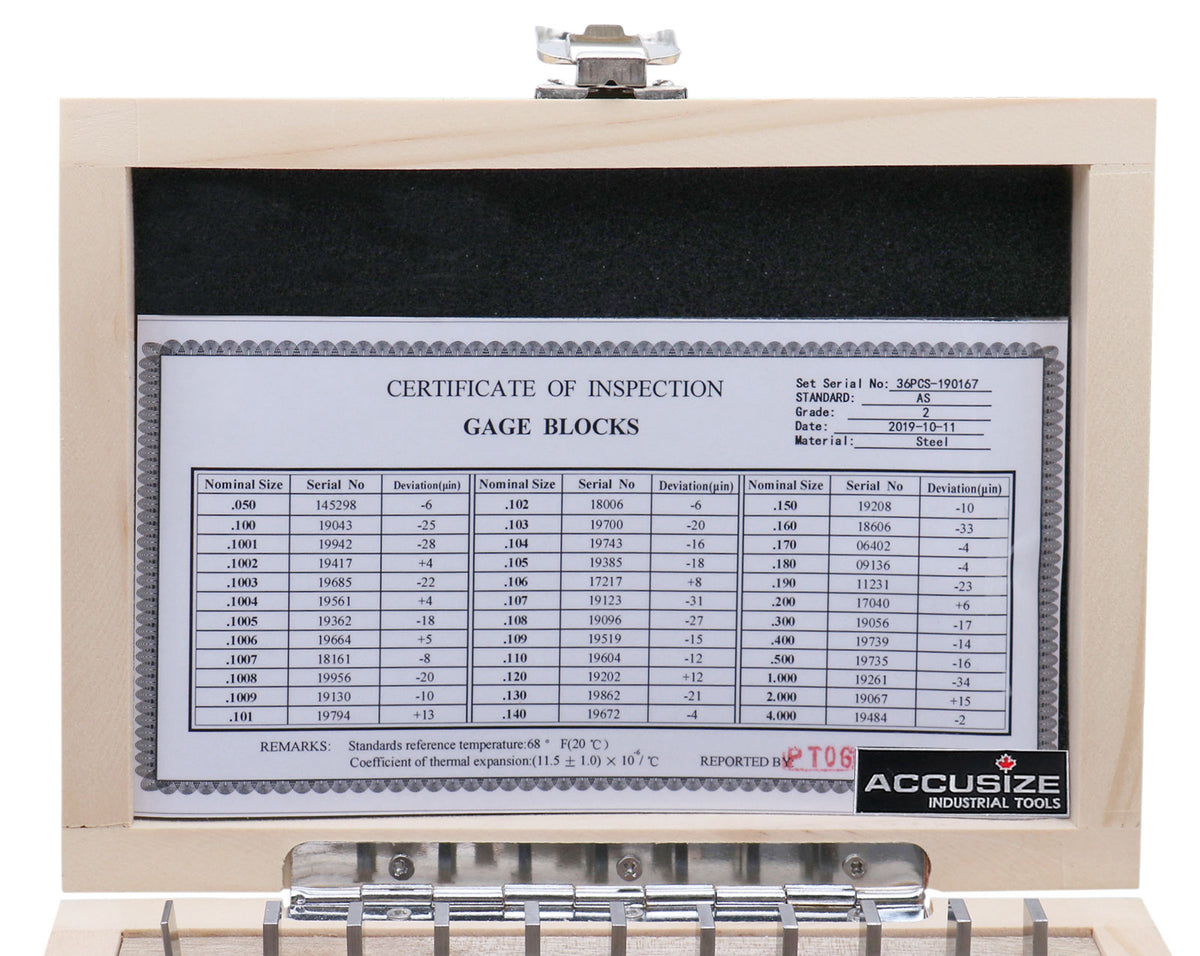

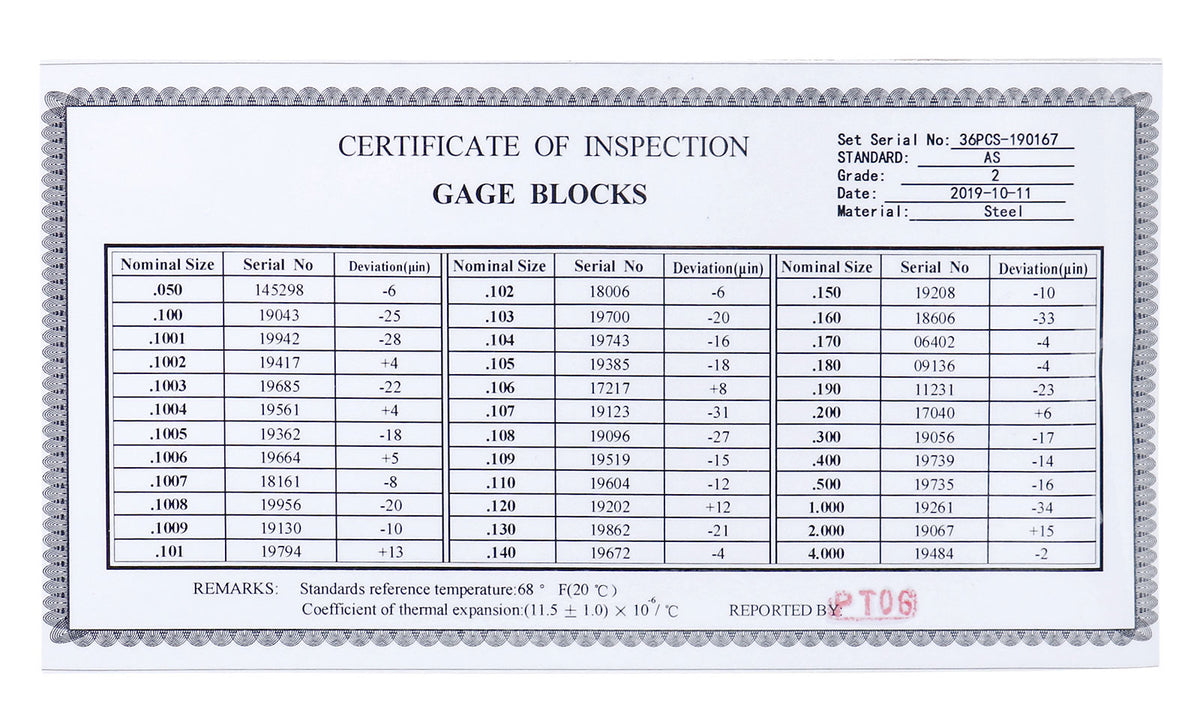

- All gage block sets are assigned serial numbers and are accompanied with a certificate of inspection listing the deviation for each block
- Each gage block set meets or exceeds federal specification ASME B89.1.9-2002
- All gage block sets are made to special standard to resist corrosion and defacement
- Capstone degrees of accuracy
New Grade ASME B89.1.9--2002
Normal Size | Tolerances(in Millionths of an inch) | |||
AS-0 | AS-1 | AS-2 | Economy | |
Thru 0.050" | ±6 | ±12 | ±24 | ±50 |
Thru 0.400" | ±5 | ±8 | ±18 | ±50 |
Thru 1" | ±6 | ±12 | ±24 | ±50 |
Thru 2" | ±8 | ±16 | ±32 | ±50 |
Thru 3" | ±10 | ±20 | ±40 | ±50 |
Thru 4" | ±12 | ±24 | ±48 | ±50 |
Specification

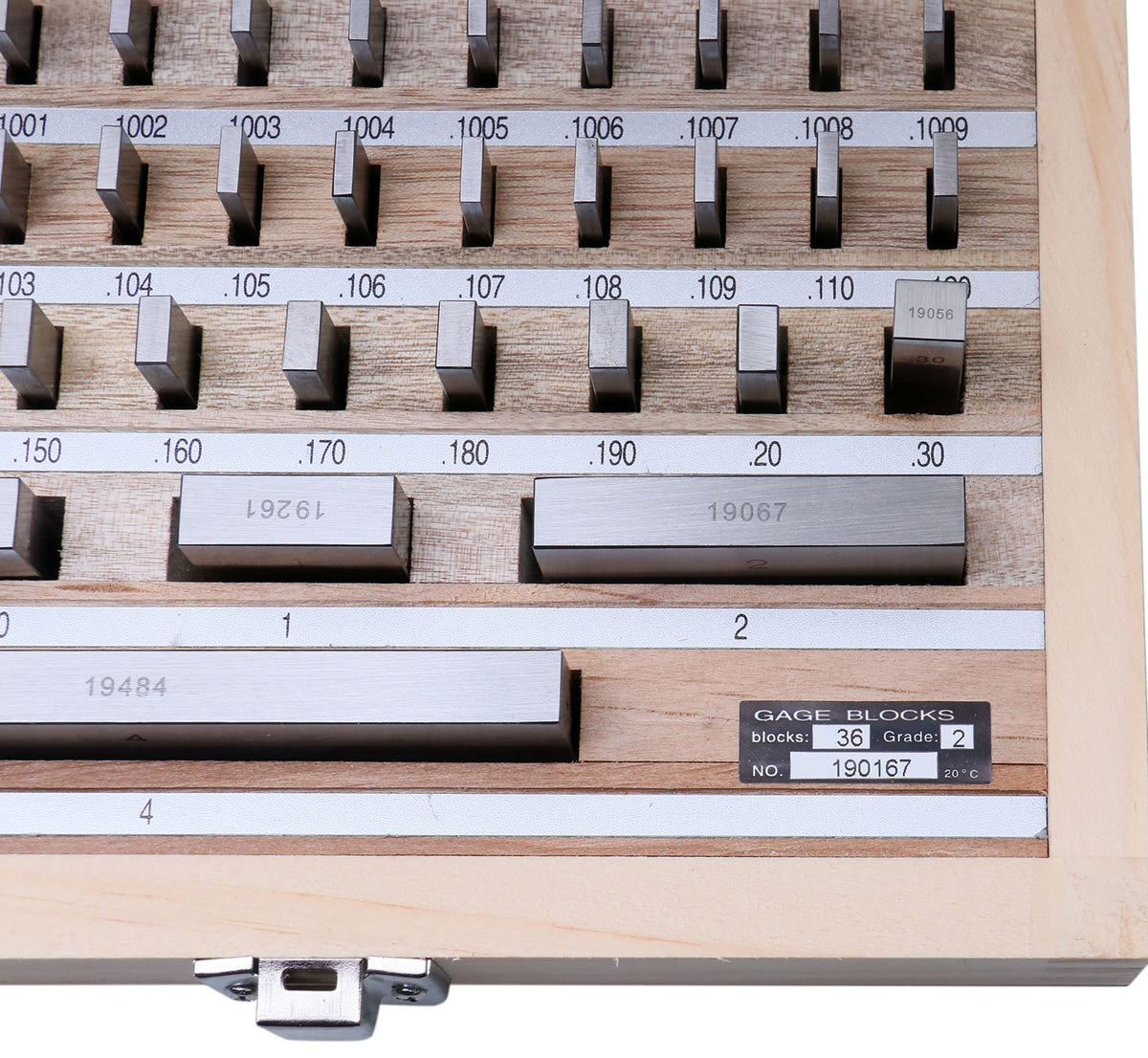

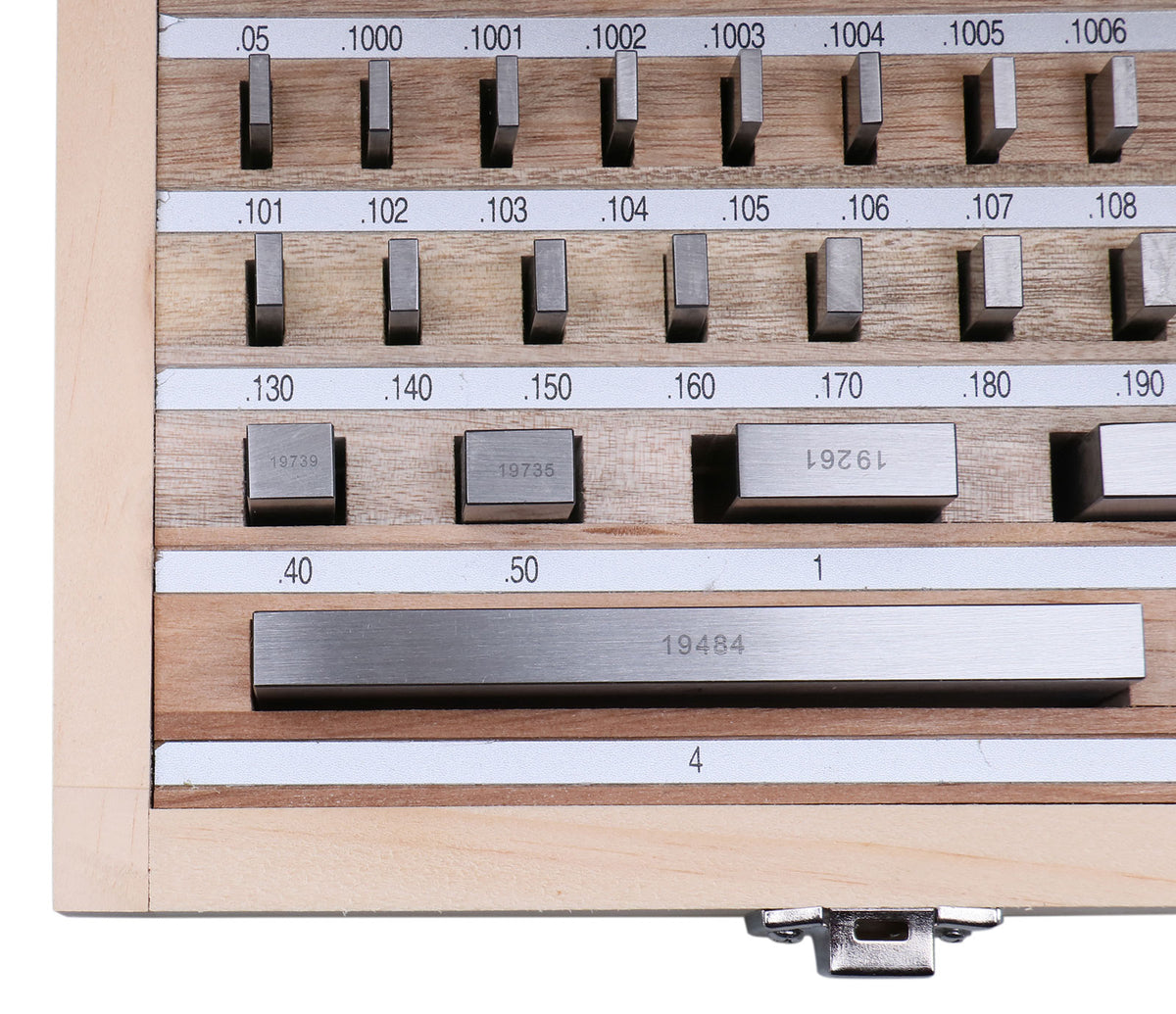

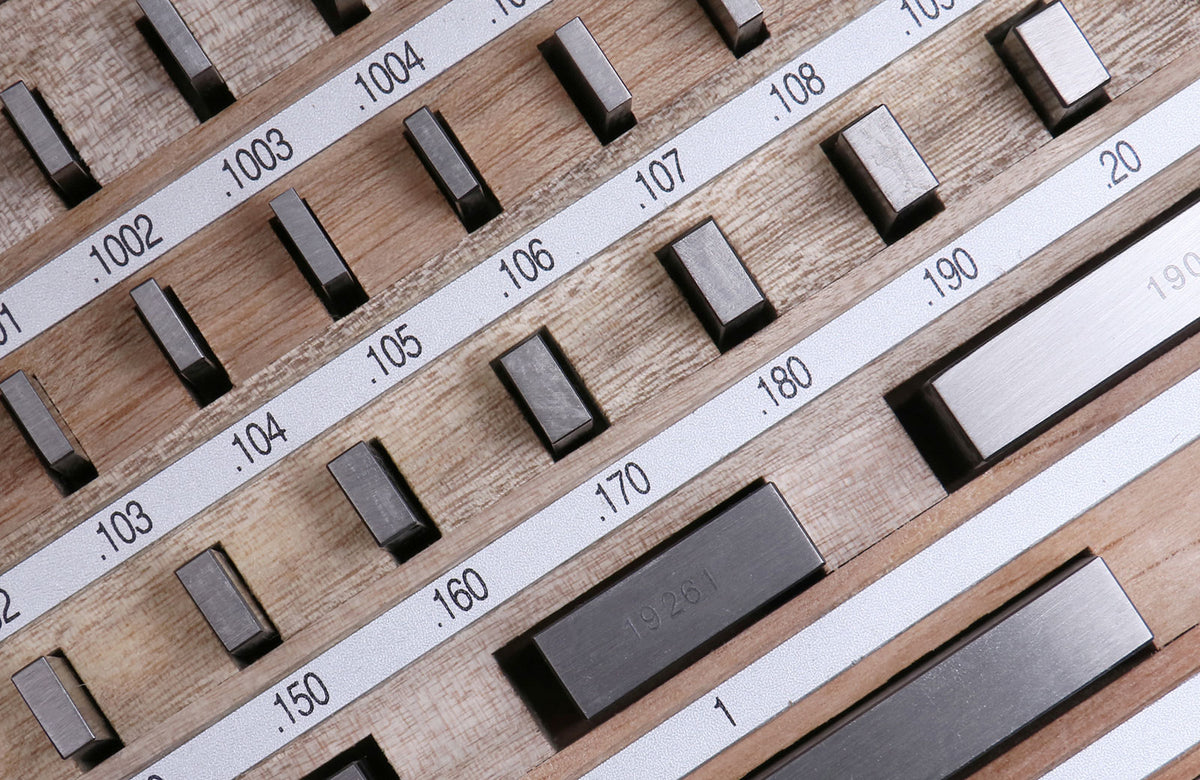

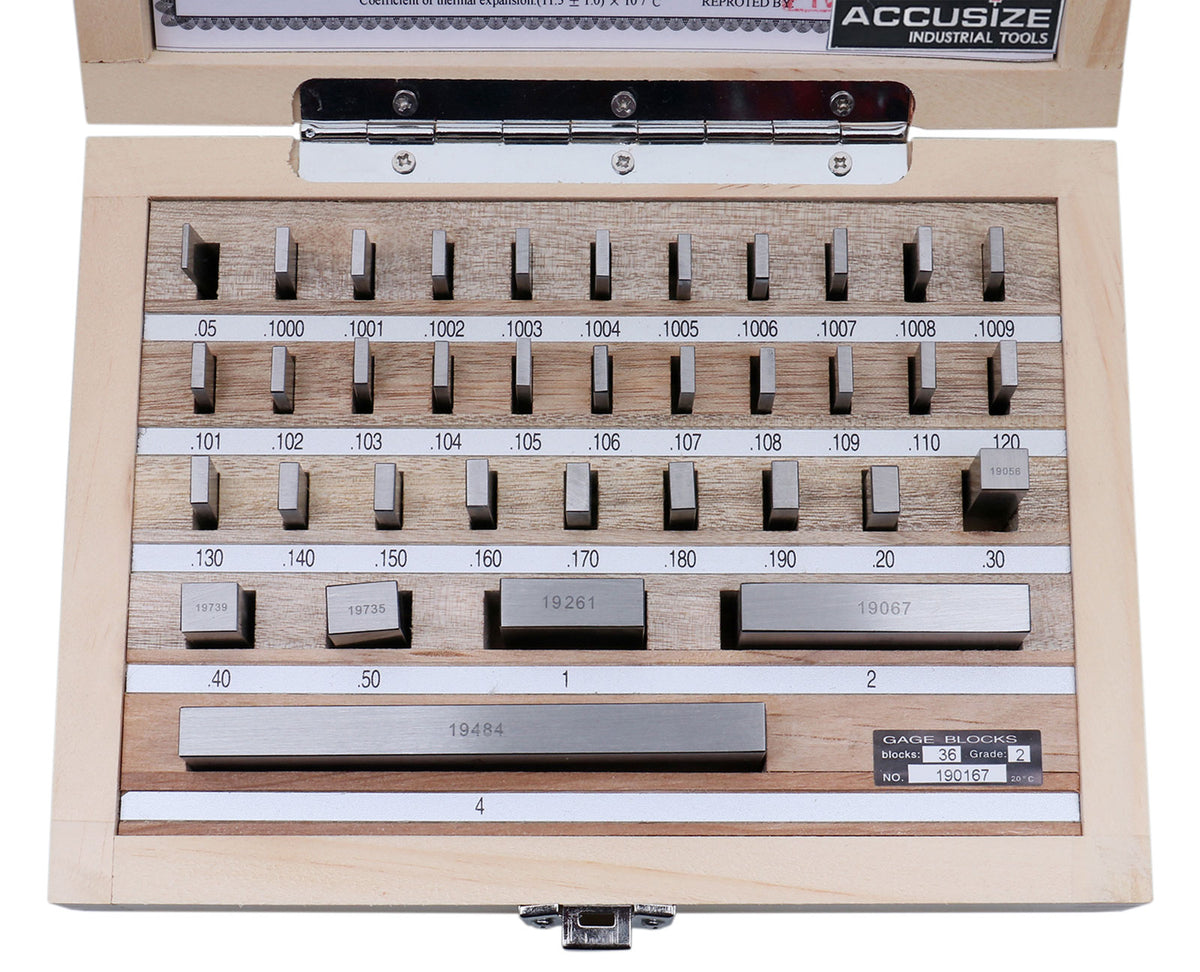

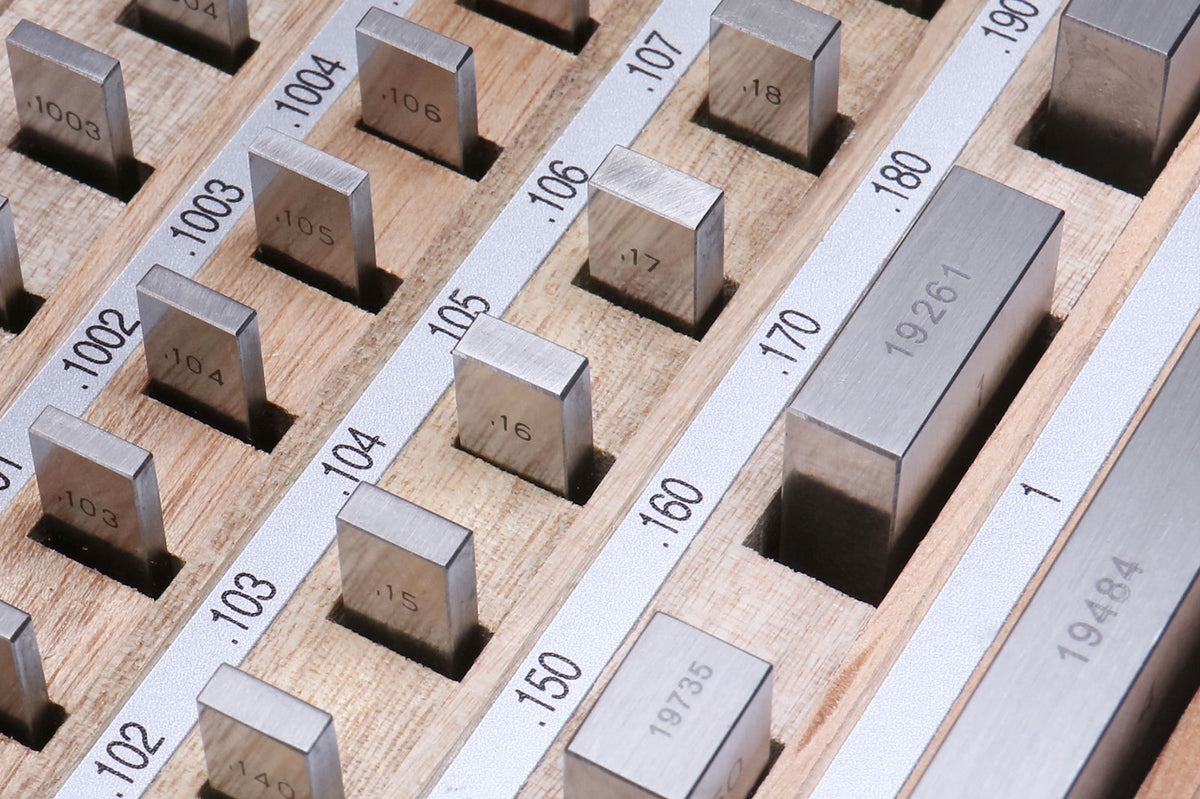

Stepping | Nominal Dimensions | NO.of Block |
----- | 0.050" | 1 |
0.0001" | 0.1001" to 0.1009" | 9 |
0.001" | 0.101" to 0.109" | 9 |
0.01" | 0.110" to 0.190" | 9 |
0.10" | 0.100" to 0.500" | 5 |

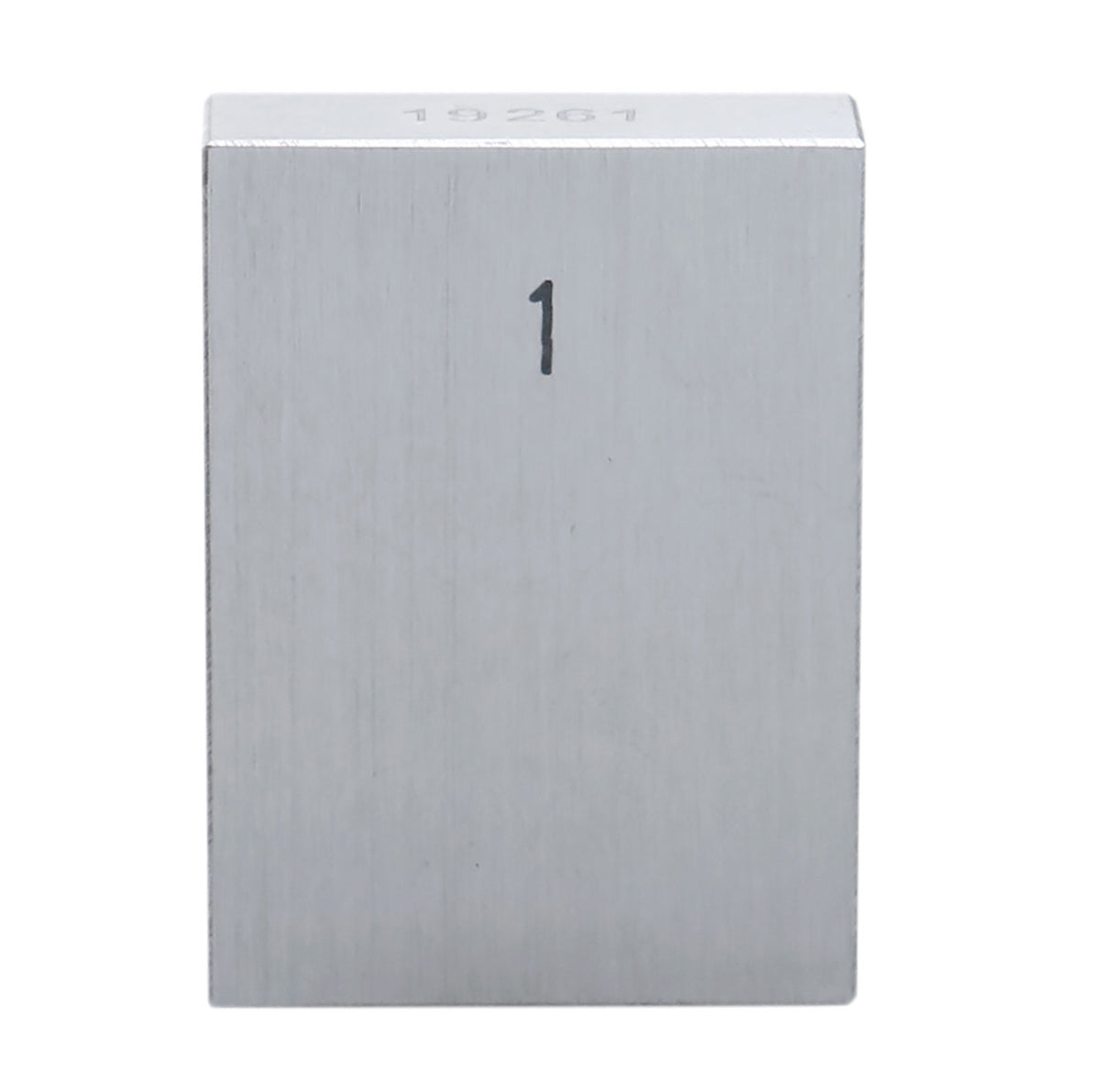

----- | 1" | 1 |
----- | 2" | 1 |
----- | 4" | 1 |
