4-Axis DRO for Milling Machine Package on Quill, Glass Scale, DITRON

CanCNC Tooling SolutionsSKU: 4028-1632

for Mill Size: 10 x 42" (4028-1632)
Price:
Sale price$1,281.60

California Proposition 65 Warning

Warning LabelWARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.
For more information, visit www.P65Warnings.ca.gov

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

More product information

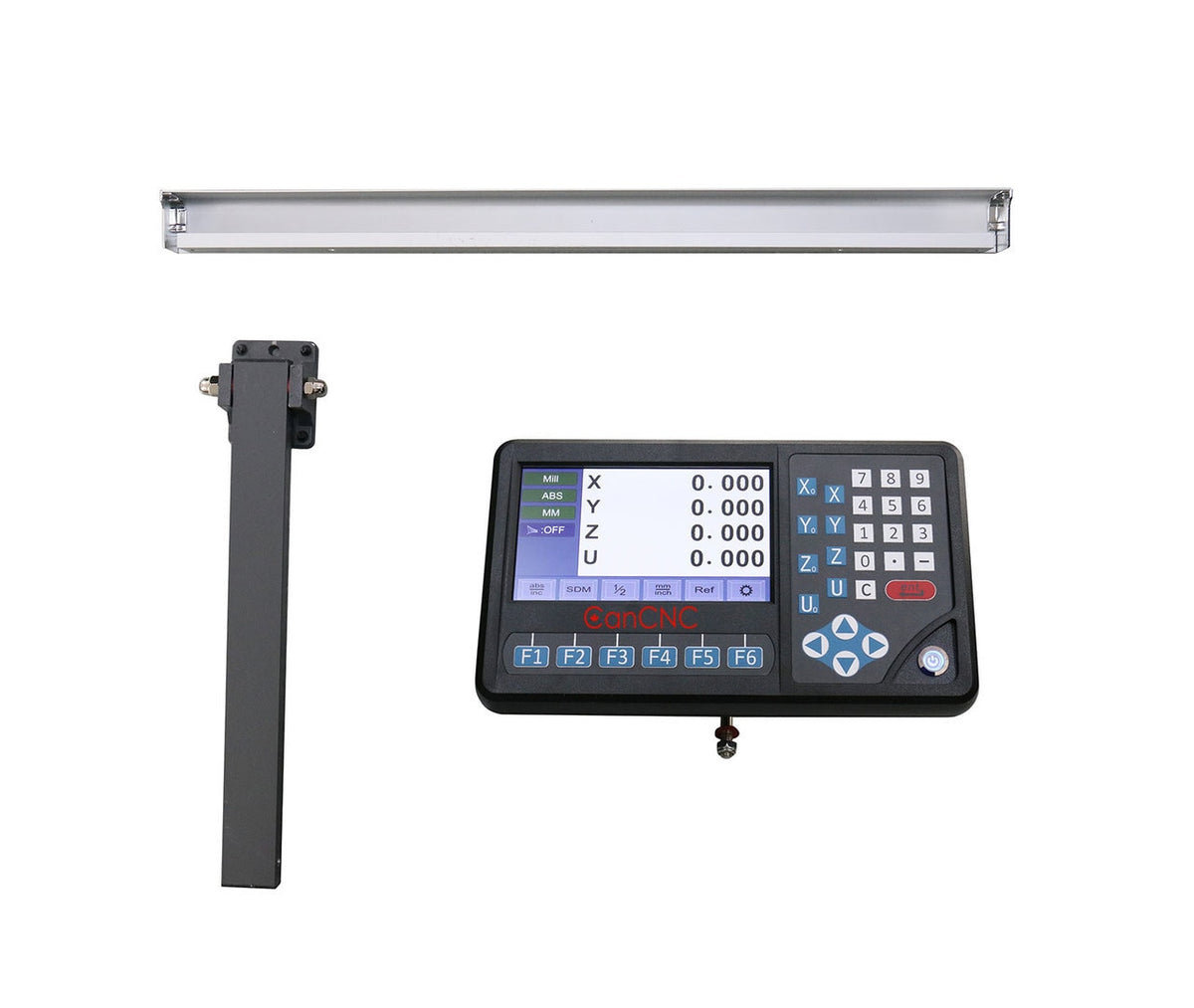

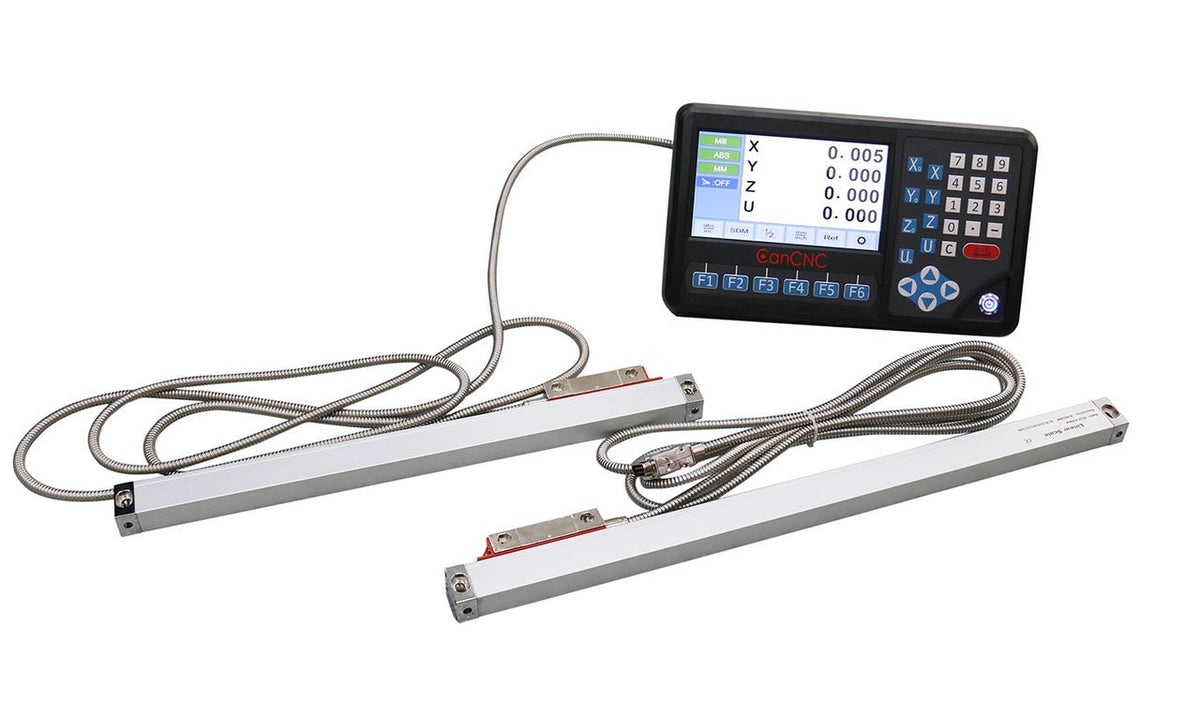

4-Axis DRO for Milling Machine Package on Quill, Glass Scale, DITRON

Features:

  • Voltage 90V-240V
  • Power DC 5V (15%) 80 MA

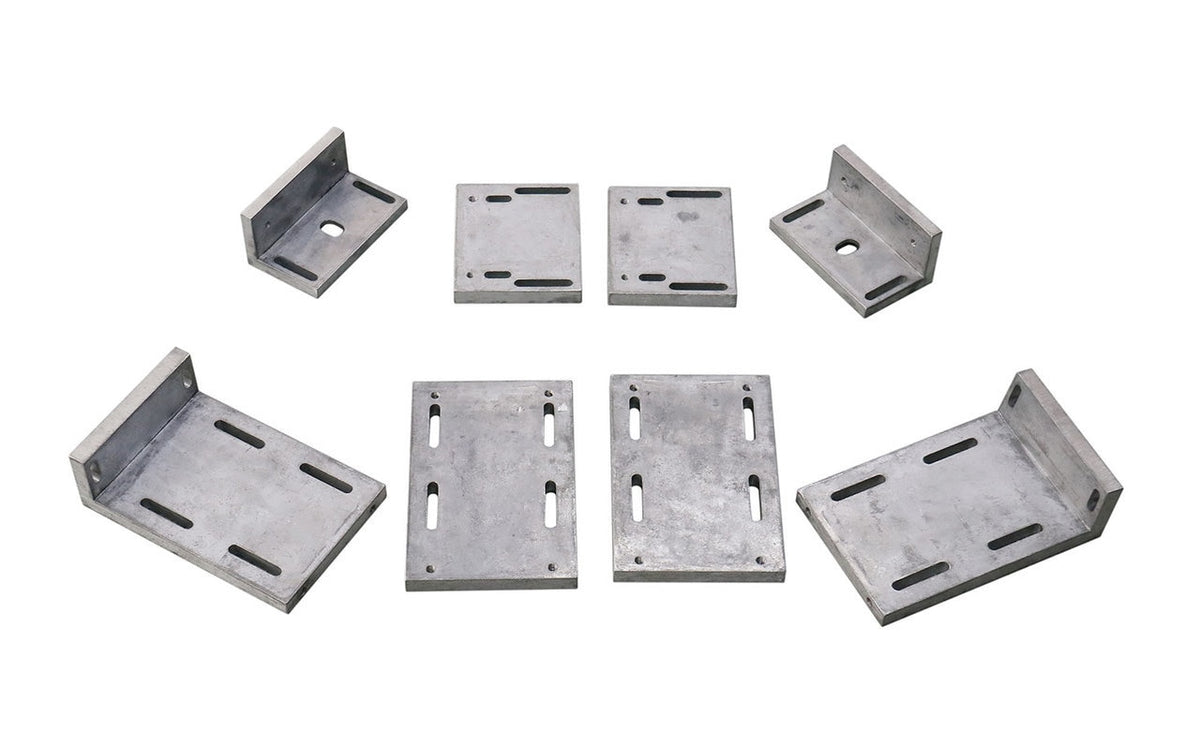

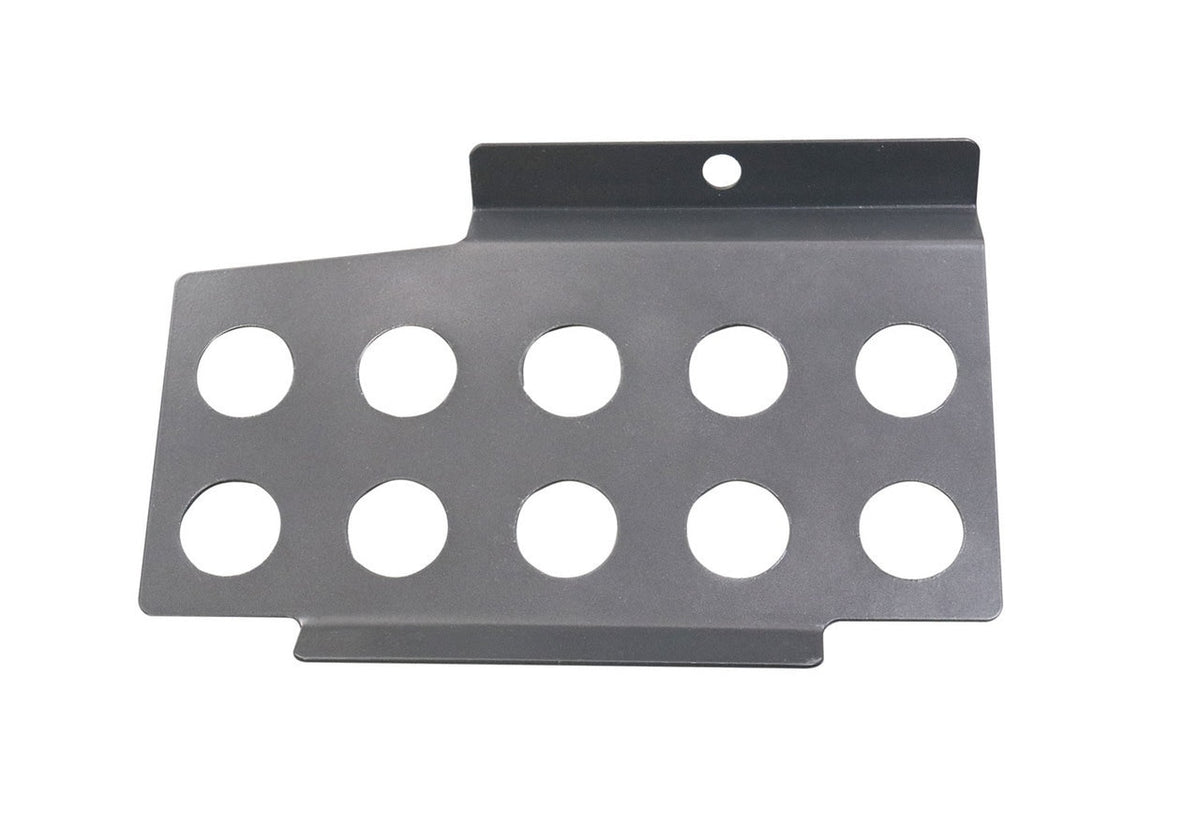

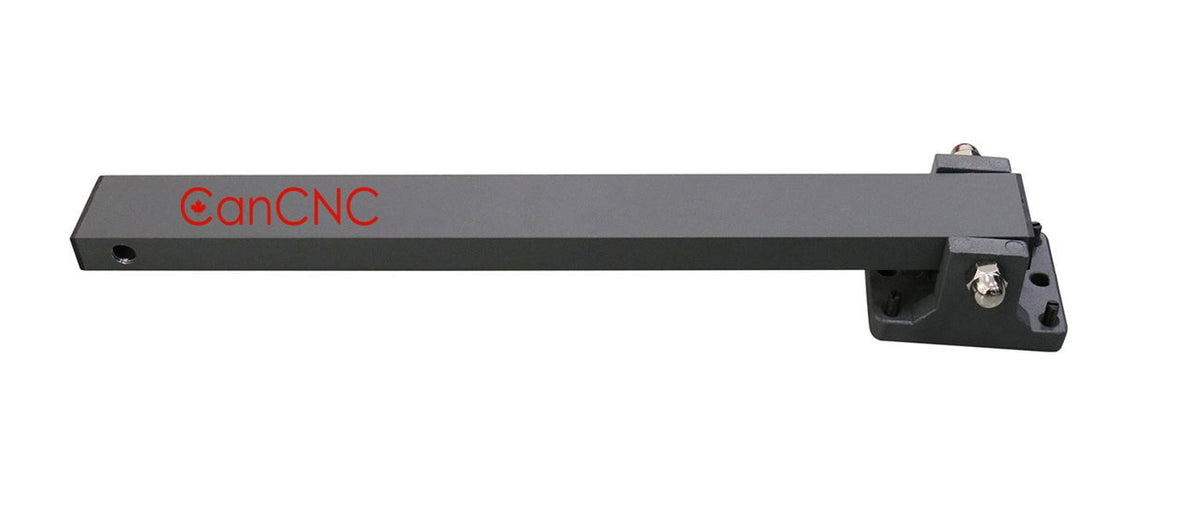

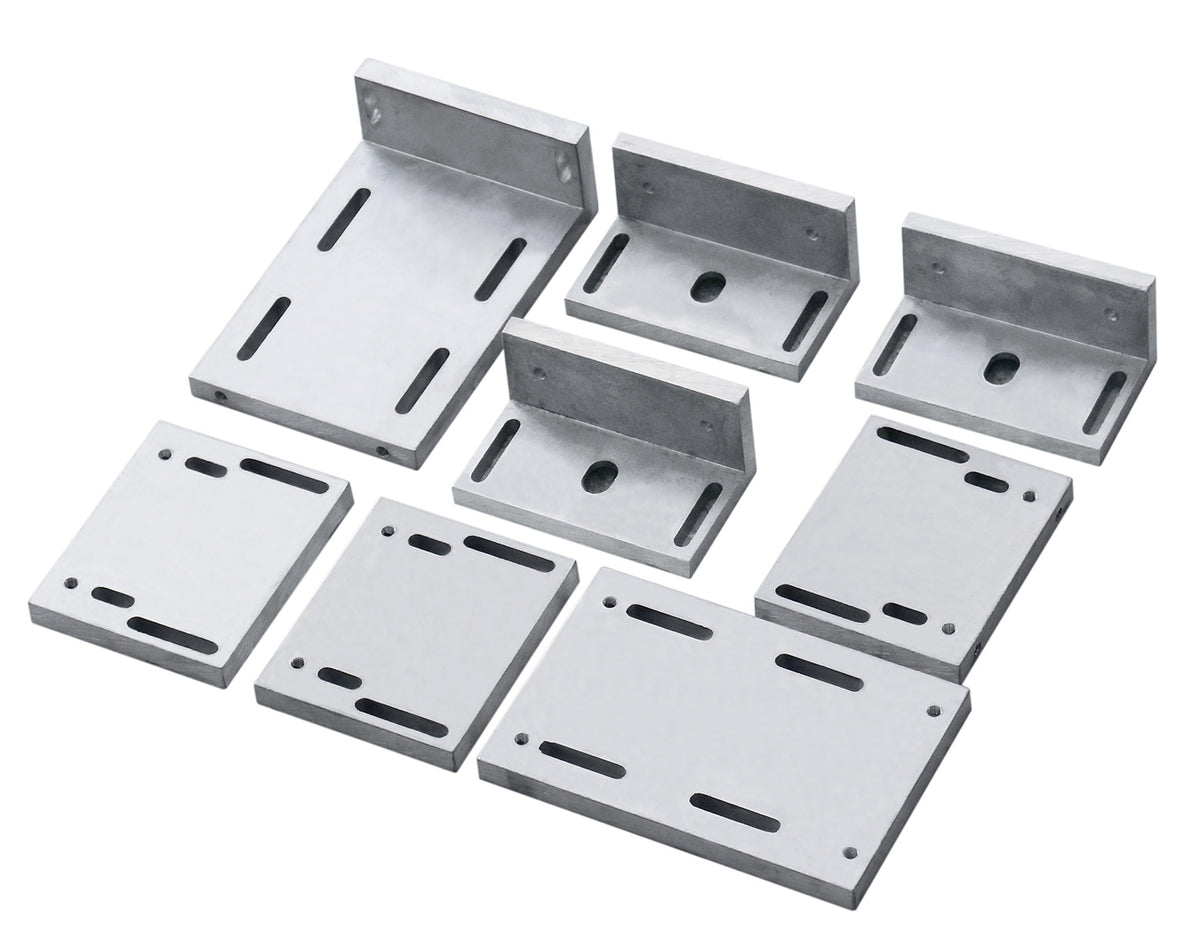

  • Two mounting brackets are located at each end of the scale
  • Resolution selection: 0.0002"/0.005mm
  • Zero setting
  • Half calculation for locating the workpiece center
  • Inch/mm conversion and INC/ABS conversion
  • Diameter/radius selection
  • Simple & smooth “Râ€?function
  • Divide the perimeter of circle # (Bolt Circle Drilling)
  • Hole drilling along an oblique line
  • Save 200 workpiece zero points

Angular surface processing

  • Progressive processing of rectangular inner chamber
  • To reach objective values stop
  • Cone measure
  • Number percolate
  • Takes 16 bits & 32 bits CPU technology
  • 200 cutlery memory
  • Power failure memory
  • DC10-F series small size encoder

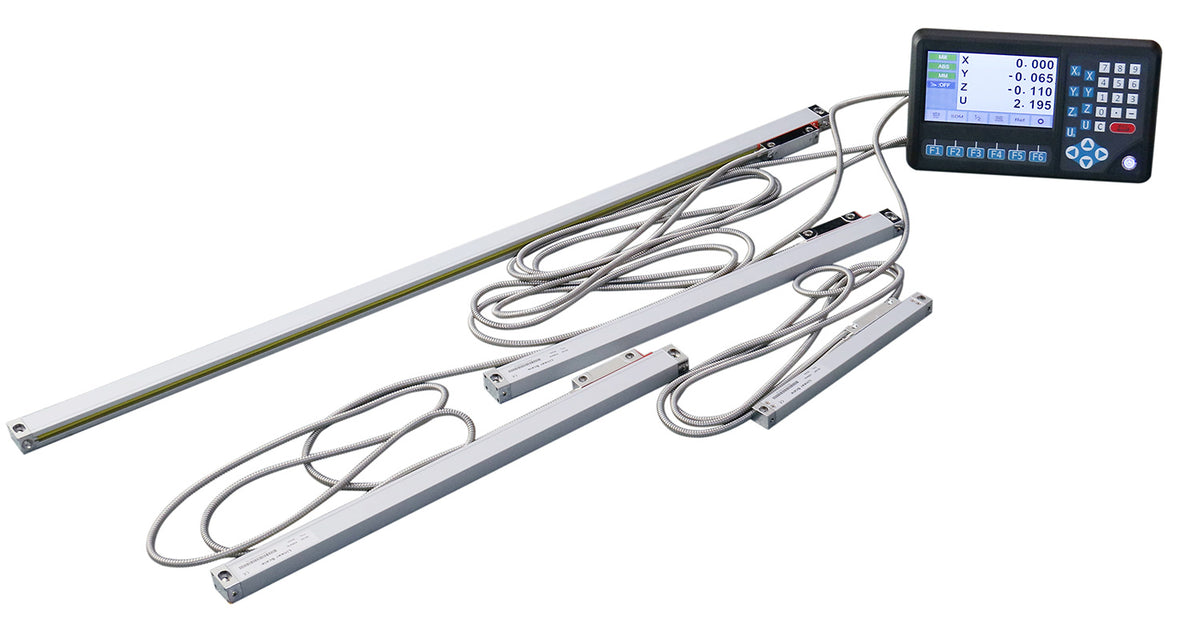

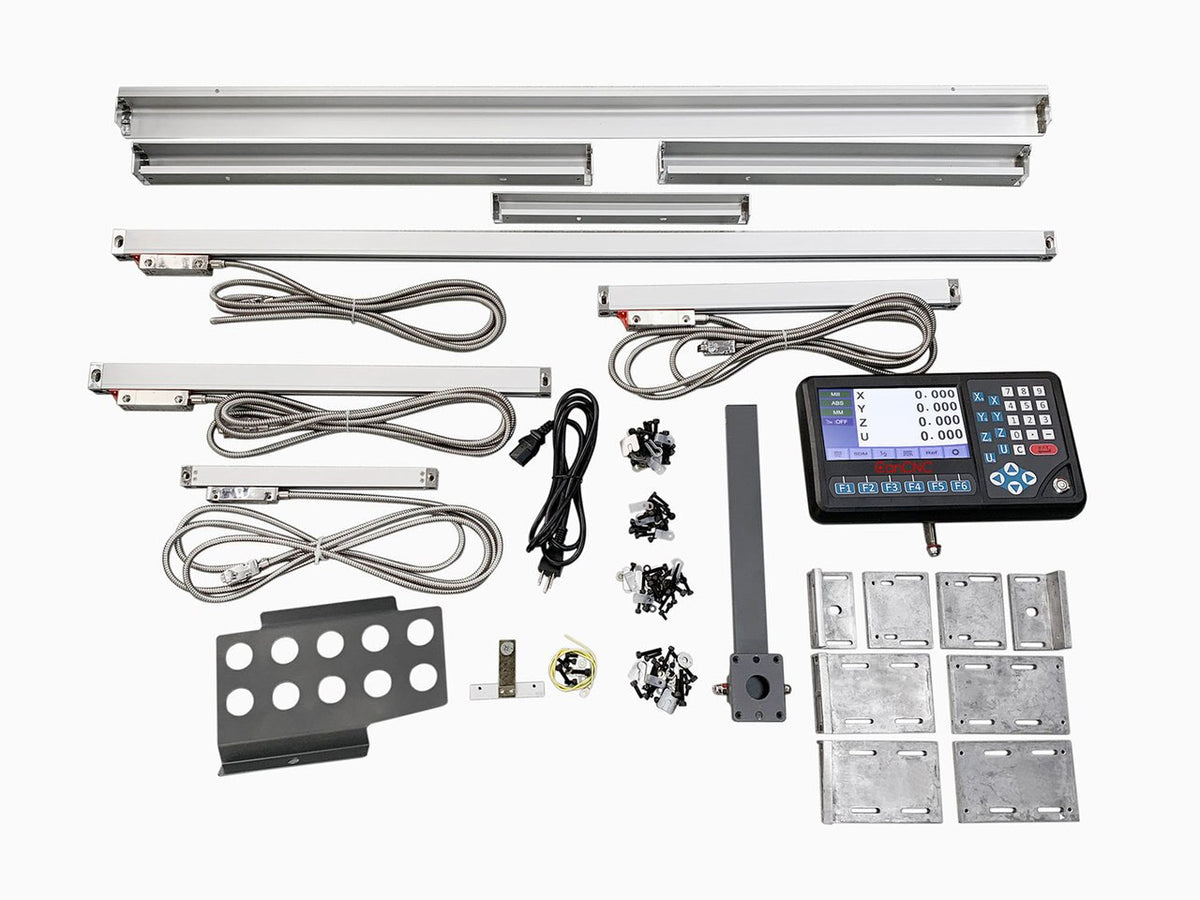

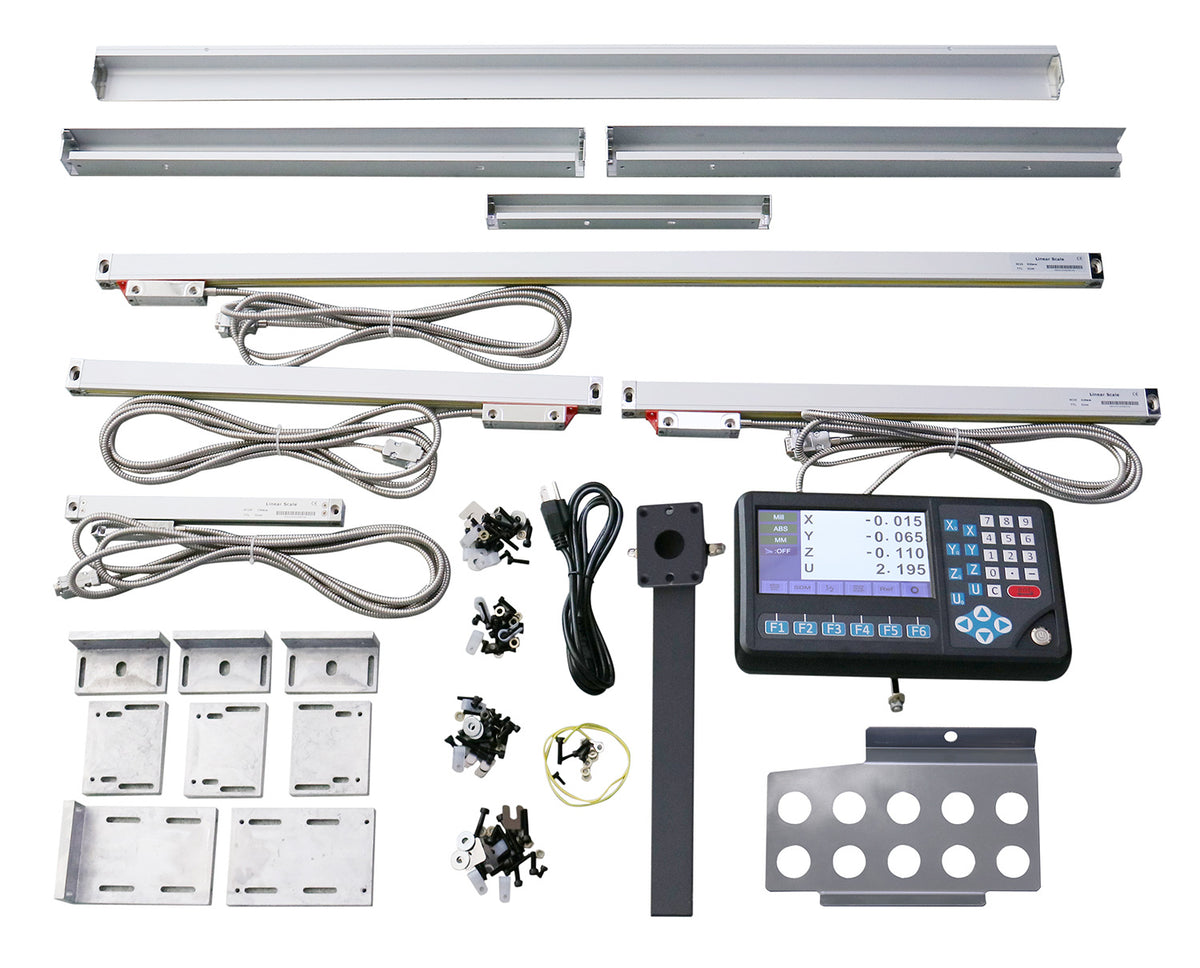

Each Set Includes:

  • All mounting hardware

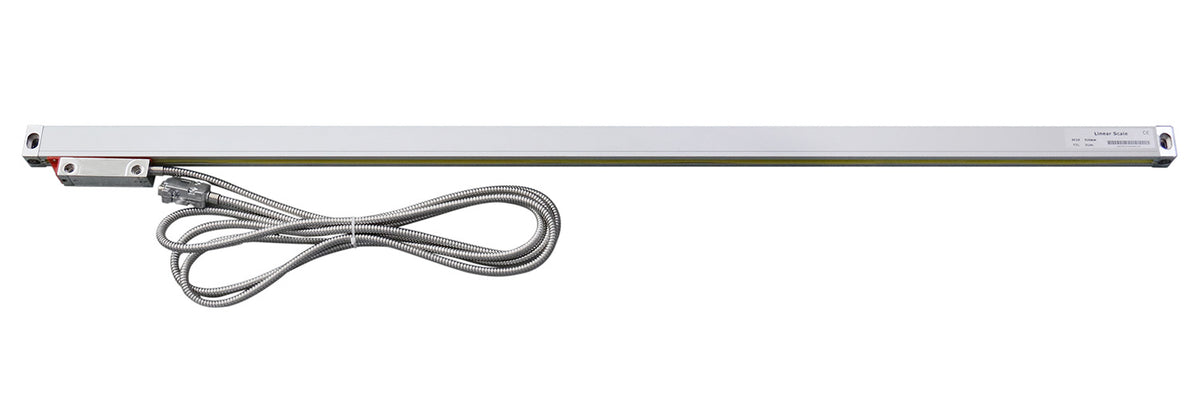

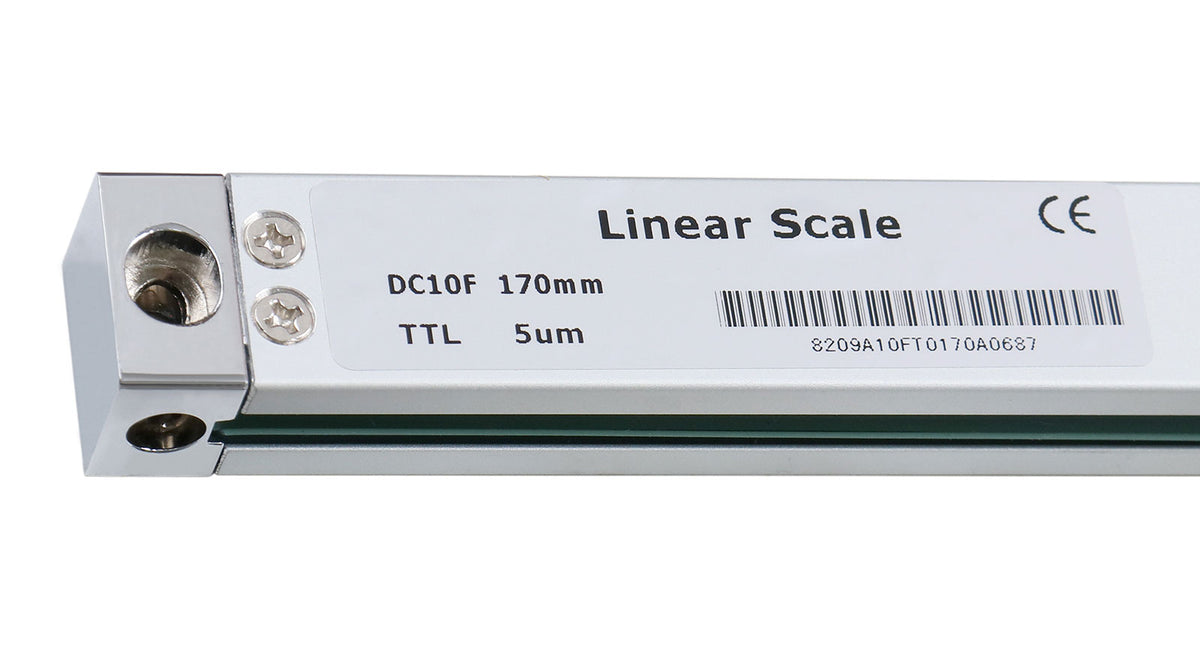

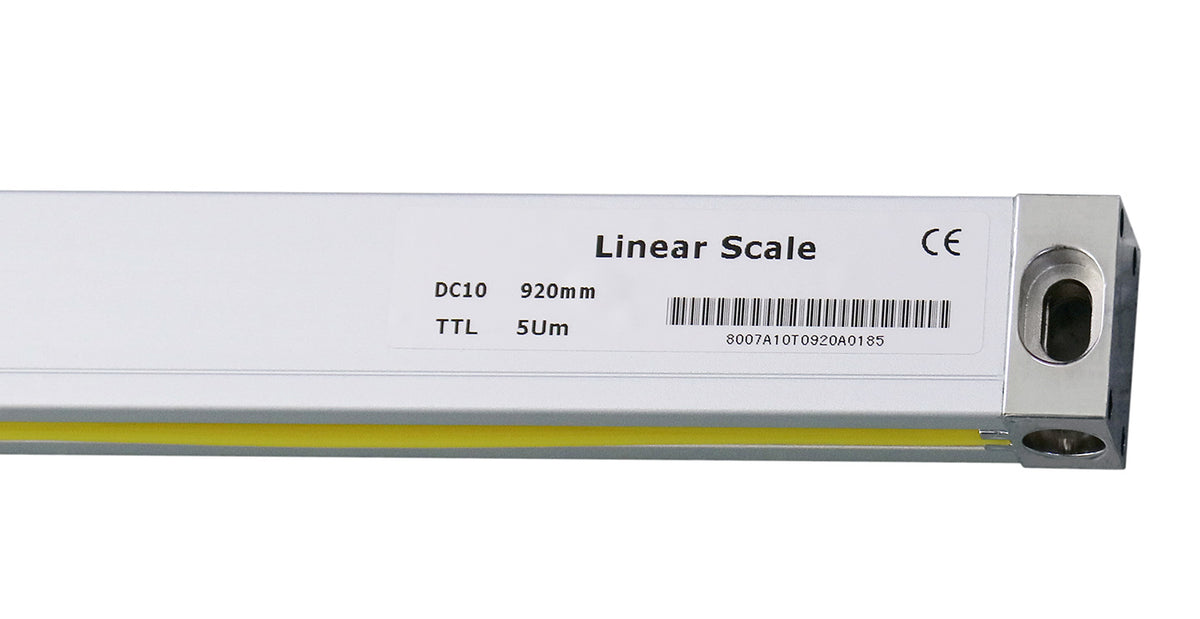

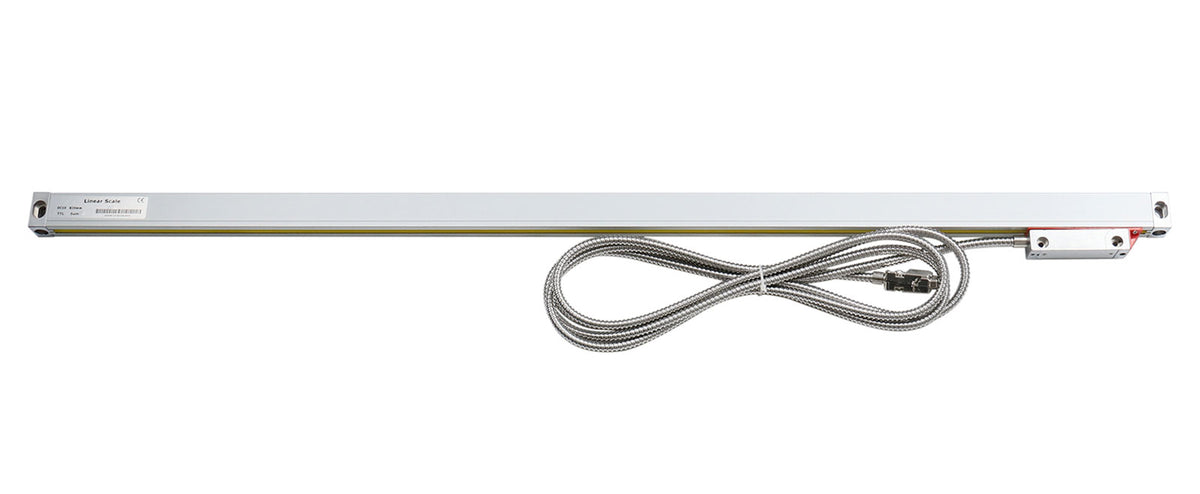

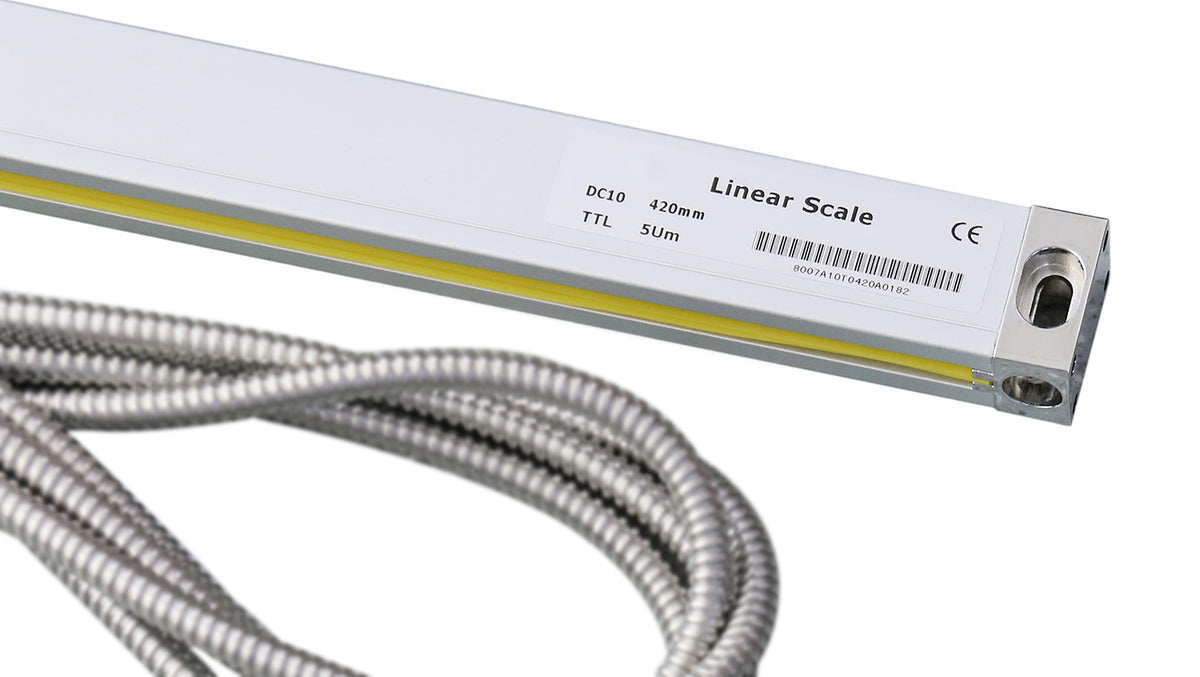

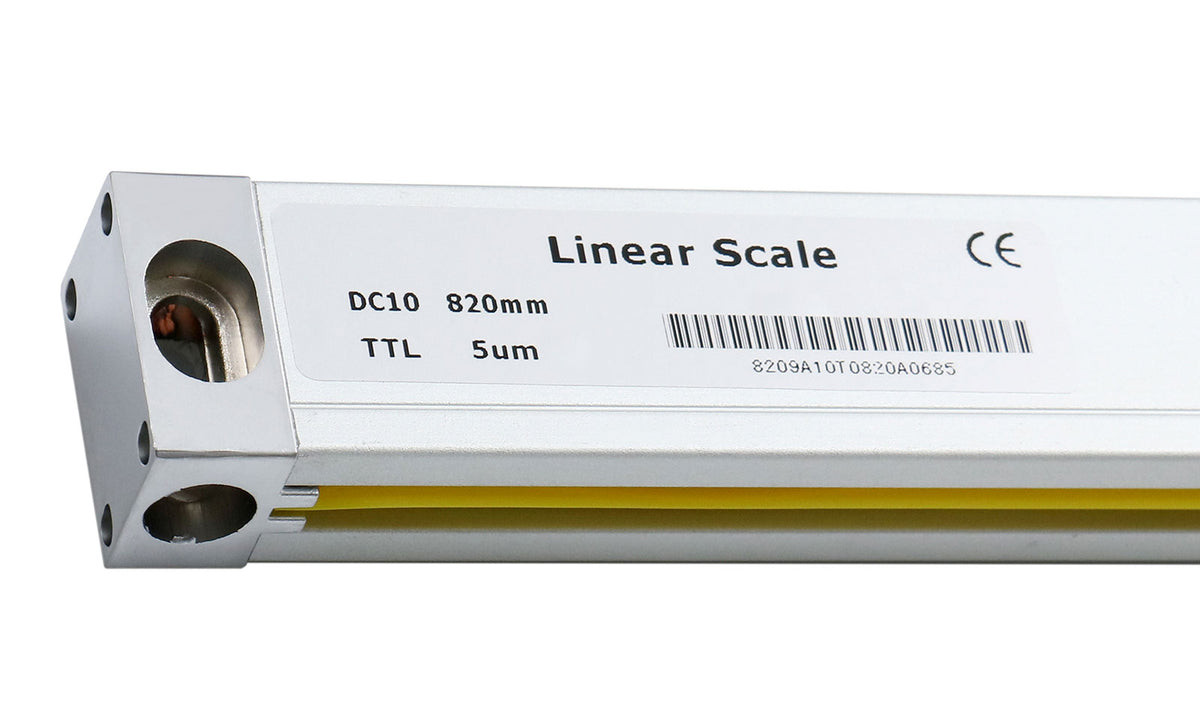

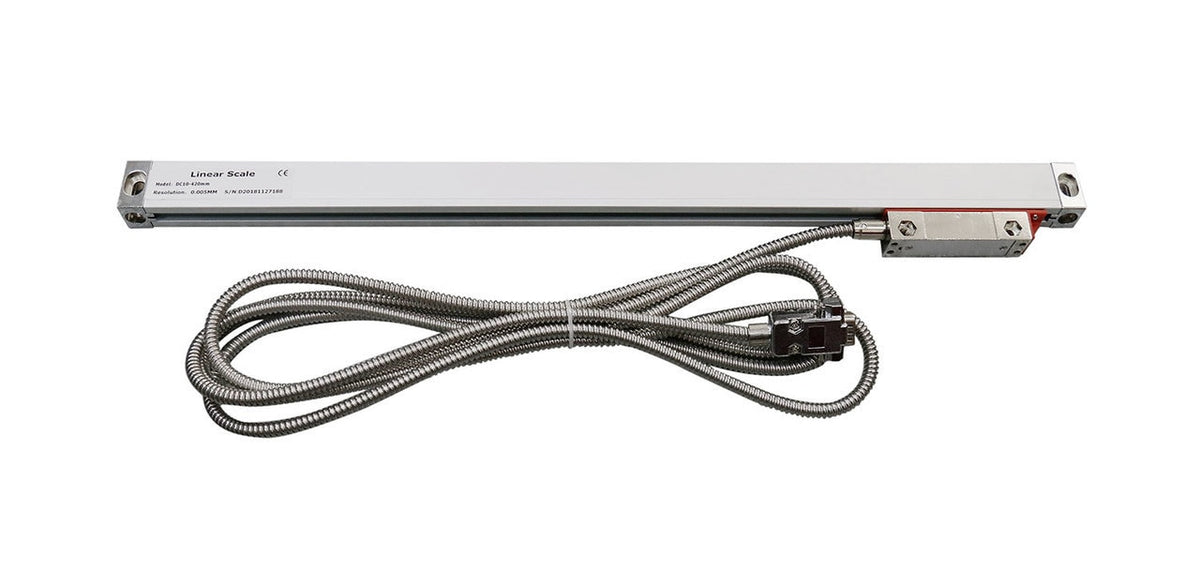

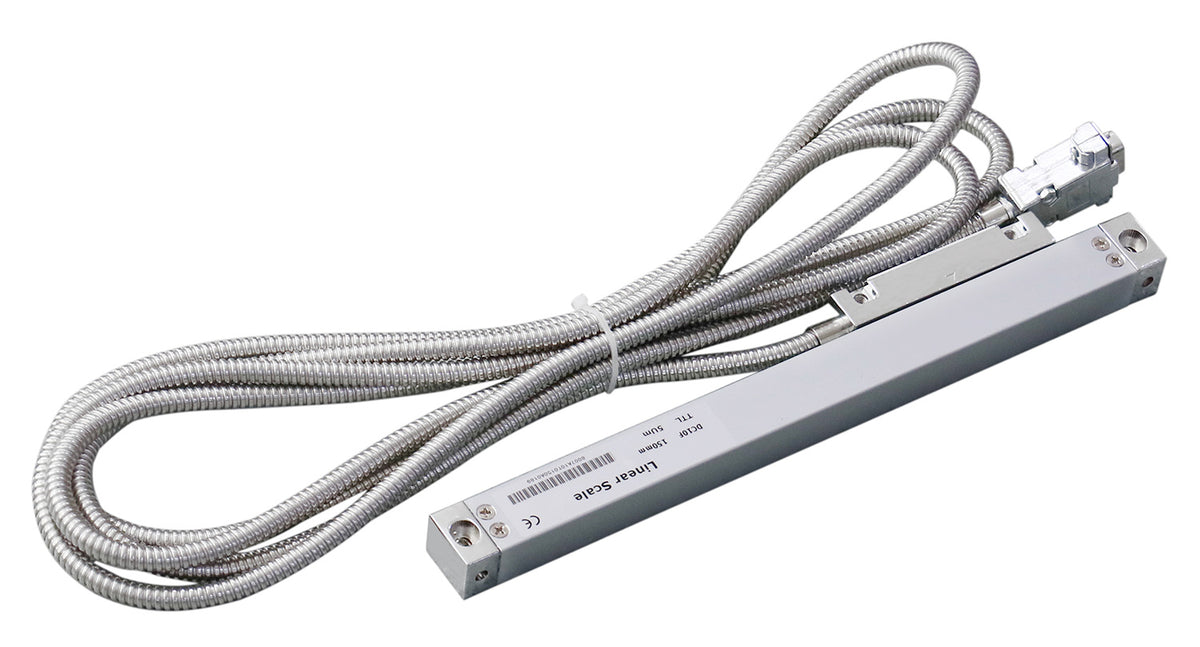

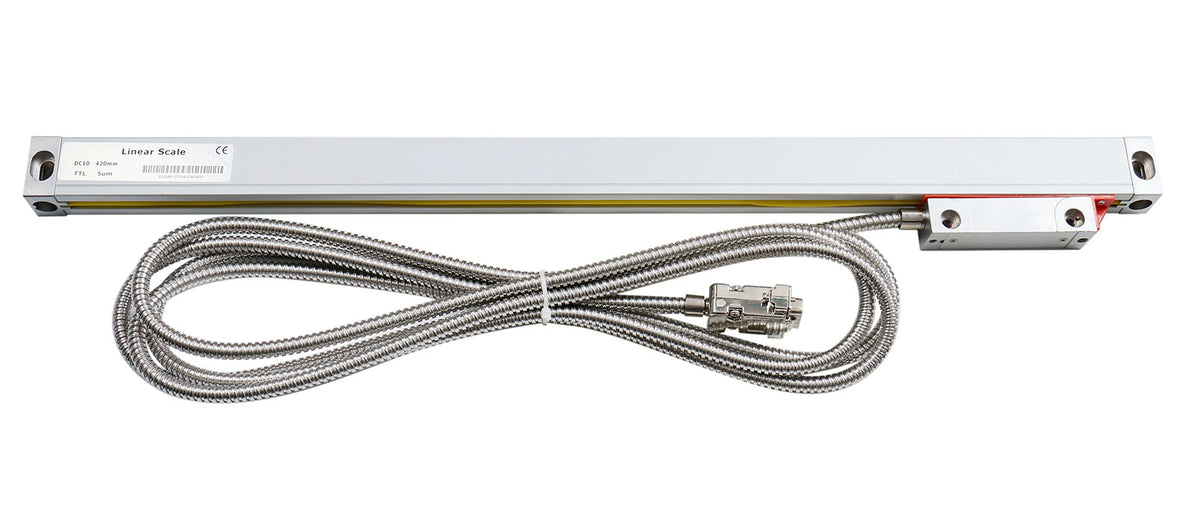

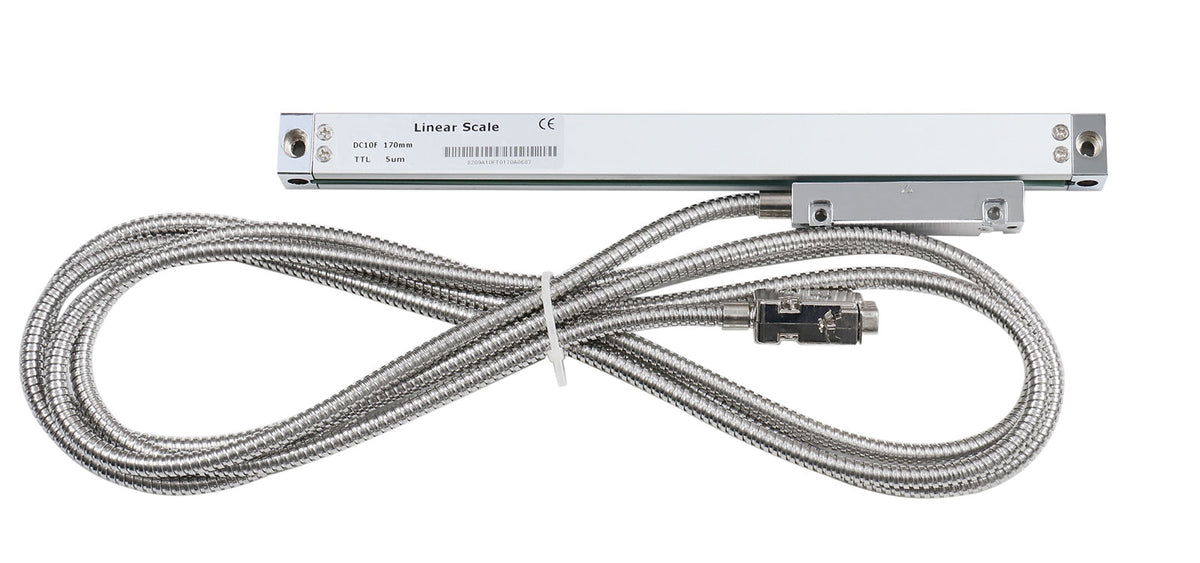

  • 3 Linear glass scales
  • I standard DRO Counter
  • Operating manual

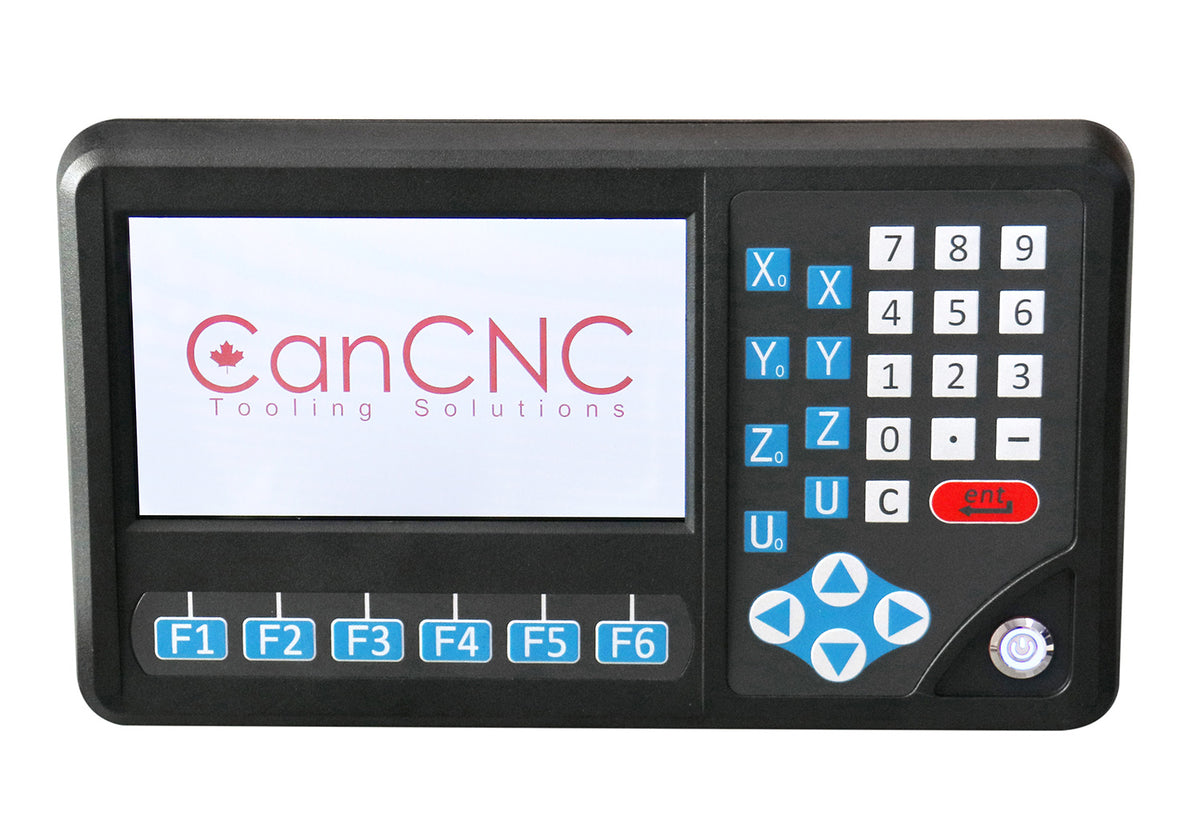

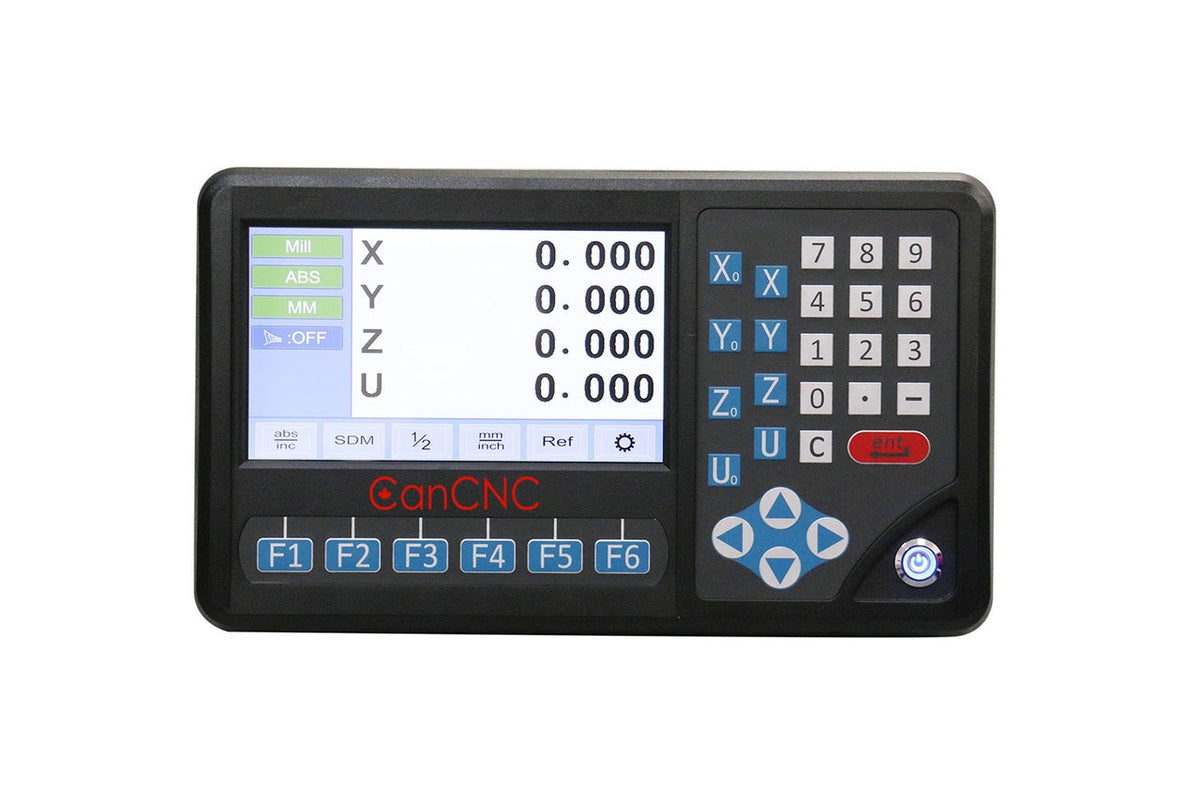

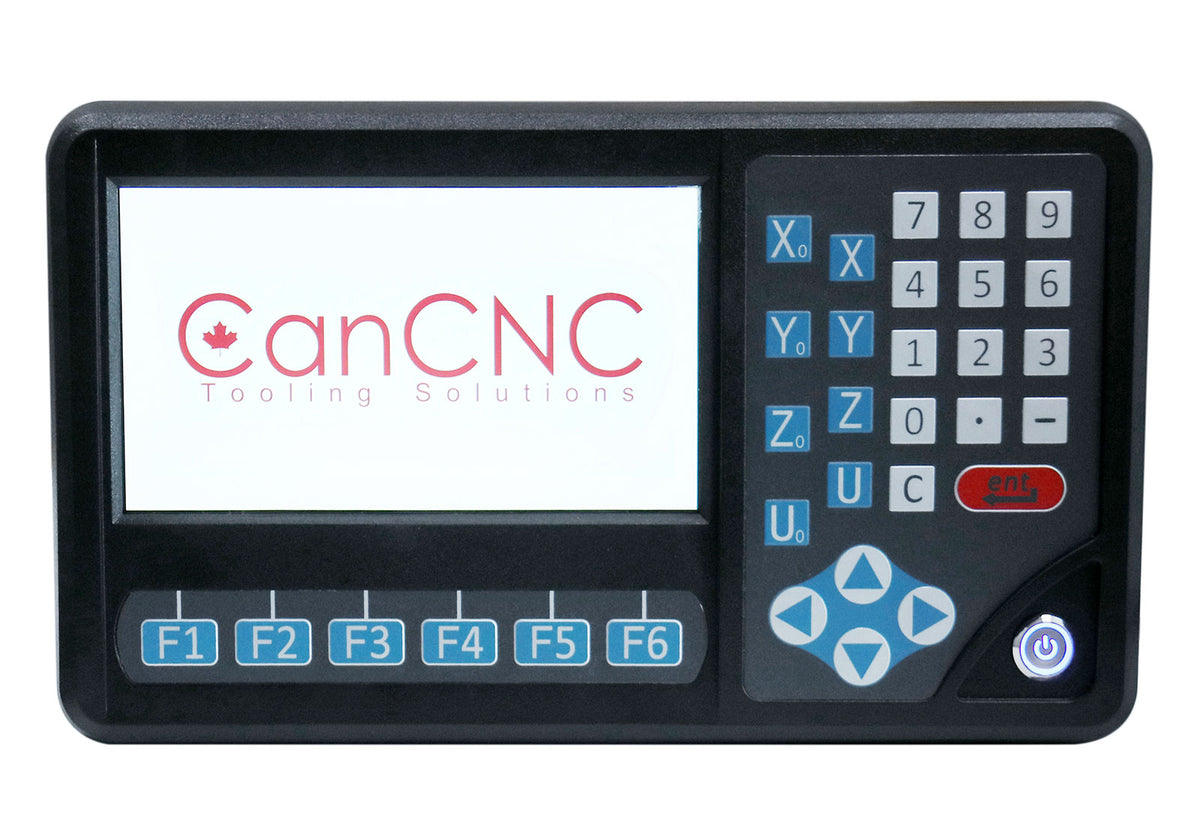

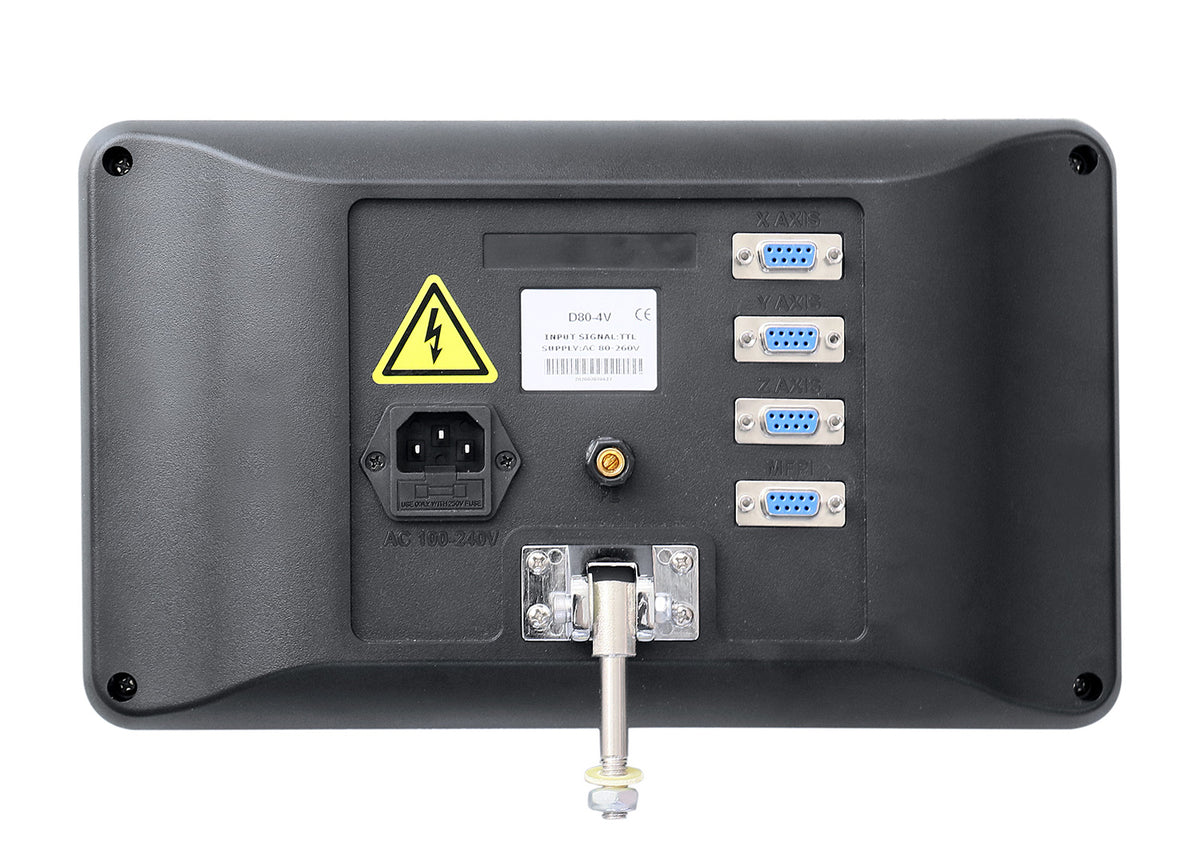

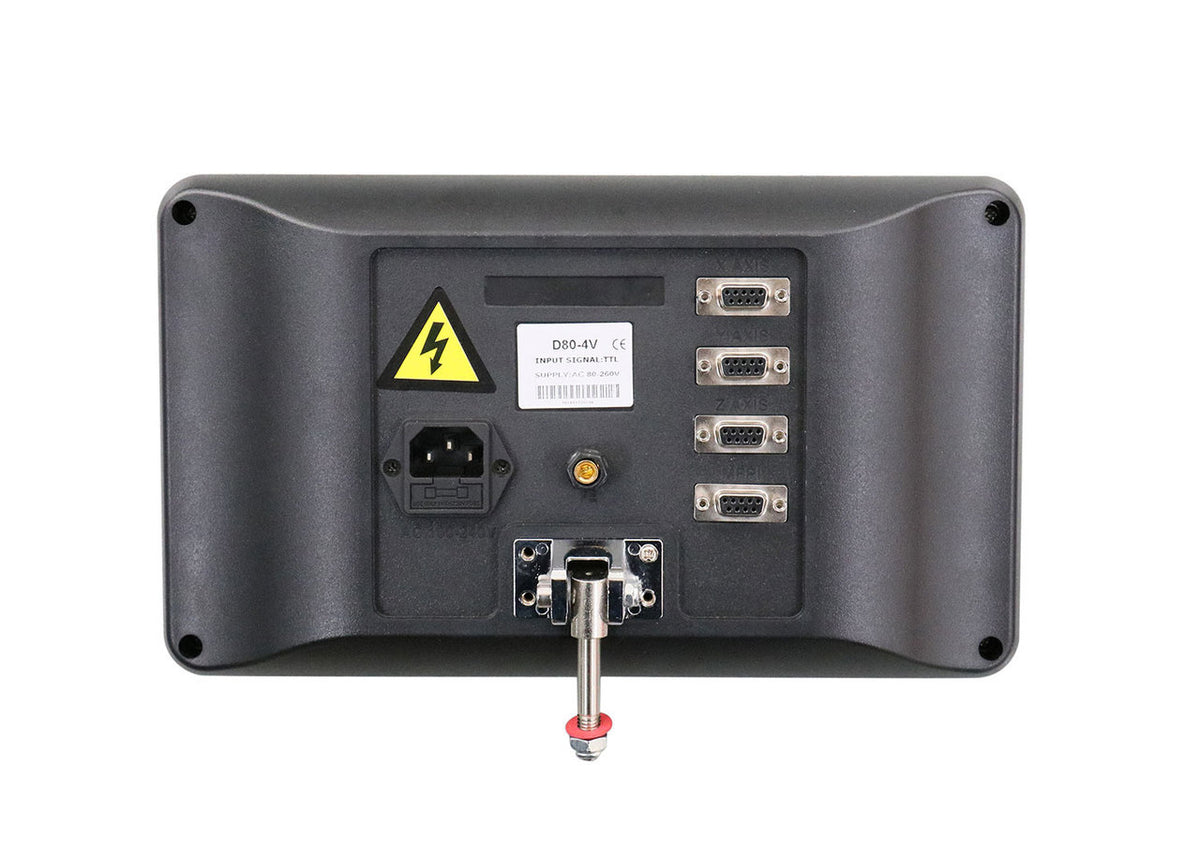

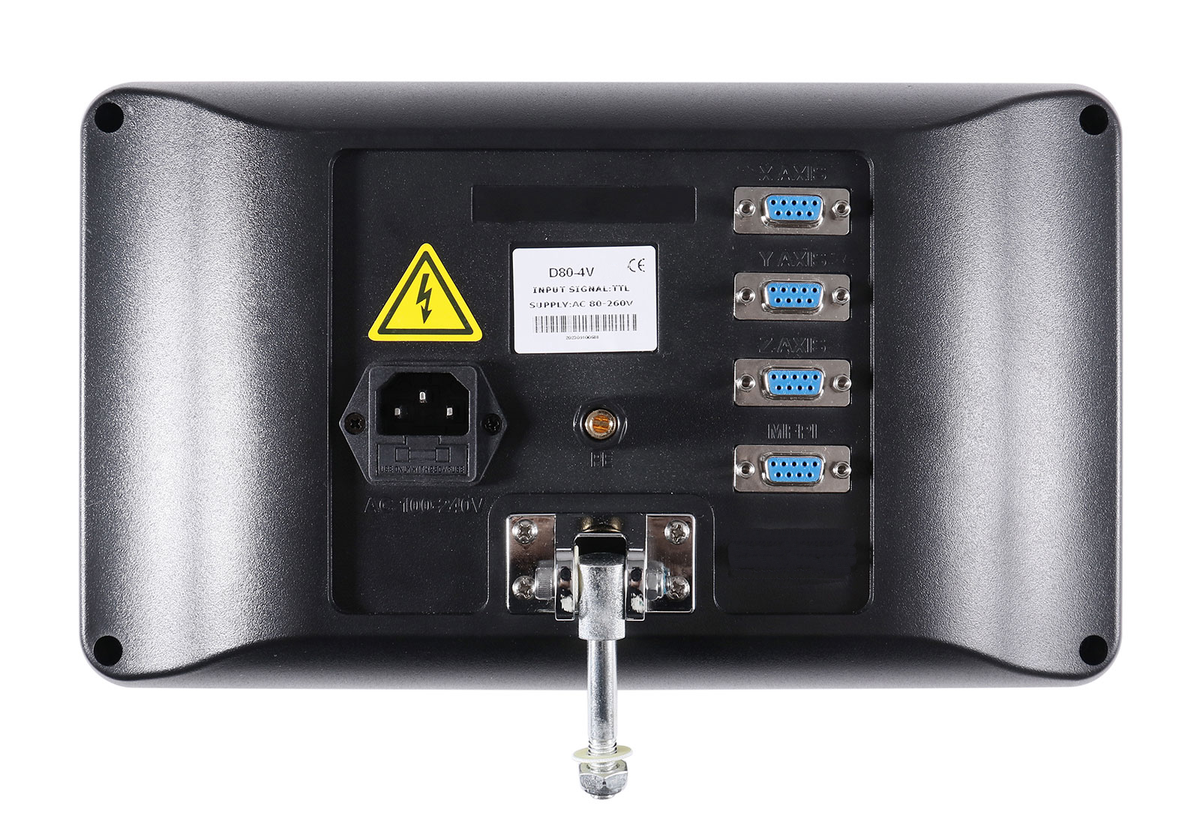

  • 1pc D80-4V 4-Axis DRO counter

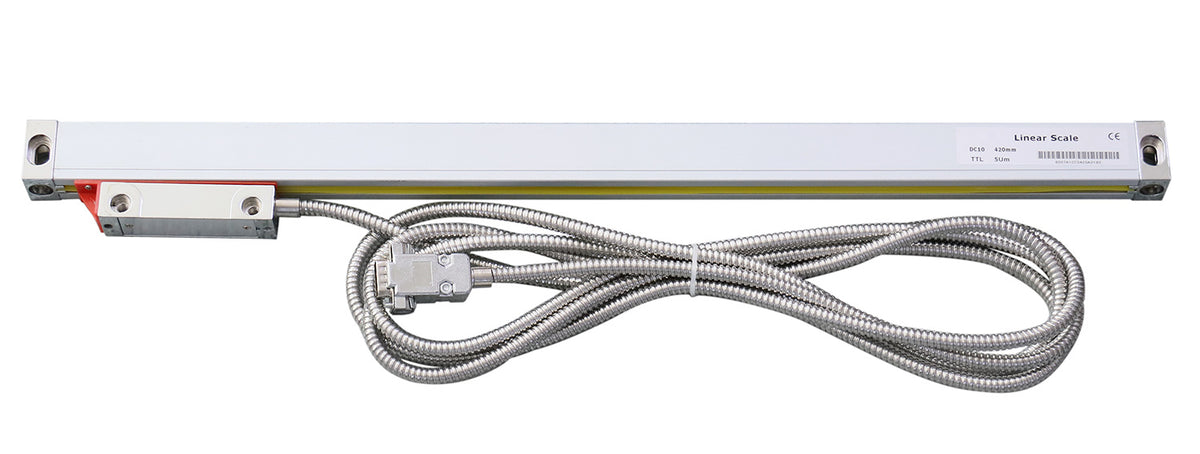

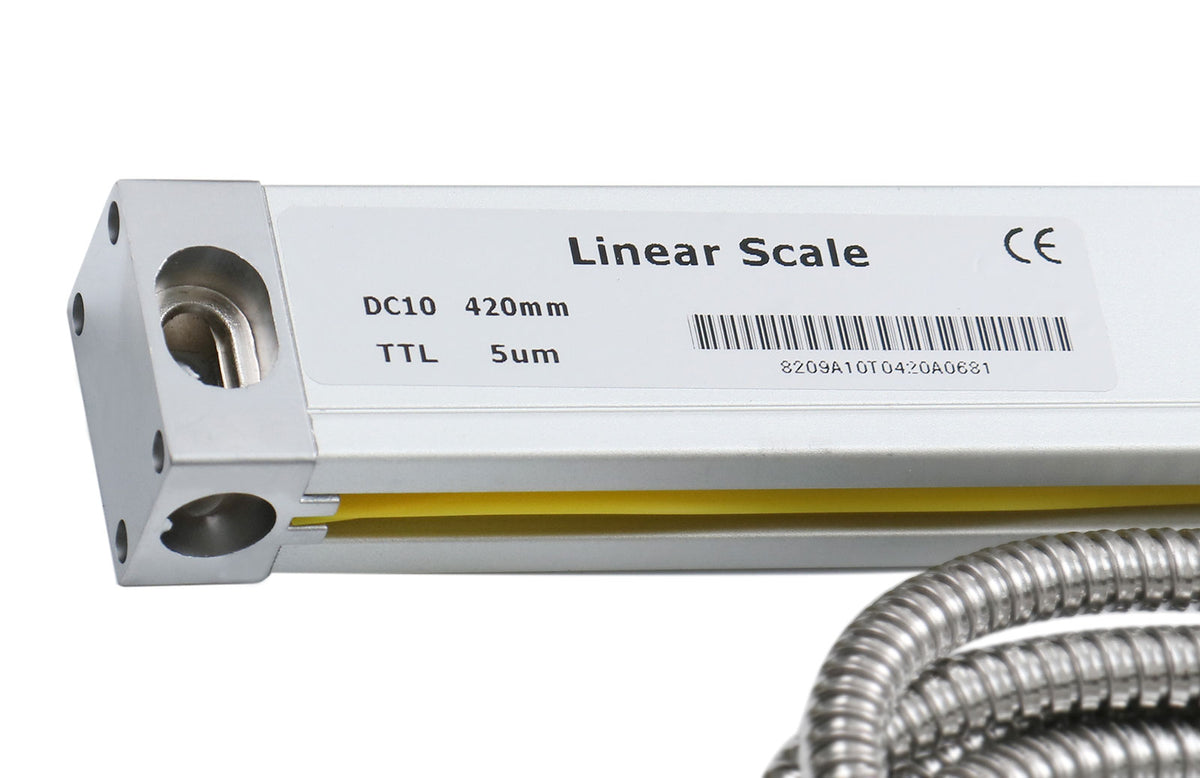

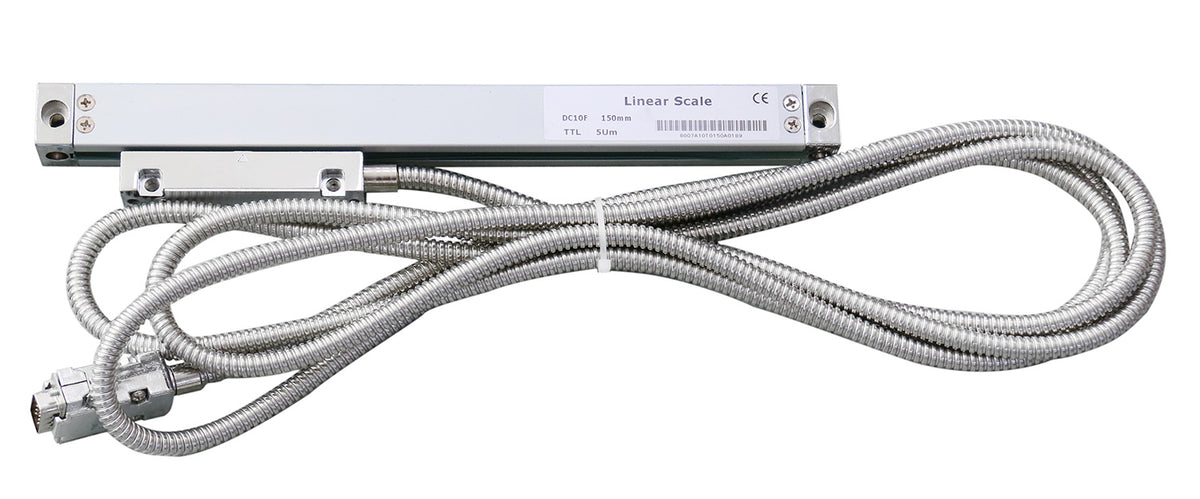

  • 4pcs linear glass scales (0.005mm, the V-axis scale is the slim style)

Specifications of Each Set:

Item Mill Size Travel Overall Length of Scale
4028-1632 10 x 42" 16 x 32 x 16 x 6" 21 x 37 x 21 x 10.6"
4028-1636 10 x 54" 16 x 36 x 16 x 6" 21 x 41 x 21 x 10.6"
4028-1640 10 x 58" 16 x 40 x 16 x 6" 21 x 45 x 21 x 10.6"


Linear Scale & DRO System Installation Manual

Linear Scale & DRO System Installation Manual

D80 DRO Operation Manual

D80 DRO Operation Manual
