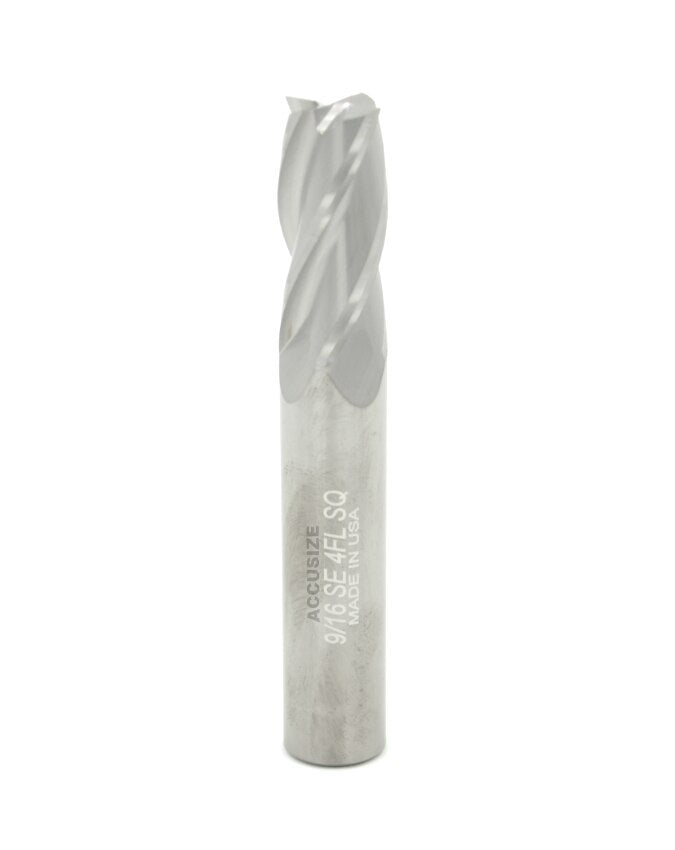

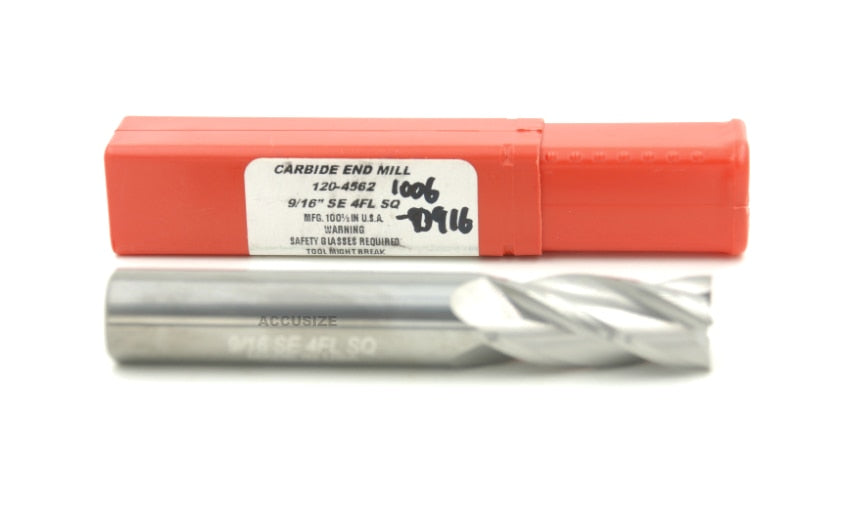

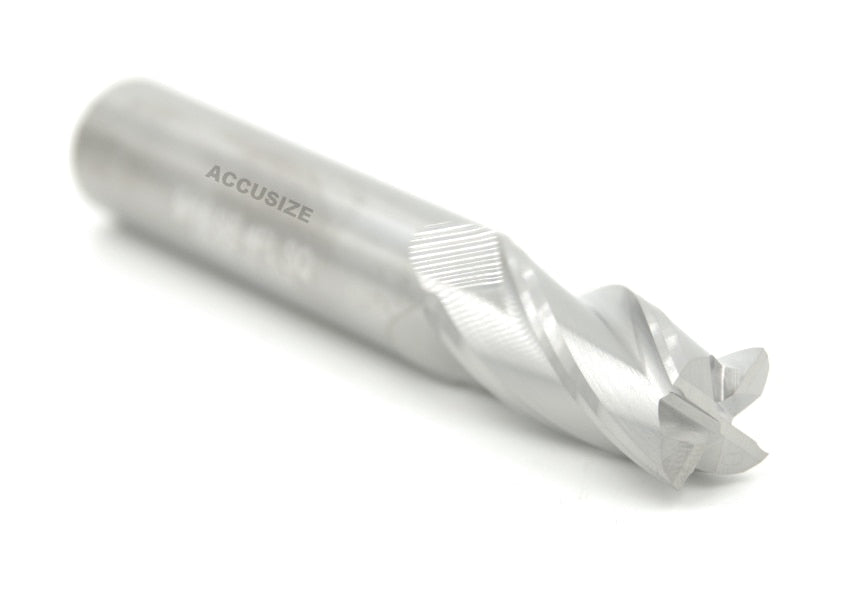

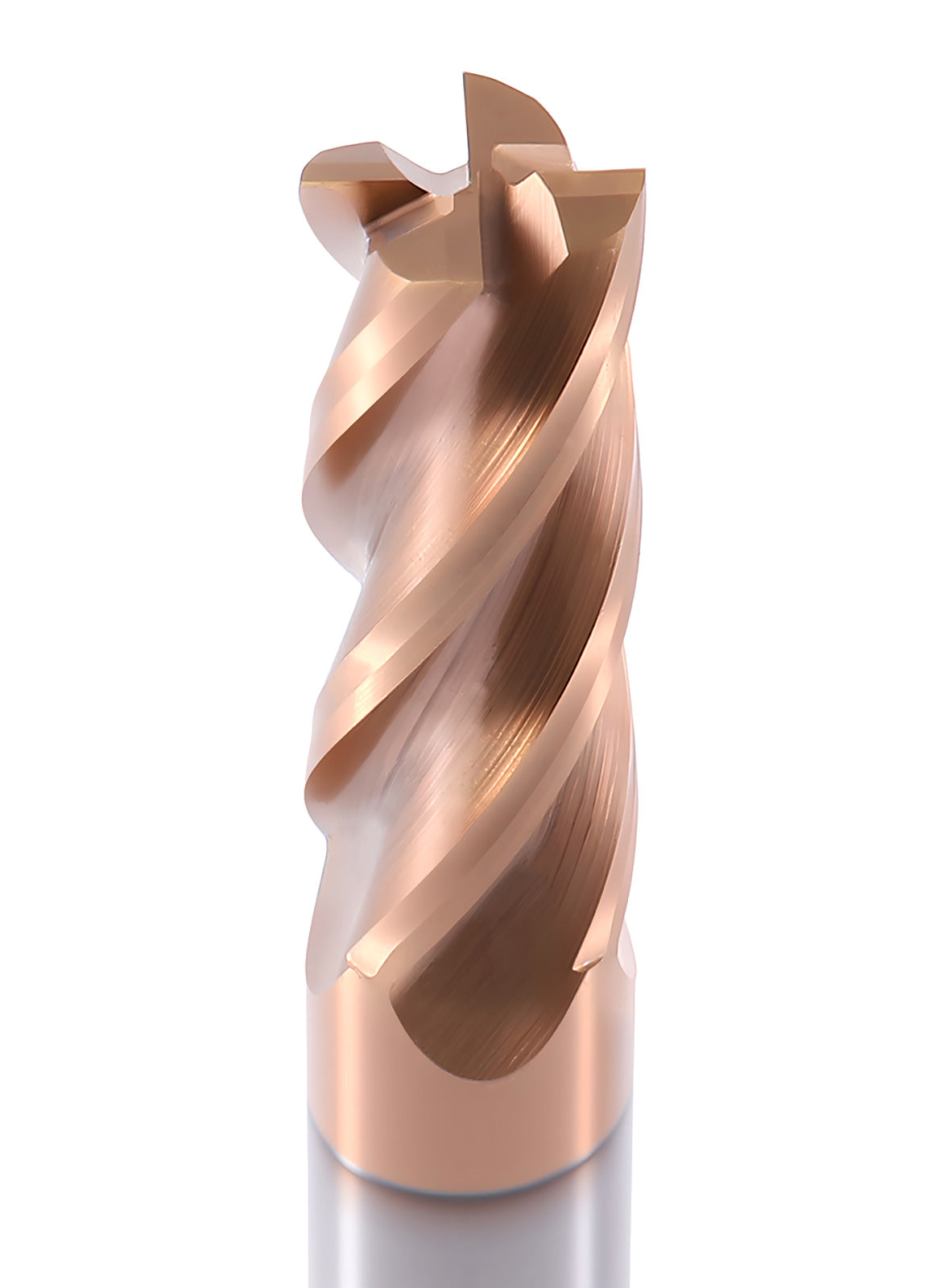

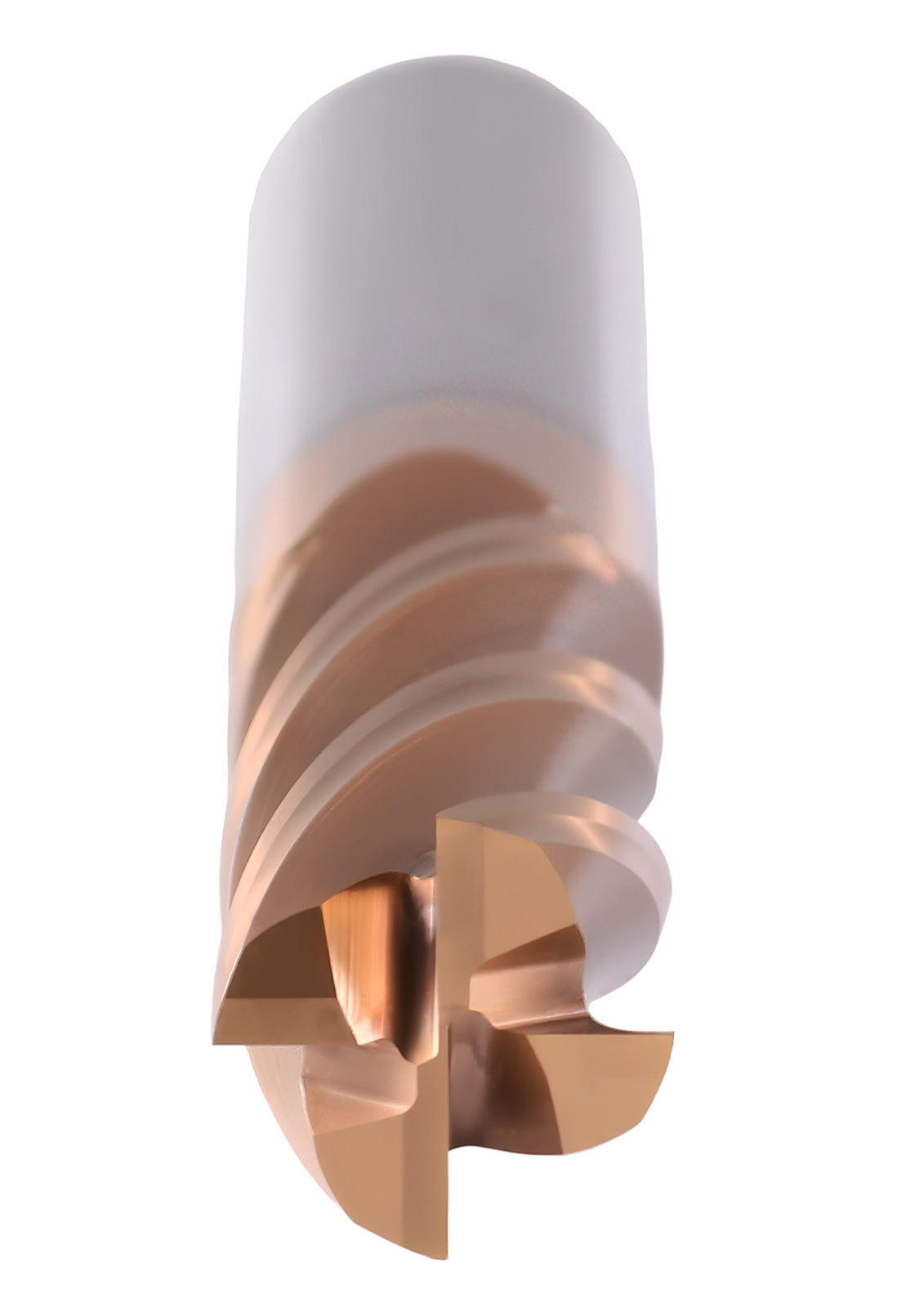

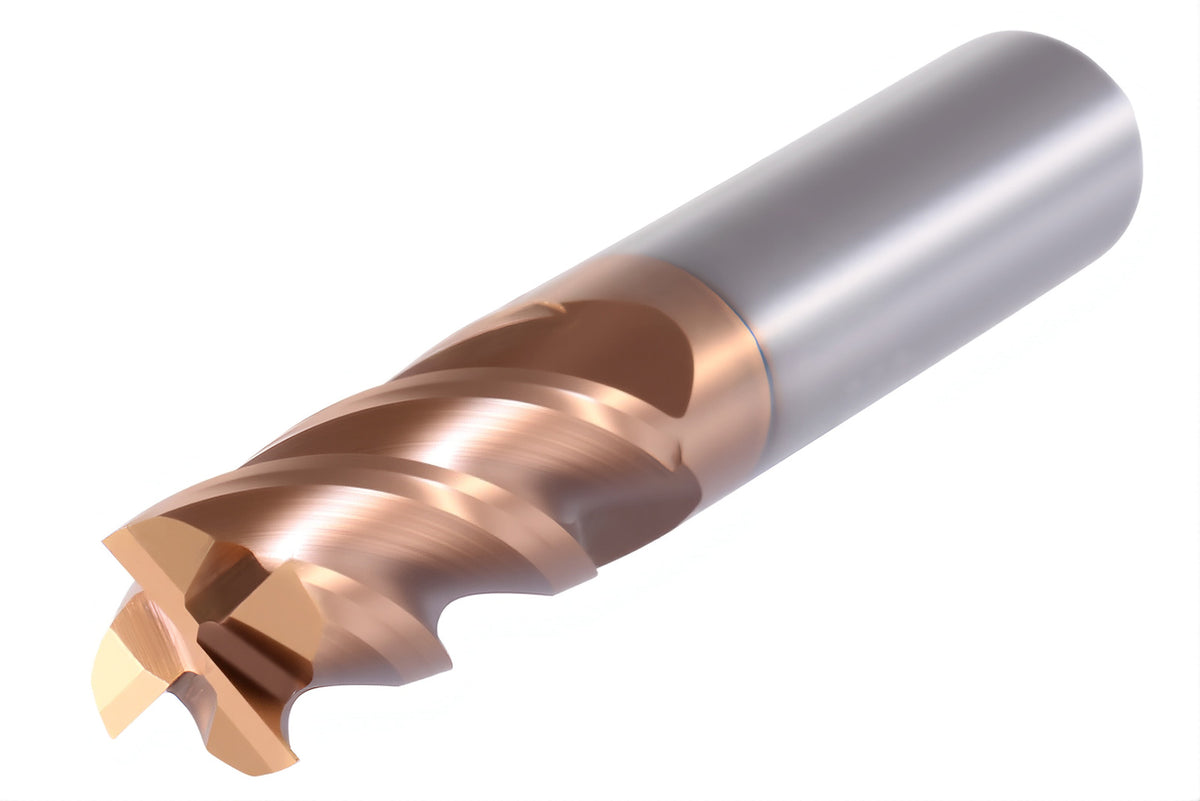

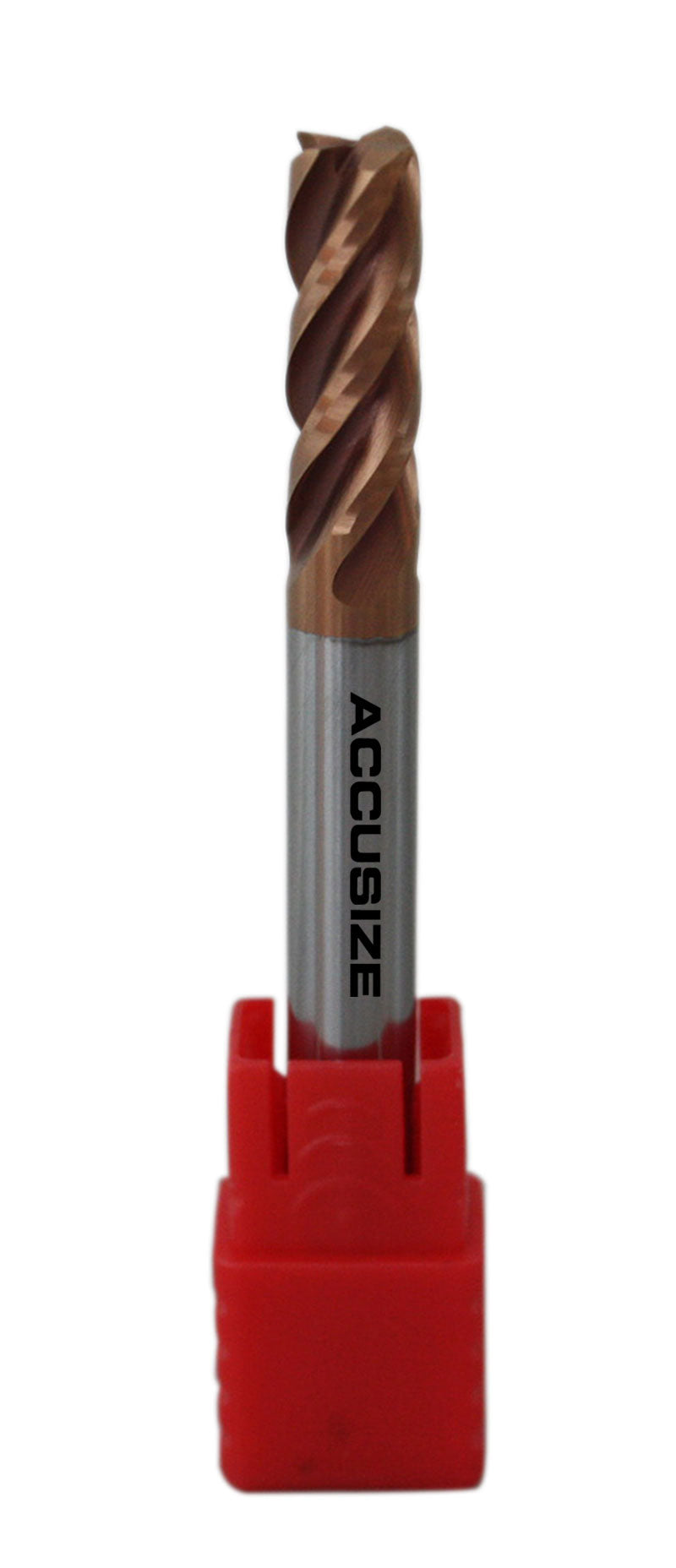

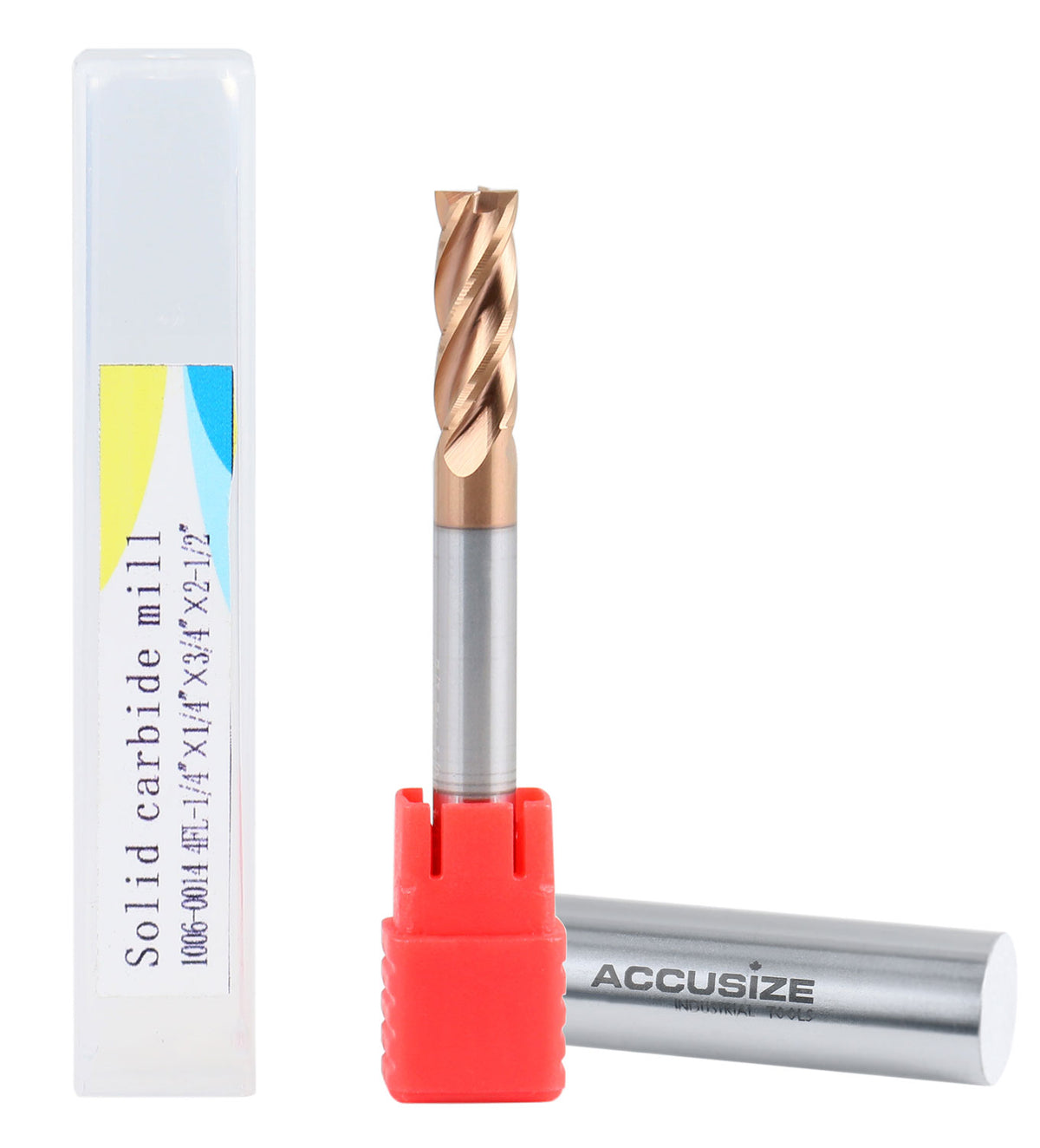

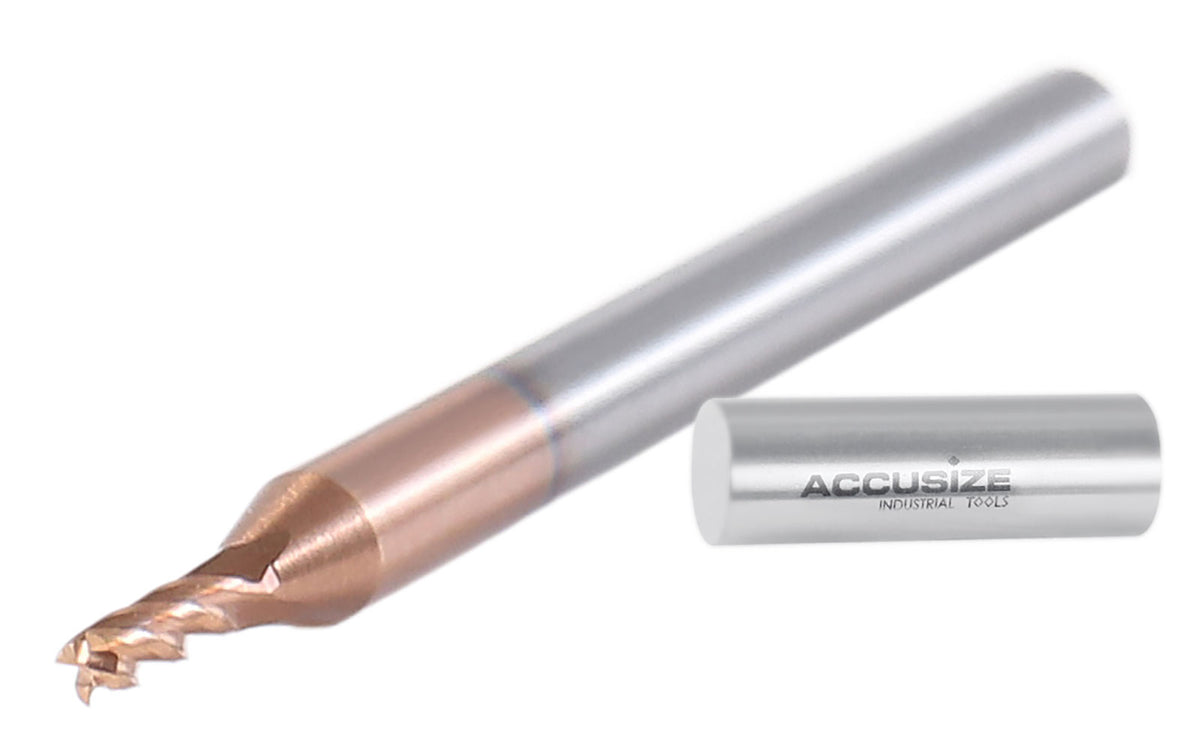

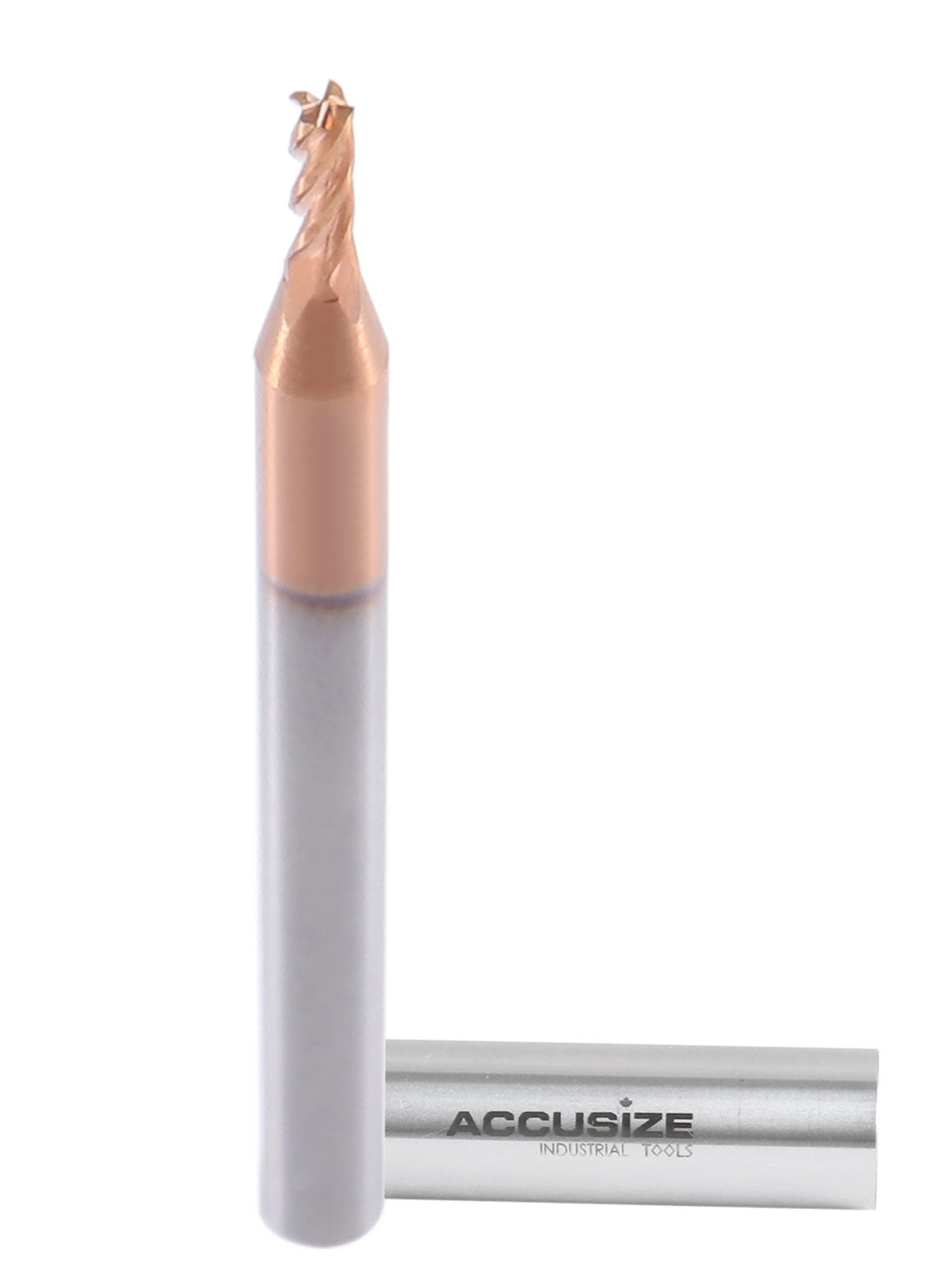

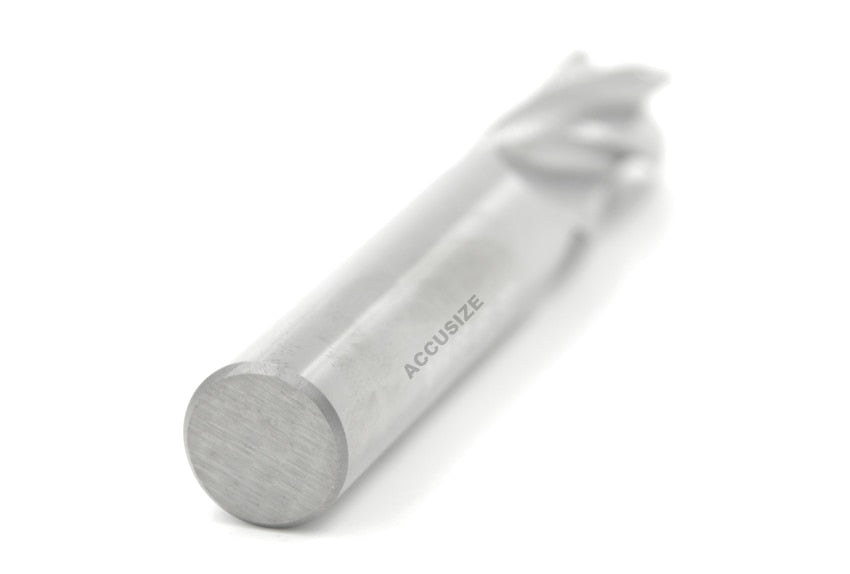

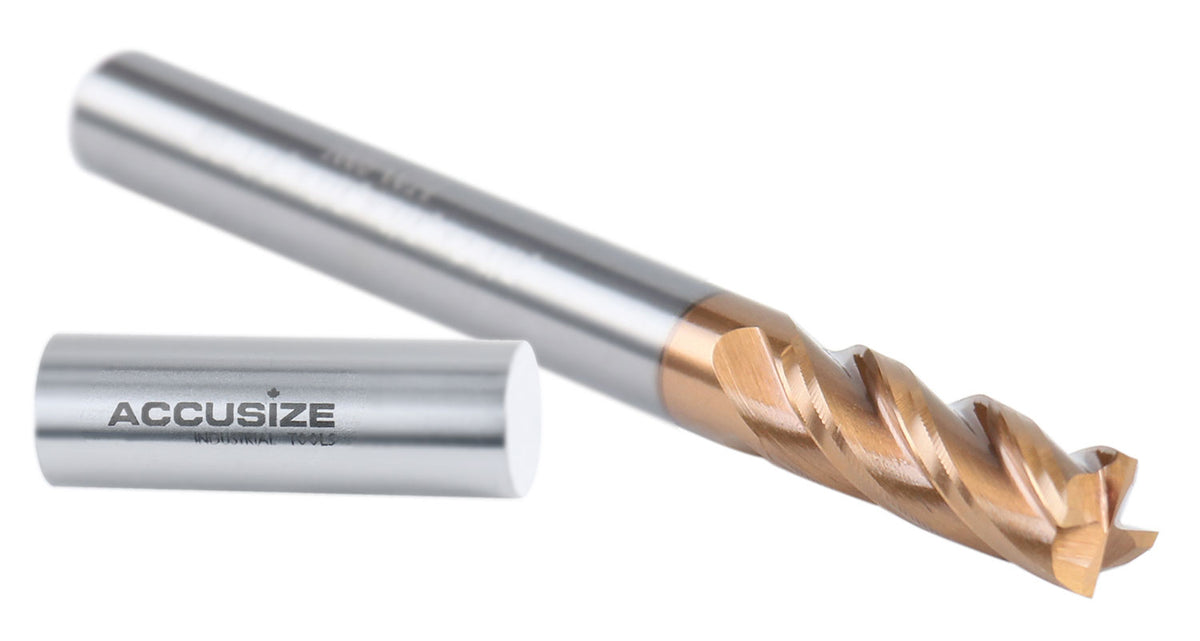

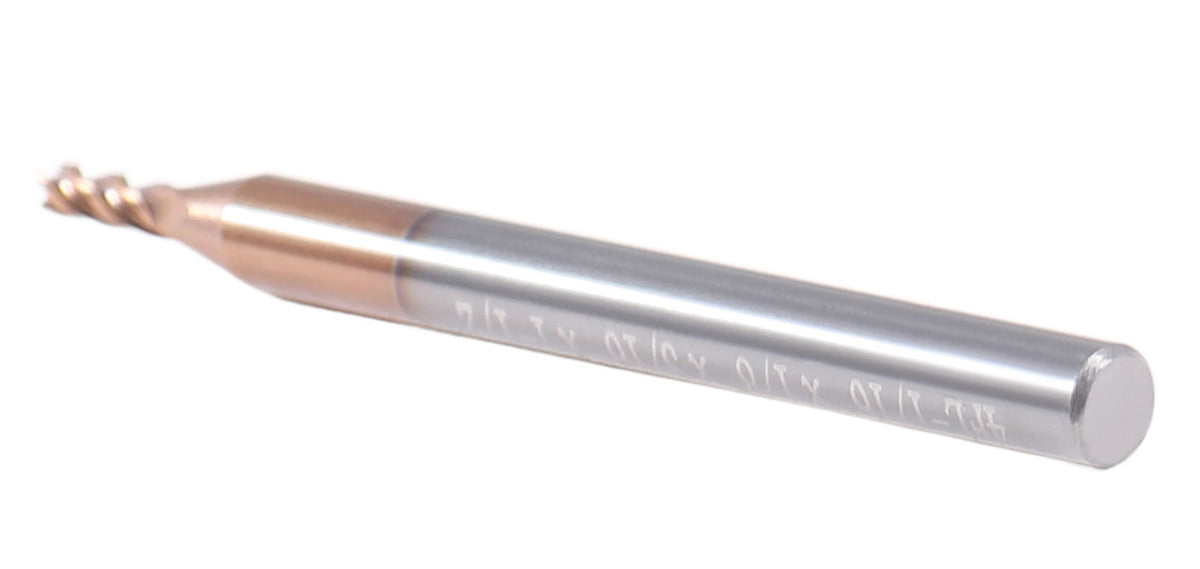

4 Flute Single End Solid Carbide End Mills

Accusize Industrial ToolsSKU: 1006-0916

Please Select the Dia. of 4 Flute Solid Carbide End Mills: 9/16" (1006-0916)
Price:
Sale price$112.00

California Proposition 65 Warning

Warning LabelWARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.
For more information, visit www.P65Warnings.ca.gov

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

More product information

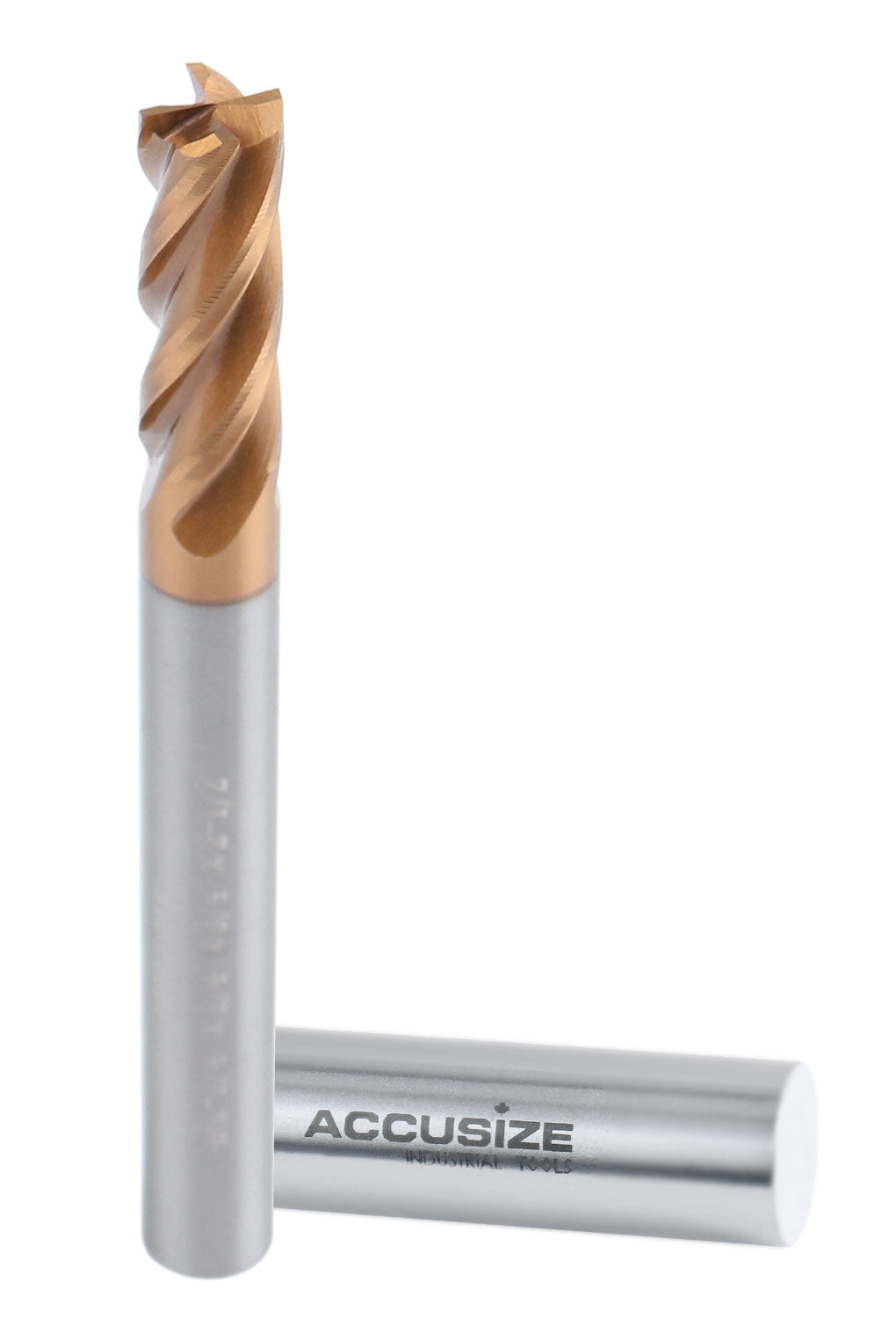

4 Flute Micrograin Solid Carbide End Mills

  • 4 flute
  • Single-end
  • Center cutting
  • Titanium Nitrochloride Coating
Item# Dia. Shk. Dia. Flt. Length Oal.

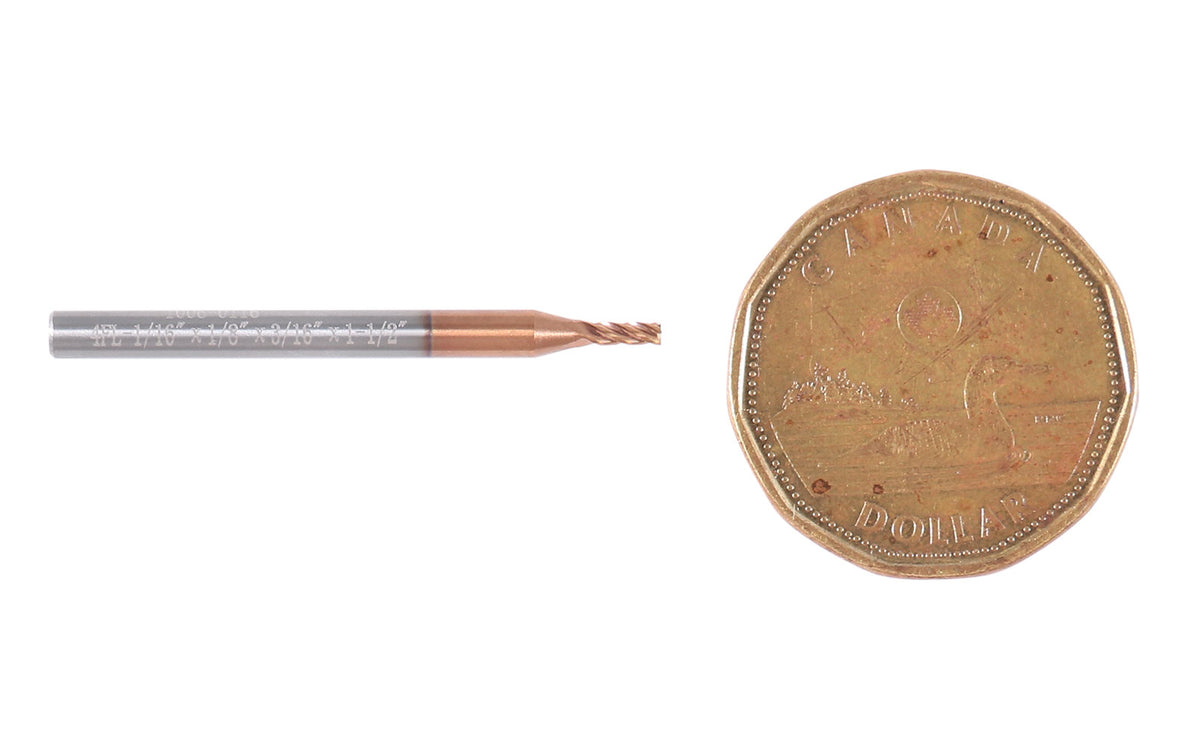

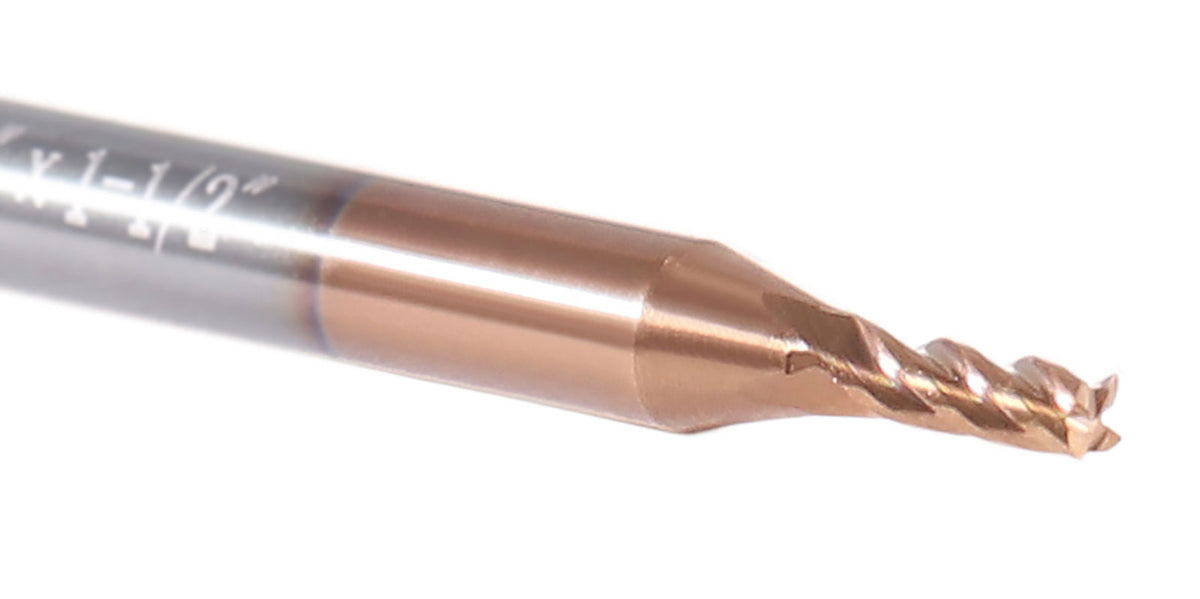

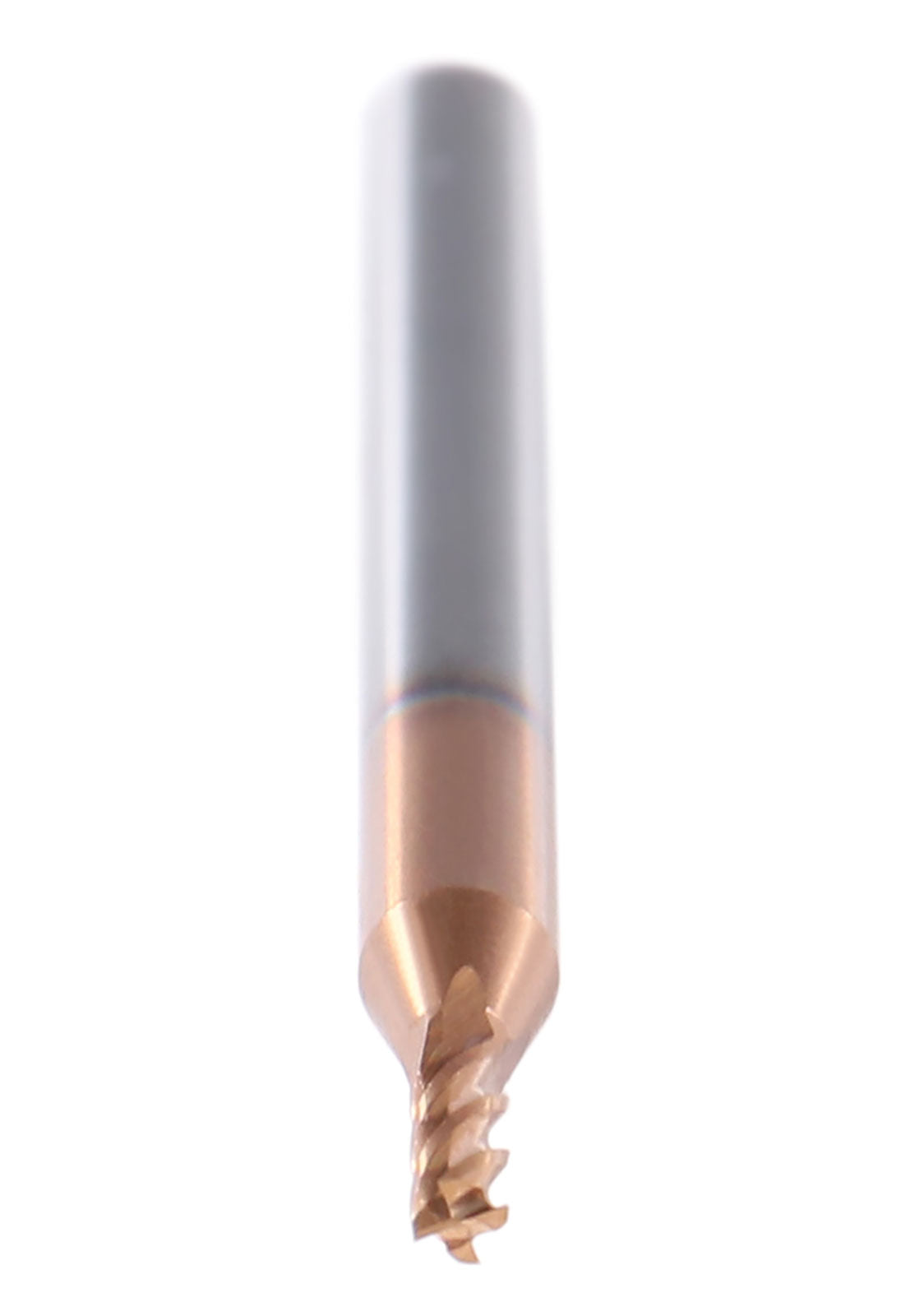

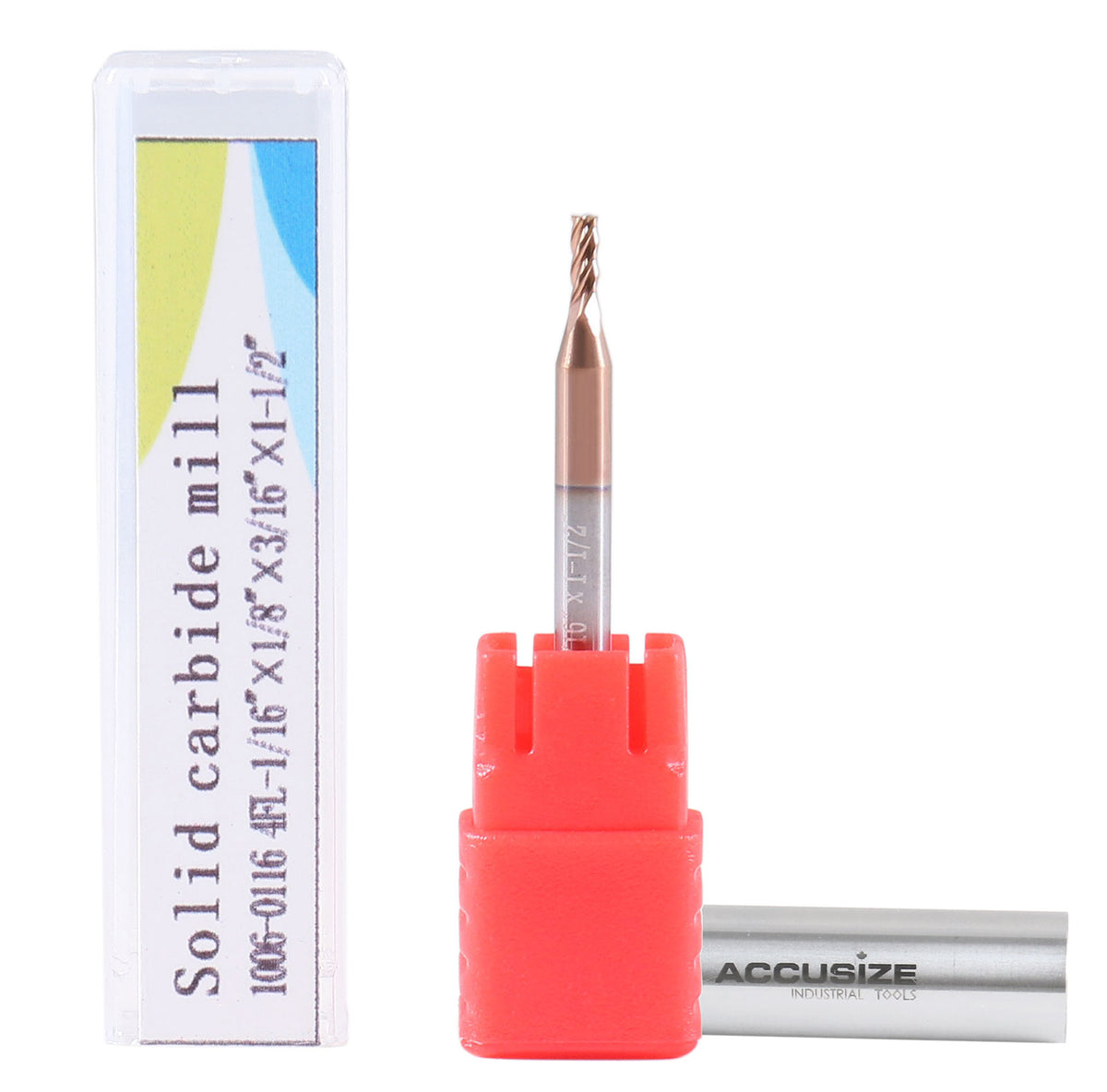

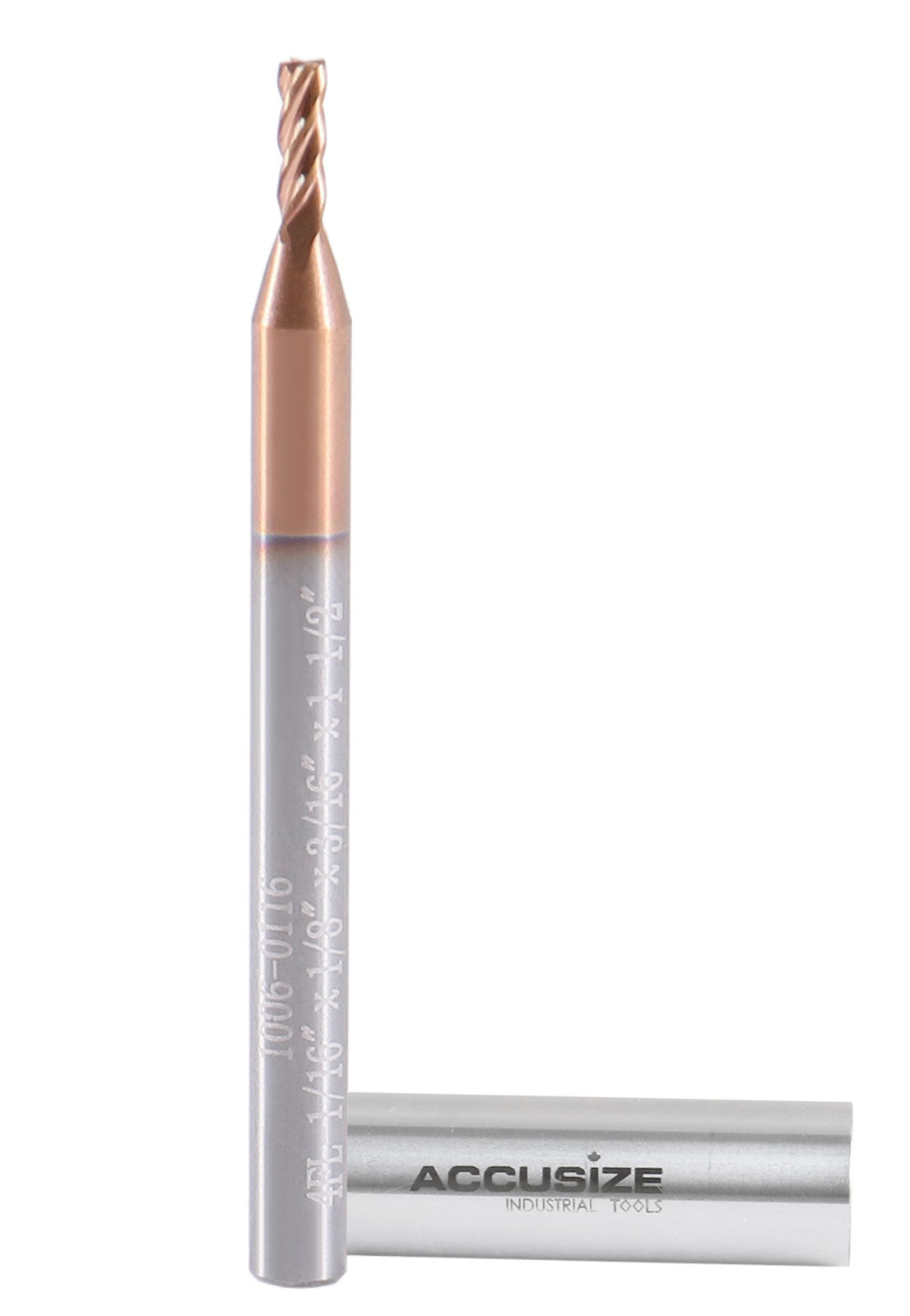

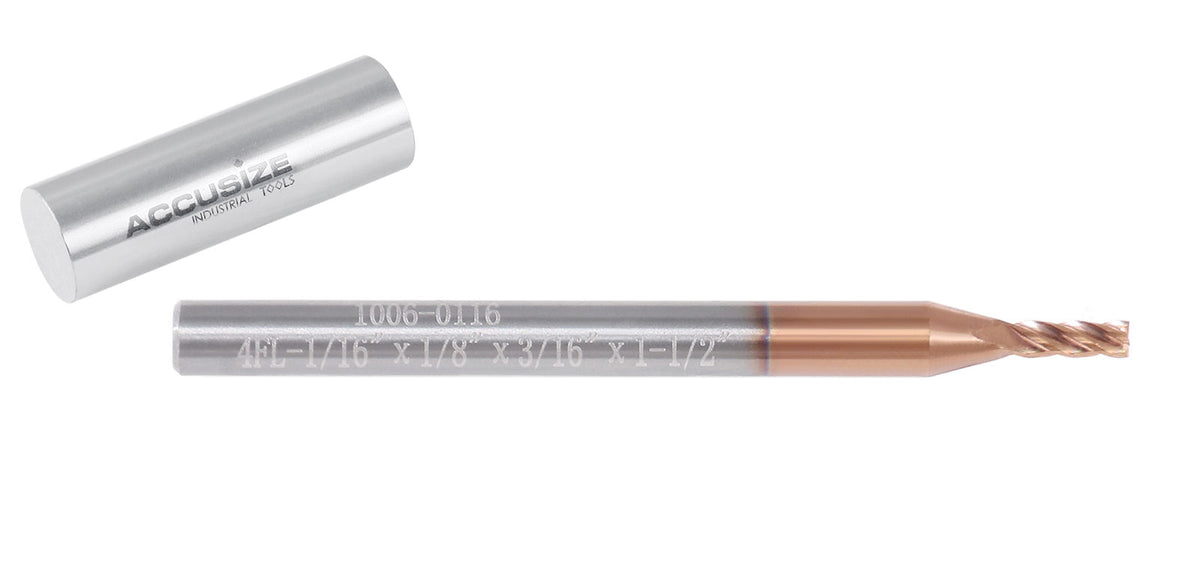

1006-0116 1/16" 1/8" 3/16" 1-1/2"

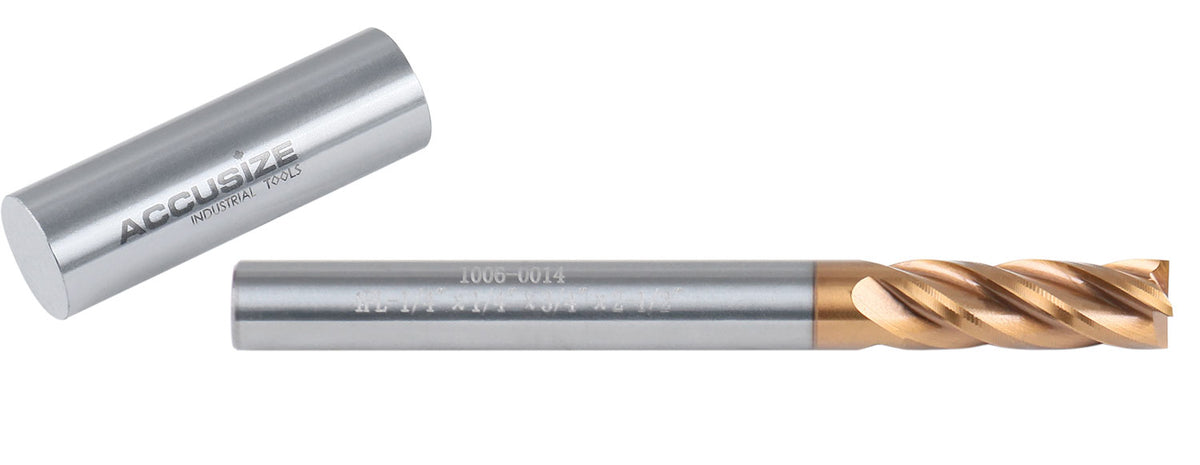

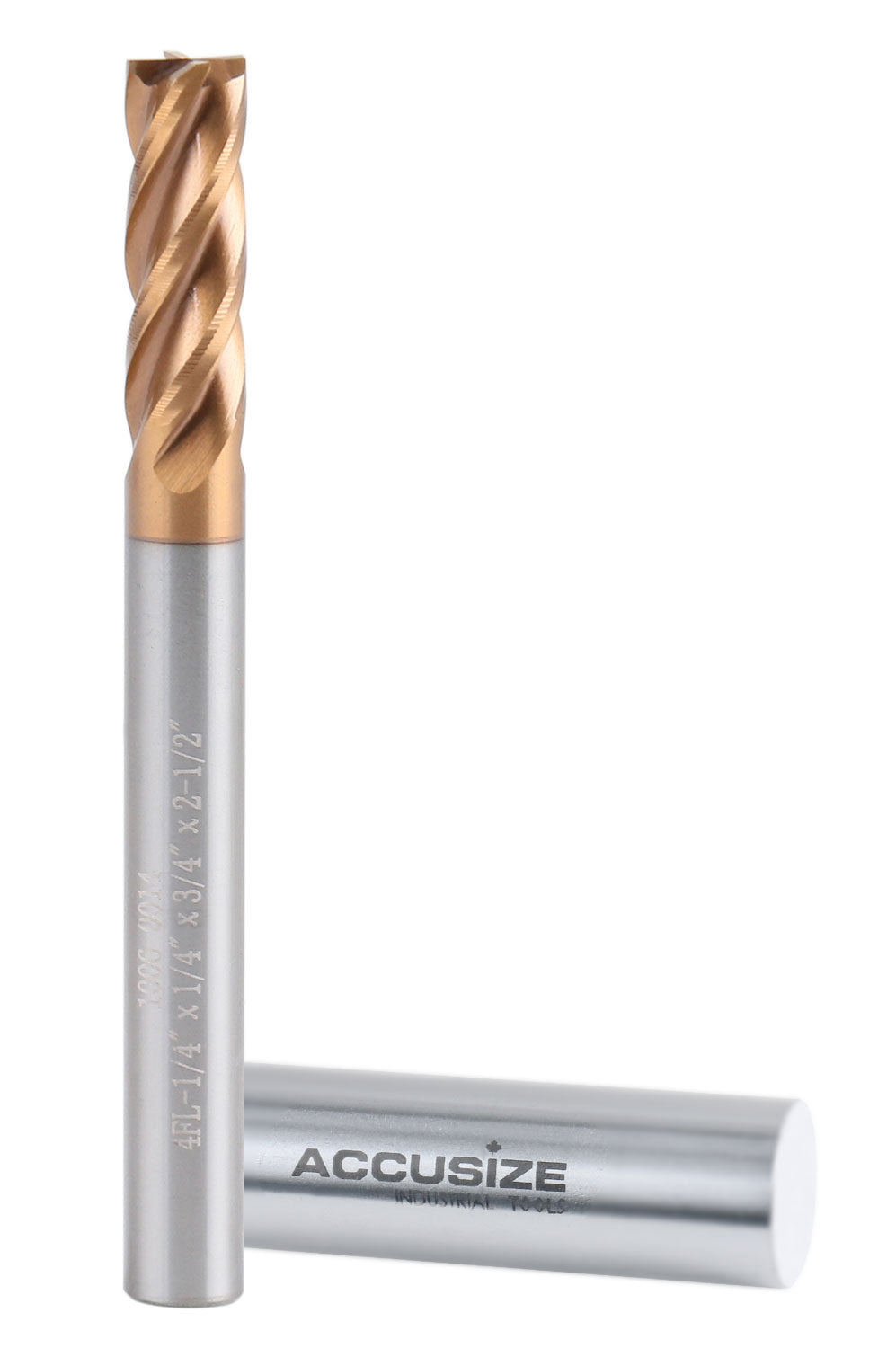

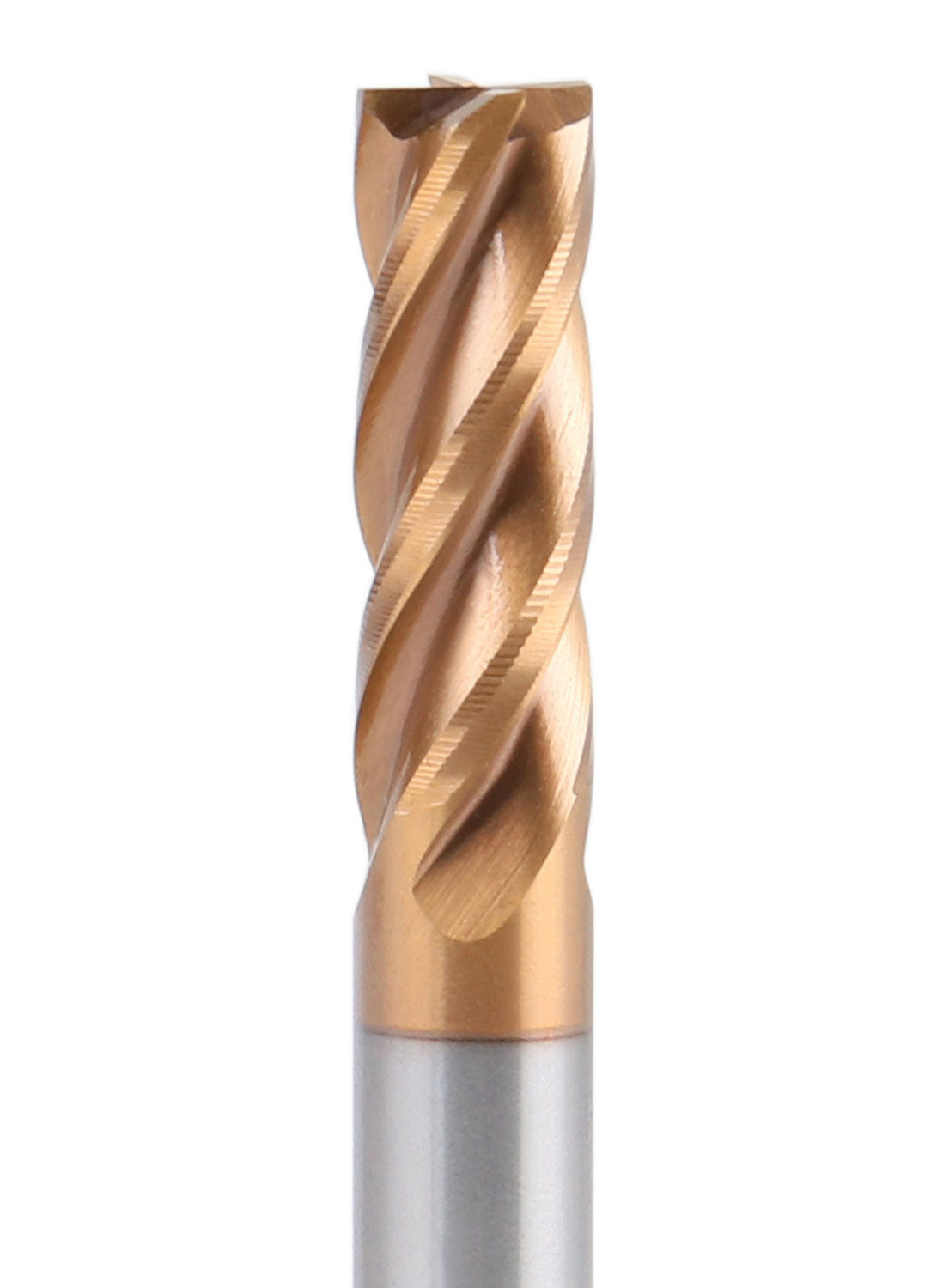

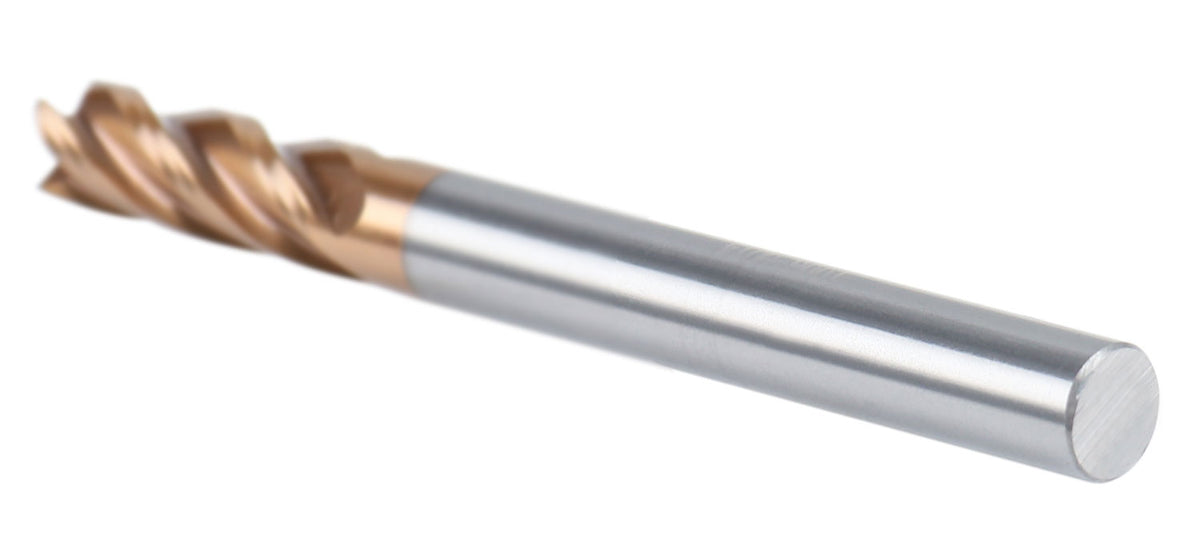

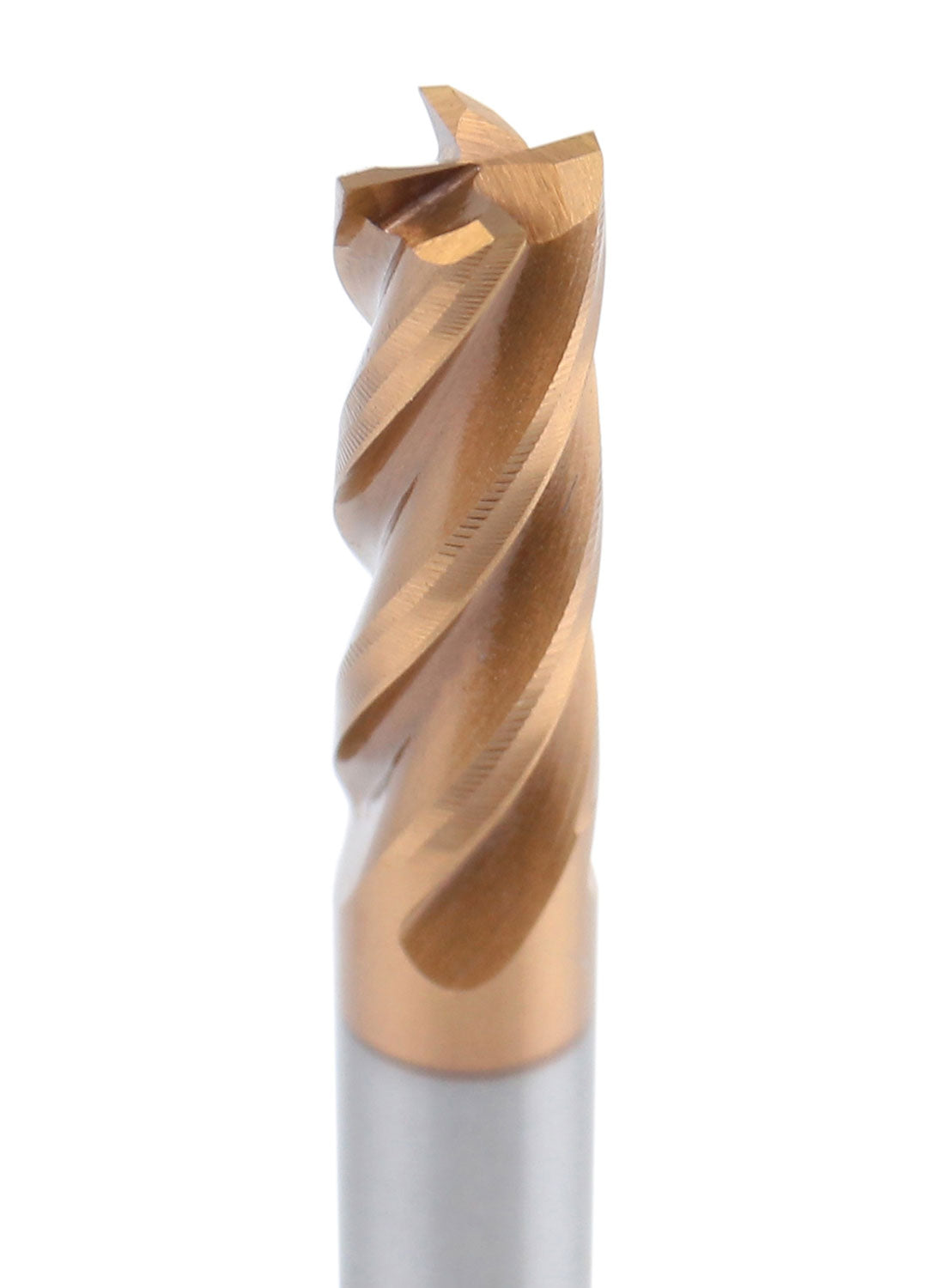

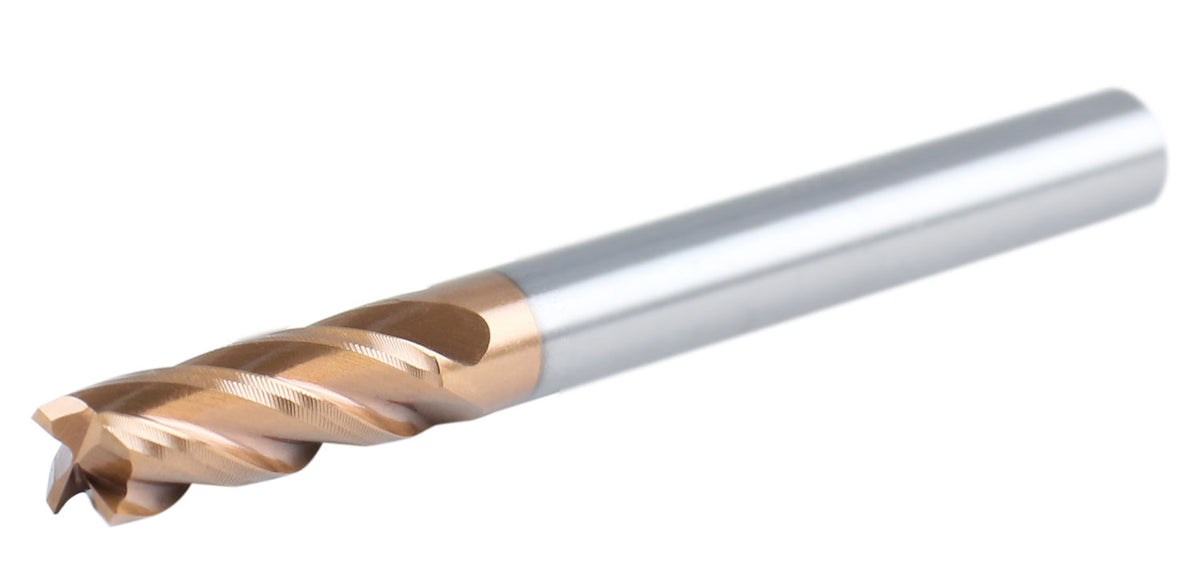

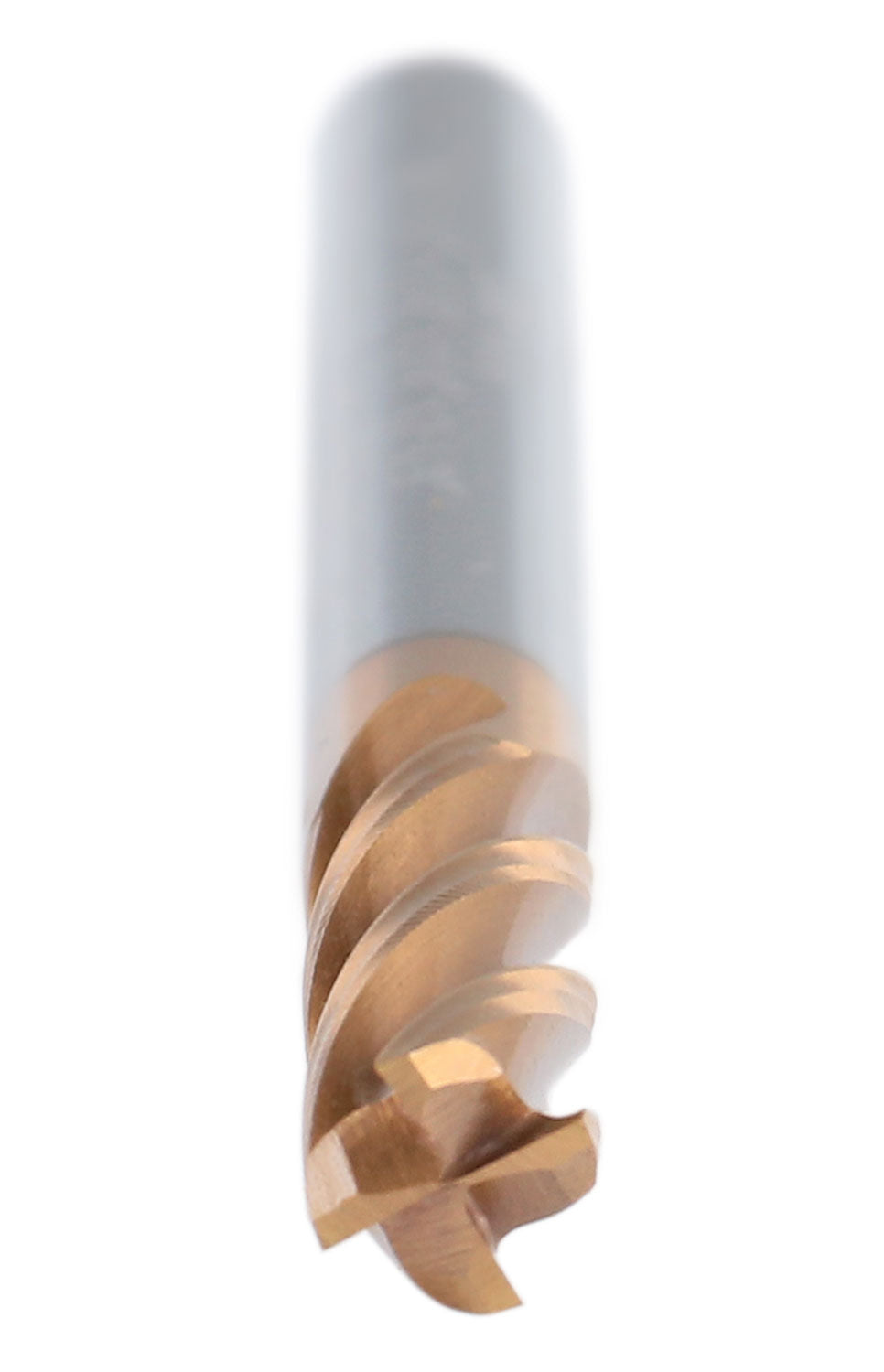

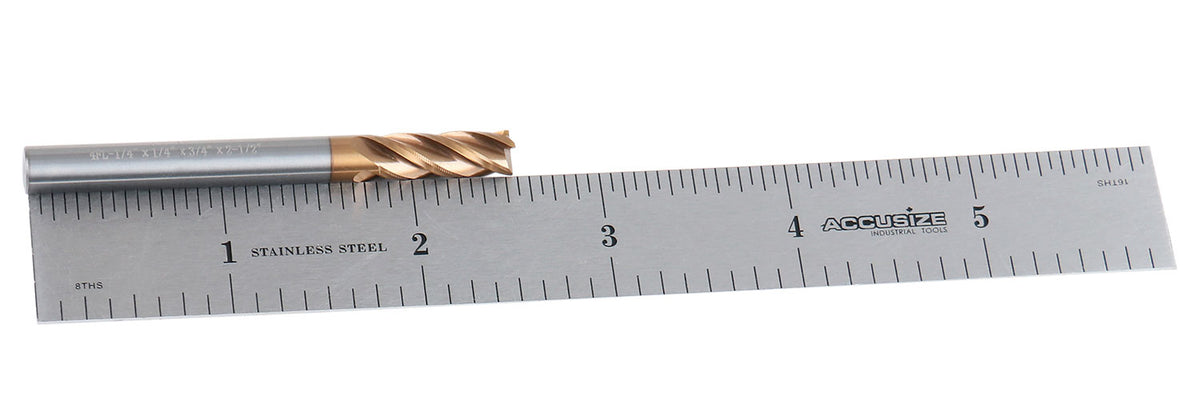

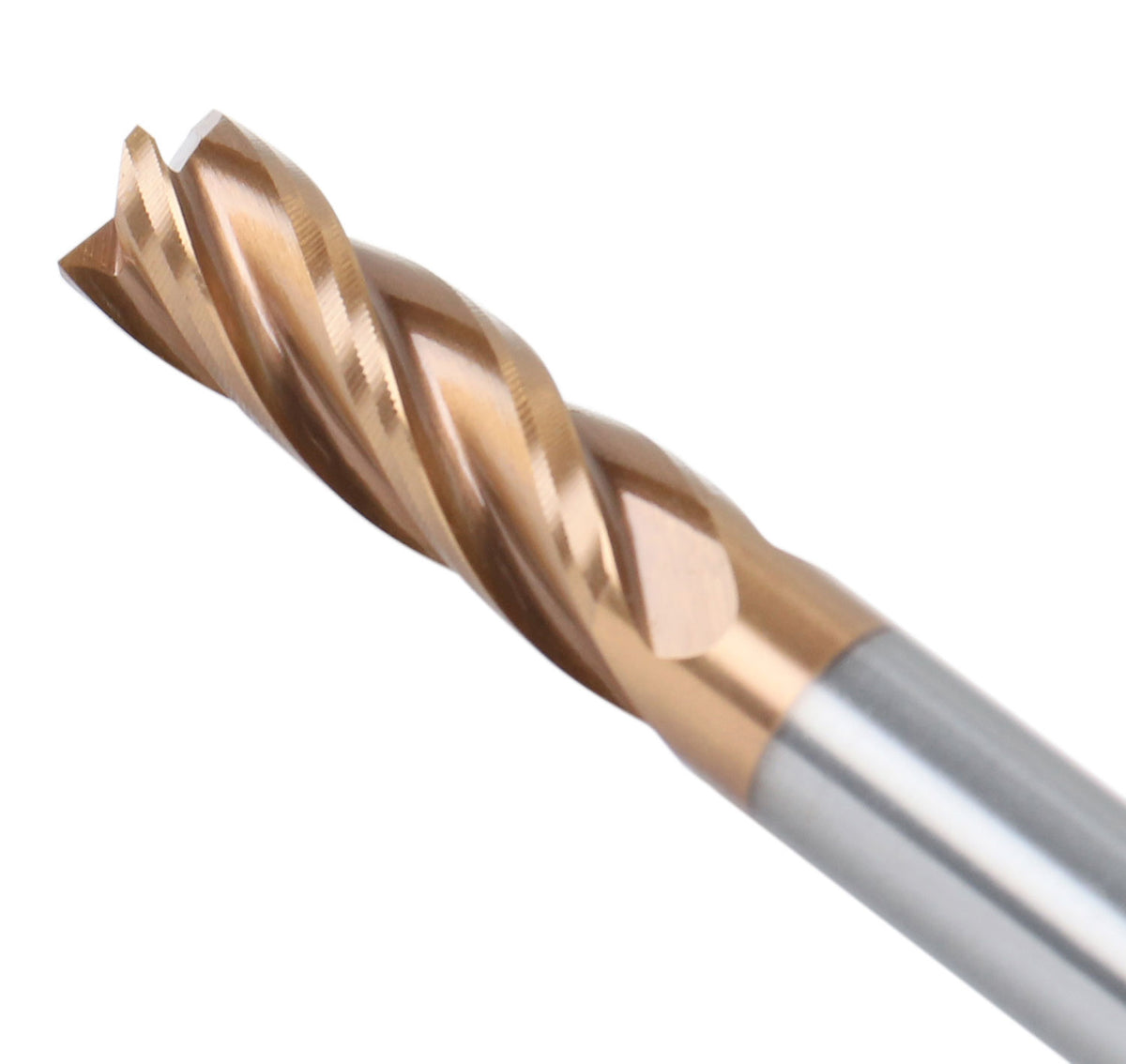

1006-0014 1/4" 1/4" 3/4" 2-1/2"
1006-0516 5/16" 5/16" 3/4" 2-1/2"

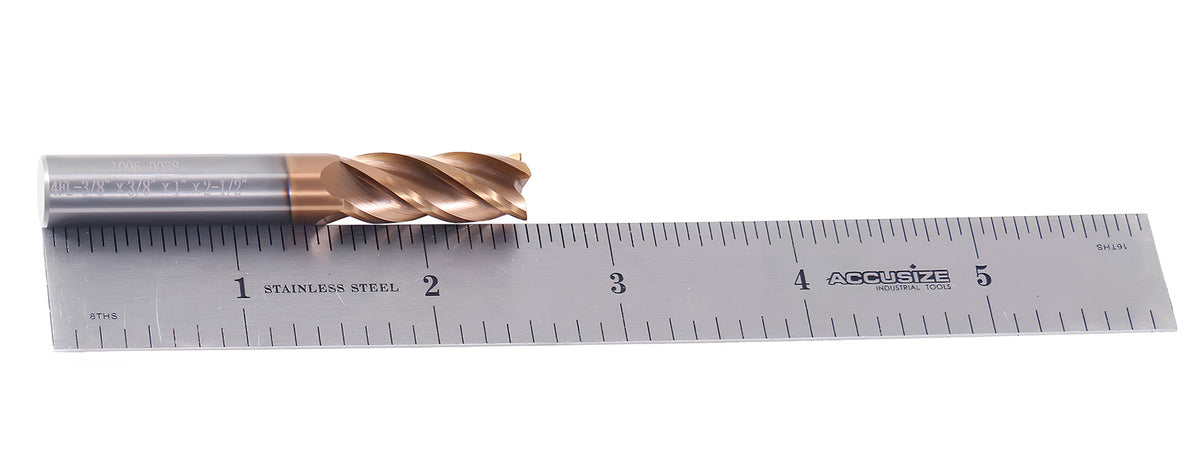

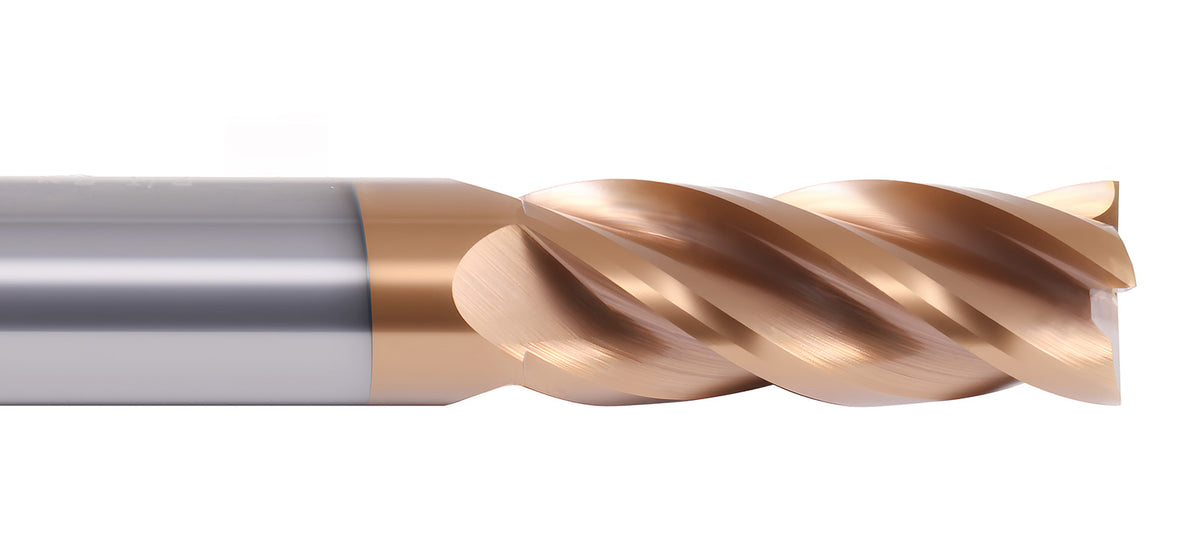

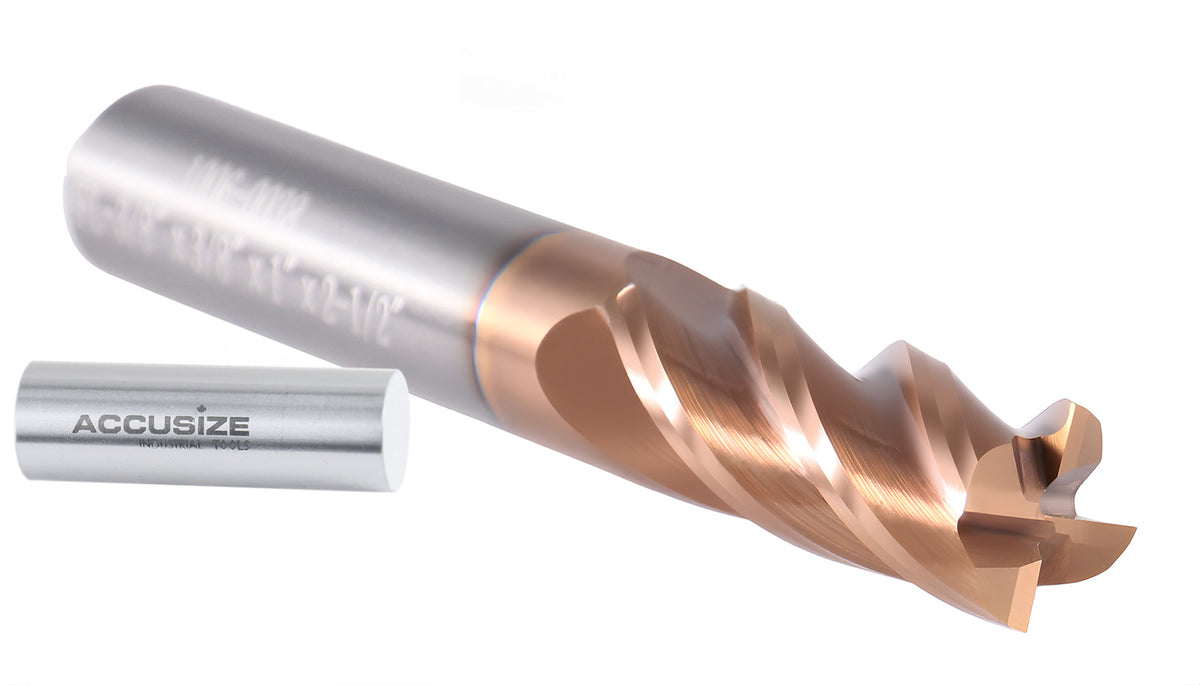

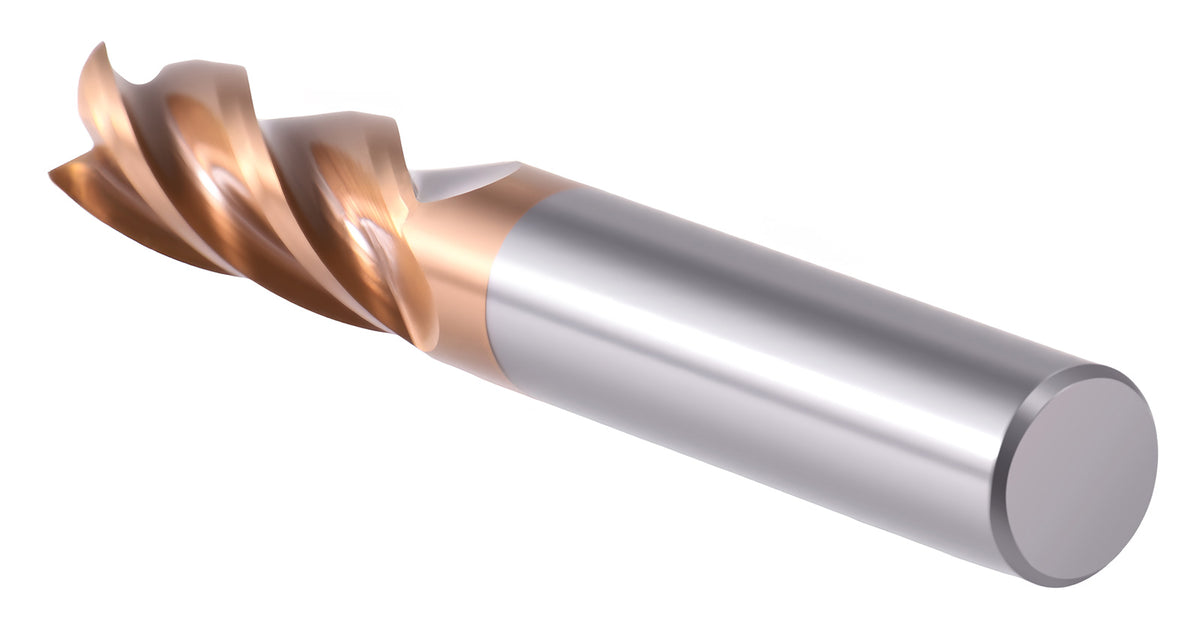

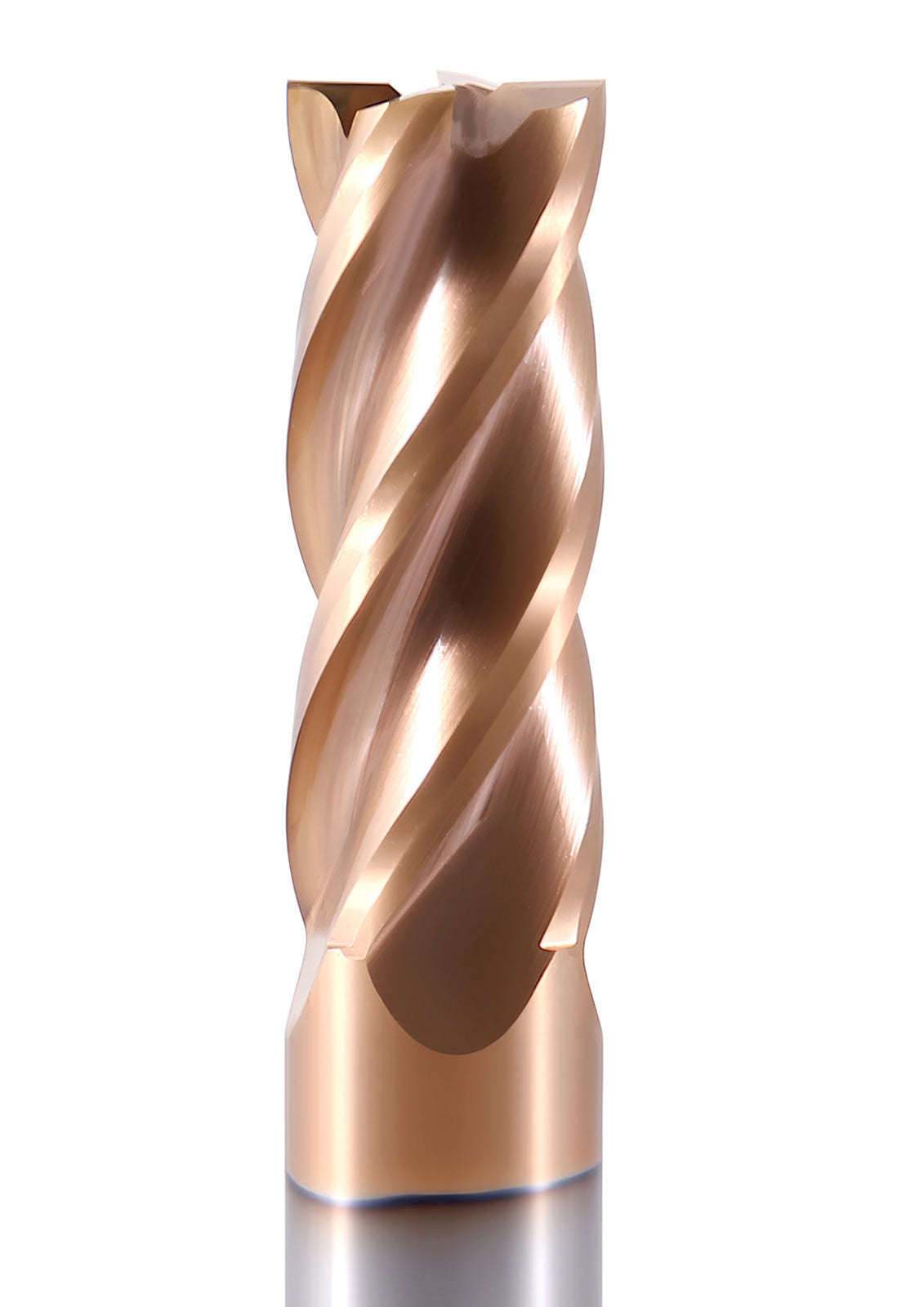

1006-0038 3/8" 3/8" 1" 2-1/2"

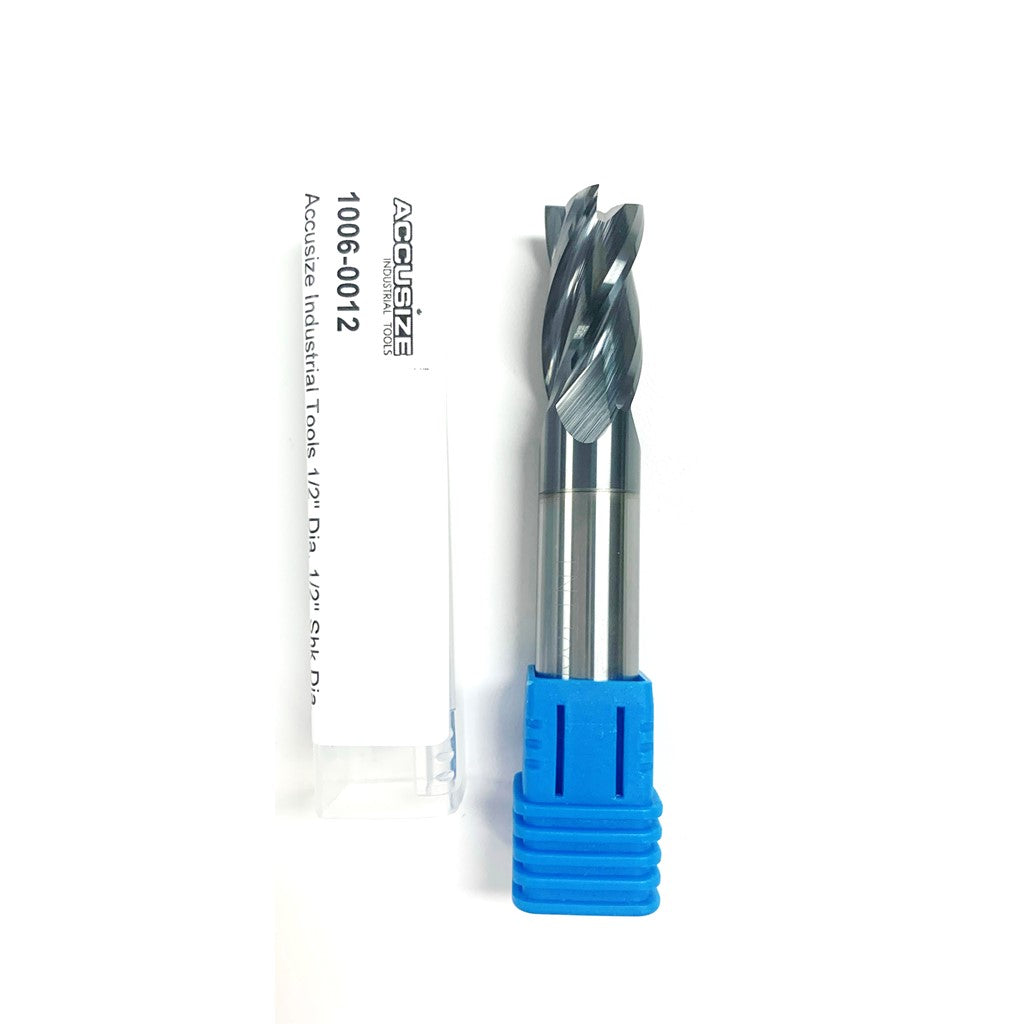

1006-0012 1/2" 1/2" 1" 3"
1006-0916 9/16" 9/16" 1-1/8" 3-1/2"

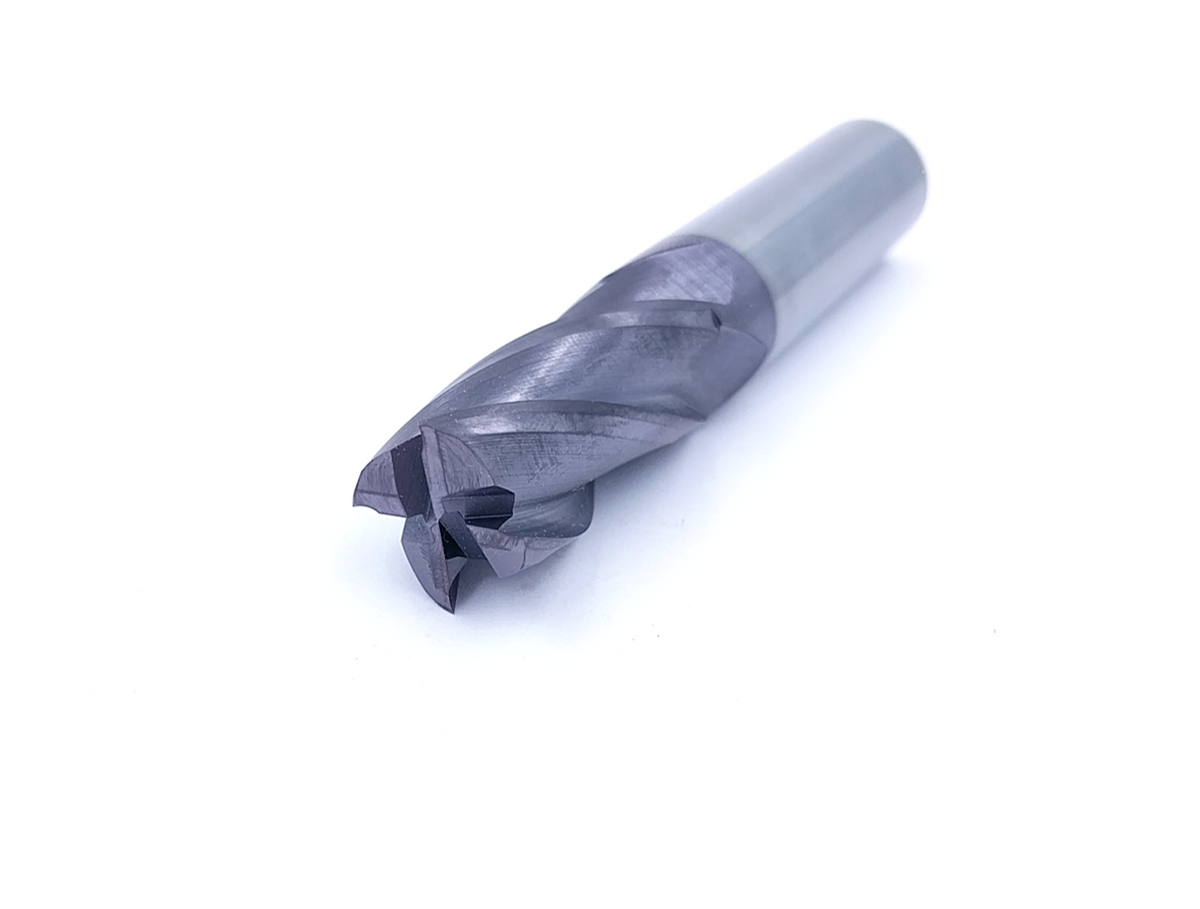

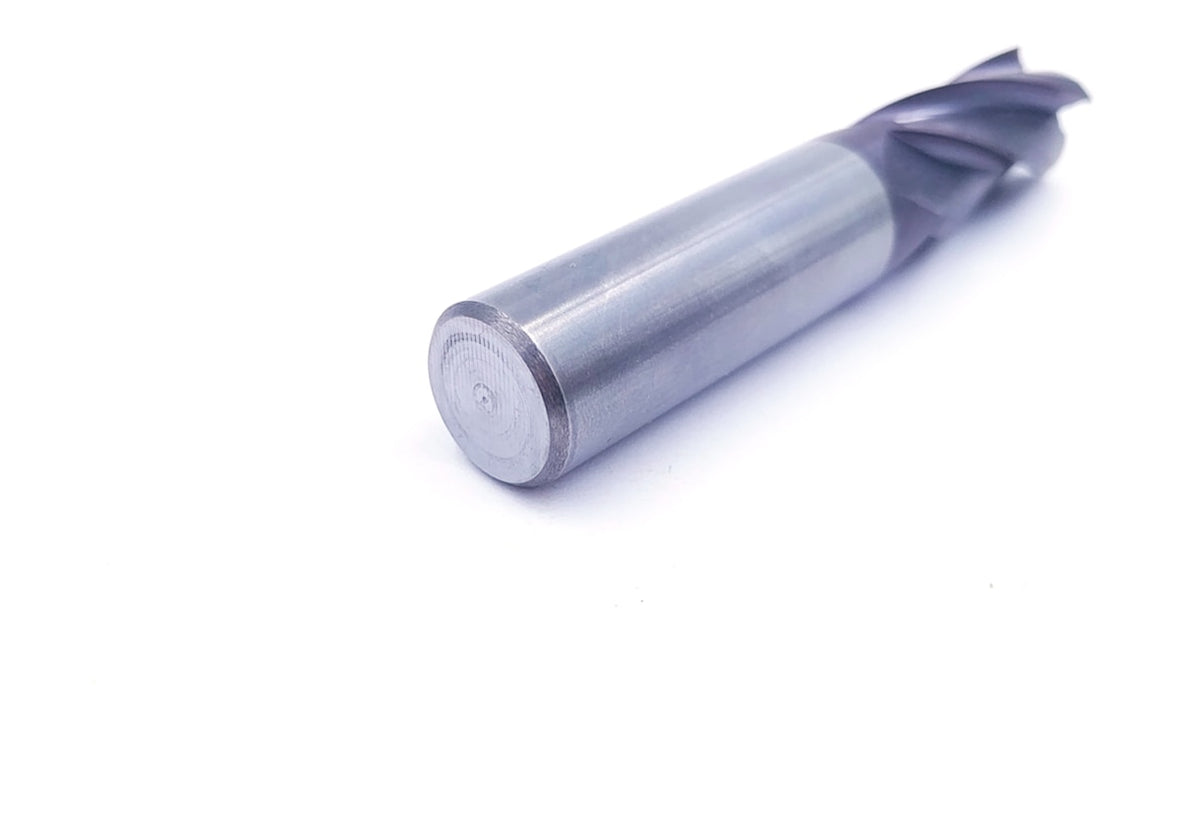

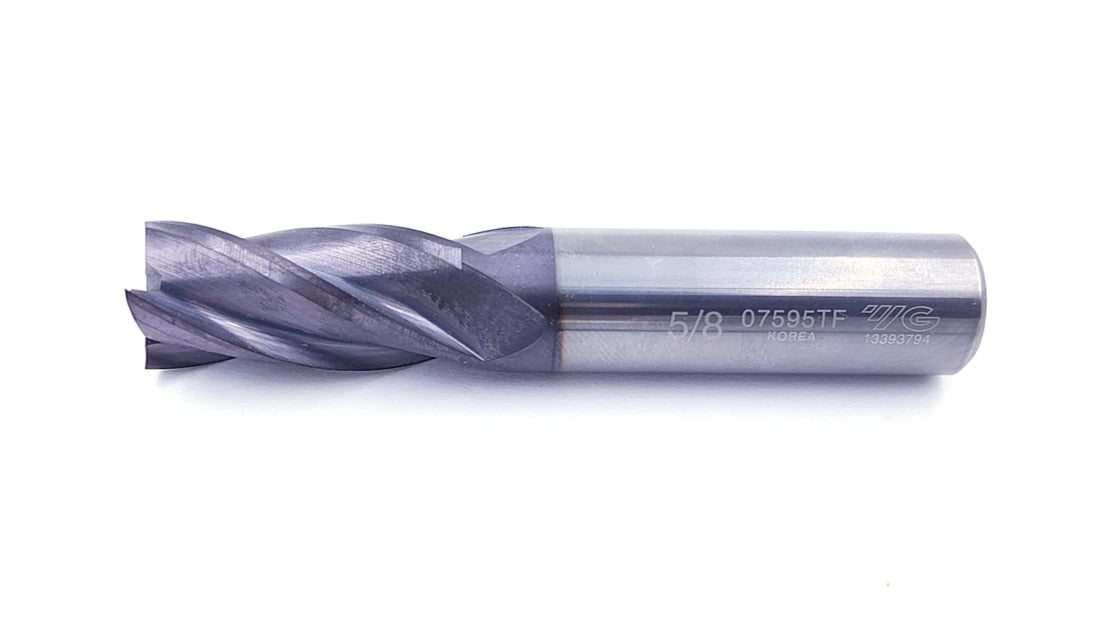

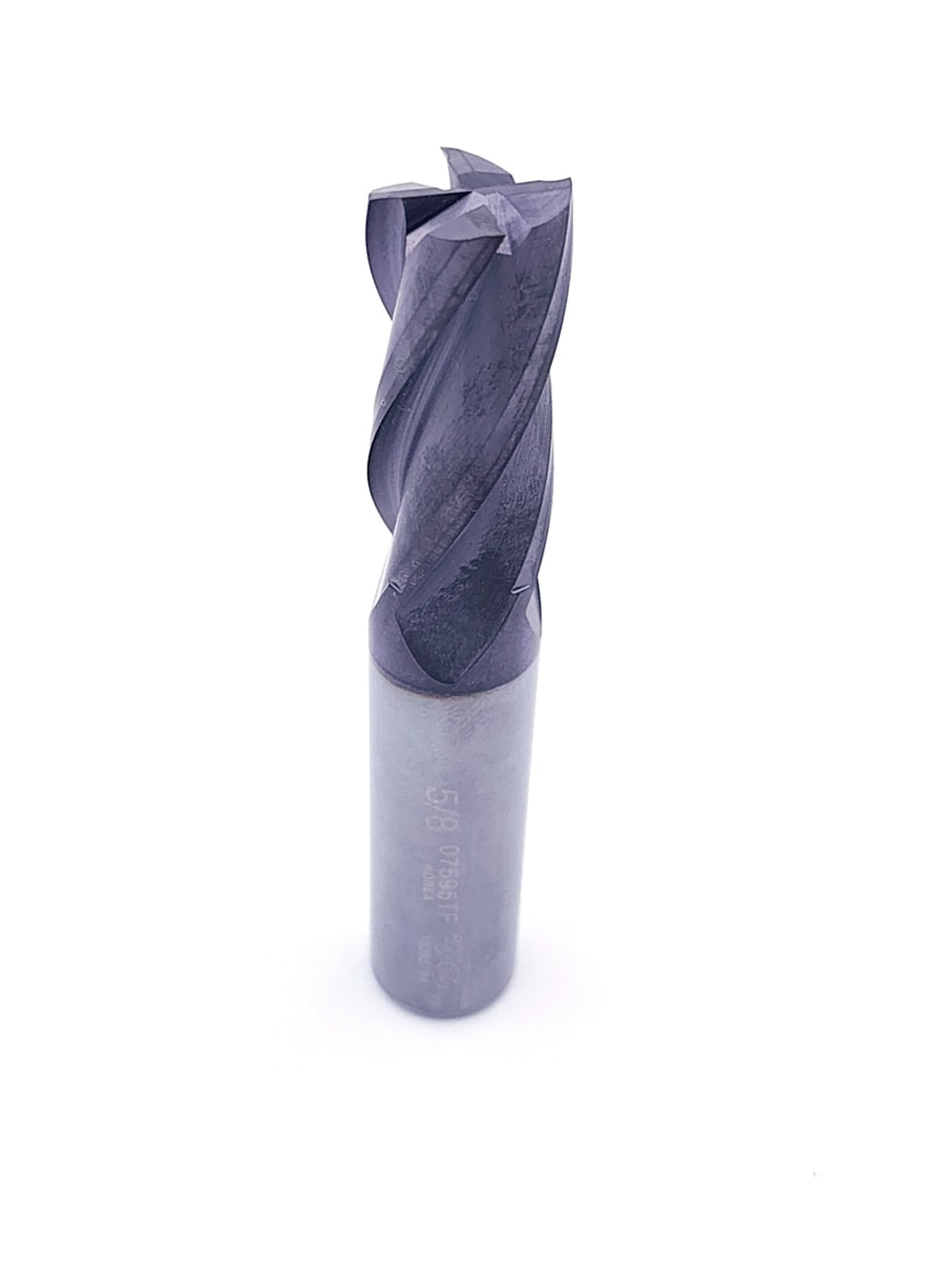

1006-0058 5/8" 5/8" 1-1/4" 3-1/2"
1006-0034 3/4" 3/4" 1-1/2" 4"
1006-0078 7/8" 7/8" 1-1/2" 4"
1006-0001 1" 1" 1-1/2" 4"

Carbide Grade: YG10X

  • Bulk Density: 0.112 lb/in³
  • Density: 0.5220 lb/in³
  • Hardness, Rockwell A: 91.5HRA
  • Tensile Strength, Ultimate: 493000 psi
  • Cobalt, Co: 10 %
  • Flow Rate; sec/50g: 24-30
  • Grain size um: 1.0
  • Thermal expansion coefficient: 4.9
  • Elastic modulus GPa: 525
