5100-0010, No.10 Standard HSS Keyway Broach Sets

Accusize Industrial ToolsSKU: 5100-0010

Price:
Sale price$294.40

California Proposition 65 Warning

Warning LabelWARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.
For more information, visit www.P65Warnings.ca.gov

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

More product information

No.10 Standard HSS Keyway Broach Sets, #5100-0010

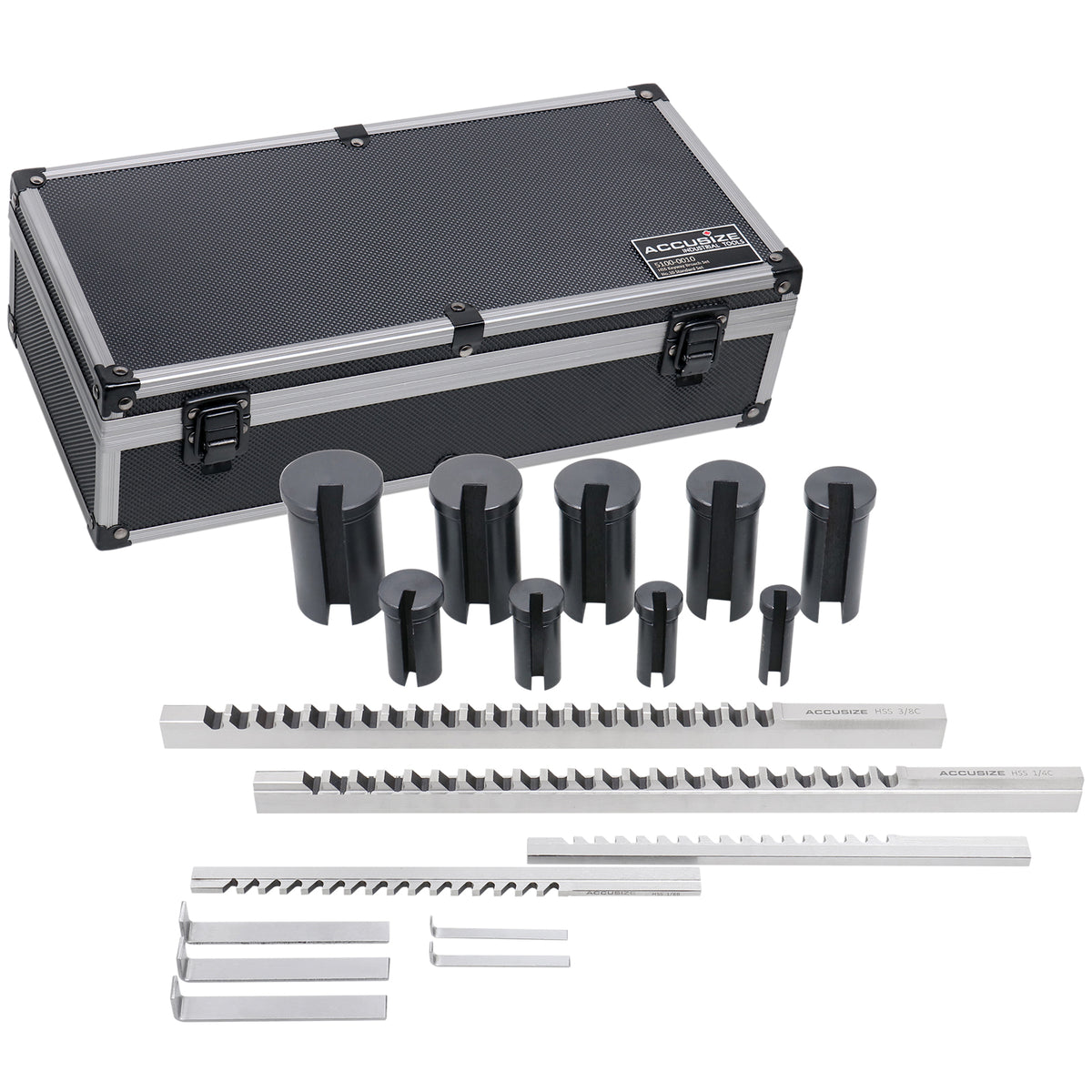

  • All broach sets are furnished in aluminum fitting case, and come complete with precision broaches, slotted bushings, and necessary shims.
  • Cuts 18 different keyways.

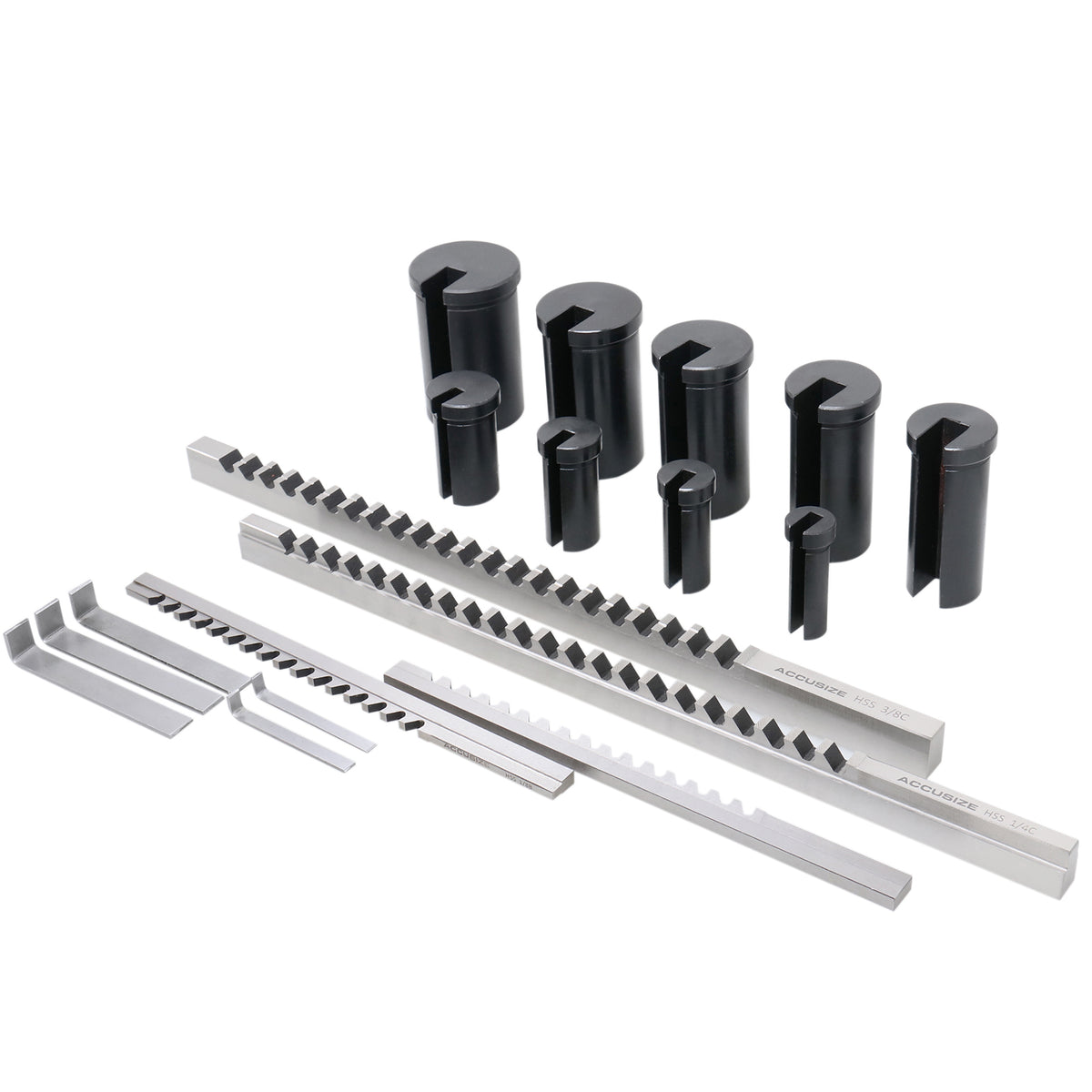

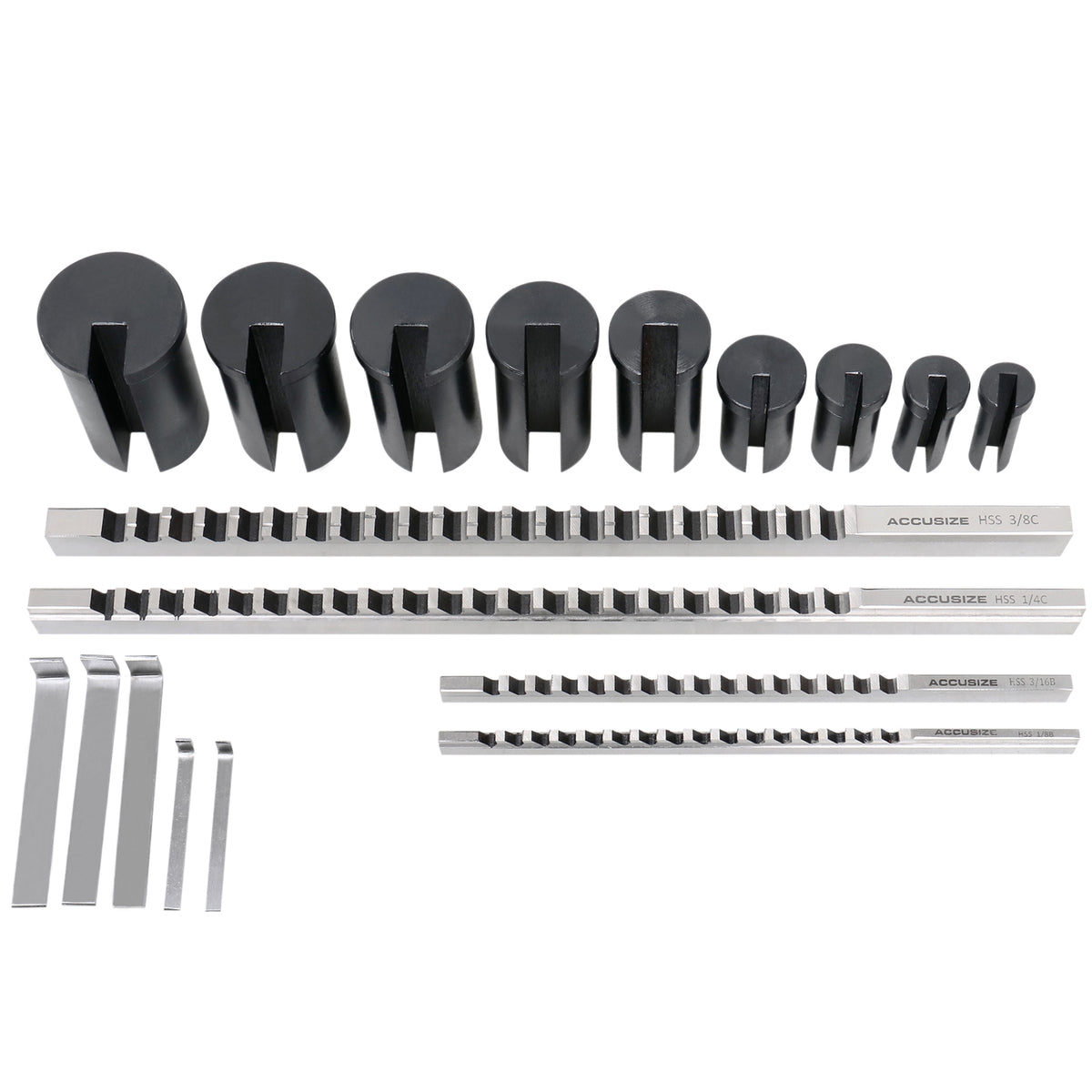

  • Including:
    • B-1/8, and 3/16".
    • C-1/4, and 3/8".
    • B-1/2", 5/8", 3/4"&7/8".
    • C-1", 1-1/8", 1-1/4", 1-3/8" and 1-1/2"
    • 4 Broaches:

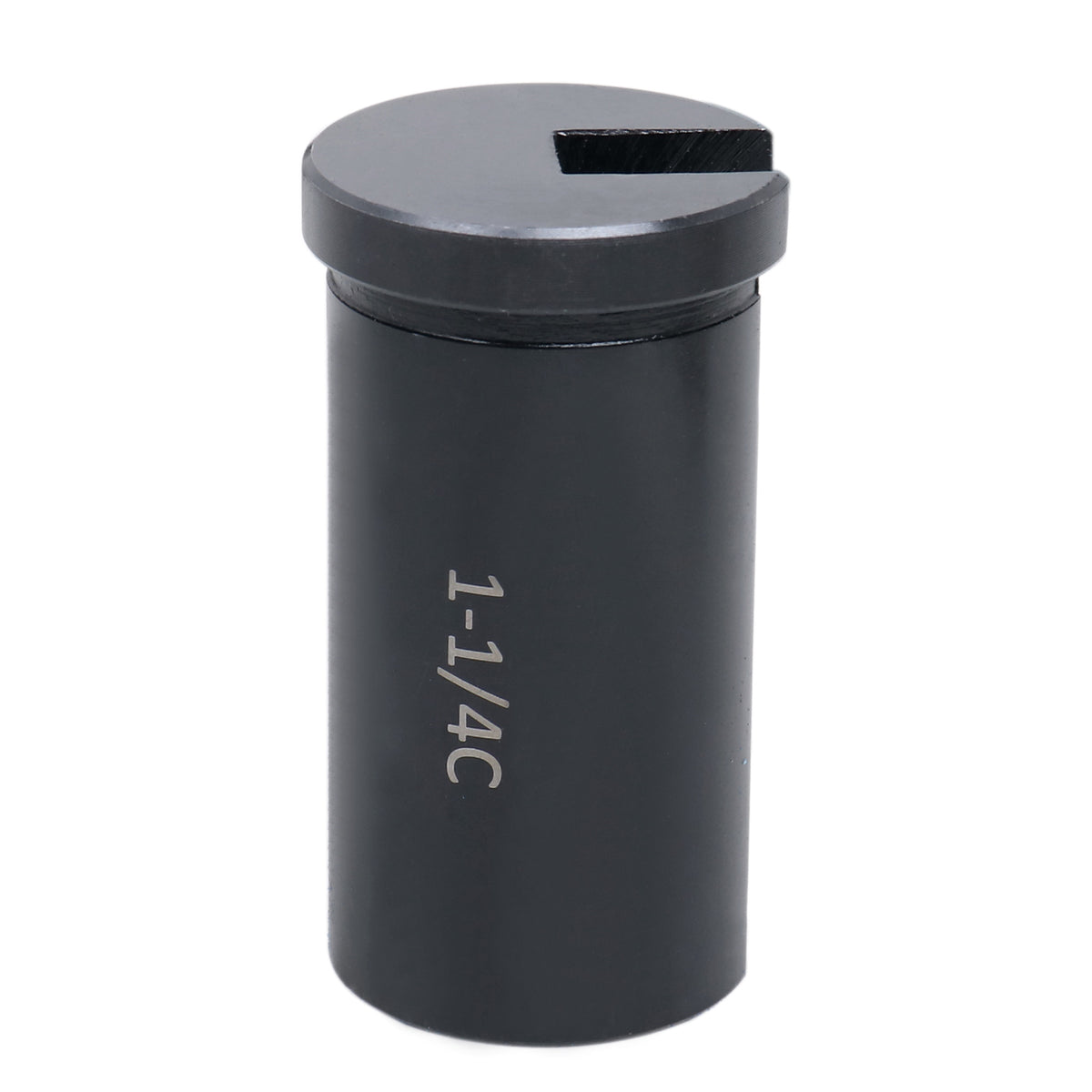

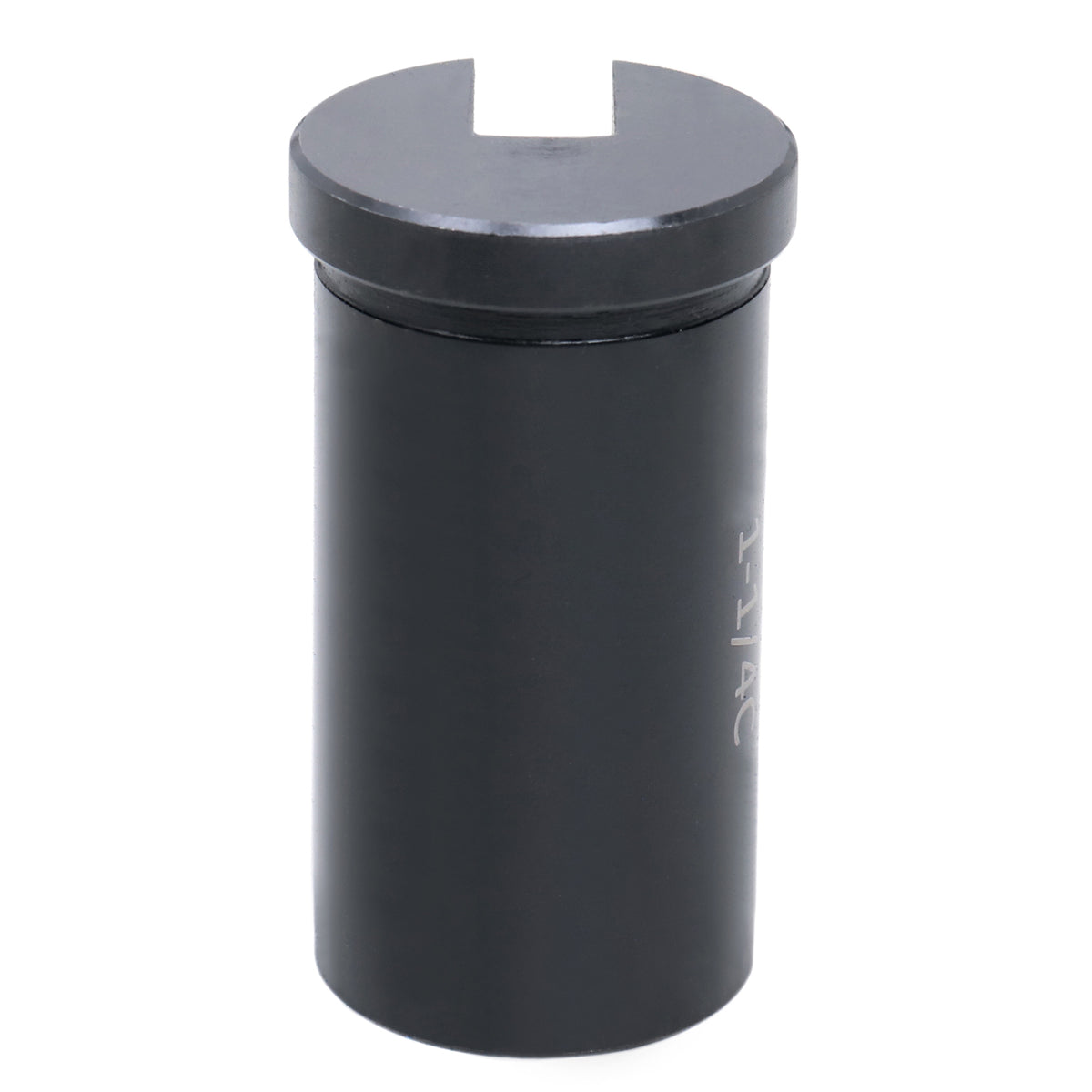

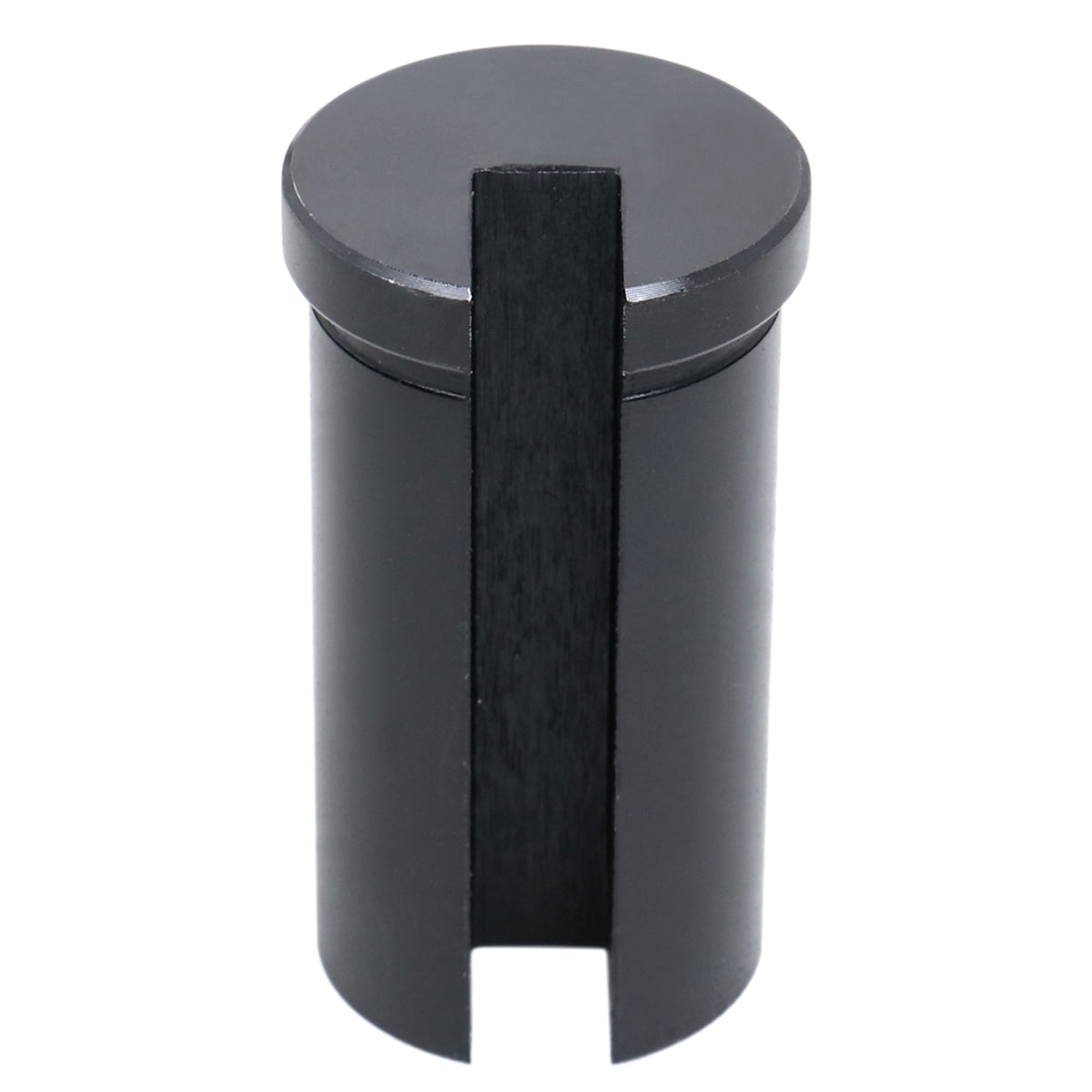

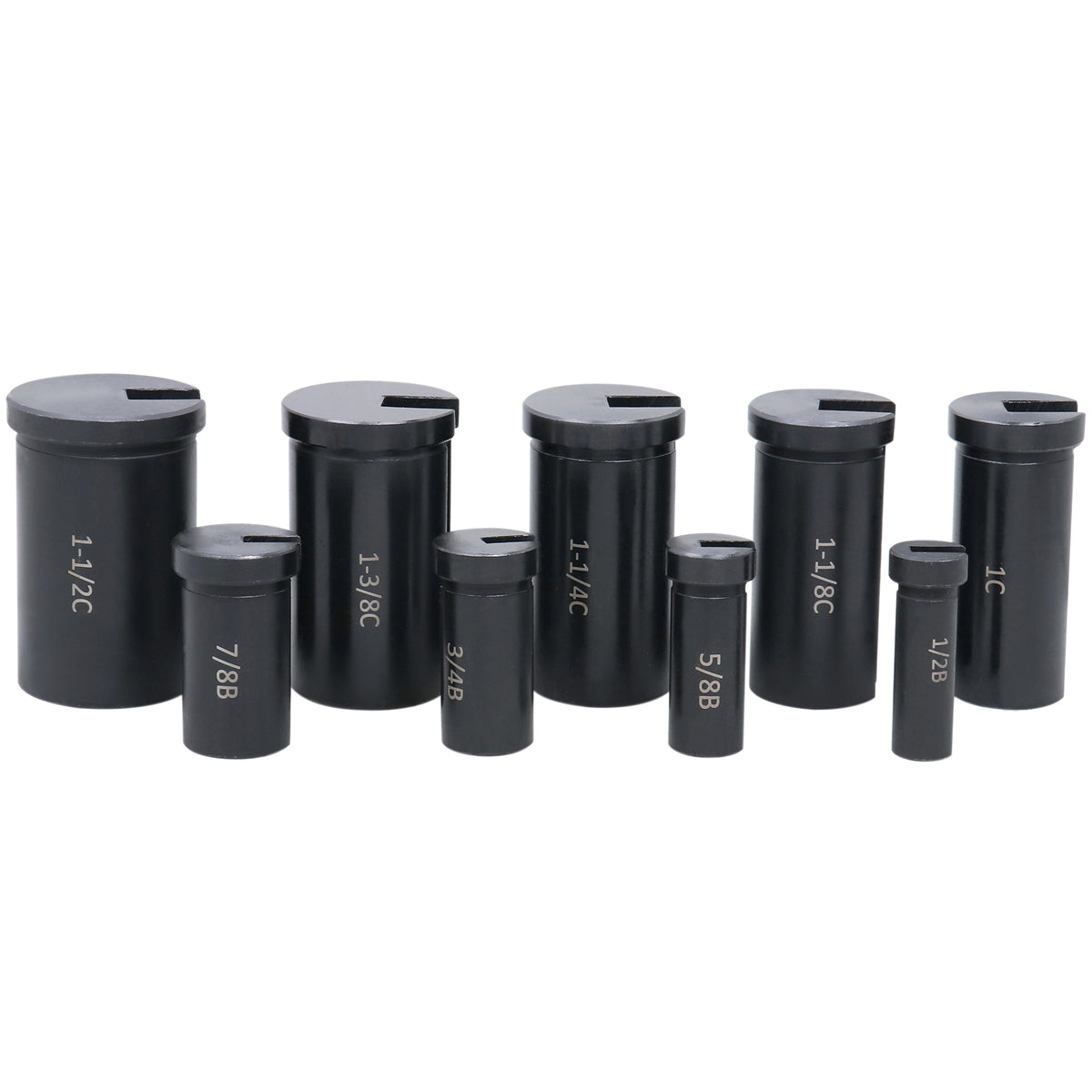

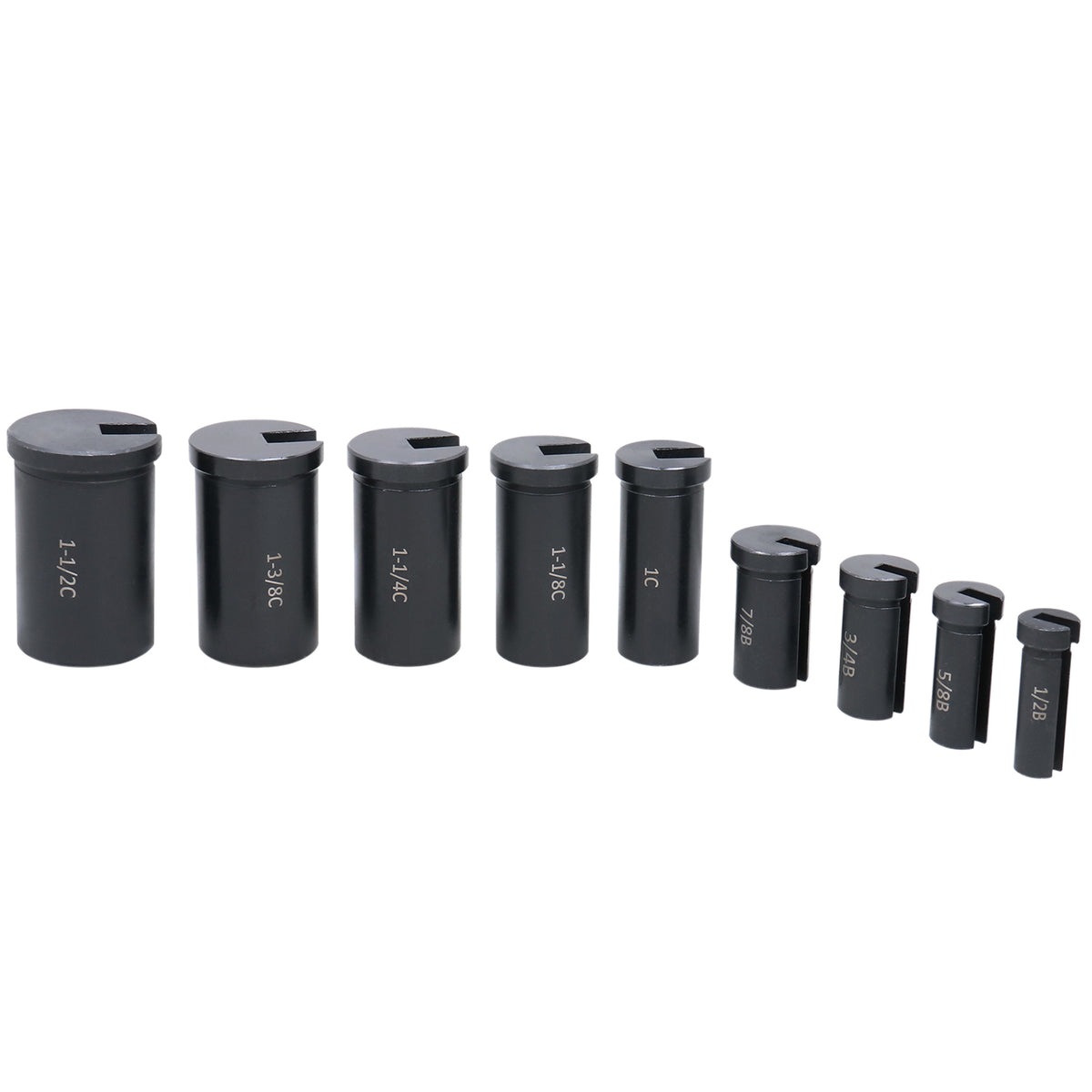

    • 9 Collared bushings:
    • All necessary shims.
    • A Fitted Handsome Aluminum Case;
Keyway
Size
Broach
Style
Bushing Diameters
Bore Sizes- Collared
1/8" B 1/2", 5/8", 3/4" & 7/8"
3/16" B
1/4" C 1", 1-1/8", 1-1/4",
3/8" C 1-3/8" & 1-1/2"
Technical data:
  • Manufactured from H.S.S.
  • Ground from solid.
  • Straight teeth on one edge of the broach.
  • Made to cut either inch or millimeter size keyways.
  • Bright finish.
Features
  • Hardened and ground bars with cutting teeth on one side.
  • Sized and proportioned to afford a good cutting range and ample rigidity.
Applications
  • Specialty tools designed for cutting keyways in machined holes.
  • Typically used manually with an arbor press to produce the keyways.
  • Well suited for use in a variety of ferrous and non-ferrous materials.
Specifications of 4 broaches
Item Broach Size Tolerances Dec. Equiv. Dimensions Shims Required Length of cut
5000-0010 1/8"-B 0.1252-0.1262 3/16"x6-3/4" 1 19/64"-1-11/16"
5000-0014 3/16"-B 0.1877-0.1887 3/16"x6-3/4" 1 19/64"-1-11/16"
5000-0018 1/4"-C 0.2502-0.2512 3/8"x11-3/4" 1 25/46"-2-1/2"
5000-0022 3/8"-C 0.3755-0.3765 3/8"x11-3/4" 2 25/46"-2-1/2"

Specifications of 9 bushings:

Bushing Diameter Length (inches)
1/2" 1.691"
5/8" 1.687"
7/8" 1.685"
3/4" 1.711"
1" 2.507"
1-1/8" 2.488"
1-1/4" 2.498"
1-3/8" 2.507"
1-1/2" 2.436"
