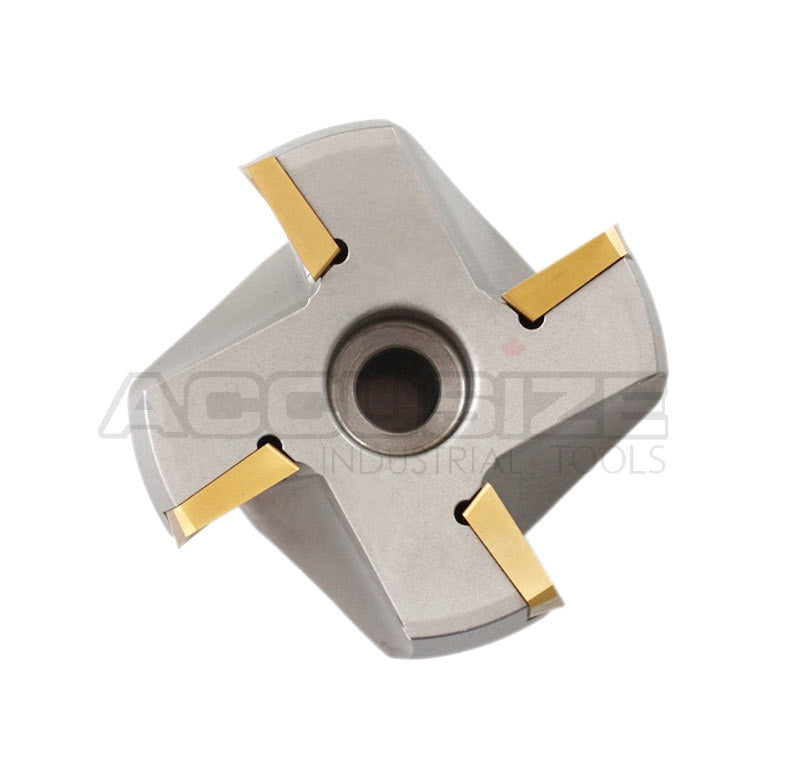

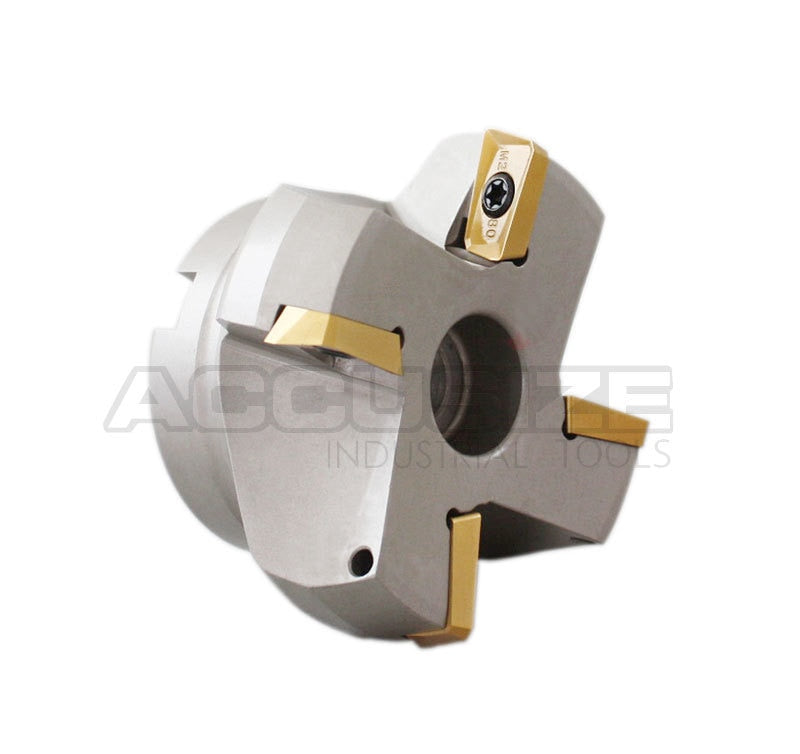

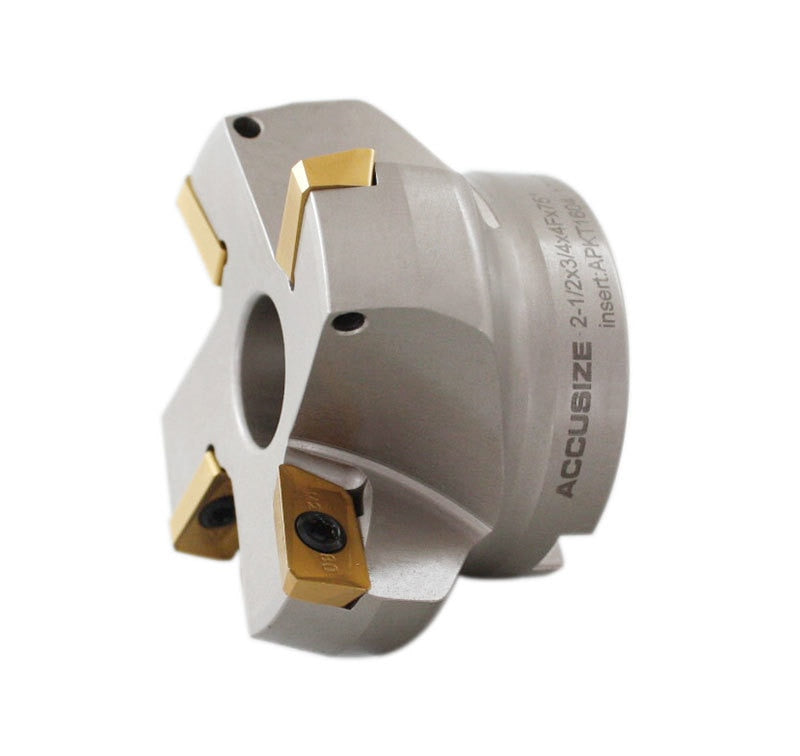

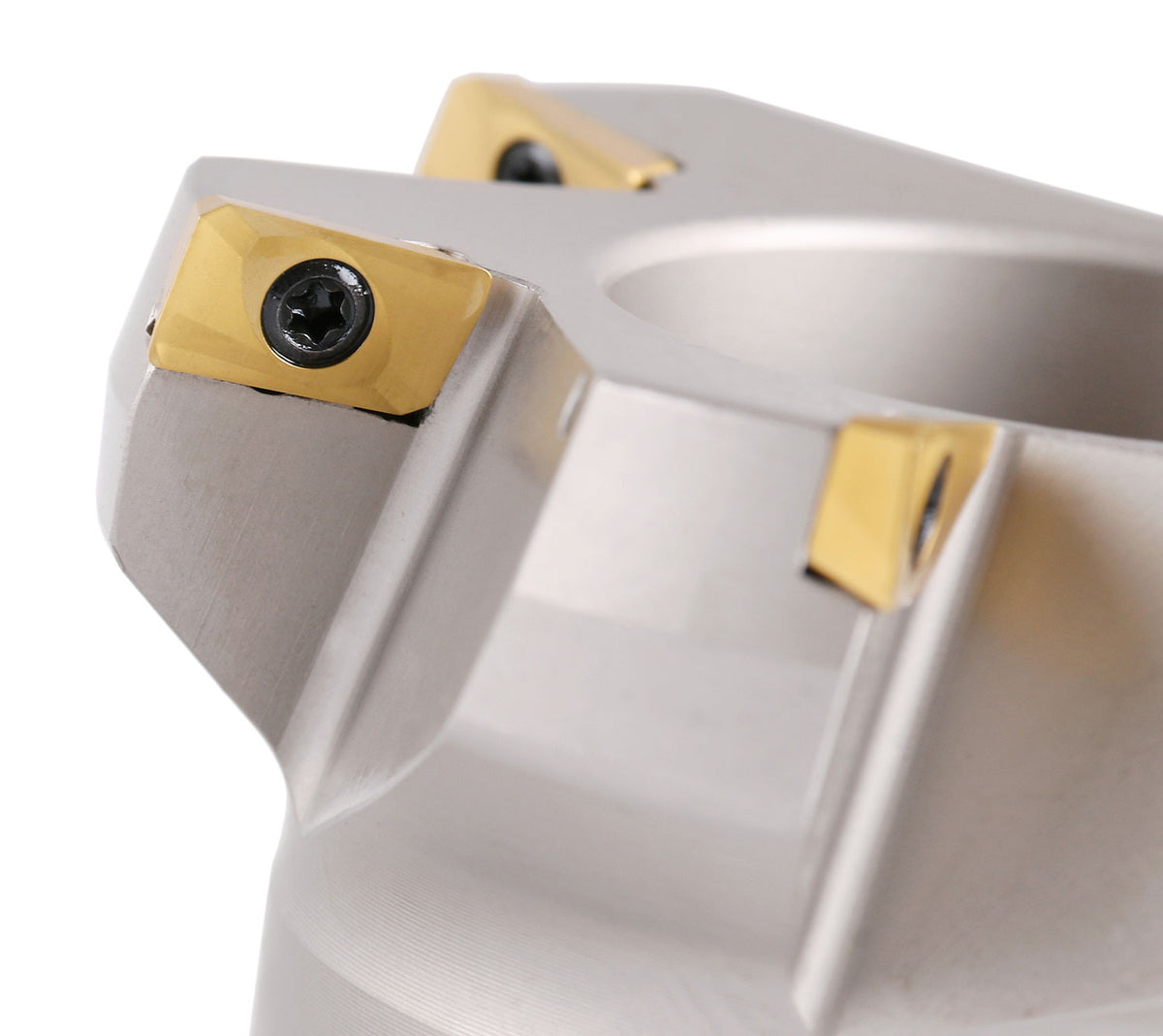

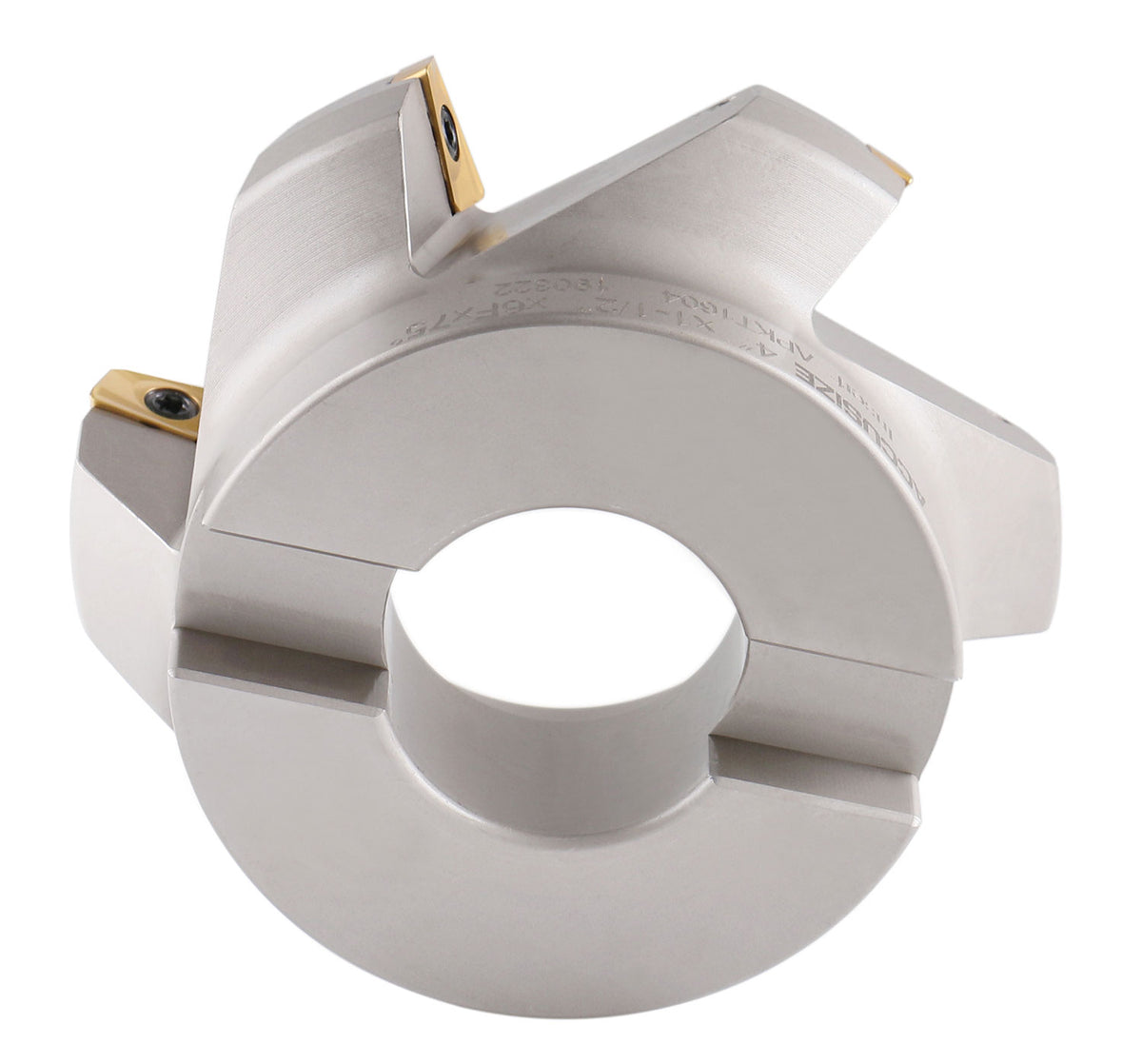

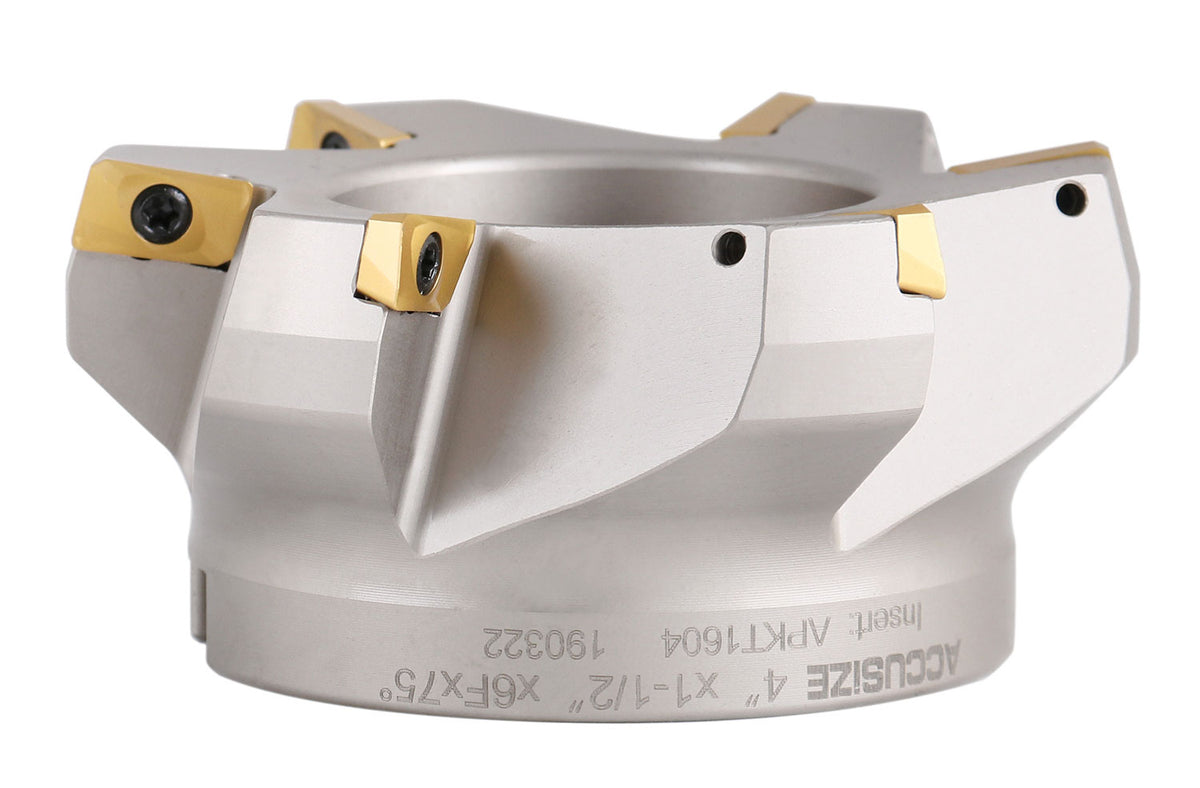

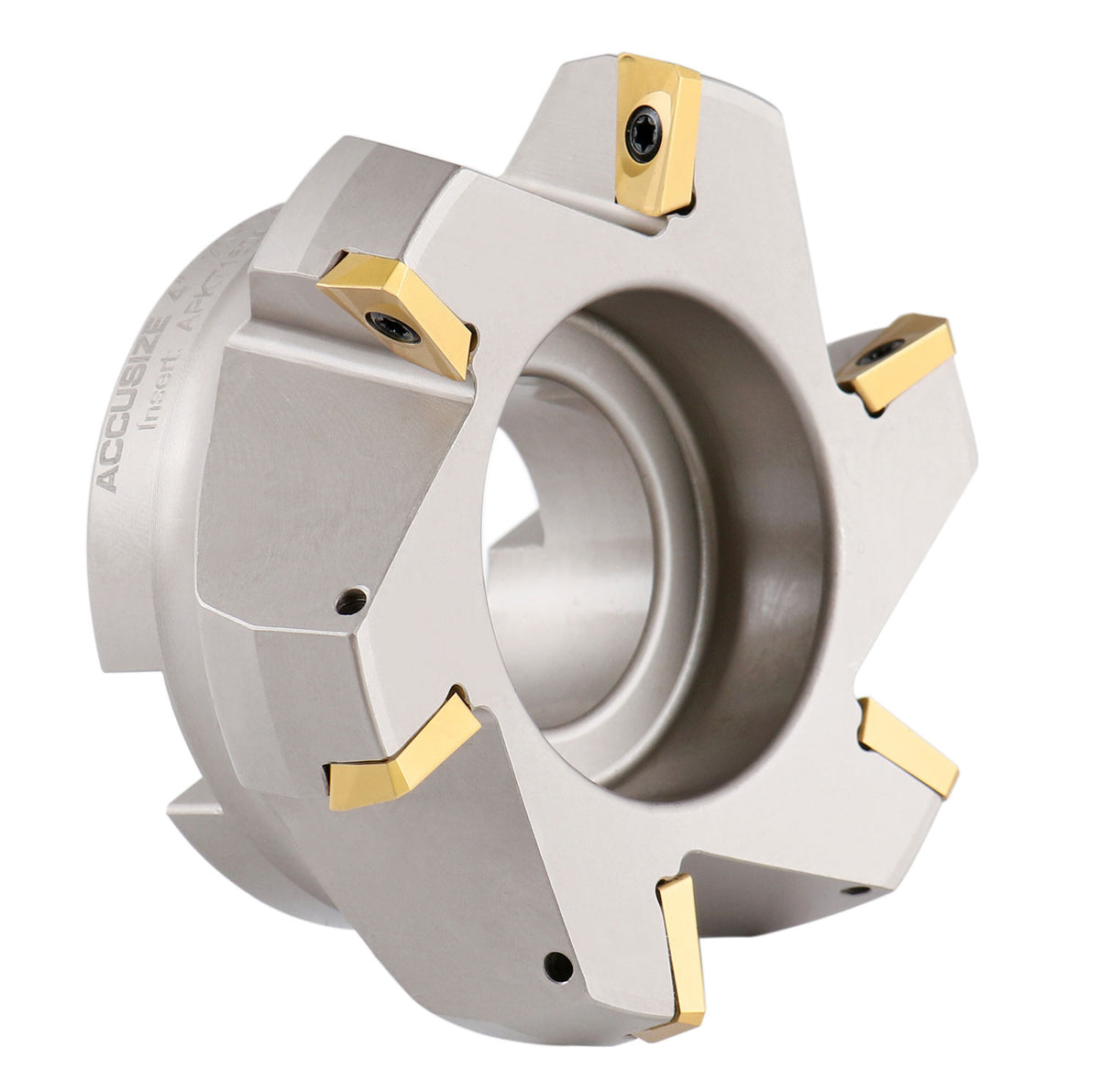

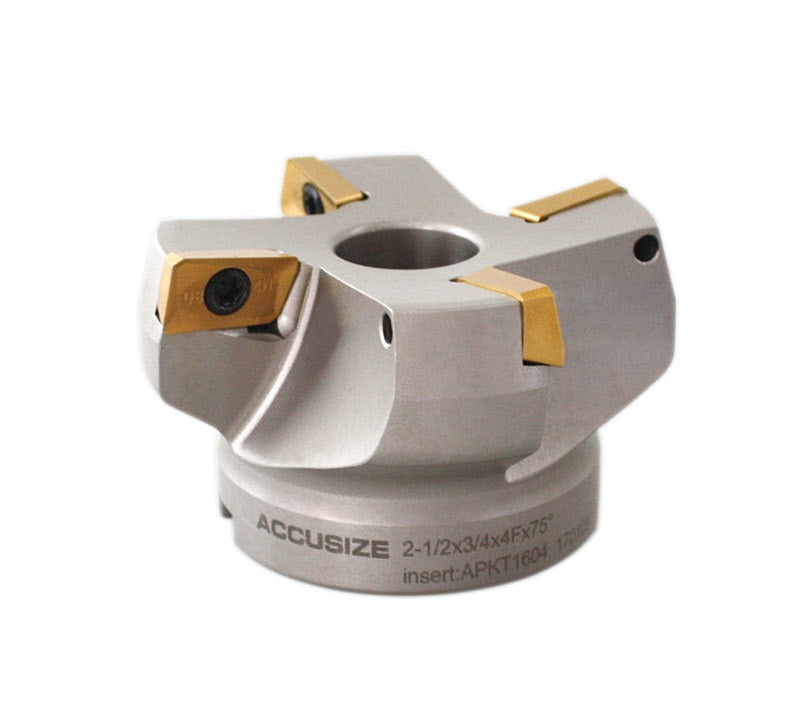

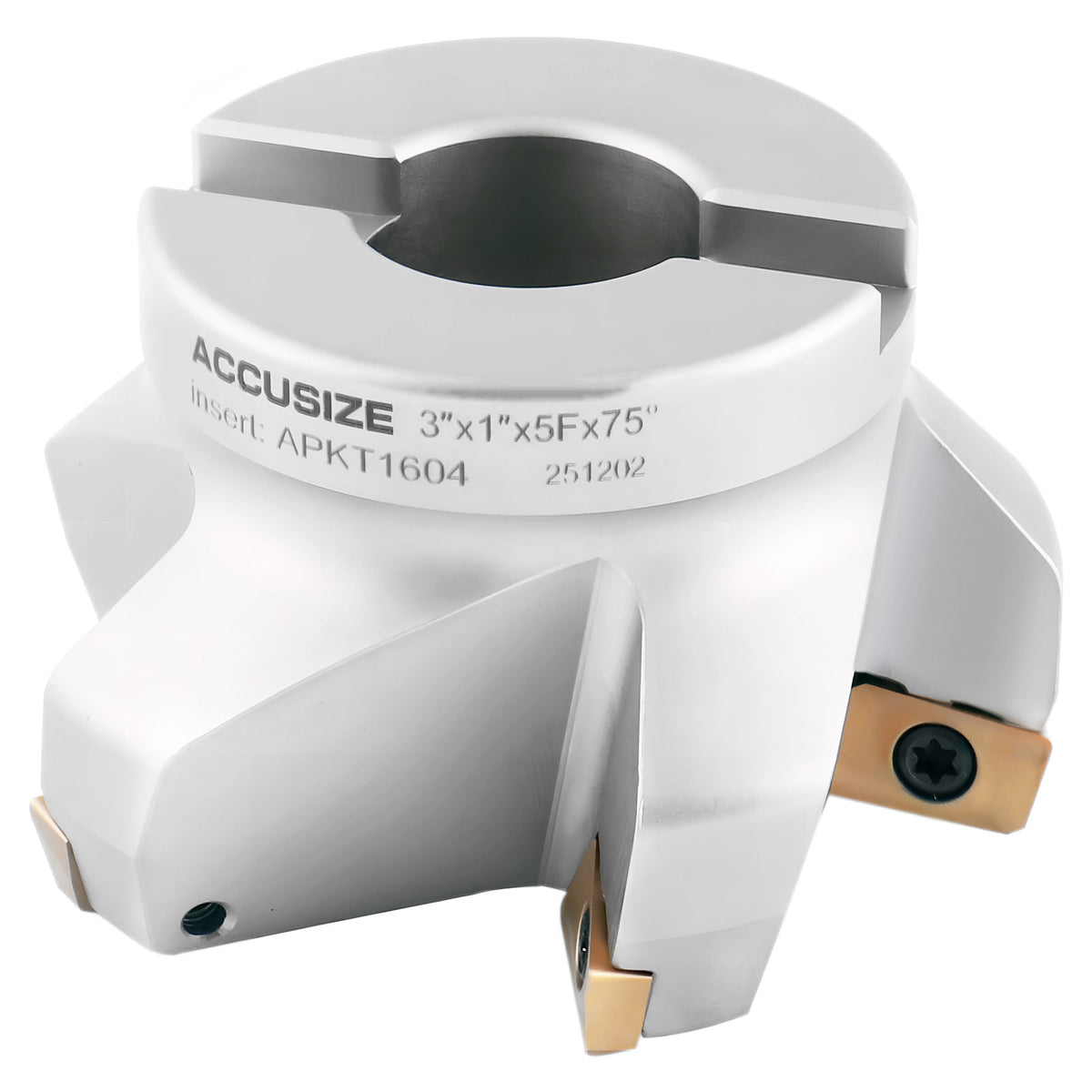

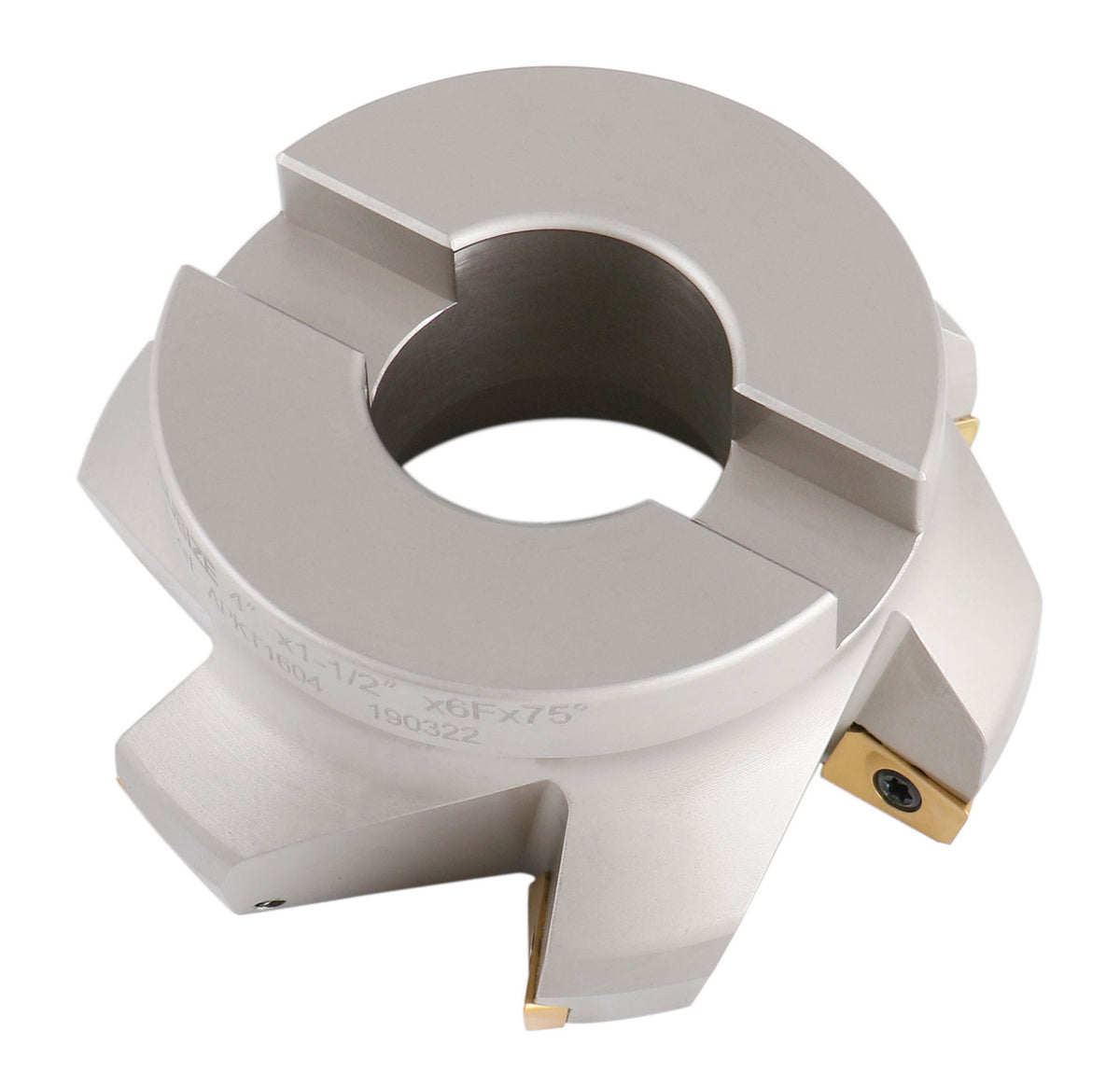

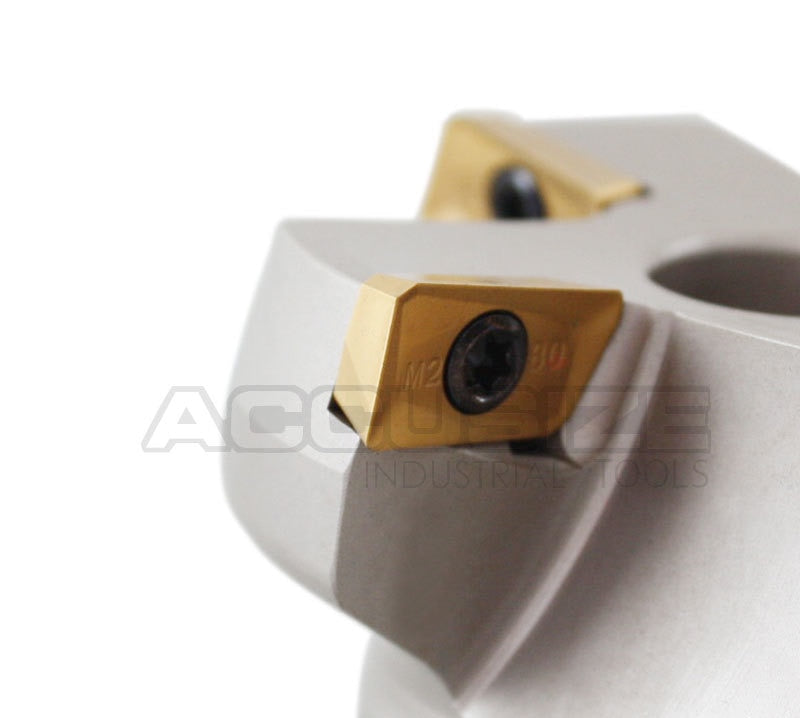

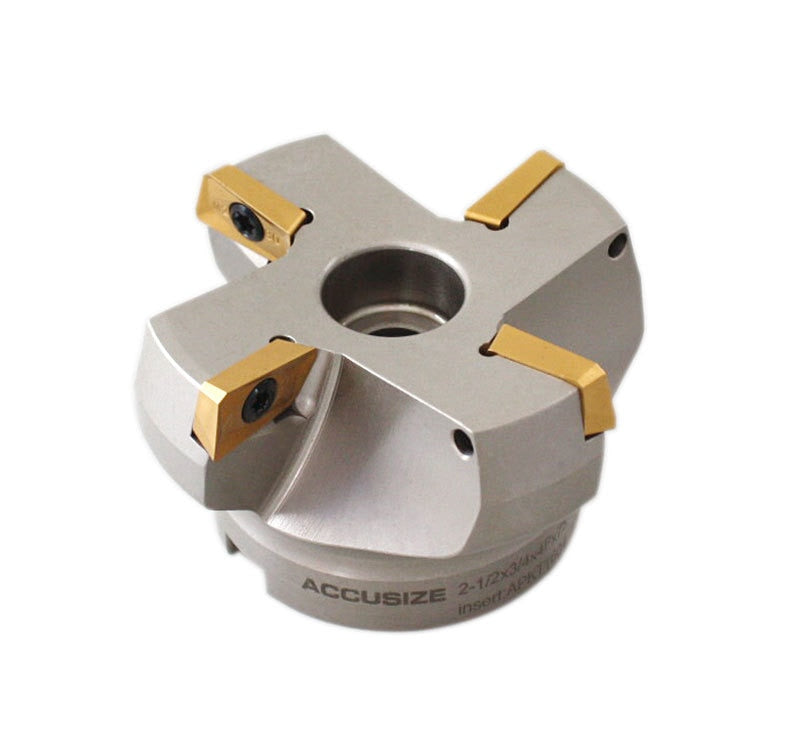

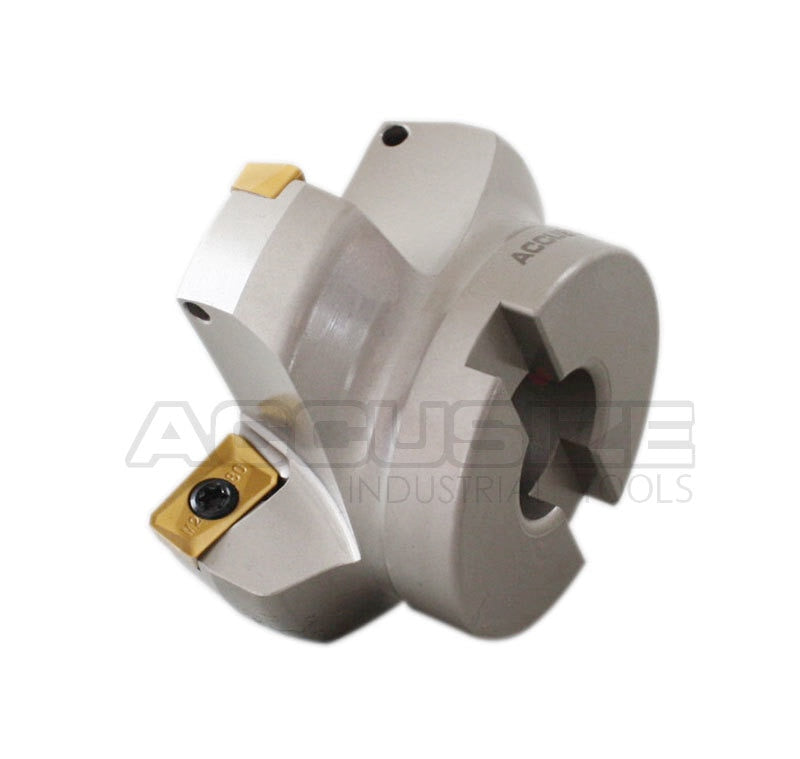

75 Degree Indexable Face Mills with Carbide APKT1604 Inserts


Price:
$206.40

Shipping calculated at checkout

Currency:
USD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

  • 75 Degree Indexable Face Mills with Carbide APKT1604 Inserts

    • Note: Stop throwing away the used APKT1604 carbide inserts, uses the two unused corners of the APKT inserts to extends the tools life of the already used APKT 1604 carbide inserts
    • Suitable for generic face milling.
    • Surface milling for medium roughing.
    • Recommend for CNC and traditional milling machines.
    • Uses the two unused comers of APKT 1604 carbide inserts.
    • Extends the life of already used APKT insert by using the two unused edge of the insert which typically is used in a 90-degree end mill cutter.

     ** For purchasing additional inserts, you may find the corresponding Insert SKU below:

    Item Cutter
    Dia
    Arbor Hole
    (C)
    B E F No. of
    Inserts
    Insert Coated, (SKU) Insert
    Screw

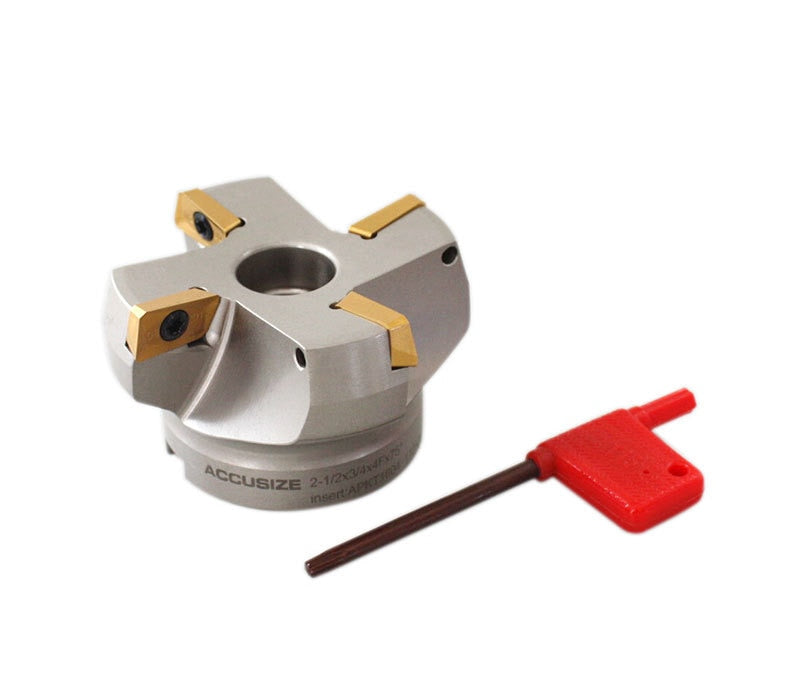

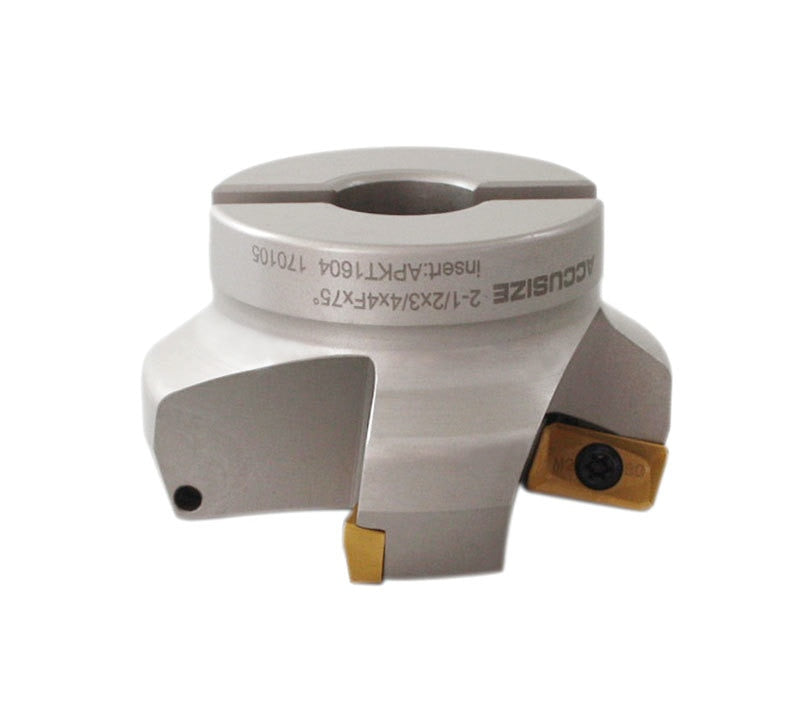

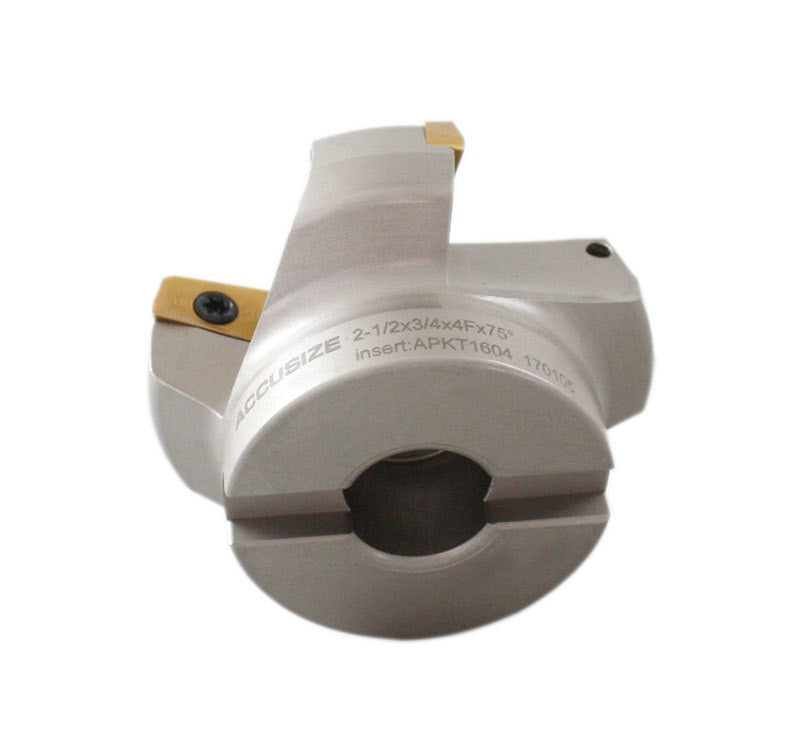

    0028-2601 2.5" 0.75" 1.57" 1.75" 0.65" 4

    APKT1604
    (TiN Coated, 0056-1604)

    M4 x 10

    (0046-4010)

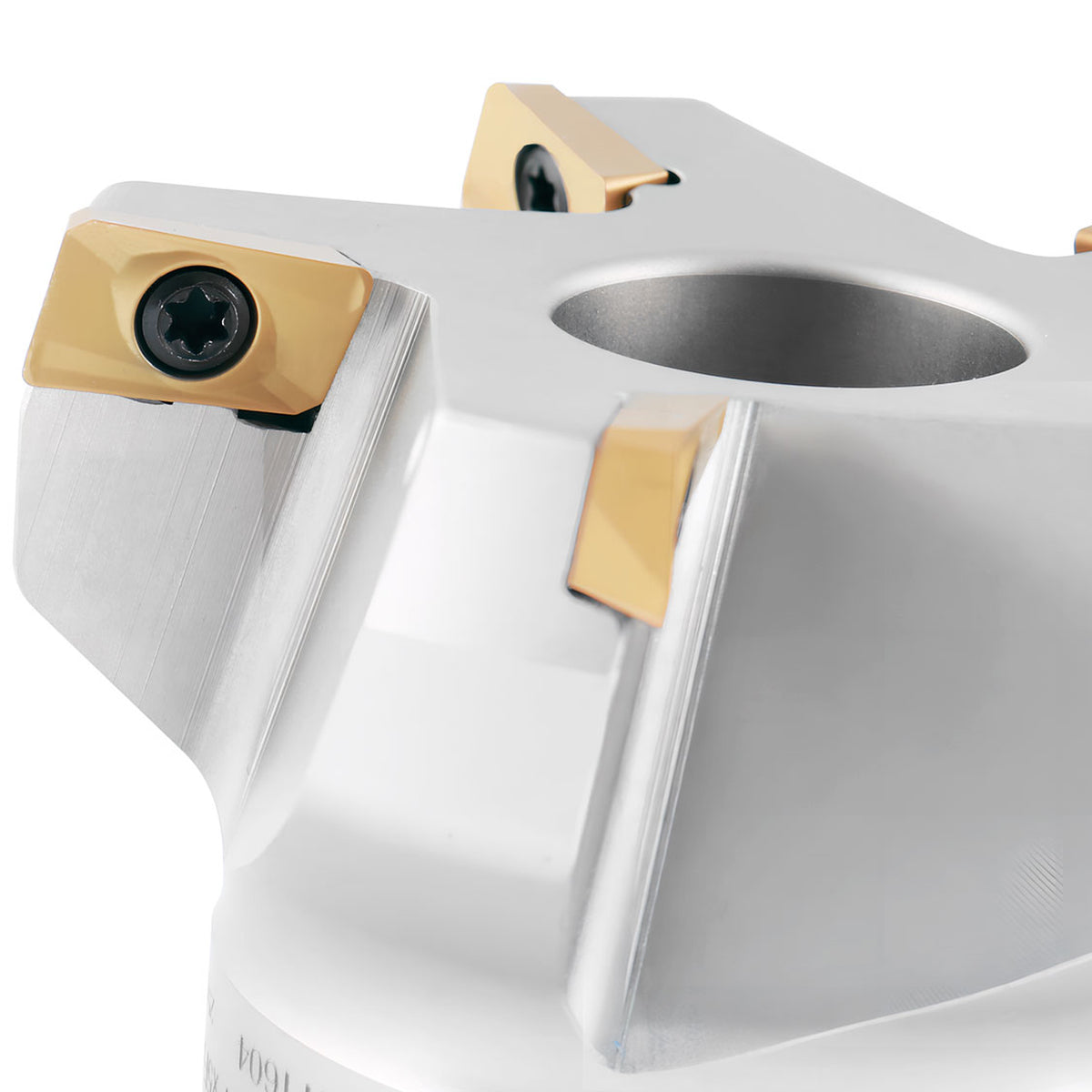

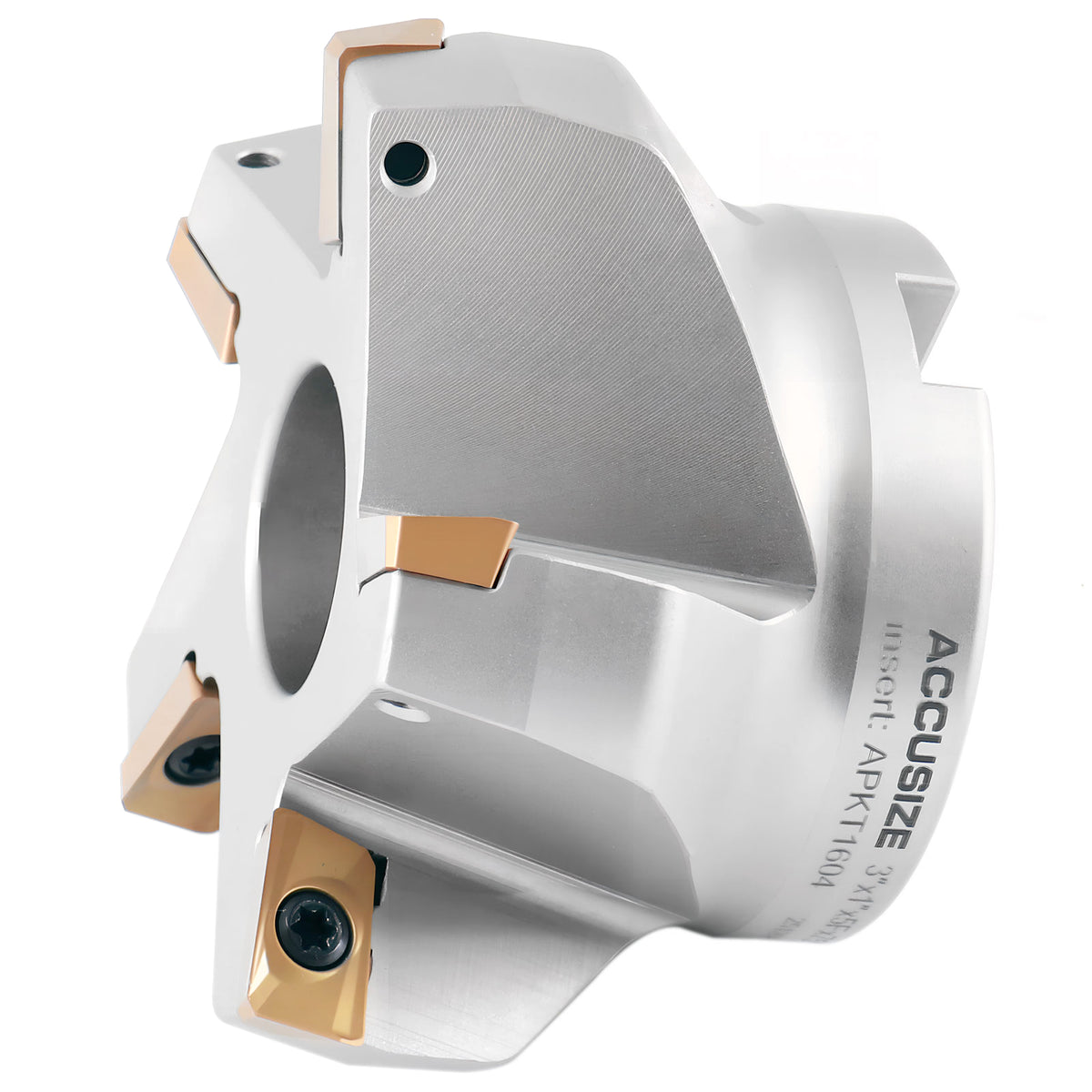

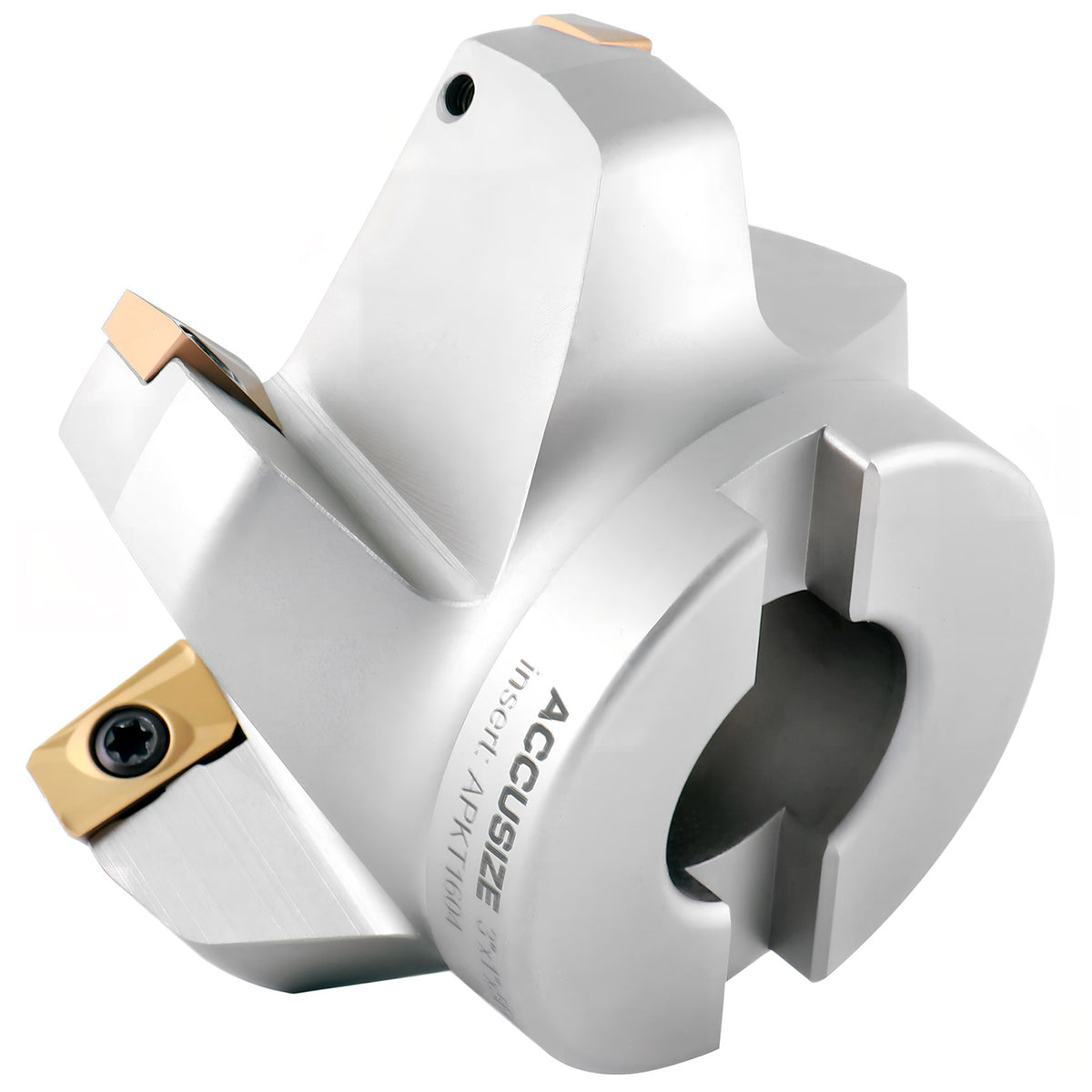

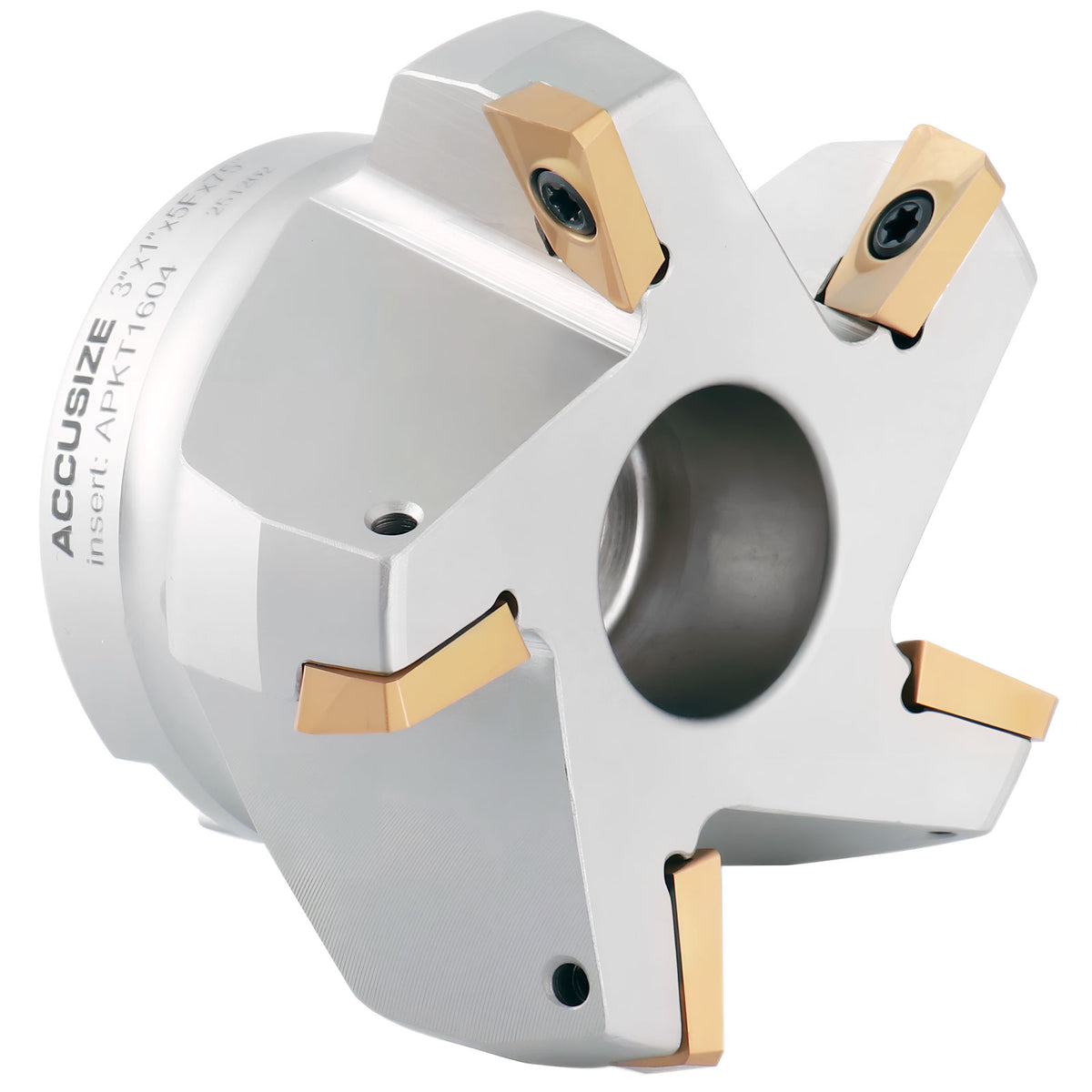

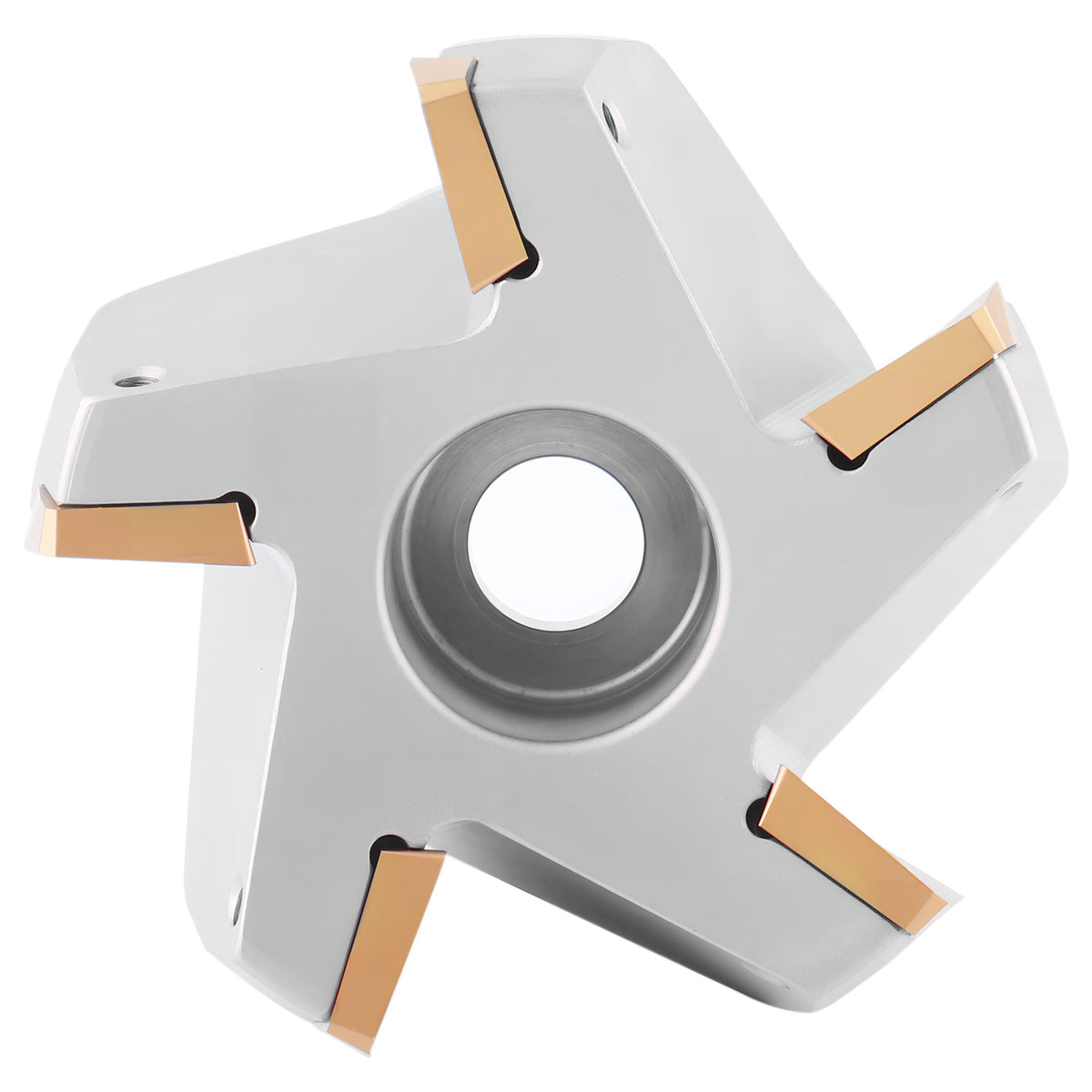

    0028-2602 3" 1" 1.97" 2.25" 0.83" 5

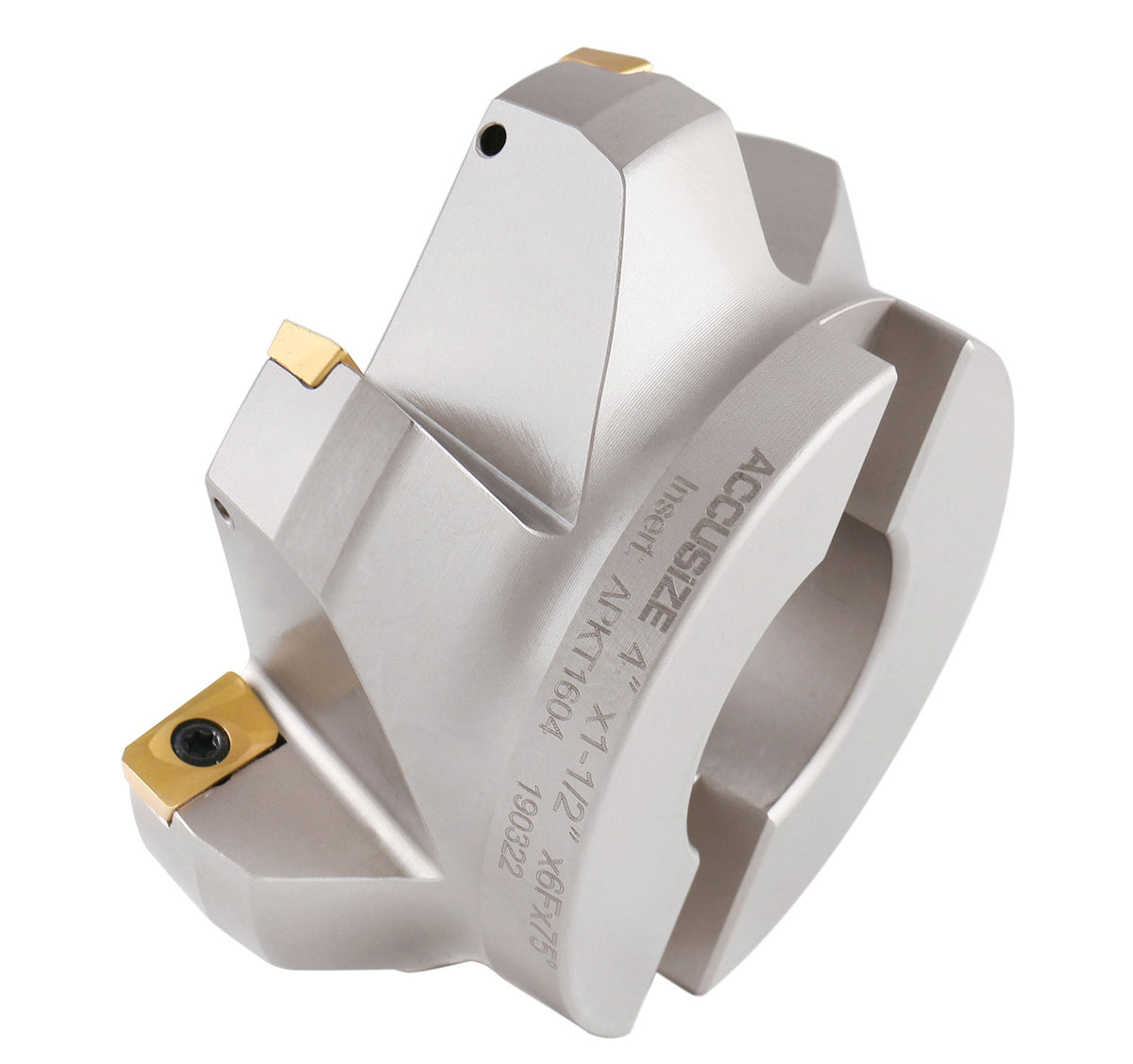

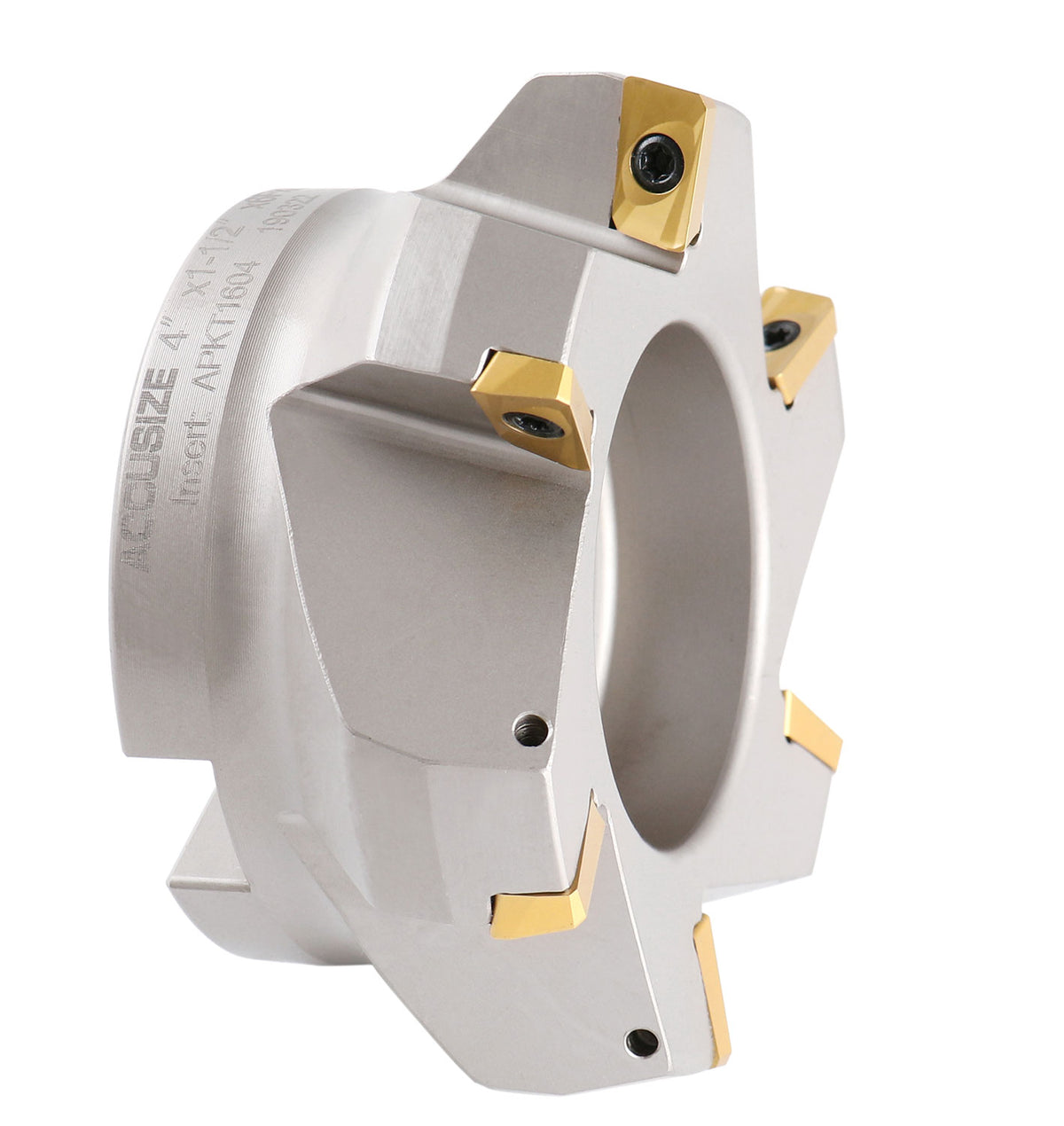

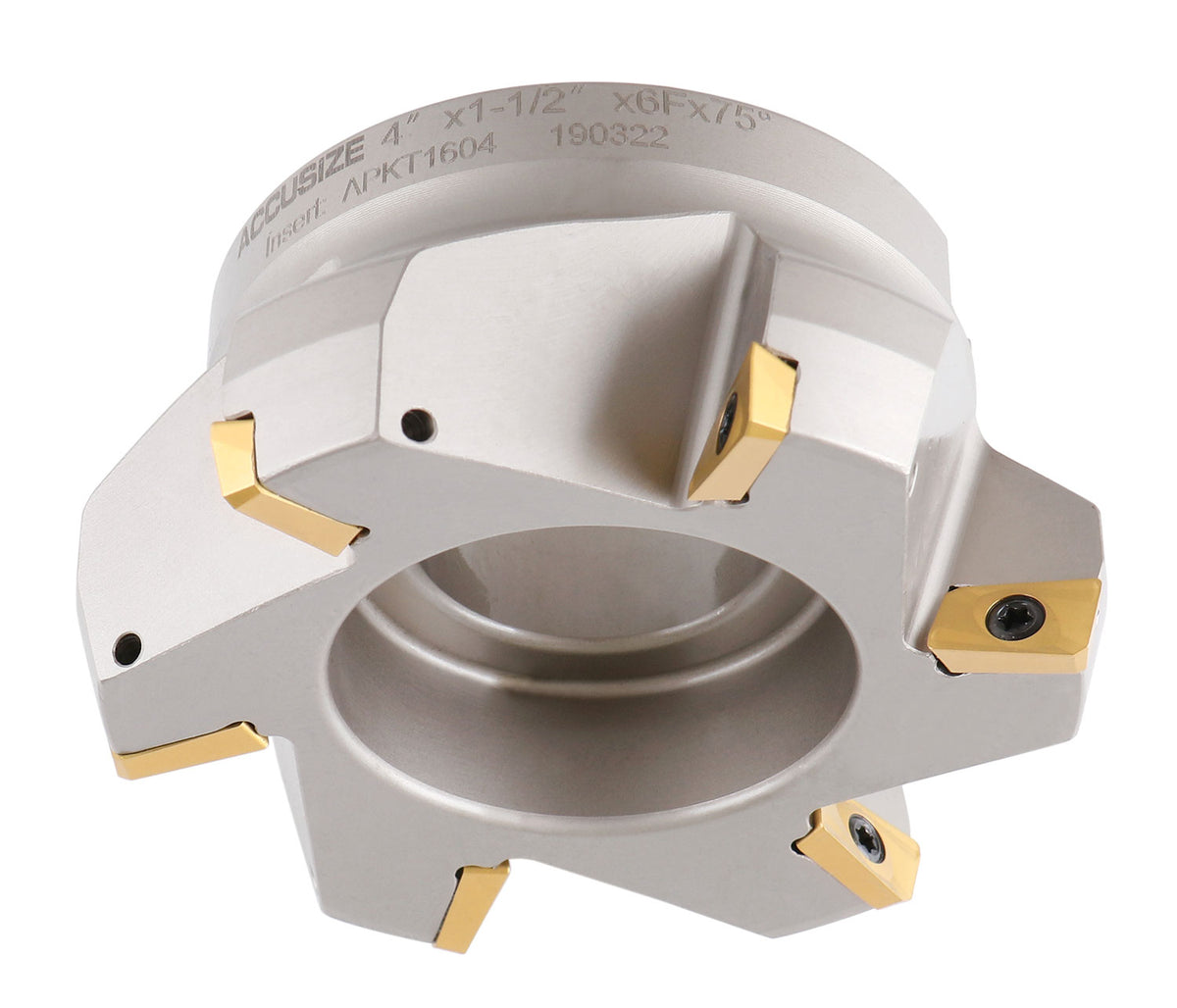

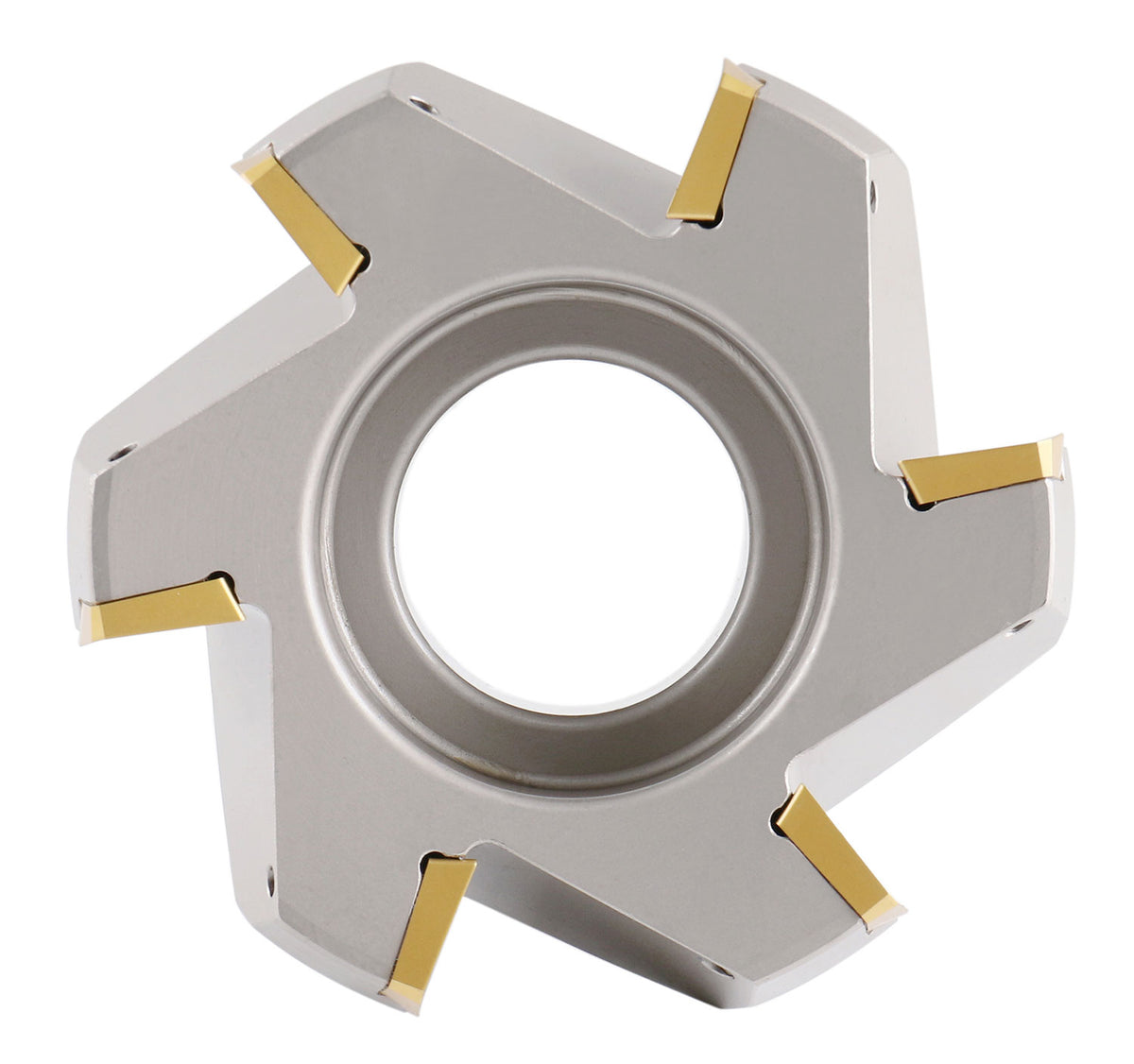

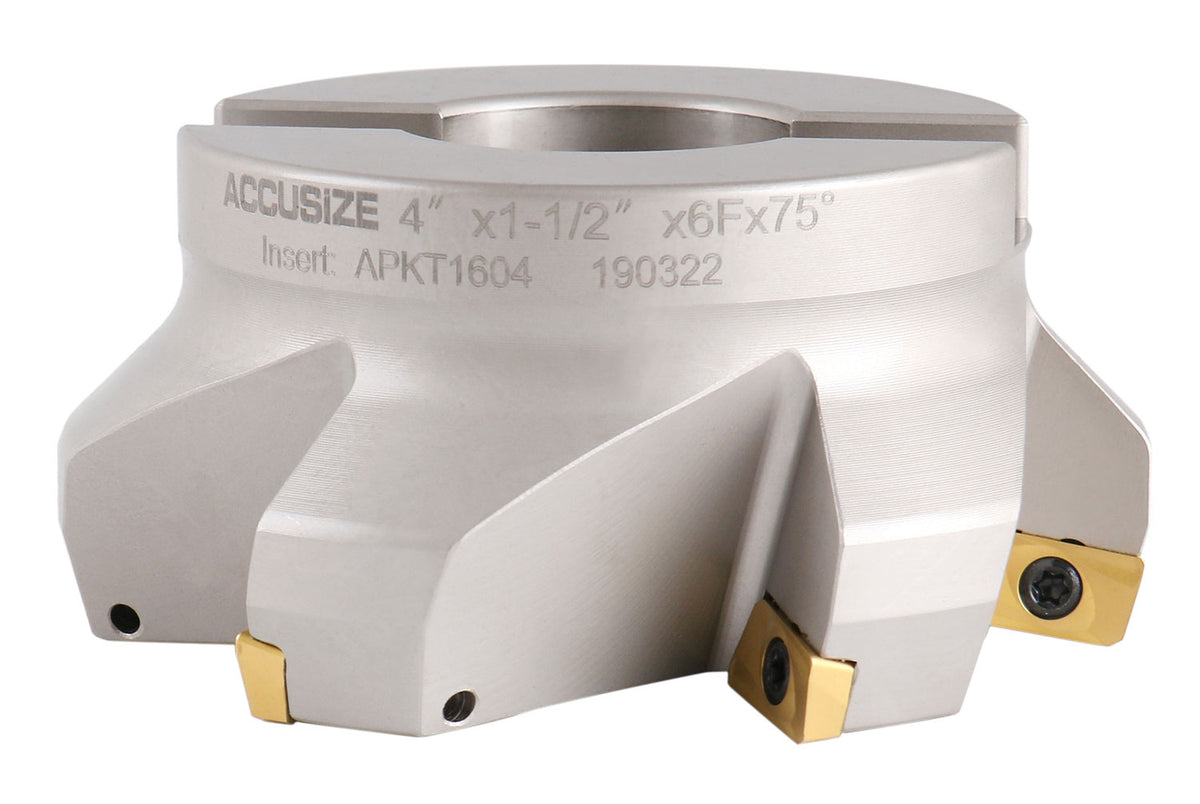

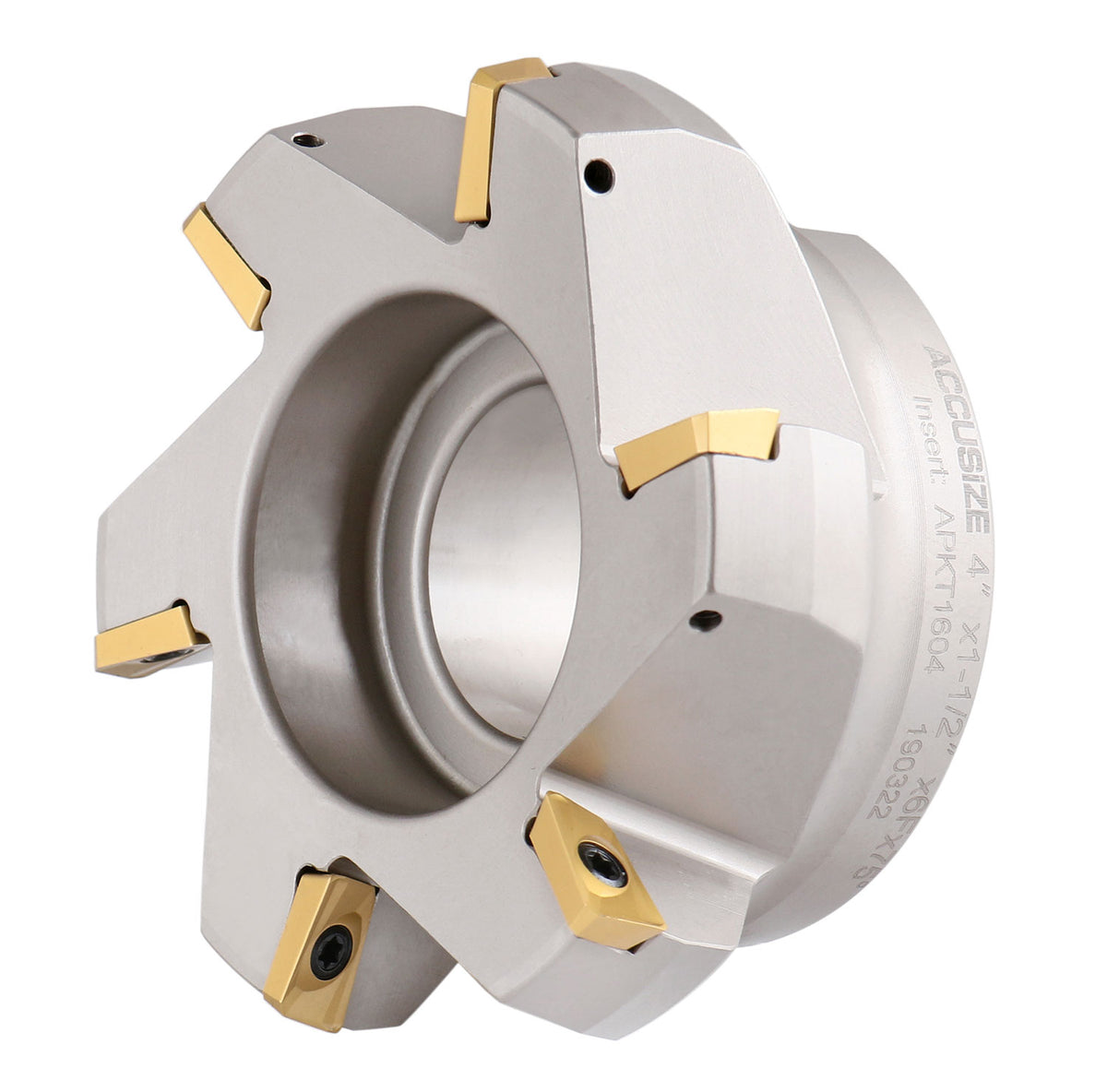

    0028-2603 4" 1.5" 1.97" 3.75" 1.97" 6



    FEATURES OF 75 DEGREE INDEXABLE FACE MILL

    After a 90-degree indexable end mill cutter with APKT 1604 inserts is used, the inserts can still be working with the 75-degree indexable end mill cutter as the two unused edges of the inserts can be used for milling on the cutter. It extends the life of the inserts and saves costs.

    Recommended Cutting Parameters --- for Reference only:

    Item No. Description Materials Hardness(HB) Cutting parameter
      75°DEGRE INDEXABLE FACE MILL   V?ft /min? f?inch/Z? ae RPM(n/min)
    0028-2601 2-1/2“ Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D 300
        High-carbon Steel, Alloy Steel   197 - 393 0.002 - 0.004 ≤0.5D 300
        Tool Steel 280-350 164 - 295 0.002 - 0.004 ≤0.5D 250

    0028-2602 3" Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D 250
        High-carbon Steel, Alloy Steel   197 - 393 0.002 - 0.004 ≤0.5D 250
        Tool Steel 280-350 164 - 295 0.002 - 0.004 ≤0.5D 200

    0028-2603 4" Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D 250
        High-carbon Steel, Alloy Steel   197 - 393 0.002 - 0.004 ≤0.5D 250
        Tool Steel 280-350 164 - 295 0.002 - 0.004 ≤0.5D 200

    V= Cutting Speed (ft/min); f= Feed per tooth (inch/Z); ae=Cutting width
