Indexable Cut-off Tool Holders with Carbide Inserts for Steel or Aluminum

Accusize Industrial ToolsSKU: 2387-0006INSA

Price:
$93.74

Shipping calculated at checkout

Currency:
USD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

  • Cut-Off Holder, Parting Tool with 10 Carbide Inserts

    Each set includes:

    • 1 indexable cut-off holder
    • 10 carbide inserts
    SKU Holder Size Tool Holder Insert Code Insert SKU  Machining Materials

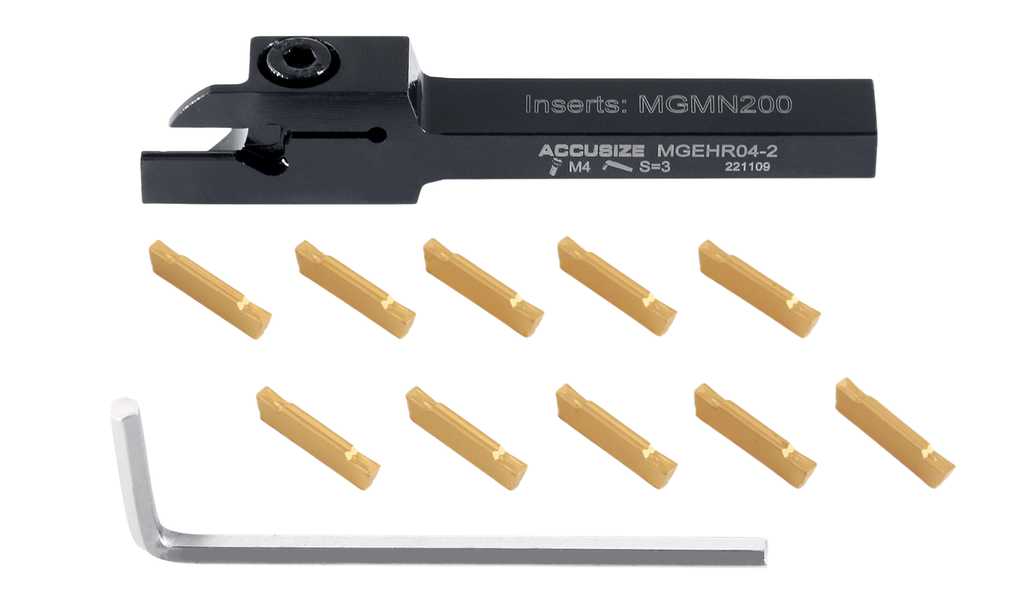

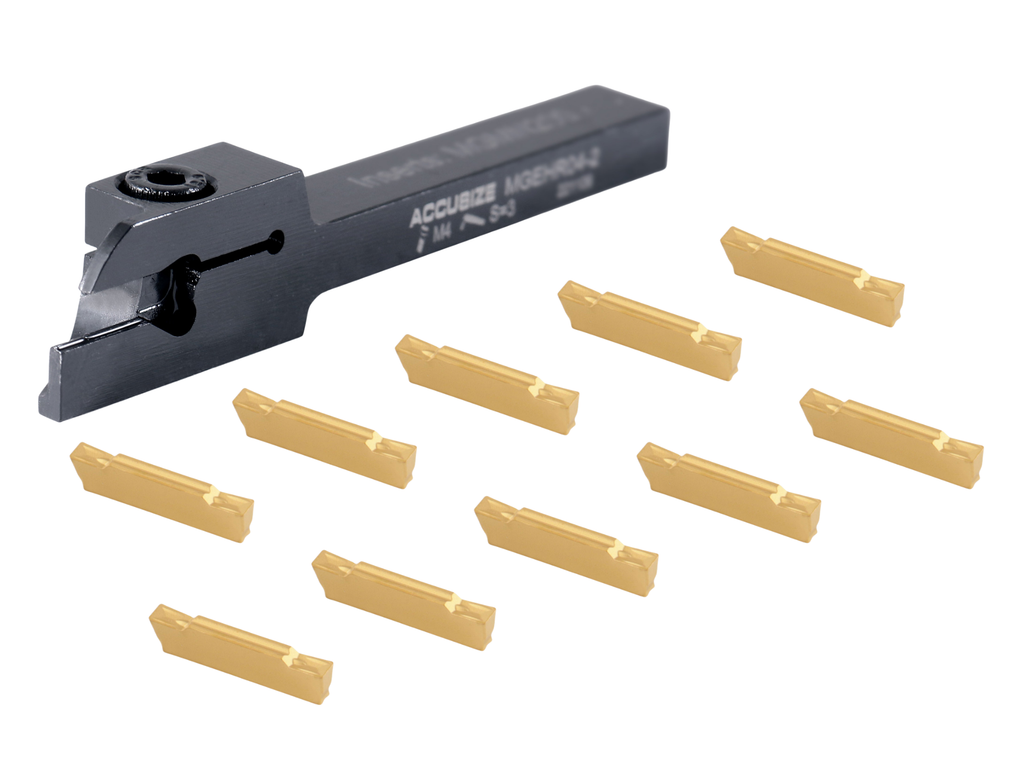

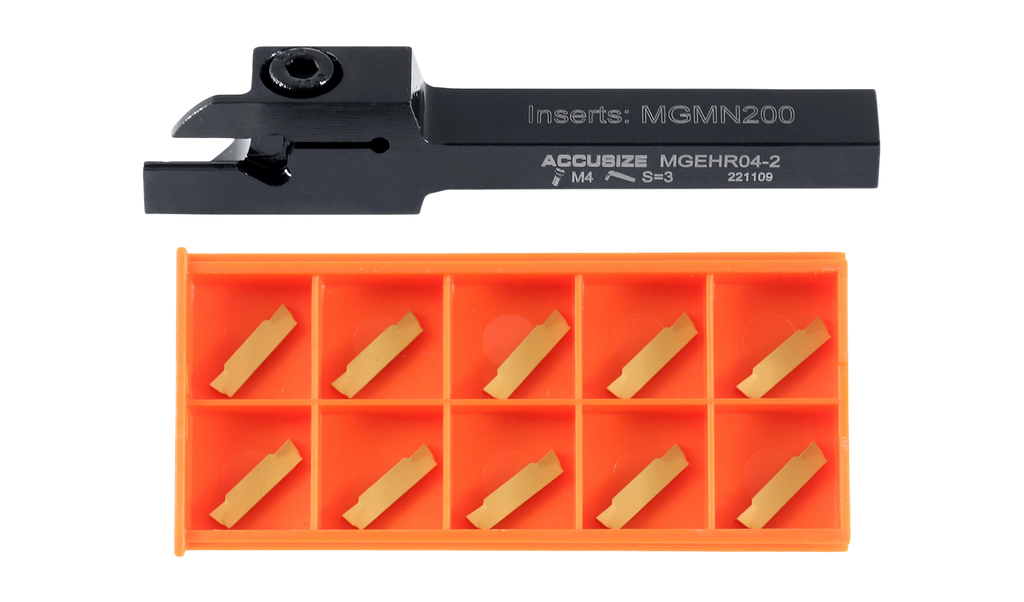

    2387-0001INS 1/4" x 3/8'' MGEHR04-2 MGMN200 2403-4022 Steel

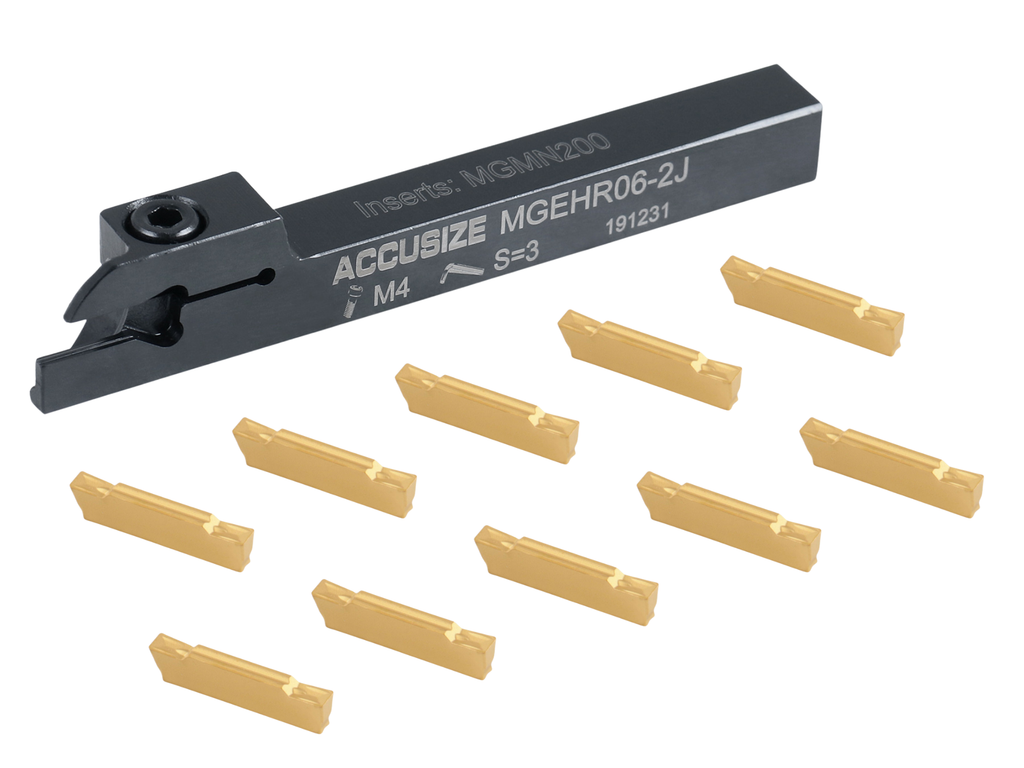

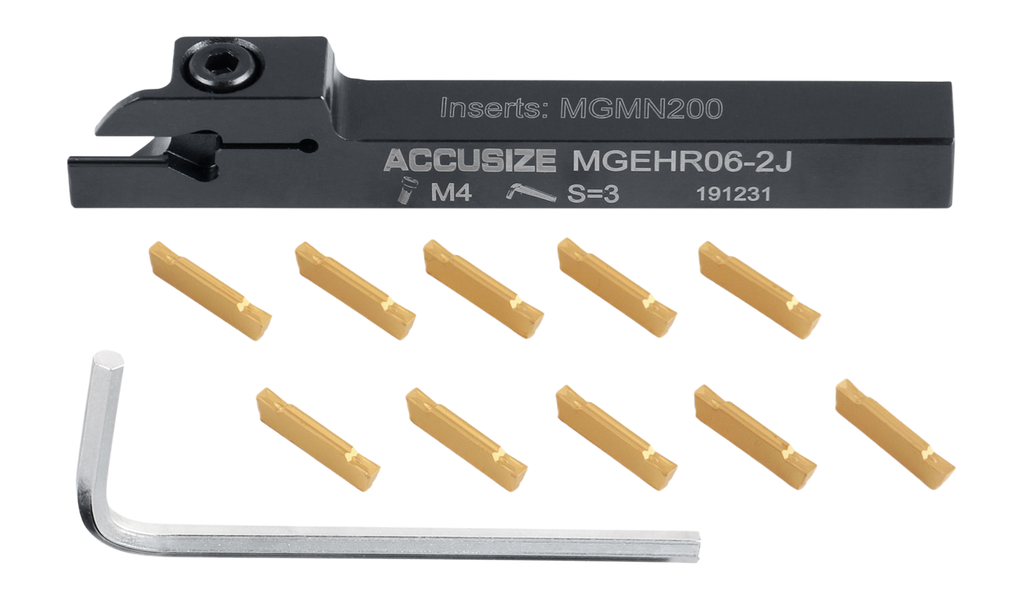

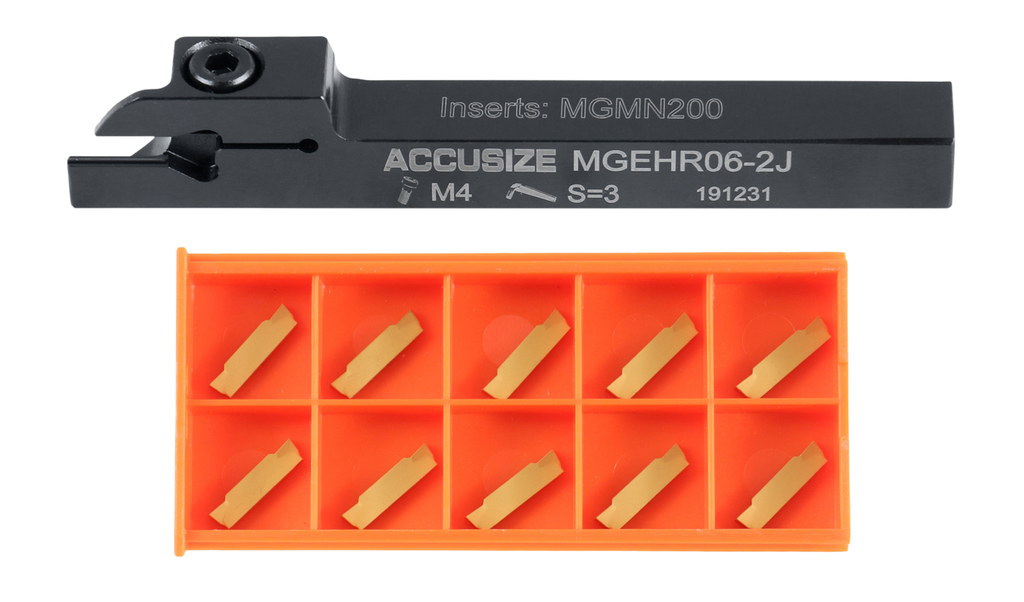

    2387-0003INS 3/8'' x 3/8" MGEHR06-2J MGMN200 2403-4022 Steel

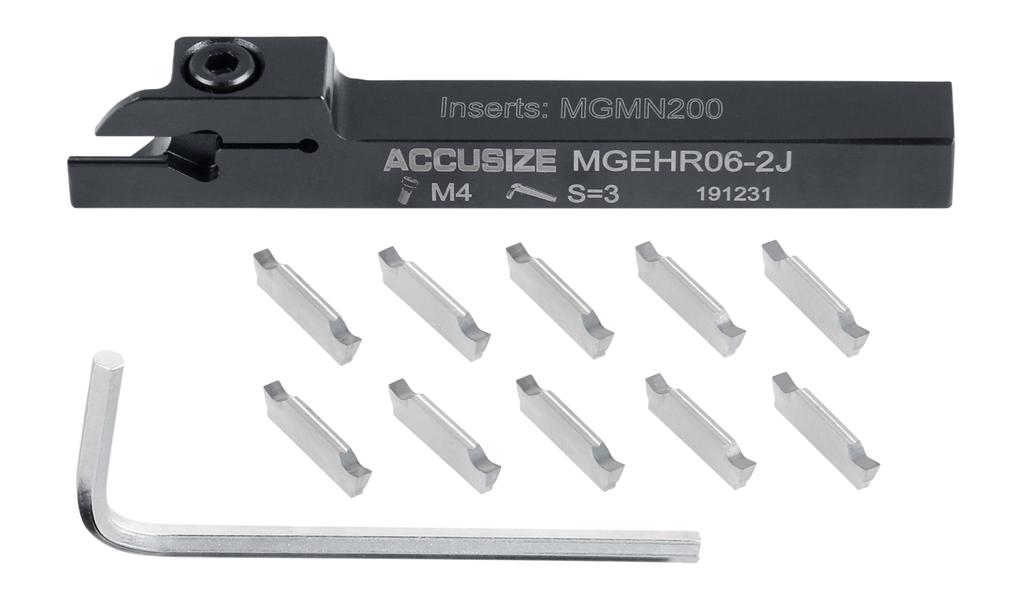

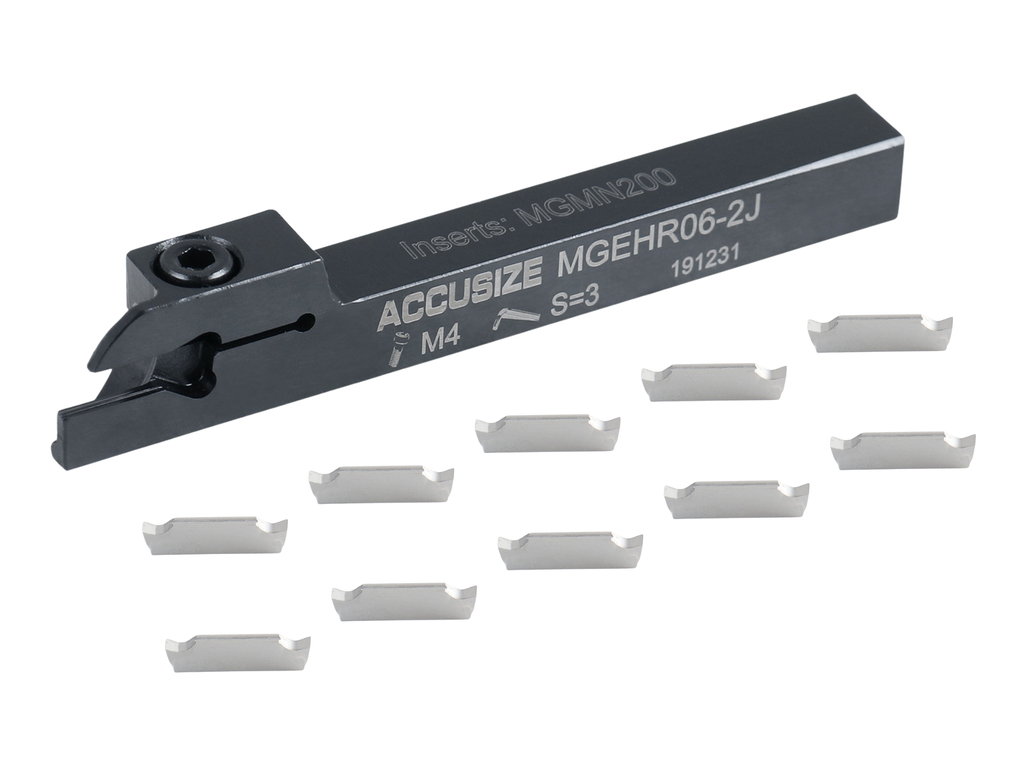

    2387-0003INSA 3/8'' x 3/8" MGEHR06-2J MGGN200-LH 2403-4023 Aluminum

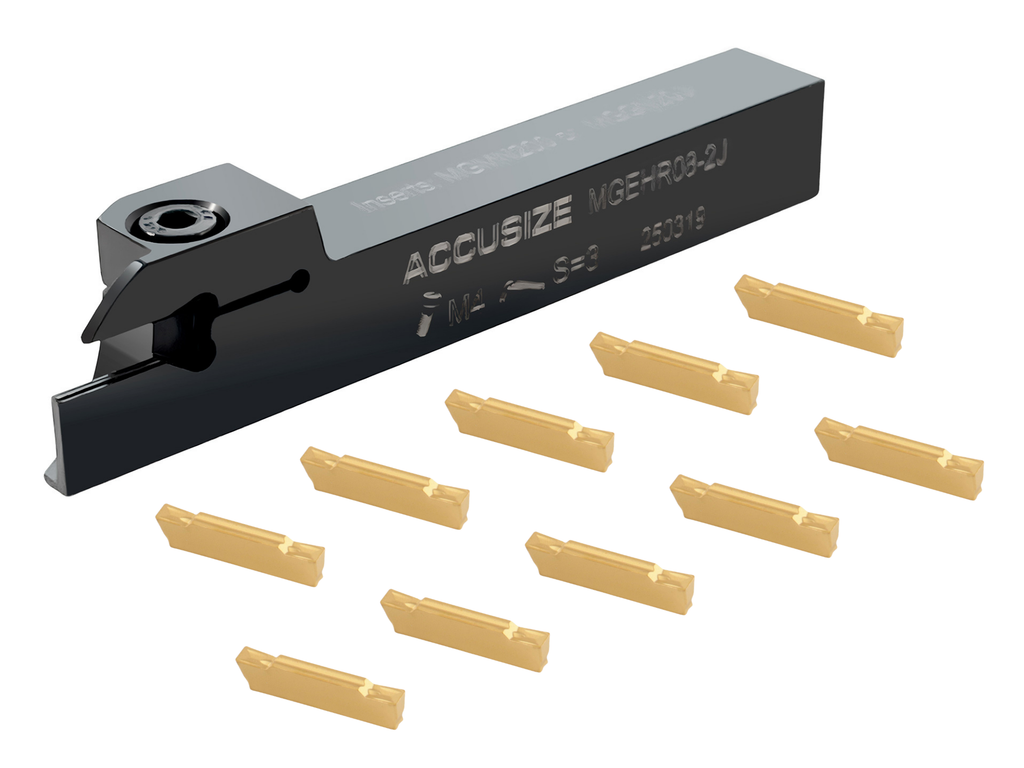

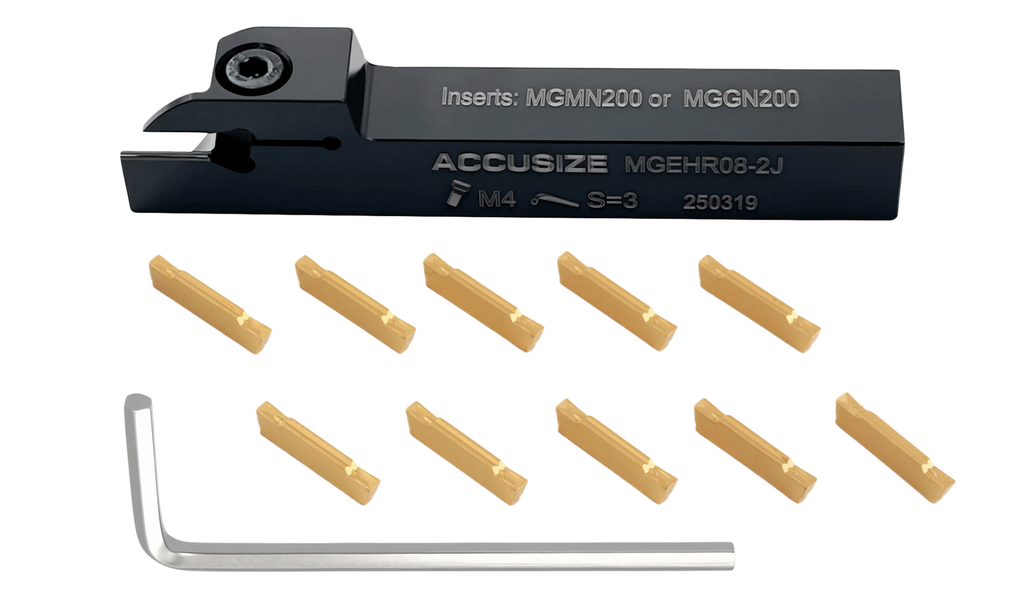

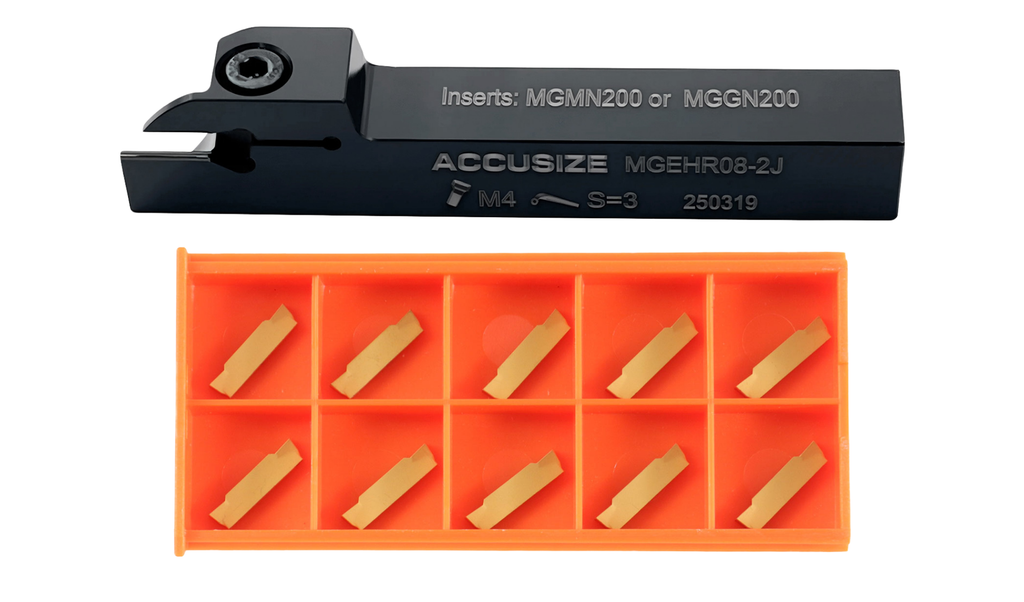

    2387-0004INS 1/2" x 1/2" MGEHR08-2J MGMN200 2403-4022 Steel

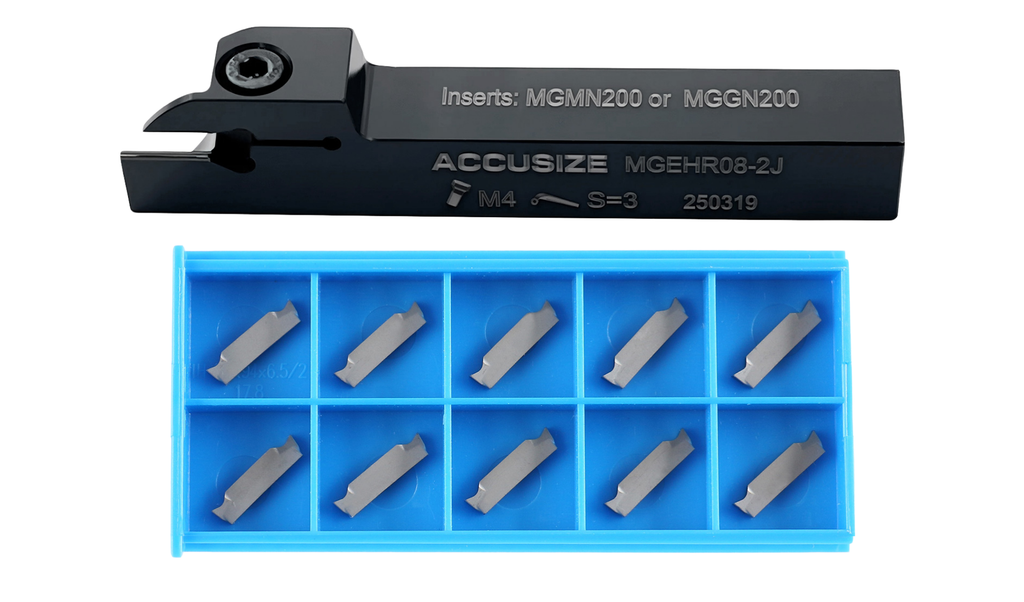

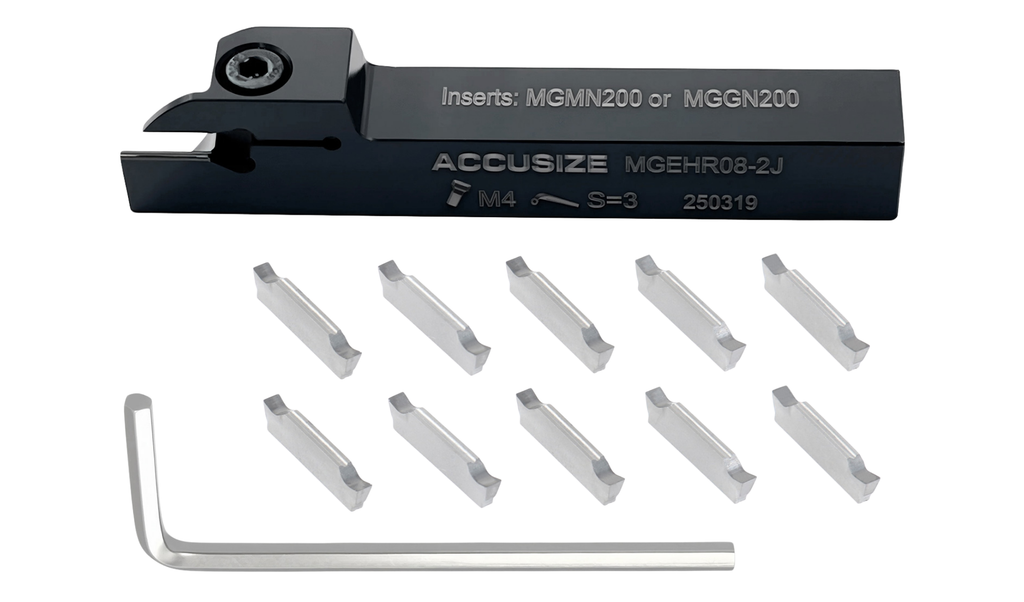

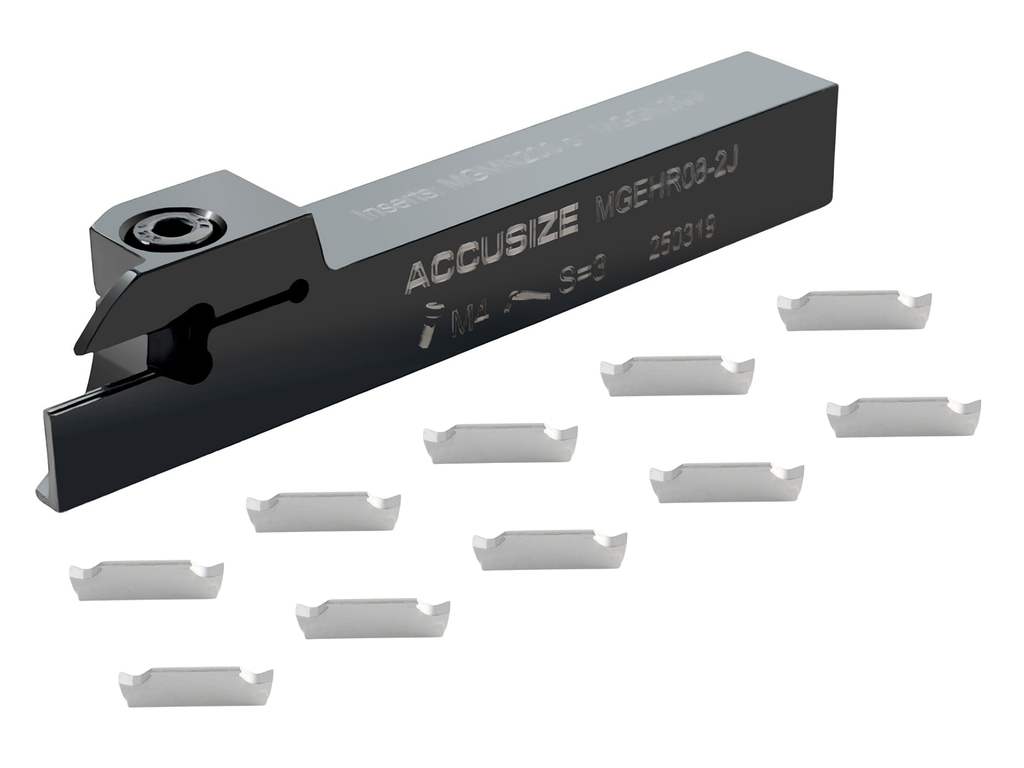

    2387-0004INSA 1/2" x 1/2" MGEHR08-2J MGGN200-LH 2403-4023 Aluminum

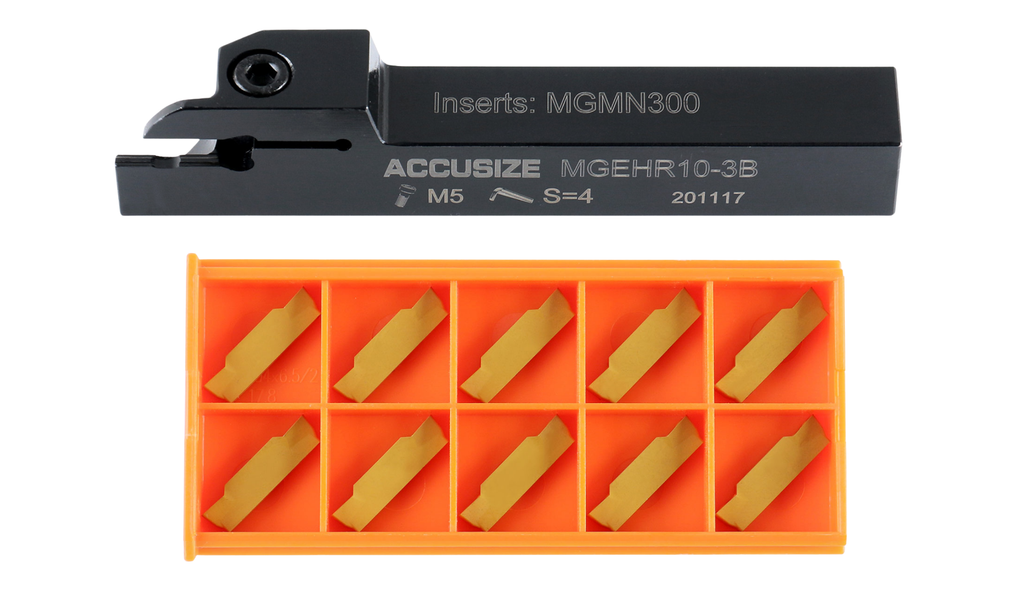

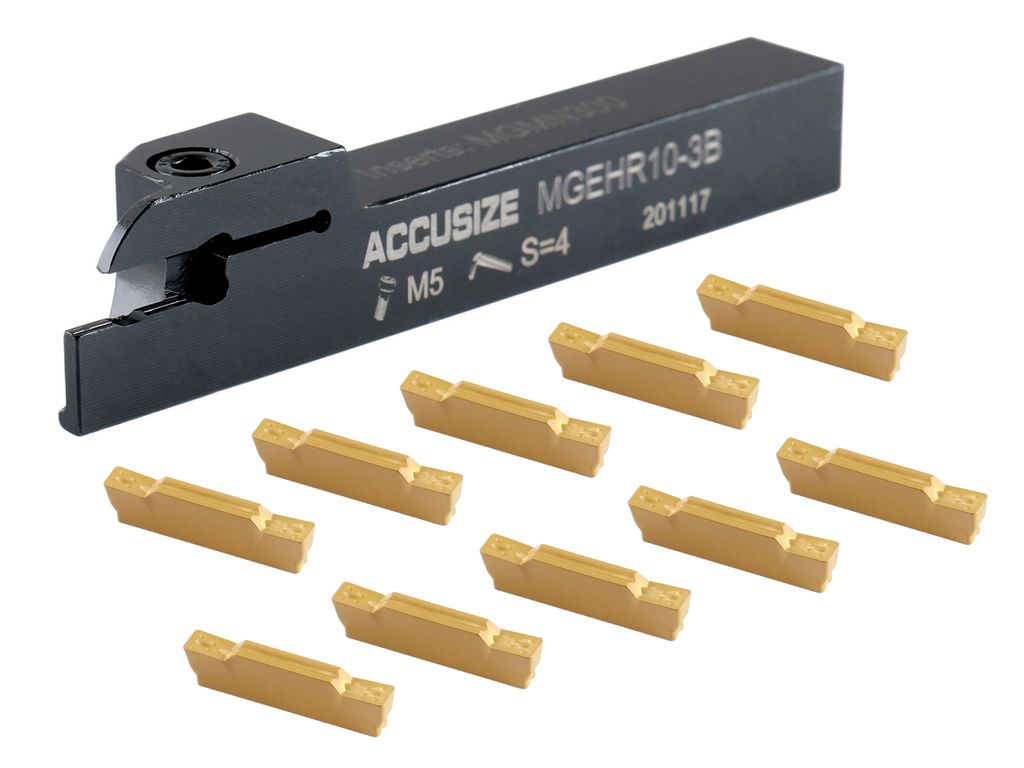

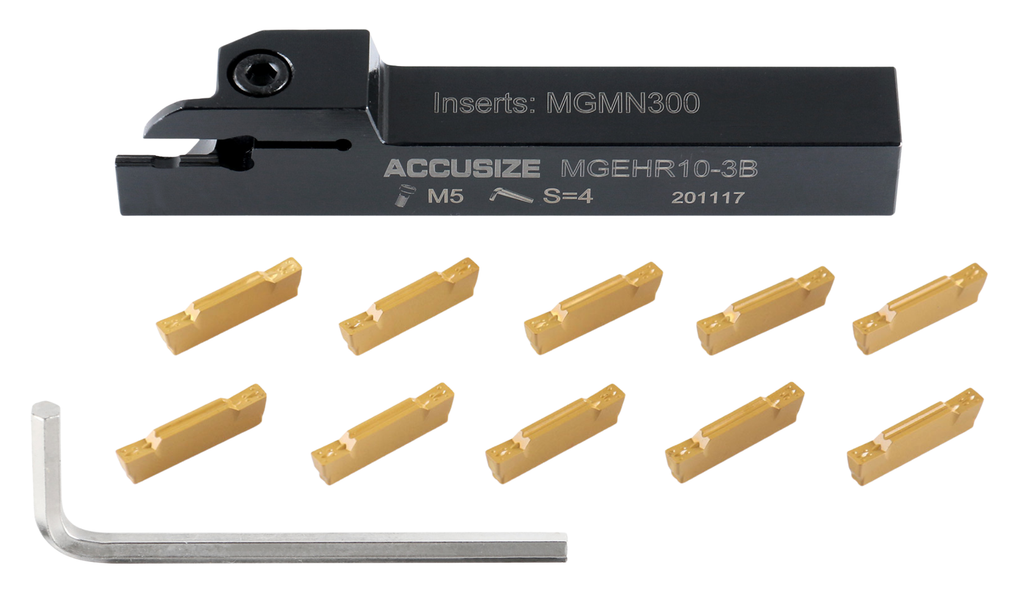

    2387-0005INS 5/8" x 5/8" MGEHR10-3B MGMN300 2403-4026 Steel

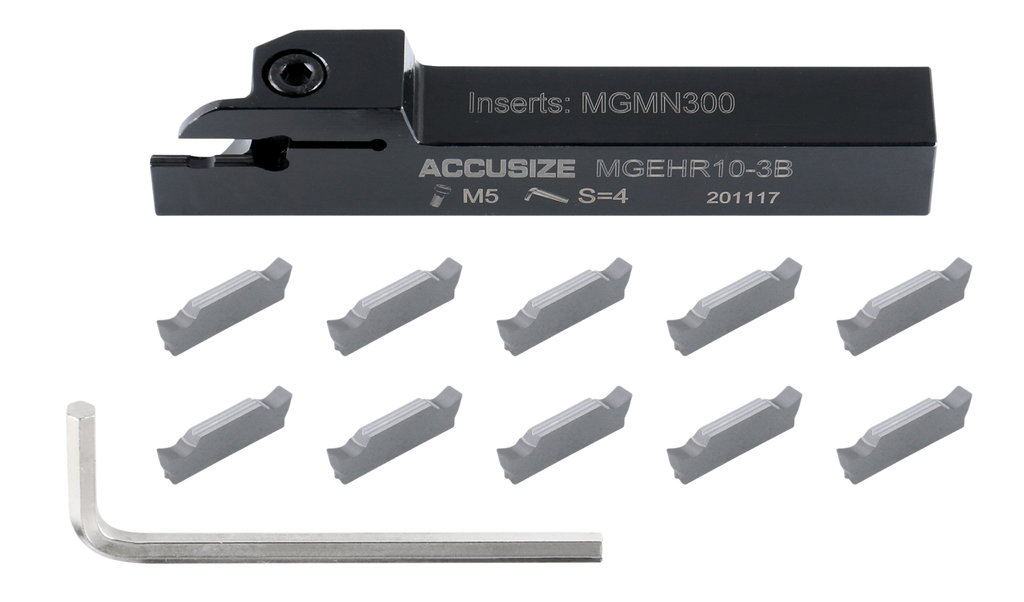

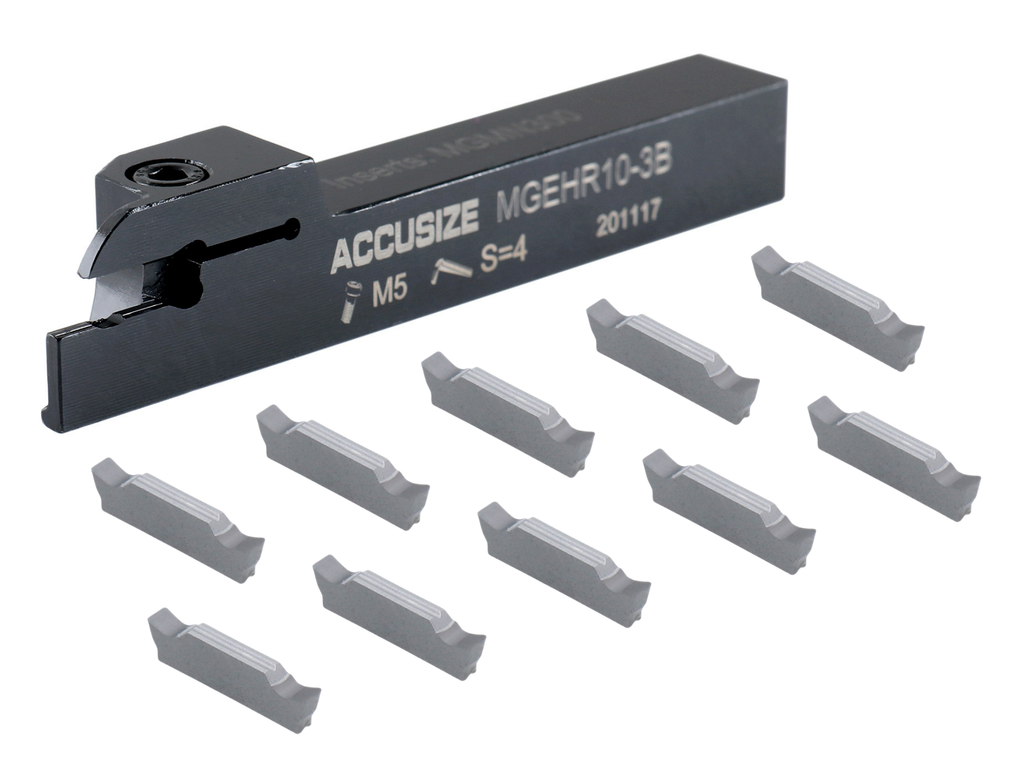

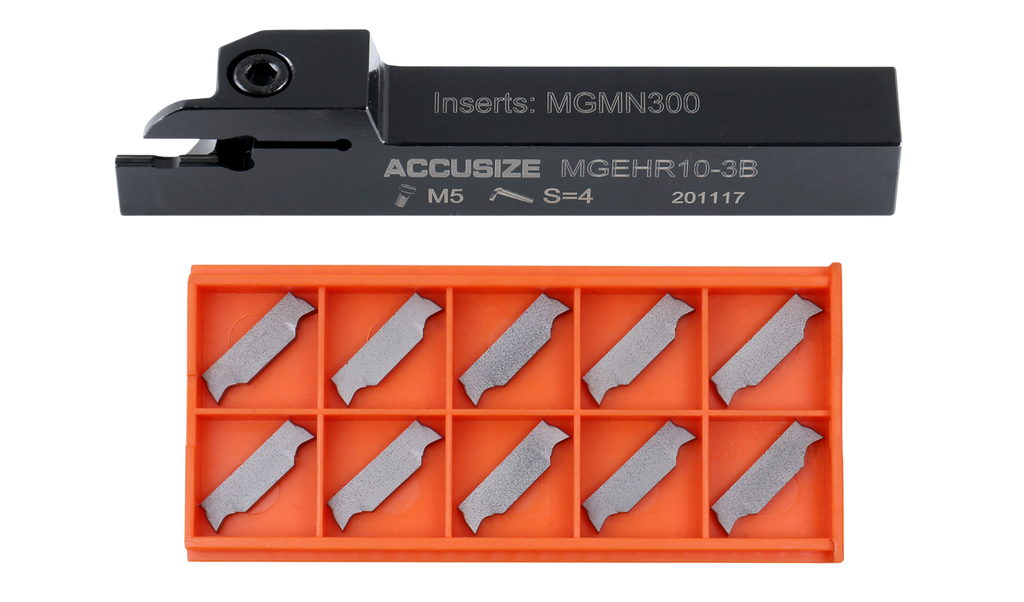

    2387-0005INSA 5/8" x 5/8" MGEHR10-3B MGGN300-LH 2403-4027 Aluminum

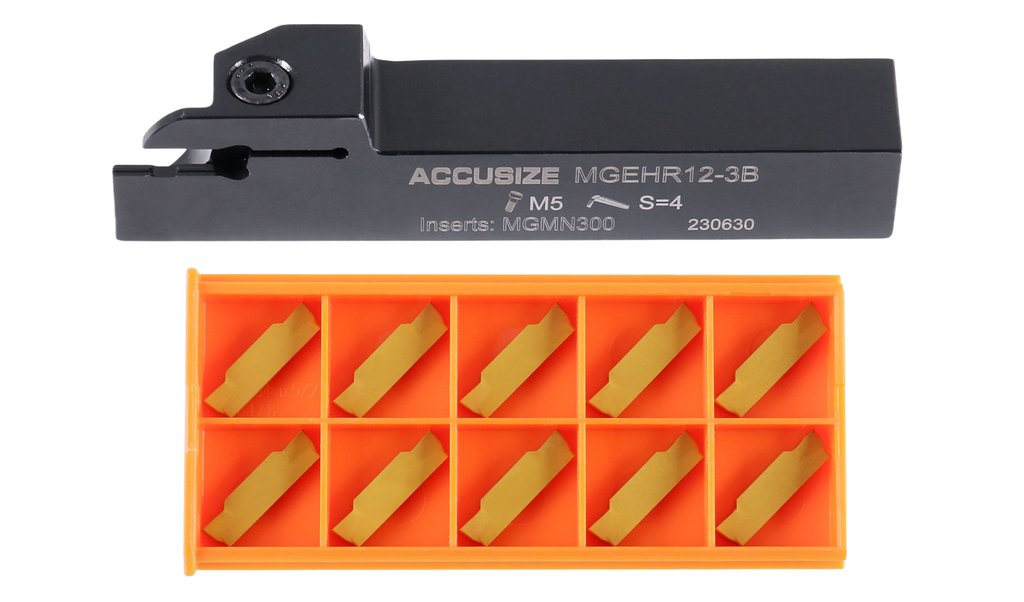

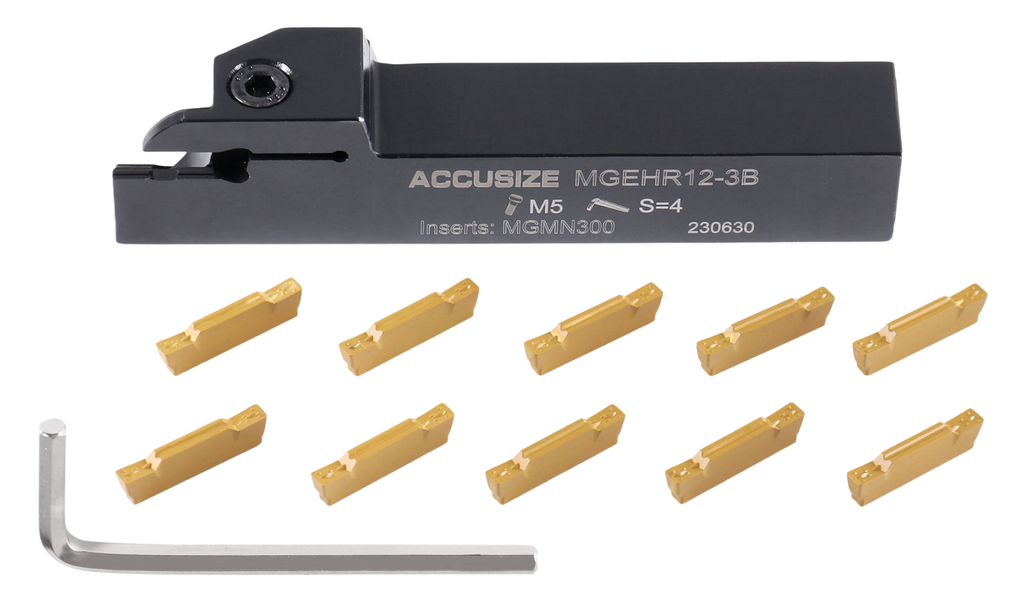

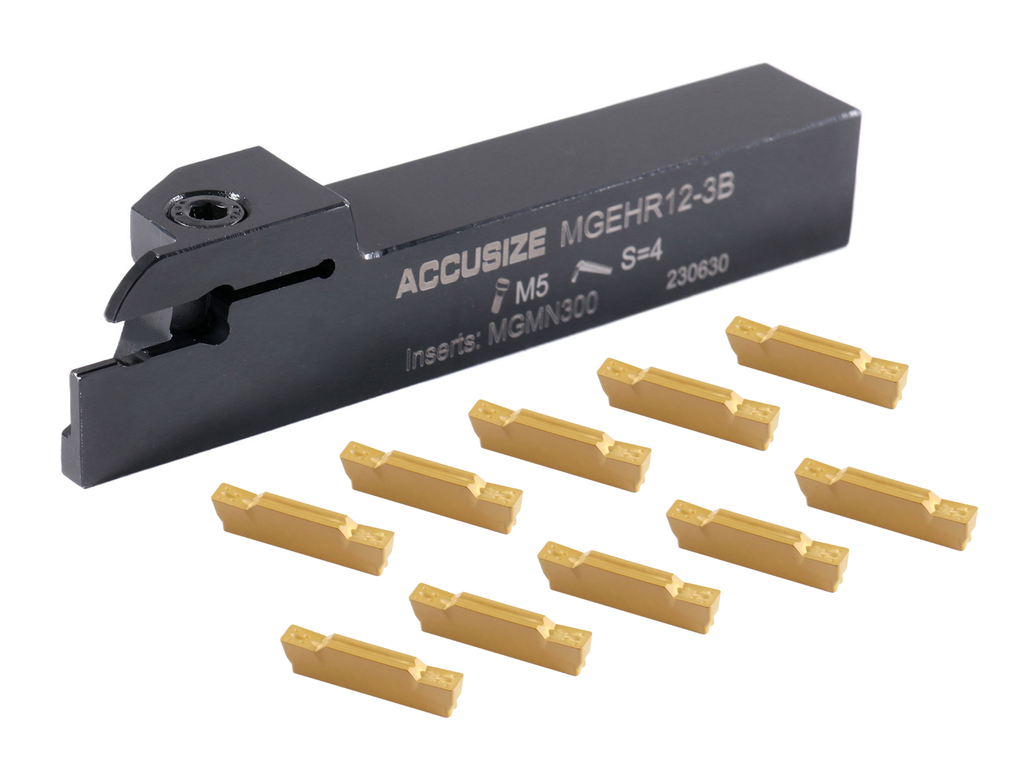

    2387-0006INS 3/4" x 3/4" MGEHR12-3B MGMN300 2403-4026 Steel

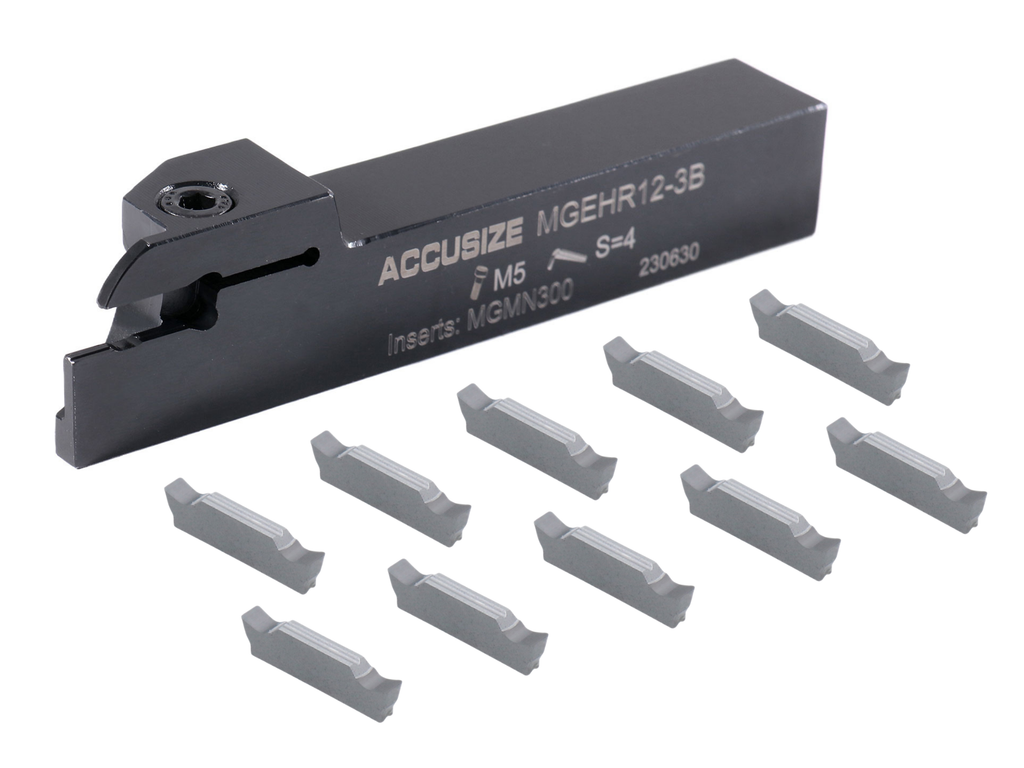

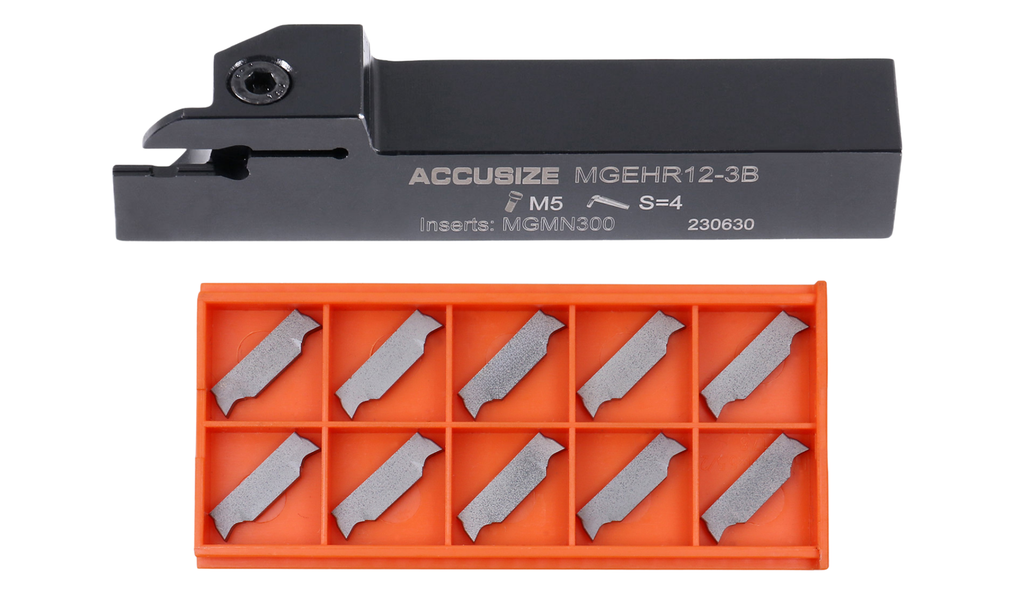

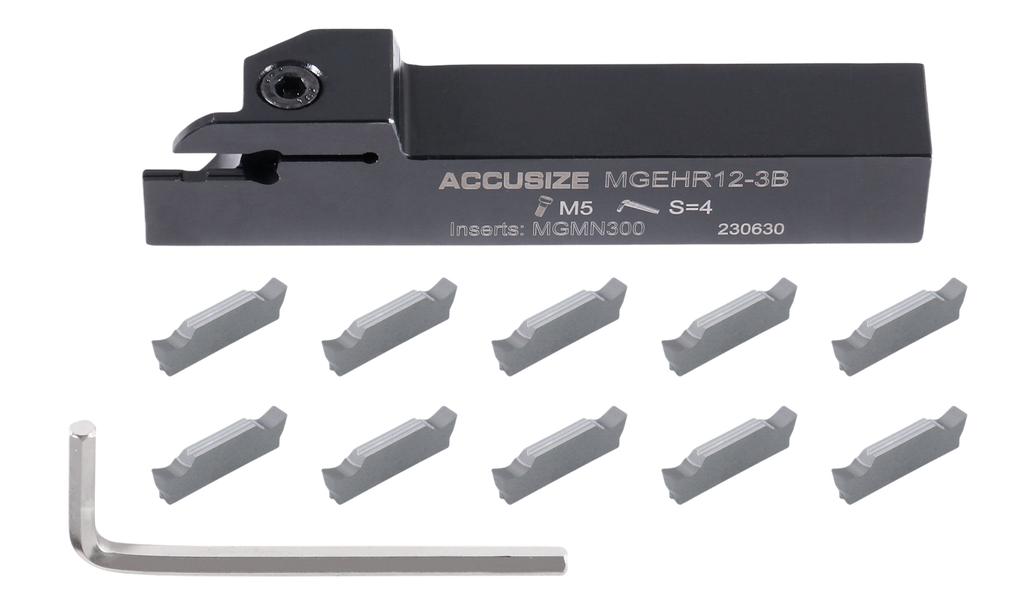

    2387-0006INSA 3/4" x 3/4" MGEHR12-3B MGGN300-LH 2403-4027 Aluminum

    Please note the cutting parameters are for reference only

    Cutting Parameters Feed Speed
    0.003~0.012in
    MGEHR04-2 Alloy Steel 23~43 in/min
    Low-Carbon Steel 31~59 in/min
    Carbon Steel HB200 39~78 in/min
    Carbon Steel HB200 39~59 in/min
    MGEHR06-2J Alloy Steel 196~360 ft/min
    Low-Carbon Steel 262~492 ft/min
    Carbon Steel HB200 328~656 ft/min
    Carbon Steel HB200 328~492 ft/min
    MGEHR08-2J Alloy Steel 196~360 ft/min
    Low-Carbon Steel 262~492 ft/min
    Carbon Steel HB200 328~656 ft/min
    Carbon Steel HB200 328~492 ft/min
    MGEHR10-3B Alloy Steel 196~360 ft/min
    Low-Carbon Steel 262~492 ft/min
    Carbon Steel HB200 328~656 ft/min
    Carbon Steel HB200 328~492 ft/min
    MGEHR12-3B Alloy Steel 196~360 ft/min
    Low-Carbon Steel 262~492 ft/min
    Carbon Steel HB200 328~656 ft/min
    Carbon Steel HB200 328~492 ft/min

    Specification

    Item Shank Size  Tool Holder Tool Holder Size
    (H x B)
    OAL
    (L)
    Insert Insert Screw  F T W Maximum Depth
    (D)
    Insert SKU(Insert Not Included)
    2387-2001 1/4" MGEHR04-2 1/4" x 3/8" 3" MGMN200 M4 x 10 0.383" 0.295" 0.079" 0.295" TiN Coated MGMN200, 2403-4022
    2387-2003 3/8" MGEHR06-2J 3/8" x 3/8" 3-1/2" MGMN200 M4 x 10 0.383" 0.295" 0.079" 0.295"
    2387-2004 1/2" MGEHR08-2J 1/2" x 1/2" 3-1/2" MGMN200 M4 x 10 0.508" 0.433" 0.079" 0.433"
    2387-2005 5/8" MGEHR10-3B 5/8" x 5/8" 4-1/2" MGMN300 M5 x 12 0.637" 0.512" 0.118" 0.512" TiN Coated MGMN300, 2403-4026
    2387-2006 3/4" MGEHR12-3B 3/4" x 3/4" 4-1/2" MGMN300 M5 x 14 0.762" 0.689" 0.118" 0.689"
