M42 (HSS+8% Cobalt) Finishing CNC End Mills, 4 Flute, TiAlN Coating


Price:
$17.22

Shipping calculated at checkout

Currency:
USD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

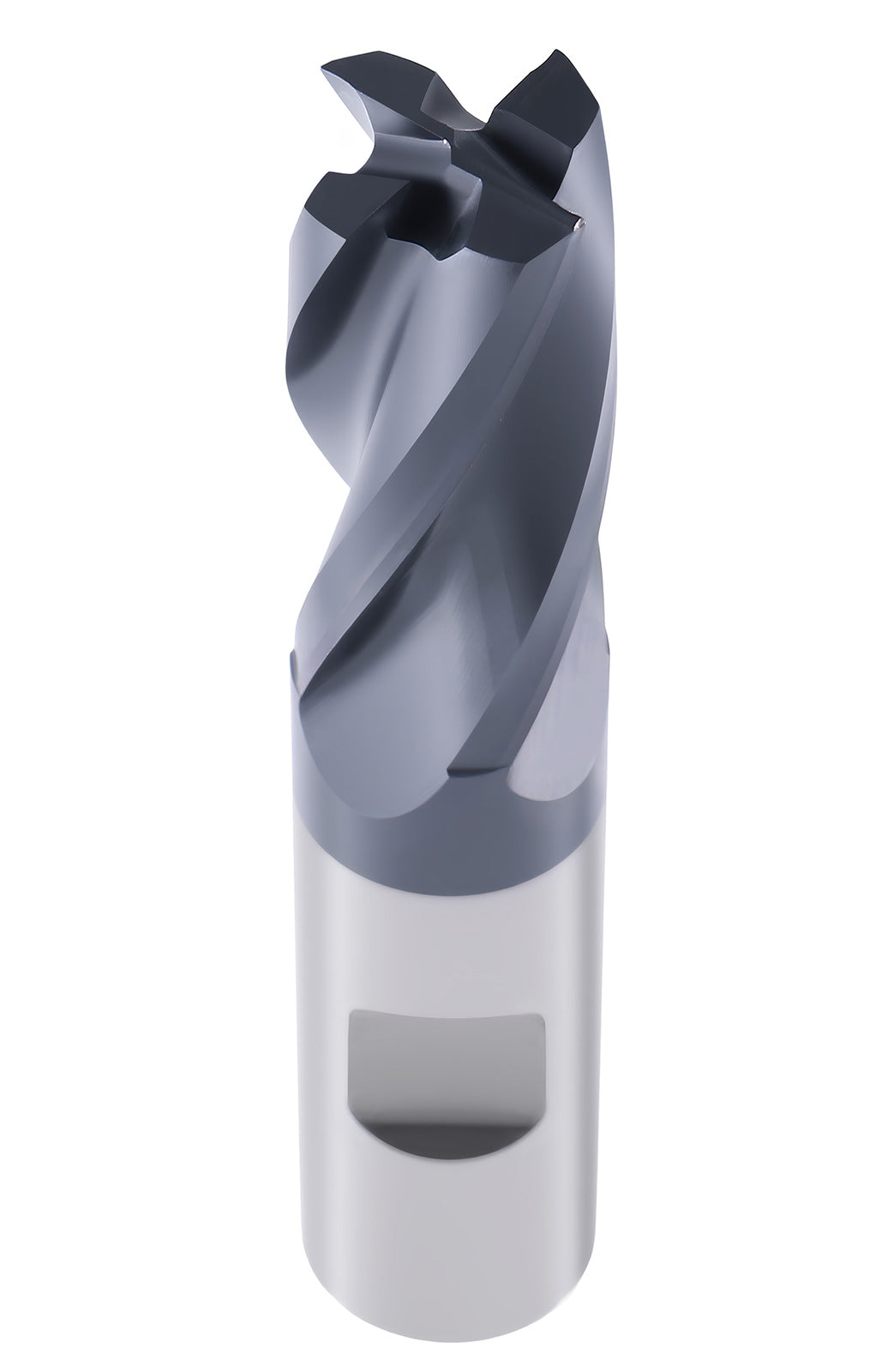

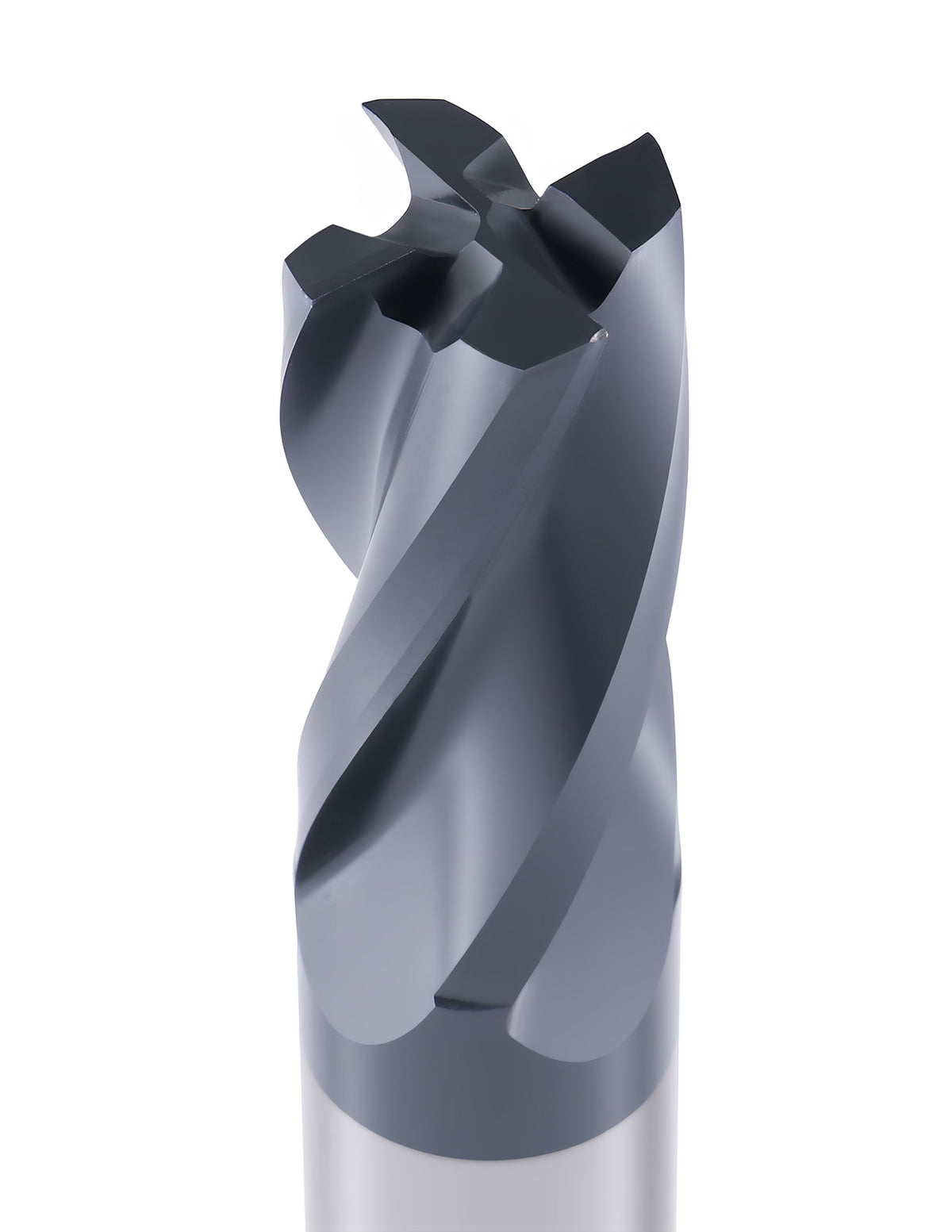

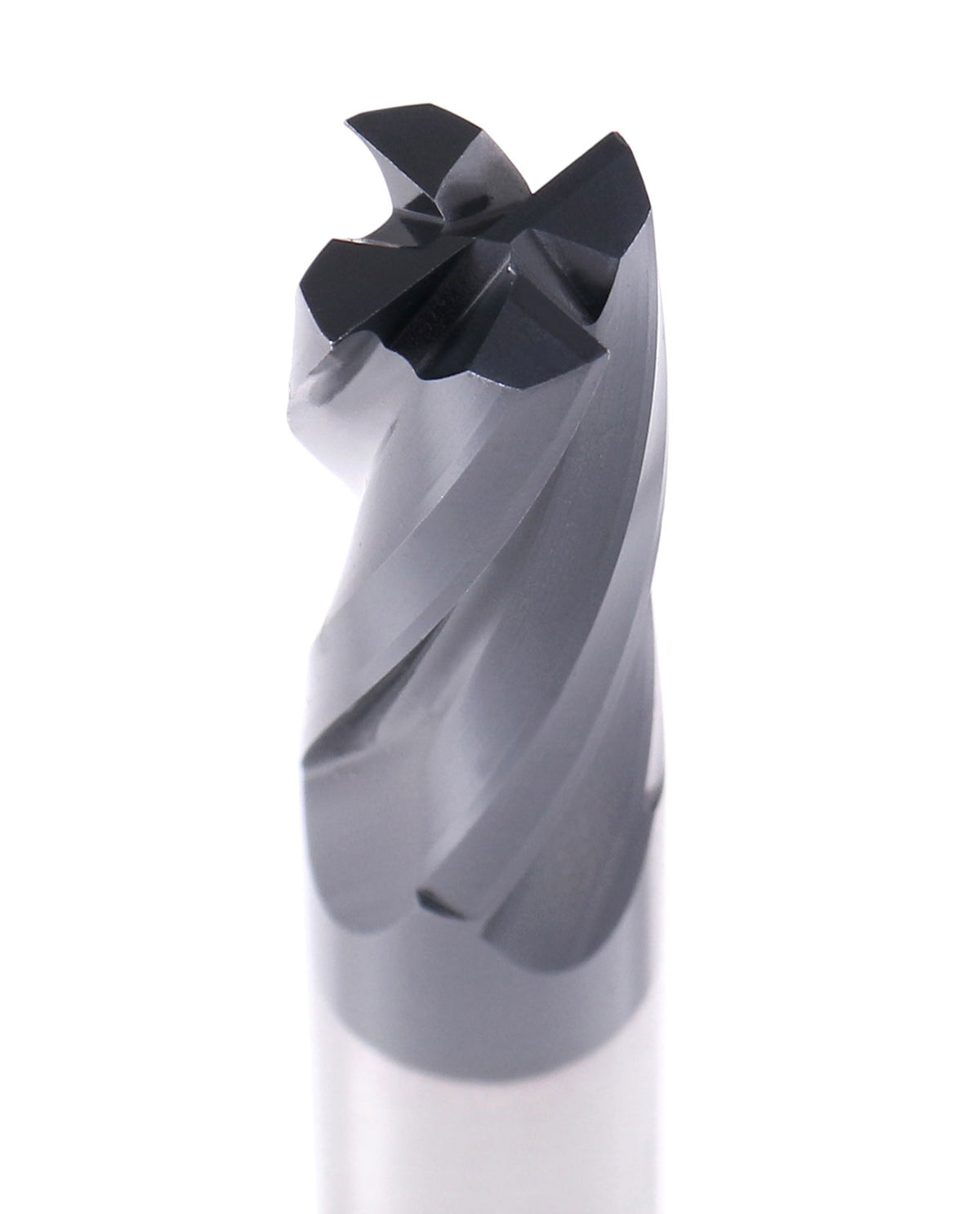

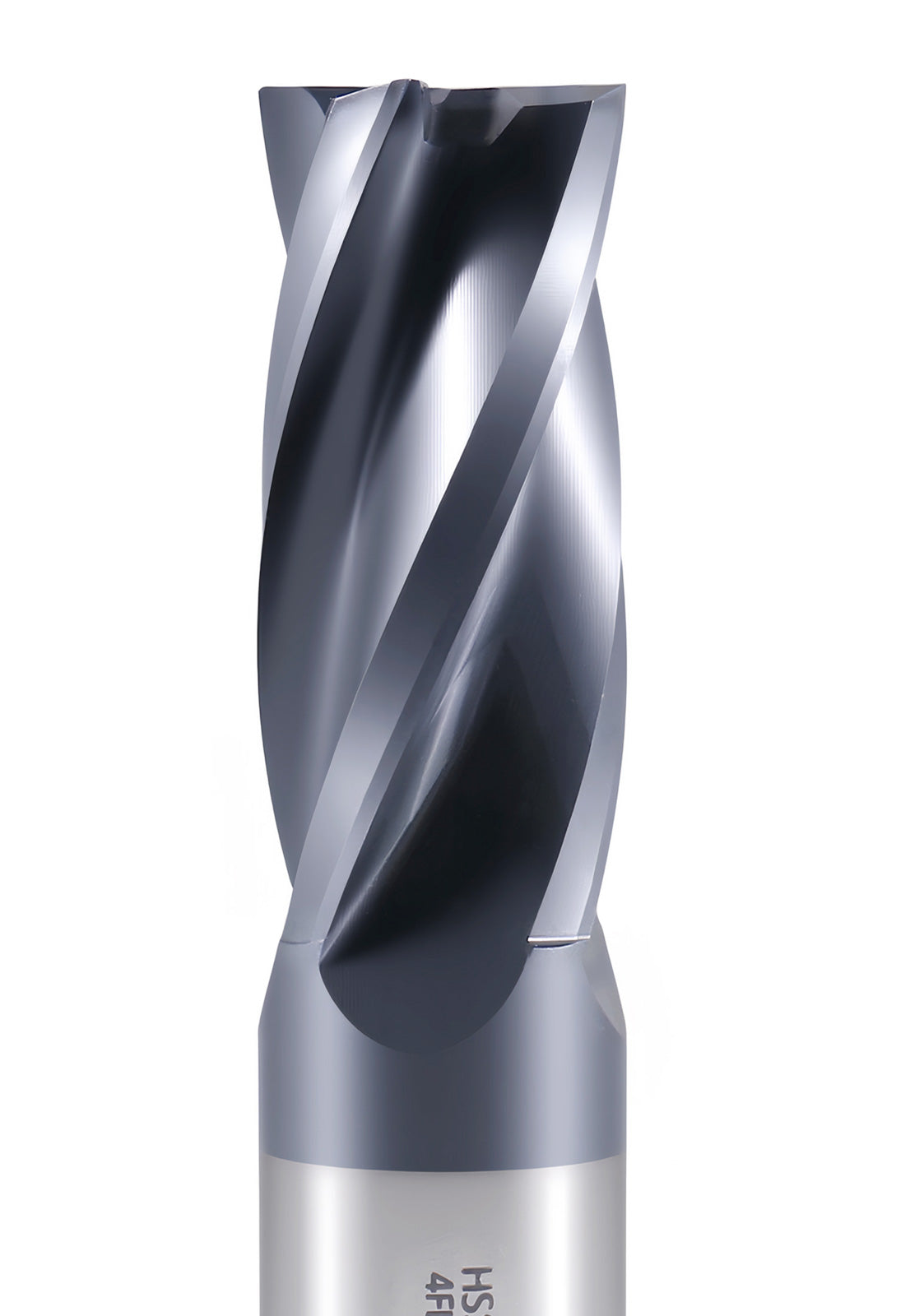

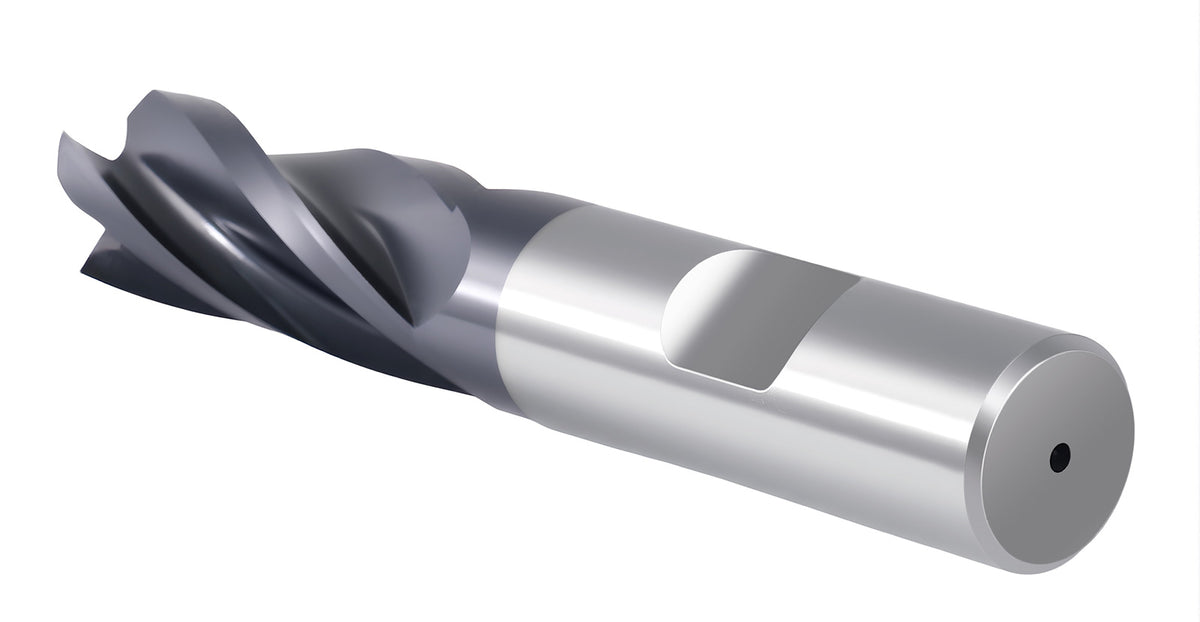

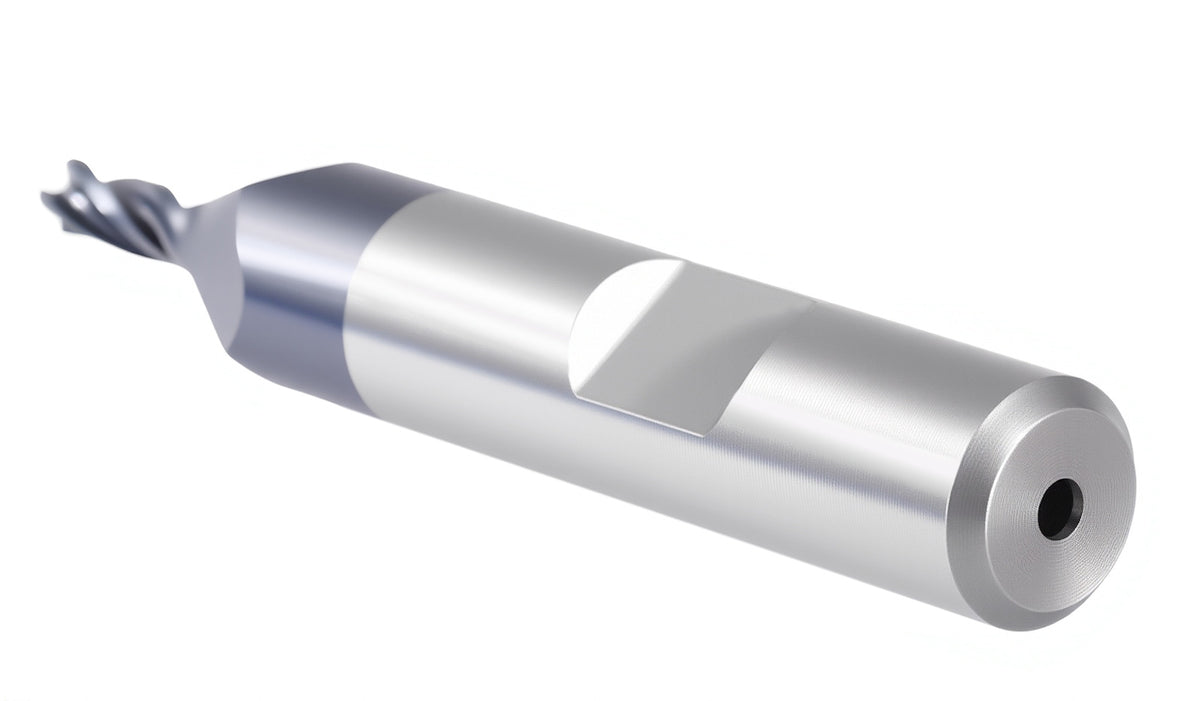

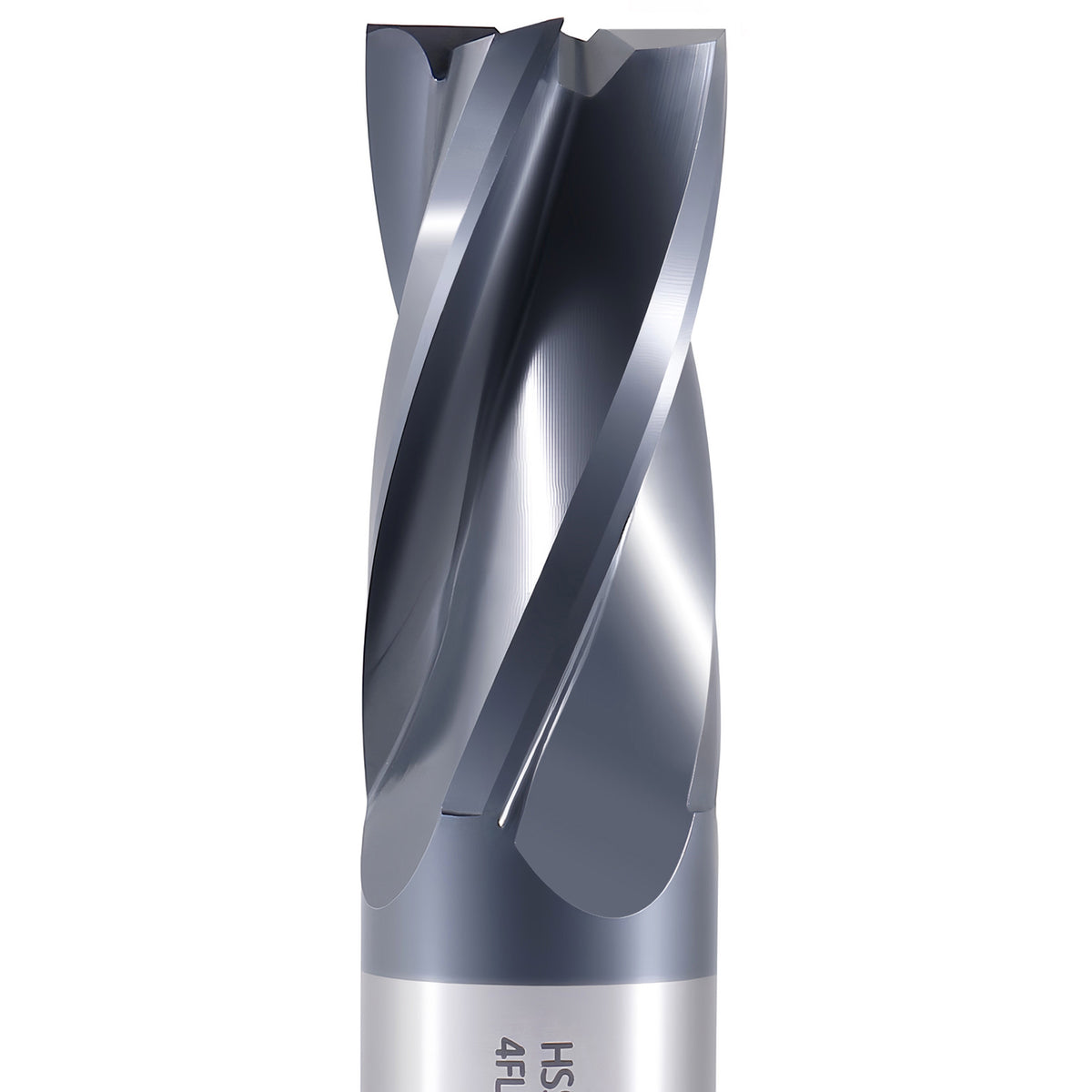

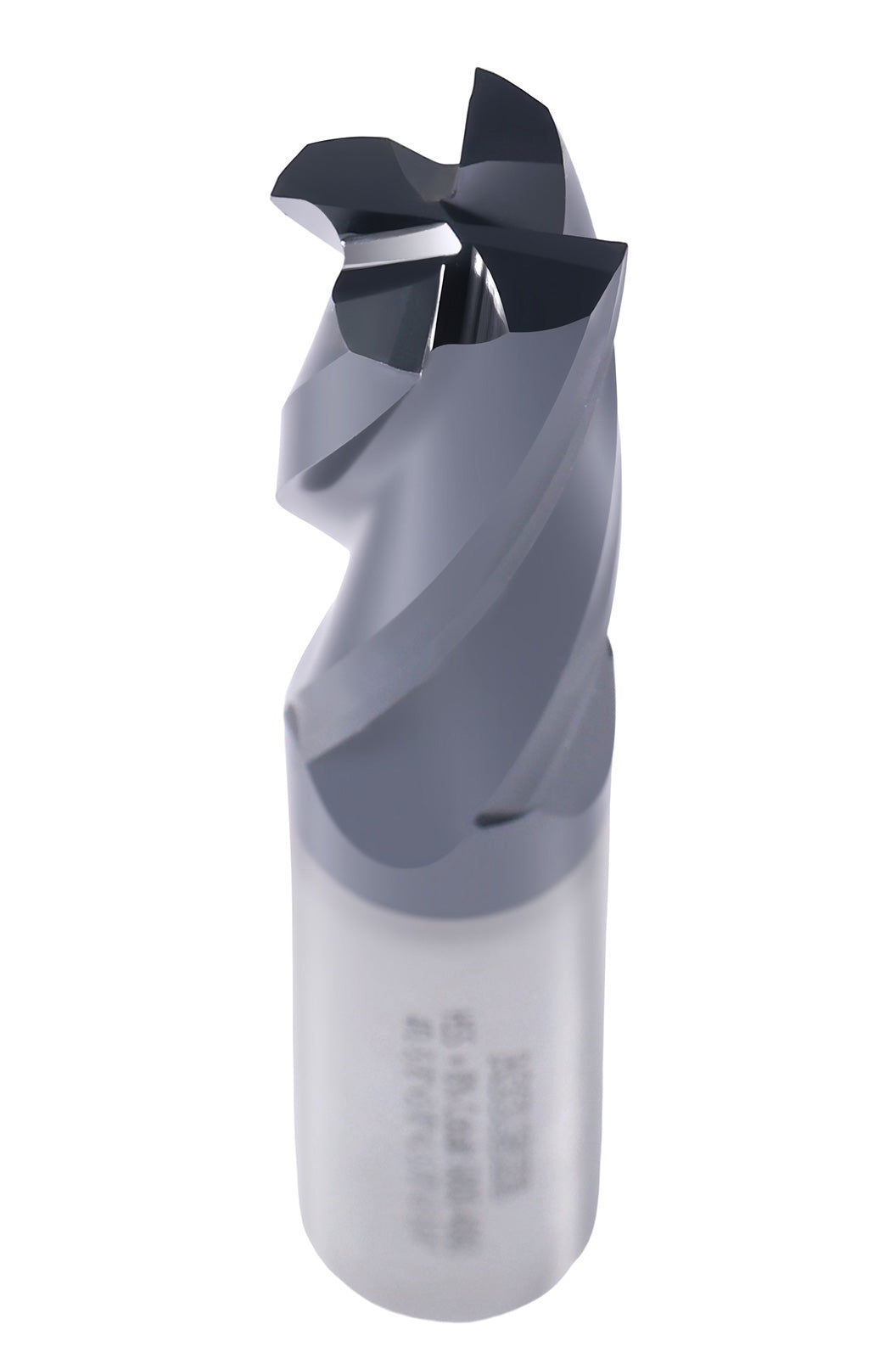

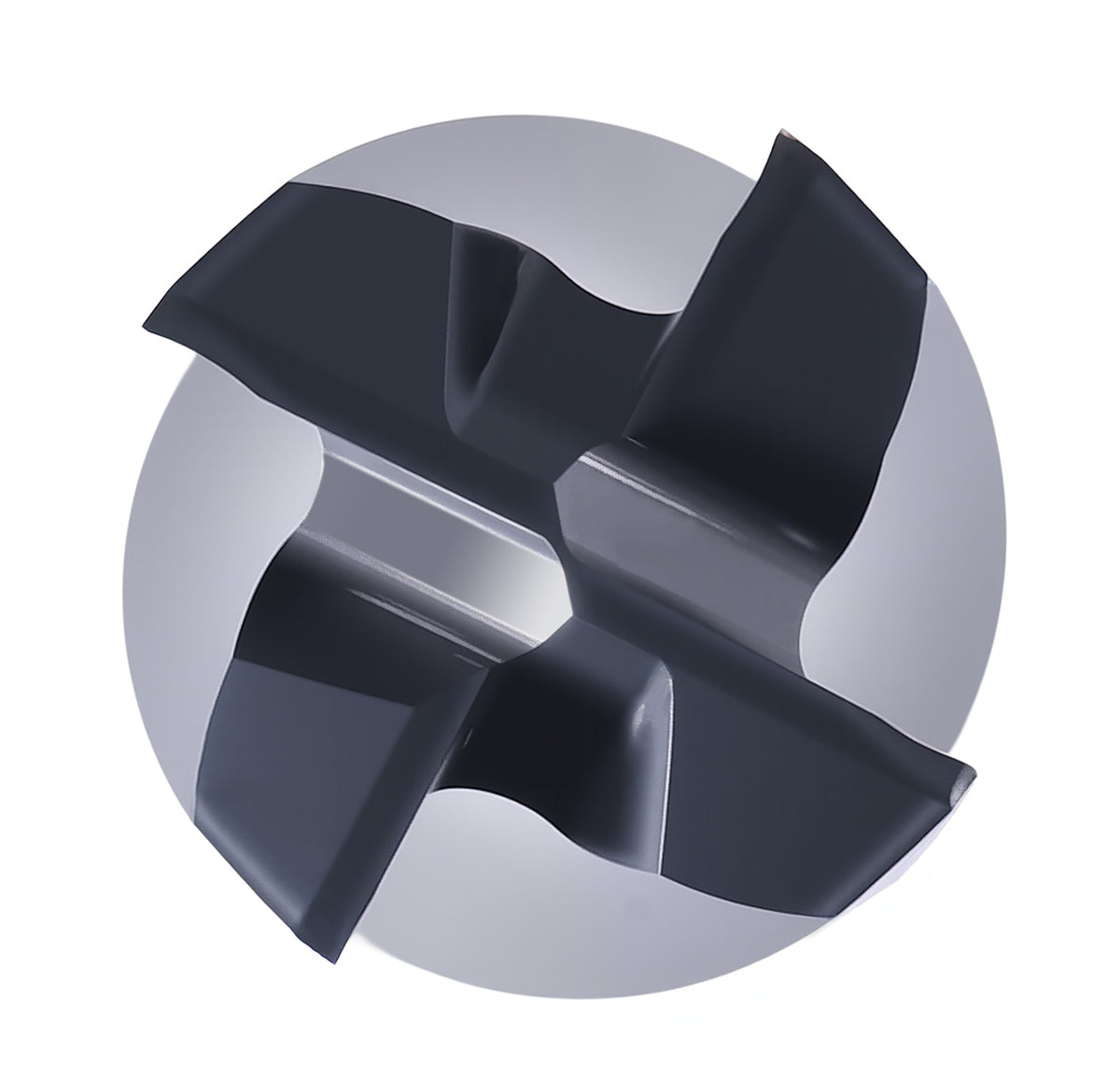

M42 (HSS+8% Cobalt) Finishing CNC End Mill, 4 Flute, TiAlN Coating

  • TiAlN Coated
  • Single end
  • Center cutting
  • M42-8% Premium cobalt
  • Flutes ground by a world-class IS-9002 Factory, CNC Qualified
Item # Dia. Shk. Dia. Flt. Length Oal.

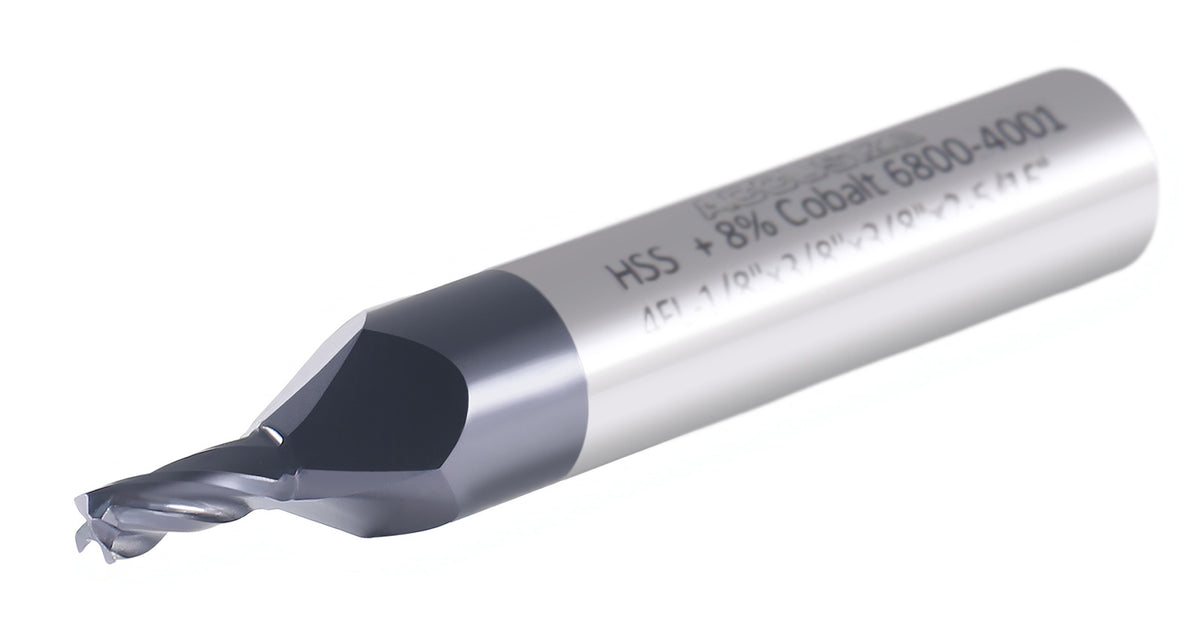

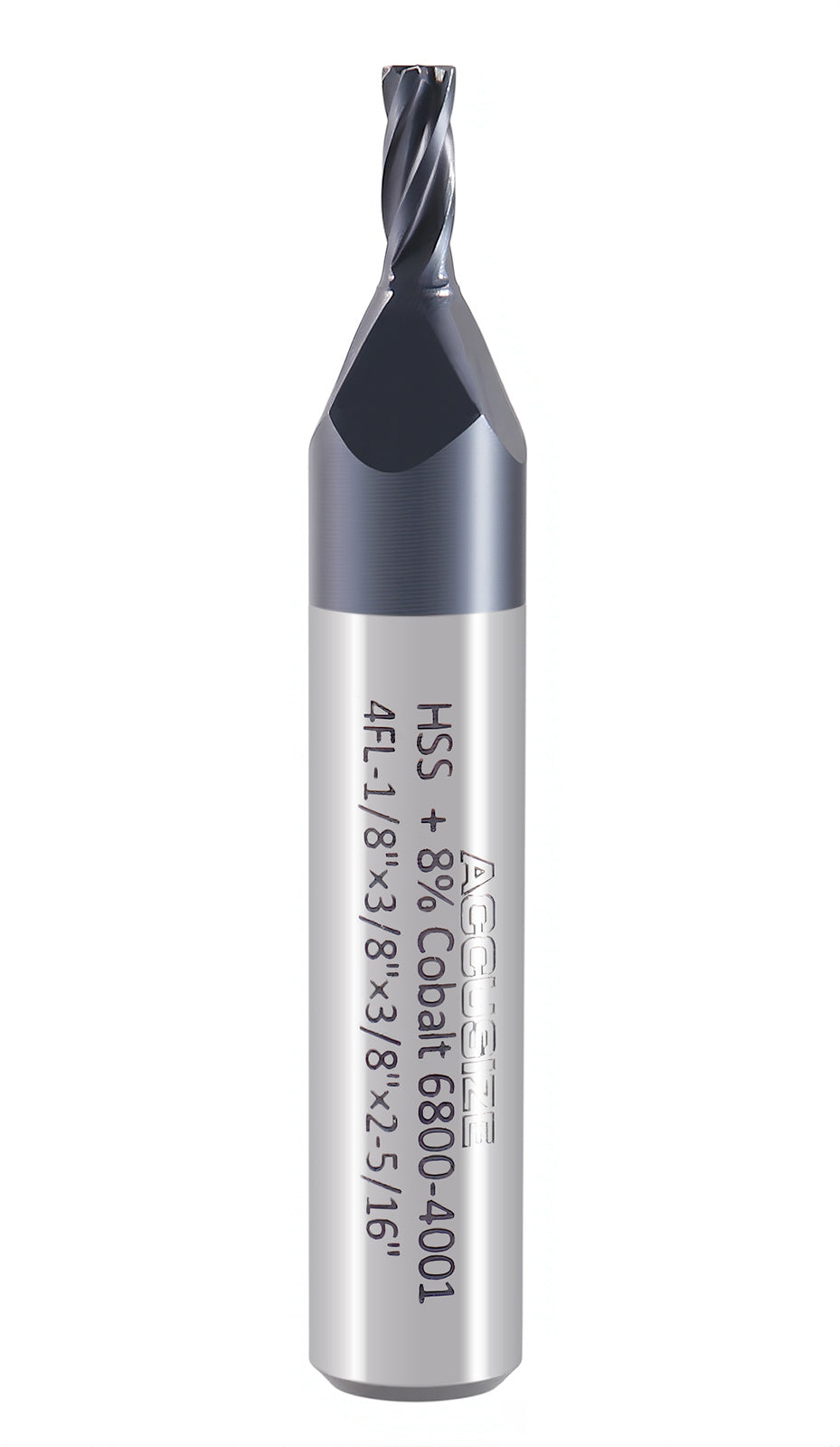

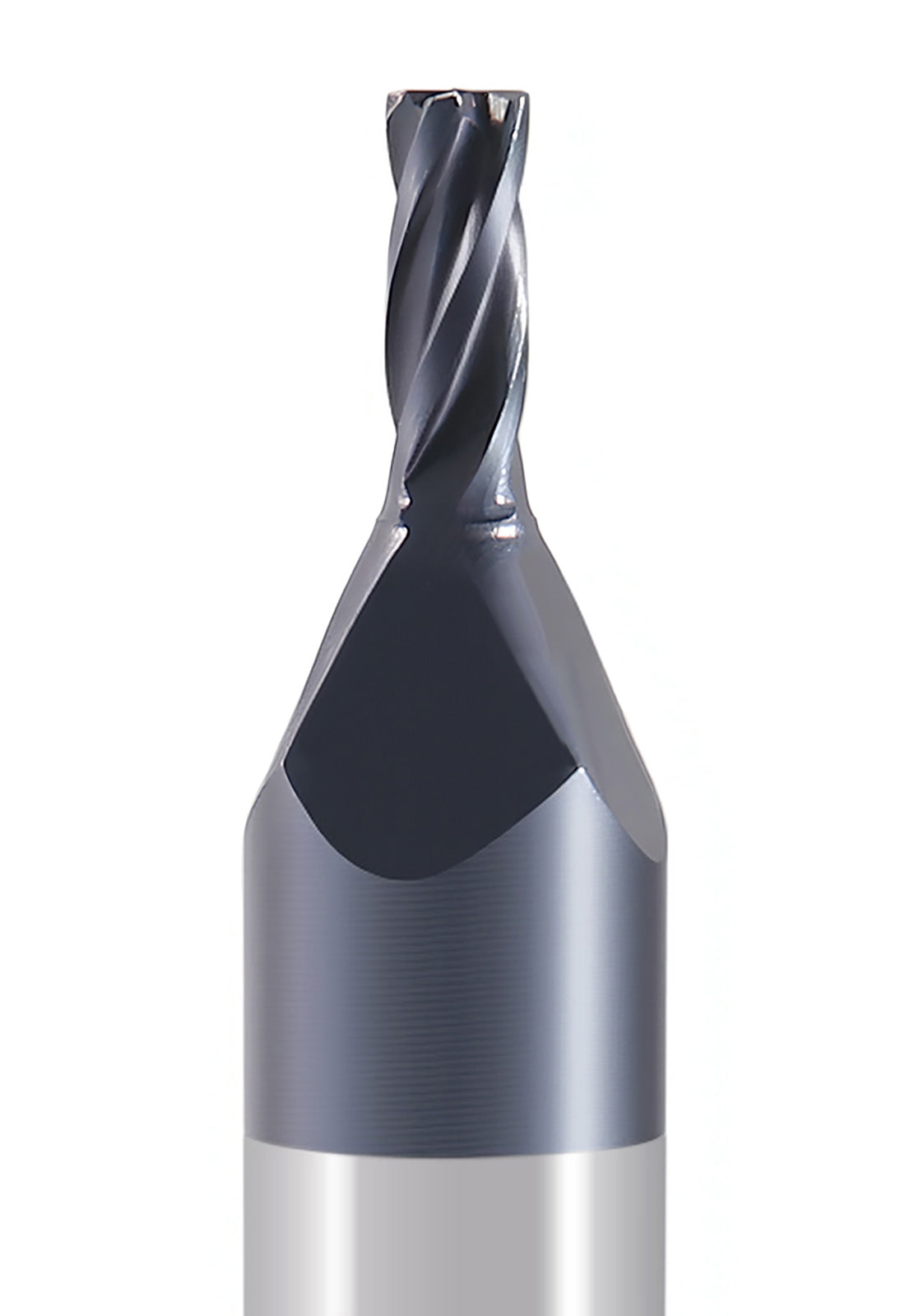

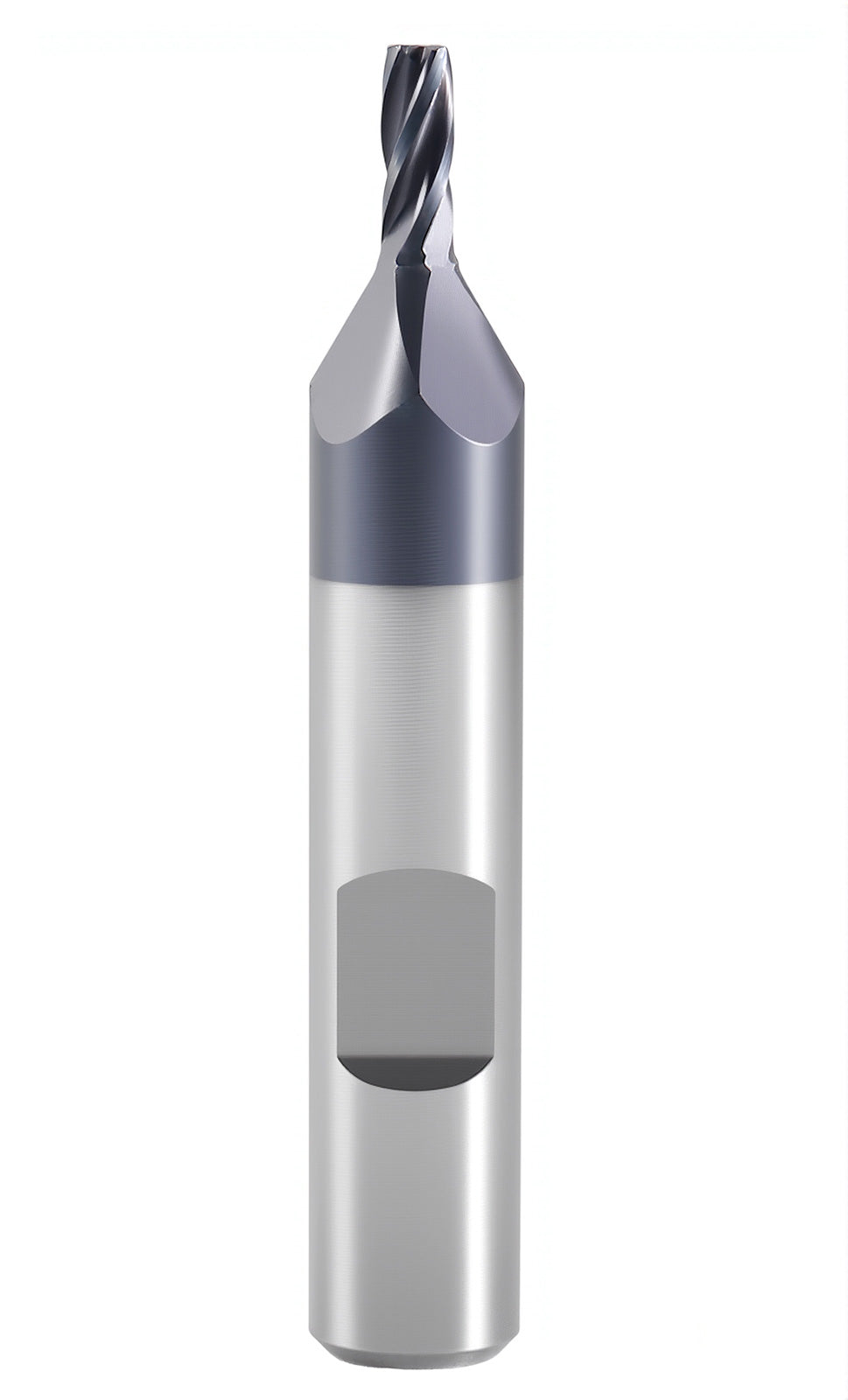

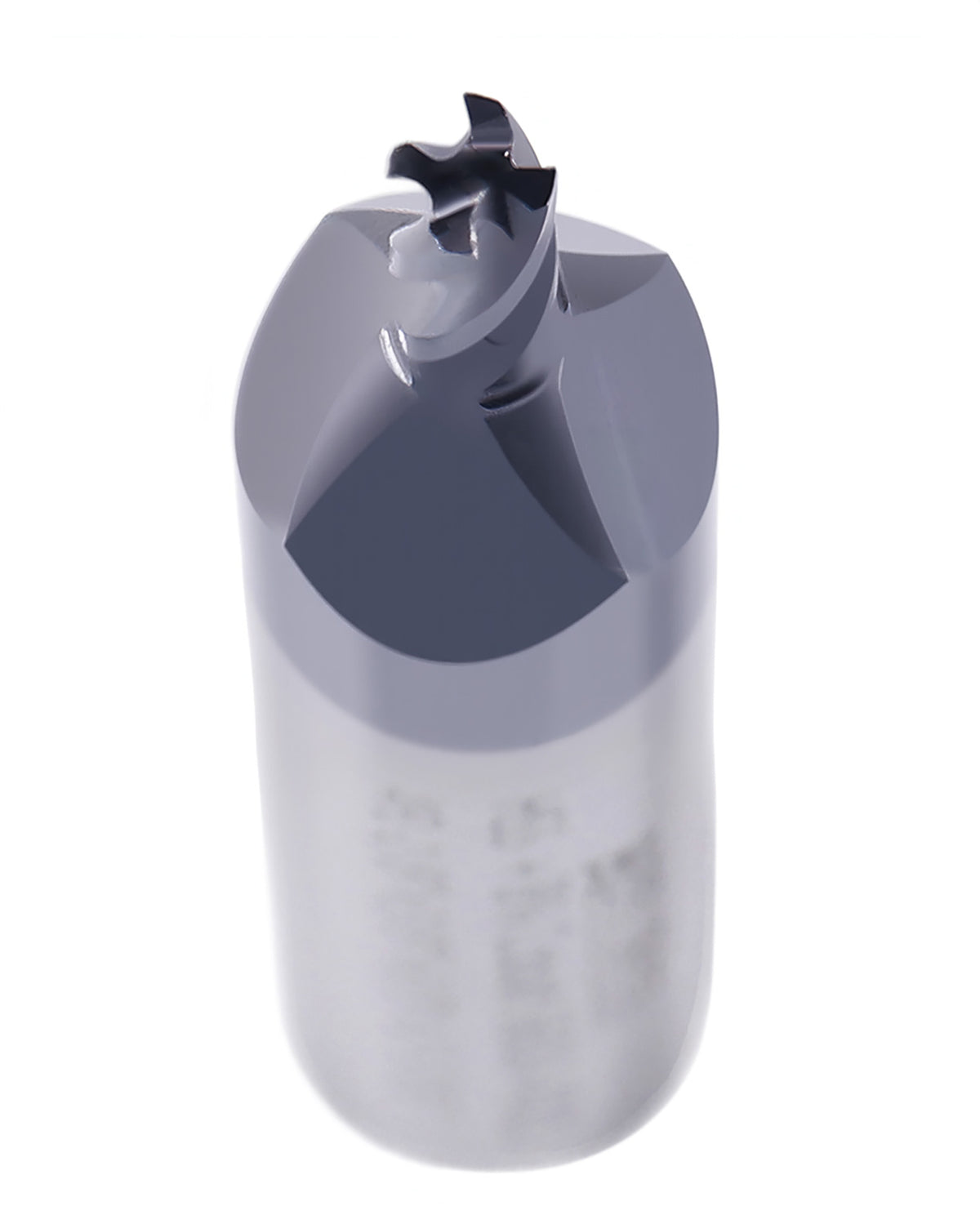

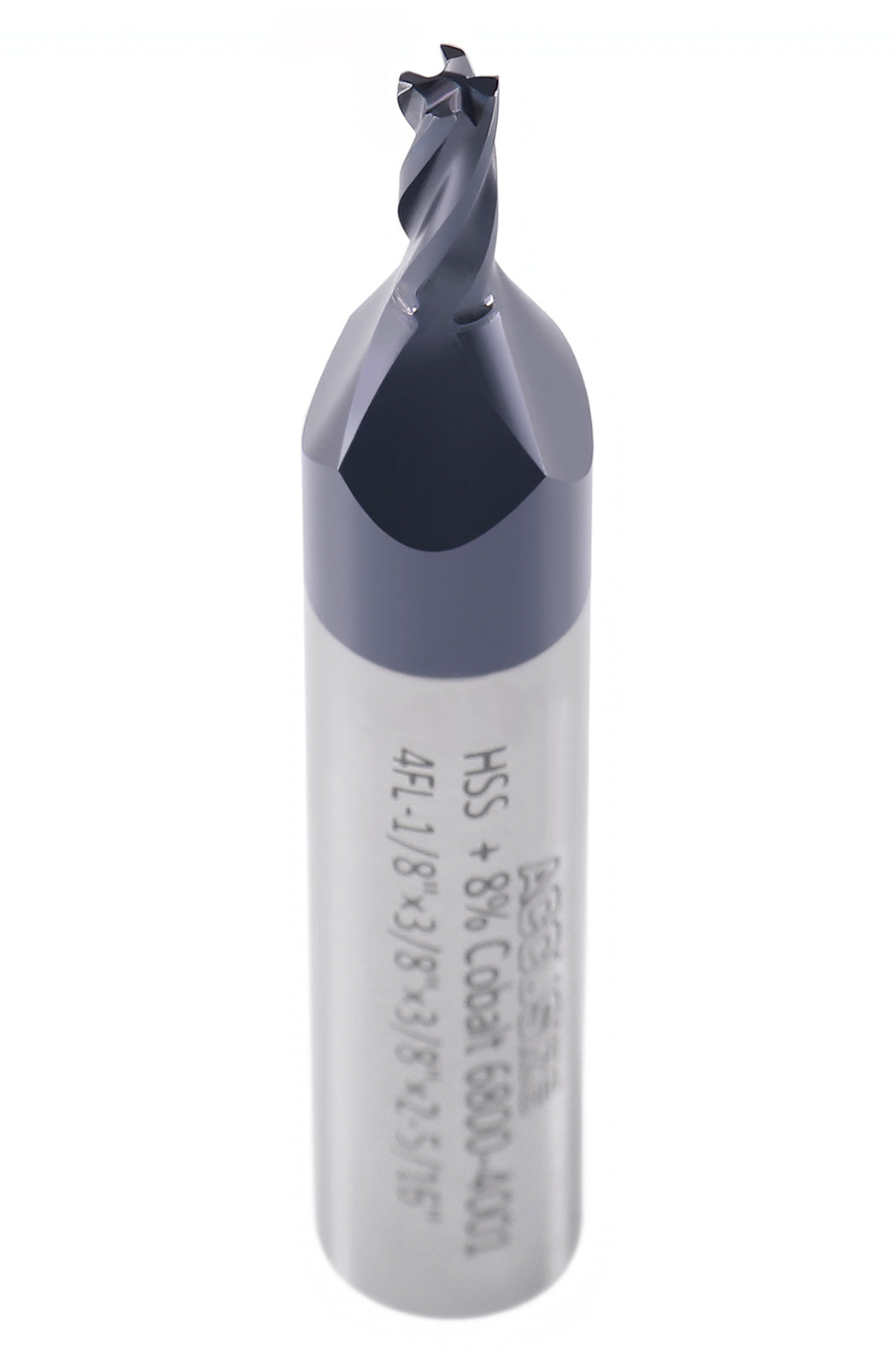

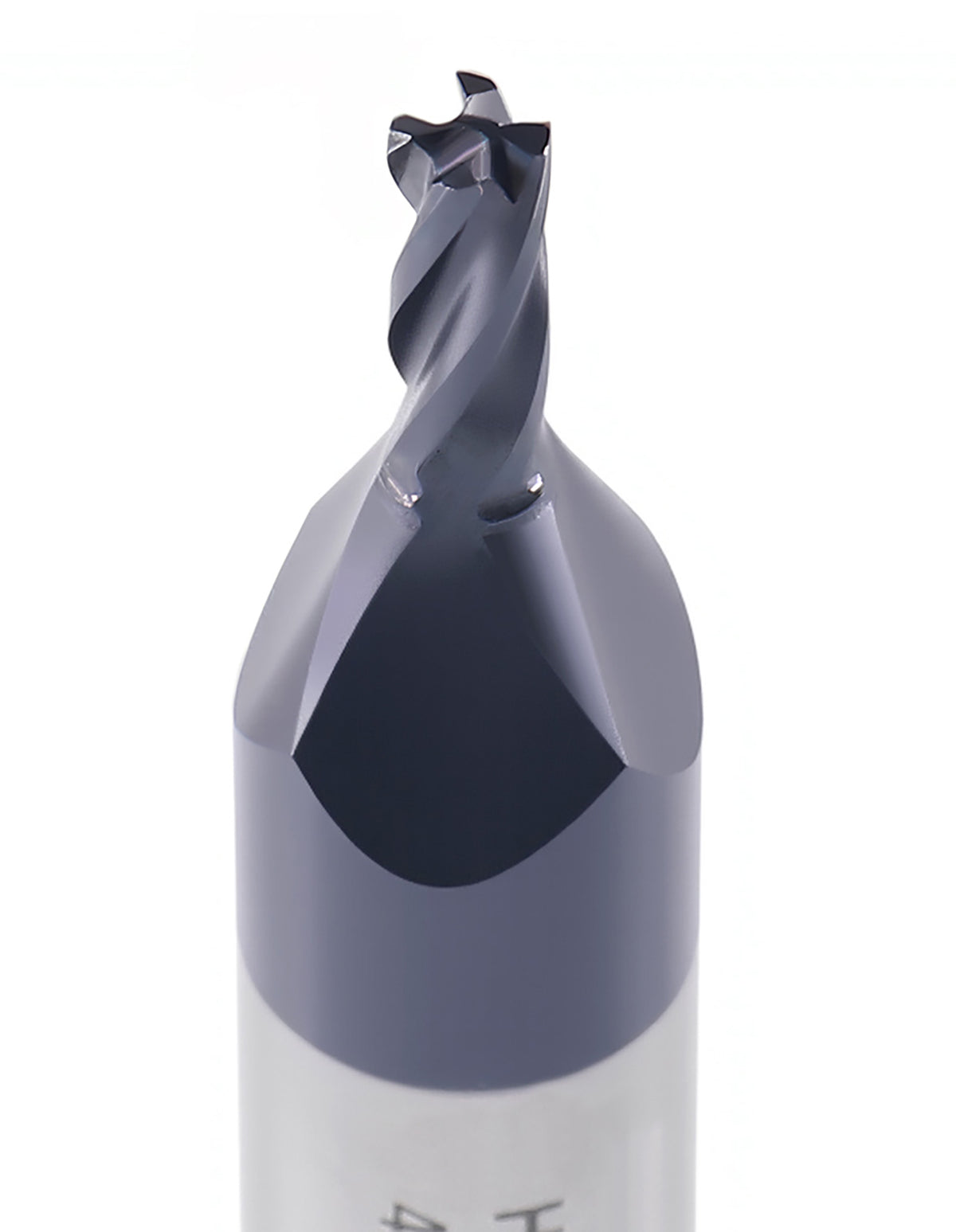

6800-4001 1/8" 3/8" 3/8" 2-5/16"

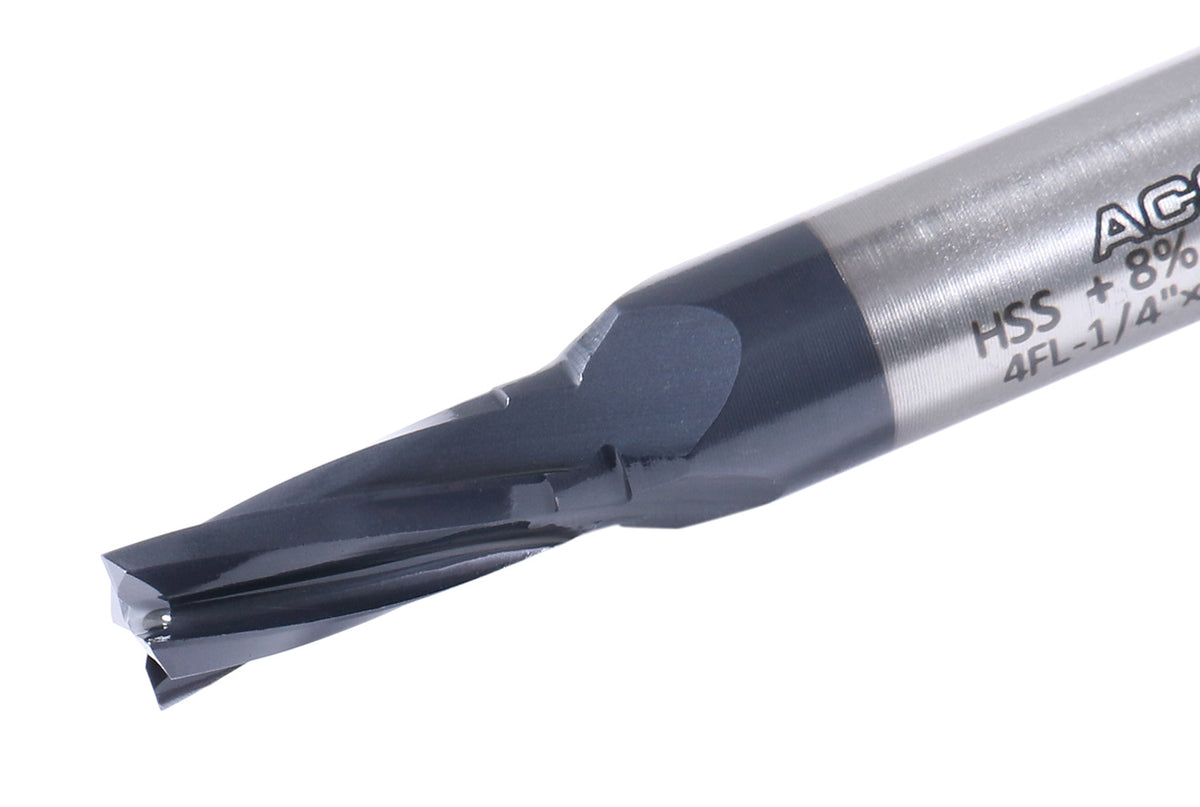

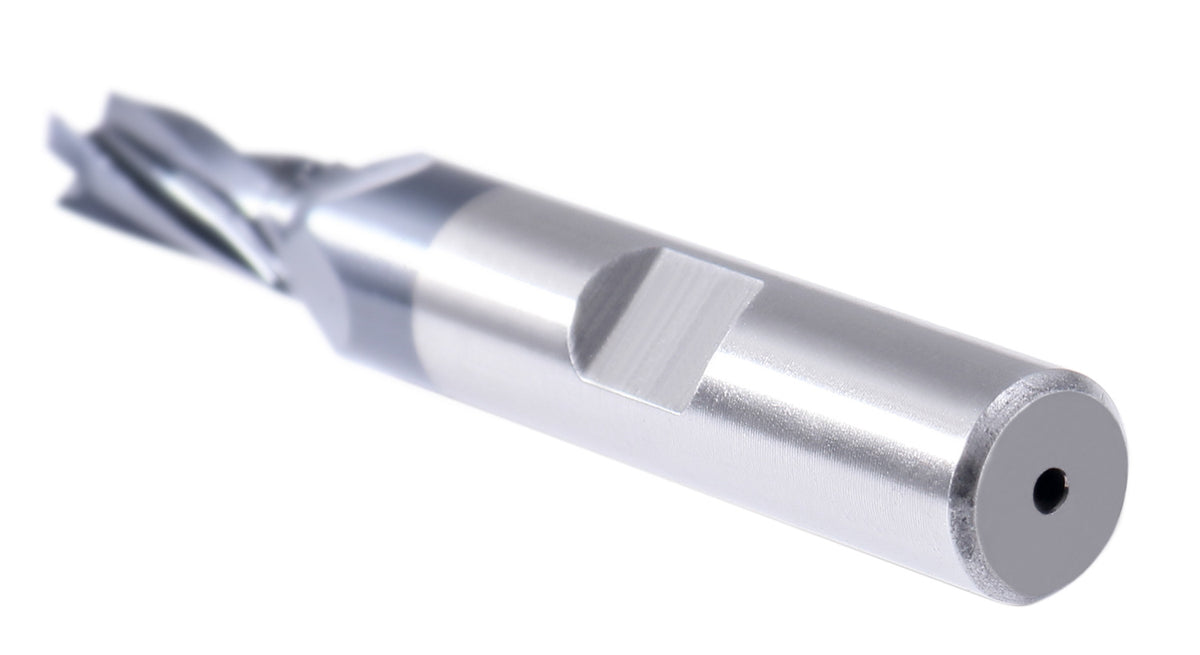

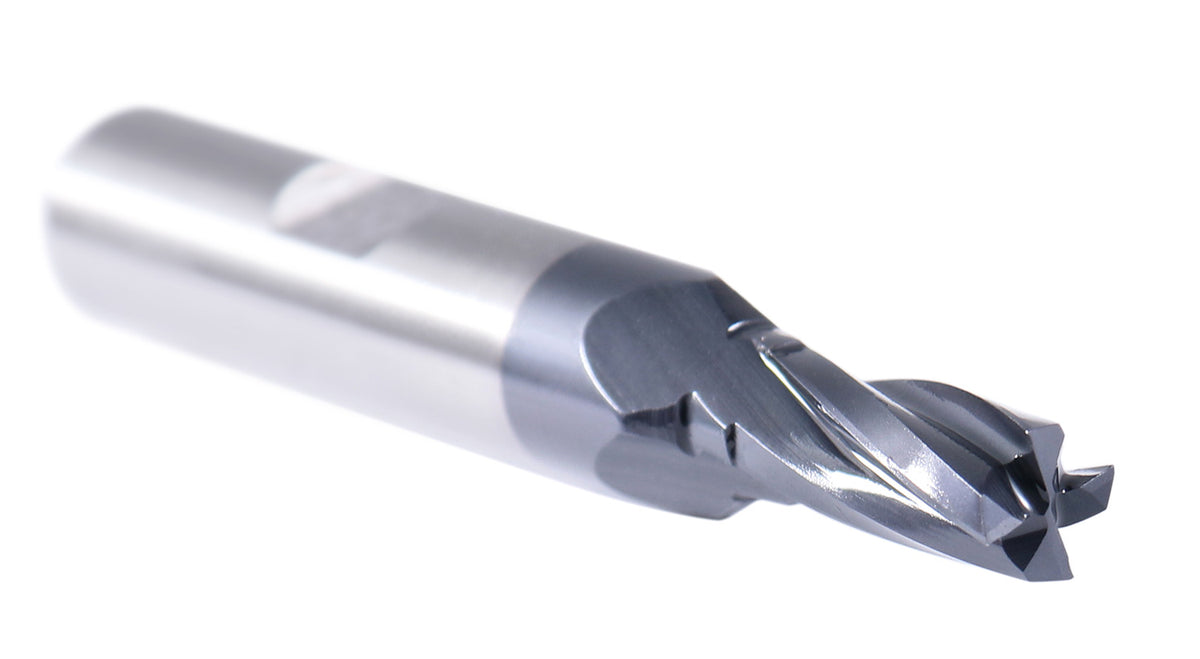

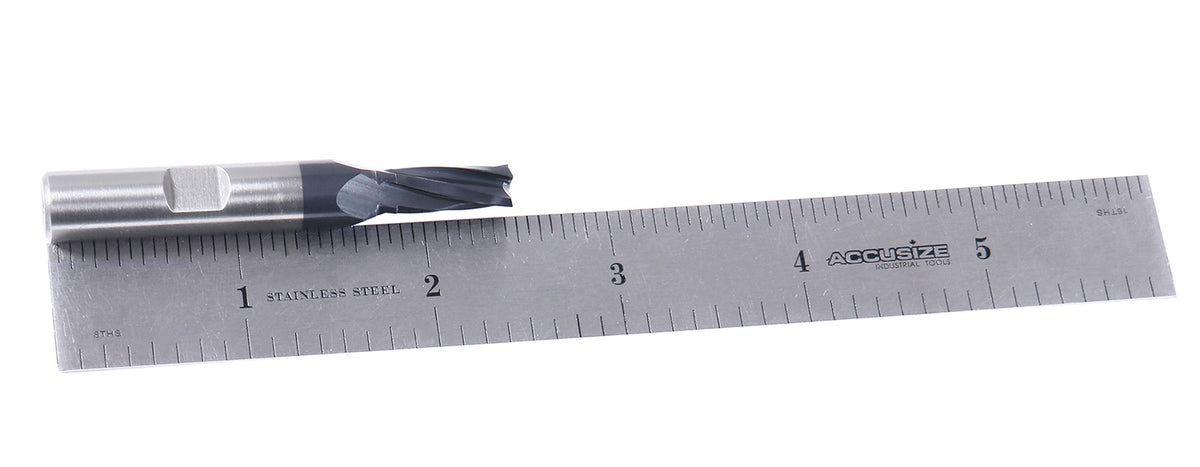

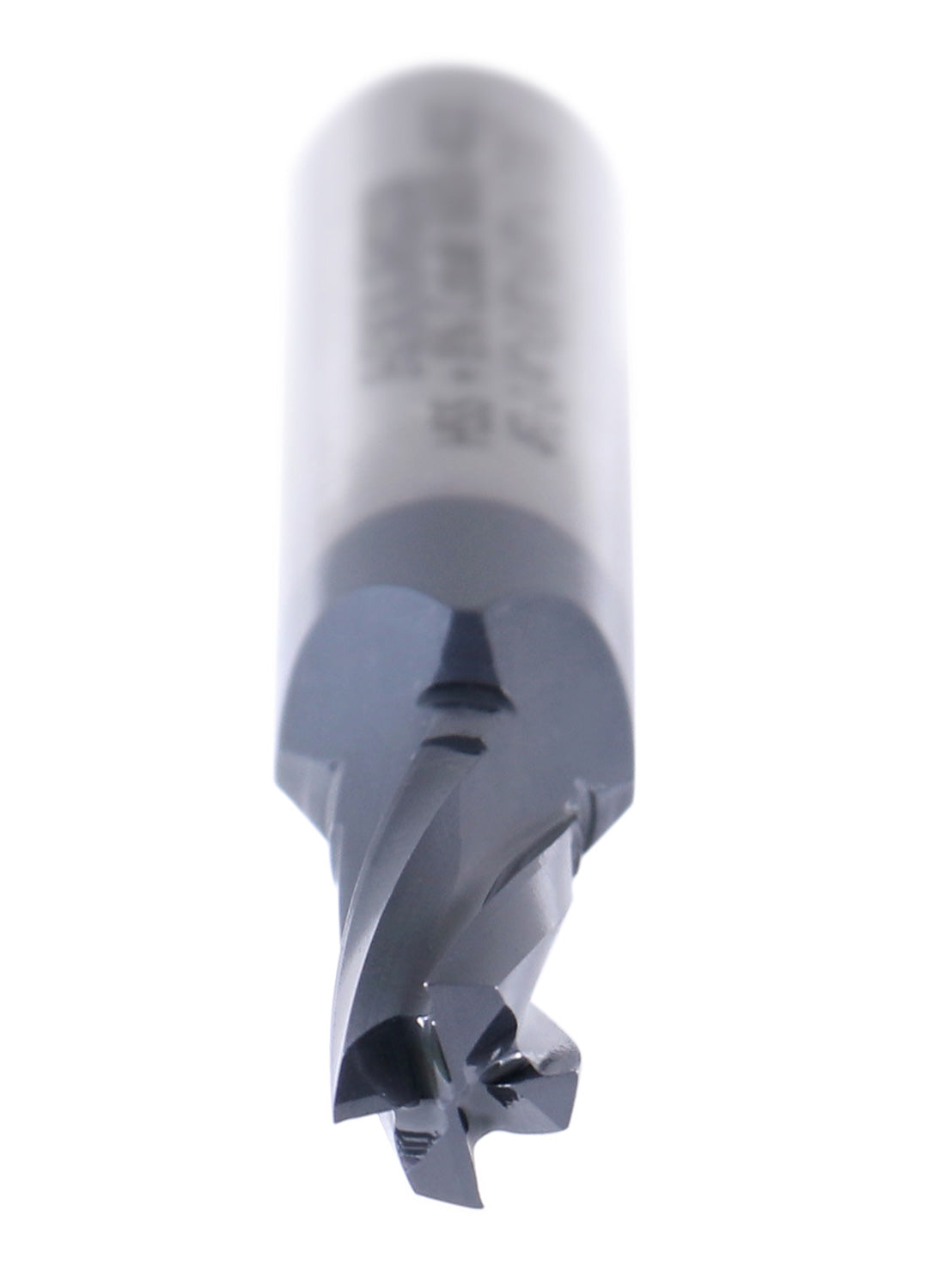

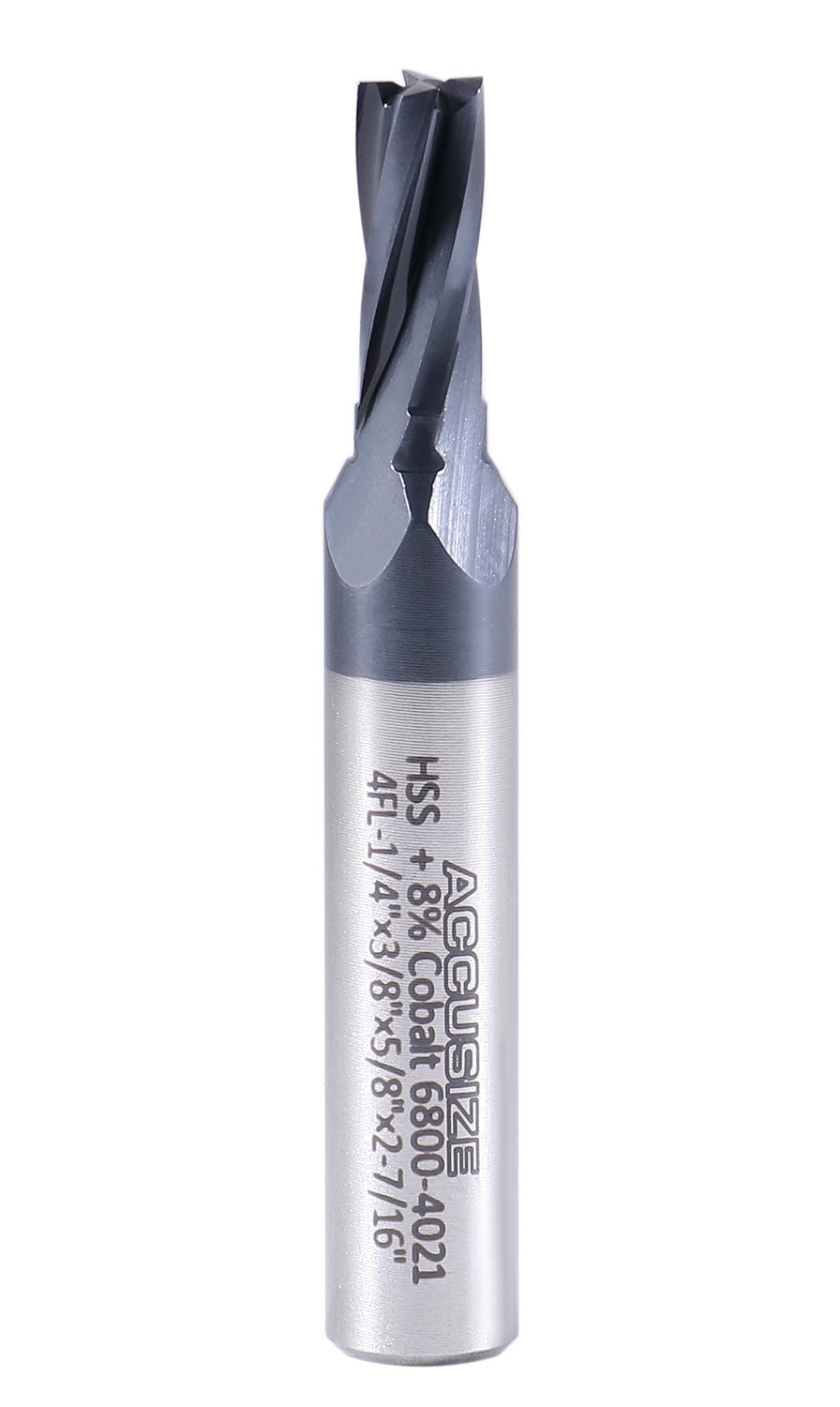

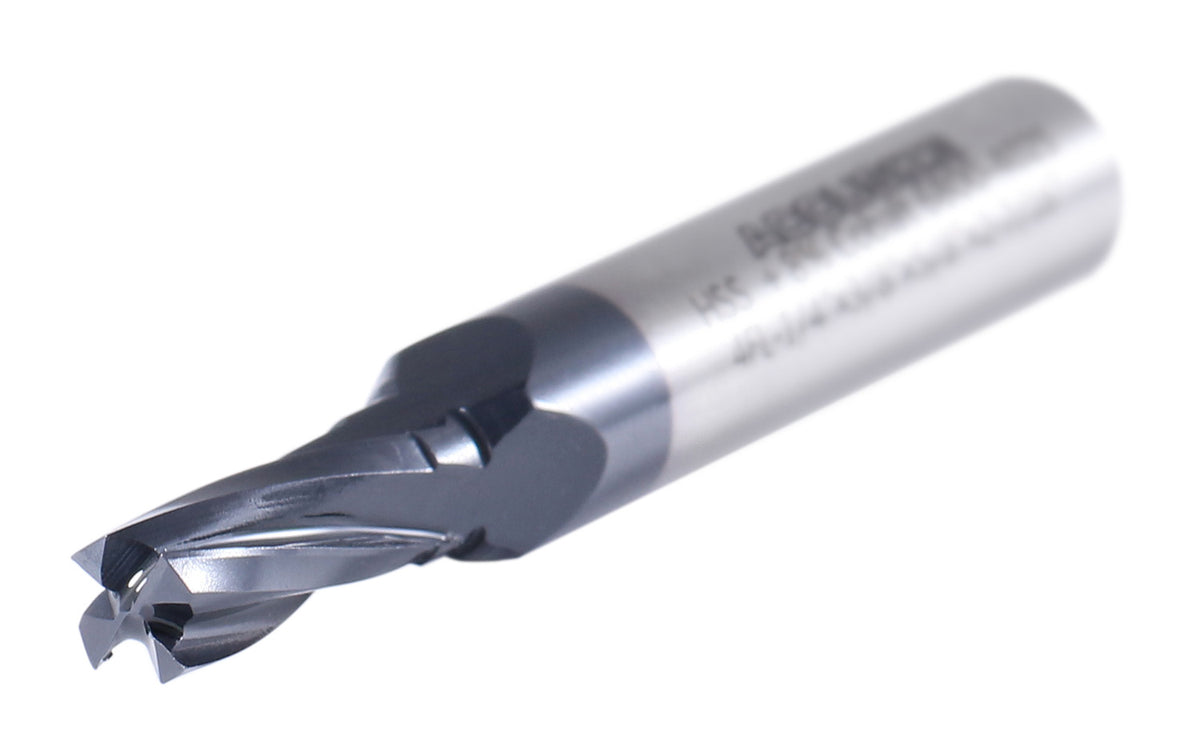

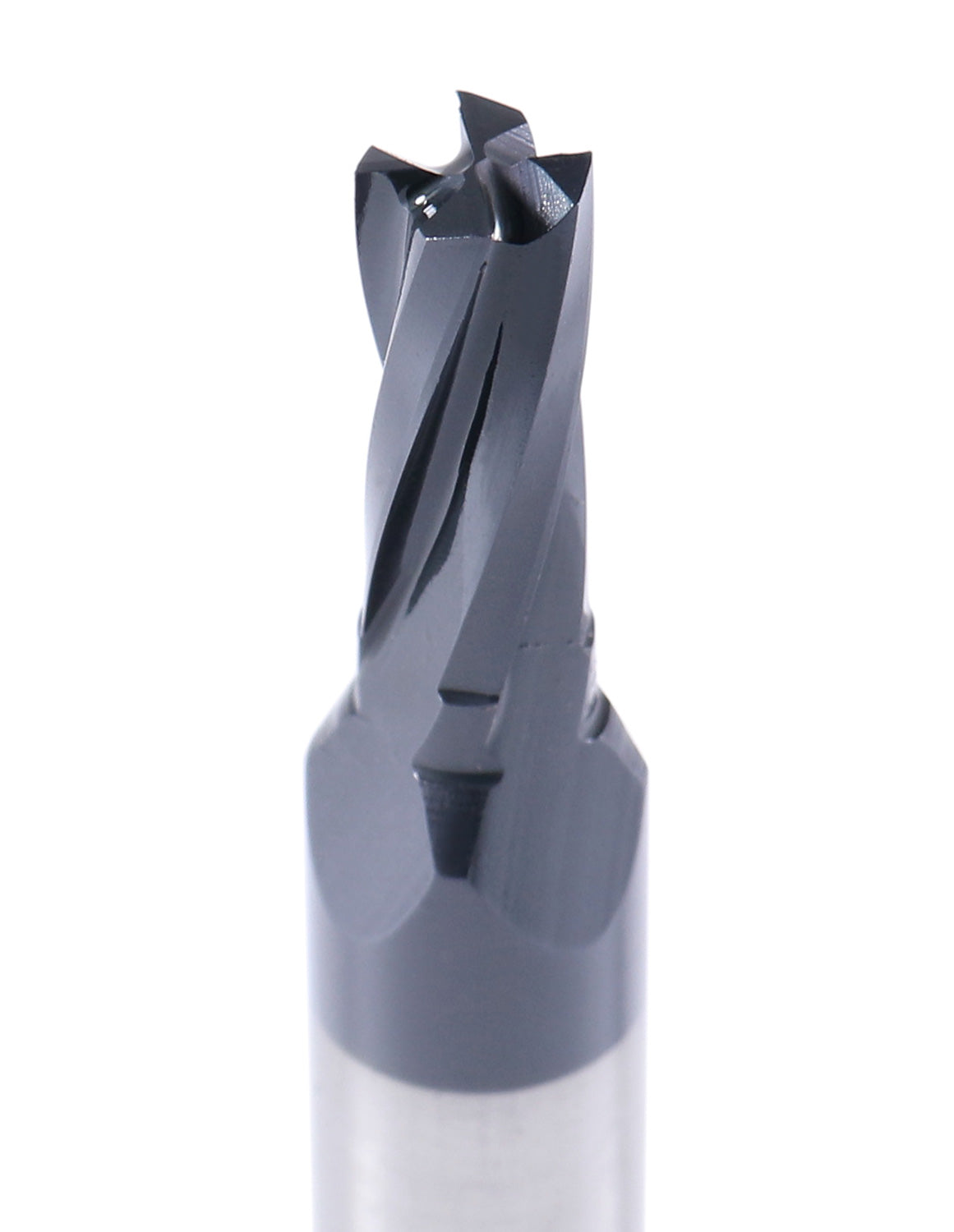

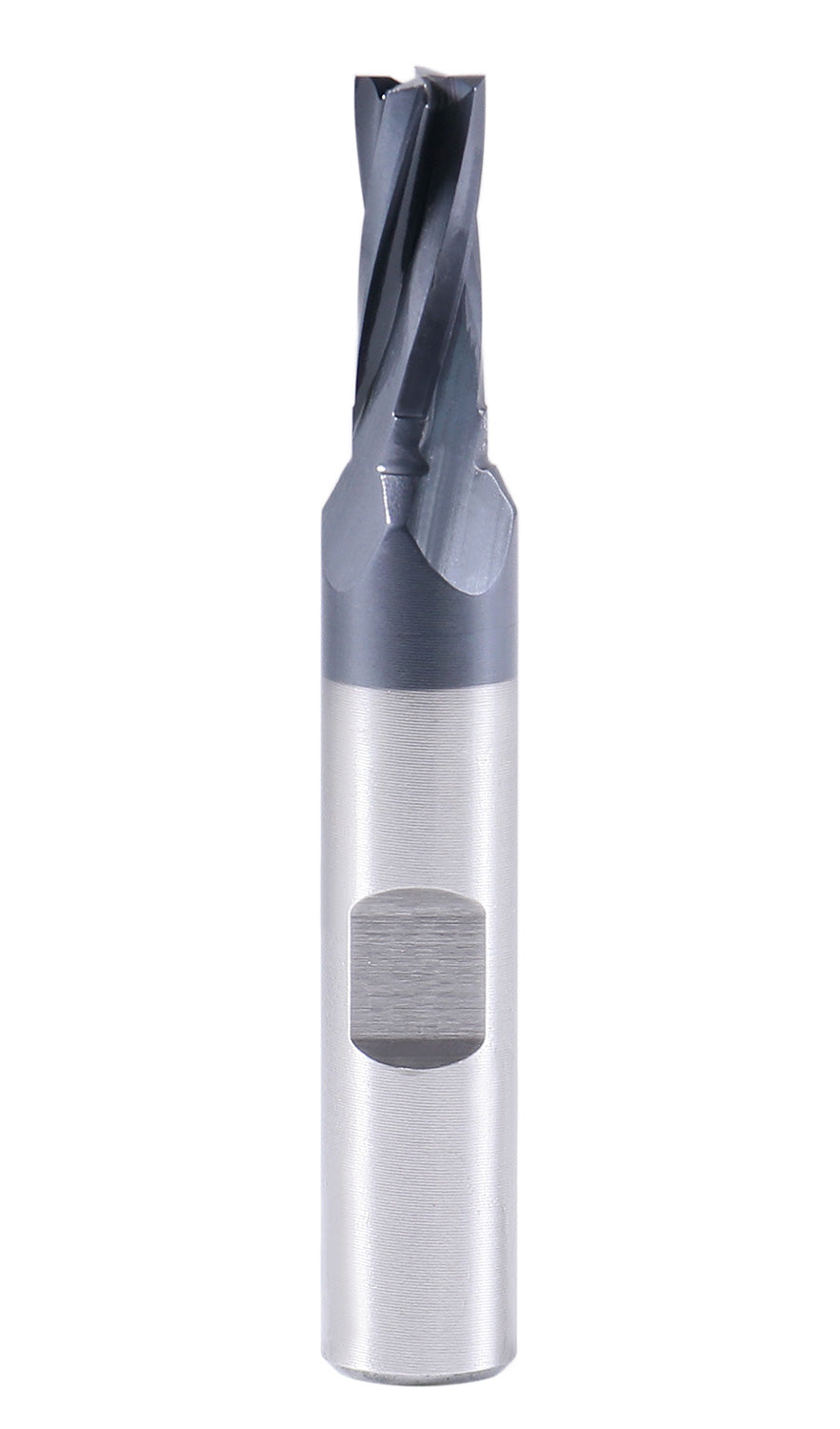

6800-4021 1/4" 3/8" 5/8" 2-7/16"

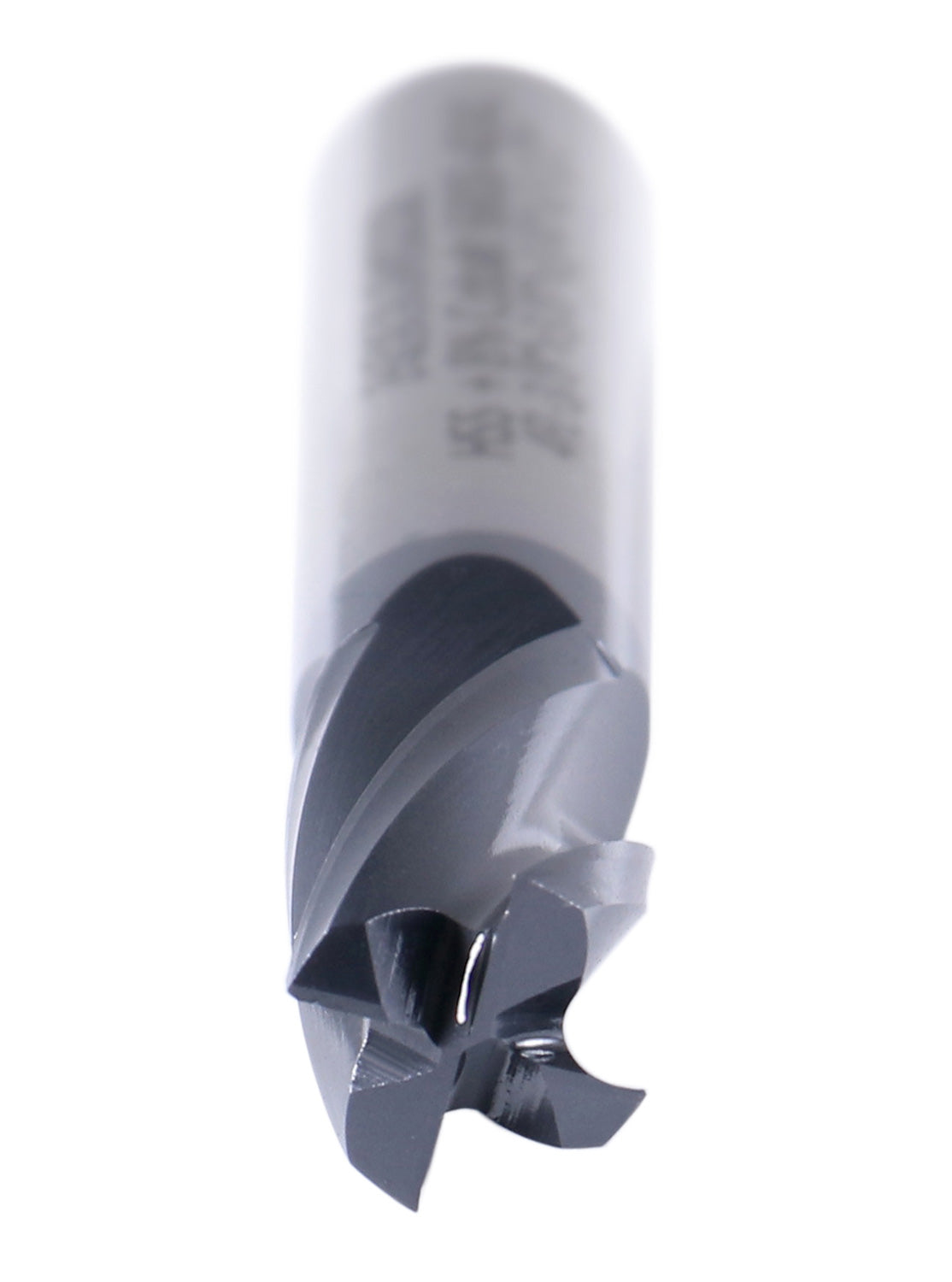

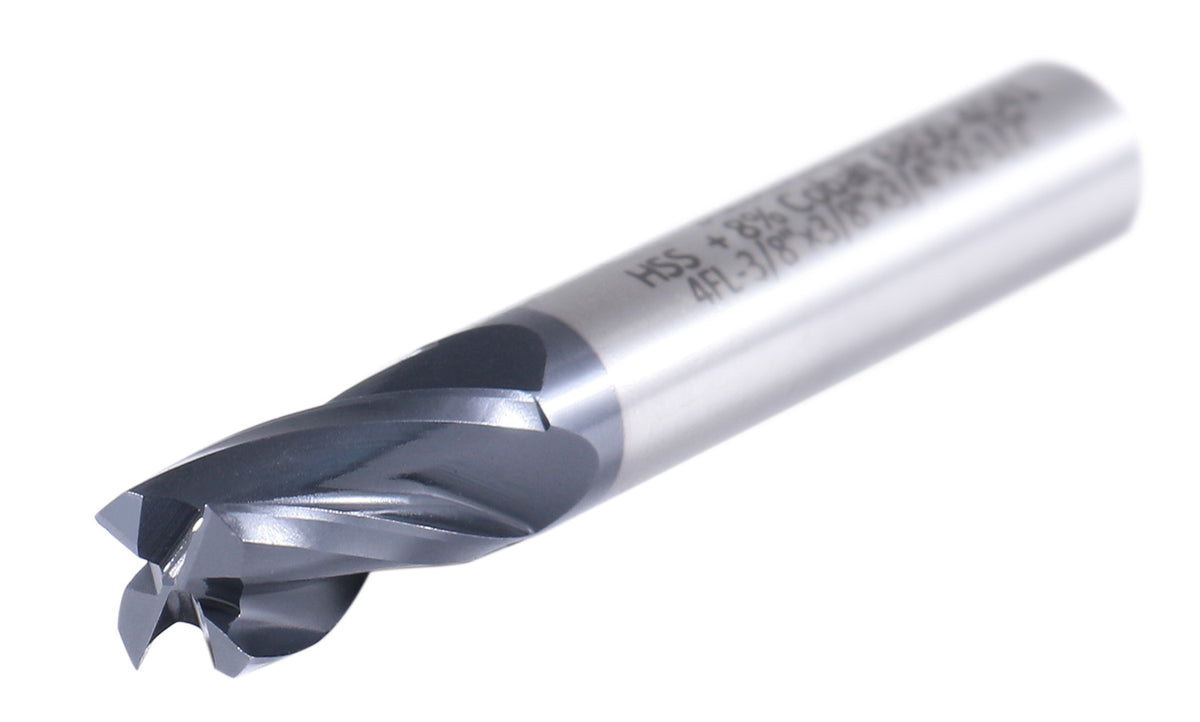

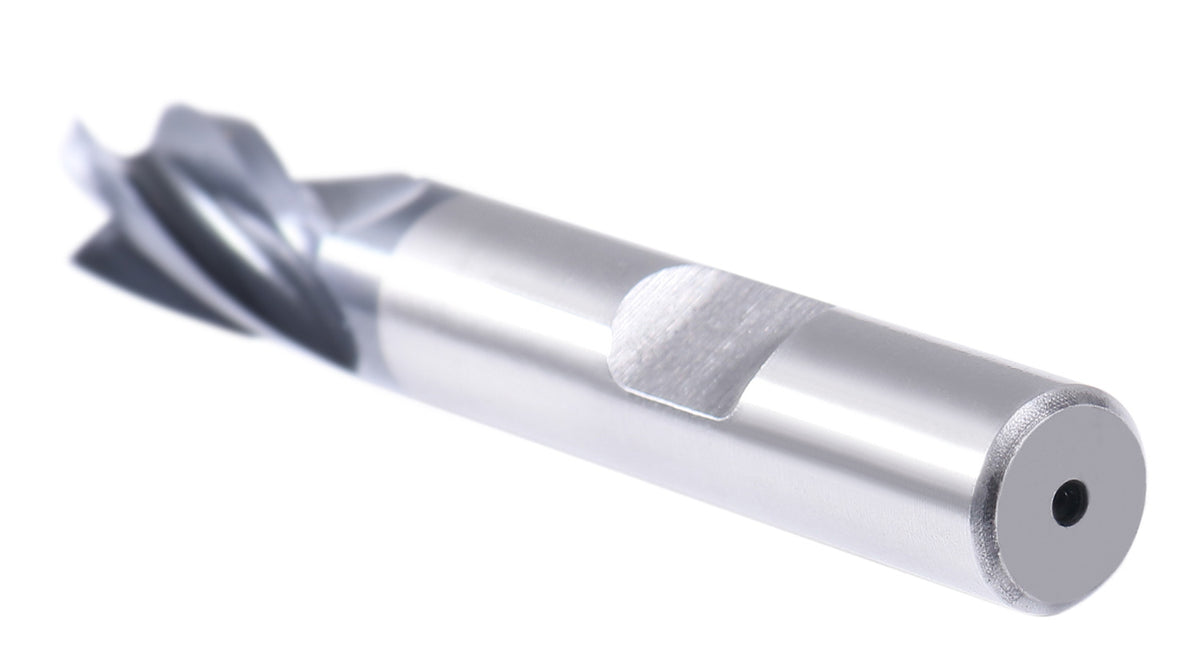

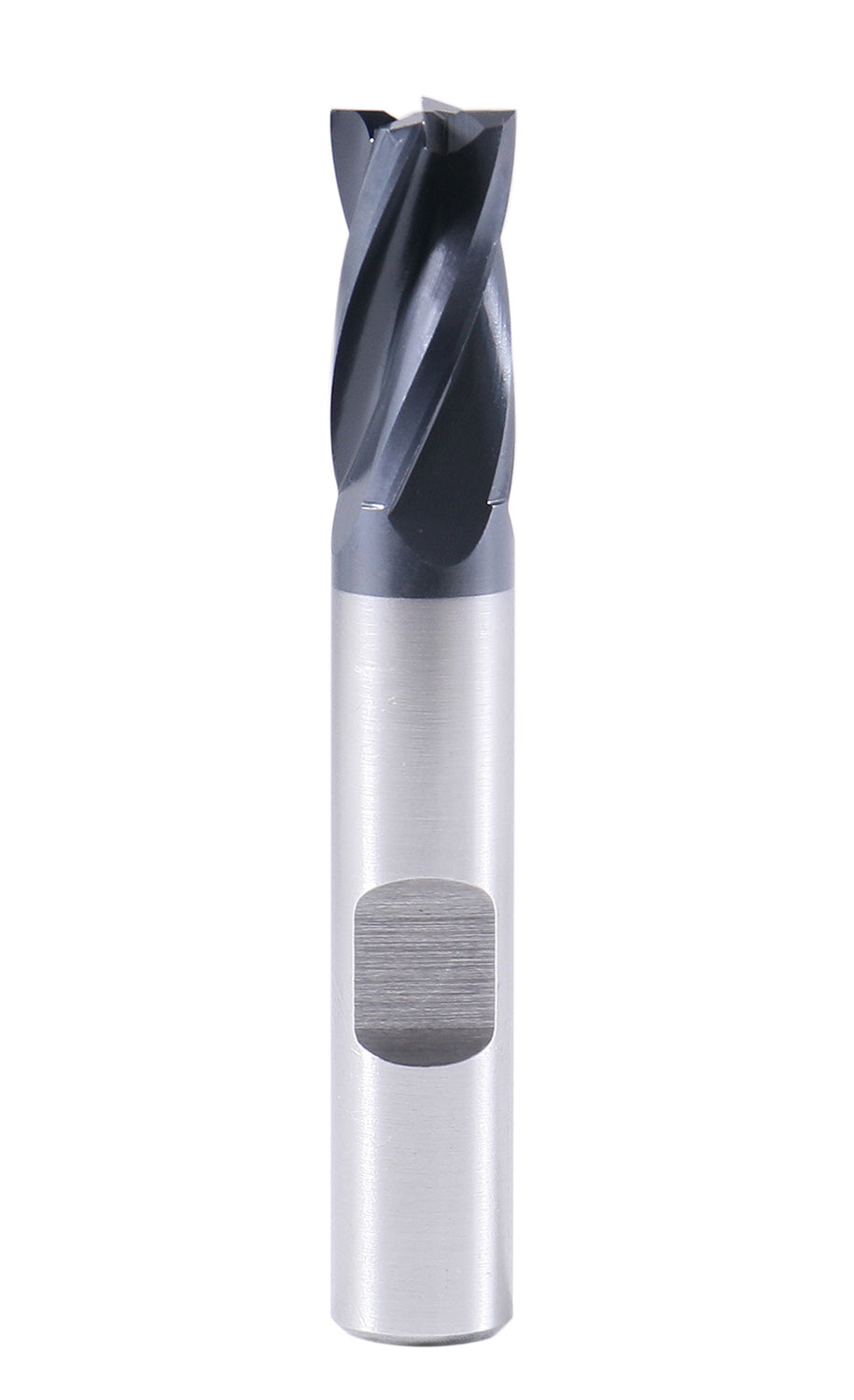

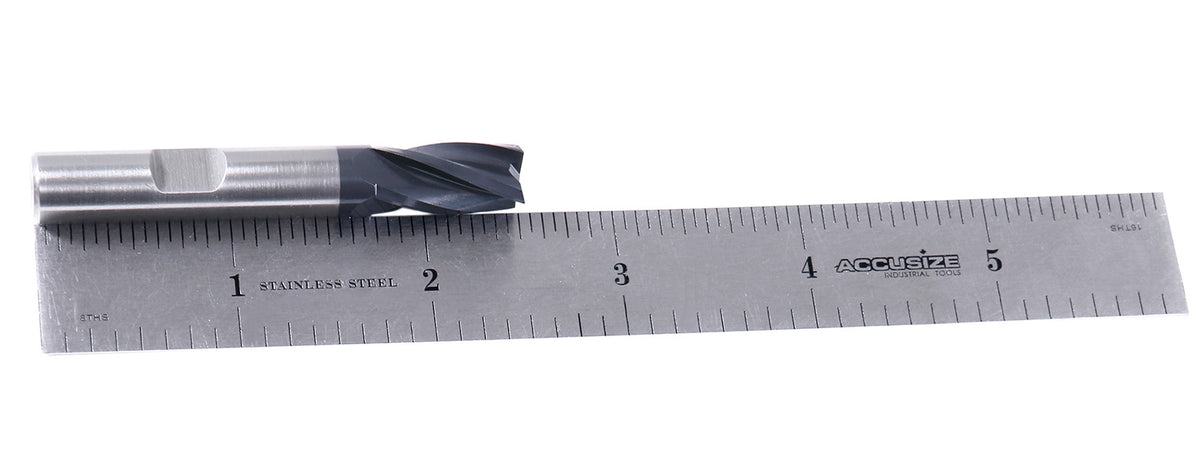

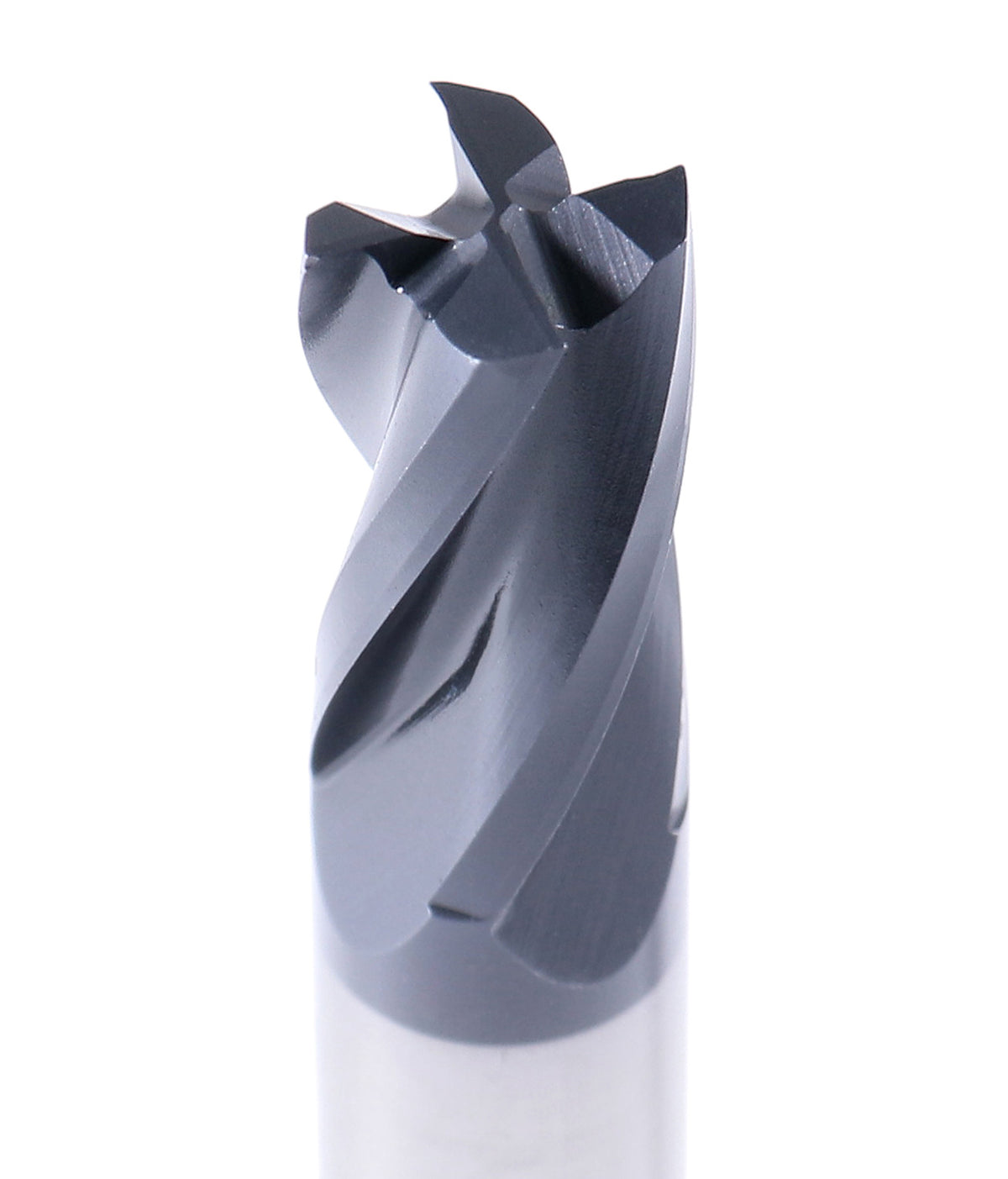

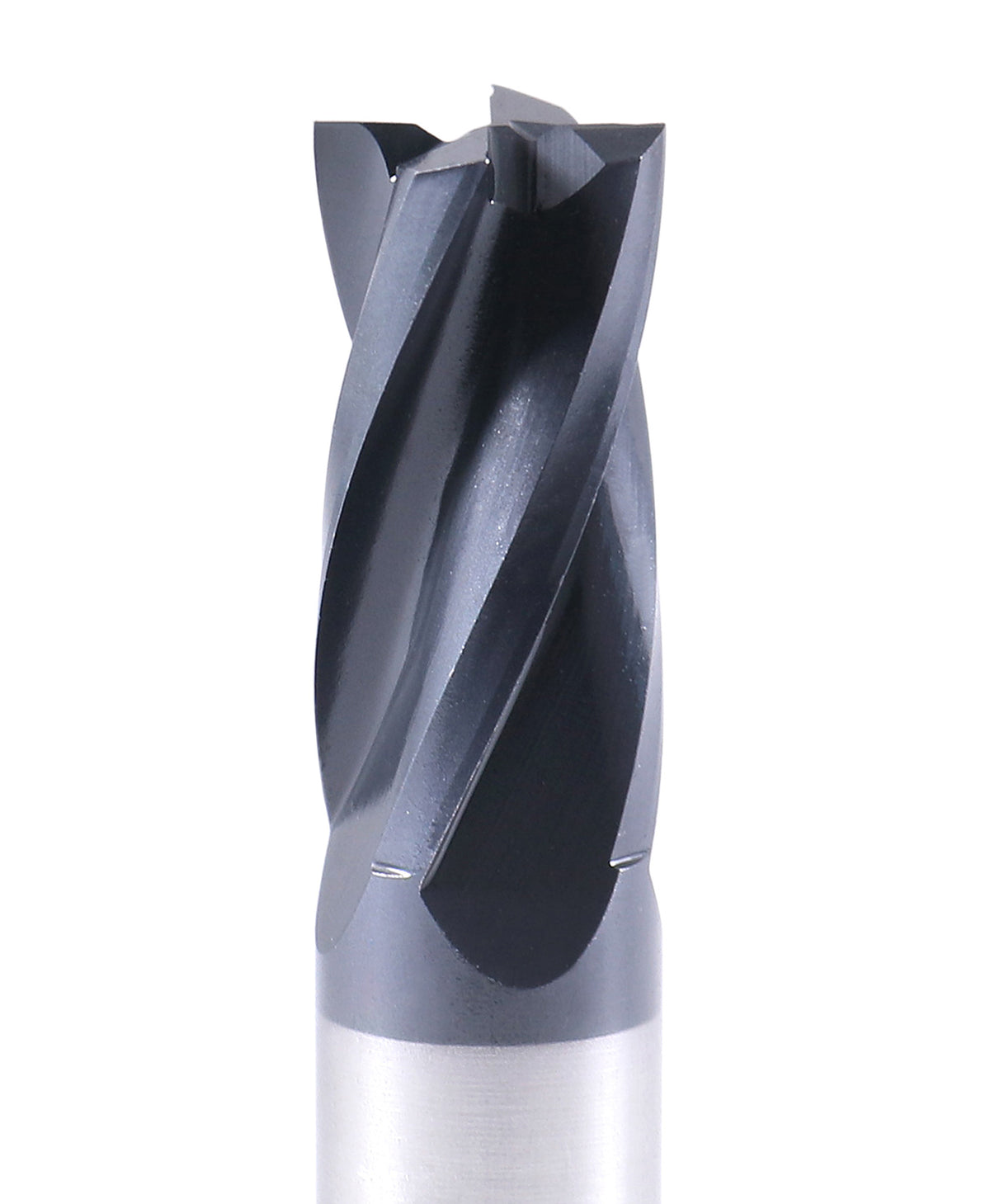

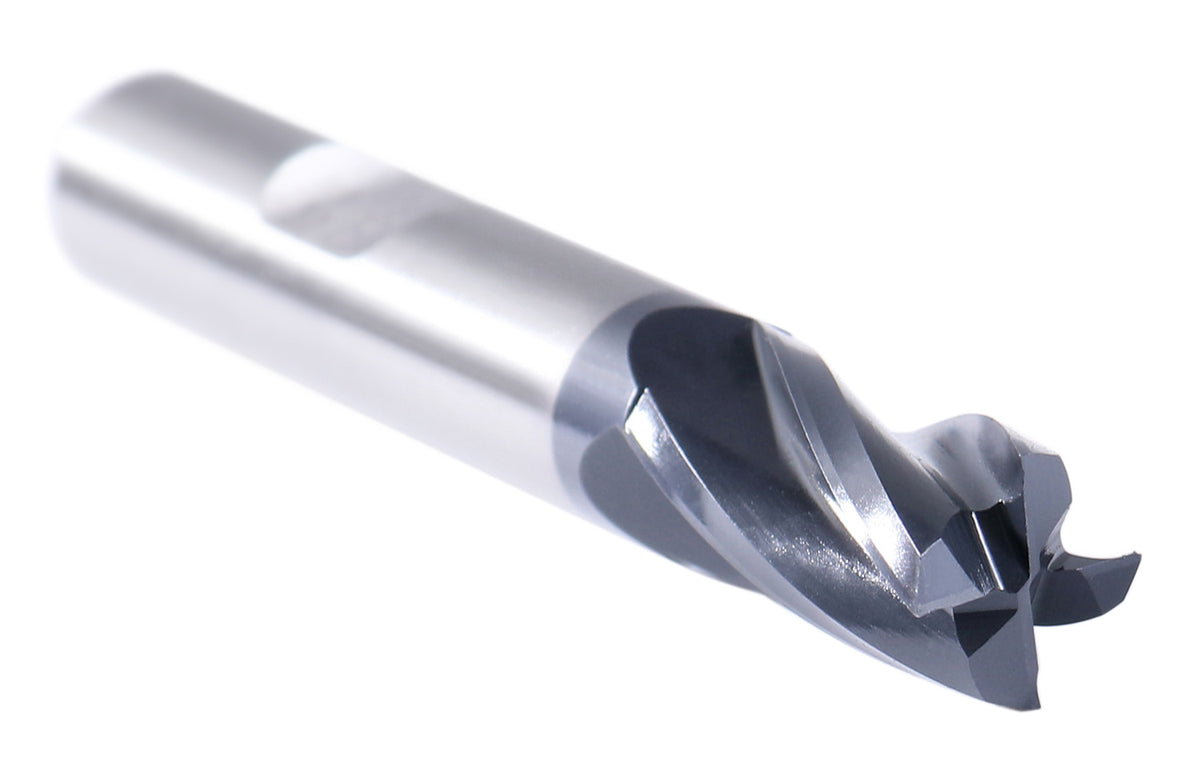

6800-4041 3/8" 3/8" 3/4" 2-1/2"

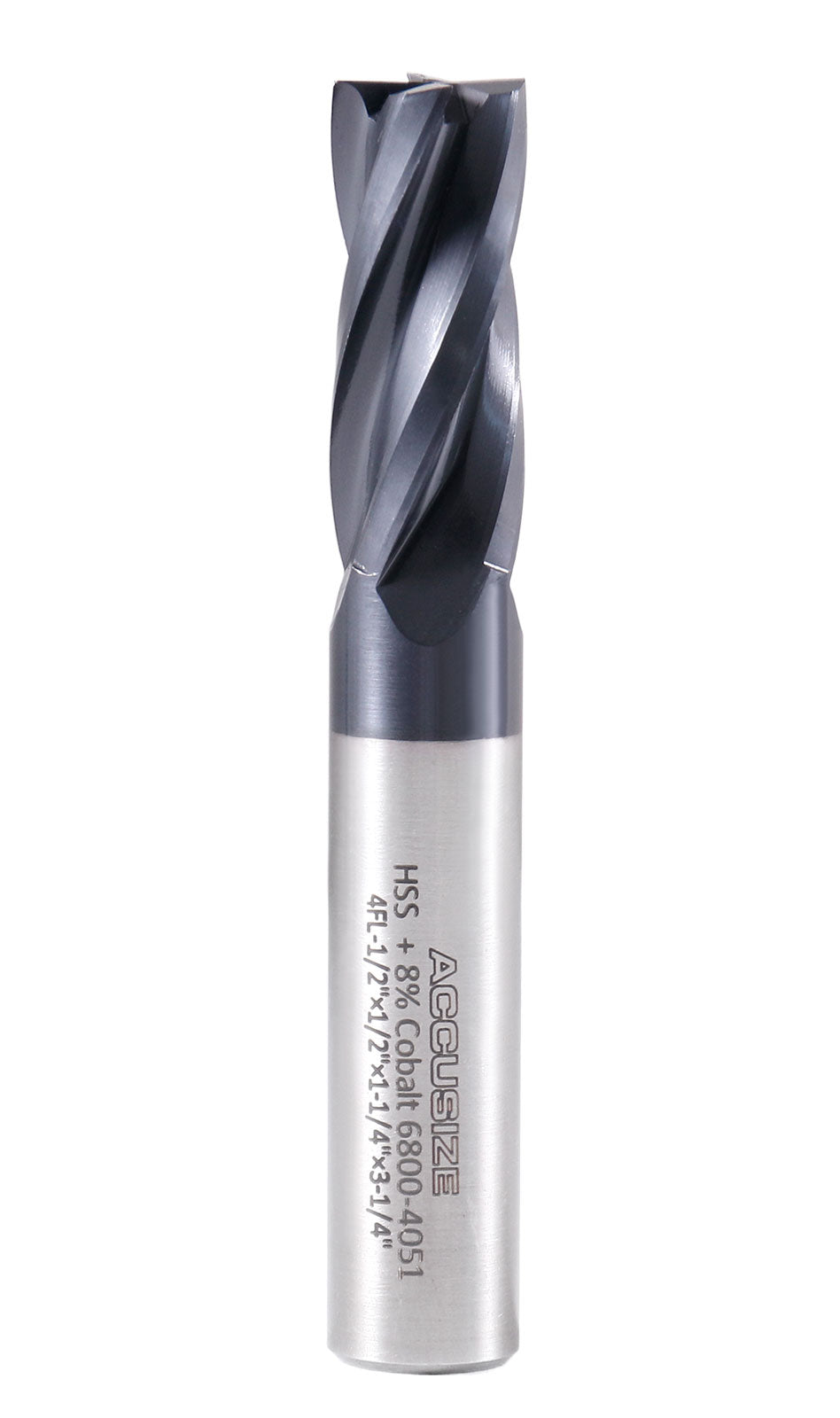

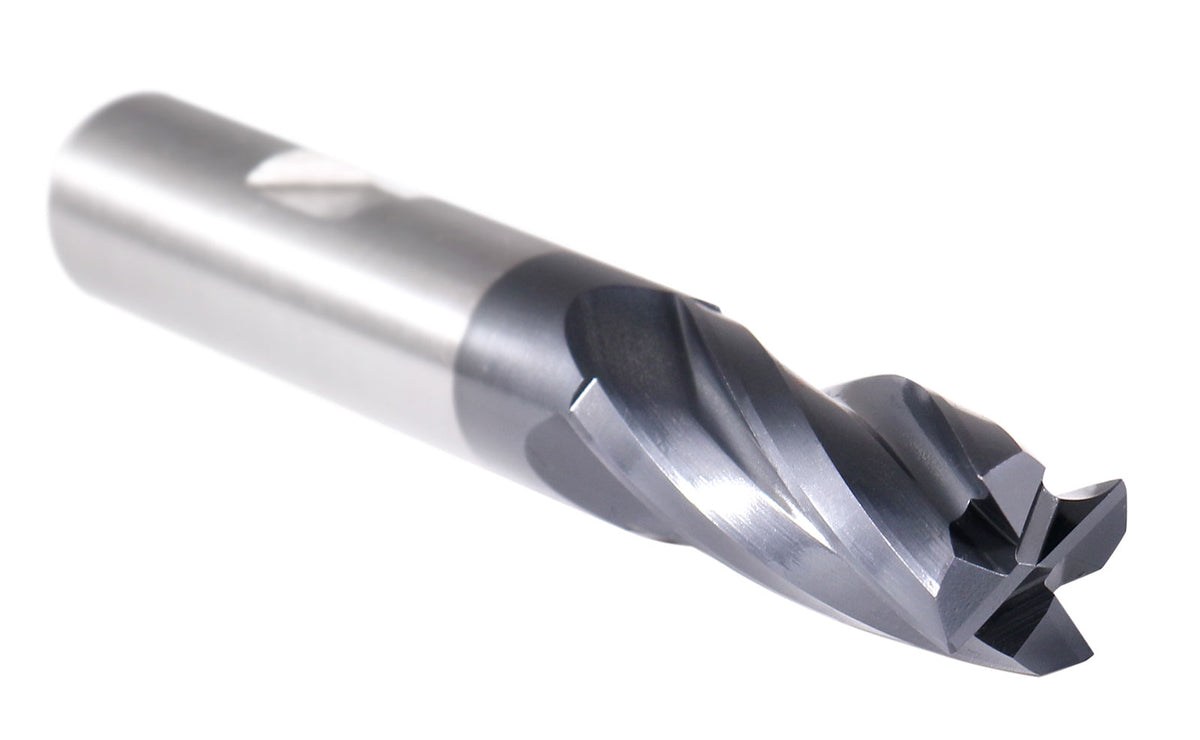

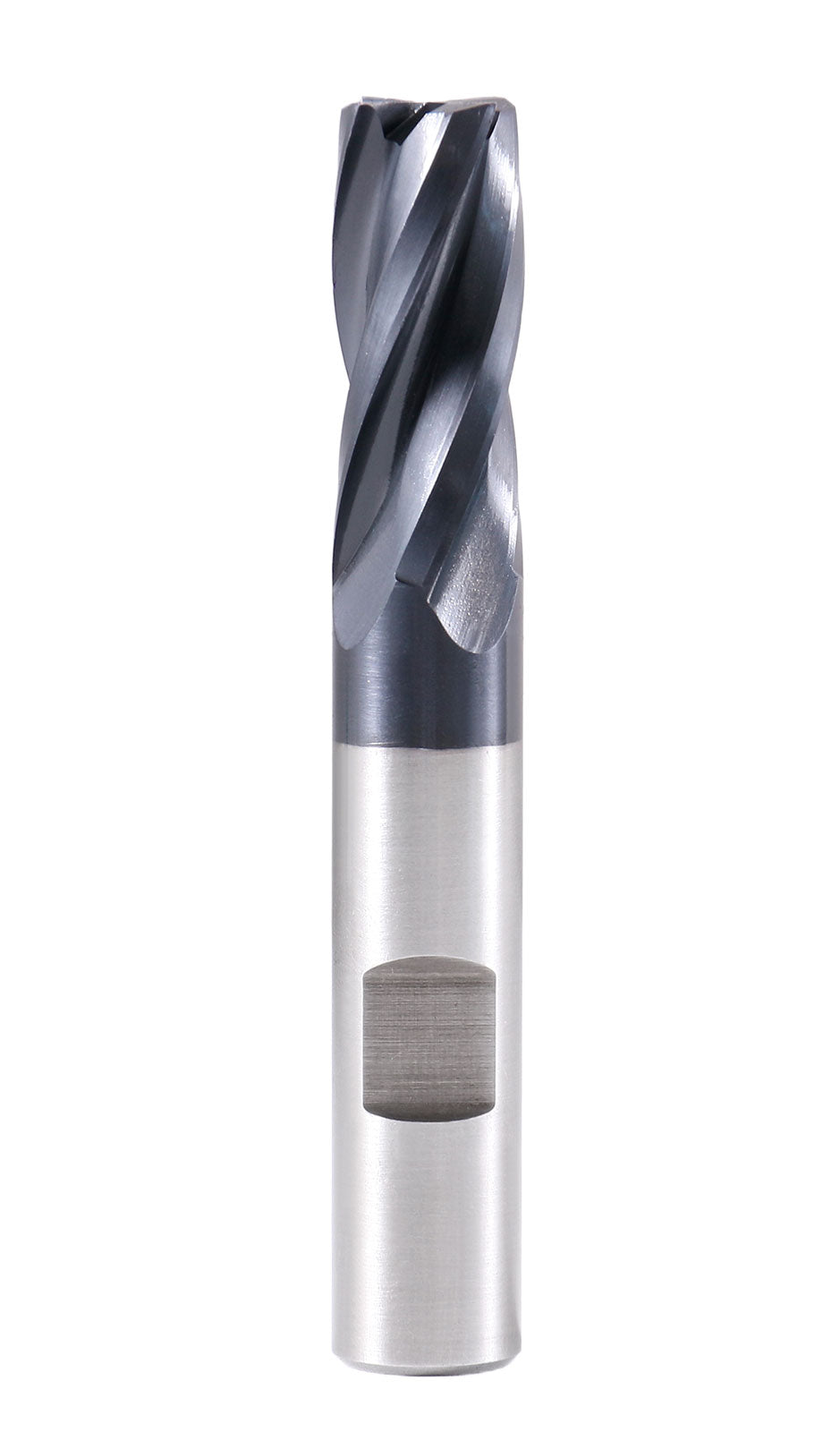

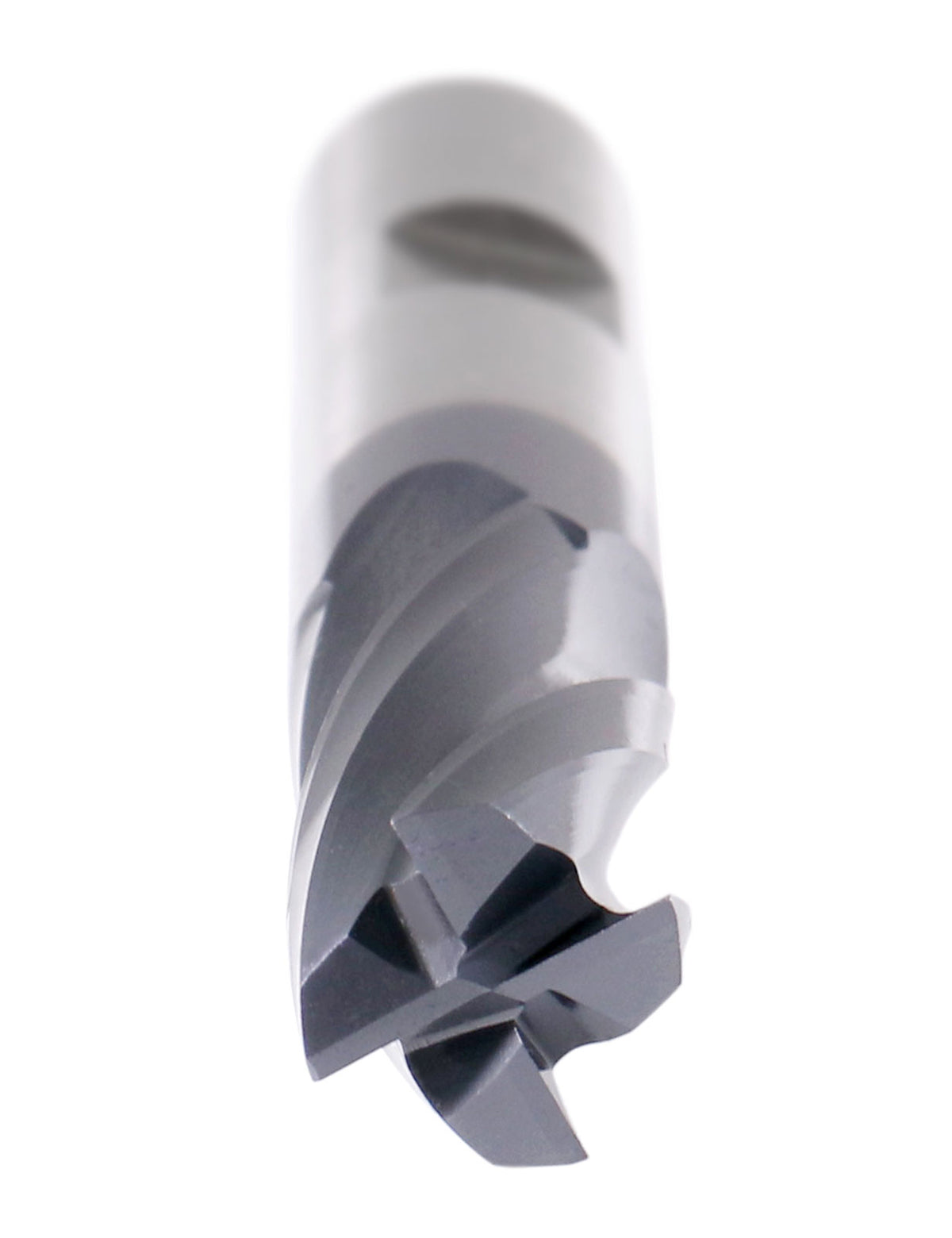

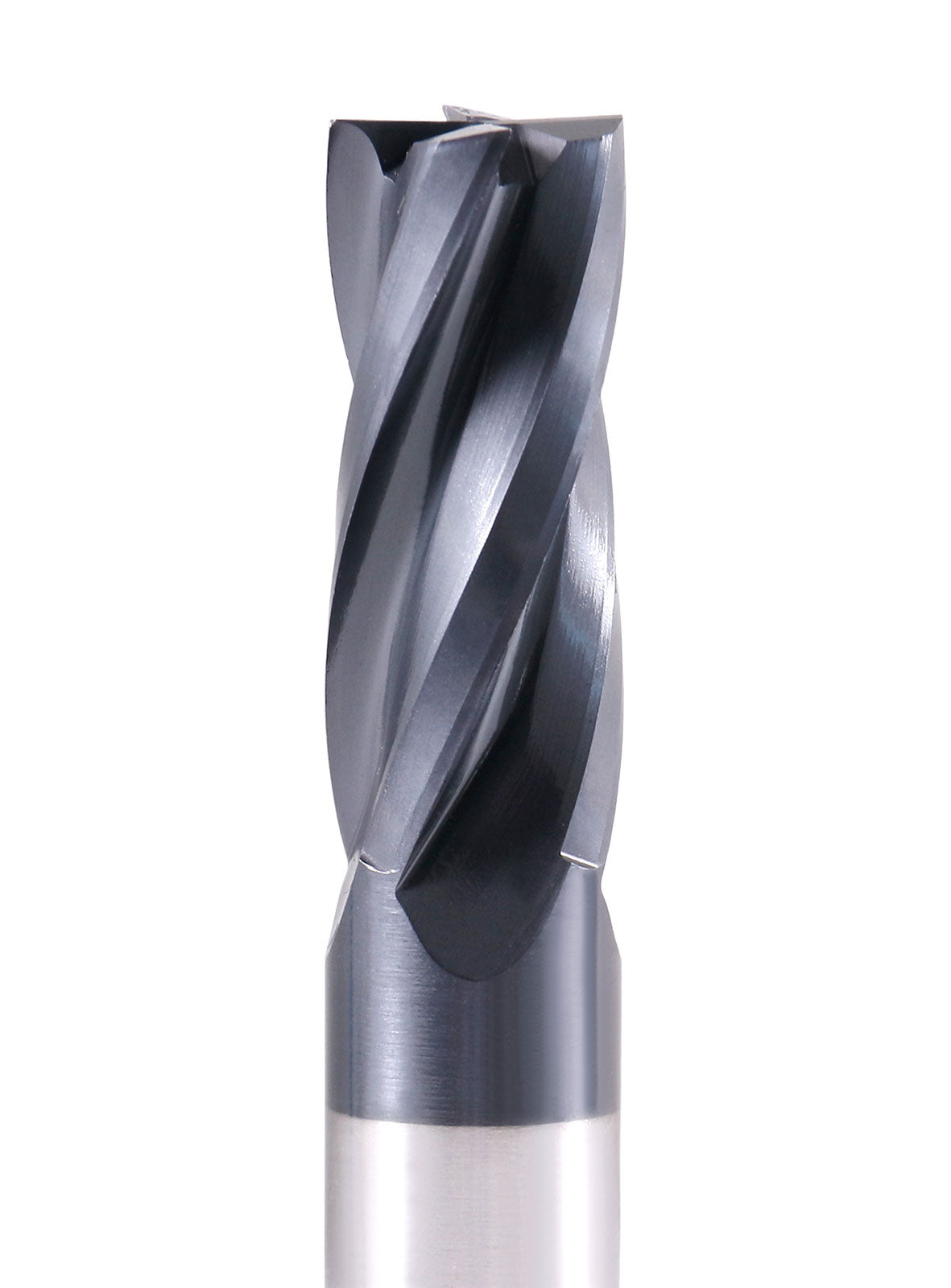

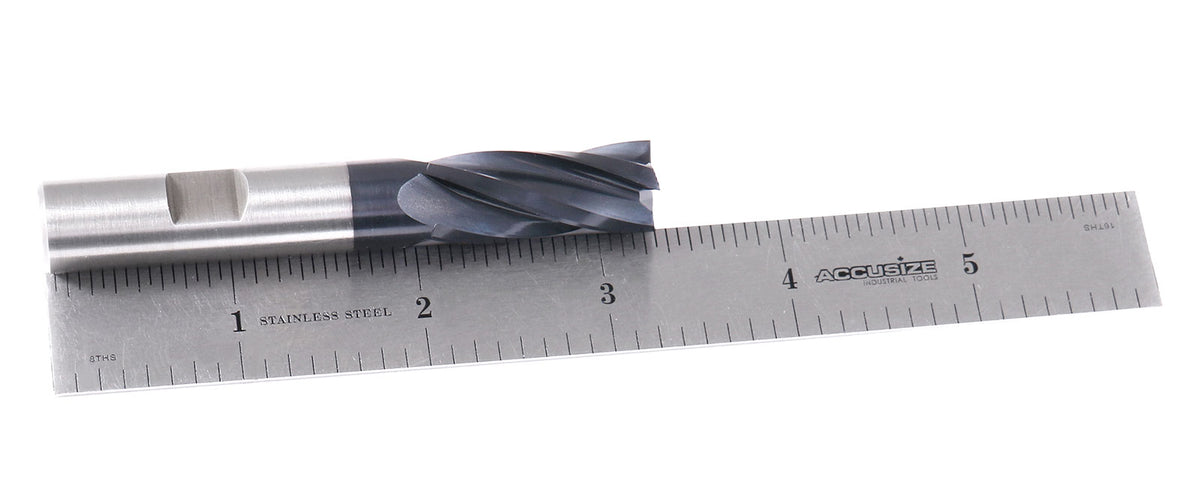

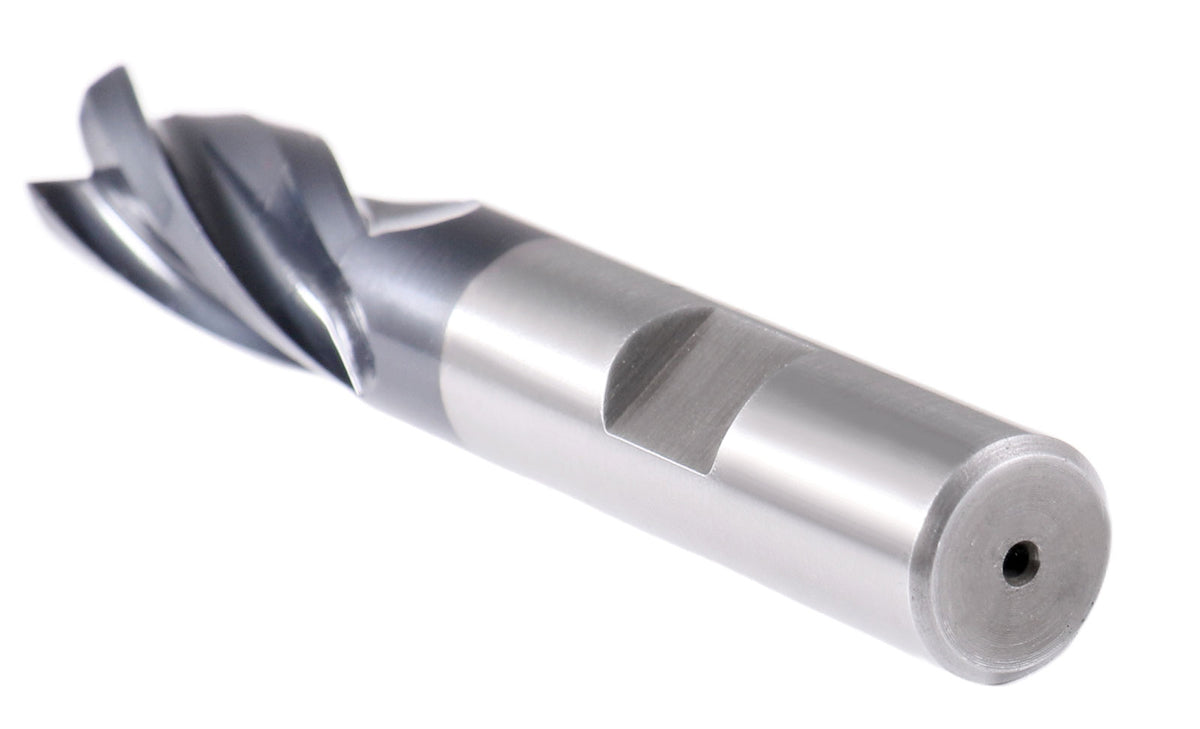

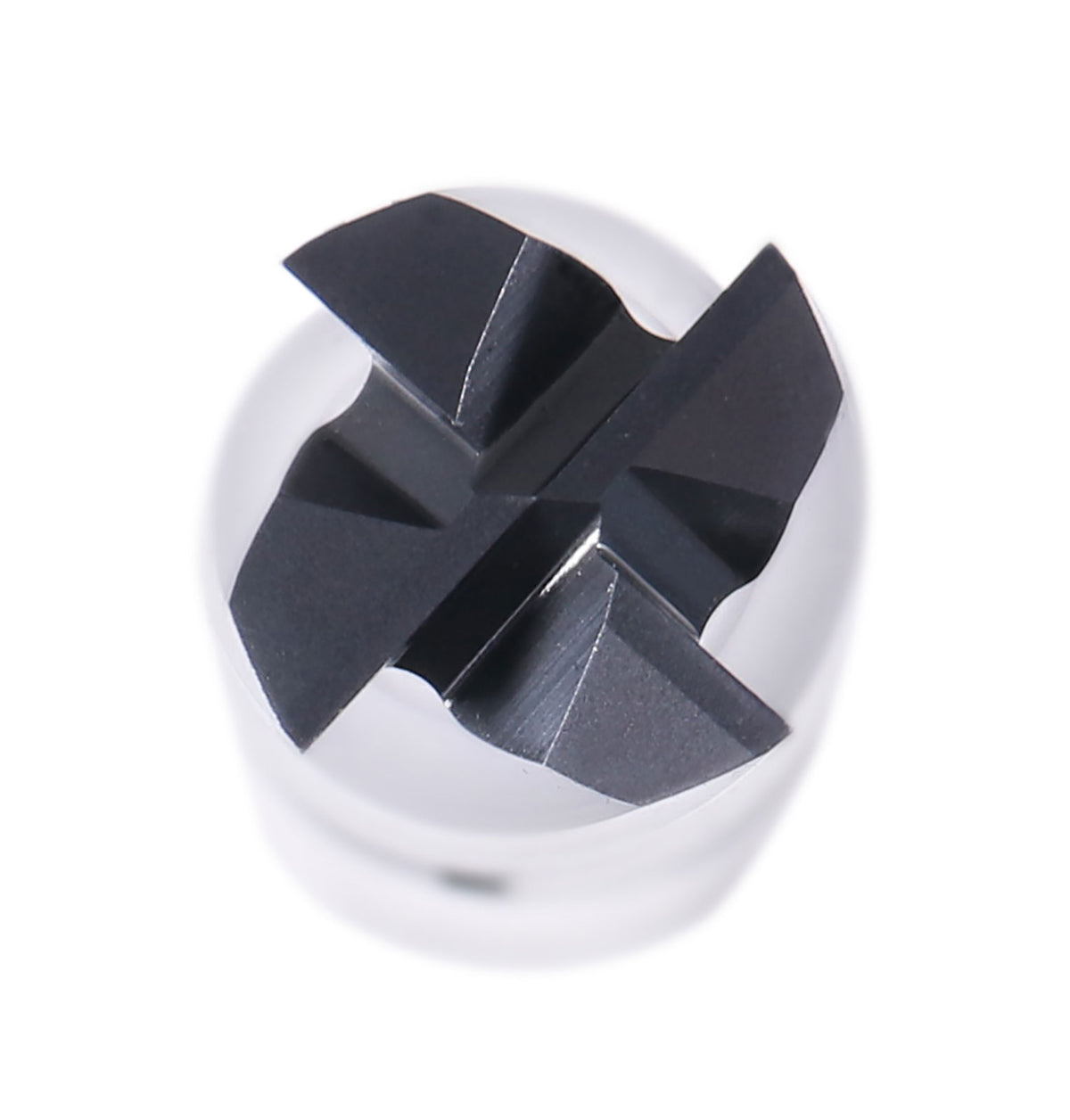

6800-4051 1/2" 1/2" 1-1/4" 3-1/4"

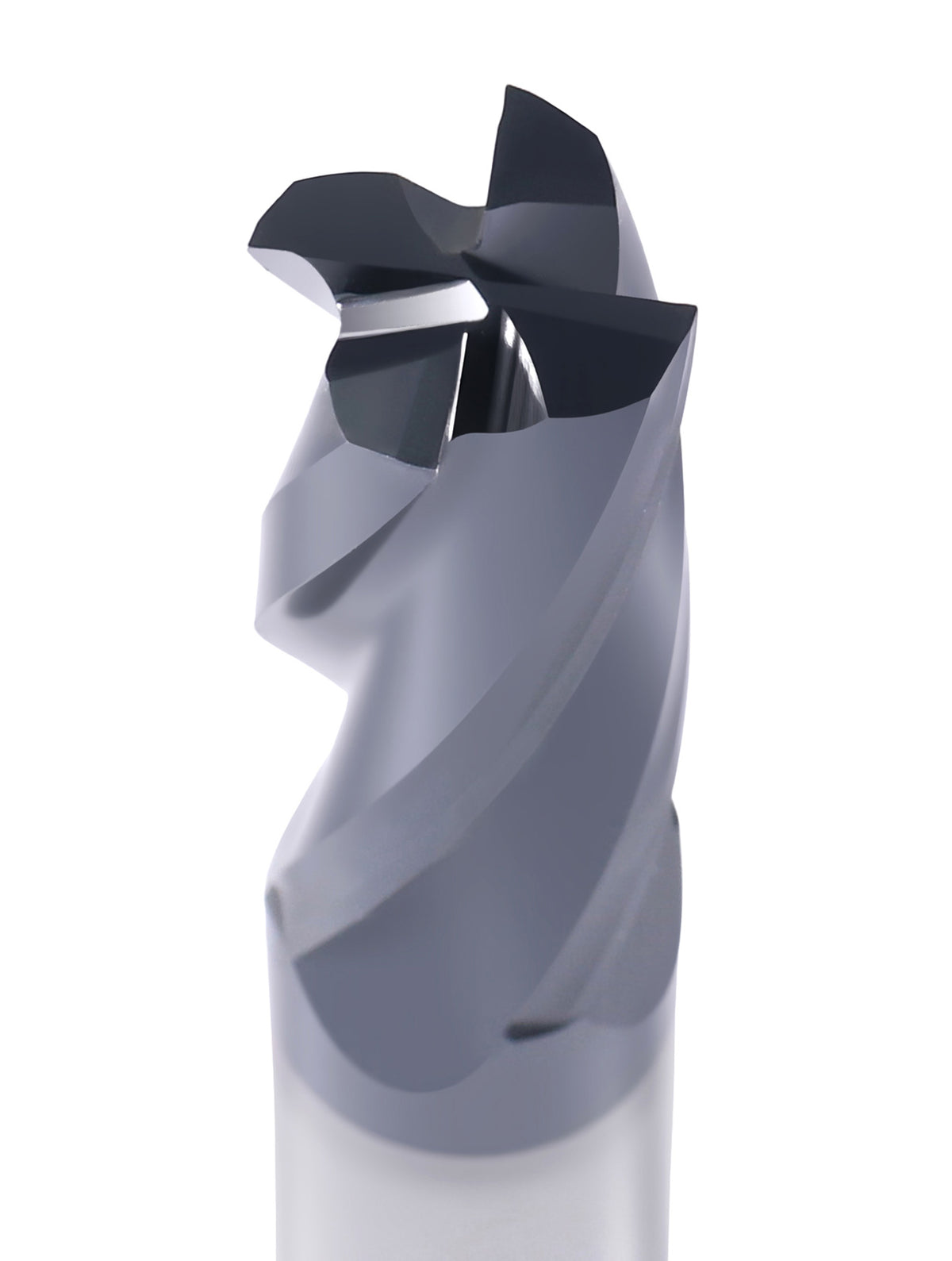

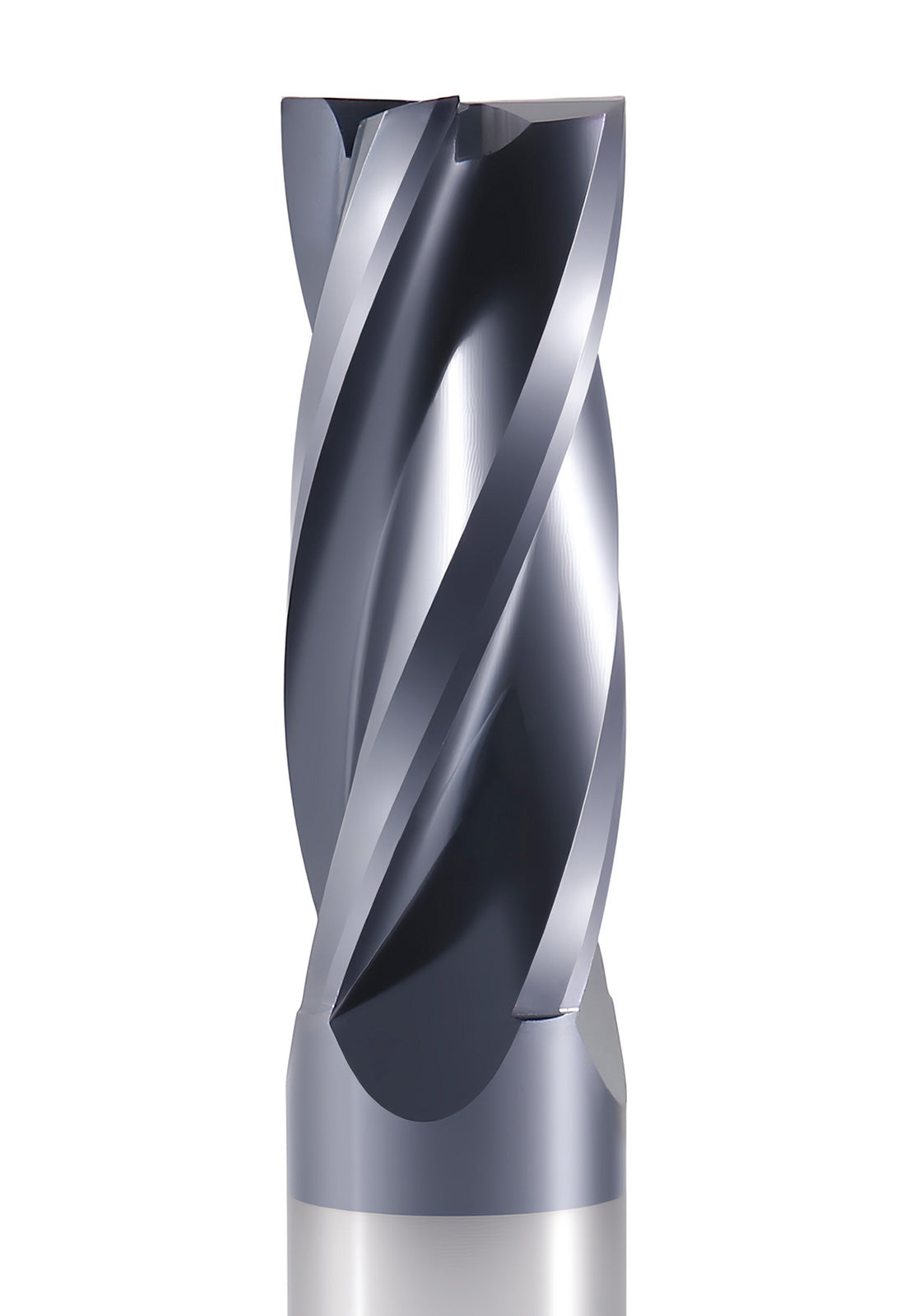

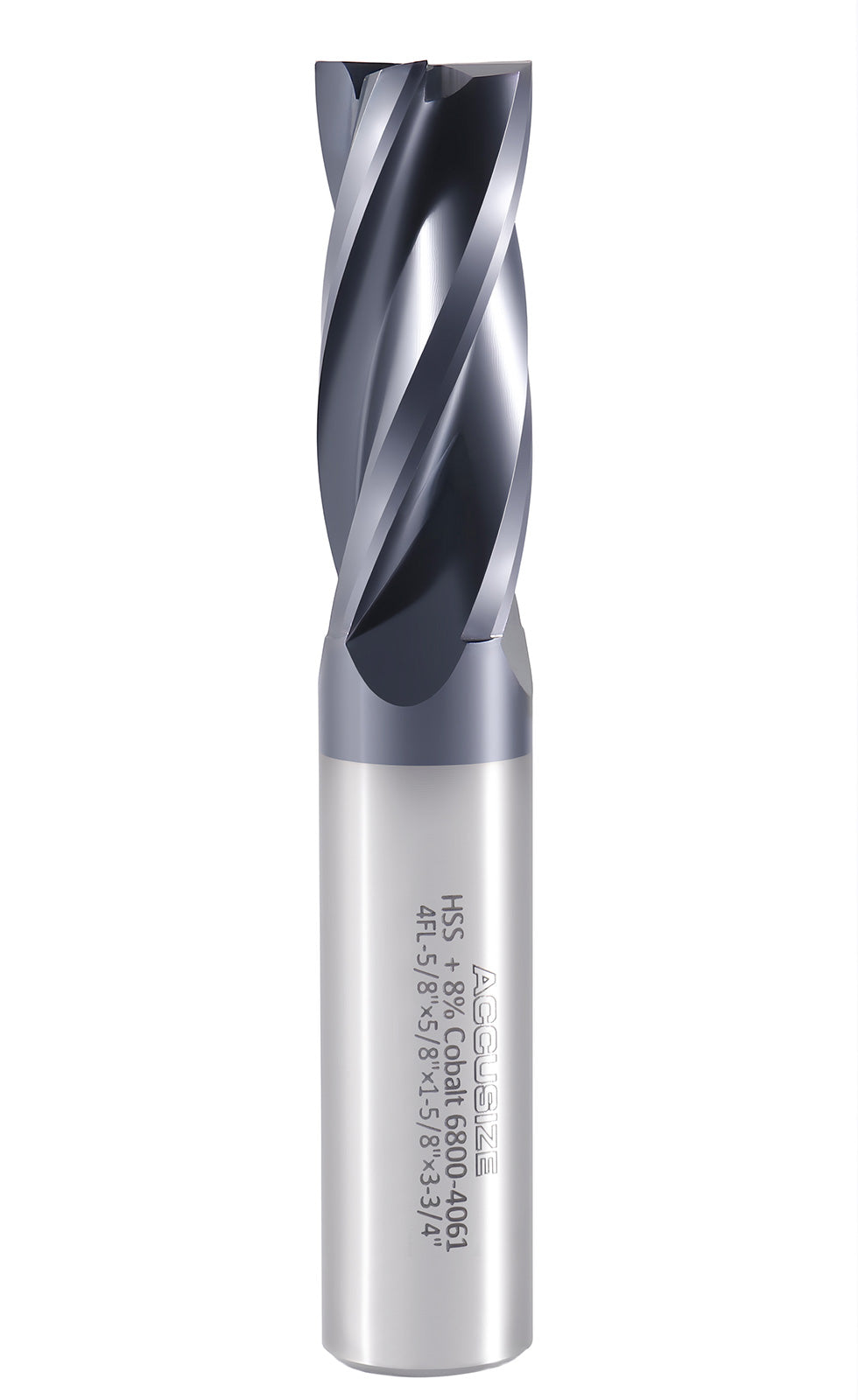

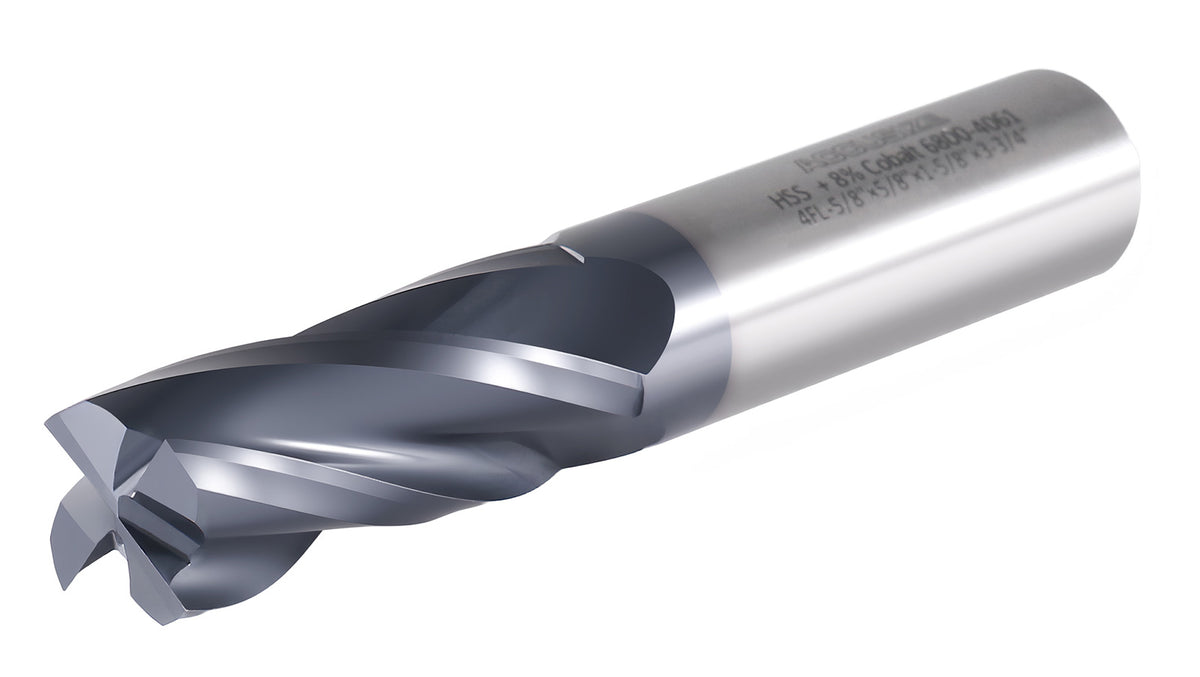

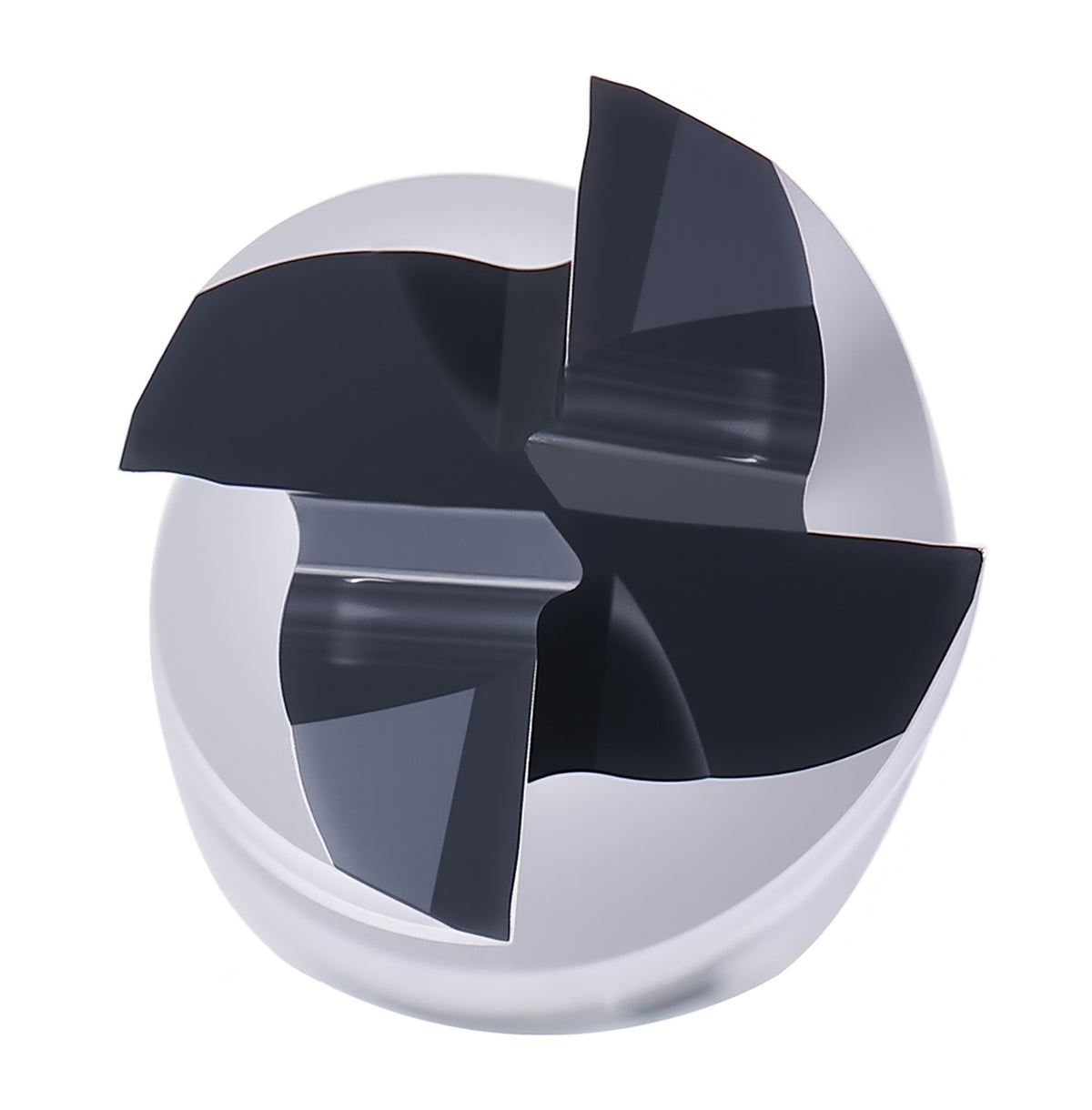

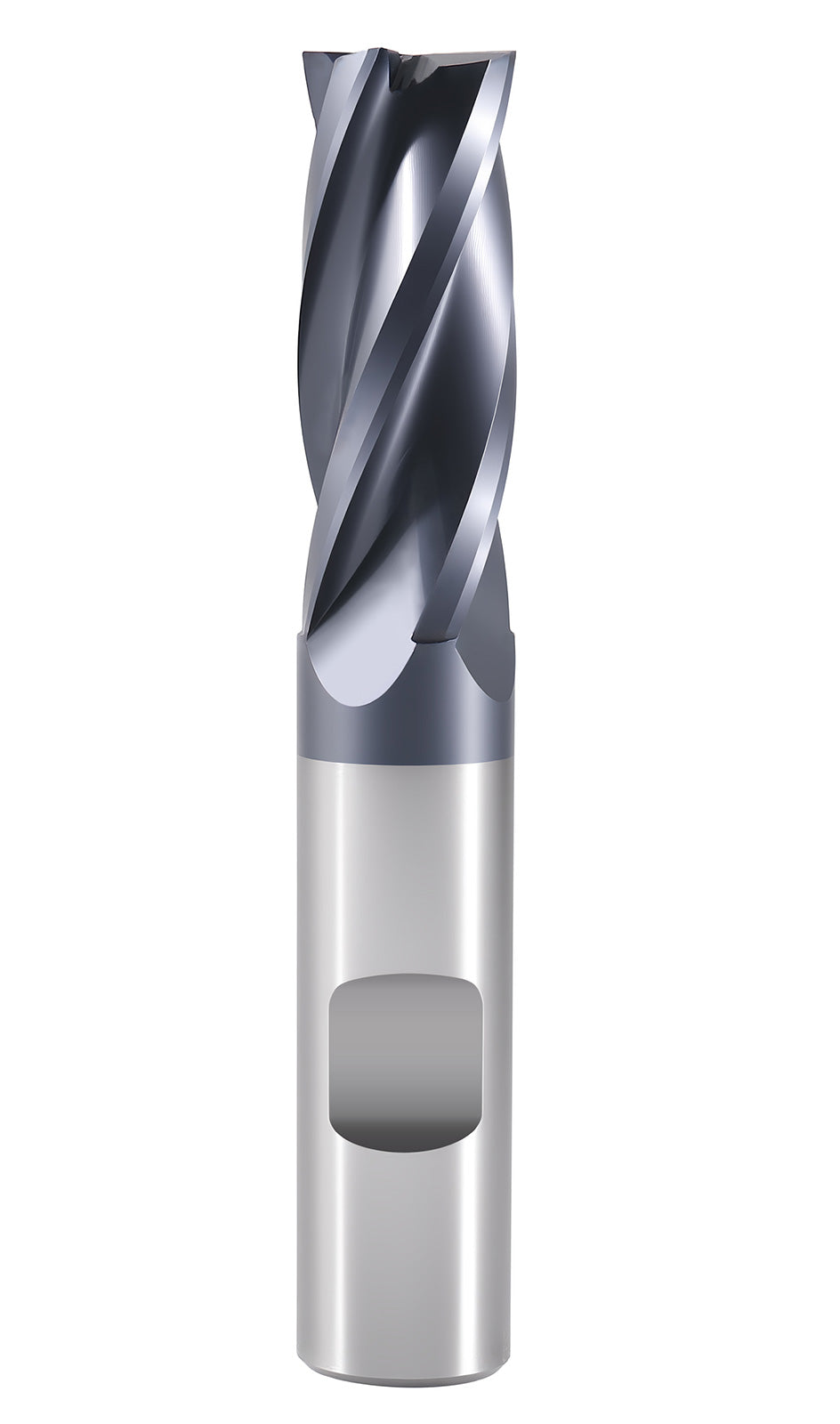

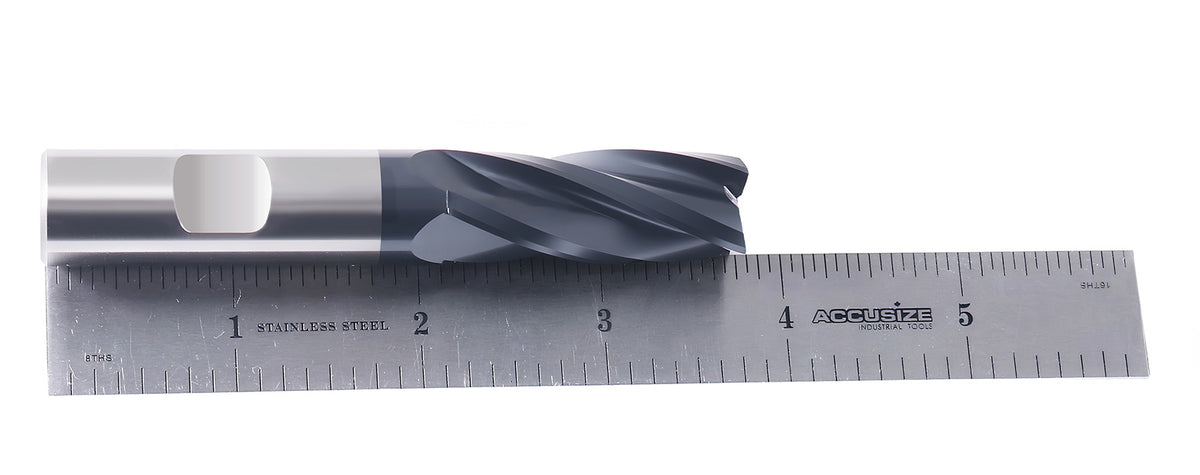

6800-4061 5/8" 5/8" 1-5/8" 3-3/4"

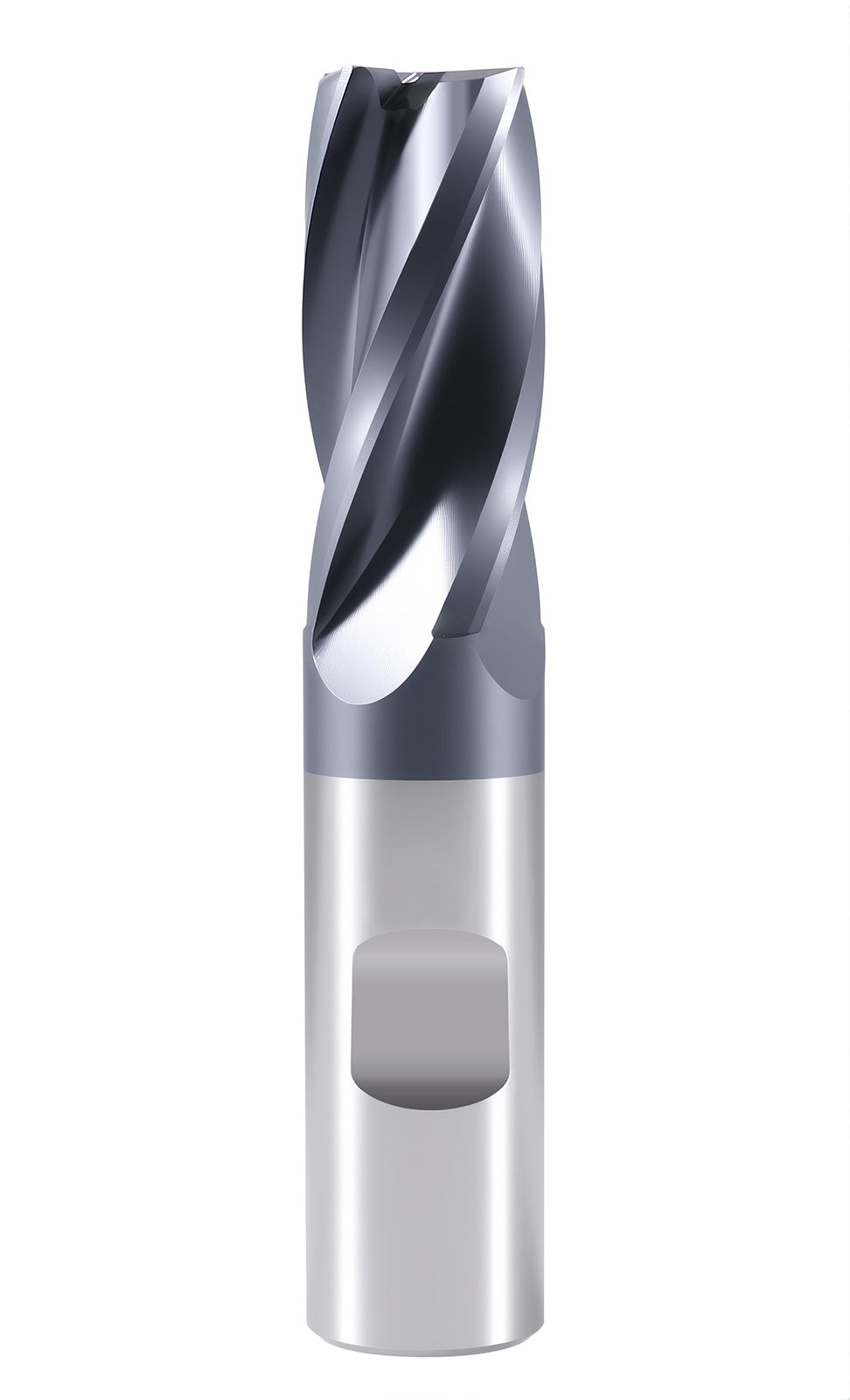

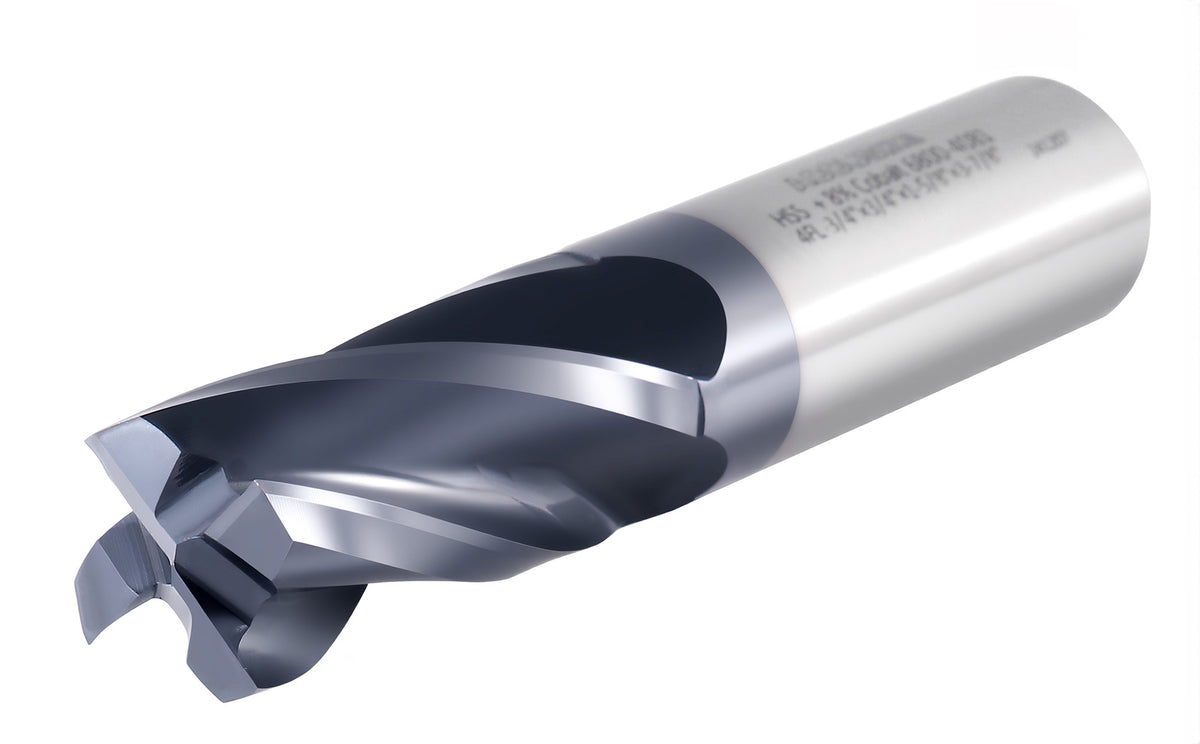

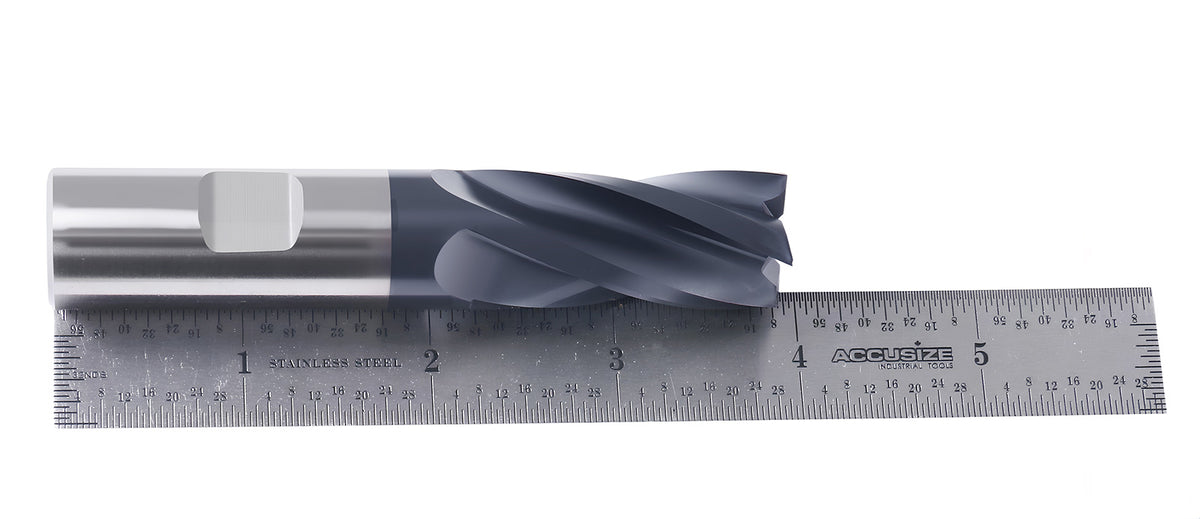

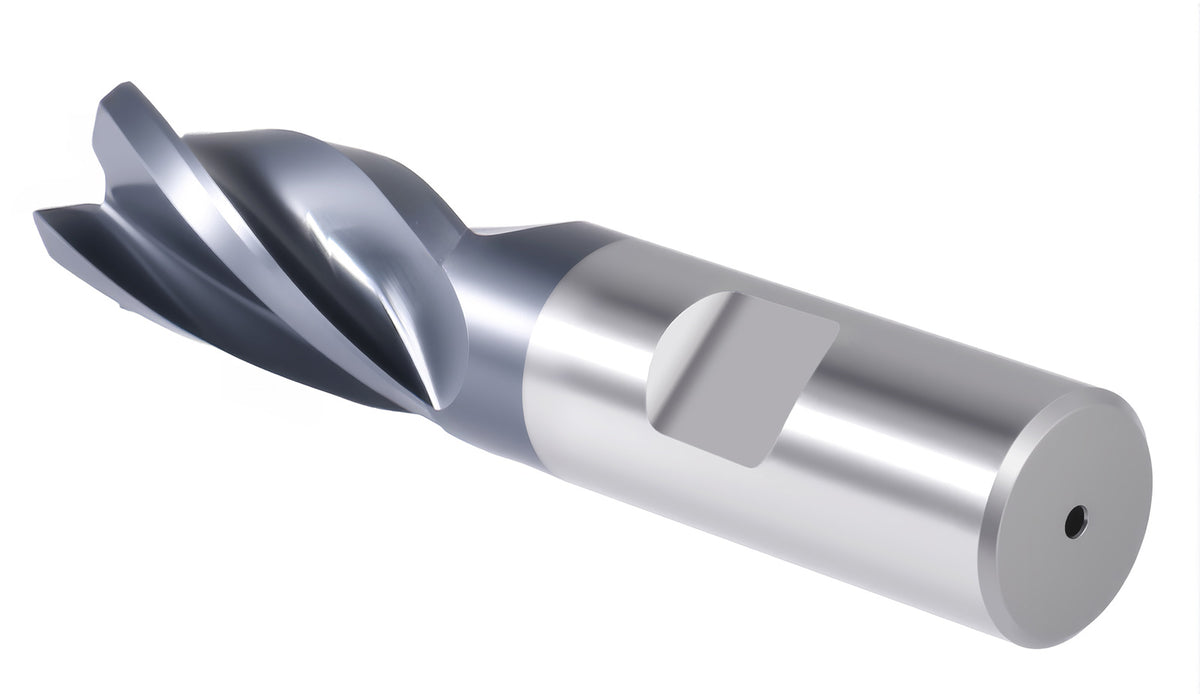

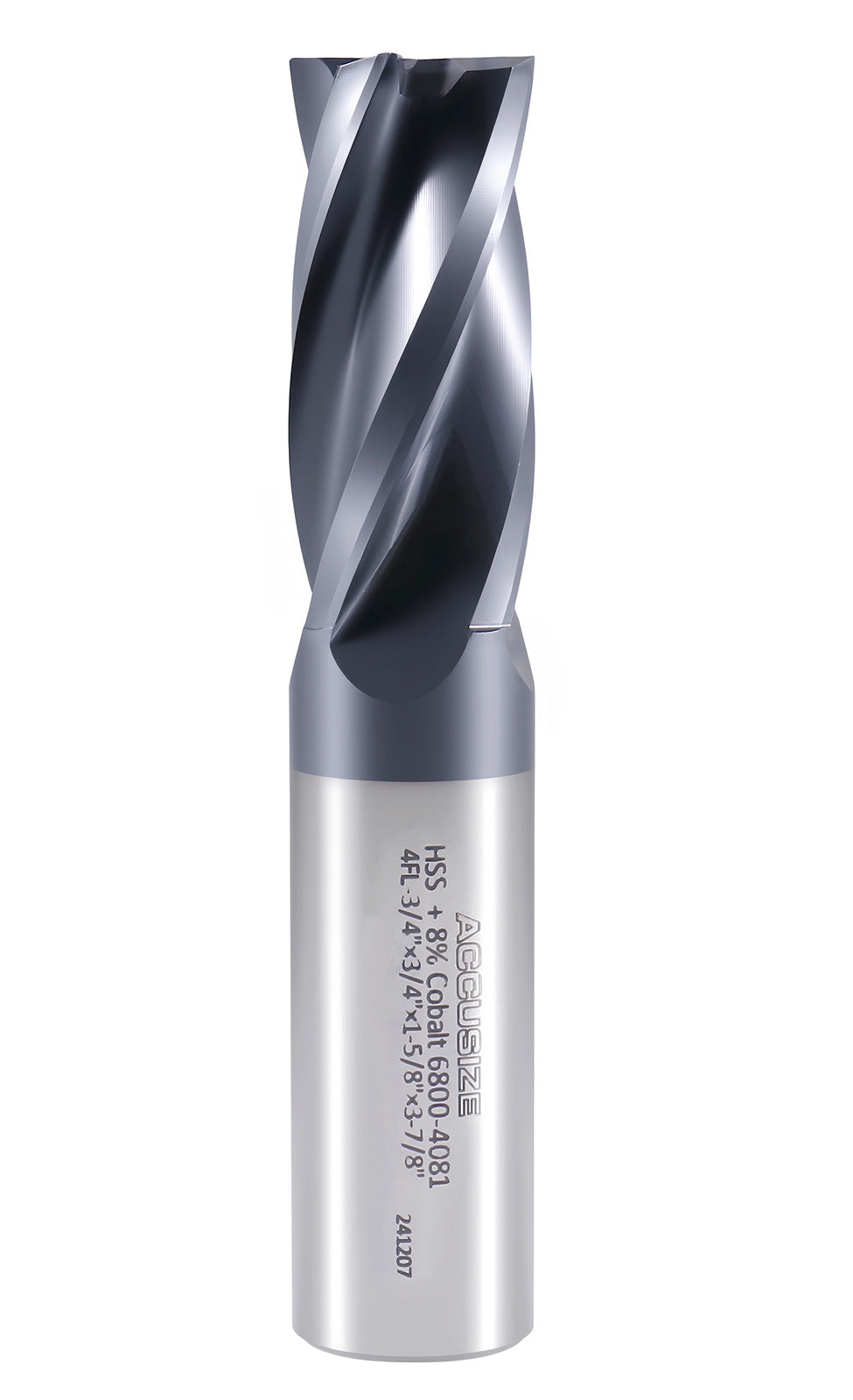

6800-4081 3/4" 3/4" 1-5/8" 3-7/8"

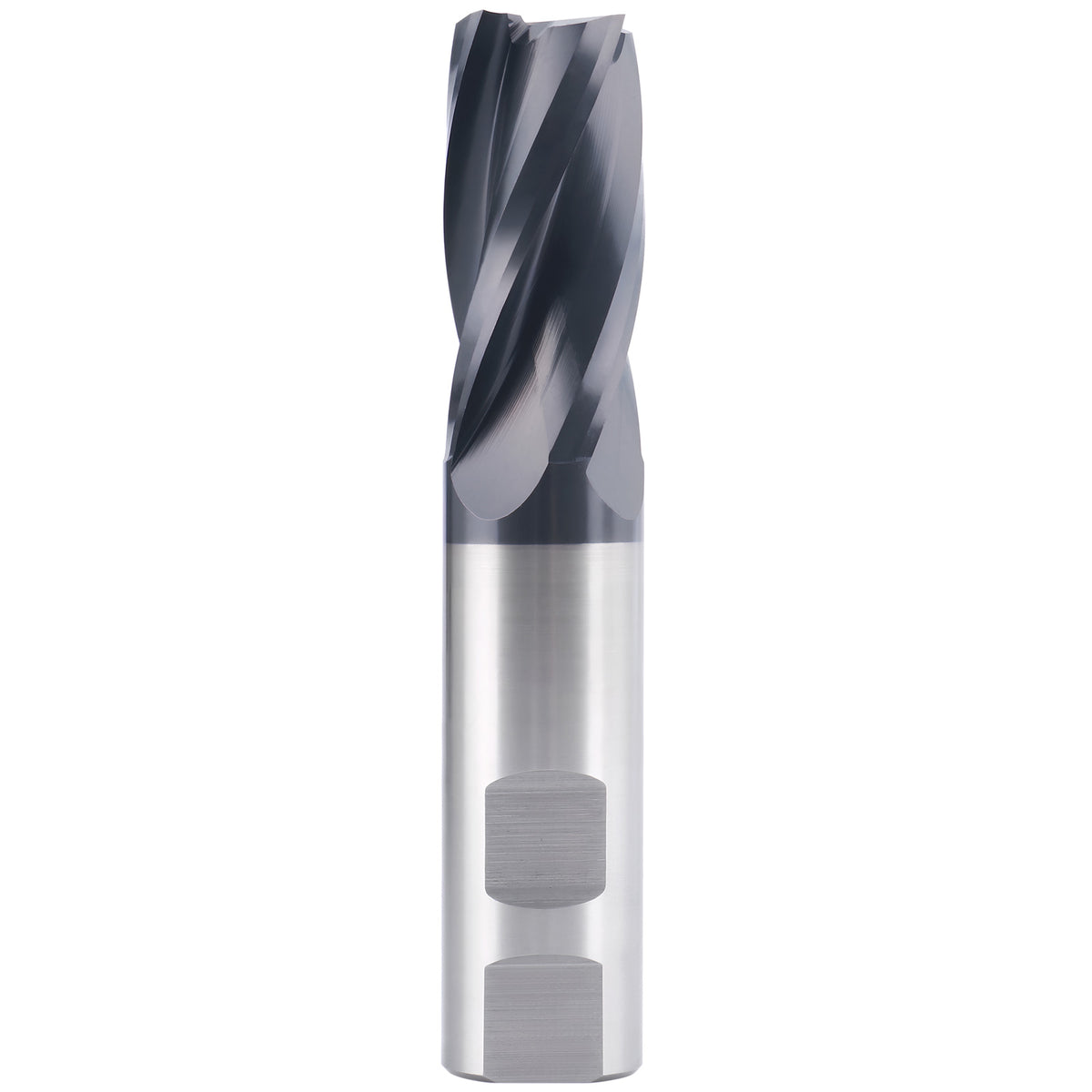

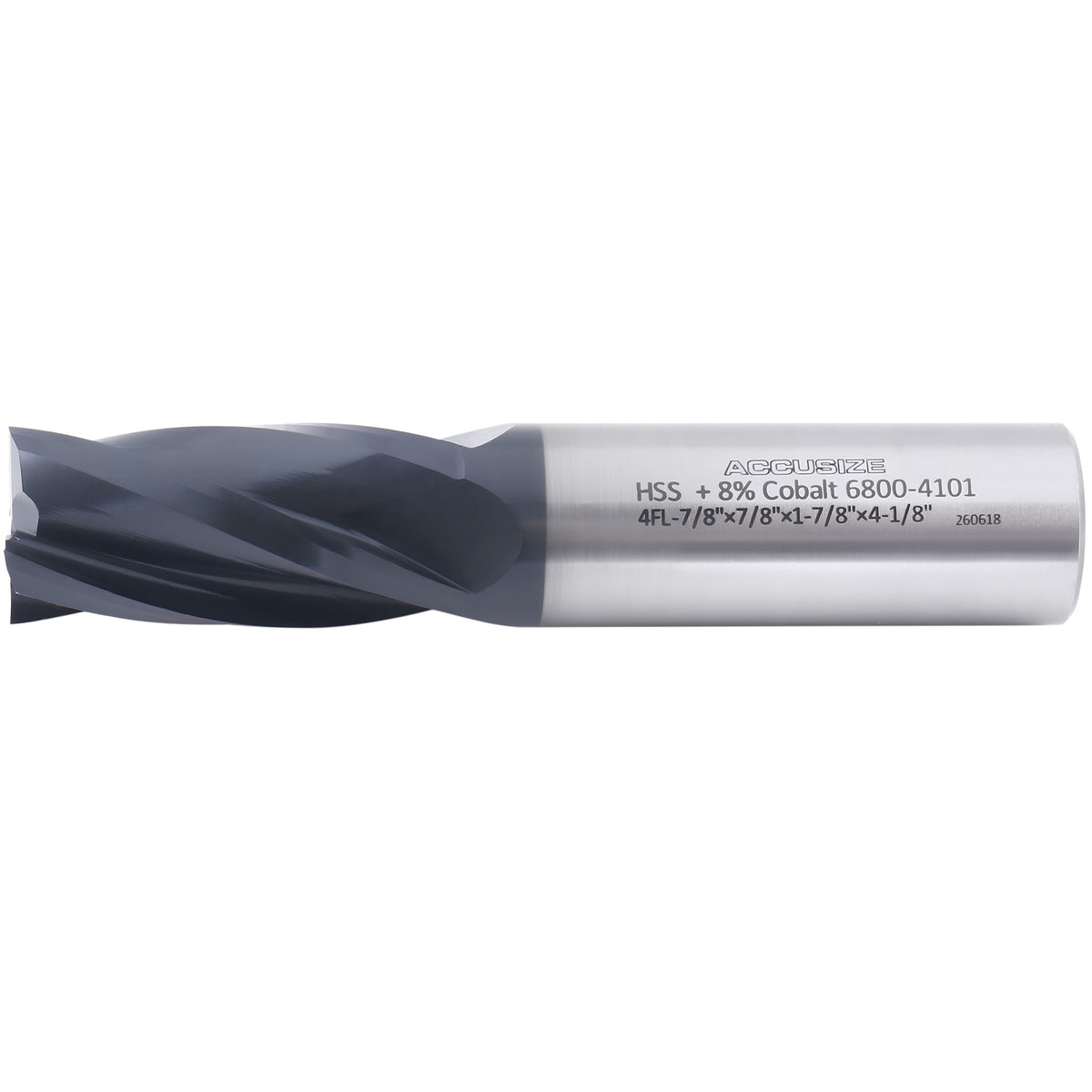

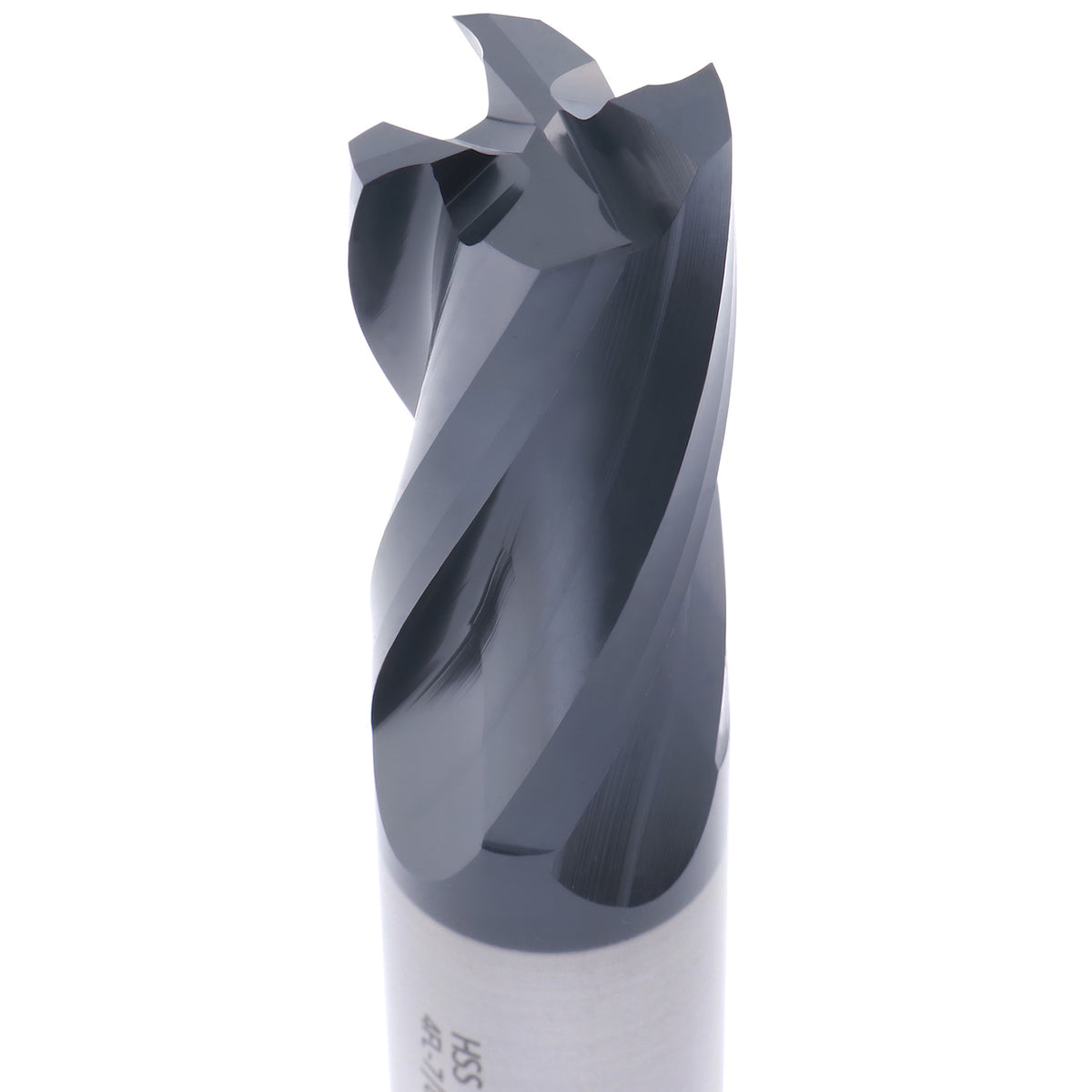

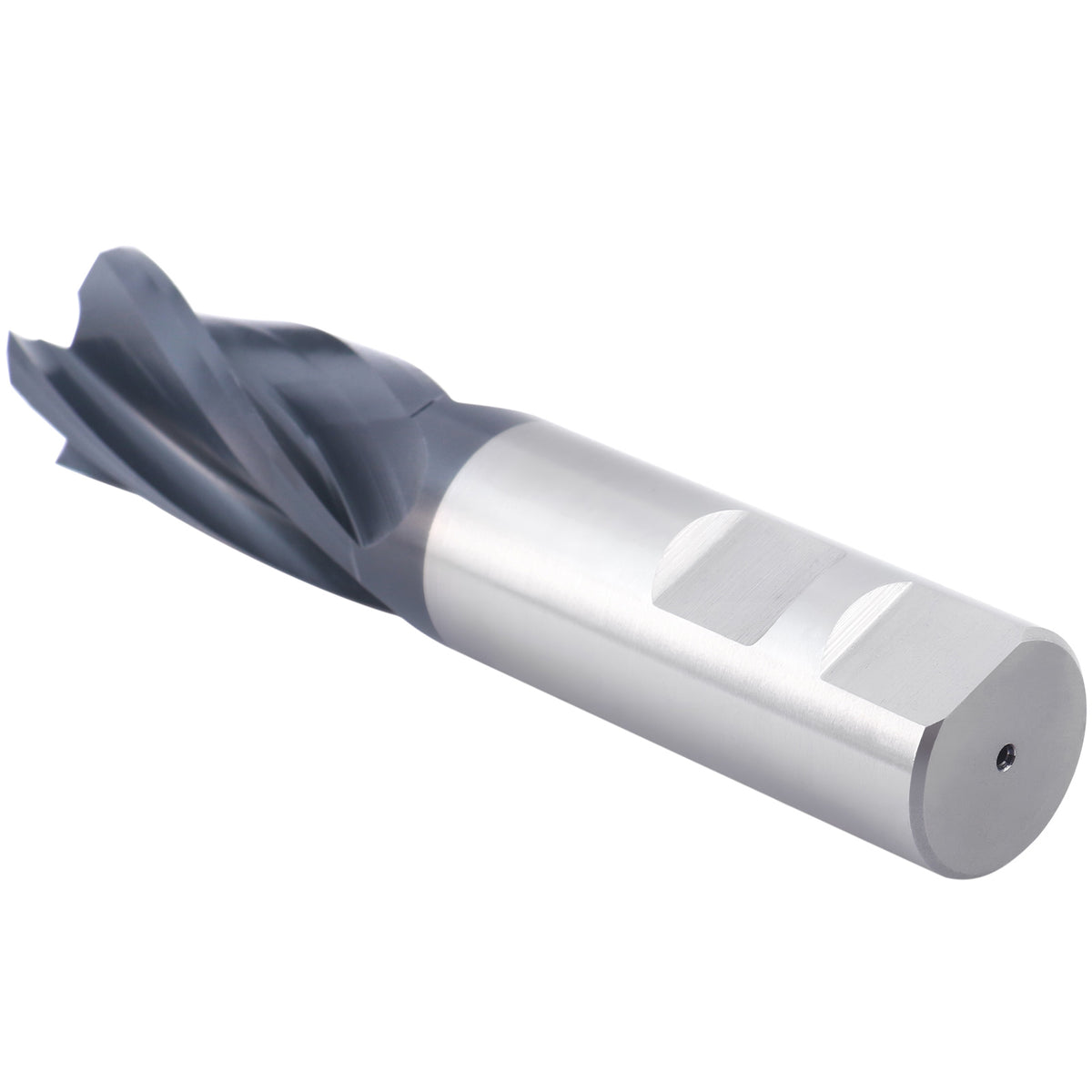

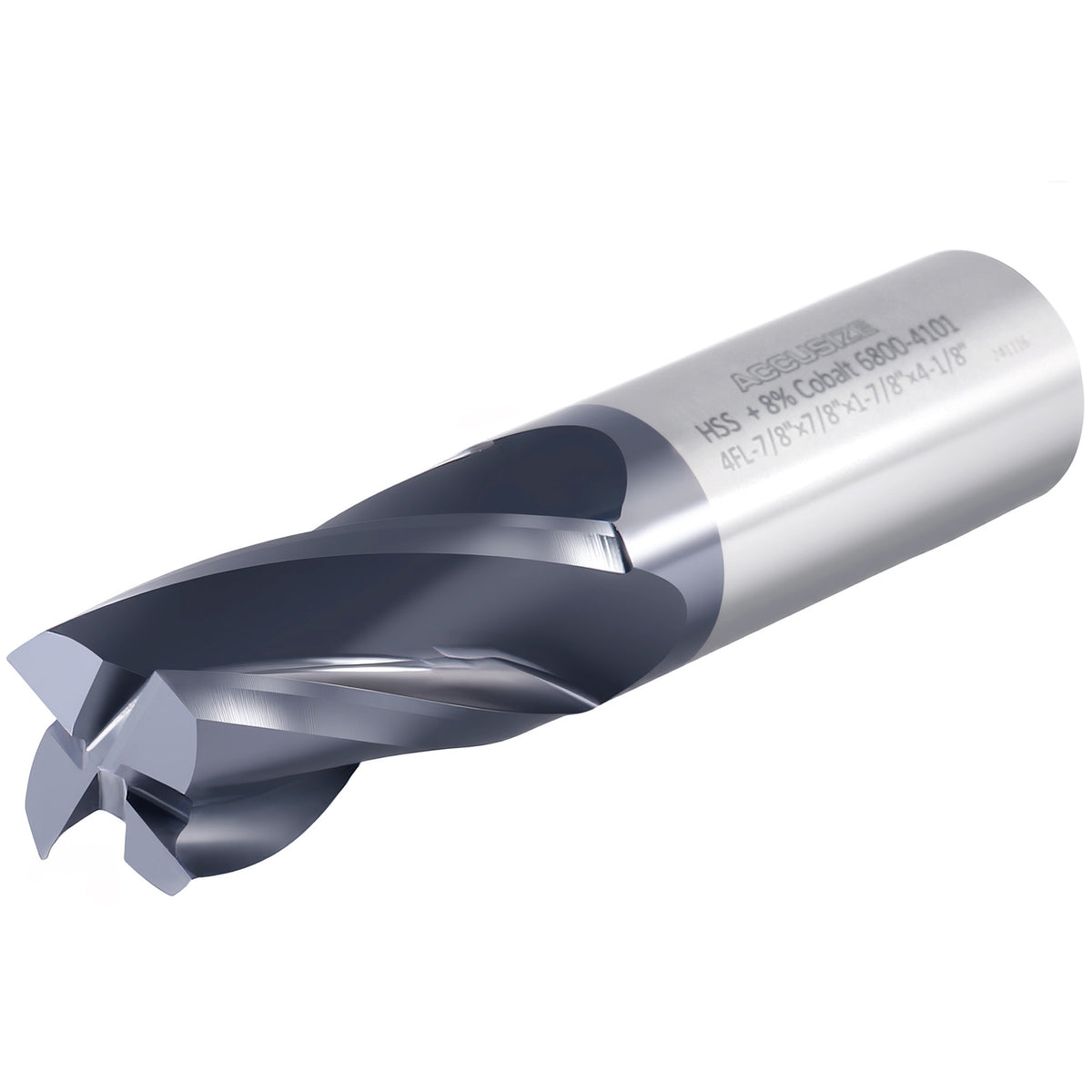

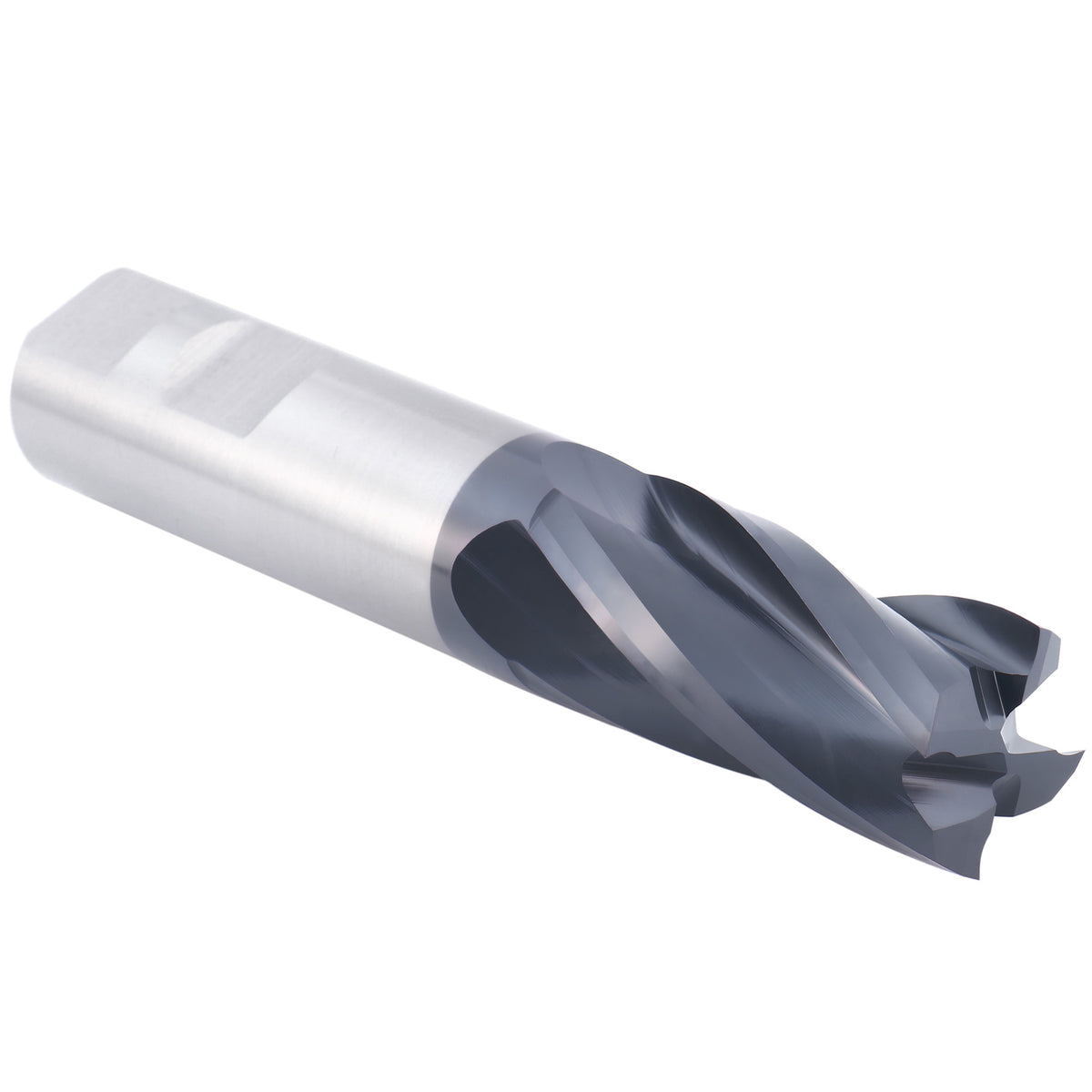

6800-4101 7/8" 7/8" 1-7/8" 4-1/8"
6800-4121 1" 1" 2" 4-1/2"


Recommended Cutting Conditions for Roughing End Mills [Side Milling]
Work Material Low Carbon Steels
(Tensile Strength: ≤180N/mm2) Copper
Alloys, Cast Iron(Soft)
Medium Carbon Steels
 (Tensile Strength: 480-720N/mm2)
Copper Alloys, Cast Iron(Hard)
High Carbon Steels
(Tensile Strength: 720-950N/mm2)
Alloys Steel, Stainless Steels
Special Alloy Steels
Untree-cutting Steels
(30-40HRC)
Aluminum,
Aluminum Alloys & Plastic
Mill Dia Ae Ad Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed
(inch) (inch) (inch) (rpm) ( ft /min) (rpm) ( ft /min) (rpm) ( ft /min) (rpm) ( ft /min) (rpm) ( ft /min)
1/8" 0.0125" 3/16" 5035 0.347 3800 0.265 2518 0.134 1520 0.065 17100 1.115
1/4" 0.0250" 3/8" 2518 0.495 1900 0.370 1254 0.177 760 0.088 8500 1.394
3/8" 0.0375" 9/16" 1425 0.662 1064 0.495 713 0.236 428 0.121 4750 1.742
1/2" 0.0500" 3/4" 1121 0.626 855 0.469 570 0.223 337 0.121 3800 1.646
5/8" 1/16" 15/16" 903 0.557 675 0.419 451 0.223 266 0.124 2992 1.479
3/4" 0.0750" 1-1/8" 713 0.524 532 0.347 356 0.209 190 0.111 2375 1.394
7/8" 0.0875" 1-5/16" 637 0.495 475 0.311 318 0.183 171 0.101 1900 1.184
1" 0.1000" 1-1/2" 570 0.469 428 0.278 285 0.164 152 0.088 1710 1.115

SCHEMATIC DIAGRAM


  1. The Indicated speeds and feeds are
  • For side milling with 2‐fluted end mill to a depth=0.1xD and a width of cut=1.5xD
  • For milling with 4‐fluted, the feed should be twice that listed above.
  • For finishing operations, the feed should be increased by 30â€?0%. 3.Use a rigid and precise machine and holder.
  • Use suitable cutting fluids


Recommended Cutting Conditions for Roughing End Mills [Side Milling]
Work Material Low Carbon Steels
(Tensile Strength: ≤180N/mm2) Copper
Alloys, Cast Iron(Soft)
Medium Carbon Steels
 (Tensile Strength: 480-720N/mm2)
Copper Alloys, Cast Iron(Hard)
High Carbon Steels
(Tensile Strength: 720-950N/mm2)
Alloys Steel, Stainless Steels
Special Alloy Steels
Untree-cutting Steels
(30-40HRC)
Aluminium,
Aluminium Alloys & Plastic
Mill Dia   Ad Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed
(inch)   (inch) (rpm) ( ft /min) (rpm) ( ft /min) (rpm) ( ft /min) (rpm) ( ft /min) (rpm) ( ft /min)
1/8"   1/32" 4275 0.590 3192 0.419 1900 0.203 1330 0.111 10640 1.397
1/4"   1/16" 2128 0.839 1615 0.557 950 0.369 675 0.157 5320 1.758
3/8"   3/32" 1186 1.115 903 0.734 532 0.354 380 0.209 2992 2.230
1/2"   1/8" 950 1.062 713 0.656 428 0.334 299 0.209 2375 2.093
5/8"   5/32" 760 0.951 570 0.623 337 0.334 238 0.223 1900 1.922
3/4"   3/16" 599 0.892 451 0.531 266 0.314 190 0.223 1520 1.758
7/8"   7/32" 532 0.839 404 0.472 238 0.282 171 0.203 1330 1.673
1"   1/4" 475 0.780 356 0.419 213 0.249 152 0.177 1188 1.561

Ad=1/4D
Slotting Diagram of  6800 TiAlN Coated Finishing End Mills

  1. The Indicated speeds and feeds are for slotting
    1. depth=1/4xD
  2. For deeper slotting , the speed should be decreased by 20-50%
  3. Use a rigid and precise machine and holder.
  4. Use suitable cutting fluids

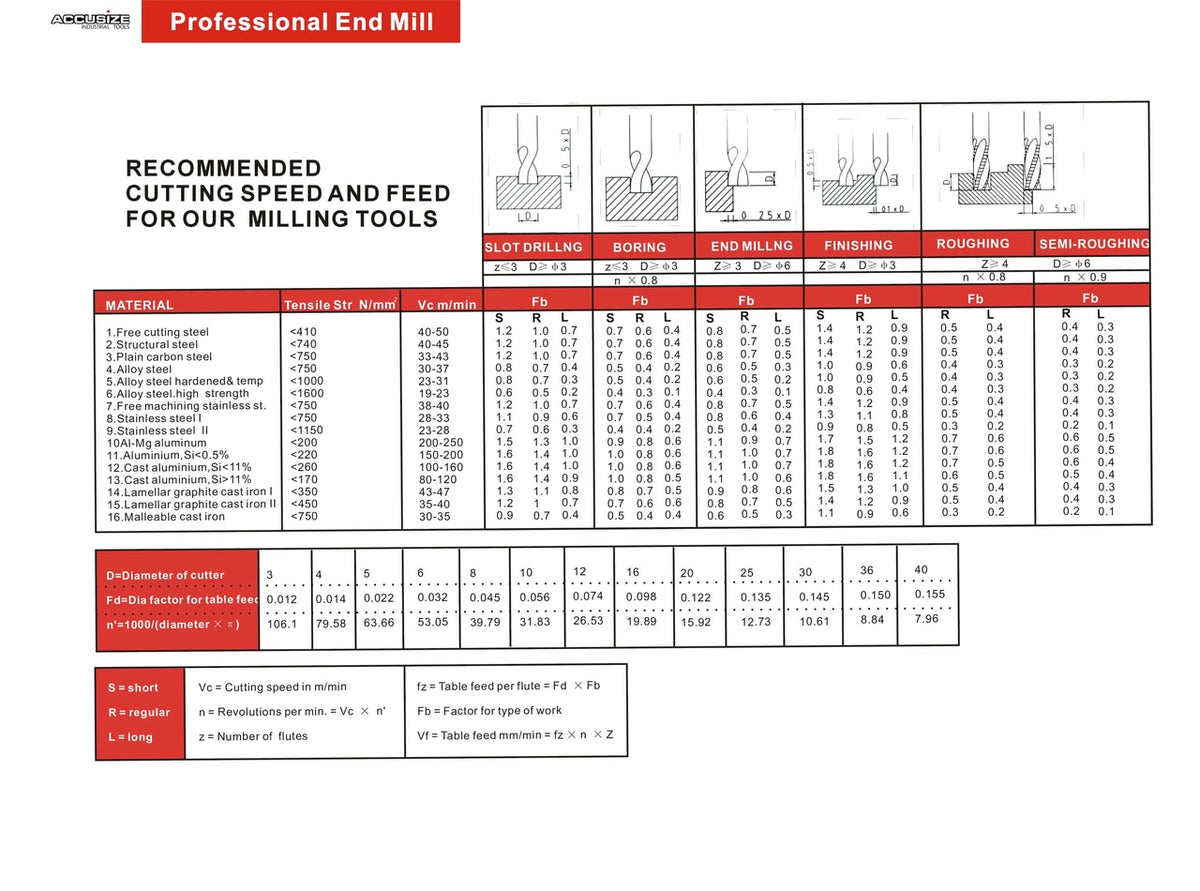

Recommended cutting speed and feed for end mills 6800 series

**ABOVE CUTTING PARAMETERS PROVIDED FOR REFERENCE ONLY **
