Shipped directly from PHASE II+ in NJ, USA

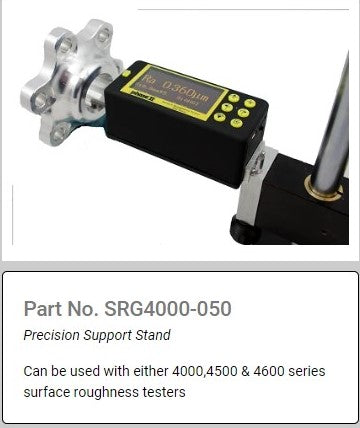

Surface Roughness Stand/Profilometer Stand
Model No. SRG-4000-050
Features
Can be used with all Phase II+ 4000, 4500 & 4600 series surface roughness testers/profilometers.

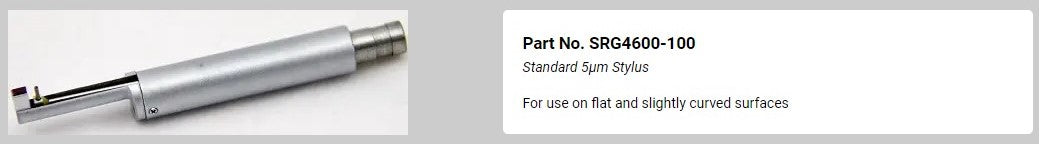

Model No. SRG4600-100
Standard 5µm Stylus
For use on flat and slightly curved surfaces
Model No. SRG4500-200
Deep Groove Stylus
For use on deep grooves with min. width of 3mm
and max depth of 10mm. Must be used with support stand shown above.
Model No. SRG4500-300
Small Hole Stylus
For use in small holes under 2mm diameter and max depth of 9mm
Model No. SRG4500-400
Curved Surface Stylus
For use on curved surface with a minimum
curvature radius of 3mm. Must be used with support stand shown above
Model No. SRG4500-500
2” Stylus Extension
Adds extra 2” reach for deeper applications
Model No. SRG4500-550
5” Stylus Extension
Adds extra 2” reach for deeper applications
-- ** About SRG-4600 Surface Roughness Testers /Profilometers/Surface Finish ** --
Surface Roughness Testers /Profilometers/Surface Finish
Model No. SRG-4600
Features
The newest addition to our state-of-the-art surface roughness testers /profilometers, the SRG-4600 will instill the highest level of confidence in your production, shop floor or QC lab. These surface roughness testers/profilometers are distinguished by a high level of accuracy, multiple parameters and simplicity of operation. Extremely sensitive and highly accurate readings from this Phase II surface roughness tester/profilometer is offered via 9 popular surface roughness scales including Ra, Rq(Rms), Rt, Rz and Rmax.
SRG-4600 PORTABLE SURFACE ROUGHNESS TESTER/ PROFILOMETER
The newest addition to our state-of-the-art surface roughness testers /profilometers, the SRG-4600 will instill the highest level of confidence in your production, shop floor or QC lab.Extended memory and output coupled with many updated useful functions, the SRG-4600 surface roughness tester/profilometer is clearly the new leader in ultra accurate surface roughness/profile testing. These surface roughness testers/profilometers are distinguished by a high level of accuracy, multiple parameters and simplicity of operation. Extremely sensitive and highly accurate readings from this Phase II surface roughness tester/profilometer is offered via 9 popular surface roughness scales including Ra, Rq(Rms), Rt, Rz and Rmax.
The new diamond stylus is hypersensitive and sophisticated enough to allow for a .001 (um) micron display resolution. The SRG-4600 surface roughness tester/profilometer can utilize an easy interface to allow for changes of in/mm (uin/um), cutoff length, sampling length, parameters, level of test(stylus position), digital filters and more! Surface roughness measurement results are displayed as large characters on the LCD screen for easy recognition. Battery powered
portability allows the SRG-4600 surface roughness tester/profilometer to mobilize productivity throughout the shop.Further, a wireless Bluetooth auto-start comes standard with each unit. Optional Micro Printer is available, as well as optional stand.
SRG-4600 surface roughness tester features:
- 9 Different roughness parameters
- Inside/Outside Diameters
- Stylus position indicator
- USB/Bluetooth output to PC
- Large Memory
SRG-4600 Surface Roughness Tester/profilometer Technical Specifications:
- Measures flat, Inside and Outside Diameters
- Measures grooves and recessions: wider than 0.16in (4mm)
- Roughness parameters: Ra, Rz, Rq (Rms), Rt, Rs, Rsm, Rmax, Rpc, Rmr.
- Roughness standards: ISO/DIN/JIS/ANSI
- Display resolutions: 0.01µm/+/-20 µm 0.02µm/+/-40 µm 0.04µm/+/-80 µm
- Measuring accuracy: ?±10%
- Repeatability: Less than or equal to 6%
- Measuring range: Ra, Rq: 0.01-40µm Rz,Rt, Rm: 0.02-160µm
- Maximum drive range: 0.7in(17.5mm)
- Cut-off length: 0.009/0.03/0.09inch (0.25/0.8/2.5mm)
- Tracing speeds: speed 1mm/s (sampling length 2.5mm) speed 0.5mm/s (sampling length 0.8mm),
speed
0.135mm/s (sampling length 0.25mm) - Sensor: Inductance type
- Sensor-stylus: Diamond, radius 5µm
- Pick up Force: <4mN
- Filter: RC, PC-RC,GAUSSIAN, and D-P
- Data output: USB
- Operating temperature: 41ºF-104ºF (5º-40ºC)
- Weight: 0.97lb(440g)
- Dimensions: (119 x 47 x 65mm)
- Power: Li-Ion rechargeable battery
- Auto shut-off
Optional Accessories:
- Precision Support Stand
- Deep Groove Stylus
- Small Hole Stylus
- Curved Surface Stylus
- Stylus Extension
- Micro Printer
SRG-4600 surface roughness tester/profilometer comes supplied with:
- Calibrated Reference Standard w/support plate
- Bluetooth Auto-start
- Leveling plate
- Stylus protector
- A/C Adapter
- Rugged Carry case
- Comes supplied with Data Output Software
Main Screen
Main Screen
Parameters
Roughness Profile
