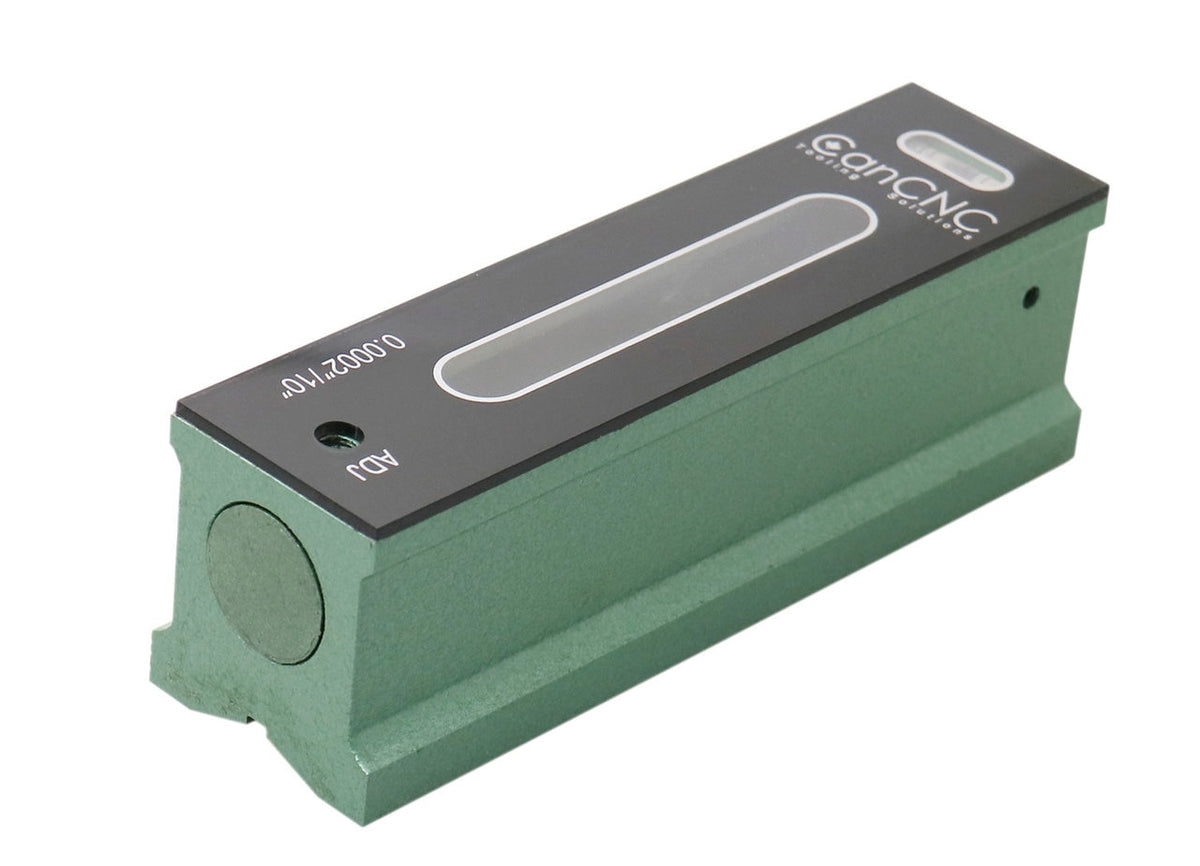

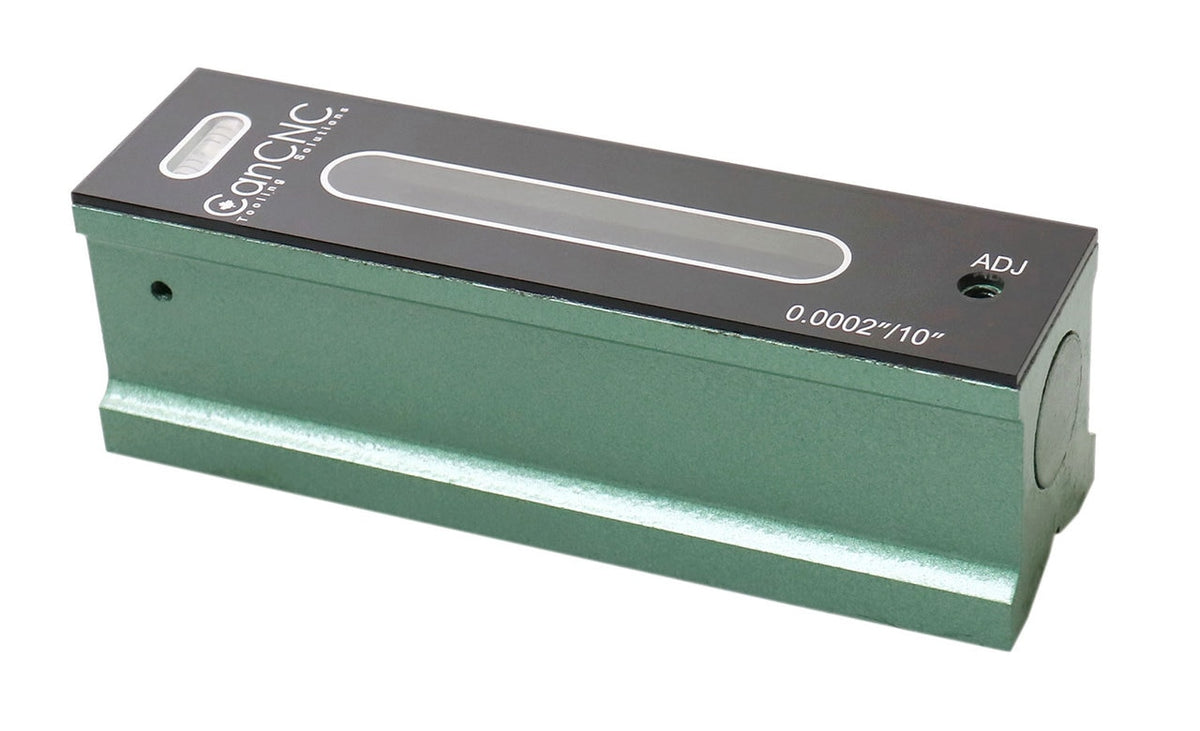

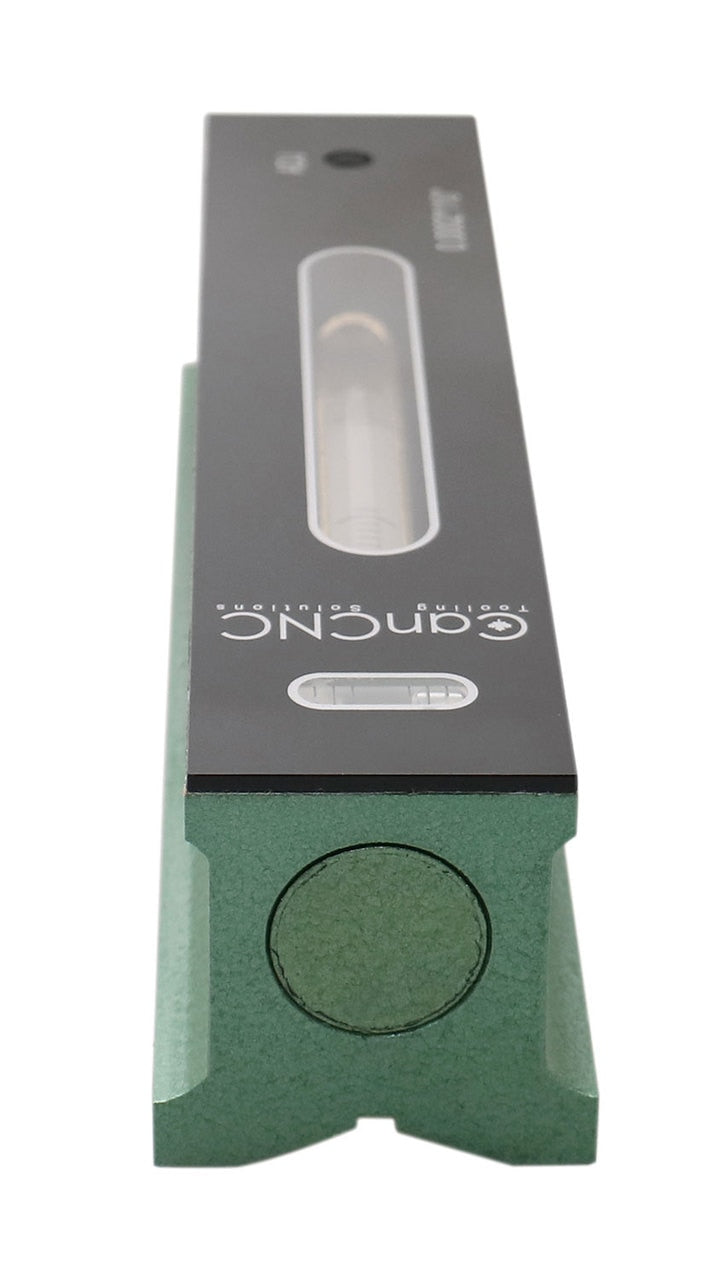

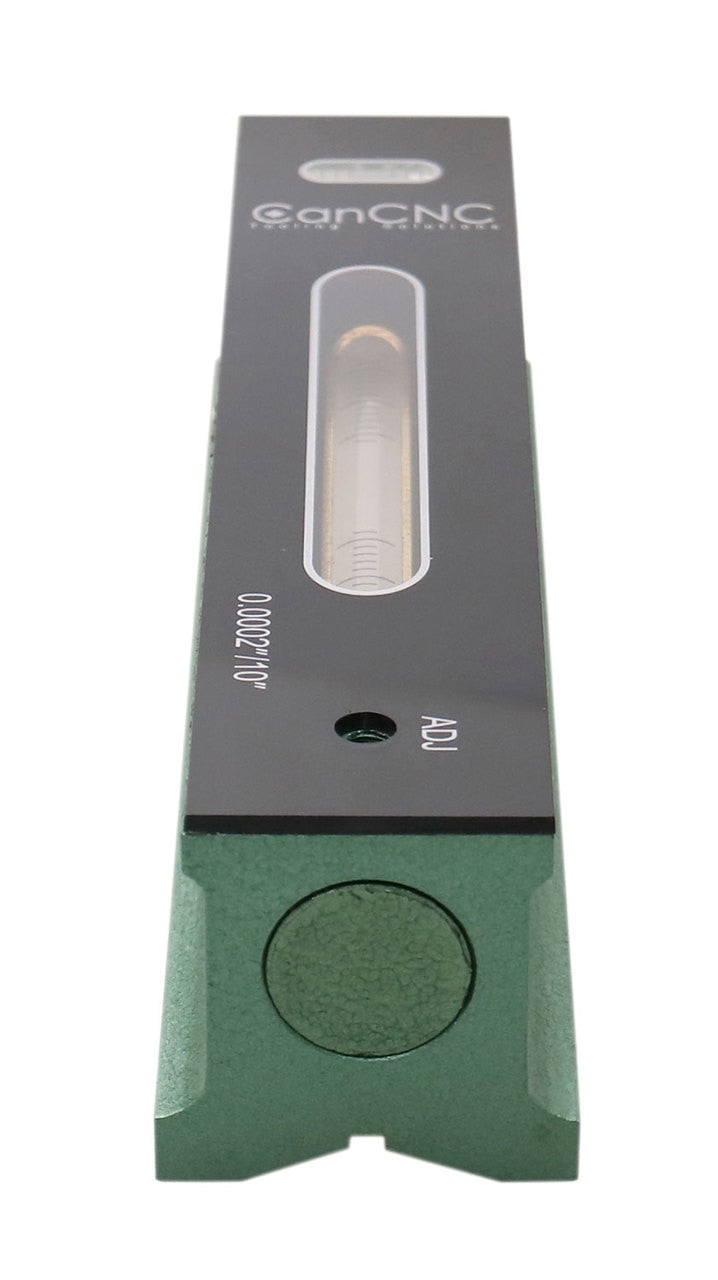

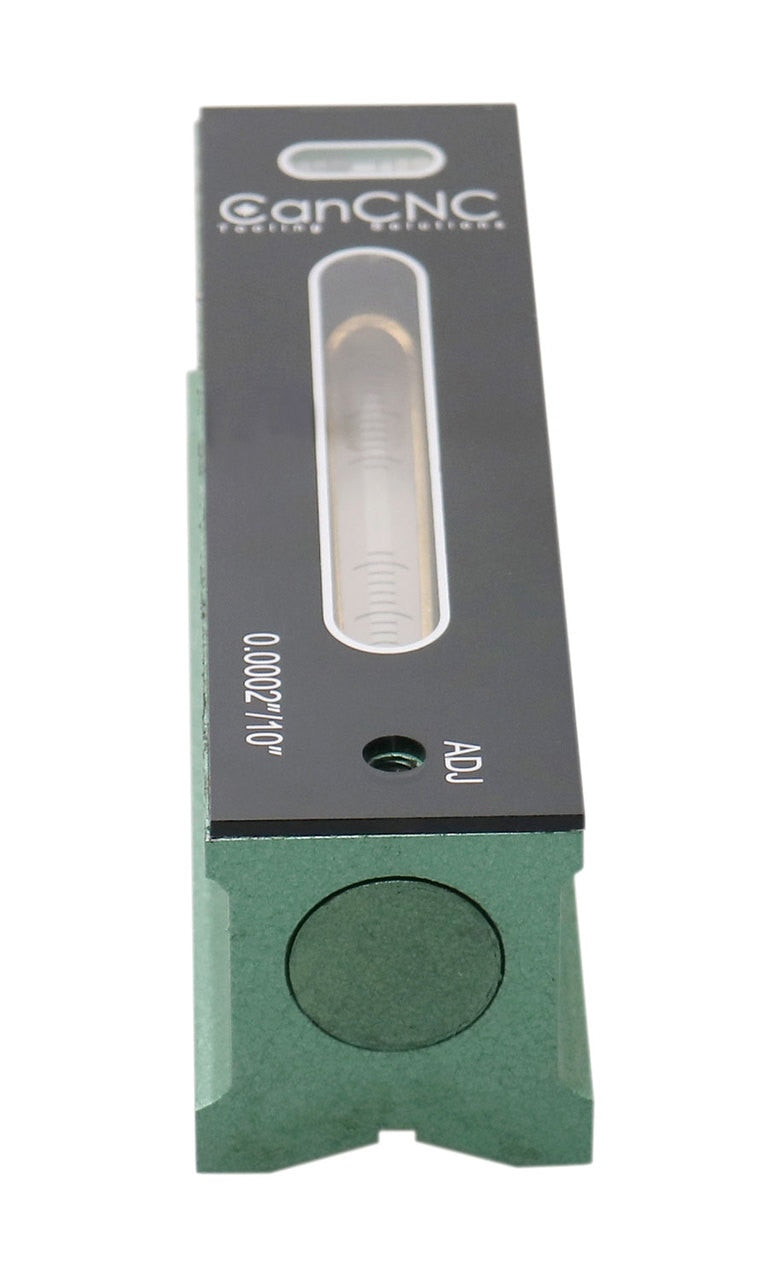

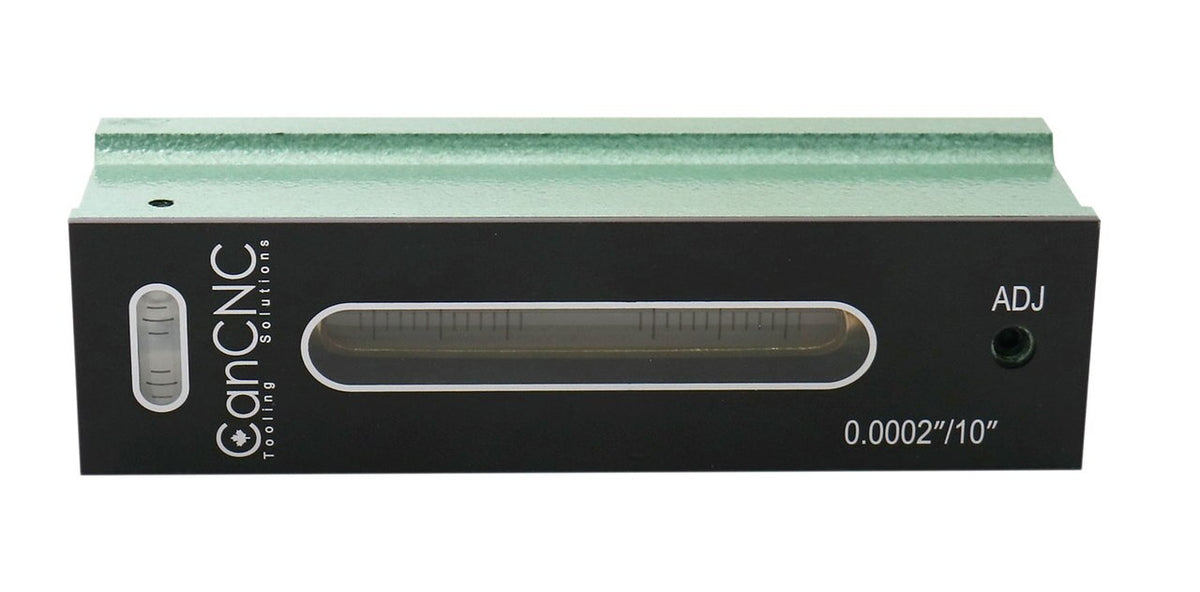

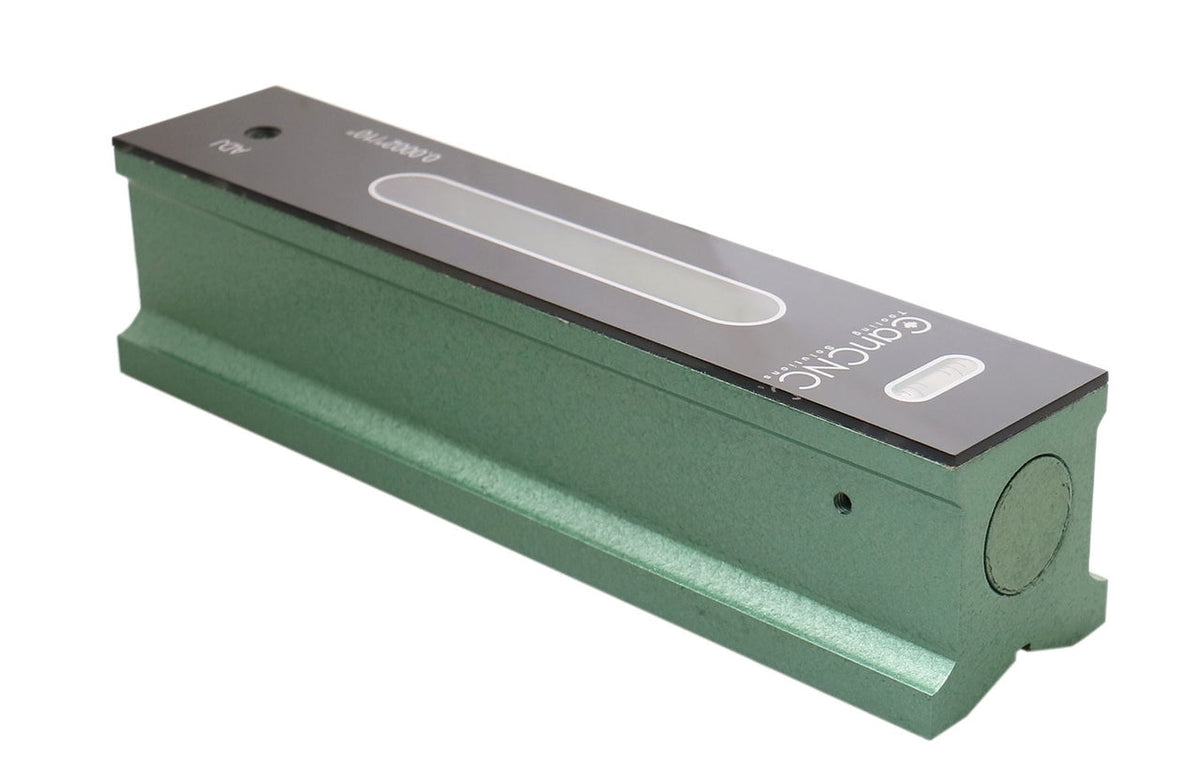

Premium Master Precision Levels, 6", 8" and 12"


Price:
$142.72

Shipping calculated at checkout

Currency:
USD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

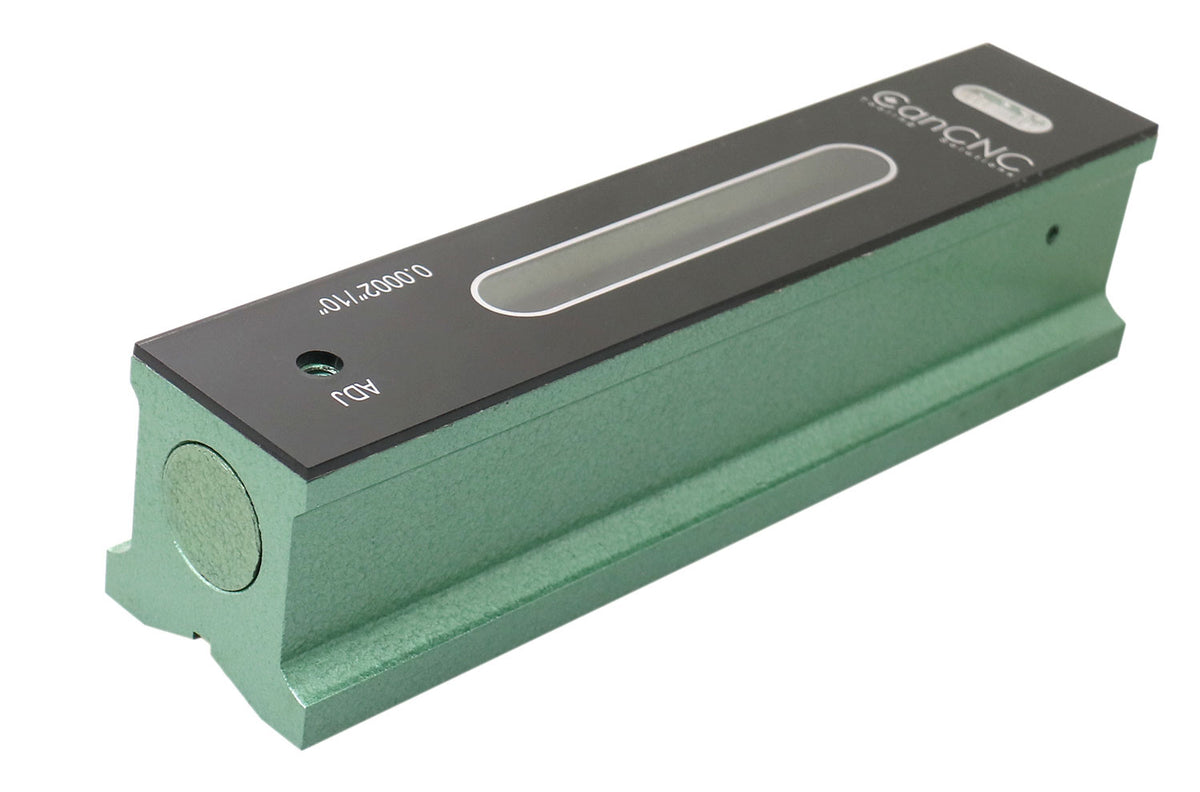

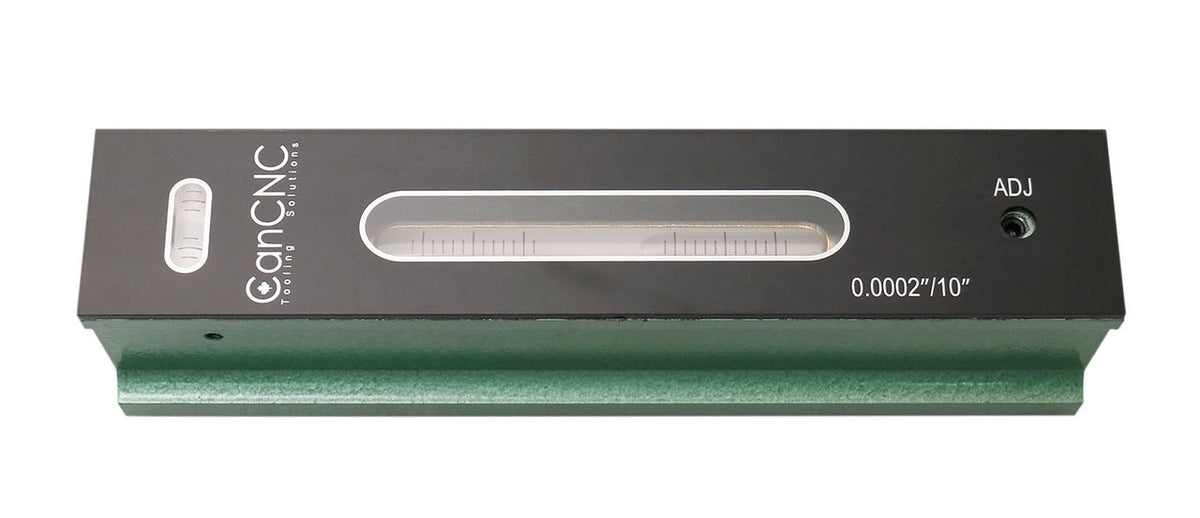

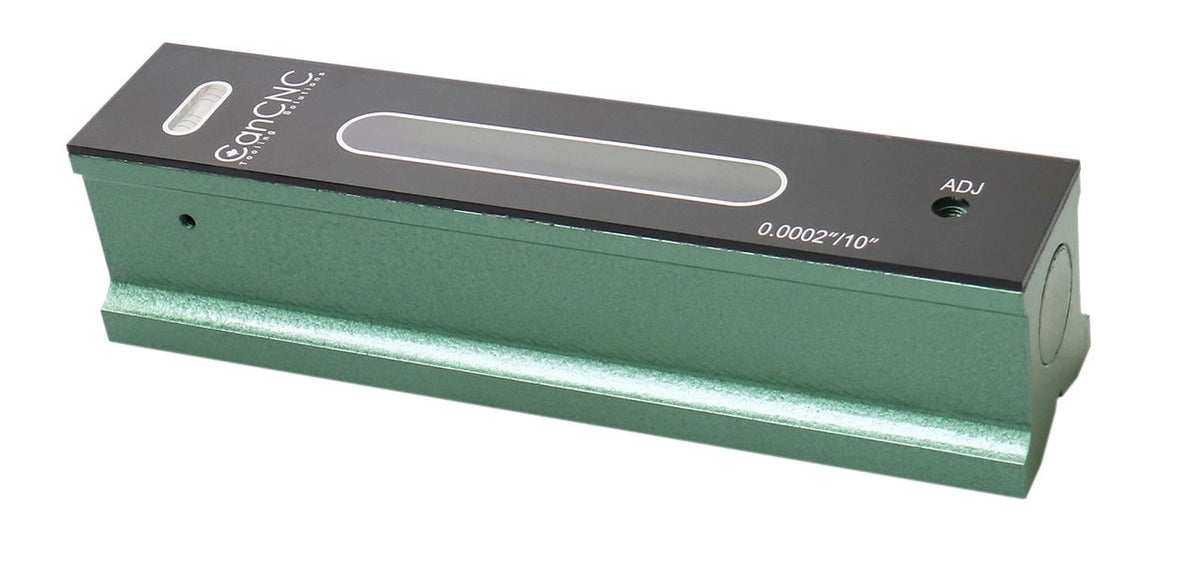

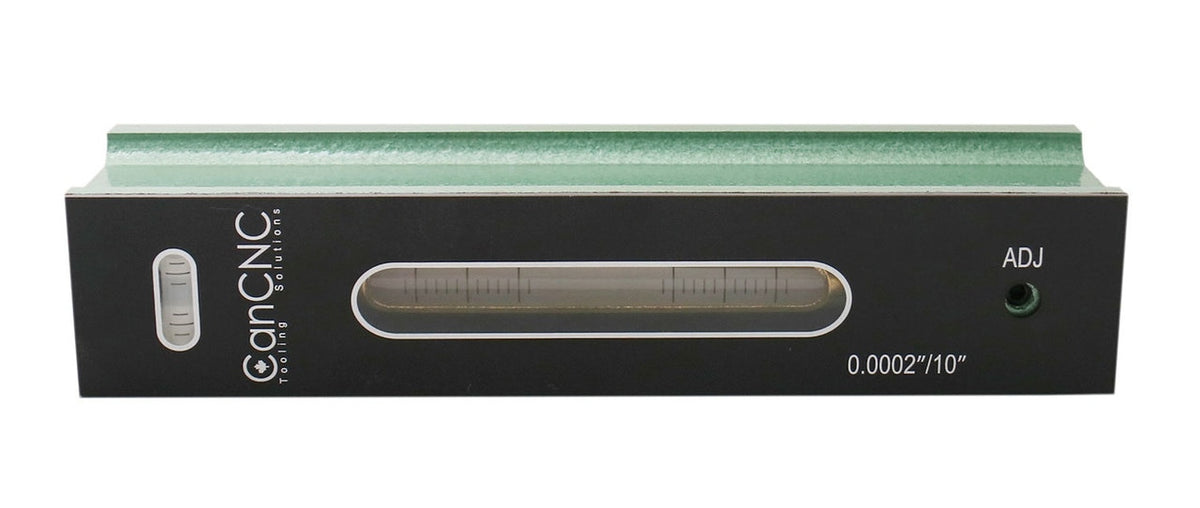

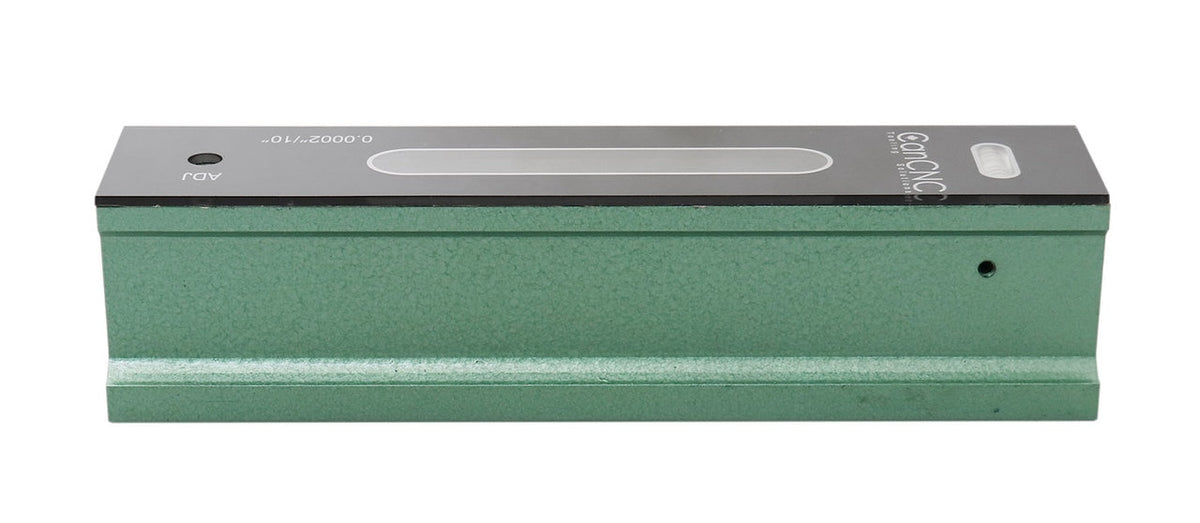

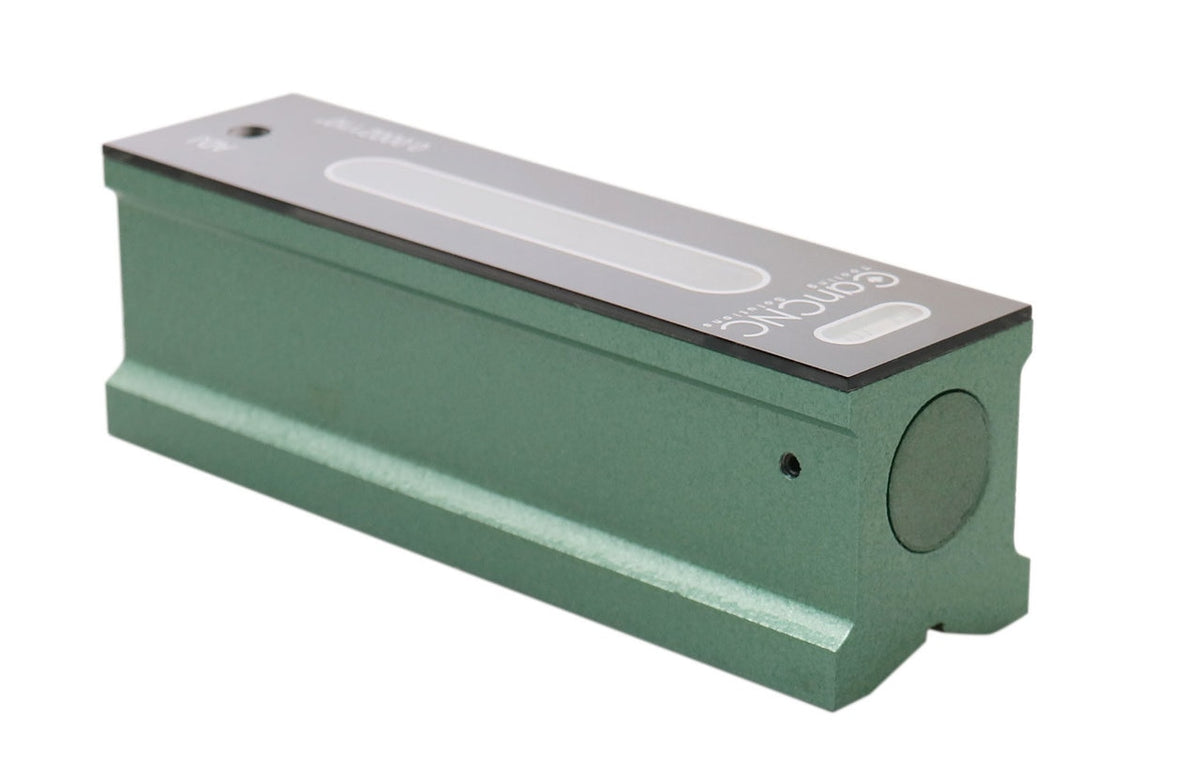

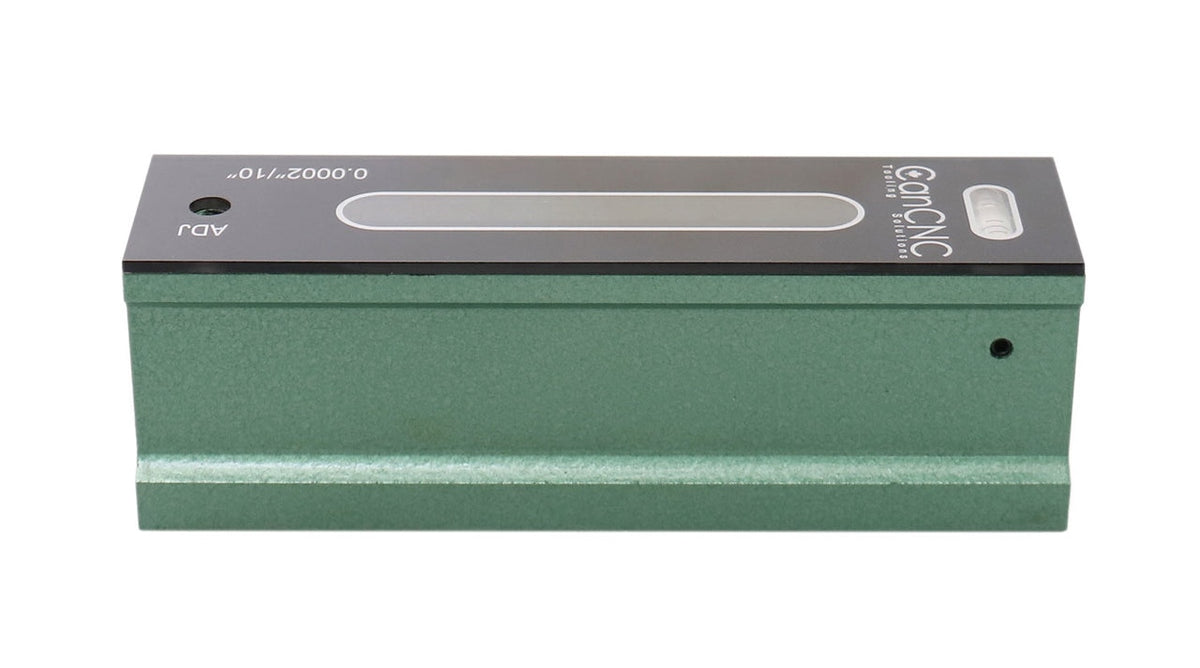

Premium Master Precision Levels

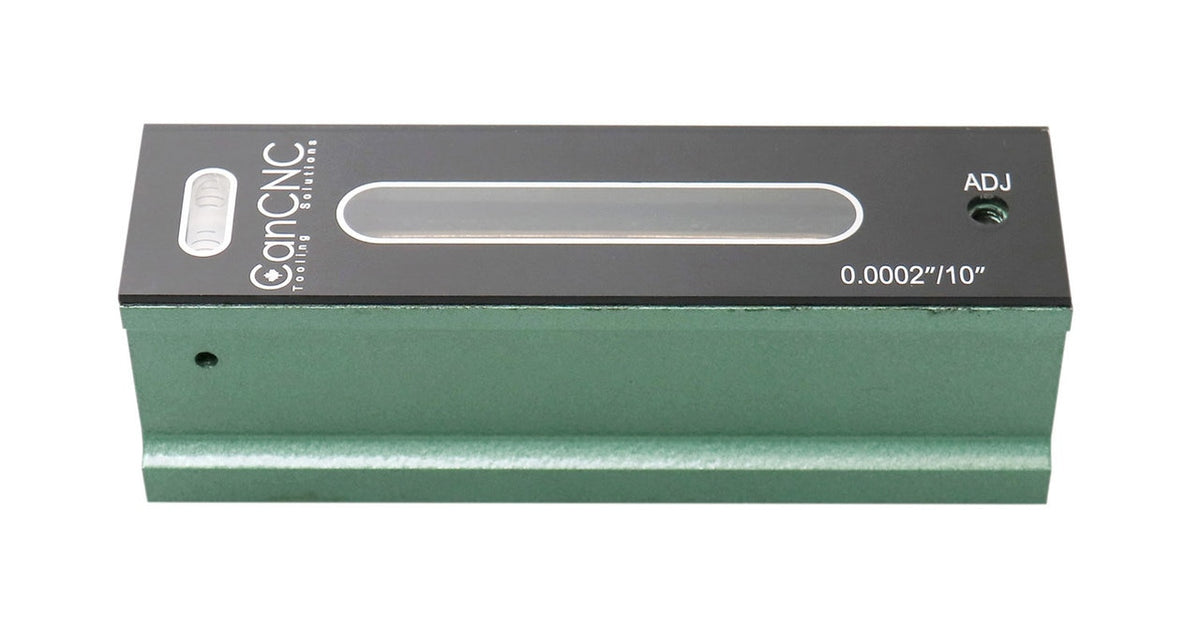

  • Adjustable main vial 0.0002"/10"

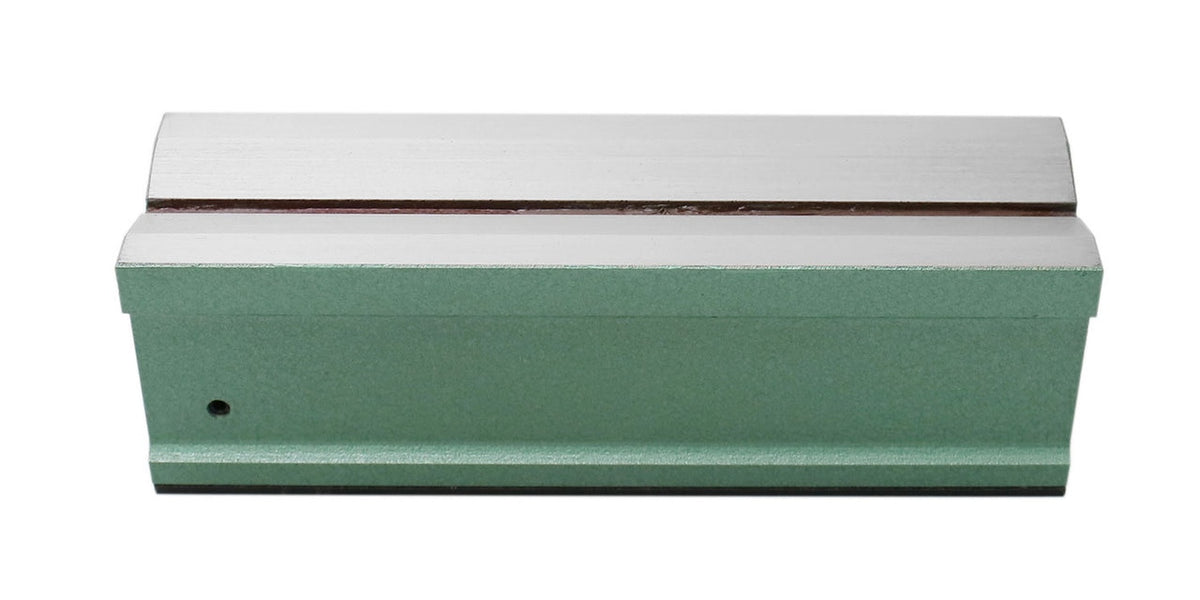

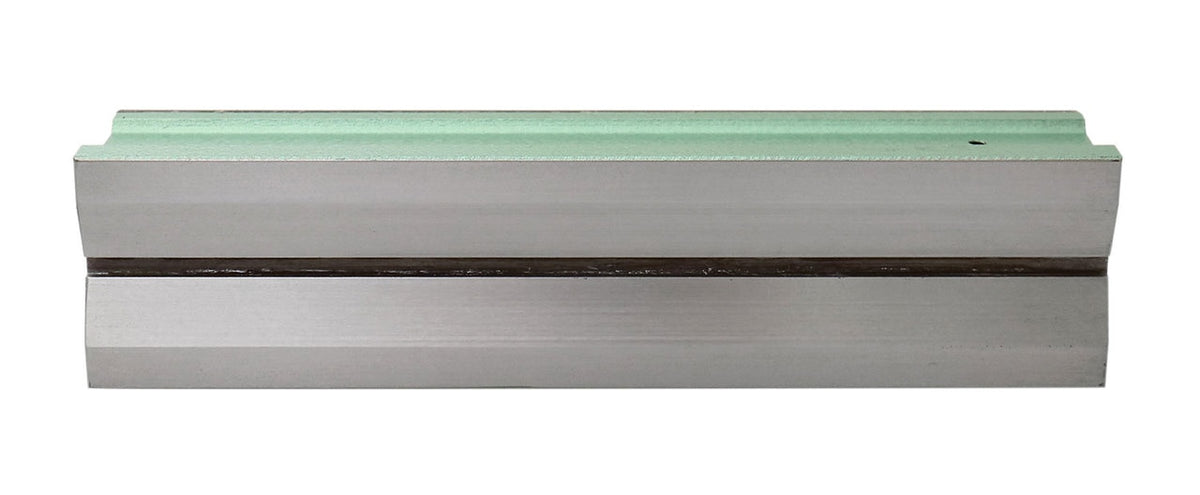

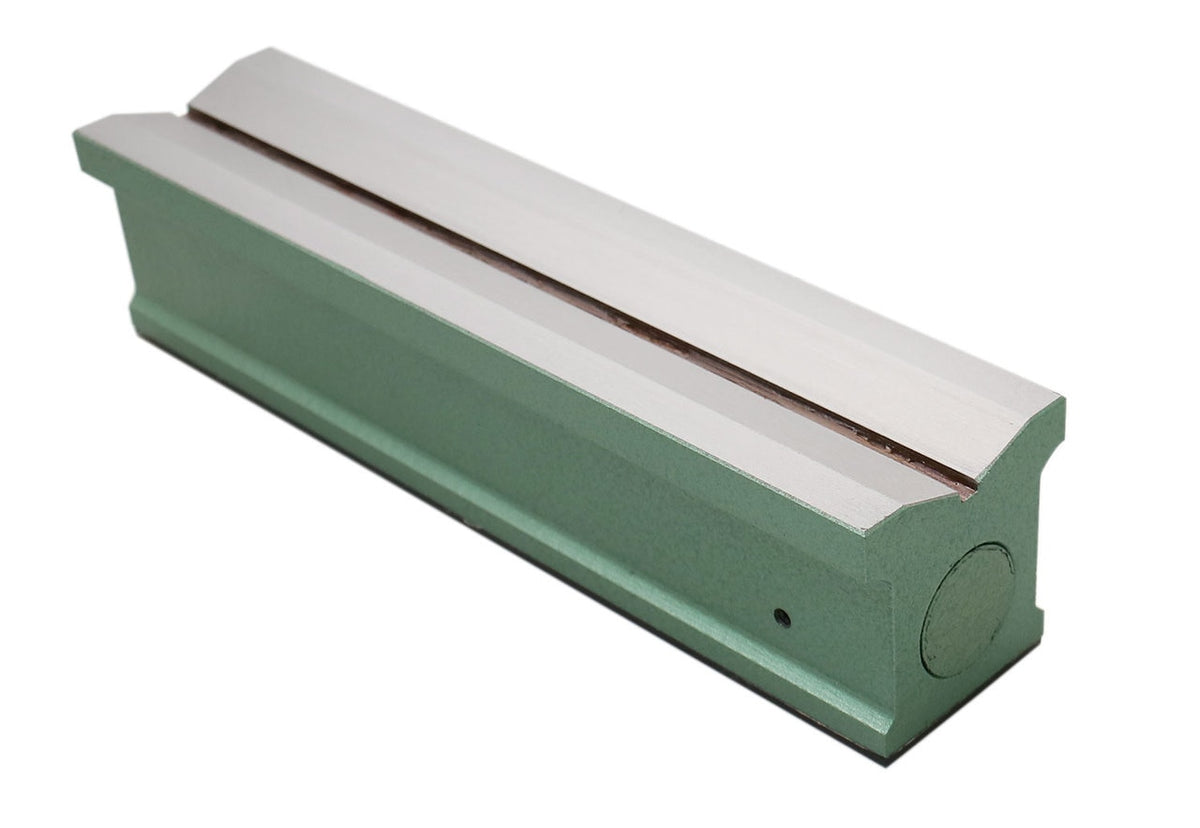

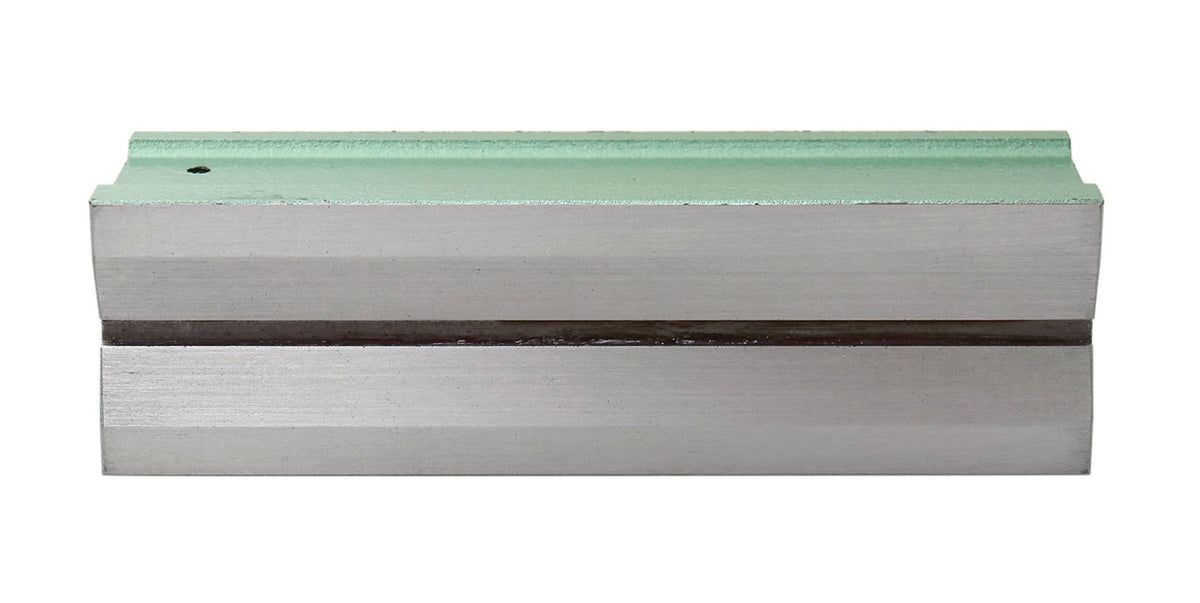

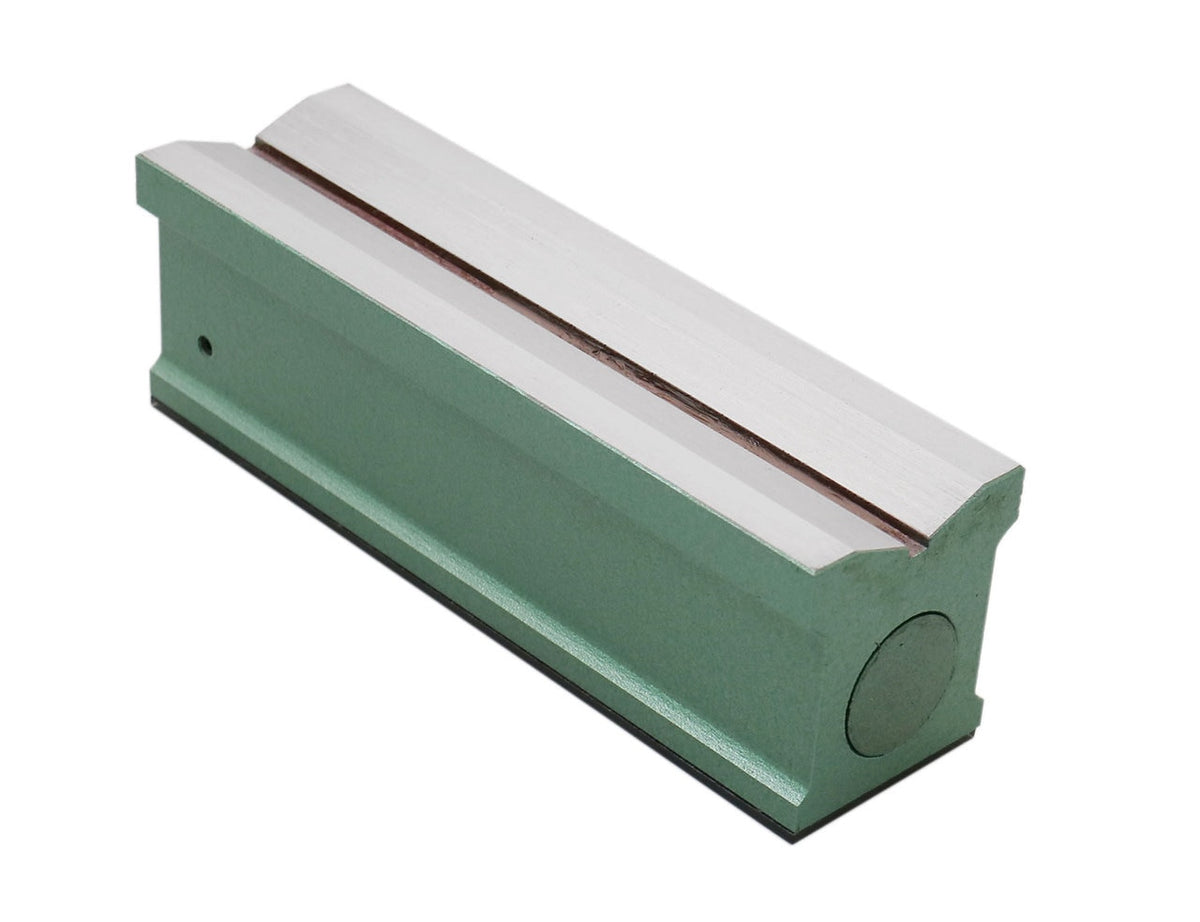

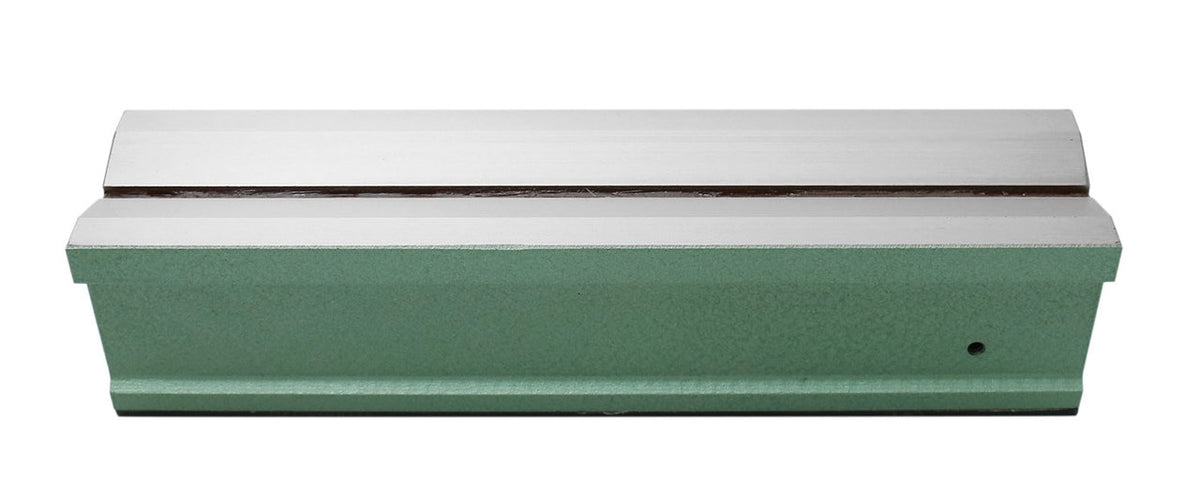

  • V-grooved base.

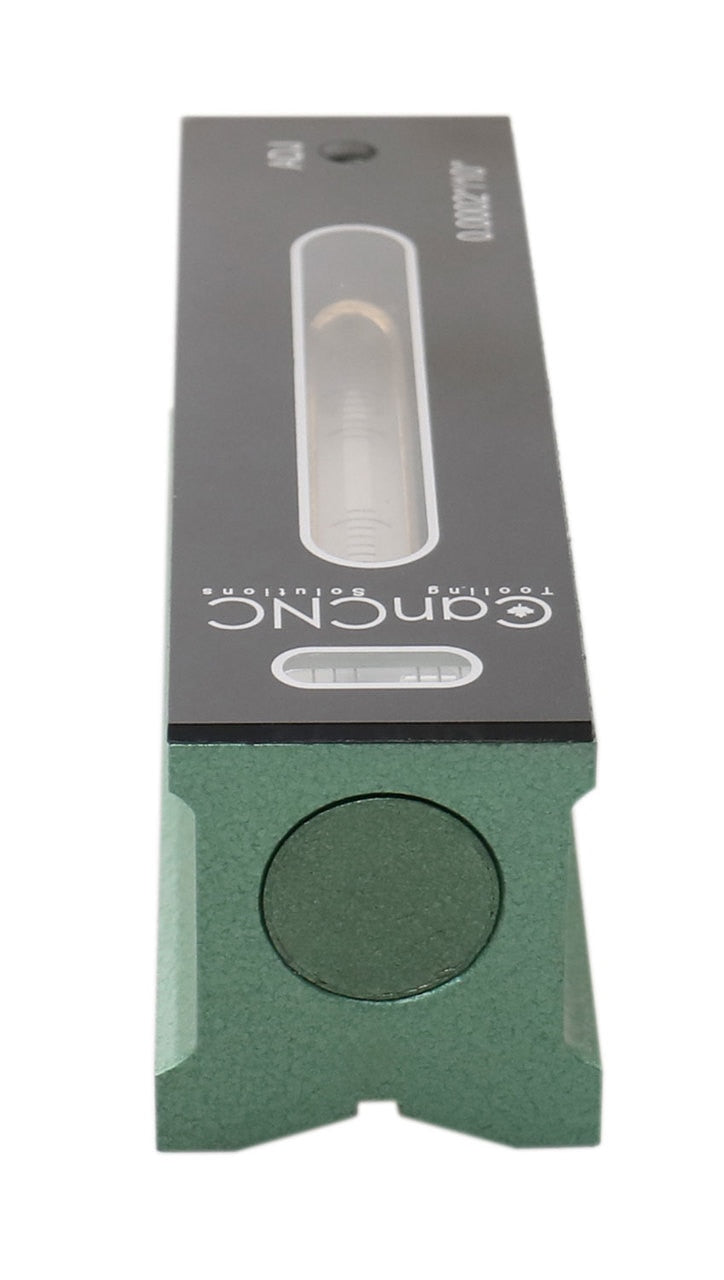

  • With cross test vial.
  • Robust cast iron body.
  • Compared to regular master precision levels, this level is designed and produced in a more sophisticated environment.

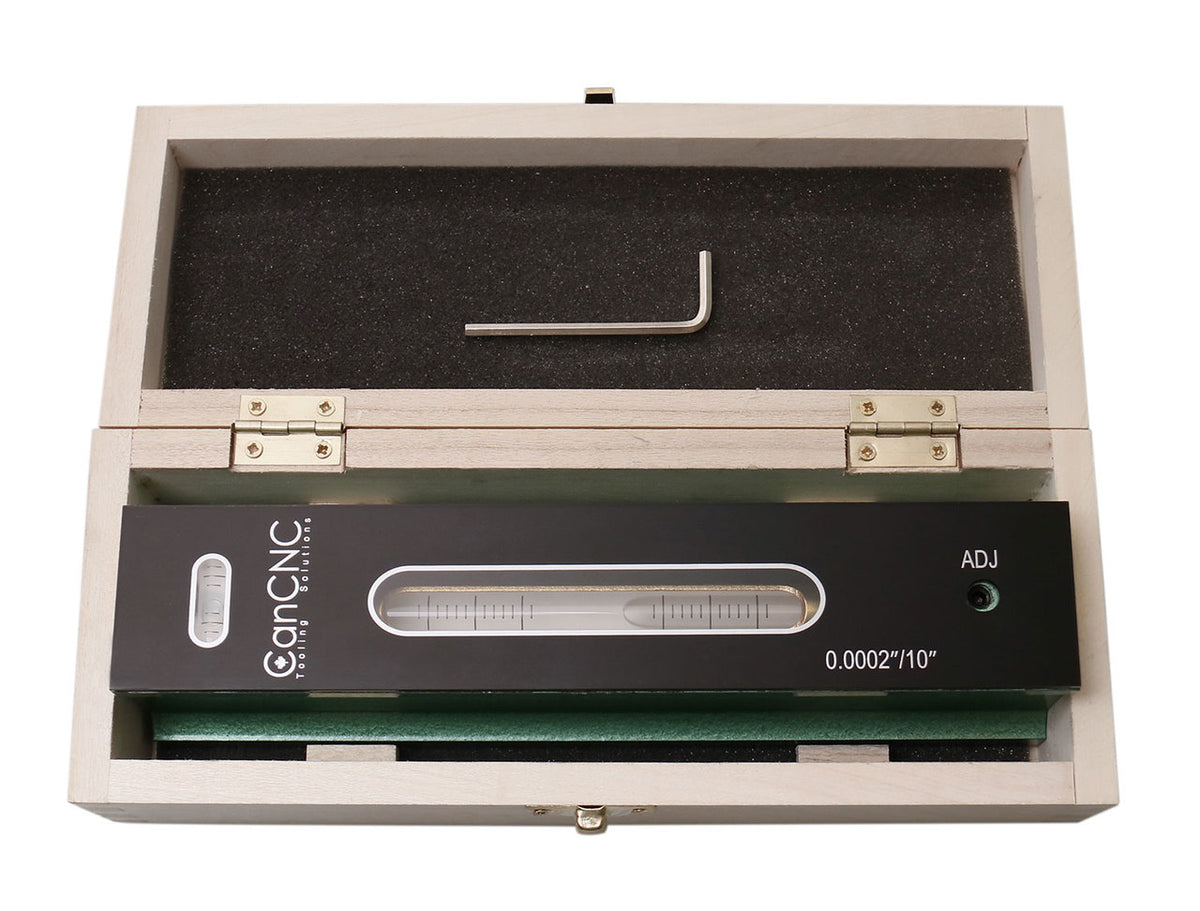

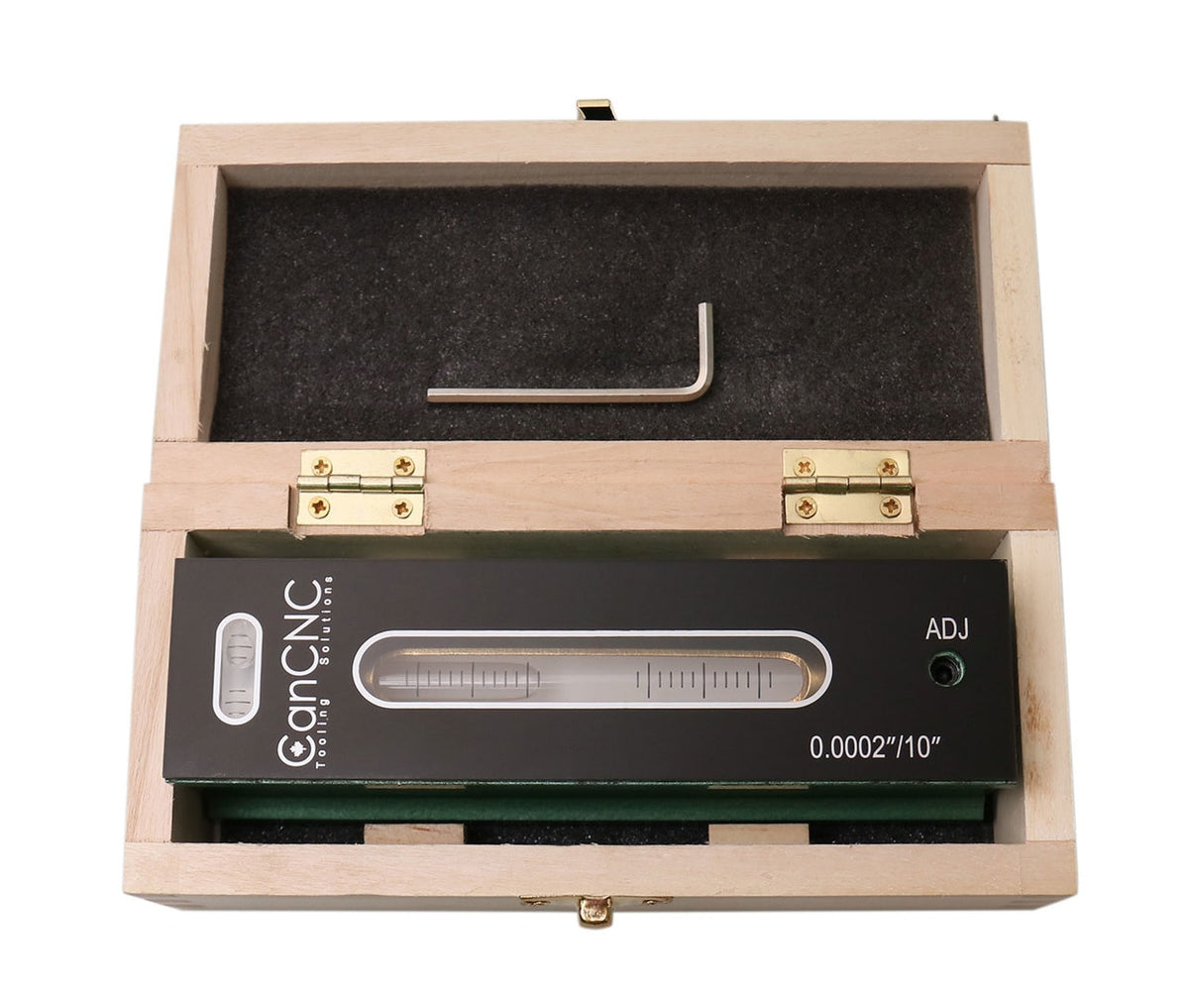

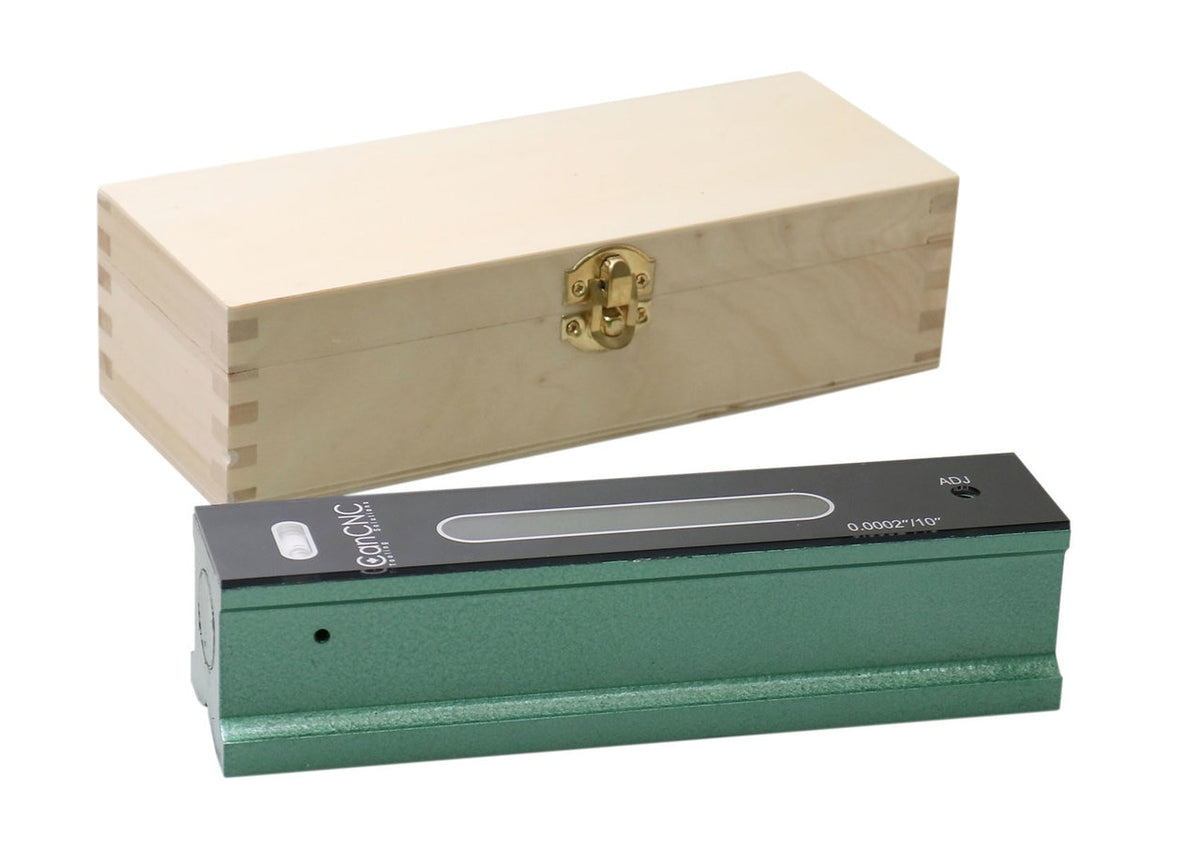

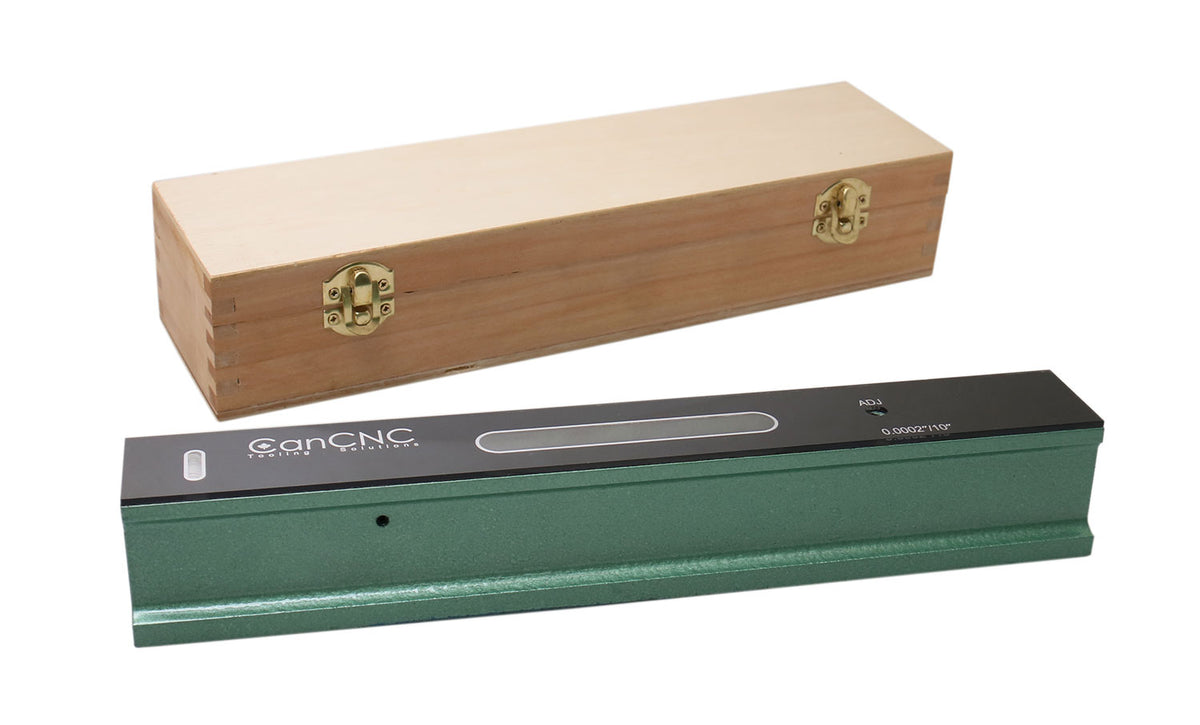

  • Supplied in a fitted wooden case.
Item Size (L) Accuracy B C D
S908-C606 6" 0.0002"/10" 1.830" 1.574" 1.732"
S908-C608 8" 0.0002"/10" 1.830" 1.574" 1.890"
S908-C612 12" 0.0002"/10" 1.830" 1.574" 1.890"


Schema of Professional Master Precision Levels

CanCNC Tooling Solutions S908-C606 S908-C608 S908-C612 6", 8", 12" Professional Master Precision Level in Fitted Box, Accuracy 0.0002''/10''

Calibrating

E. To determine whether calibration is correct, see if the bubble flows in the same position in both two measurements with the same number of deviations after the level is rotated by≤180° every time, and the average measurements of these two are true horizontal levels. And if the bubble flows between the same number of deviations when the level is rotated by≤180° every time, it does not have to be at the center.

If the bubble flows in different positions in two measurements, the level is not calibrated successfully. Repeat the above steps until the level is calibrated.

CanCNC Tooling Solutions S908-C606 S908-C608 S908-C612 6", 8", 12" Professional Master Precision Level in Fitted Box, Accuracy 0.0002''/10''

Measuring increment

  • Mark down datum of the two measurements, create graphs and see if these two curves are symmetrical.
  • Then calculate the increment.
  • To measure the increment, slide the level along the surface.
  • Mark down the deviations.
