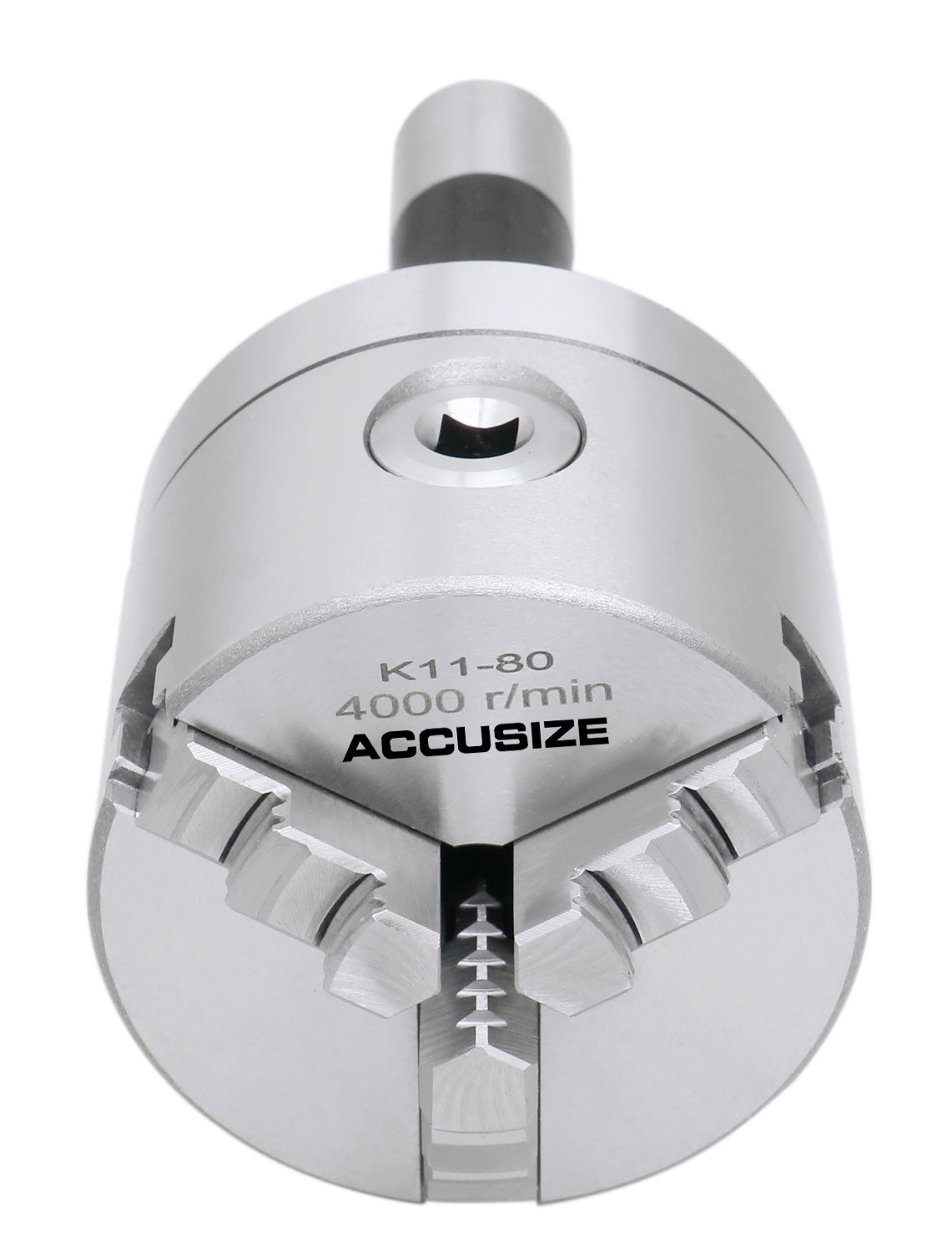

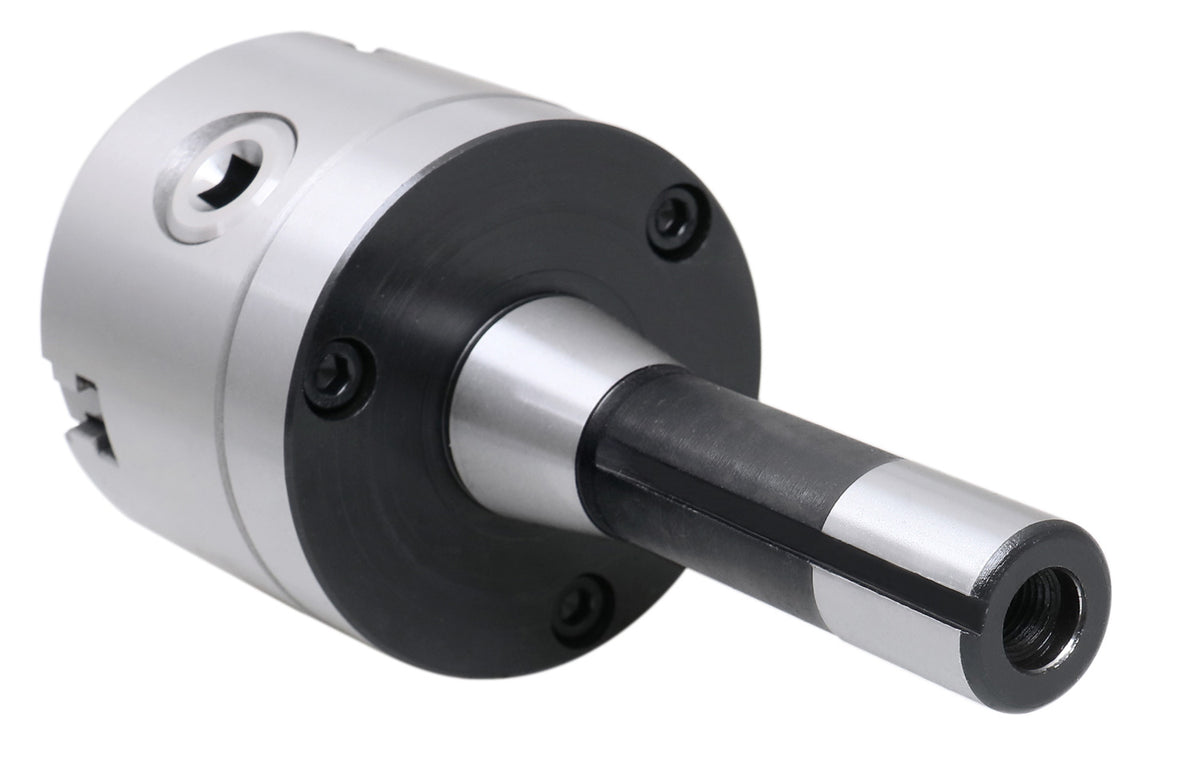

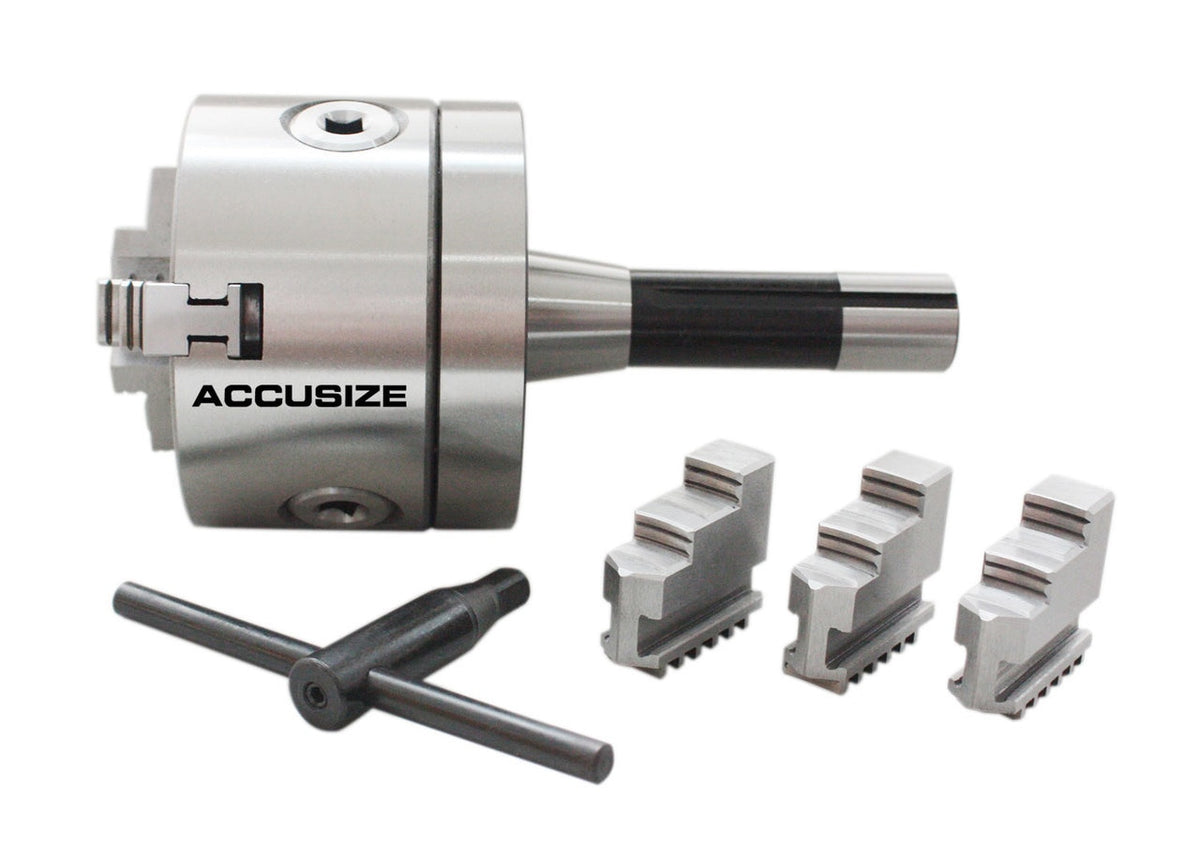

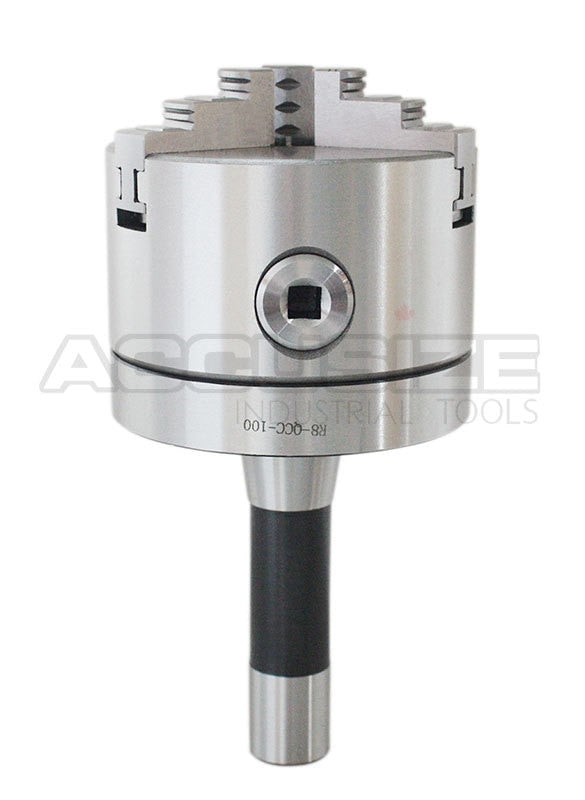

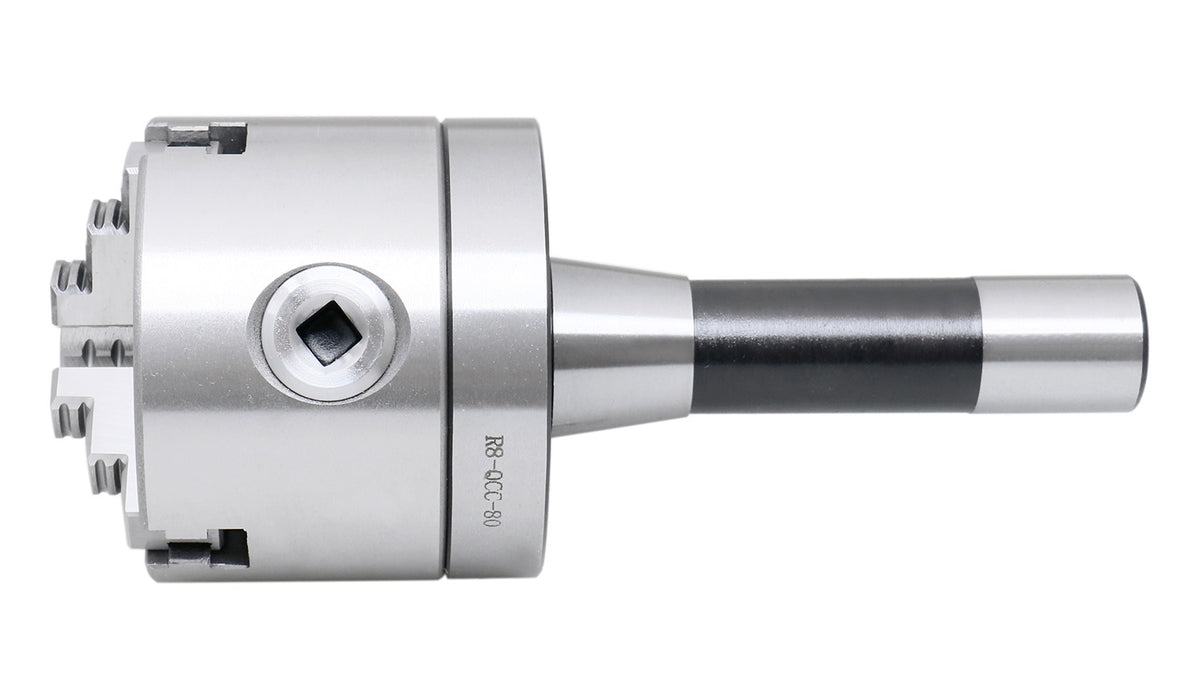

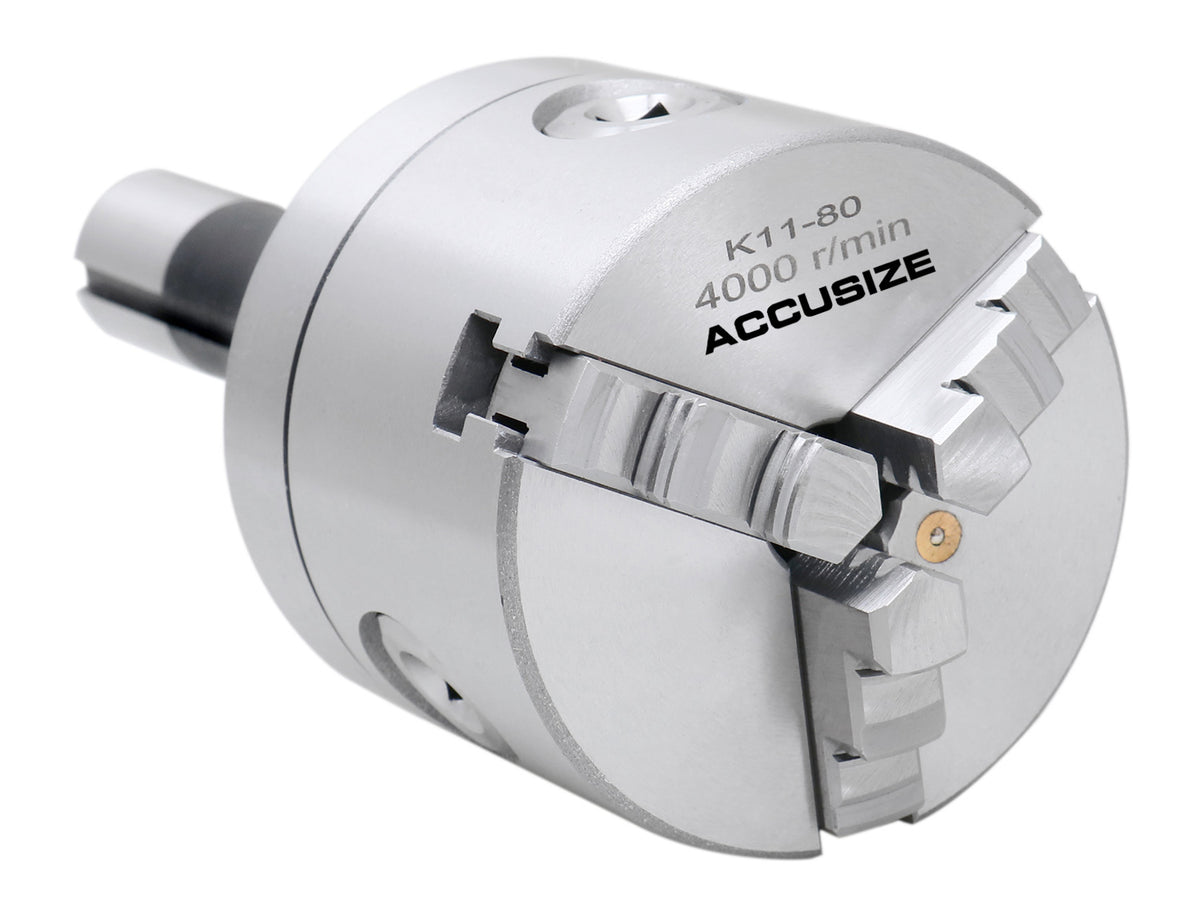

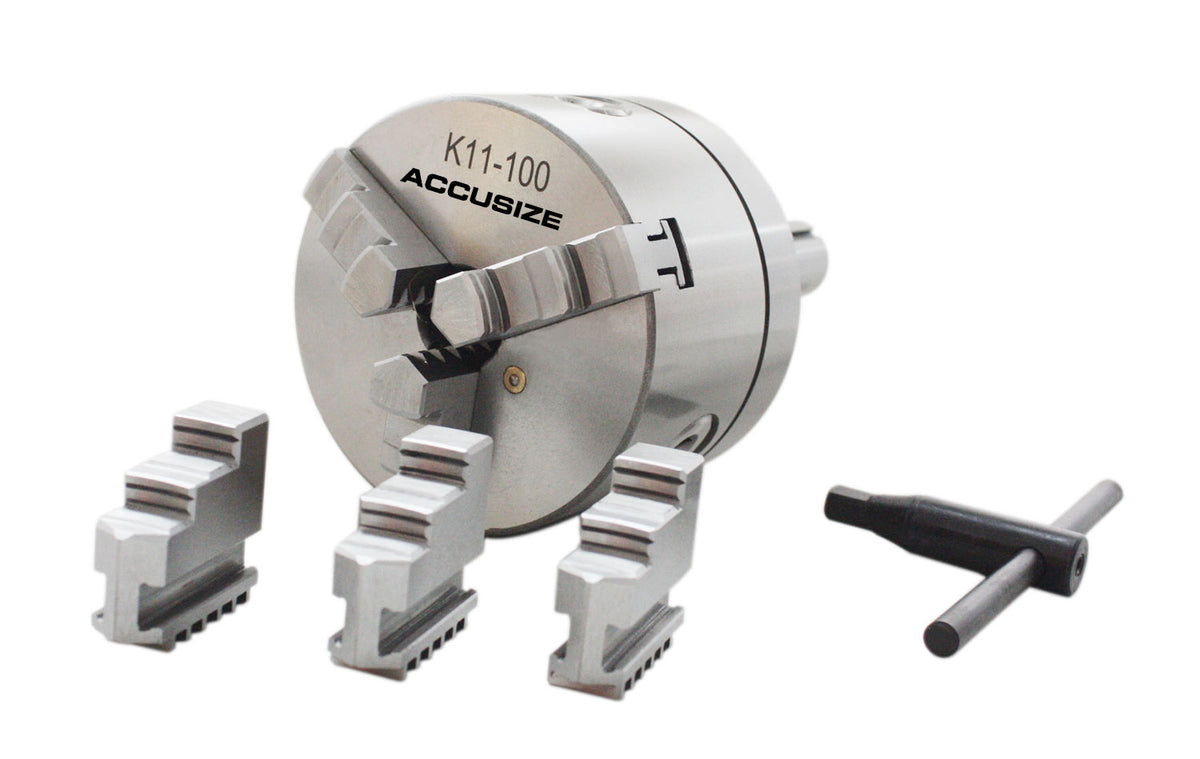

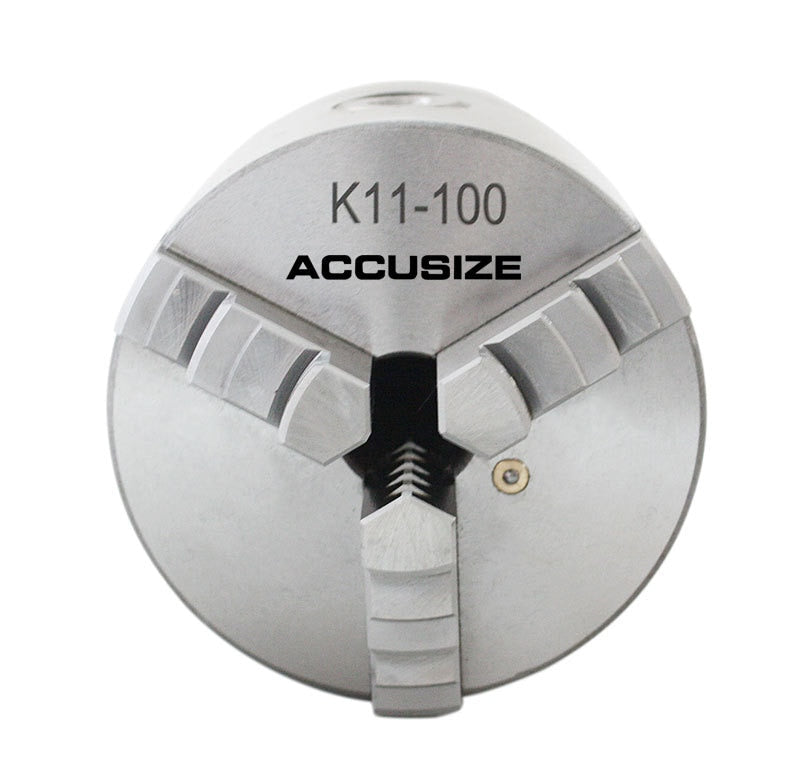

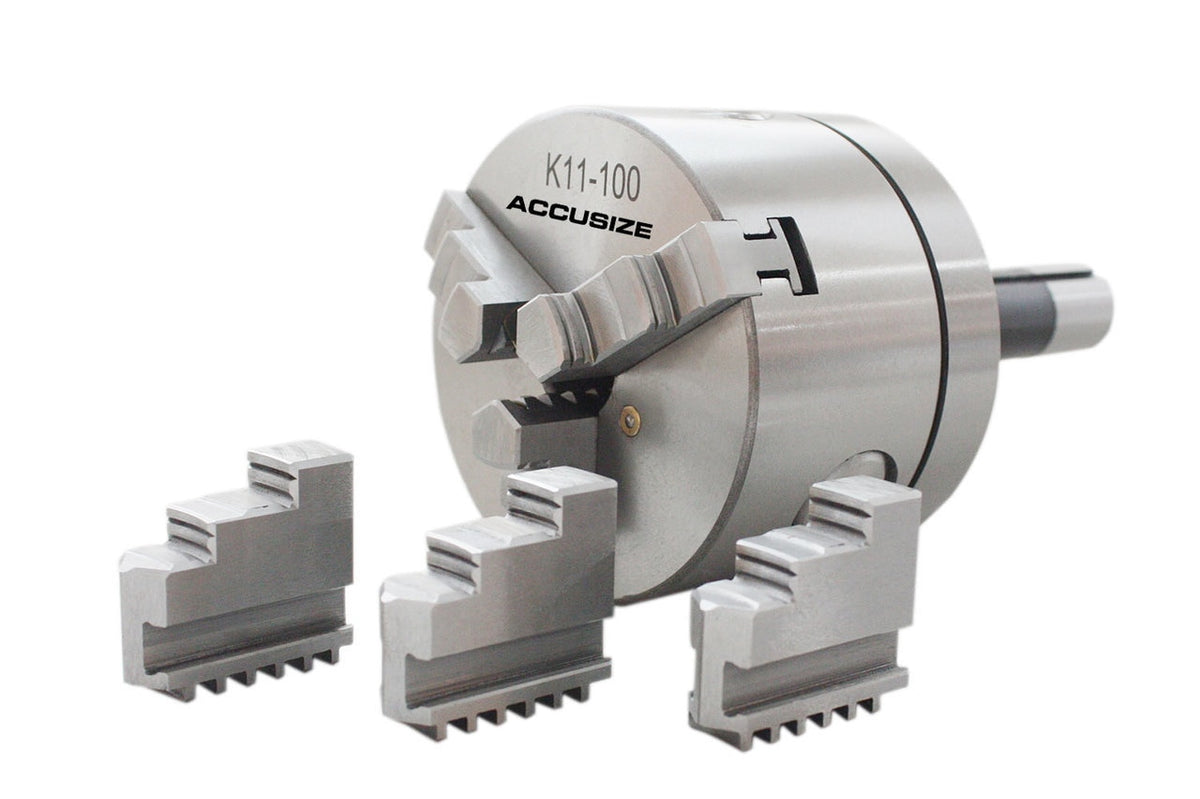

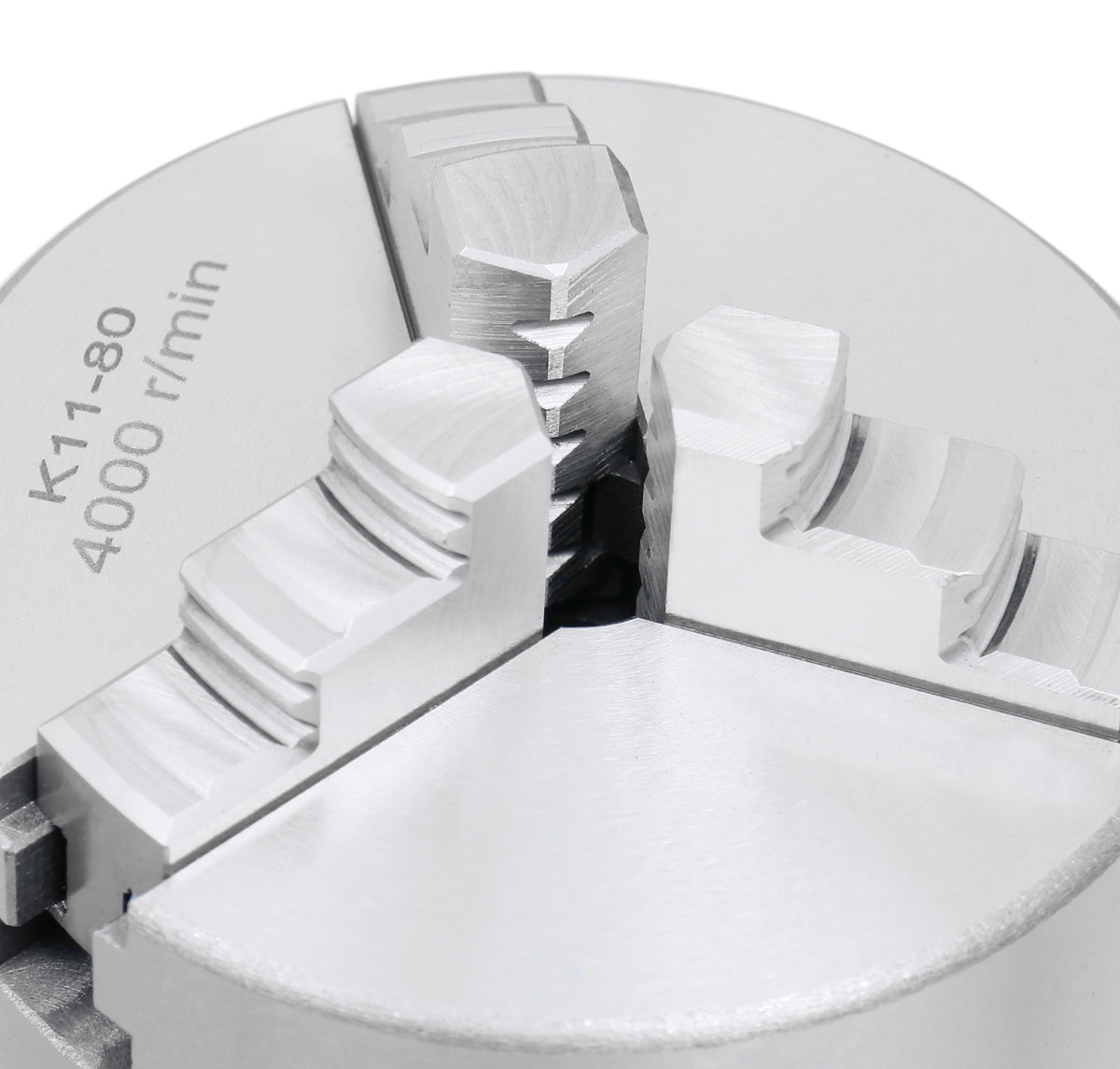

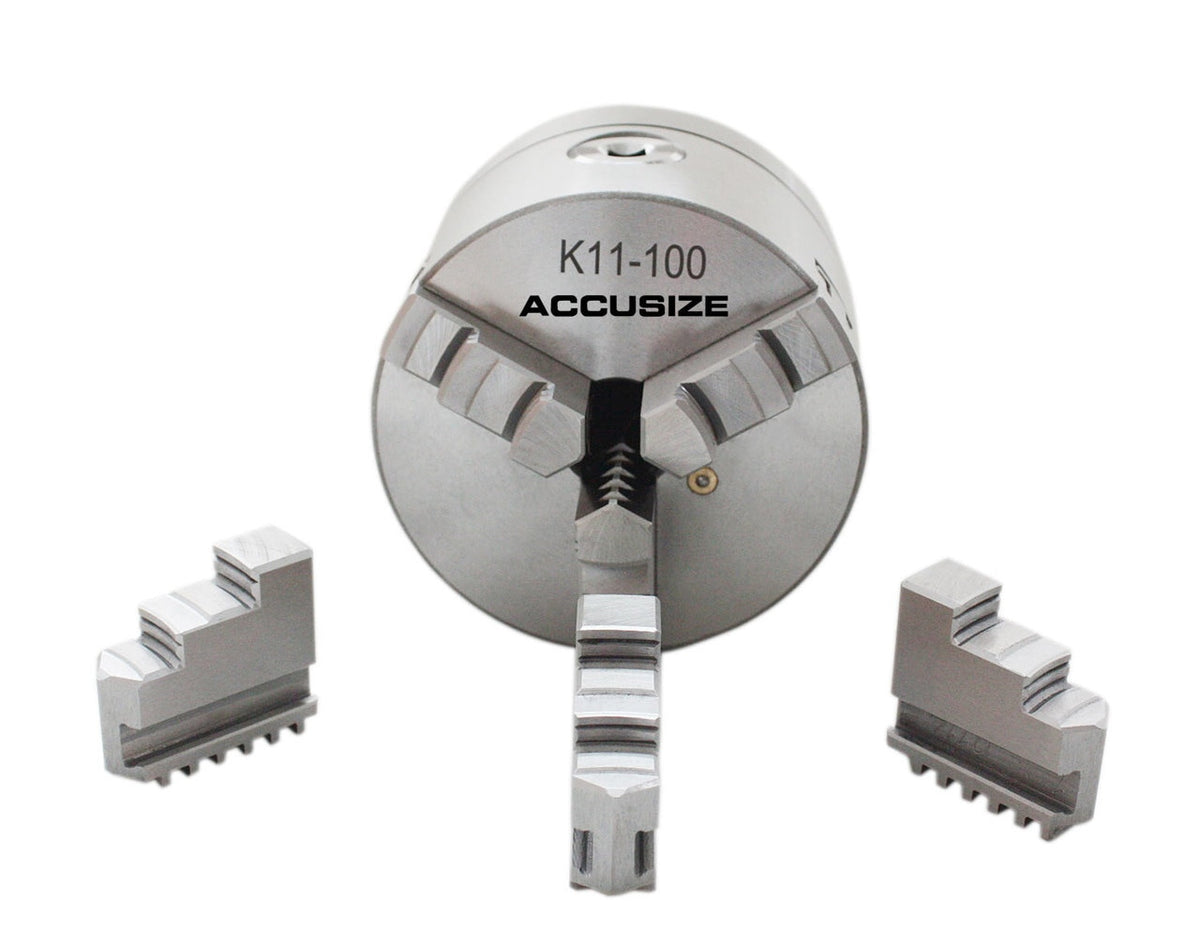

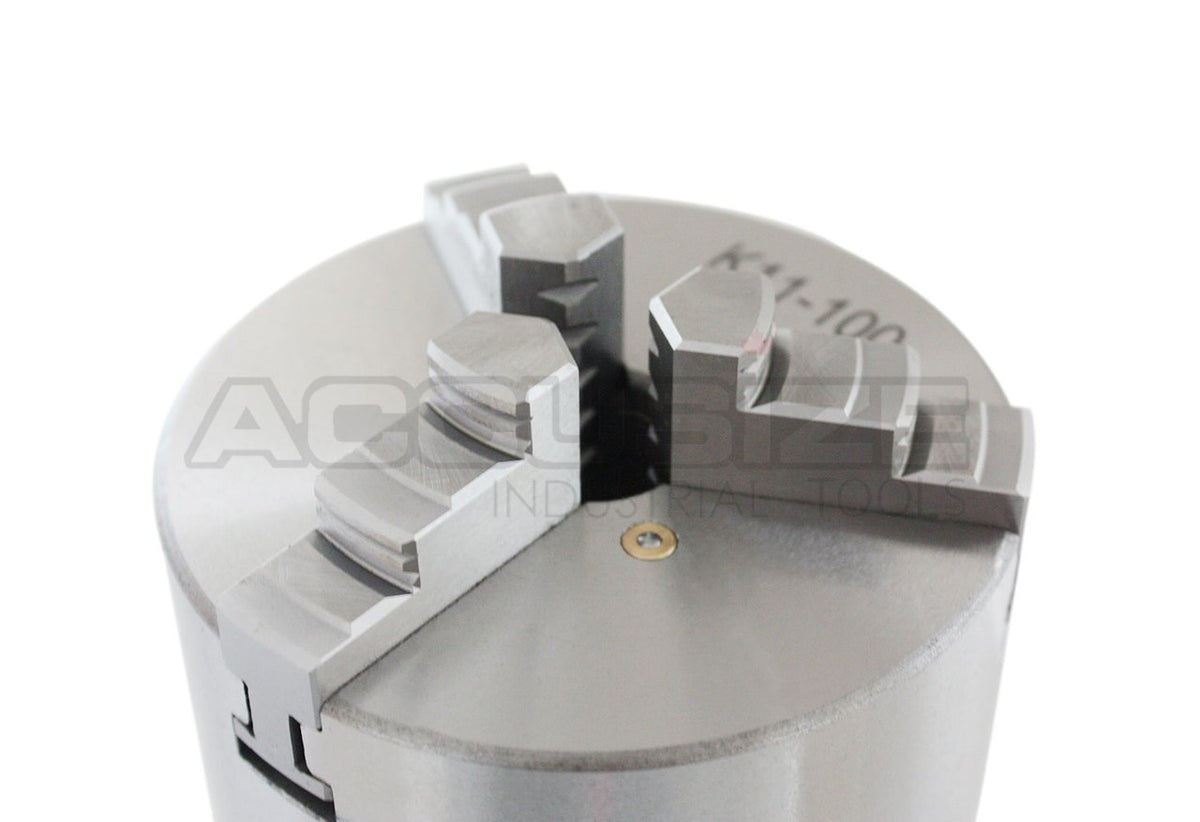

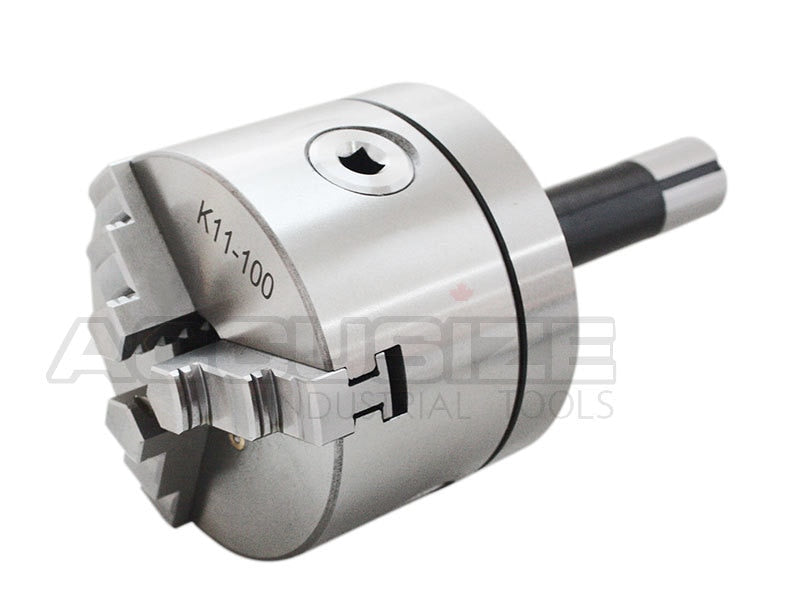

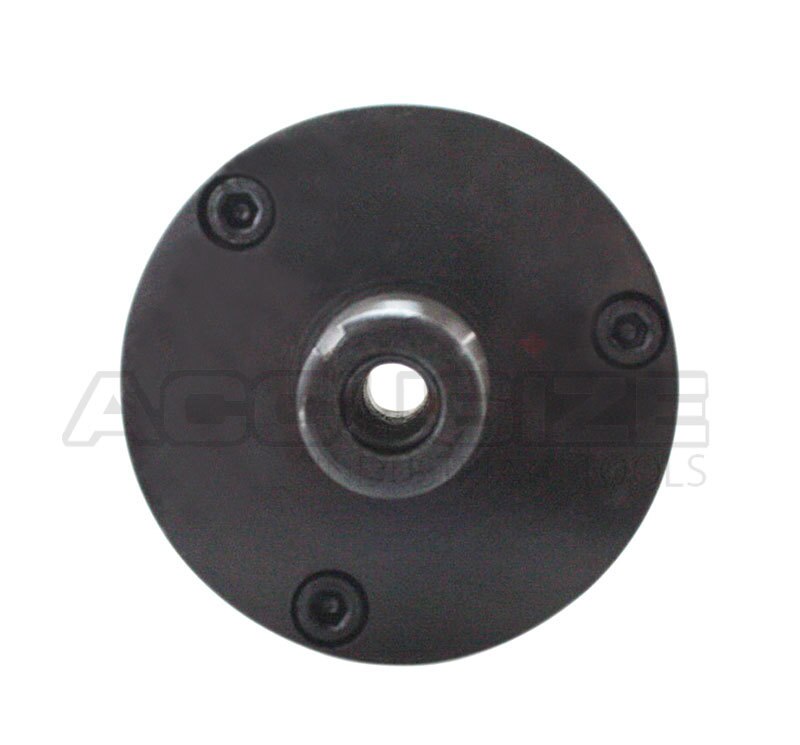

R8 Precision Lathe Chucks, 3-Jaw Self-Centering Scroll, Quick Change Lathe Chuck

Accusize Industrial ToolsSKU: 0225-0237 UPC / Barcode: 663566001425

Diameter of the chuck: 4"/100mm (0225-0237)
Price:
Sale price$272.00

California Proposition 65 Warning

Warning LabelWARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.
For more information, visit www.P65Warnings.ca.gov

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

More product information

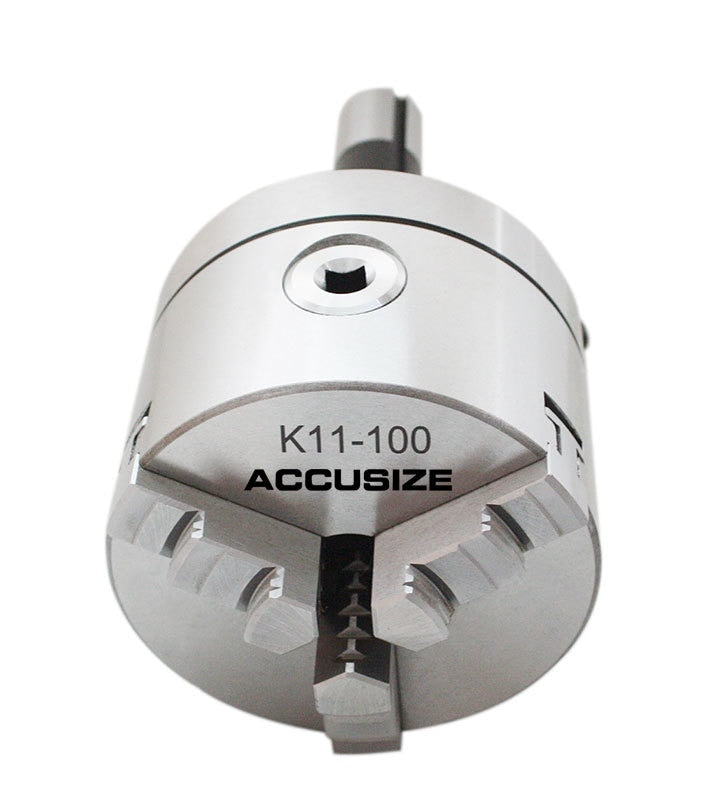

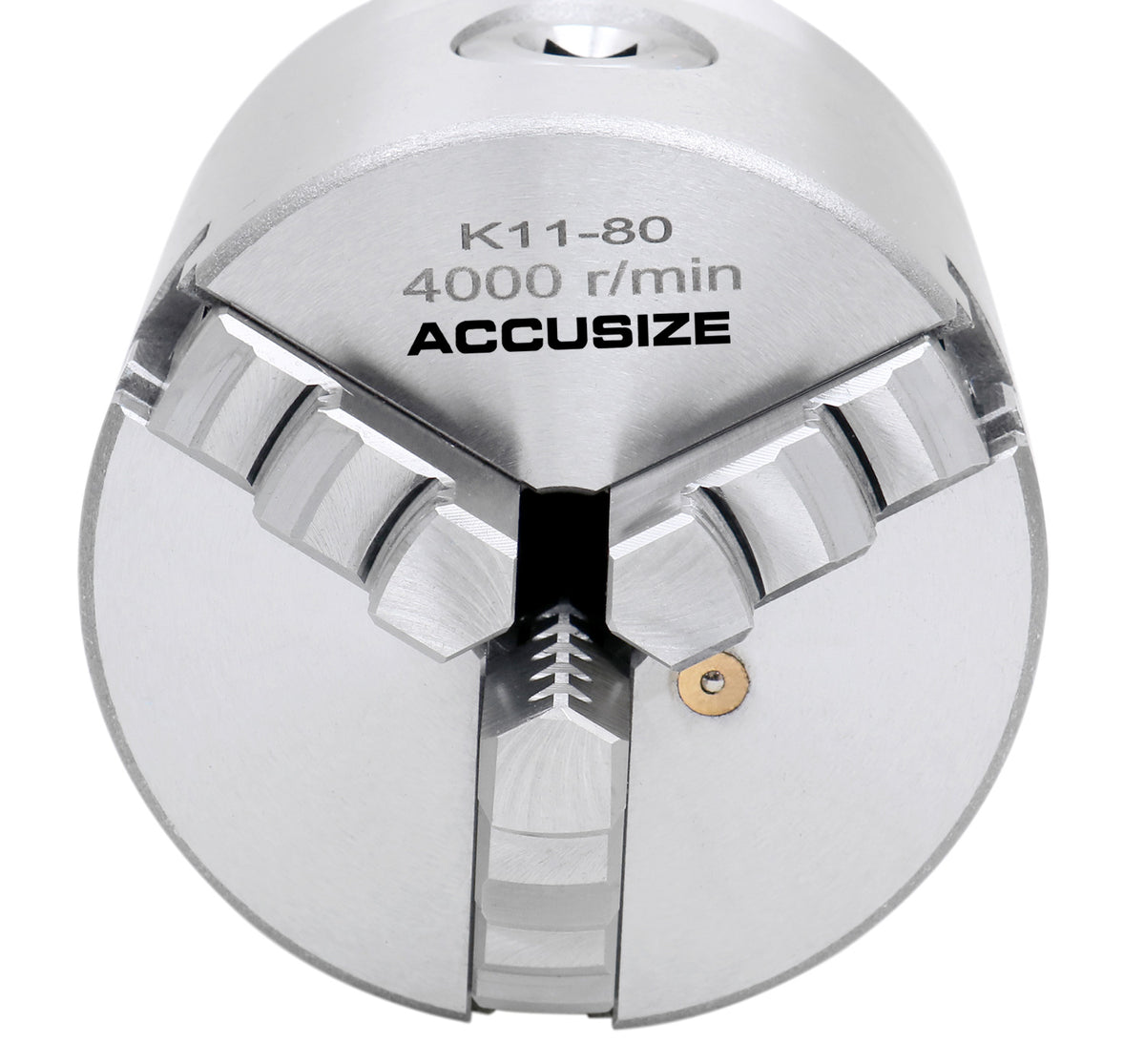

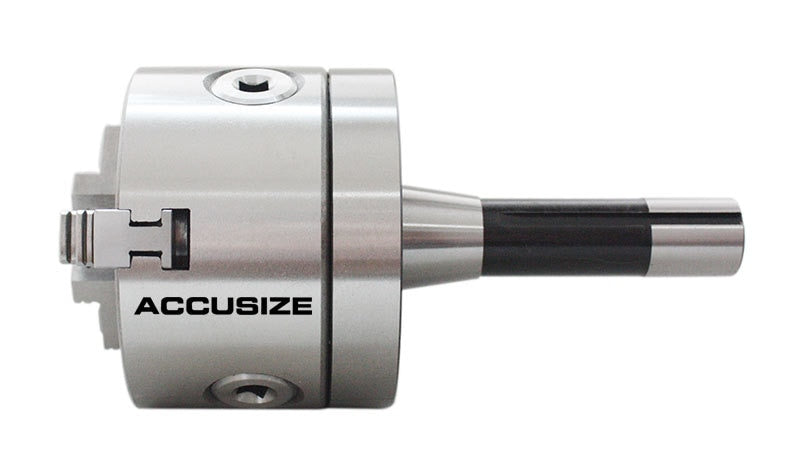

R8 Precision Lathe Chucks, 3-Jaw Self-Centering Scroll

  • Eliminates tearing down a collet setup on a lathe

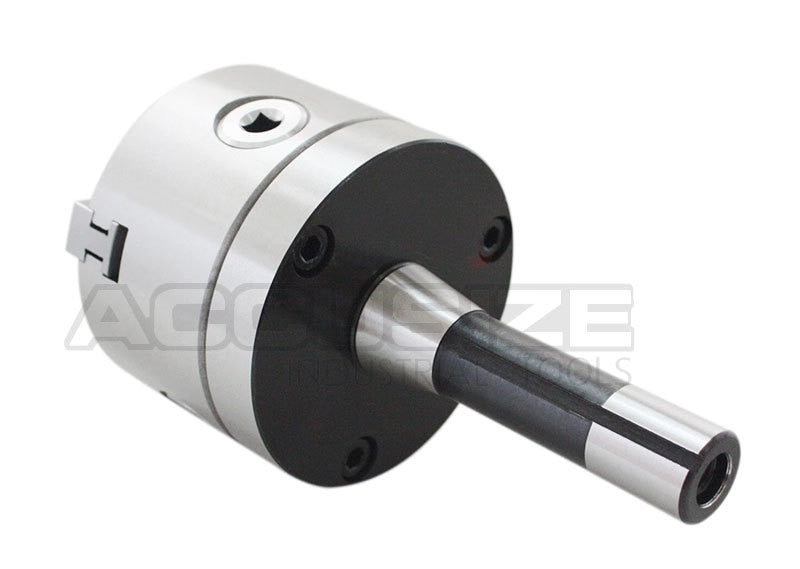

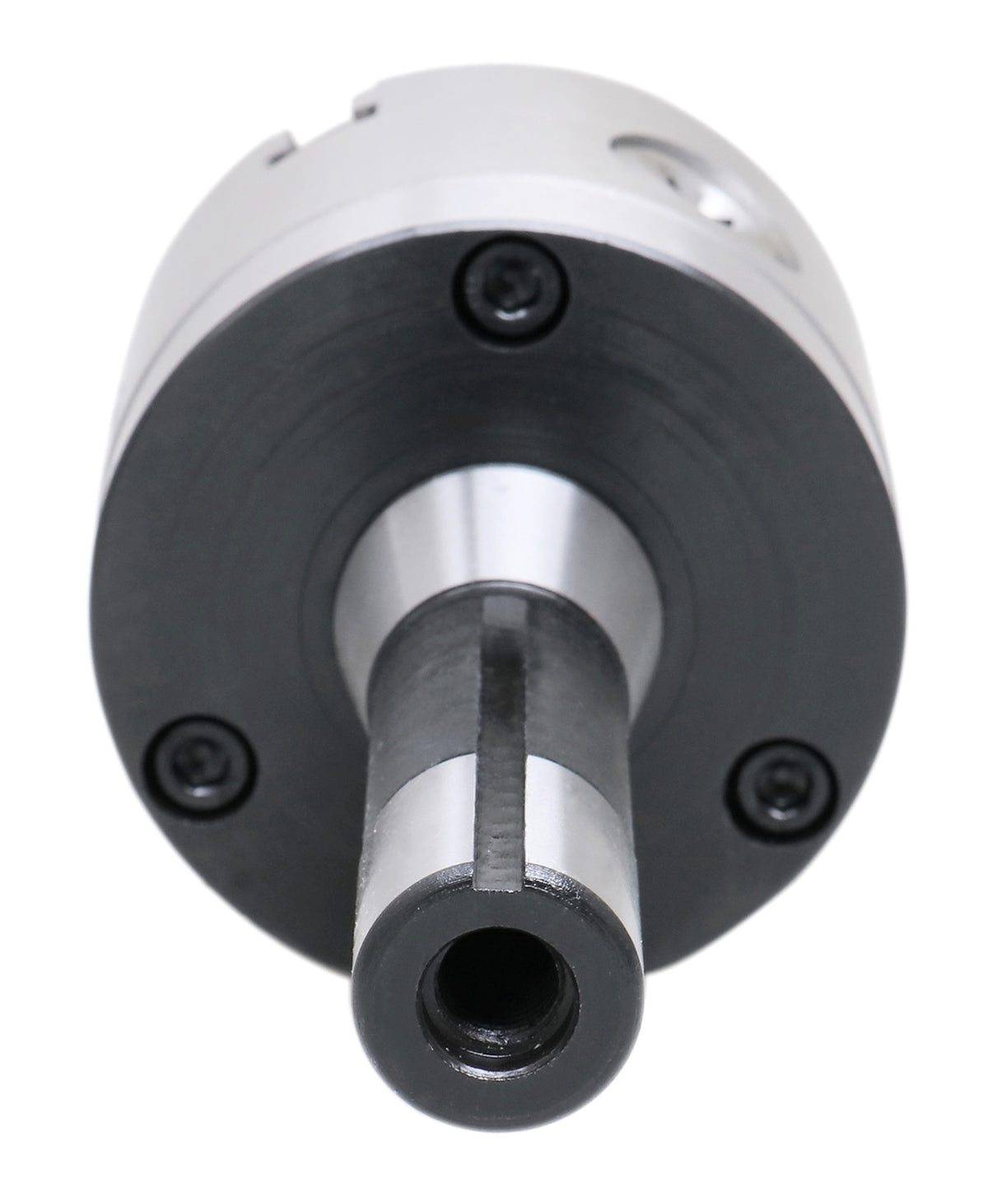

  • Works with any R8 tooling
  • The body is made of cast Iron, the Jaws are made of steel.
  • The body hardness is HBW 187-220
  • The Jaw hardness is HRC 53 - HRC 55
  • The T.I.R less than 0.1mm

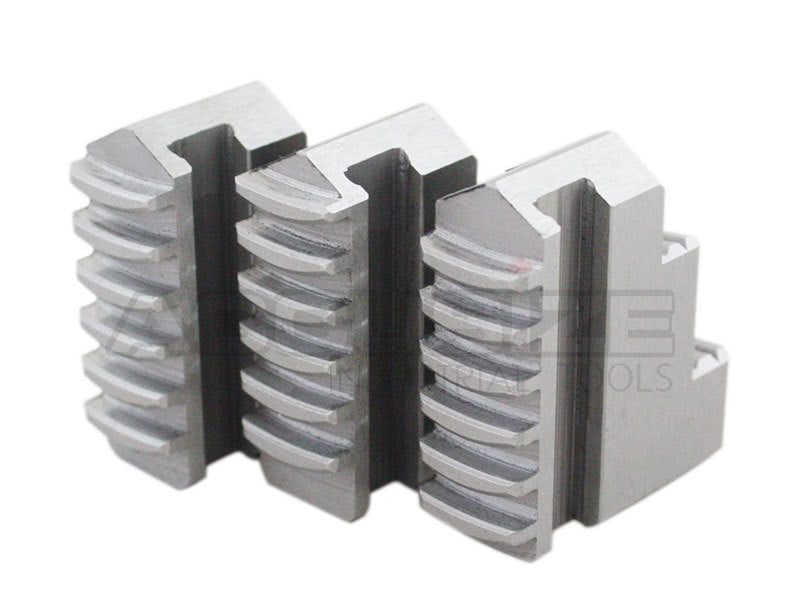

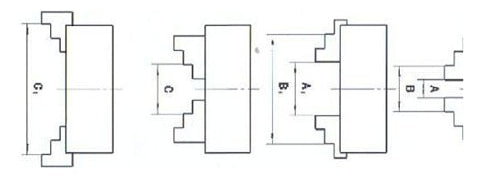

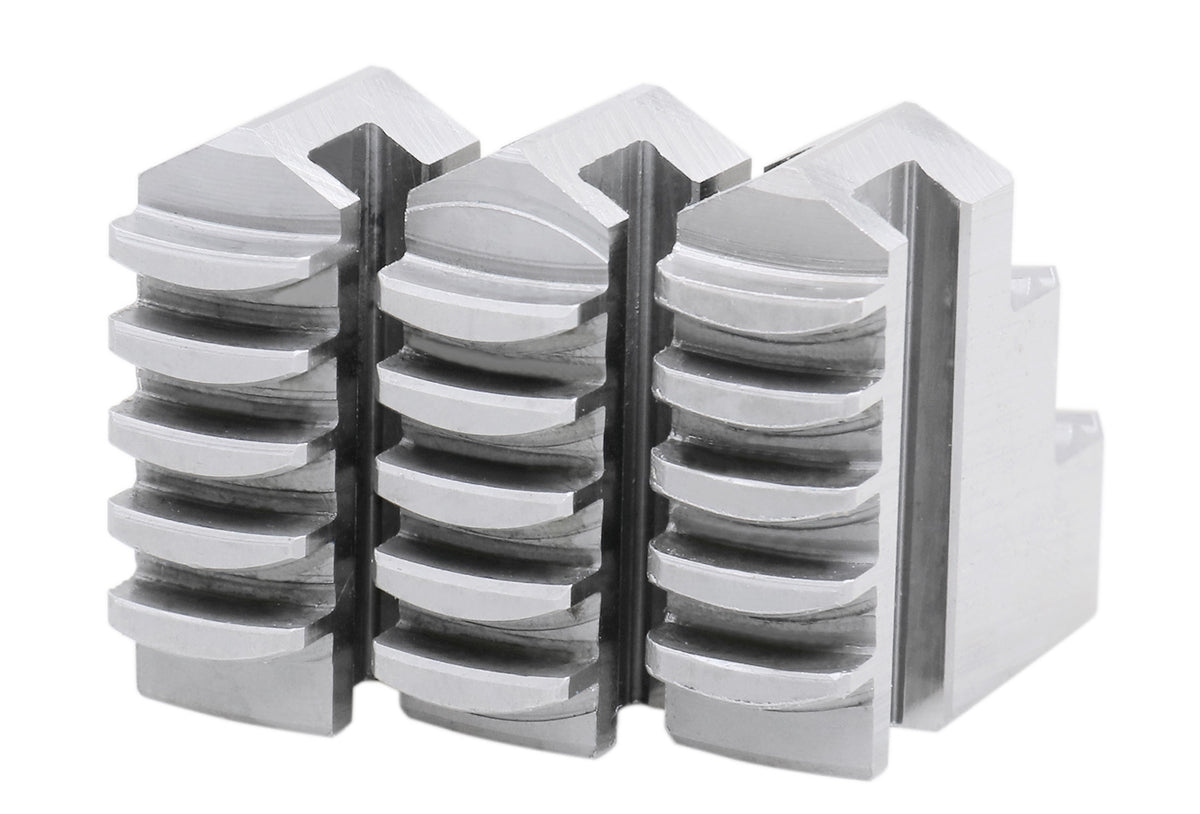

  • Internal Jaw:
    • Clamping Range A-A1
    • Jamming Range B-B1

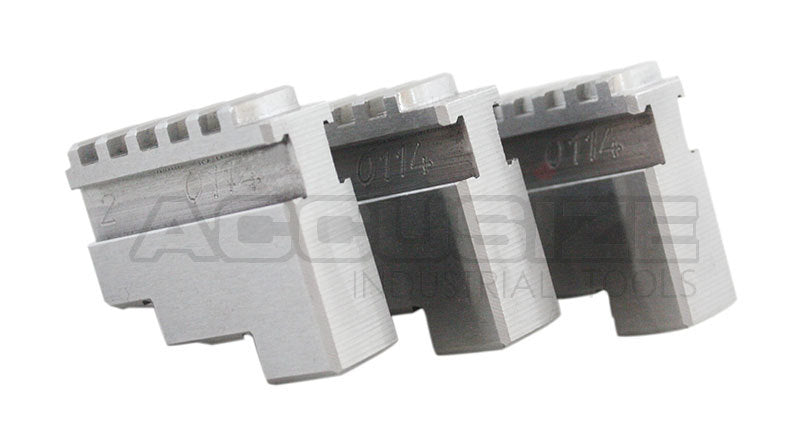

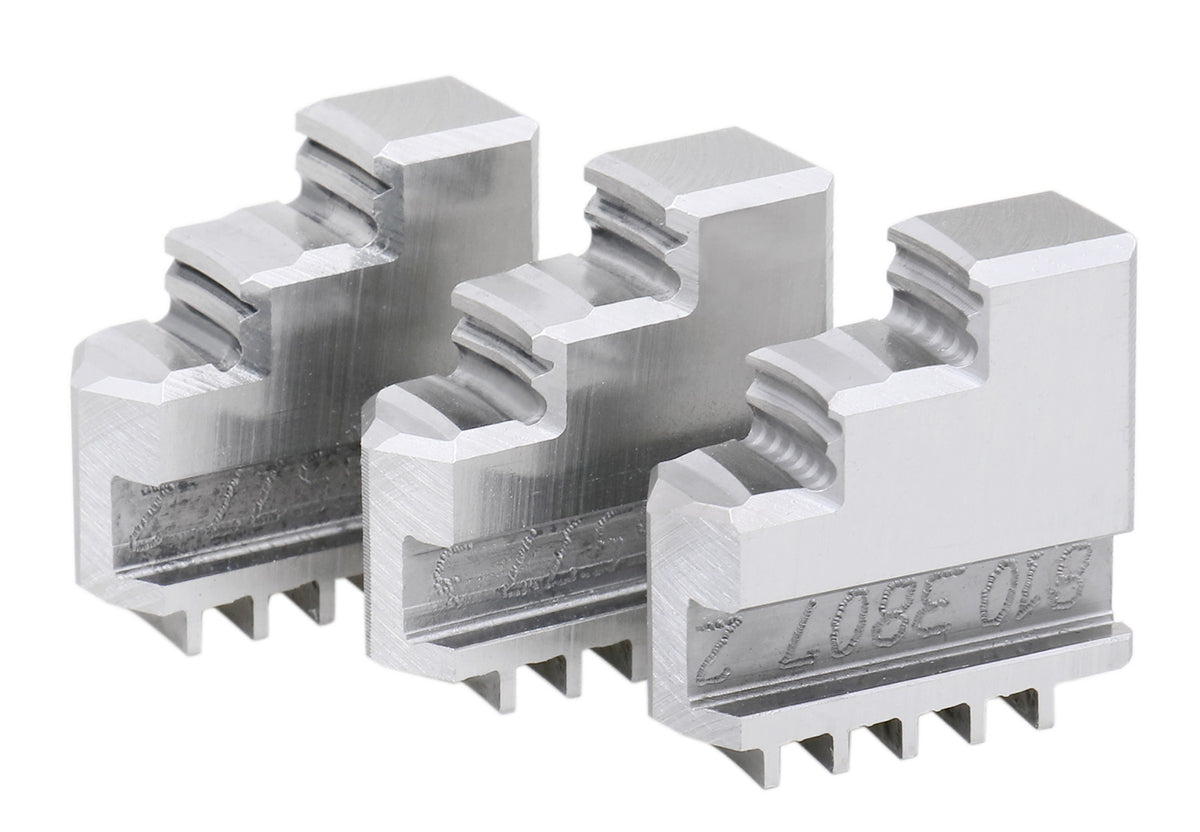

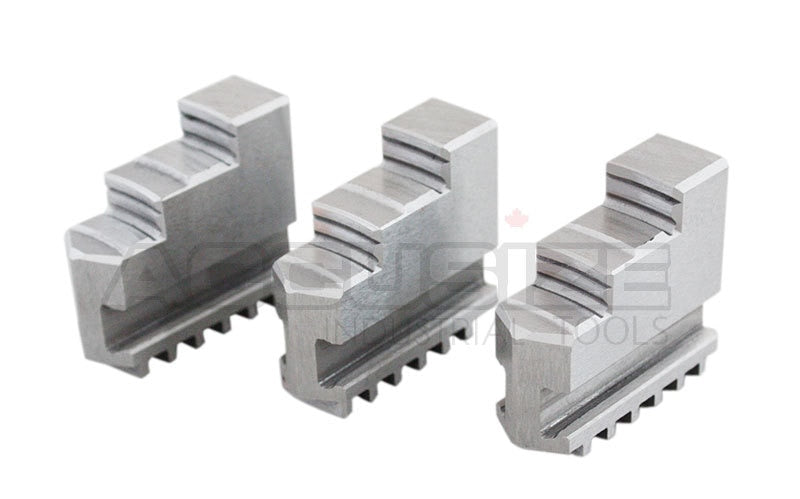

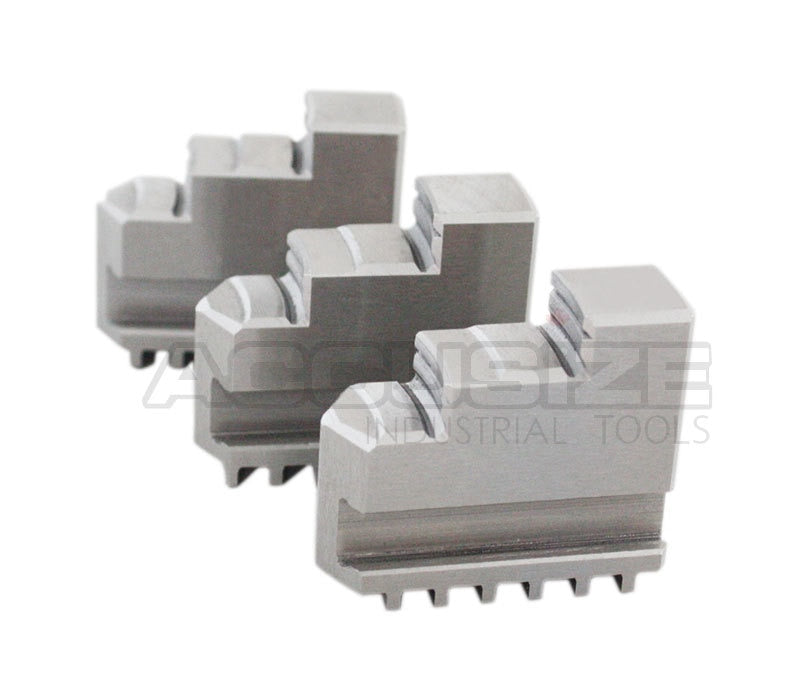

  • External Jaw
    • Clamping Range C-C1
  • Self-centering T.I.R 0.003".
Item # Dia. (D) Inside Dia. of the thru-hole Clamping Range A-A1 Jamming Range B-B1 Clamping Range C-C1
0225-0236 3"/75mm 0.63"/16mm 0.079-0.866" 0.984-2.756" 0.866-2.480"
0225-0237 4"/100mm 0.87"/22mm 0.078-1.181" 1.181-3.543" 1.181-3.150"


0225-0236
