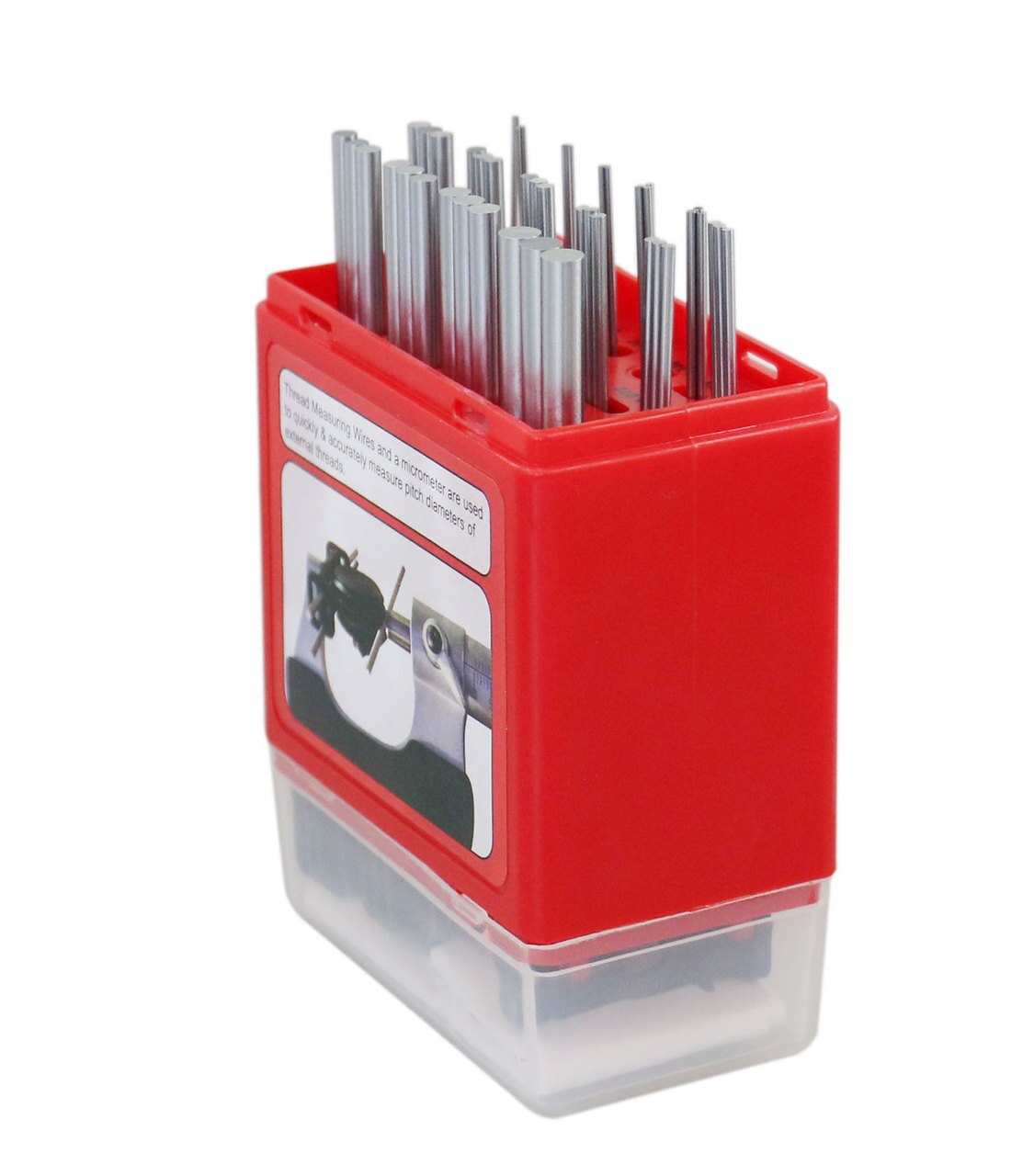

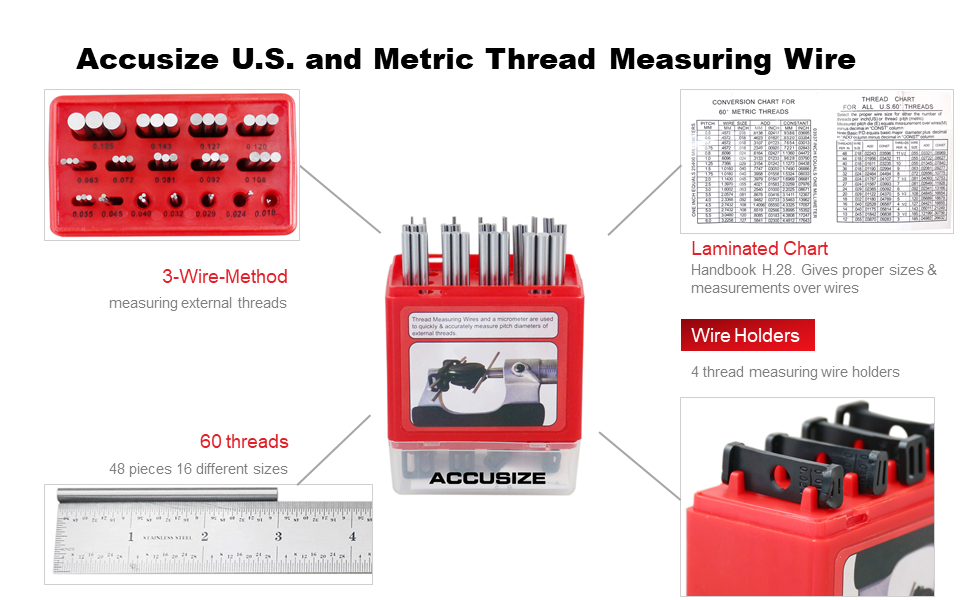

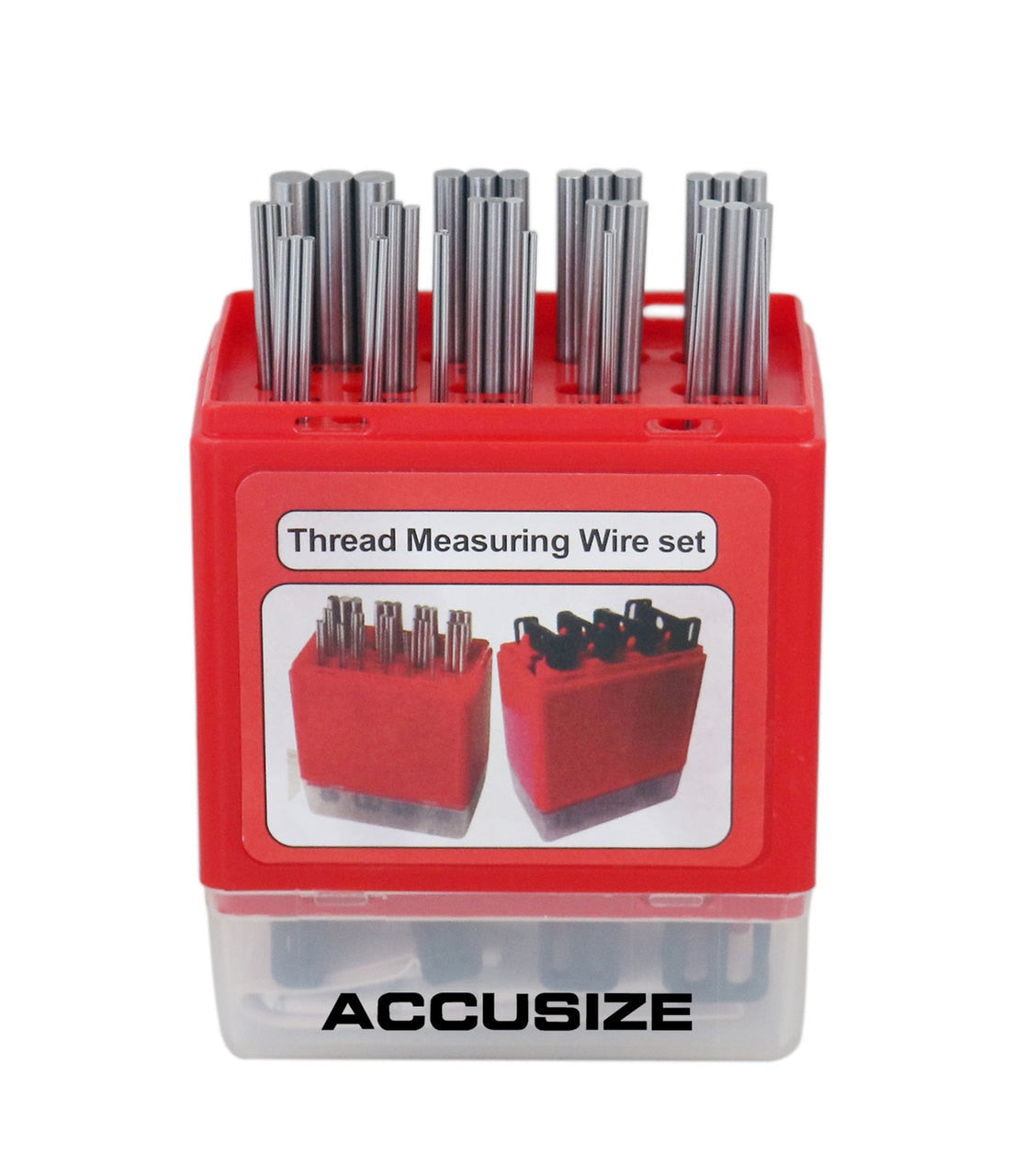

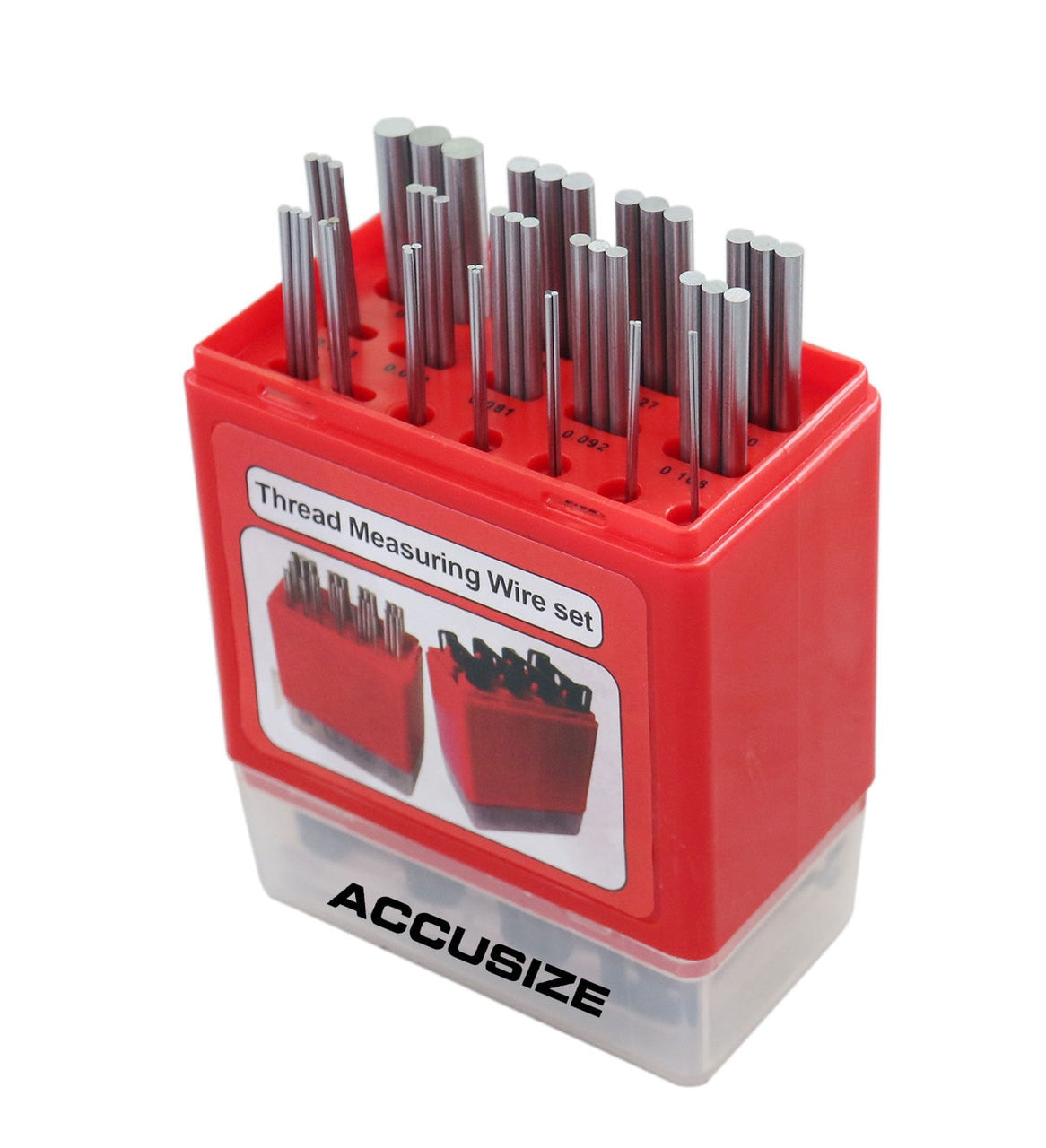

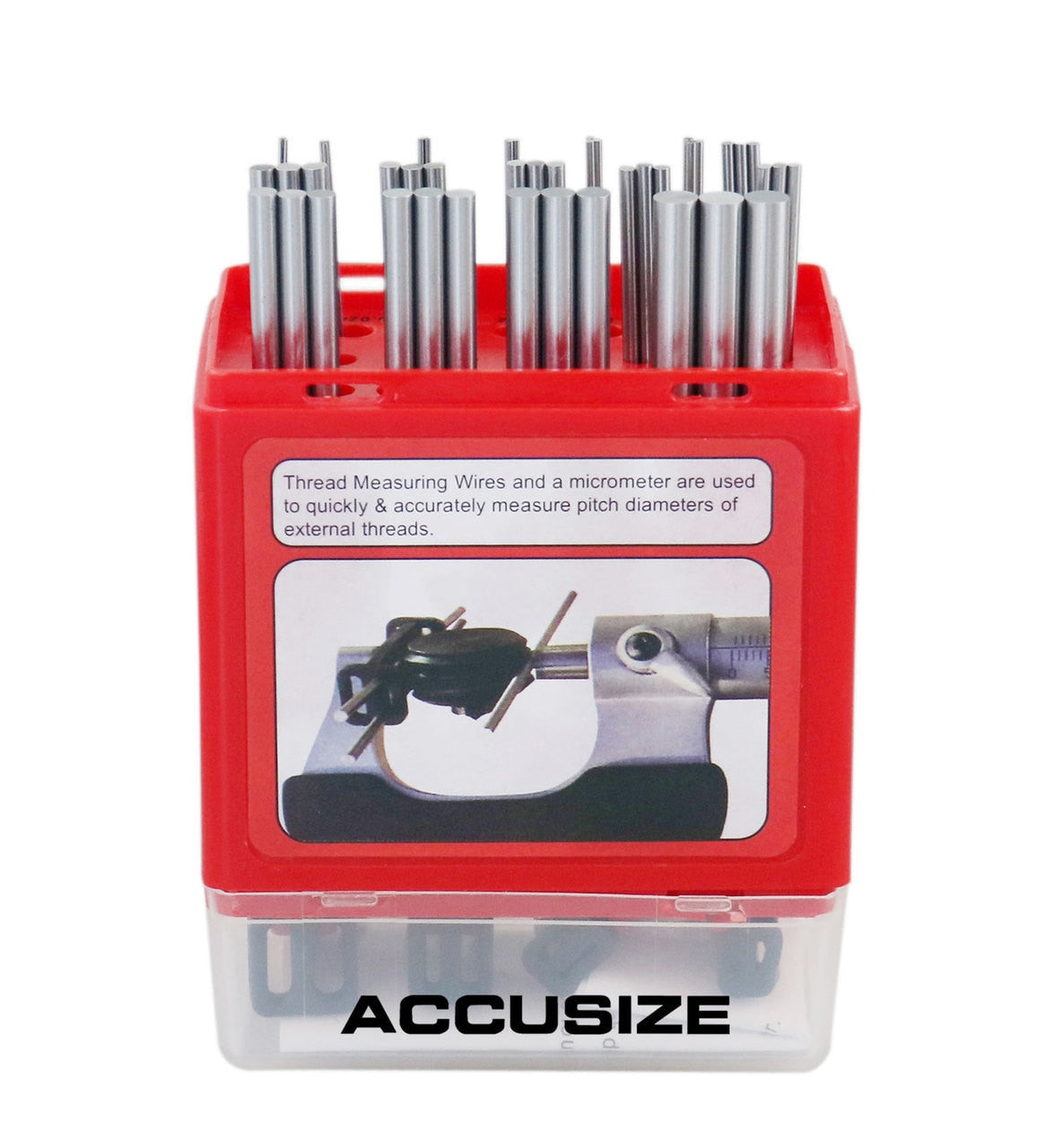

U.S. & Metric Thread Measuring Wire Sets, #EG06-1002
- 48 pieces 16 different sizes for all 60° threads.
- Measures all threads from 3 to 48 threads per inch and all metric from 0.5mm to 6mm pitch.
- 3 wire method of measuring external threads.

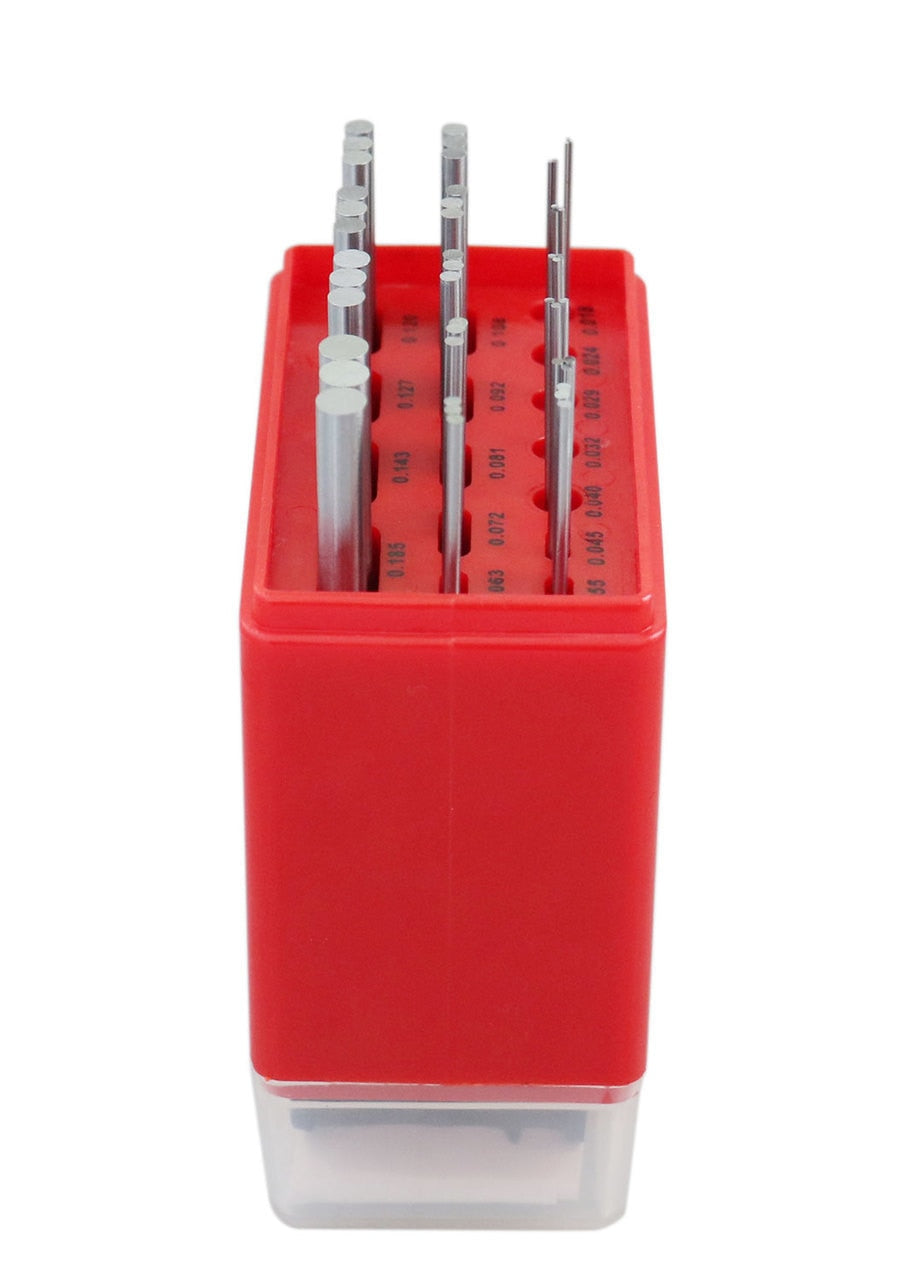

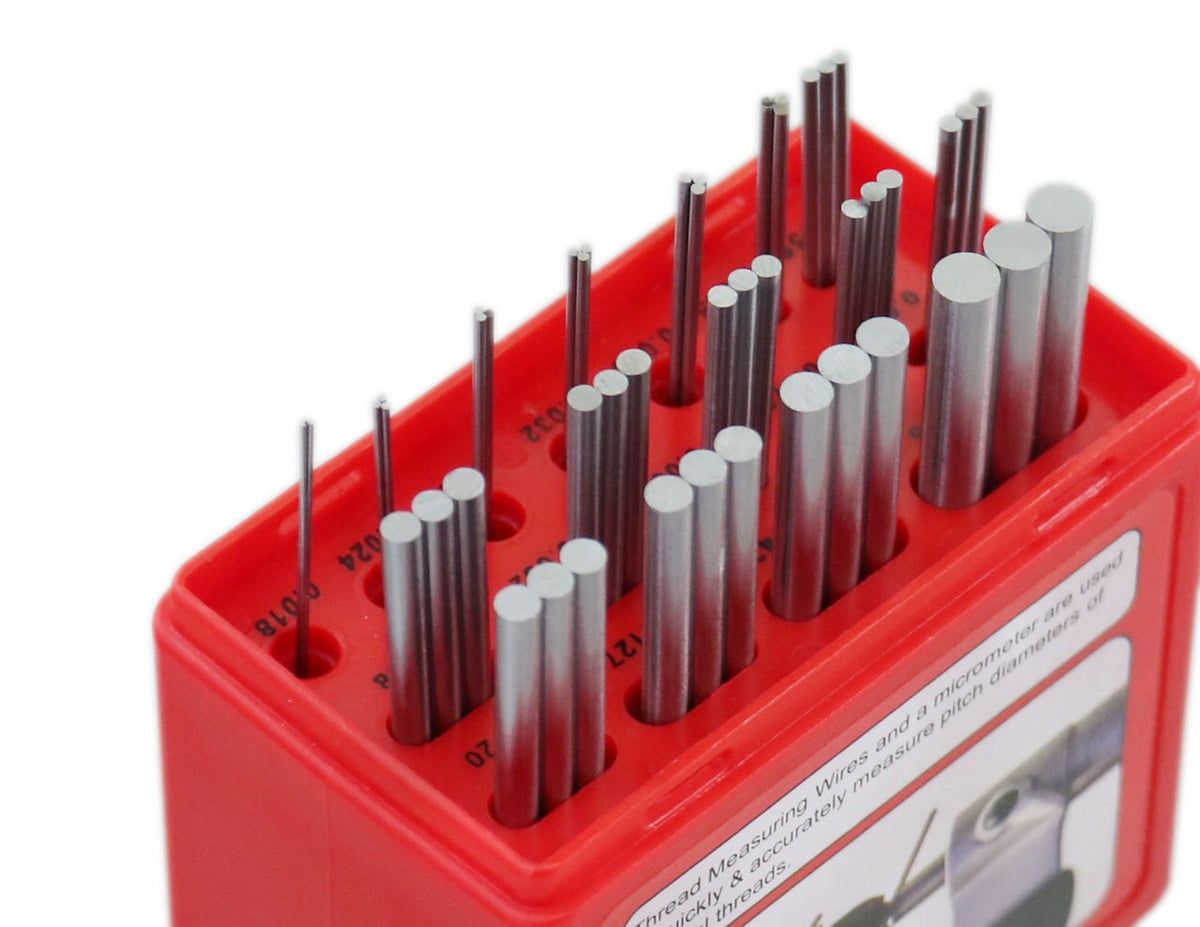

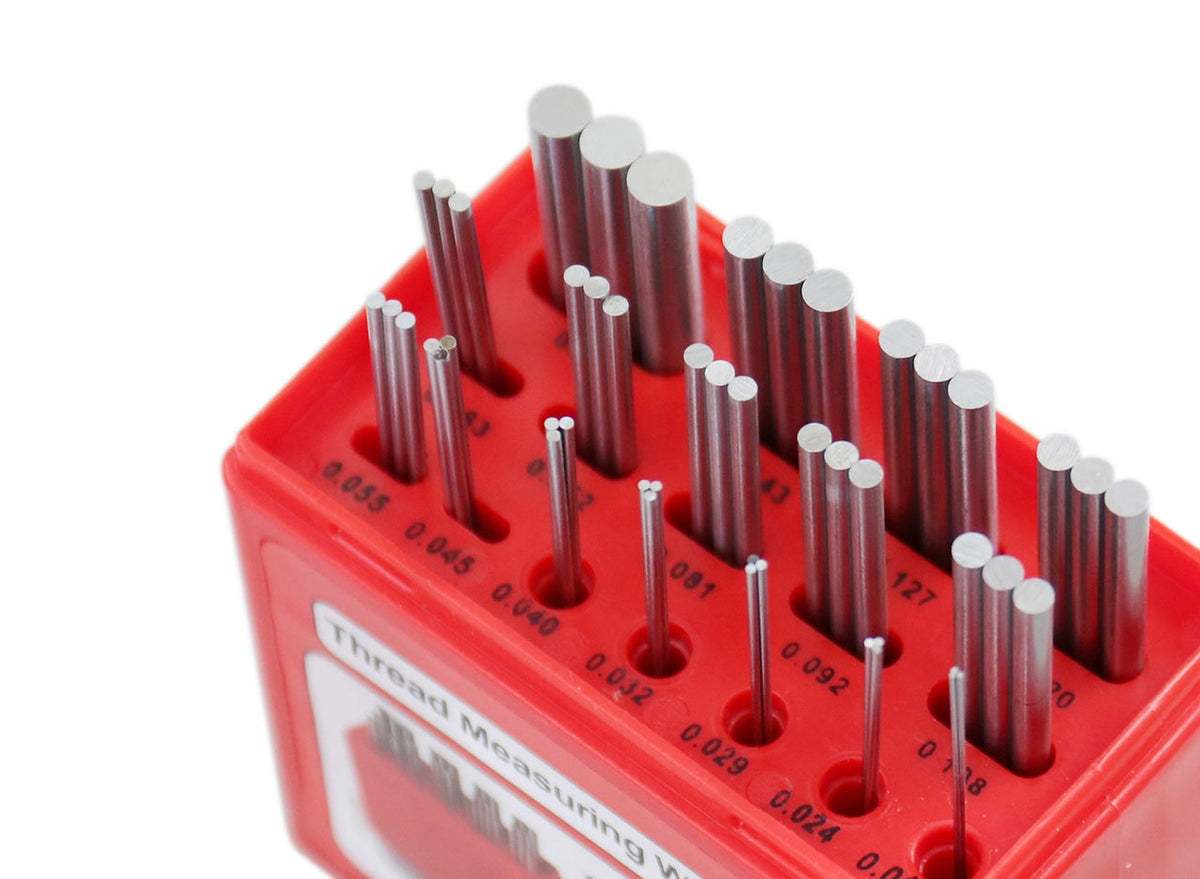

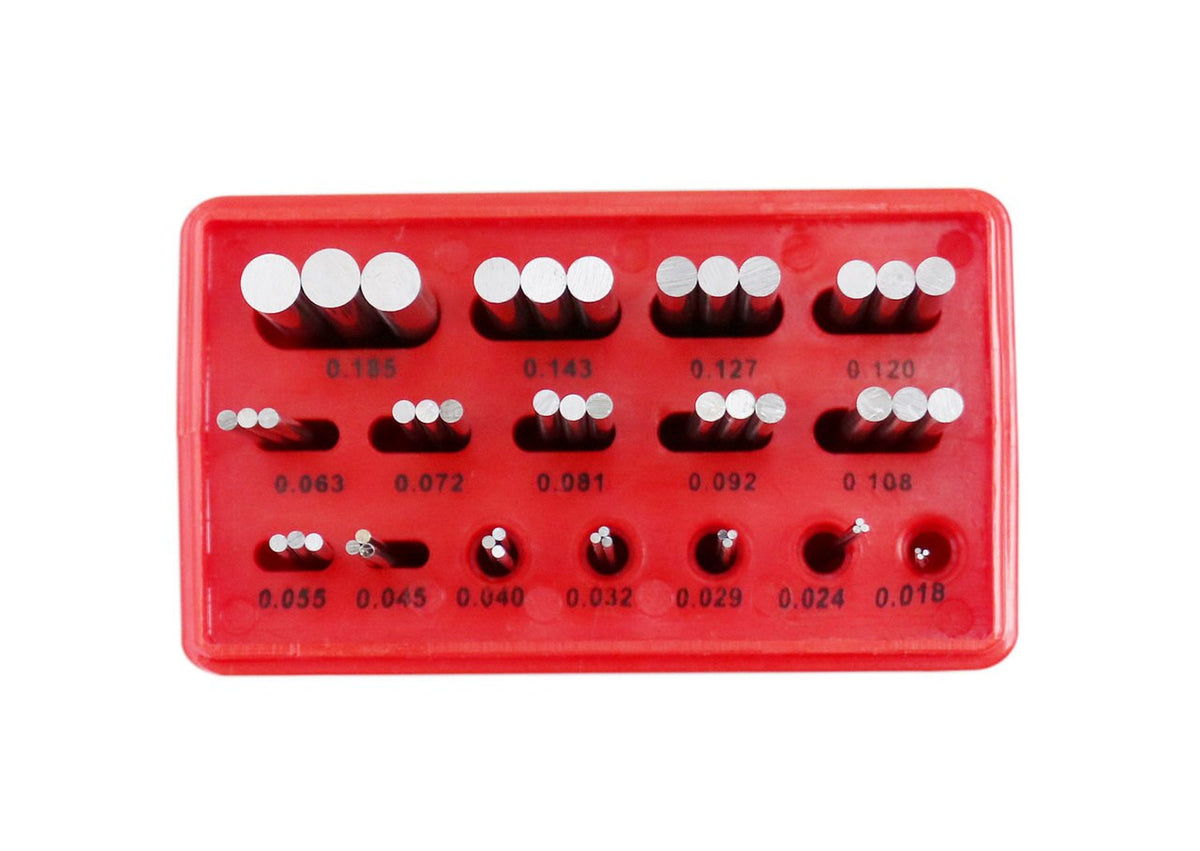

- Wires are fitted in a plastic case stamped with sizes.
- Laminated chart compiled from the U.S. Standard
- Handbook H.28. gives proper sizes & measurements over wires.
-

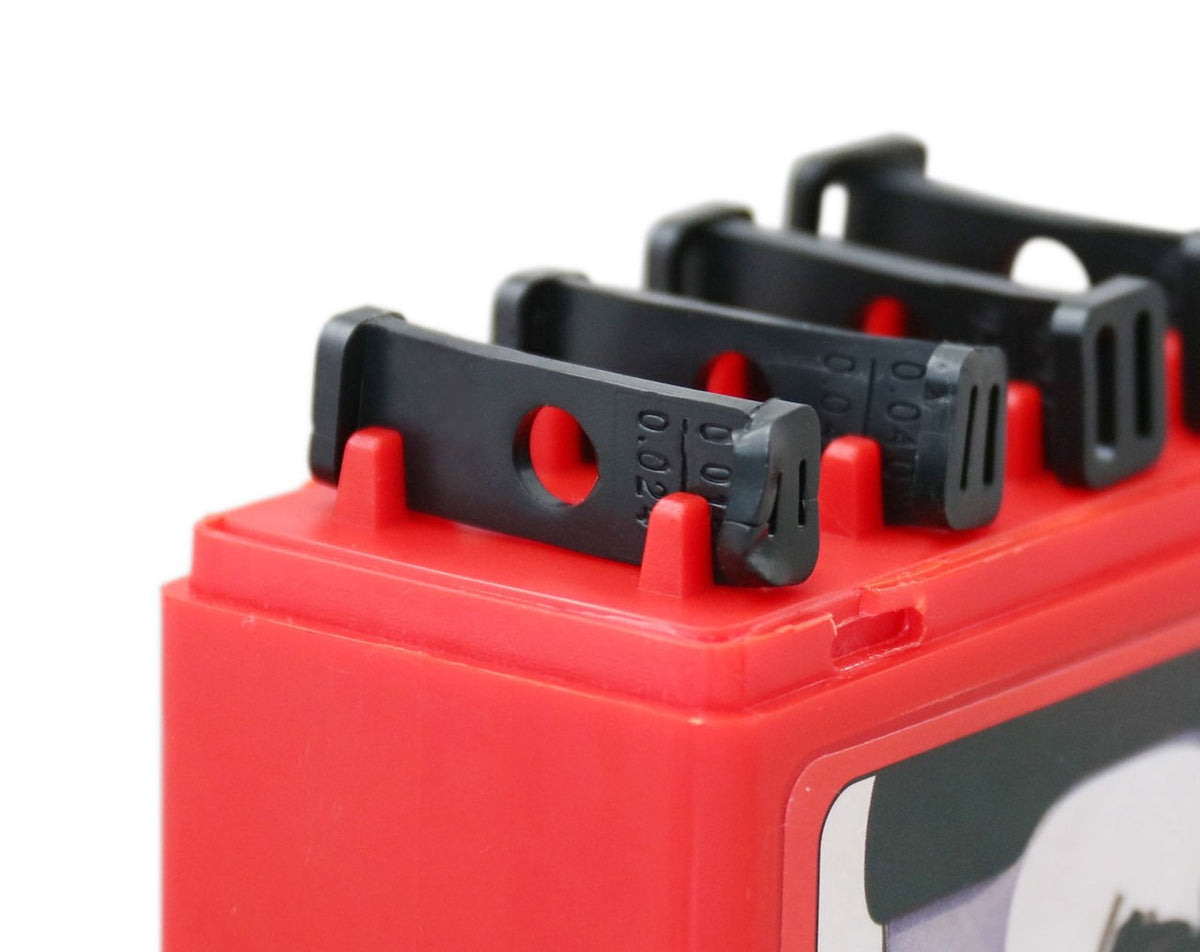

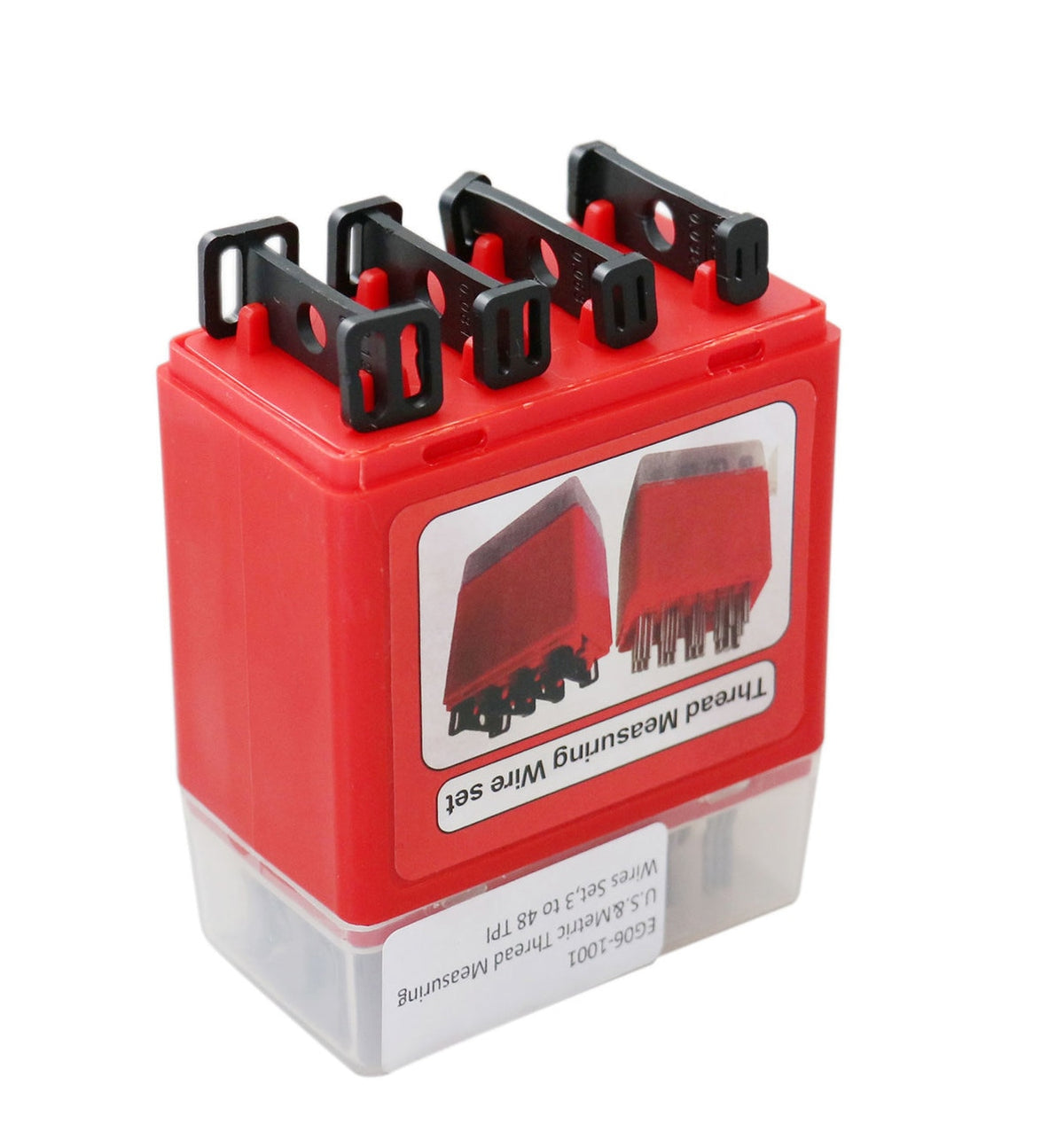

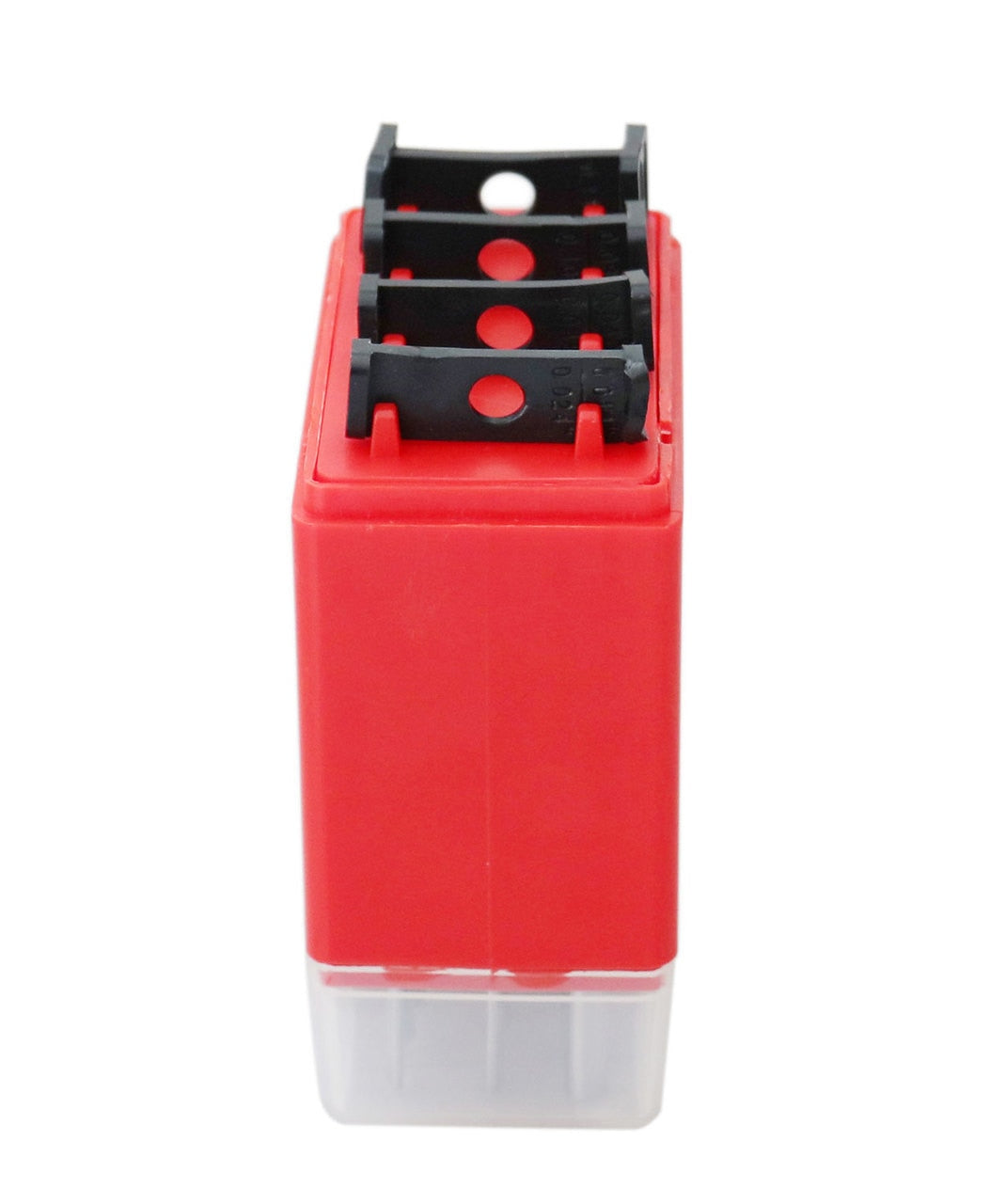

Comes with 4 wire holders
-

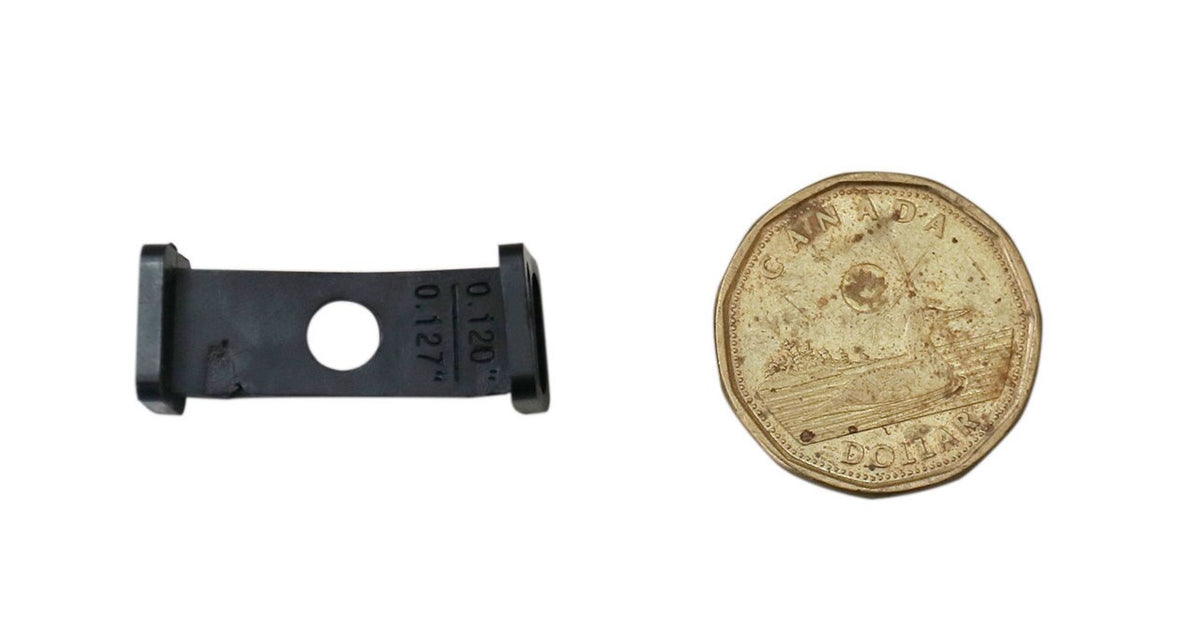

Each holder has 2 pair of holes
-
Each pair of holes for different size of wire
-
Make pitch diameter measuring much easier


![]() |

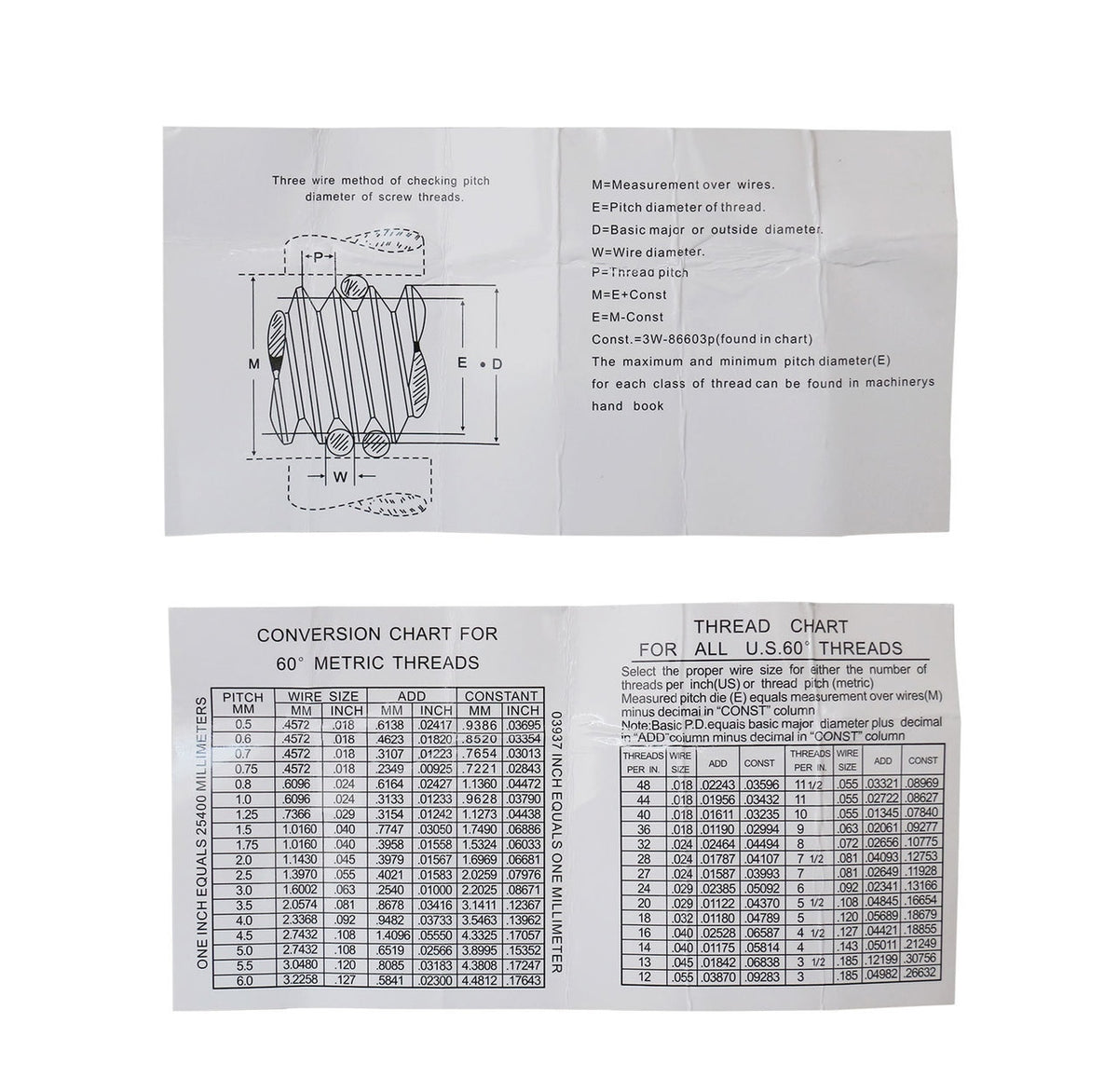

3-wire-method of checking pitch diameter of screw threads
* The maximum and minimum pitch diameter(E) for each class of thread can be found in machinery handbook |
Conversion Chart
Conversion Chart For 60° Metric Threads |
Thread Chart for All U.S. 60° Threads |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Select the proper wire size for either the number of threads per inch (US) or thread pitch (Metric)Metric
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1 inch = 25.4mm
1 mm = .03937 inch
