Superior Surface Finish and Vibration Dampening
- Provides excellent surface finish with minimal vibration marks during machining.
- Operates with low noise levels due to exceptional vibration-dampening properties.
- Dynamic runout accuracy maintained within 0.003 mm (0.00012"), ensuring precision at high speeds.
- Balancing specifications:

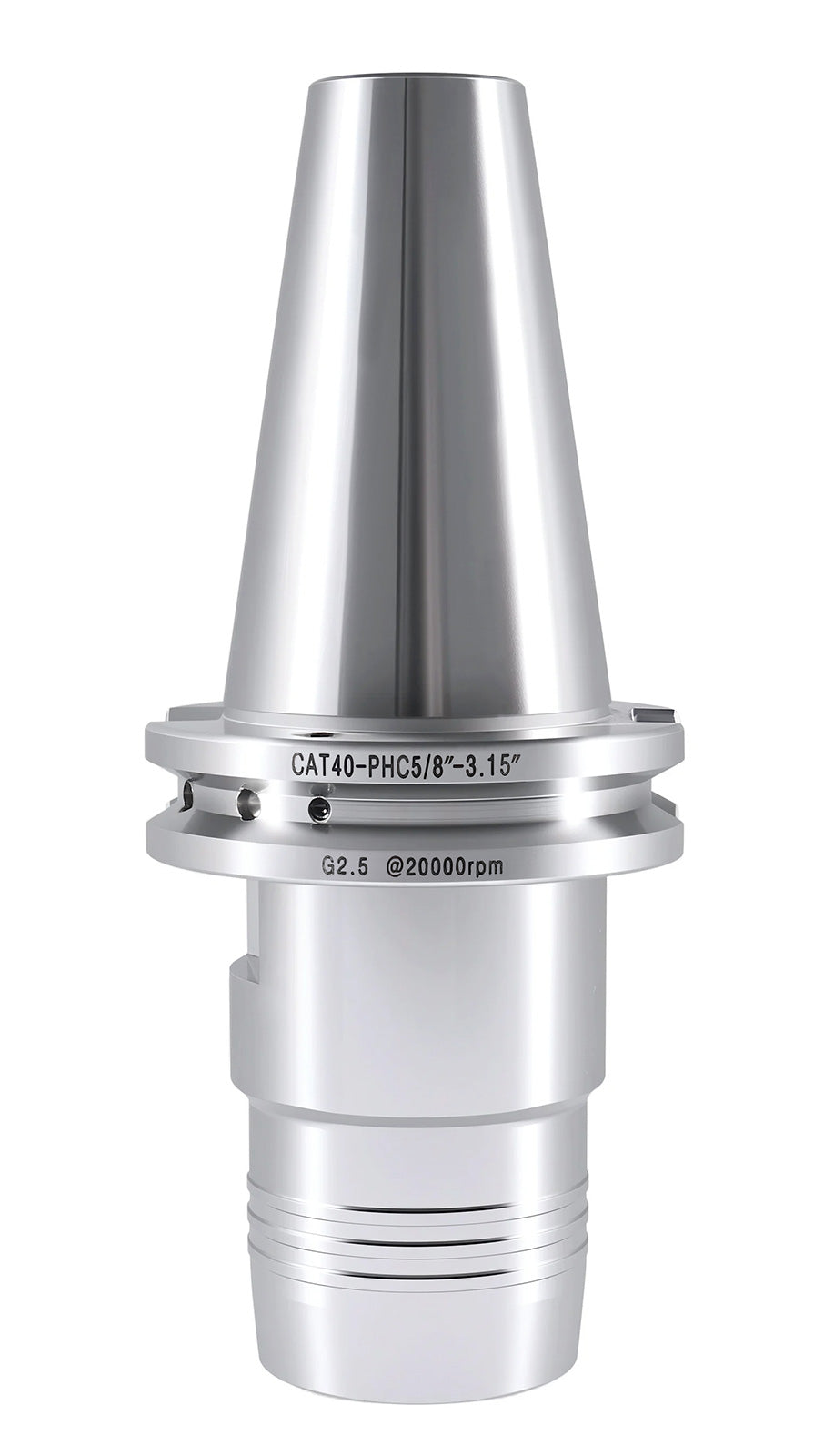

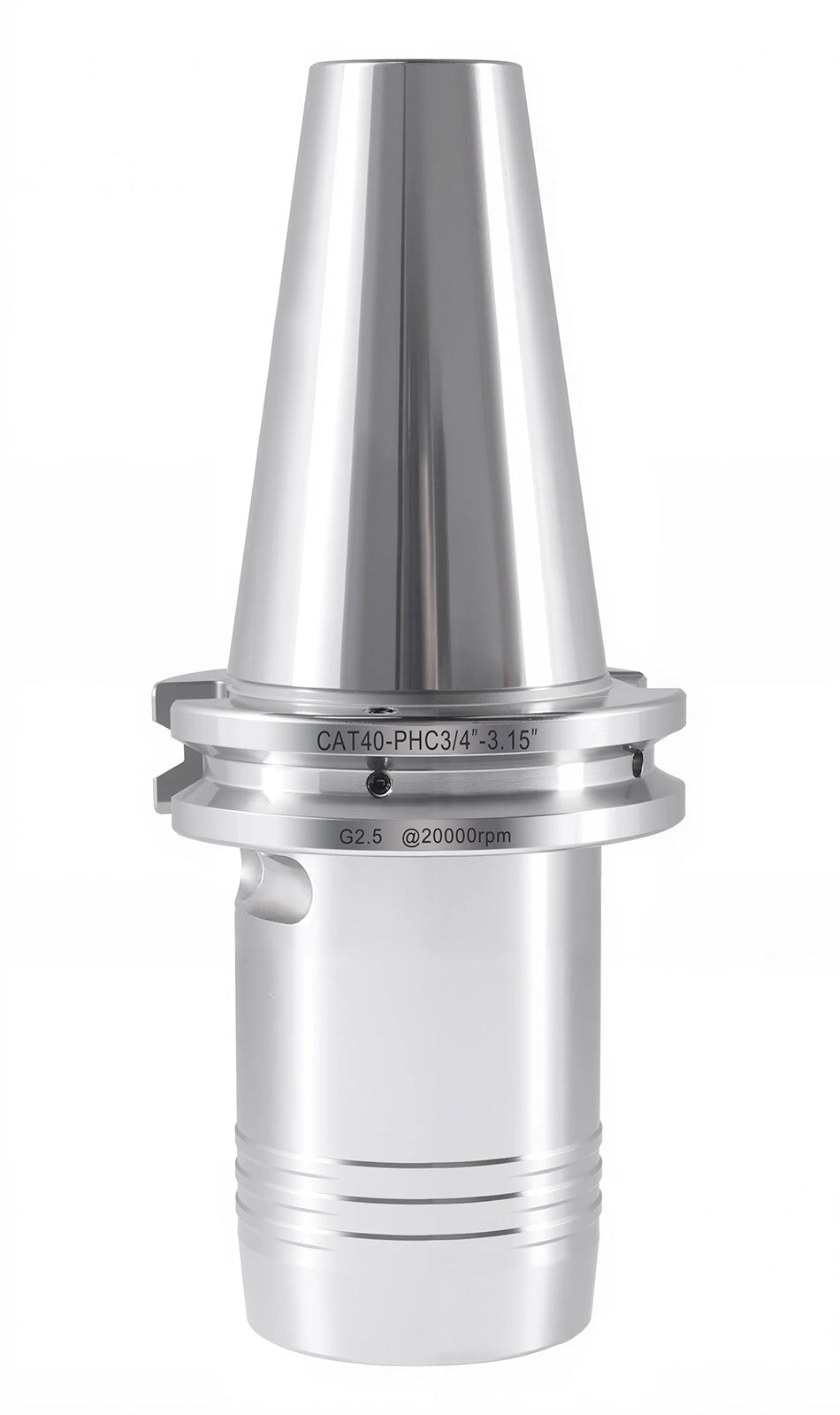

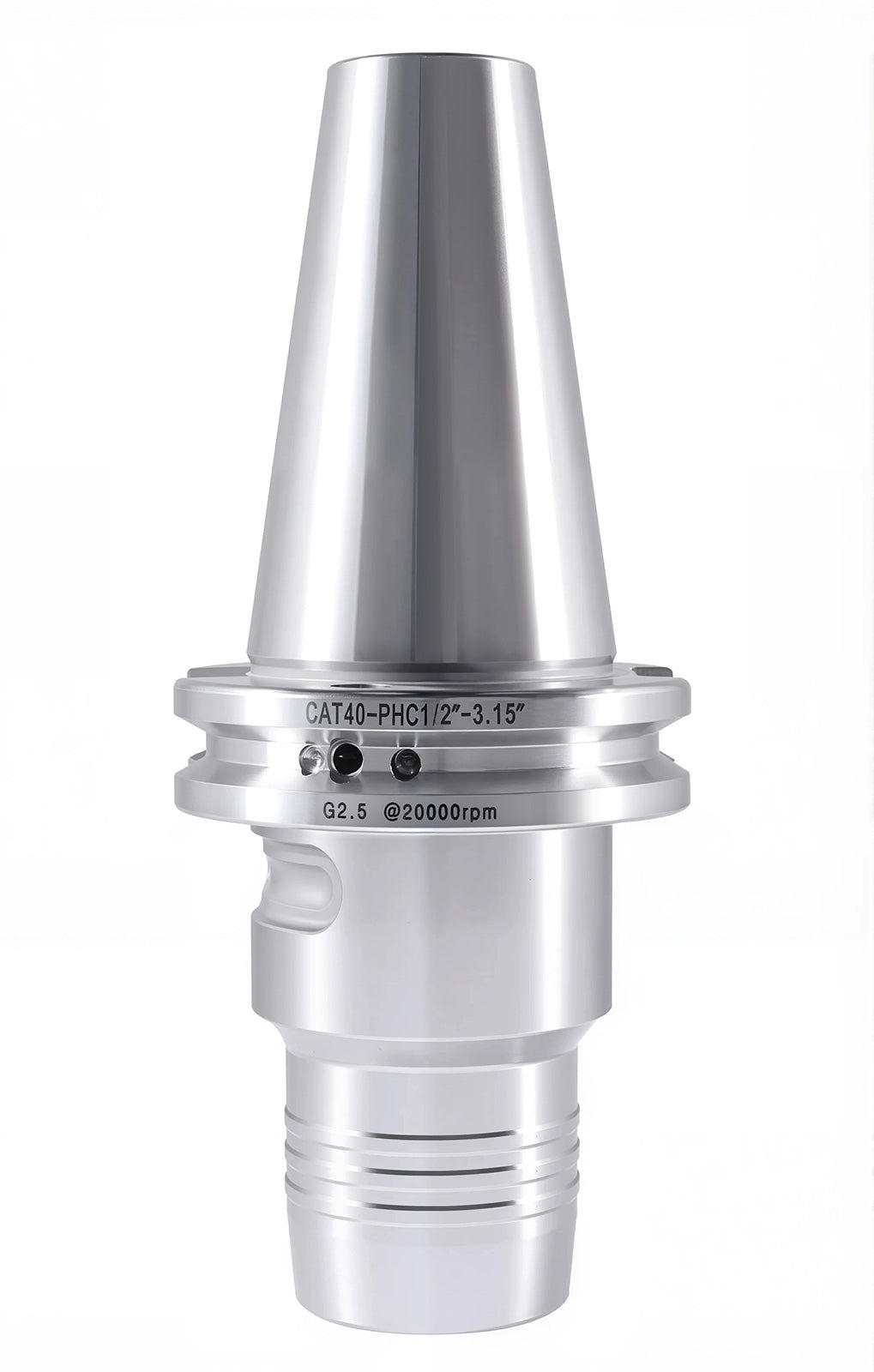

- CAT40 G2.5@20000 RPM

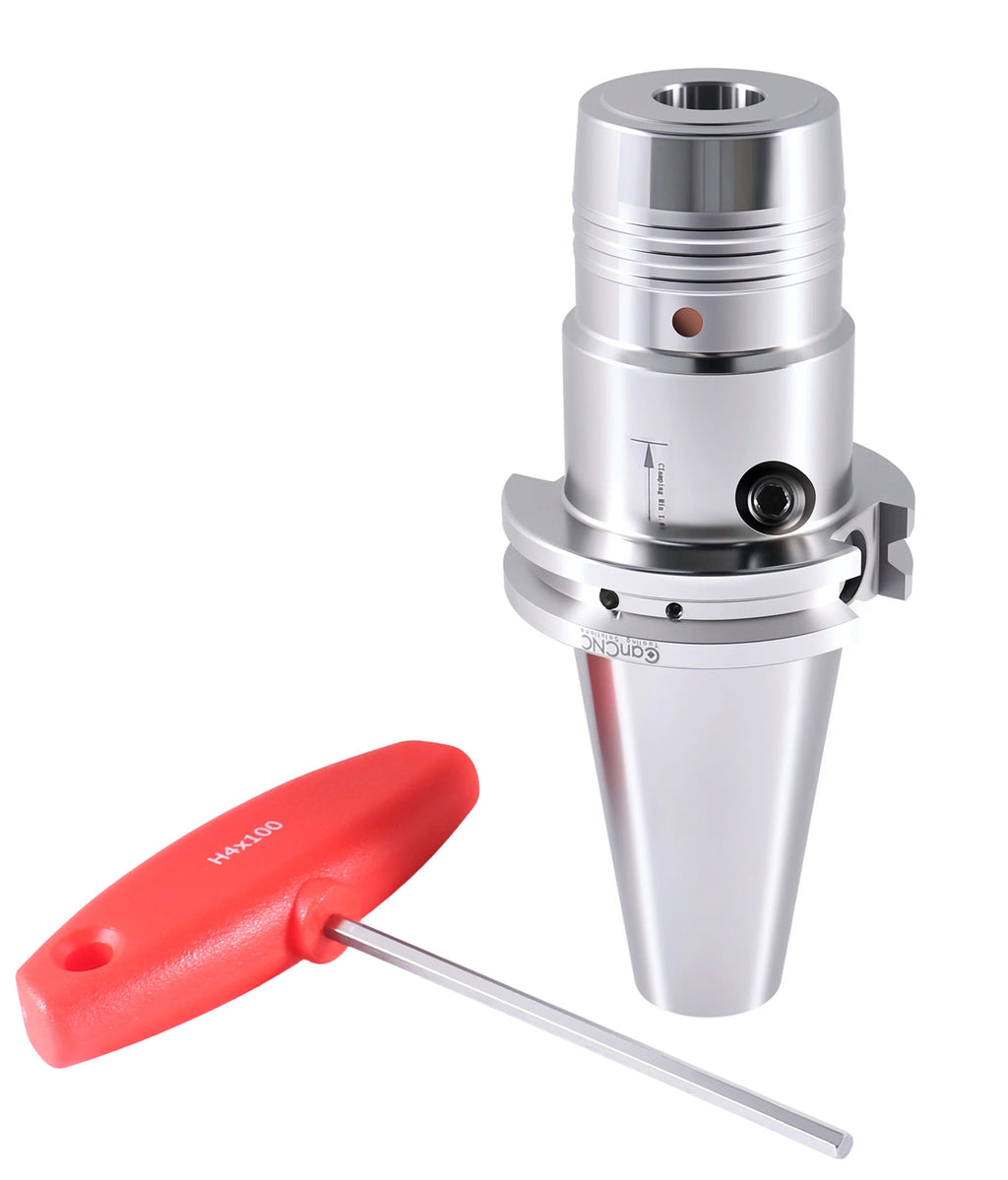

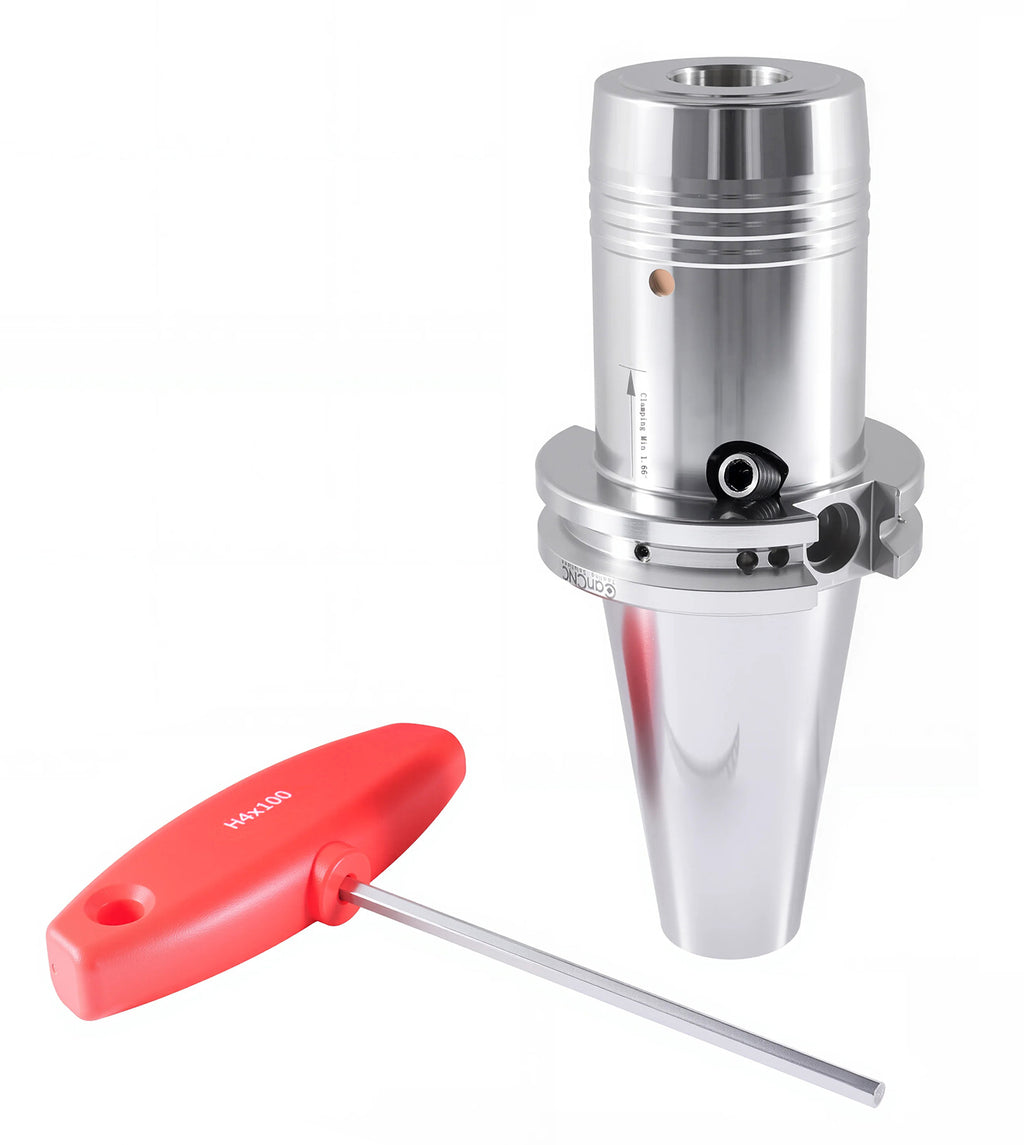

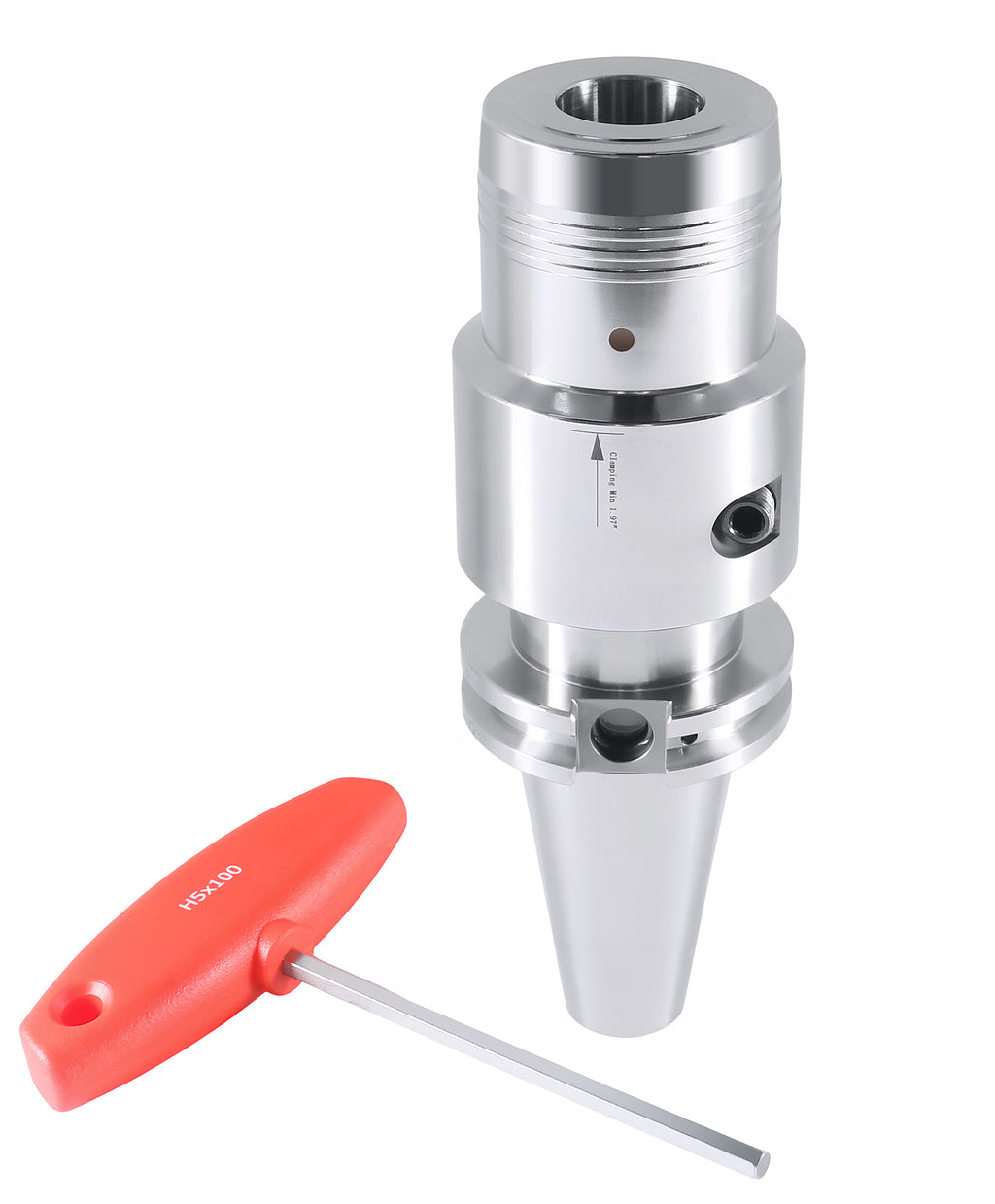

- CAT50 G2.5@15000 RPM - Wrench supplied.

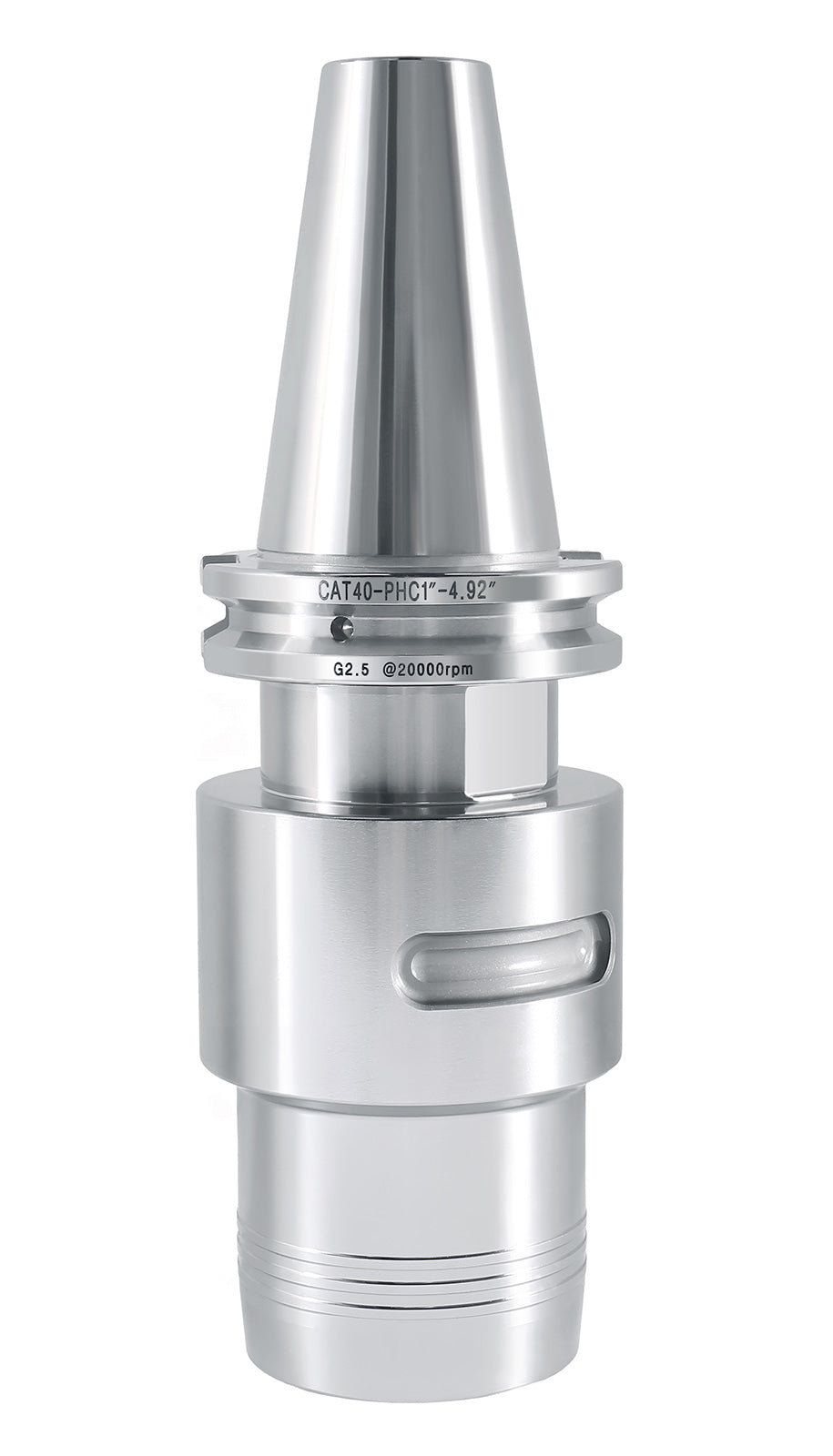

Item Taper Base Code d D1 D L L1 Insection Length (C1) Insection Length (C) 8040-0038 CAT40-PHC 3/8"-3.15" Ⅰ 3/8" 1.34" 1.73" 3.15" 1.28" 1.50" 1.97" 8040-0012 CAT40-PHC 1/2"-3.15" Ⅰ 1/2" 1.42" 1.73" 3.15" 1.28" 1.50" 1.97" 8040-0058 CAT40-PHC 5/8"-3.15" Ⅰ 5/8" 1.57" 1.73" 3.15" 1.28" 1.69" 2.01" 8040-0034 CAT40-PHC 3/4"-3.56" Ⅰ 3/4" 1.73" 1.73" 3.15" 2.42" 1.57" 2.01" 8040-0001 CAT40-PHC 1"-4.92" Ⅱ 1" 2.05" 2.48" 4.92" 2.56" 1.97" 2.40"
Cautions
- Use only cutting tools with shank tolerance of h6 or better.
- Do not use cutting tools with a Weldon flat or similar flat sections on the shank.
- Never clamp the holder without a tool inserted.

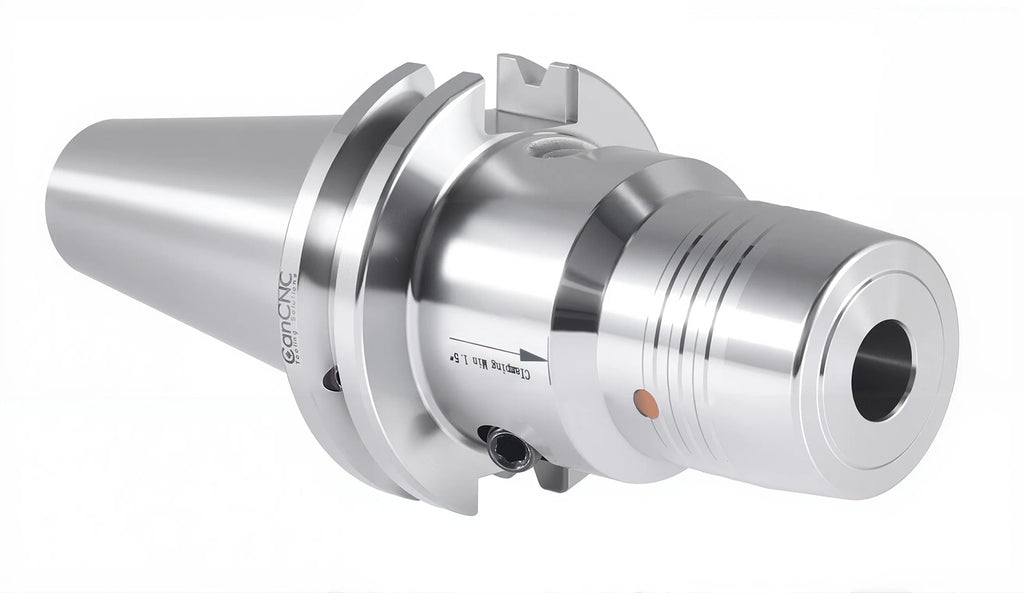

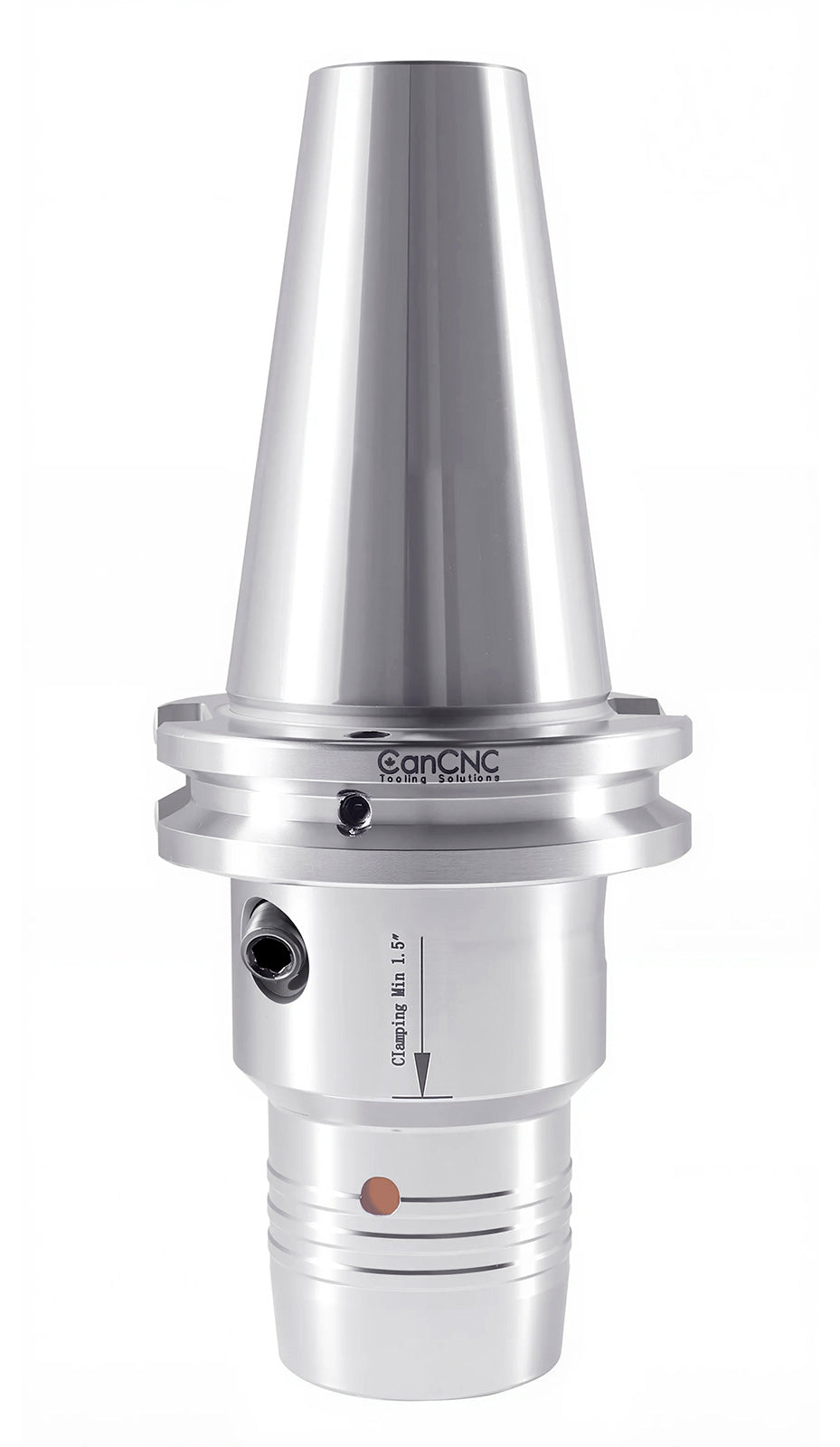

- Always insert the cutting tool beyond the minimum clamping length (C).

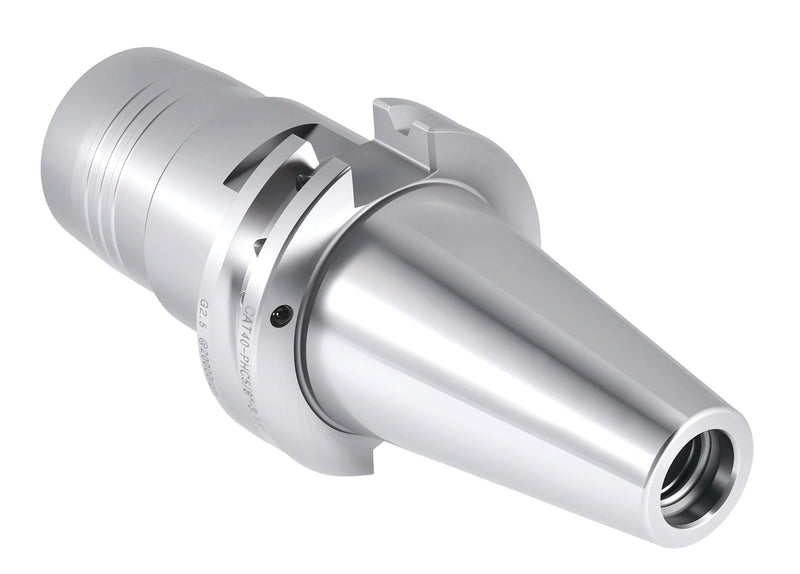

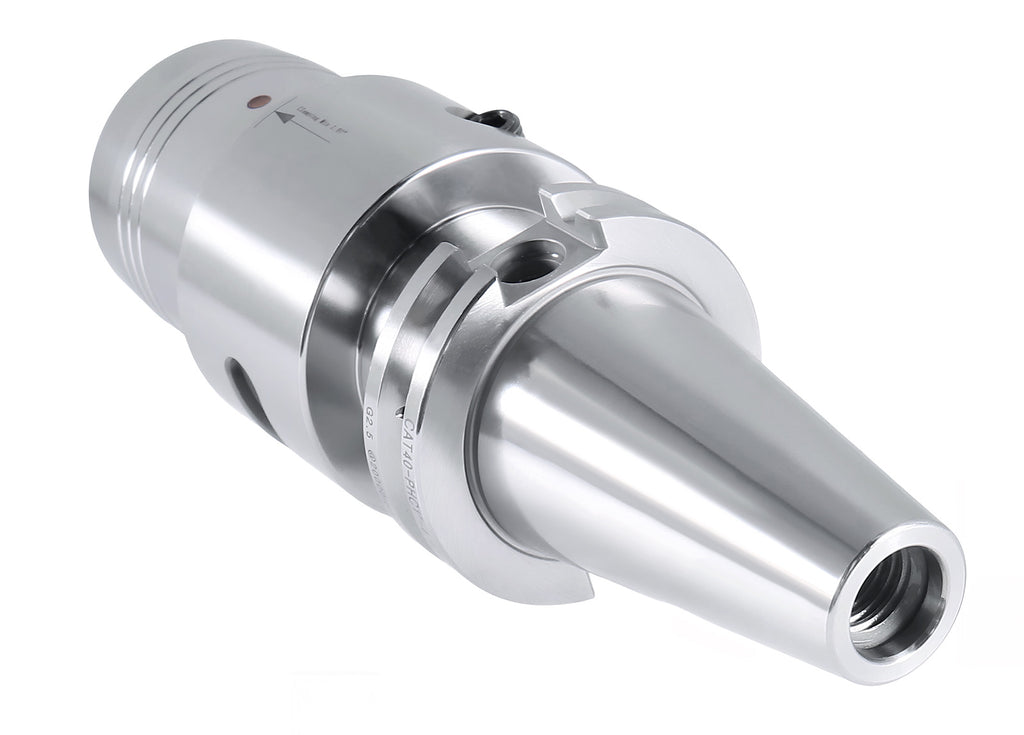

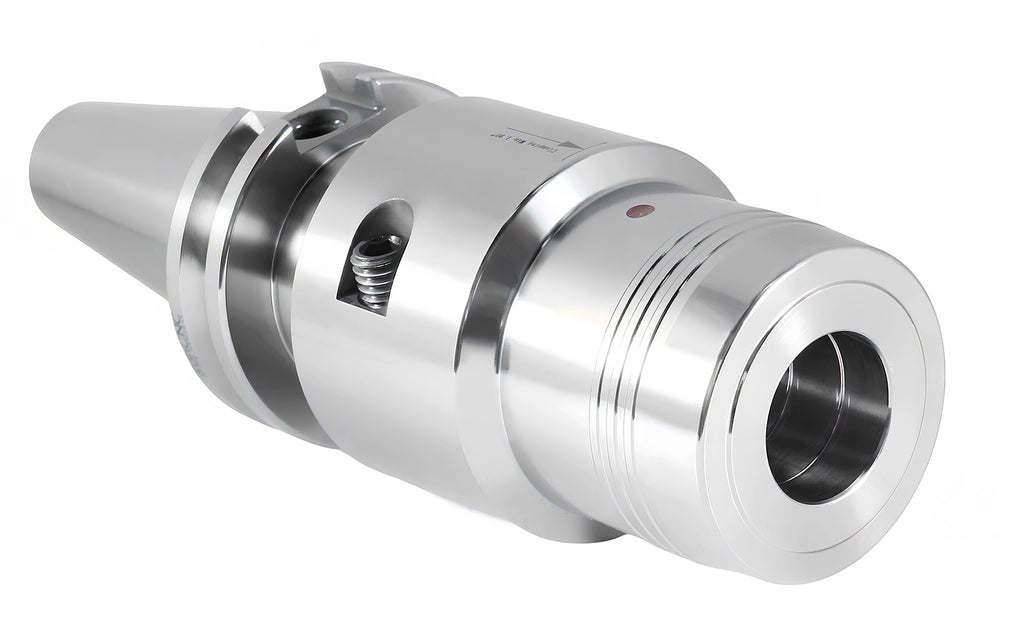

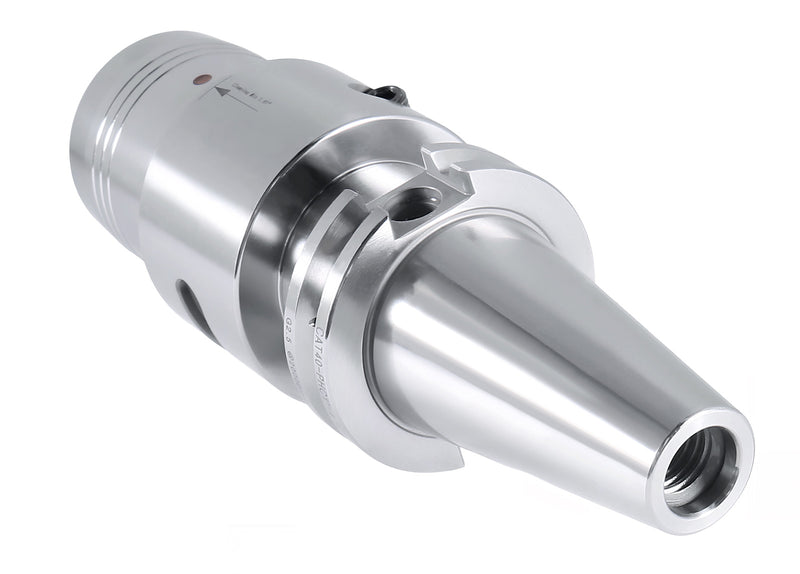

High Precision Hydraulic Chuck System
-
-
