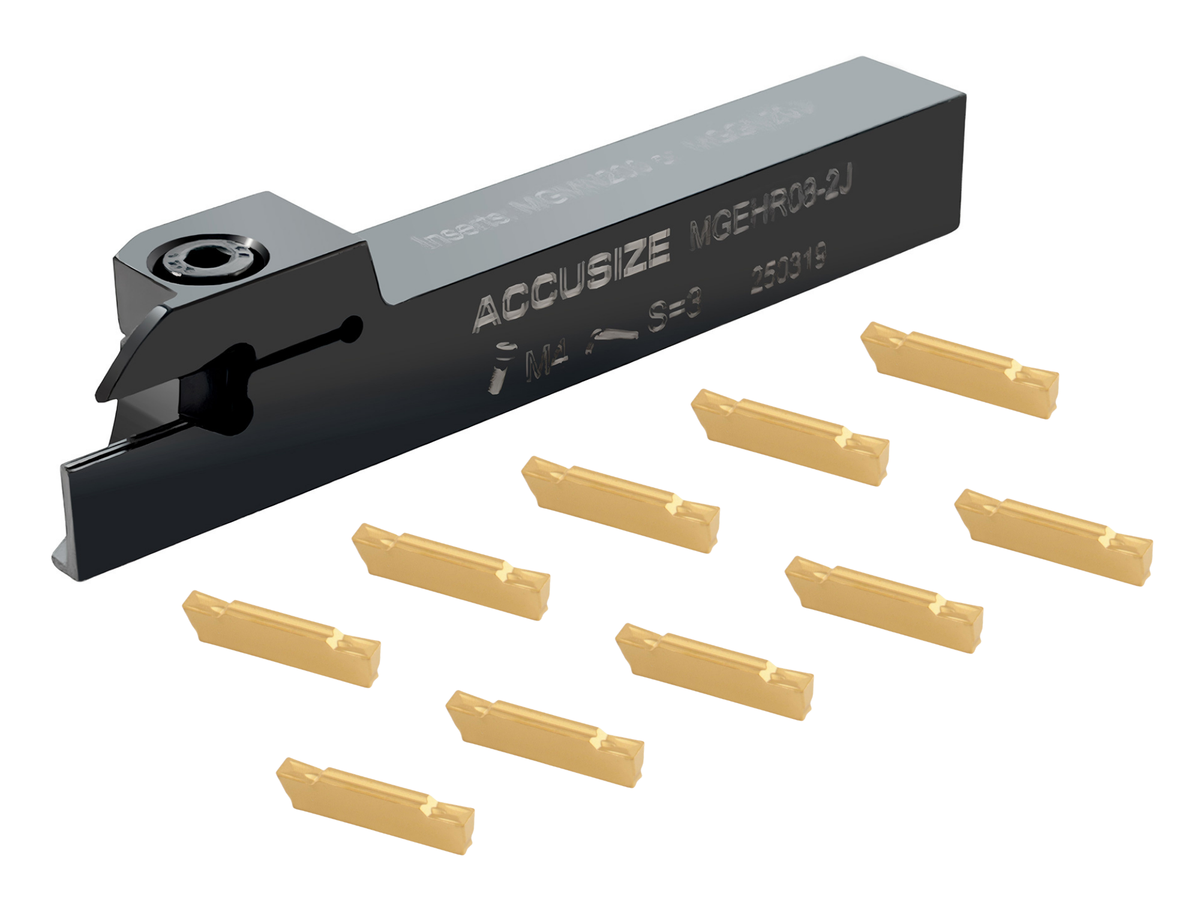

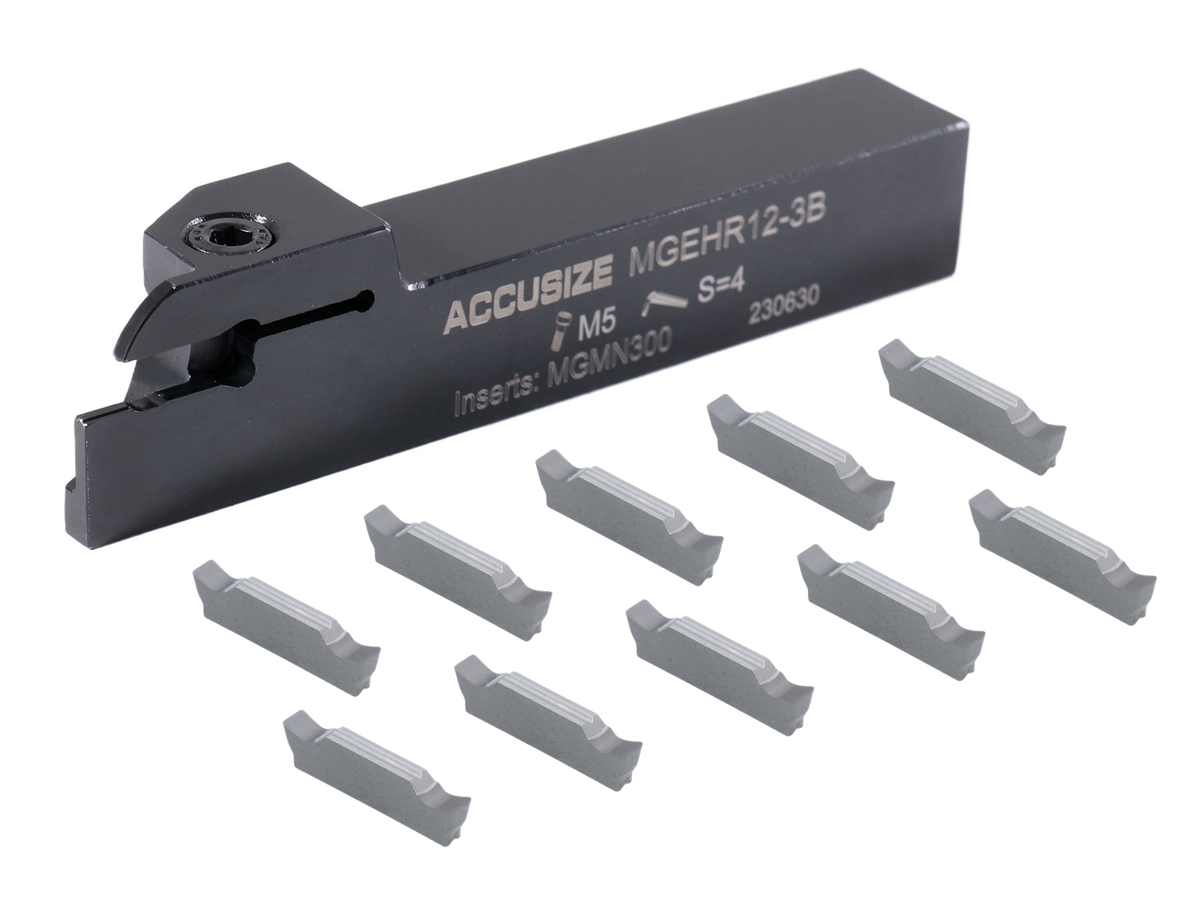

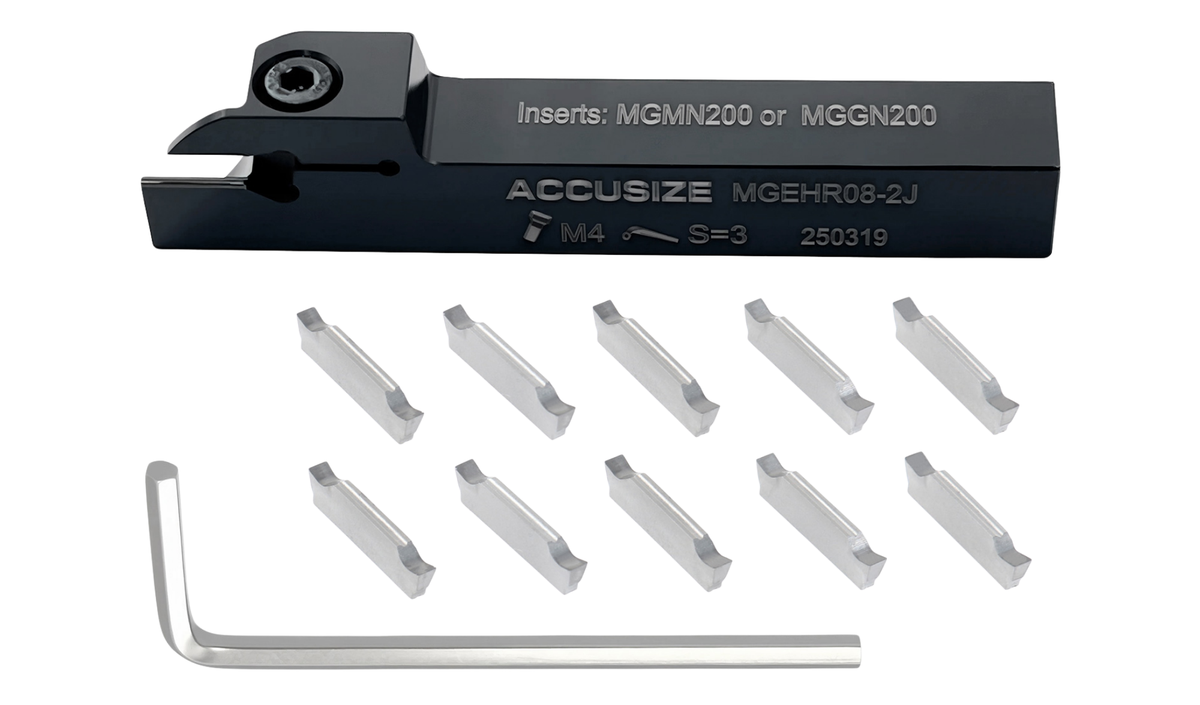

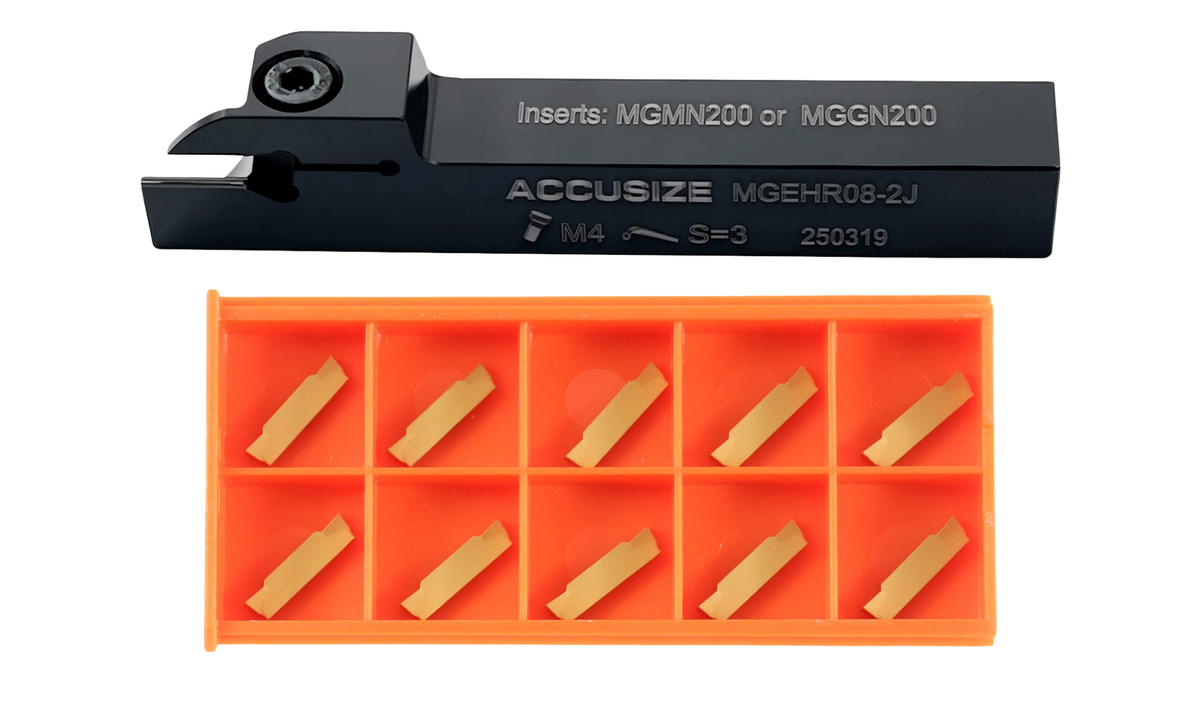

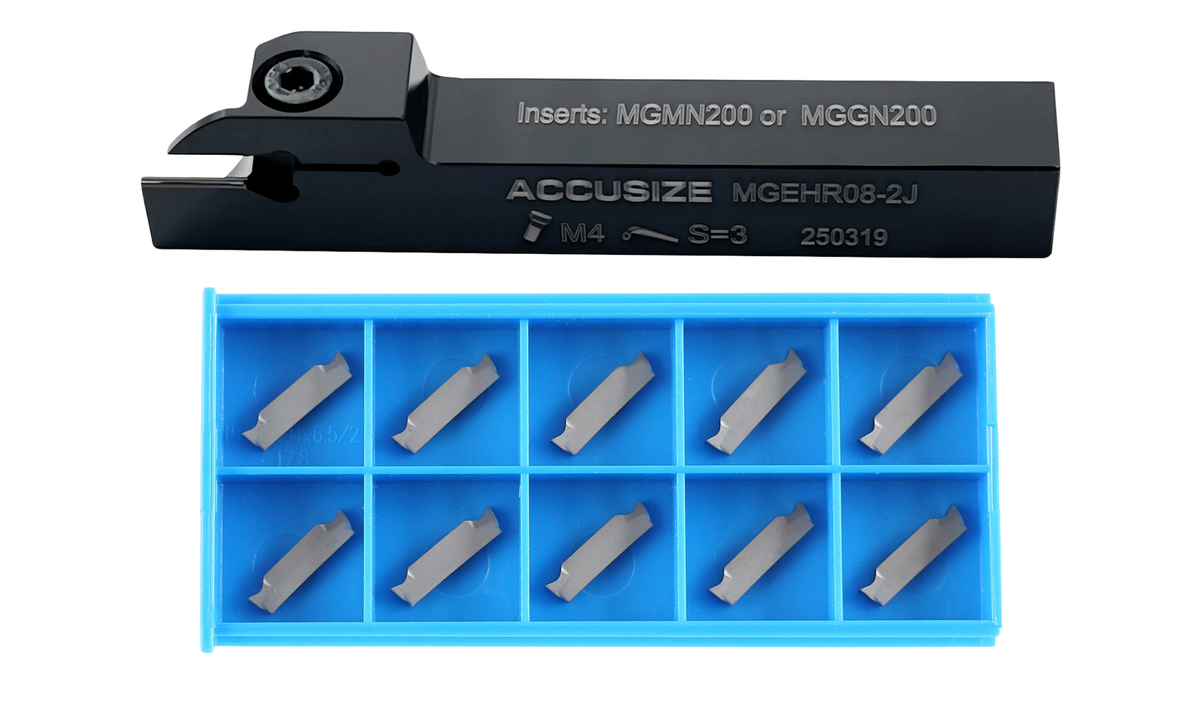

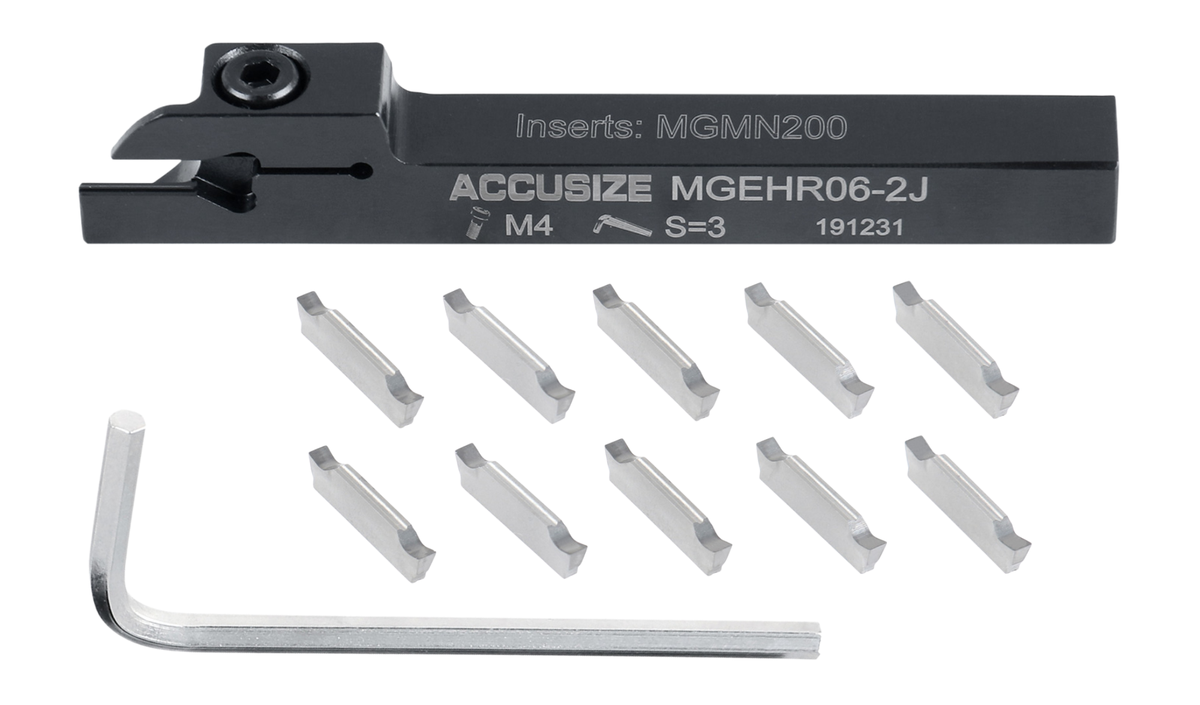

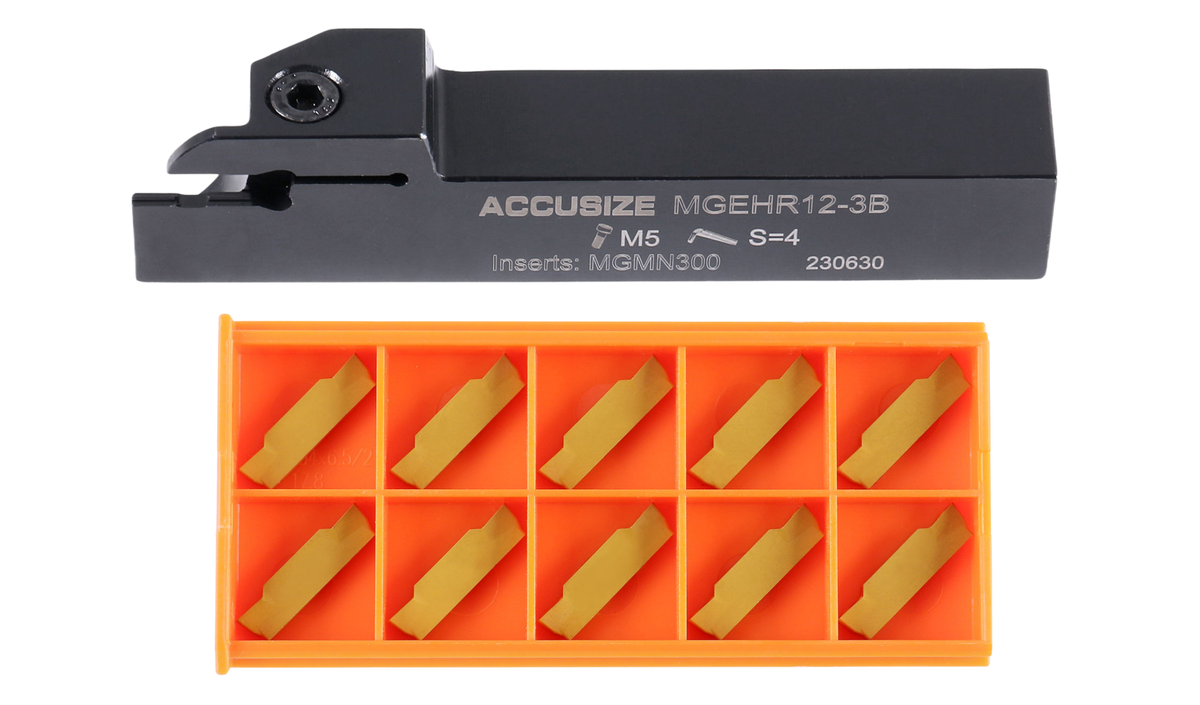

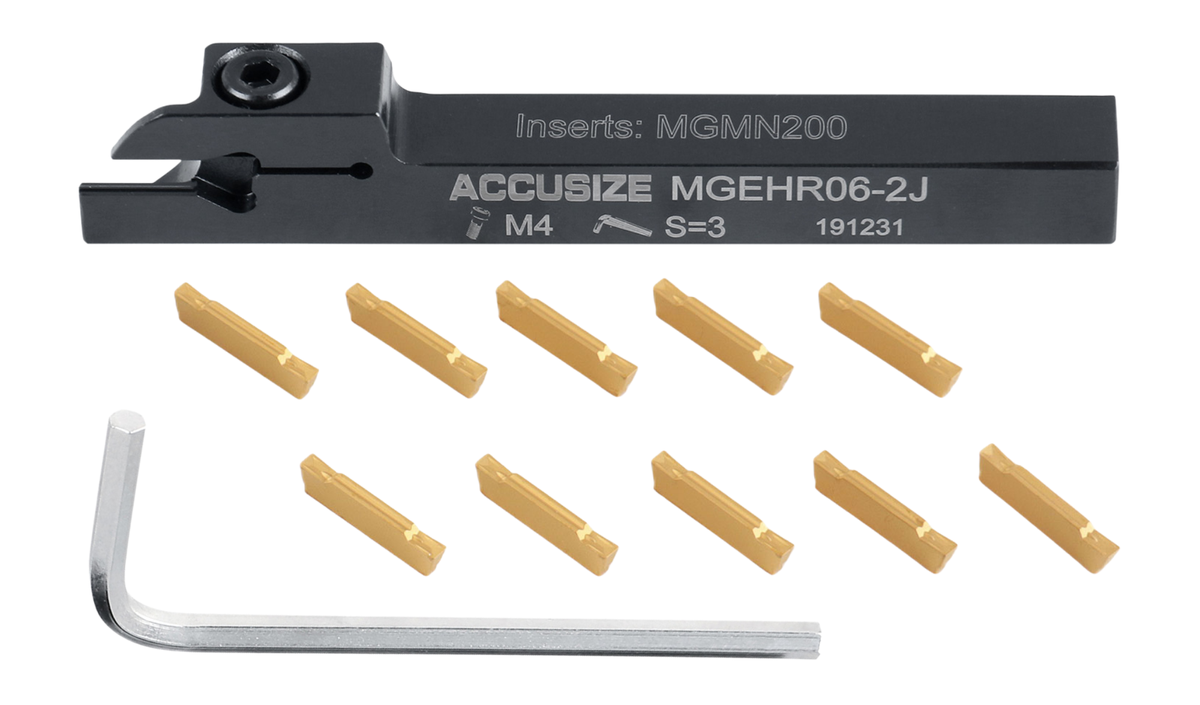

Cut-Off Holder, Parting Tool with 10 Carbide Inserts
Each set includes:
- 1 indexable cut-off holder
- 10 carbide inserts
| SKU | Holder Size | Tool Holder | Insert Code | Insert SKU | Machining Materials |

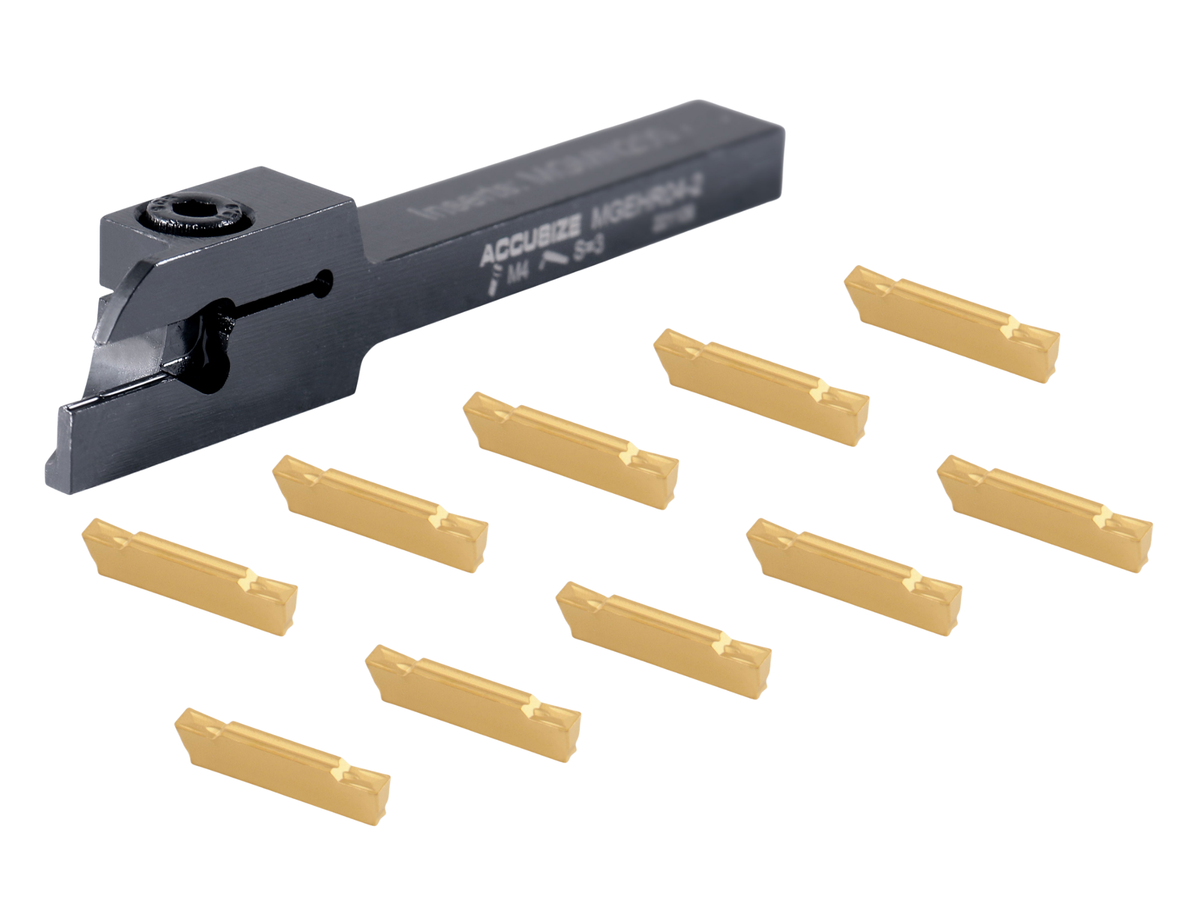

| 2387-0001INS | 1/4" x 3/8'' | MGEHR04-2 | MGMN200 | 2403-4022 | Steel |

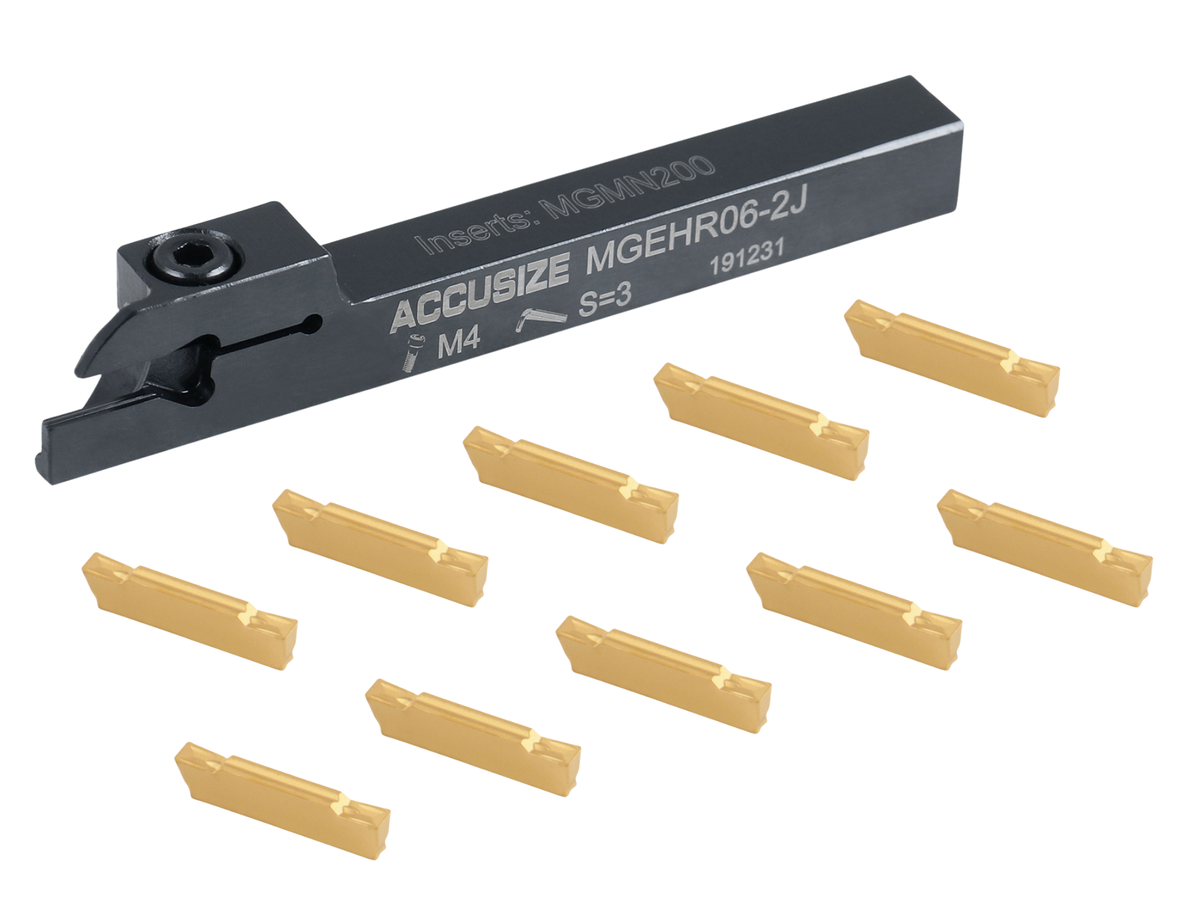

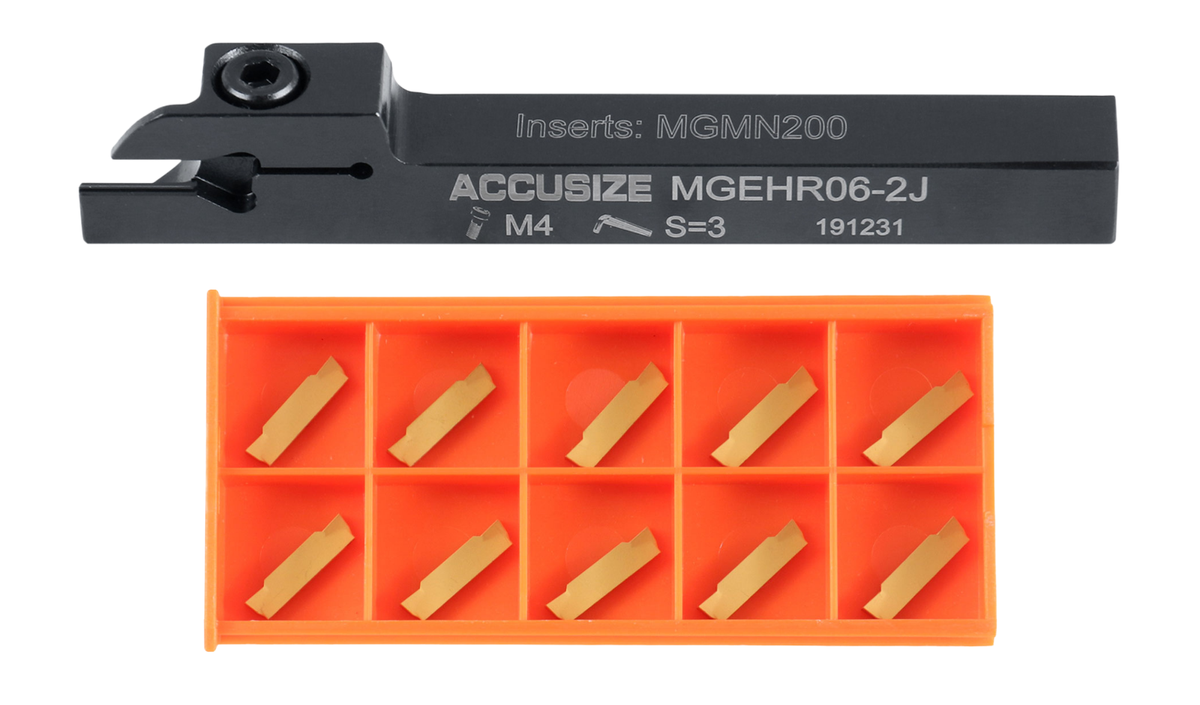

| 2387-0003INS | 3/8'' x 3/8" | MGEHR06-2J | MGMN200 | 2403-4022 | Steel |

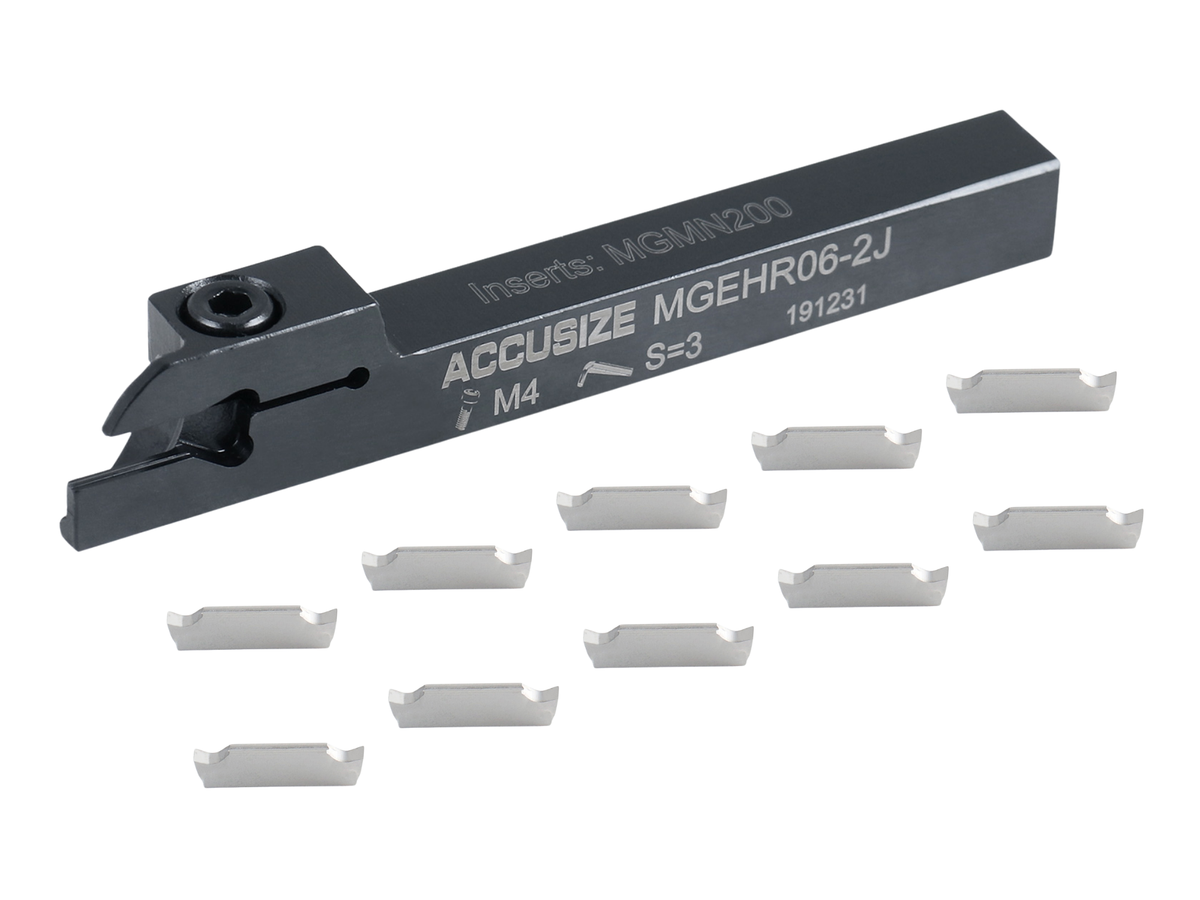

| 2387-0003INSA | 3/8'' x 3/8" | MGEHR06-2J | MGGN200-LH | 2403-4023 | Aluminum |

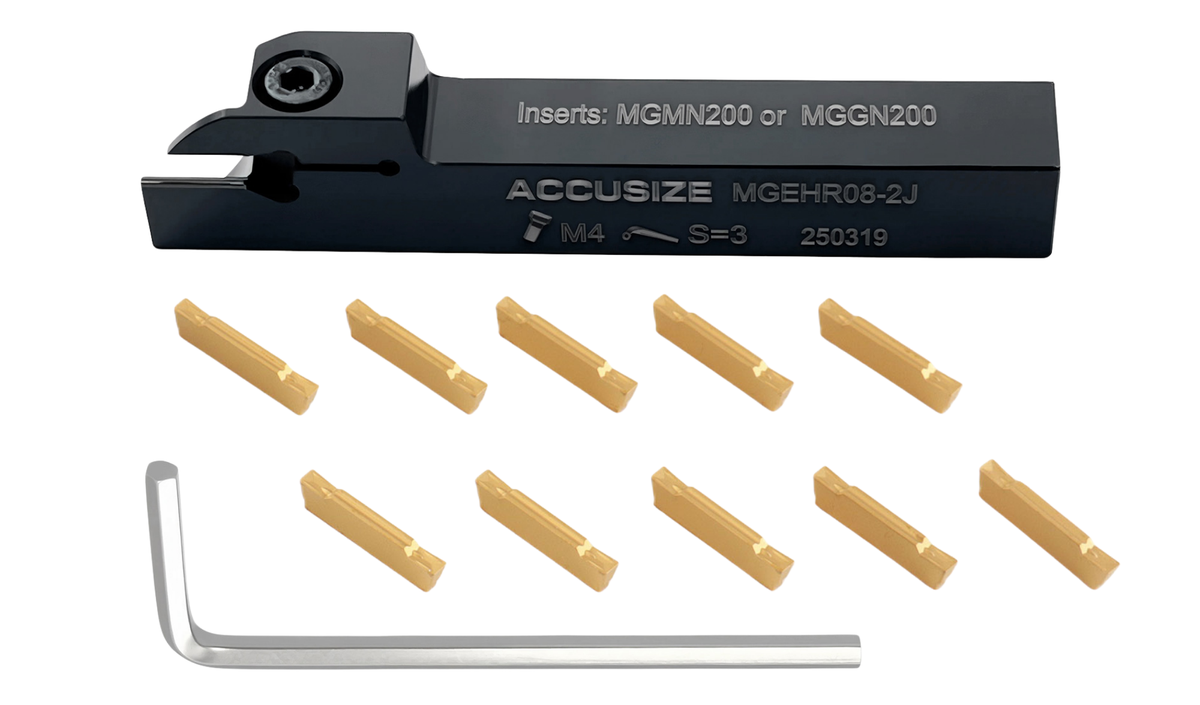

| 2387-0004INS | 1/2" x 1/2" | MGEHR08-2J | MGMN200 | 2403-4022 | Steel |

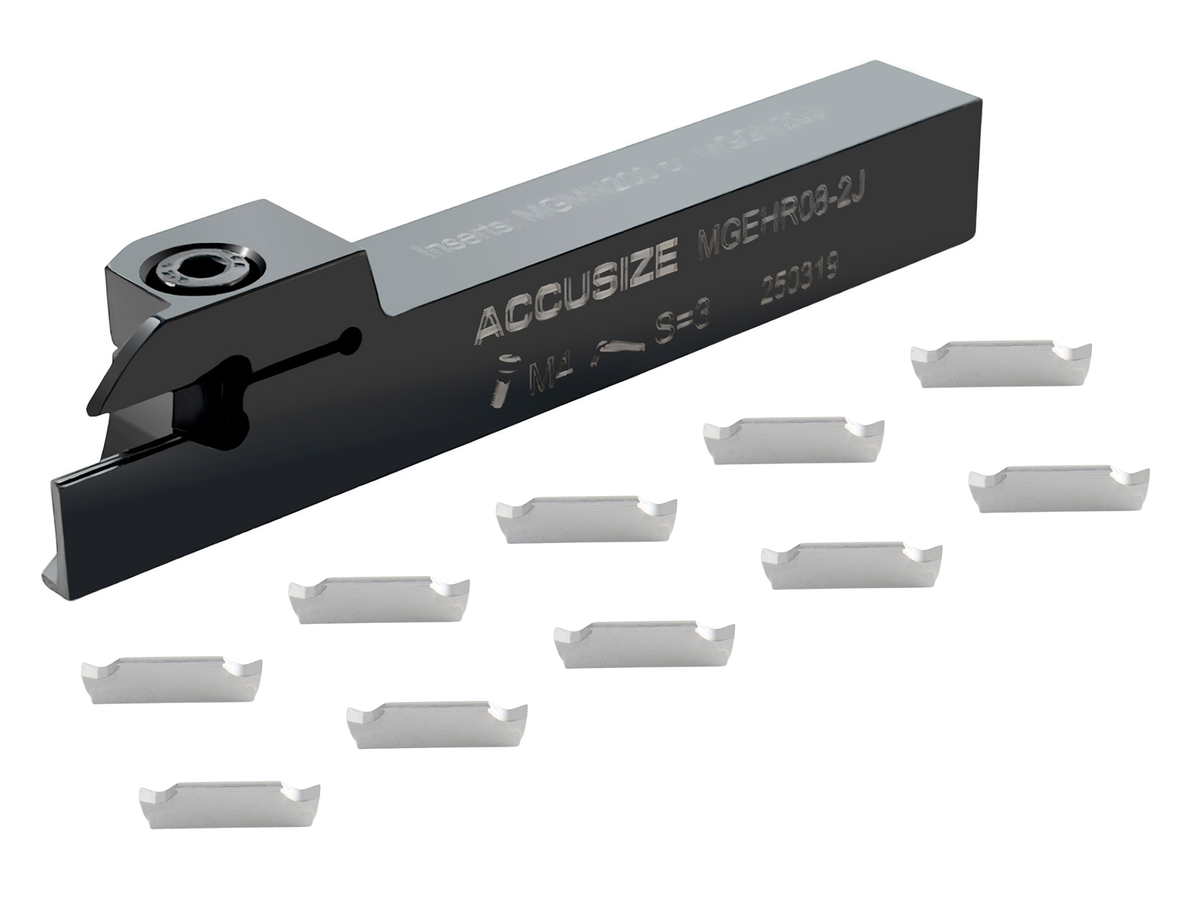

| 2387-0004INSA | 1/2" x 1/2" | MGEHR08-2J | MGGN200-LH | 2403-4023 | Aluminum |

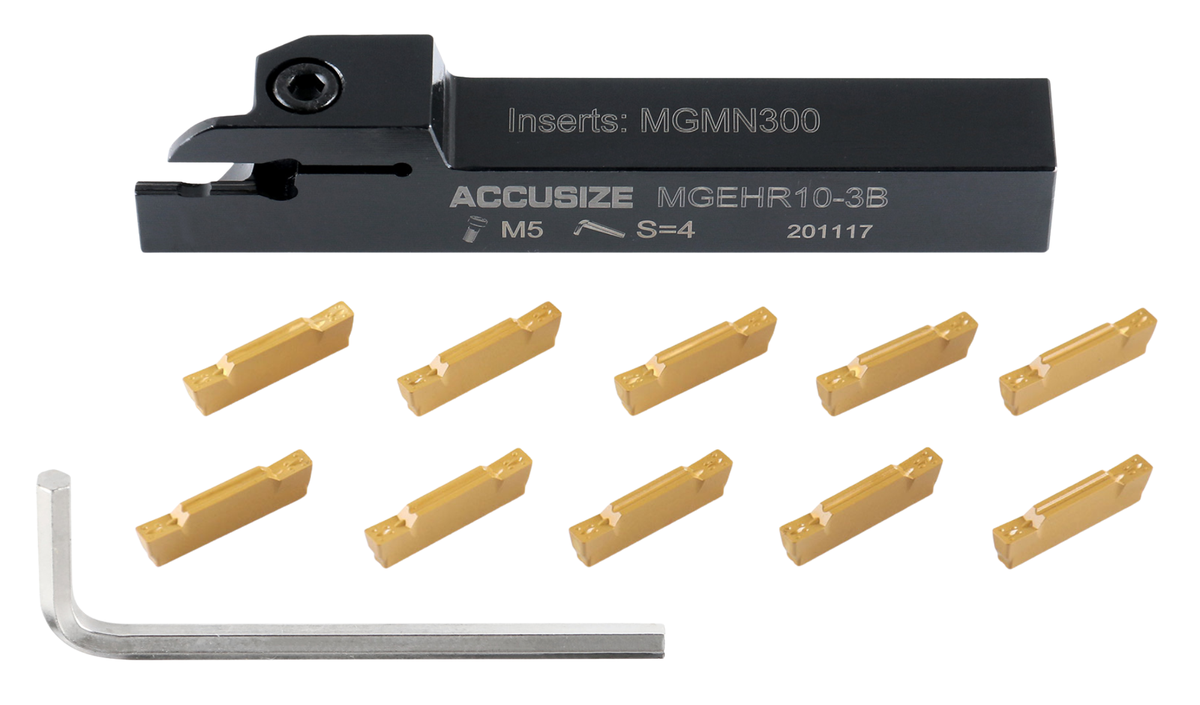

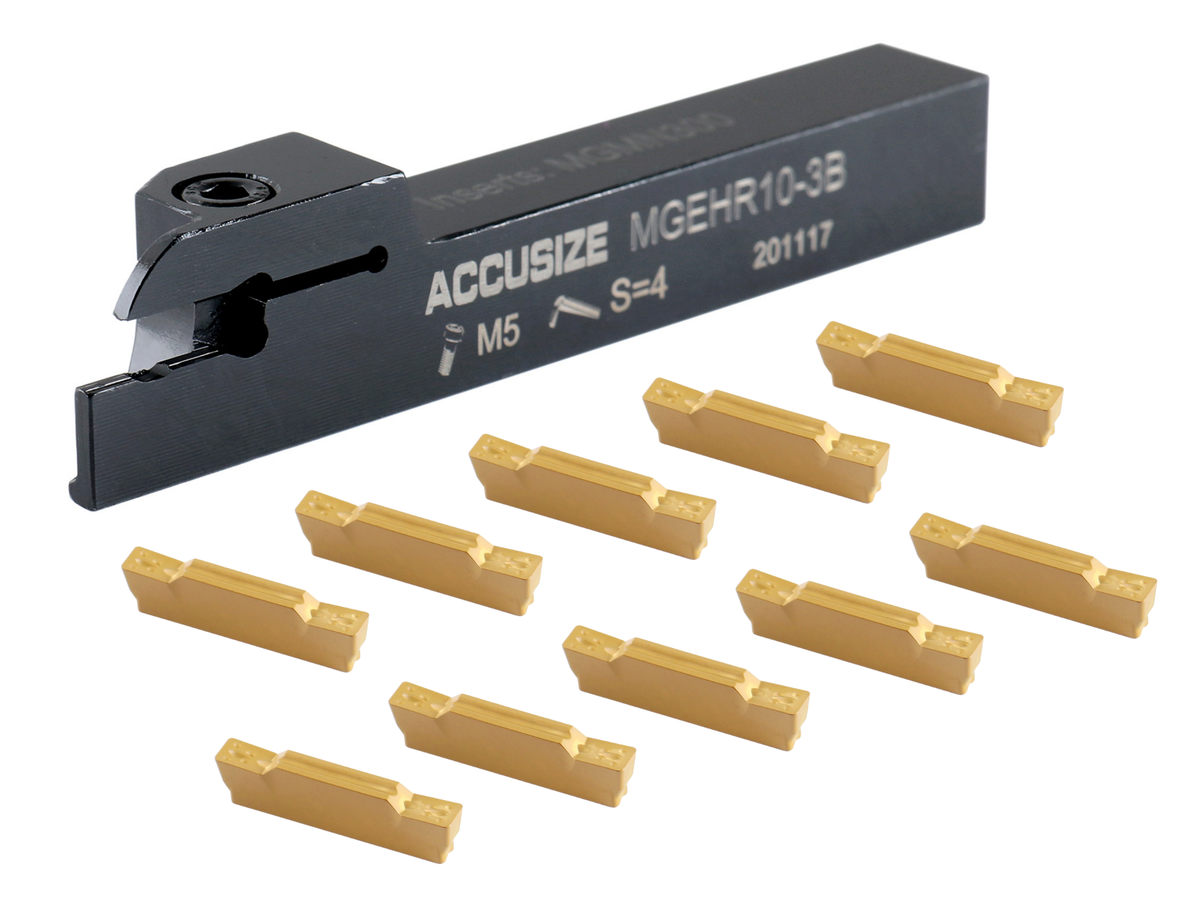

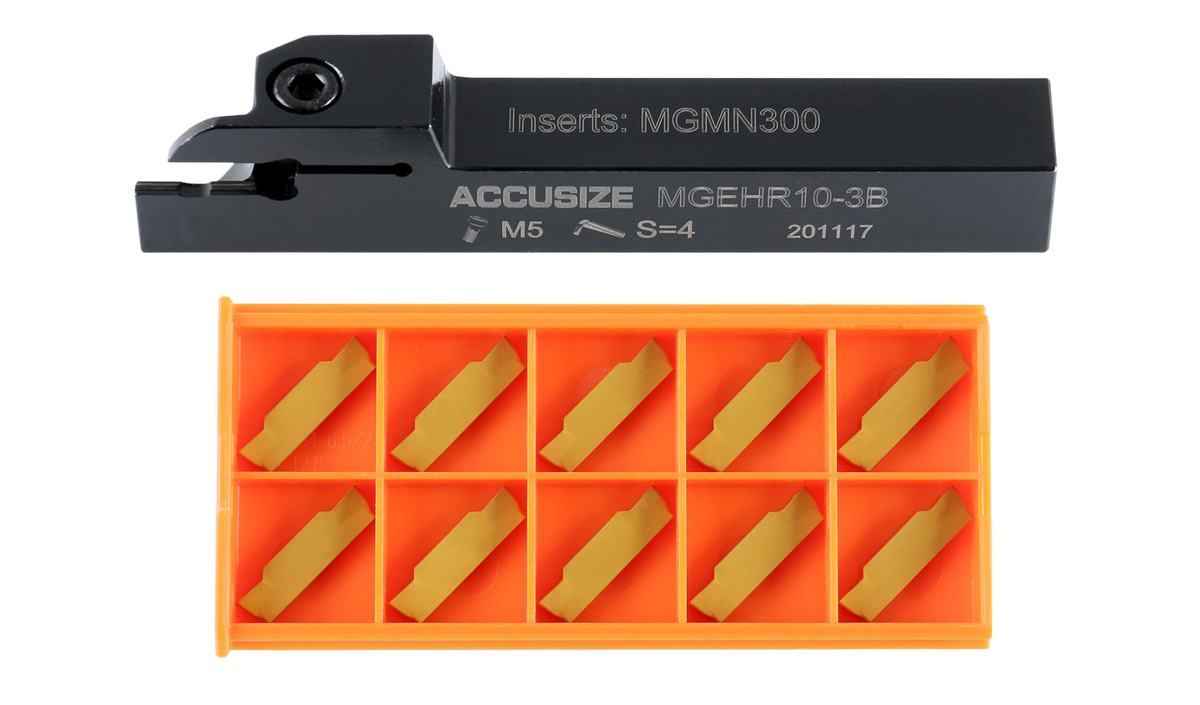

| 2387-0005INS | 5/8" x 5/8" | MGEHR10-3B | MGMN300 | 2403-4026 | Steel |

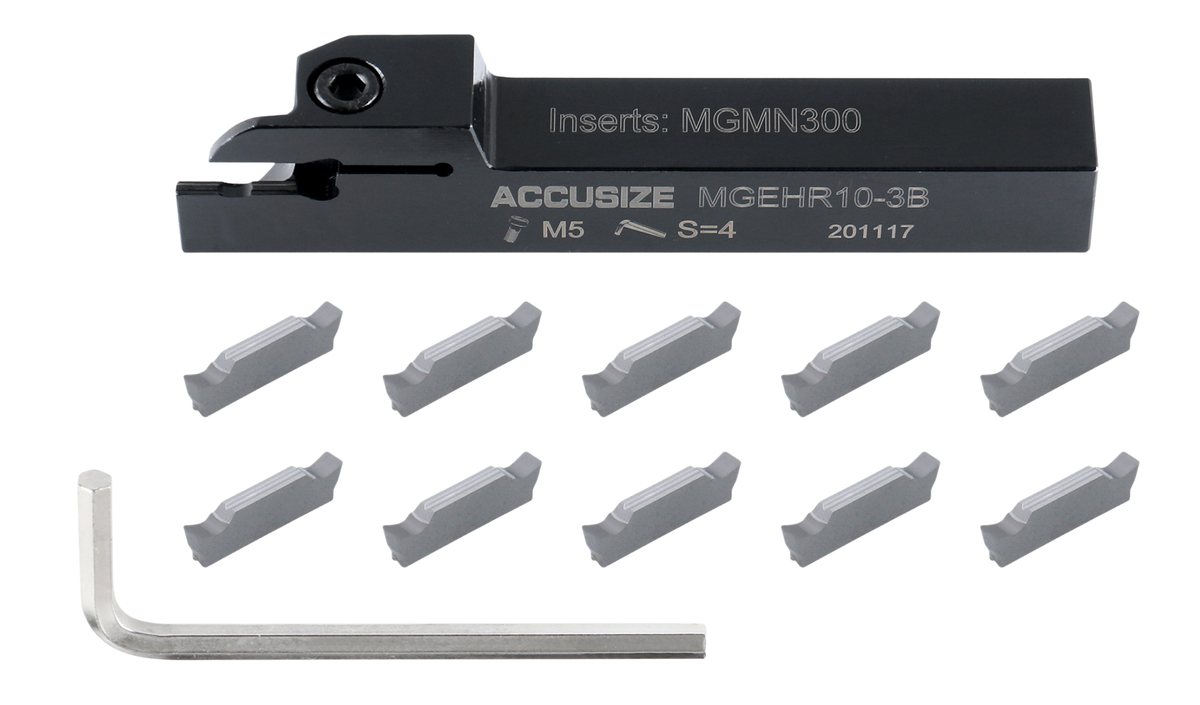

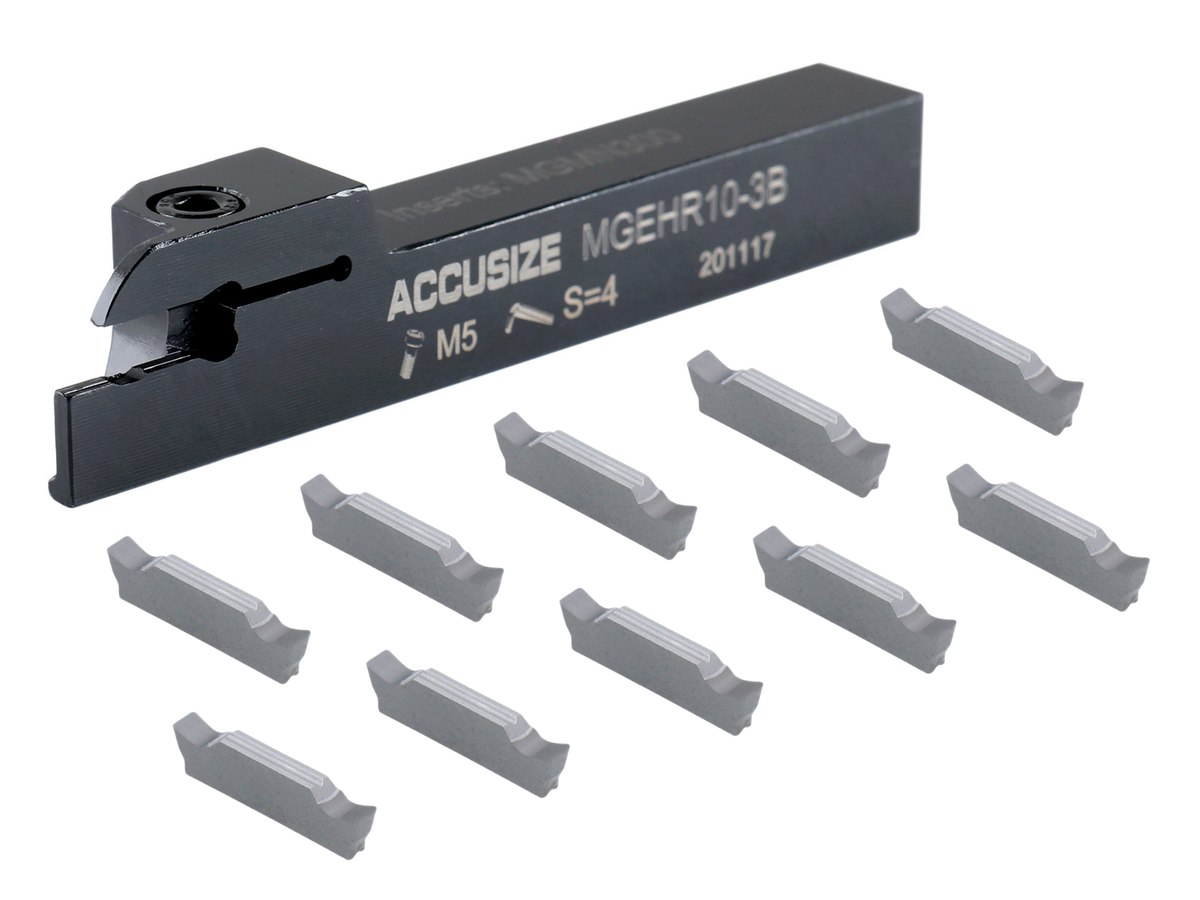

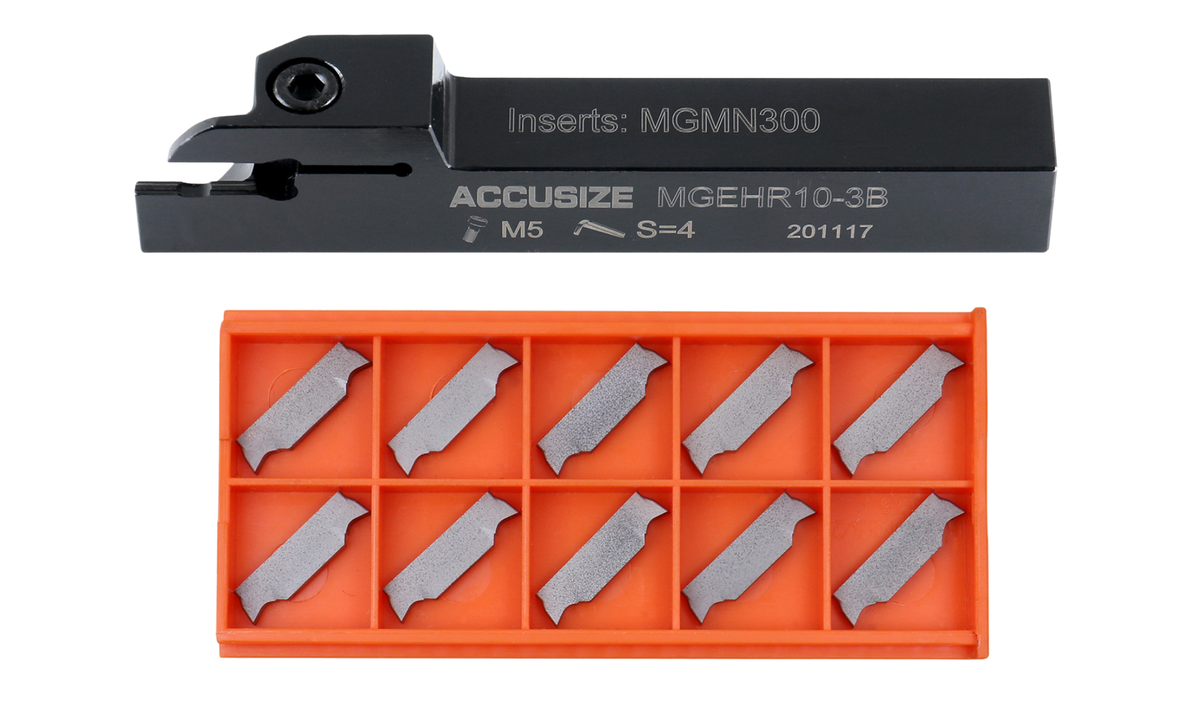

| 2387-0005INSA | 5/8" x 5/8" | MGEHR10-3B | MGGN300-LH | 2403-4027 | Aluminum |

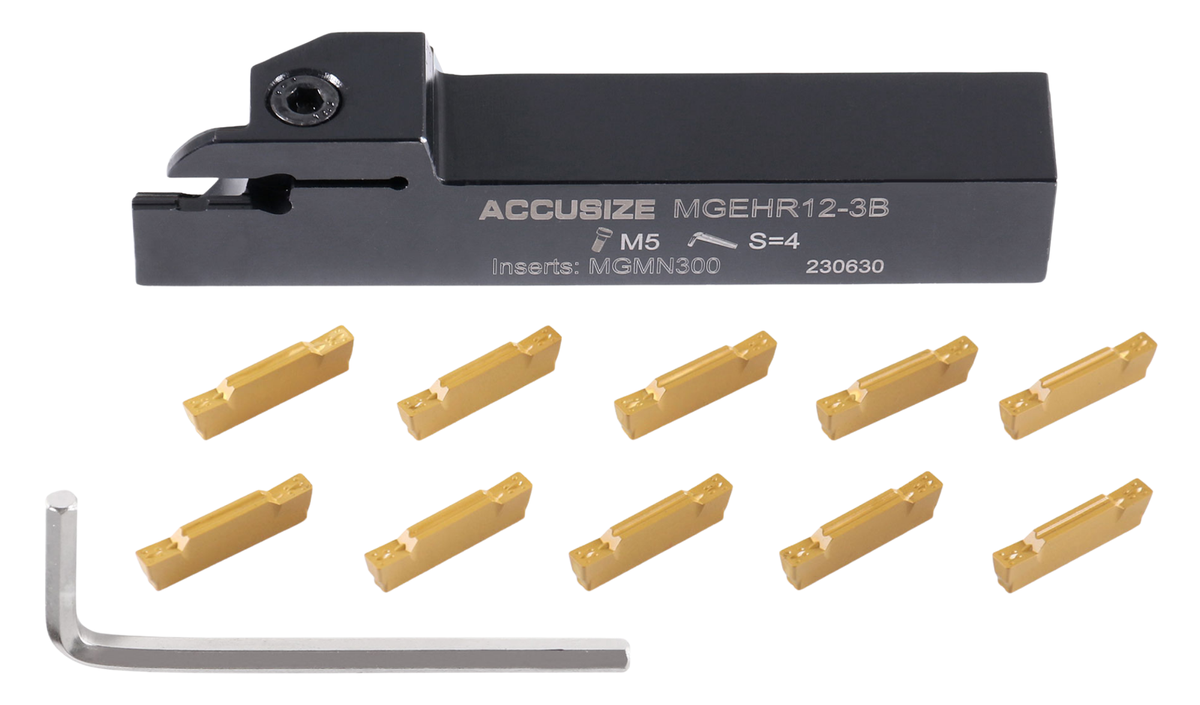

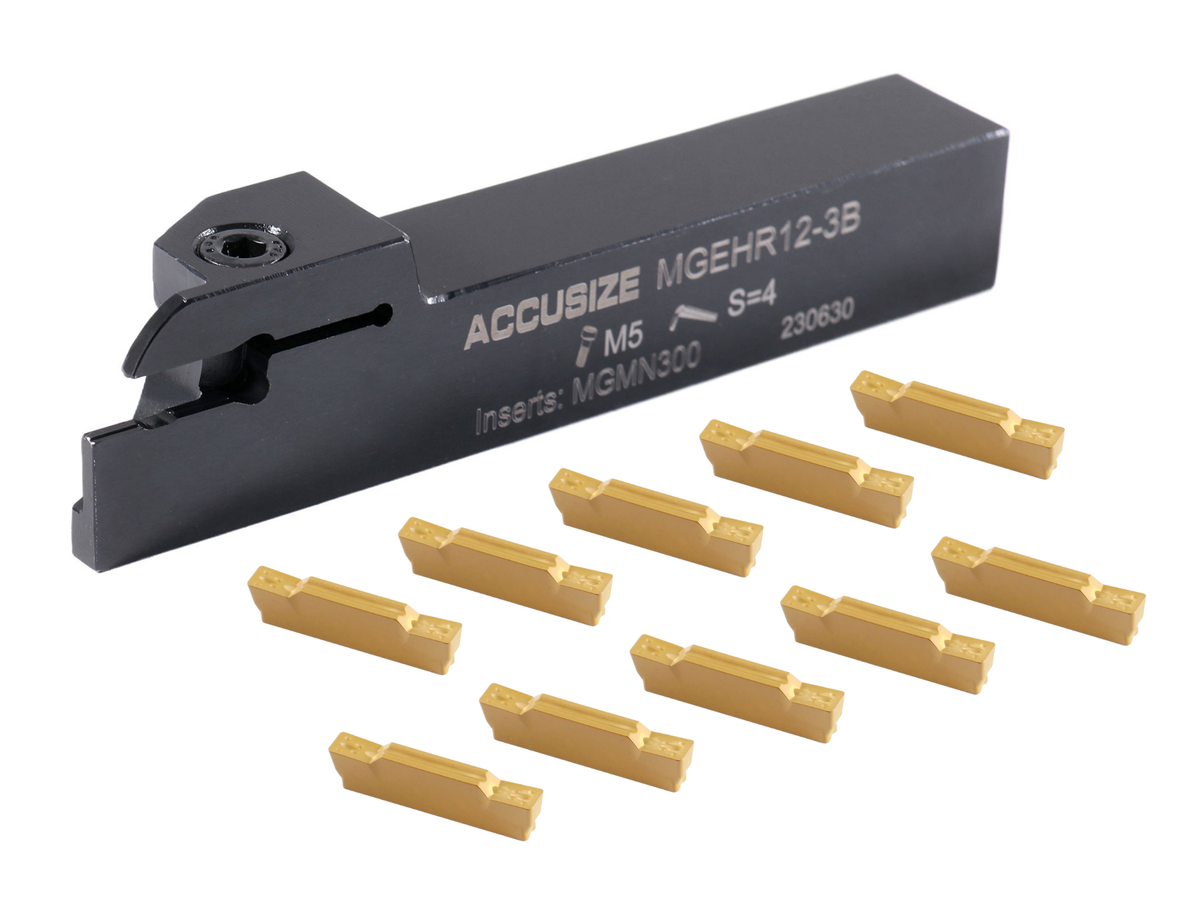

| 2387-0006INS | 3/4" x 3/4" | MGEHR12-3B | MGMN300 | 2403-4026 | Steel |

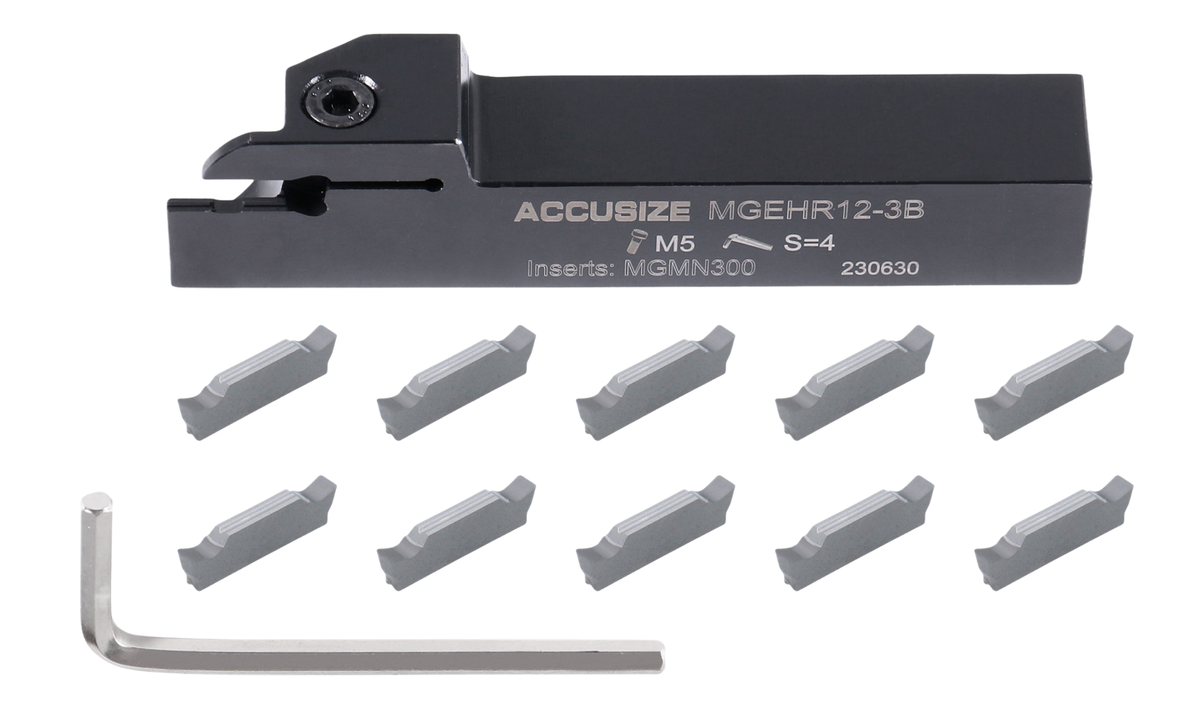

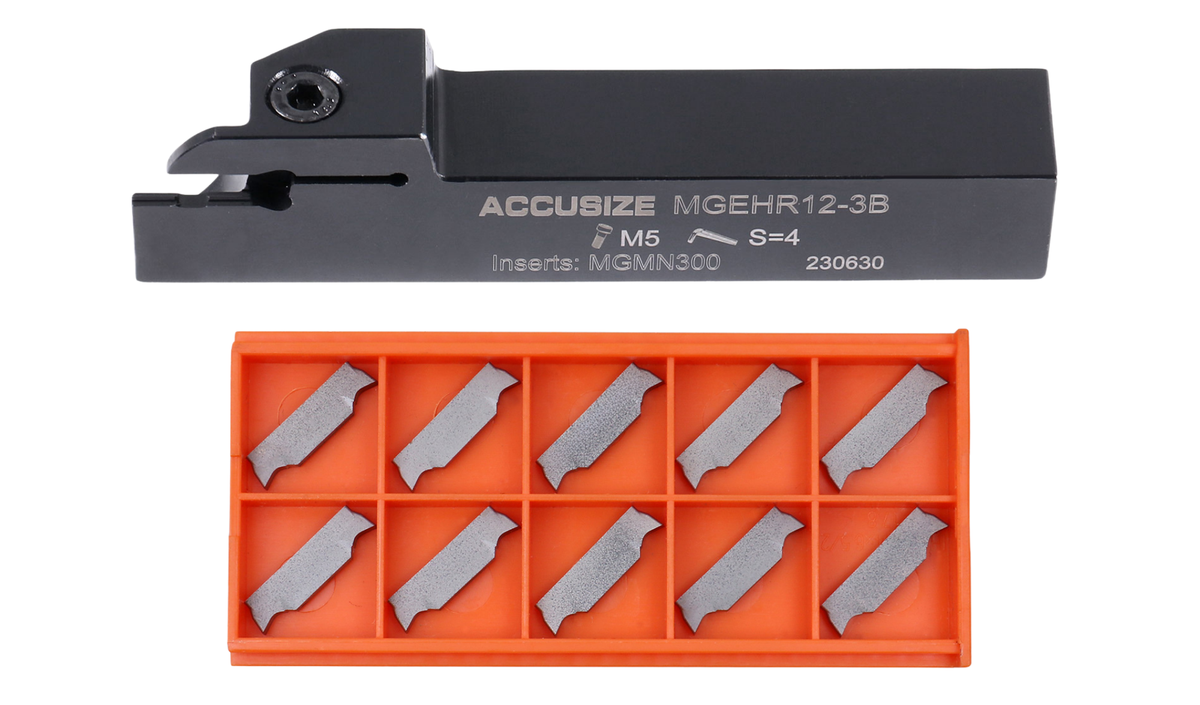

| 2387-0006INSA | 3/4" x 3/4" | MGEHR12-3B | MGGN300-LH | 2403-4027 | Aluminum |
*Note: T indicates the maximum depth of cut (radial depth). For a full cut-off, the maximum workpiece diameter is 2T. Exceeding this limit may cause interference between the holder and the workpiece.
*T = Max. Depth of Cut
**T indicates the maximum depth of cut (radial depth). For a full cut-off, the maximum workpiece diameter is 2T. Exceeding this limit may cause interference between the holder and the workpiece.
Please note the cutting parameters are for reference only
| Cutting Parameters |
Feed Speed 0.003~0.012in |
|
| MGEHR04-2 | Alloy Steel | 23~43 in/min |
| Low-Carbon Steel | 31~59 in/min | |
| Carbon Steel HB200 | 39~78 in/min | |
| Carbon Steel HB200 | 39~59 in/min | |
| MGEHR06-2J | Alloy Steel | 196~360 ft/min |
| Low-Carbon Steel | 262~492 ft/min | |
| Carbon Steel HB200 | 328~656 ft/min | |
| Carbon Steel HB200 | 328~492 ft/min | |
| MGEHR08-2J | Alloy Steel | 196~360 ft/min |
| Low-Carbon Steel | 262~492 ft/min | |
| Carbon Steel HB200 | 328~656 ft/min | |
| Carbon Steel HB200 | 328~492 ft/min | |
| MGEHR10-3B | Alloy Steel | 196~360 ft/min |
| Low-Carbon Steel | 262~492 ft/min | |
| Carbon Steel HB200 | 328~656 ft/min | |
| Carbon Steel HB200 | 328~492 ft/min | |
| MGEHR12-3B | Alloy Steel | 196~360 ft/min |
| Low-Carbon Steel | 262~492 ft/min | |
| Carbon Steel HB200 | 328~656 ft/min | |
| Carbon Steel HB200 | 328~492 ft/min |
Specification
| Item | Shank Size | Tool Holder |
Tool Holder Size (H x B) |
OAL (L) |
Insert | Insert Screw | F | T | W |
Maximum Depth (D) |
Insert SKU(Insert Not Included) |
| 2387-2001 | 1/4" | MGEHR04-2 | 1/4" x 3/8" | 3" | MGMN200 | M4 x 10 | 0.383" | 0.295" | 0.079" | 0.295" | TiN Coated MGMN200, 2403-4022 |
| 2387-2003 | 3/8" | MGEHR06-2J | 3/8" x 3/8" | 3-1/2" | MGMN200 | M4 x 10 | 0.383" | 0.295" | 0.079" | 0.295" | |
| 2387-2004 | 1/2" | MGEHR08-2J | 1/2" x 1/2" | 3-1/2" | MGMN200 | M4 x 10 | 0.508" | 0.433" | 0.079" | 0.433" | |
| 2387-2005 | 5/8" | MGEHR10-3B | 5/8" x 5/8" | 4-1/2" | MGMN300 | M5 x 12 | 0.637" | 0.512" | 0.118" | 0.512" | TiN Coated MGMN300, 2403-4026 |
| 2387-2006 | 3/4" | MGEHR12-3B | 3/4" x 3/4" | 4-1/2" | MGMN300 | M5 x 14 | 0.762" | 0.689" | 0.118" | 0.689" |
