MDJN R/L Toolholders with Extra DNMG Carbide Inserts
- 3° side cutting edge angle
- For turning, facing and copying
- Accept negative 55° diamond DNMG DNMA inserts
- With 10 pcs of DNMG Carbide Inserts
| Item | Right/Left Hand |
Tool holder | Shank Square (A & B) |
F | OAL | Inserts | Shim | Lock Pin | Clamp | Clamp Screw |
Inserts | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU# | (SKU#) | (C) | I.C. | T | (SKU#) | |||||||
| 2302-5016INS | Right | MDJN R-12-3B | 3/4" | 1" | 4-1/2" | 3/8" | 3/16" | D11B | ZX513 | YB1814 | SD6 X 25 | With 10 DNMG CVD Coated |
| (2302-5016) | (6206-1026) | |||||||||||
| 2302-6016INS | Left | MDJN L-12-3B | 3/4" | 1" | 4-1/2" | 3/8" | 3/16" | D11B | ZX513 | YB1814 | SD6 X 25 | With 10 DNMG CVD Coated |
| (2302-6016) | (6206-1026) | |||||||||||

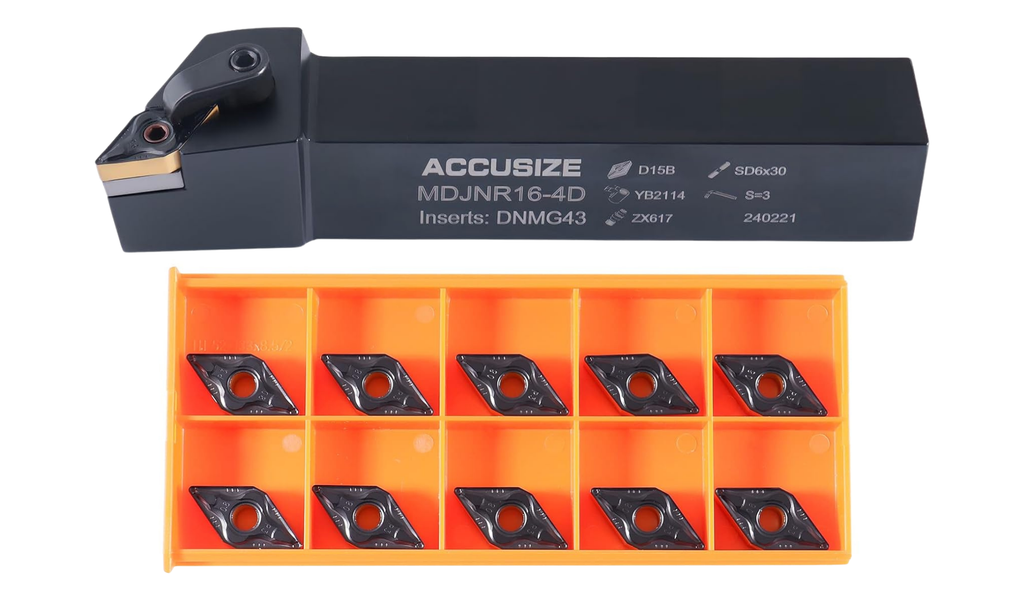

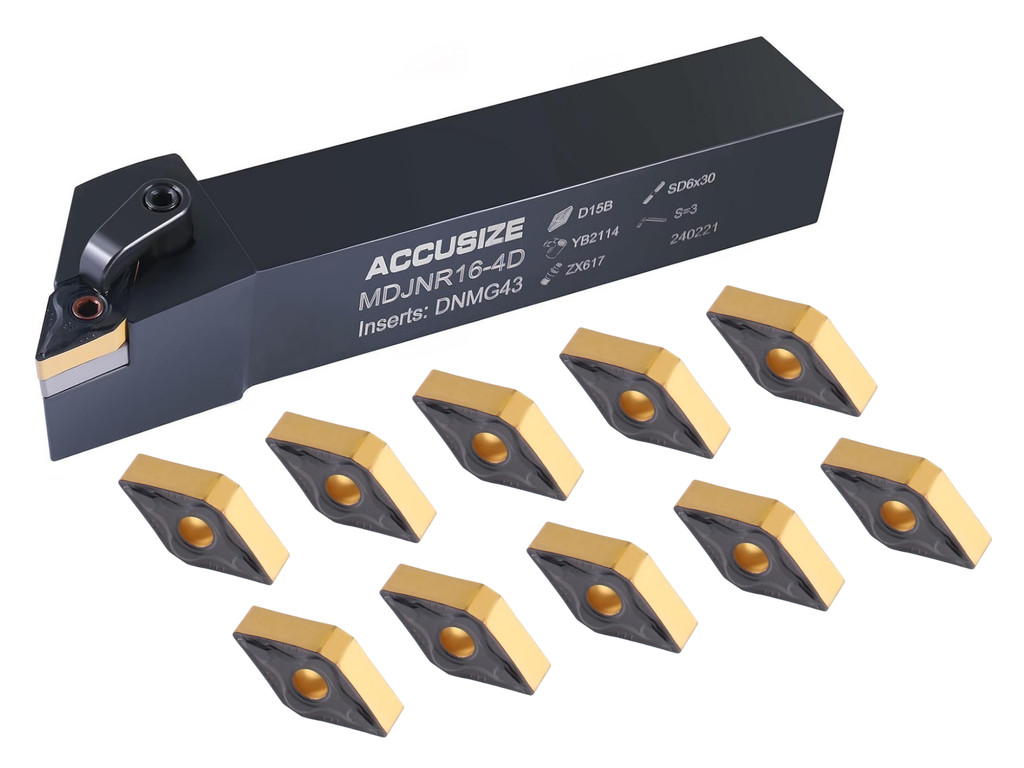

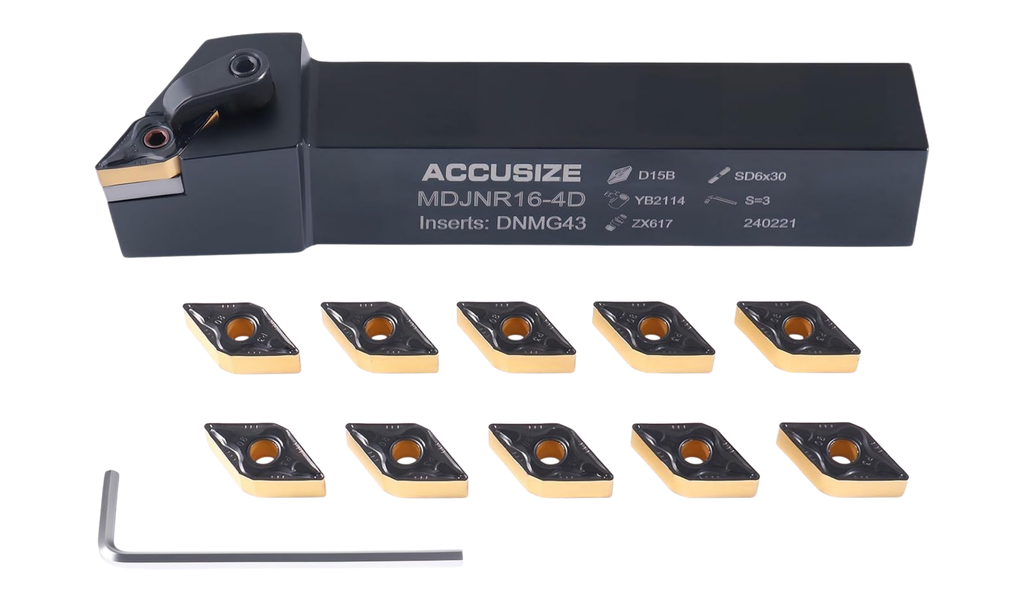

| 2302-5020INS | Right | MDJN R-16-4D | 1" | 1.25" | 6" | 1/2" | 3/16" | D15B | ZX619 | YB2114 | SD6 X 30 | With 10 DNMG CVD Coated |
| (2302-5020) | (2206-1028) | |||||||||||

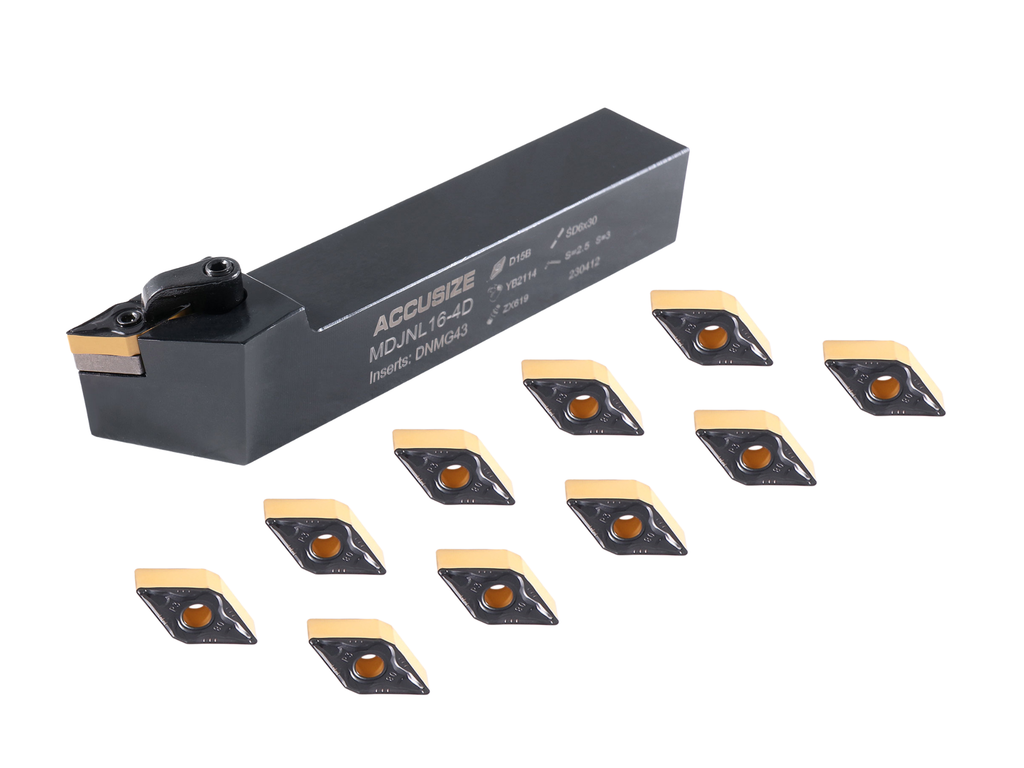

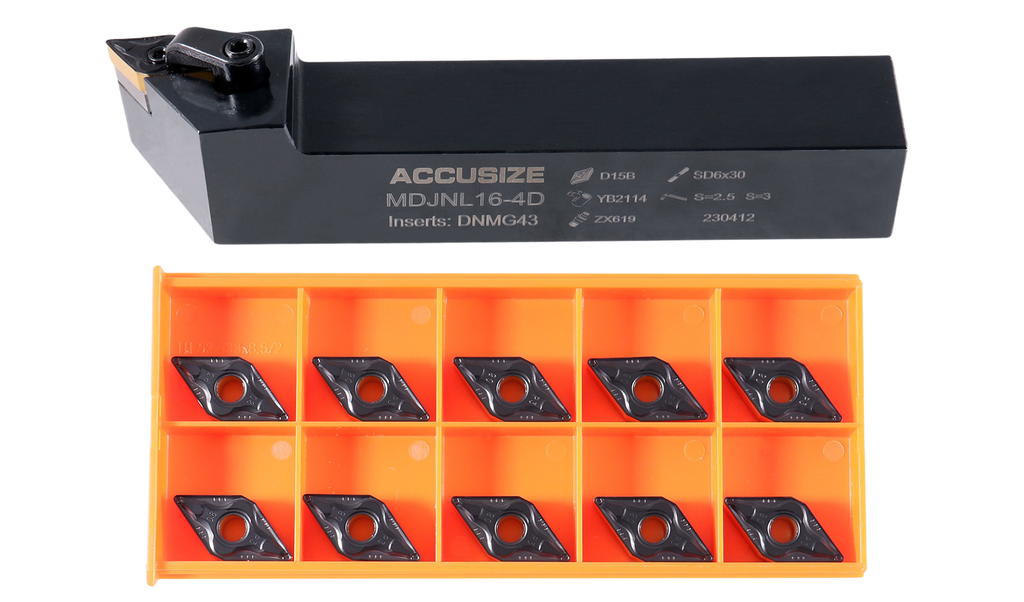

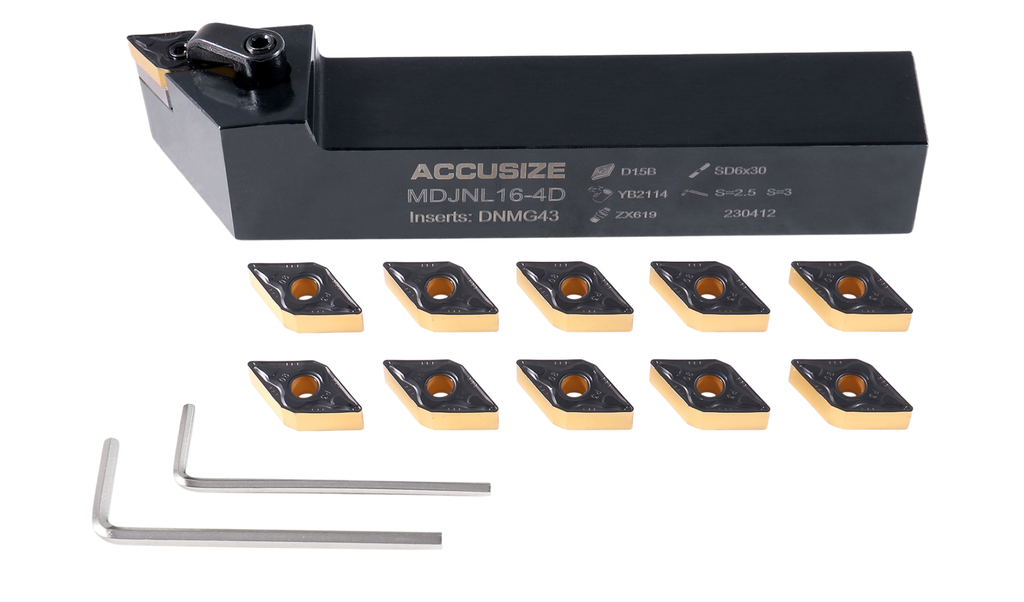

| 2302-6020INS | Left | MDJN L-16-4D | 1" | 1.25" | 6" | 1/2" | 3/16" | D15B | ZX619 | YB2114 | SD6 X 30 | With 10 DNMG CVD Coated |
| (2302-6020) | (2206-1028) | |||||||||||
Carbide Inserts
| Item # | Product # | ANSI # | I.S.O. # | I.C | Thickness | Hole | Radius |
| 6206-1026 | 2206-1026 | DNMG332-P3 | DNMG110408-P3 | 3/8" | 3/16" | 0.150" | 1/32'' |

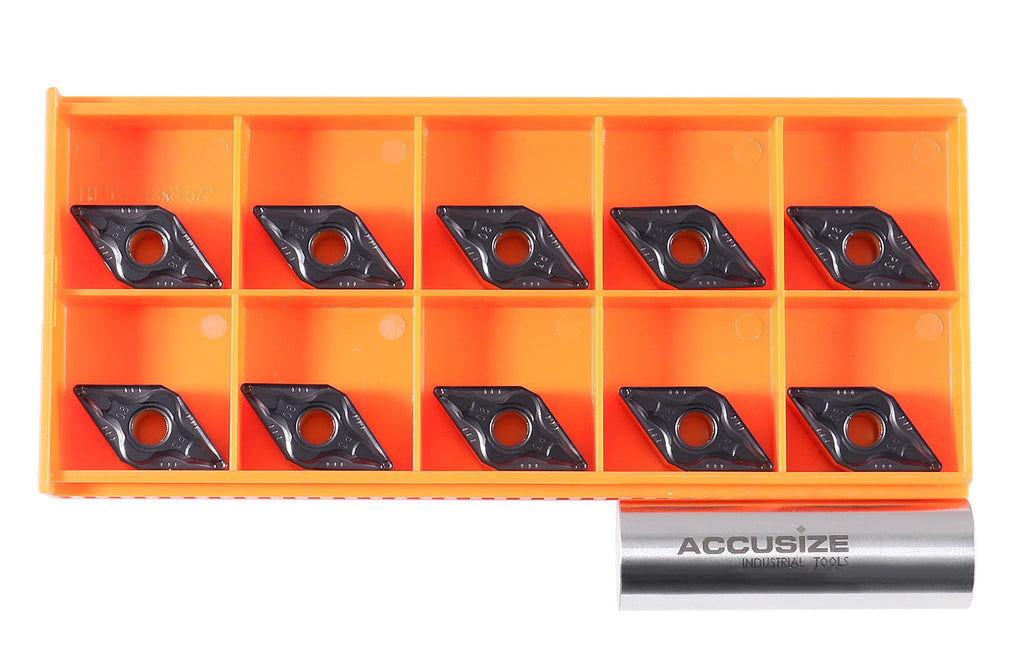

| 6206-1028 | 2206-1028 | DNMG432-P3 | DNMG150408-P3 | 1/2'' | 3/16'' | 0.203'' | 1/32'' |
- CVD Coated
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- DNMG
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: finish
Product features
- BPS101 Black/Yellow
- Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness.
- Can bear high temperatures.
- For steel and steel castings finishing to roughing processing.
- Continue cutting to light-interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed.
- For hard materials, continuous cutting and light-interrupted cutting from finishing to roughing.
- Wet and dry processing.
- The combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping.
- Preferred choice chip breaker on General Purpose Finishing
Features of chip breaker
- For medium-duty turning
- With the broad capability for steel, stainless steel, gray and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
