2301-1007, MY-30A Meuleuse de coupe universelle avec accessoires standard, 110v, 60hz


Prix:
$1,678.00

Frais delivraison calculés à la caisse

Stock:
En stock

California Proposition 65 Warning

Paiement & Sécurité

Modes de paiement

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Vos informations de paiement sont gérées de manière sécurisée. Nous ne stockons ni ne pouvons récupérer votre numéro de carte bancaire.


Sécurité

Estimer l'expédition

Description

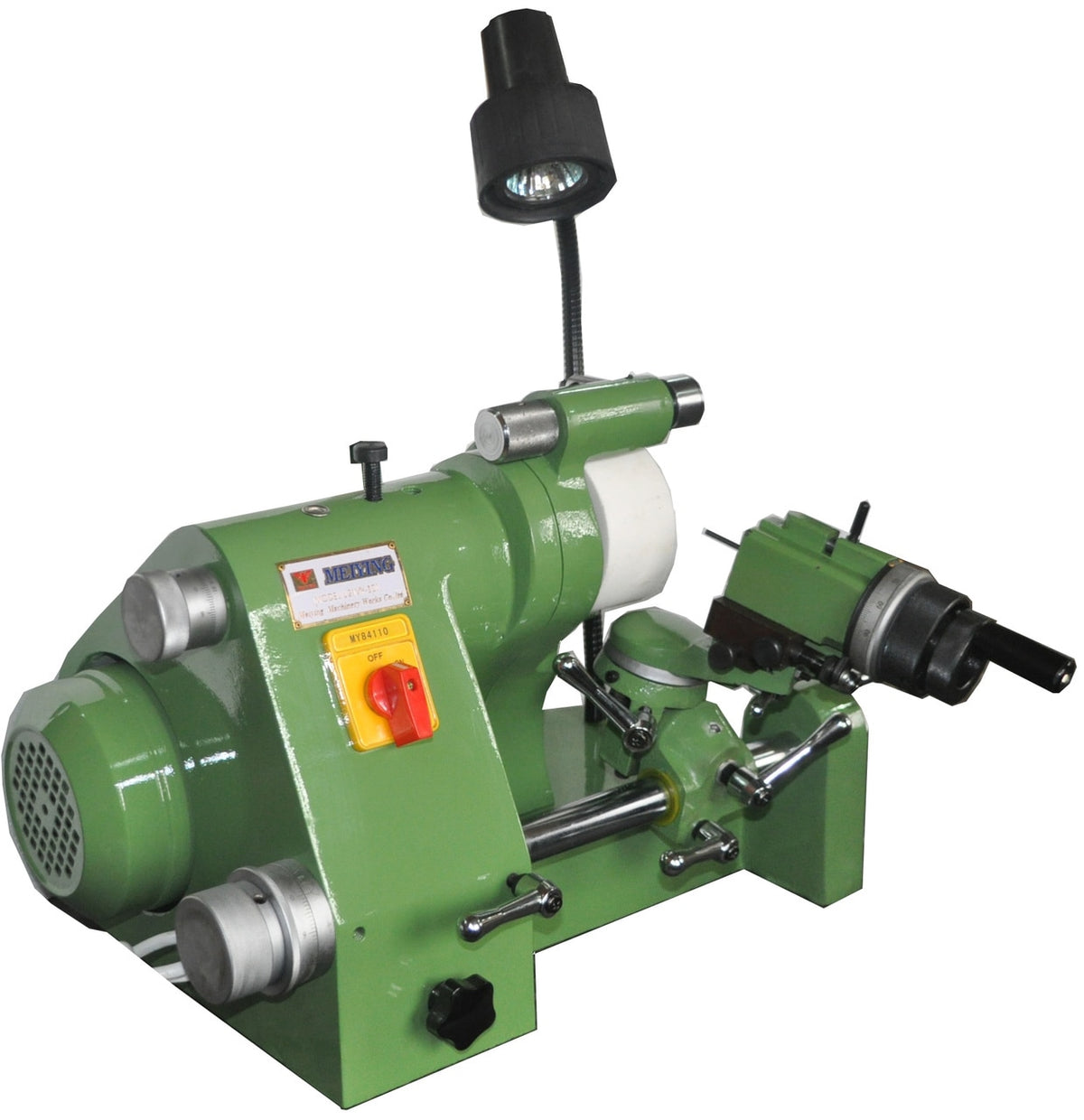

MY-30A Universal Cutter Grinder with Standard Accessories, 110v, 60hz

  • It is the finest, top-of-the-line, and the most complete sharpener available at a surprisingly low cost!
  • For grinding HSS and solid carbide end mills, drills, tool bits as well as engraving cutters of various shapes, angles and diameters.
  • There is a fine feed adjustable on the grinding spindle.
  • Available for 1/16"-1" R8 collet.
    • This universal cutter grinder can grind the size of the drill from 3mm-18mm ( 1/8" - 11/16").
    • can grinding end mills size from 2-25mm
    • can grind the lathe turning tools size from 20X20 mm
Technical Data
Max. Collet Capacity
?1"
Max. Grinding Dia.
?4"
Taper Angle
0°≤180°
Relief Angle
0°-45°
Negative Angle
0°-26°
Grinding Spindle
5200r.p.m.
Cup Grinding Wheel
4"x2"x3/4"
Motor Volt
110V/60Hz
Net Weight
45kgs



Standard Accessories(1)
Wheel dresser with diamond 1pc
R8 collet 1/2", 1/4", 1/8", 3/8", 5/16" 5pcs
Drive belt 1pc
Lamp 1pc
Tools 1pc
Magnifier(5x) 1pc
Operating information 1pc



Standard Accessories(2)

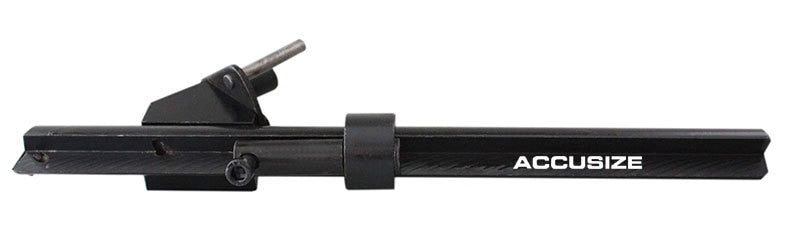

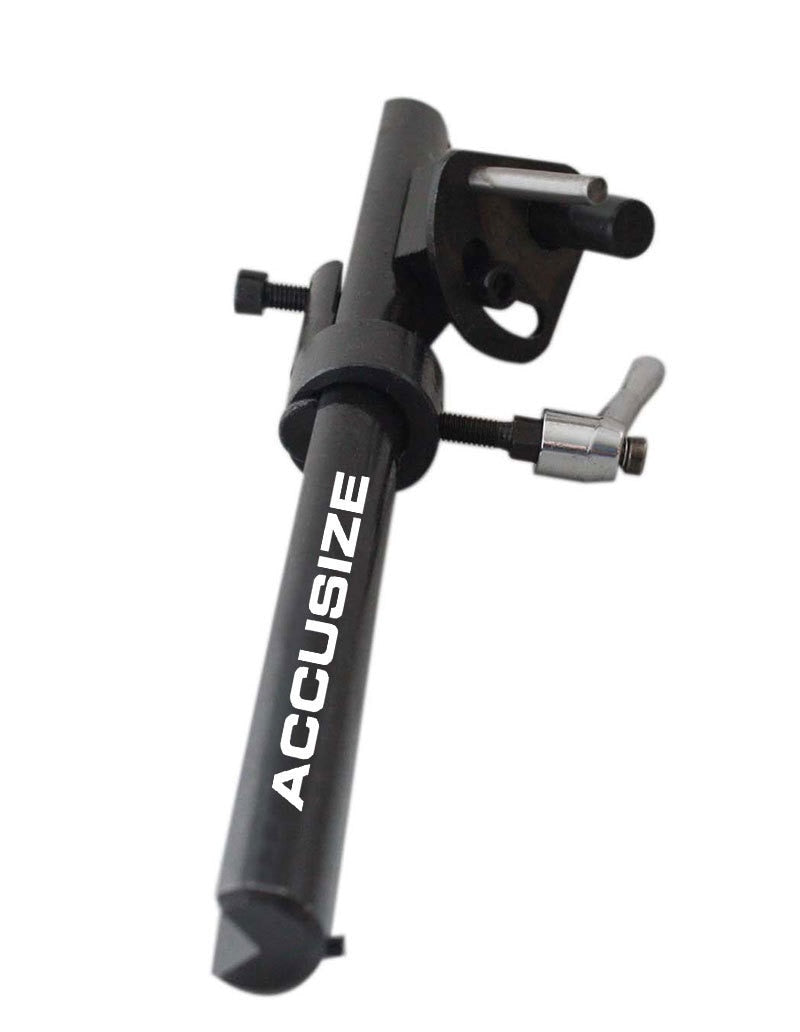

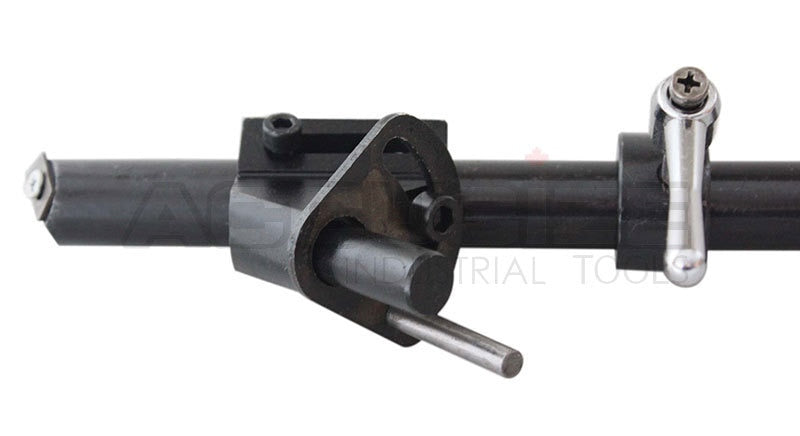

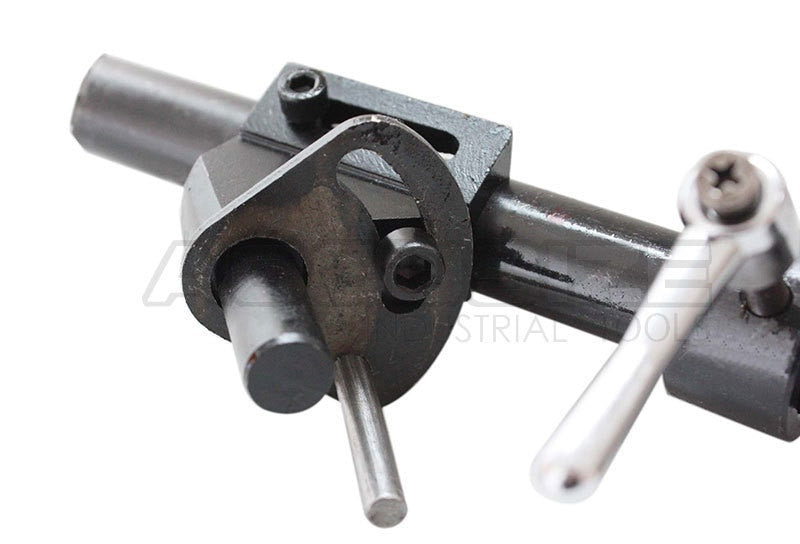

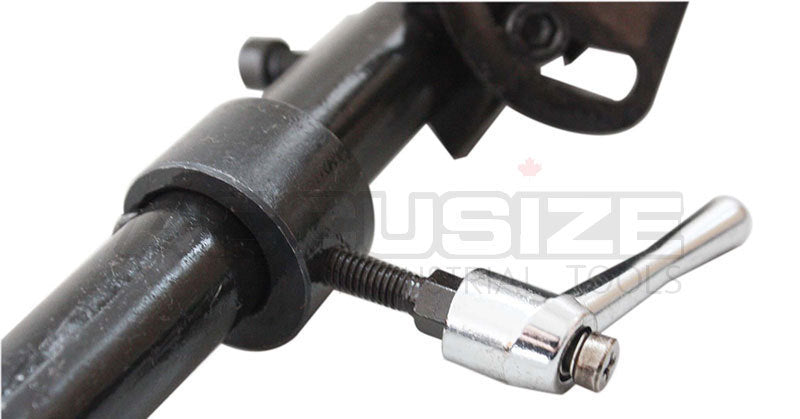

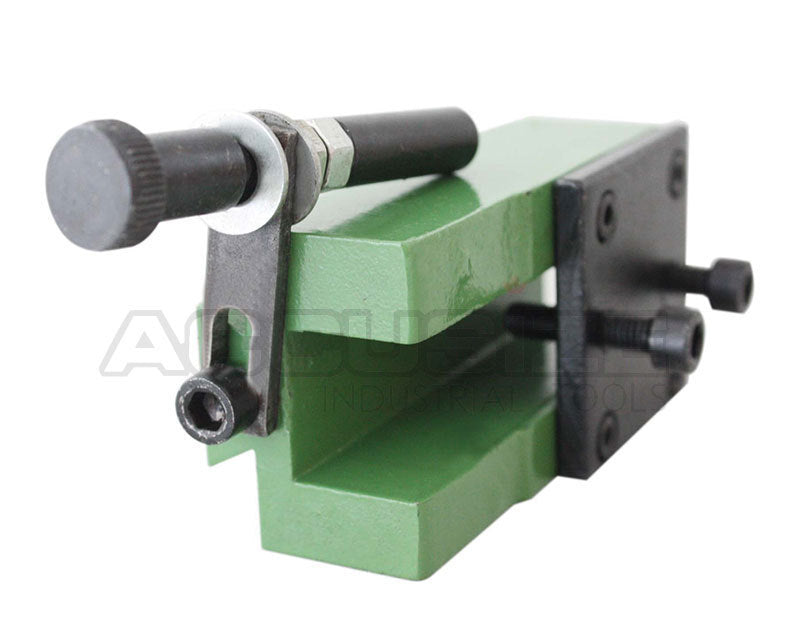

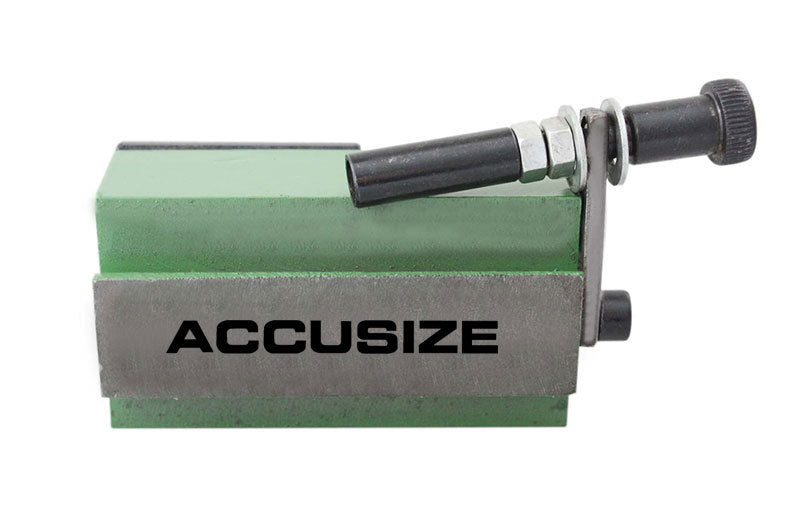

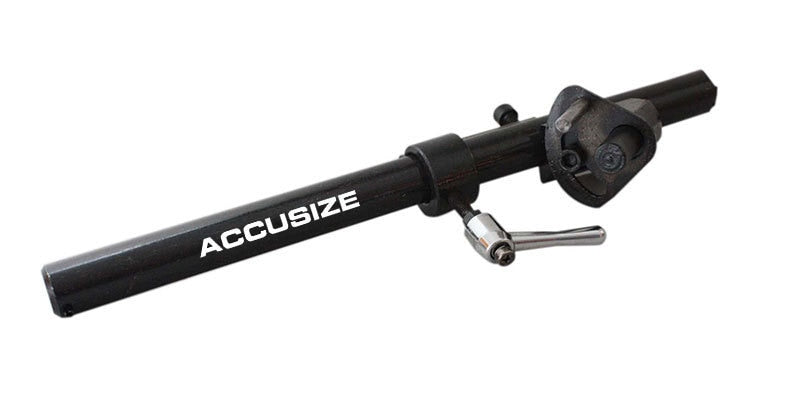

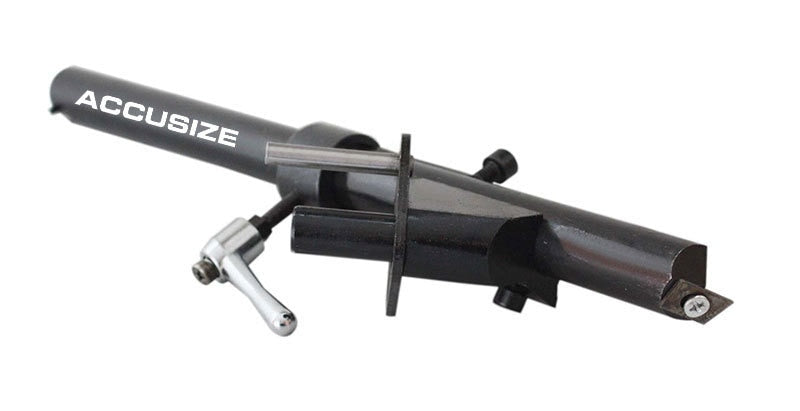

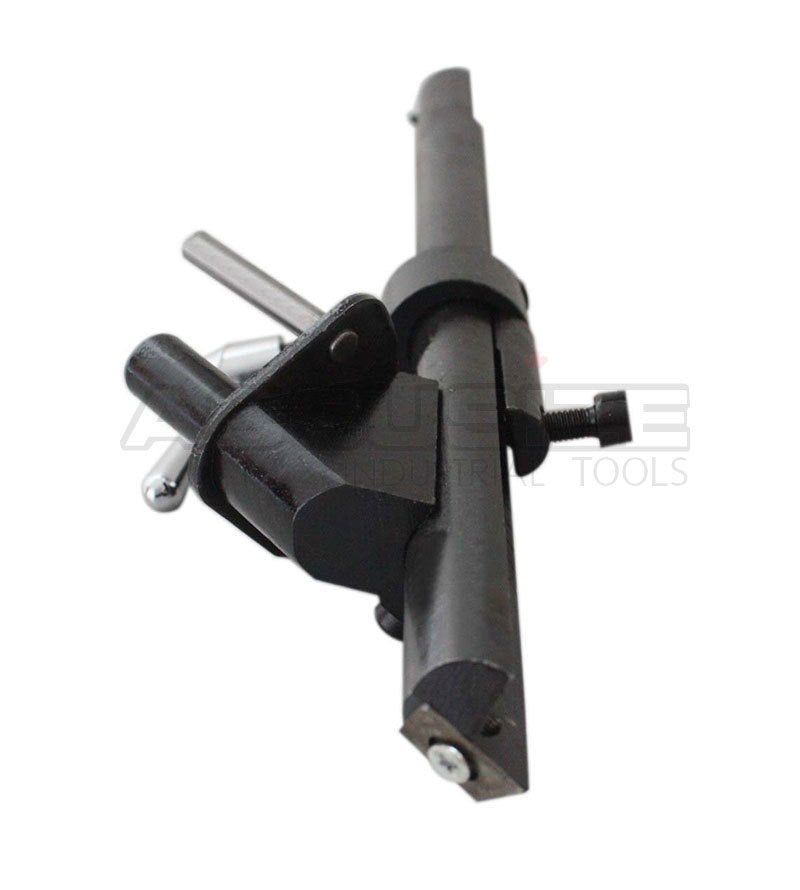

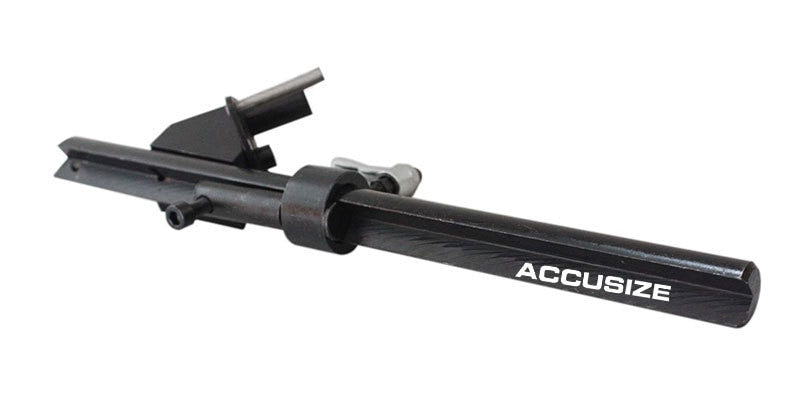

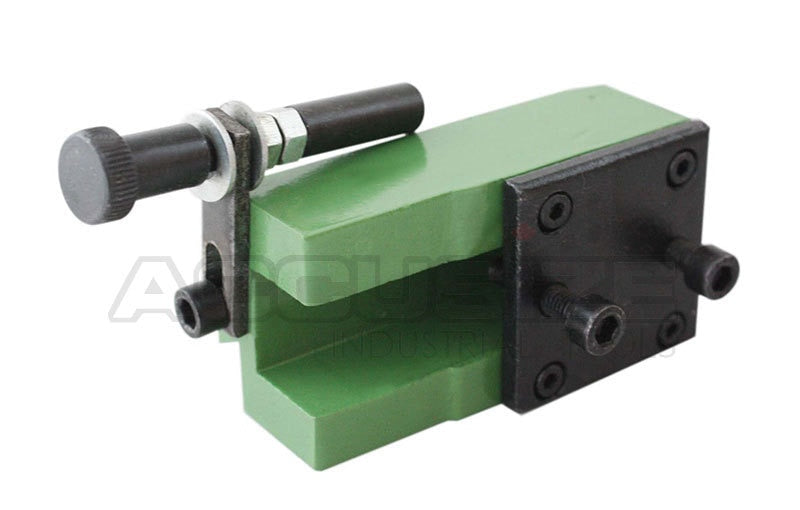

Twist Drill Grinding Attachment (1pc) End Mill Grinding Attachment (1pc) Lathe Tool GrindingAttachment (1pc)
Twist Drill Grinding Attachment (1pc) End Mill Grinding Attachment (1pc) Lathe Tool GrindingAttachment (1pc)

Technical Note:

  • For grinding HSS and carbide engraving cutters as well as single-lip or multiple-lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.

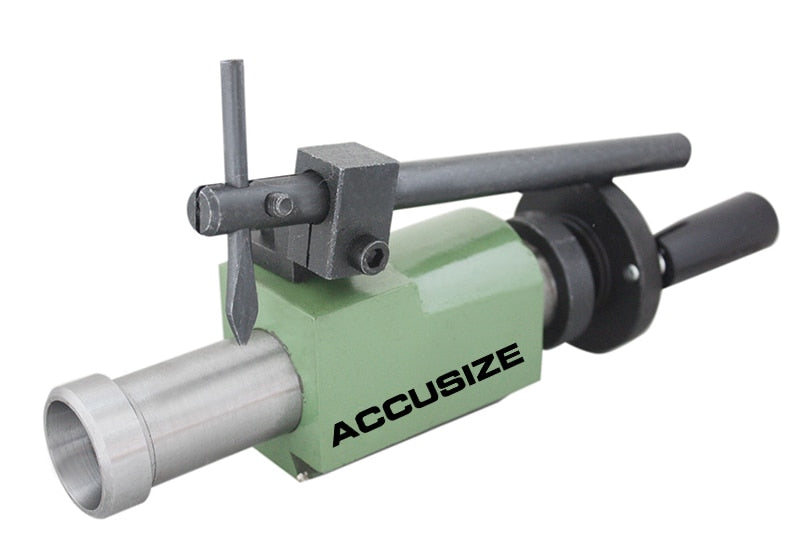

  • The universal index head is provided at 24 positions so that any particular angle of shape can be obtained. Free 3600 or 100 rotation is allowed for grinding end mills, twist drills, and lathe tools.

  • Only need to replace the attachments to the index head without any complex setup.

Extra Accessories
Item Description

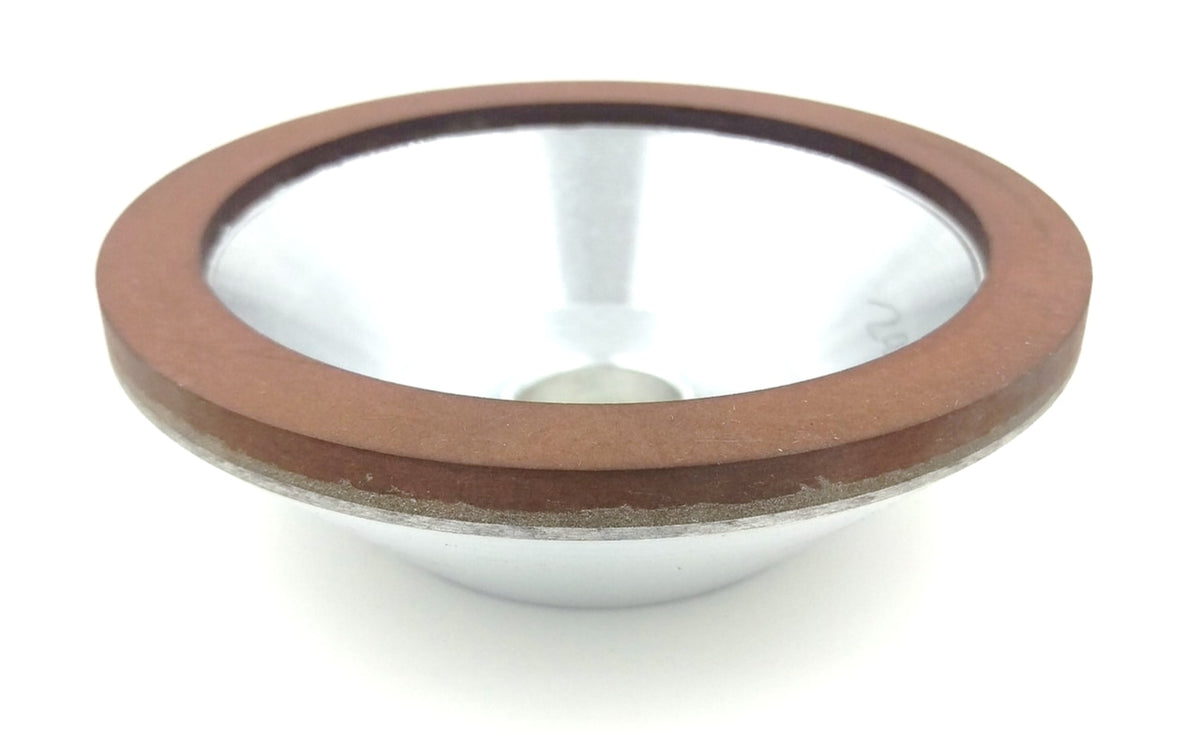

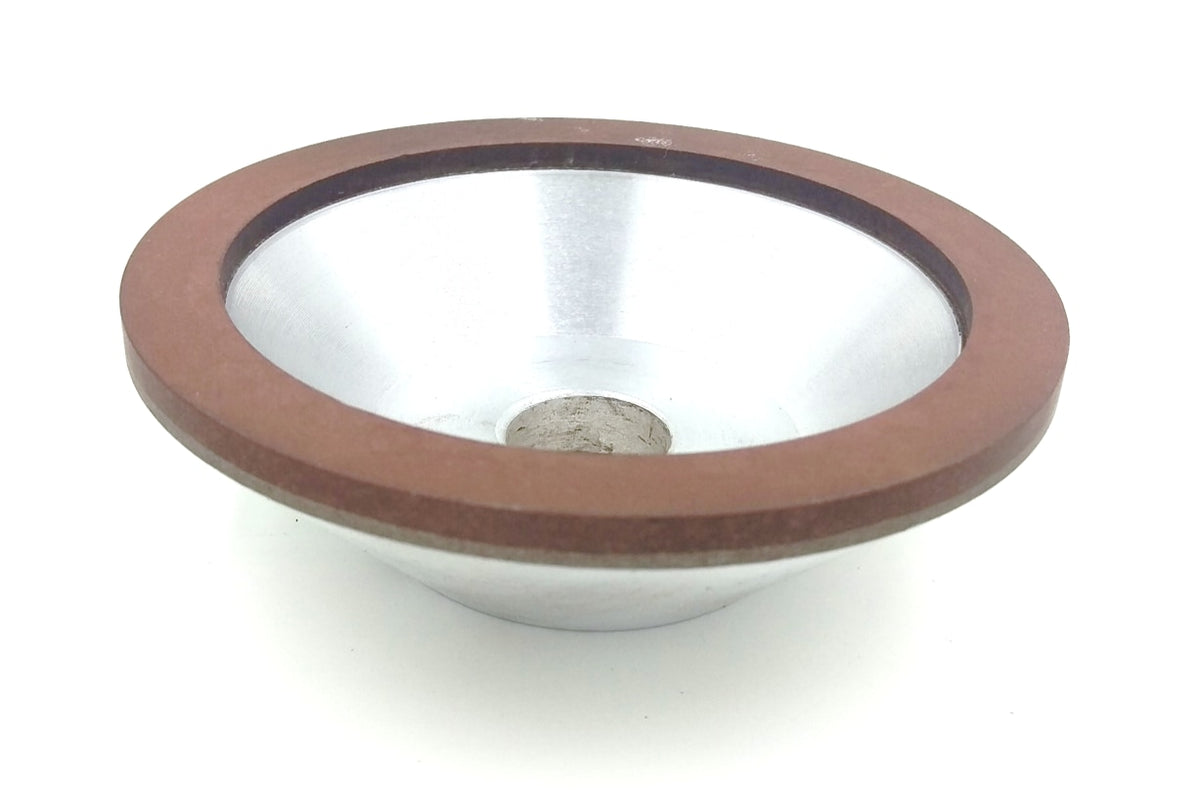

2301-1007-1 Diamond grinding wheel #320
2301-1007-2 Diamond grinding wheel #600

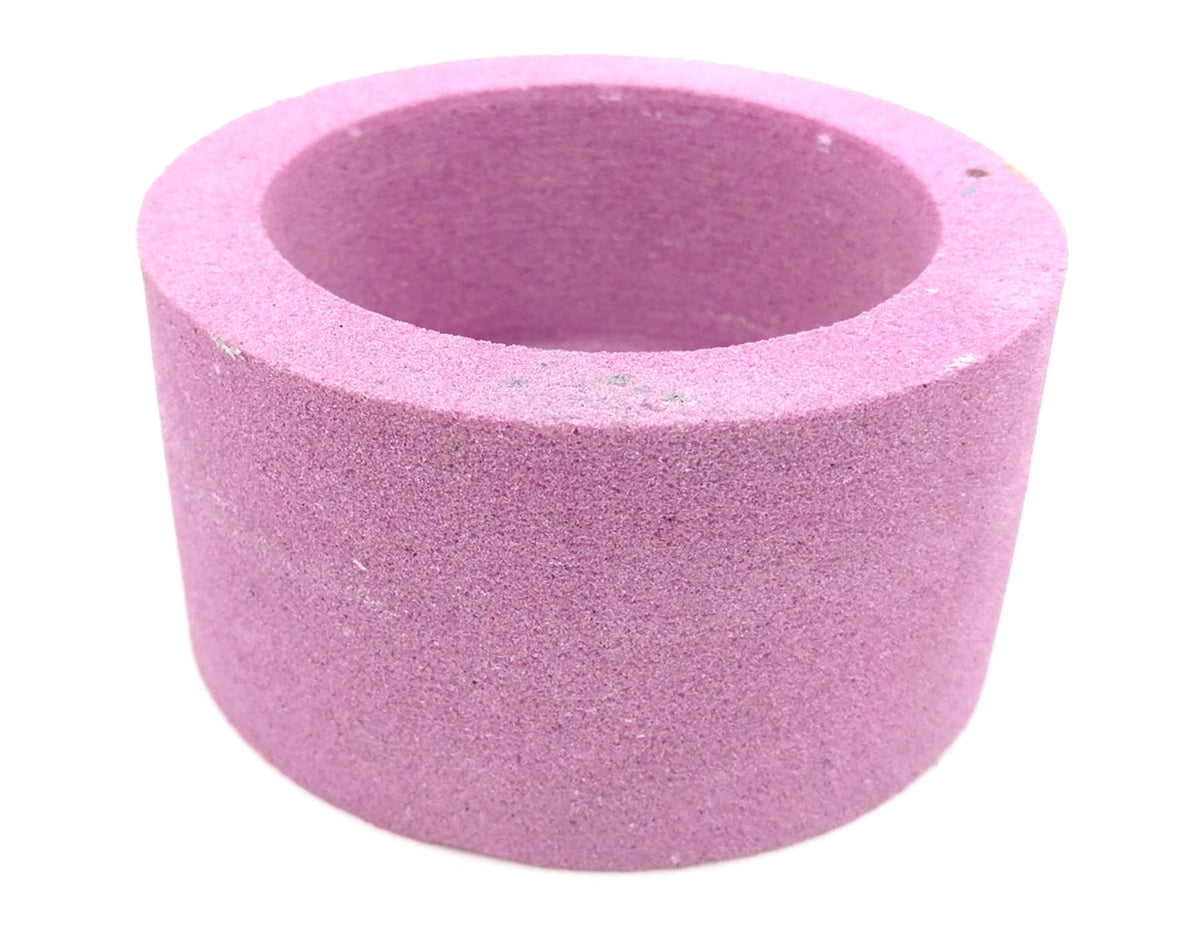

2301-1007-3 Regular grinding wheel PA80#

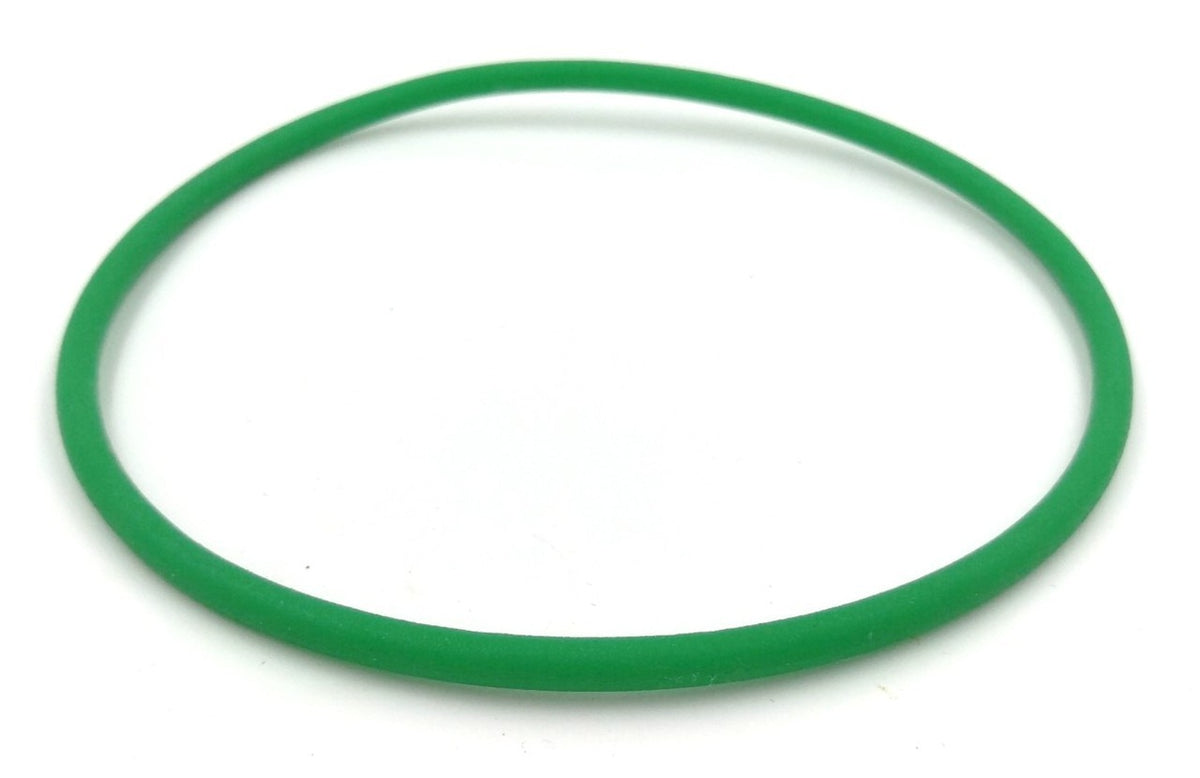

2301-1007-4 Belt
2301-1007-5 MY30A end mills grinding accessories

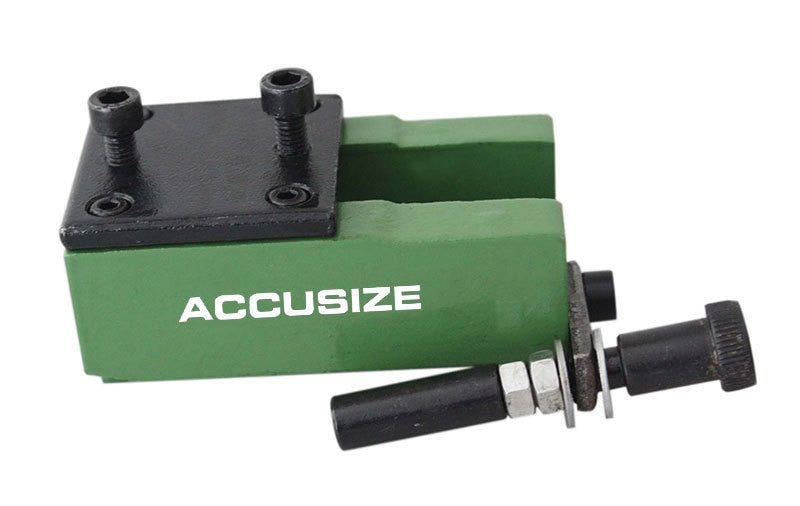

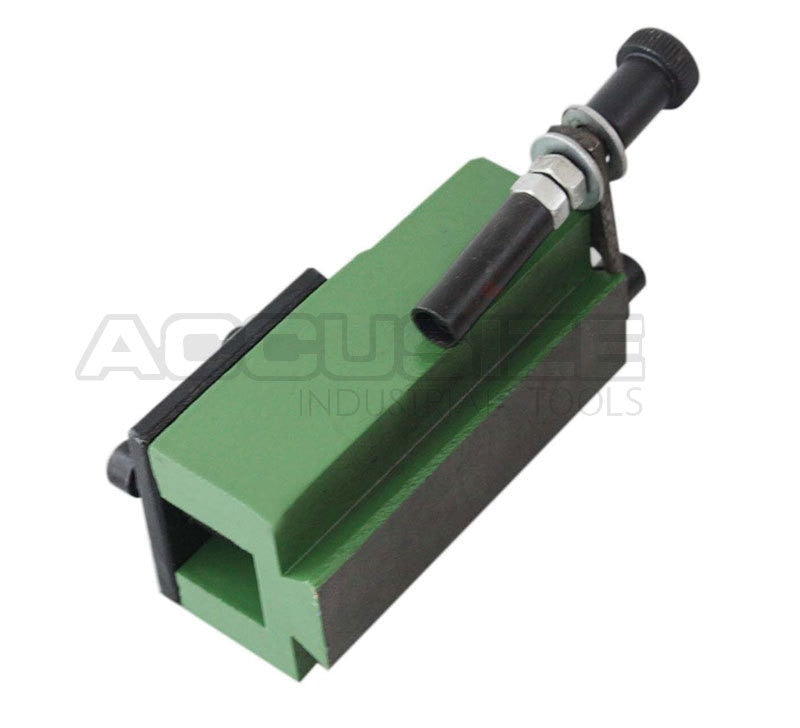

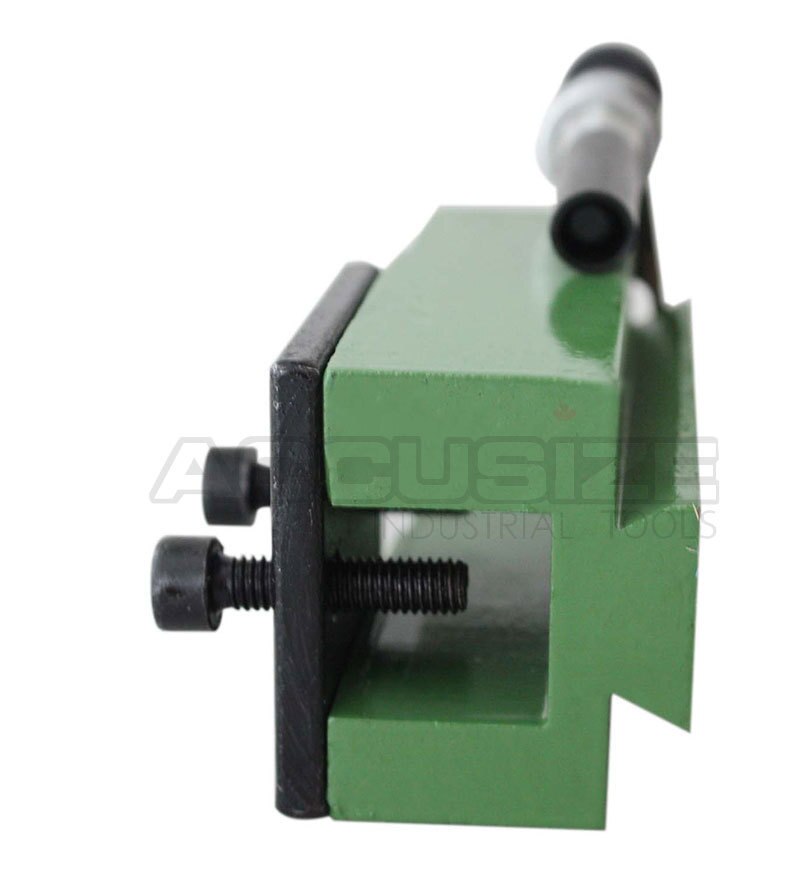

2301-1007-6 MY30A lathe tool grinding accessories

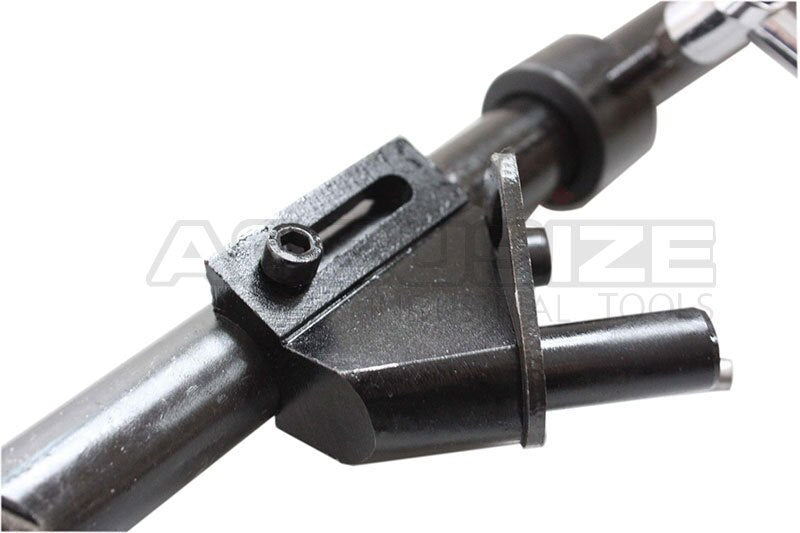

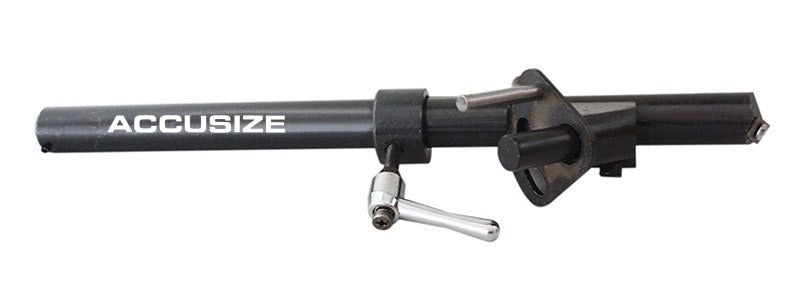

2301-1007-7 MY30A Drills grinding accessories
