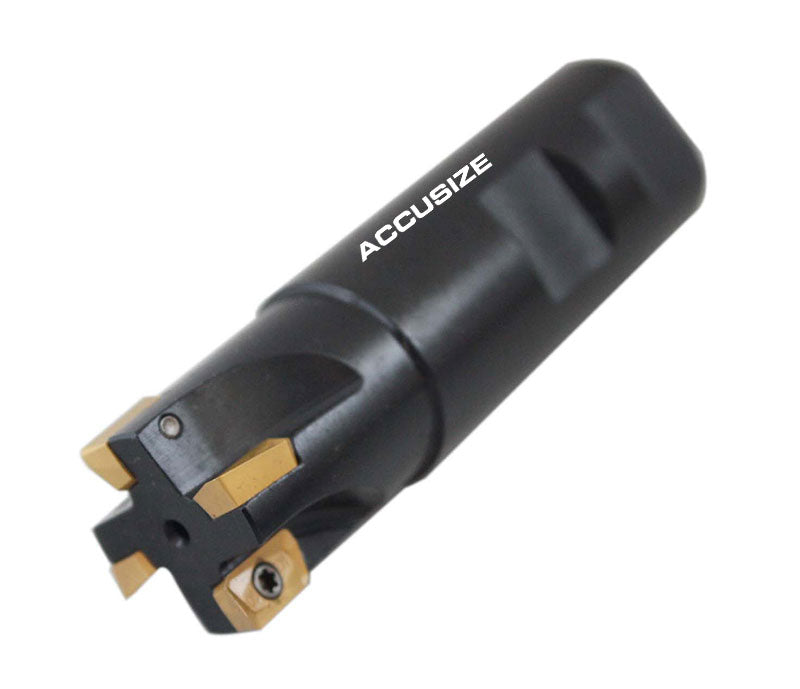

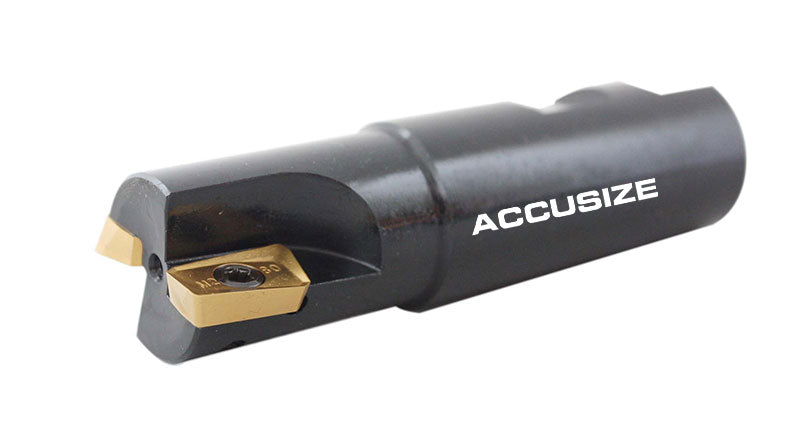

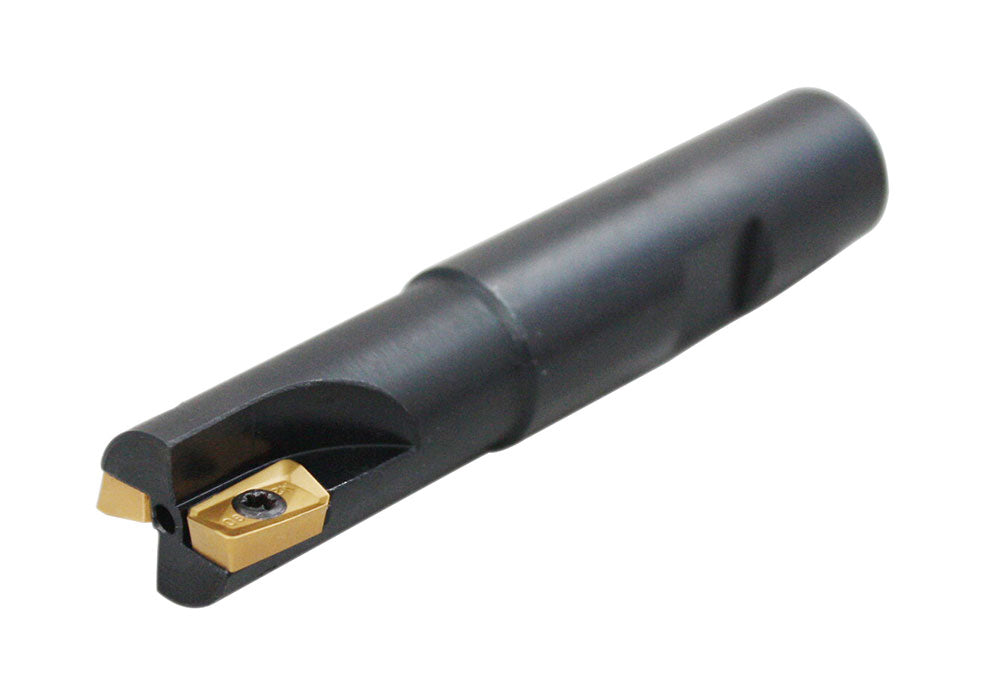

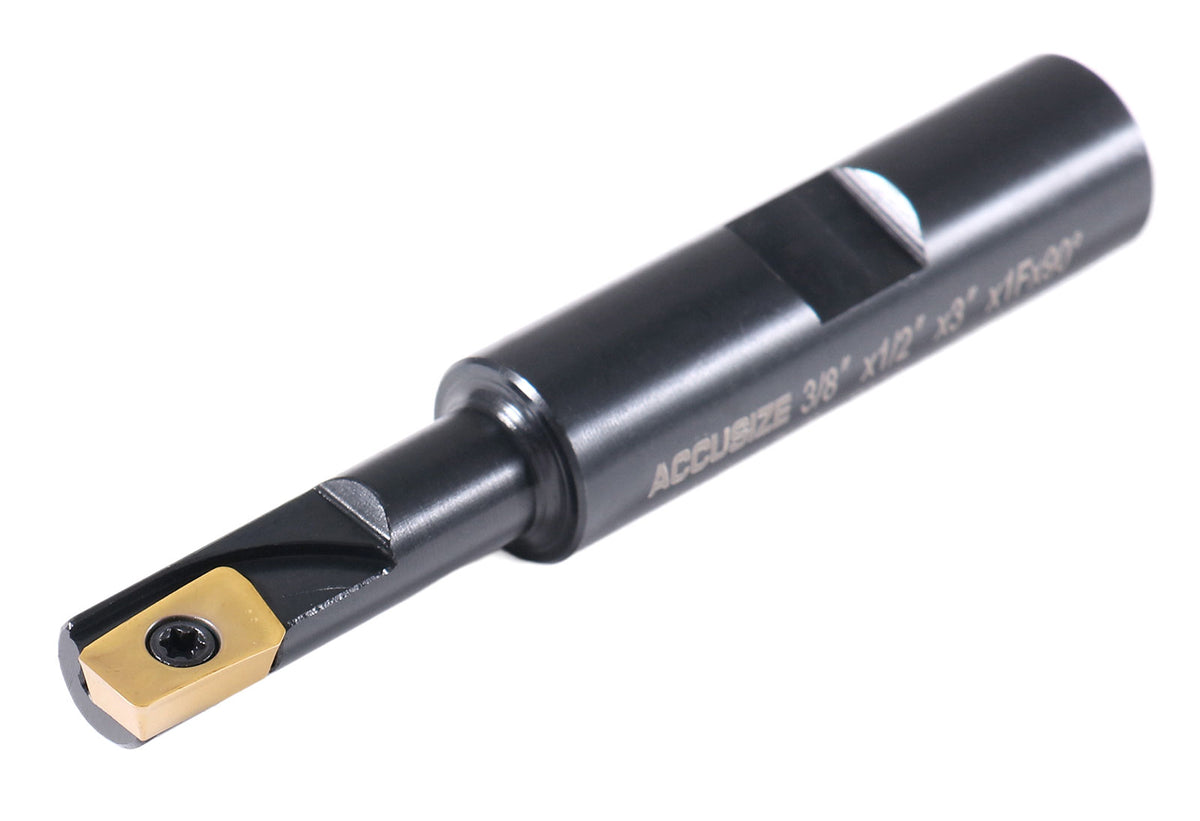

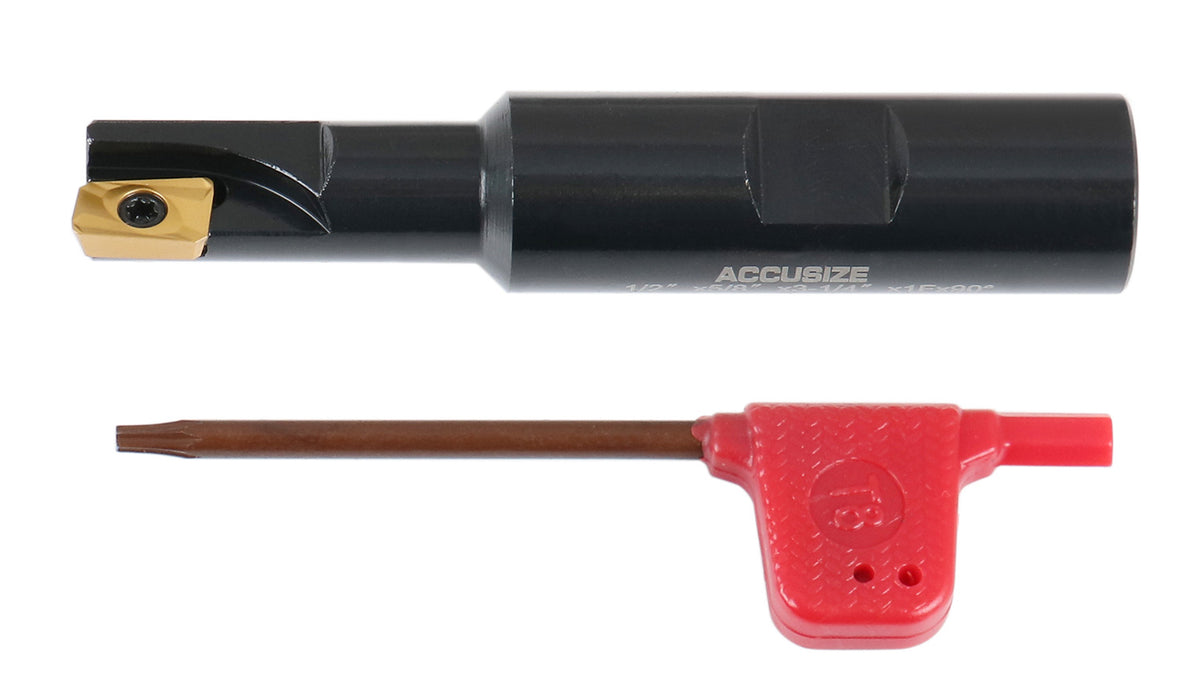

Fraise à extrémité indexable à épaulement carré 90 degrés avec inserts en carbure APKT


Cutting, Shank & Flute: Coupe 3/8", tige 1/2", 1 insert (0056-0912)
Prix:
$42.00

Frais delivraison calculés à la caisse

Stock:
En stock

Paiement & Sécurité

Modes de paiement

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Vos informations de paiement sont gérées de manière sécurisée. Nous ne stockons ni ne pouvons récupérer votre numéro de carte bancaire.


Sécurité

Estimer l'expédition

Description

90 Degree Square Shoulder Indexable End Mill w/ Carbide APKT Inserts

  • 90° Cutting angle
  • Screw down insert
  • Radial rake angle: -10°
  • Axial rake angle: +7°
  • All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys.
  • Fitted with 10° positive rectangular insert allow high depth of cut and feed per tooth
  • Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)




Item Cutting Diameter (D) Shank (d1) Oal(L) ap No of Inserts Screw Inserts

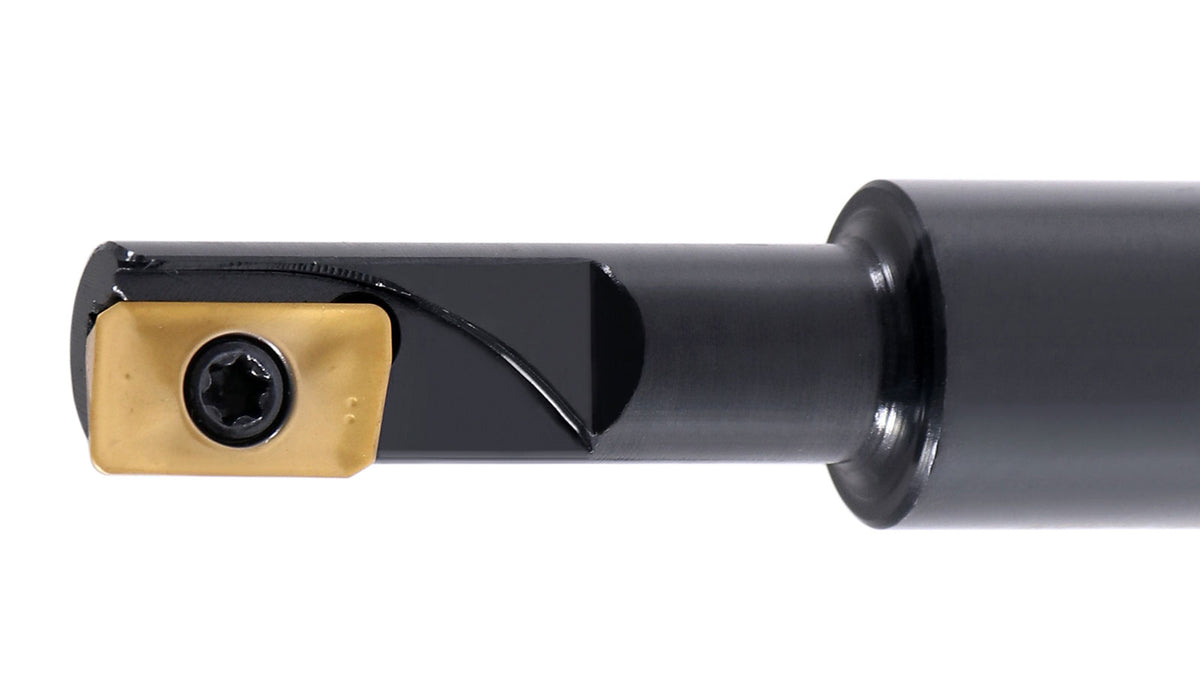

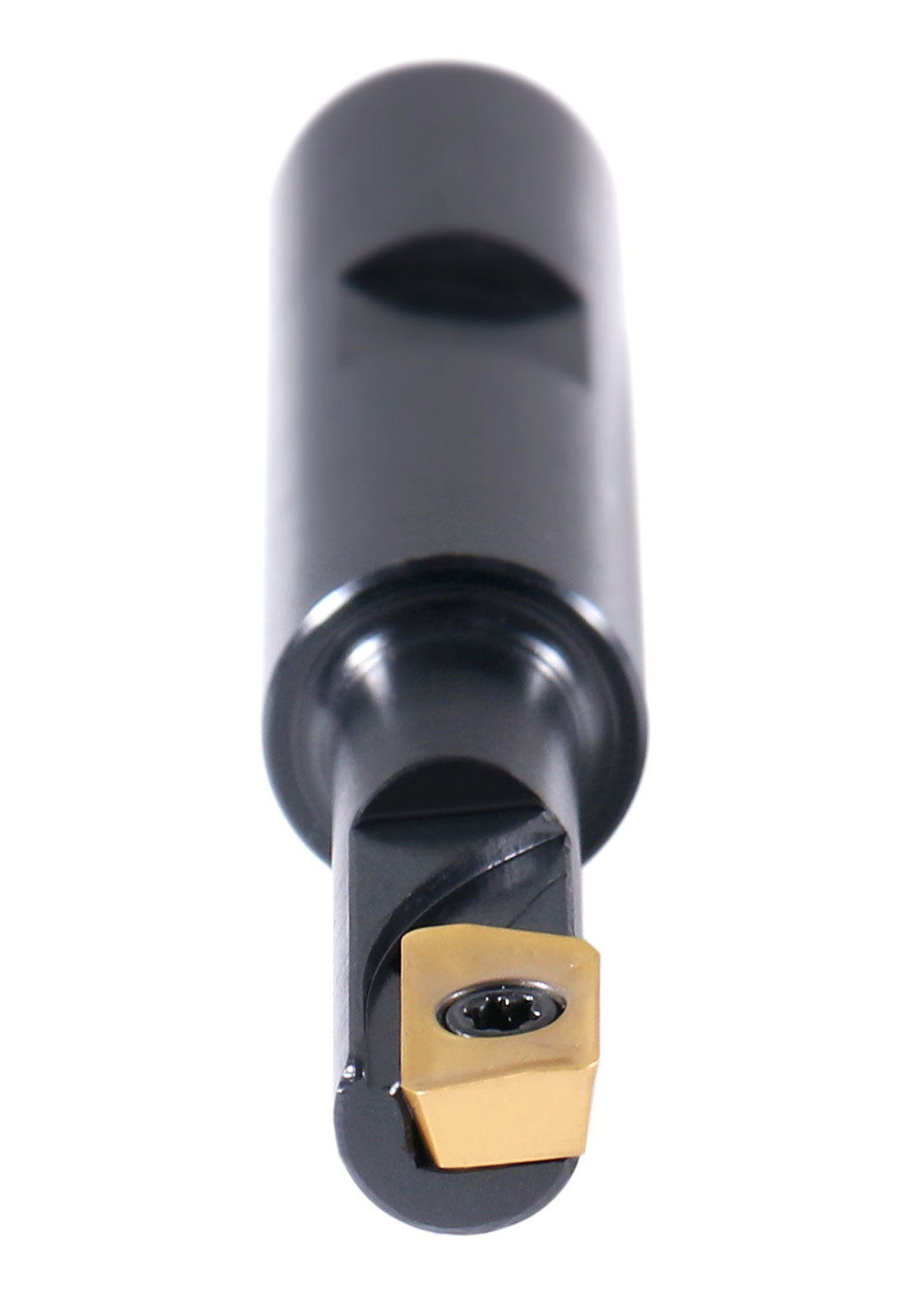

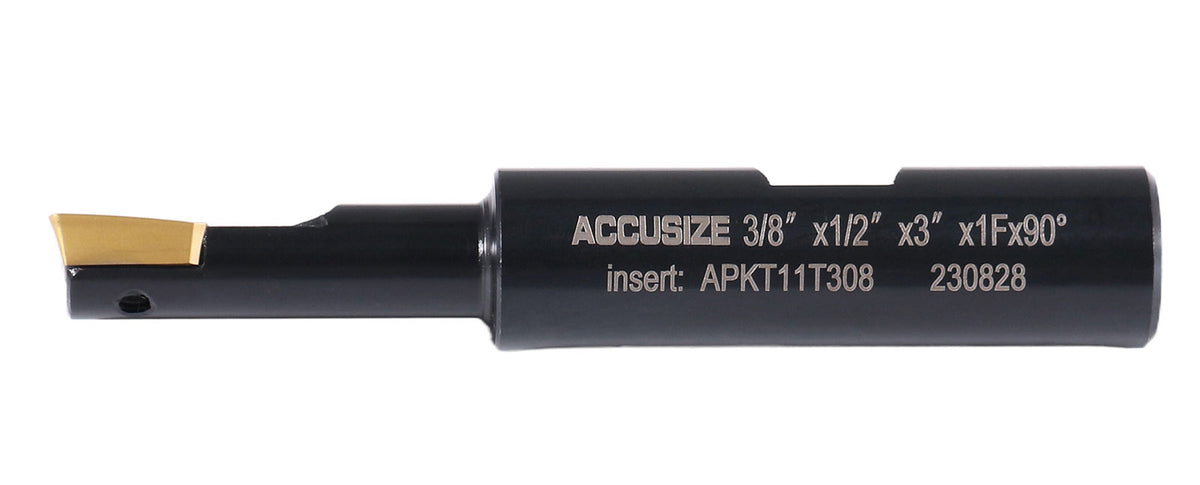

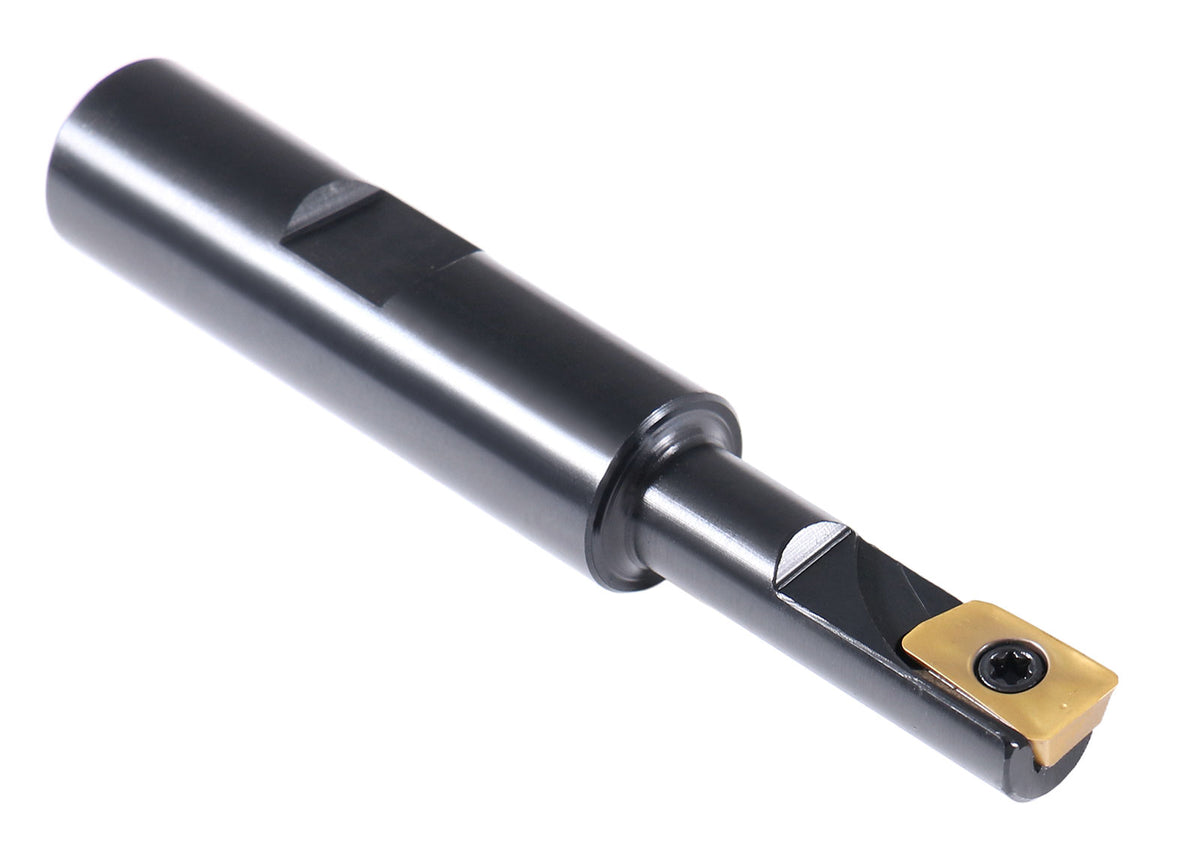

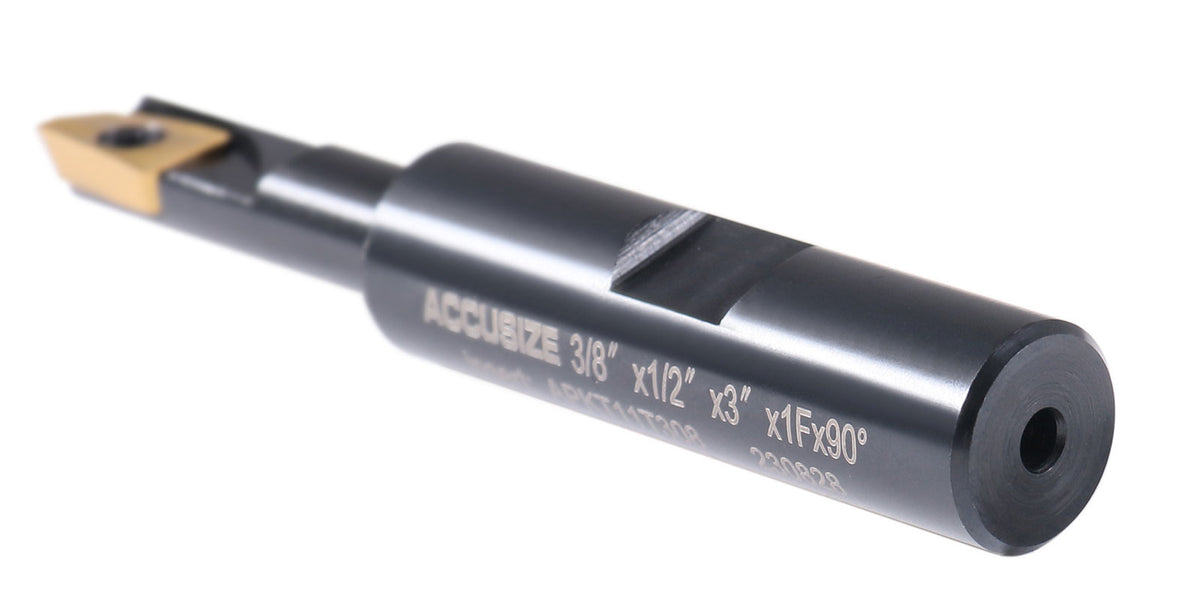

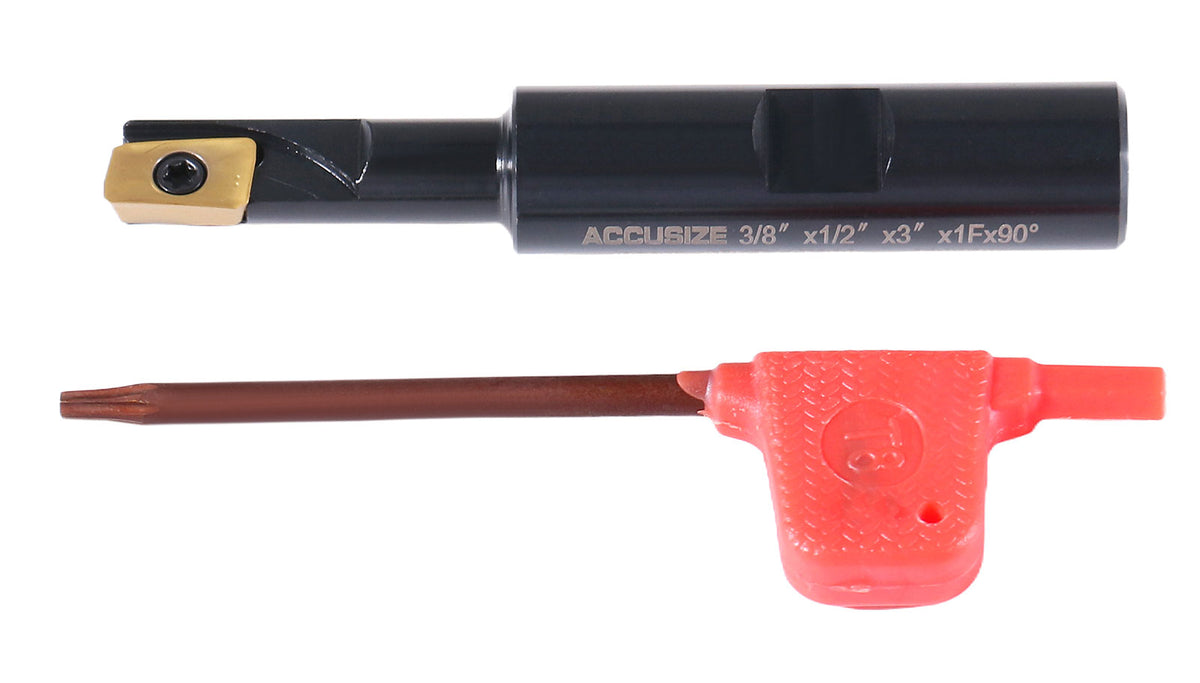

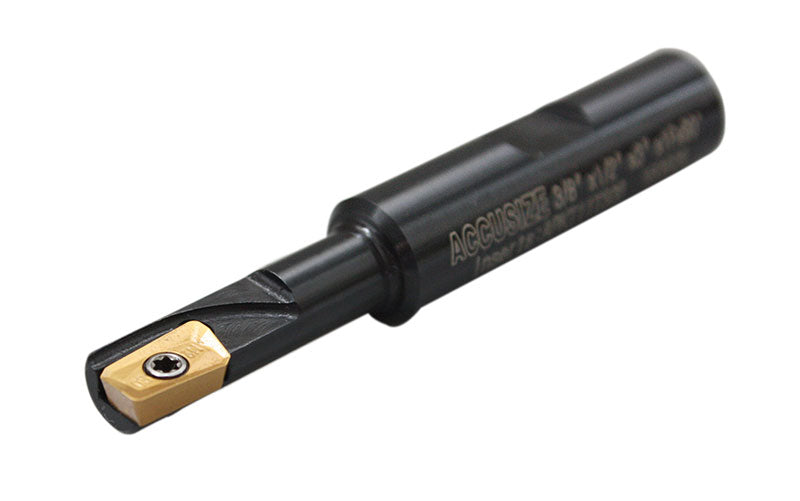

0056-0912 3/8" 1/2" 3" 0.433" 1 M2.5 x 6 APKT11T3

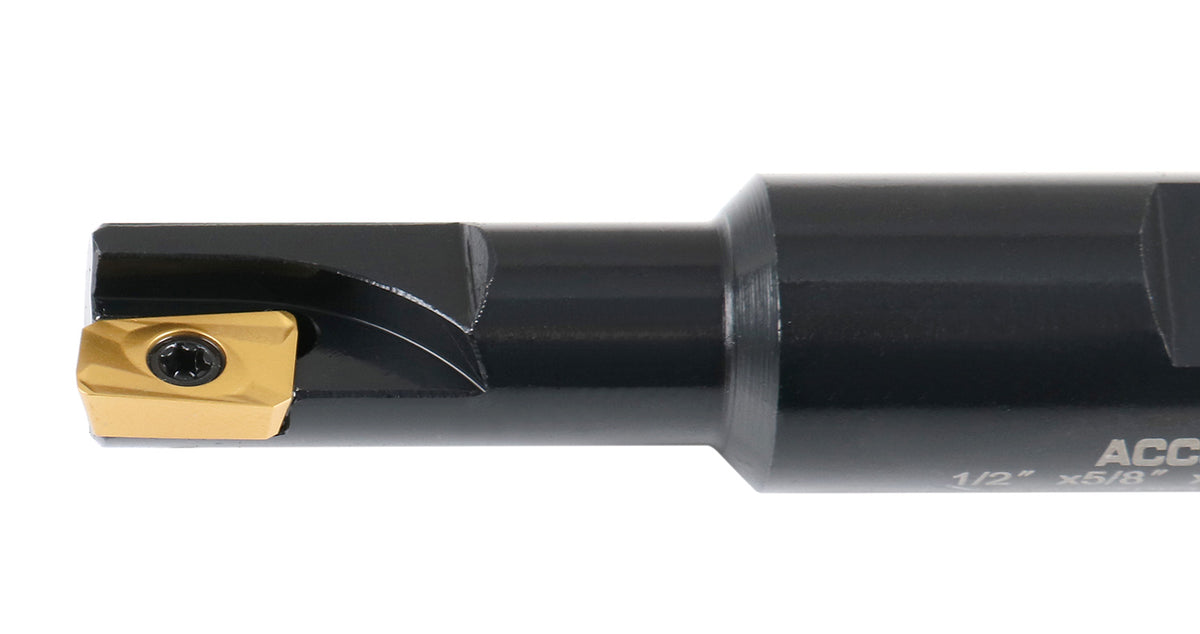

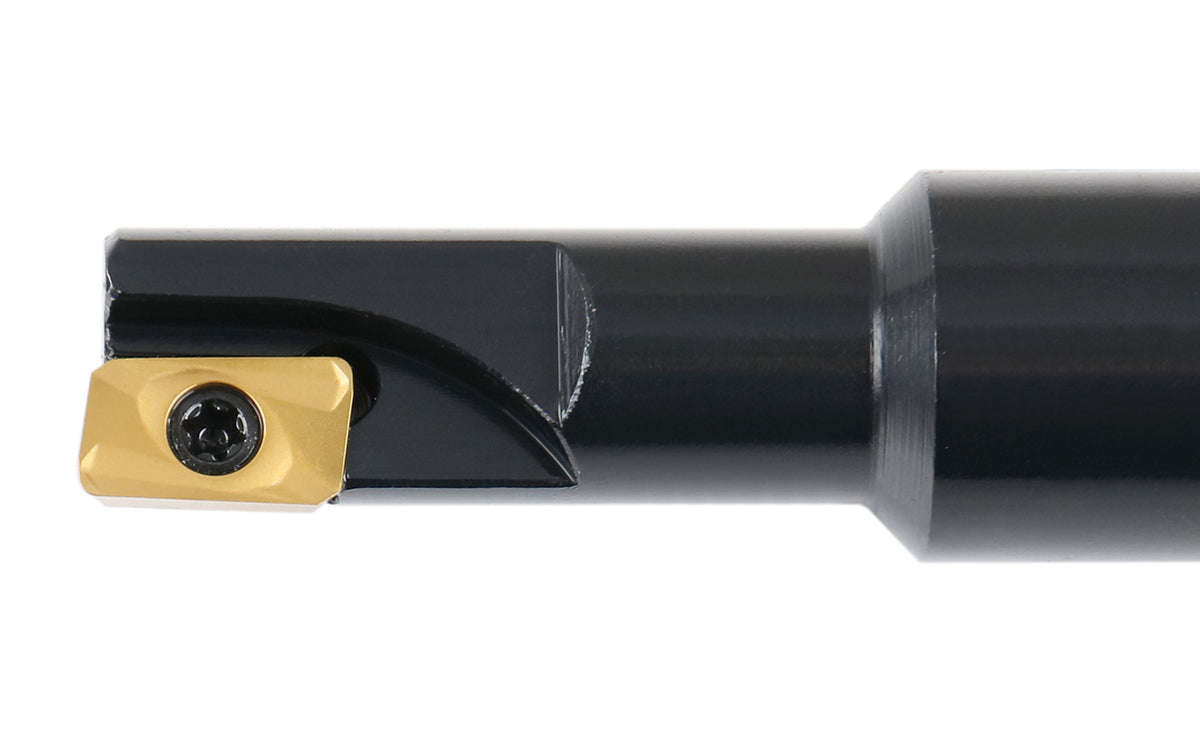

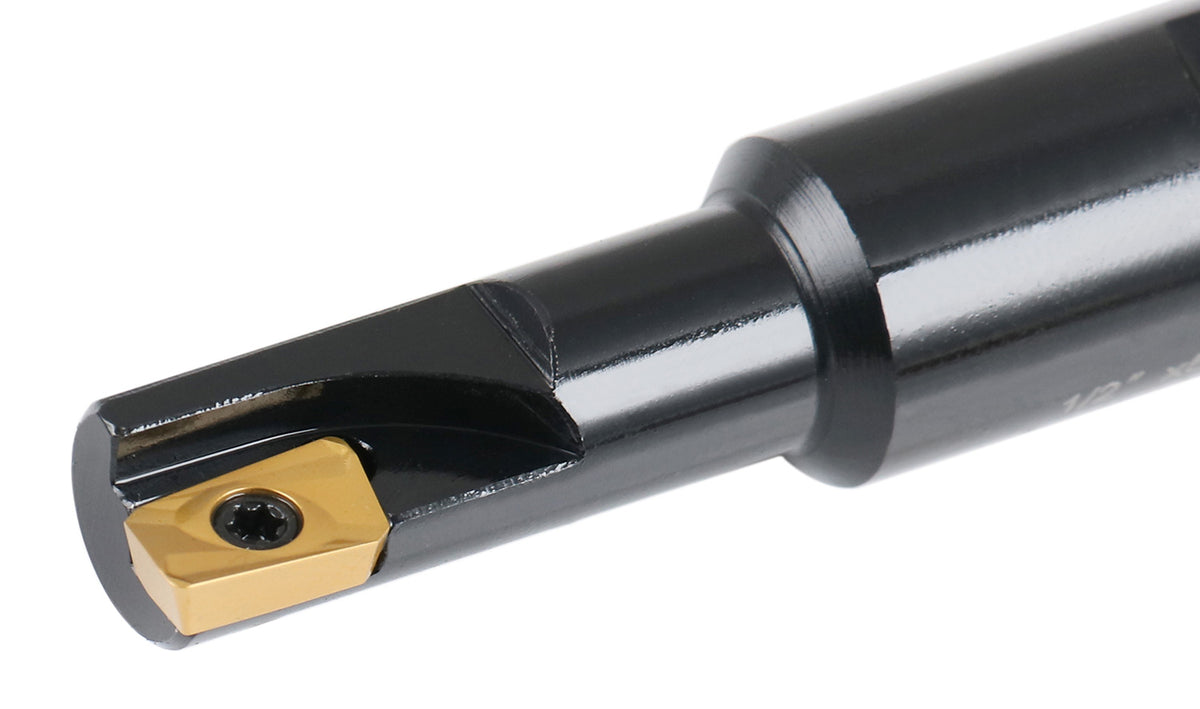

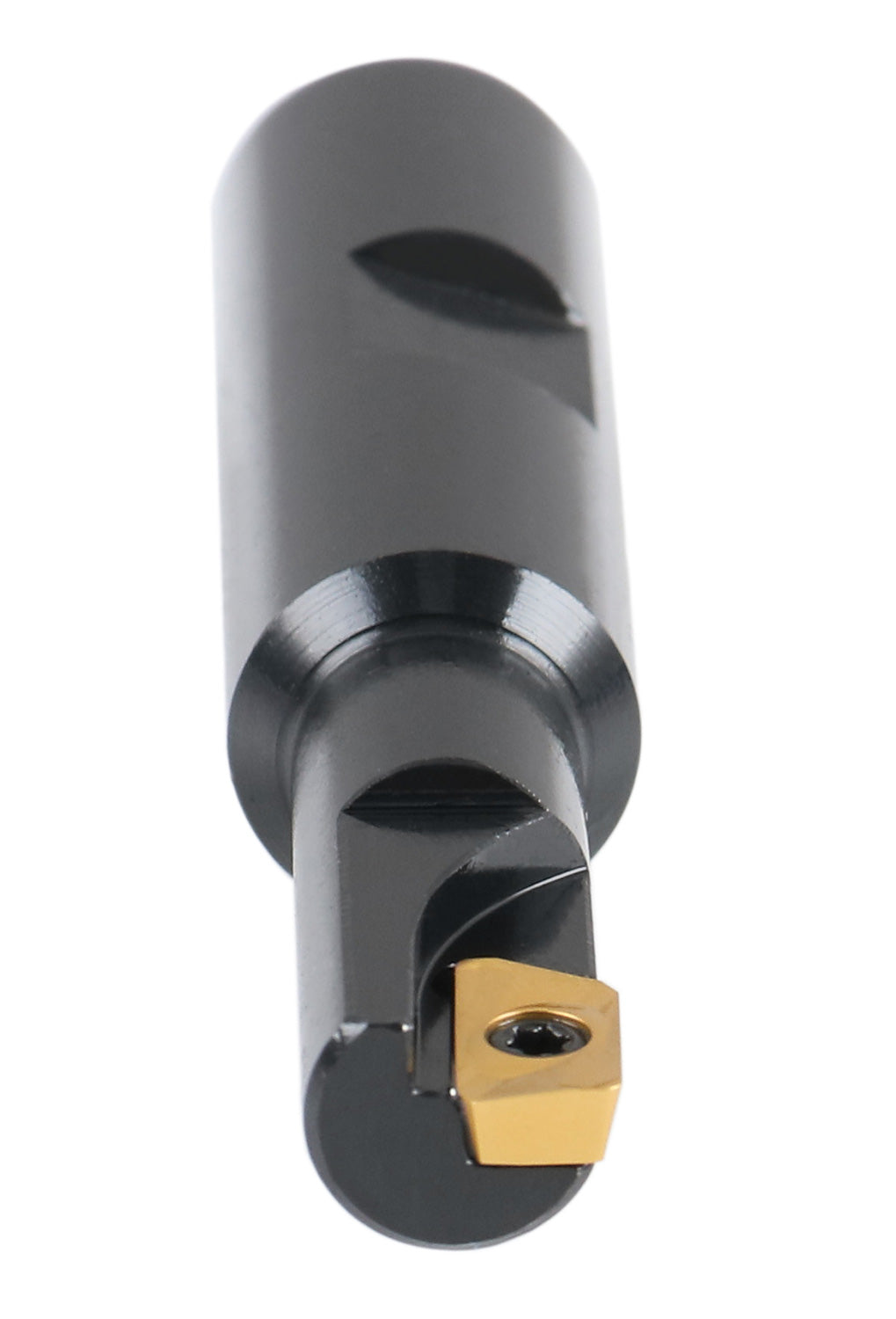

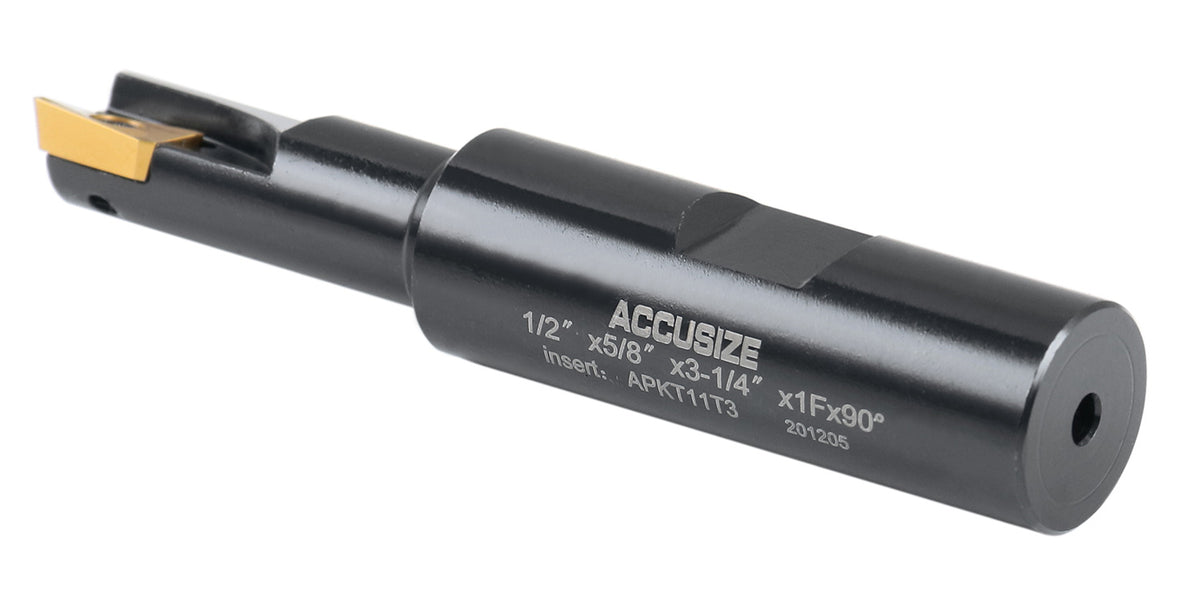

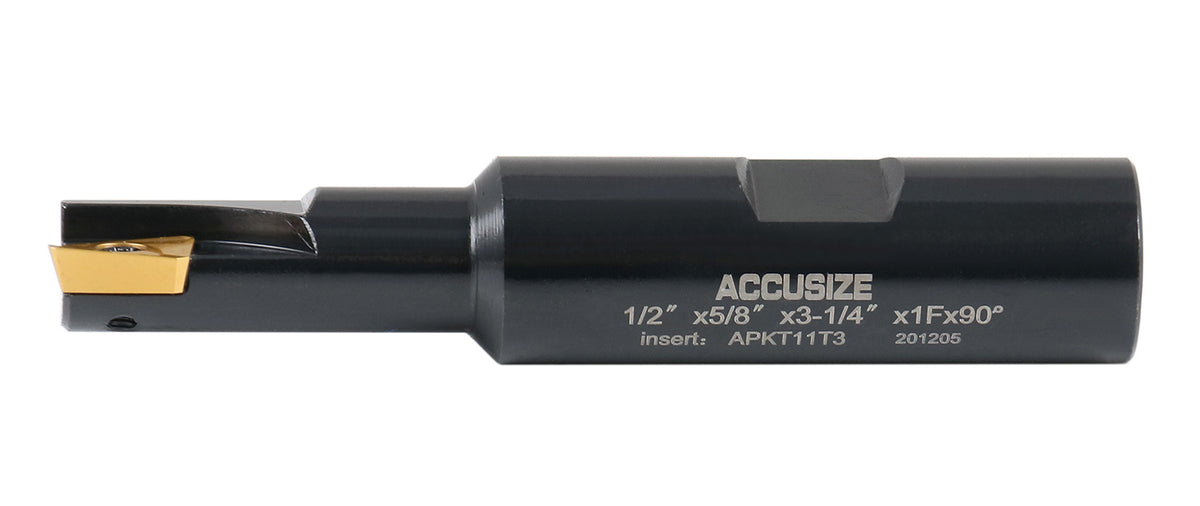

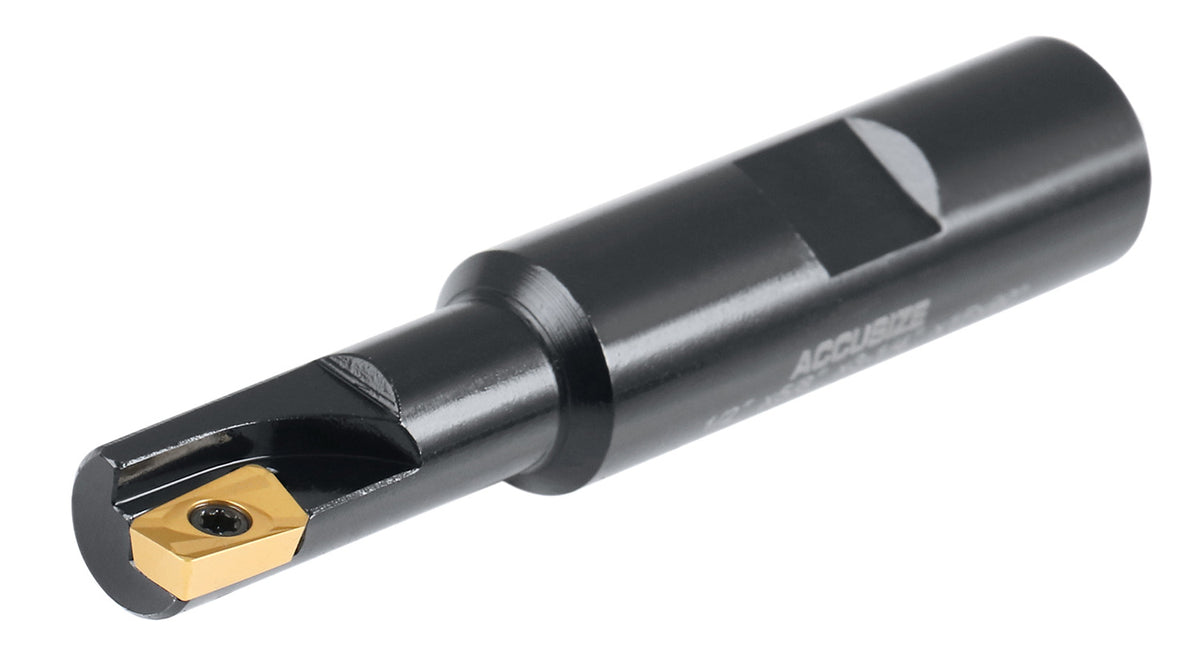

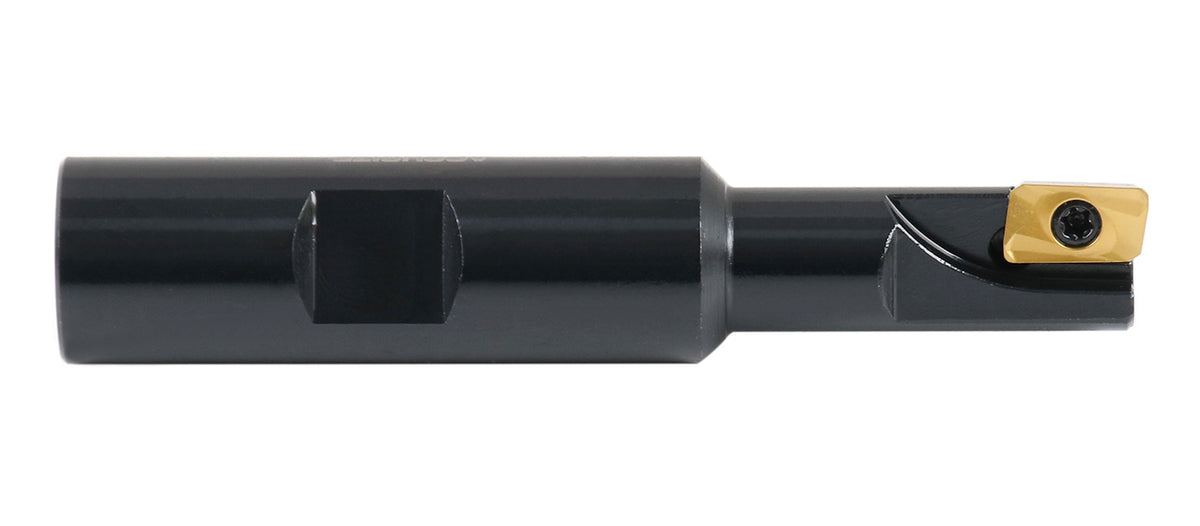

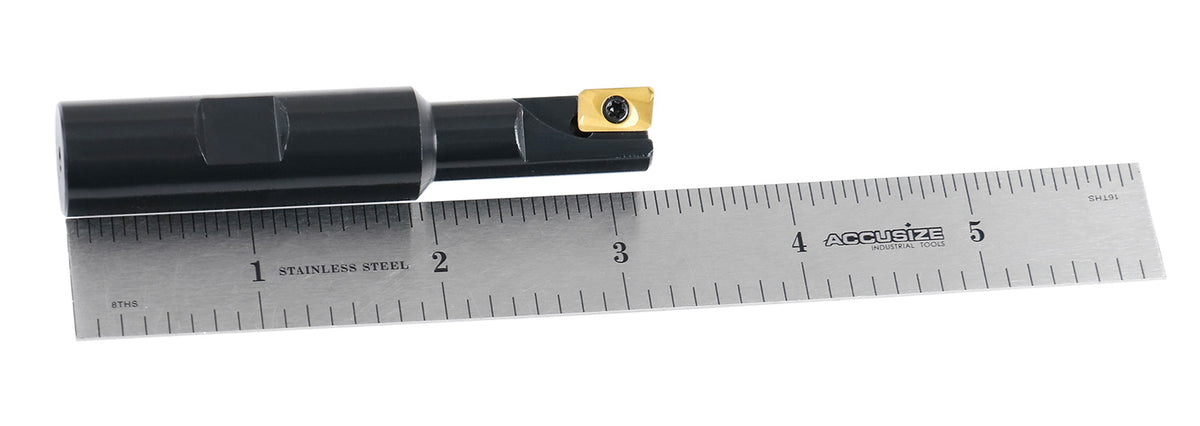

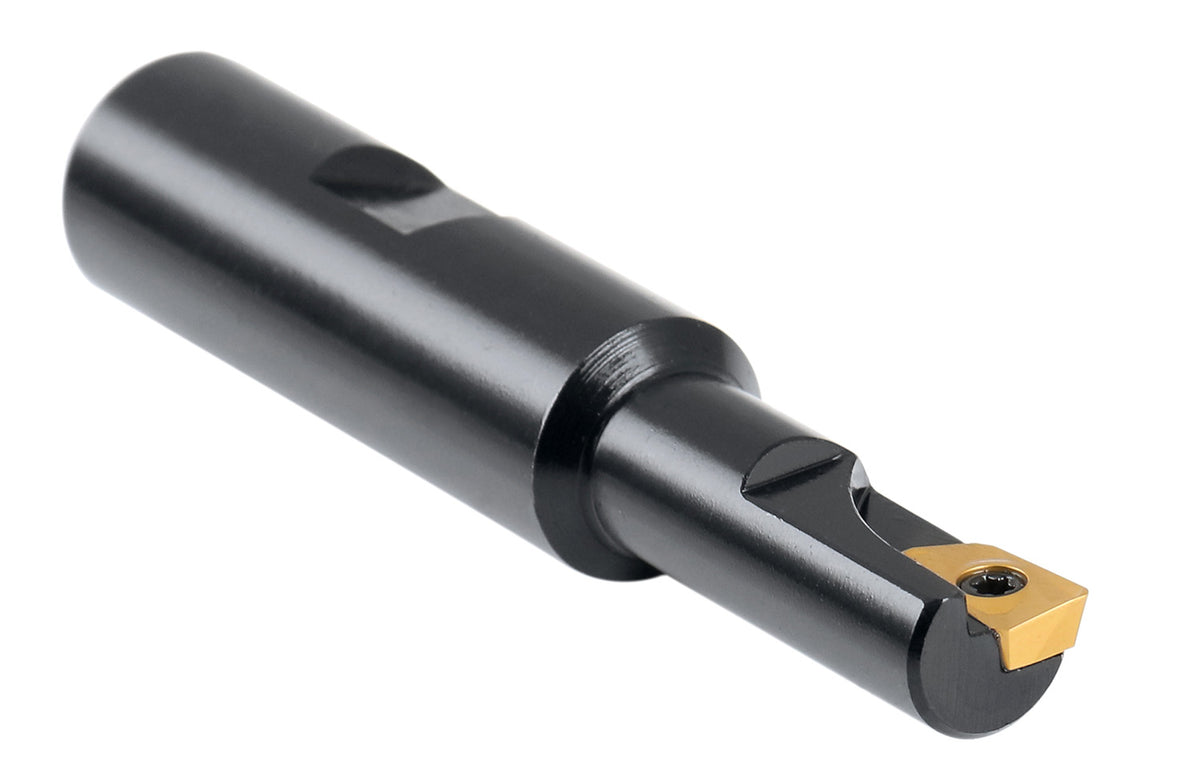

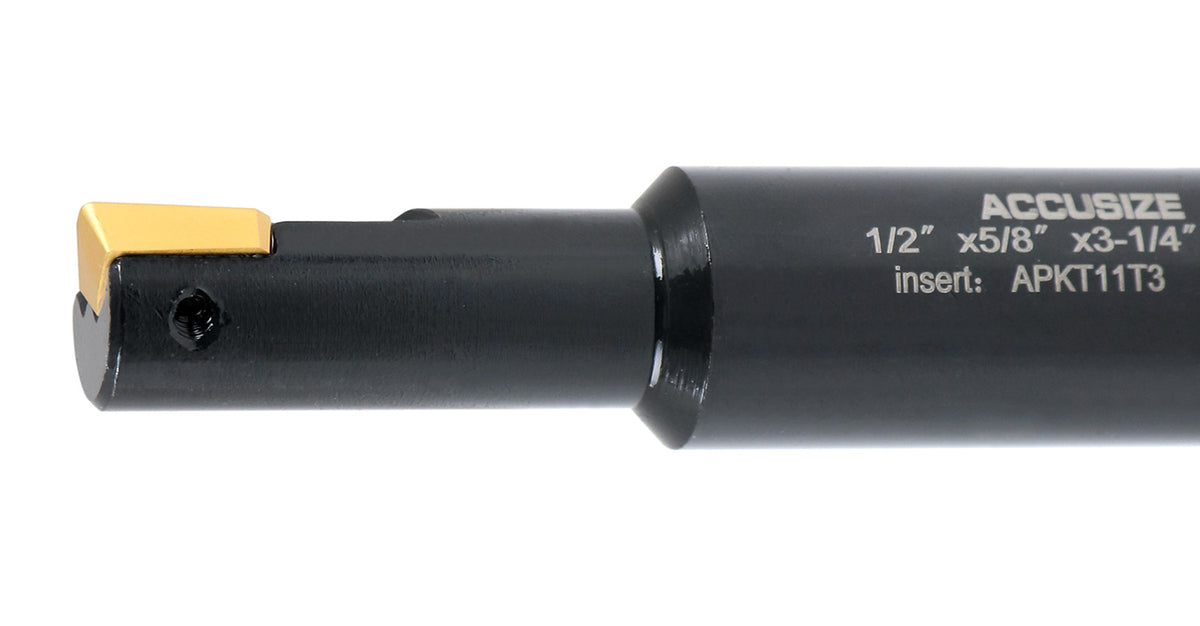

0056-0913 1/2" 5/8" 3-1/4" 0.433" 1 M2.5 x 6 APKT11T3

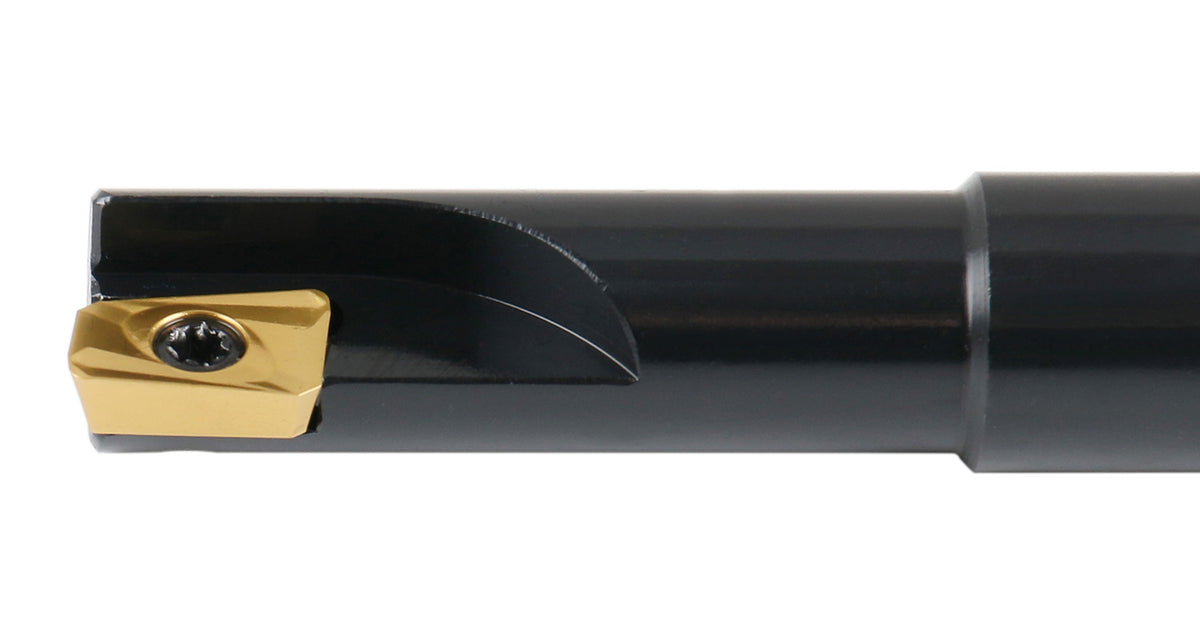

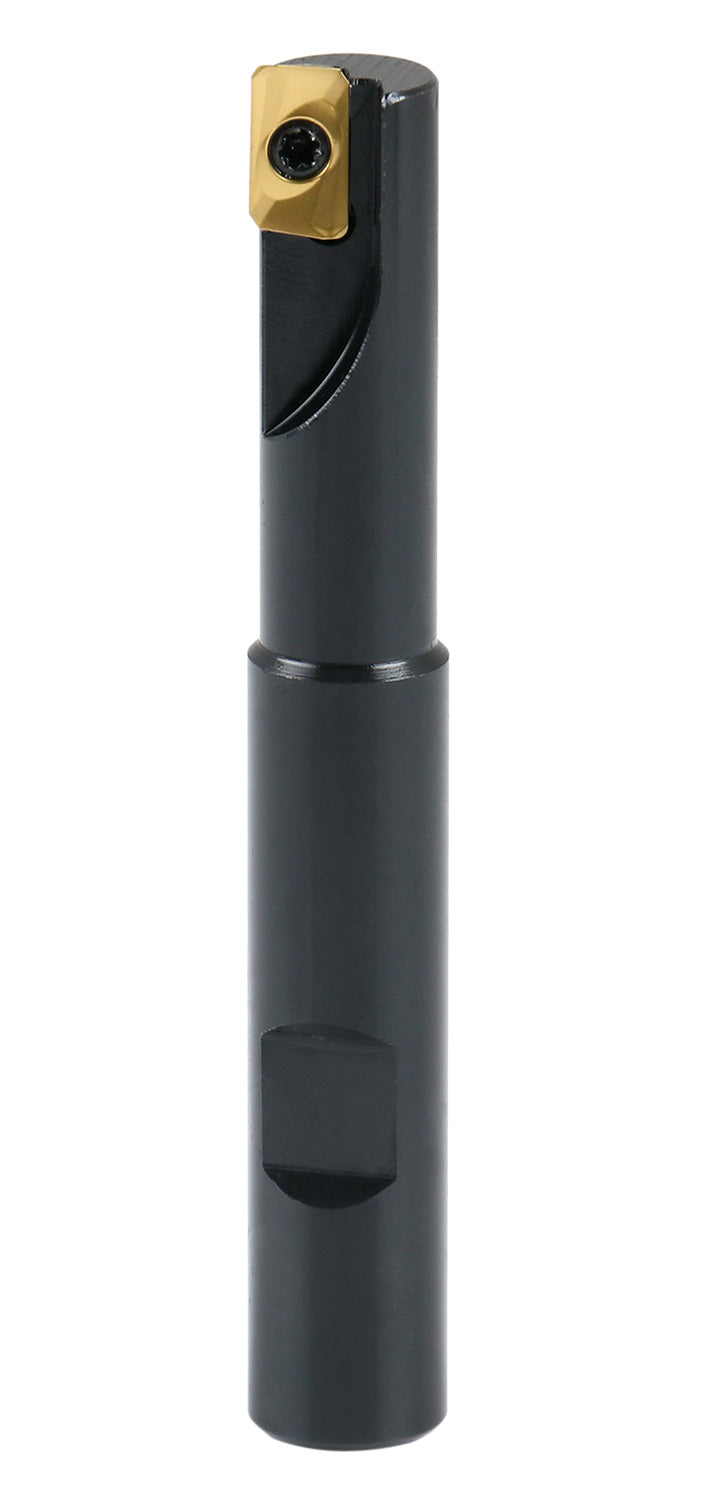

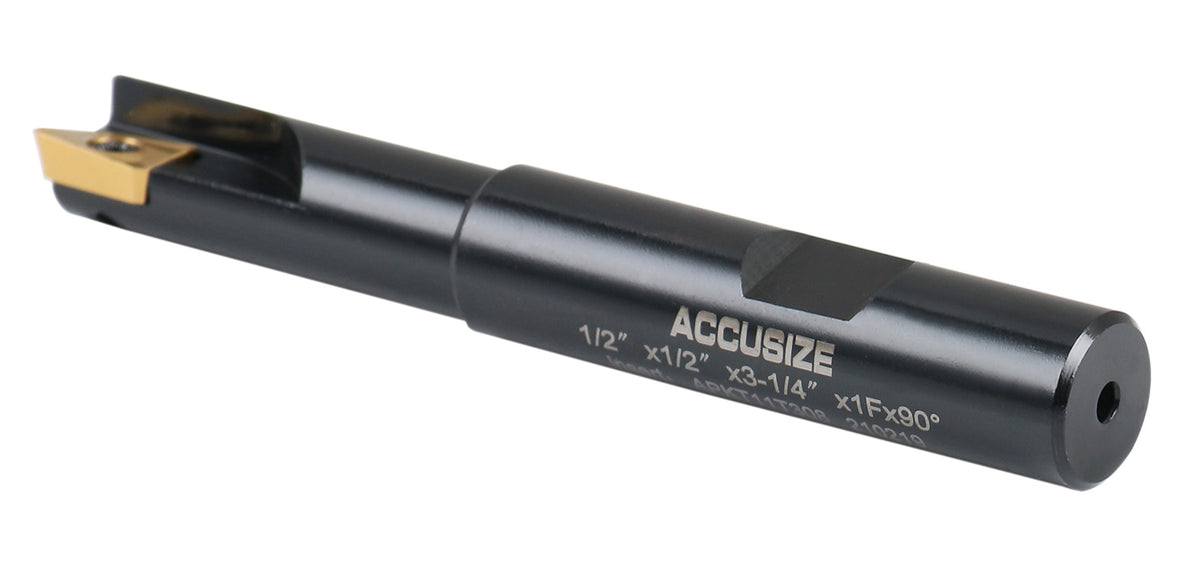

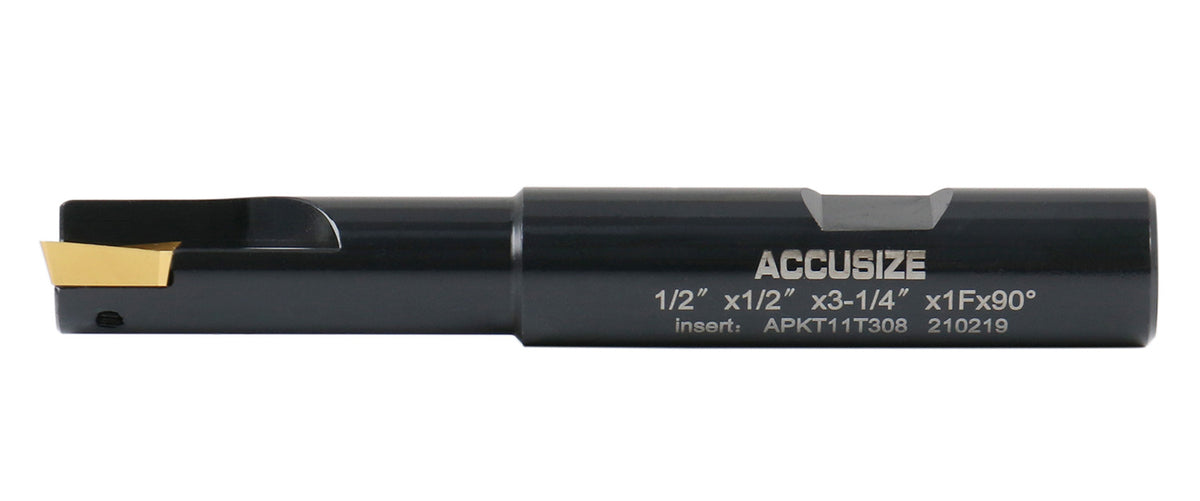

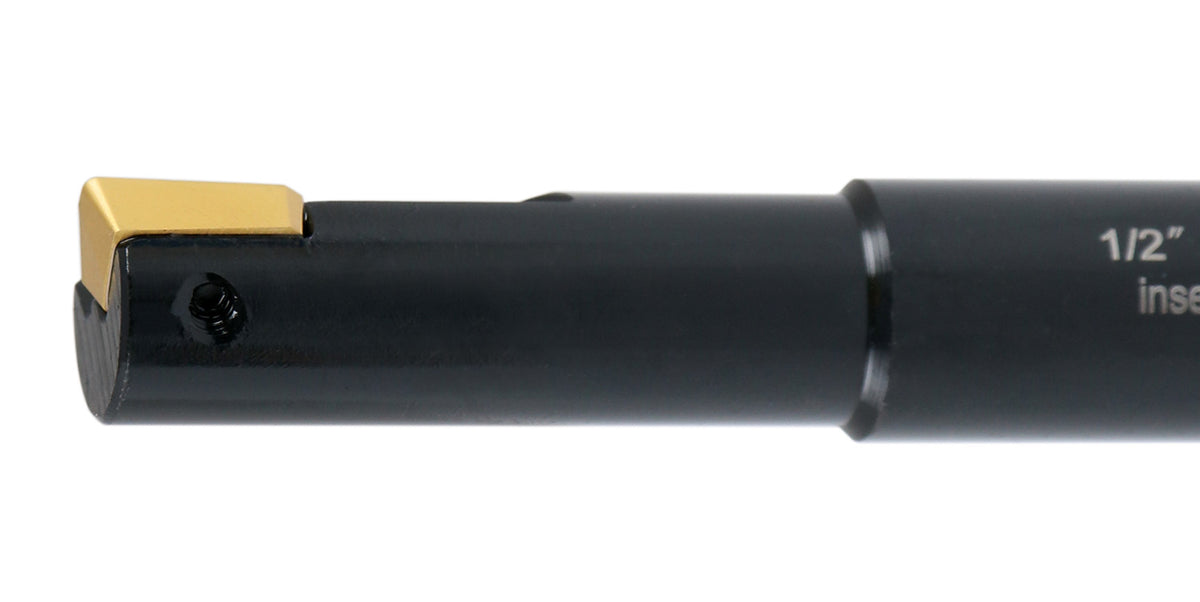

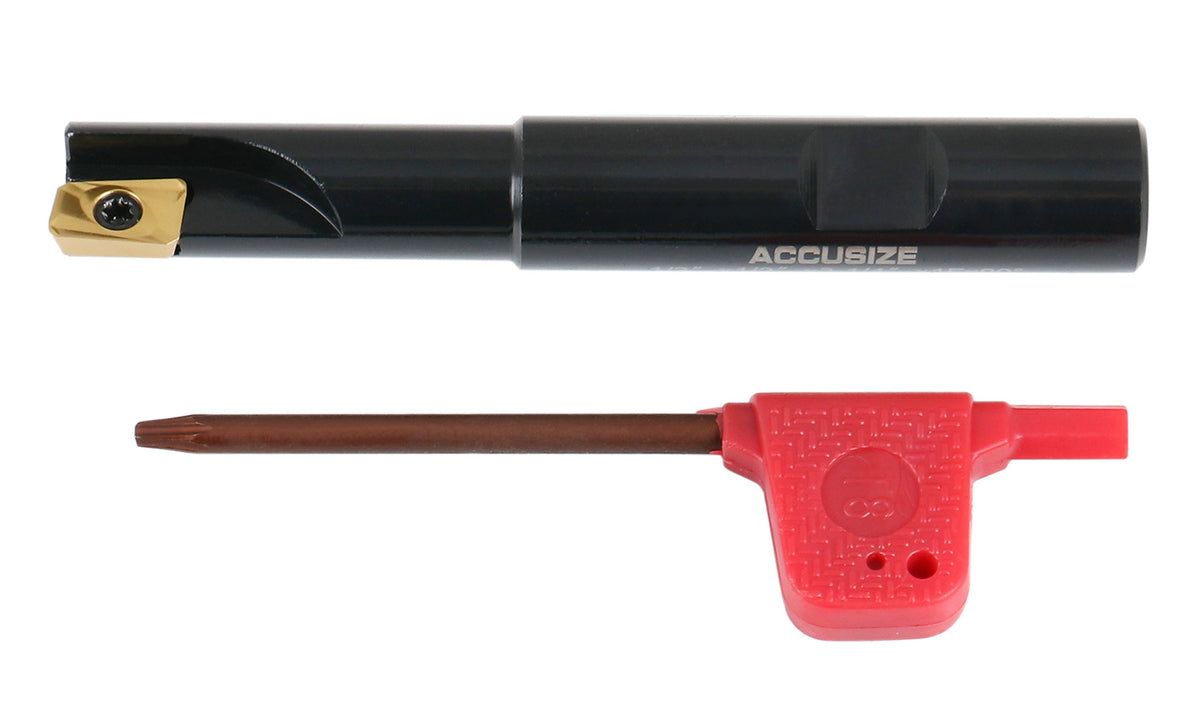

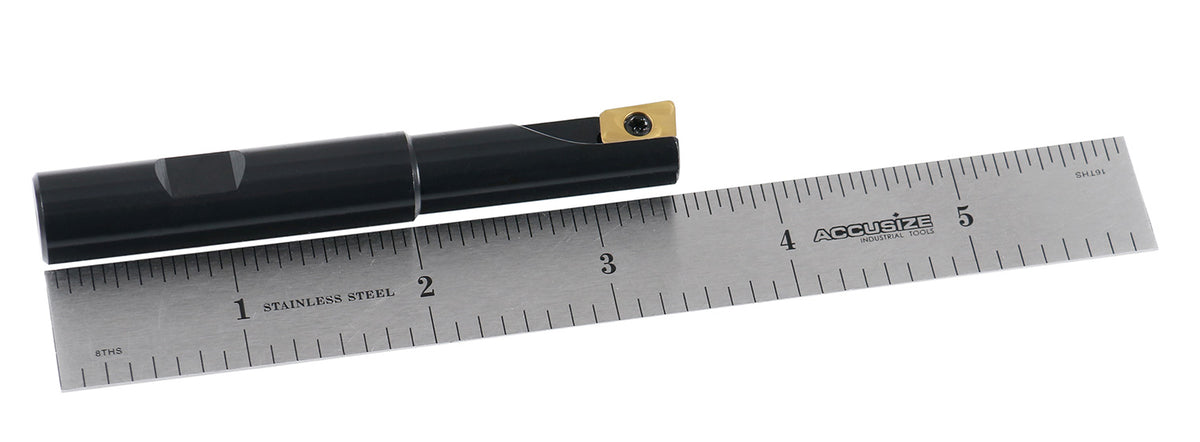

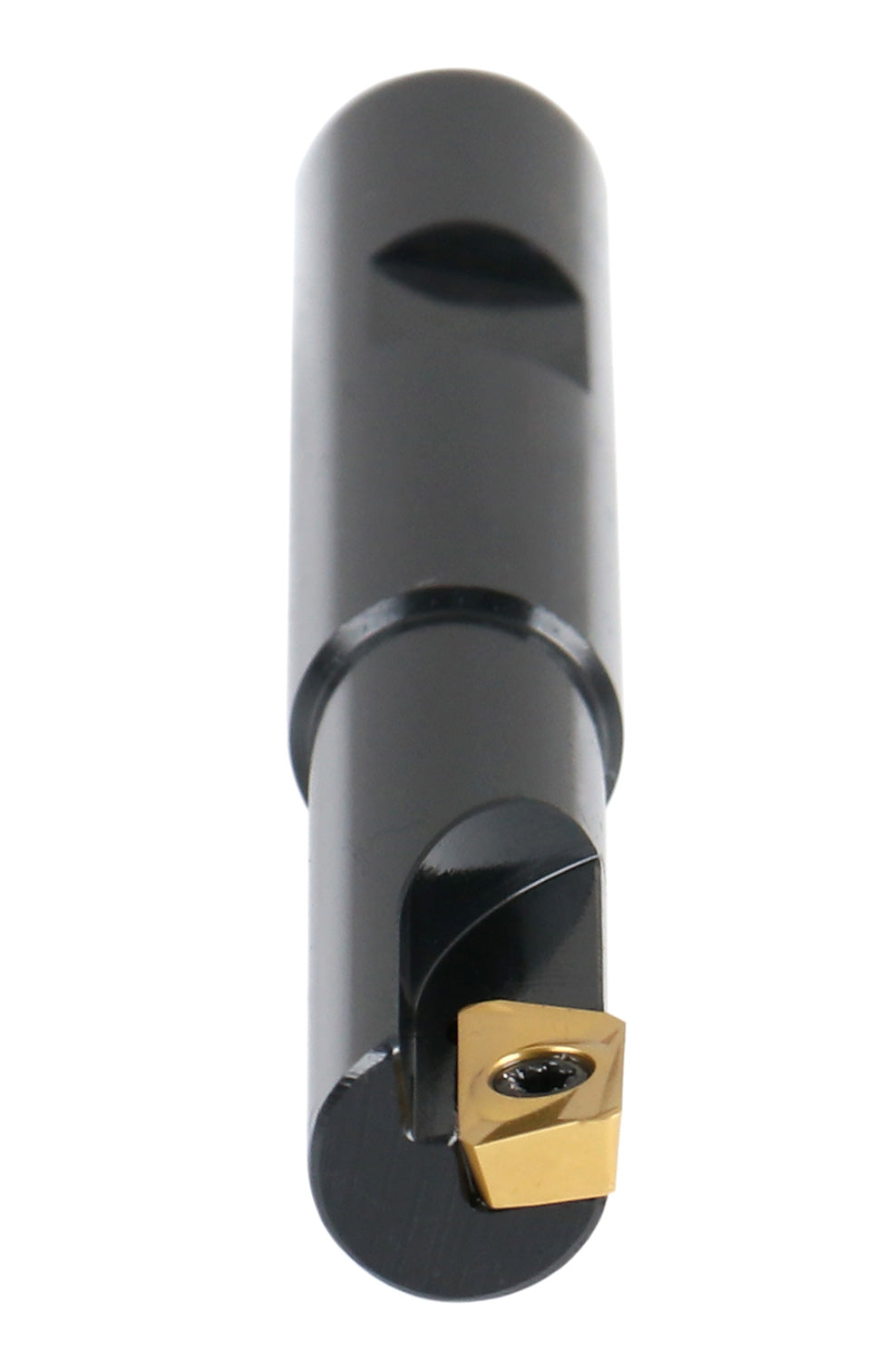

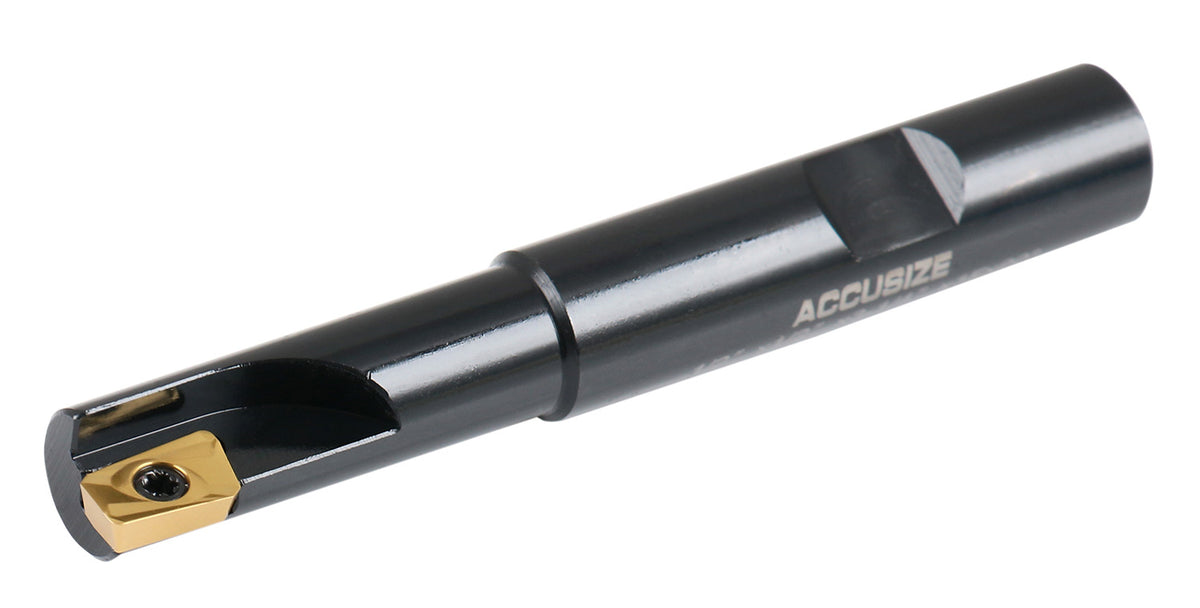

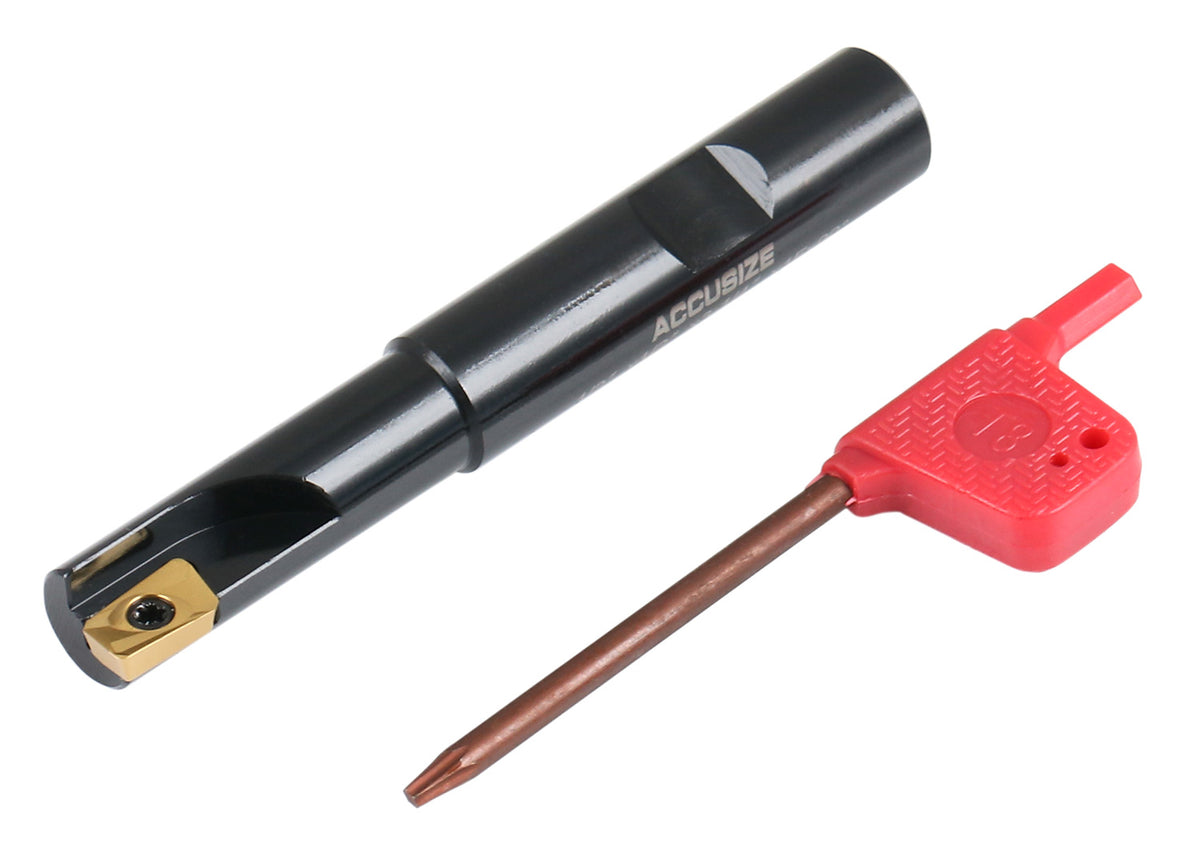

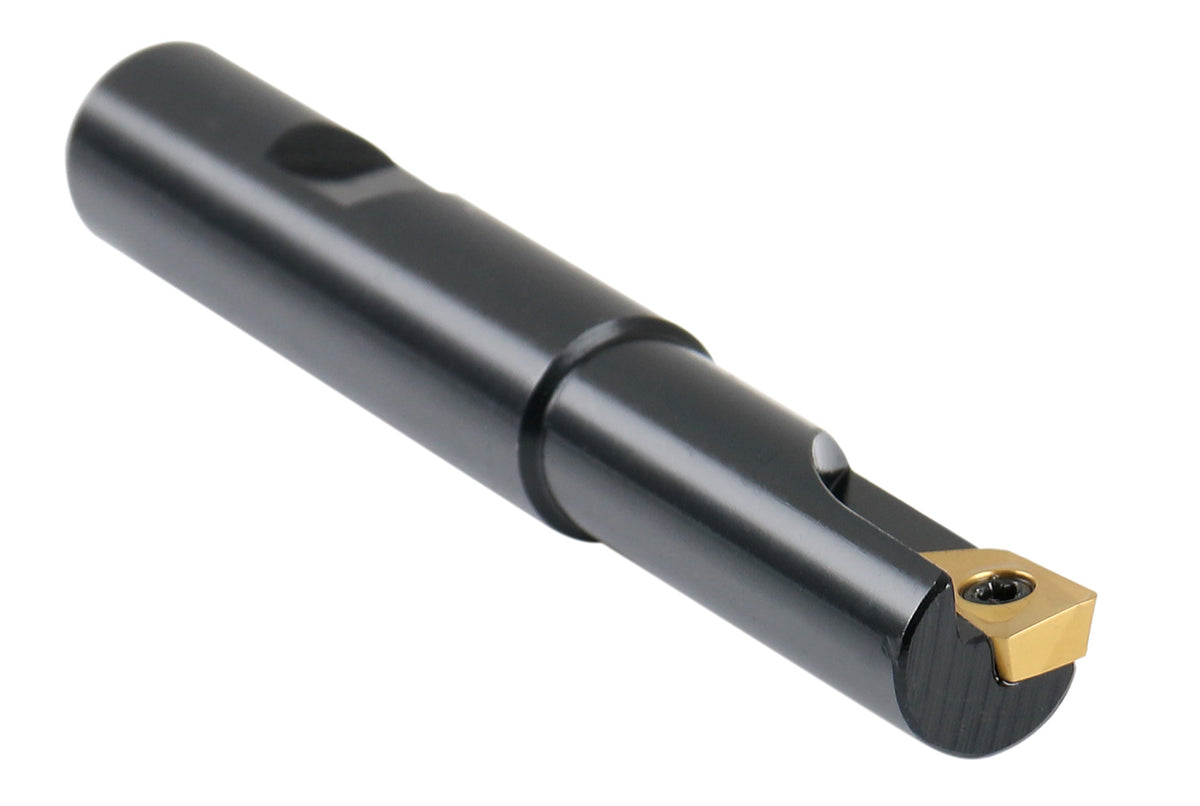

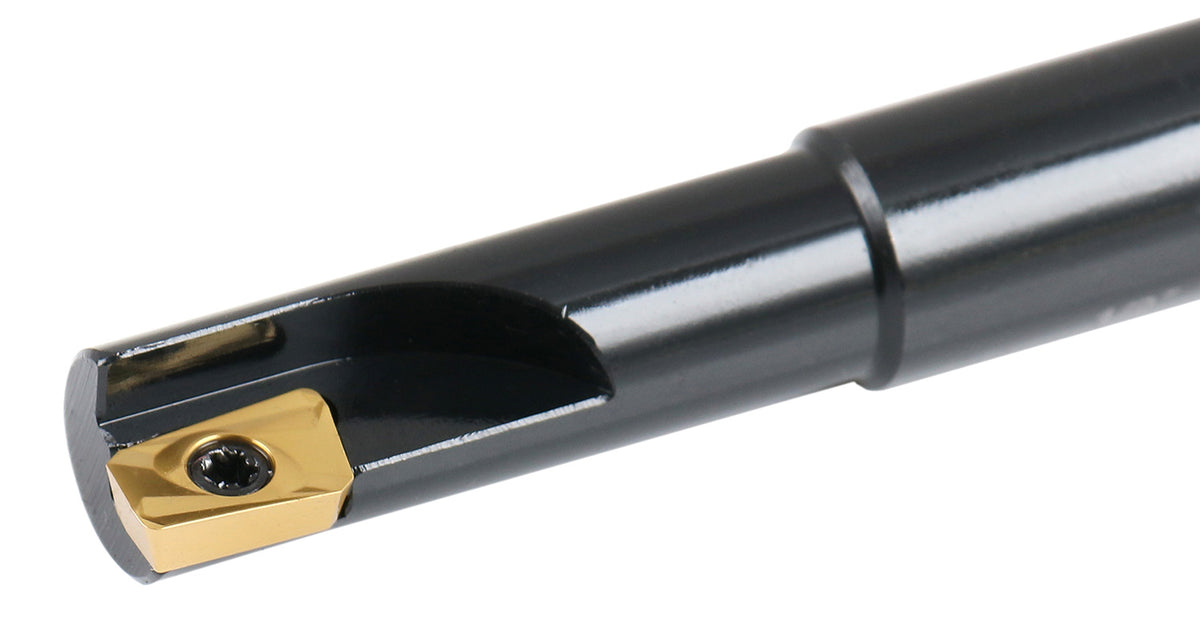

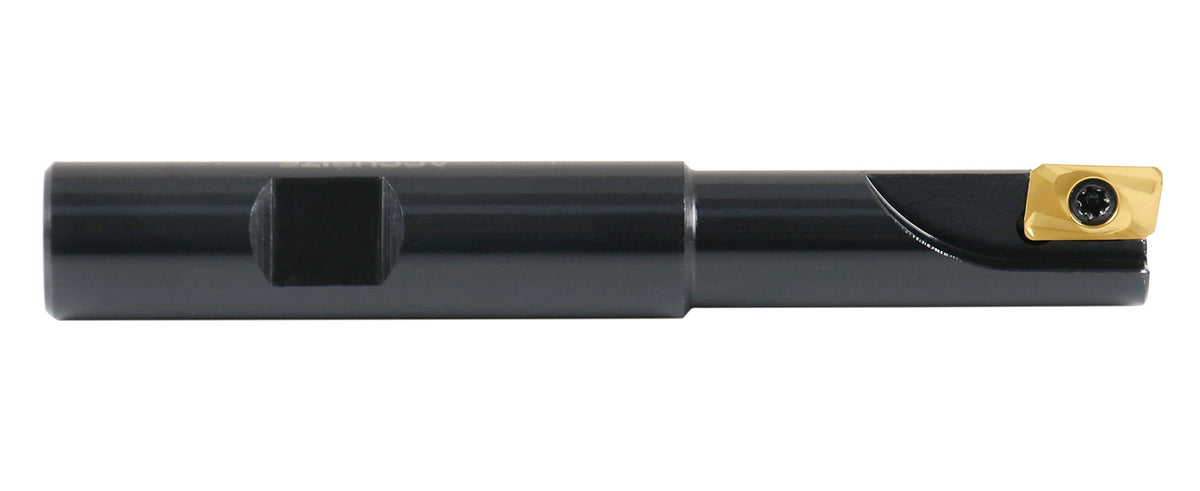

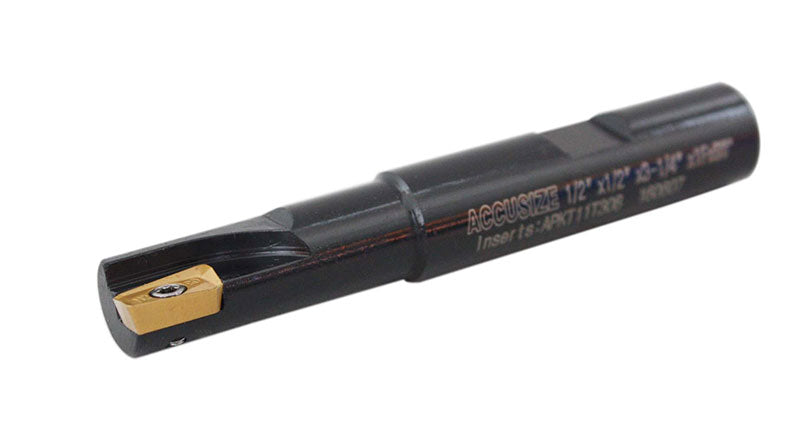

0056-0914 1/2" 1/2" 3-1/4" 0.433" 1 M2.5 x 6 APKT11T3

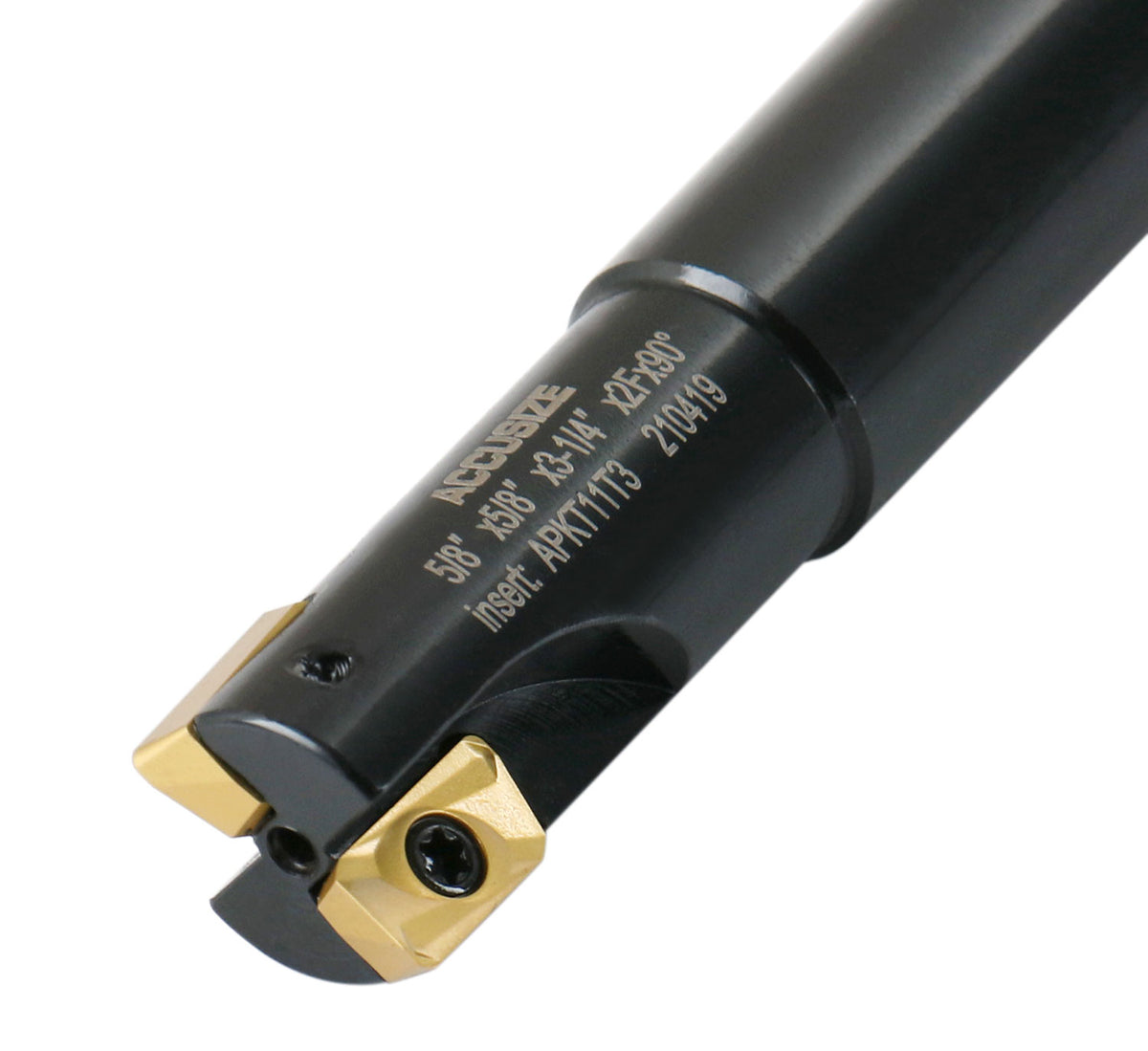

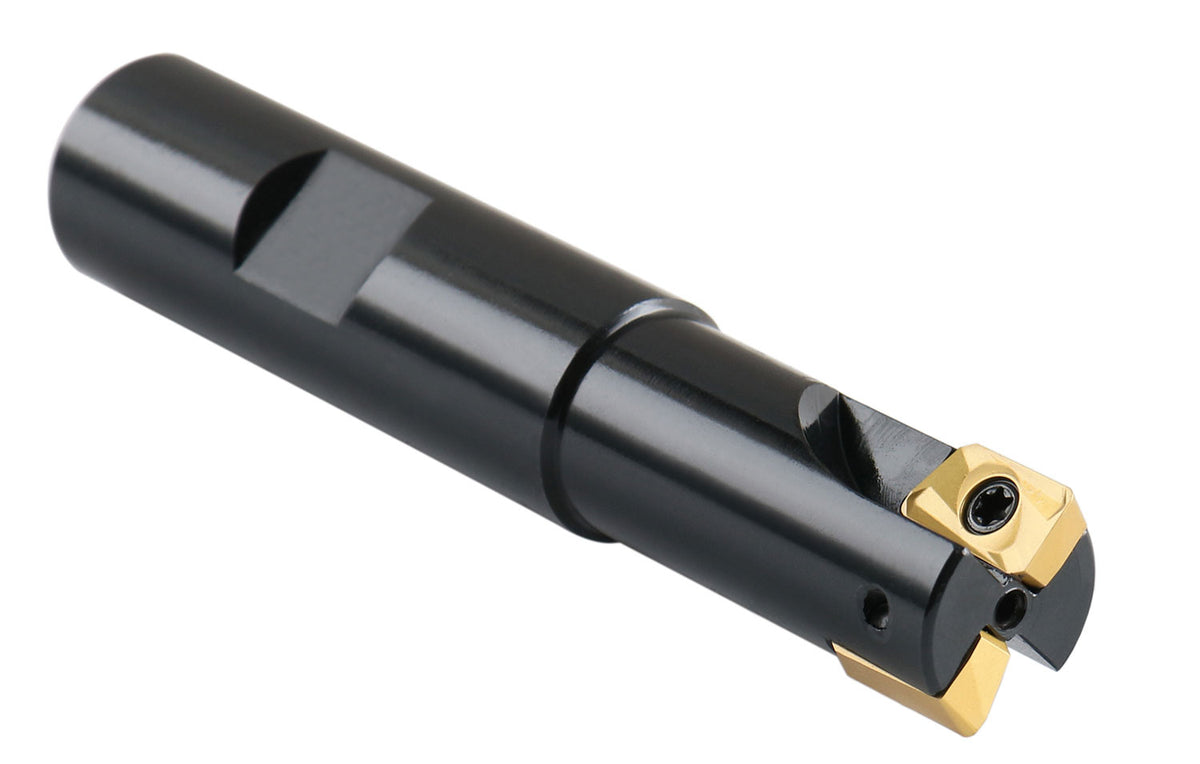

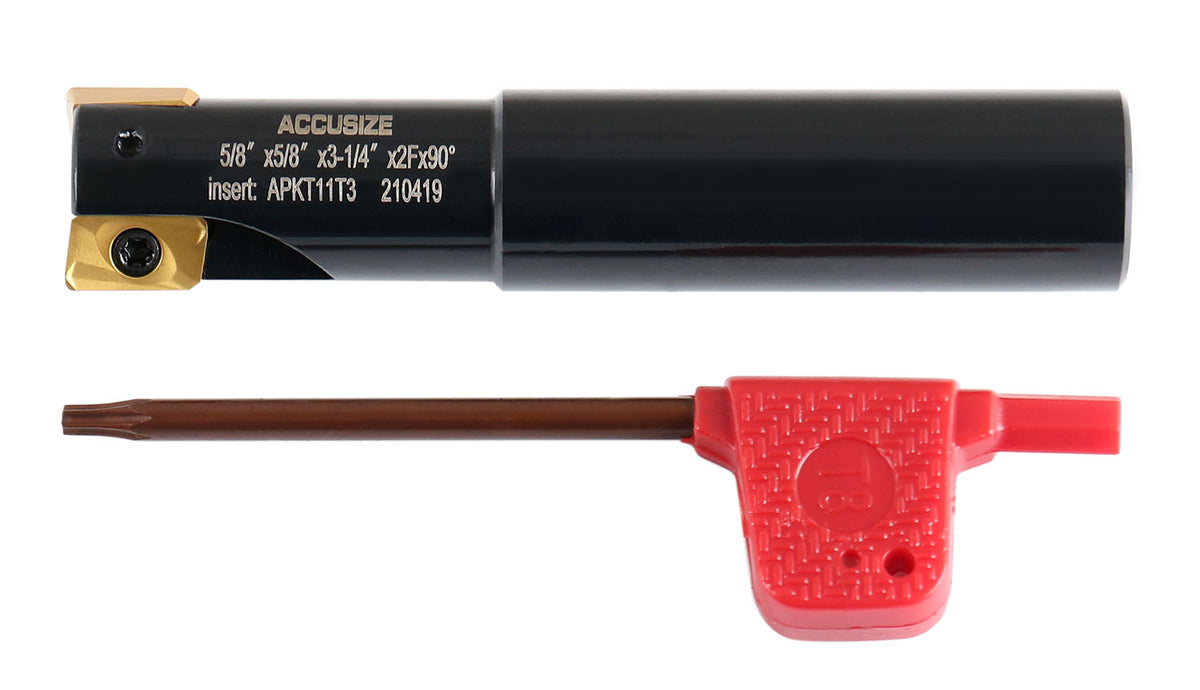

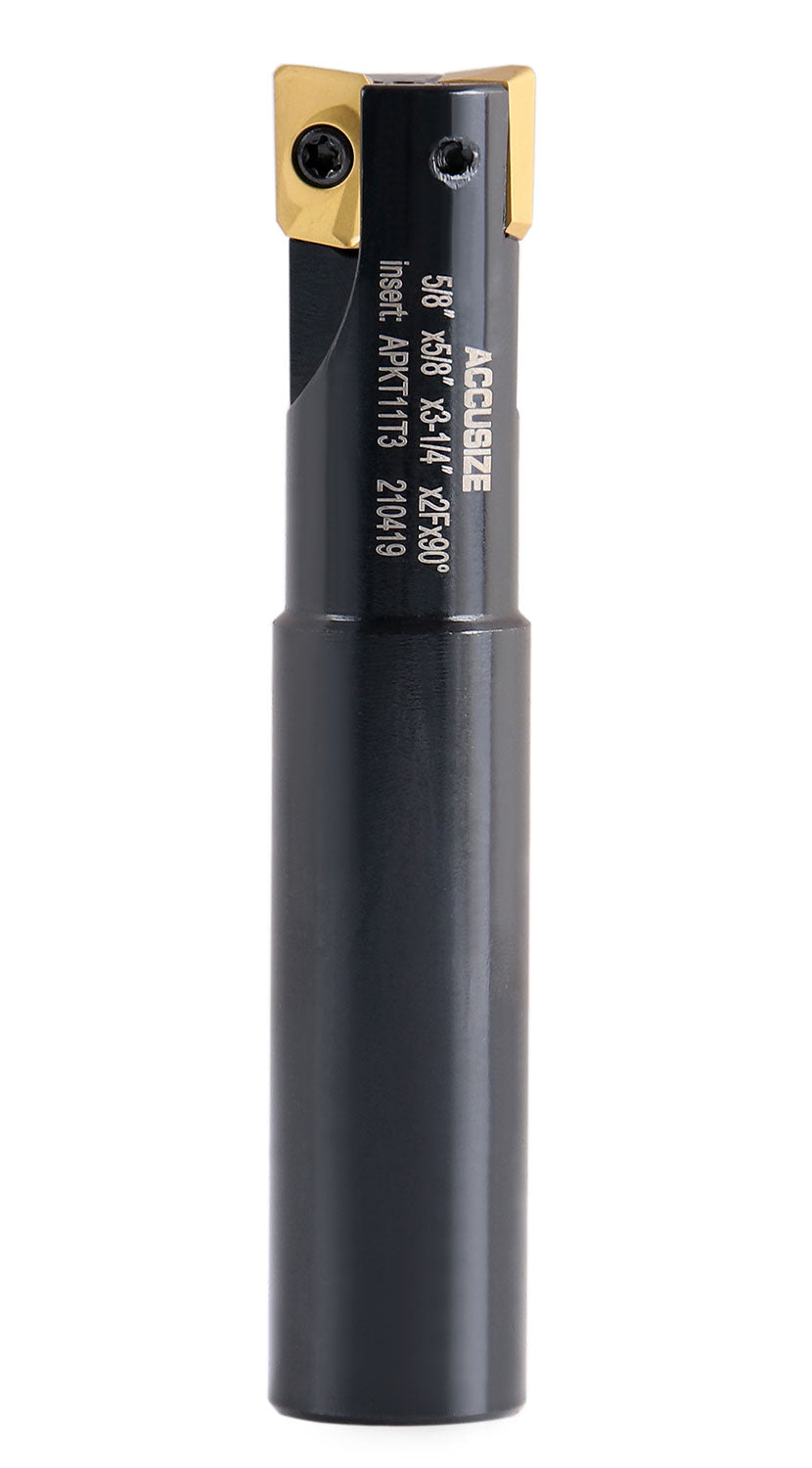

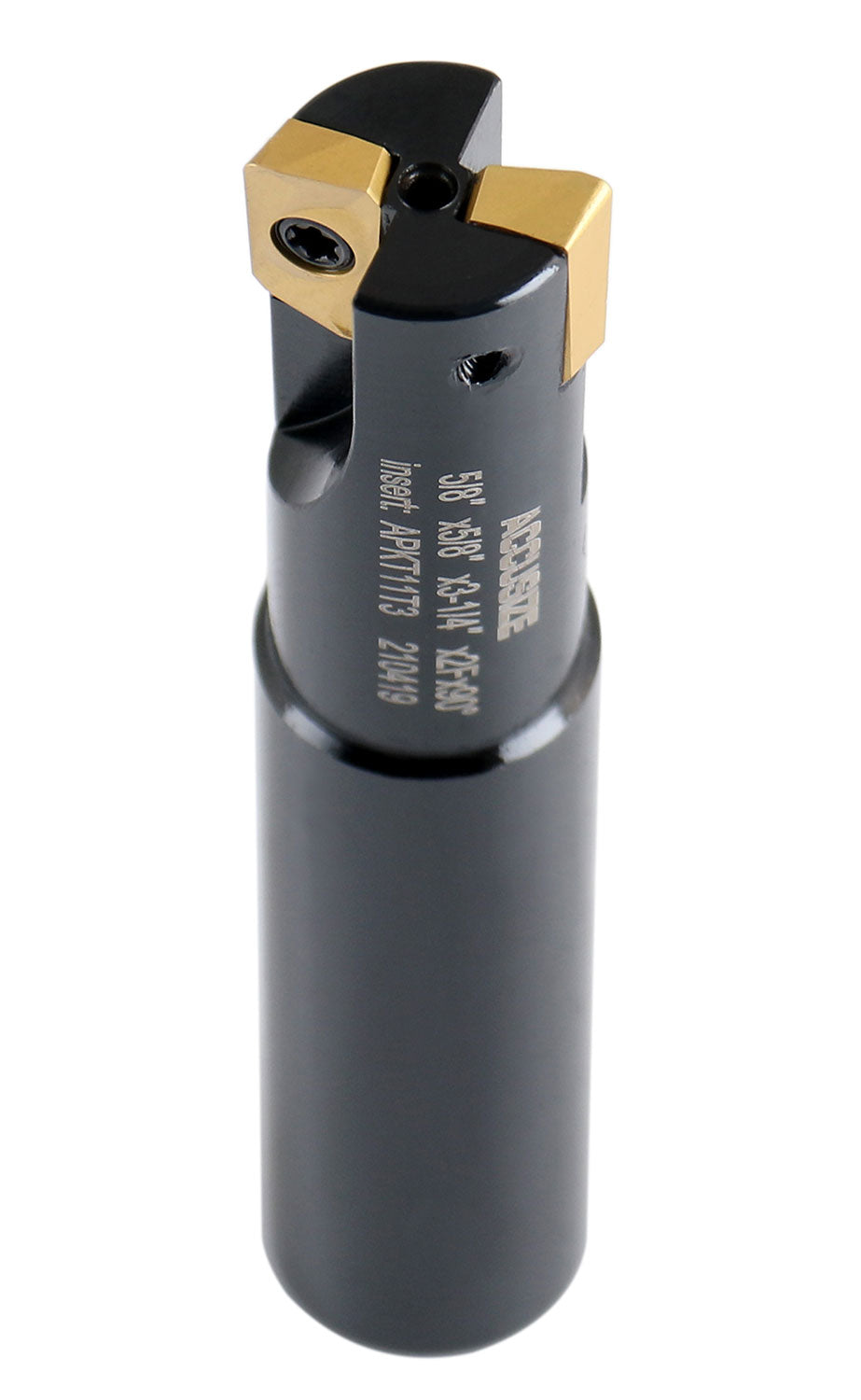

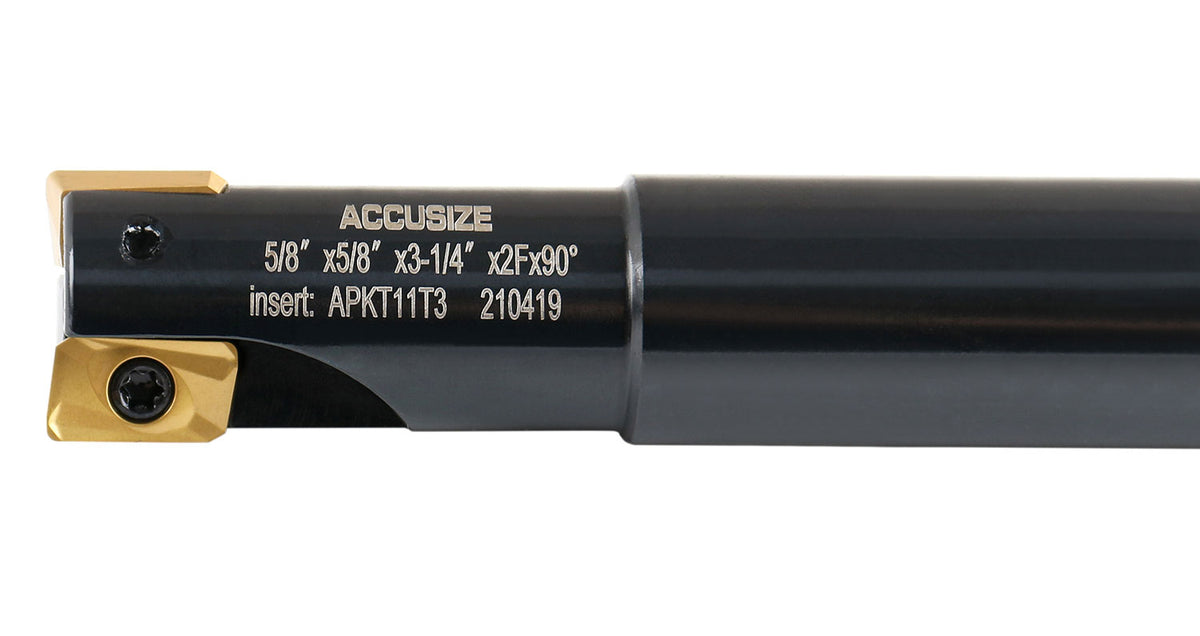

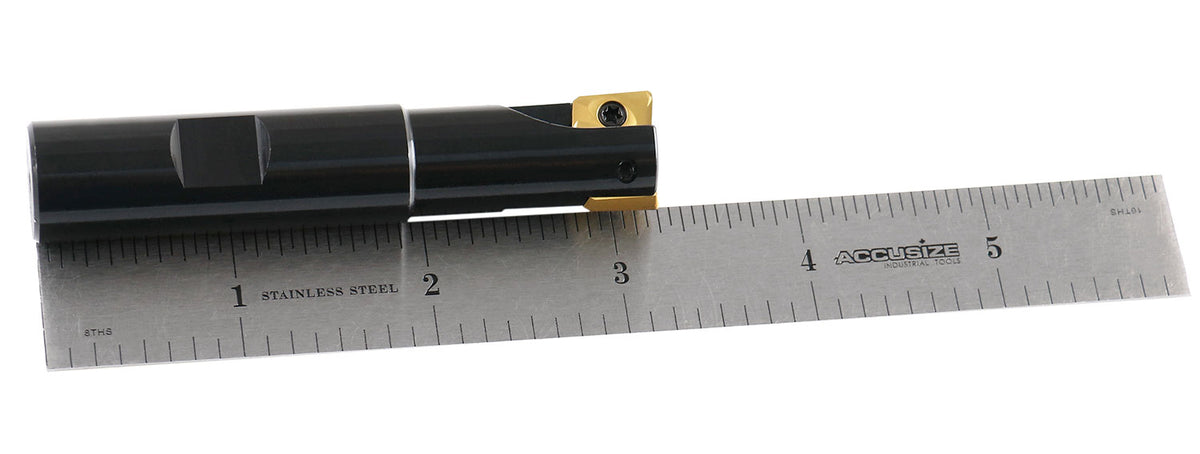

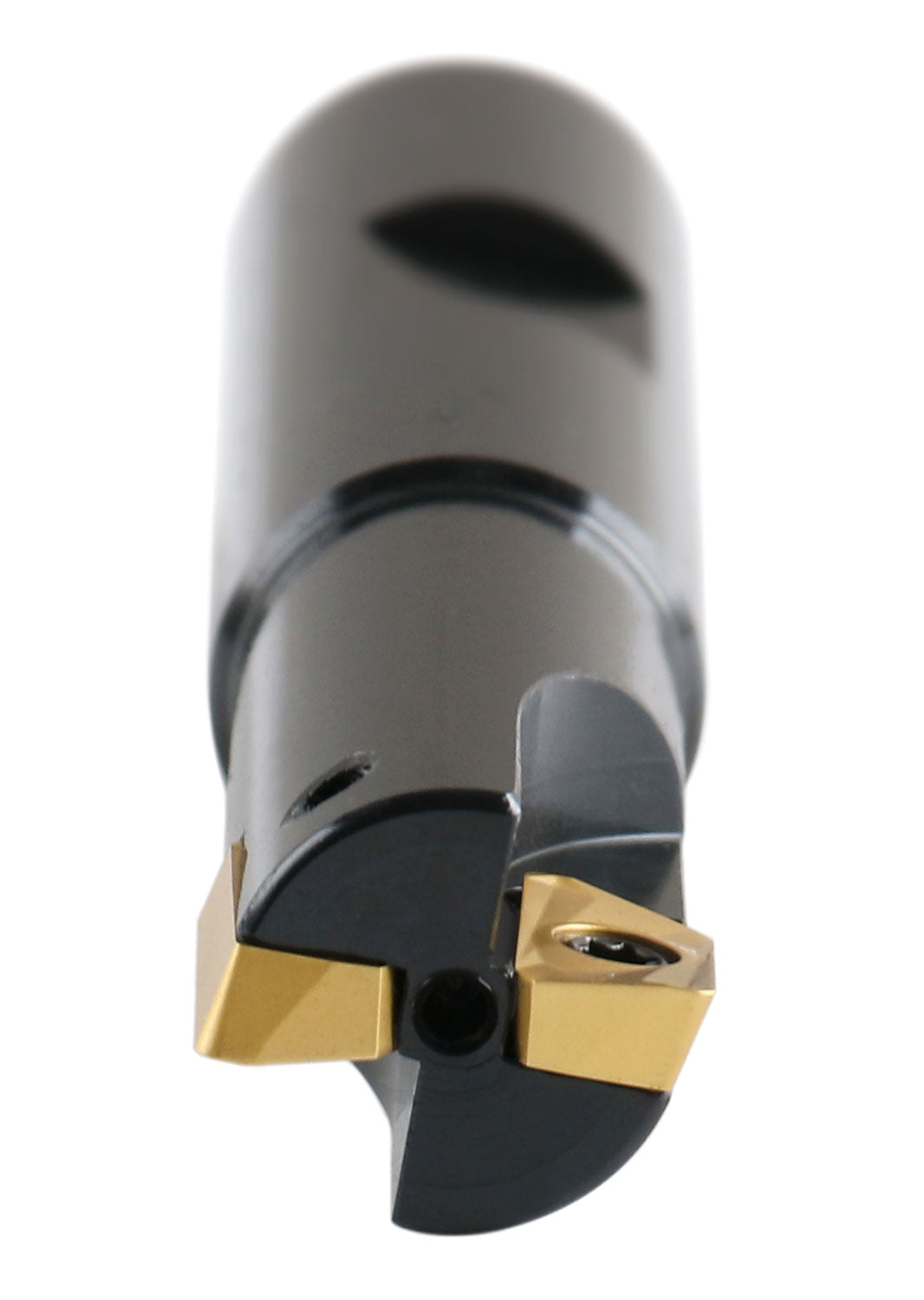

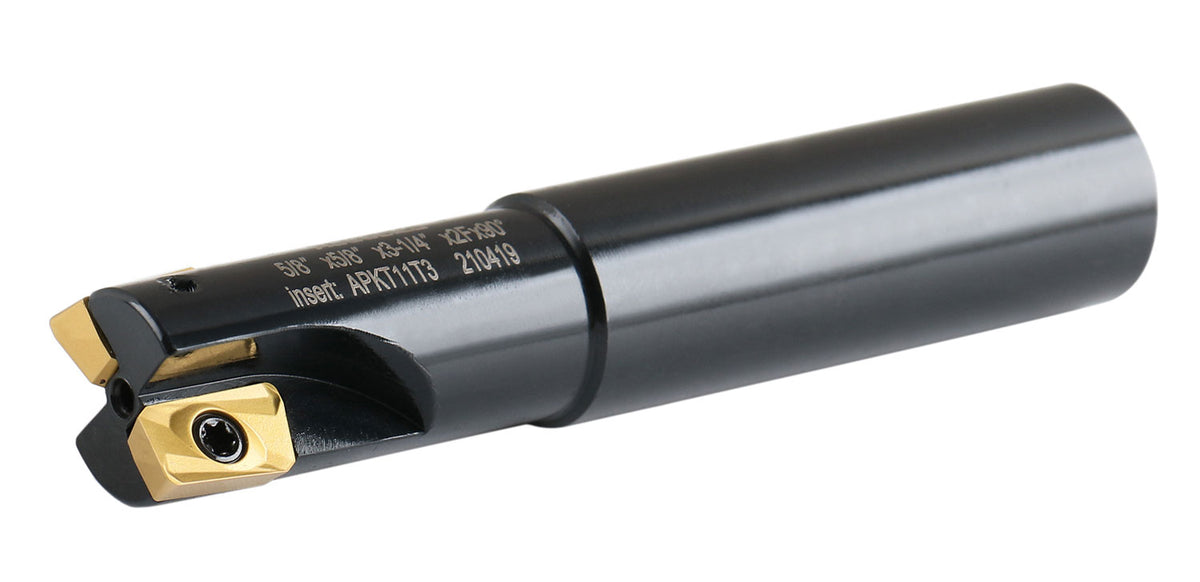

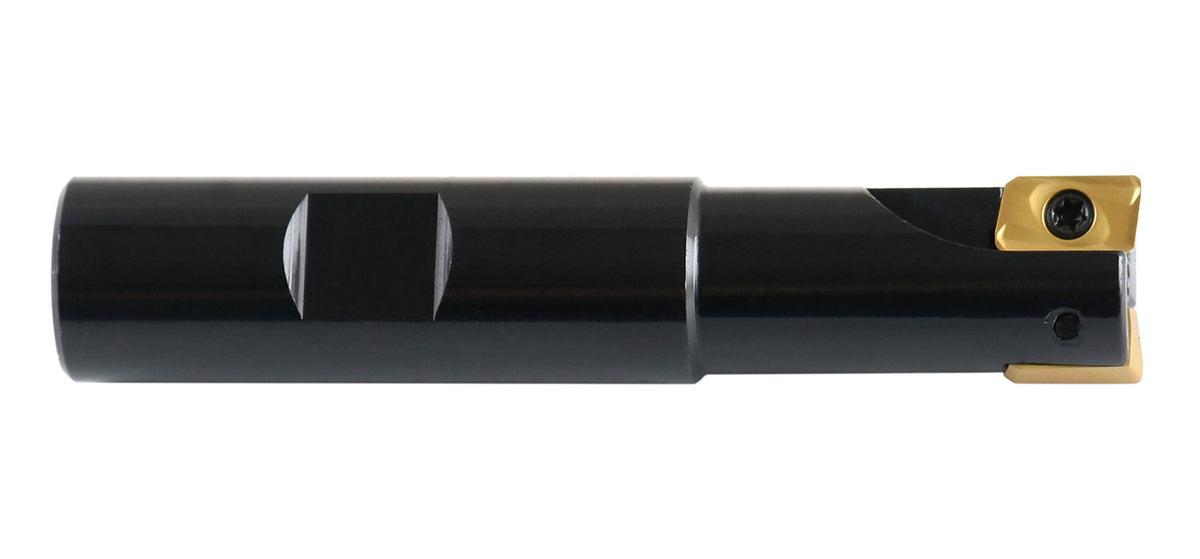

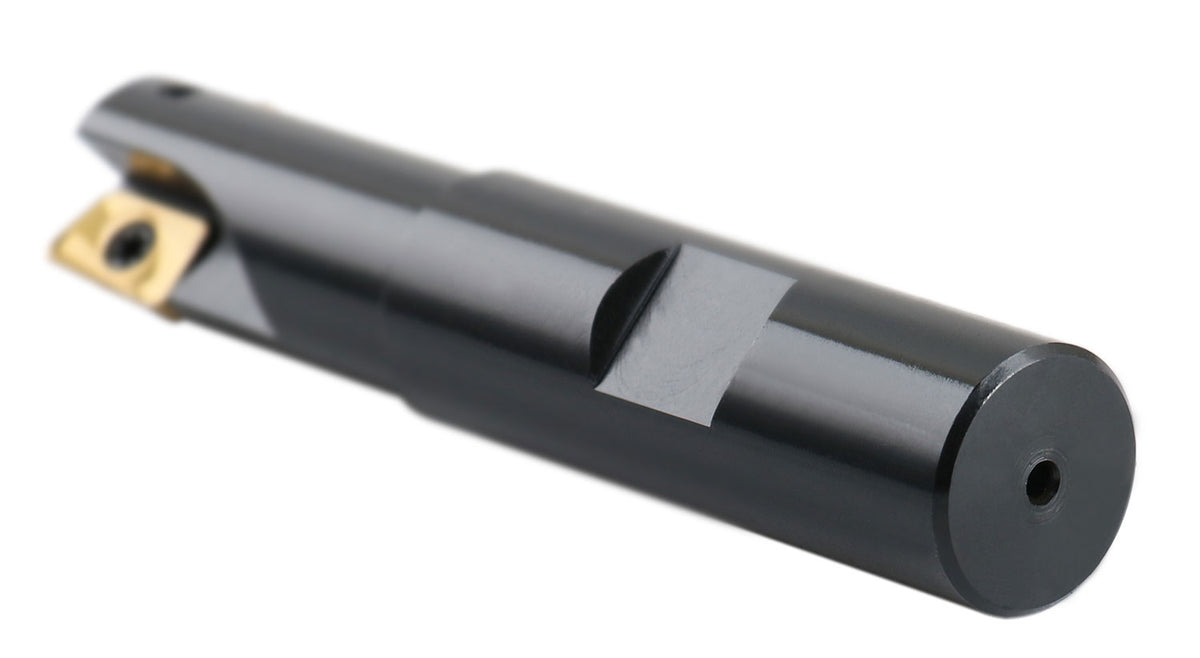

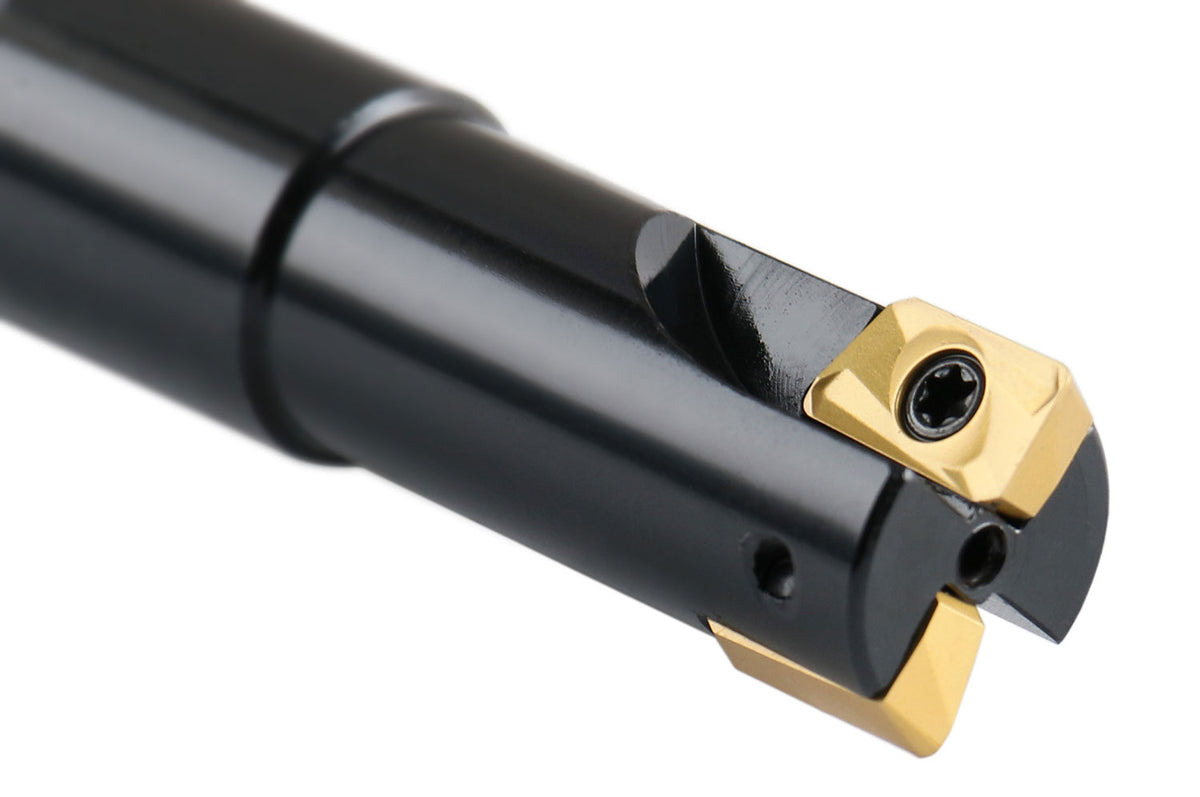

0056-0916 5/8" 5/8" 3-1/4" 0.433" 2 M2.5 x 6 APKT11T3

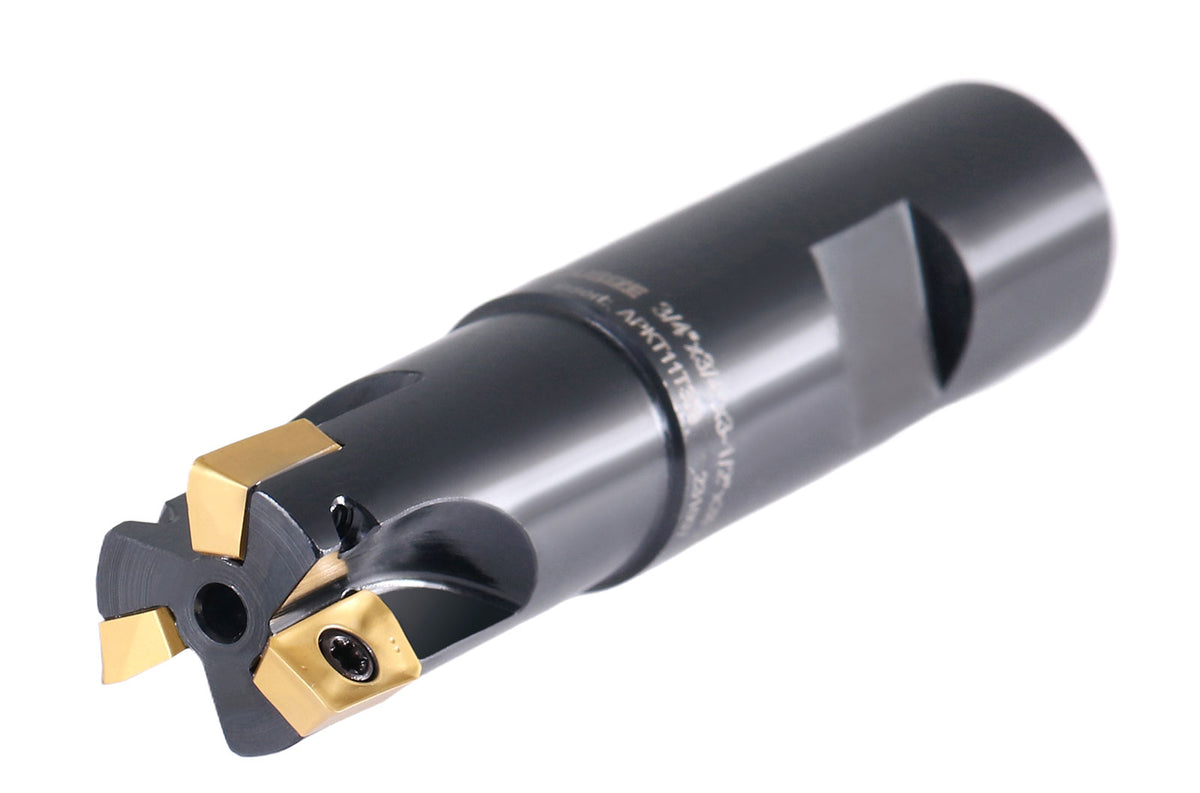

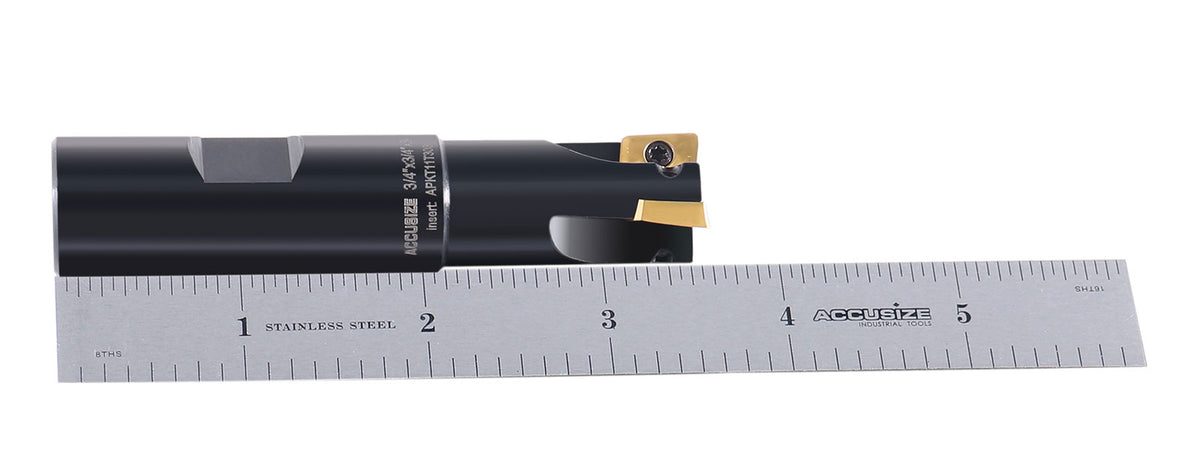

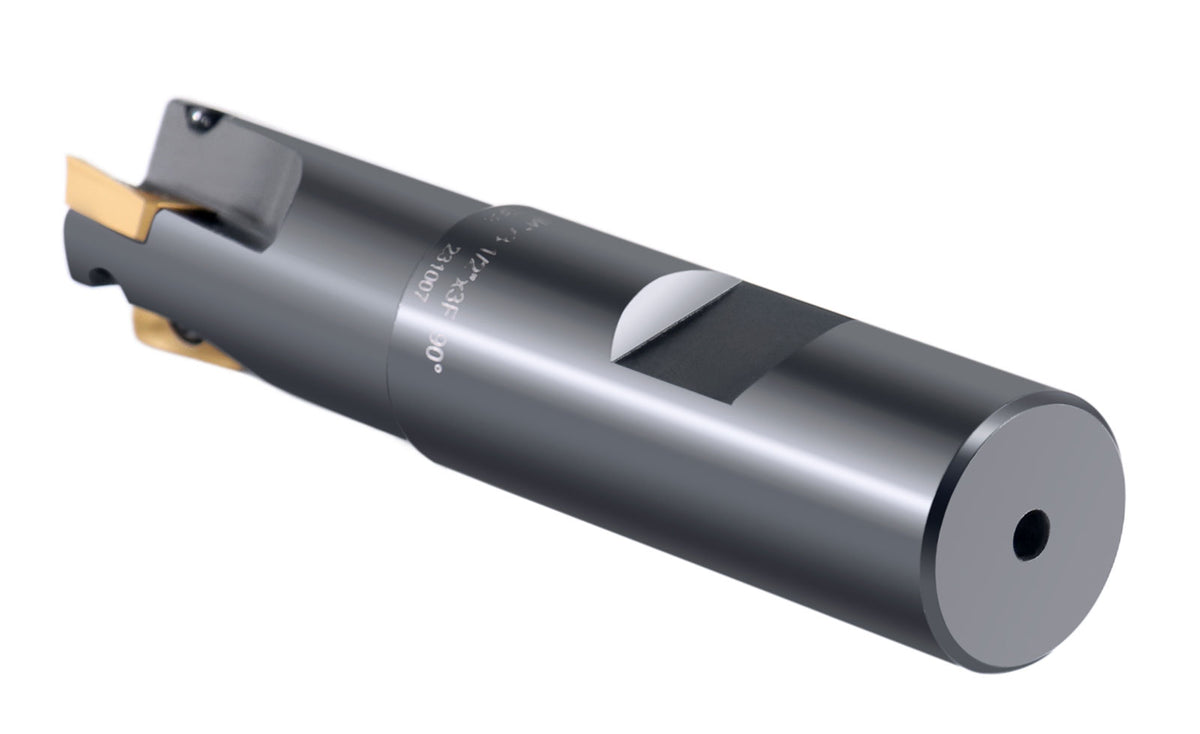

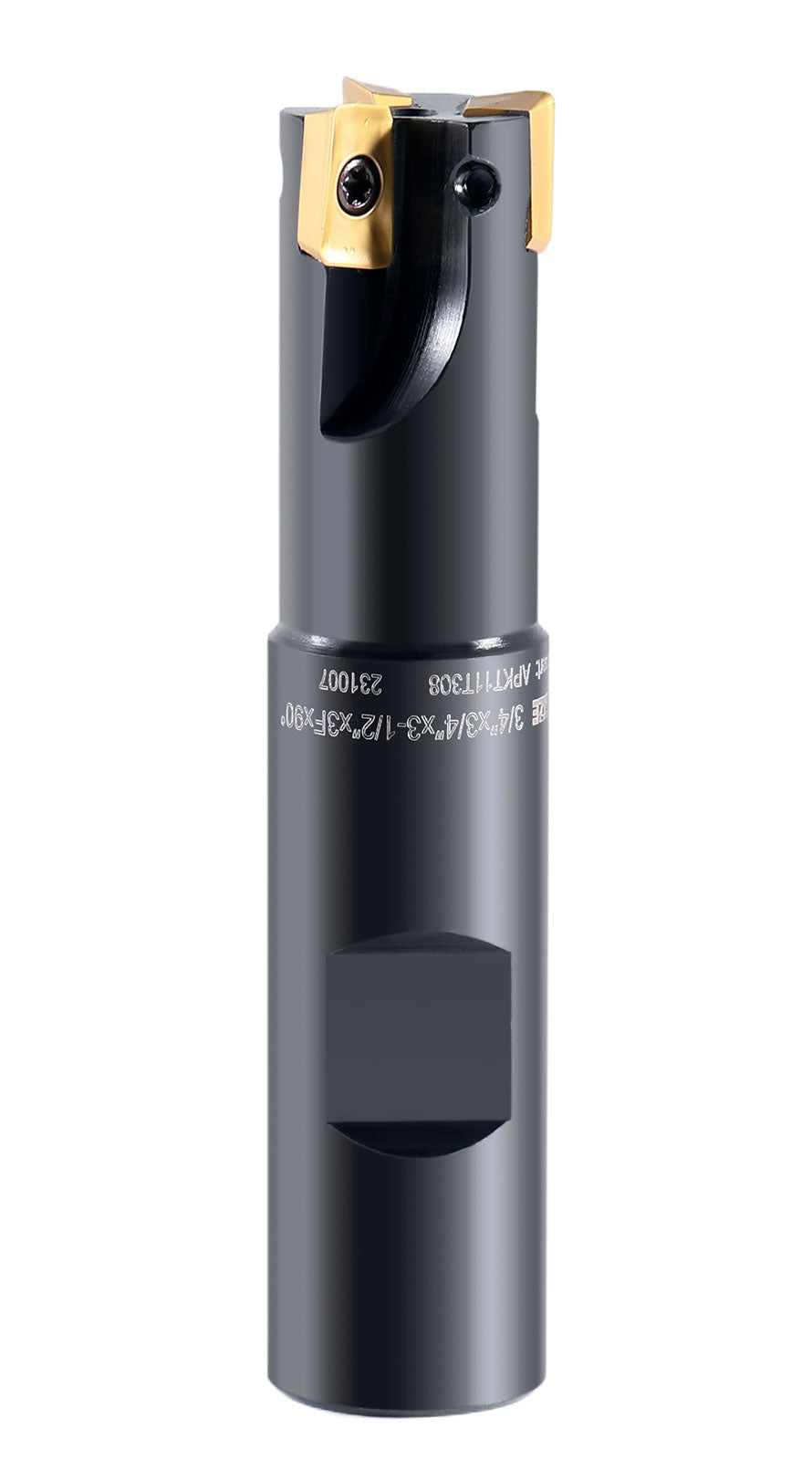

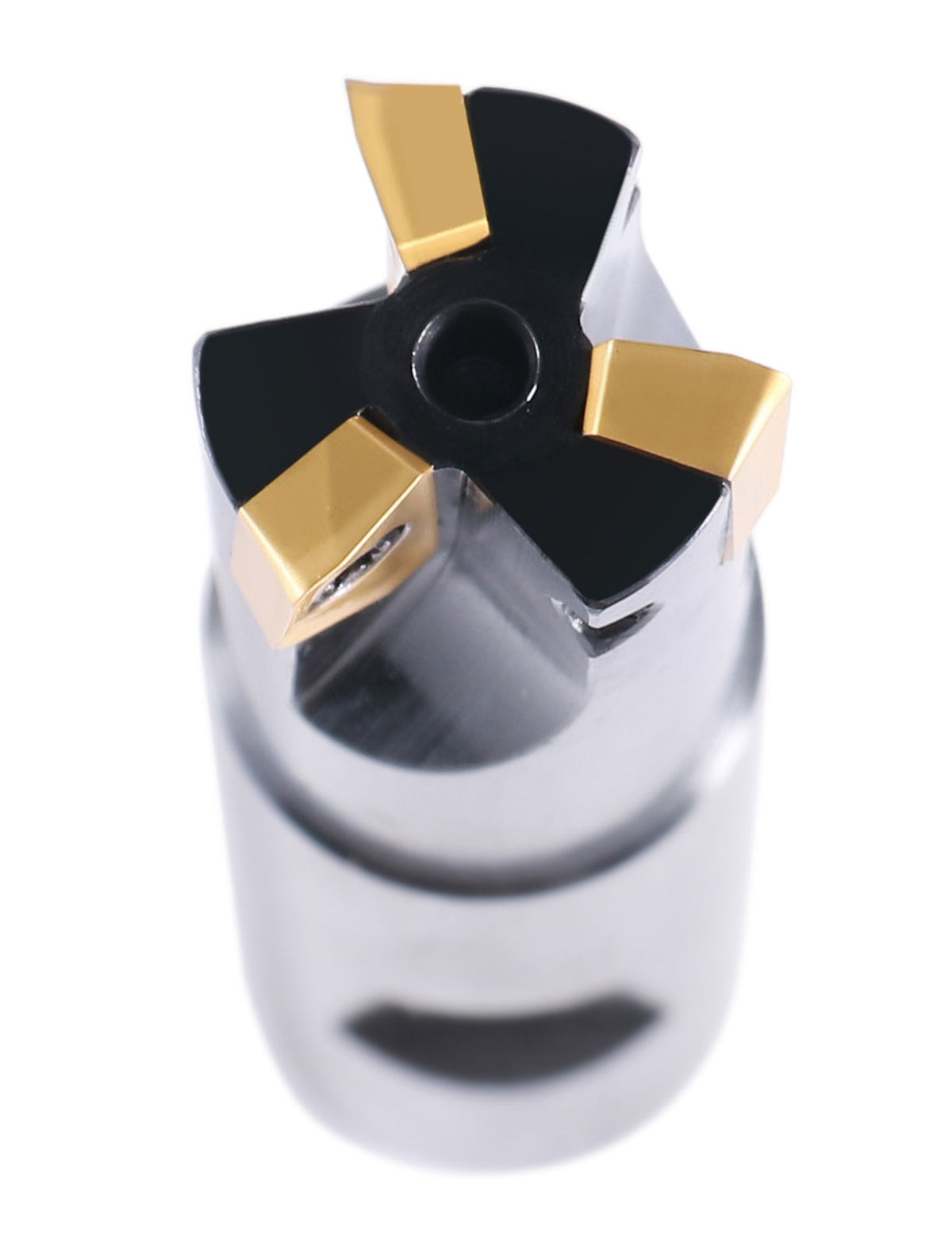

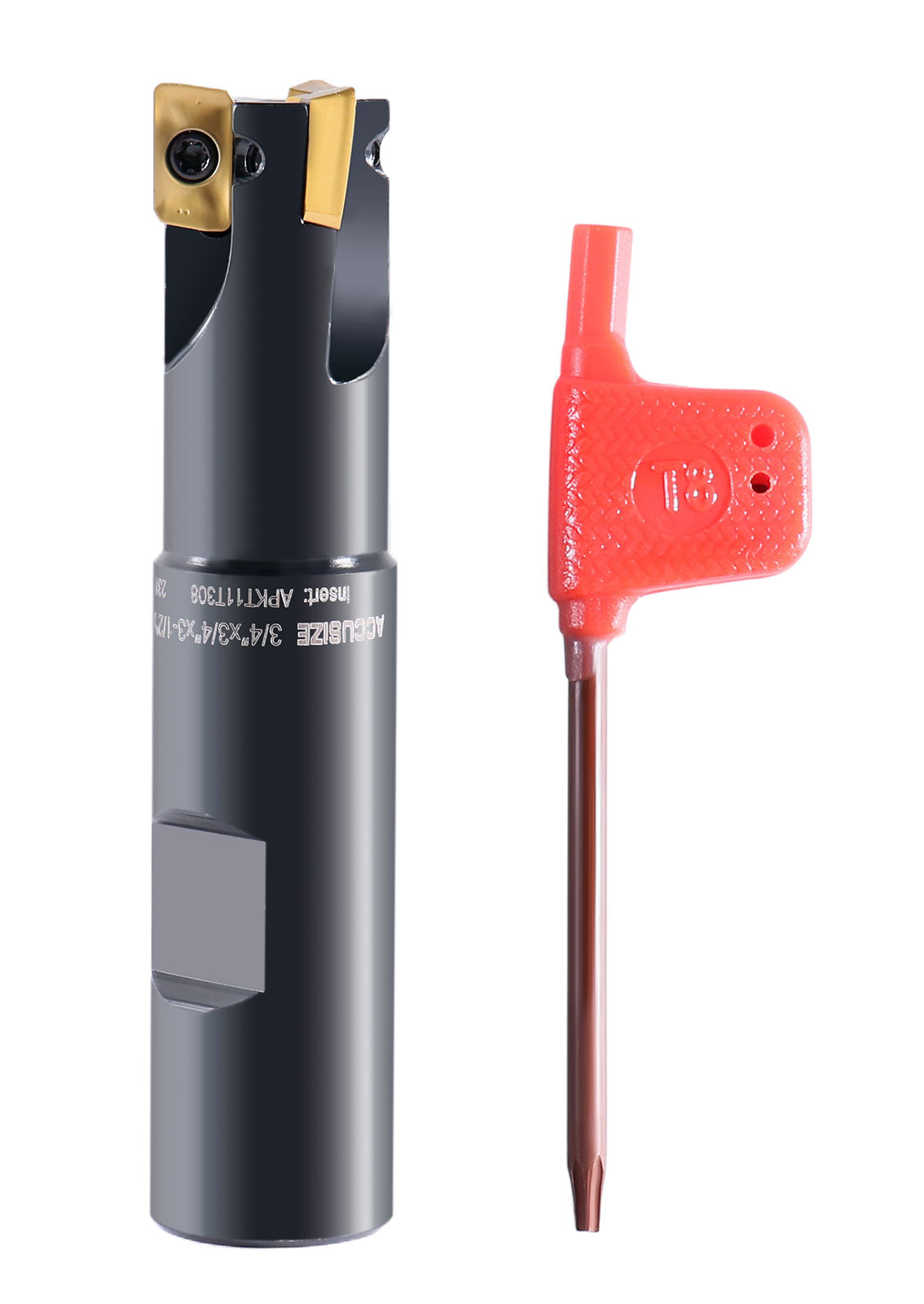

0056-0917 3/4" 3/4" 3-1/2" 0.433" 3 M2.5 x 6 APKT11T3

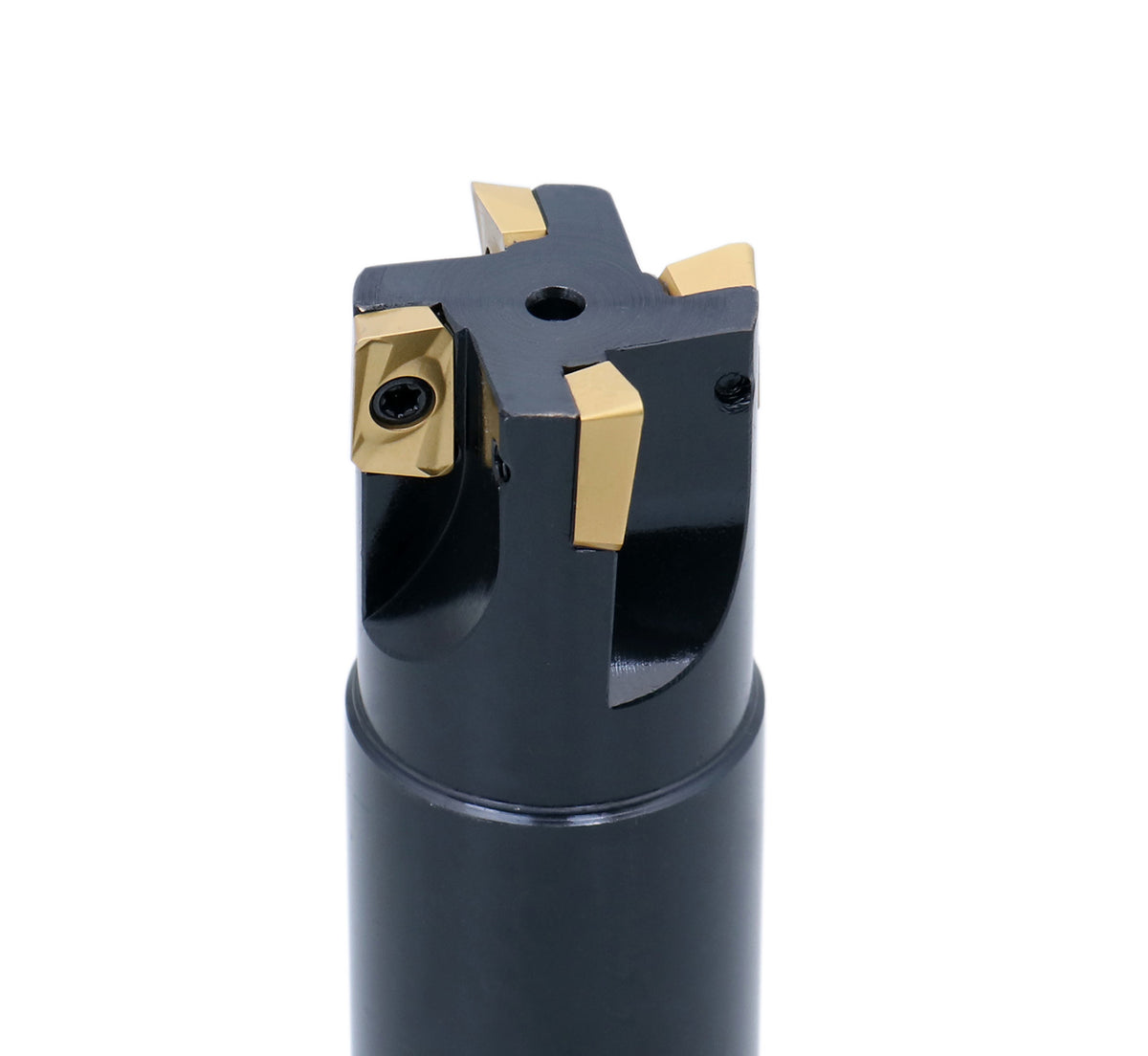

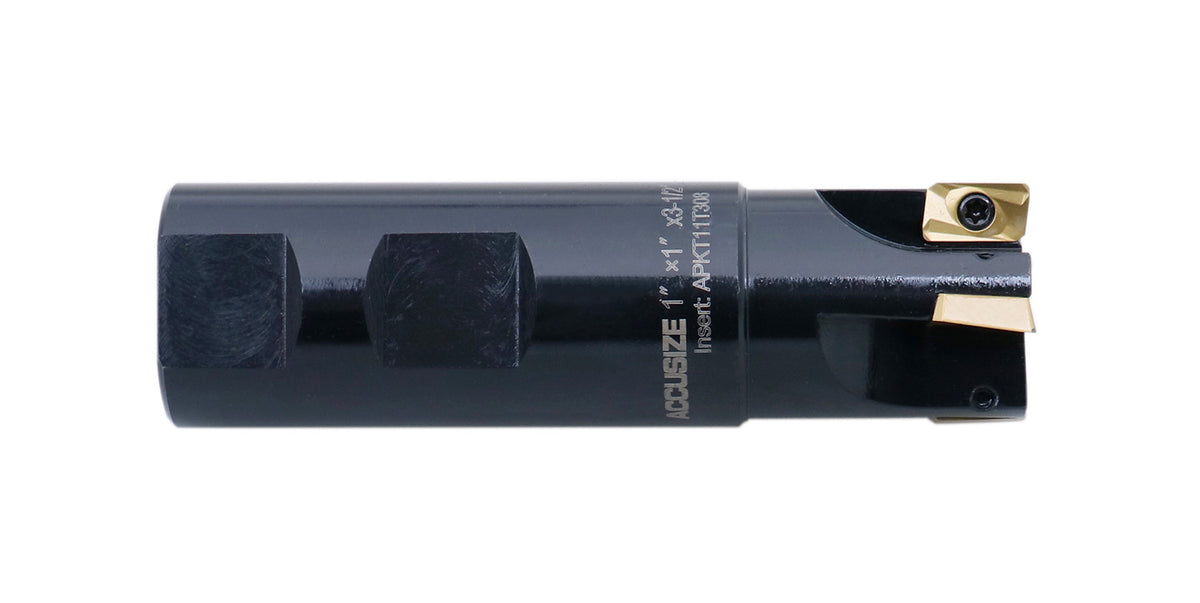

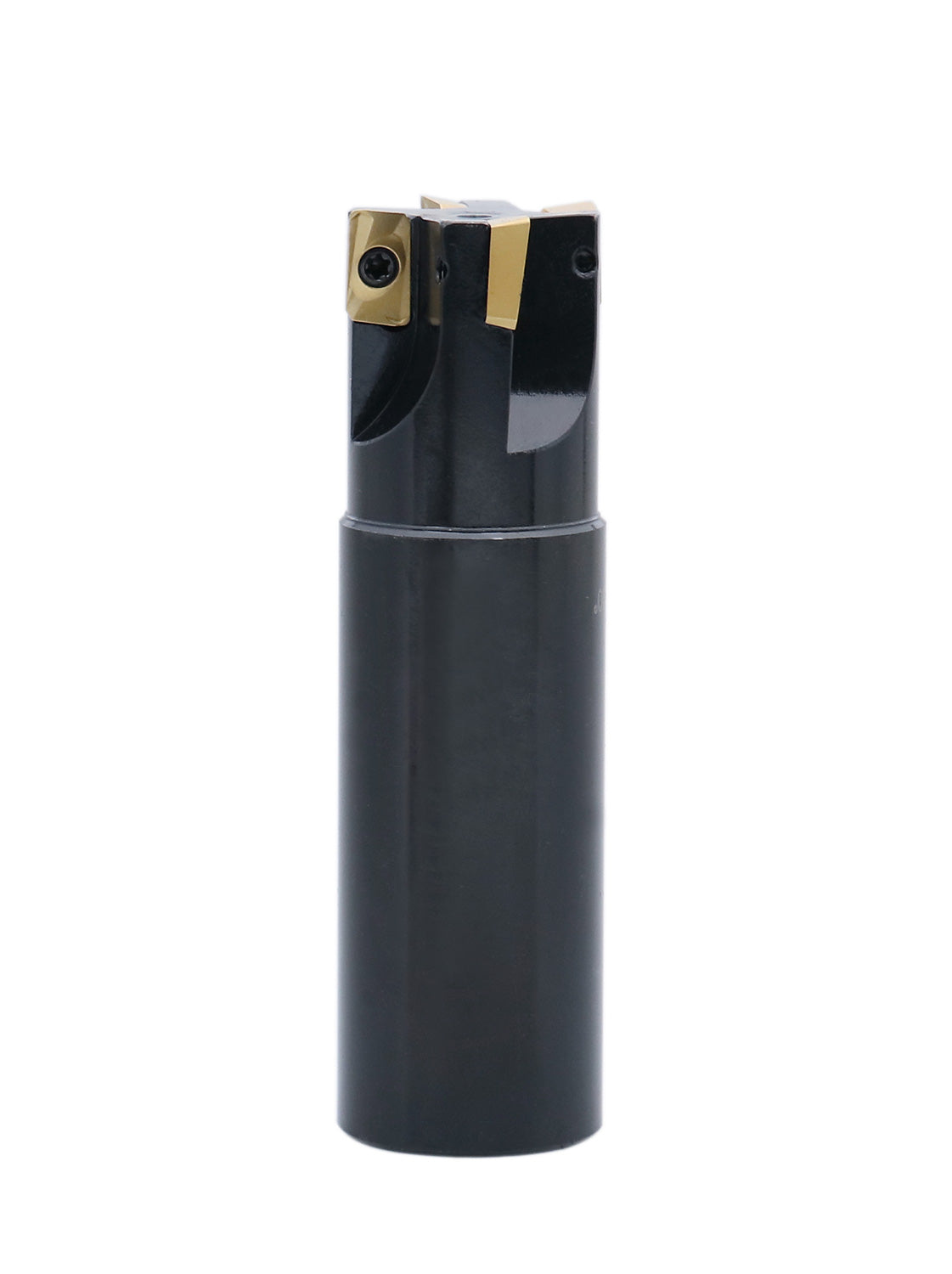

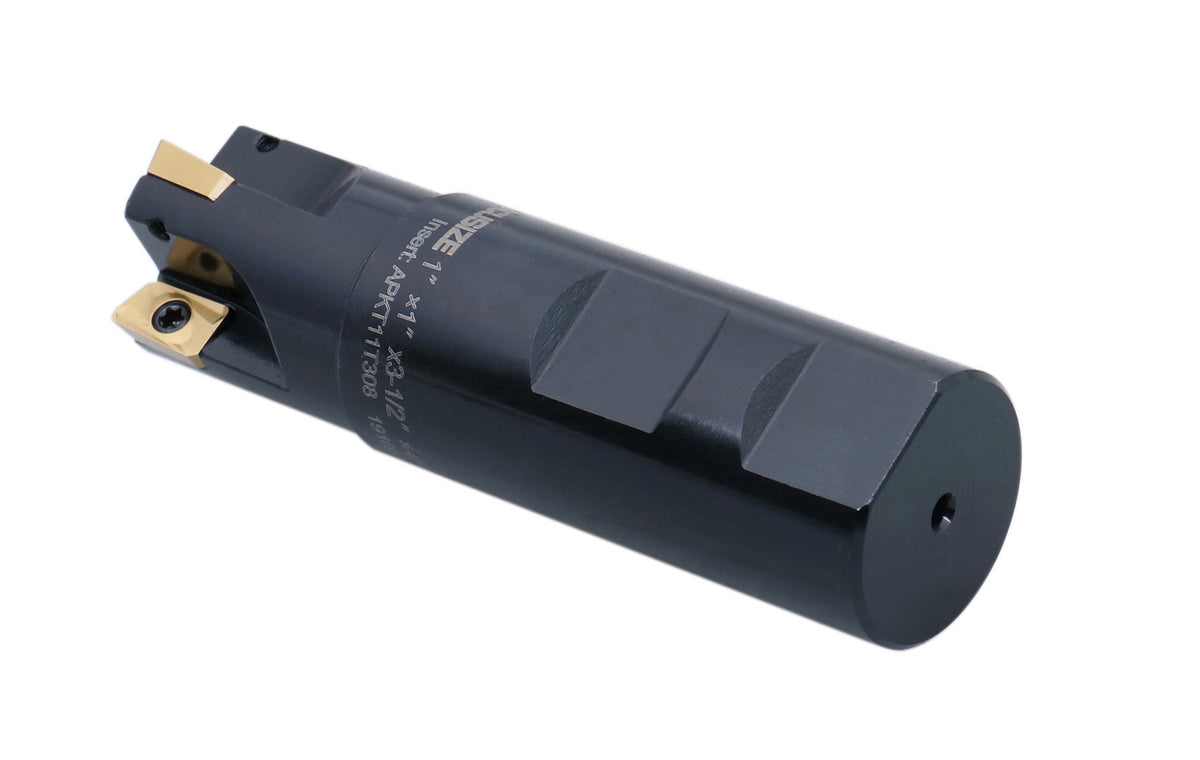

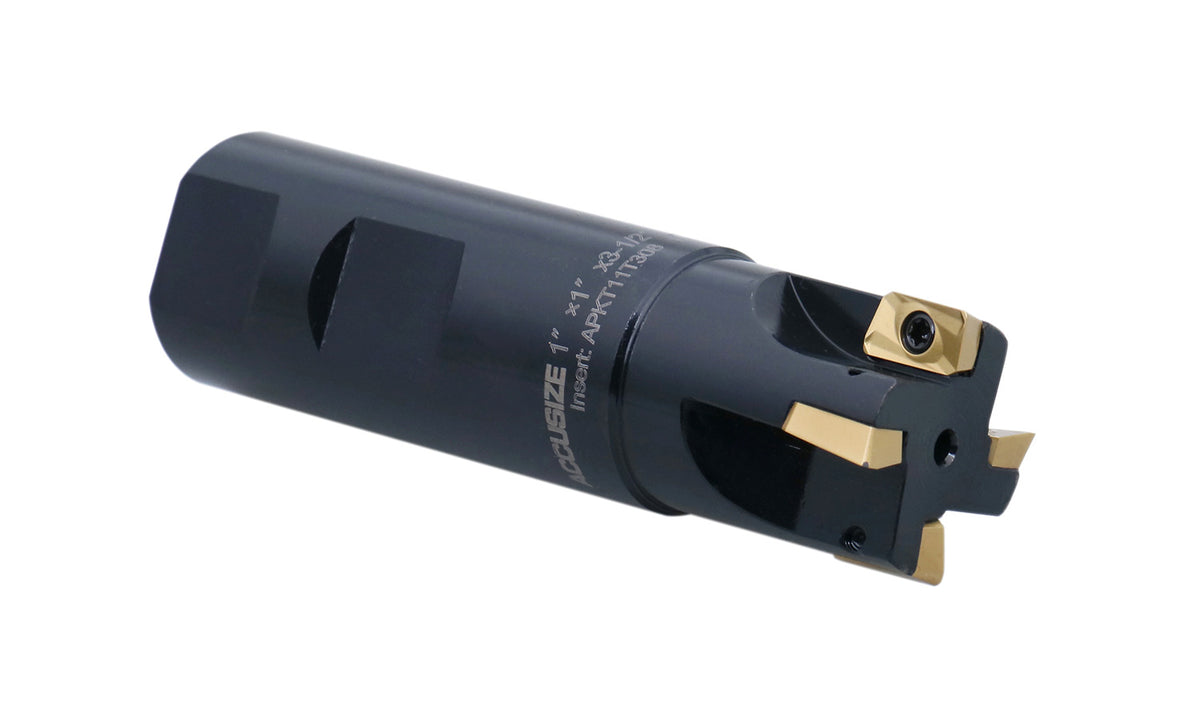

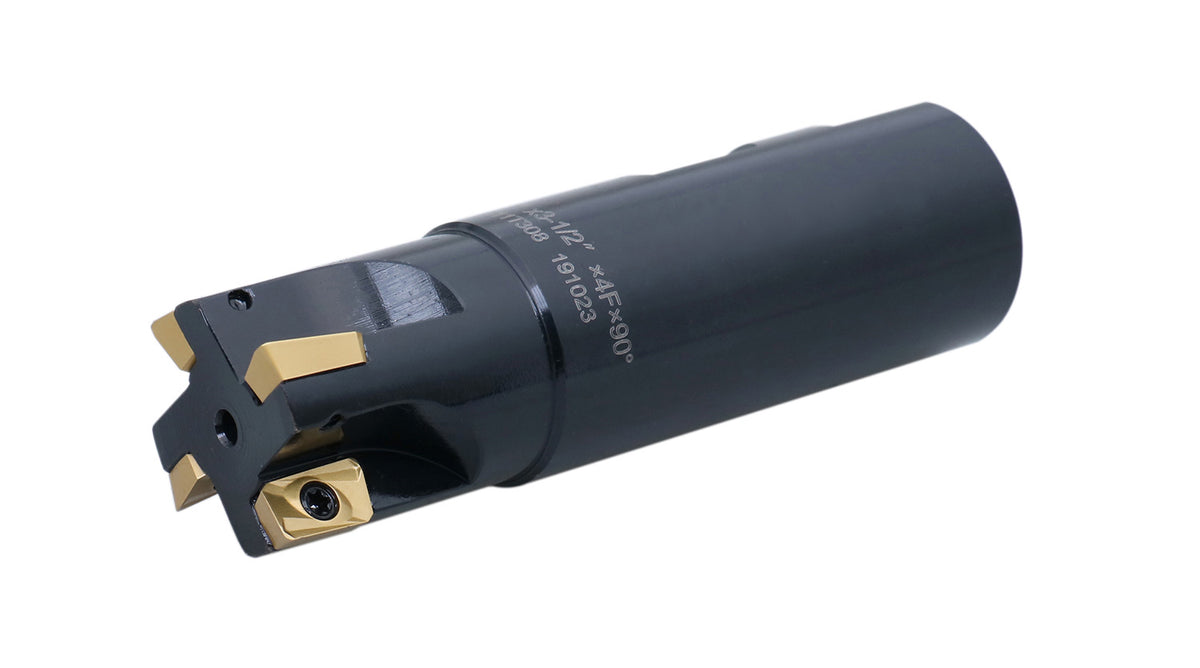

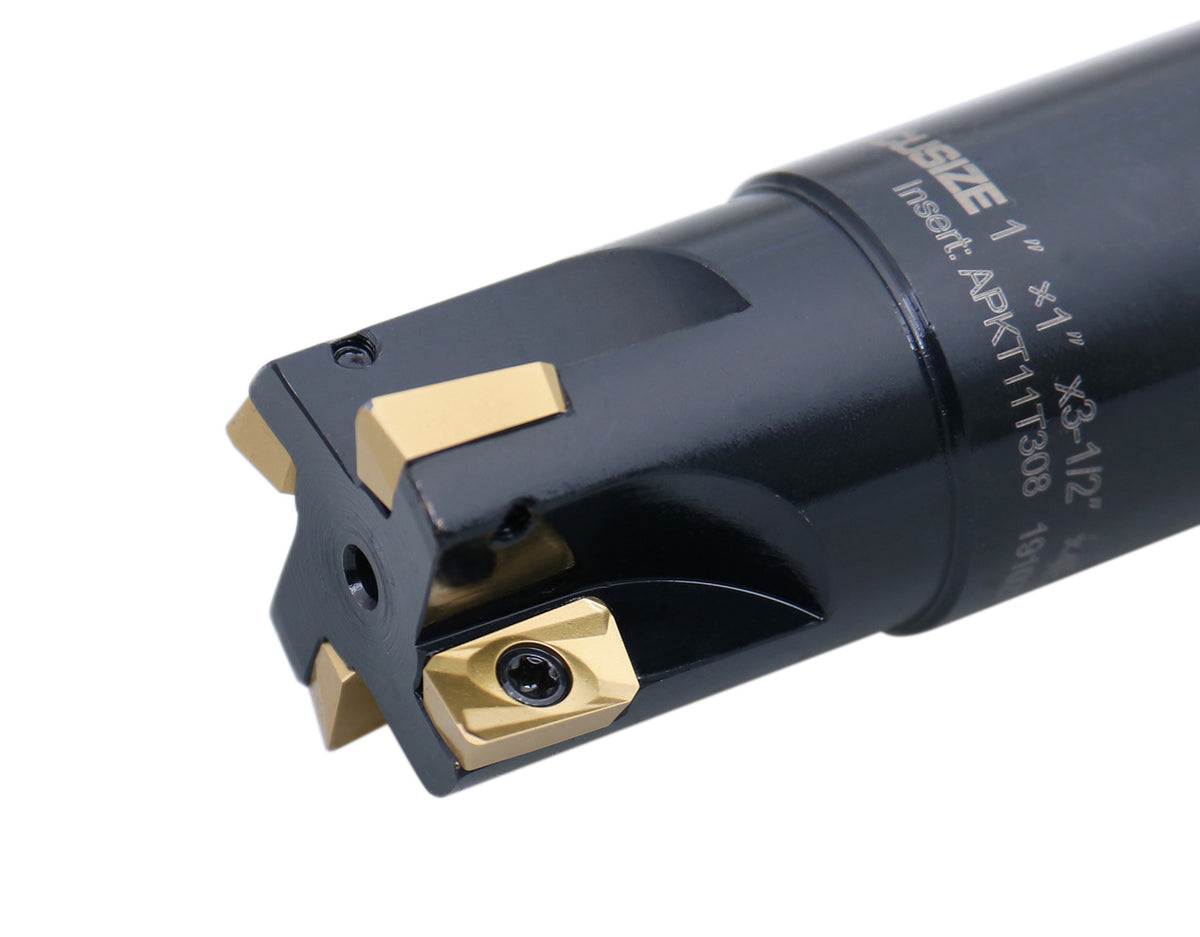

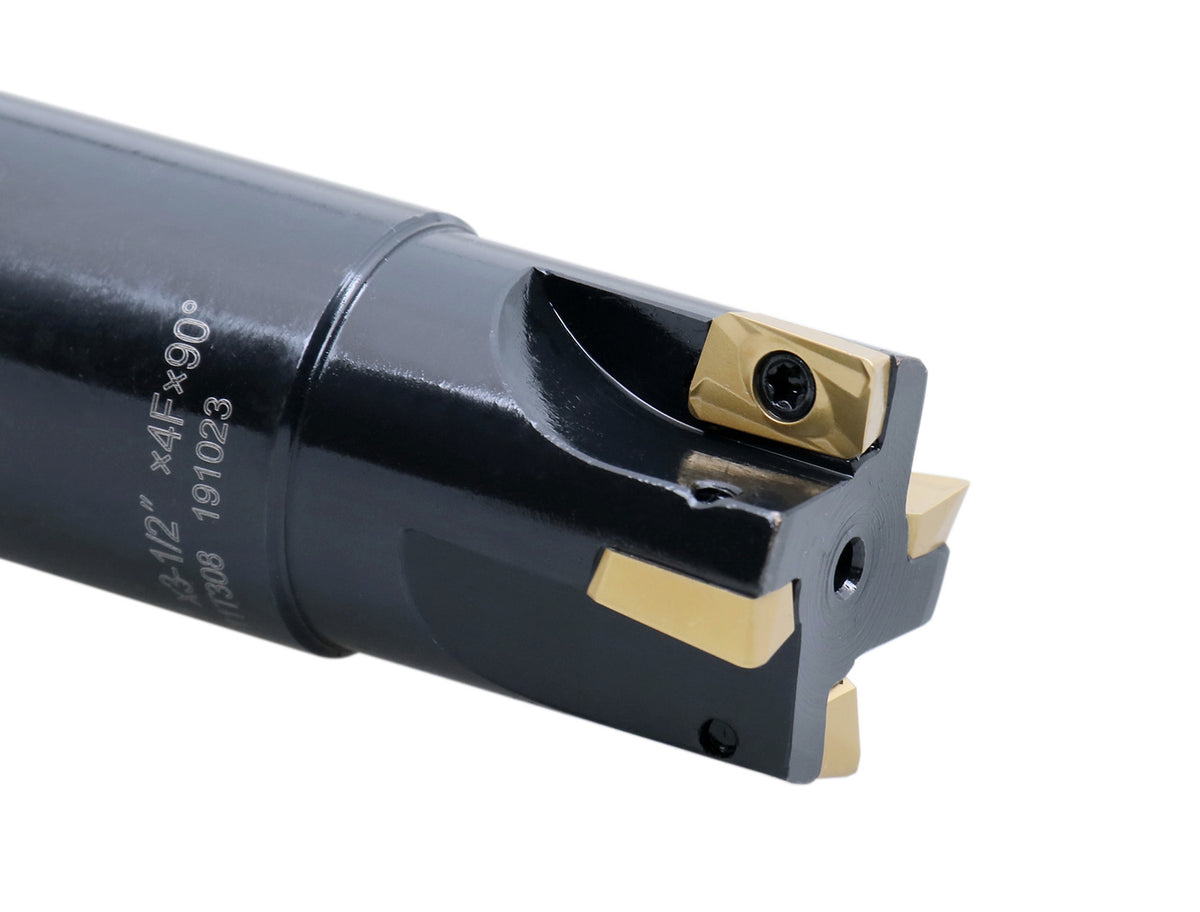

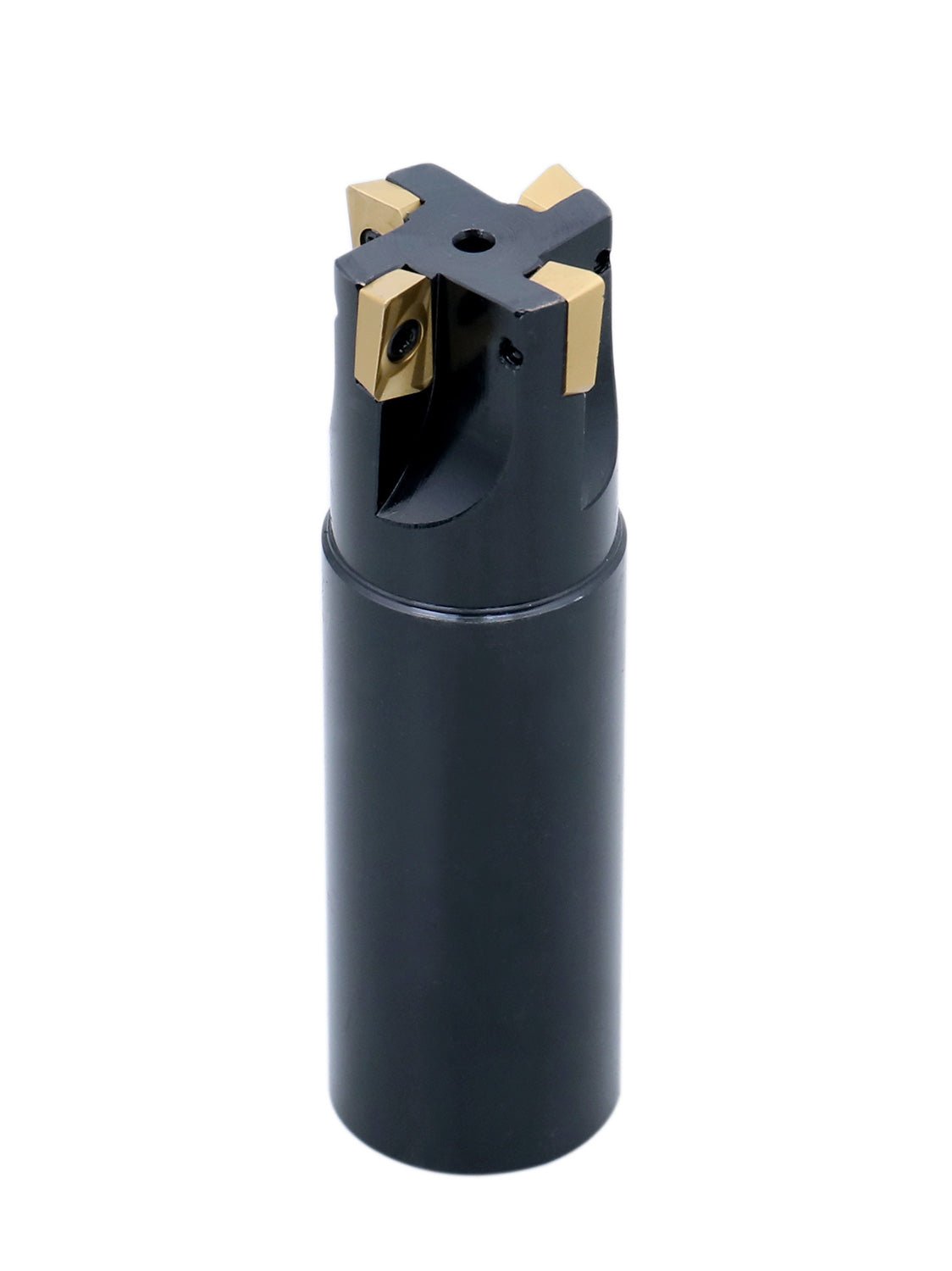

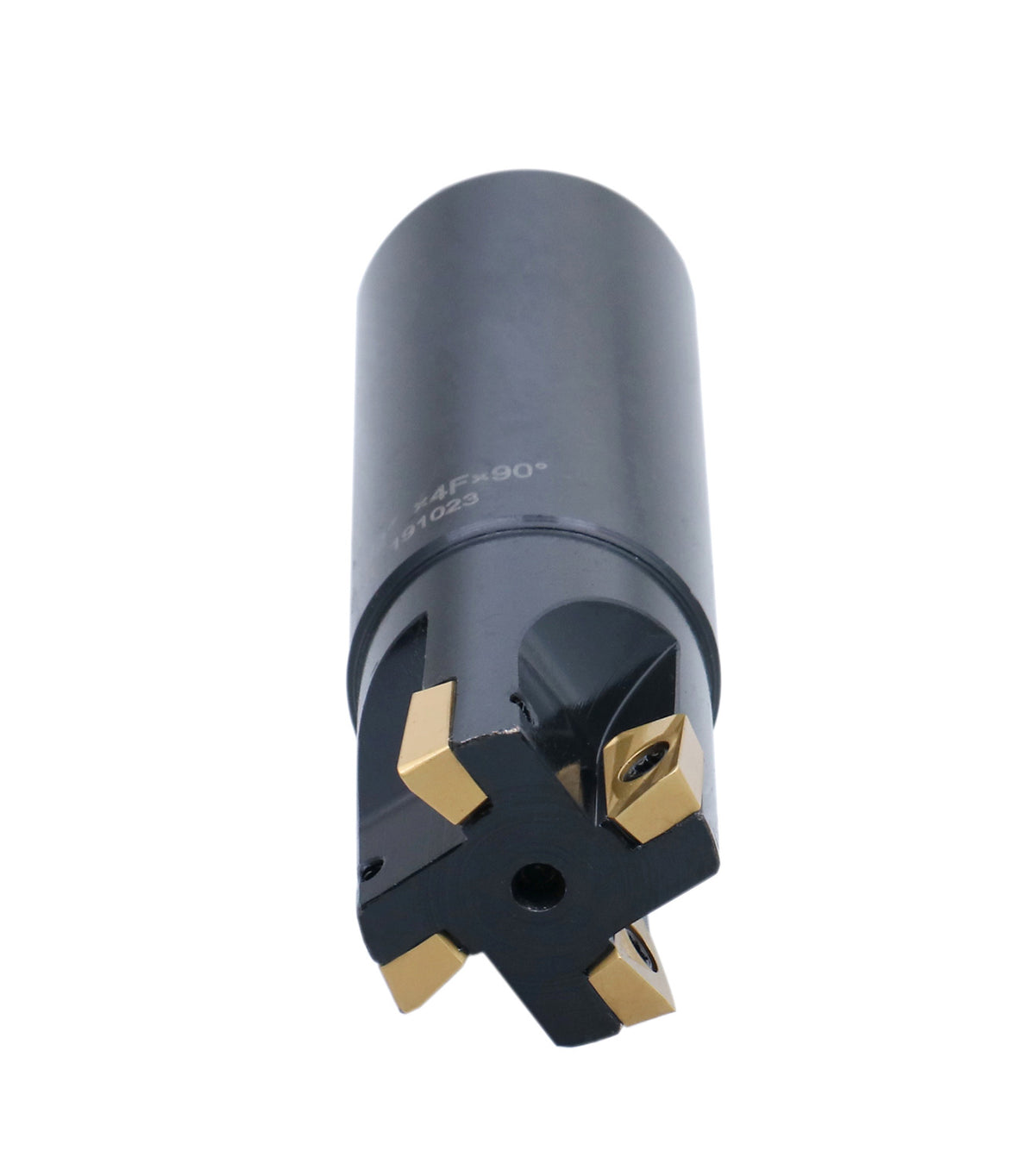

0056-0920 1" 1" 3-1/2" 0.433" 4 M2.5 x 6 APKT11T3
0056-0921 1" 1" 3-3/4" 0.551" 2 M4 x 8 APKT1604

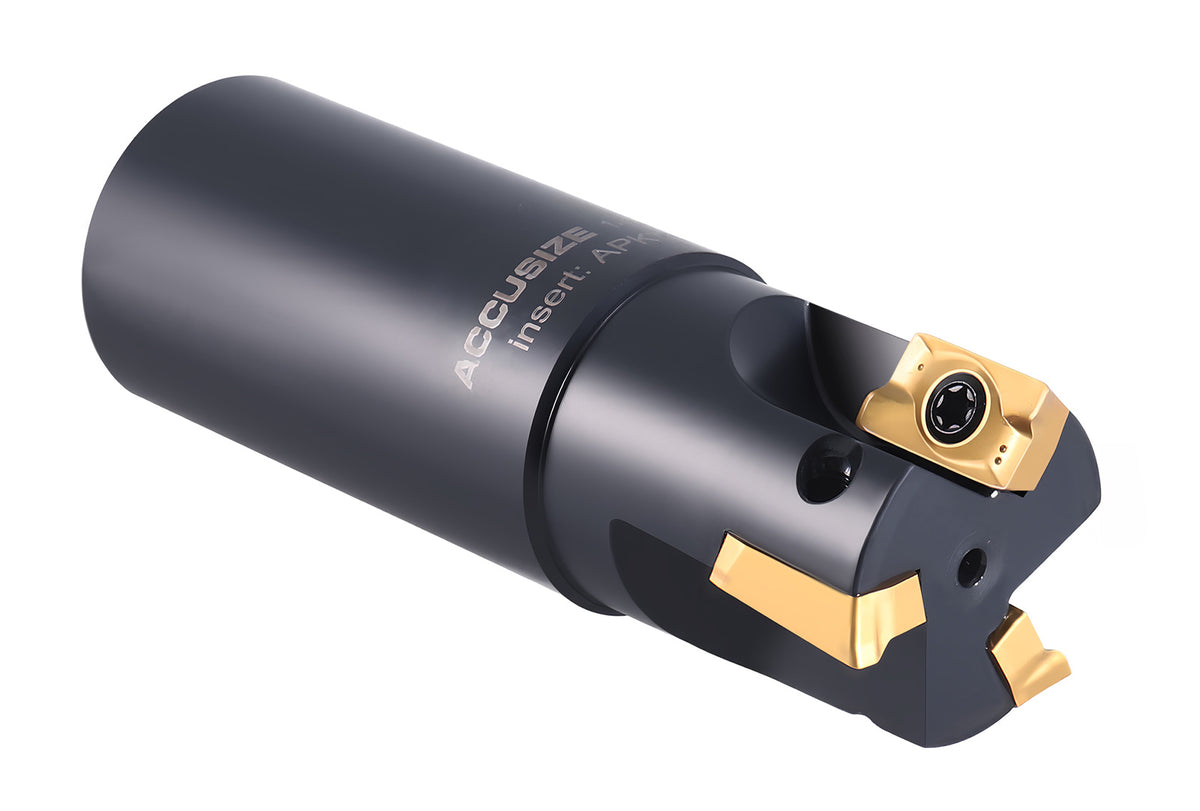

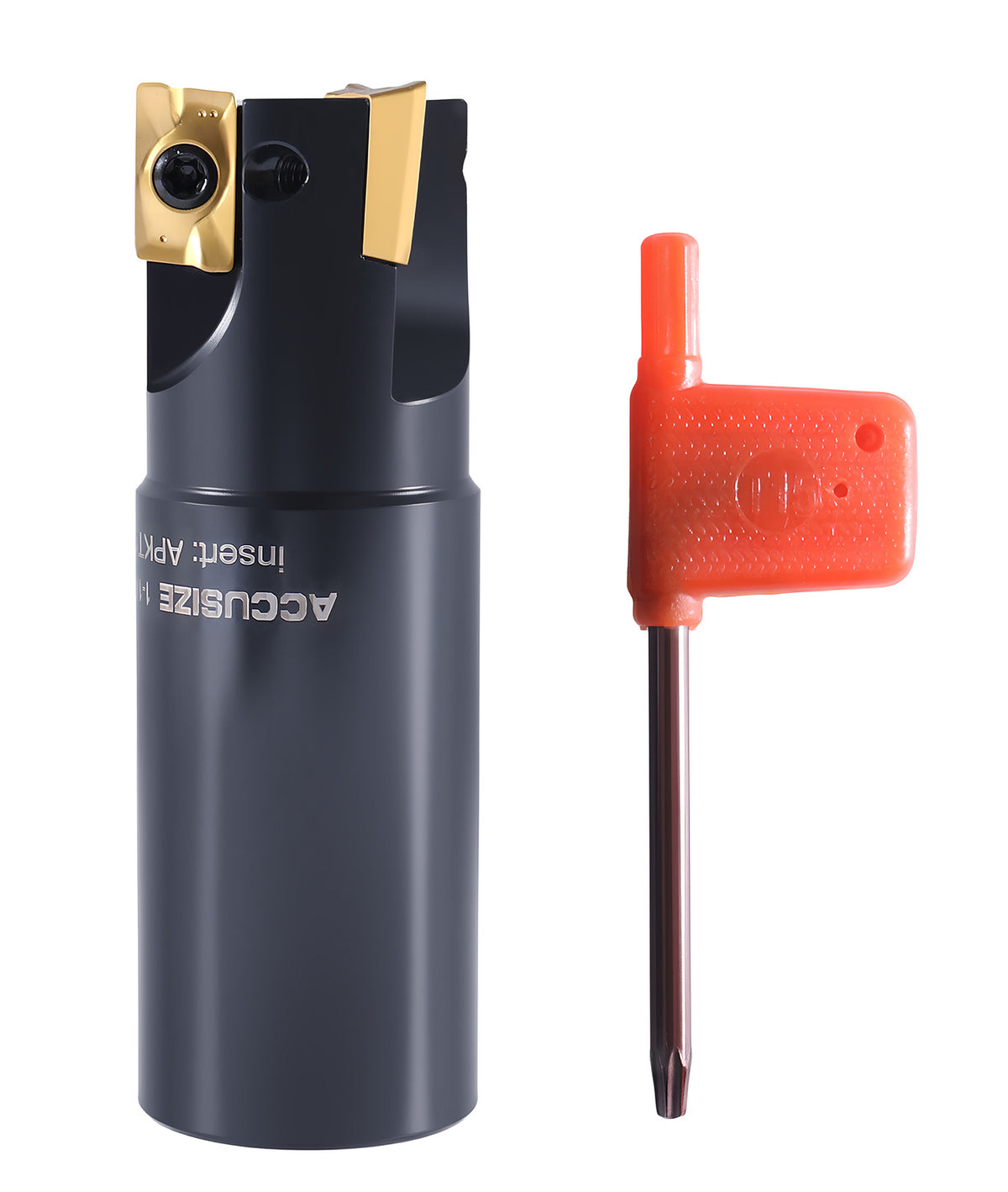

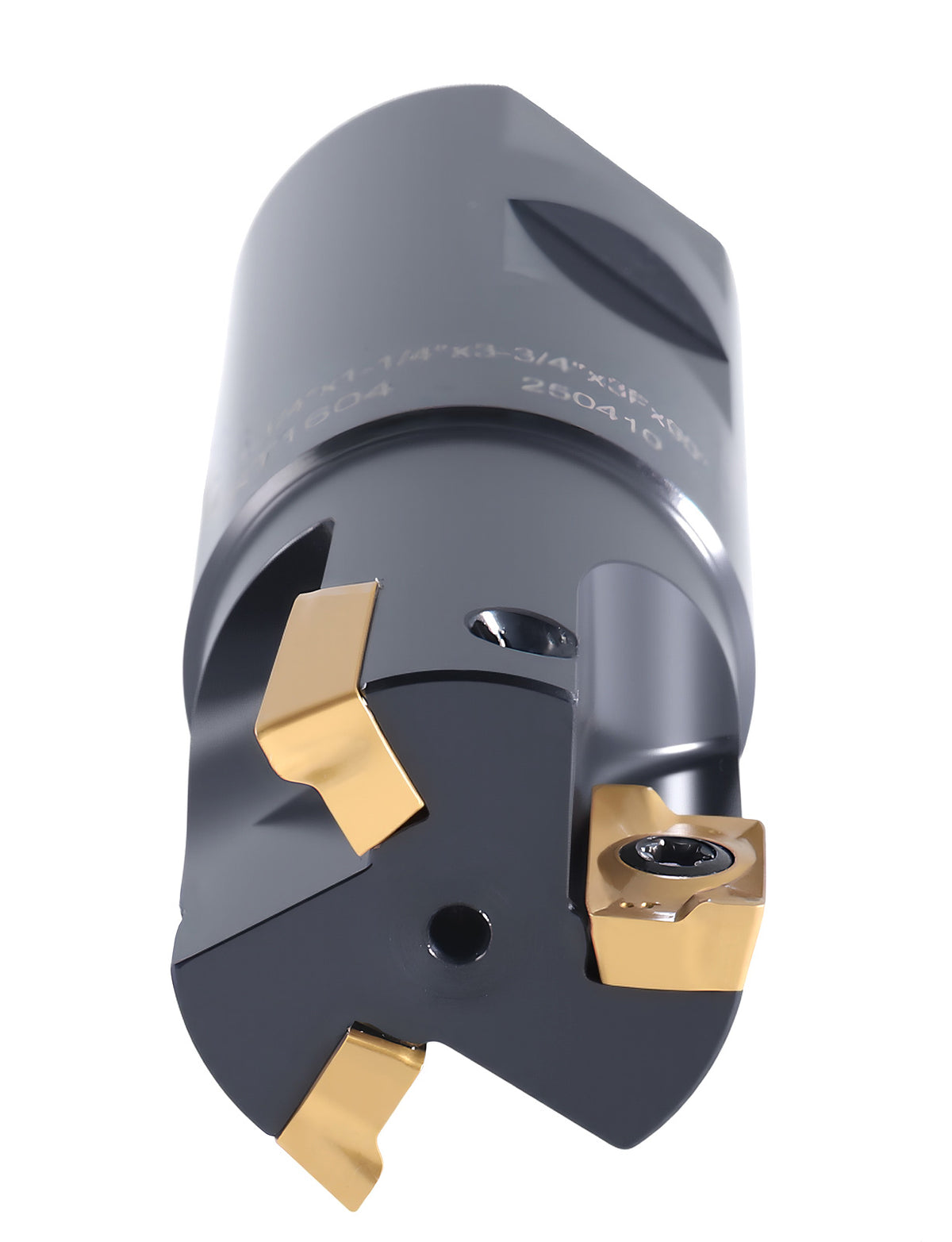

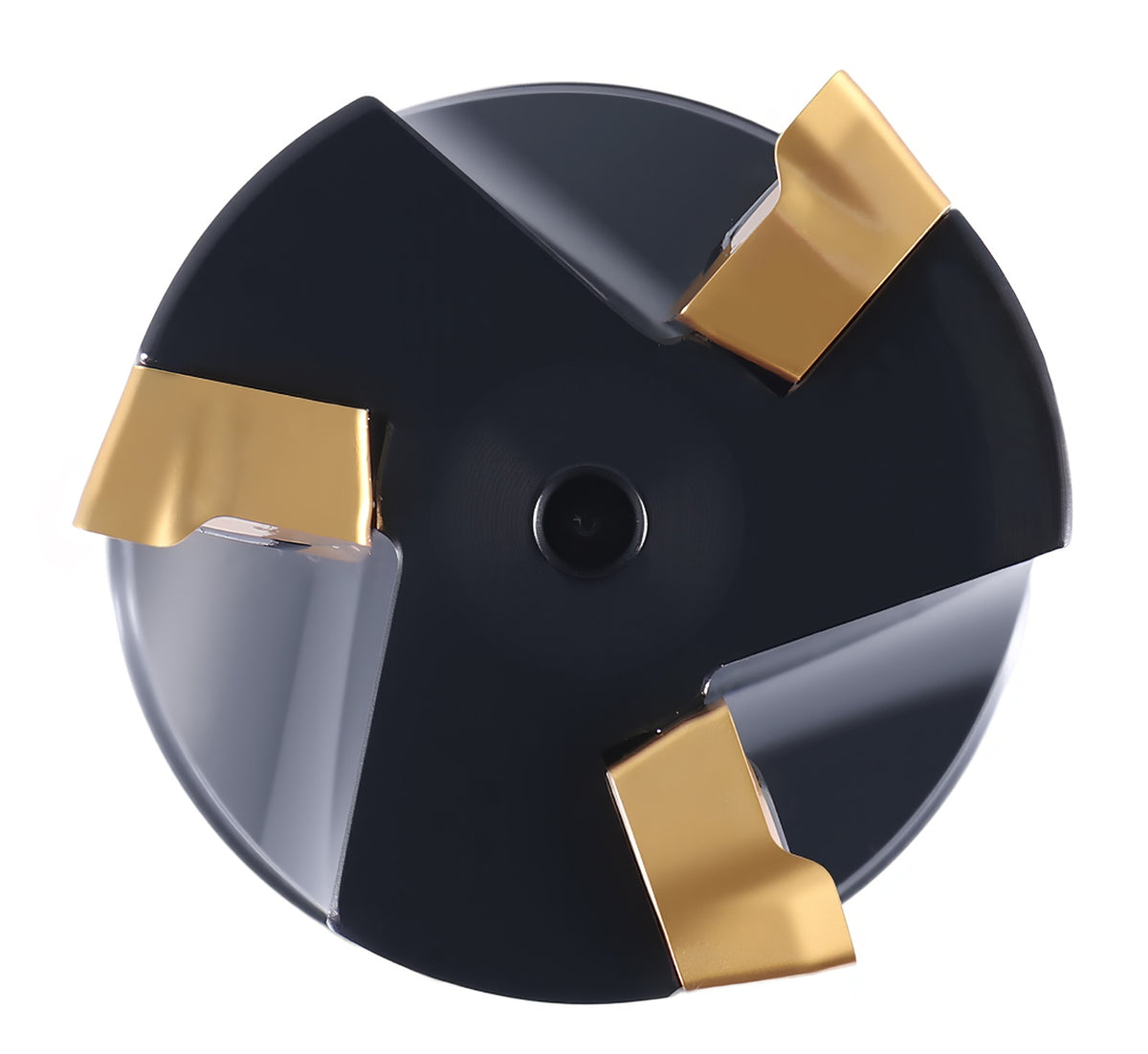

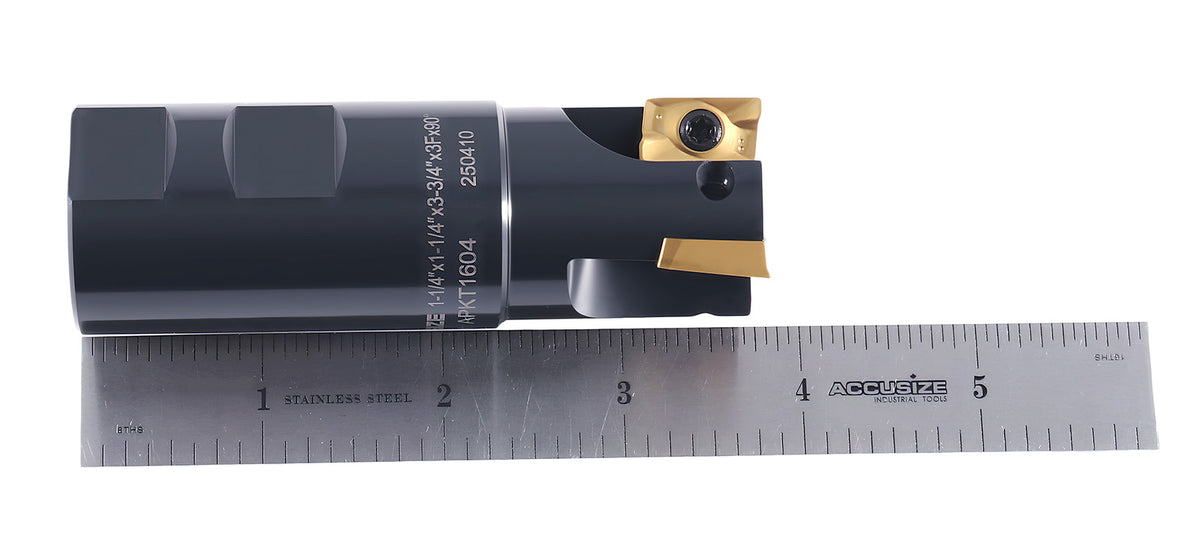

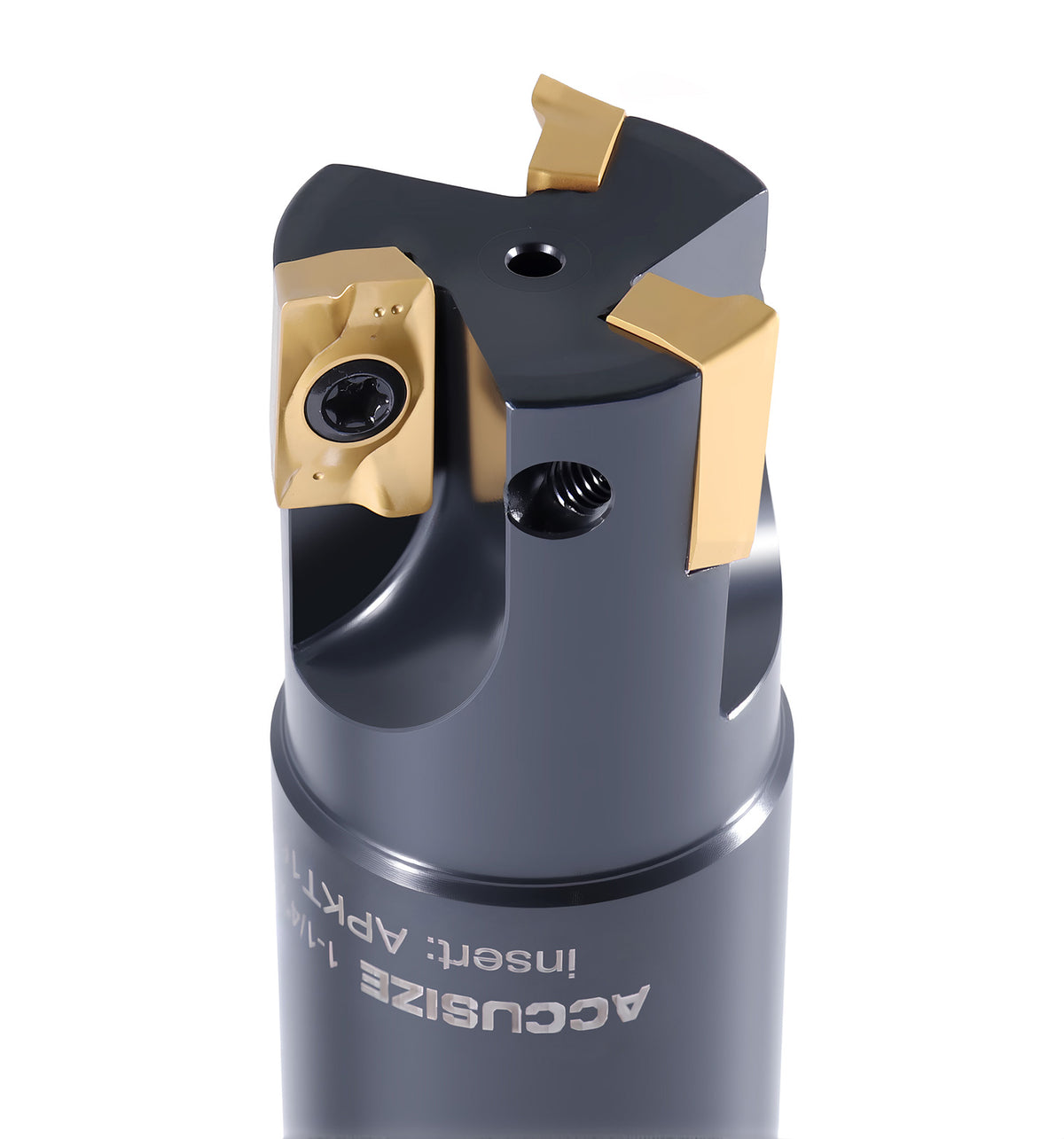

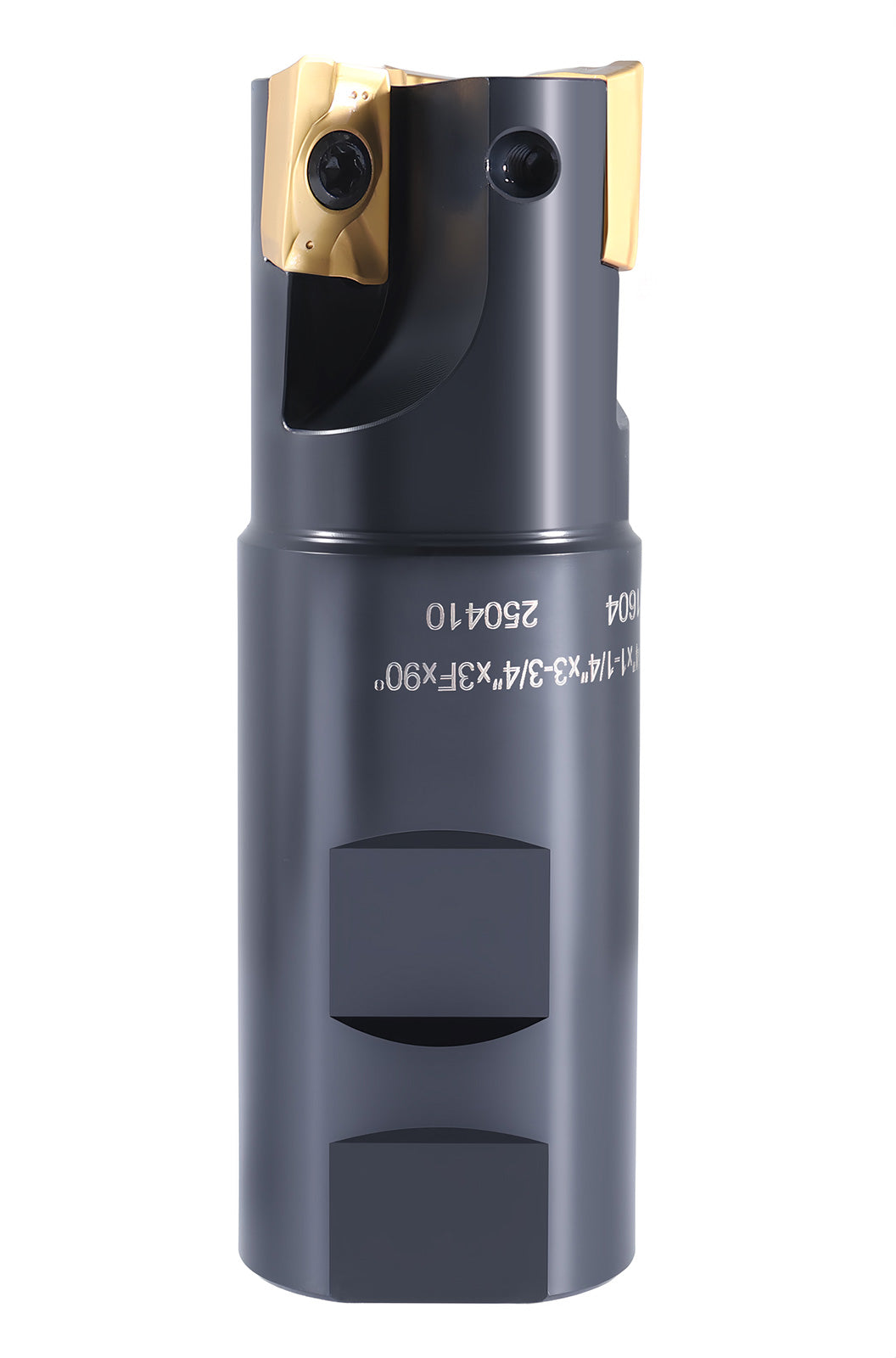

0056-0922 1-1/4" 1-1/4" 3-3/4" 0.551" 3 M4 x 8 APKT1604

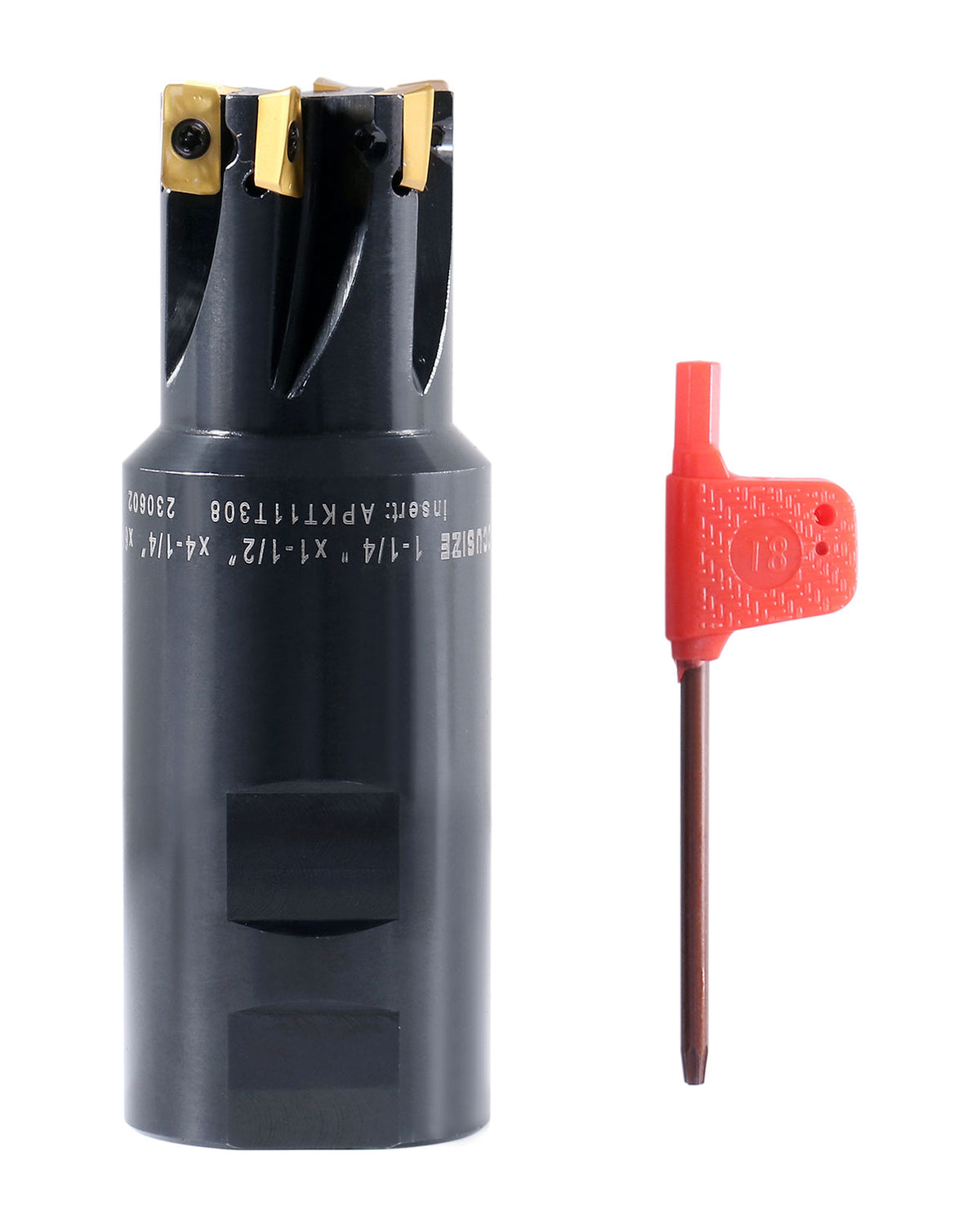

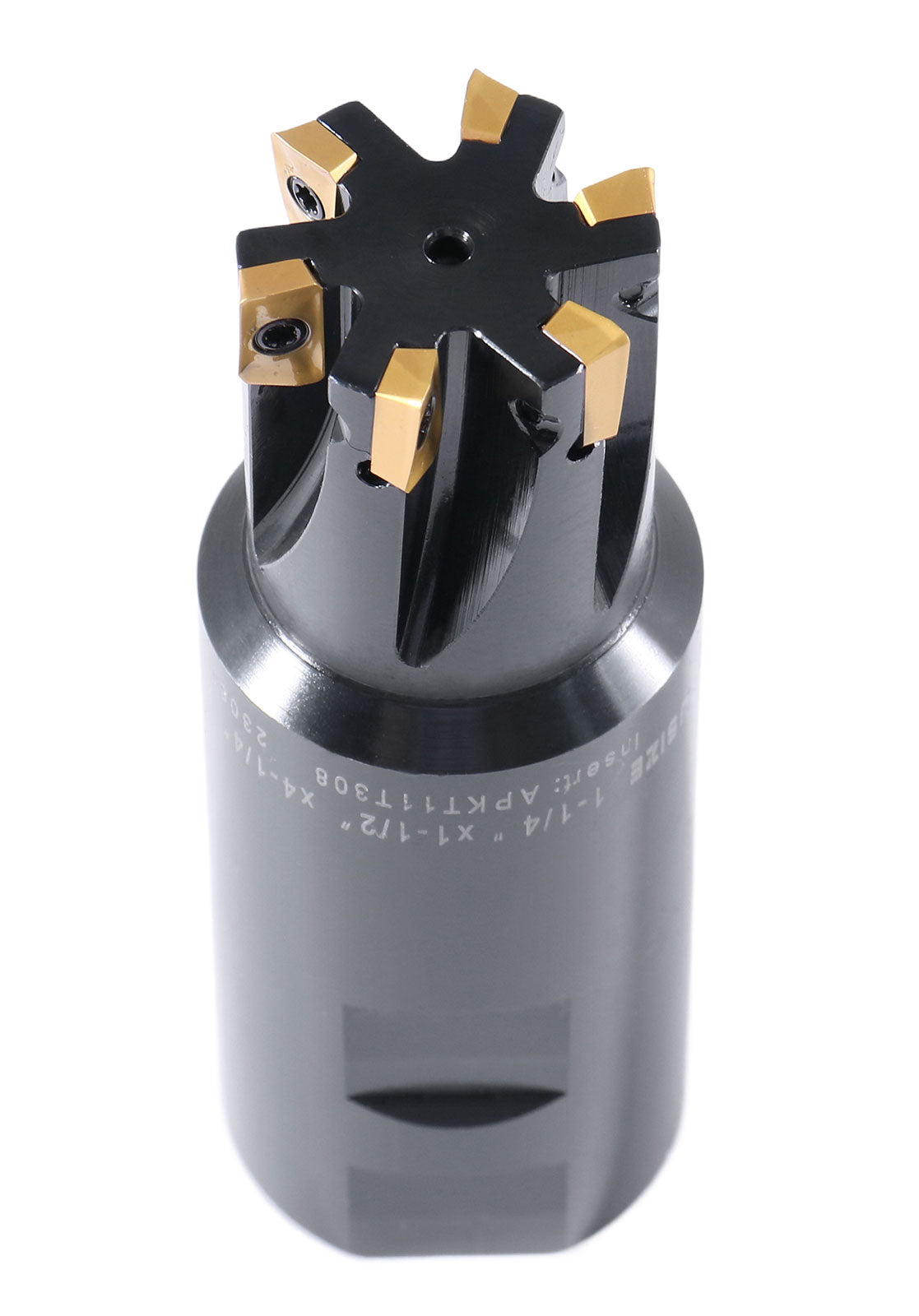

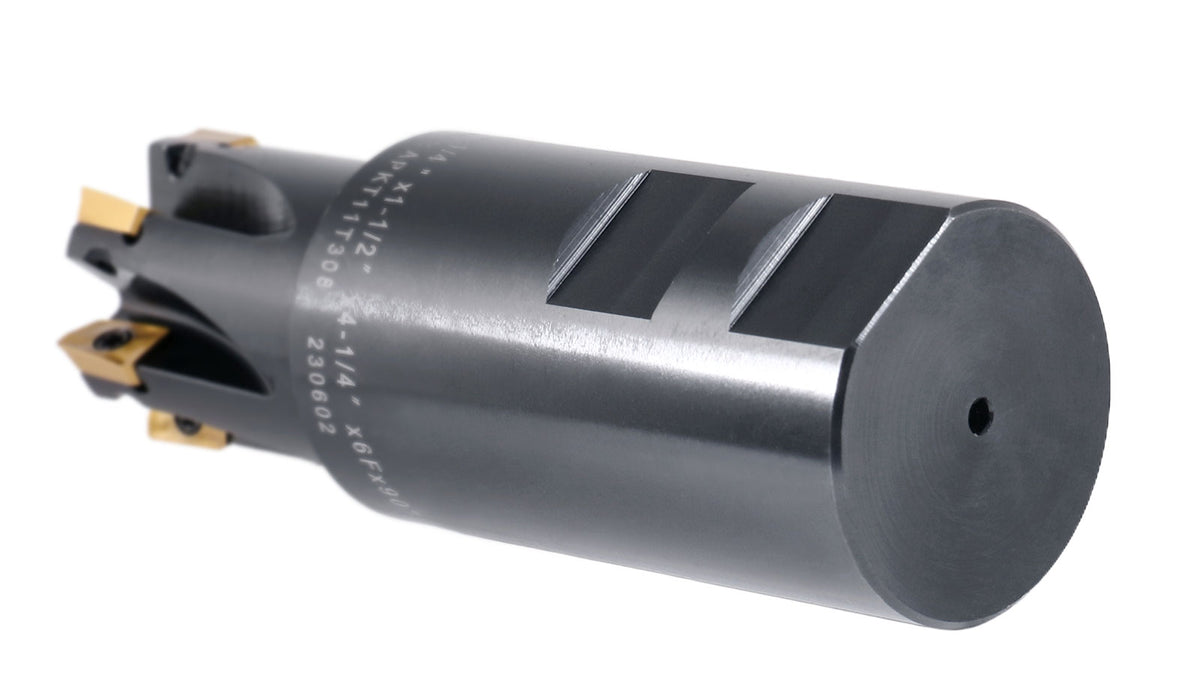

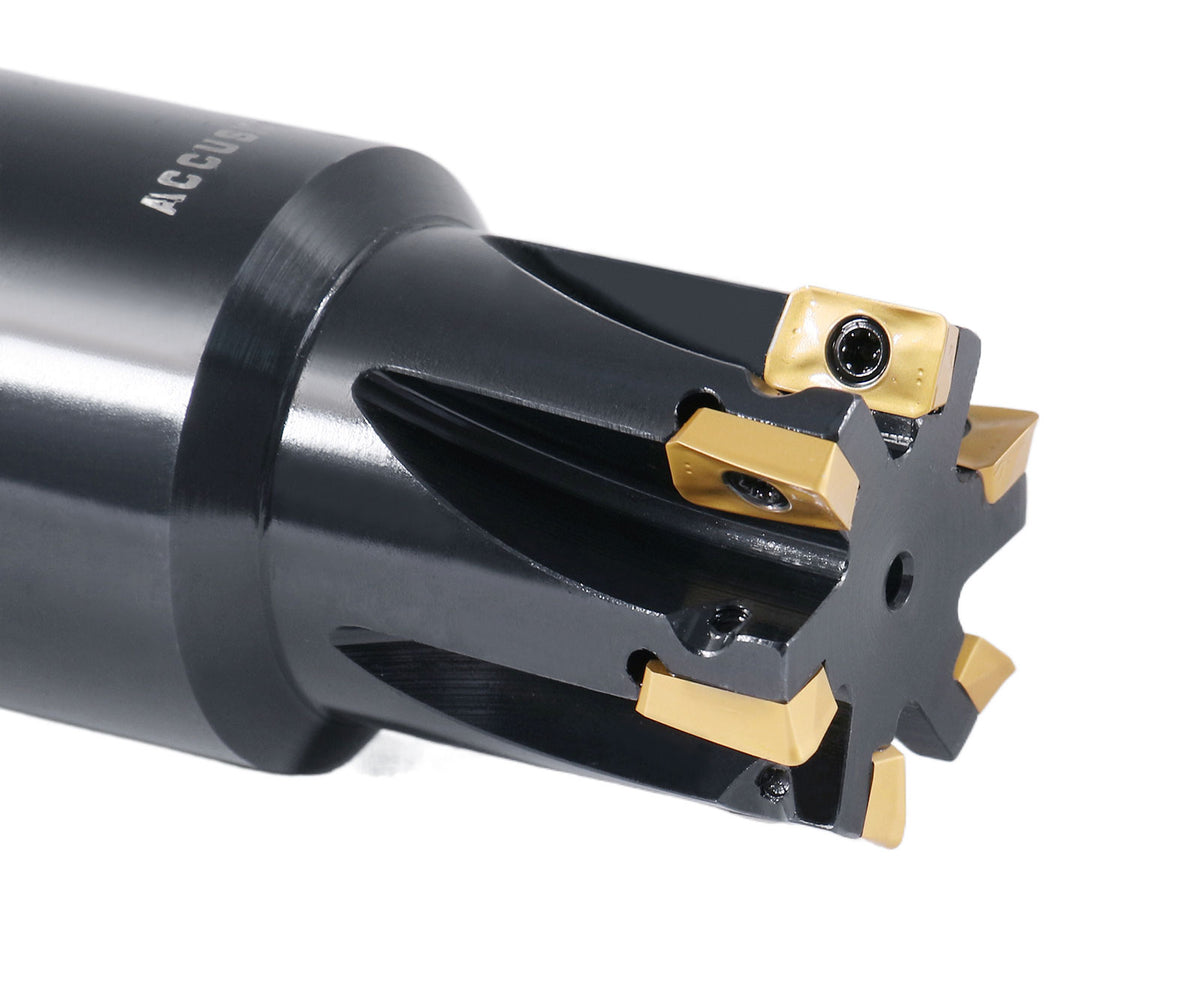

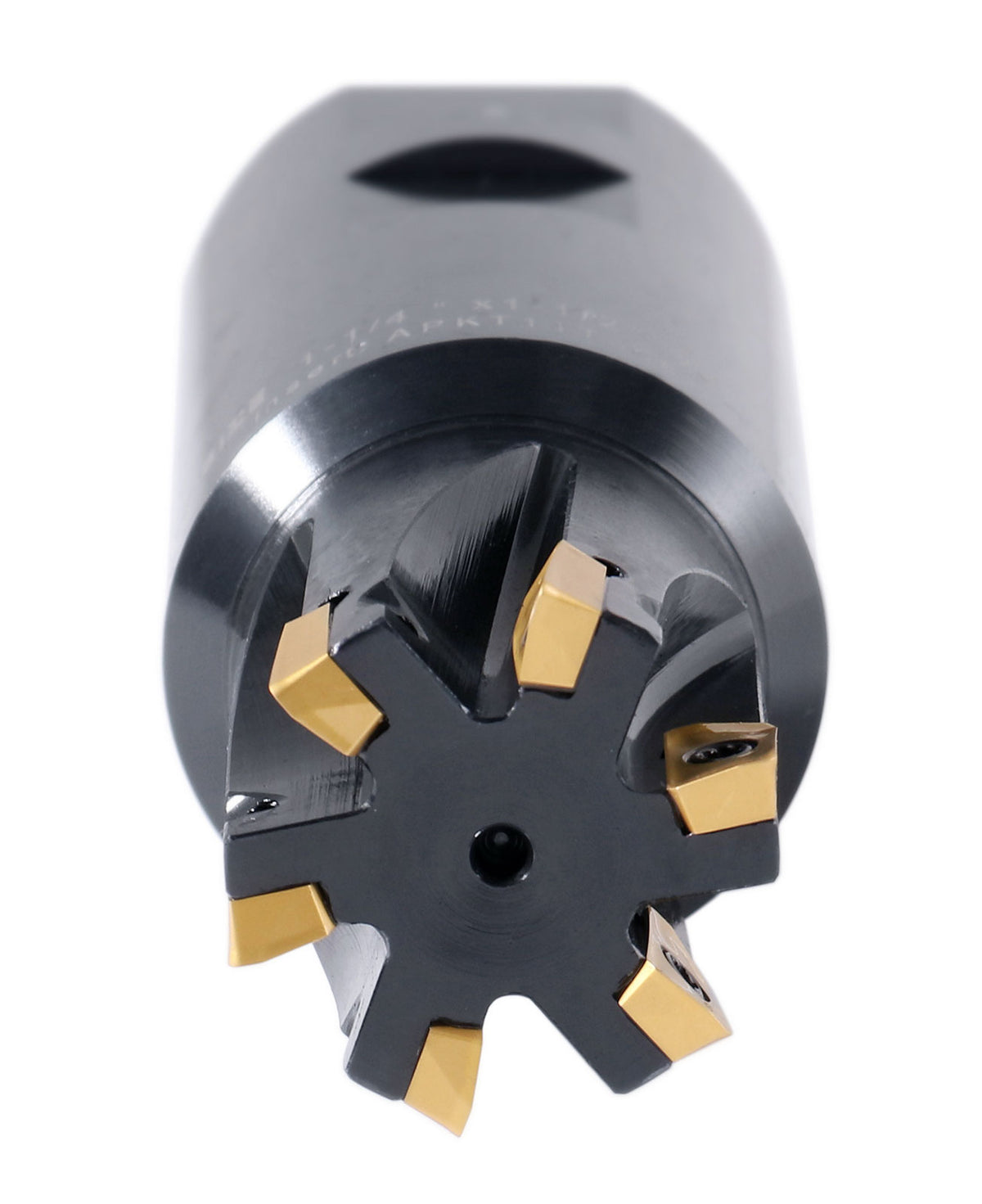

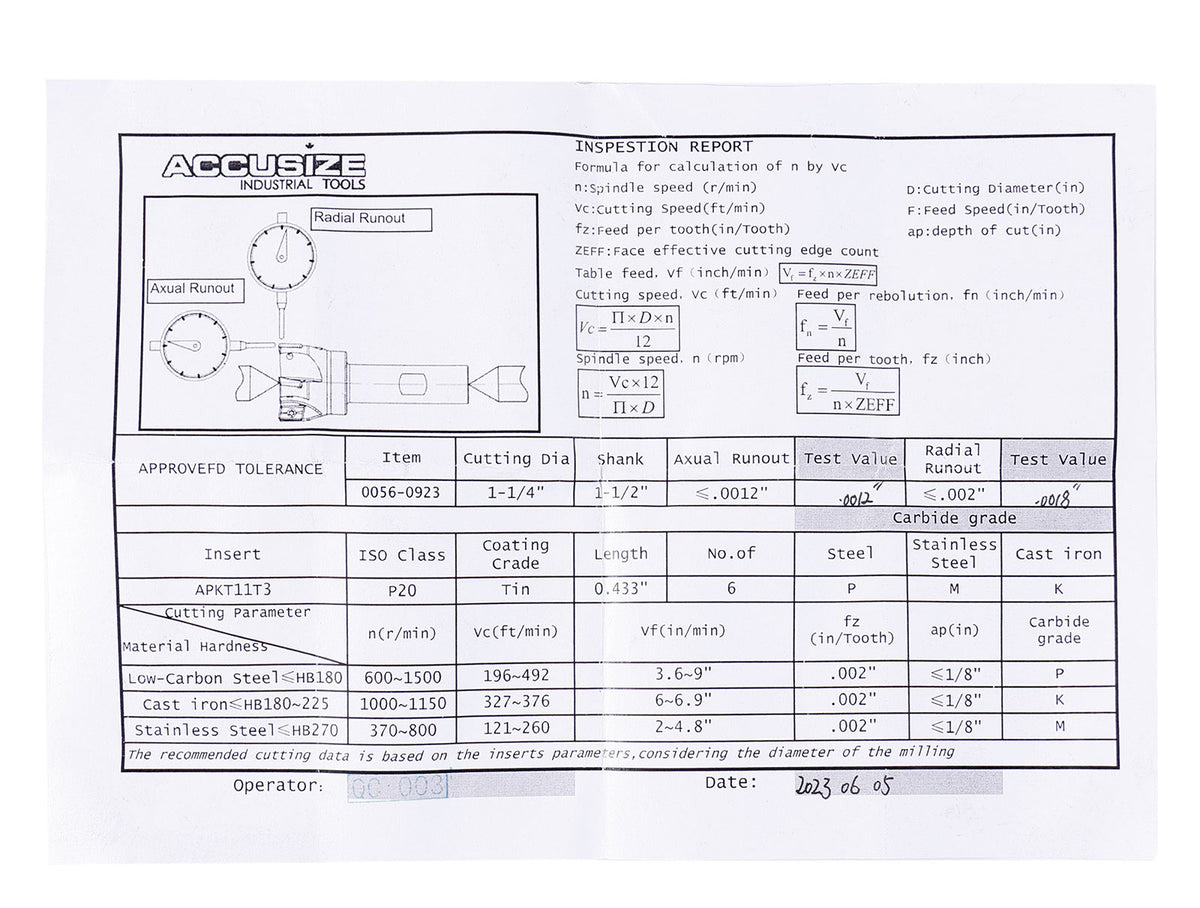

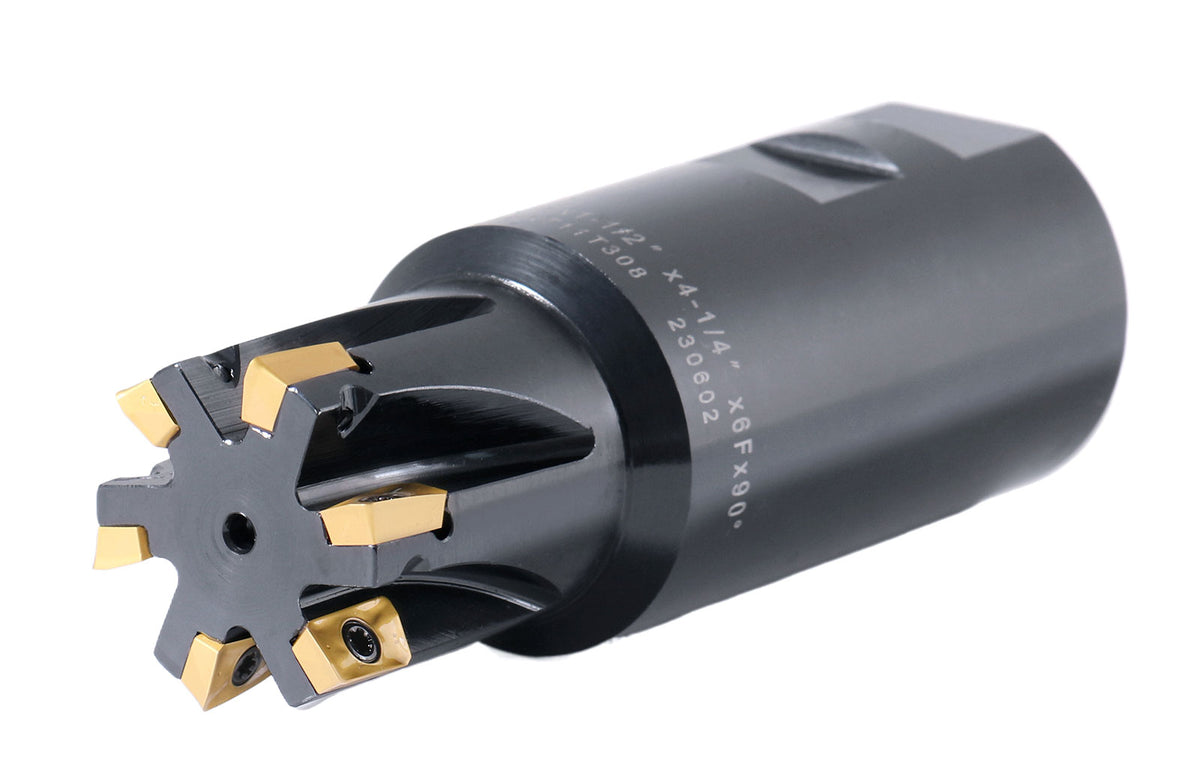

0056-0923 1-1/4" 1-1/2" 4-1/4" 0.433" 6 M2.5 x 6 APKT11T3

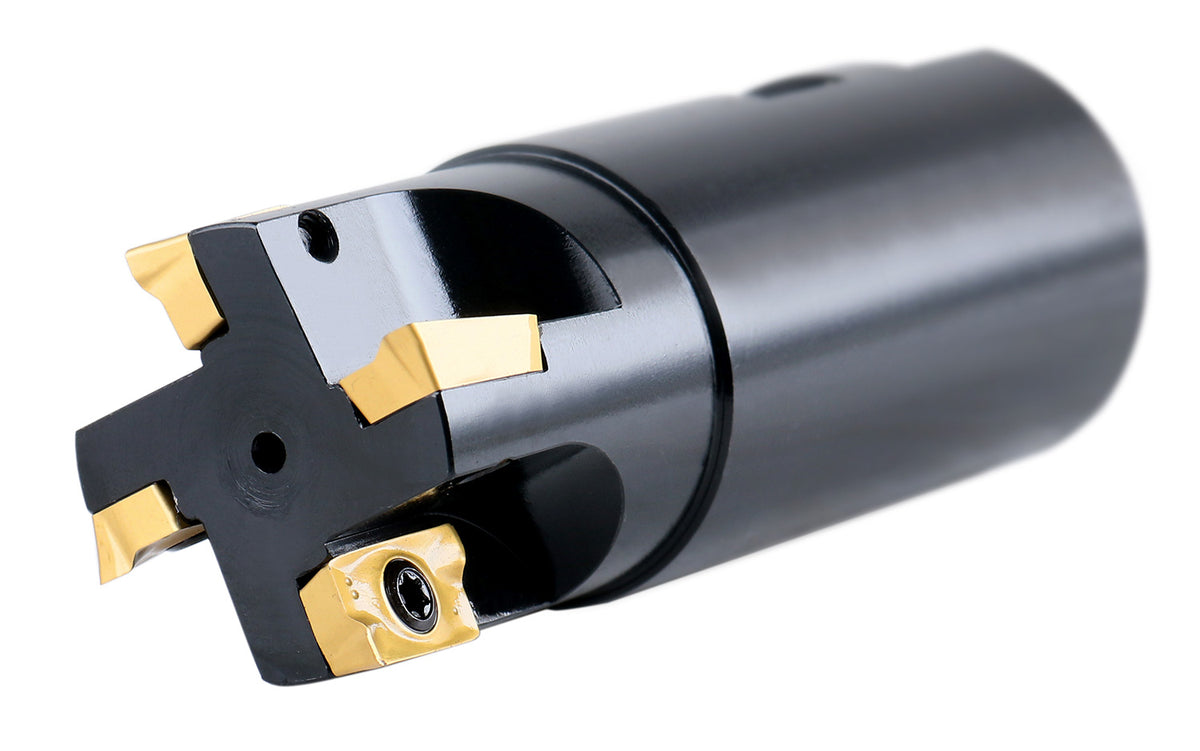

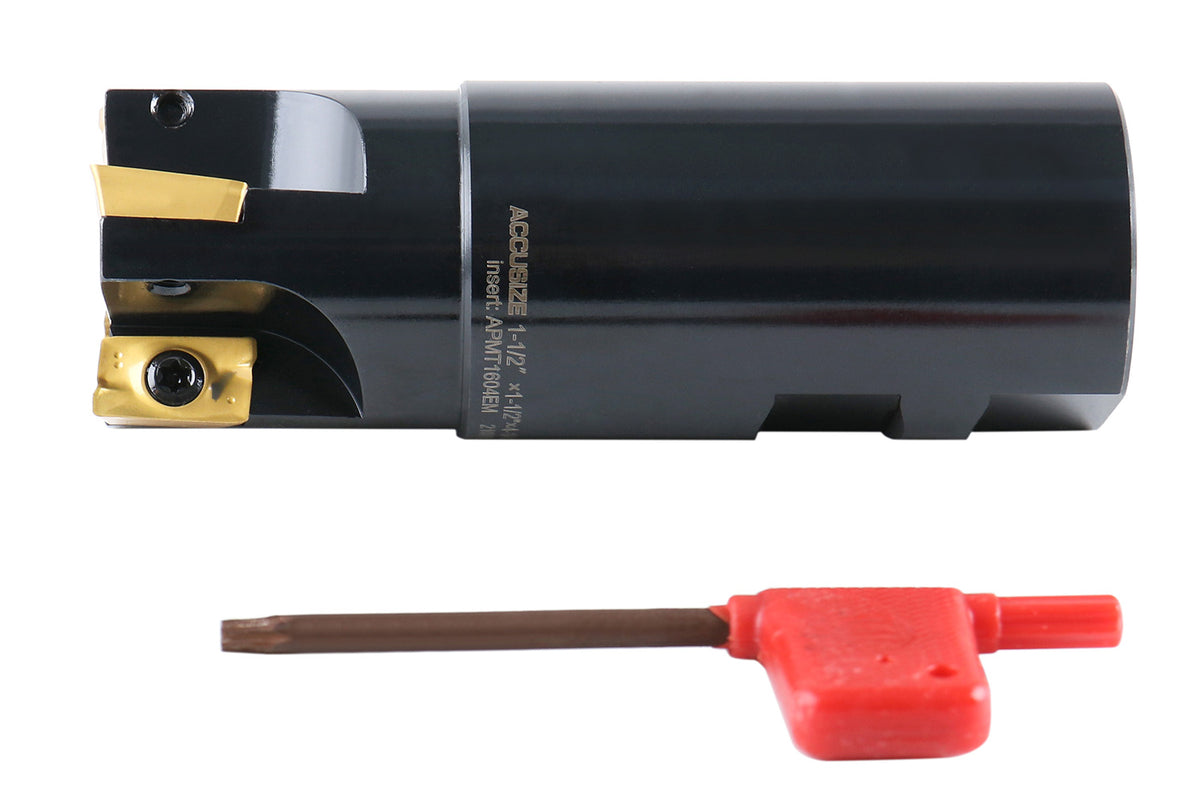

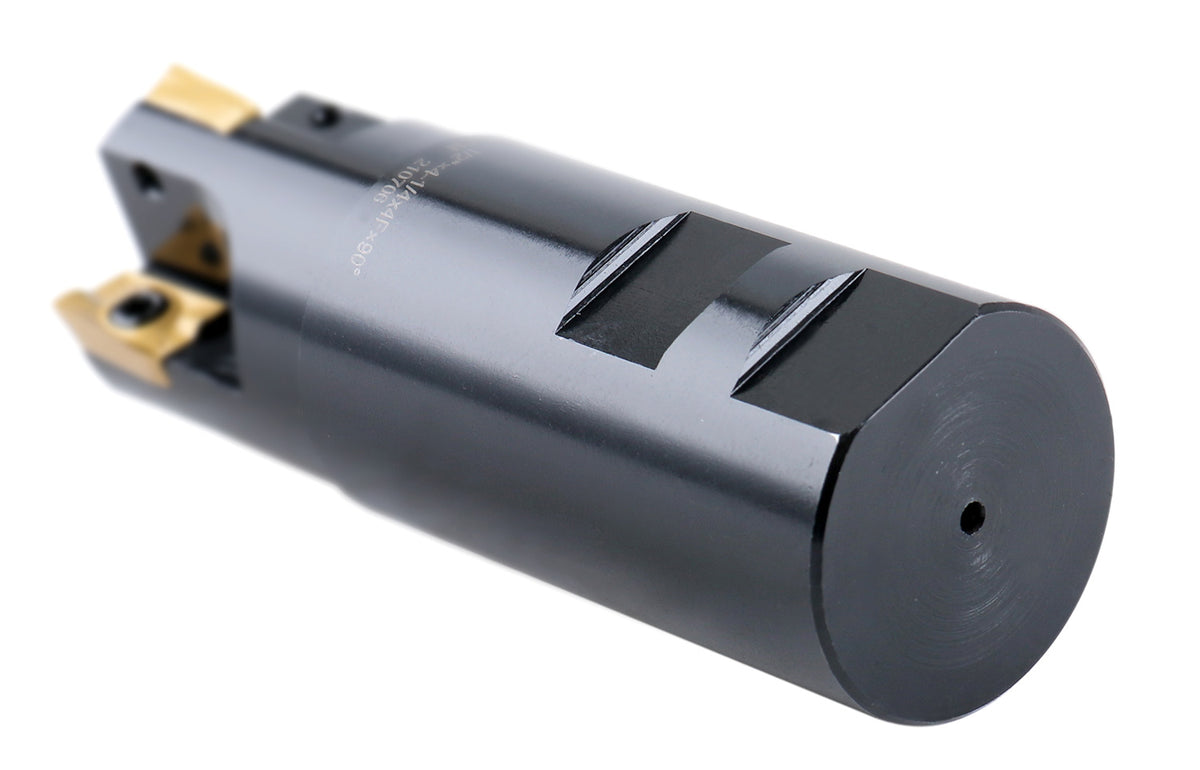

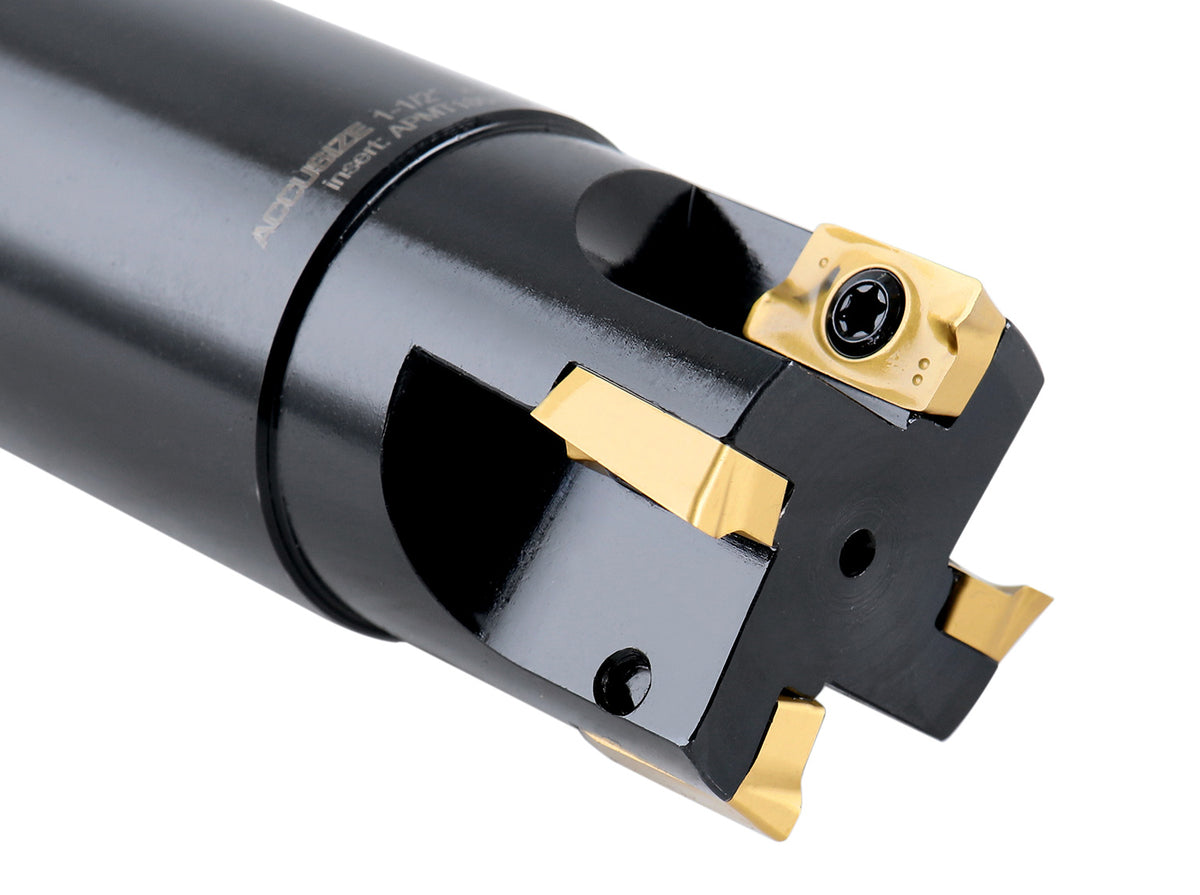

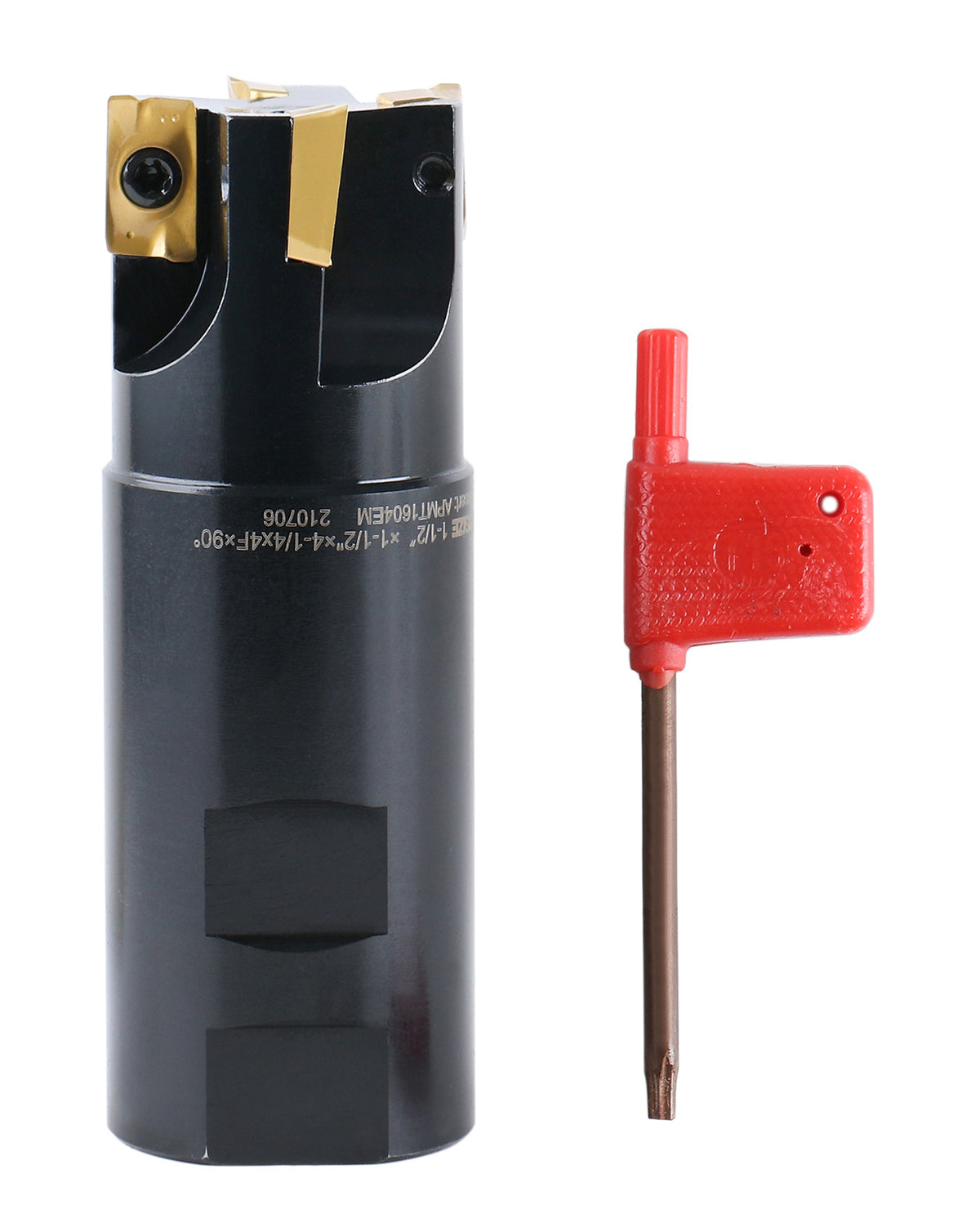

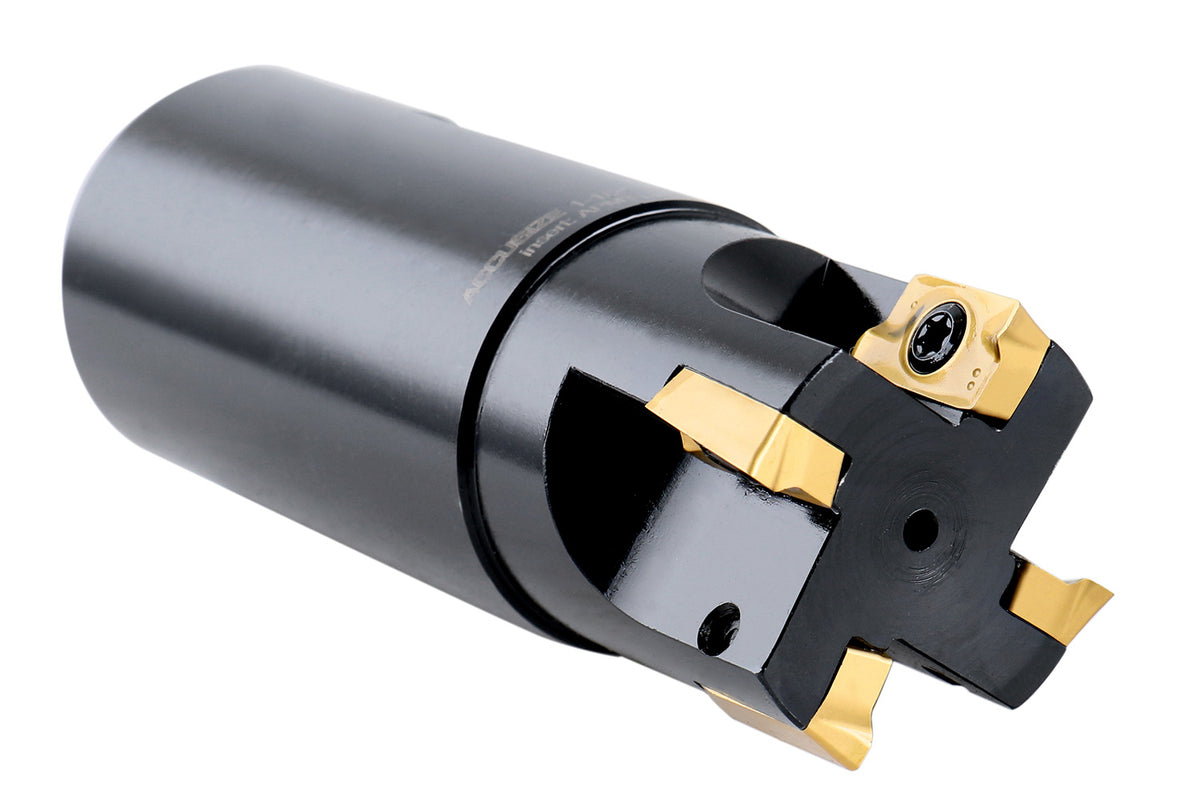

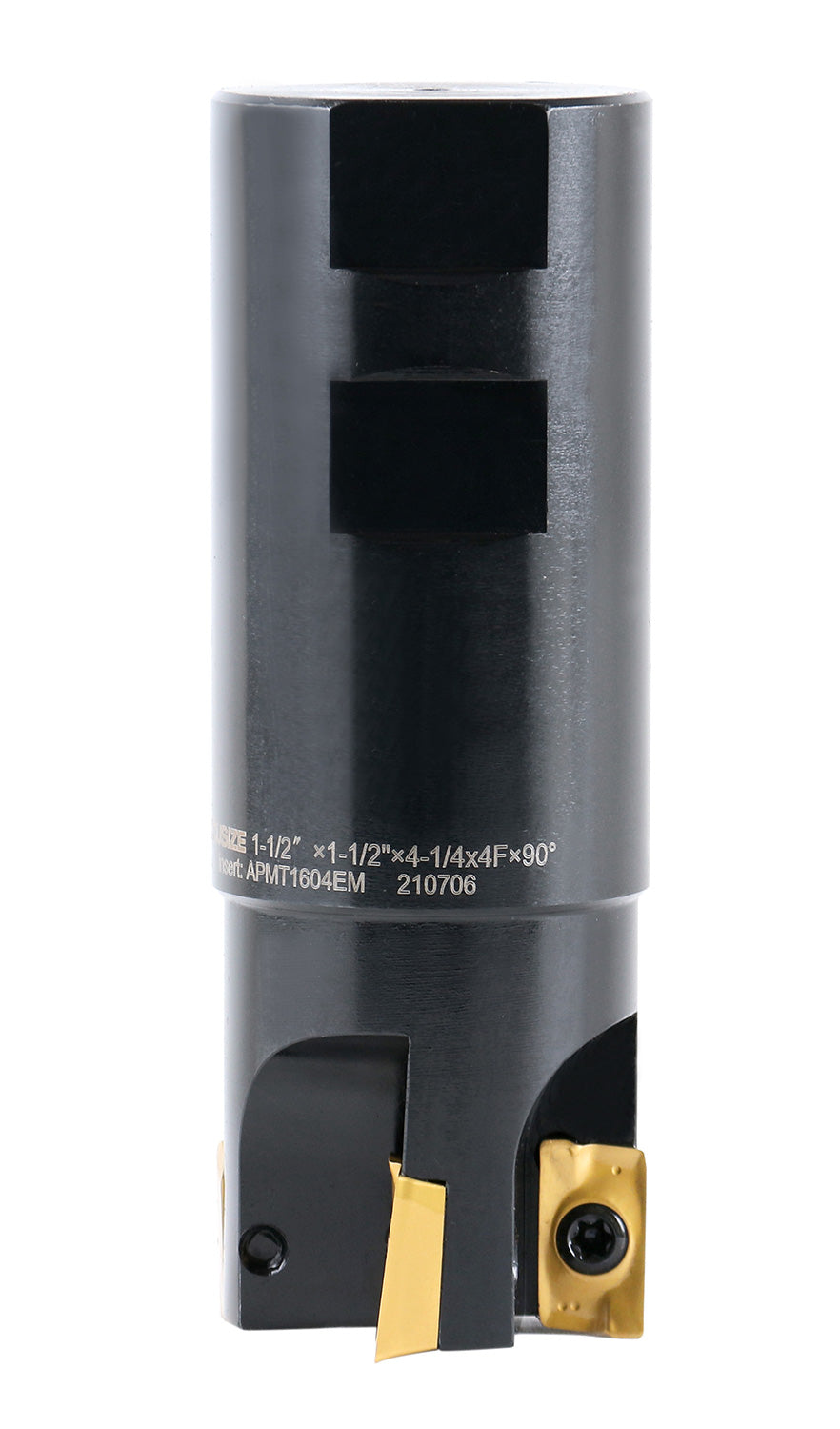

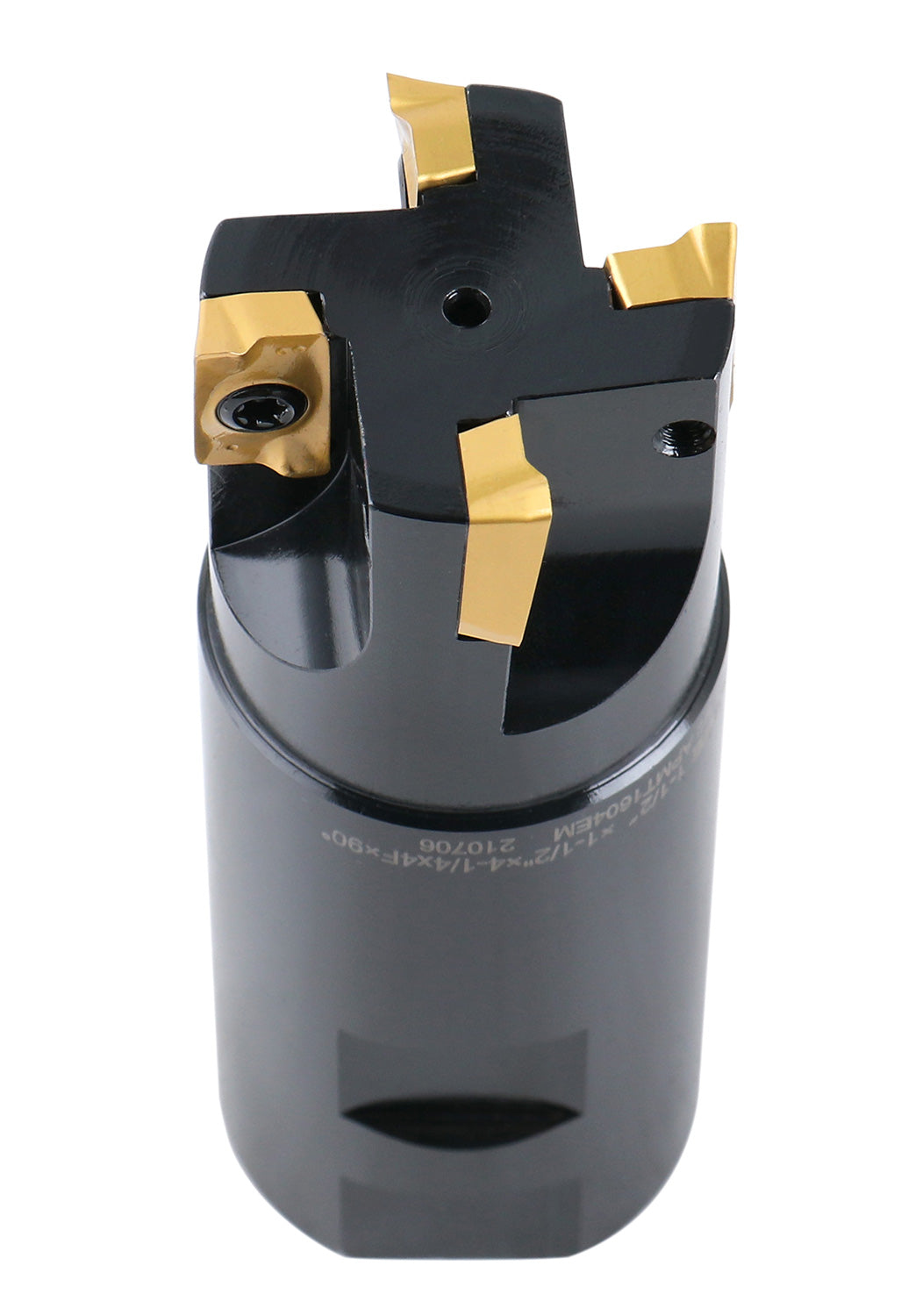

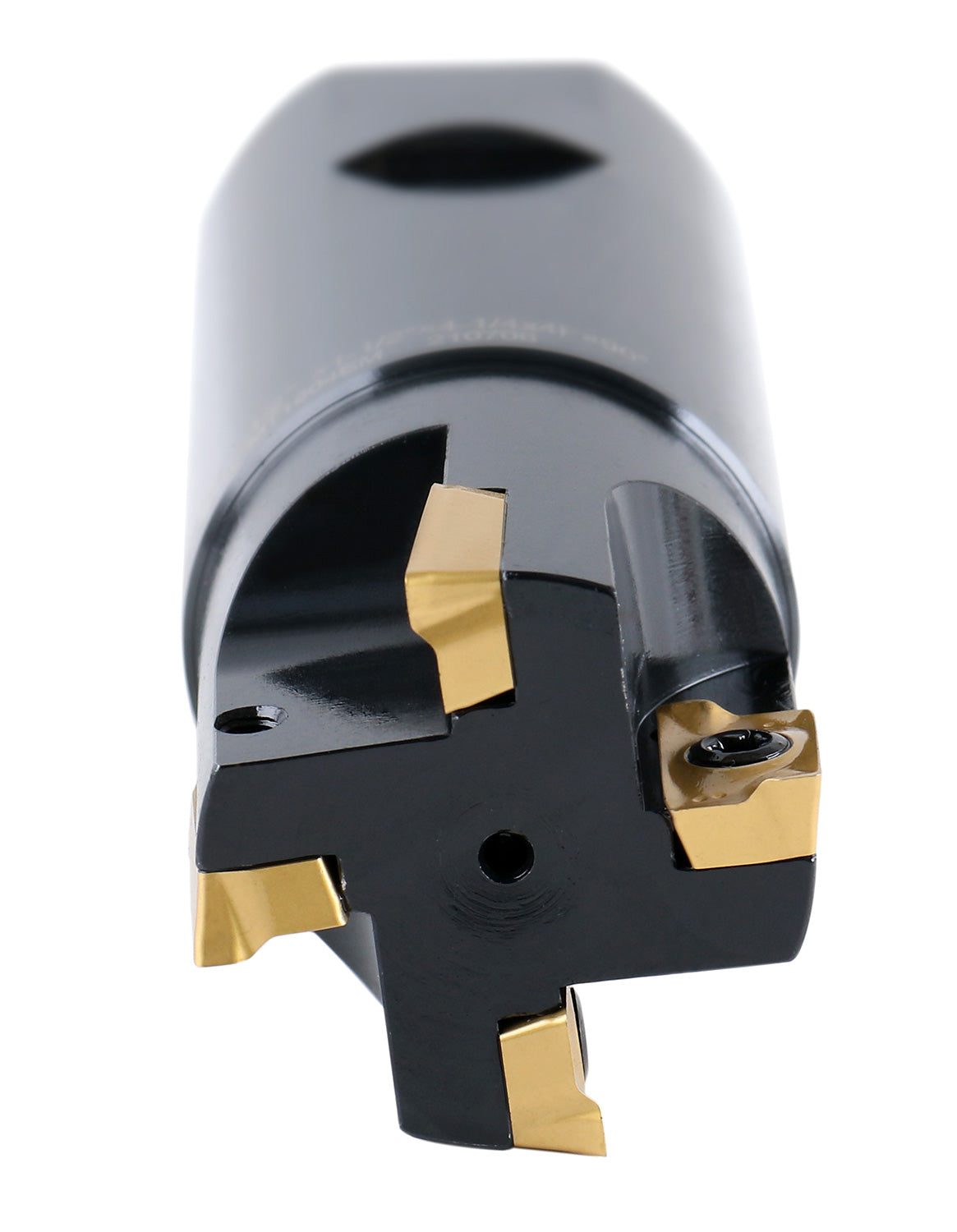

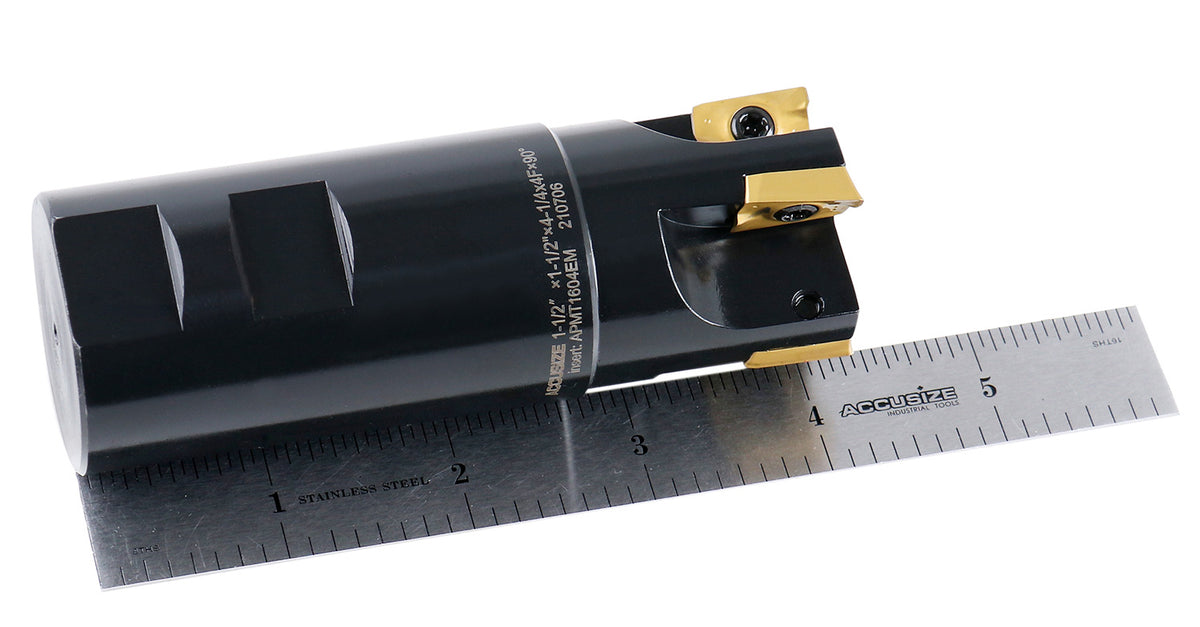

0056-0924 1-1/2" 1-1/2" 4-1/4" 0.551" 4 M4 x 8 APKT1604

Recommended RPM


Item No. Materials Hardness(HB) Cutting parameter
    V(ft /min) f(inch/Z) ae
0056-0912 hardwood, MDF   394-786 0.004-0.008
  Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 197 - 393 0.002 - 0.004 ≤0.5D
  Tool Steel 280-350 197 - 295 0.002 - 0.004 ≤0.5D

0056-0913 hardwood, MDF   394-786 0.004-0.008
  Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 197 - 393 0.002 - 0.004 ≤0.5D
  Tool Steel 280-350 197 - 295 0.002 - 0.004 ≤0.5D

0056-0914 hardwood, MDF   394-786 0.004-0.008
  Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 197 - 393 0.002 - 0.004 ≤0.5D
  Tool Steel 280-350 197 - 295 0.002 - 0.004 ≤0.5D

0056-0916 hardwood, MDF   394-786 0.004-0.008
  Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 197 - 393 0.002 - 0.004 ≤0.5D
  Tool Steel 280-350 197 - 295 0.002 - 0.004 ≤0.5D

0056-0917 hardwood, MDF   394-786 0.004-0.008
  Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 197 - 393 0.002 - 0.004 ≤0.5D
  Tool Steel 280-350 197 - 295 0.002 - 0.004 ≤0.5D

0056-0920 hardwood, MDF   394-786 0.004-0.008
  Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 197 - 393 0.002 - 0.004 ≤0.5D
  Tool Steel 280-350 197 - 295 0.002 - 0.004 ≤0.5D

0056-0921 hardwood, MDF   394-786 0.004-0.008
  Low-carbon Steel ≤180 197 - 393 0.002 - 0.004 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 197 - 393 0.002 - 0.004 ≤0.5D
  Tool Steel 280-350 197 - 295 0.002 - 0.004 ≤0.5D

0056-0922 hardwood, MDF   262-524 0.008-0.016
  Low-carbon Steel ≤180 131 - 262 0.004 - 0.008 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 131 - 262 0.004 - 0.008 ≤0.5D
  Tool Steel 280-350 98 - 197 0.004 - 0.008 ≤0.5D

0056-0923 hardwood, MDF   262-524 0.008-0.016
  Low-carbon Steel ≤180 131 - 262 0.004 - 0.008 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 131 - 262 0.004 - 0.008 ≤0.5D
  Tool Steel 280-350 98 - 197 0.004 - 0.008 ≤0.5D

0056-0924 hardwood, MDF   262-524 0.008-0.016
  Low-carbon Steel ≤180 131 - 262 0.004 - 0.008 ≤0.5D
  High-carbon Steel, Alloy Steel 180-280 131 - 262 0.004 - 0.008 ≤0.5D
  Tool Steel 280-350 98 - 197 0.004 - 0.008 ≤0.5D

V= Cutting Speed (ft/min)
f= Feed per tooth (inch/Z)
ae=Cutting width

**ABOVE CUTTING PARAMETERS PROVIDED FOR REFERENCE ONLY **
