• .08″ to .5″ (2-13mm)

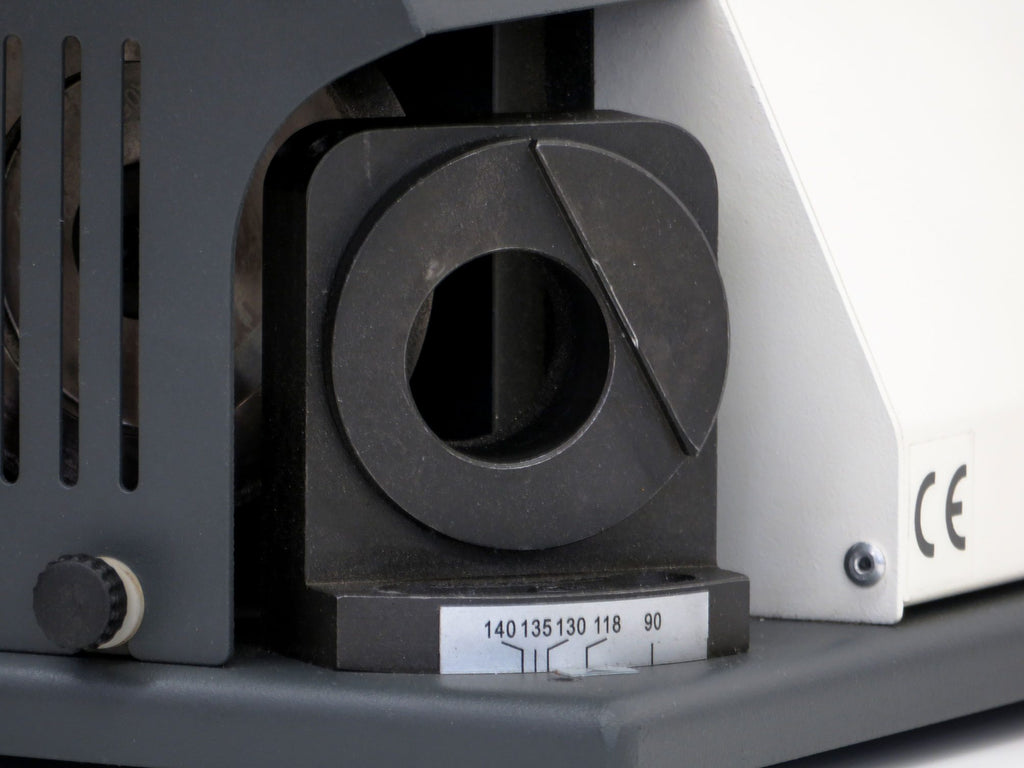

• 90° – 140° point angle

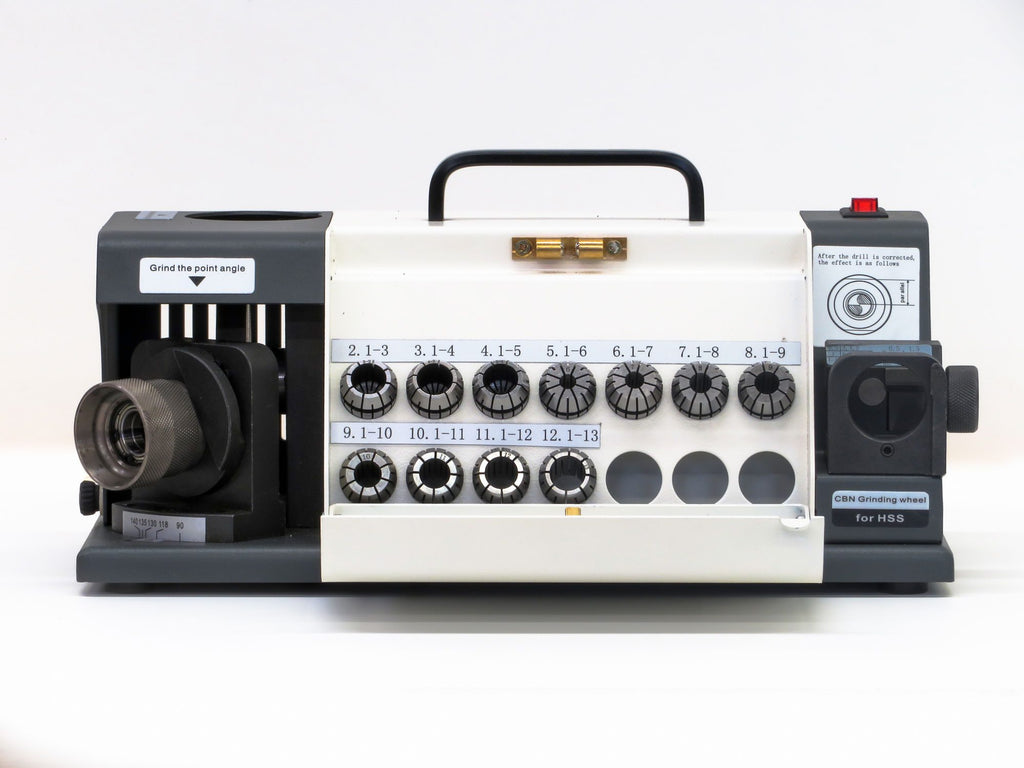

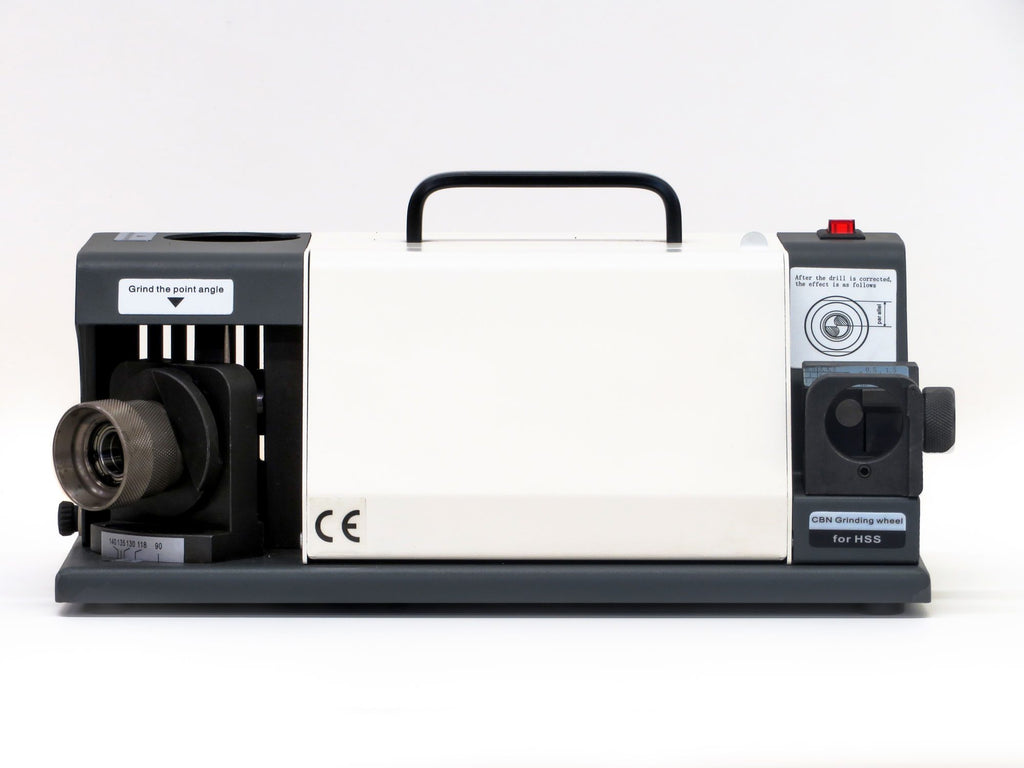

• Includes wheels, colletsThe DSX213 Drill Sharpener - HSS or Carbide drills .08″ to .5″ diameter

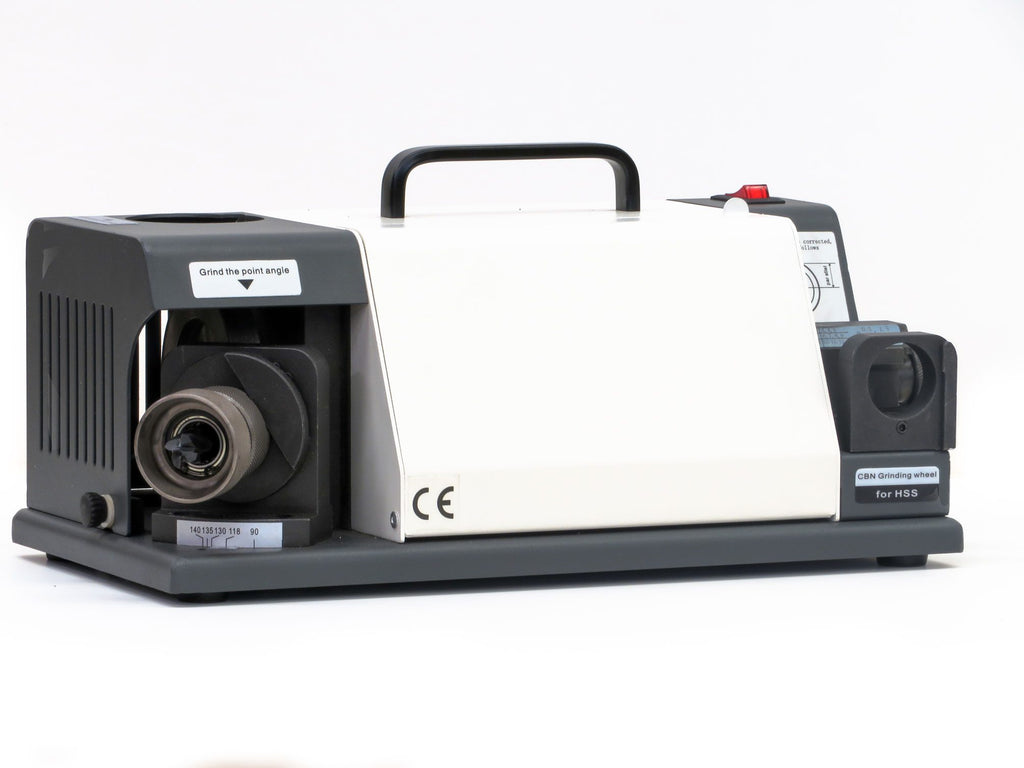

The DSX213 Drill Point Grinder This drill sharpener is easy to use, has a small footprint and all-steel powder coated, heavy duty construction for industrial tool sharpening.
Fast and accurate .0005" repeat-ability. collet chuck type.
Cuttermasters drill point grinders are stocked, tested and warrantied in North America.
This is the most well built Drill Point grinder on the market in this class. These are beautiful machines
Grinding wheel quality is integral to the success of drill point grinding. Our wheels are produced using General Electric abrasive media under strict conditions to ensure long life, and in some cases are designed by Cuttermasters in North America.
- Conventional chisel tip or Back split (center cutting)

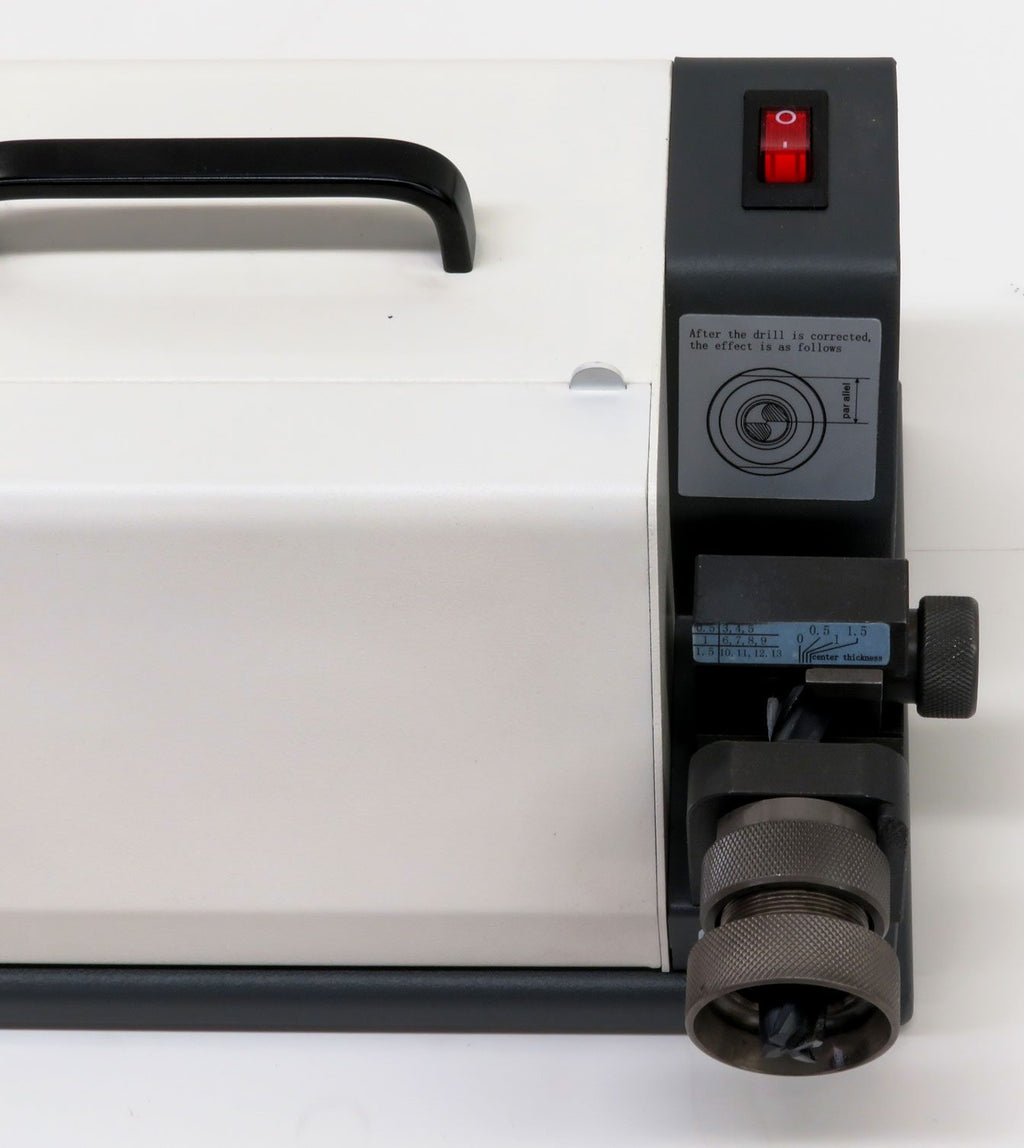

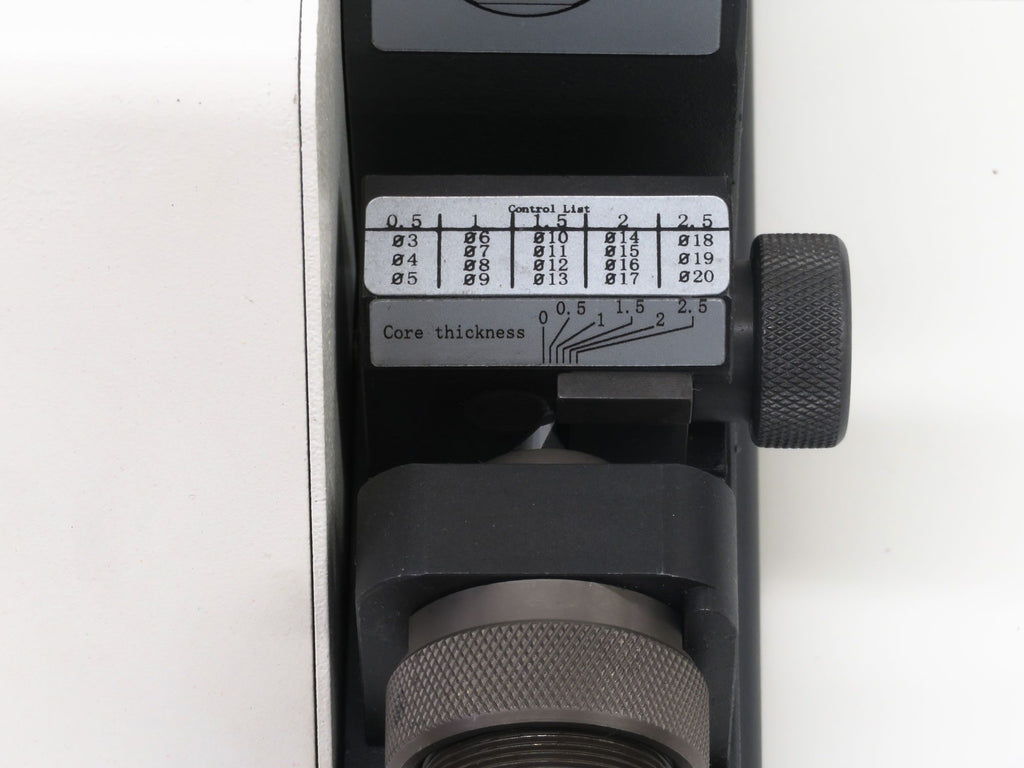

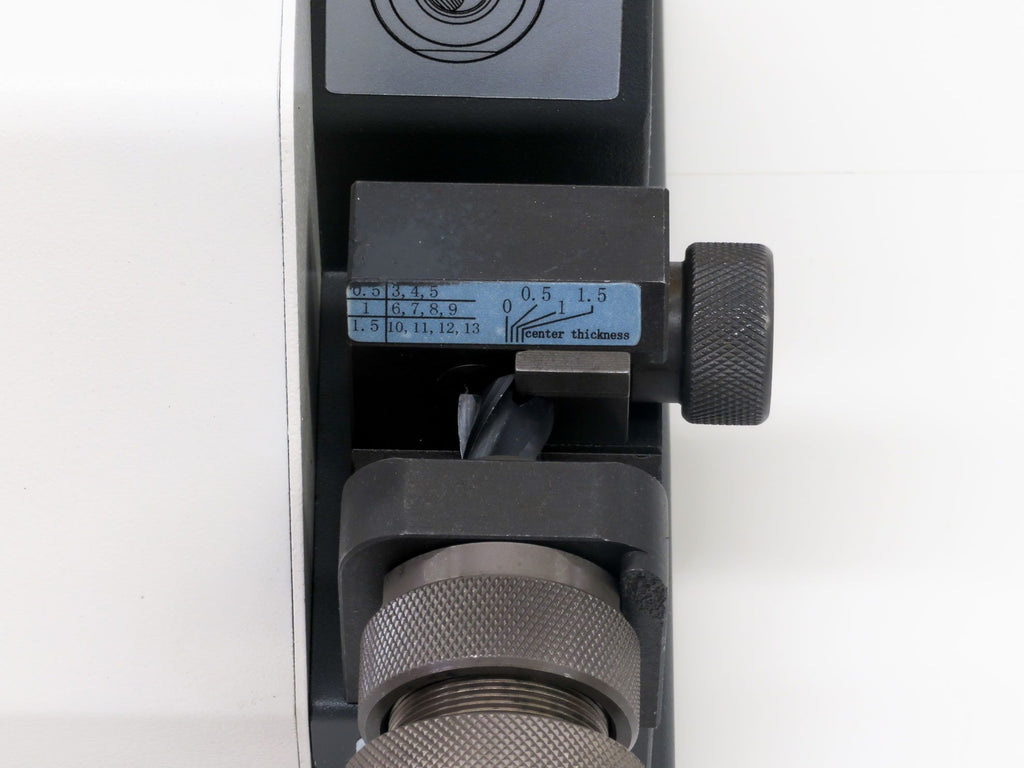

- Creates center cutting geometry or chisel tip (adjustable dept of cut, and swing)
- High accuracy balance of tip geometry (adjustable depth of cut)
- Easy to operate, Very accurate

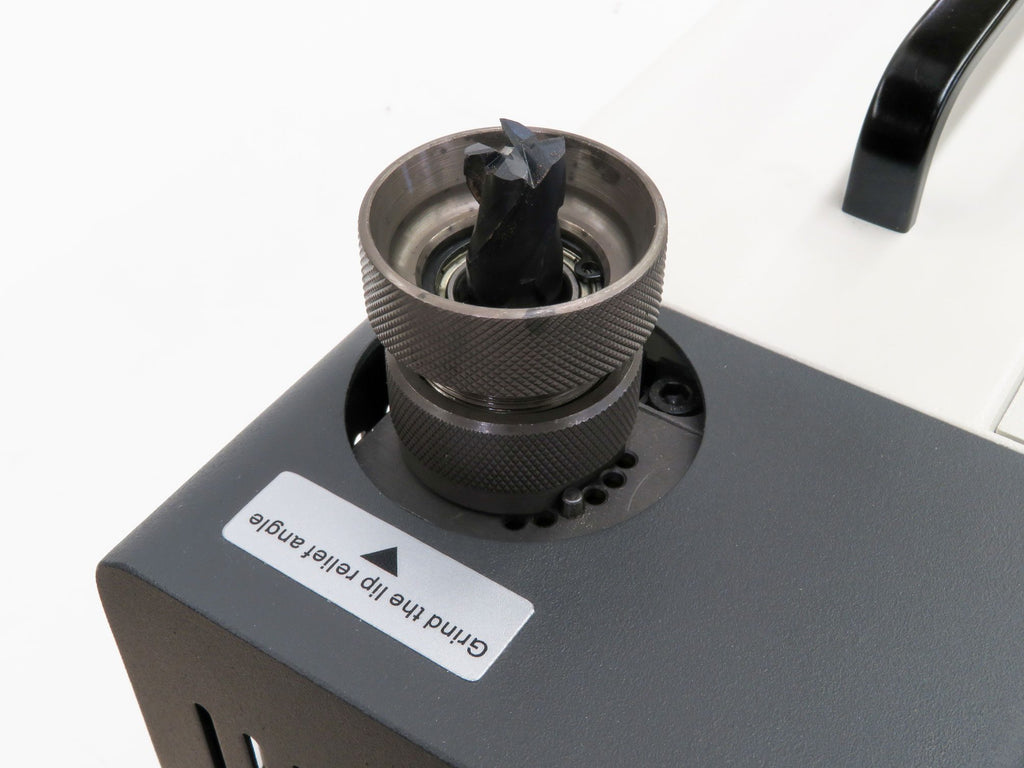

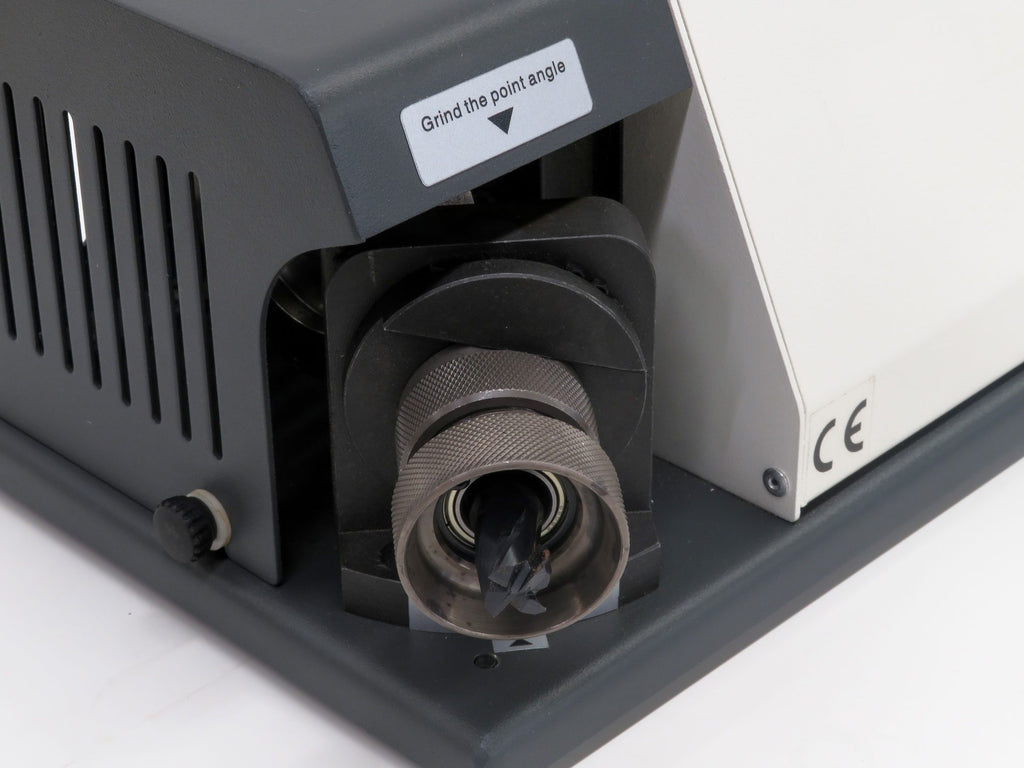

- Precision Chuck with Thrust Bearing
- Quiet Powerful DC motor
- Industrial quality
Request a Quote or Call us at 1 (800) 417-2171
Specifications
Drill Diameter .08″ ~ .5" Power Supply AC 120V 50/60Hz, 250W, AC 220V(Opt.) R.P.M of Motor 4400 Grinding Wheel Single wheel is used, choose CBN (DS13-C140) for steel or diamond (DS13-D140) for carbide Weight N.W 9Kg G.W 14Kg Machine Size L 300mm, W 165mm, H 130mm Packing Size L 360mm W 210mm, H 190mm Standard Accessories High Precision Collet Chuck, Set: 3 sets (6 pcs)Hexagon Wrench 3mm x 1pcs / 4mm x 1 pcs* Optional Grinding Wheel CBN or Diamond
