Informations produit supplémentaires

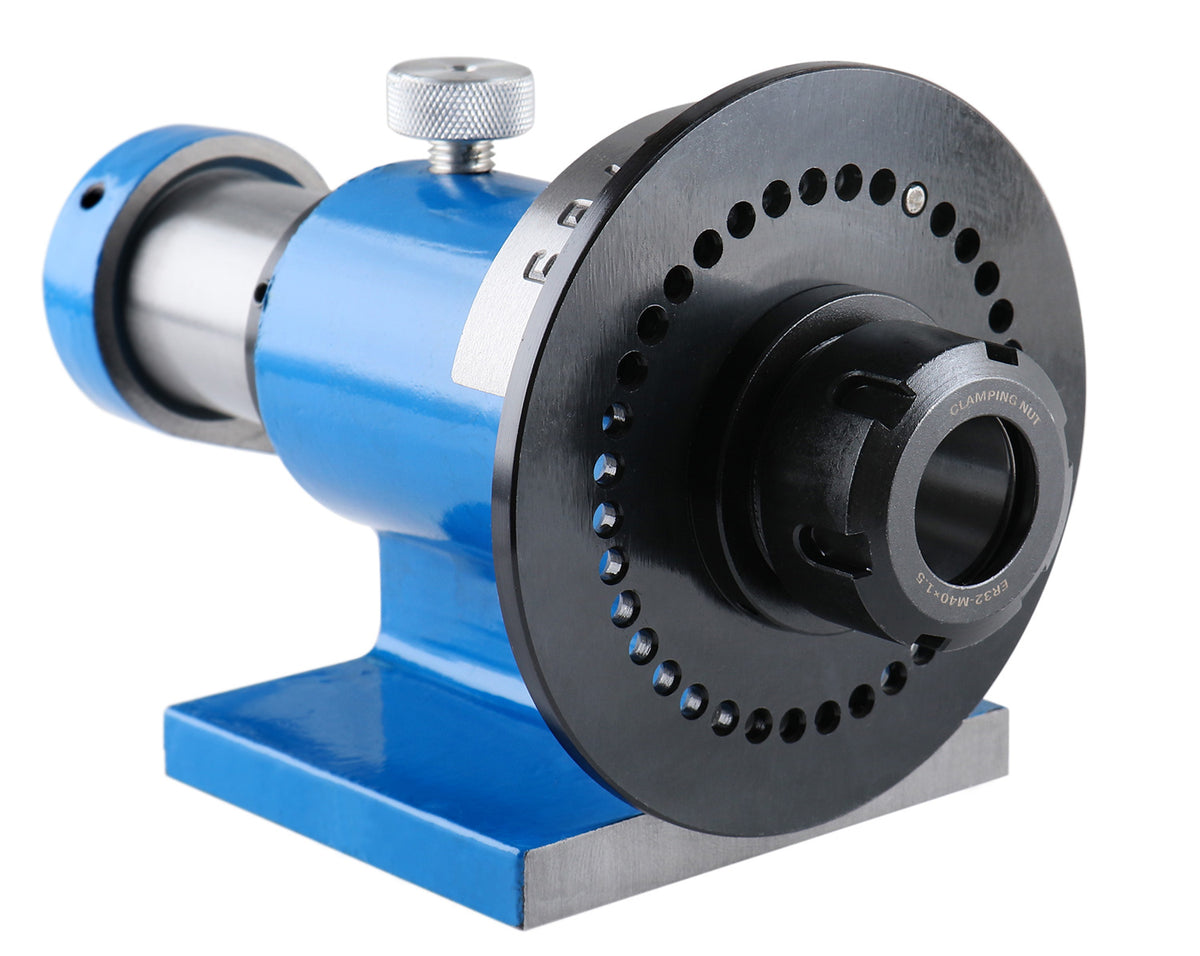

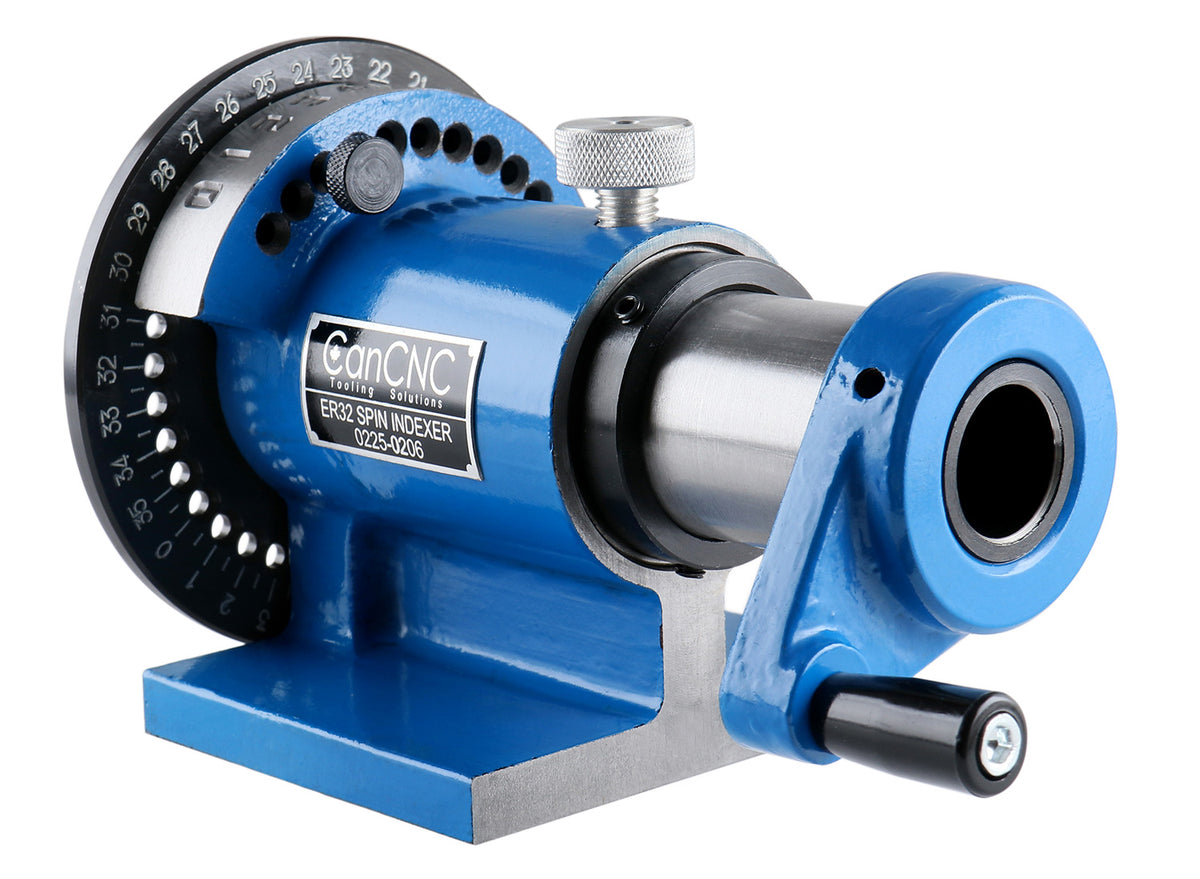

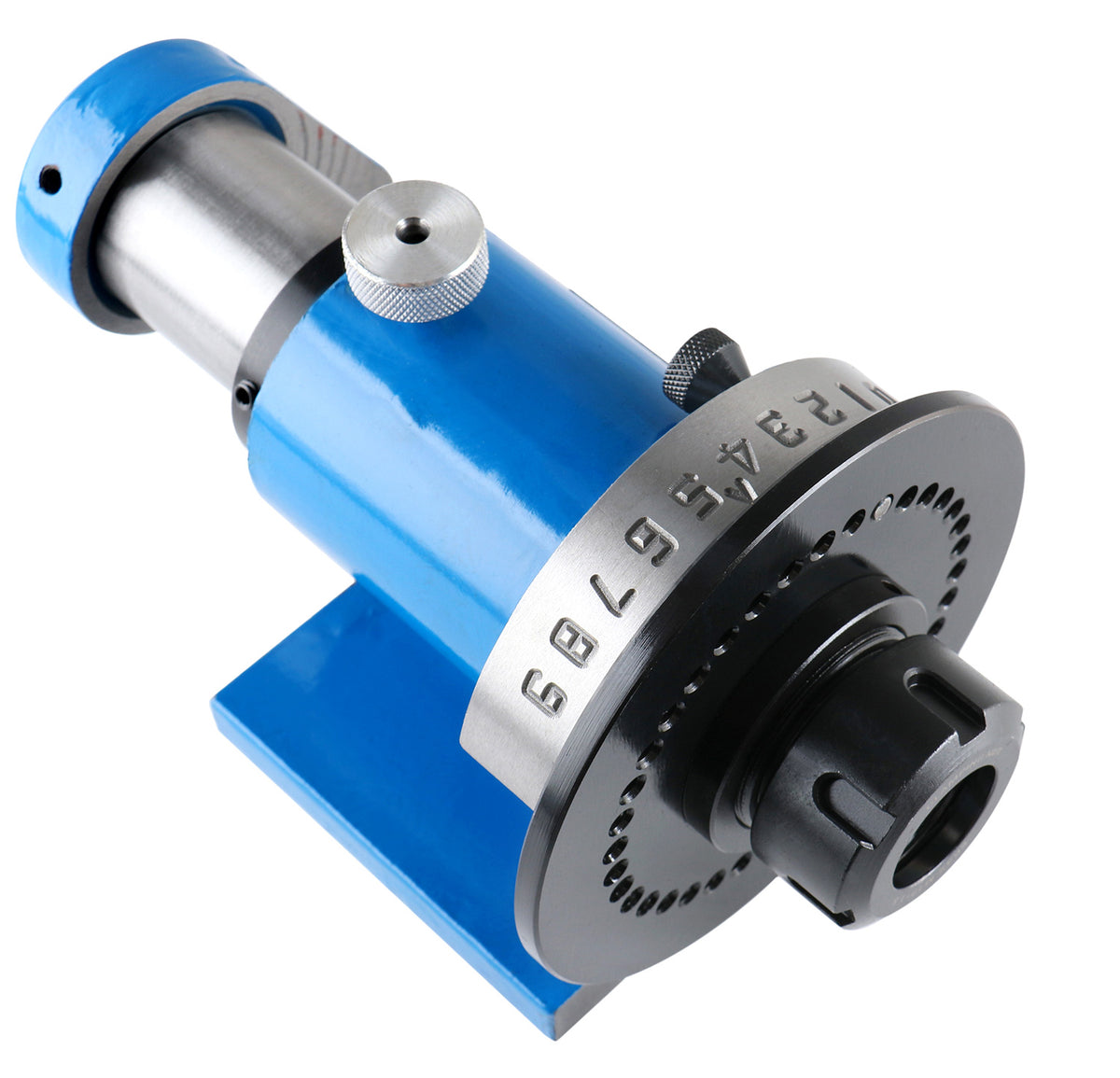

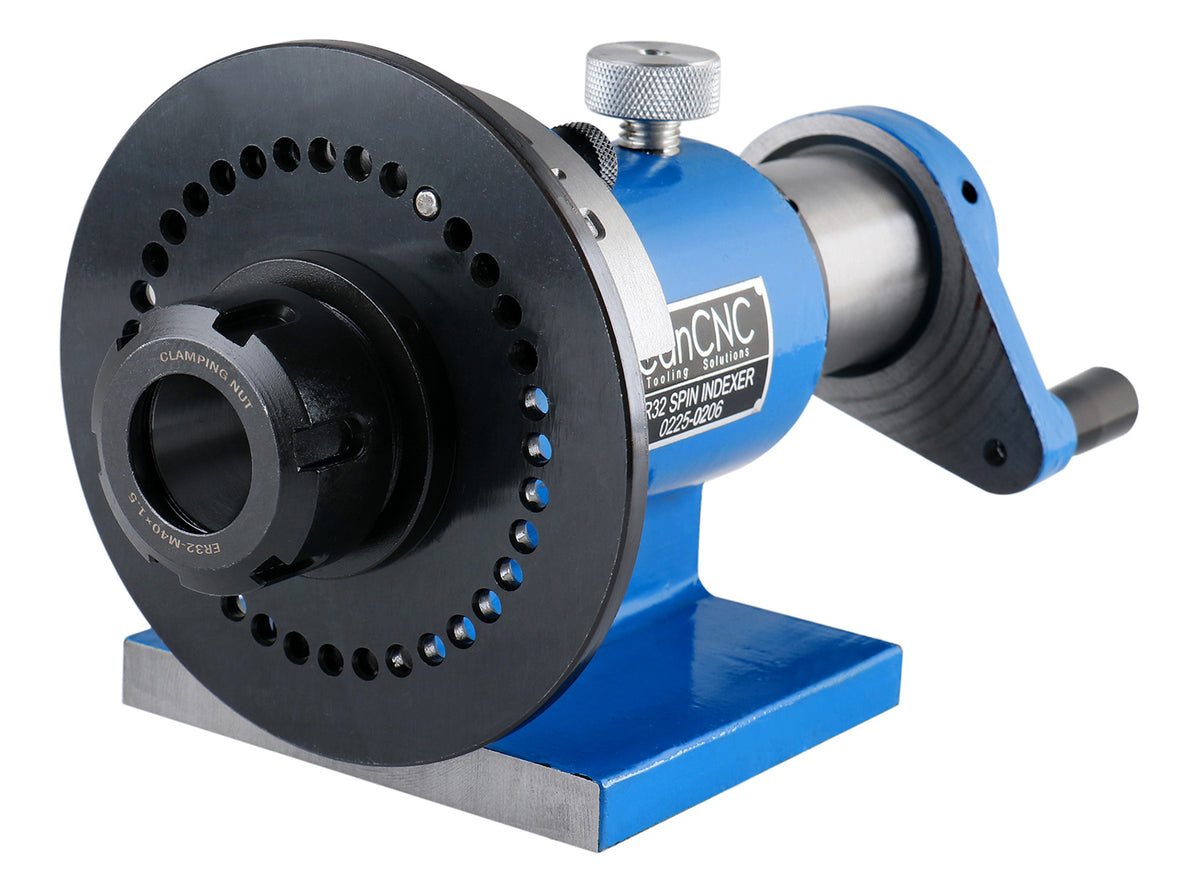

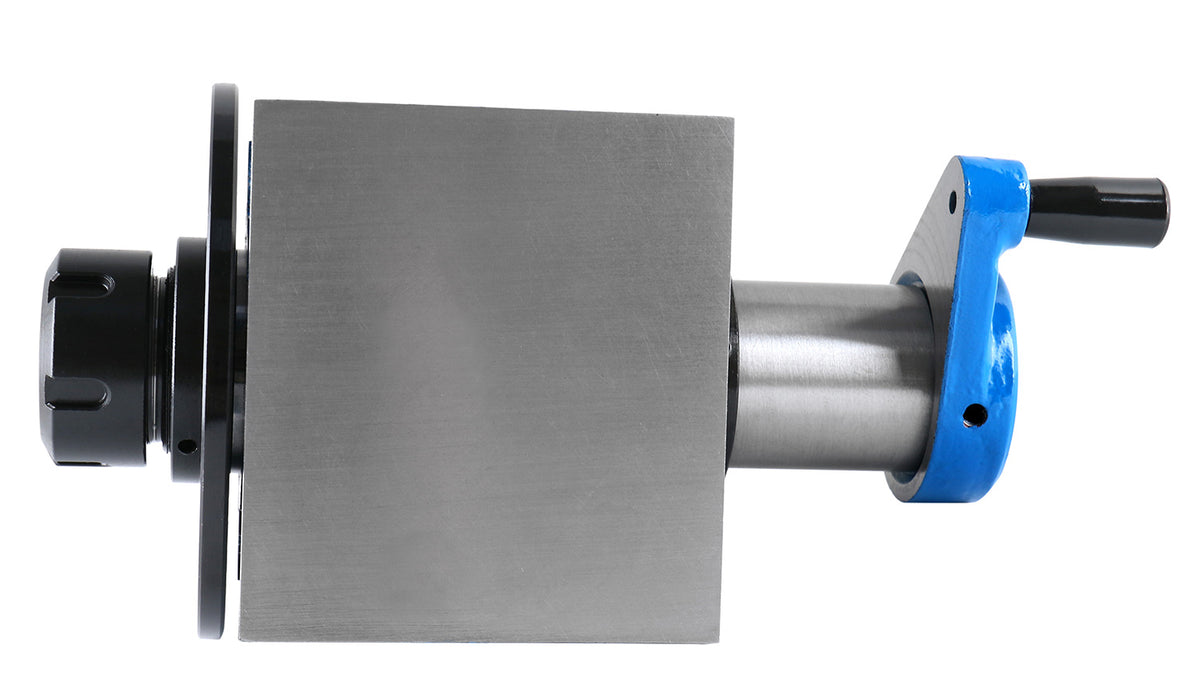

Features:
- Indexing and grinding fixture.

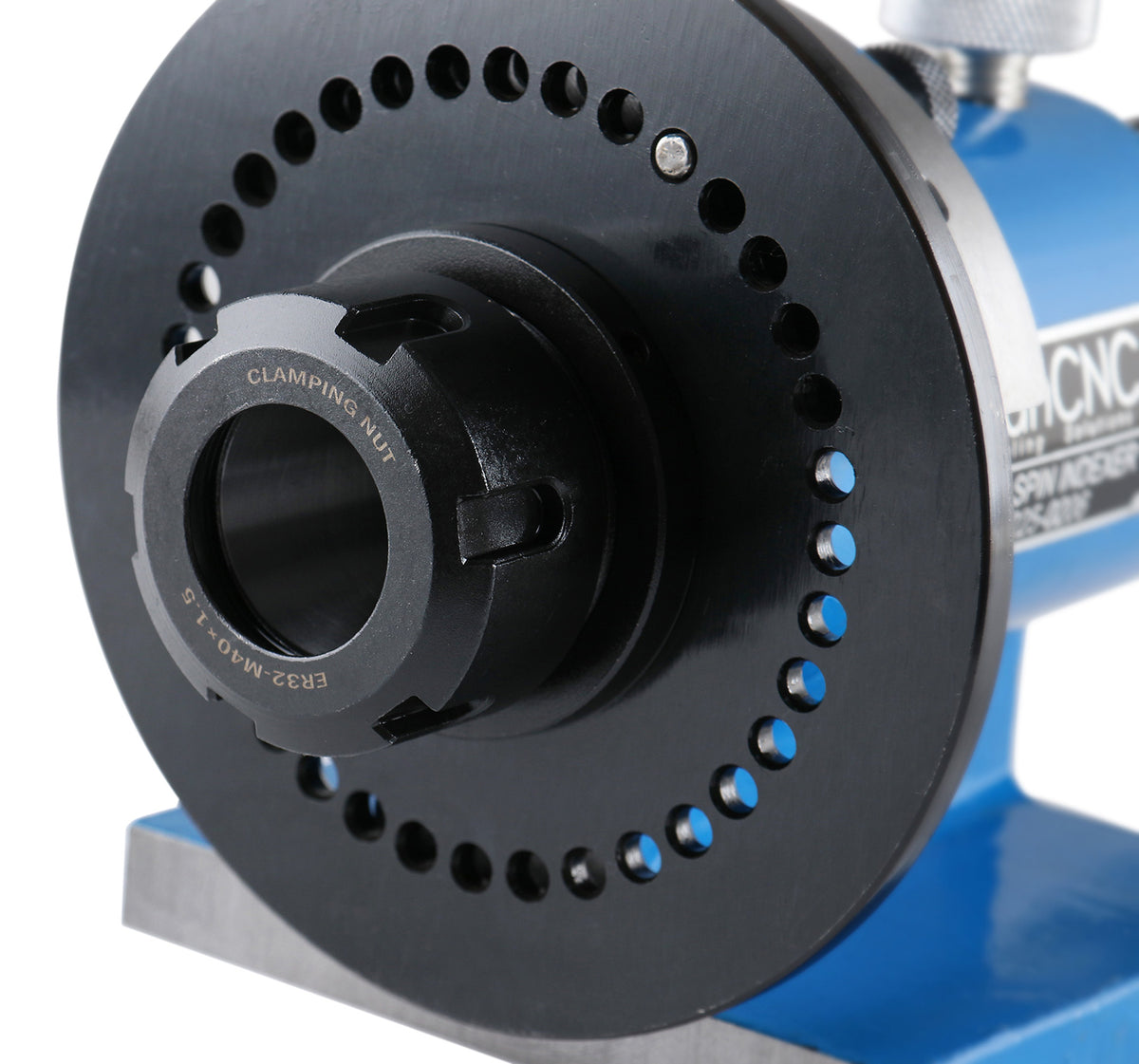

- Uses ER-32 collets (range 1/16"-13/16") for better gripping and accuracy.
- Extends the capabilities of drill presses, surface grinders, gear cutters, and milling machines.
- Spindle hardened and ground with 0.0005" (T.I.R.) run-out.

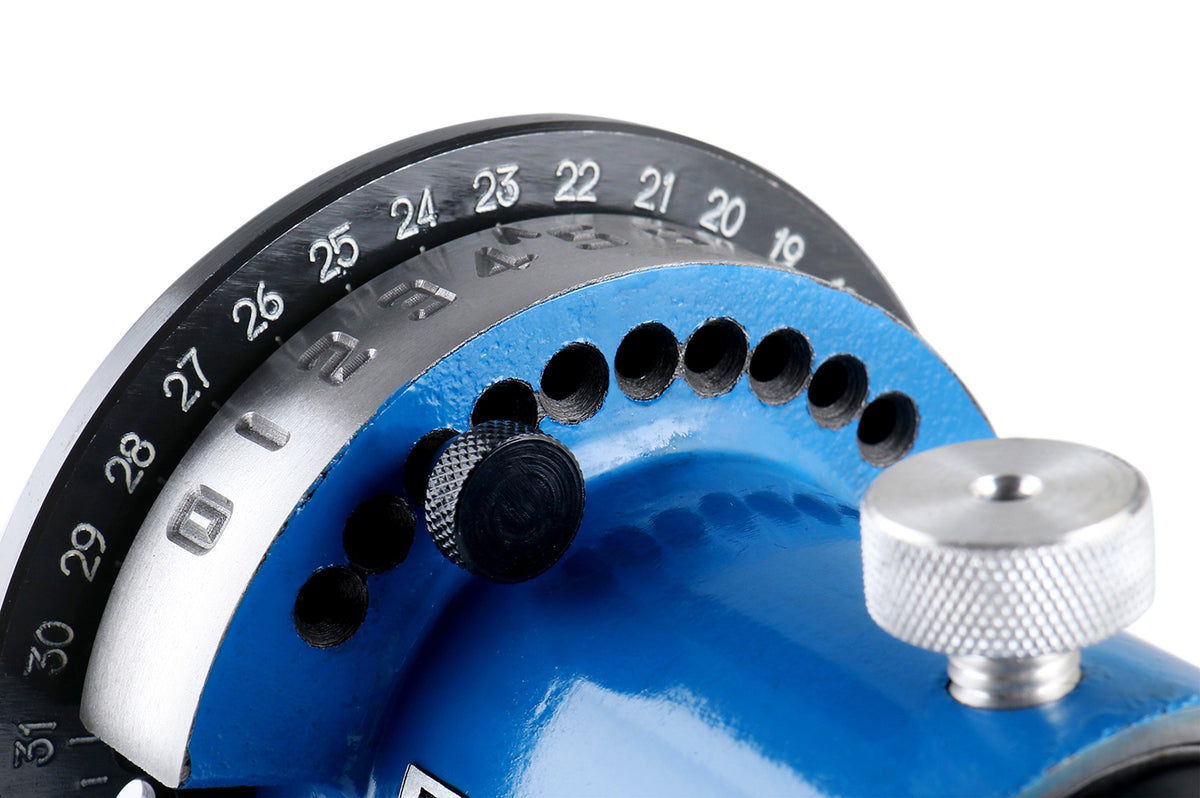

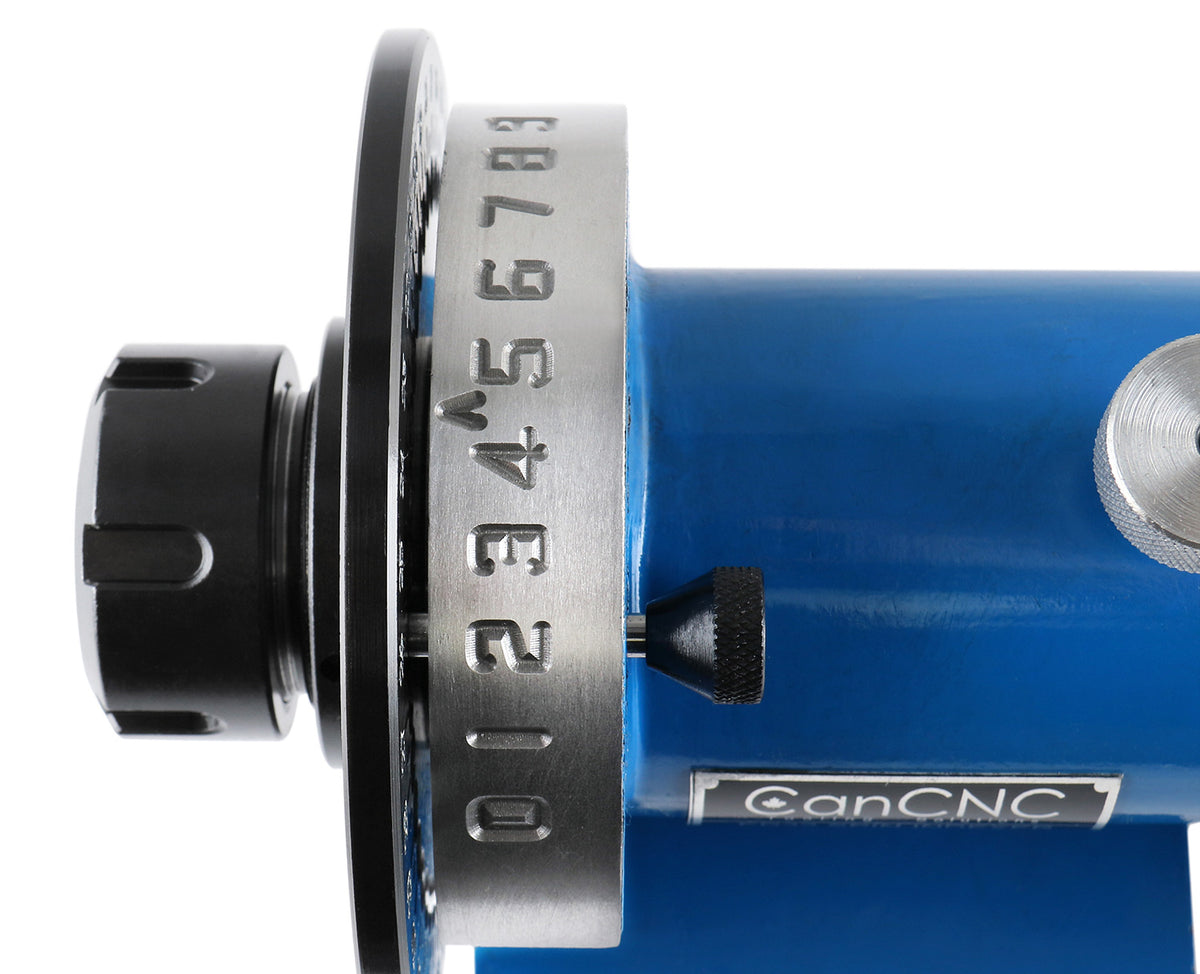

- 10 vernier holes for 1° indexing.
- 2" spindle travel for flute grinding.

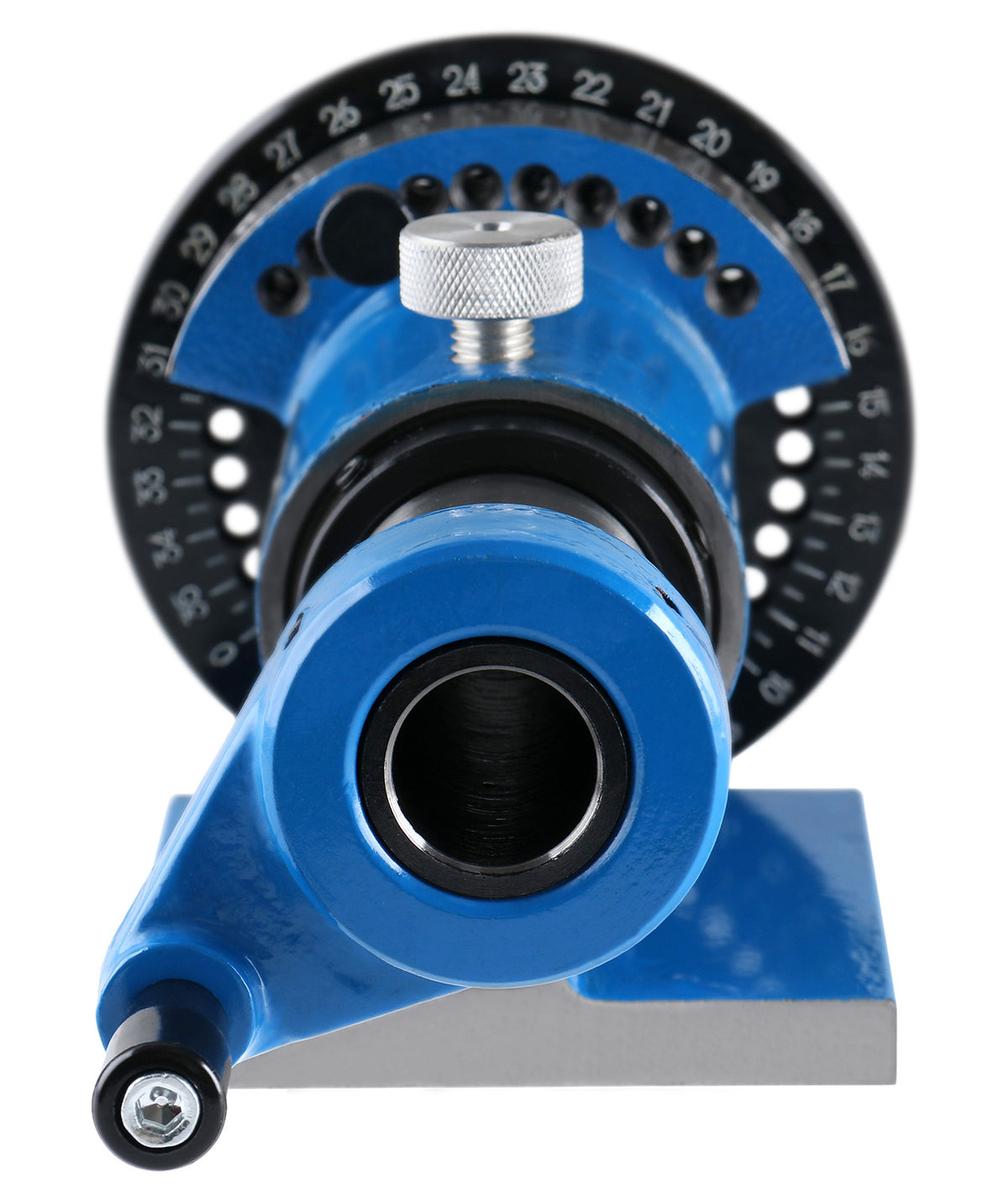

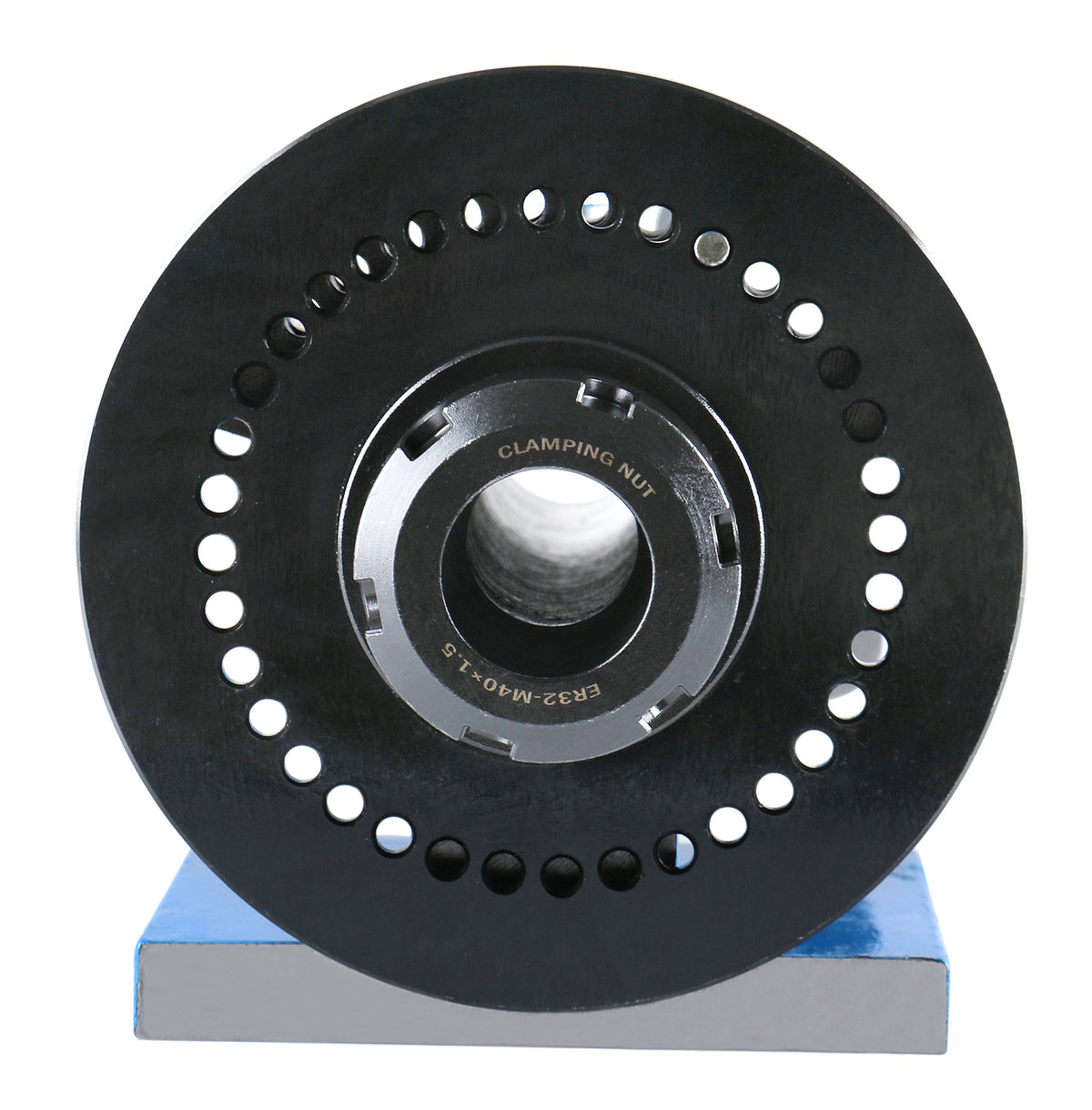

- 5" diameter index plate has 36 hole circles and graduated from 0 to 35 for direct indexing in 10° steps and is marked in 5° increments.
- Spindle lock for tightening the collet.
- Base footprint: 4.5"x4" ground parallel to the spindle.
- ER collet is not included and can be purchased separately.
Some operation examples
Machine the bottom of the 0225-0206 Spin Indexer
Mount 0225-0206 Spin Indexer on a milling table
Mill the sides of the bottom plates
After the bottom plates are milled, it will be a quick-mounting fixture on a machine vise.
Use a matching tailstock when machining a long workpiece
