Journeyman Tower – Corner Radius
- Advanced End mill / tool grinder, bull nose and ball nose
- 77mm 350W, 400-4000 RPM variable speed DC motor
- Ready-to-run. Includes aluminum oxide grinding wheel and manual
- Lapped Dovetail ways repeatability .0005
- Available Digital Read out and Mounted Microscope
The CUTTERMASTER Professional Journeyman JXT Toolmaker is Jeffs favorite Machine complete with Toycen Radius Air Bearing, Articulating Toycen Infinite Single Motor Tower Variable Speed reversing Whisper Drive DC Motor, Available with Digital read out for X and Y and Mounted Microscope with optic measuring. This Machine is designed to support Modern Machine shop requirements.
The Journeyman JXTR Benchtop Tool and Cutter Grinder is a state of the art blend of old and new. The state-of-the-art silent DC drive on the reliable CUTTERMASTER frame is compatible with all legacy CUTTERMASTER accessories. Easy to set up with the best air spindle on the market.
The Toycen Radius Air Bearing found on the CUTTERMASTER Professional CM-01P. This eliminates the need for the CM-03 Radius Attachment for bullnose and ball nose corner rads. Corner radius capability is built into this air spindle so you don't have to change attachments when switching operations from ends and flutes to corner rads.

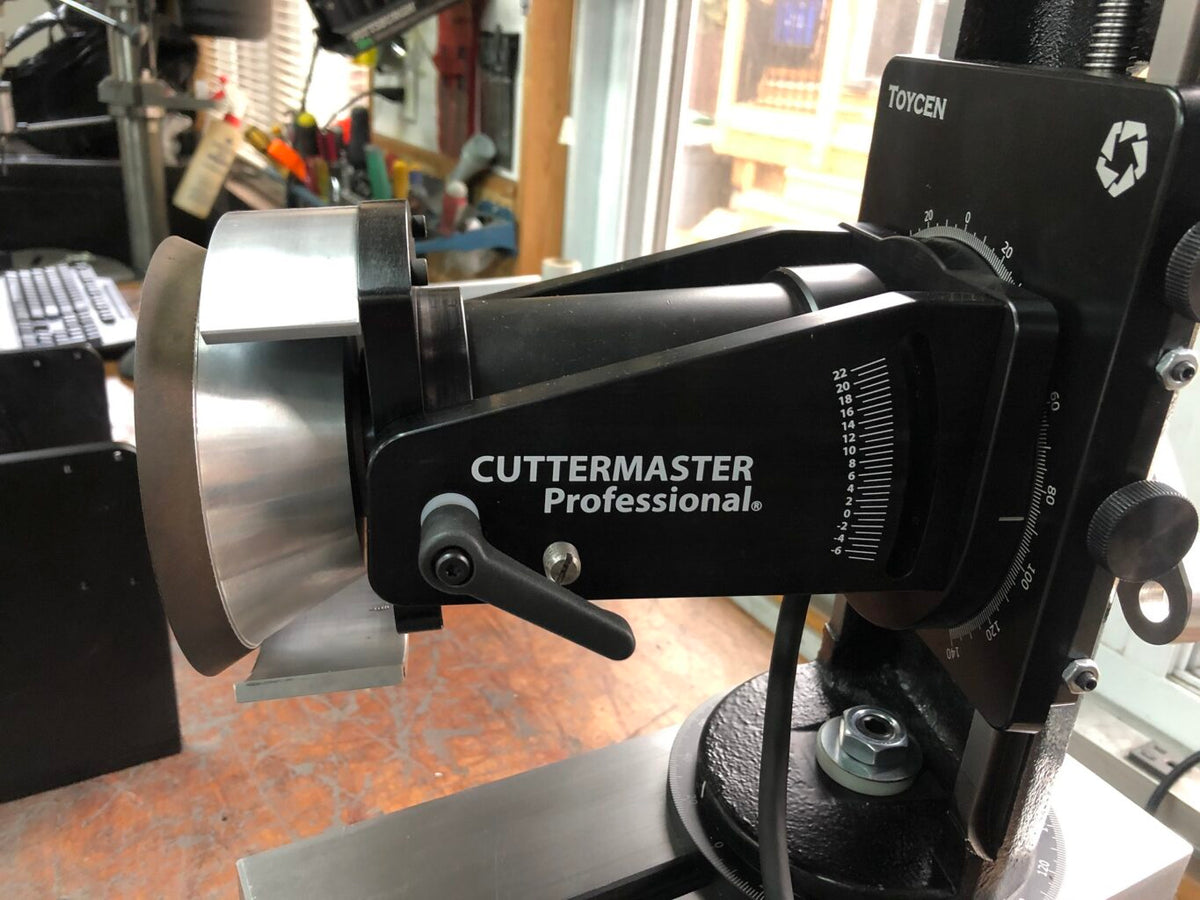

The Cuttermaster Professional DC Motor Tower is redesigned with a single wheel, with the Toycen DC whisper drive, designed to complement the Cuttermaster base layout - everything you need to grind ends, flutes. Rads, balls ends, reamers.
We recommend Resin bond CBN (for high-speed steel tools) and diamond (for carbide) cup wheels to upgrade your sharpening system.
A good wheel kit is our production support package PS1
The Patented Multi-Axis, Torque Compensating DC Motor Head now with a vertical axis, whisper drive helps to eliminate tool burning (and you can hear what you're doing).
Operations Videos
- Grind ends and flutes (primary and secondary grinds) 1/8″ to 2″ diameter
- Grind corner radiuses: bull nose and ball nose, primary and secondary grinds
- Reduce the neck diameter of your tools
- Cut off your tools
- Grind Perfect Weldon flats in your tools (grind set screw flat on carbide end mill shank)

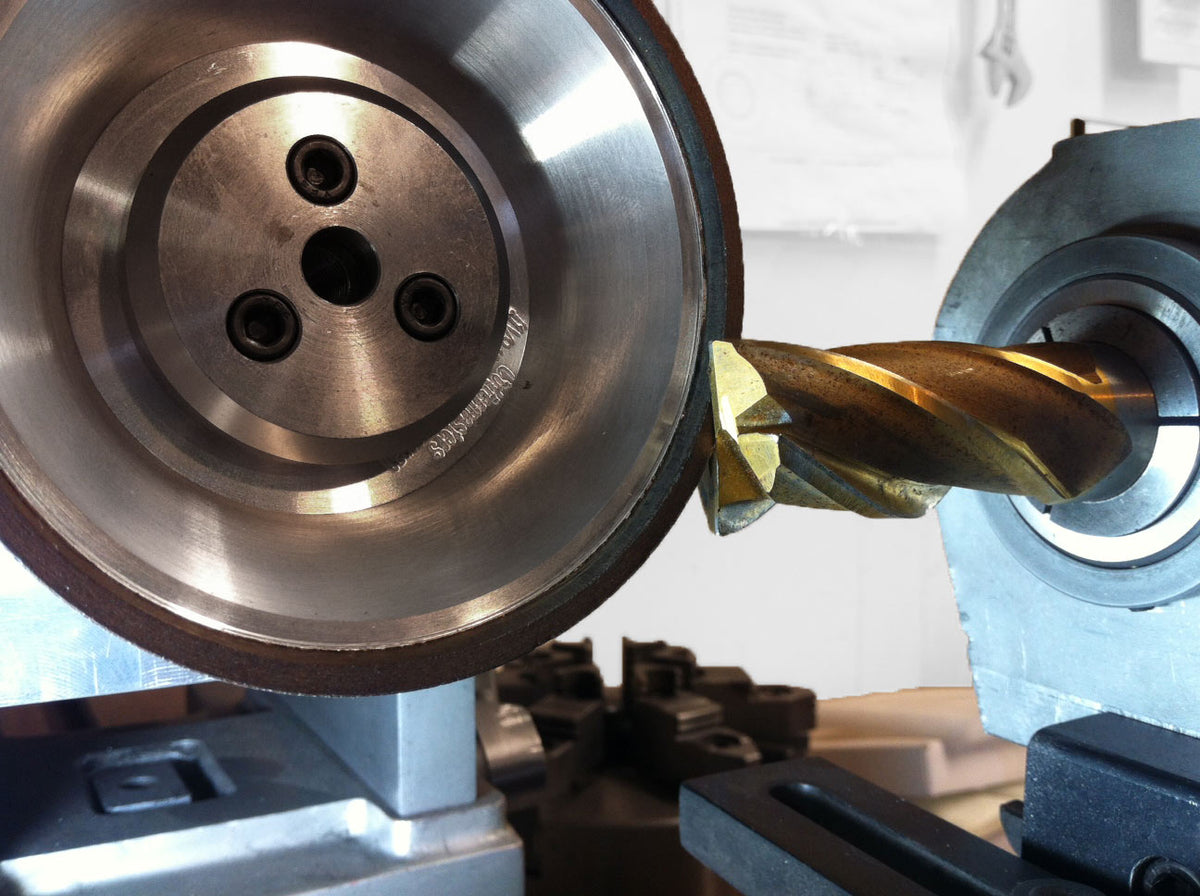

- End gash your tools
- Grind annular cutters
- Cylinder grind small rounds
- Grind countersinks, step drills, hoggers, finishers, and reamers
- Mounted Microscope , monitor small feature creation
- Sharpen or Modify Carbide Inserts
Tool GrinderAccessories
Specifications
| Air Bearing Stroke | 6.5" up to 10.5" (266.7mm) |
| Air Bearing Swing Over Table | 9.8" (248.92) |
| Cutting Tool Capacity | 2″ shank, 9.8″ O.D. |
| Flute Length | 6.5" up to 10.5″ |
| T-Slot Dimension | 0.8″ (20.32mm) x 0.5″ (12.7mm) x 0.67″ (17.018mm) |
| Table Feed Gradations | 0.001″ (0.02mm) |
| X-Axis Table Travel | 6″ (152.4mm) |
| Y-Axis Table Travel | 3″ (76.2mm) + sildes back & forth 6″ (152.4mm) |
| X-Axis Table Working Space | 16.5″ (419.1mm) x 5.5″ (139.7mm) |
| Y-Axis Table Working Space | 13″ (330.2) x 5.5″ (139.7) |
| Z-Axis Tower | 5″ Travel Dovetail Gib Assembly |
| Motor Tilt | +90° -8° |
| Motor and Wheel Mount | 130V DC 400 watts PM Brushed Commutation 1-1/4 Hub |
| Net Weight | 180lbs (82Kg) |
| Gross Weight | 232lb (106Kg) |
| Machine Dimensions excluding handles | 21″ x 20″ x 21″ |
| Shipping Dimensions | 30″ x 28″ x 29″, 200lbs |
