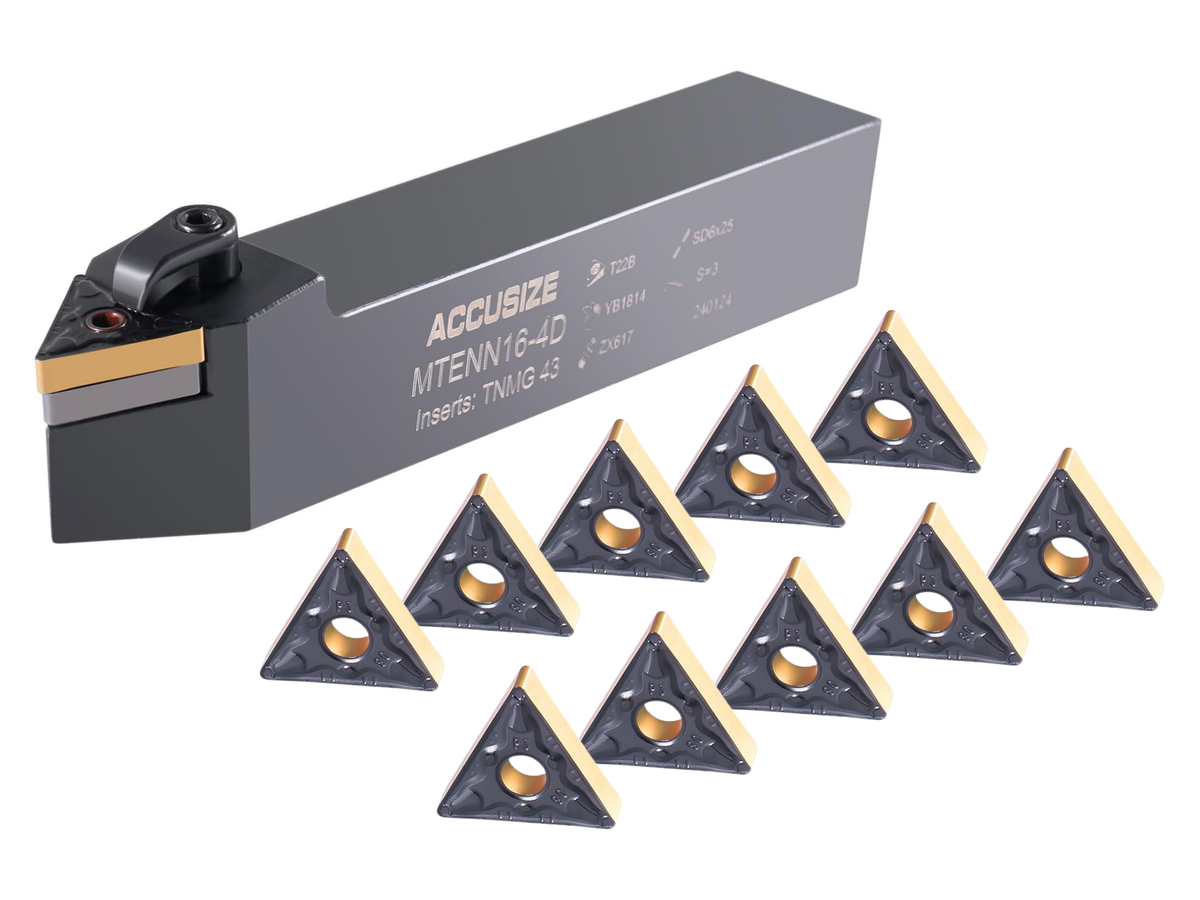

Porte-outils MTENN avec inserts en carbure TNMG

Accusize Industrial ToolsSKU: 2313-5020INS2

Shank Square and Model: 1" MTENN-16-4D avec inserts revêtus de CVD TNMG432 (2313-5020INS2)
Prix:
$140.00

Frais delivraison calculés à la caisse

Stock:
En stock

Paiement & Sécurité

Modes de paiement

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Vos informations de paiement sont gérées de manière sécurisée. Nous ne stockons ni ne pouvons récupérer votre numéro de carte bancaire.


Sécurité

Estimer l'expédition

Description

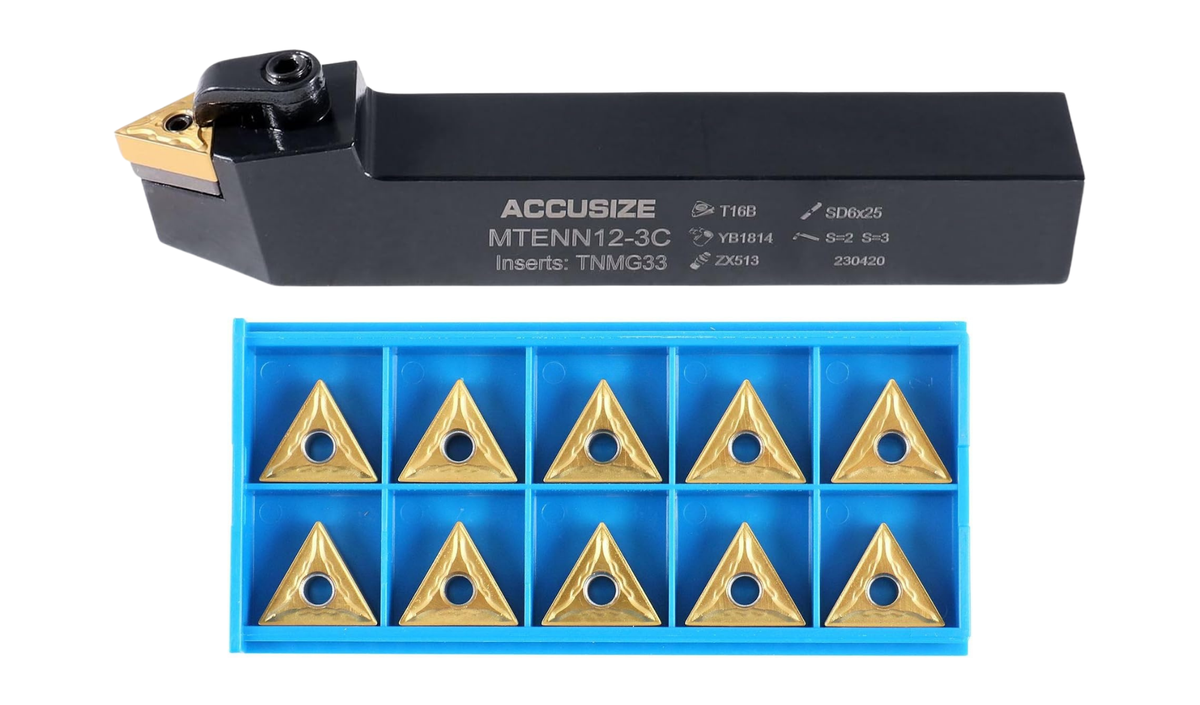

MTENN Toolholders with TNMG Carbide Inserts

  • For facing
  • Negative rake
  • 30° end cutting edge angle
  • TNMG Carbide inserts
Item# Model Shank Square F OAL
(C)
Inserts Finger Clamp Clamp Screw Locking Pins Shims
I.C. Coated Size Thickness

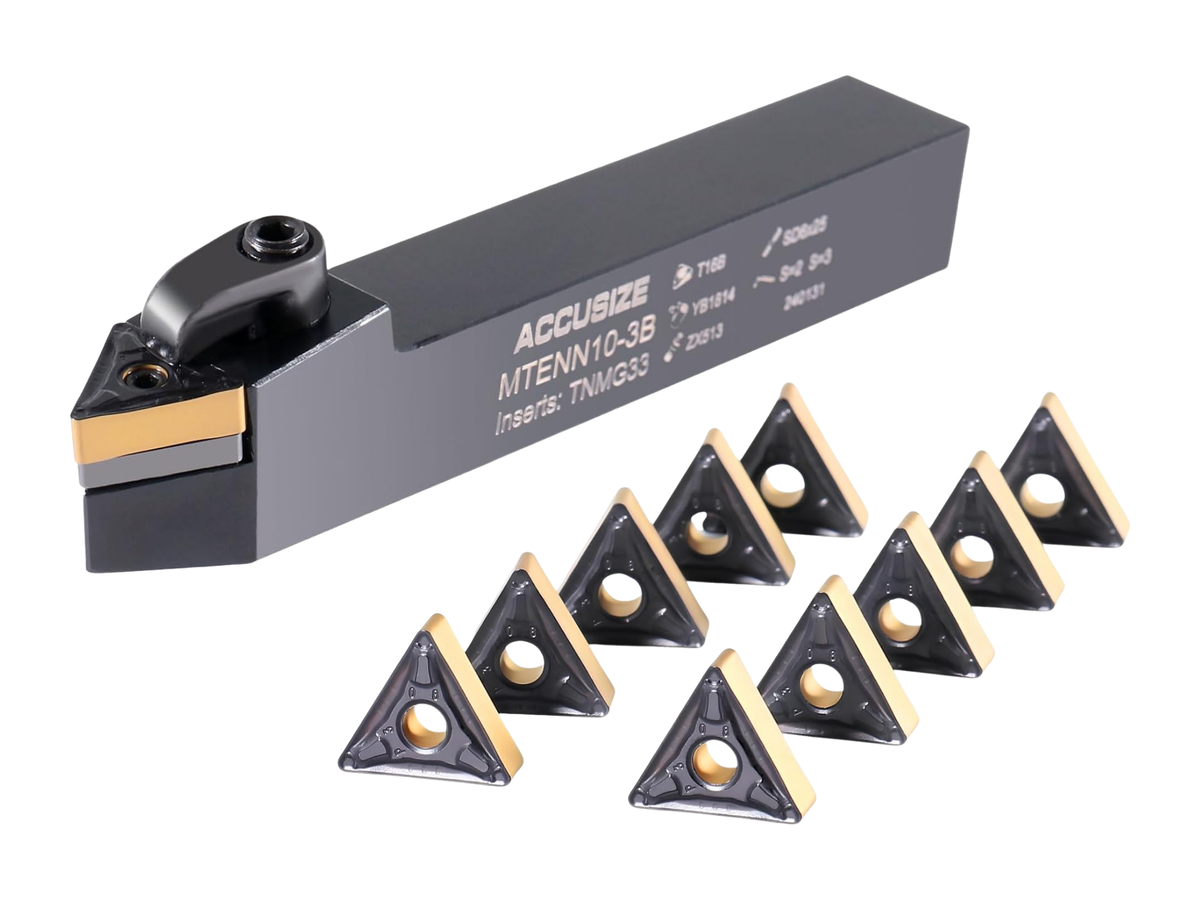

2313-5014INS MTENN-10-3B 5/8" 5/16" 4-1/2" 3/8" TiN TNMG332 3/16" CL-6 XNS-0520 NL-0414 T1603B

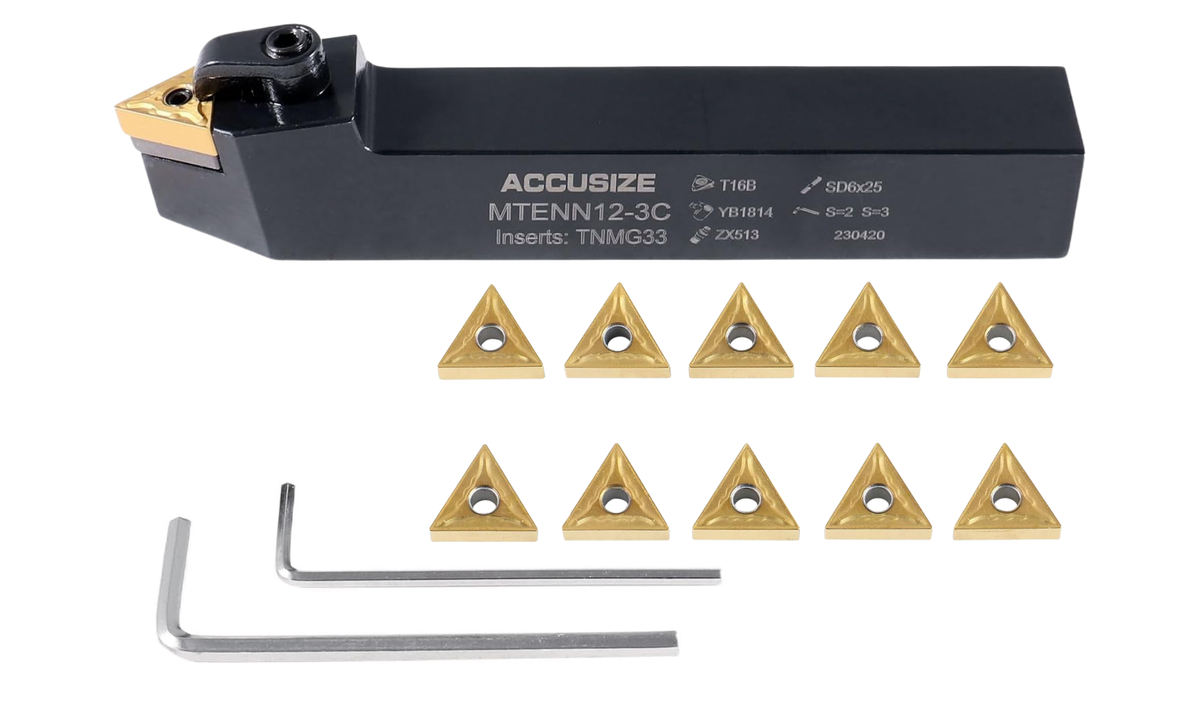

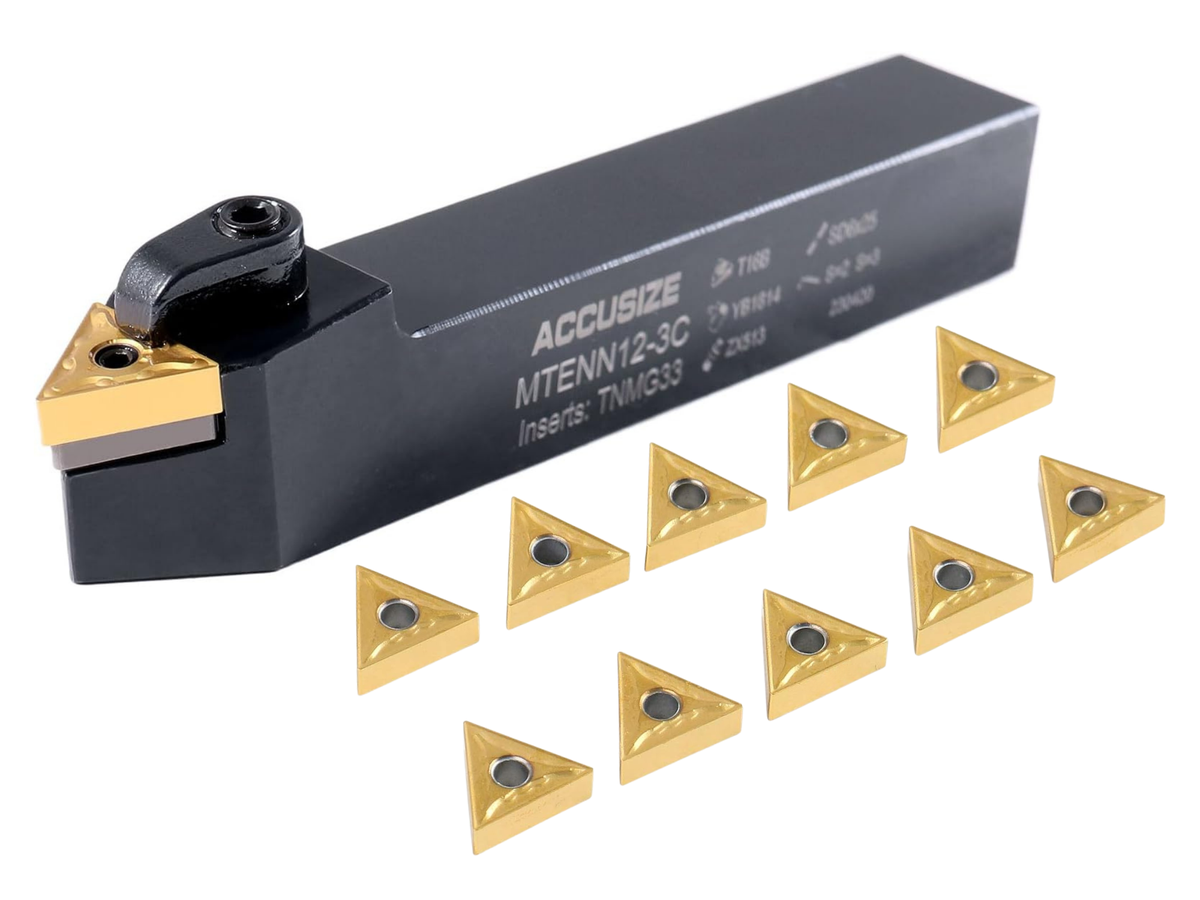

2313-5016INS MTENN-12-3C 3/4" 3/8" 4-1/2" 3/8" TiN TNMG332 3/16" CL-6 XNS-0829 NL-0414 T1603B

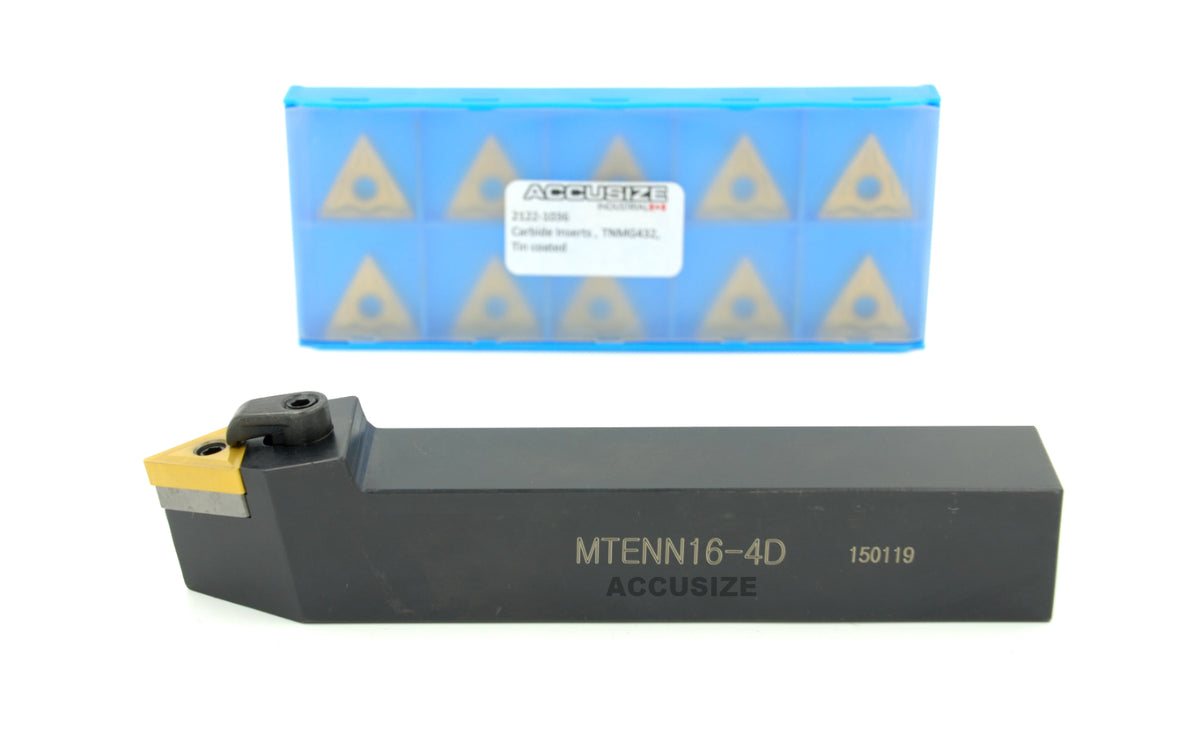

2313-5020INS1 MTENN-16-4D 1" 1/2" 6" 1/2" TiN TNMG432 3/16" CL-12 XNS-0829 NL-0617 T2203B

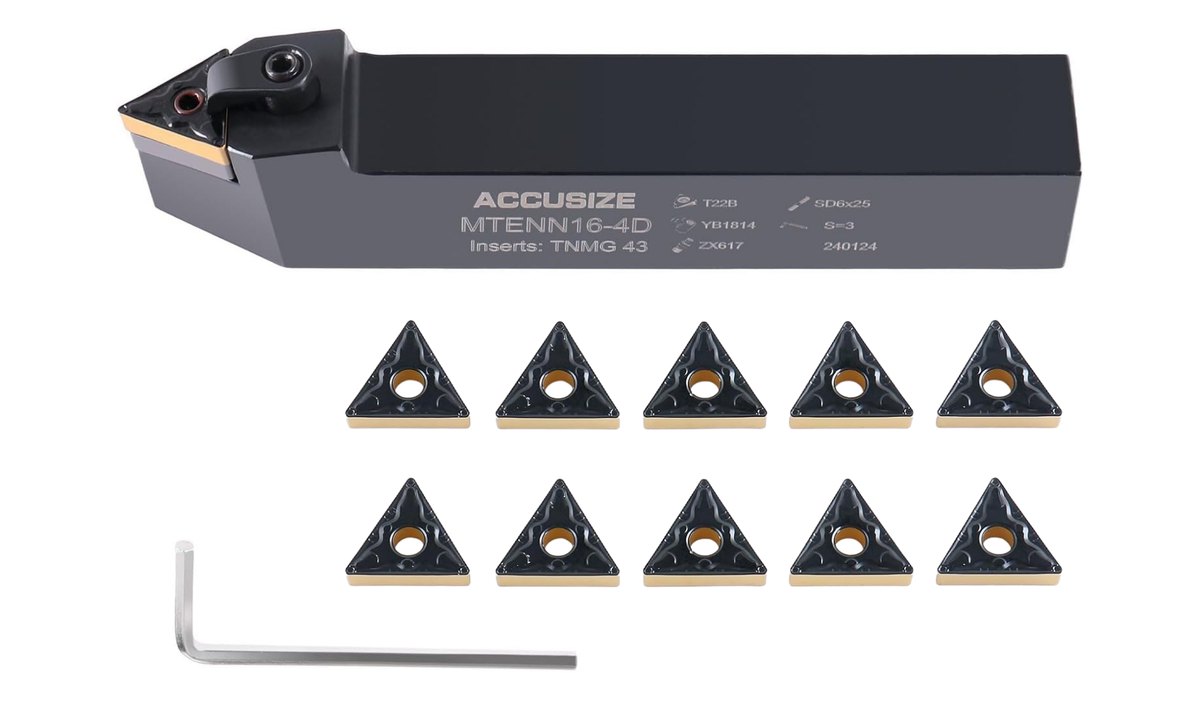

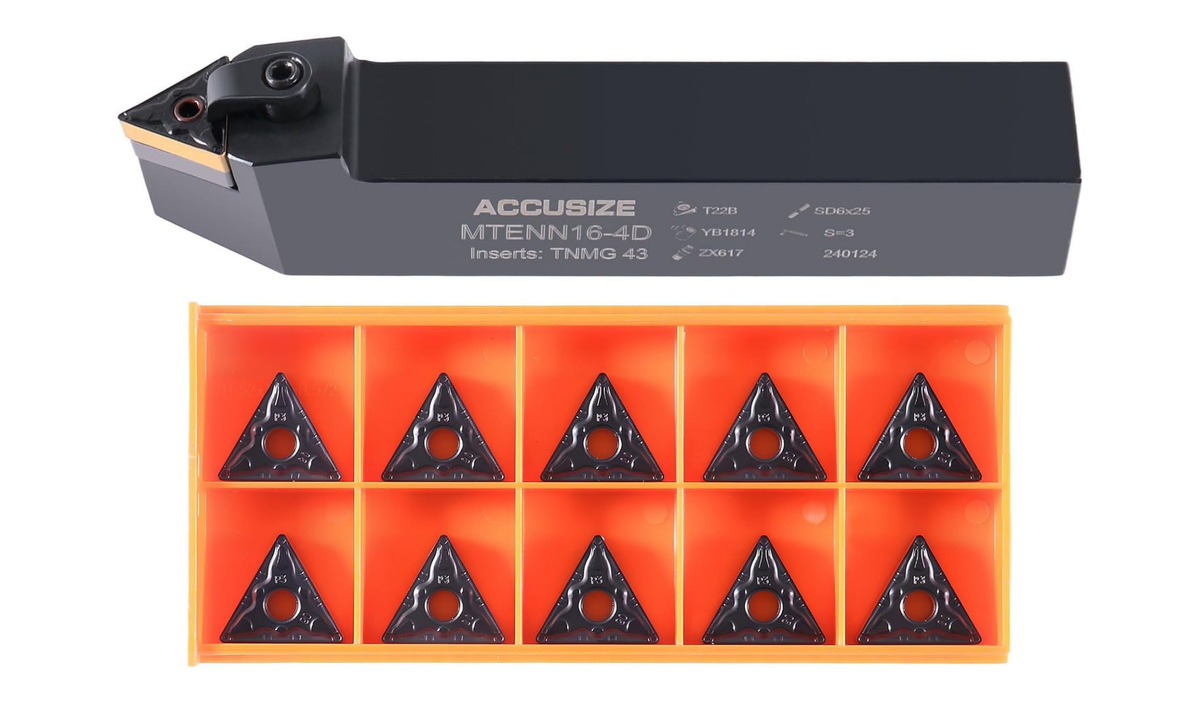

2313-5020INS2 MTENN-16-4D 1" 1/2" 6" 1/2" CVD TNMG432 3/16" CL-12 XNS-0829 NL-0617 T2203B

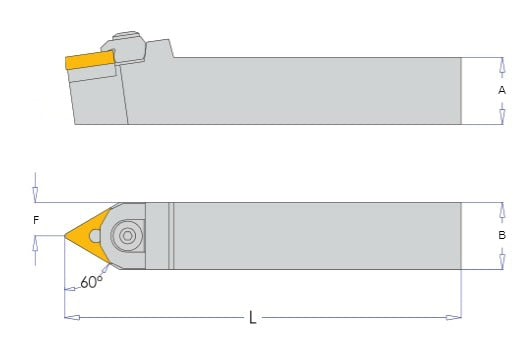

DIAGRAM OF ACCUSIZE MTENN TOOL HOLDER

Inserts

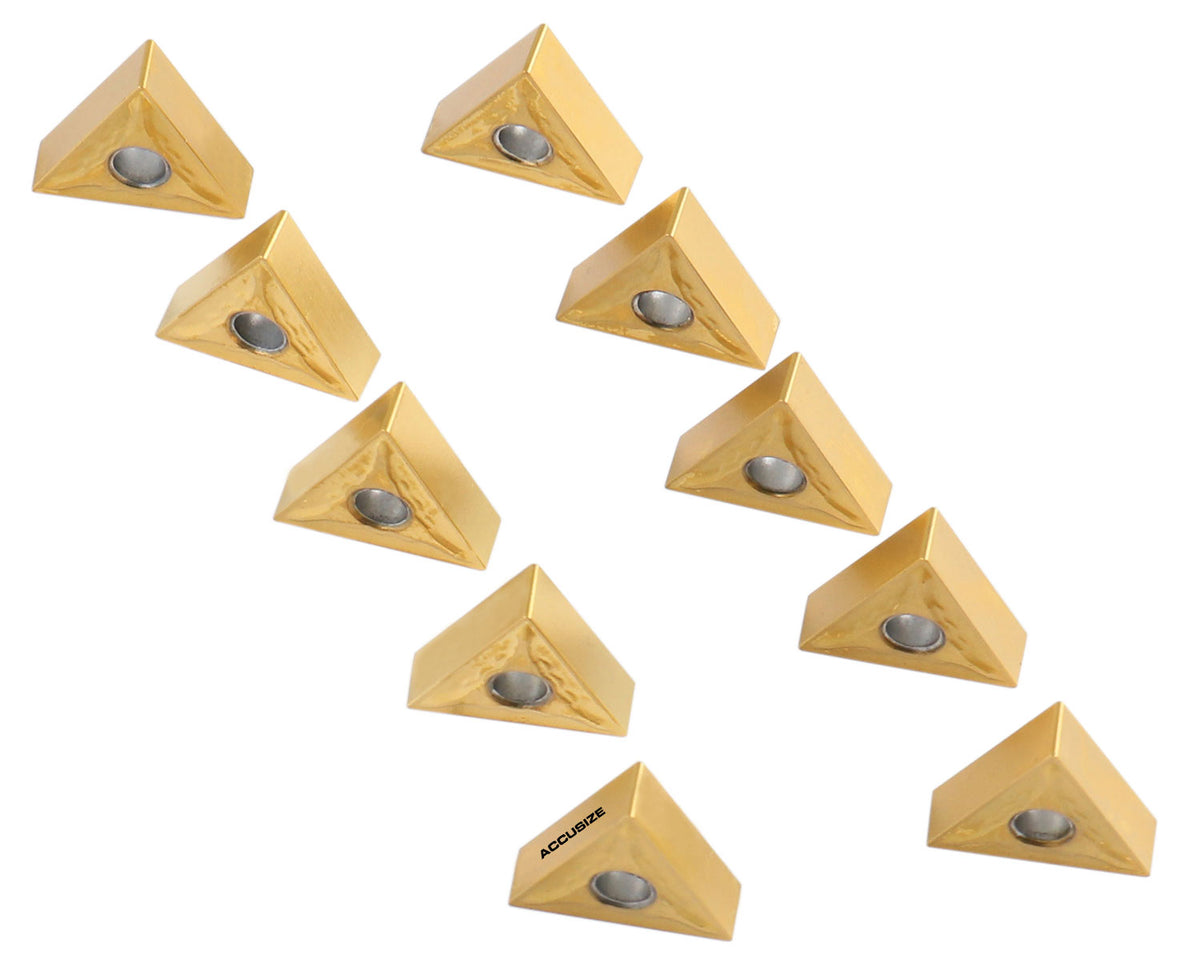

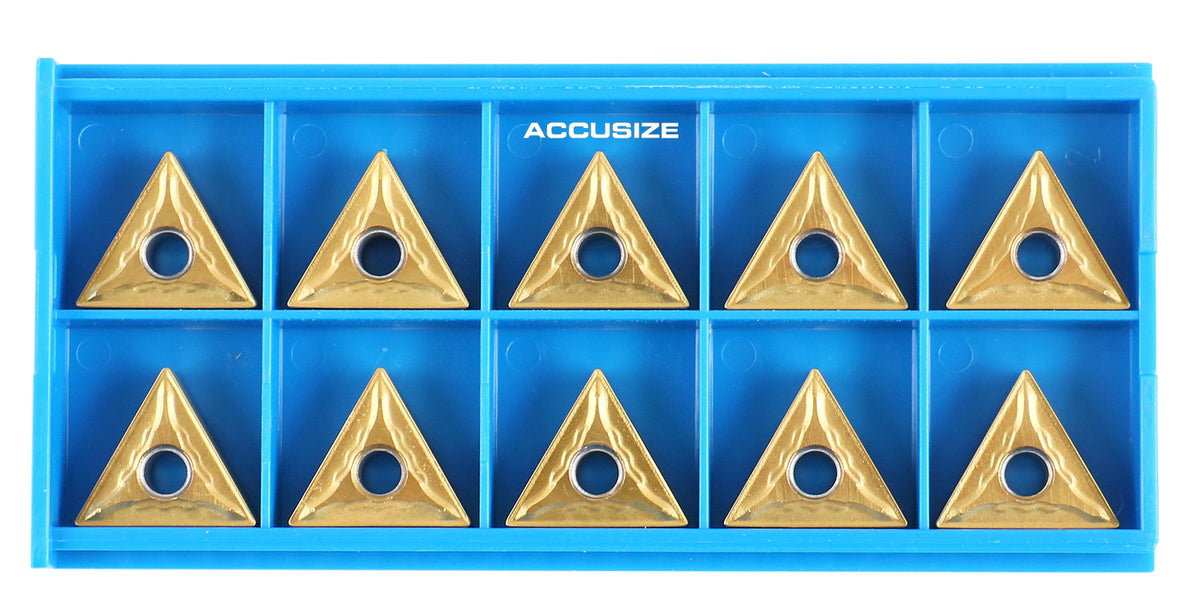

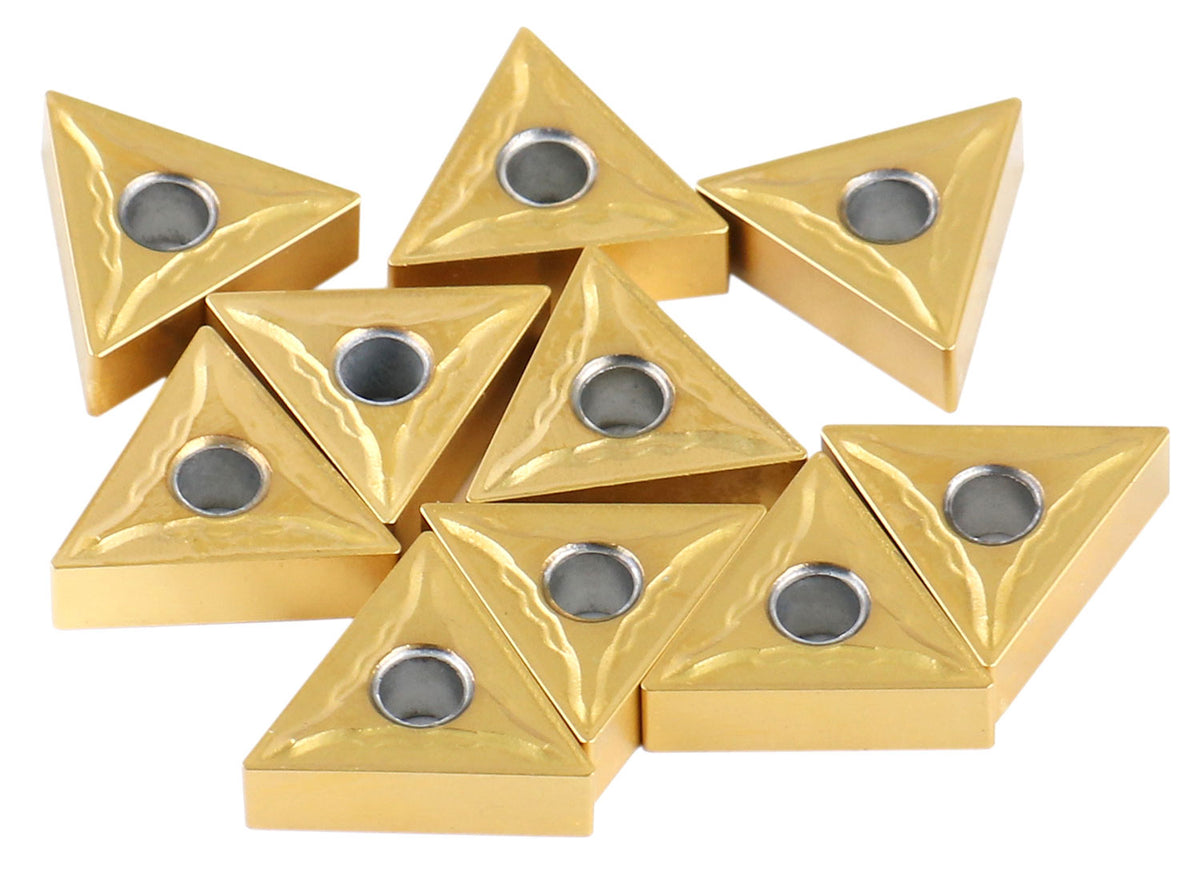

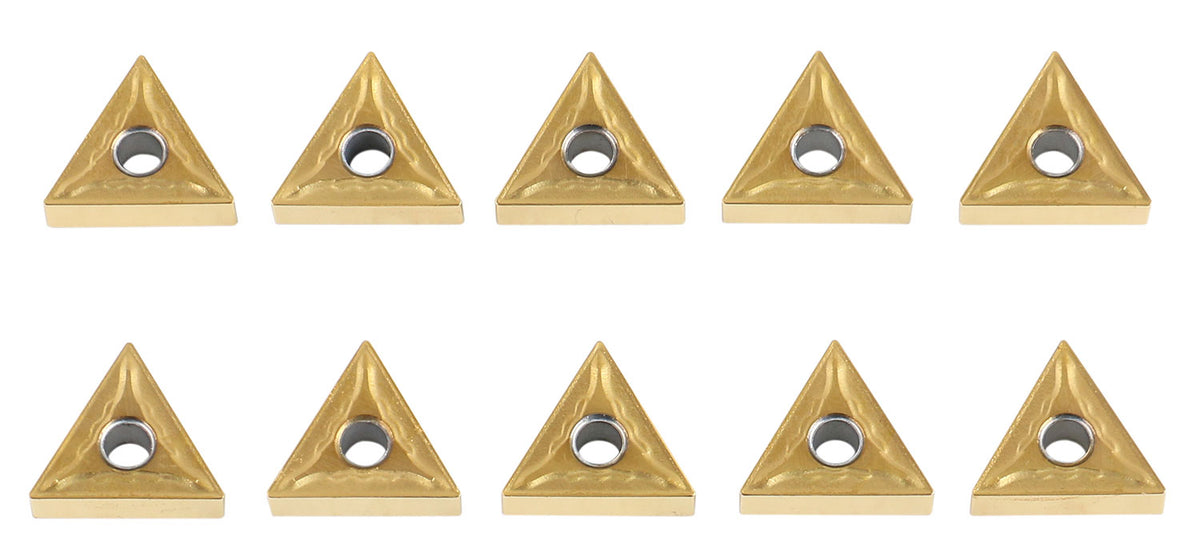

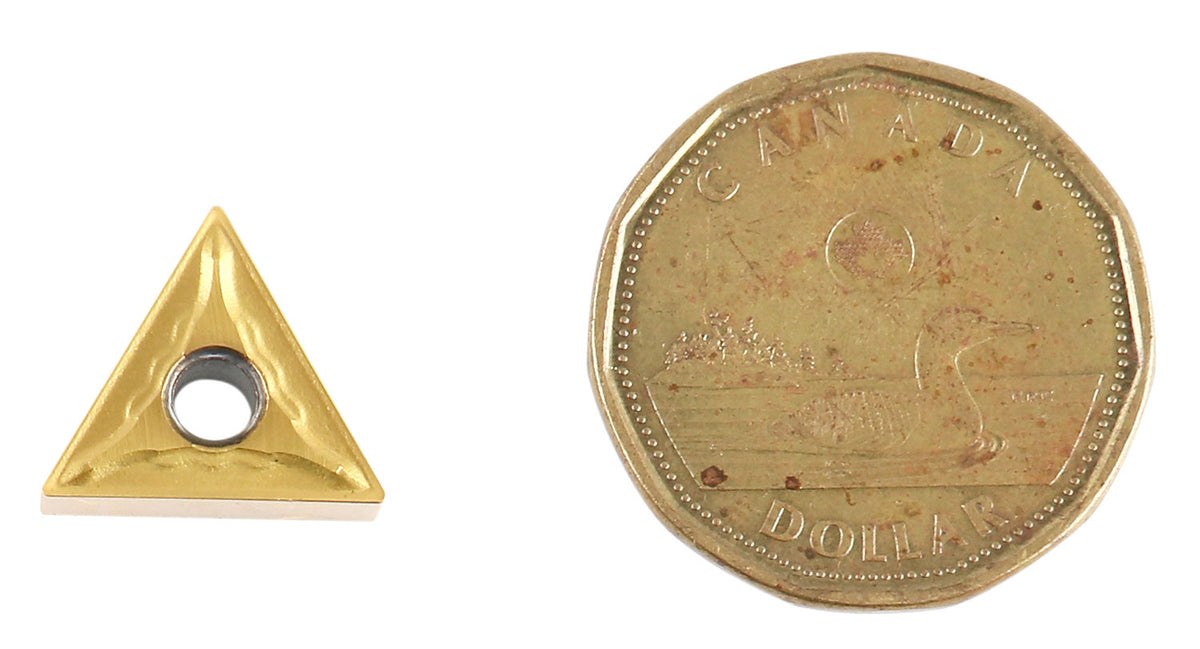

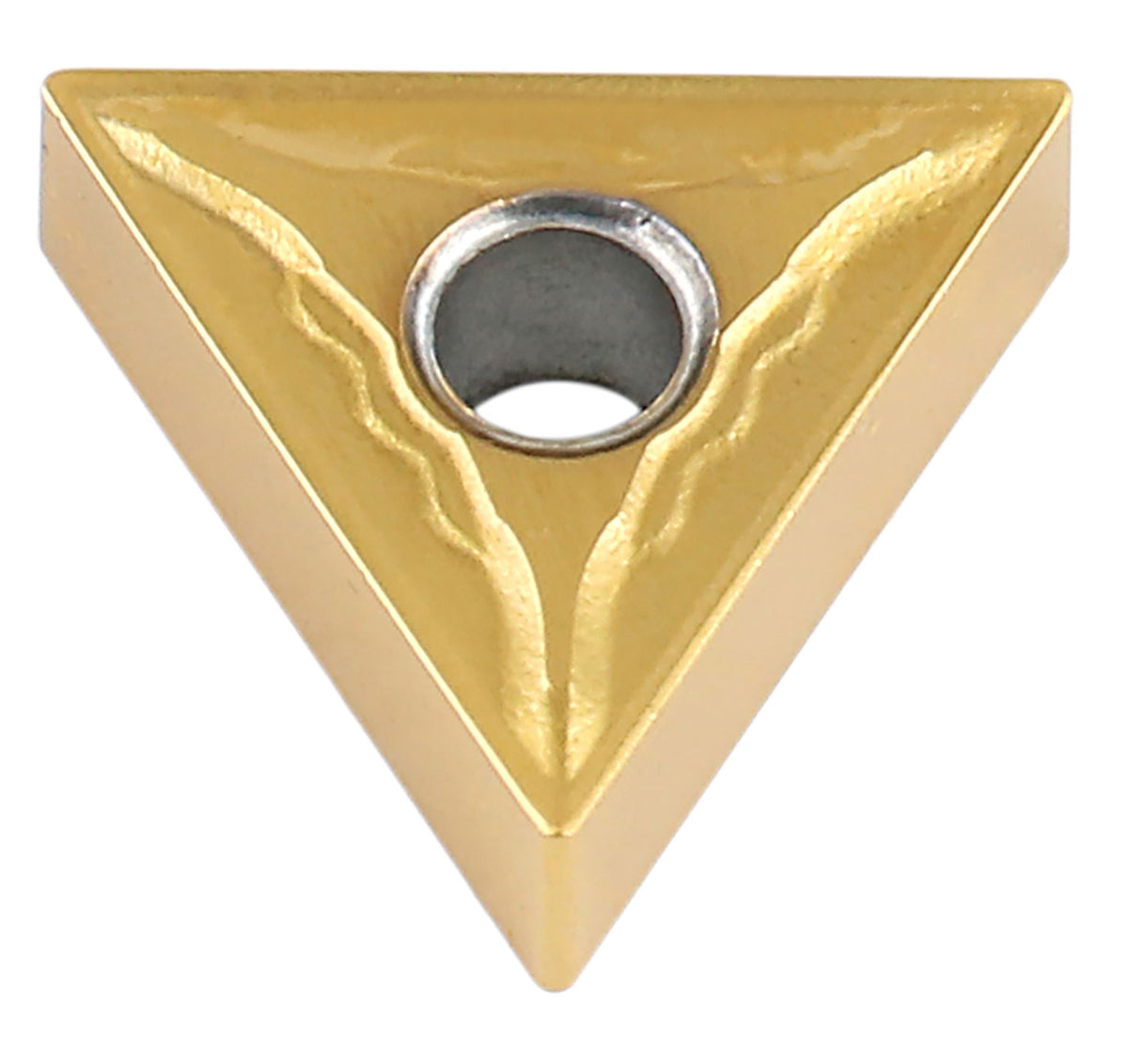

TNMG, Carbide Inserts, Tin Coated, 10 Pcs/Set

Image 1

  • ANSI #: TNMG332
  • ISO #: TNMG160408
  • Insert Style: TNMG
  • Insert Size: 332
  • IC: 3/8"
  • Thickness: 3/16"
  • Thru-Hole: 0.15"
  • Radius: 1/32
Item Description
2122-1034 C5 Grade Coated, TNMG332

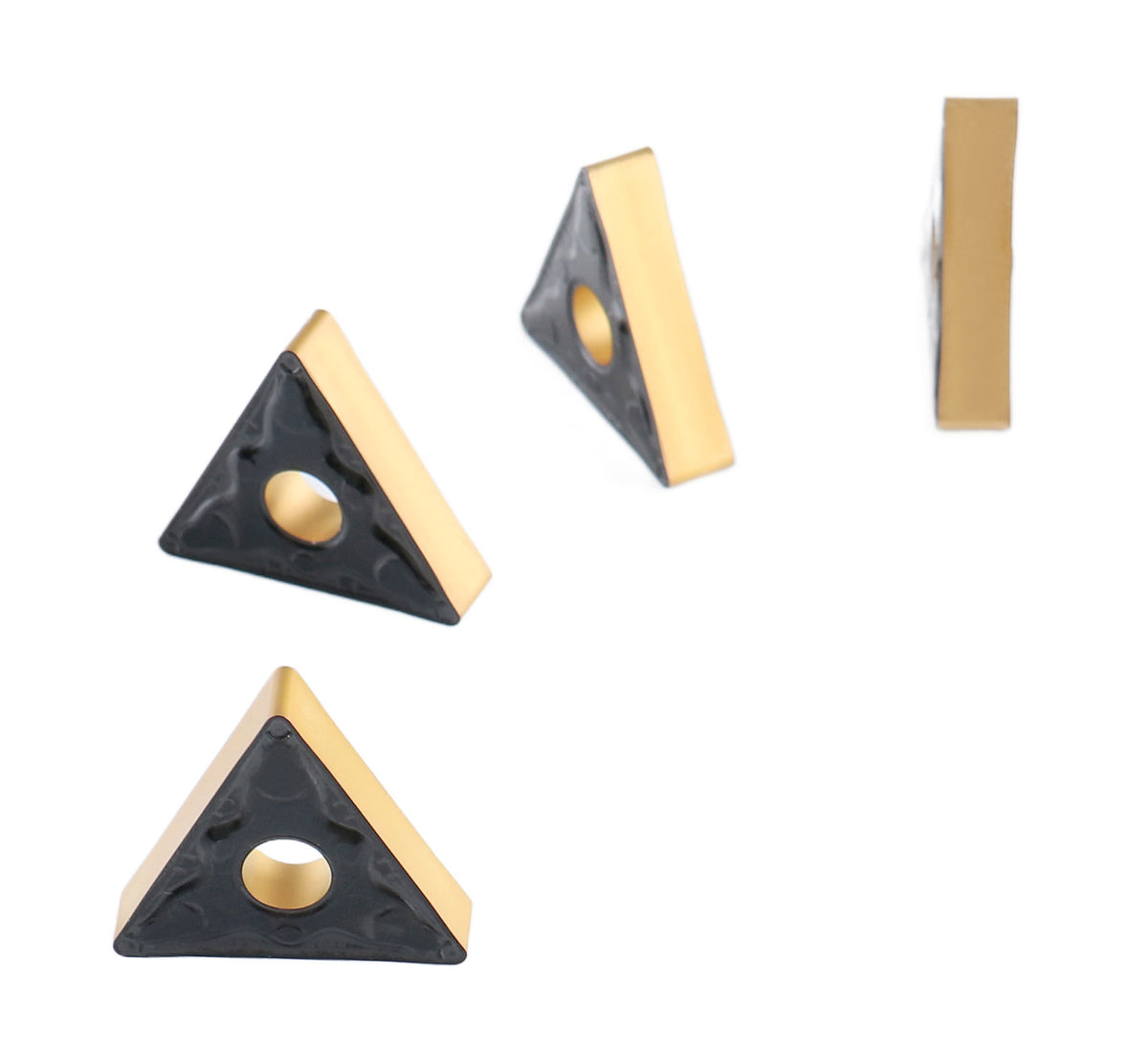

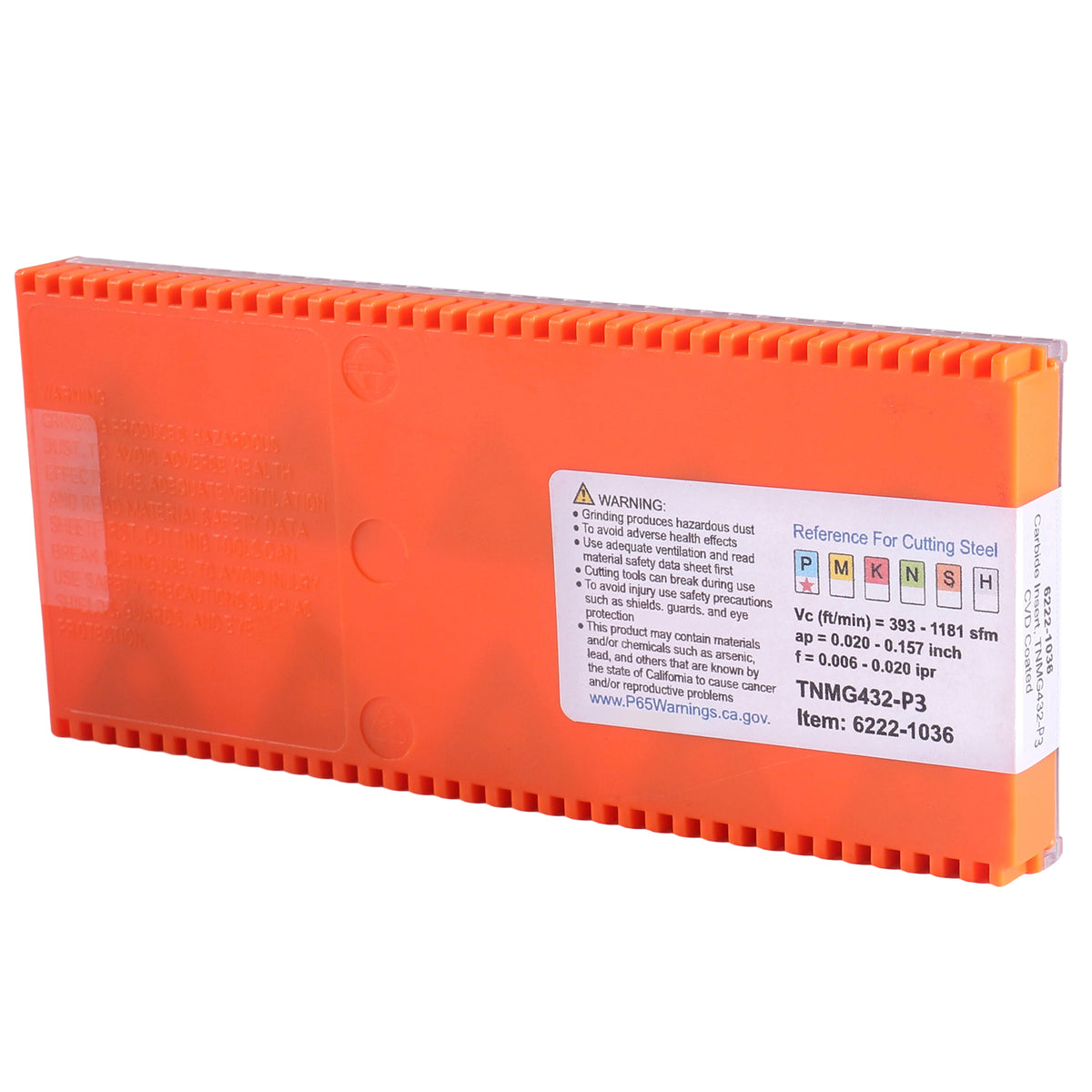

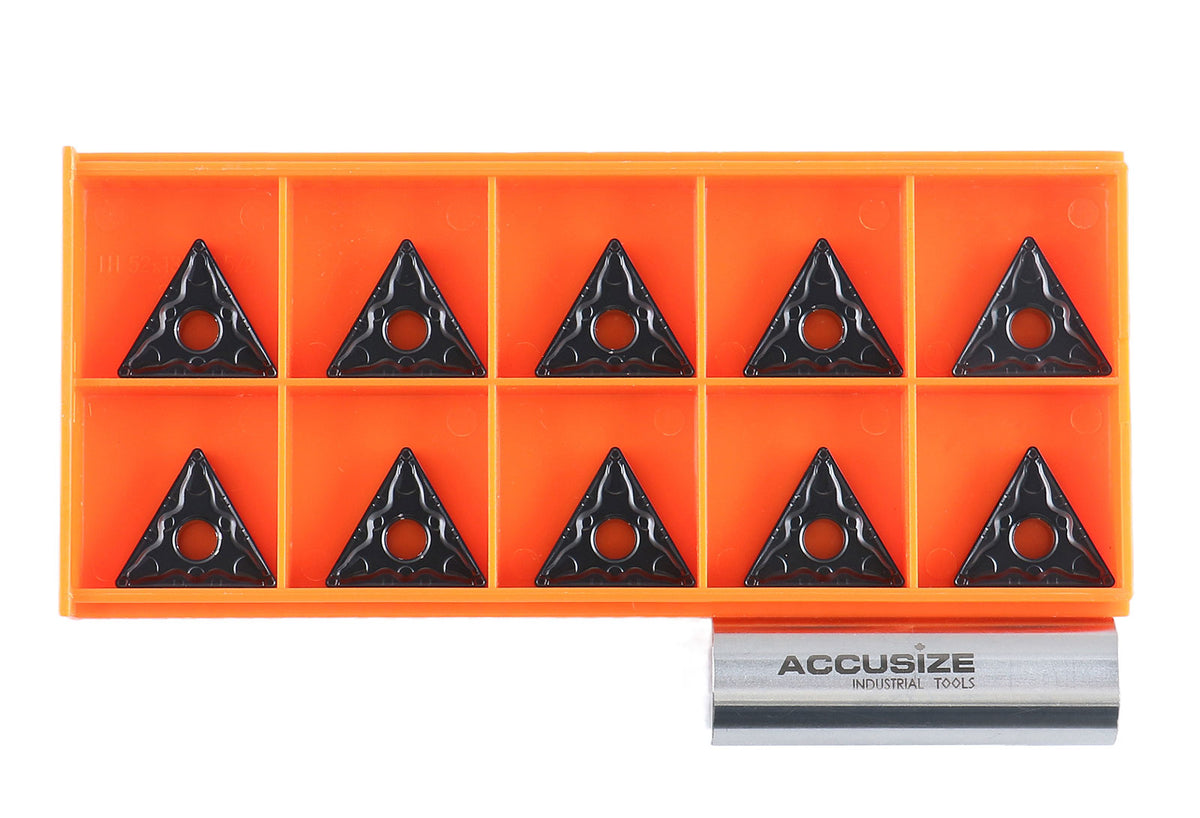

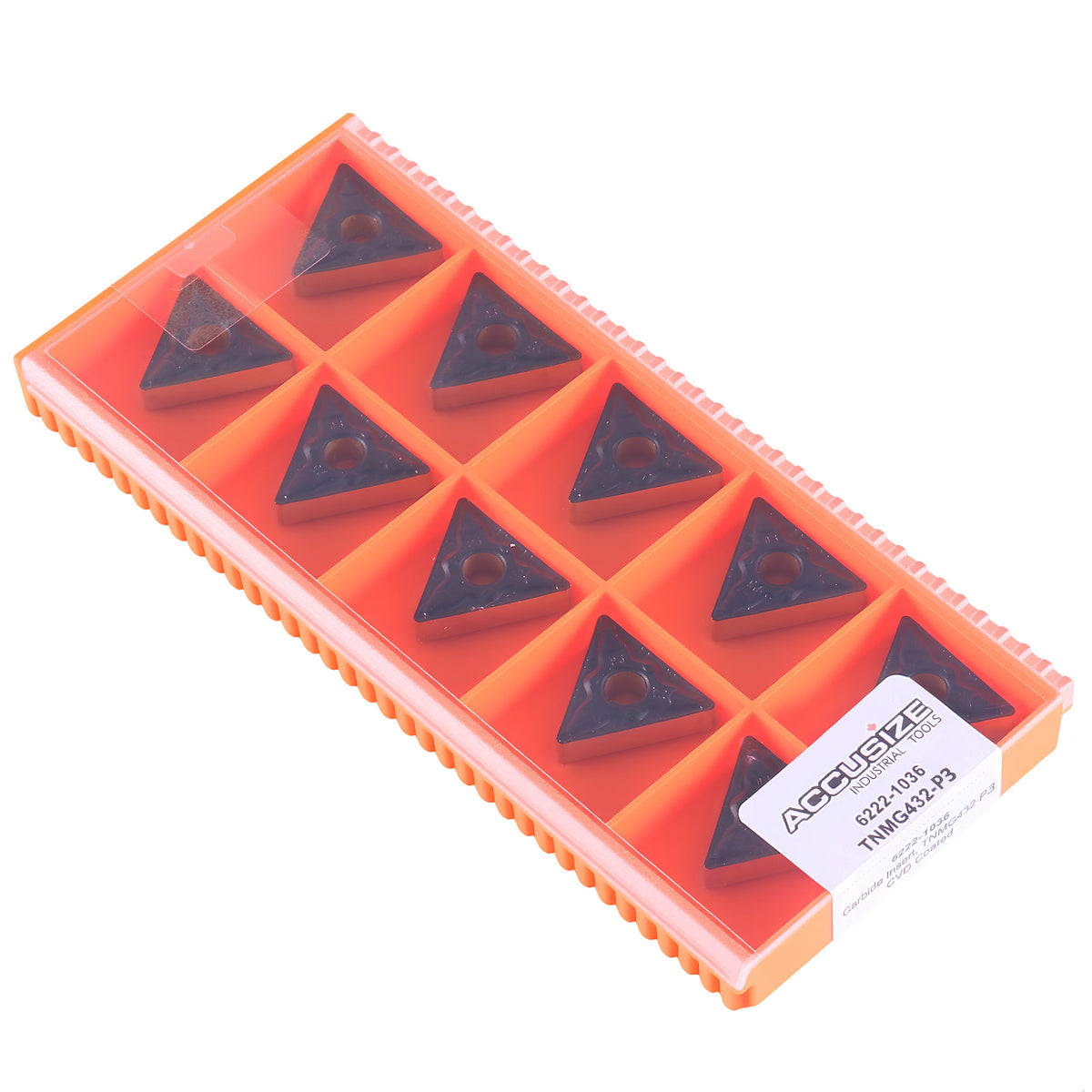

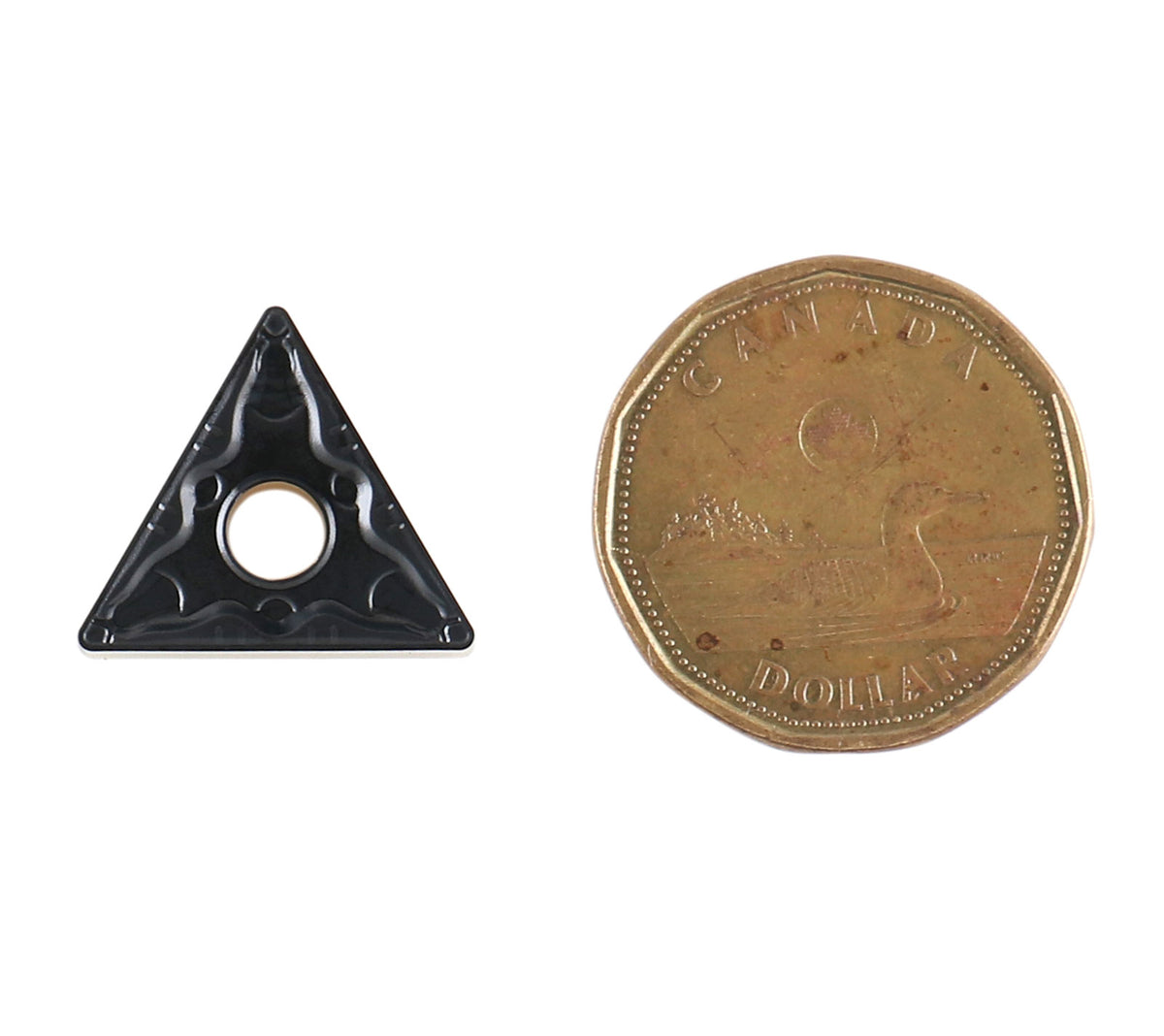

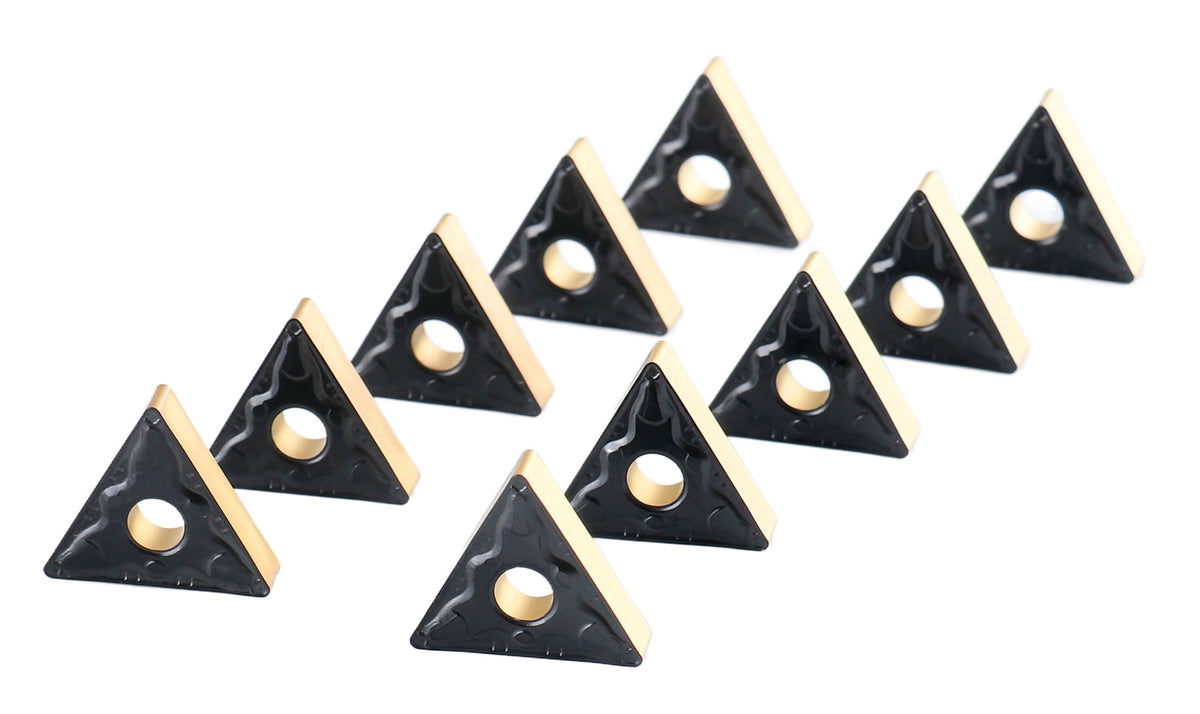

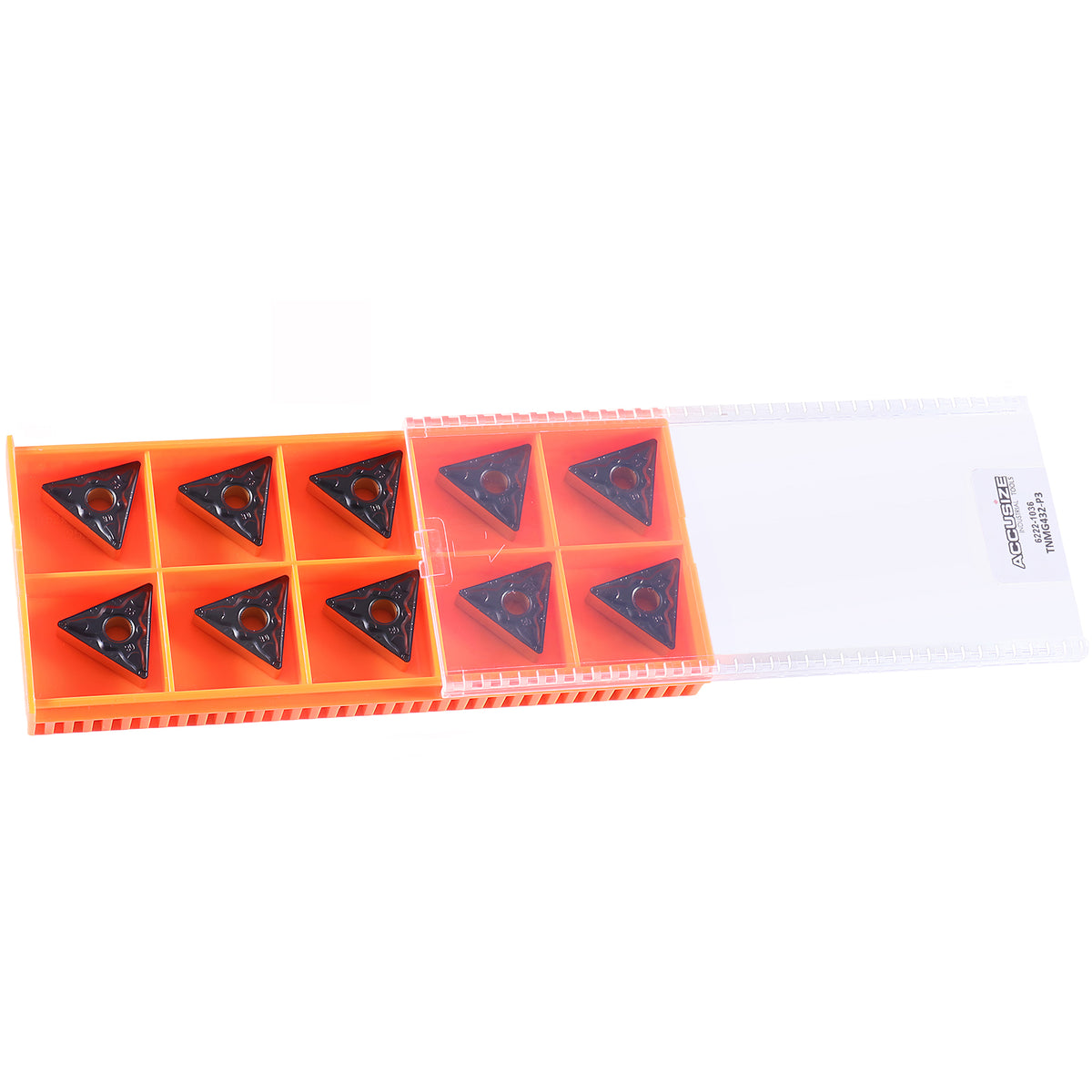

TNMG Carbide Inserts CVD Coated Black/Yellow 10 ps/box

  • CVD Coated
  • Insert Grade: BPS101
  • Chip Breaker: MD
  • Material: Carbide
  • Coating: CVD Al2O3 TICN
  • Machining Parts Material: Steel
  • Machining Process: finish

Product features

  • BPS101 Black/Yellow
  • Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
  • Can bear high temperatures
  • For steel and steel castings finishing to roughing processing
  • Continue cutting to light interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed
  • For hard materials, continuous cutting and light interrupted cutting from finishing to roughing
  • Wet and dry processing
  • Combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping
  • Preferred choice chip breaker on General Purpose Finishing

Features of chip breaker

  • For medium-duty turning
  • With the broad capability for steel, stainless steel, grey and nodular cast-iron
  • Operations: turning, facing and profiling
  • Advantages: all-round, reliable with problem-free machining
  • Limitations: depth of cut and feed, risk of overloading the cutting edge
  • Components typically: axles, shafts, hubs, gears, etc.
Item # ANSI # I.S.O. # I.C Thickness Hole Radius
2222-1034 TNMG332-MD TNMG160408-MD 3/8'' 3/16'' 5/32'' 49/64''
2222-1036 TNMG432-MD TNMG220408-MD 1/2'' 3/16'' 13/64'' 1/32''
