Porte-outils MWLN R/L avec 10 inserts en carbure supplémentaire WNMG

Accusize Industrial ToolsSKU: 2316-1012INS

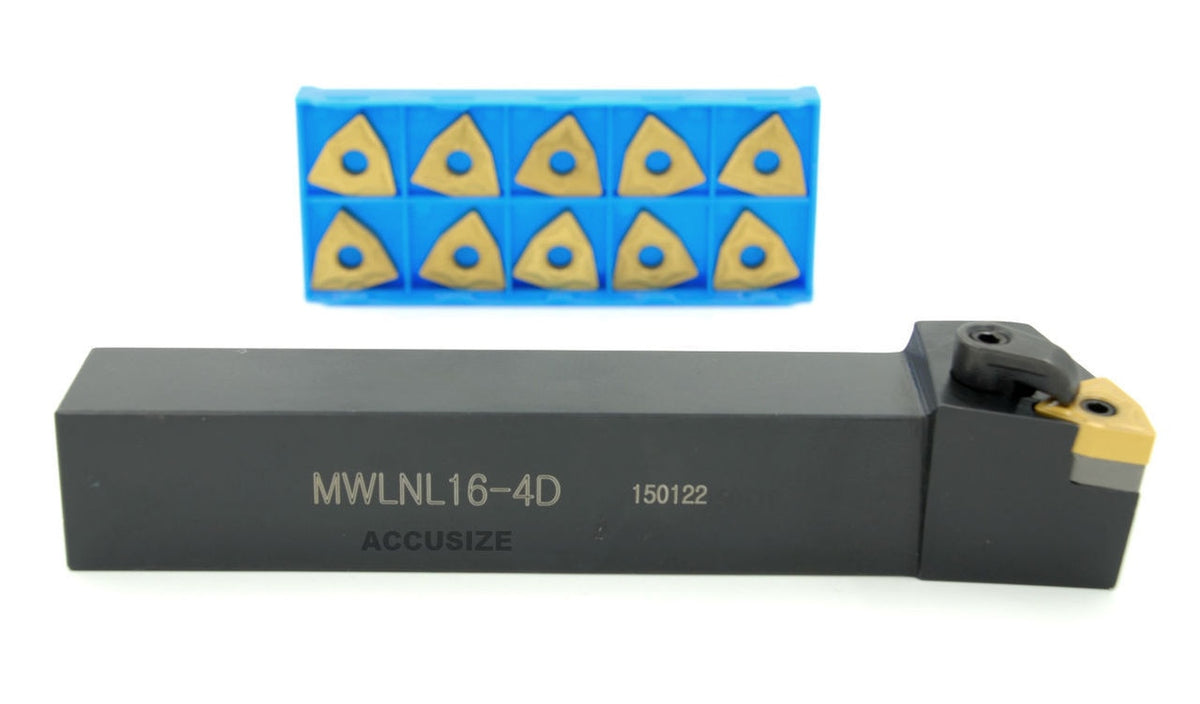

Size and Model: 1"x6" MWLN L-16-4D avec inserts en carbure WMNG432 (2316-1012INS)
Prix:
$131.00

Frais delivraison calculés à la caisse

Stock:
En stock

California Proposition 65 Warning

Paiement & Sécurité

Modes de paiement

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Vos informations de paiement sont gérées de manière sécurisée. Nous ne stockons ni ne pouvons récupérer votre numéro de carte bancaire.


Sécurité

Estimer l'expédition

Description

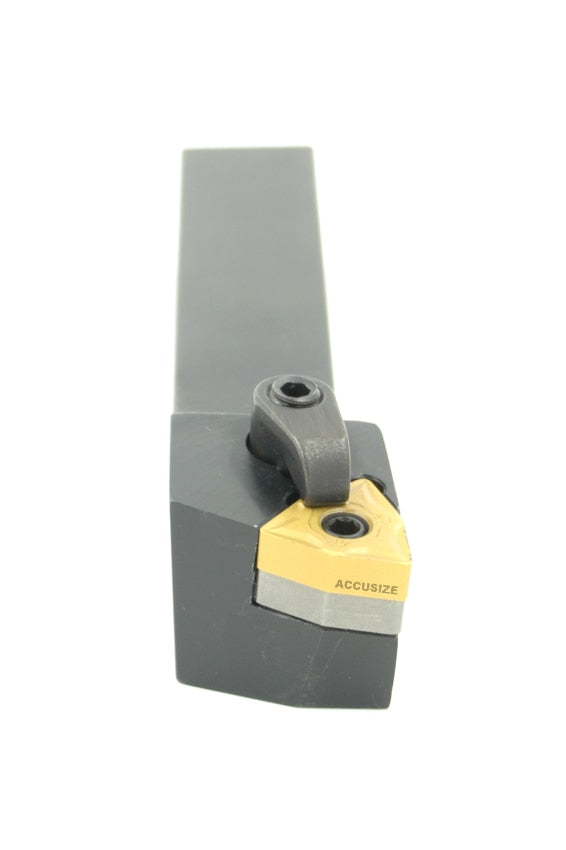

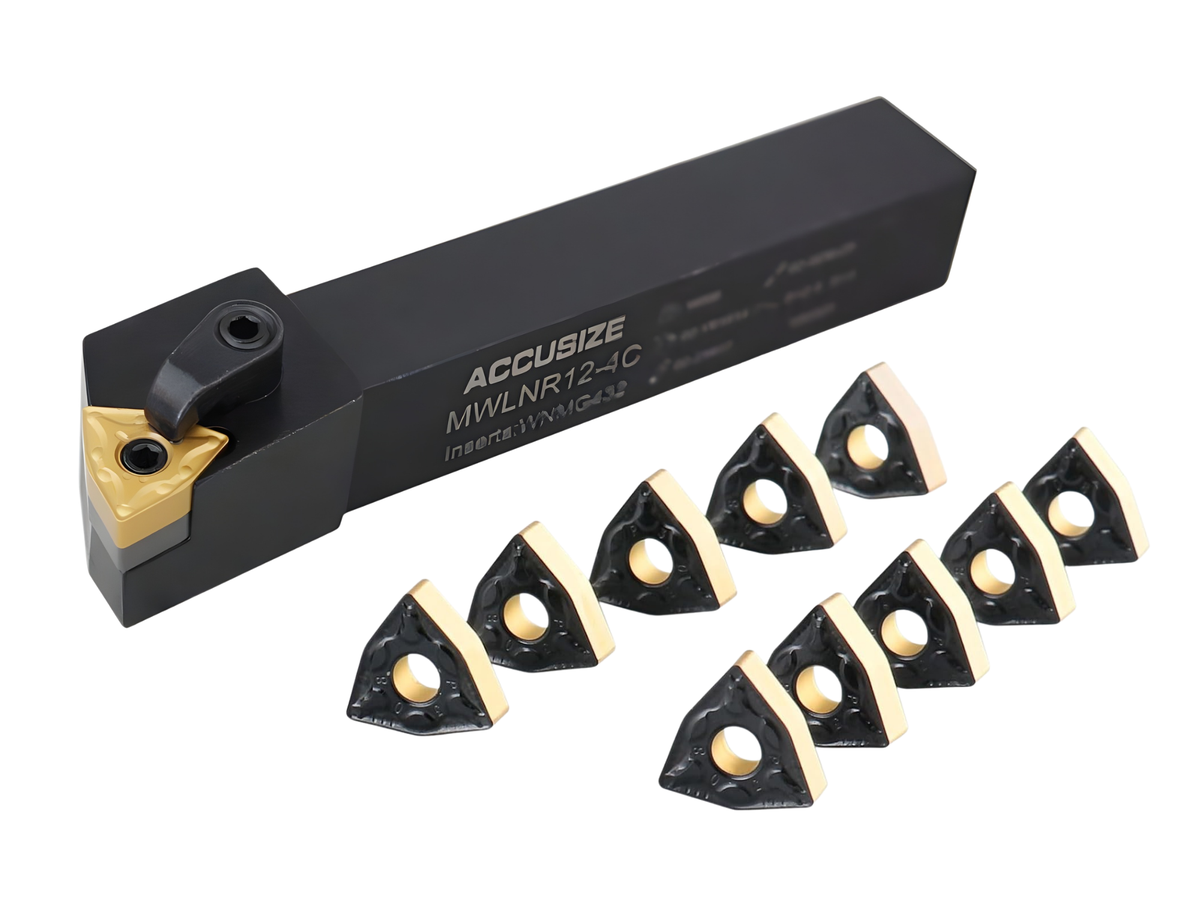

MWLN R/L Toolholders with Carbide Inserts

  • Negative 5° end or side cutting edge angle
  • For turning, facing and copying
  • Accept negative 80° trigon WNMG inserts
  • Each holder comes with 10 pieces of TiN coated or CVD coated carbide inserts

  ** For purchasing additional inserts, you may find the corresponding Insert SKU below:

Item# Right/Left Hand Model Shank Square (A & B) F OAL
(C)
Inserts Finger Clamp Clamp Screw Locking Pins Shims
I.C. Thickness Insert Coated, (SKU)

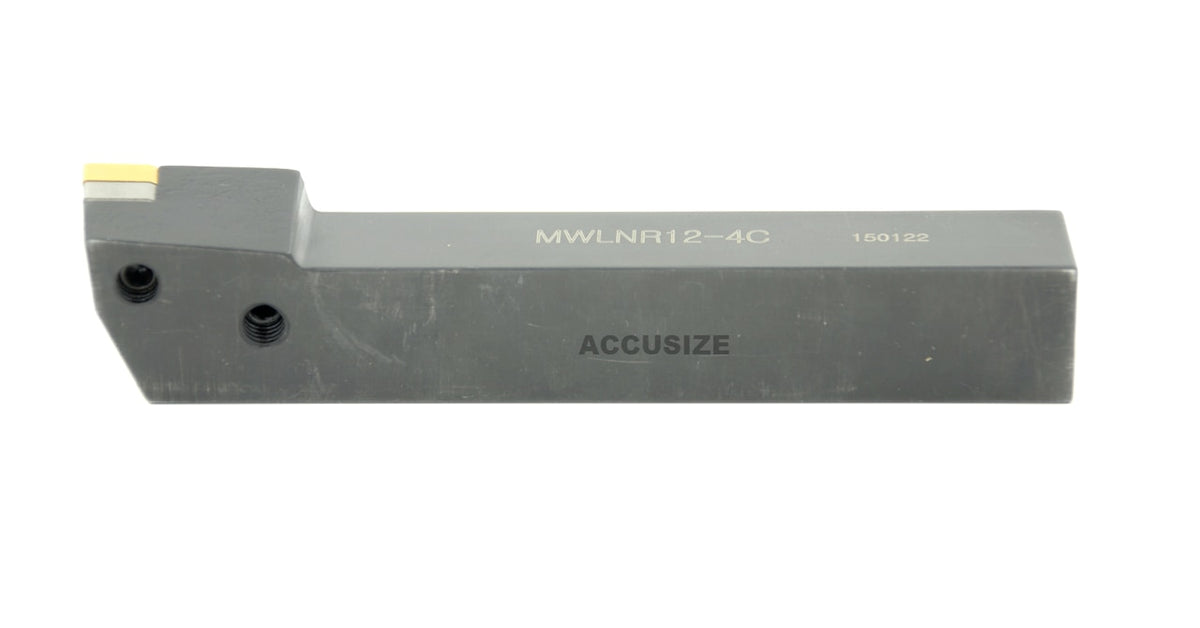

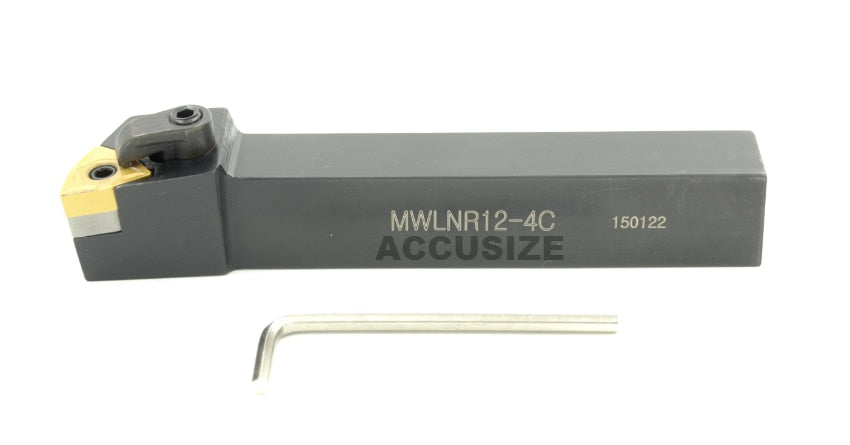

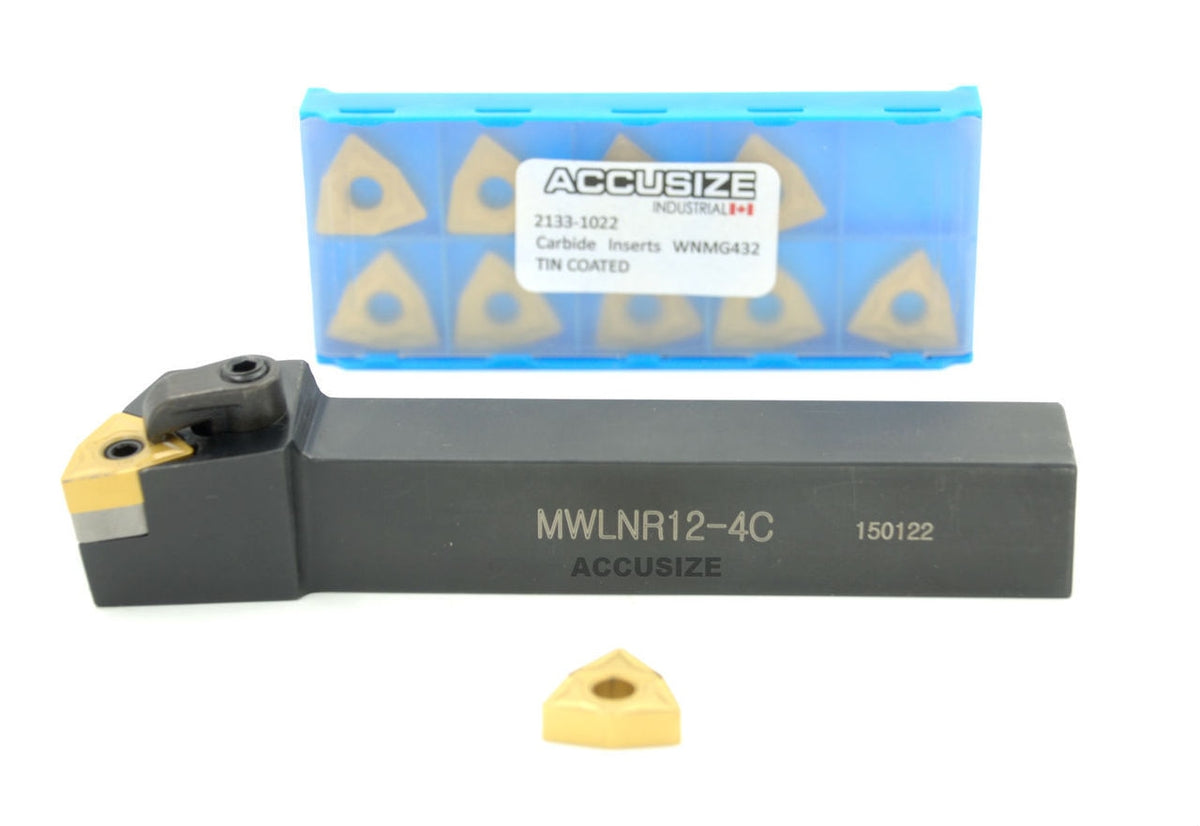

2316-0008 Right MWLN R-12-4C 3/4" 1" 5'' 1/2'' 3/16"

WNMG 43

(TiN Coated WNMG432, 2133-1022)

(CVD Coated WNMG432-MD, 2233-1022)

CL-6 XNS-0520

ZX617

(0028-0617)

W08B

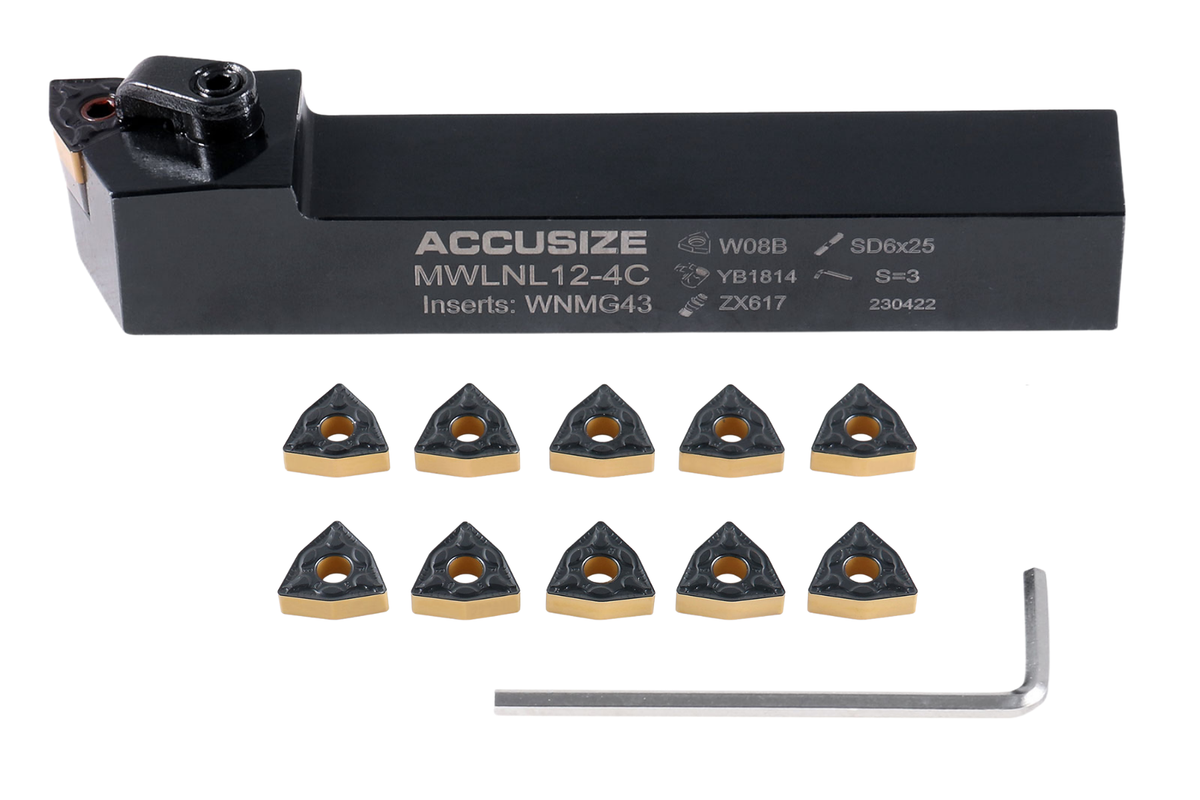

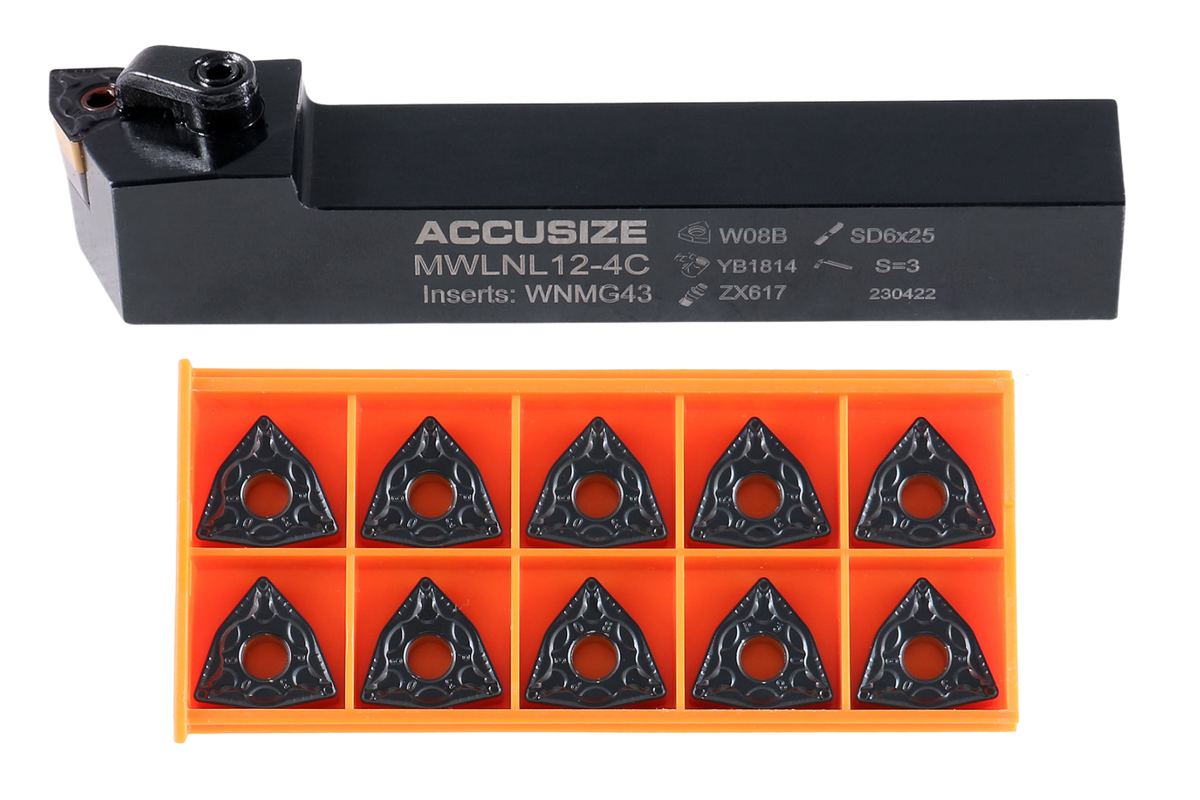

2316-1008 Left MWLN L-12-4C

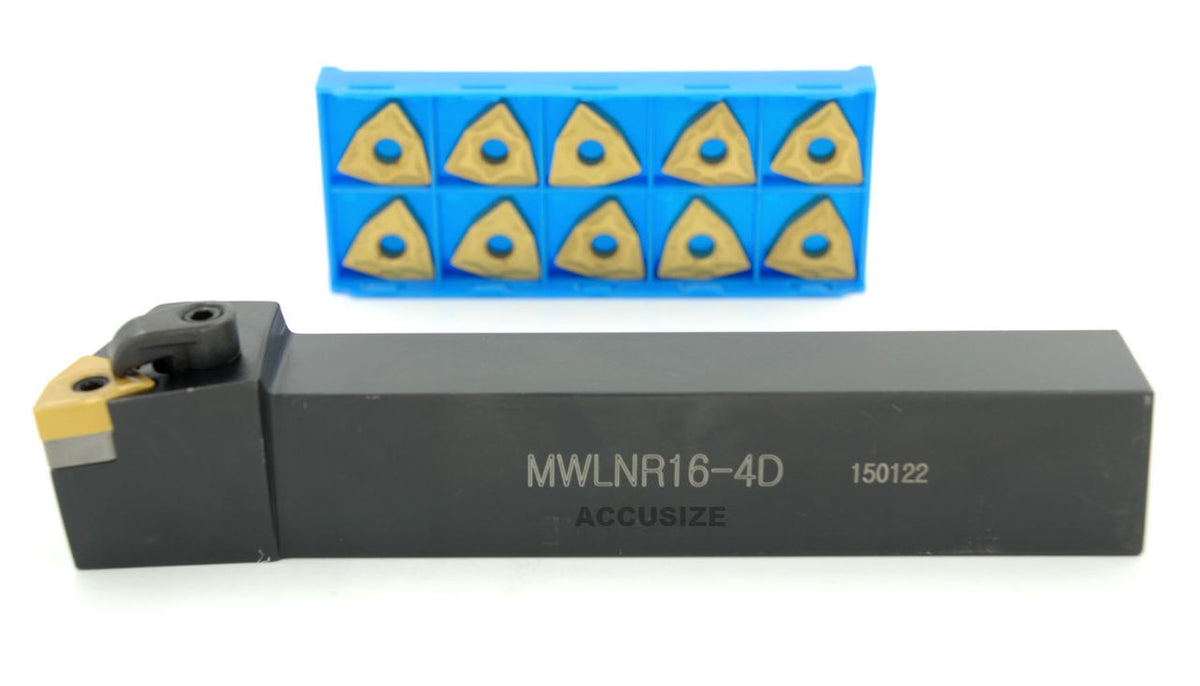

2316-0012 Right MWLN R-16-4D 1" 1-1/4" 6" 1/2" 3/16"

WNMG 43

(TiN Coated WNMG432, 2133-1022)

(CVD Coated WNMG432-MD, 2233-1022)

CL-12 XNS-0829

ZX617

(0028-0617)

W08B
2316-1012 Left MWLN L-16-4D

 DIAGRAM OF MWLN TOOL HOLDER




Carbide Inserts

WNMG432, Carbide Inserts, Tin Coated, 10 Pcs/Set

2133-1022

  • Carbide Inserts
  • C5 Grade Coated
  • ANSI #: WNMG432
  • ISO #: WNMG080408
  • Insert Style: WNMG
  • Insert Size: 432
  • I.C.: 1/2"
  • Thickness: 3/16"
Item Description
2133-1022 C5 Grade Coated, WNMG080408

Carbide inserts, CVD Coating, WNMG, Black/Yellow, 10 ps/box

2233-1022

  • For Turning & Boring
  • Material: Carbide
  • Coating: CVD Al2O3 TICN
  • Insert Grade: BPS101
  • Chip Breaker: MD
  • Machining Parts Material: Steel
  • Machining Process: finish

Product features

  • BPS101 Black/Yellow Coating Grade
  • CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
  • Can bear high temperatures. For steel and steel castings finishing to roughing processing
  • Continue cutting to light interrupted cutting
  • Machining of gray and ductile iron at low to medium cutting speed
  • For hard materials, continuous cutting and light interrupted cutting from finishing to roughing
  • Wet and dry processing
  • Combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping
  • Preferred choice chip breaker on General Purpose Finishing

Features of chipbreaker

  • For medium-duty turning
  • With broad capability for steel, stainless steel, grey and nodular cast-iron
  • Operations: turning, facing and profiling
  • Advantages: all-round, reliable with problem-free machining
  • Limitations: depth of cut and feed, risk of overloading the cutting edge
  • Components typically: axles, shafts, hubs, gears, etc.
Item # ANSI # I.S.O. # I.C. Thickness Hole Radius
2233-1022 WNMG432-MD WNMG080408-MD 1/2" 3/16" 13/64" 1/32"
