Surface Roughness Testers /Profilometers/Surface Finish/Ra Surface Finish
Shipped directly from PHASE II+ in NJ, USA
Model No. SRG-4600
Features
The newest addition to our state-of-the-art surface roughness testers /profilometers, the SRG-4600 will instill the highest level of confidence in your production, shop floor or QC lab. These surface roughness testers/profilometers are distinguished by a high level of accuracy, multiple parameters and simplicity of operation. Extremely sensitive and highly accurate readings from this Phase II surface roughness tester/profilometer is offered via 9 popular surface roughness scales including Ra, Rq (Rms), Rt, Rz and Rmax.
The newest addition to our state-of-the-art surface roughness testers /profilometers, the SRG-4600 will instill the highest level of confidence in your production, shop floor or QC lab. Extended memory and output coupled with many updated useful functions, the SRG-4600 surface roughness tester/profilometer is clearly the new leader in ultra accurate surface roughness/profile testing. These surface roughness testers/profilometers are distinguished by a high level of accuracy, multiple parameters and simplicity of operation. Extremely sensitive and highly accurate readings from this Phase II surface roughness tester/profilometer is offered via 9 popular surface roughness scales including Ra, Rq (Rms), Rt, Rz and Rmax.
The new diamond stylus is hypersensitive and sophisticated enough to allow for a .001 (um) micron display resolution. The SRG-4600 surface roughness tester/profilometer can utilize an easy interface to allow for changes of in/mm (uin/um), cutoff length, sampling length, parameters, level of test(stylus position), digital filters and more! Surface roughness measurement results are displayed as large characters on the LCD screen for easy recognition. Battery powered portability allows the SRG-4600 surface roughness tester/profilometer to mobilize productivity throughout the shop. Further, a wireless Bluetooth auto-start comes standard with each unit. Optional Micro Printer is available, as well as optional stand.
SRG-4600 surface roughness tester features:
- 9 Different roughness parameters
- Inside/Outside Diameters

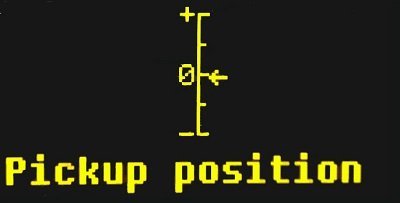

- Stylus position indicator
- USB/Bluetooth output to PC
- Large Memory
SRG-4600 Surface Roughness Tester/profilometer Technical Specifications:
- Measures flat, Inside and Outside Diameters
- Measures grooves and recessions: wider than 0.16in (4mm)
- Roughness parameters: Ra, Rz, Rq (Rms), Rt, Rs, Rsm, Rmax, Rpc, Rmr.
- Roughness standards: ISO/DIN/JIS/ANSI
- Display resolutions: 0.01µm/+/-20 µm 0.02µm/+/-40 µm 0.04µm/+/-80 µm
- Measuring accuracy: ≤±10%
- Repeatability: Less than or equal to 6%
- Measuring range: Ra, Rq: 0.01-40µm Rz,Rt, Rm: 0.02-160µm
- Maximum drive range: 0.7in(17.5mm)
- Cut-off length: 0.009/0.03/0.09inch (0.25/0.8/2.5mm)
- Tracing speeds: speed 1mm/s (sampling length 2.5mm) speed 0.5mm/s (sampling length 0.8mm), speed 0.135mm/s (sampling length 0.25mm)
- Sensor: Inductance type
- Sensor-stylus: Diamond, radius 5µm
- Pick up Force: <4mN
- Filter: RC, PC-RC, GAUSSIAN, and D-P
- Data output: USB
- Operating temperature: 41ºF-104ºF (5º-40ºC)
- Weight: 0.97lb(440g)
- Dimensions: (119 x 47 x 65mm)
- Power: Li-Ion rechargeable battery
- Auto shut-off
Optional Accessories:
- Precision Support Stand
- Deep Groove Stylus
- Small Hole Stylus
- Curved Surface Stylus
- Stylus Extension
- Micro Printer
SRG-4600 surface roughness tester/profilometer comes supplied with:
- Calibrated Reference Standard w/support plate
- Bluetooth Auto-start
- Leveling plate
- Stylus protector
- A/C Adapter
- Rugged Carry case
- Comes supplied with Data Output Software
 |
 |
 |
 |
 |

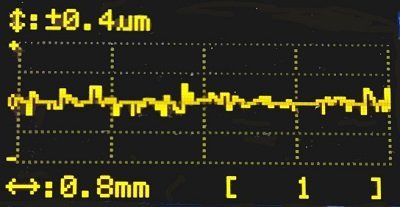

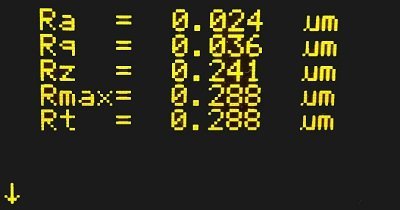

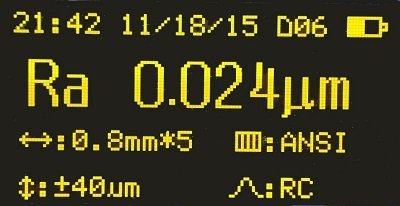

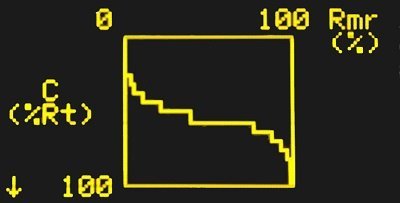

| Main Screen | Main Screen | Parameters | Roughness Profile | Ratio Curve |
Accessories for SRG-4600 Phase II Surface Roughness Tester
Part No. SRG4000-050
Can be used with either 4000,4500 & 4600 series surface roughness testers
Part No. SRG4600-100
For use on flat and slightly curved surfaces
Part No. SRG4500-200
For use on deep grooves with min. width of 3mm and max depth of 10mm. Must be used with support stand shown below
Part No. SRG4500-300
For use in small holes under 2mm diameter and max depth of 9mm
Part No. SRG4500-400
For use on curved surface with a minimum curvature radius of 3mm. Must be used with support stand shown below
Part No. SRG4500-500 2” Stylus Extension
Adds extra 2" reach for deeper applications
Part No. SRG4500-550 5” Stylus Extension
Adds extra 5" reach for deeper applications
Surface Roughness Testers/ Profilometer Measurement Guide
Surface roughness, for purposes of this forum, is the result of some machining process and its effect on the material surface in question.
Skid type surface roughness testers / profilometers are common instruments used on the shop floor. A diamond stylus is traversed across the specimen and a piezoelectric pickup records all vertical movement. Peaks and valleys are recorded and converted into a known value of a given parameter.
Parameters differ in how they approach looking at peaks and valleys. The most popular parameter is “Ra”. Ra is commonly defined as the arithmetic average roughness. While the Ra parameter is easy and efficient, there are other parameters that can be more specific and useful depending on the application requirements. It is the parameters that enable us to define surface roughness.
Today, for the purpose of checking Ra values, the use of portable, hand held, surface roughness testers /profilometers are not only economical, but are digital and easy to use. These surface roughness testers /profilometers are a given necessity for any shop floor that receives work with Ra surface finish requirements.
