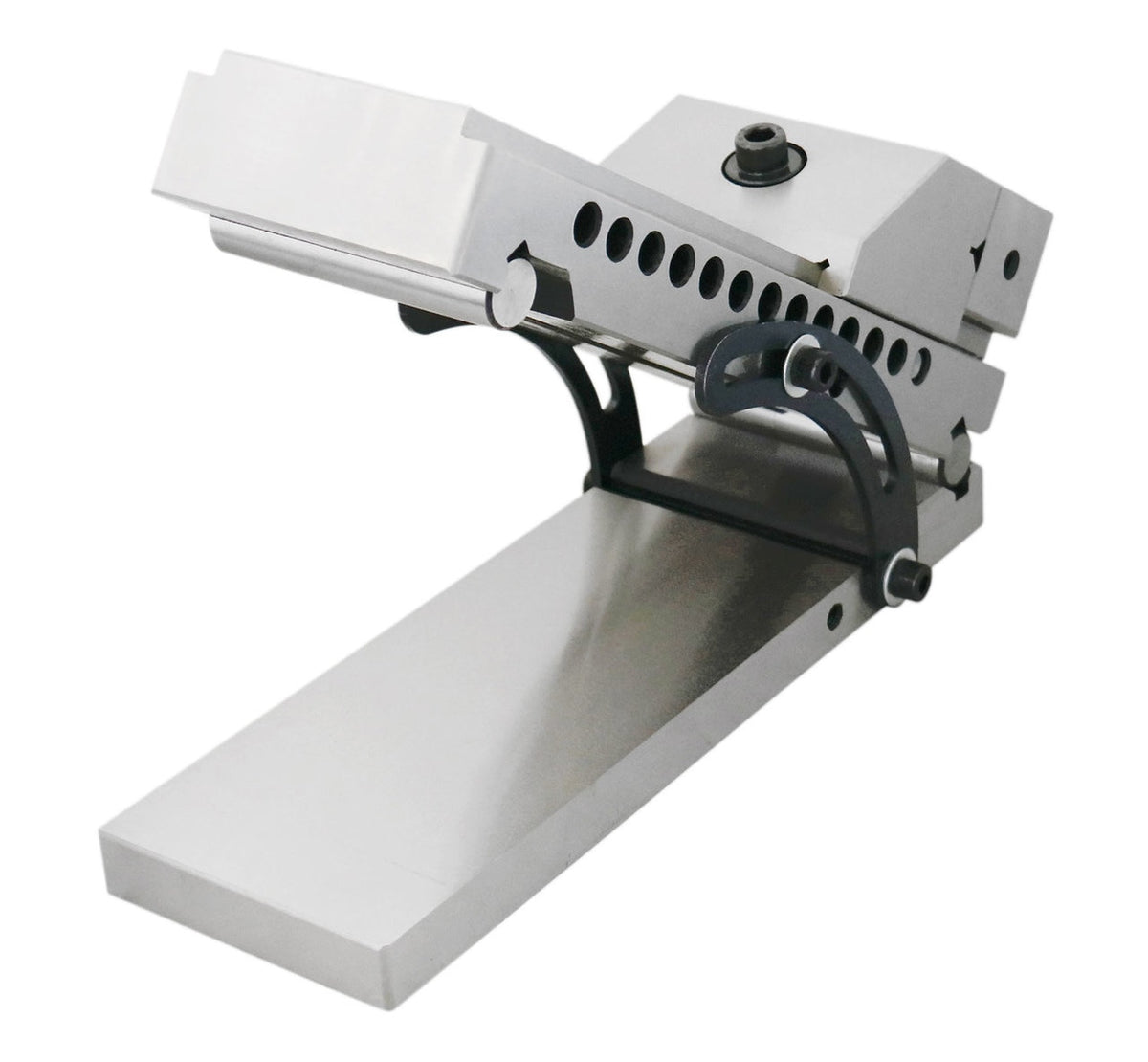

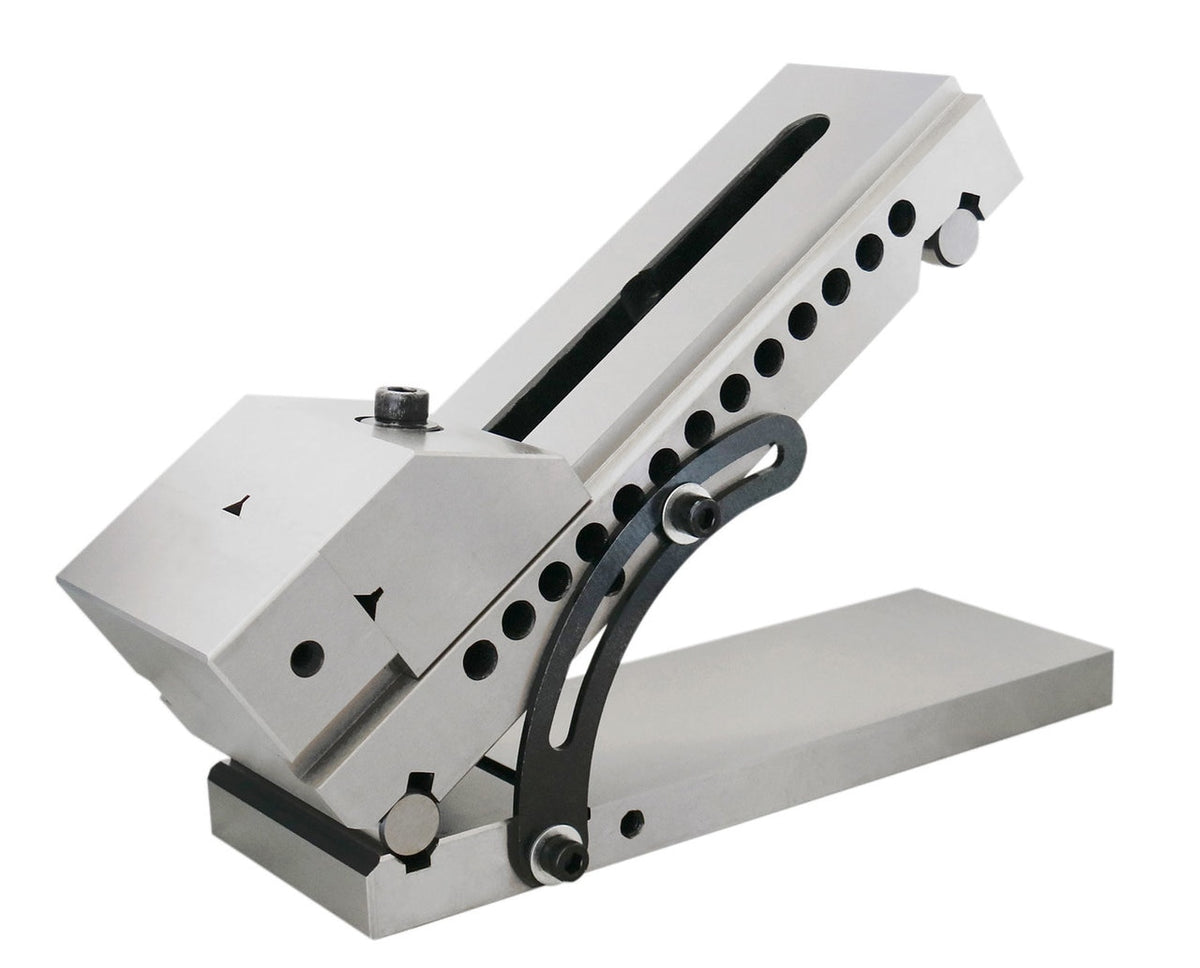

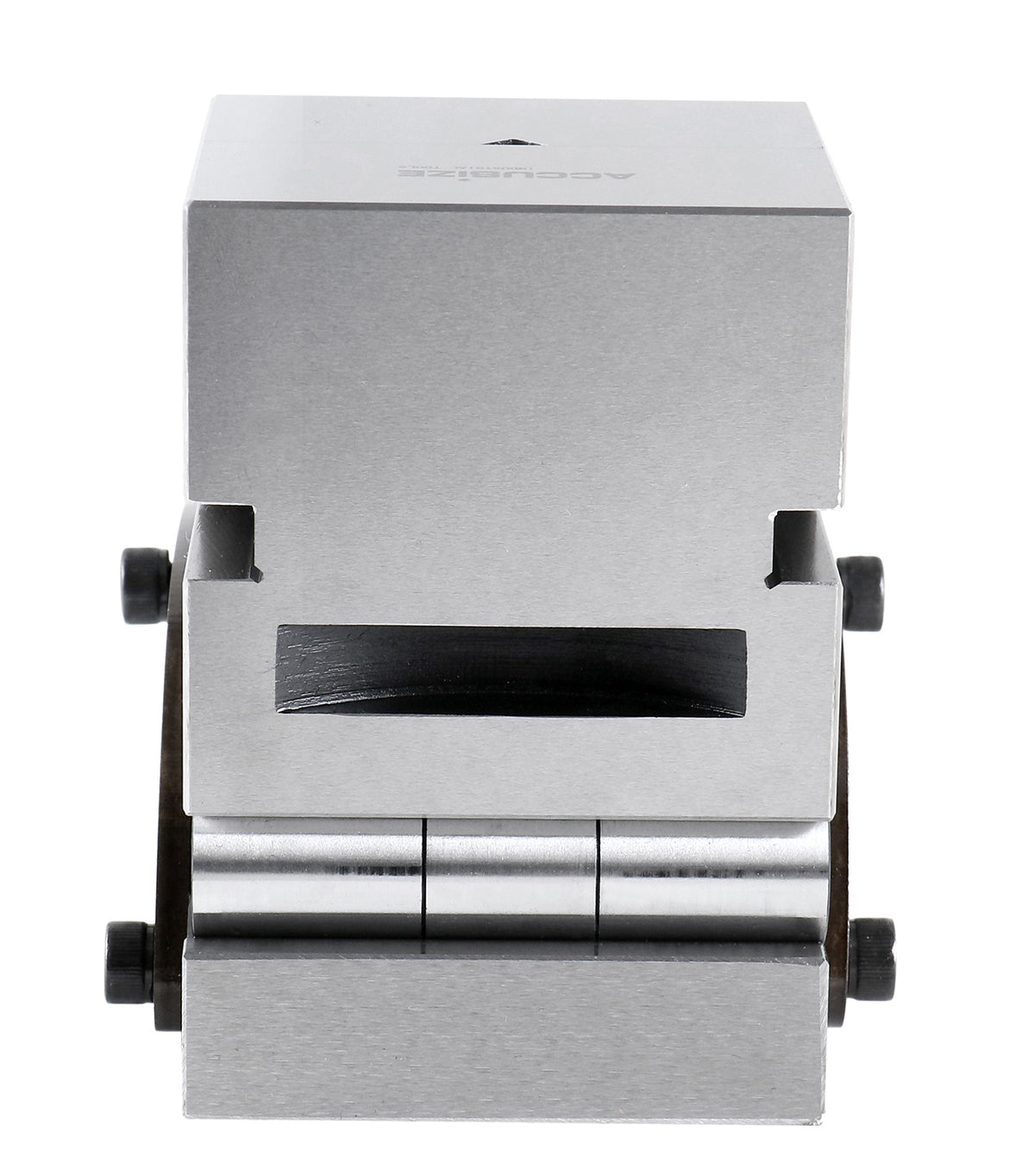

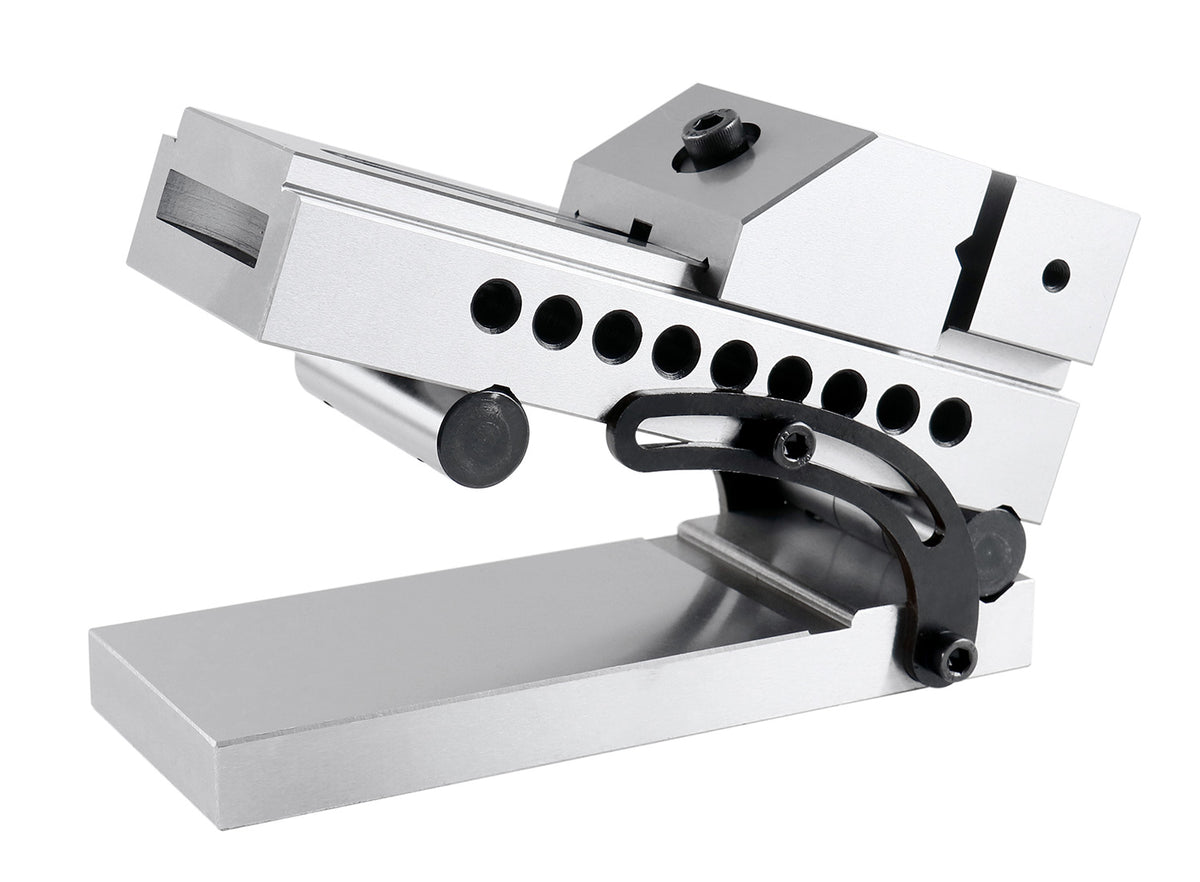

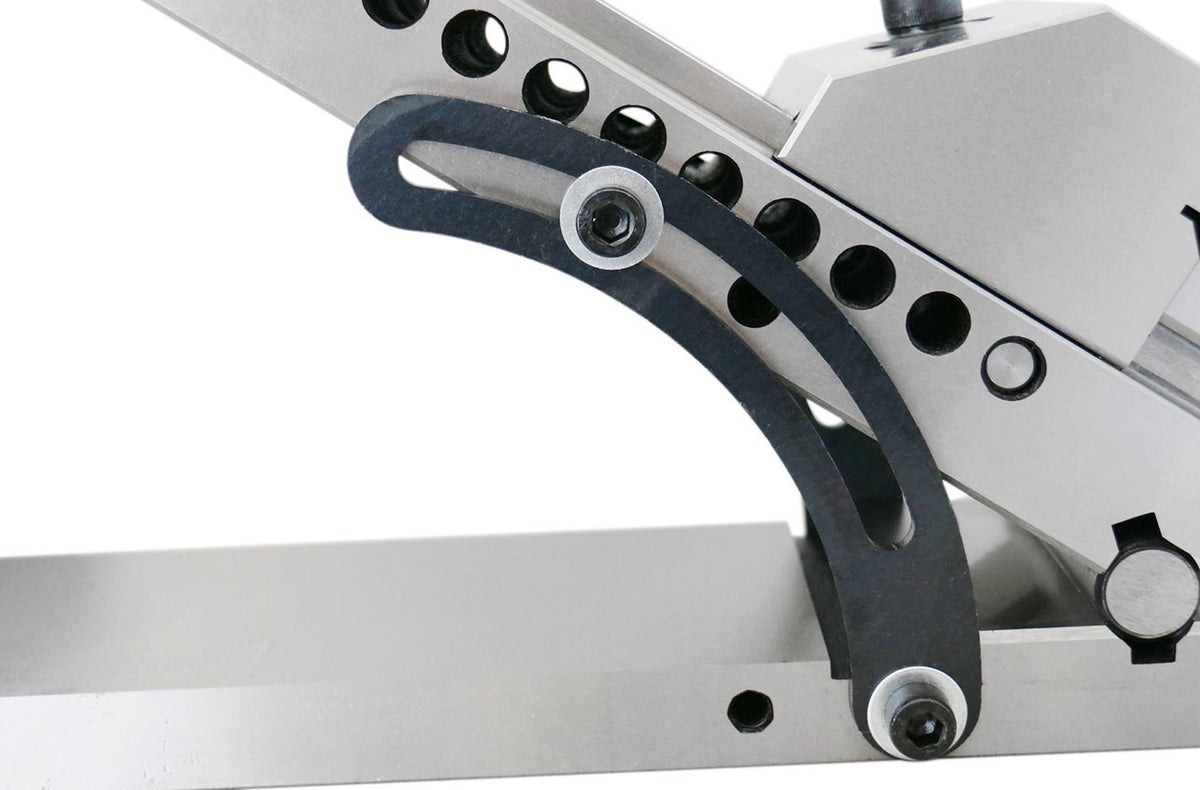

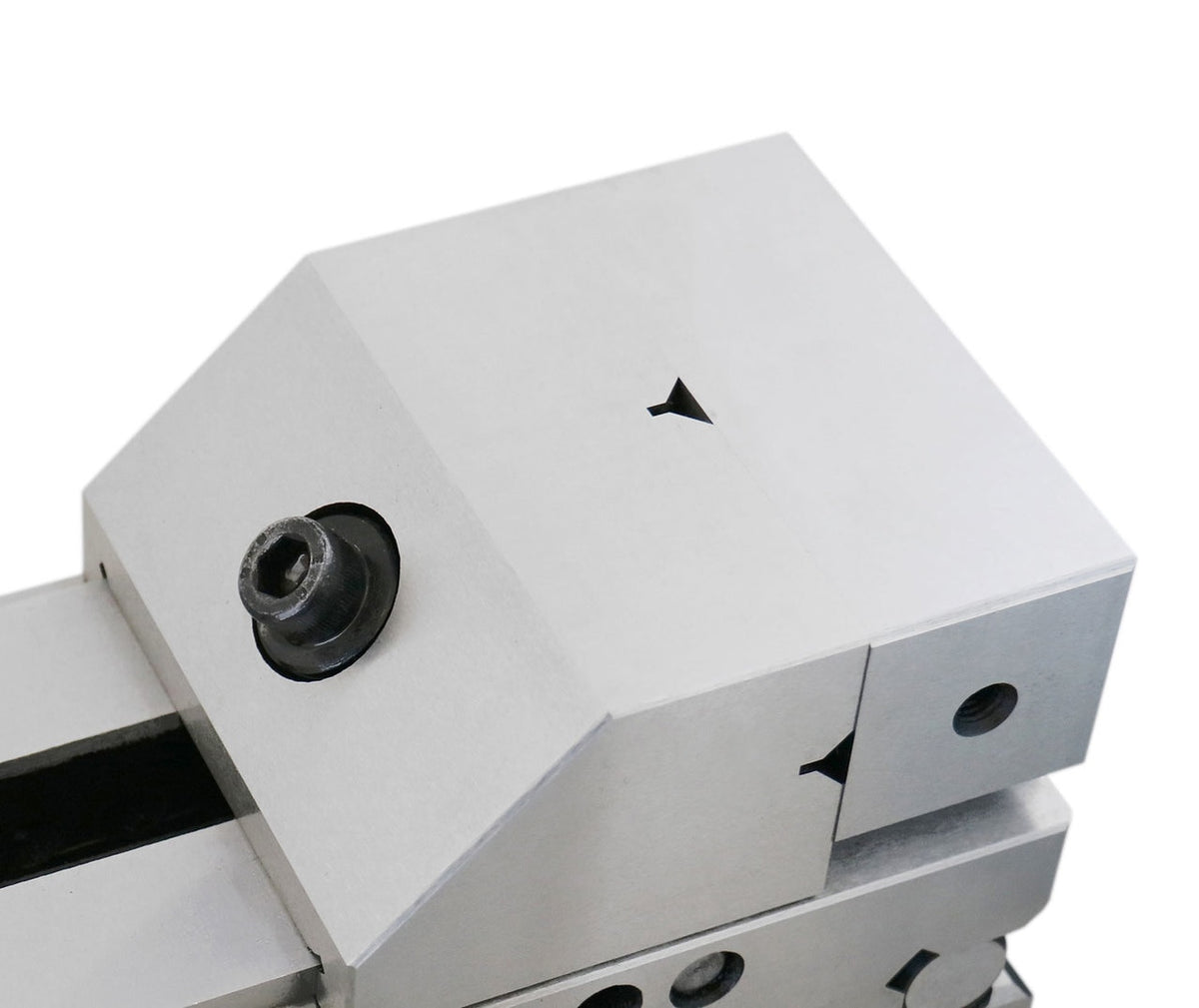

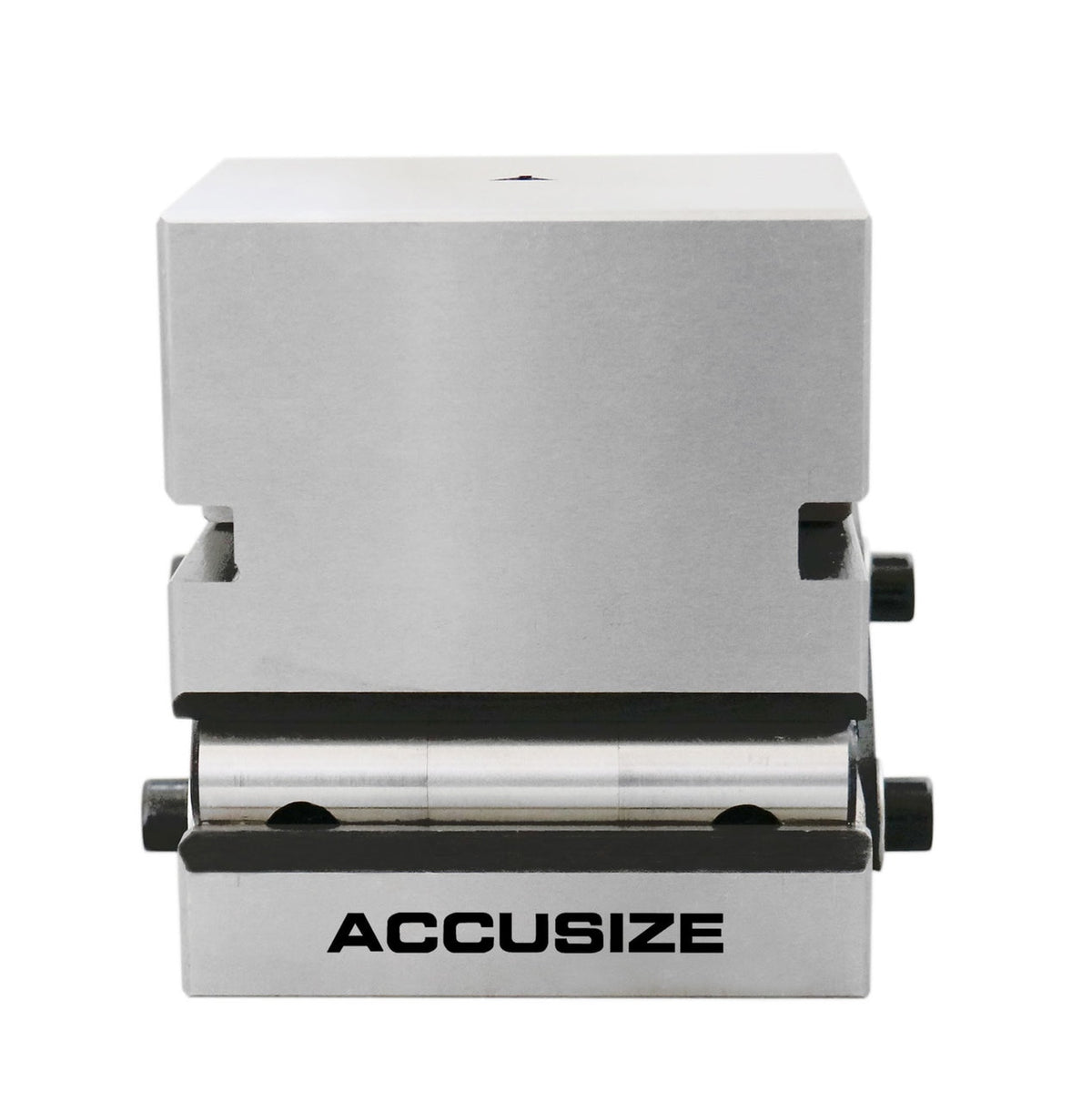

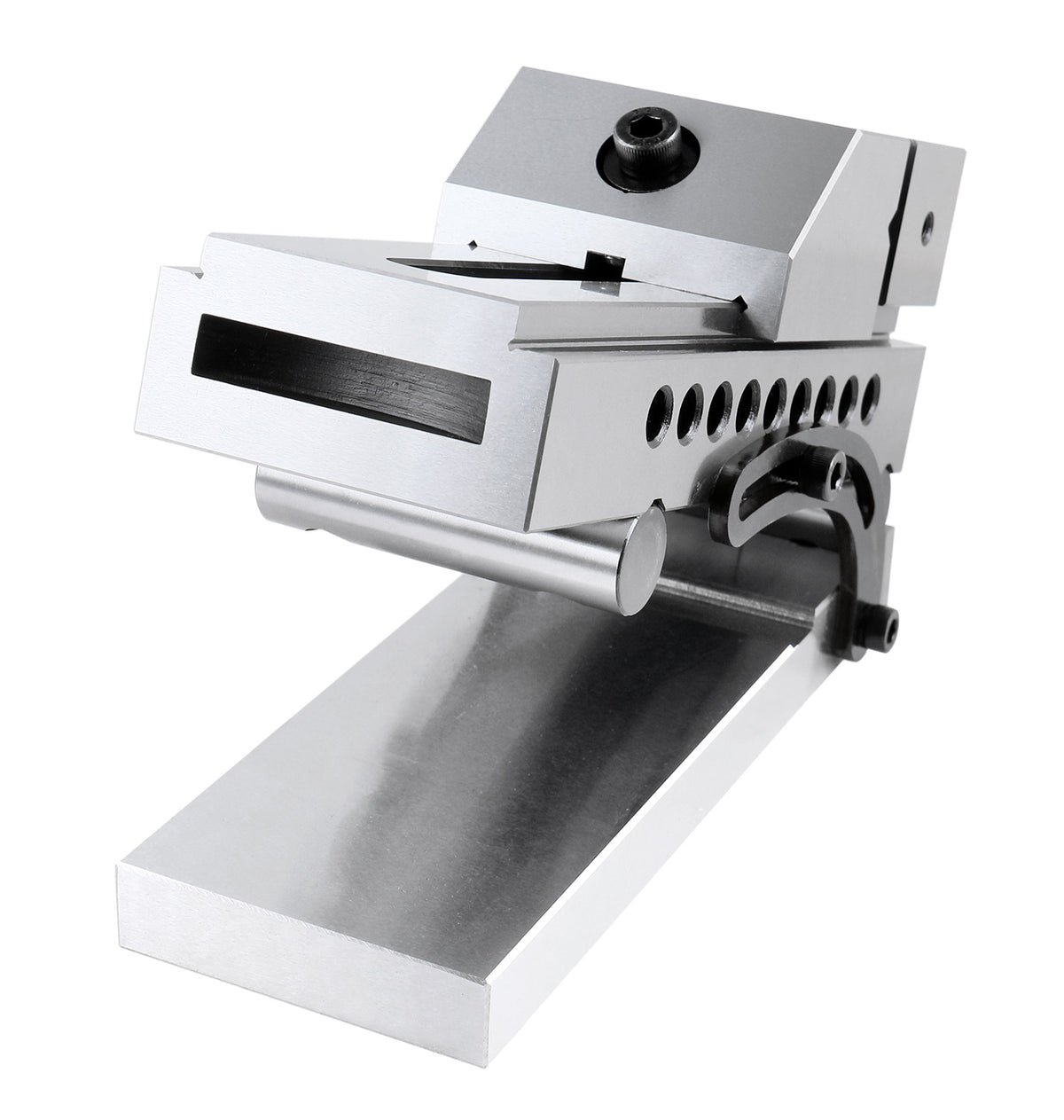

Precision Screwless Sine Vises


Dimension: 7-1/2"x3"x3-5/8" (BA66-0420)
Price:
$195.00

Shipping calculated at checkout

Stock:
In stock

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

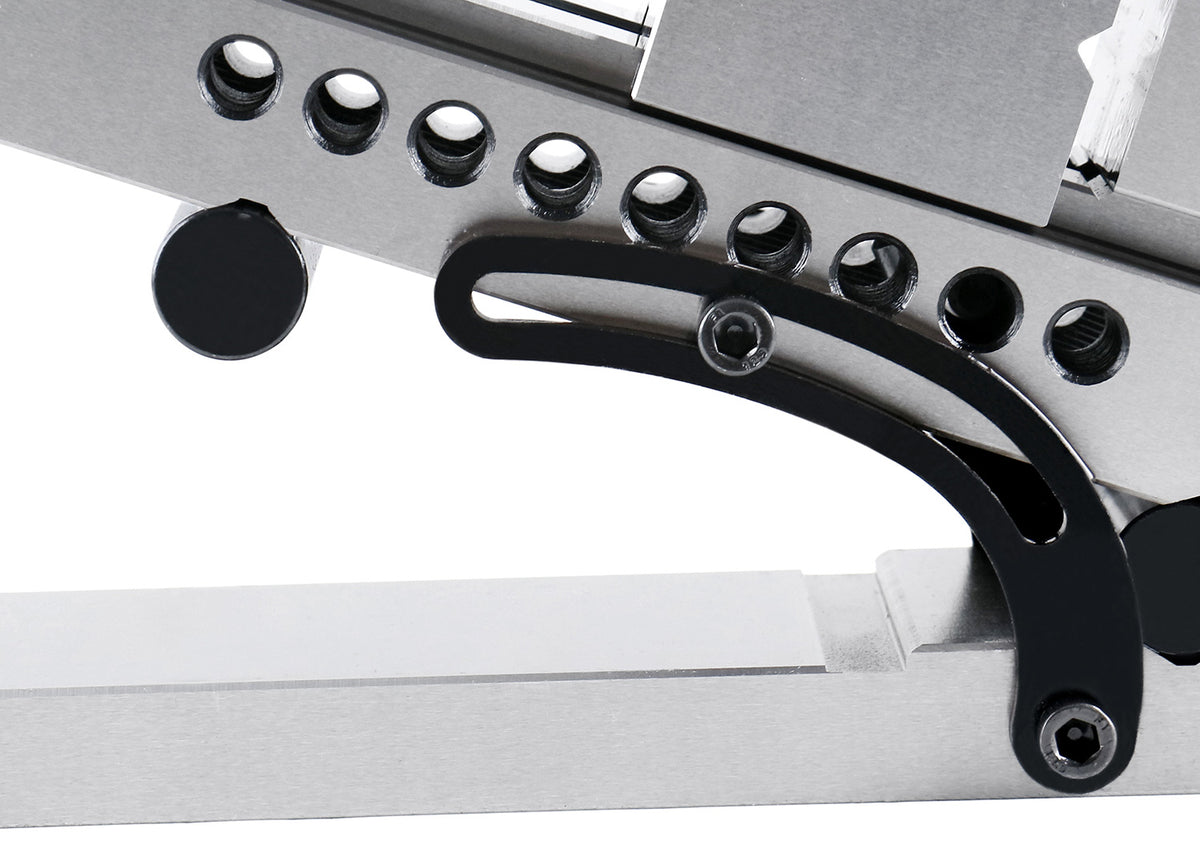

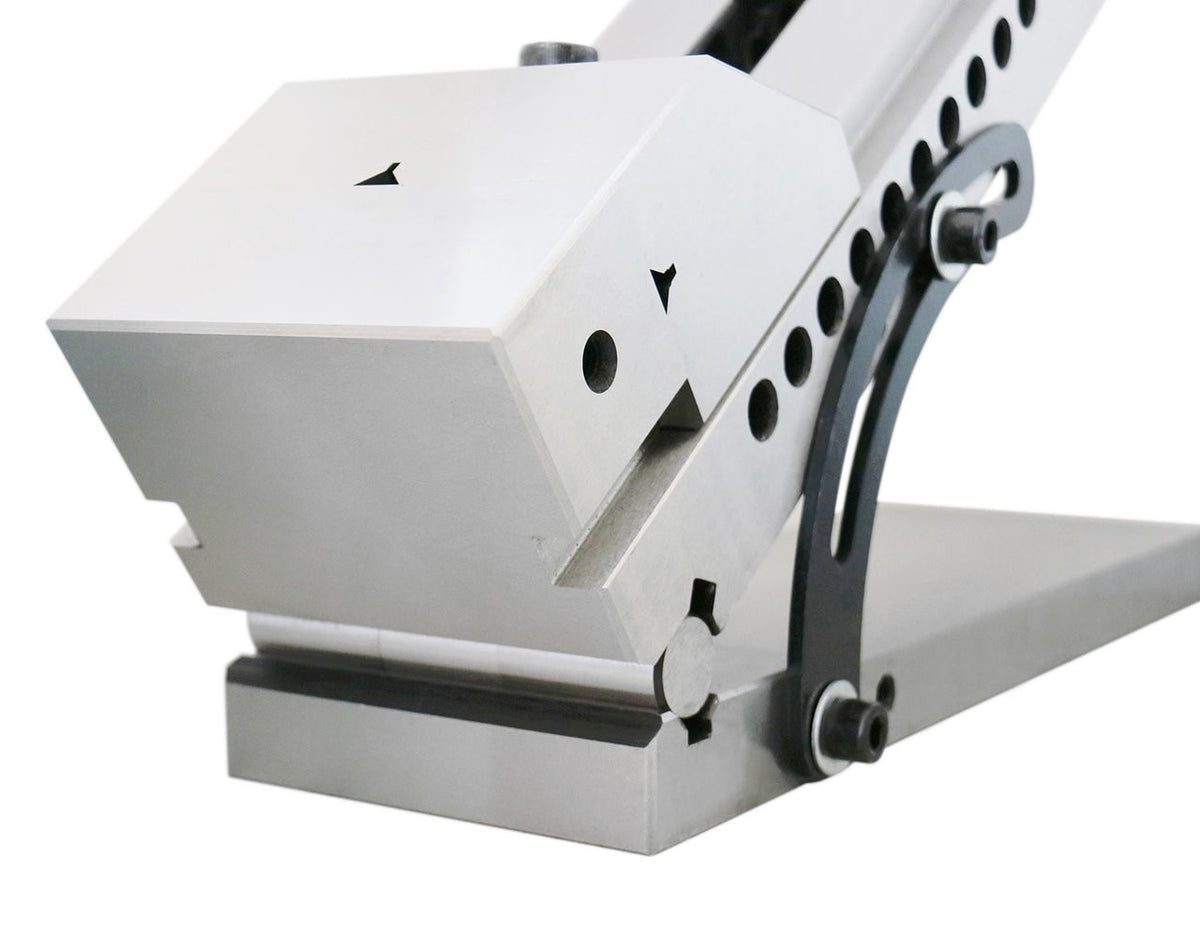

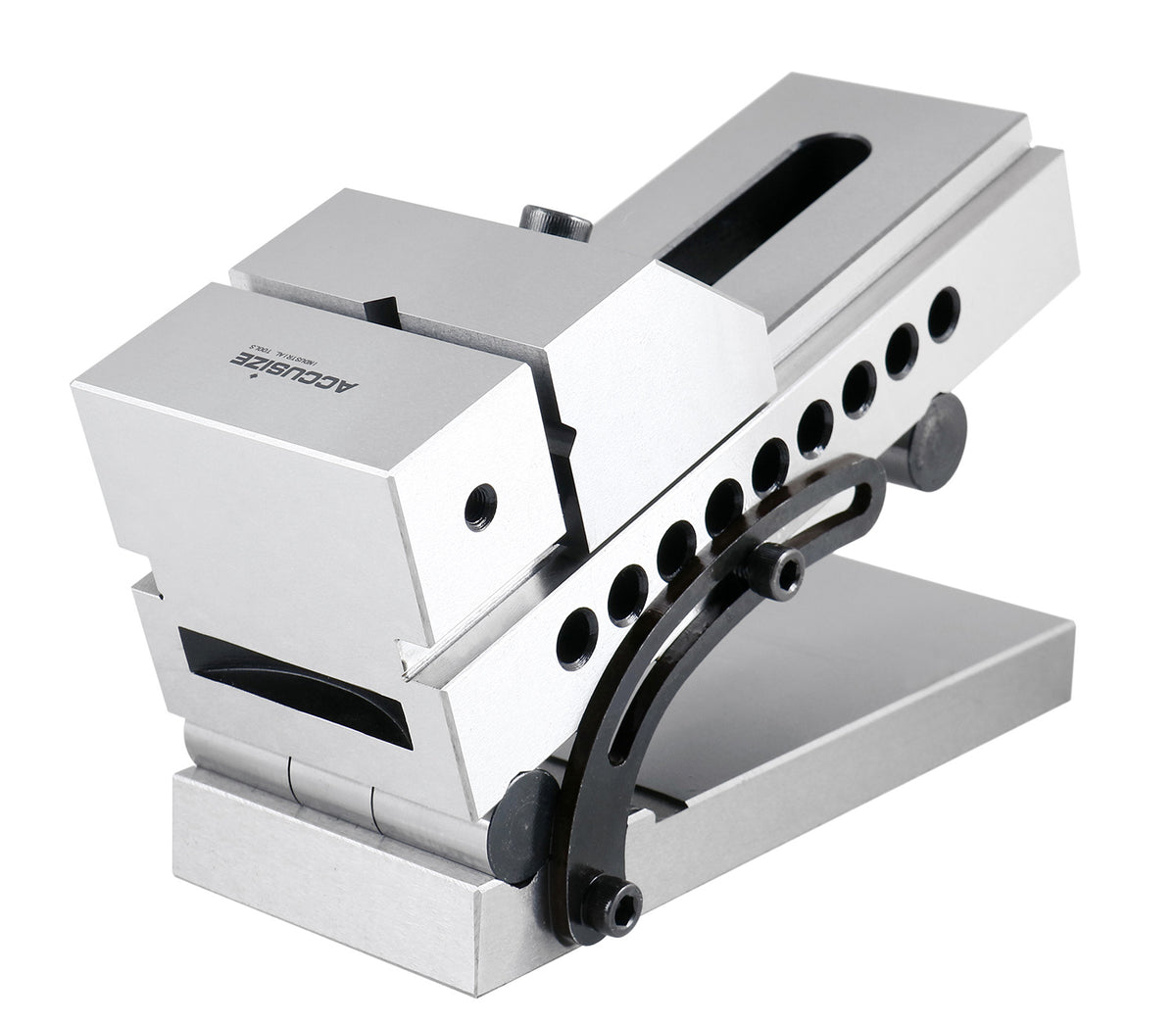

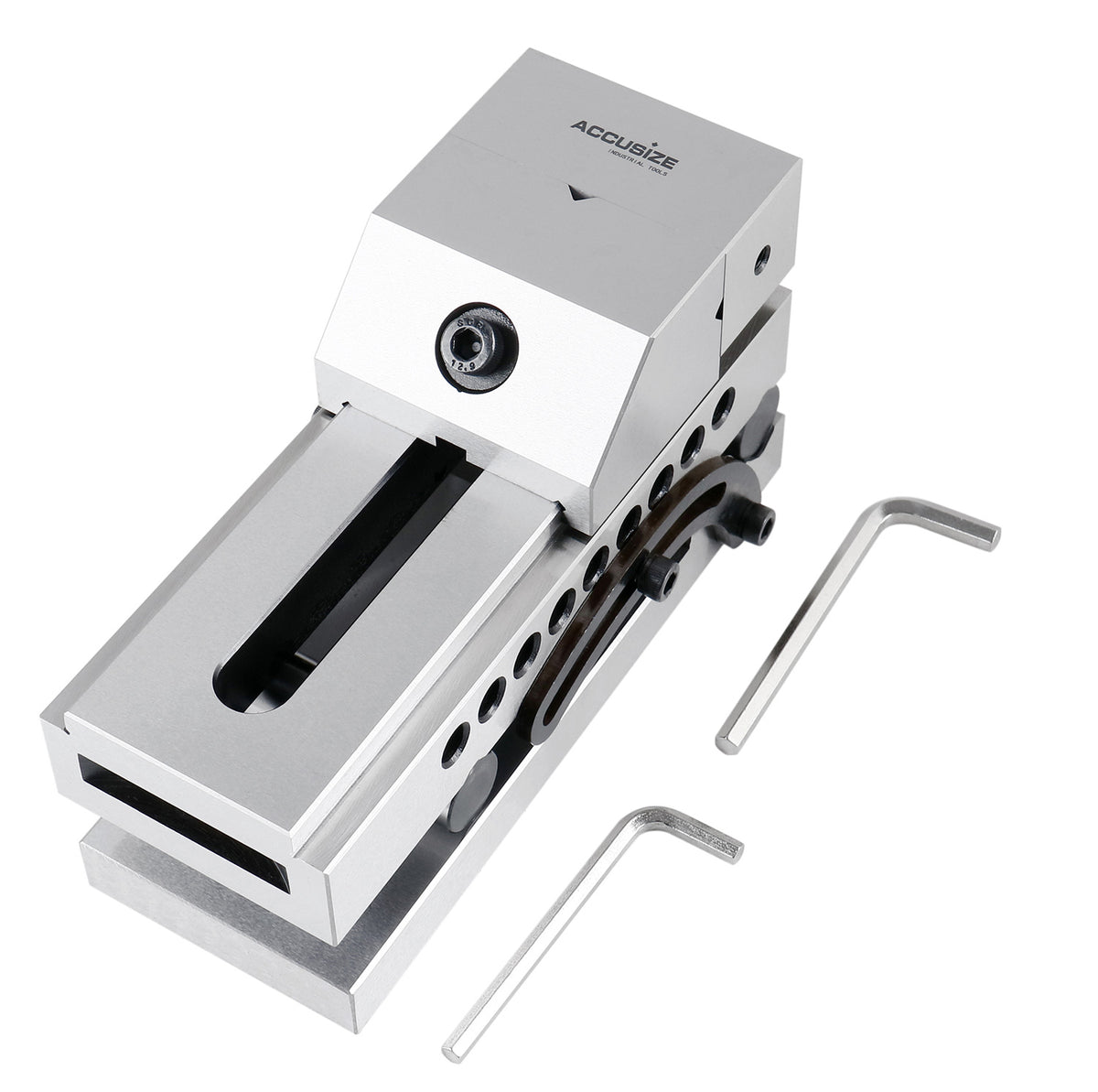

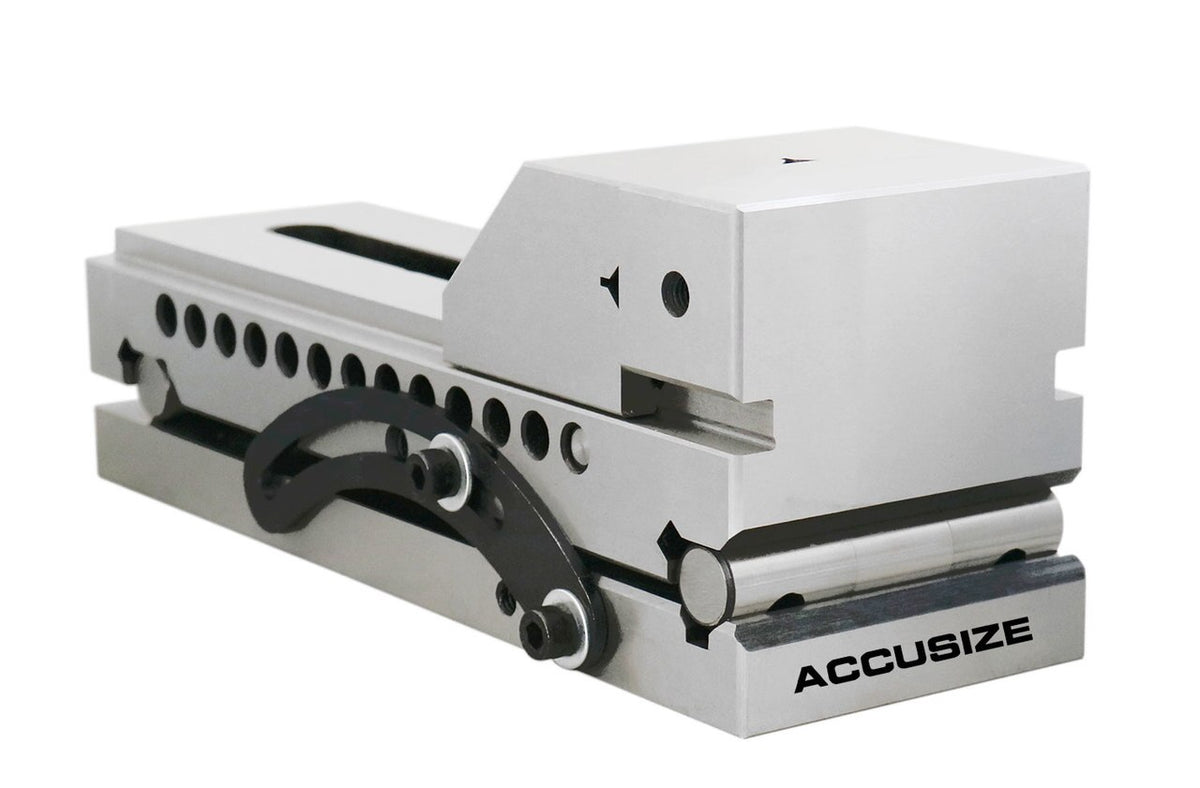

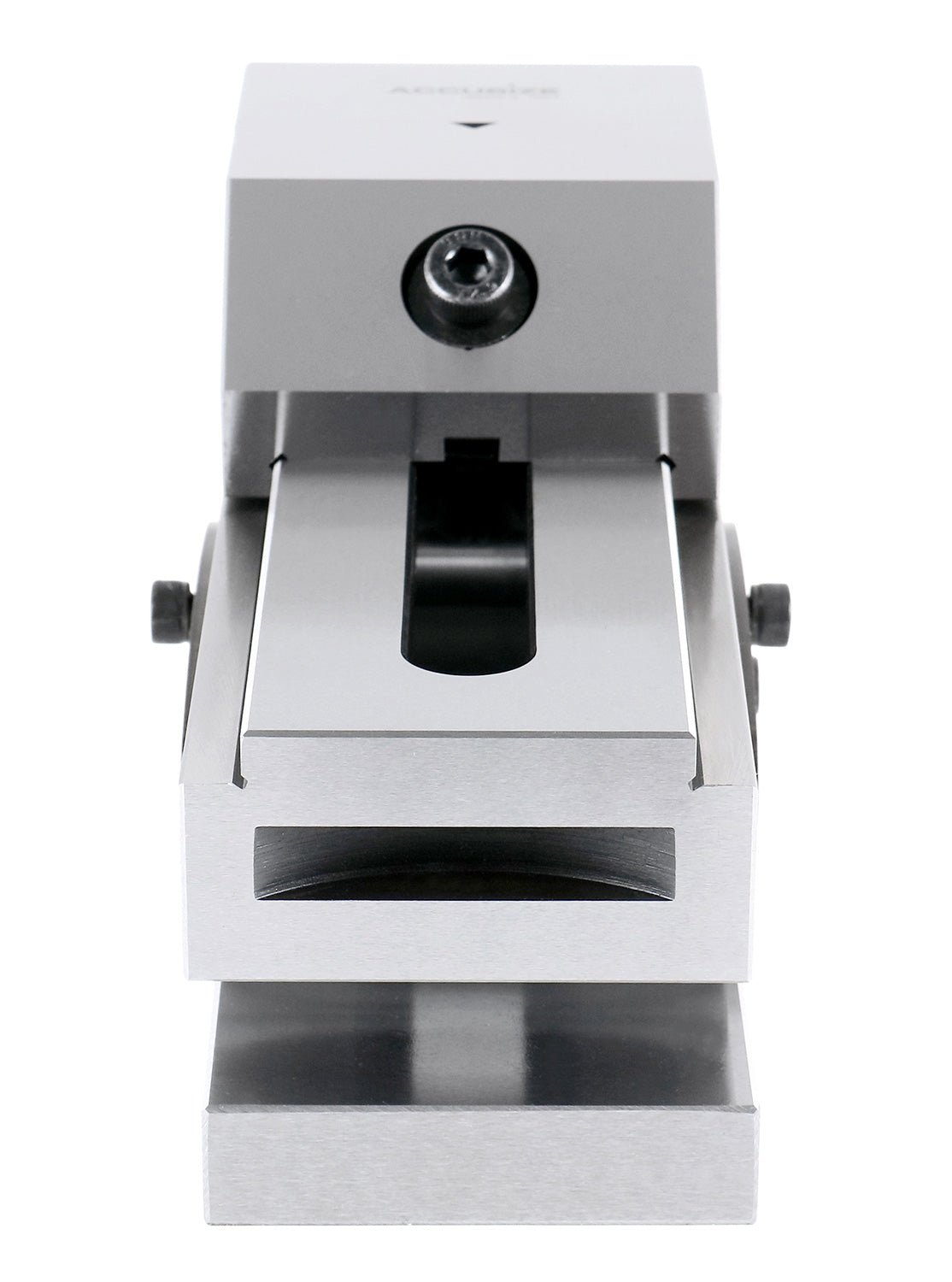

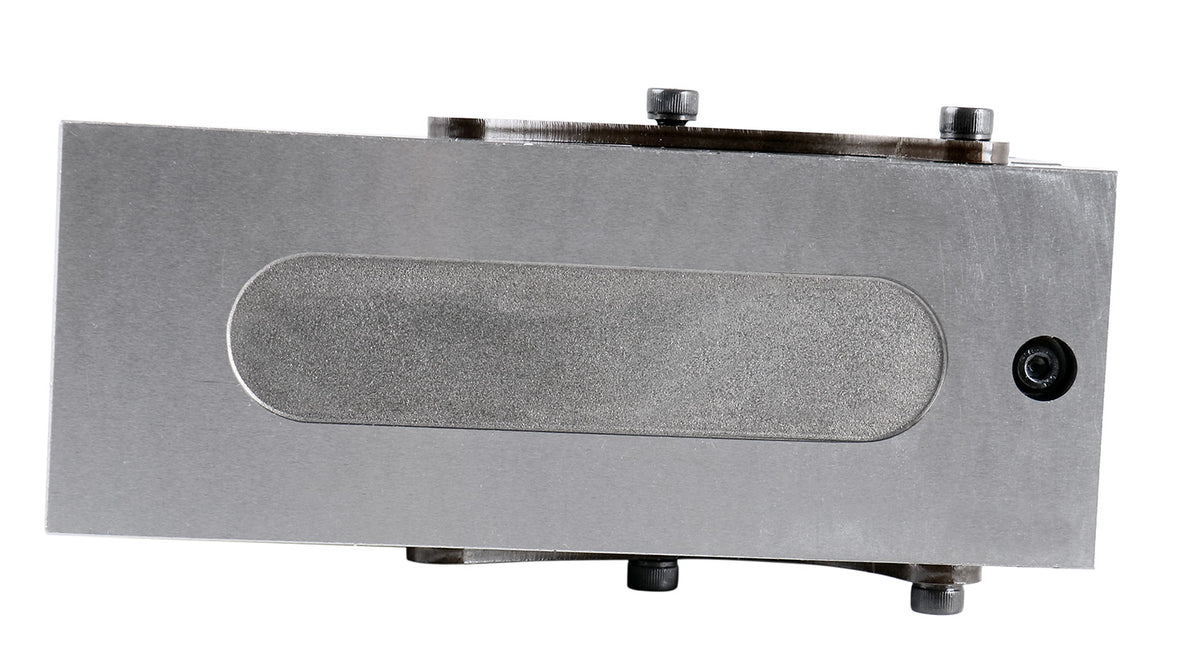

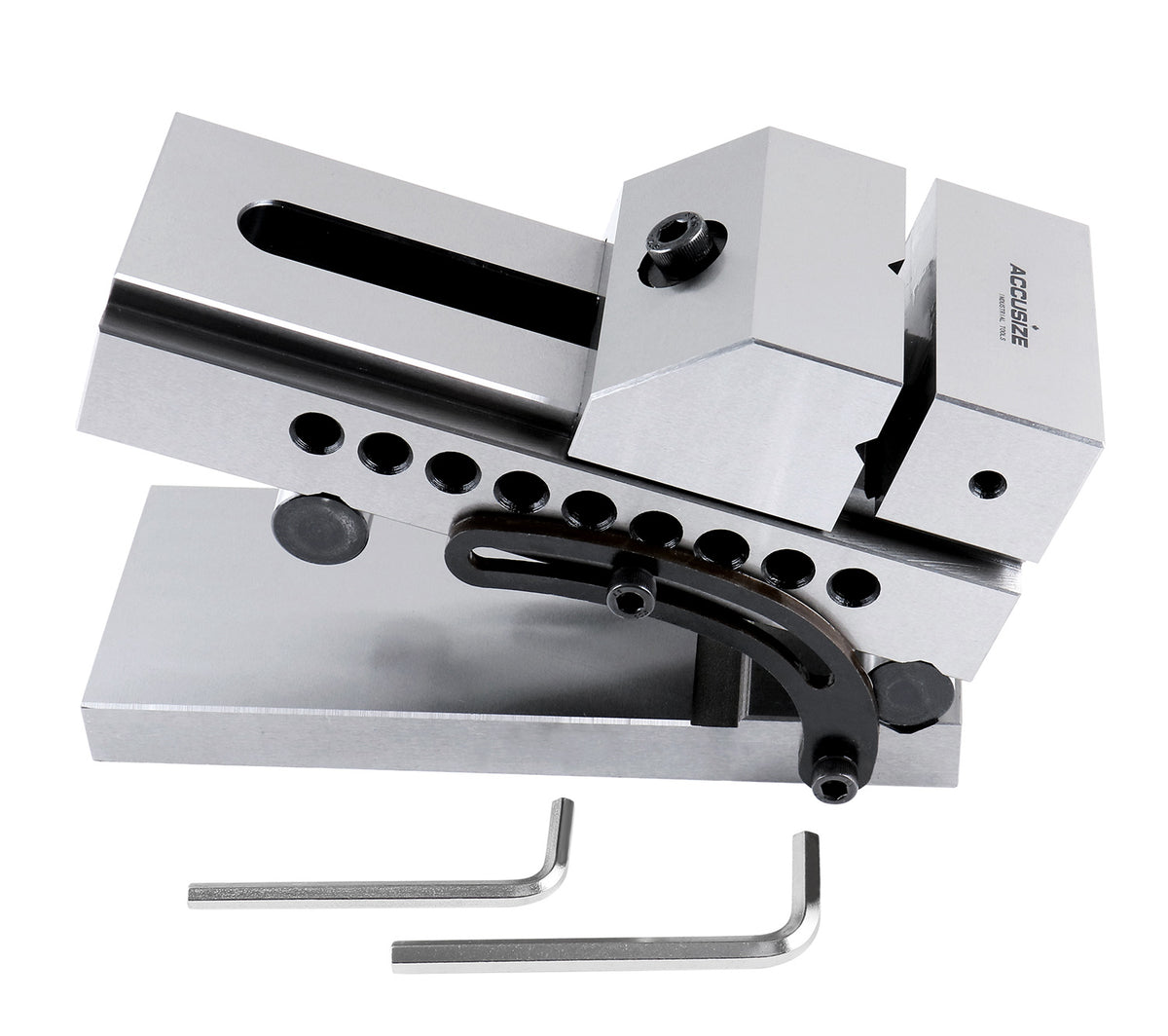

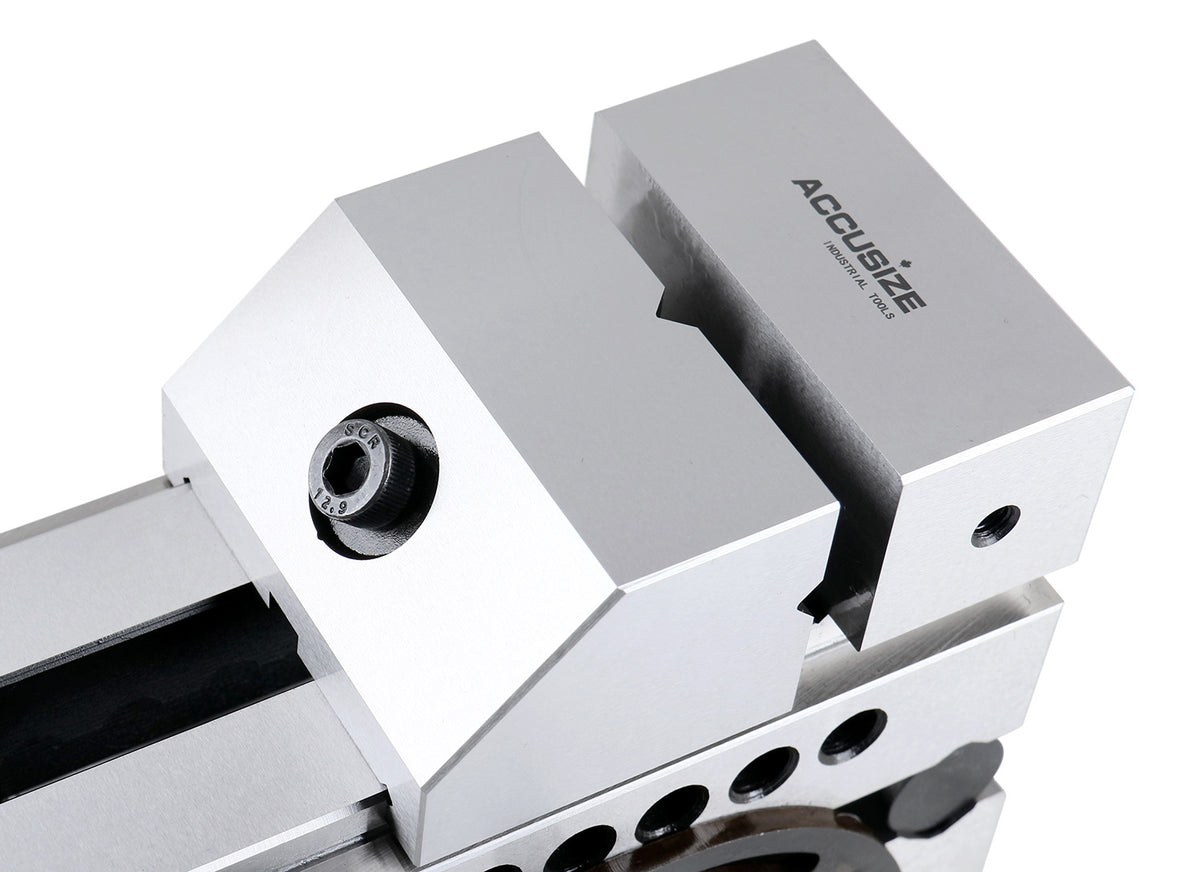

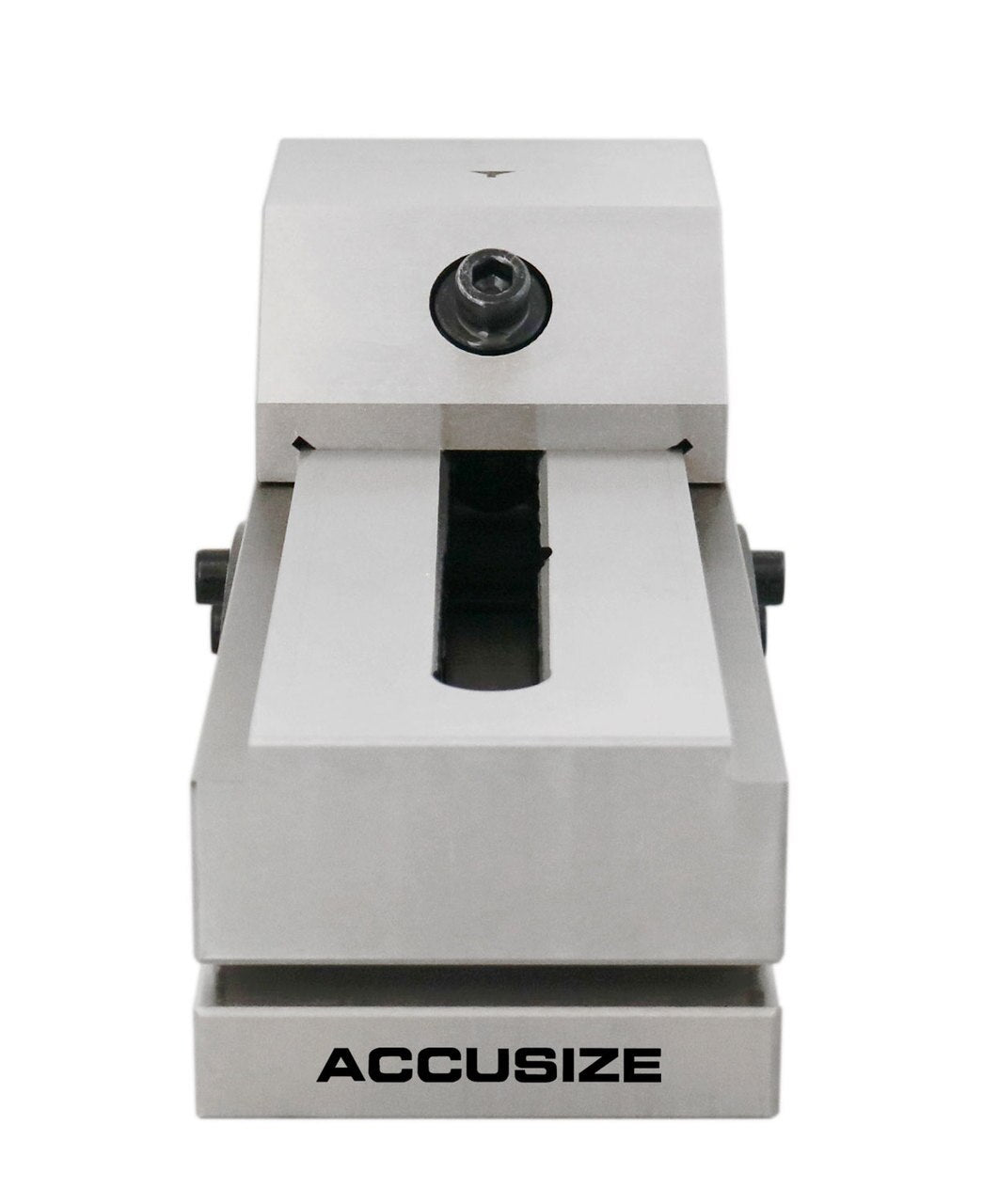

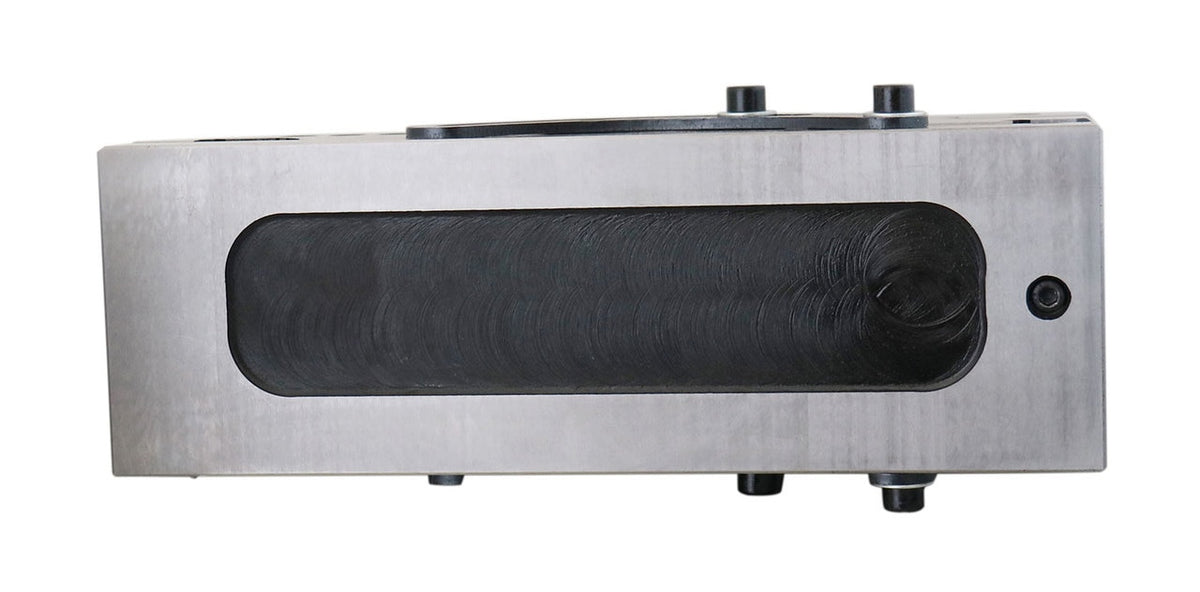

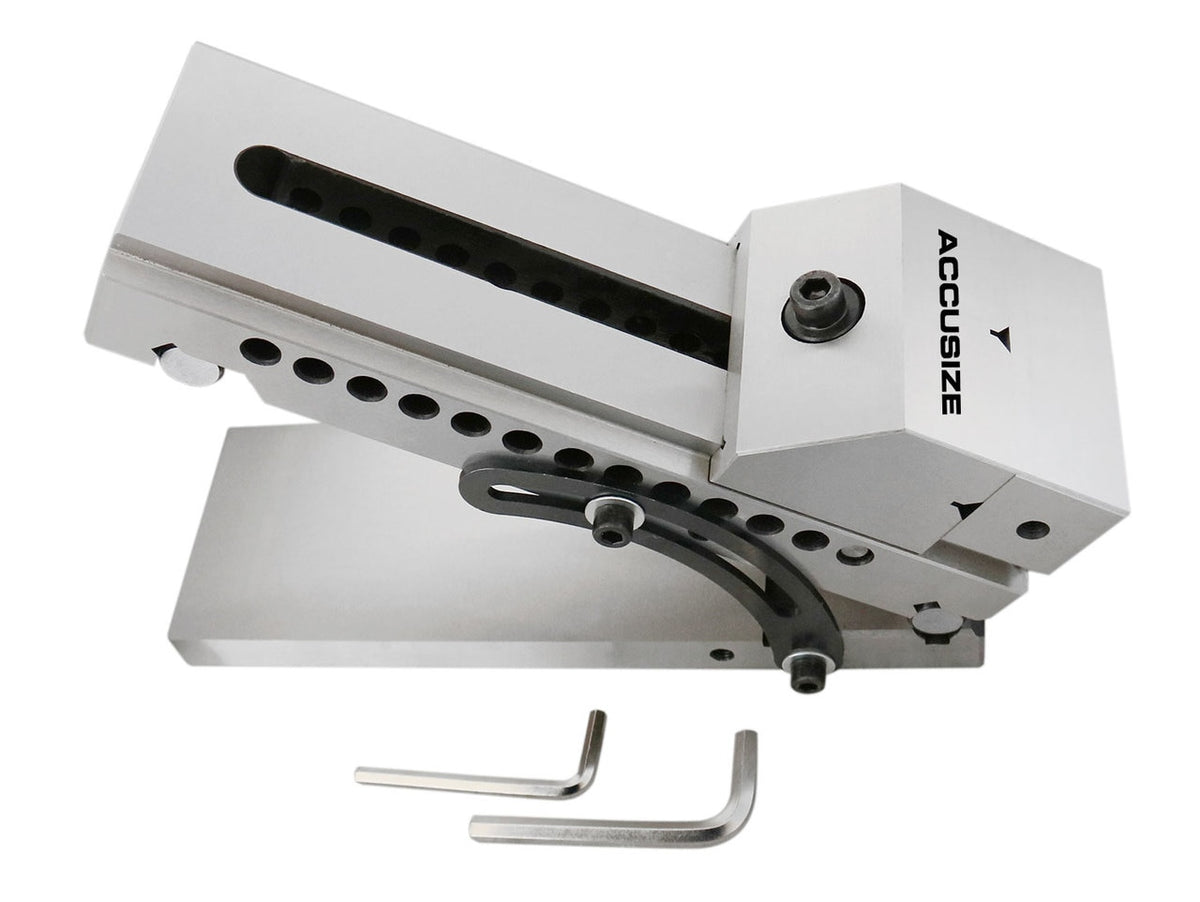

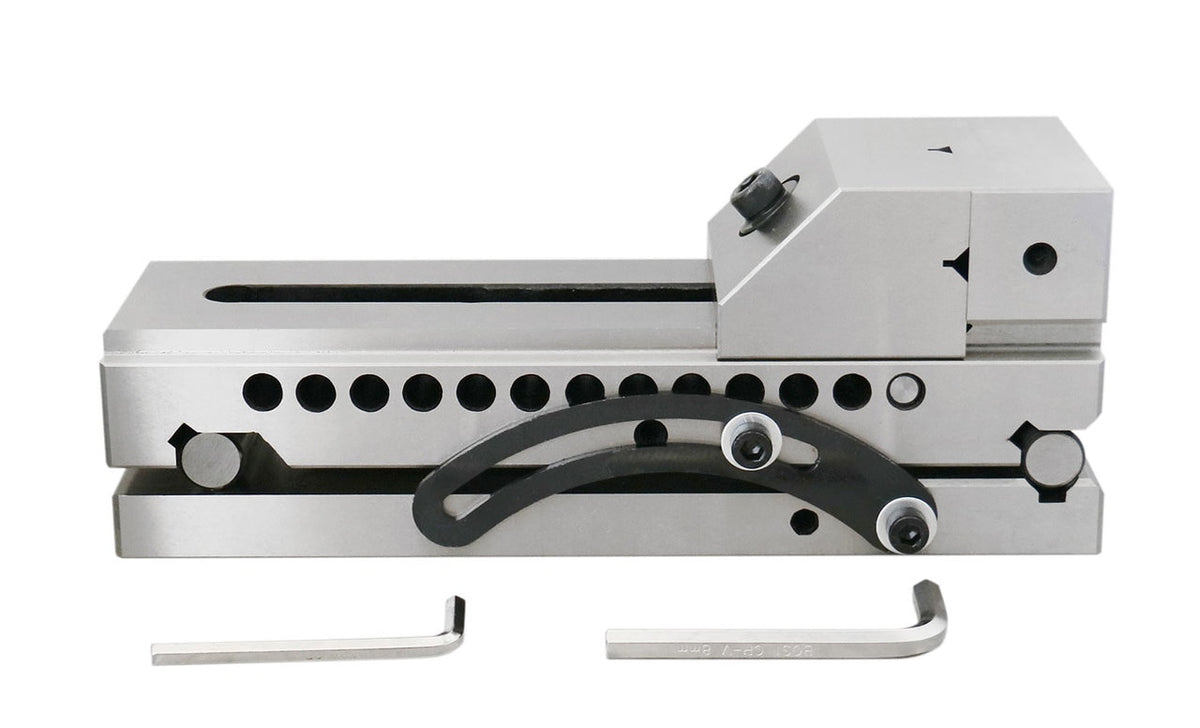

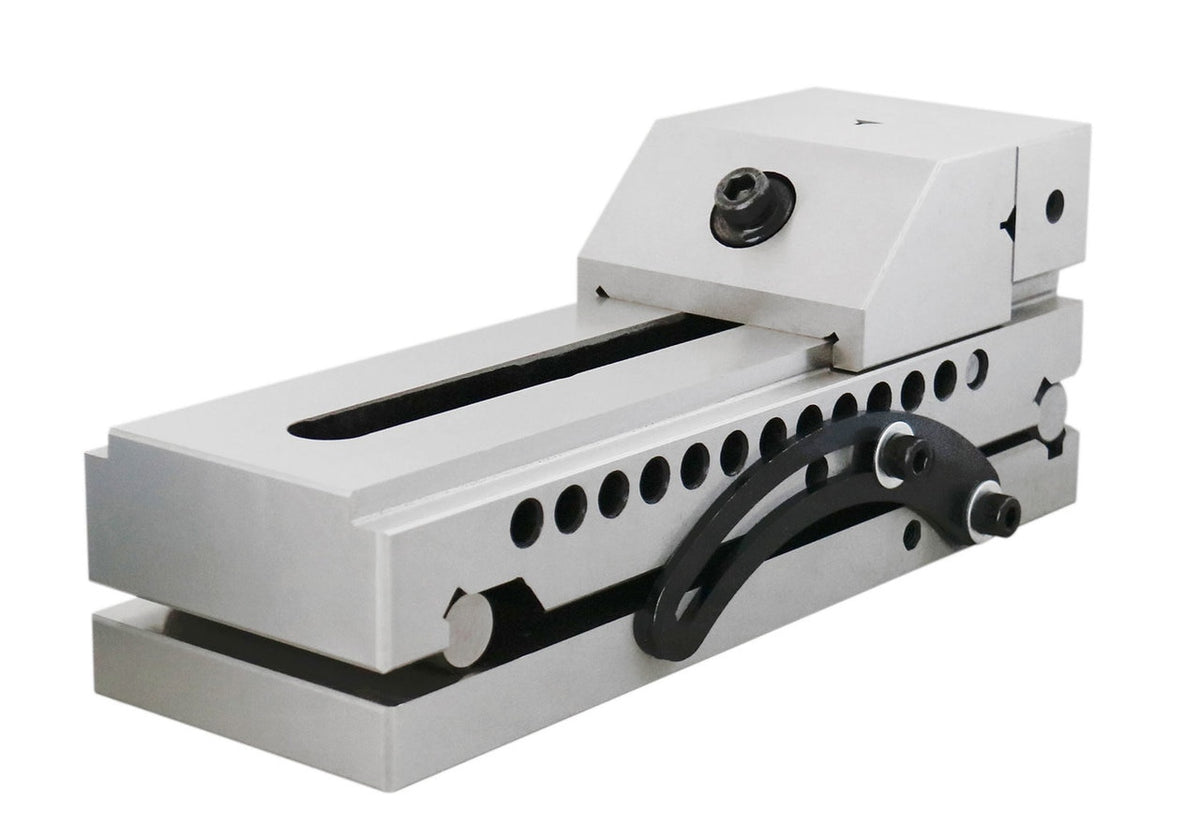

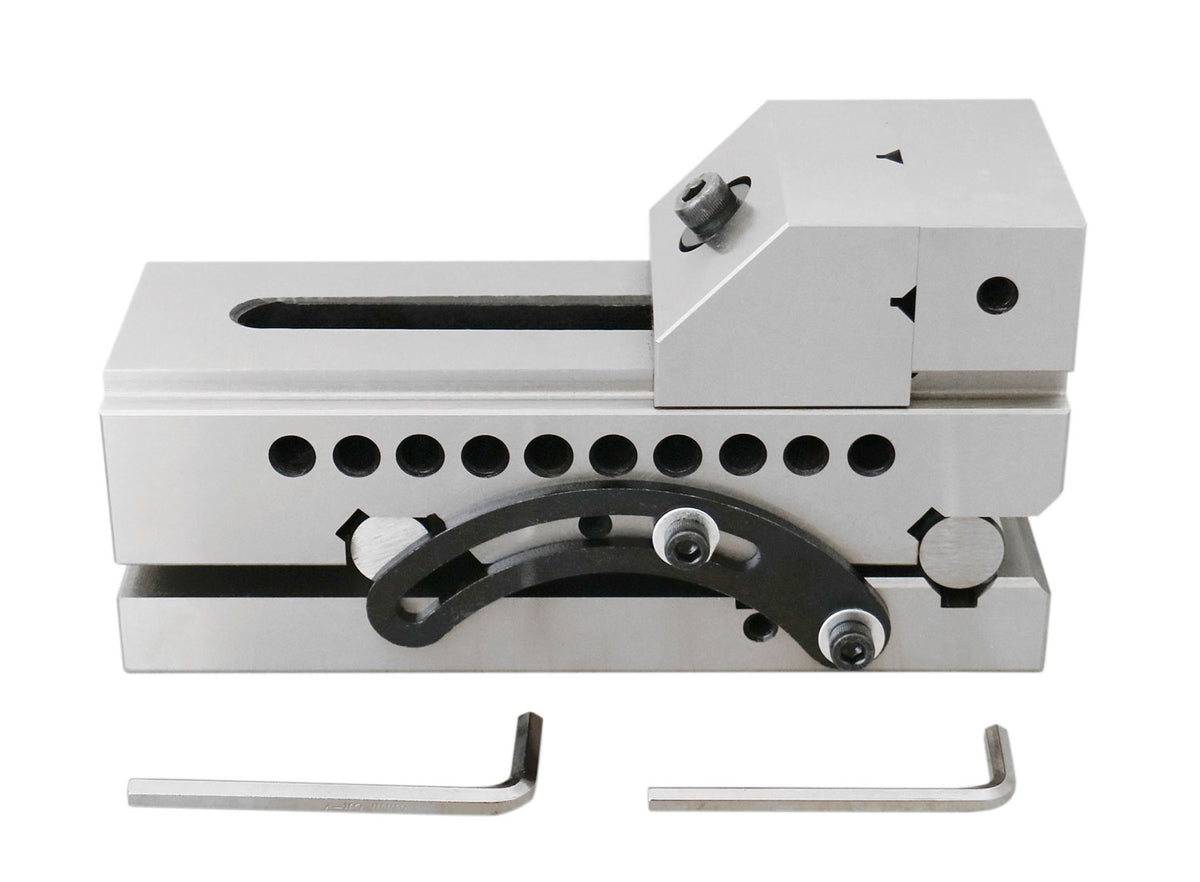

Precision Screwless Sine Vise

  • Provides a quick and accurate means of holding a workpiece at an angle for machining, drilling and grinding
  • Accuracy is further enhanced by the fact that the center, distance between the holes is held within 0.0002"
  • Small angles can be set easily and accurately by using standard gauge block sets because of the built-in 0.200" minute steps
  • Made of hardened solid steel
  • All surfaces hardened and ground.

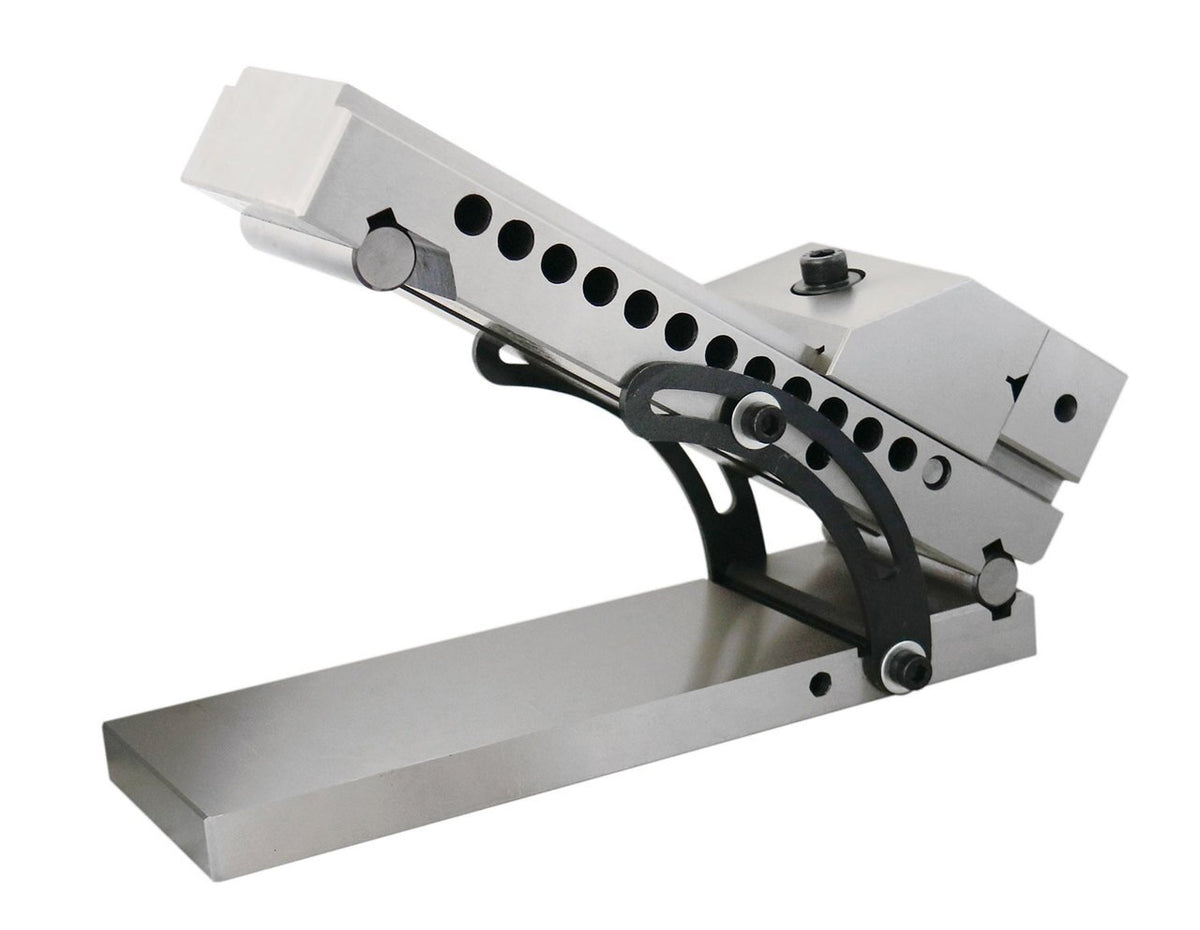

  • Adjusts: 0-45°
  • Square and parallel within 0.0002"
  • the material of the precision angle plate are:
    • 20CrMnTi ( C:0.17-0.23; Si: 0.17-0.37; Mn:0.8-1.1; Cr: 1.00-1.30; Ti: 0.04-0.10)
Item
Dimension L x W x H
Center Distanceeof Rolls Sq. & Parallel Jaw Capacity Jaw Height
BA66-0420 7.48"x2.87"x4.13" 5.000" within 0.0002" 0.0002" 0-3.94"
1.38"
BA66-0425 9.65"x3.94"x5" 10.000 within 0.0002" 0.0003" 0-5.12" 1.77"
