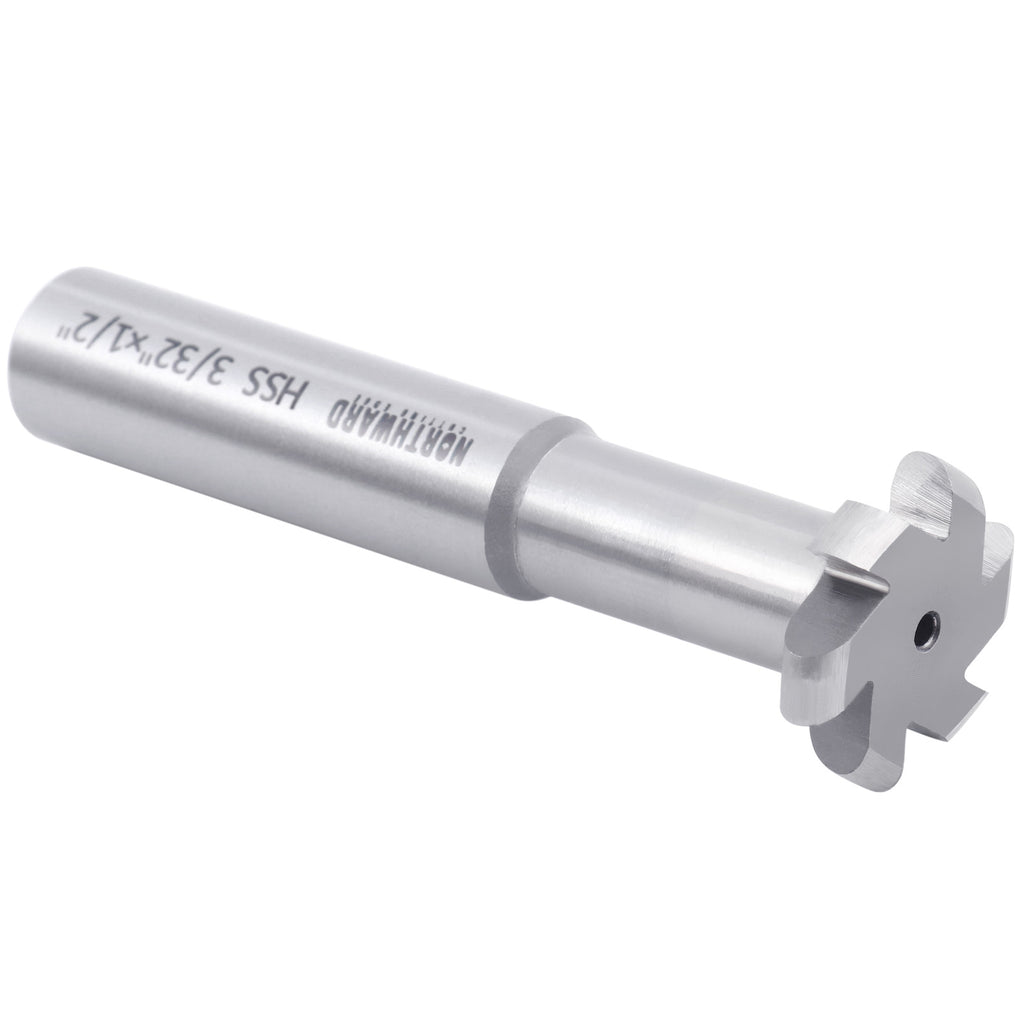

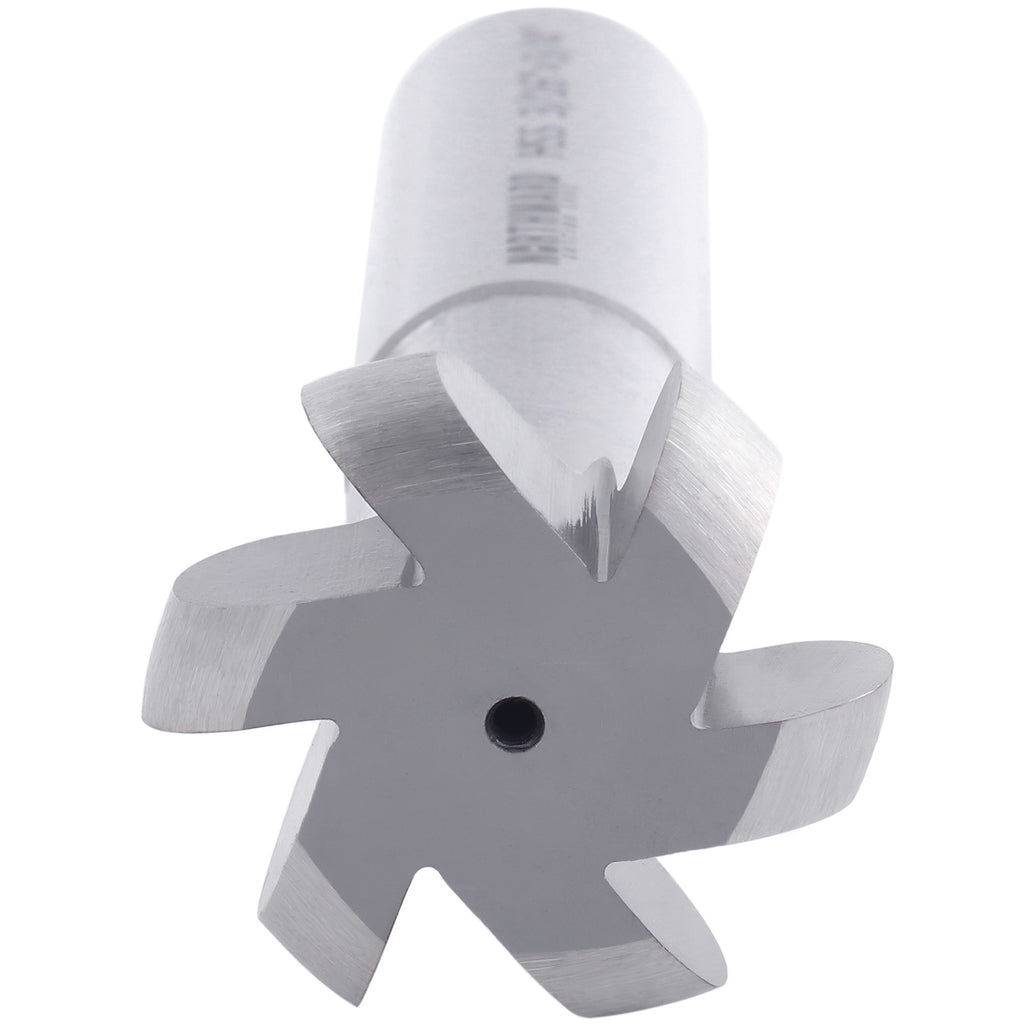

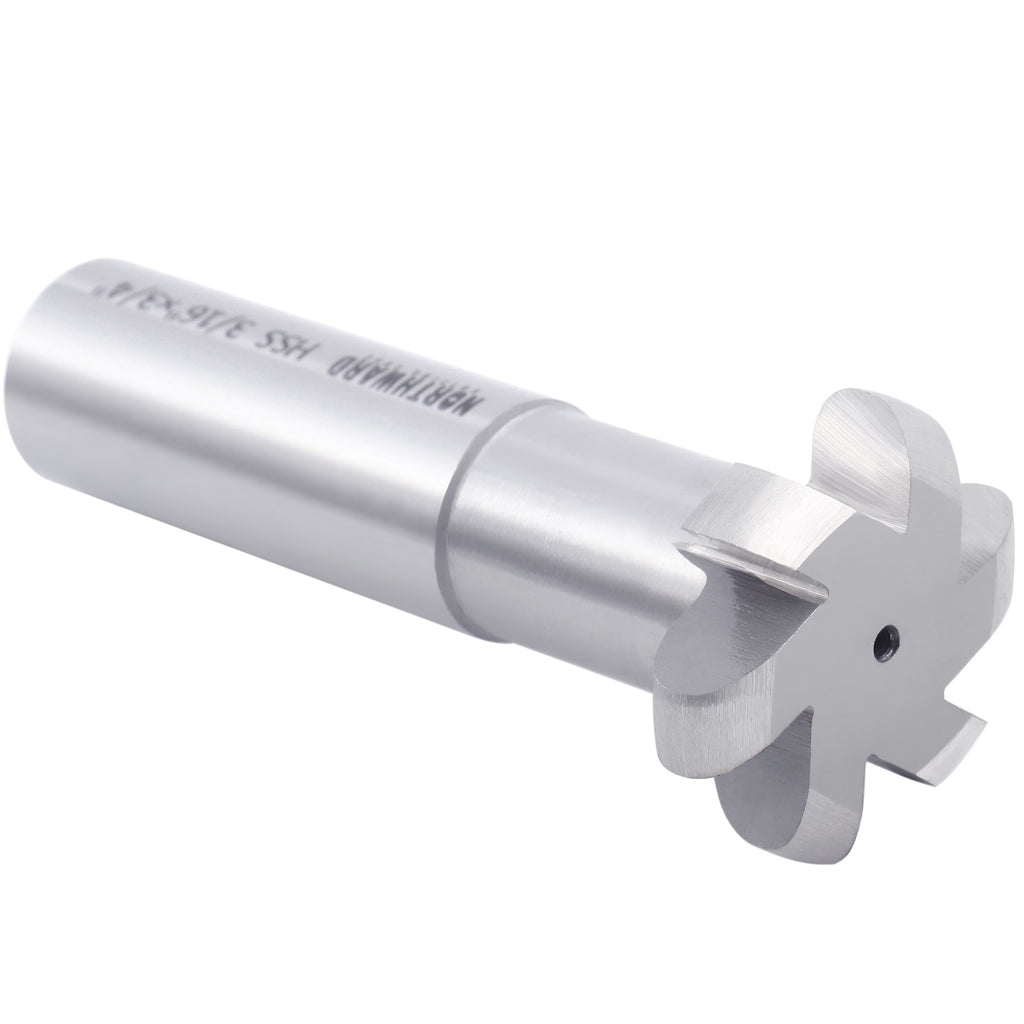

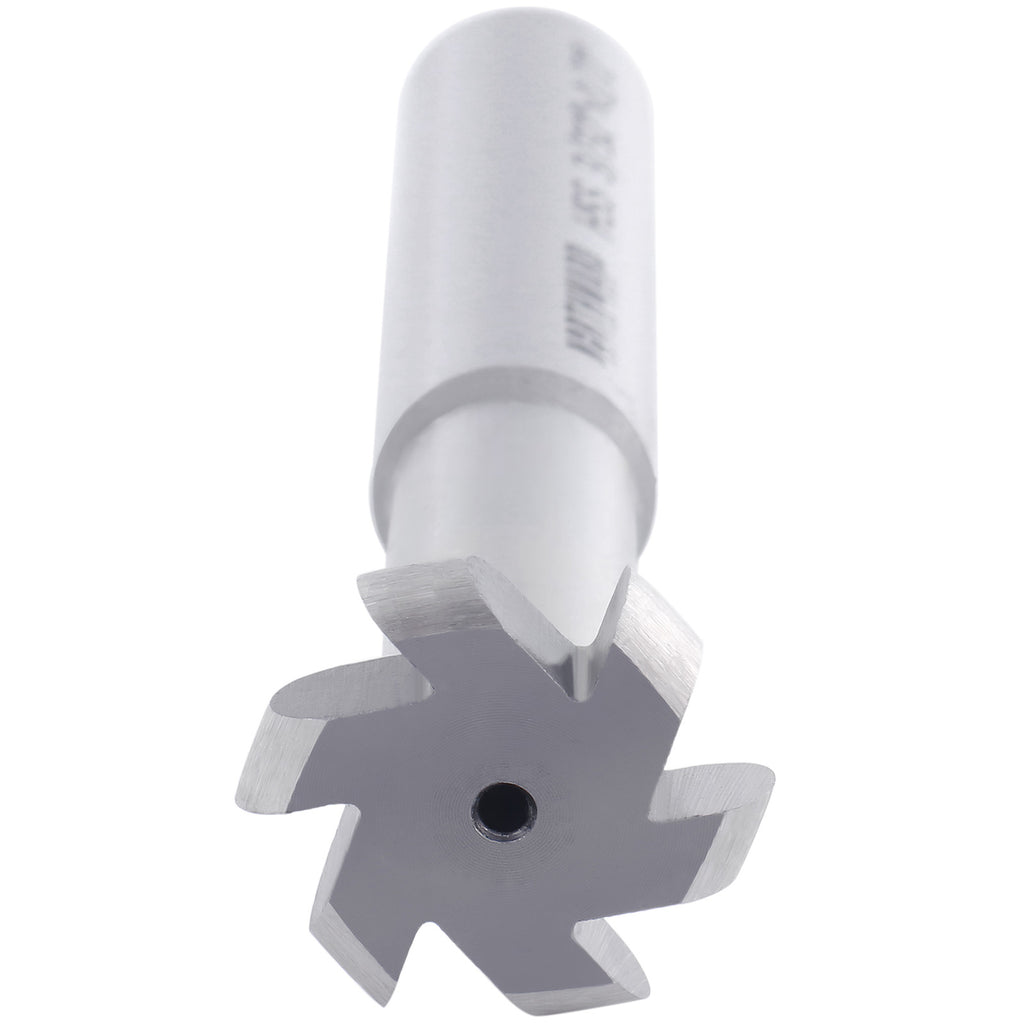

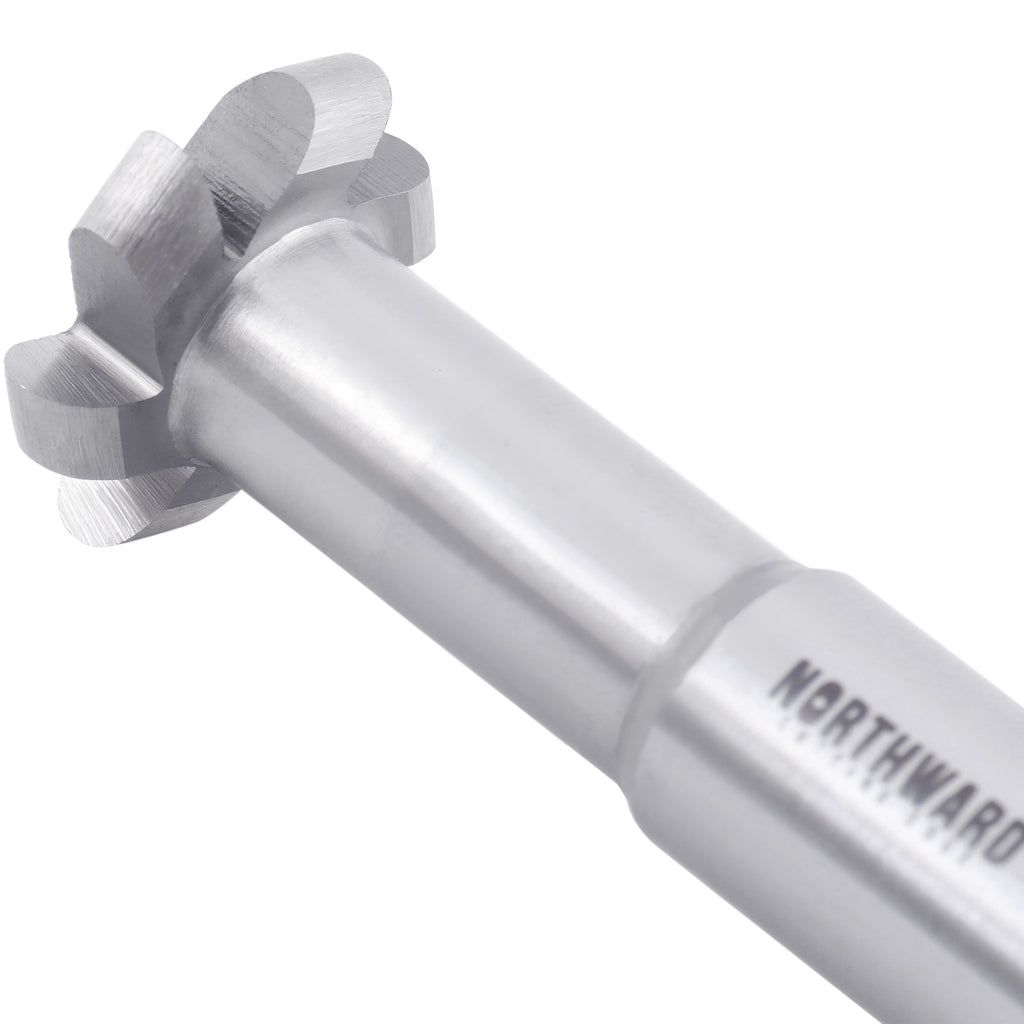

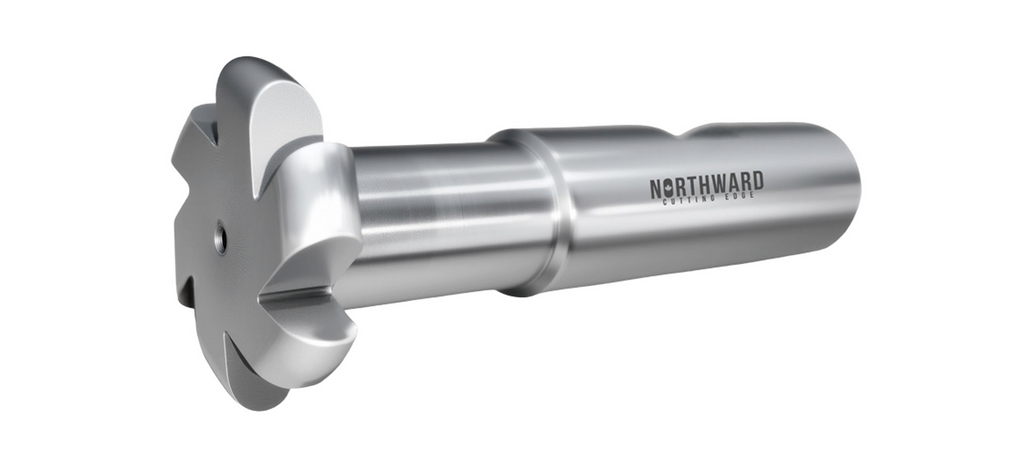

The H.S.S. Convex Radius Cutter End Mill is designed for machining rounded concave grooves, arc grooves, and formed radius profiles on workpieces. Made from high-speed steel with a hardness range of HRC 62–65, this cutter series features an uncoated finish, right-hand cutting direction, and a Weldon shank for secure holding in milling applications.
This convex radius cutter family is suitable for use on conventional milling machines, CNC mills, Bridgeport-style mills, and general milling equipment. It can be used for machining steel, aluminum, and stainless steel, and is available in radius sizes from 3/32" to 1/4". The specification sheet lists convex cutter items 2805-0332, 2805-0018, 2805-0532, 2805-0316, and 2805-0014, with 4-flute and 6-flute options depending on size.
Key Features
- H.S.S. convex radius cutter end mill for radius groove and form milling.
- Designed for machining rounded concave grooves, arc grooves, and curved profiles.
- Hardness: HRC 62–65.
- Finish: Uncoated.
- Cutting direction: Right hand cut.

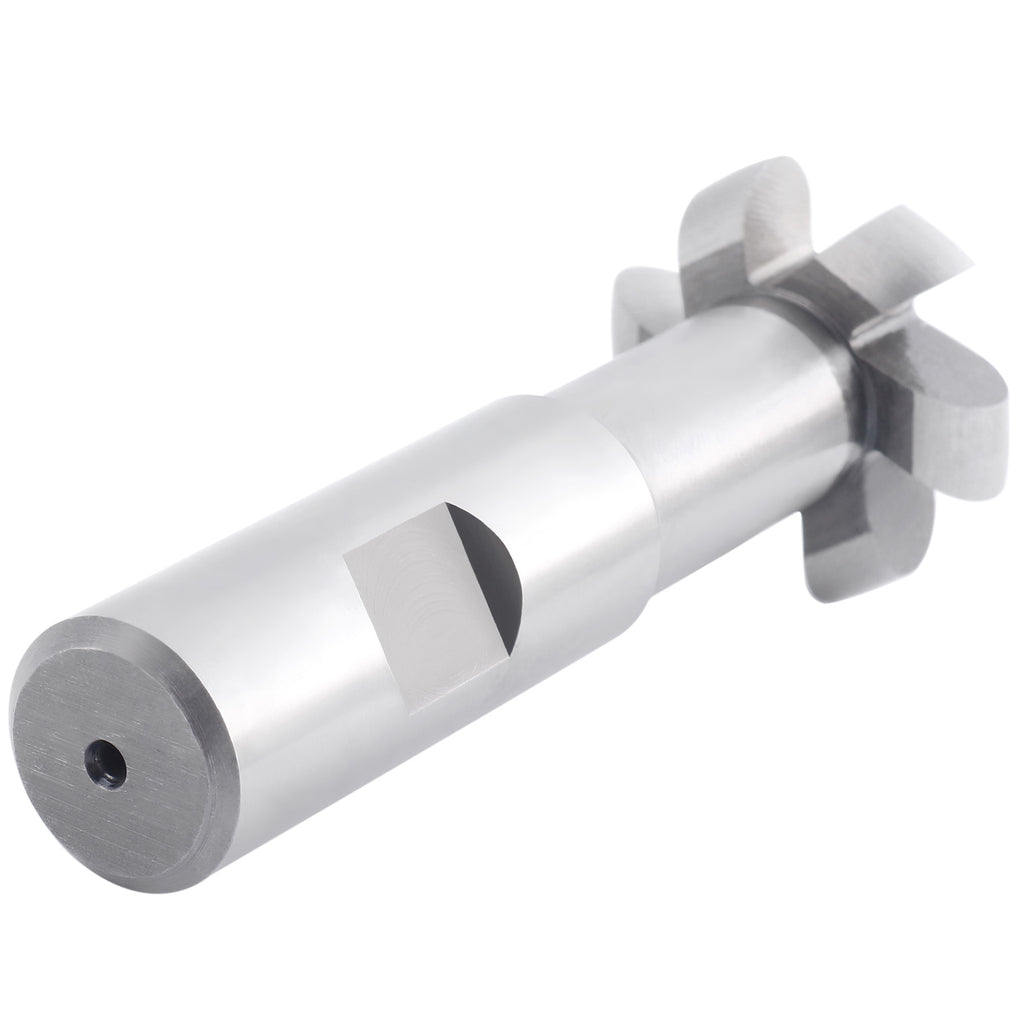

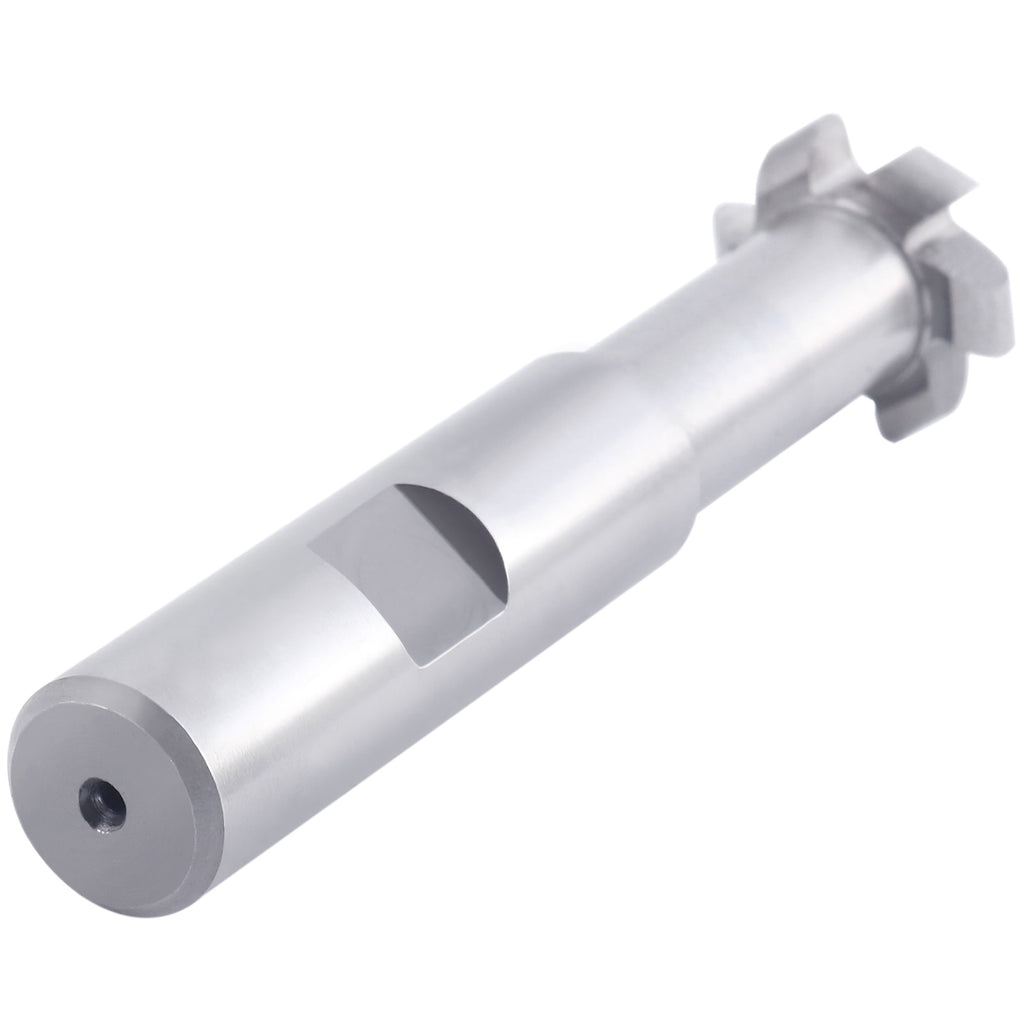

- Shank type: Weldon shank.
- Suitable for steel, aluminum, and stainless steel.
- Compatible with milling machines, CNC mills, Bridgeport-style mills, and general milling equipment.
- Available radius sizes: 3/32", 1/8", 5/32", 3/16", and 1/4".

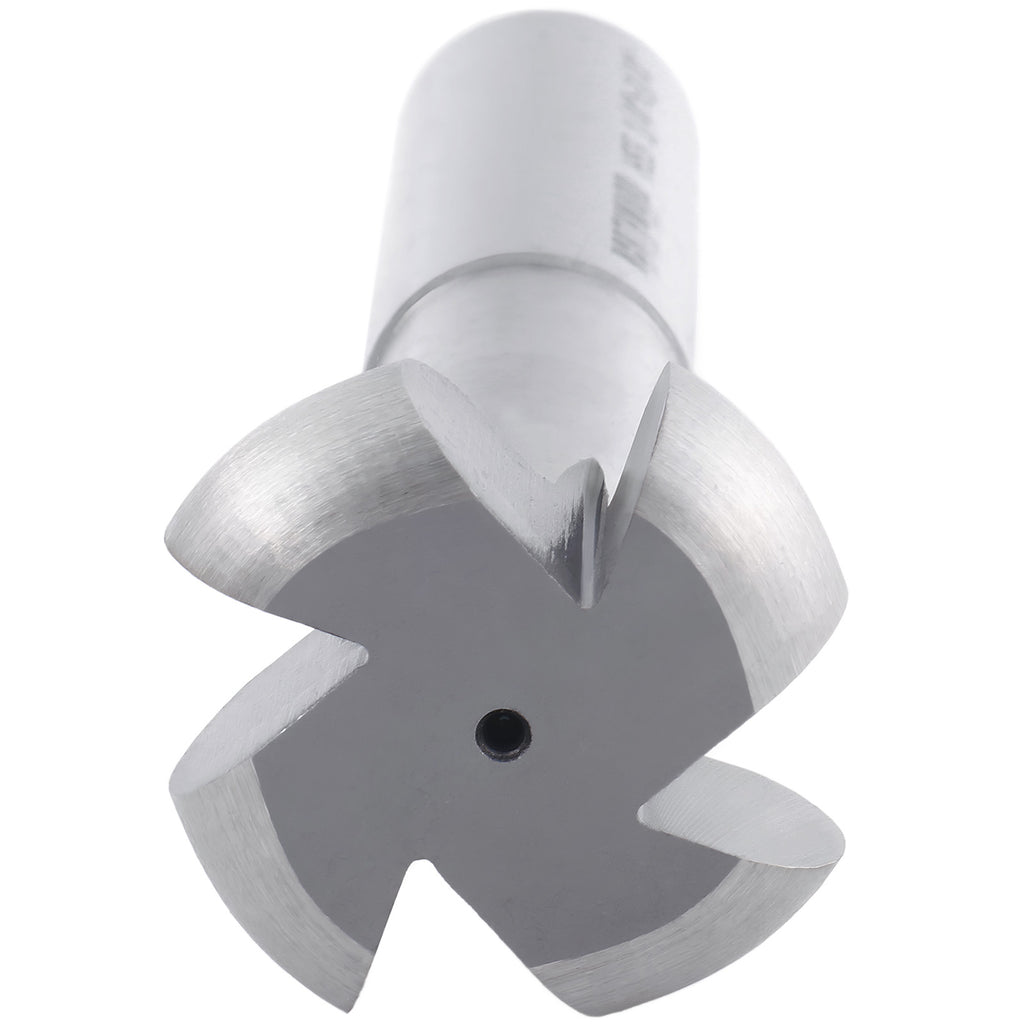

- Available in 4-flute and 6-flute configurations depending on cutter size.

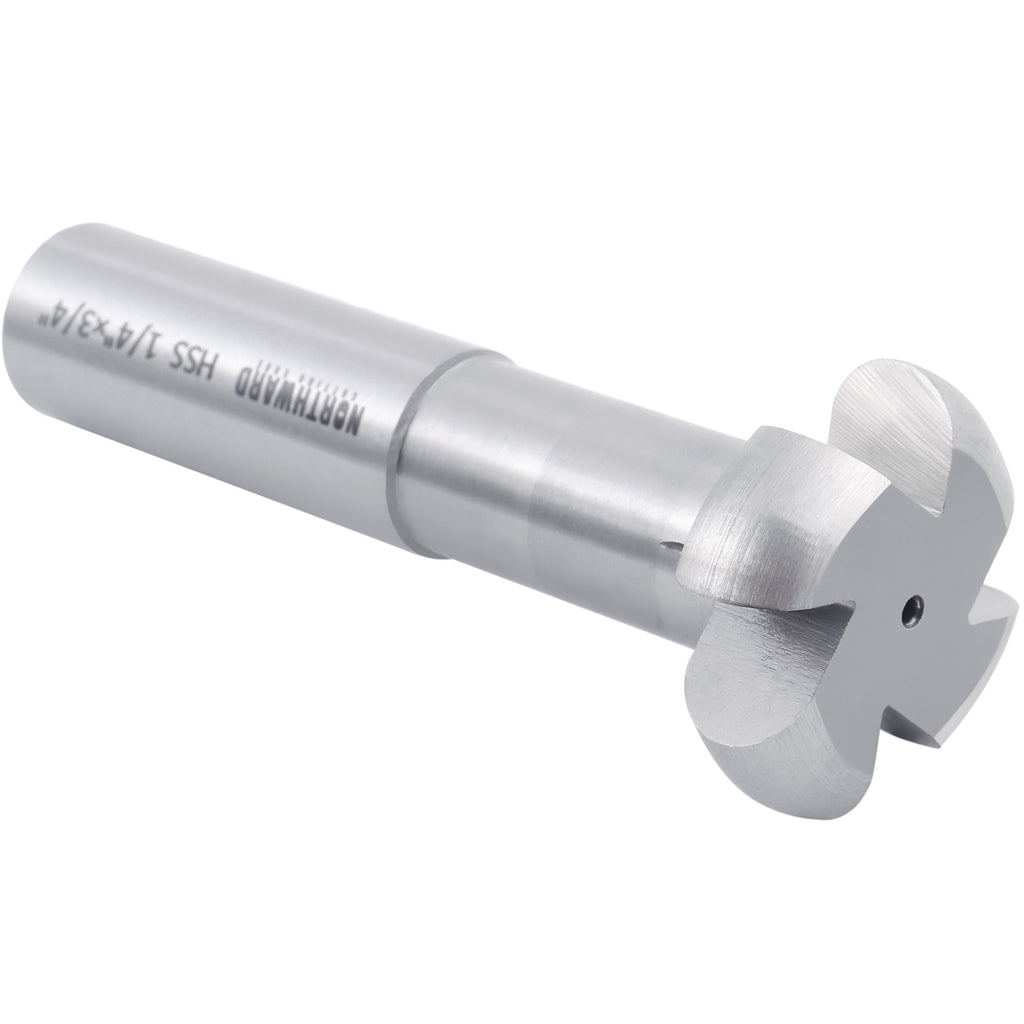

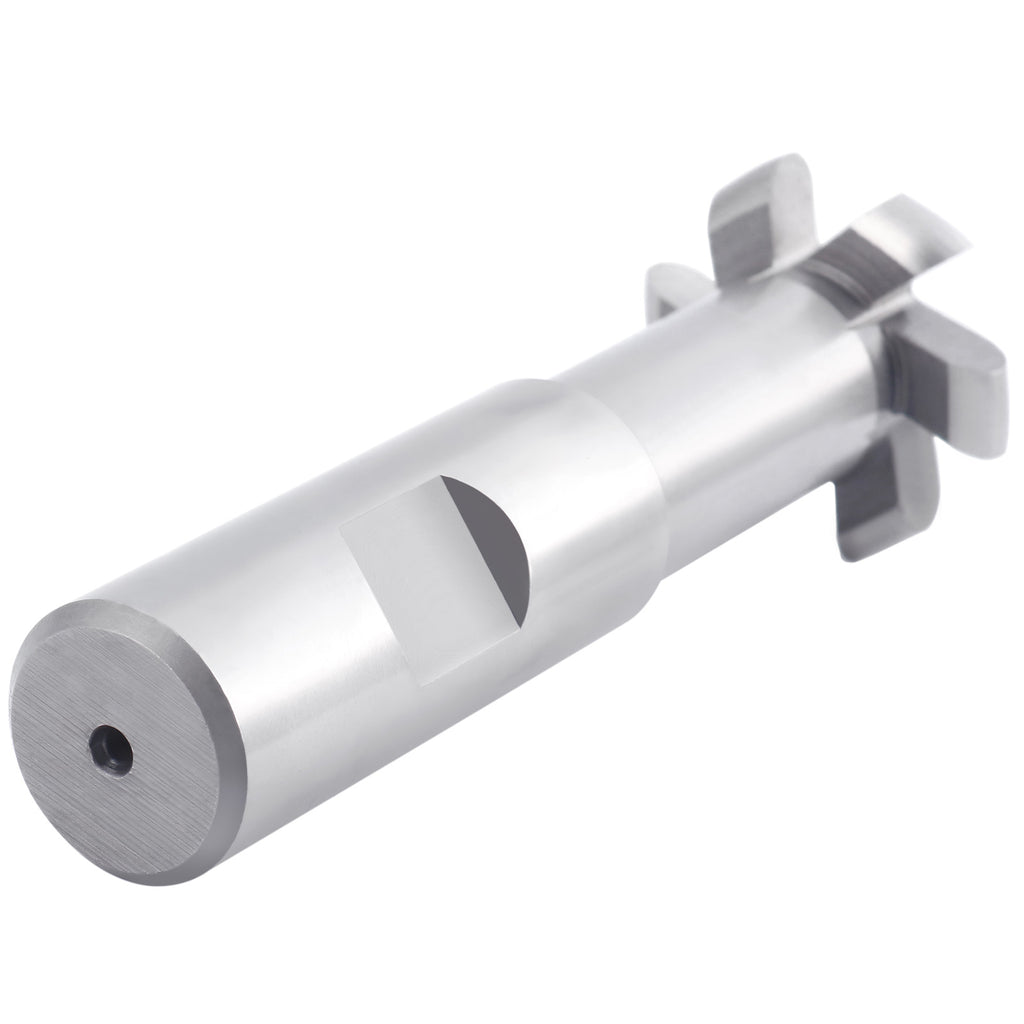

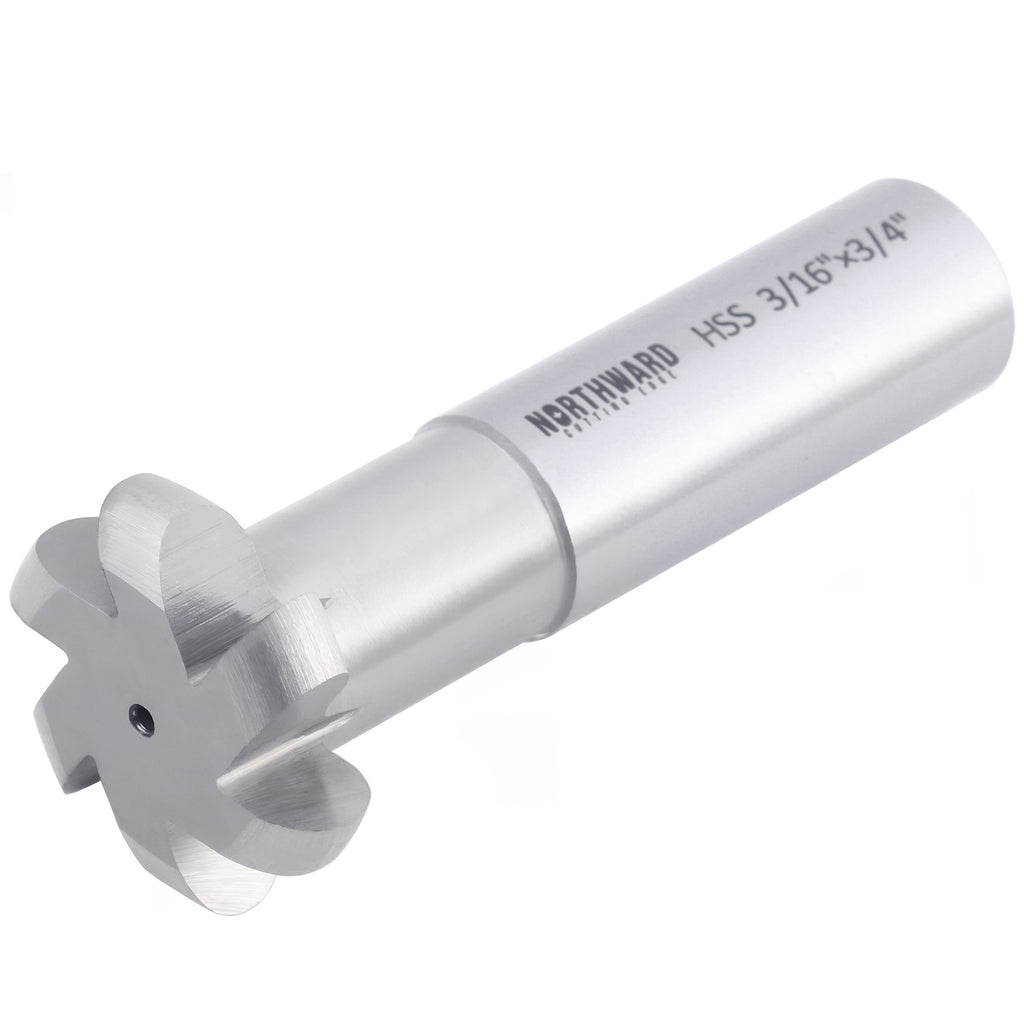

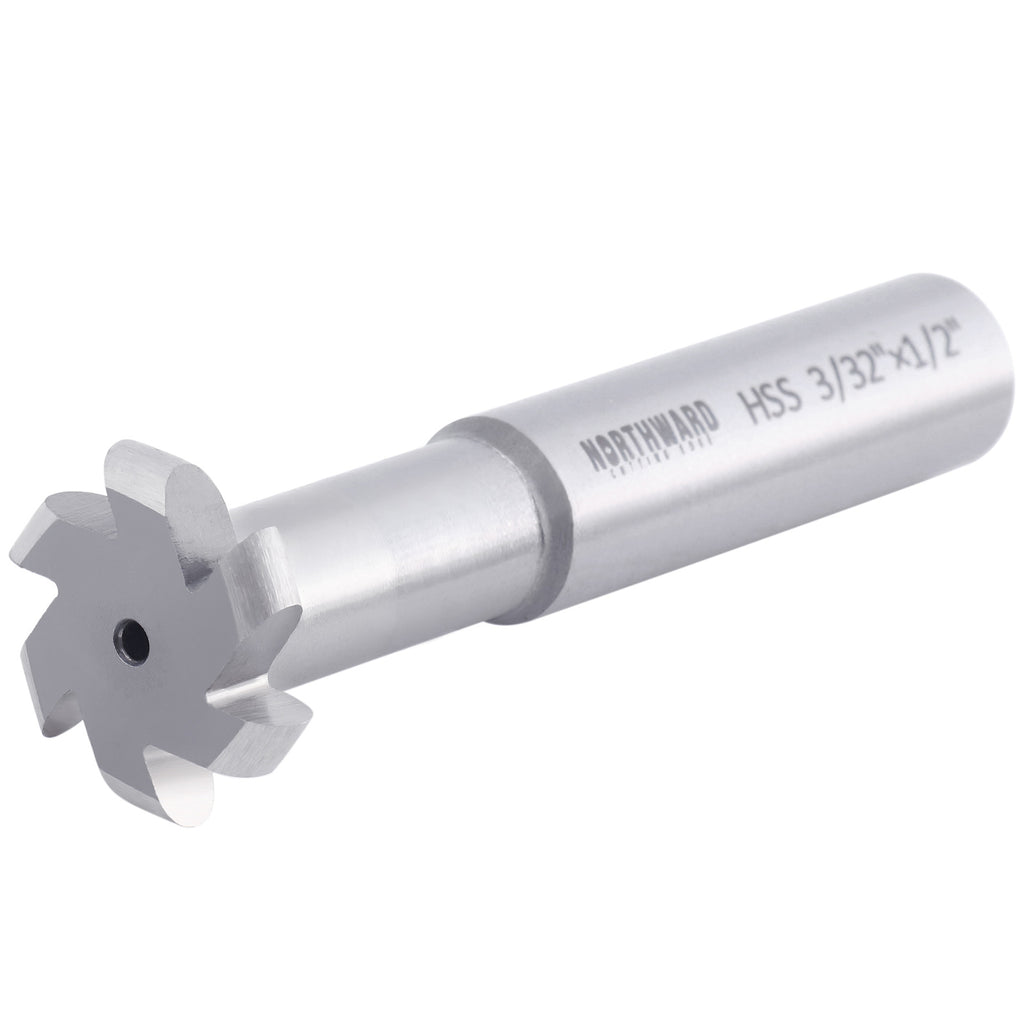

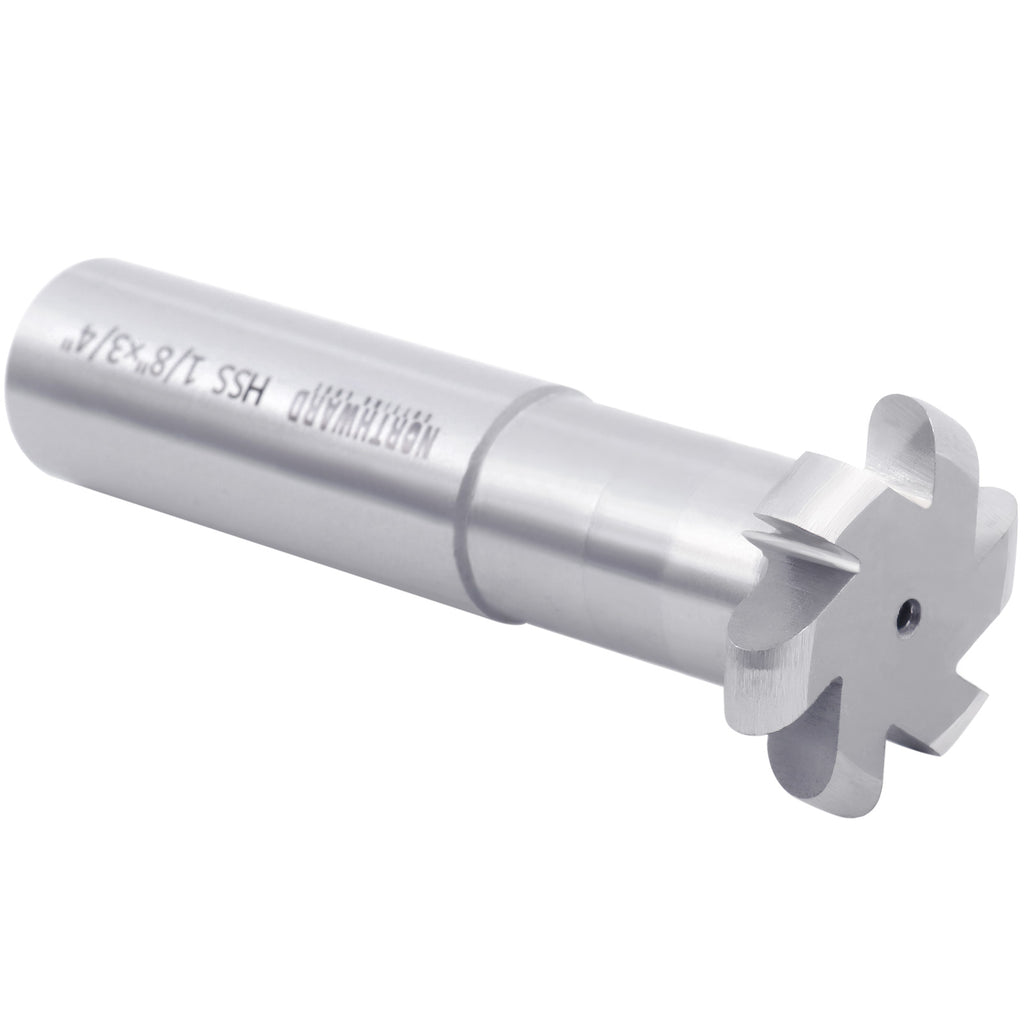

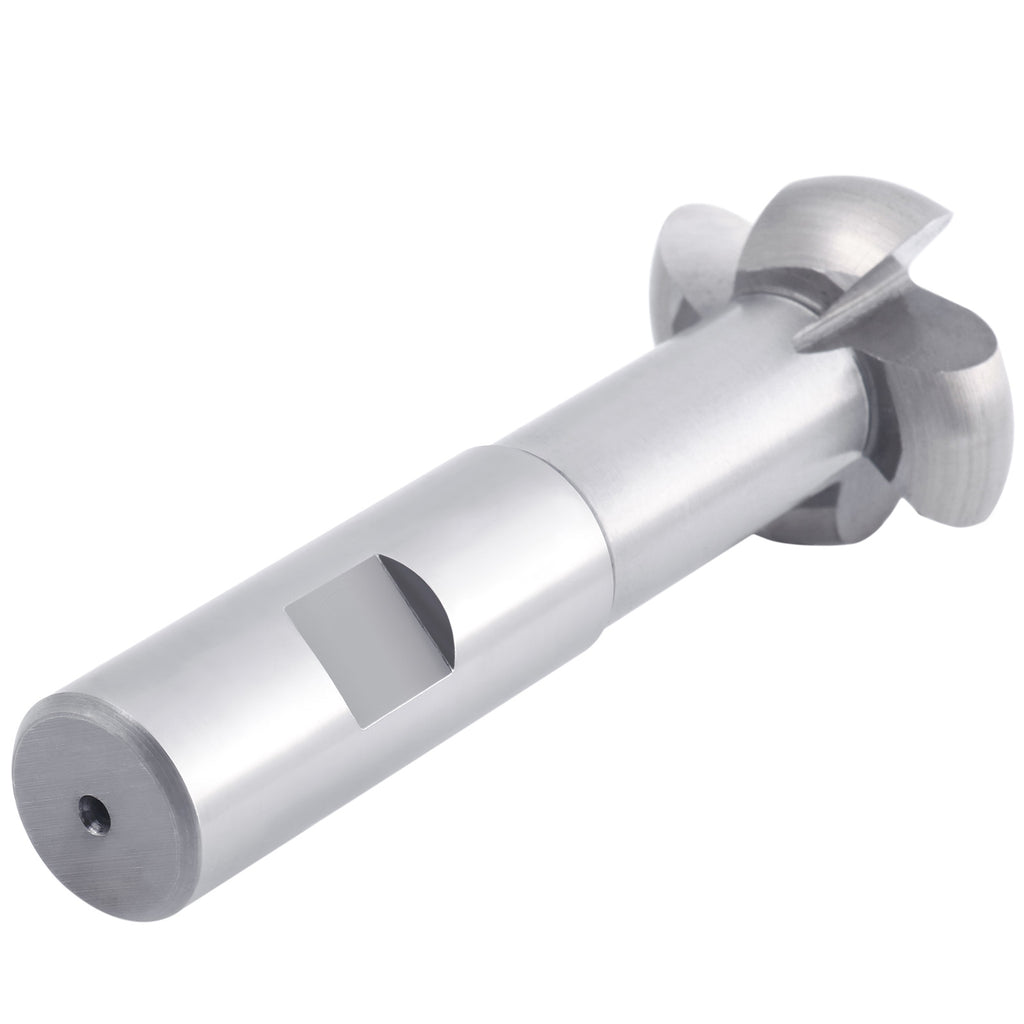

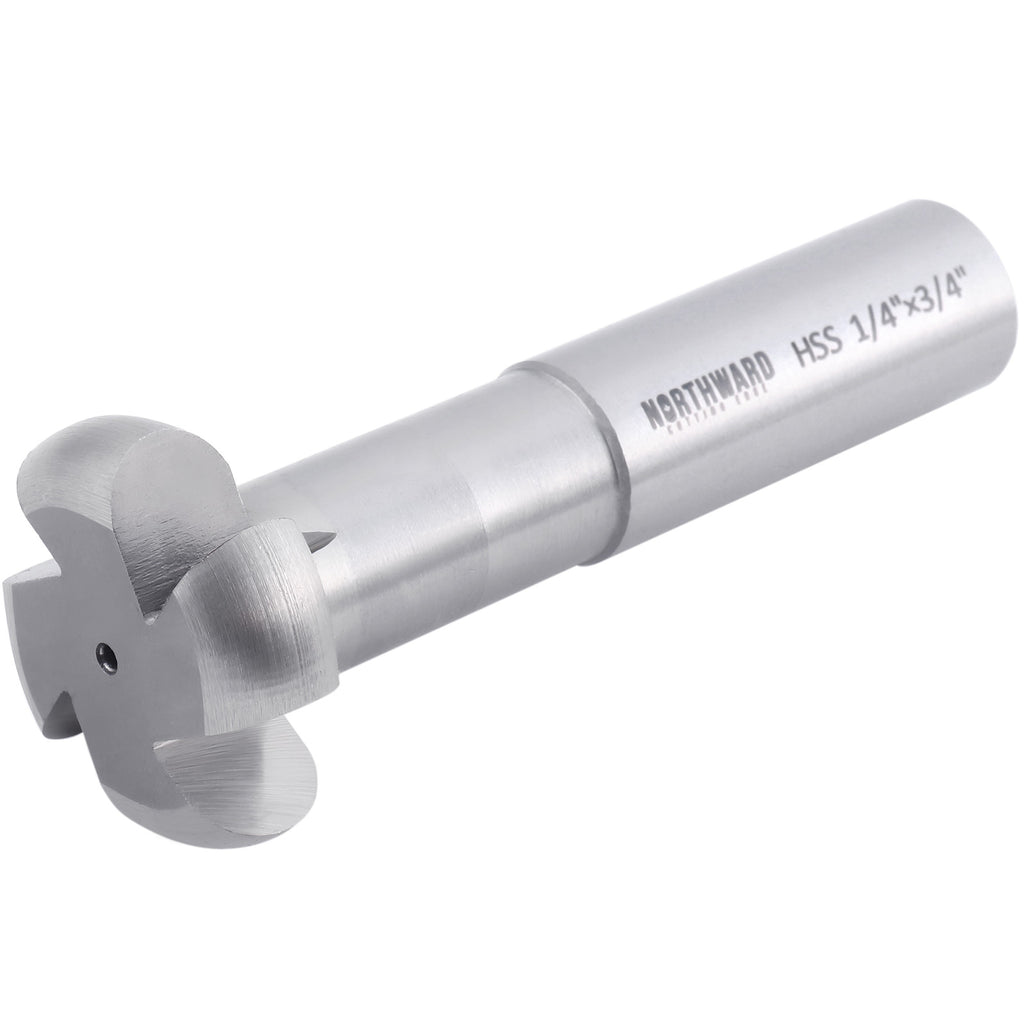

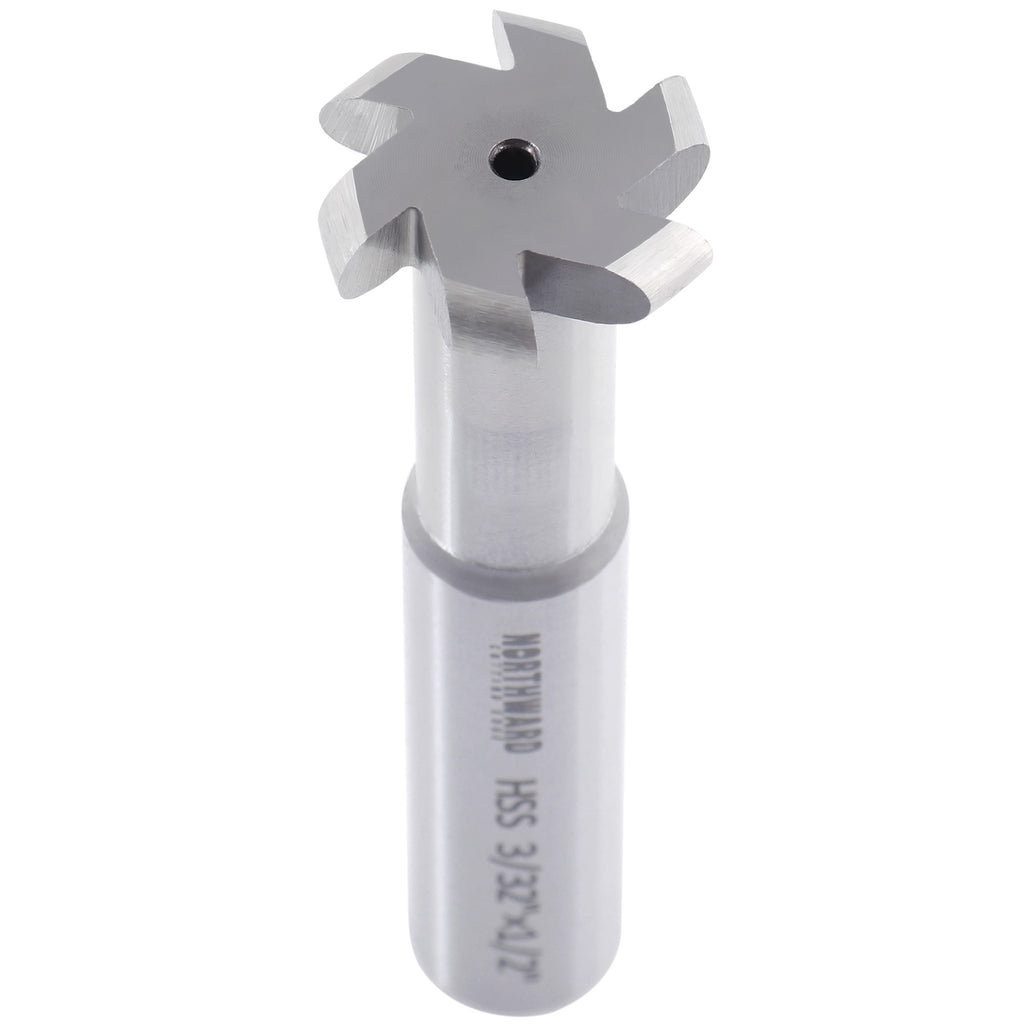

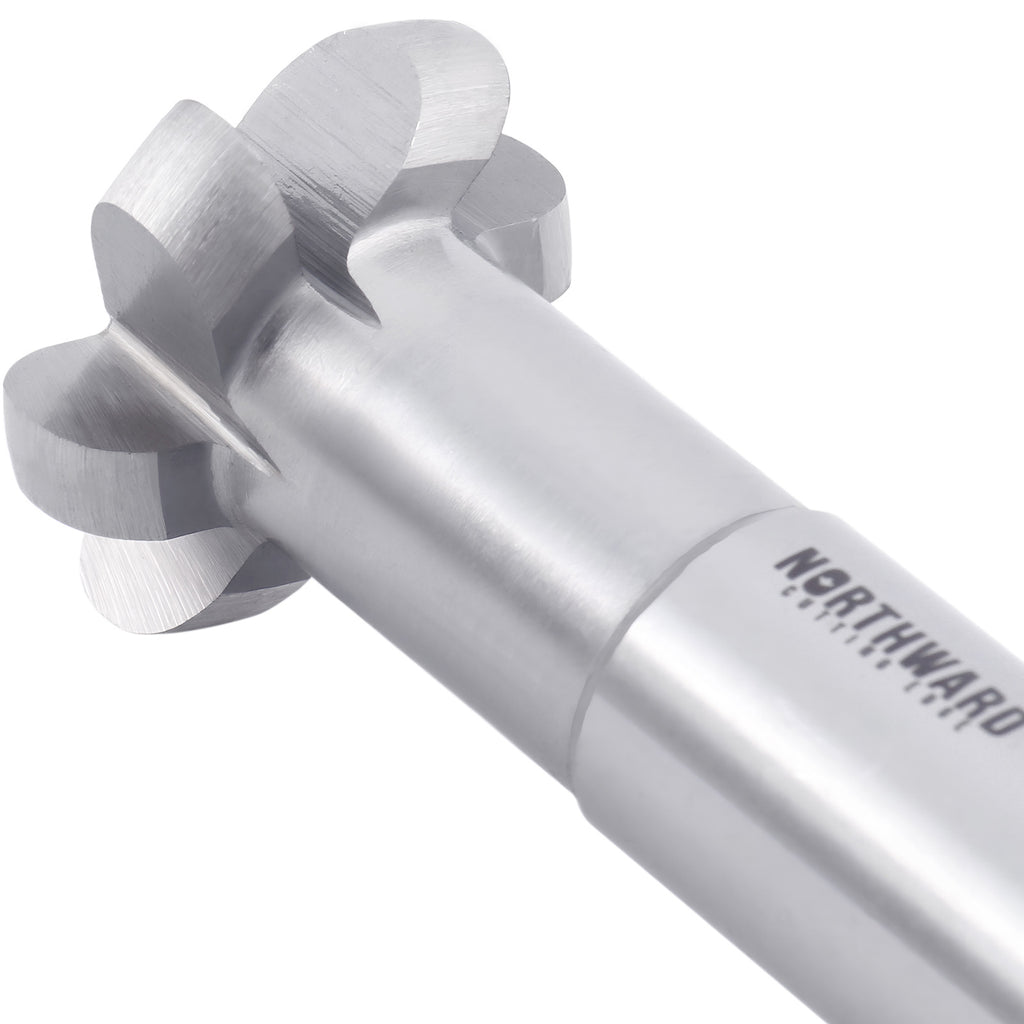

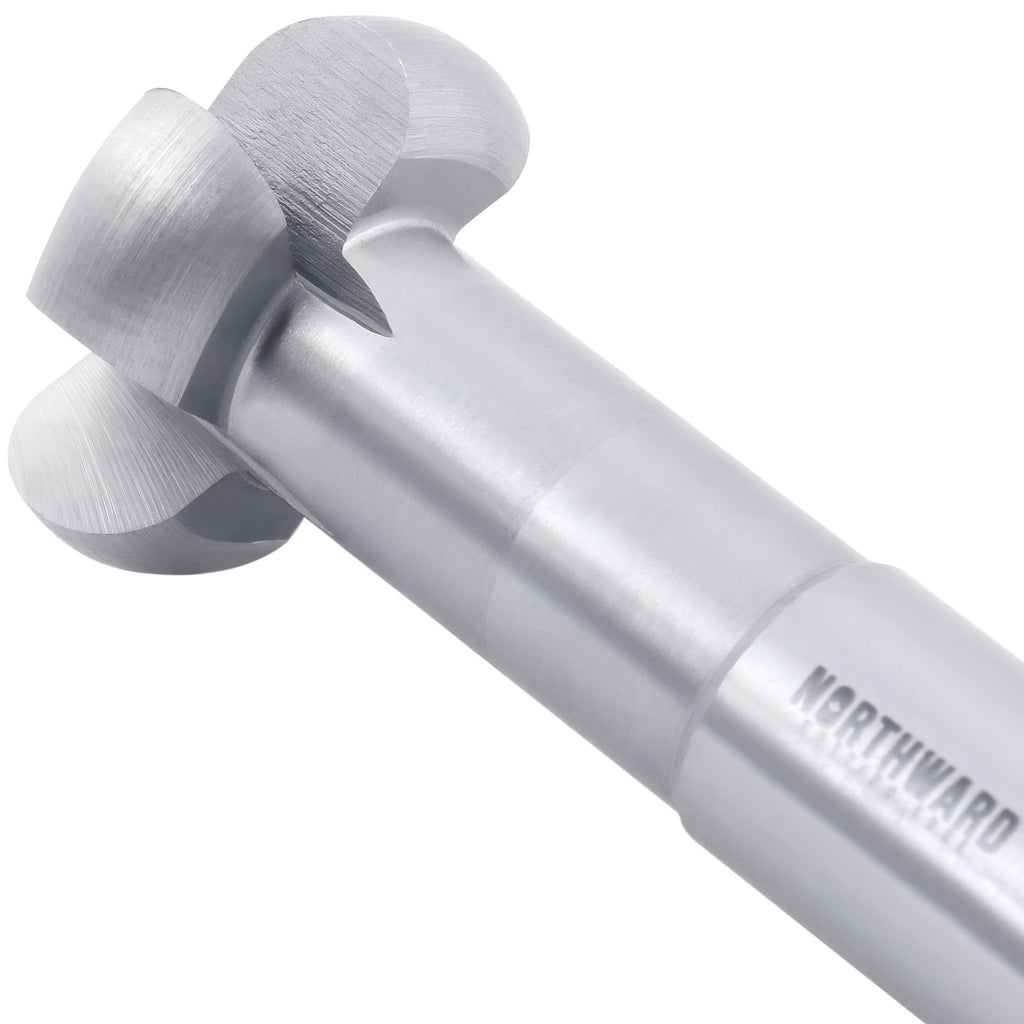

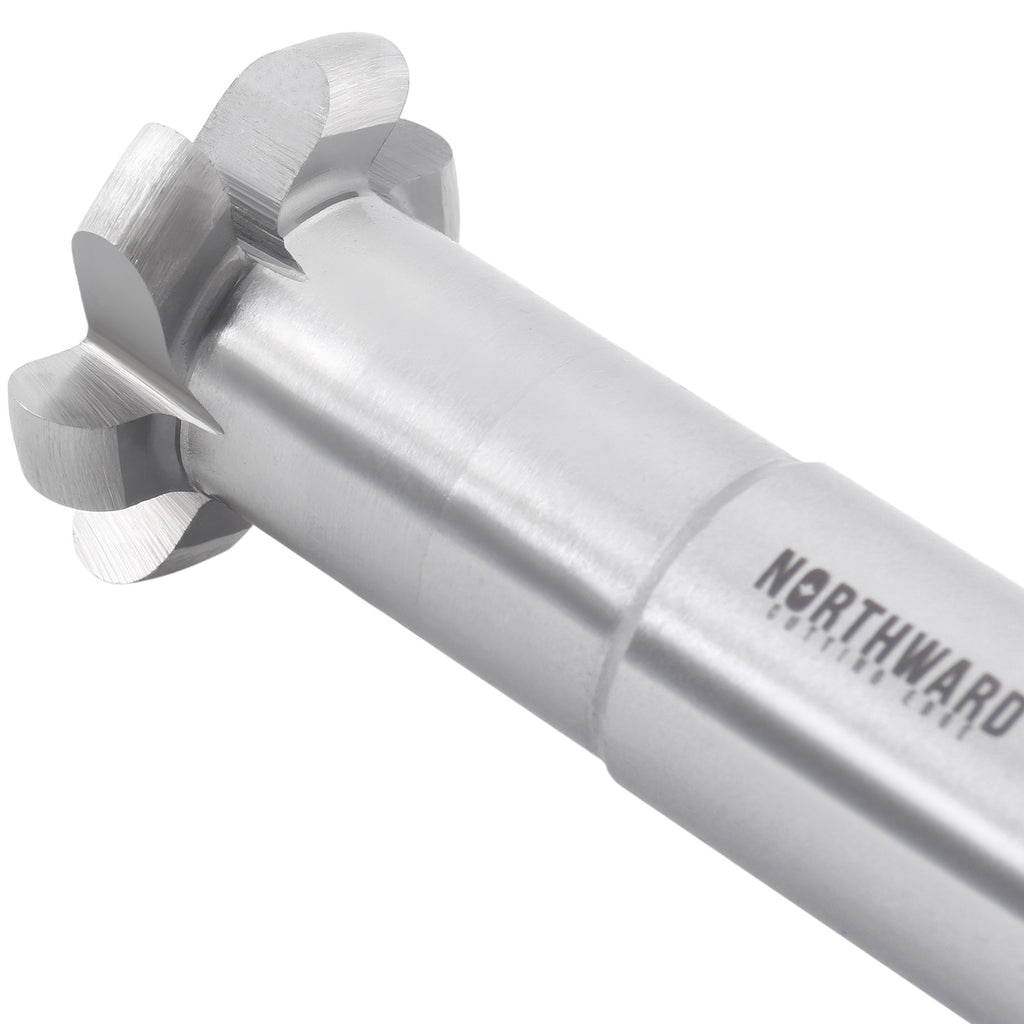

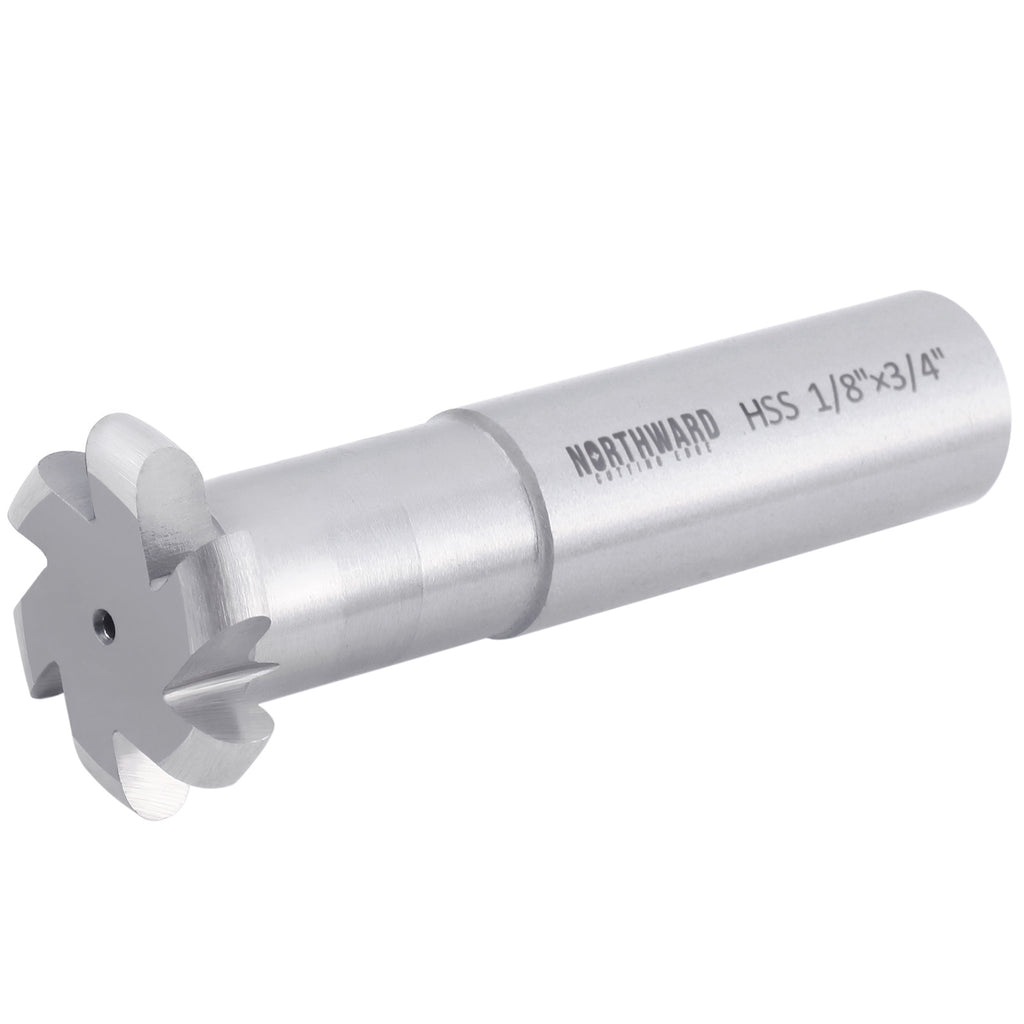

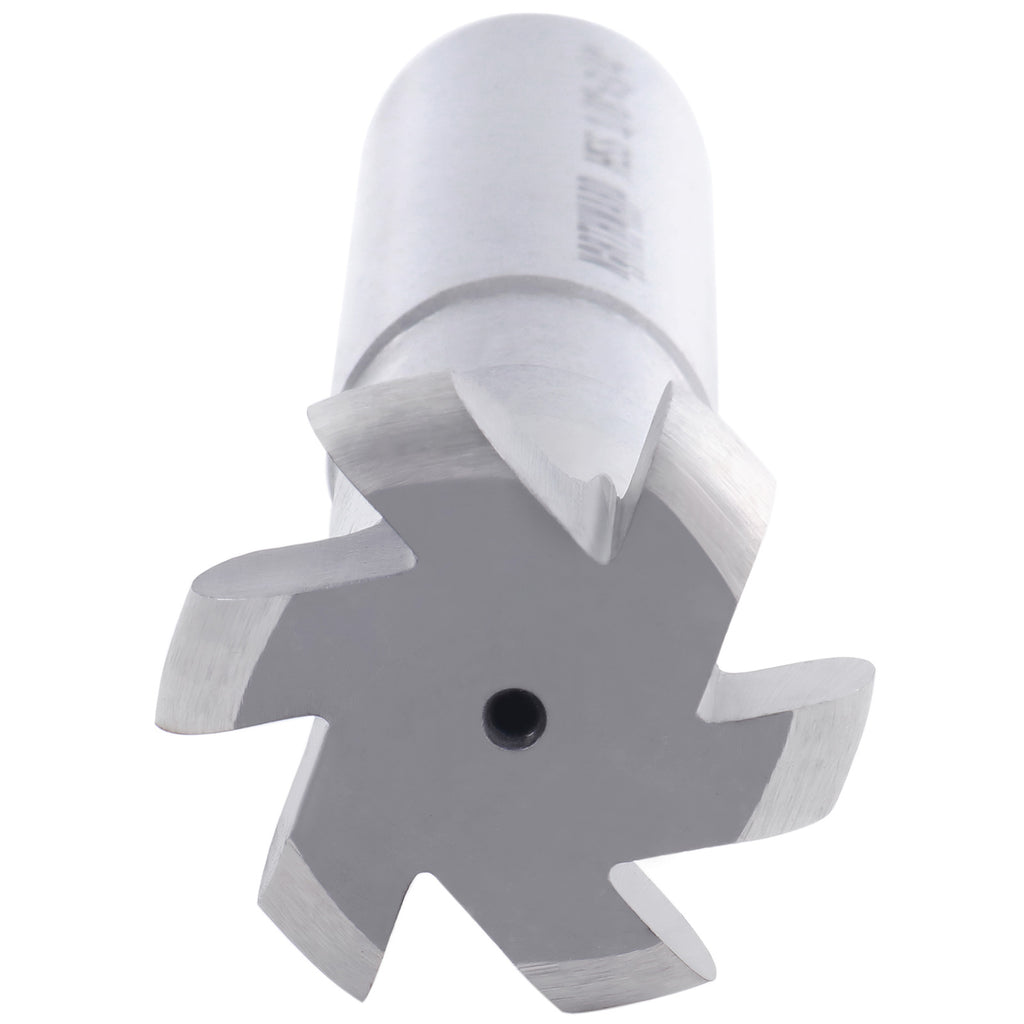

Item Radius Dia. (R) Cutting Dia. (D) Shank Dia. (d) Cutting Width (w) Overall Length (L) Flute 2805-0332 3/32" 7/8" 1/2" 3/16" 3" 6 2805-0018 1/8" 1-1/4" 3/4" 1/4" 3-1/2" 6 2805-0532 5/32" 1-5/16" 3/4" 5/16" 3-1/2" 6 2805-0316 3/16" 1-3/8" 3/4" 3/8" 3-1/2" 6 2805-0014 1/4" 1-1/2" 3/4" 1/2" 4" 4
