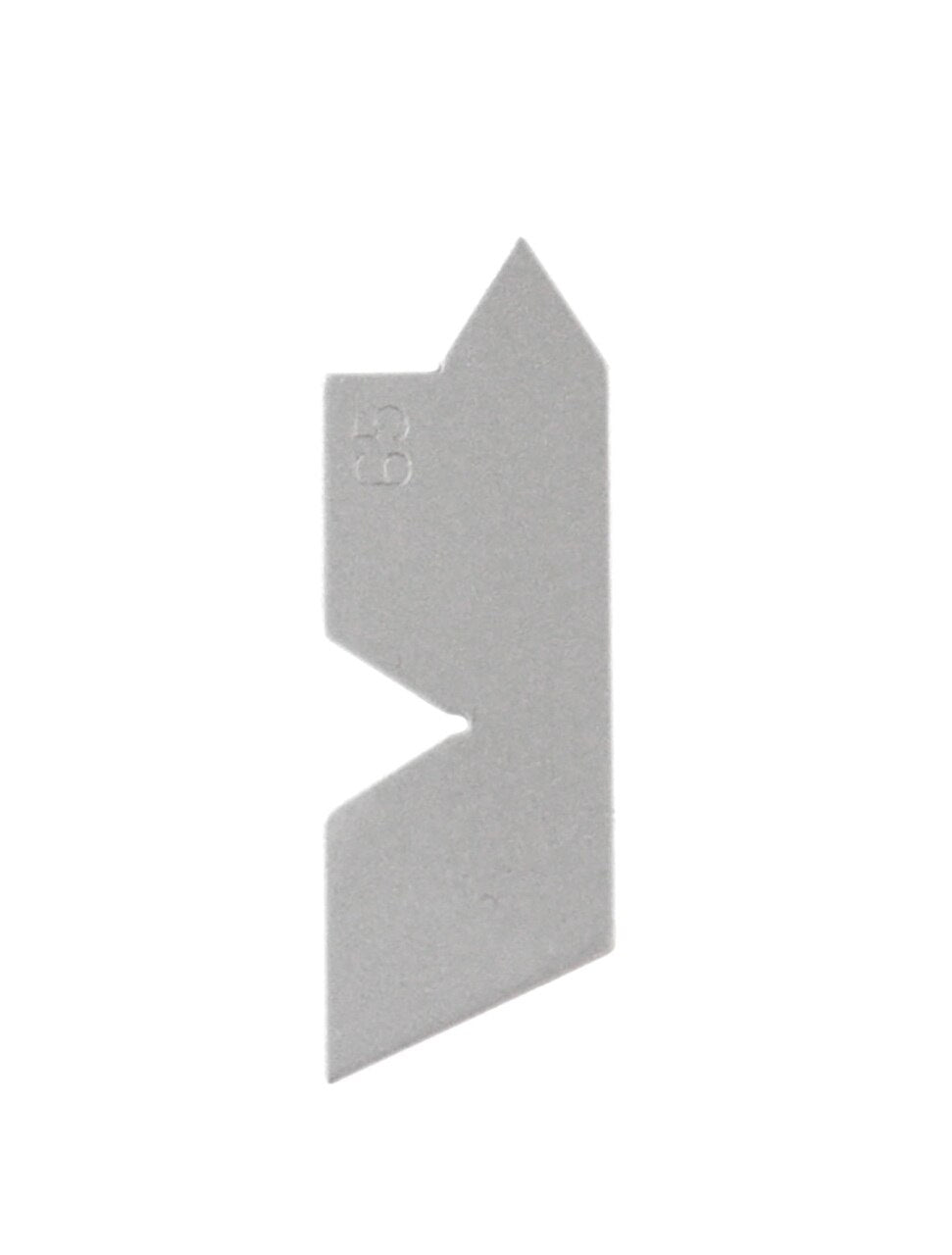

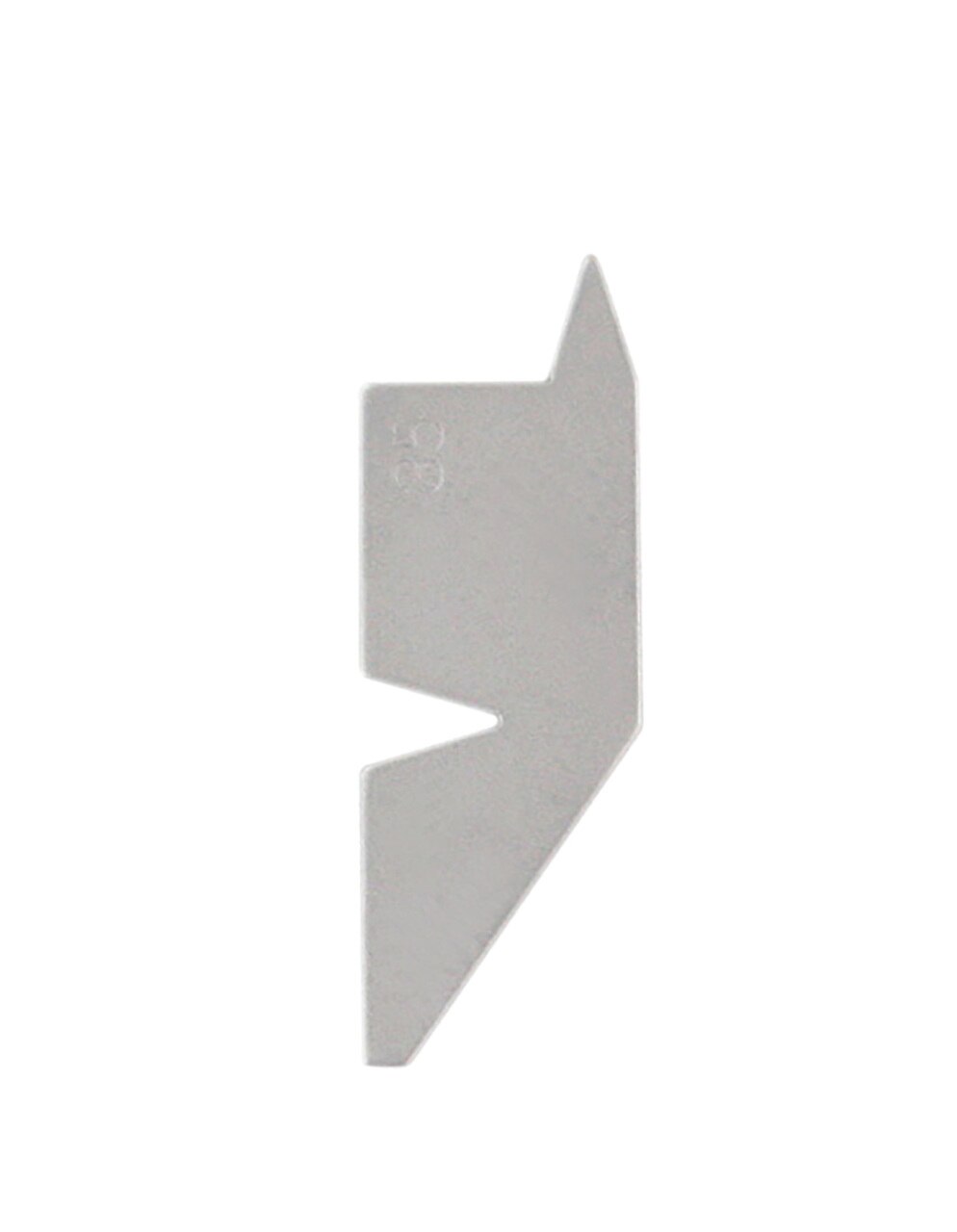

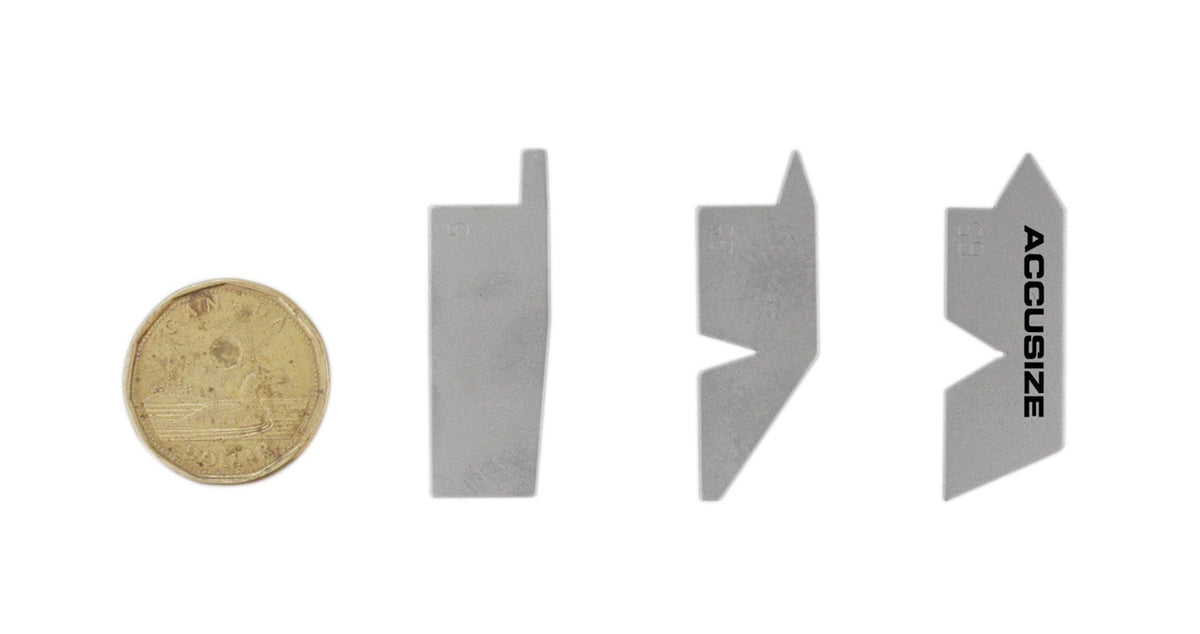

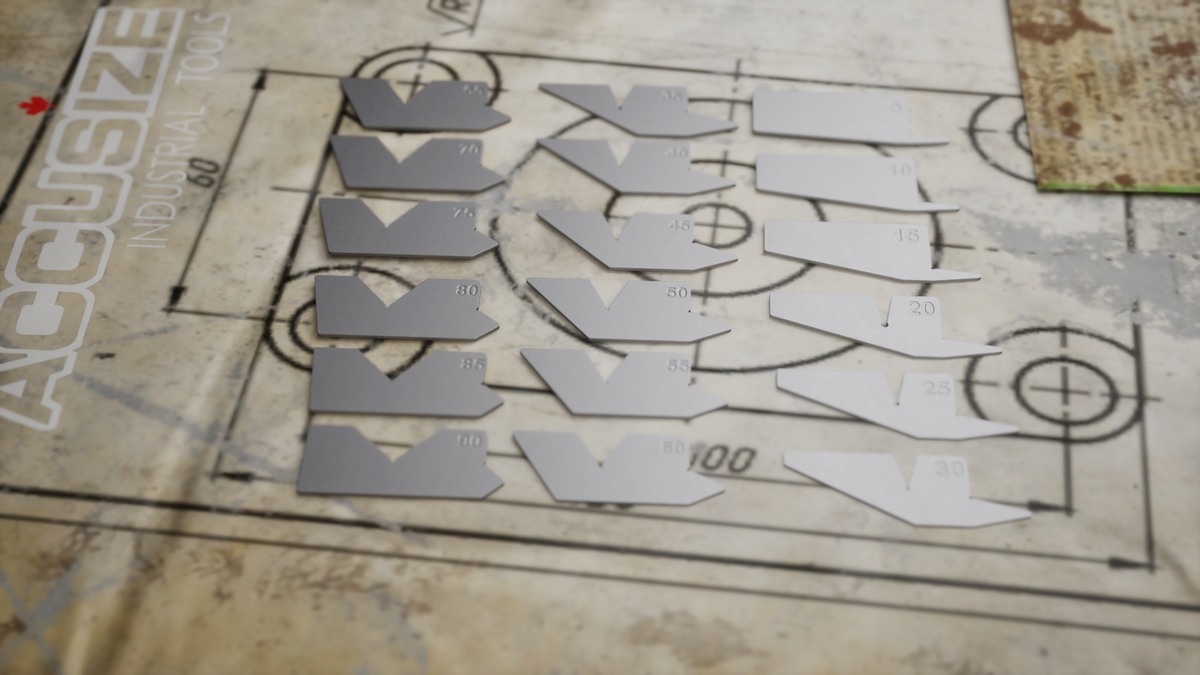

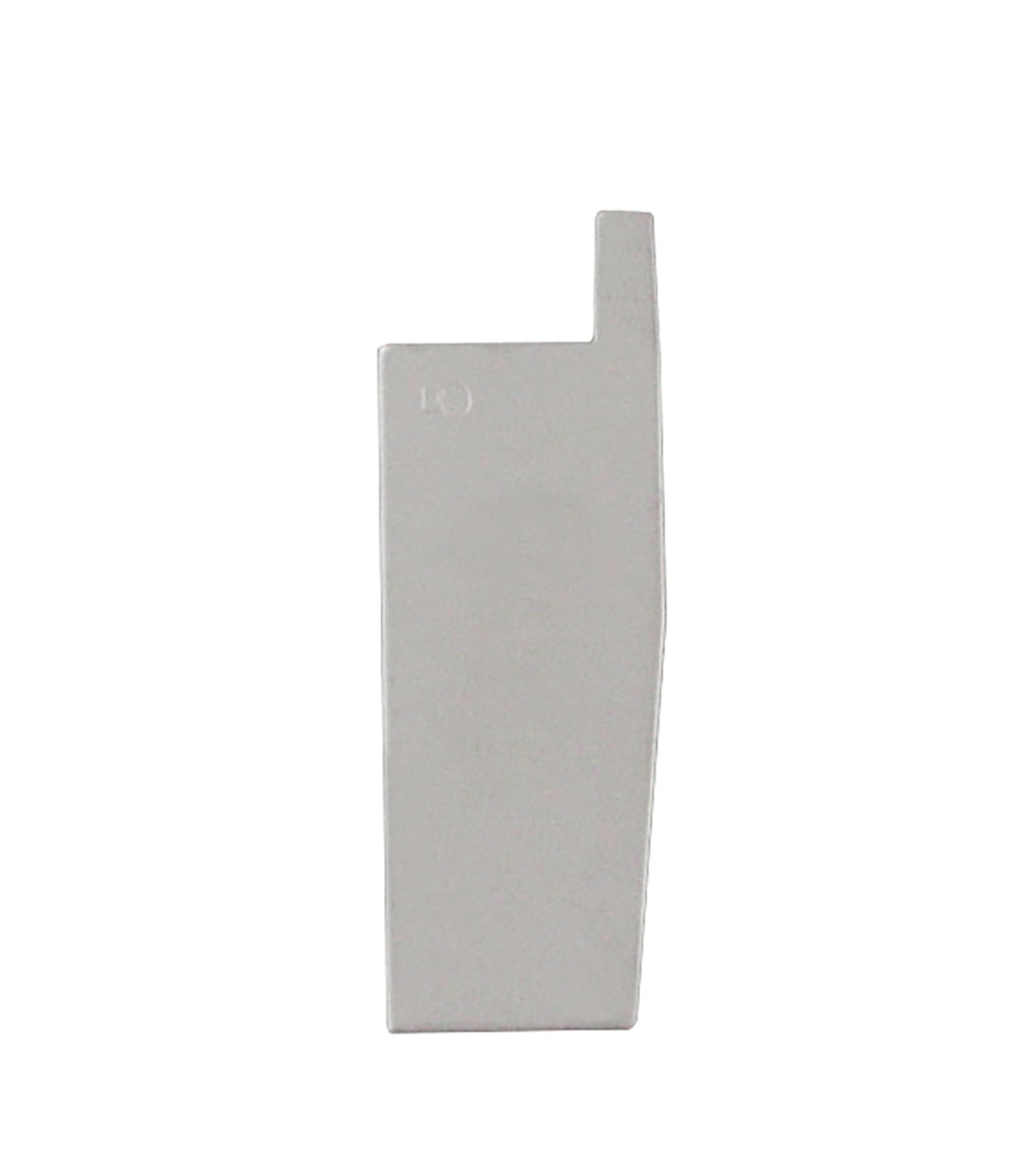

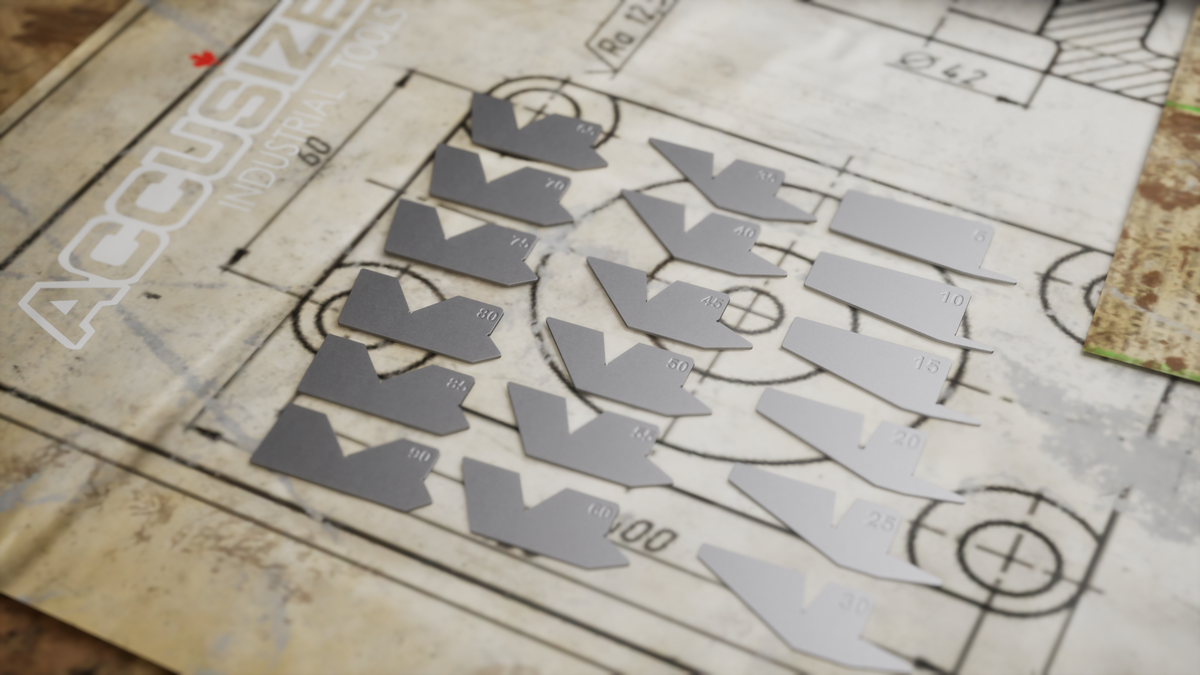

18 Piece/Set Angle Gage Set Angle Gages, #3602-5050
- Manufactured from stainless steel, satin finish,
- 18 individual gages for easy use.
- Eight gaging surfaces per gage.
- Precision finished edges for accurate checking.
- Each gage checks primary, 1/2 primary and supplementary angles.
- Quick and accurate inspection of angles and I.D. or O.D. chamfers in or out of the machine.
- Positioning of lathe tools for chamfers.
- Inspecting angles on ground tools and cutters
- Fast set-ups and fixture of workpieces.
- Eliminates time-consuming measuring set-ups.
- Indispensable, for every inspector, toolmaker, machinist, layout and draftsman.

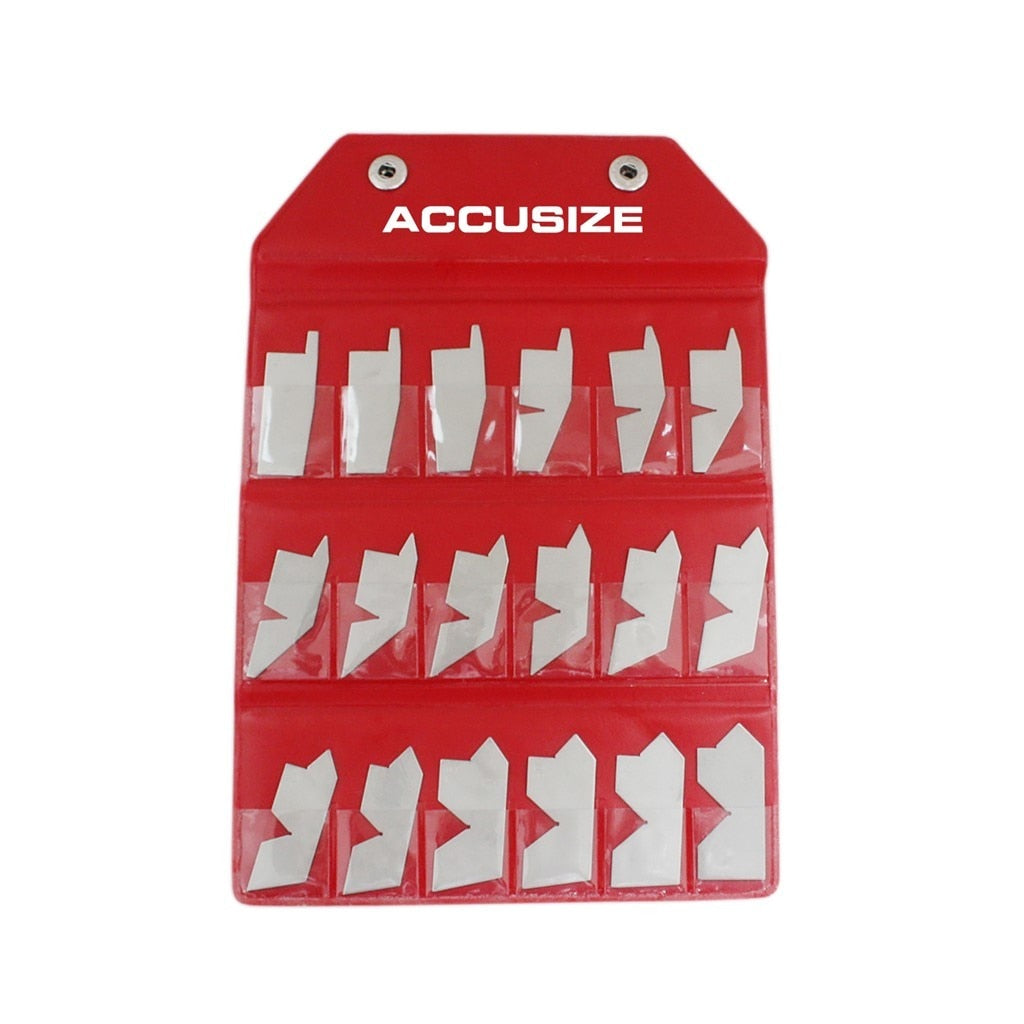

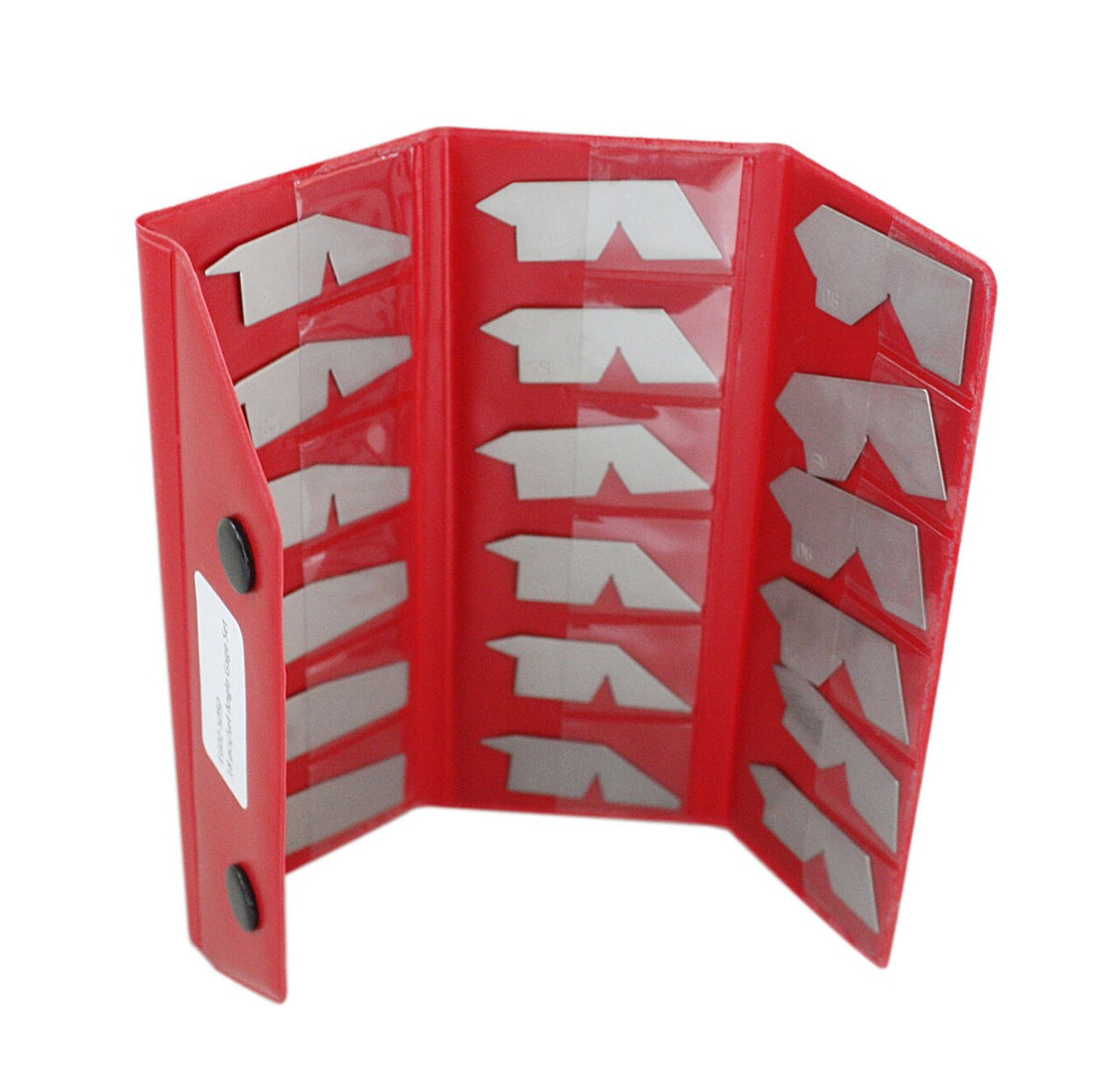

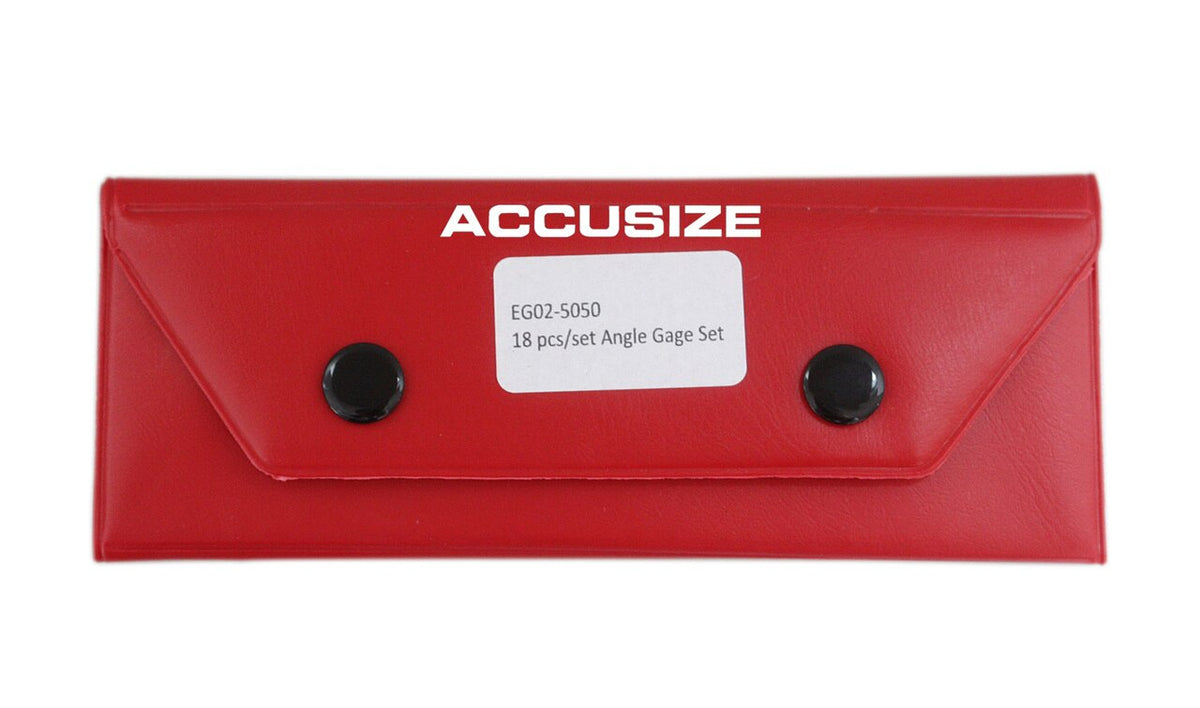

- Complete with fitted case.
- Accuracy: +/-0.5 Degree

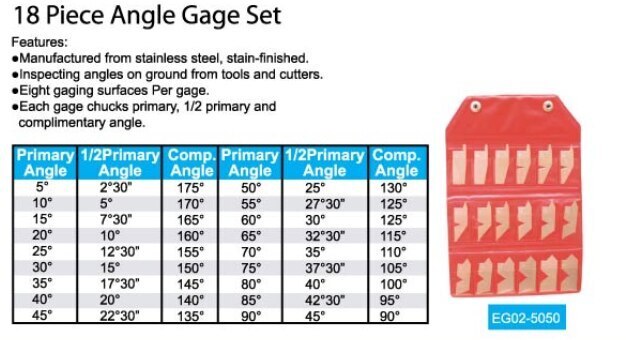

Parameters:
| Type A | Type B |
![]() |
![]() |
|
|
| Primary Angle | 1/2Primary Angle | Supplementary Angle | Type |
| 5° | 2°30' | 175° | A |
| 10° | 5° | 170° | A |
| 15° | 7°30' | 165° | A |
| 20° | 10° | 160° | B |
| 25° | 12°30' | 155° | B |
| 30° | 15° | 150° | B |
| 35° | 17°30' | 145° | B |
| 40° | 20° | 140° | B |
| 45° | 22°30' | 135° | B |
| 50° | 25° | 130° | B |
| 55° | 27°30' | 125° | B |
| 60° | 30° | 120° | B |
| 65° | 32°30' | 115° | B |
| 70° | 35° | 110° | B |
| 75° | 37°30' | 105° | B |
| 80° | 40° | 100° | B |
| 85° | 42°30' | 95° | B |
| 90° | 45° | 90° | B |
