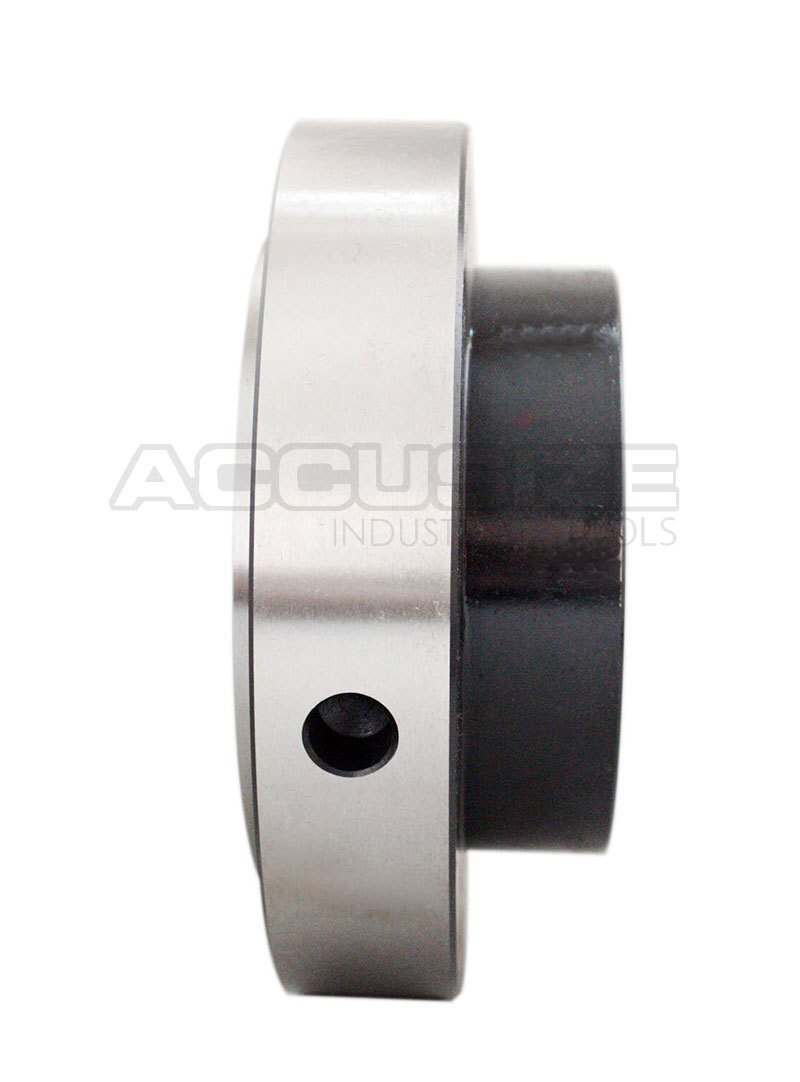

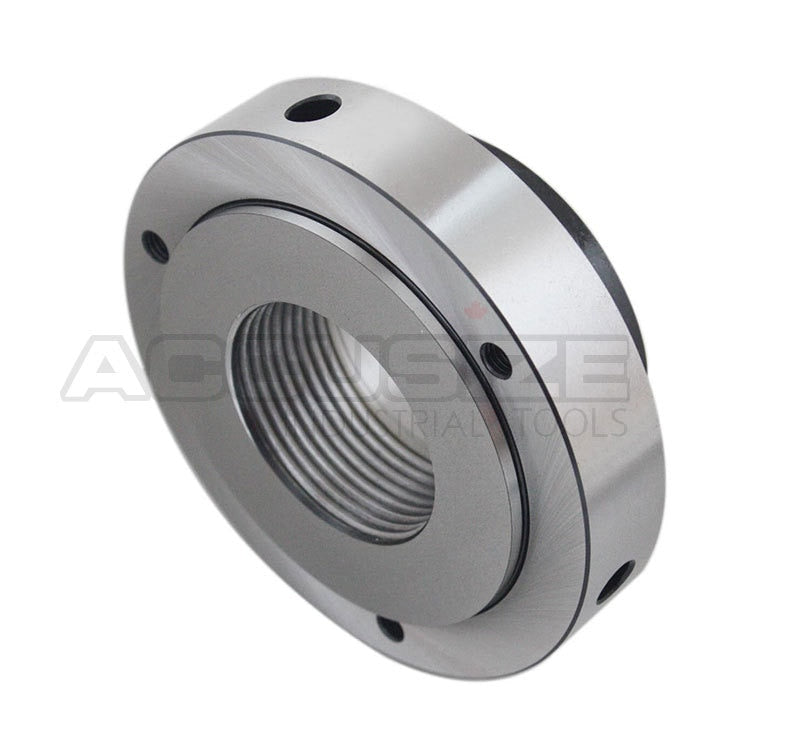

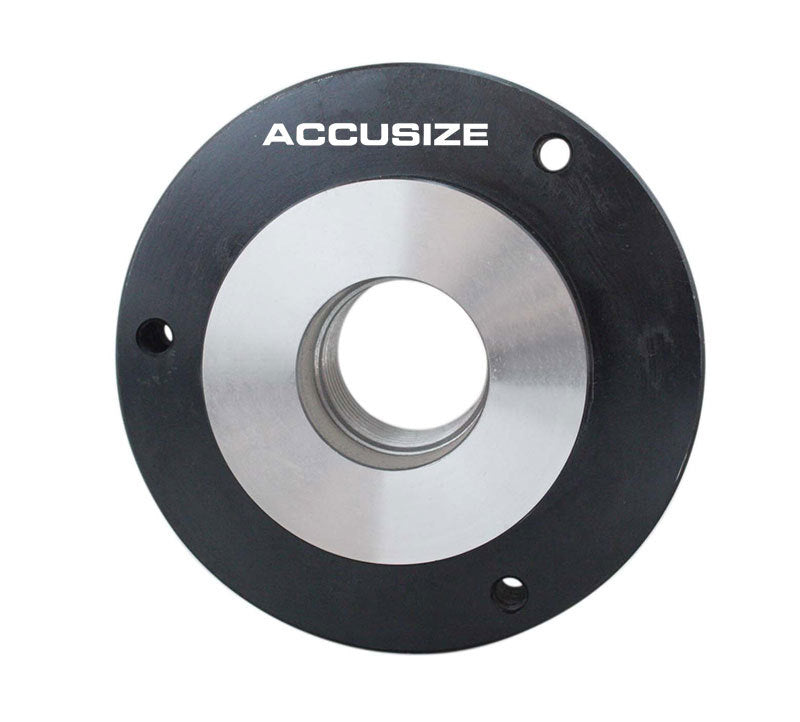

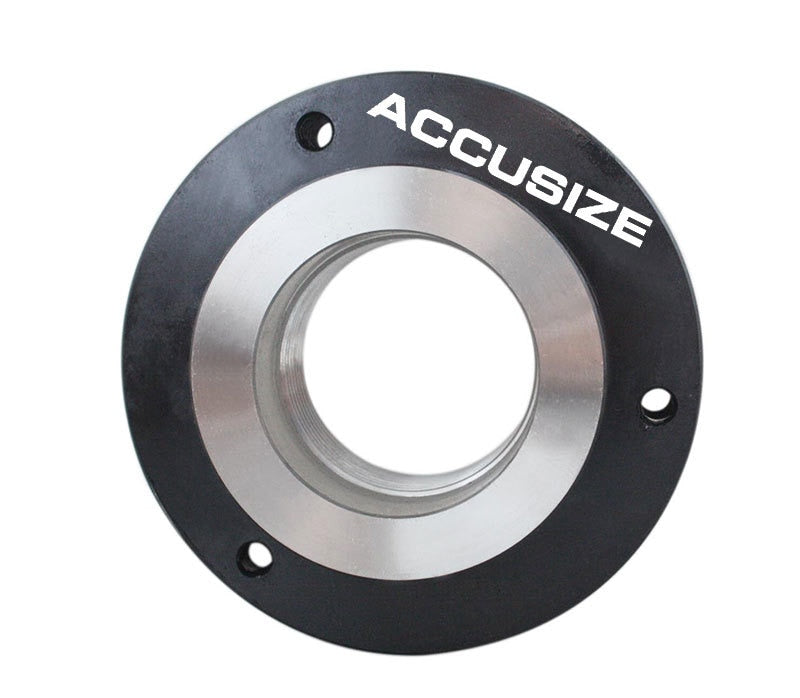

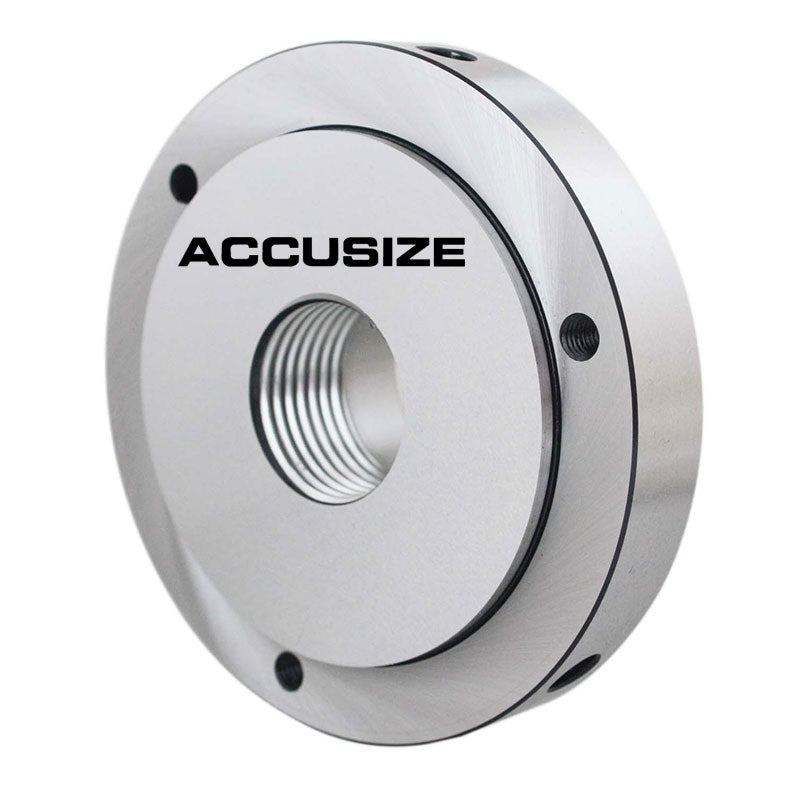

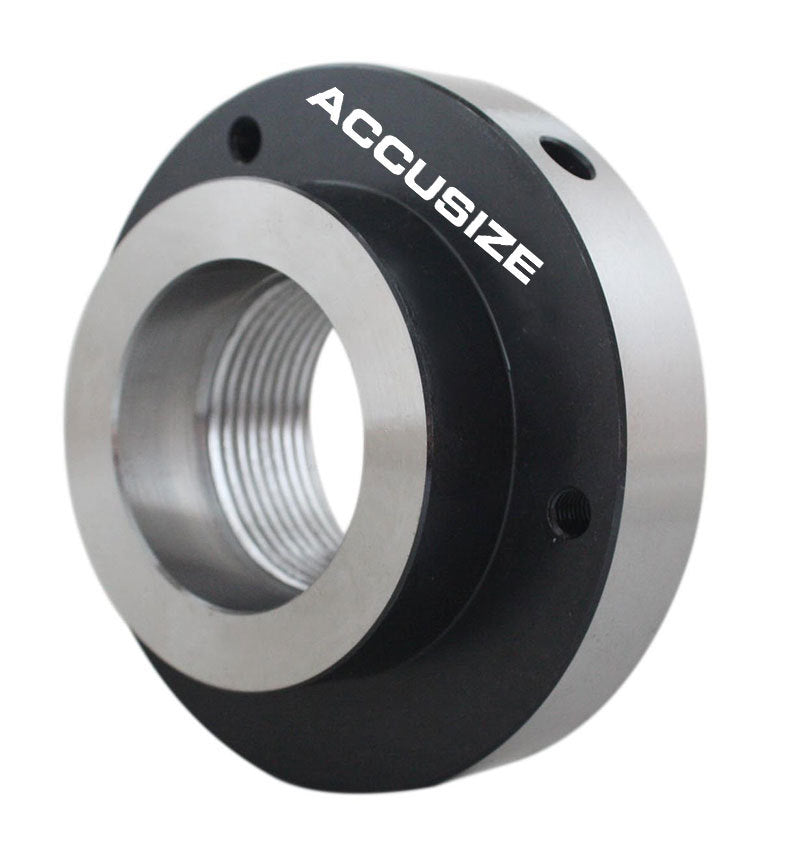

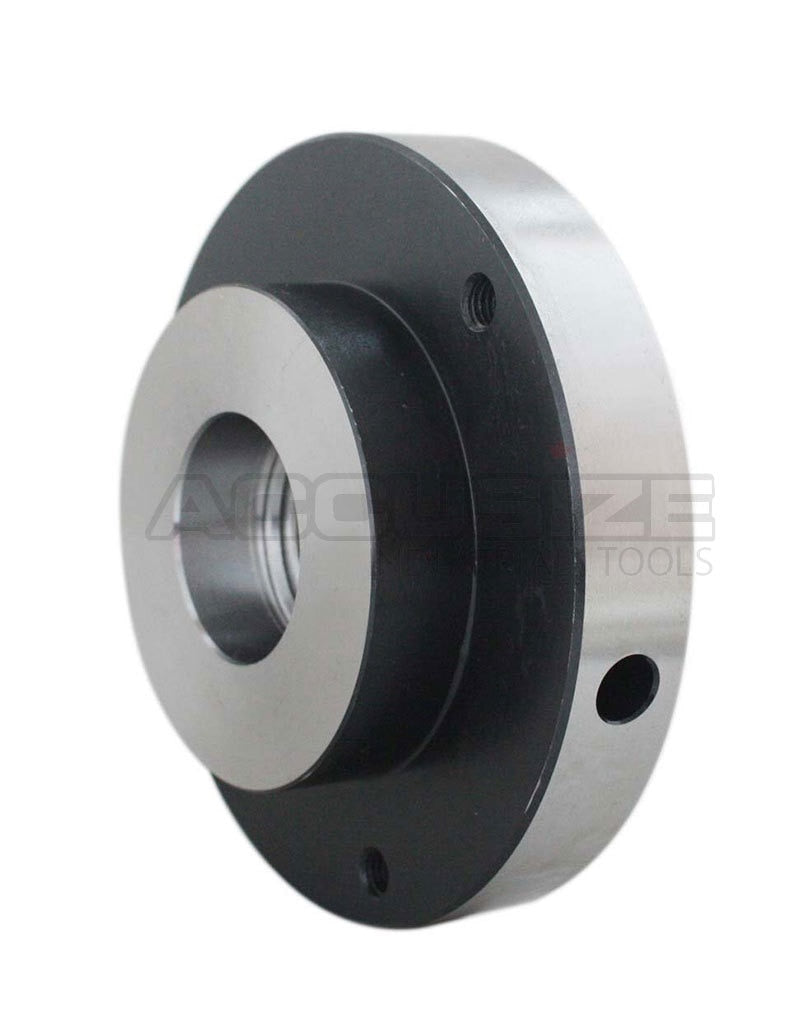

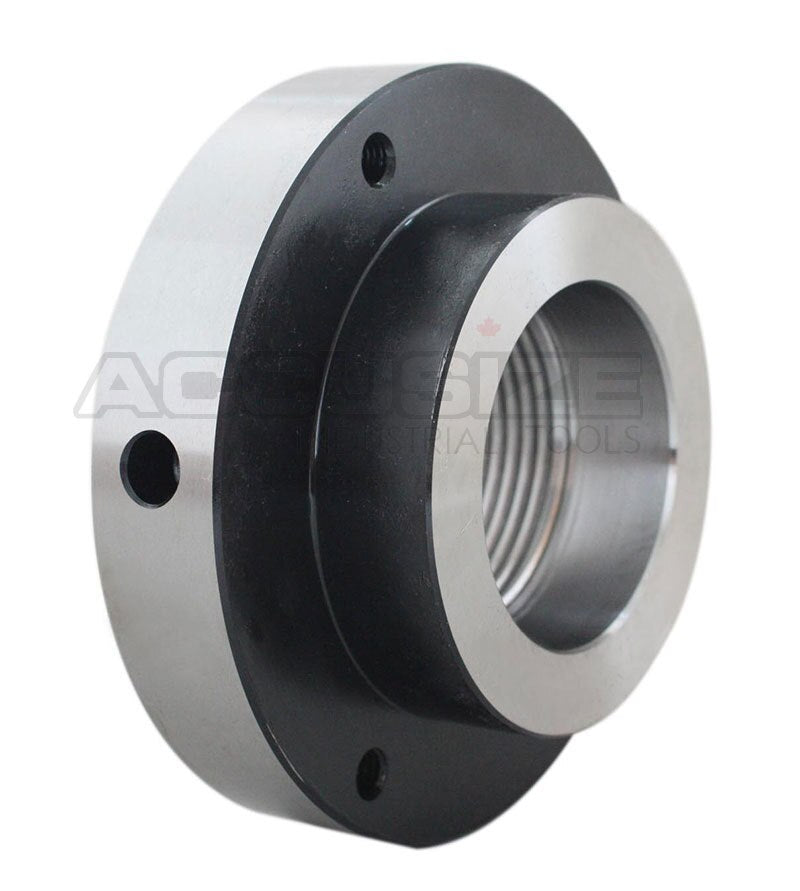

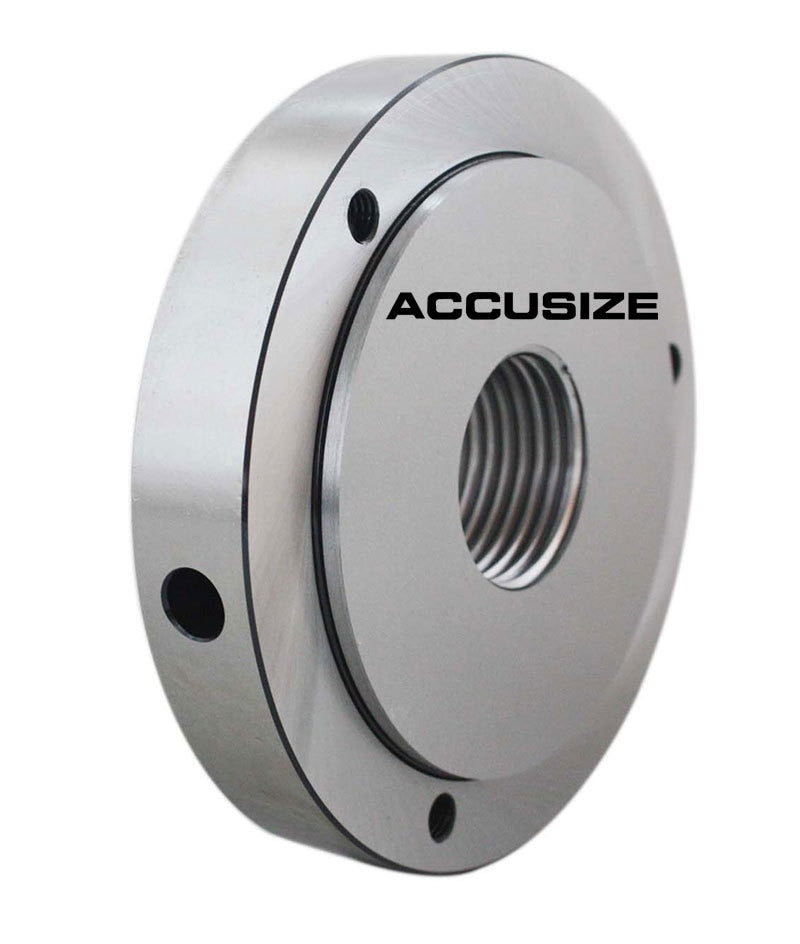

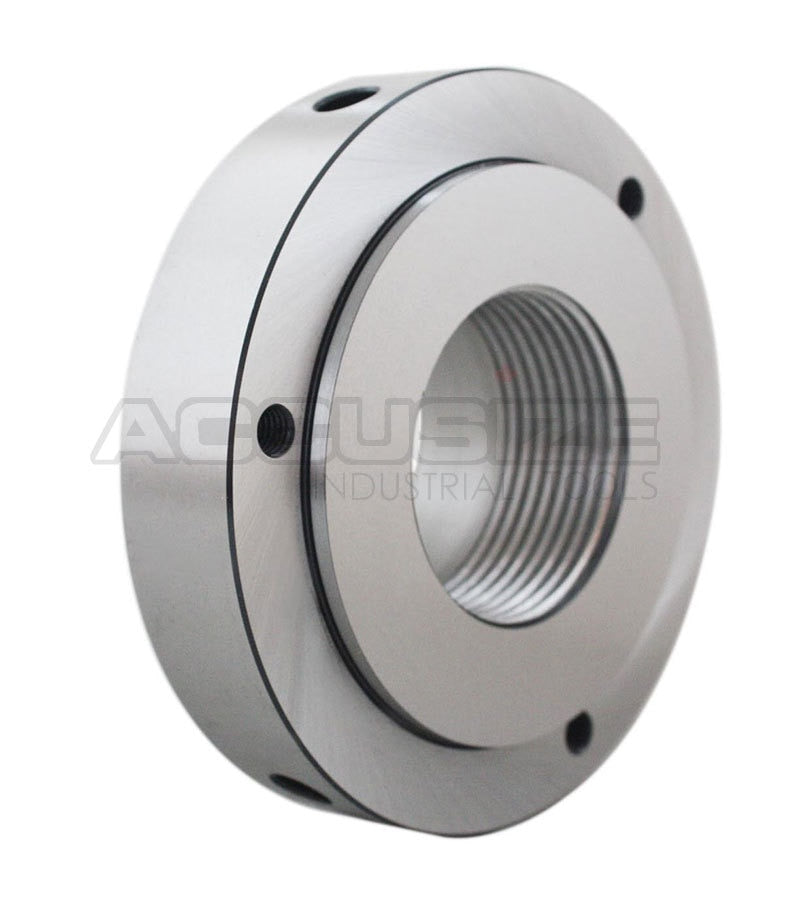

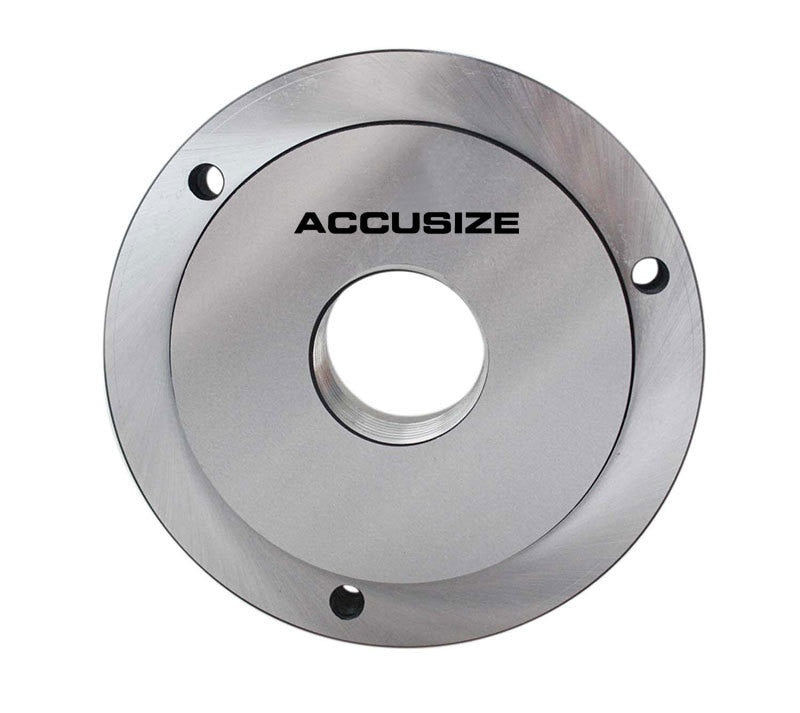

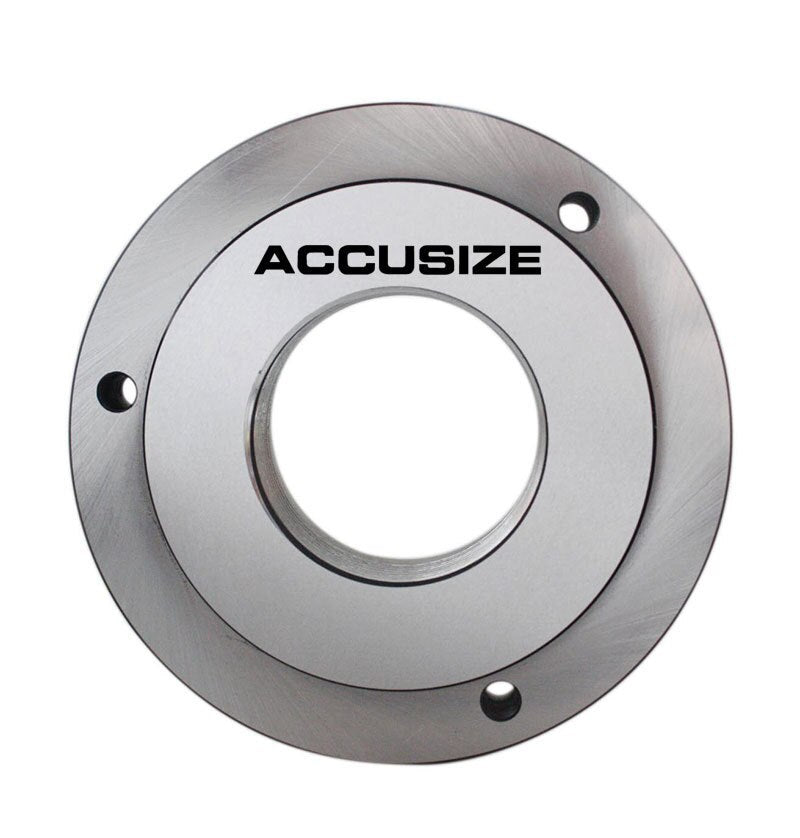

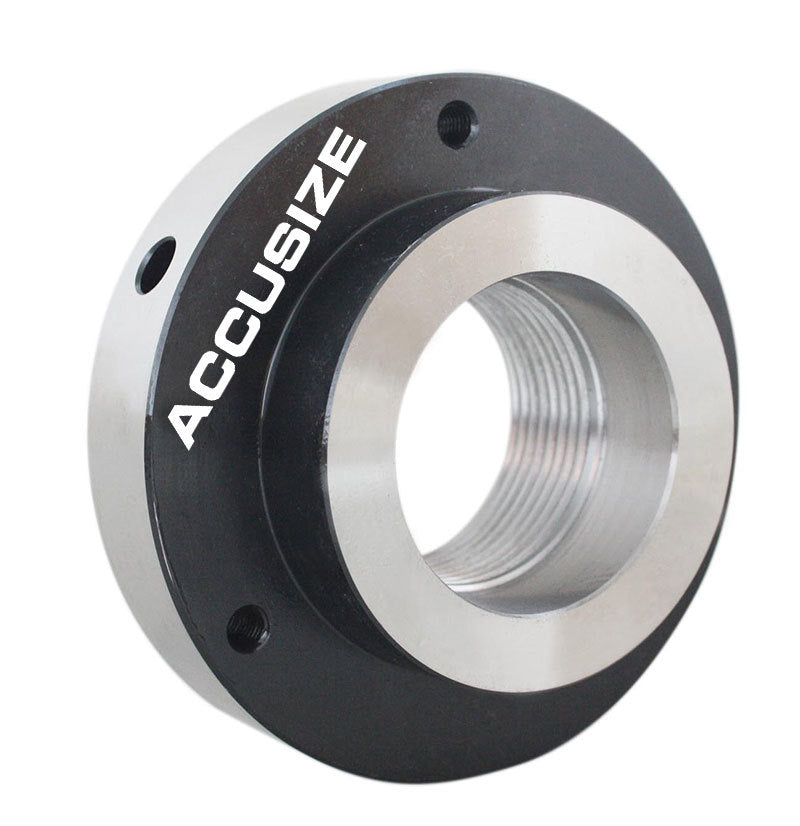

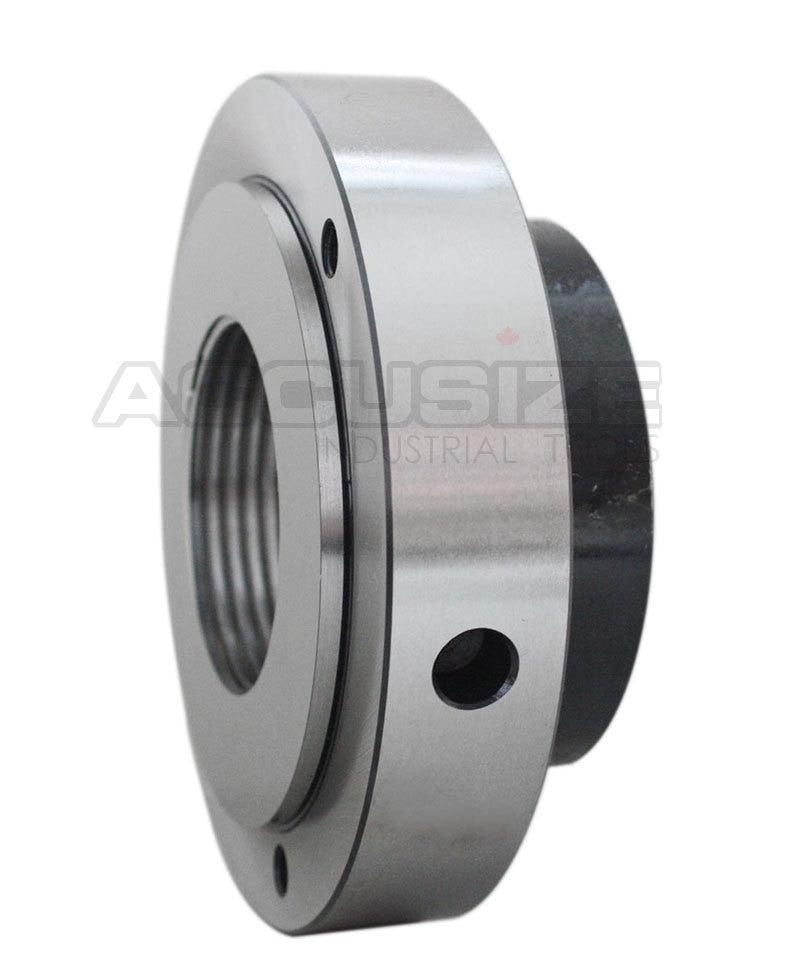

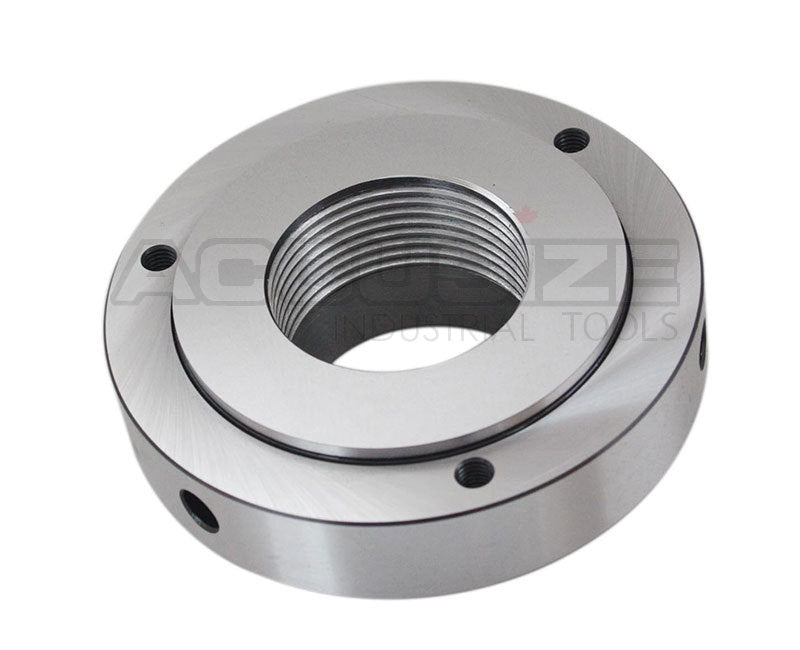

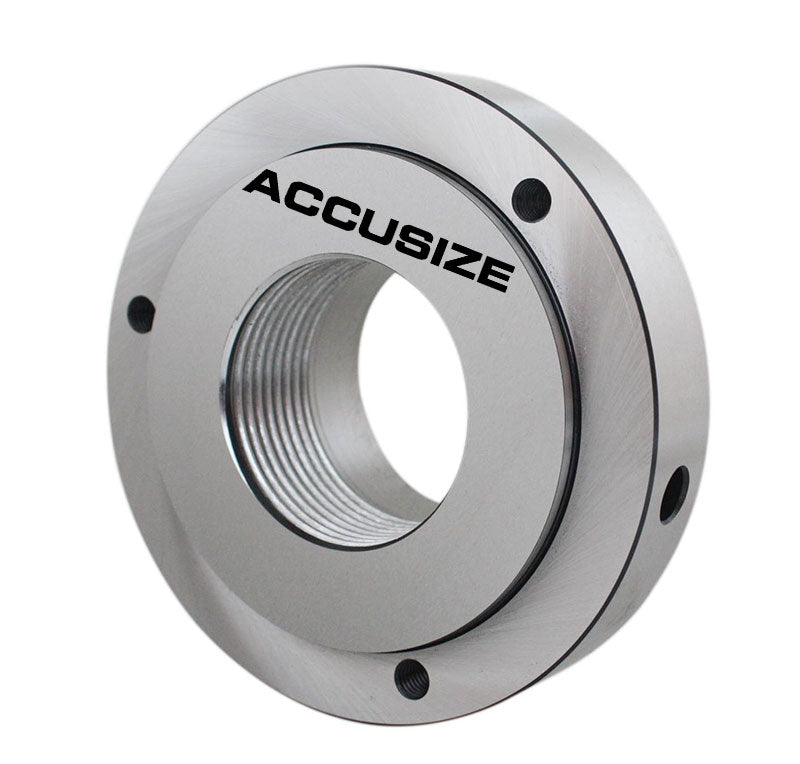

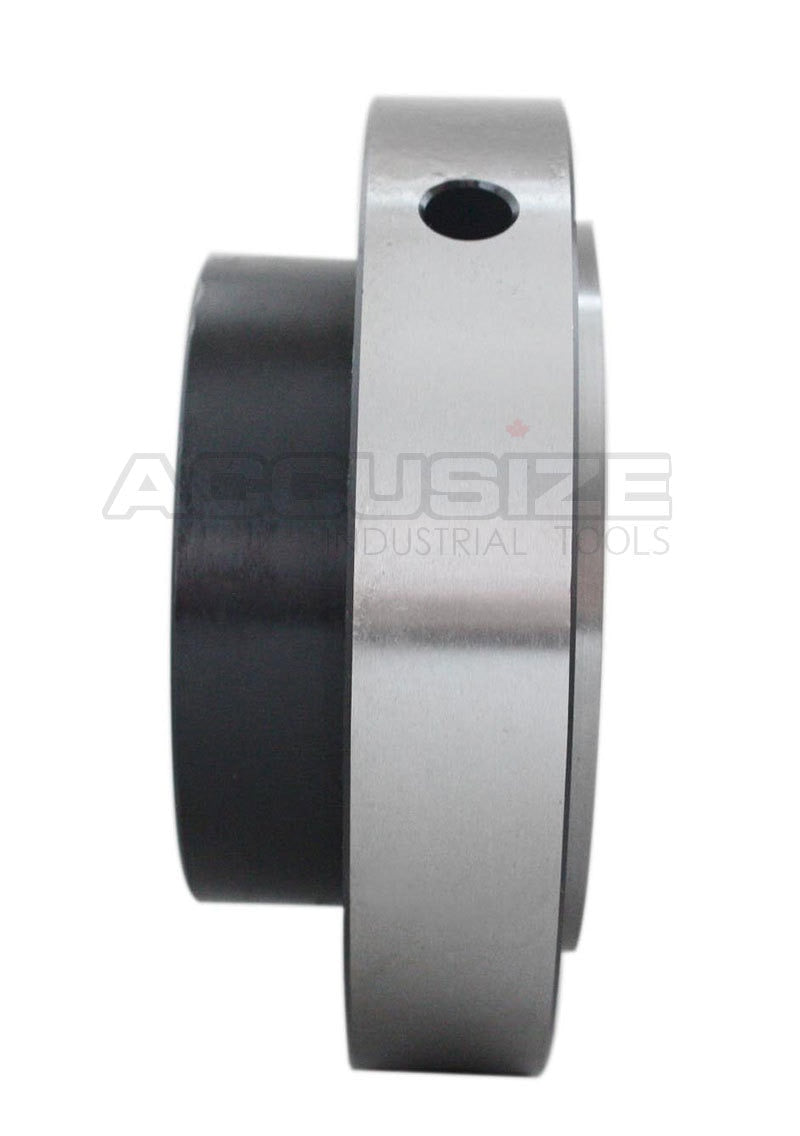

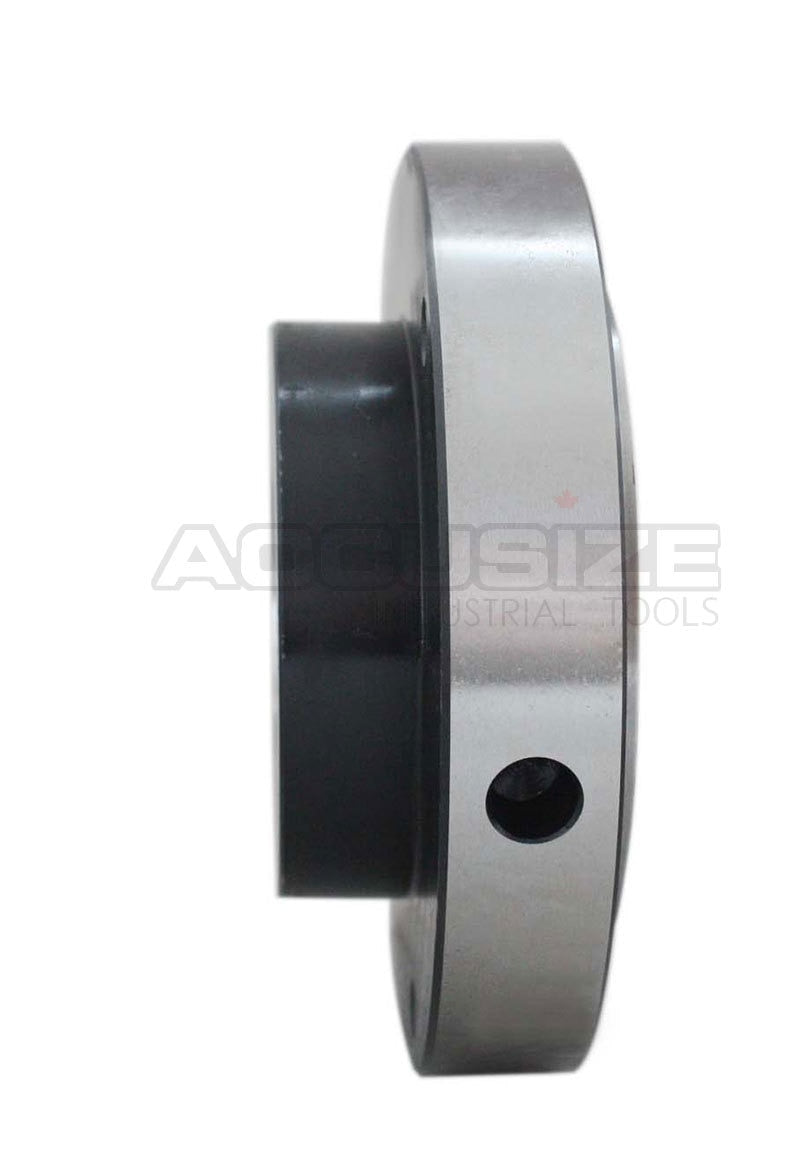

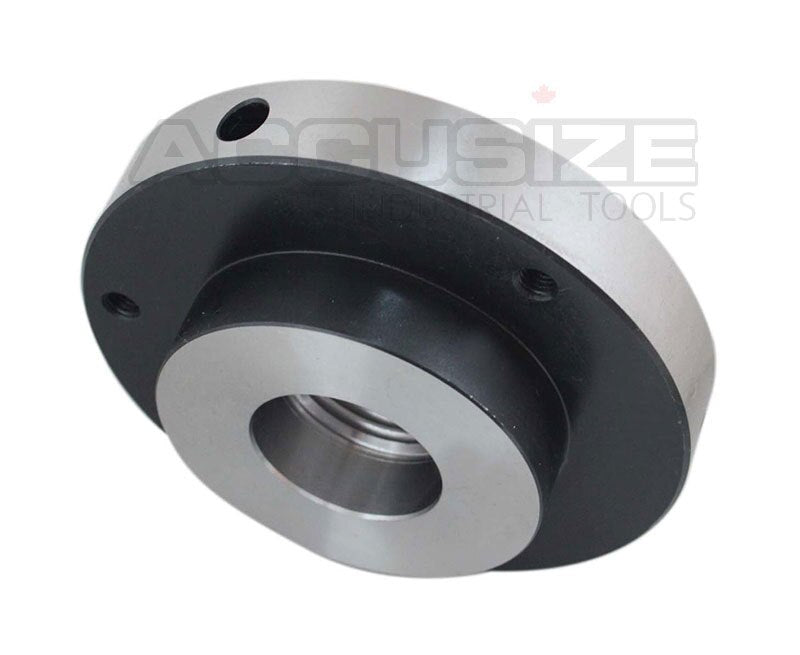

5" Semi Finished Threaded Back Plate for 5C Collet Chuck

Accusize Industrial ToolsSKU: 2600-5453

Size of Screw thread T: Size of Screw thread T: 1-1/2"-8 (2600-5453)
Price:
Sale price$80.01

California Proposition 65 Warning

Warning LabelWARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.
For more information, visit www.P65Warnings.ca.gov

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

More product information

Semi-Finished Threaded Back Plate for 5C Collet Chucks

  • Made of #45 steel
  • Plain back, recessed 3.740" x .184" deep
  • Customers need to machine it and drill the mounting holes to fit the chuck and adapter together for themselves on their own lathe to assure the best accuracy.
  • Can use any size 5C collet from 1/16 through 1-1/8"
  • Scroll and pinion design just like 3-jaw chuck operated with chuck key.
  • Scroll & pinion precision machined and hardened
  • Max. RPM 6000
  • Accuracy: 0.0006 TIR
  • Does not require a secondary machining operation.

** You need to machine it when using it.

Item Size Size of Screw
thread T
A B C
2600-5453 5" 1-1/2"-8 4.961" 1.693" 1.515"
2600-5455 5" 2-1/4"-8 4.961" 1.949" 2.260"

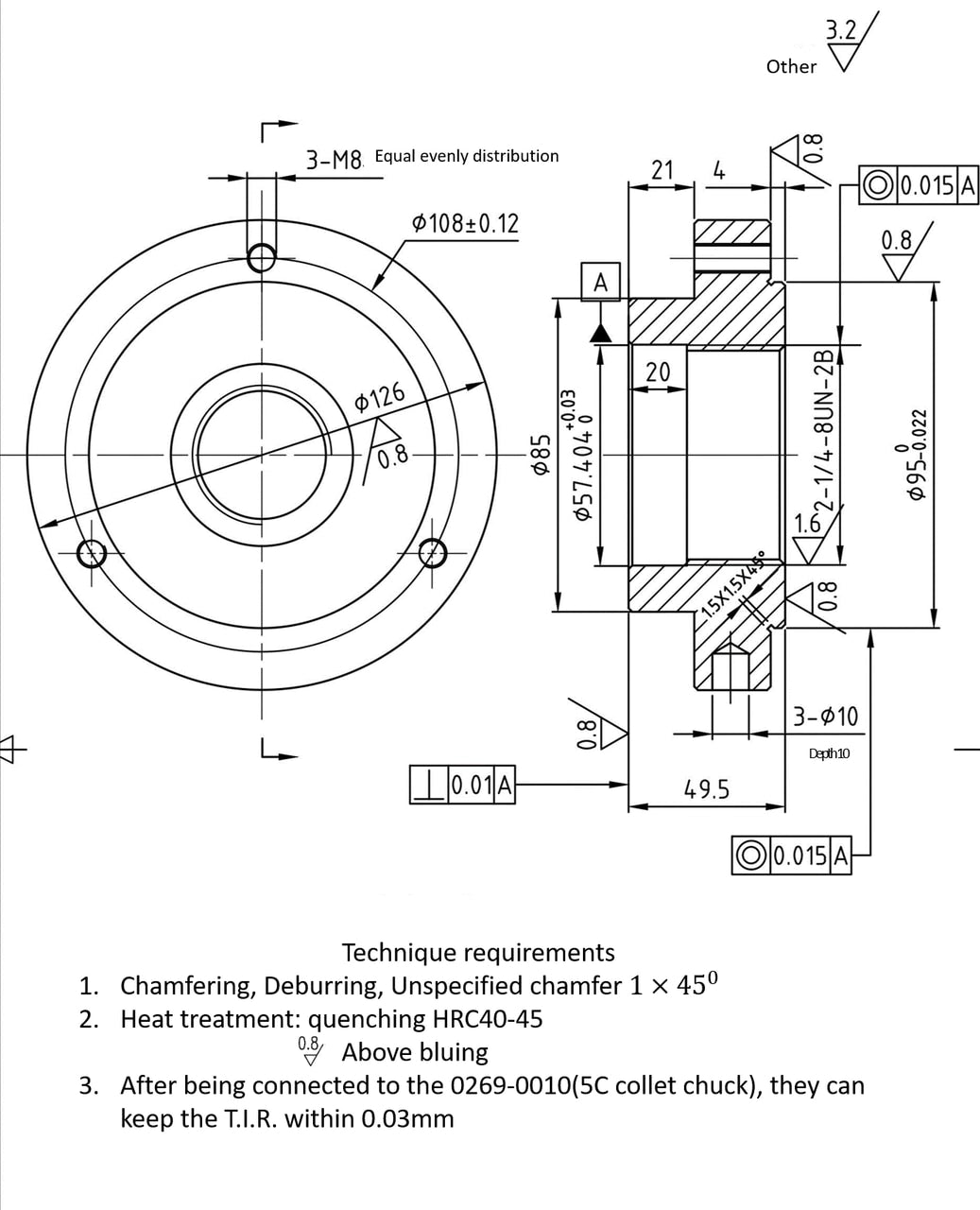

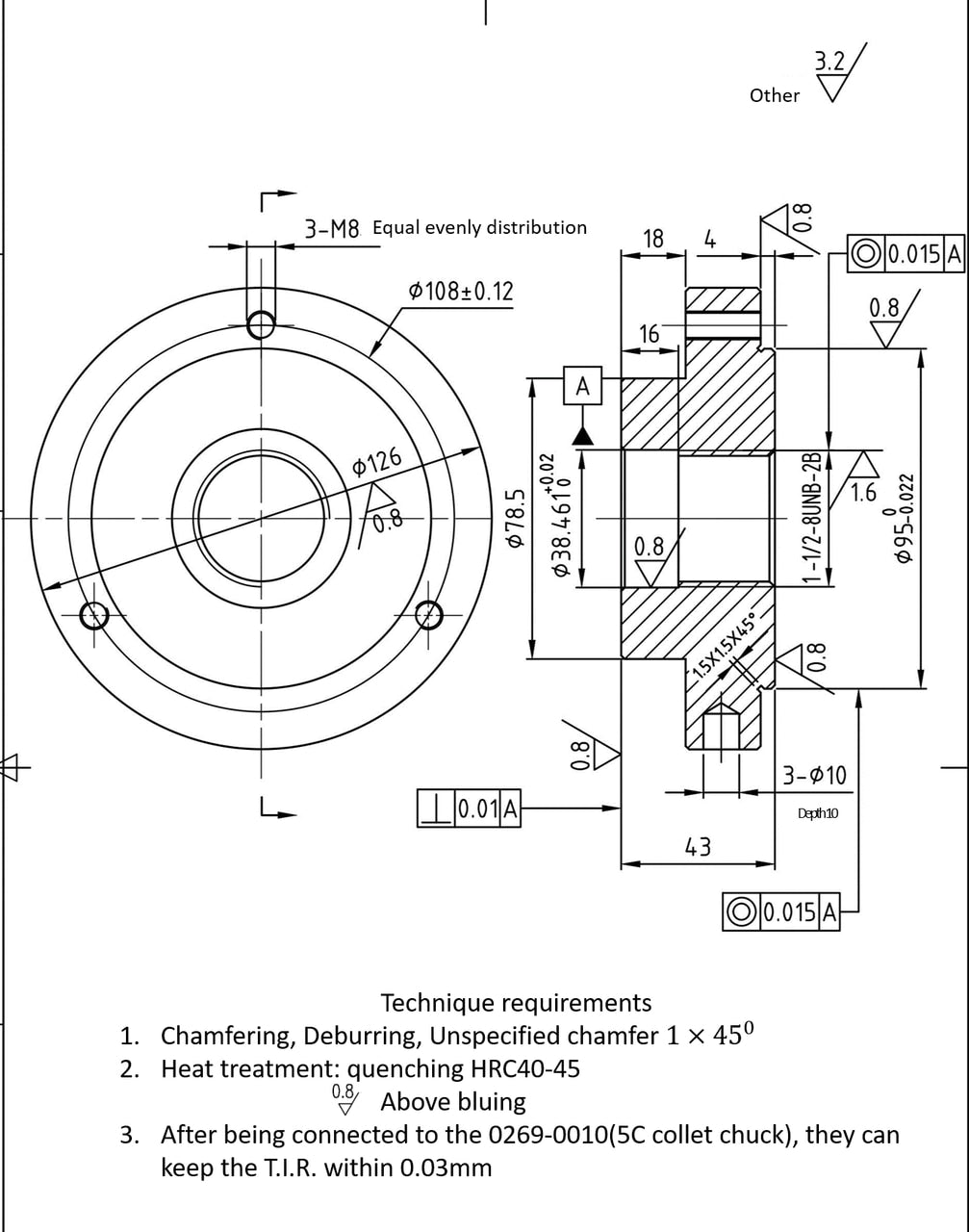

Diagram of 5" SEMI FINISHED THREADED BACK PLATE FOR PLAIN BACK 5C COLLET CHUCK
