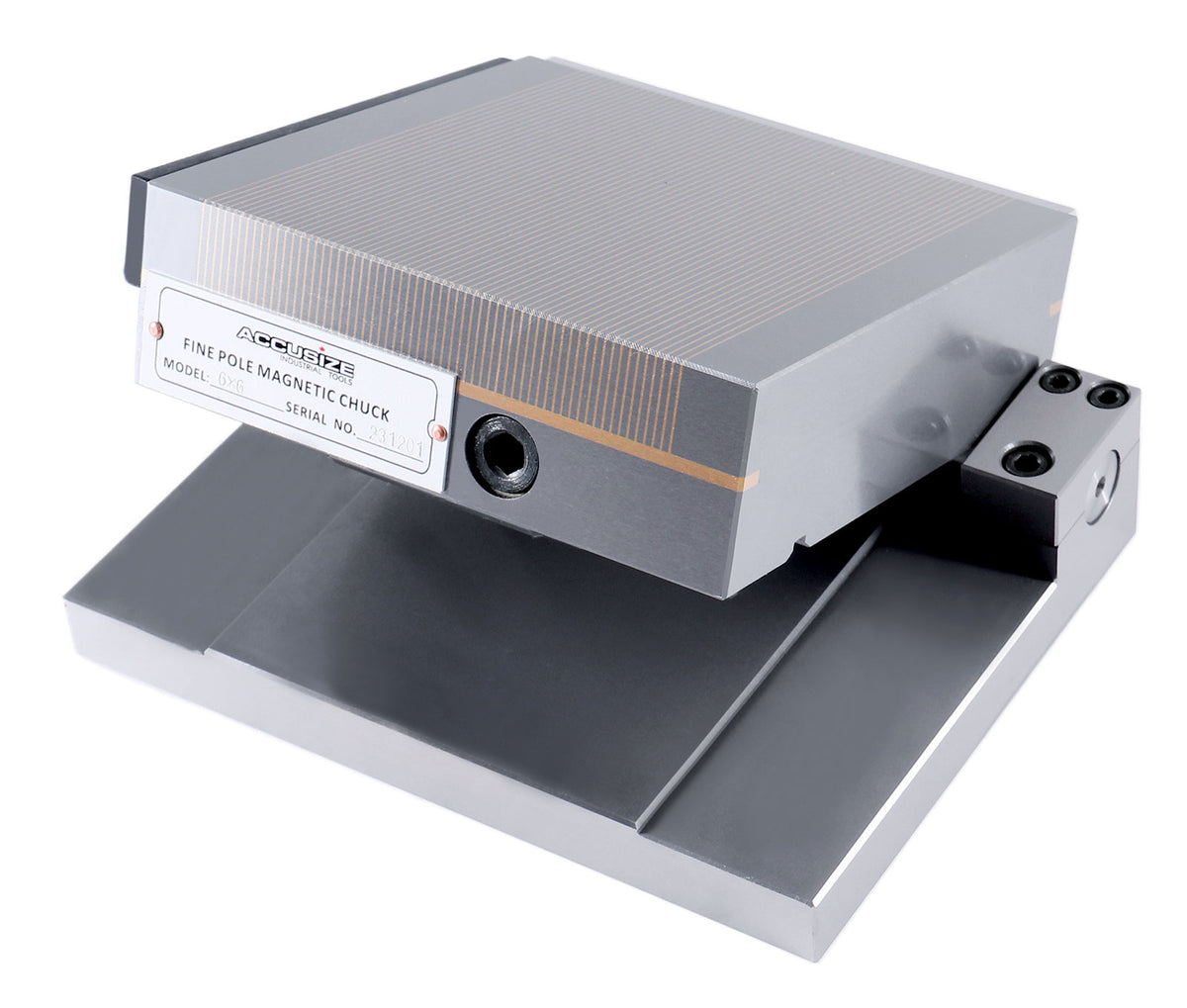

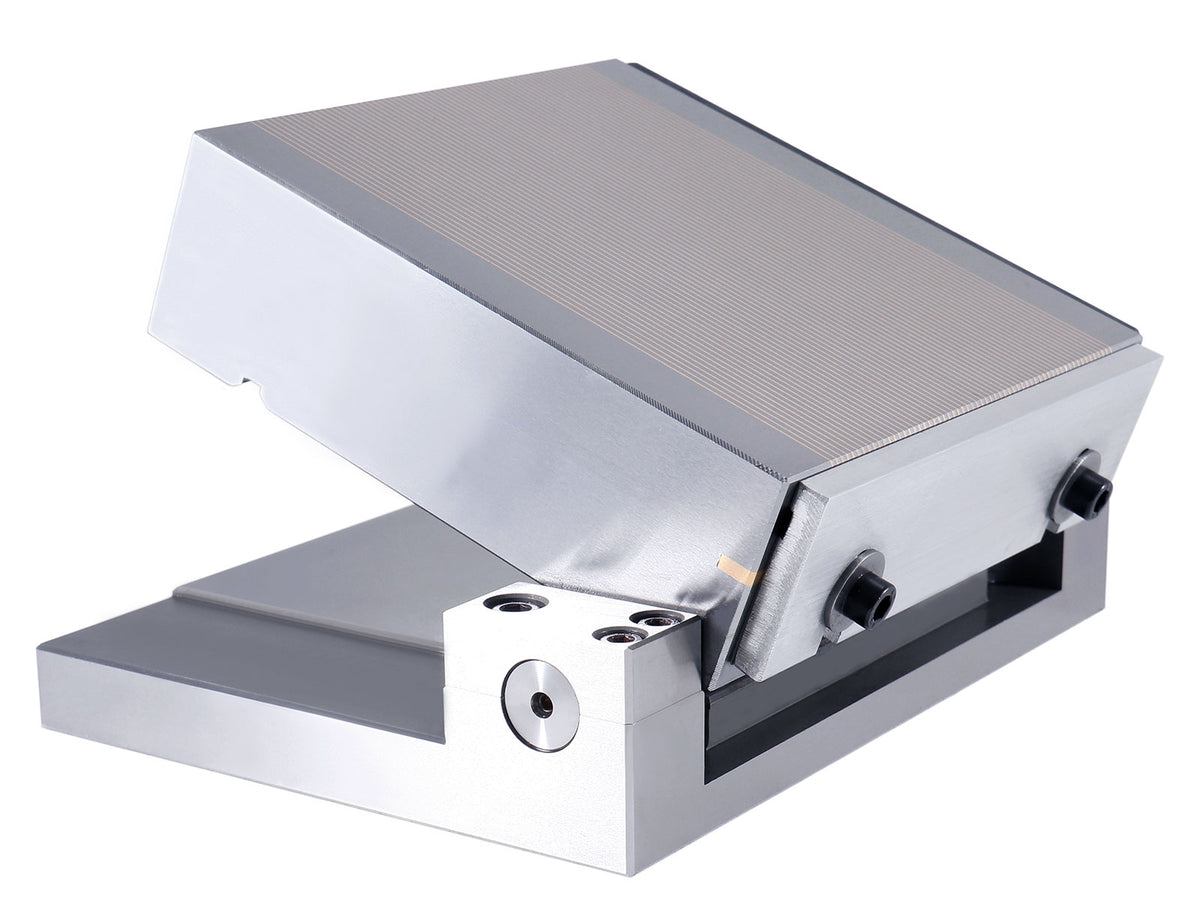

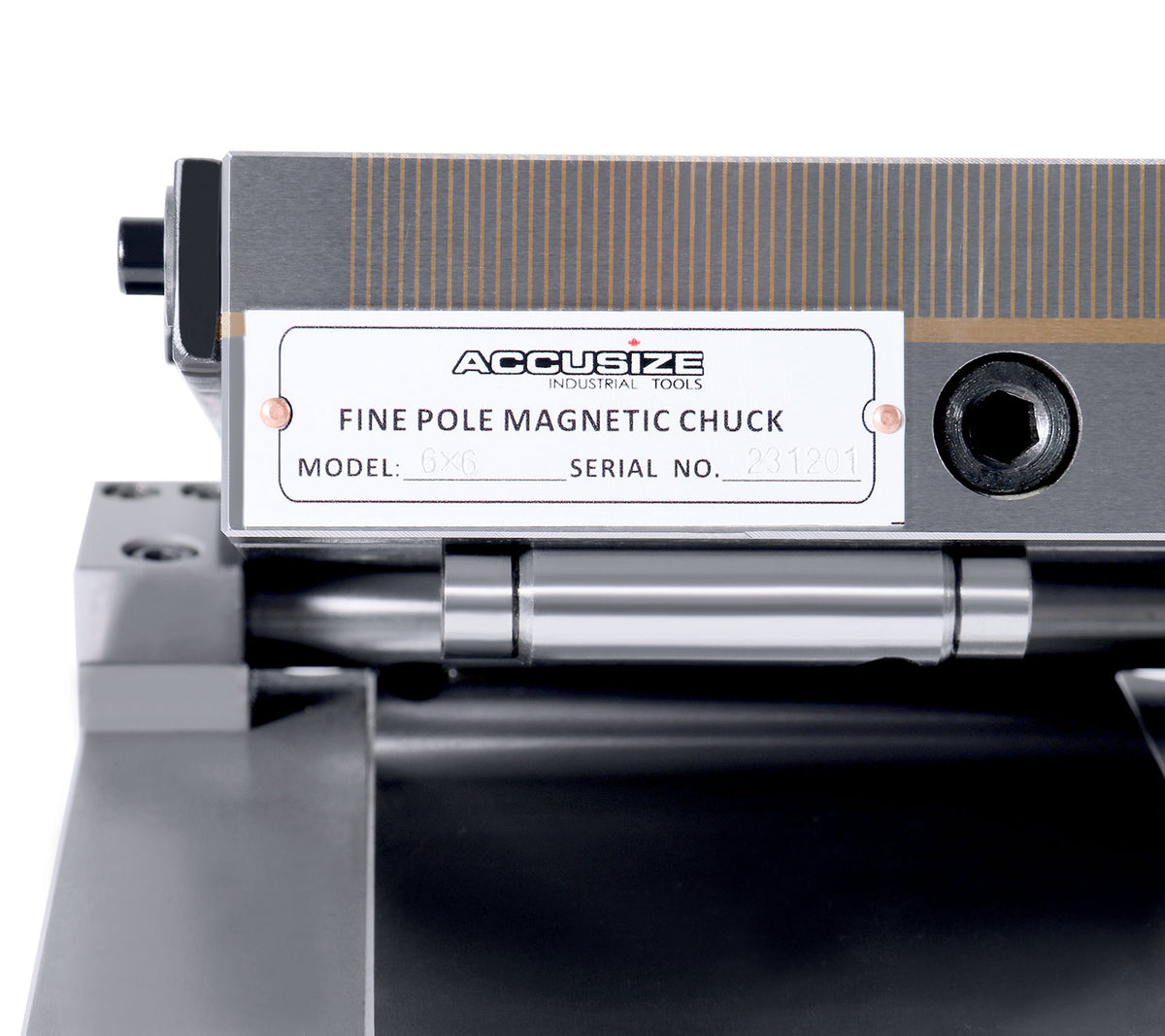

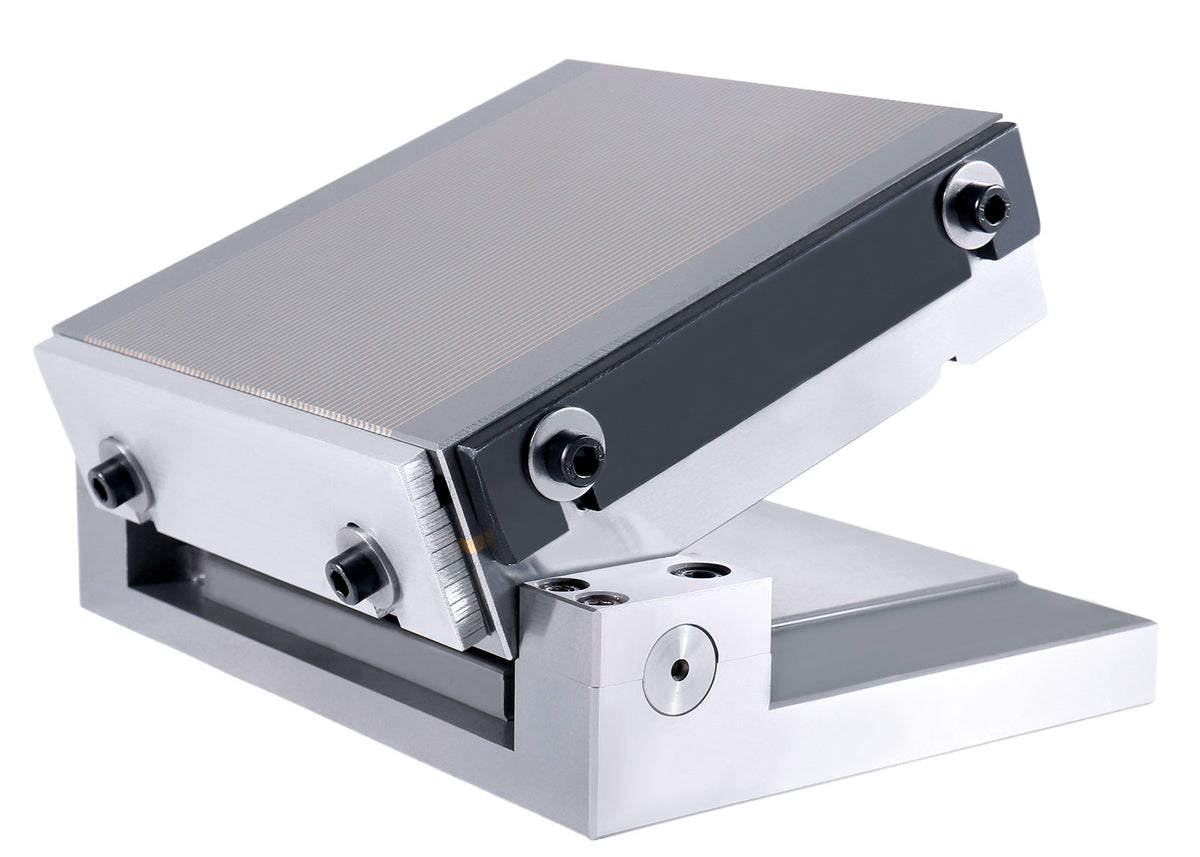

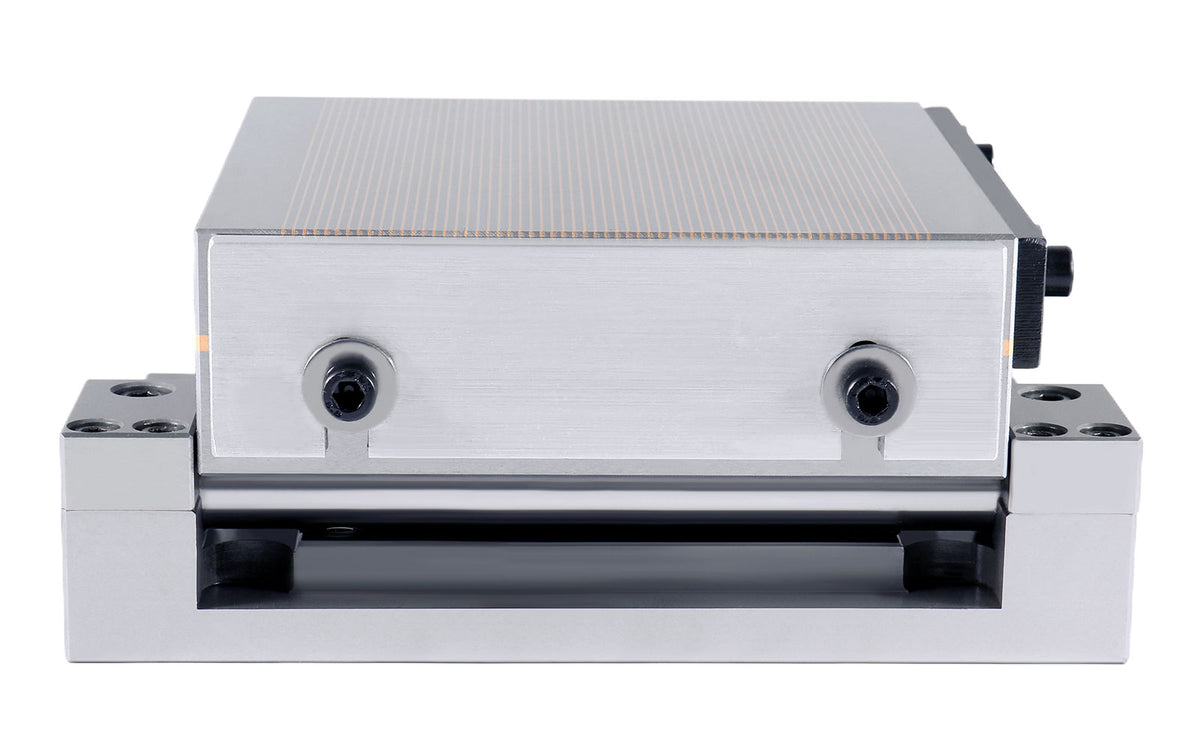

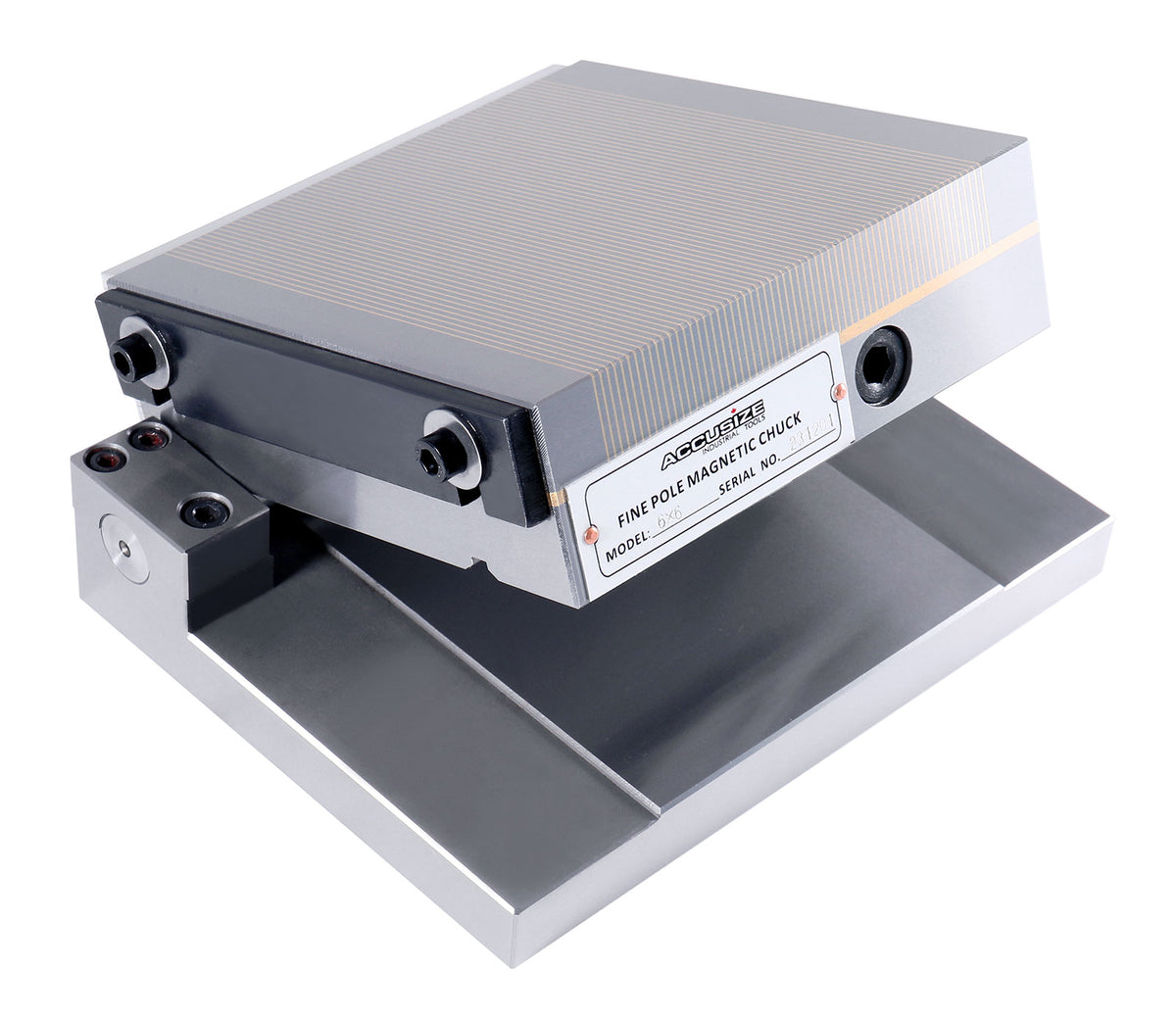

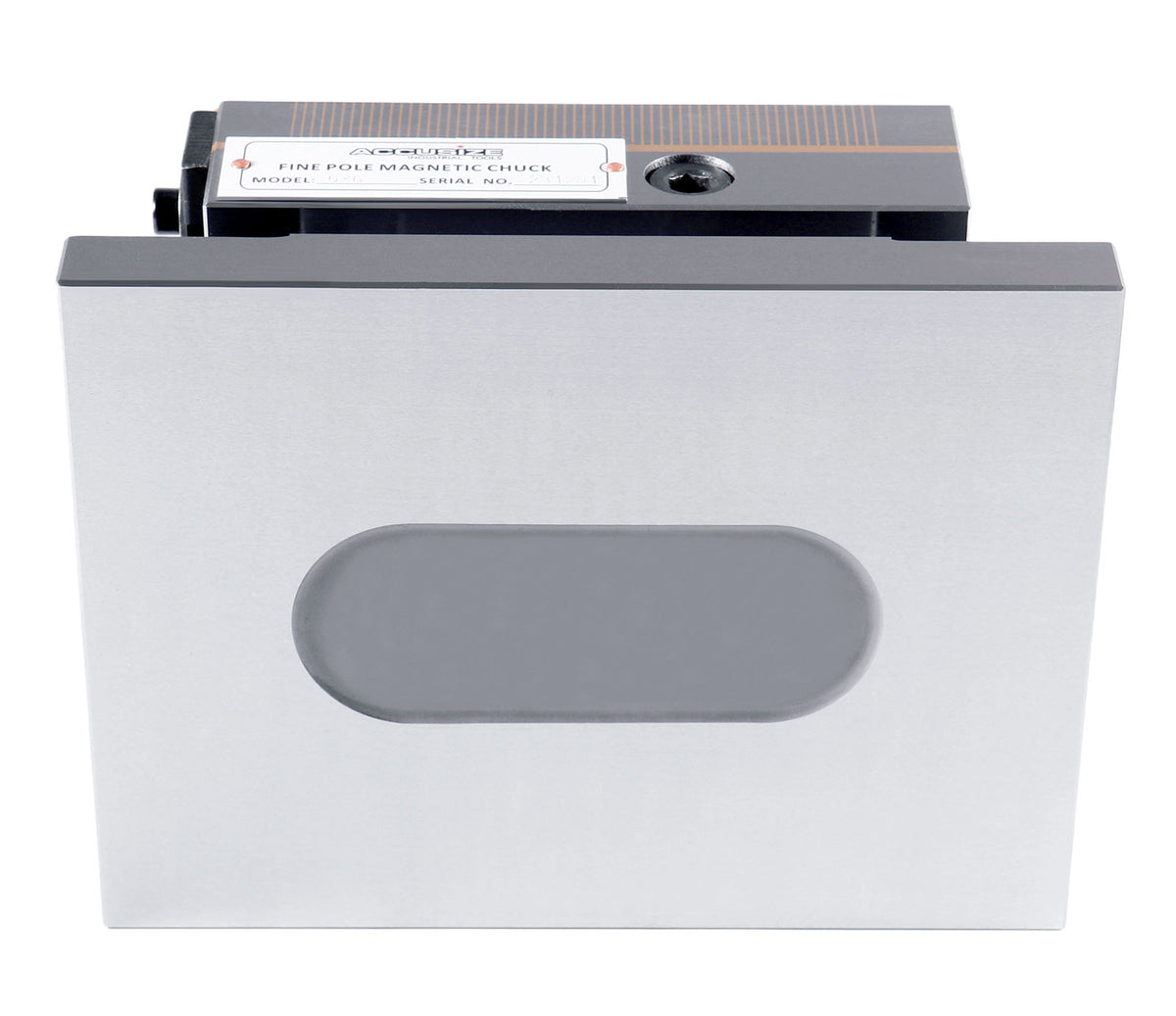

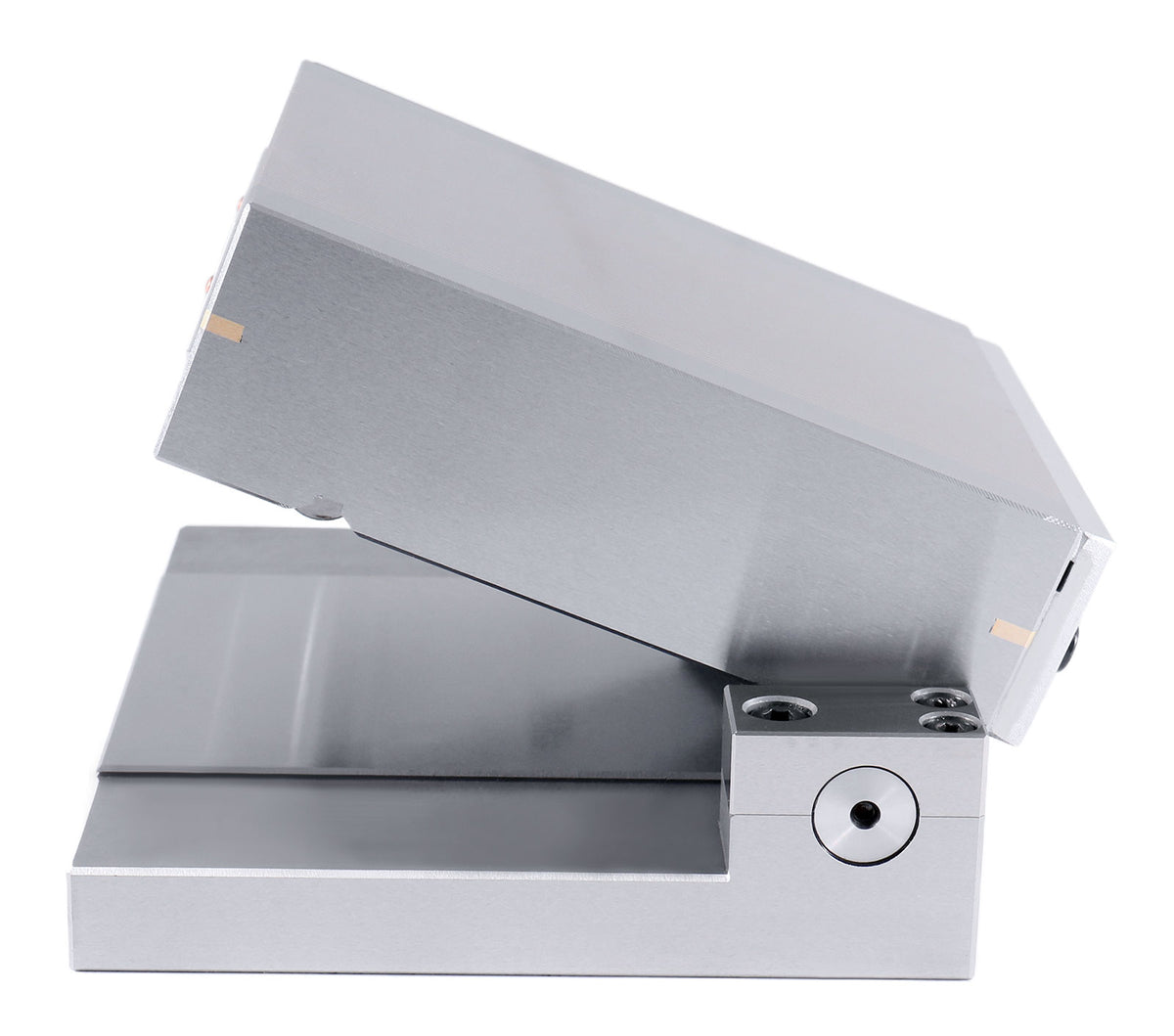

6"x6" Magnetic Sine Plate, w/ 0.002" Angle Step, Center Distance of Rolls 4", within 0.0002", 2520-1000

Accusize Industrial ToolsSKU: 2520-1000 UPC / Barcode: 663566012810

Price:
Sale price$740.47

California Proposition 65 Warning

Warning LabelWARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.
For more information, visit www.P65Warnings.ca.gov

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

More product information

6"X6" Magnetic Sine Plate, #2520-1000

Center Distance of Rolls 4", within 0.0002"

  • Steel pole spacing: 1/16", brass pole spacing: 1/32".
  • Center distance of rolls 4", within 0.0002".
  • Size (LxB): 6" x 6"
  • Rolls Center (D): 4"
  • C: 3.385"
  • A: 7.874"
  • Angle: 0-60º

Applications:

  • Precision grinding & EDM: Ideal for single-sided precision angle grinding on various surface grinders and EDM machines.
  • Enhanced accuracy: Specially processed components ensure superior adjustment precision.
  • Superior magnetic performance: Built with high-quality materials for strong suction, low residual magnetism, and uniform magnetic distribution.
  • Maintains consistent flatness accuracy during ON/OFF switching.
  • Fine-pole pitch (1.5+0.5mm): Specifically designed to hold smaller workpieces securely.

Features:

  • Maximum effective working area
  • Positive angle locking
  • Hardened alloy tool steel construction
  • High angular accuracy: 0.007/100mm, with minimal clearance at low angles.



Diagram of Accusize 2520-1000 6"X6" Magnetic Sine Plate
