87 pc Metric Gage Block Set, Grade 0 to 2, DIN861 Germany Standard with MFG's Certificate
- 87 pieces
- Manufactured under carefully controlled conditions allowing for the highest degrees of accuracy when used at a temperature of 68°F (20°C).

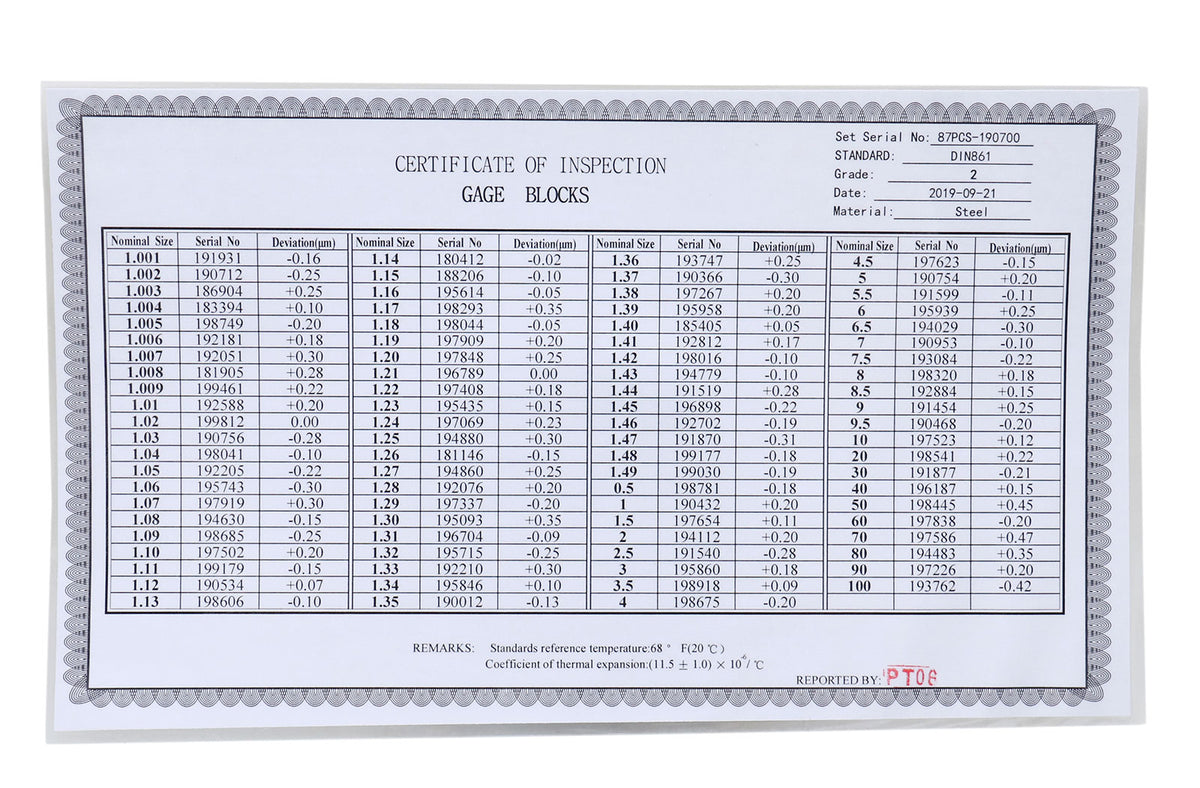

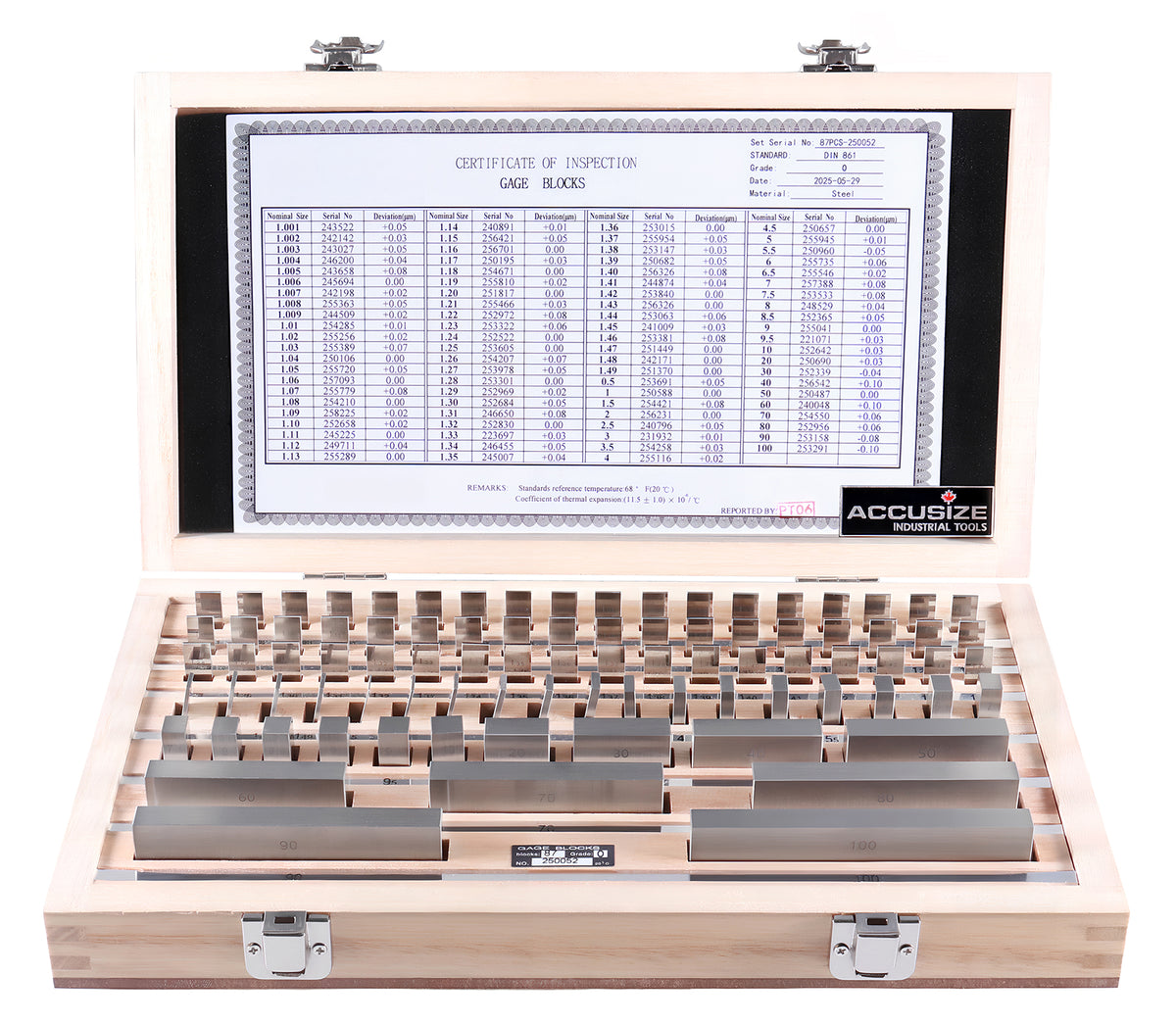

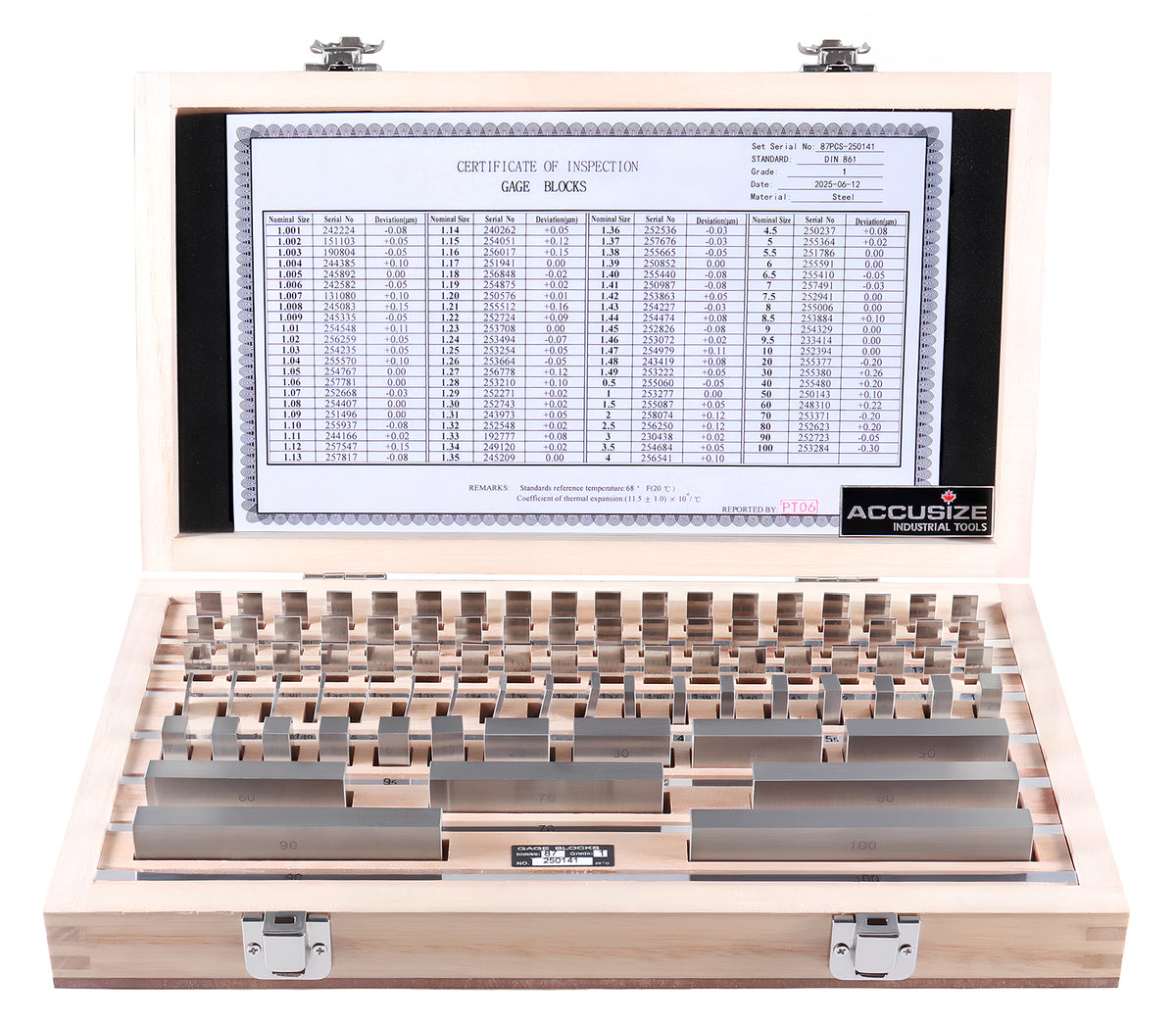

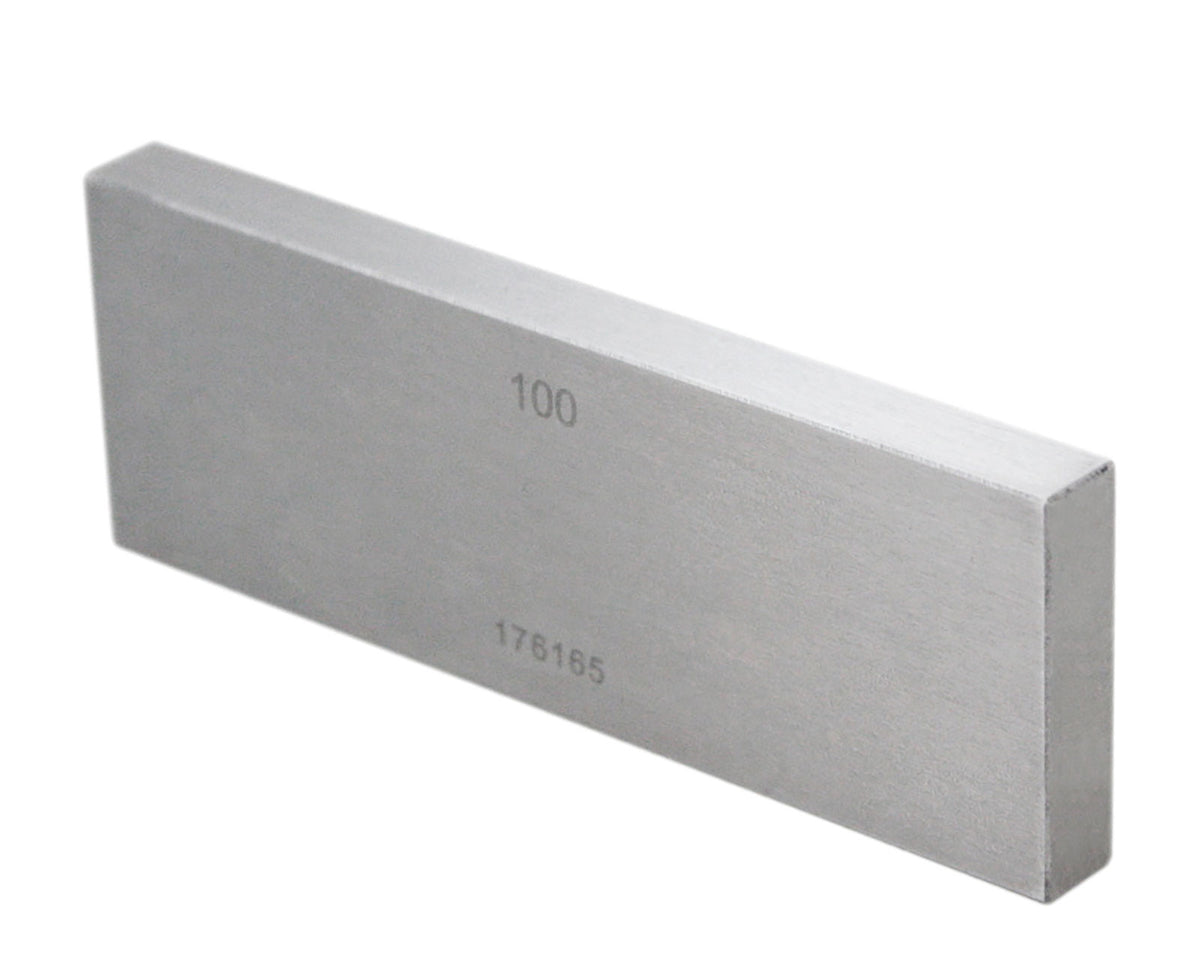

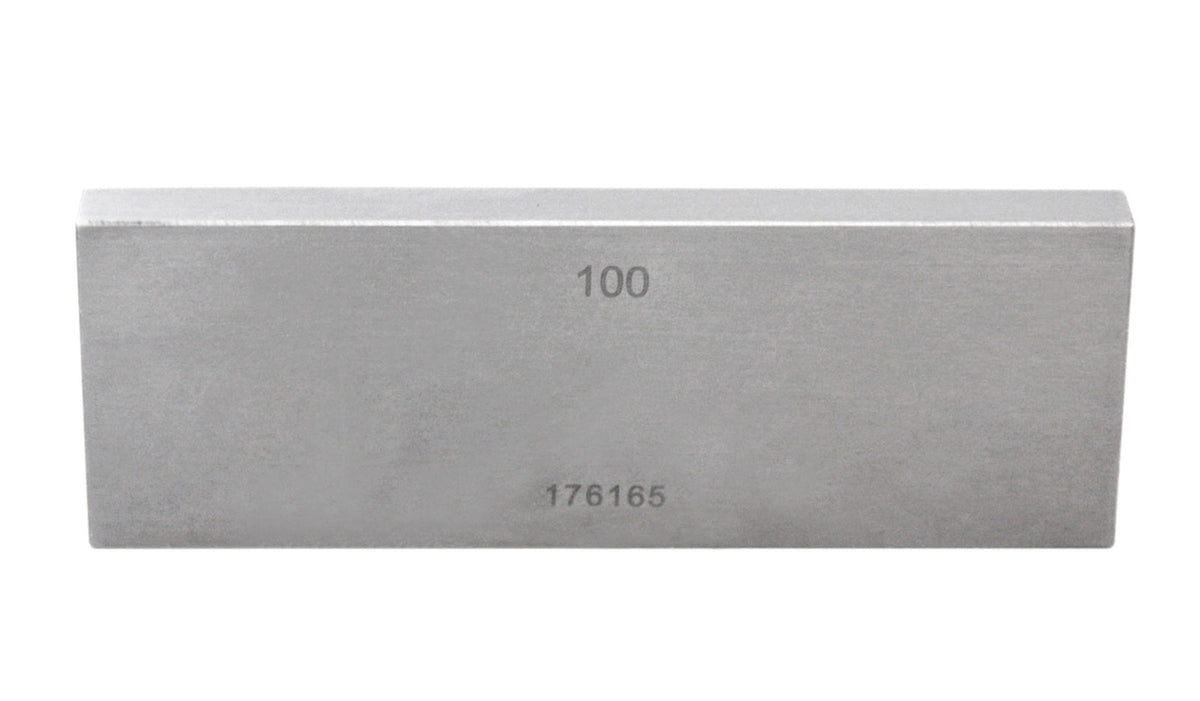

- Each gage block is assigned a serial number; each set comes with a certificate of inspection listing the deviation for each block.
- Each gage block set meets or exceeds specification DIN861.
- Surface hardness: HRC 64
- All gage block sets are made to special standard to resist corrosion and defacement

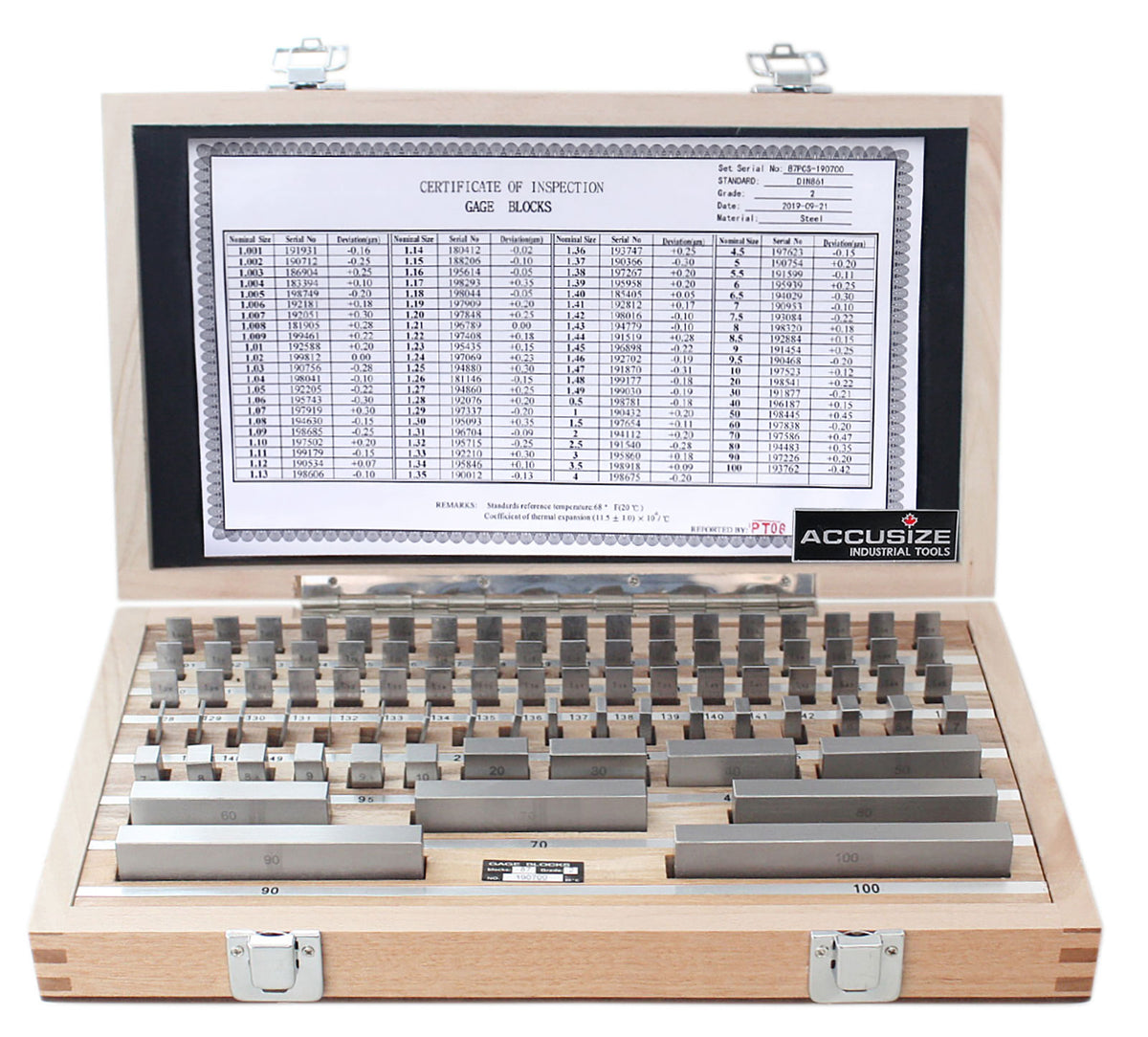

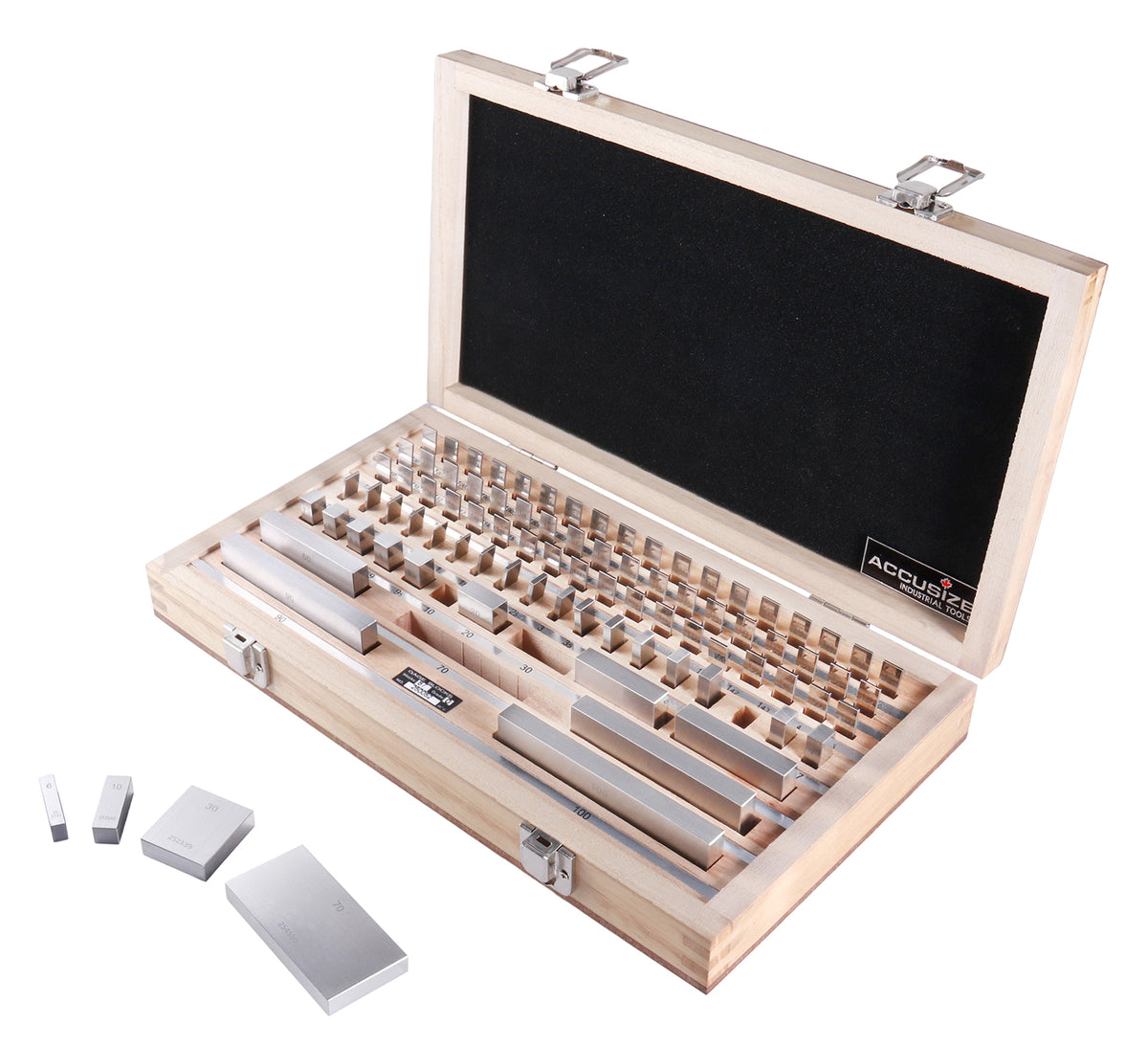

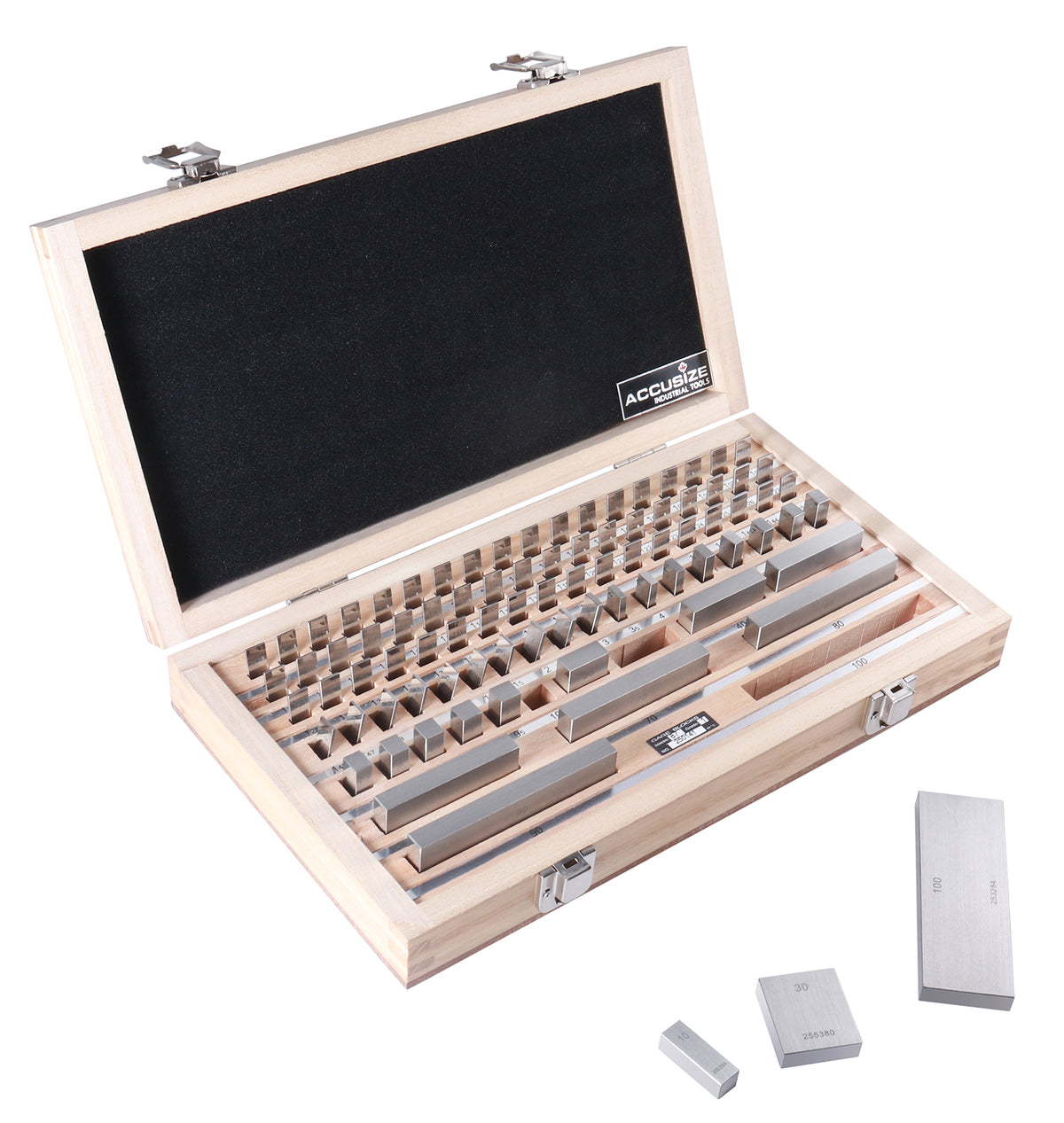

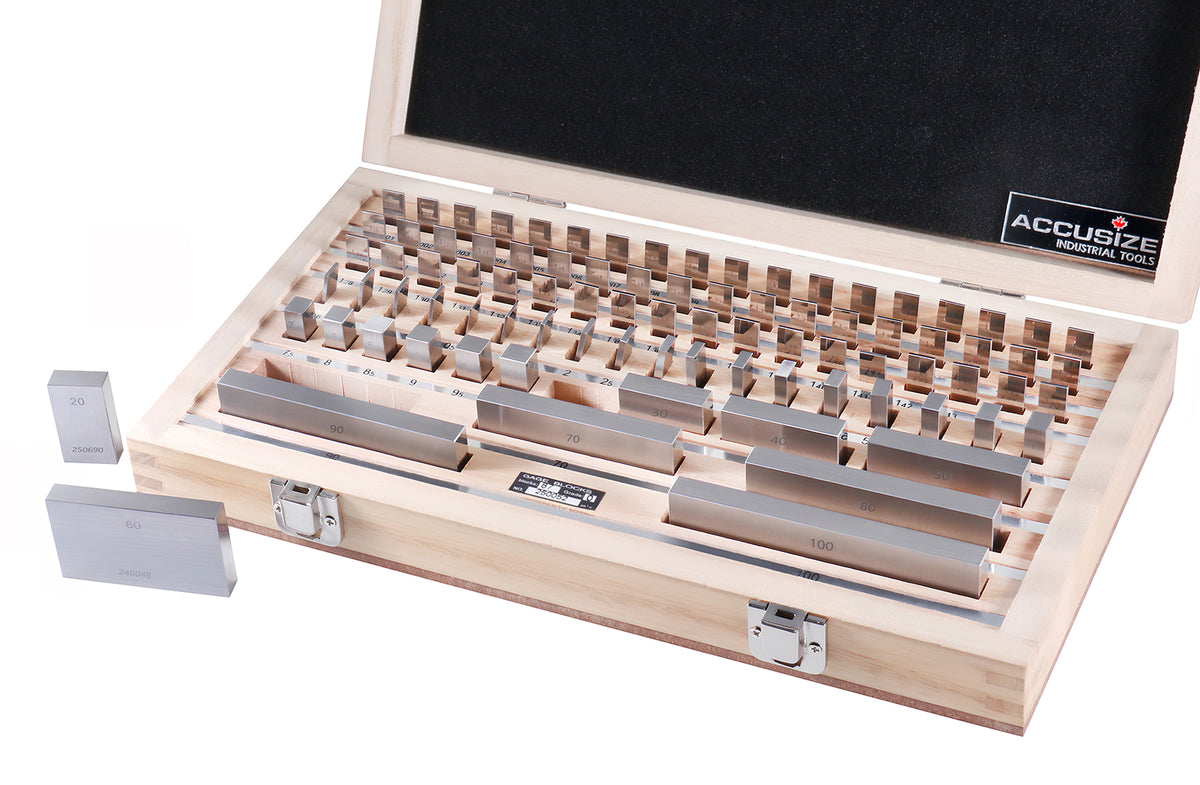

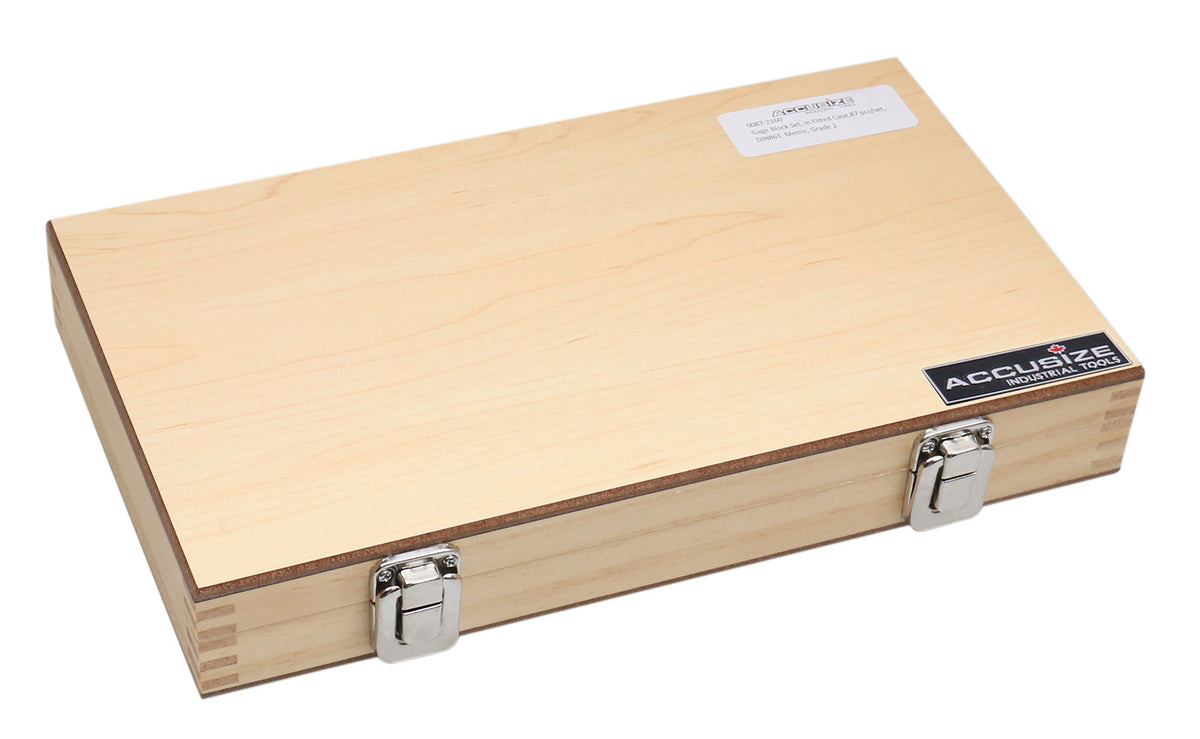

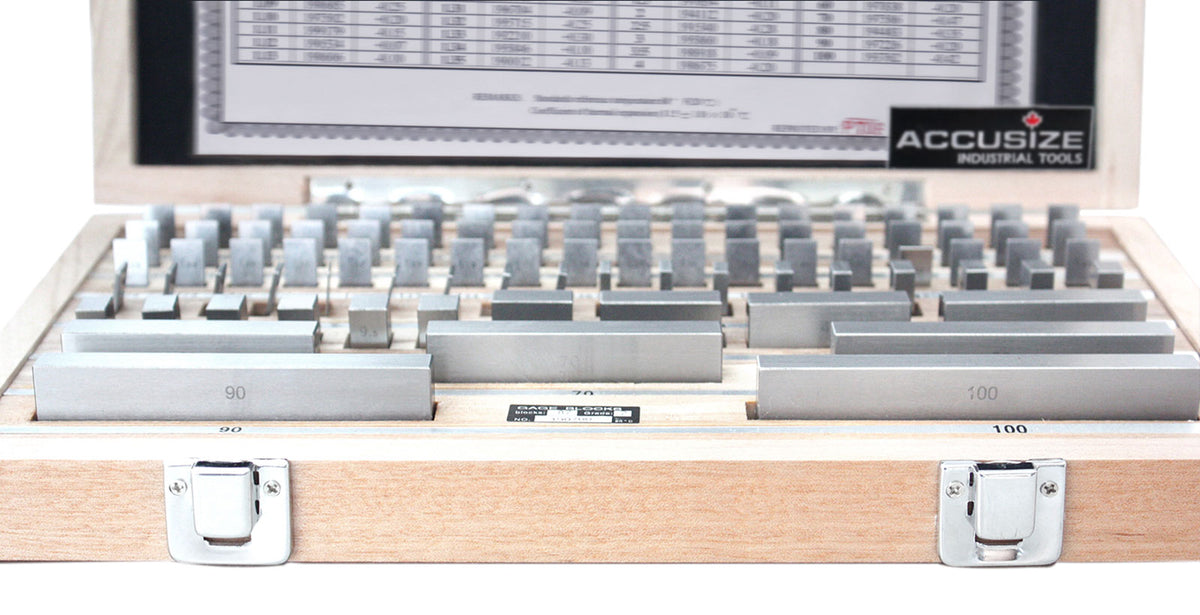

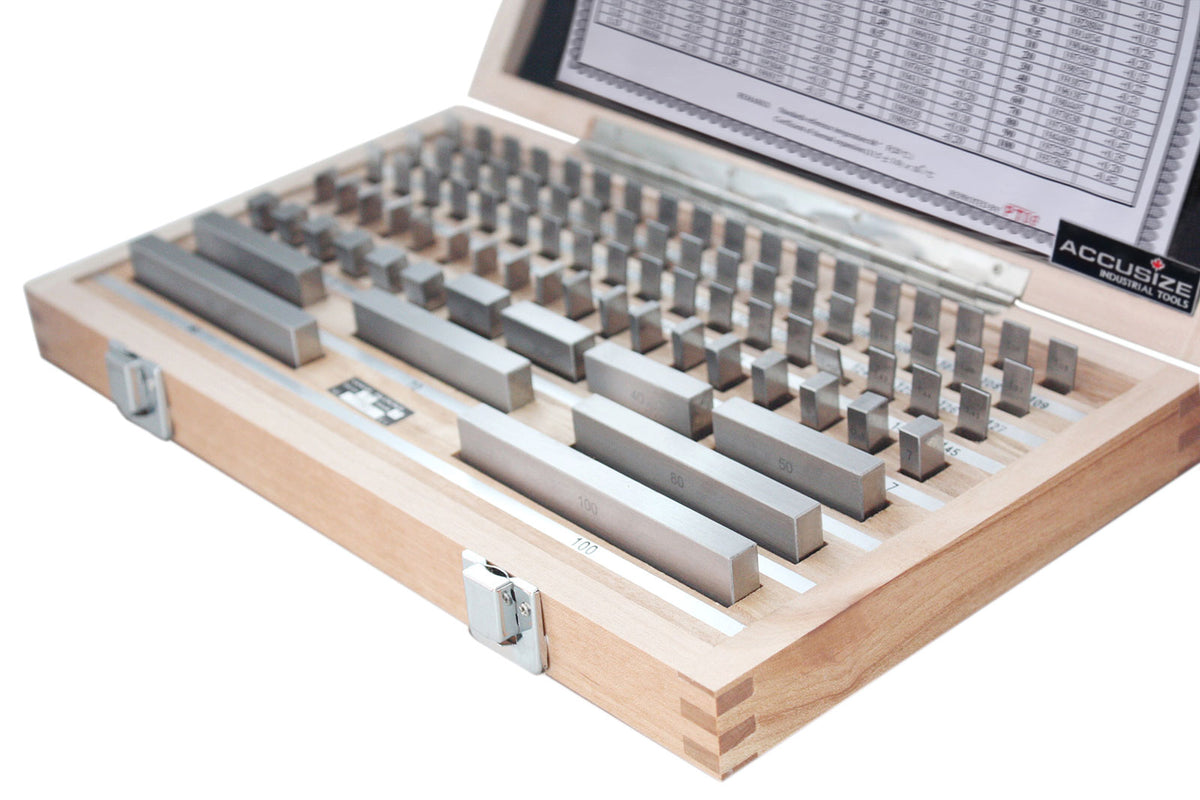

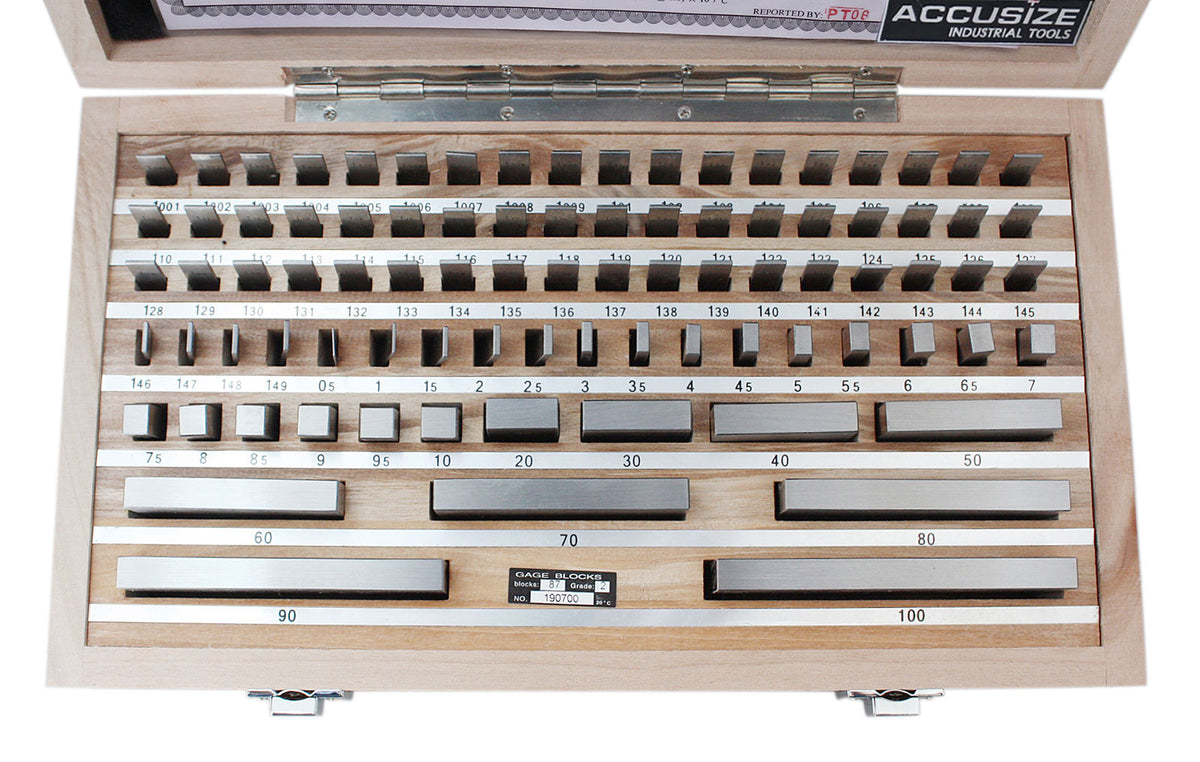

- Each set is provided in a fitted wooden case
Accuracy(mm)
| Nominal Size | Tolerance in microns (0.001mm) | Work Surface Length | Work Surface Thickness | ||
| DIN861 Grade 0 |
DIN861 Grade 1 |
DIN861 Grade 2 |
|||
| 10mm or less | ±0.12 | ±0.16 | ±0.45 | 30 mm | 9 mm |
| 10-25mm | ±0.14 | ±0.16 | ±0.60 | 35 mm | 9 mm |
| 25-50mm | ±0.20 | ±0.18 | ±0.80 | 35 mm | 9 mm |
| 50-75mm | ±0.25 | ±0.18 | ±1.00 | 35 mm | 9 mm |
| 75-100mm | ±0.30 | ±0.20 | ±1.20 | 35 mm | 9 mm |
Specification
| Stepping | Nominal Dimensions | NO.of Block |
| 0.001mm | 1.001 to 1.009mm | 9 |
| 0.01mm | 1.01 to 1.49mm | 49 |
| 0.5mm | 0.5 to 9.5mm | 19 |
| 10mm | 10 to 100mm | 10 |
Cautions amid using the gauge blocks
- Use equal measuring blocks to obtain the required dimensions whenever possible.
- Use thicker gauge blocks whenever possible.
- Select secondary values first, then primary values
| Item | PCS | Grade |
| 0087-2160 | 87 | 2 |
| 0087-2161 | 87 | 1 |
| 0087-2162 | 87 | 0 |
