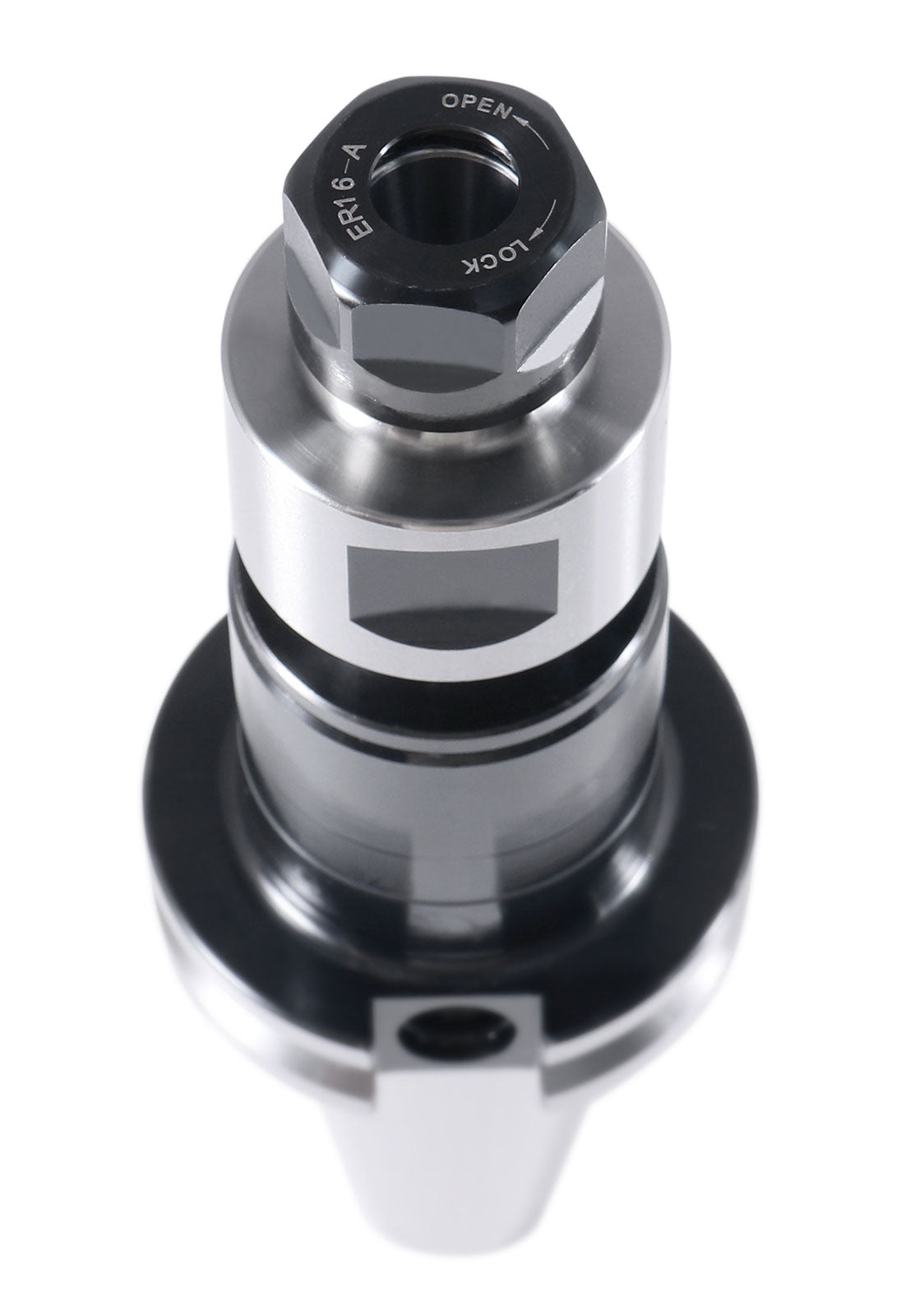

Taper-Collet: CAT40-ER16 (0537-5983)

Shipping calculated at checkout

In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Estimate shipping

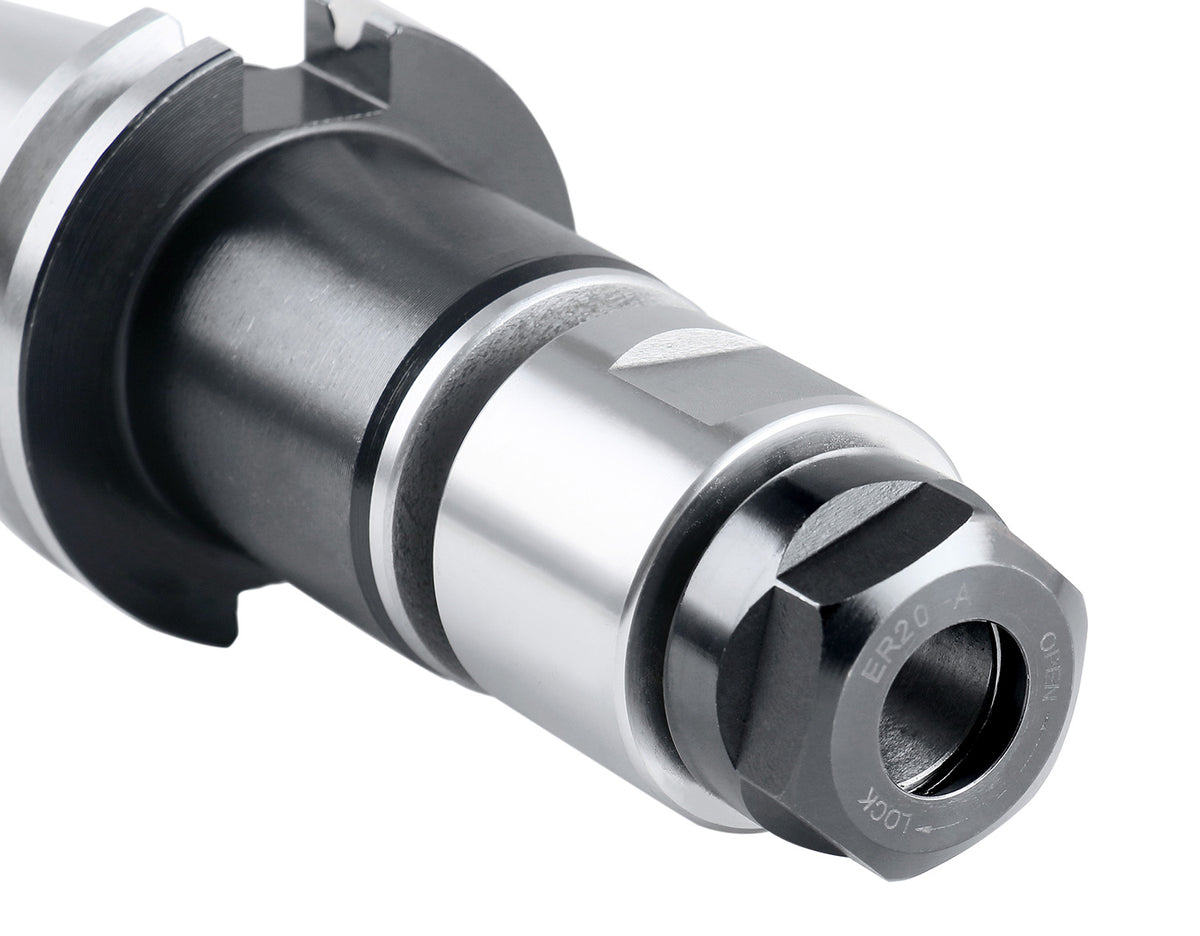

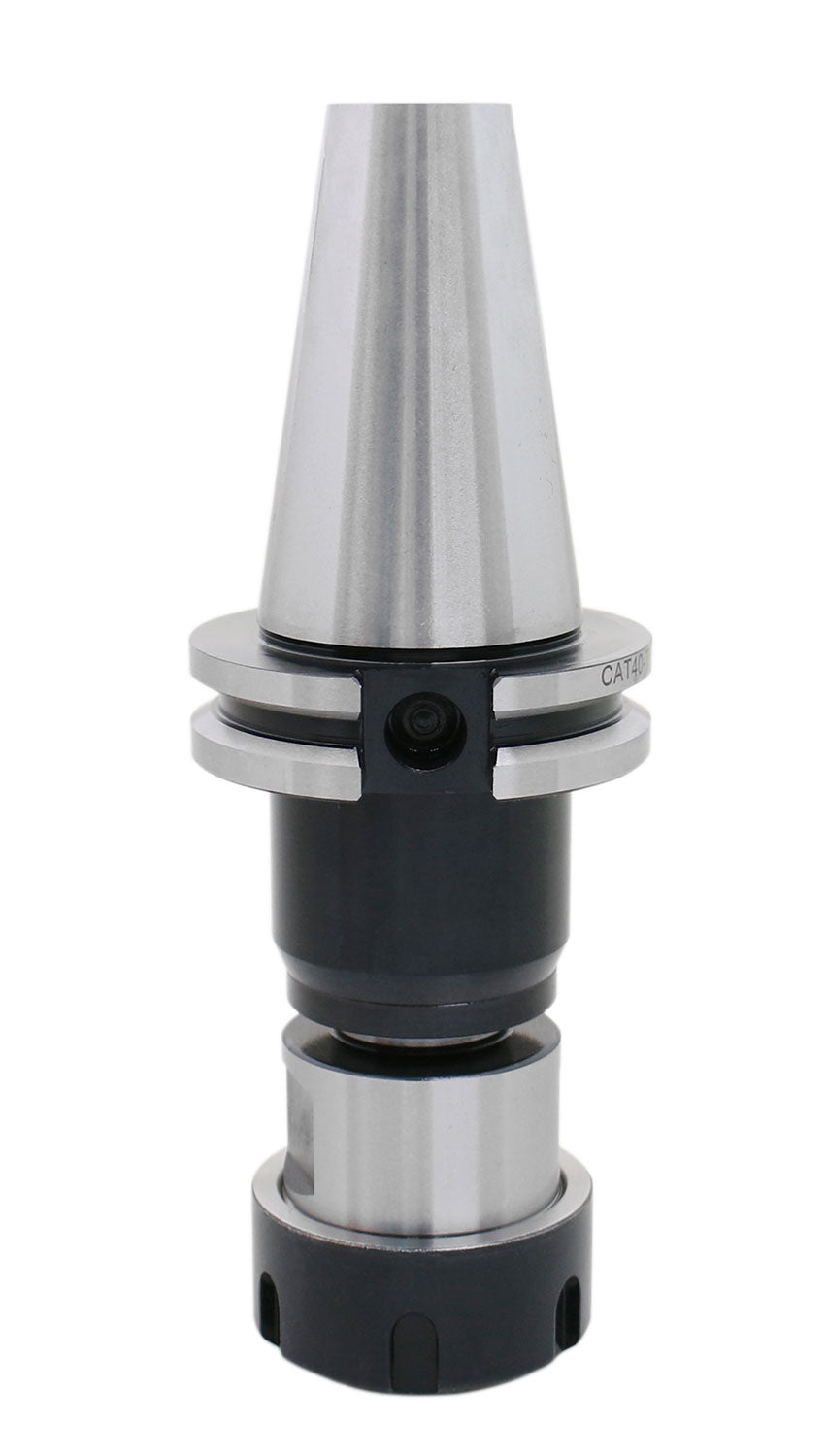

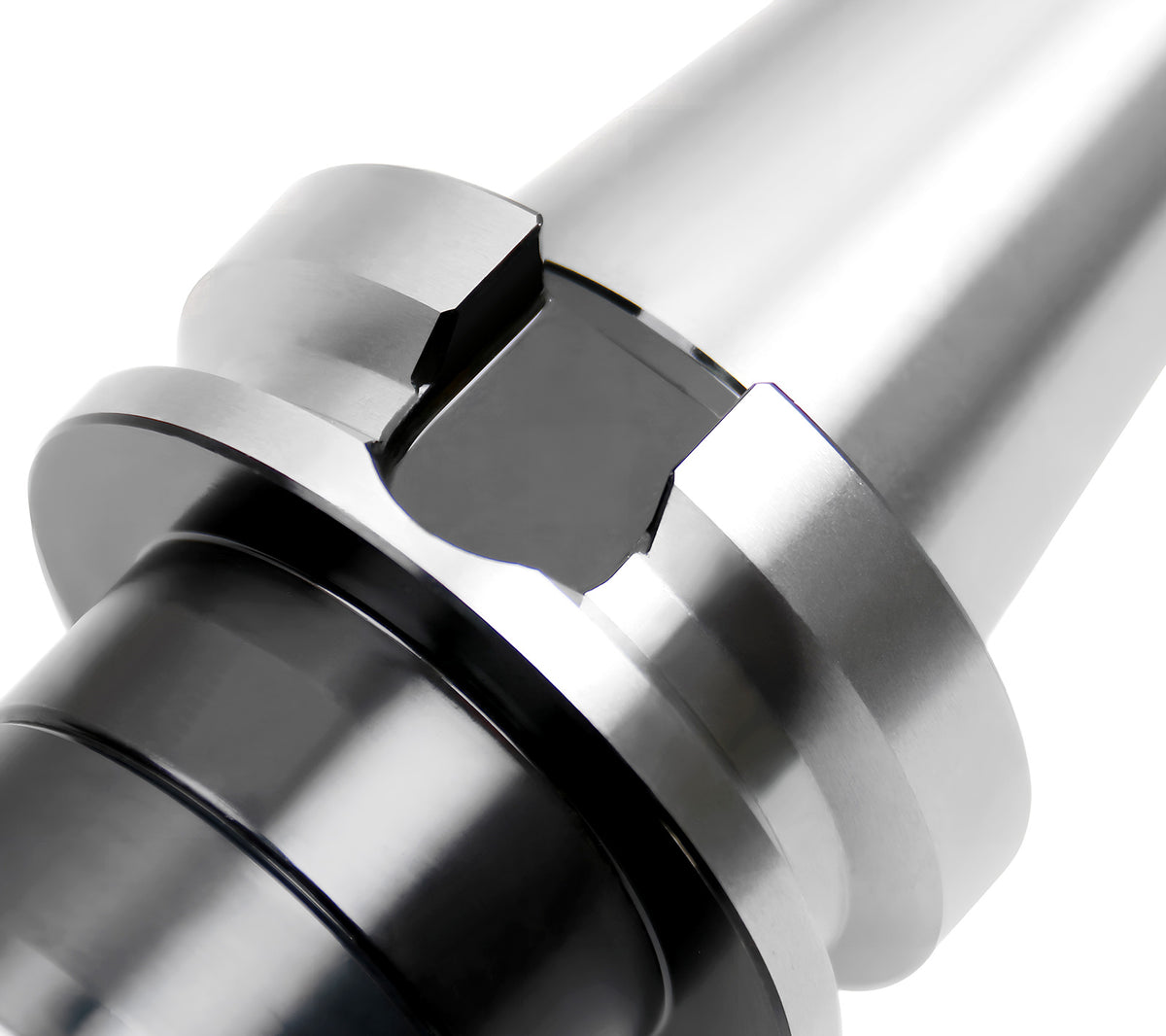

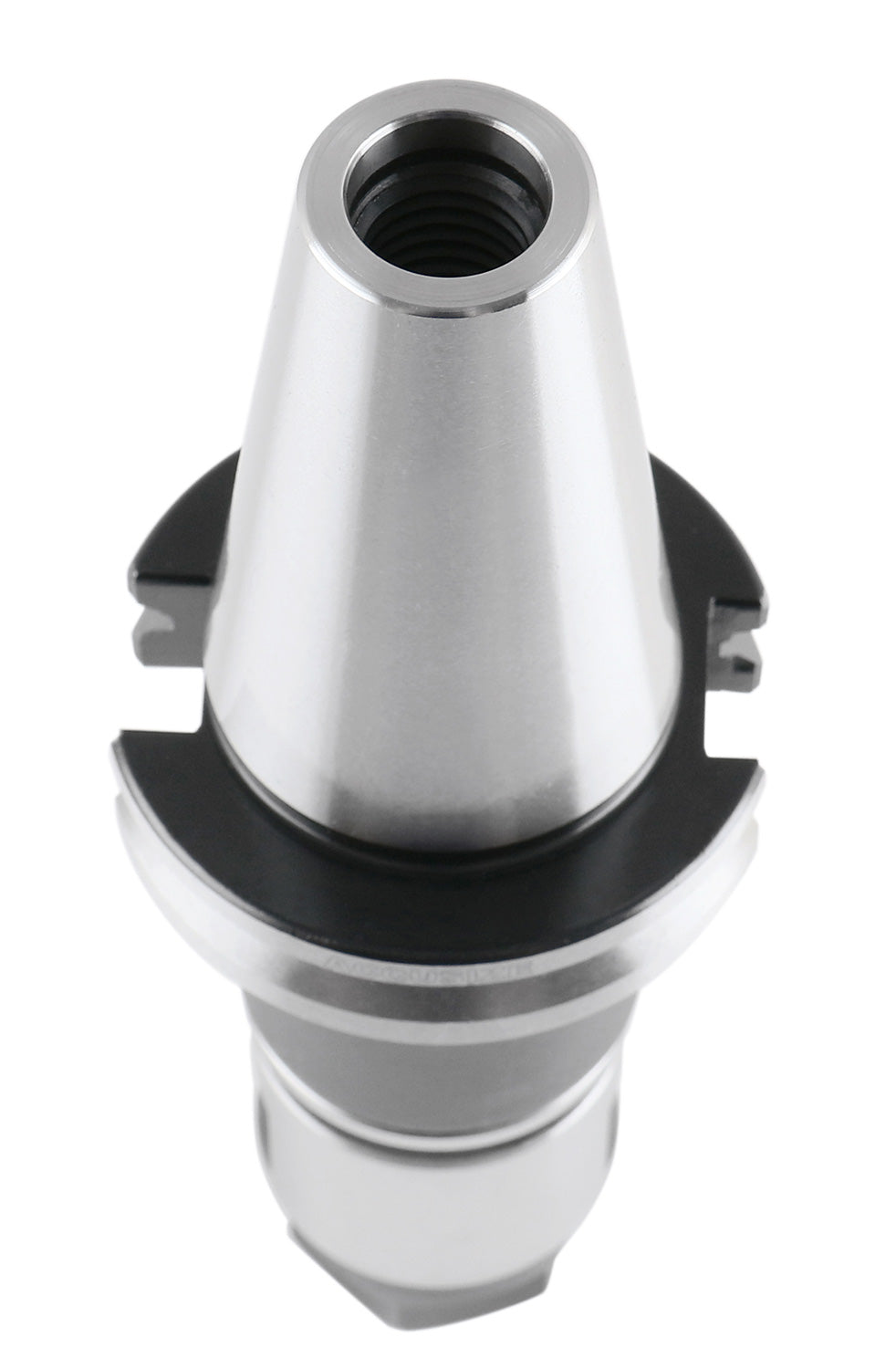

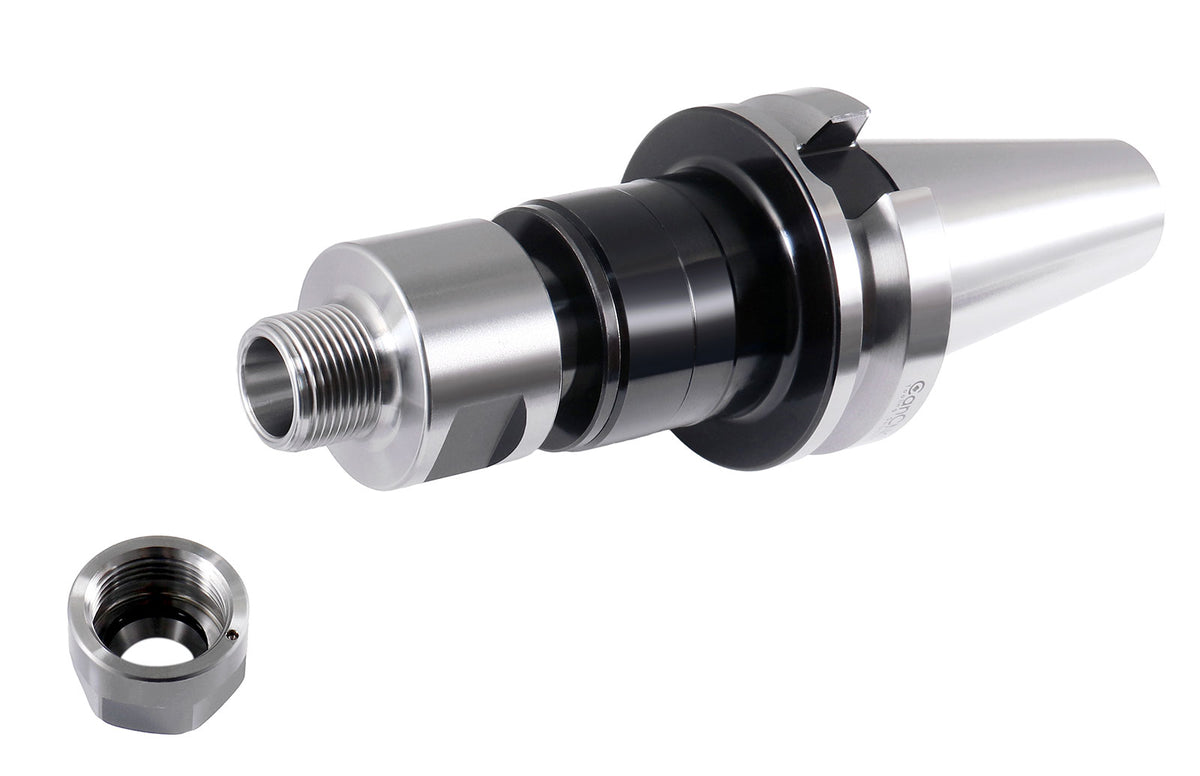

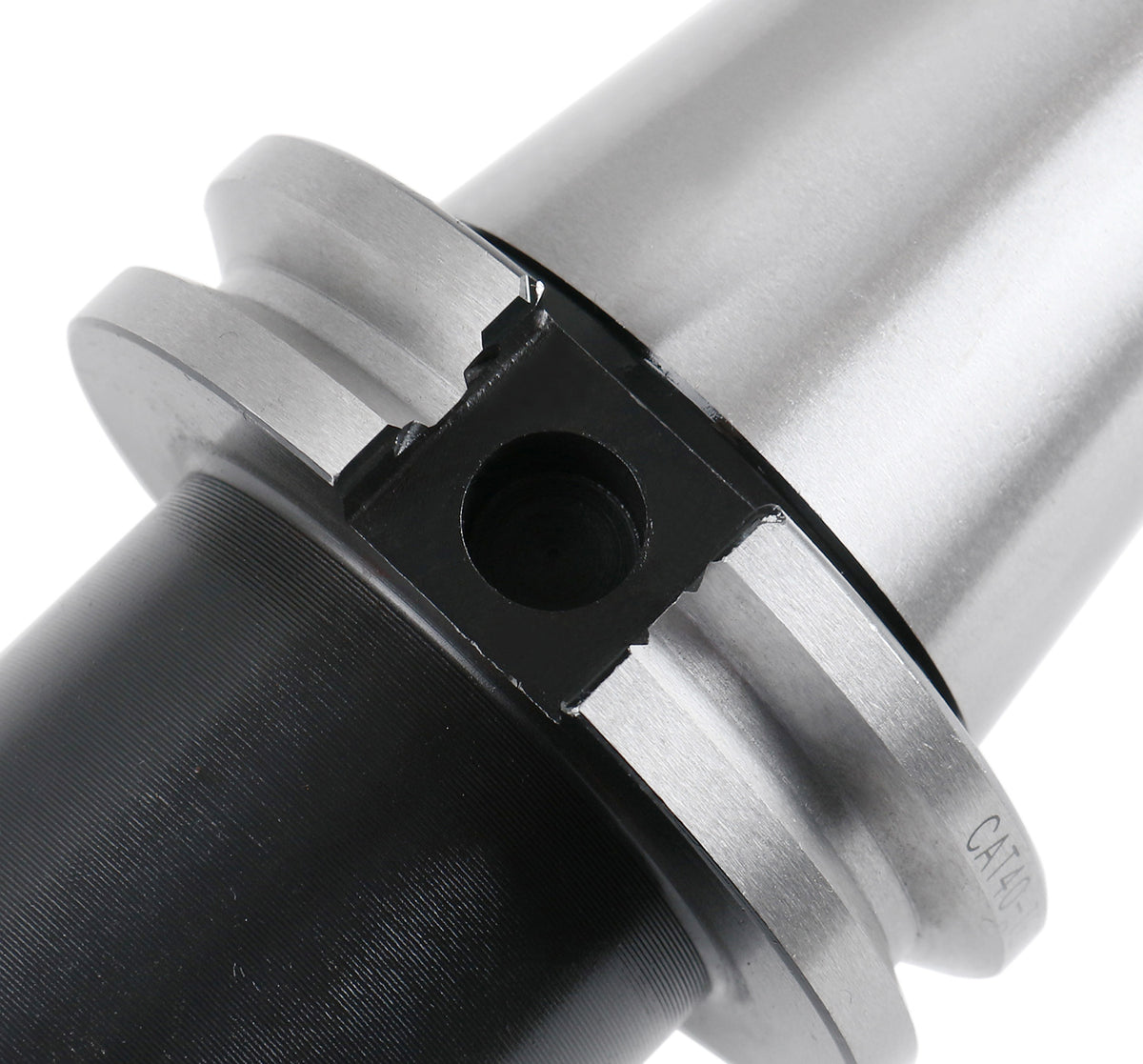

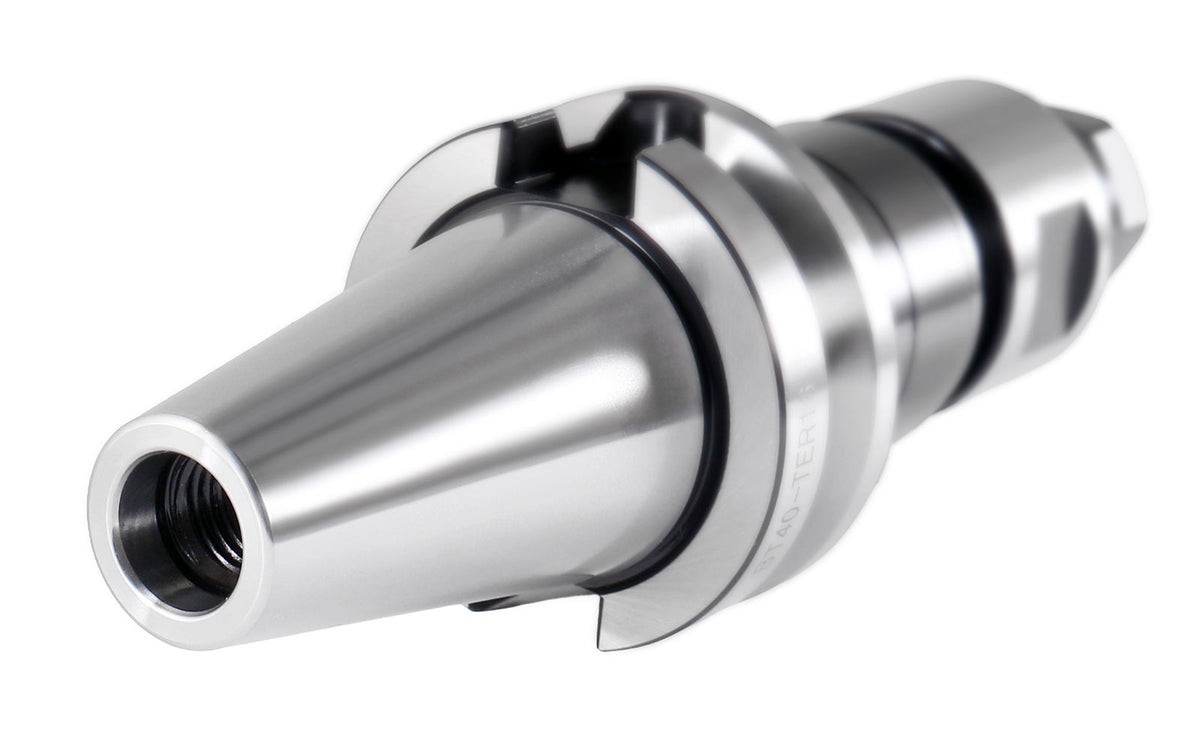

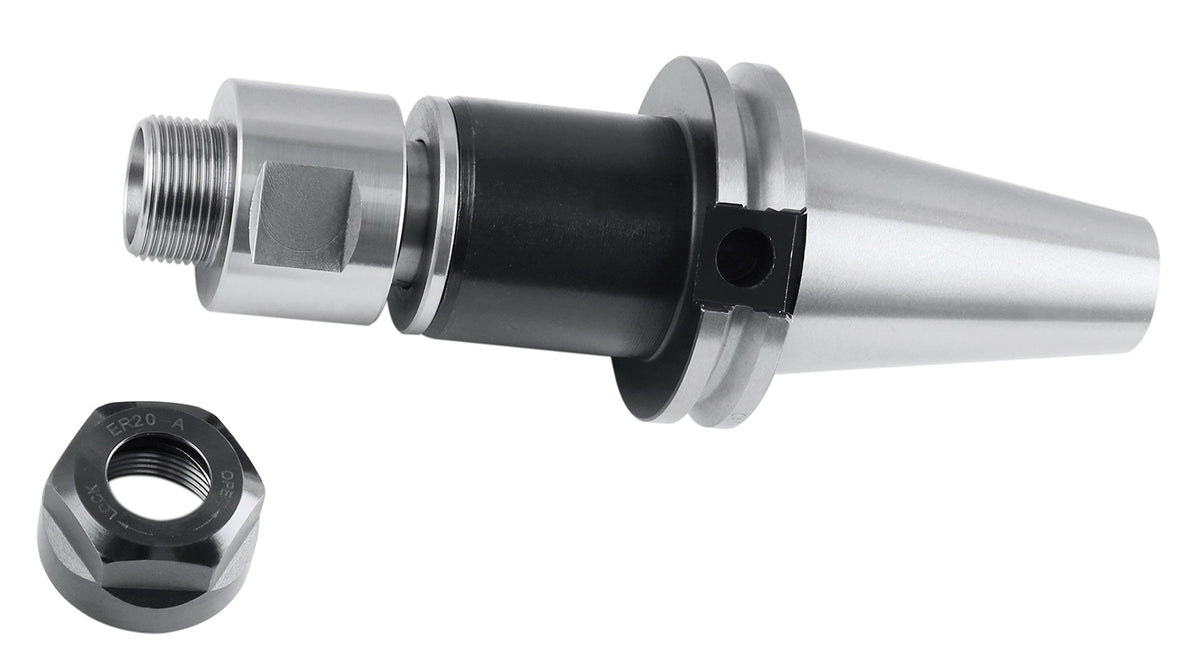

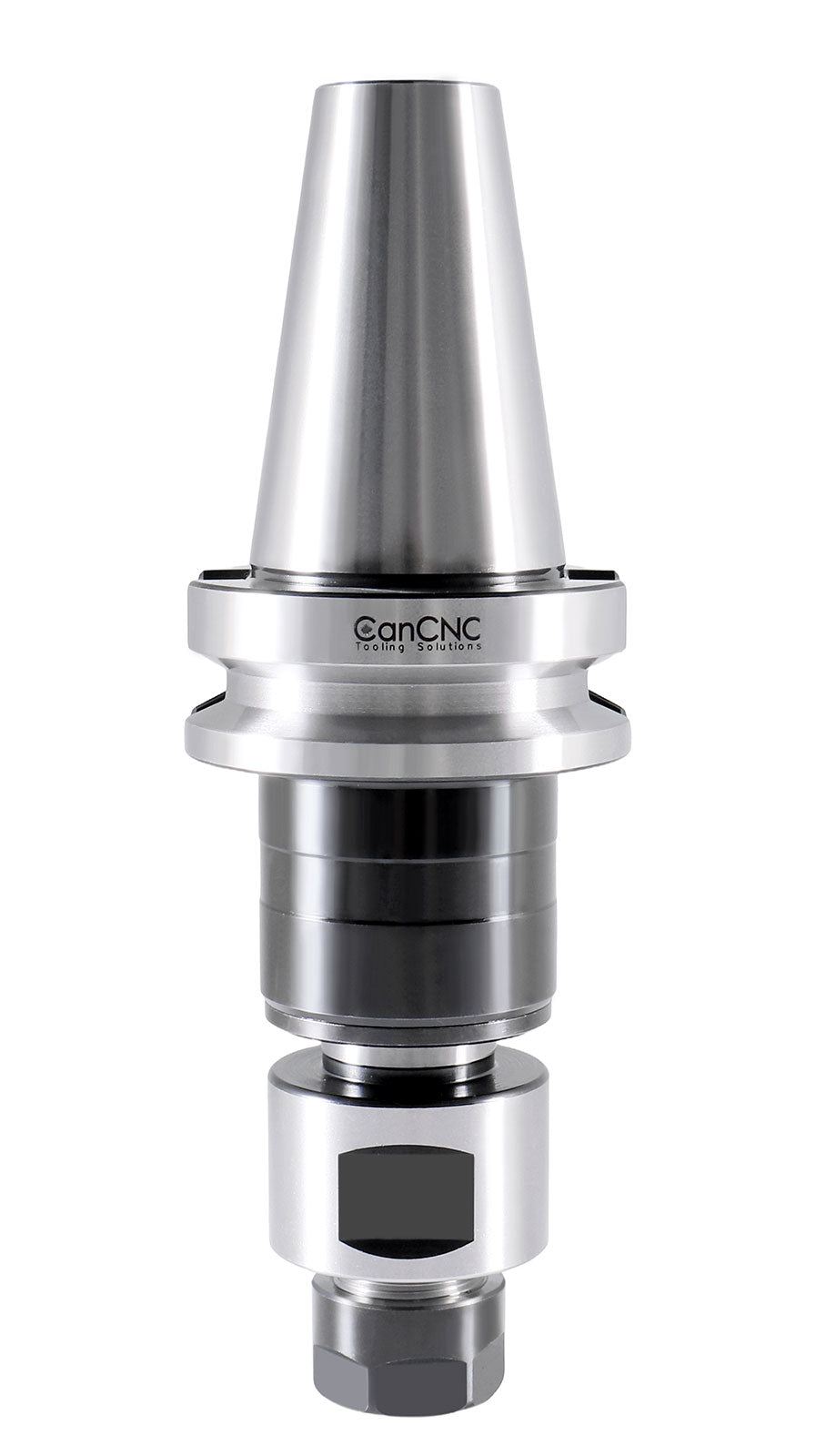

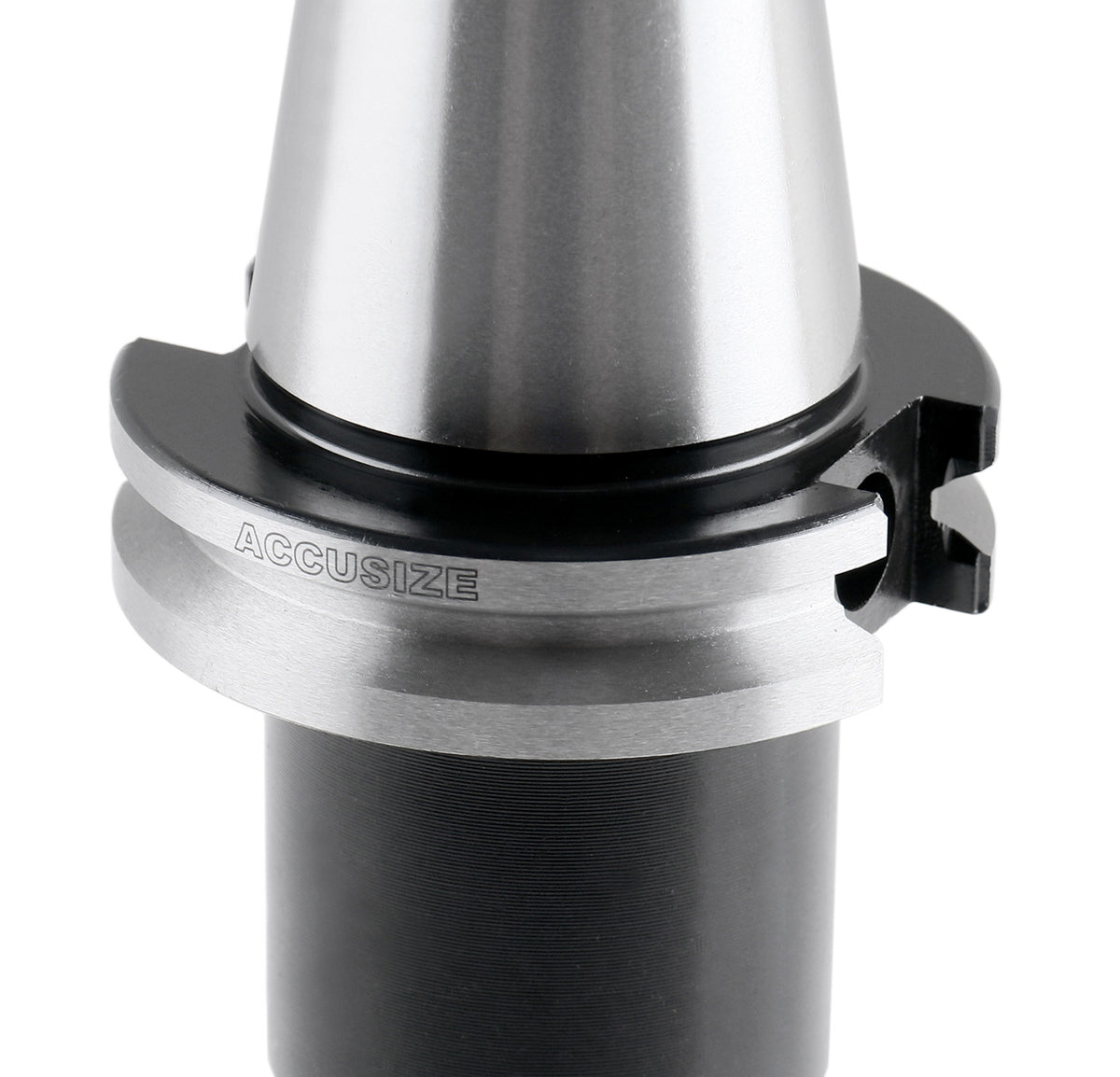

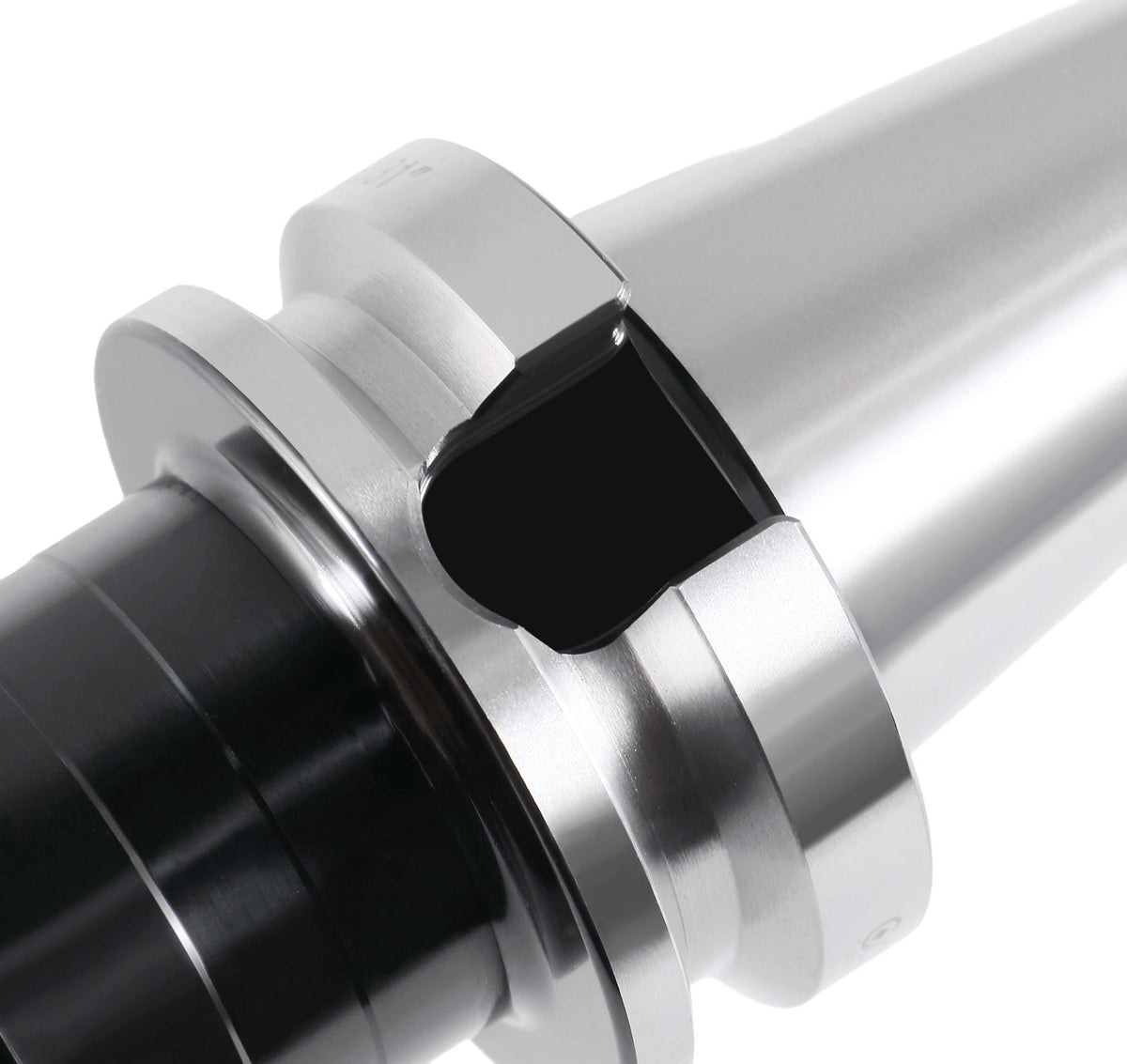

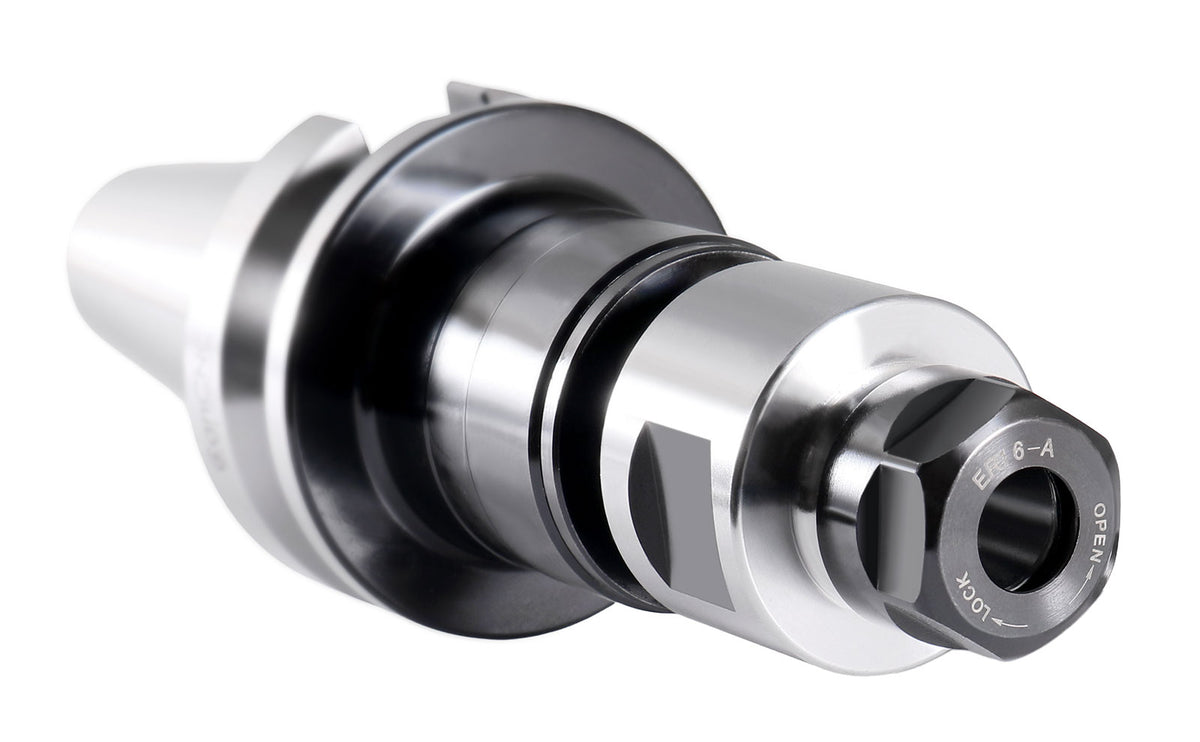

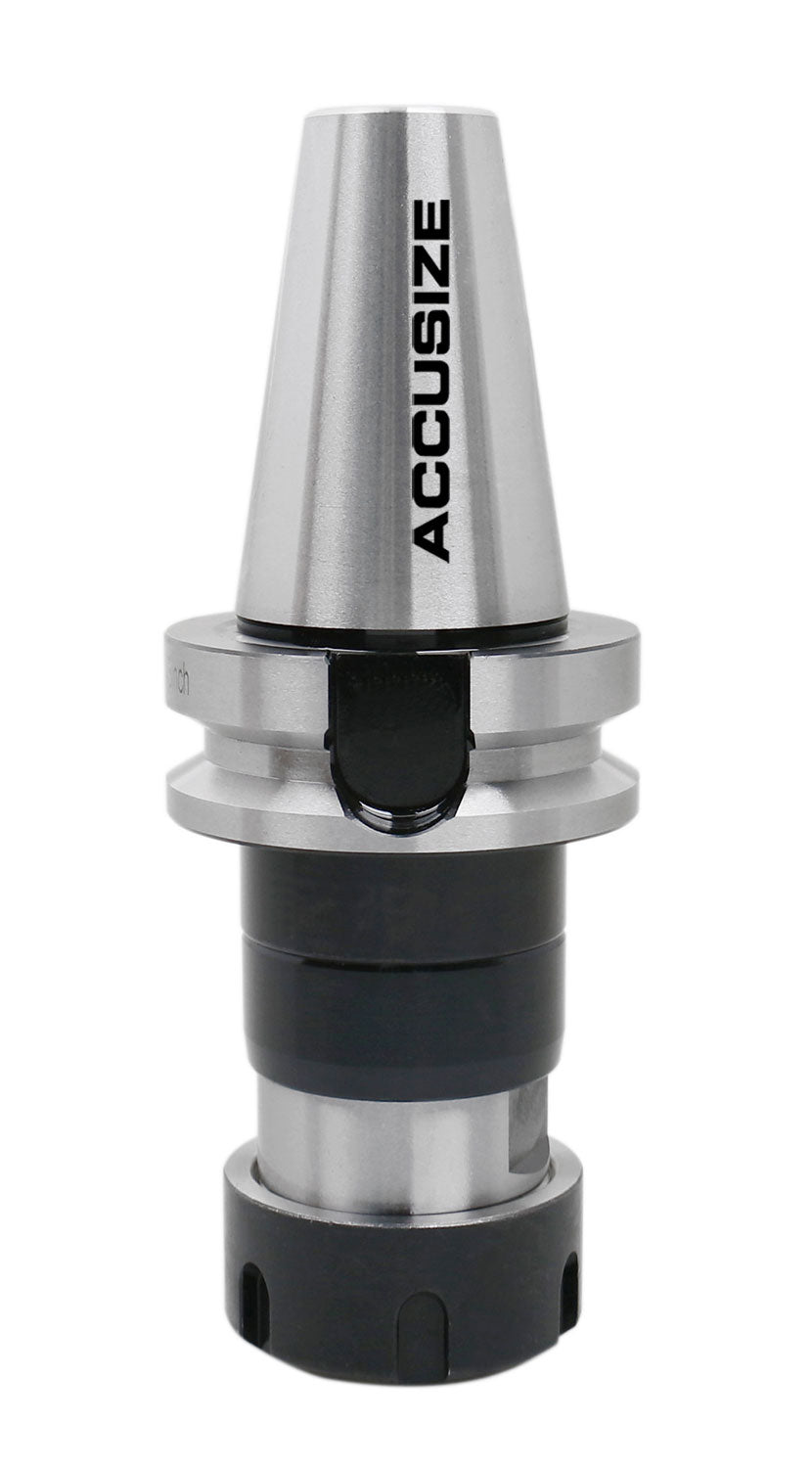

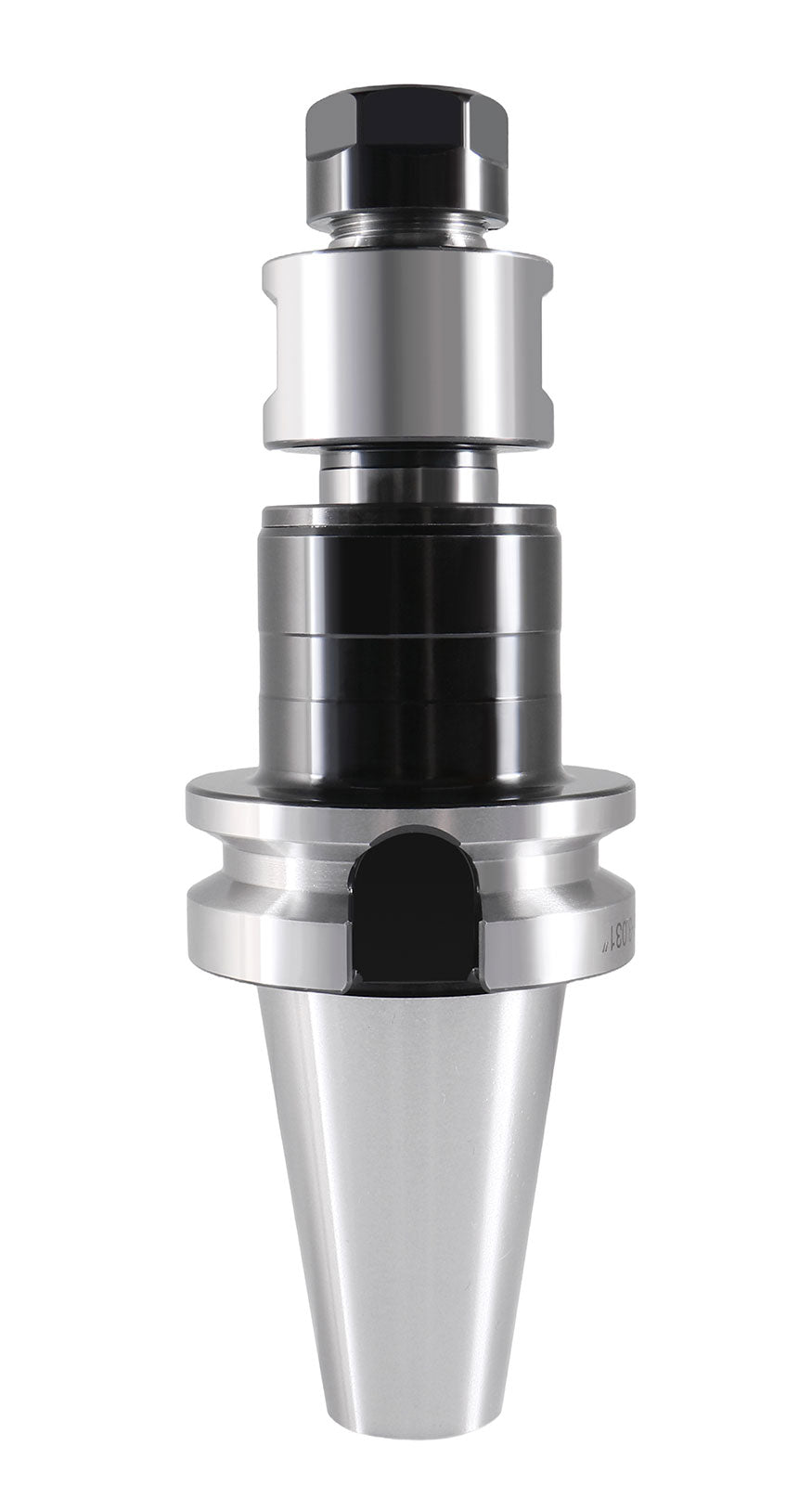

Premium Series, BT40, CAT40 ER Floating Tap Collet Chucks

  • Ideal for holding taps and reamers for light-duty tapping tasks
  • 0.197 compression and 0.315 extensive travels via adjustable internal springs
  • Using standard ER collet
  • All critical surfaces precision ground
  • Made from alloy steel hardened to 54-56 HRC

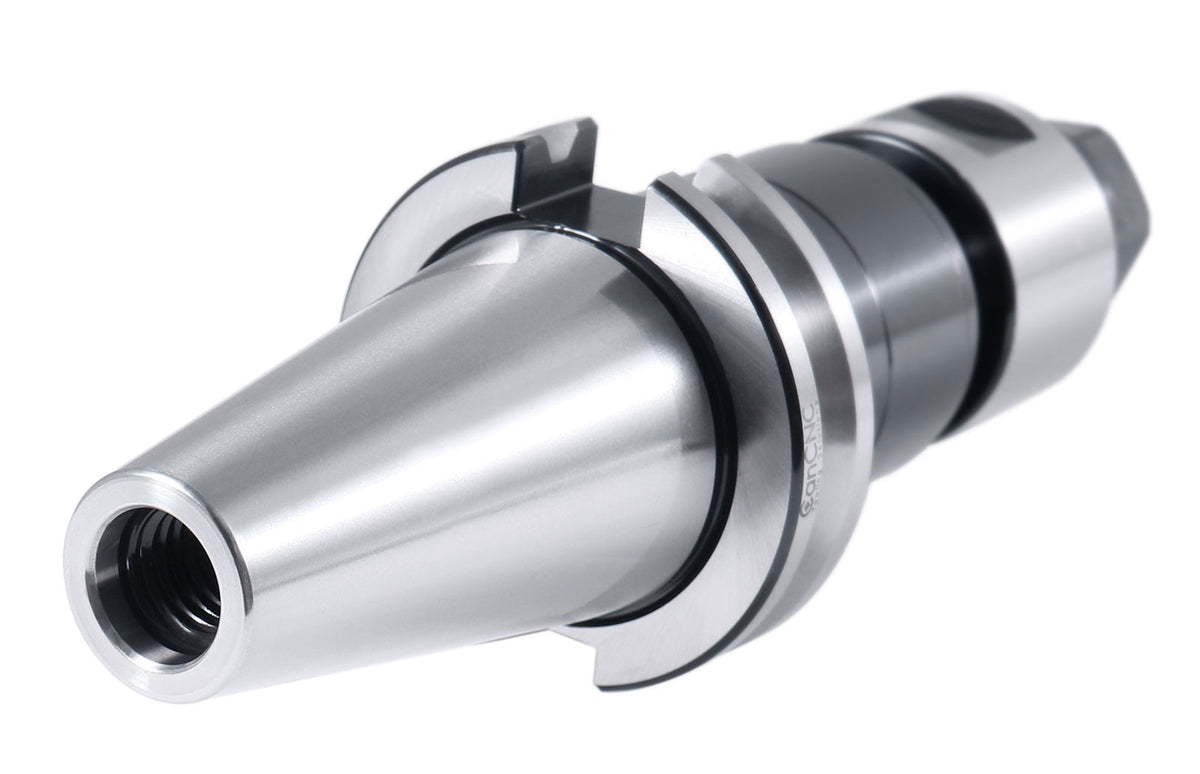

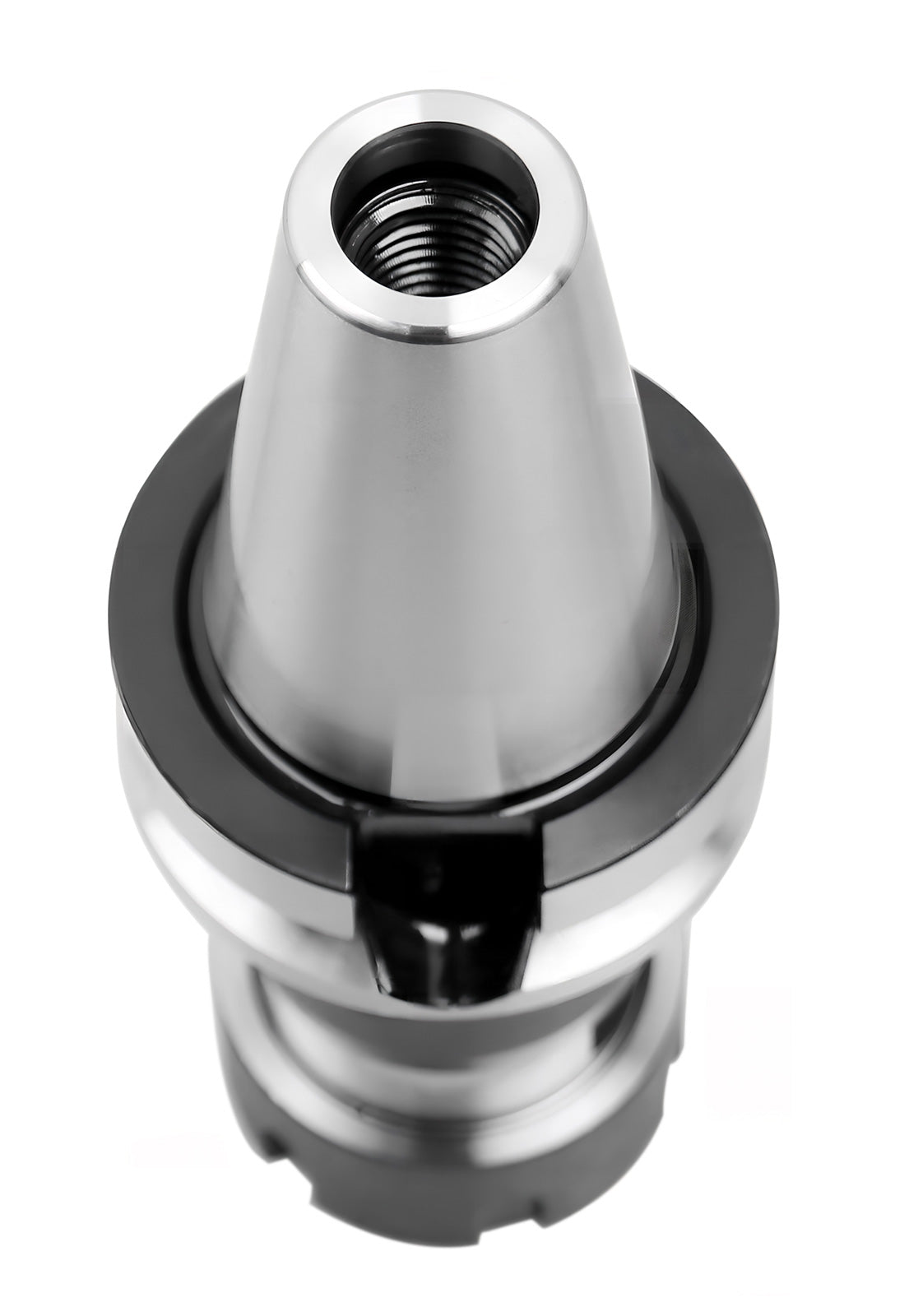

  • Rear thread for pull stud:
    • CAT40: 5/8"-11
    • BT40: M16 x 2

Schema of 0537 Series

Item Taper Collet Series D L Compression (F1) Extension (F2) Projection Length

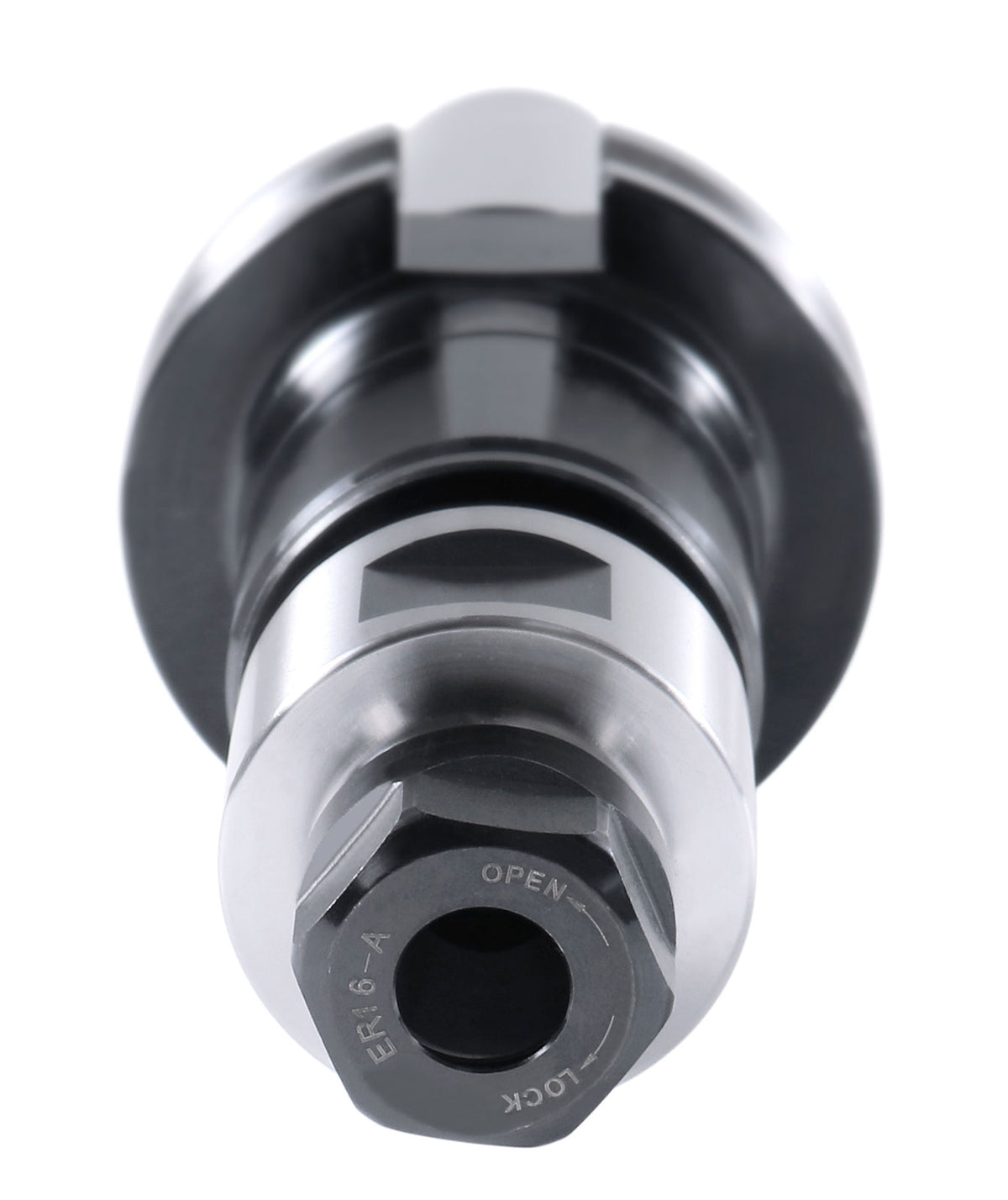

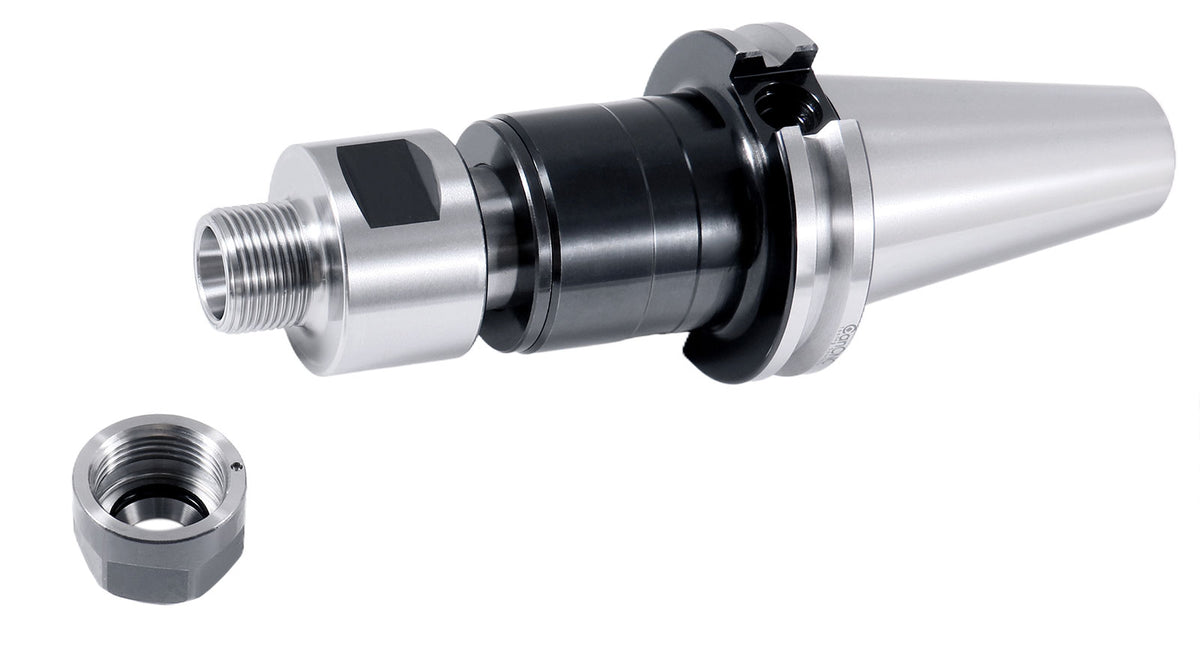

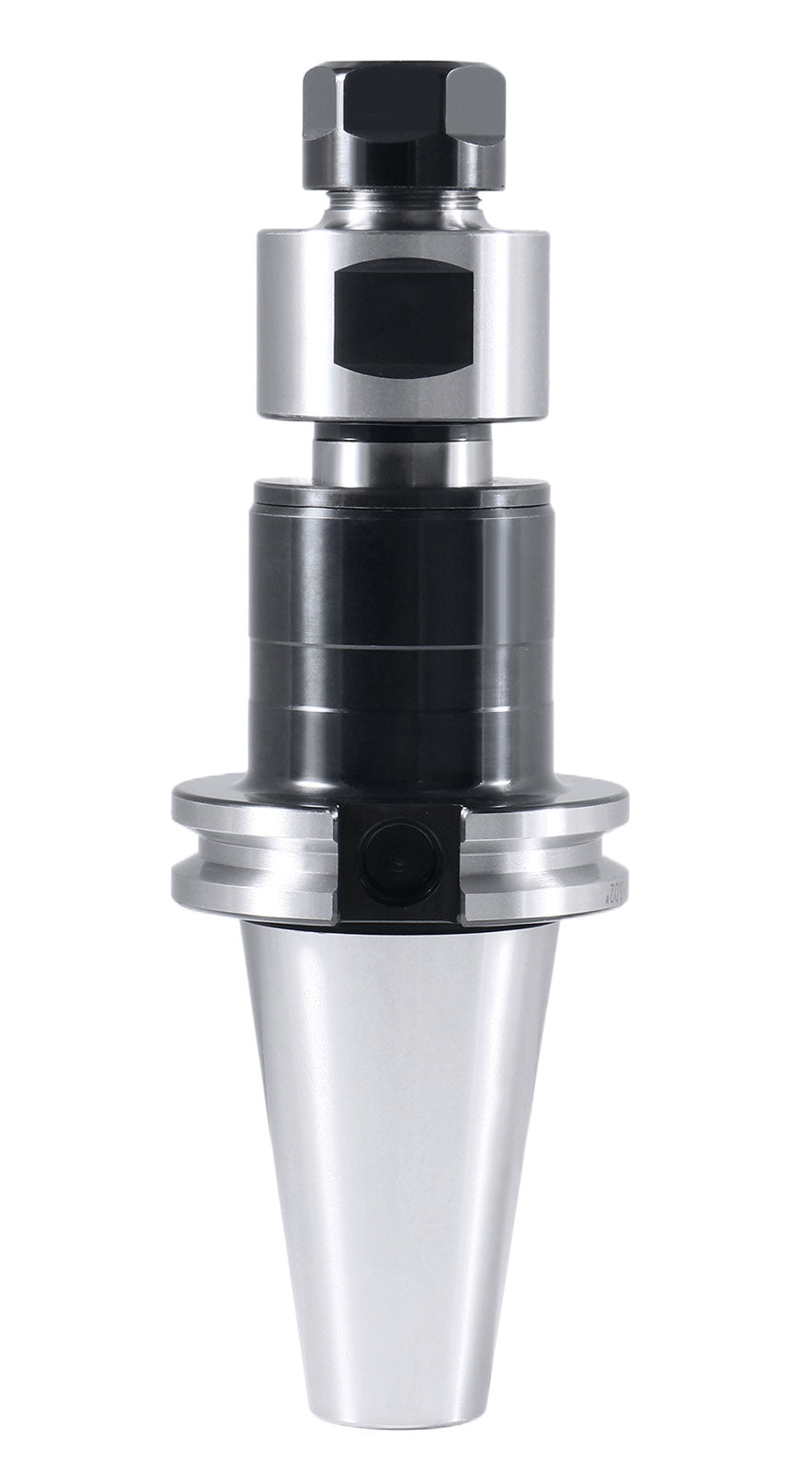

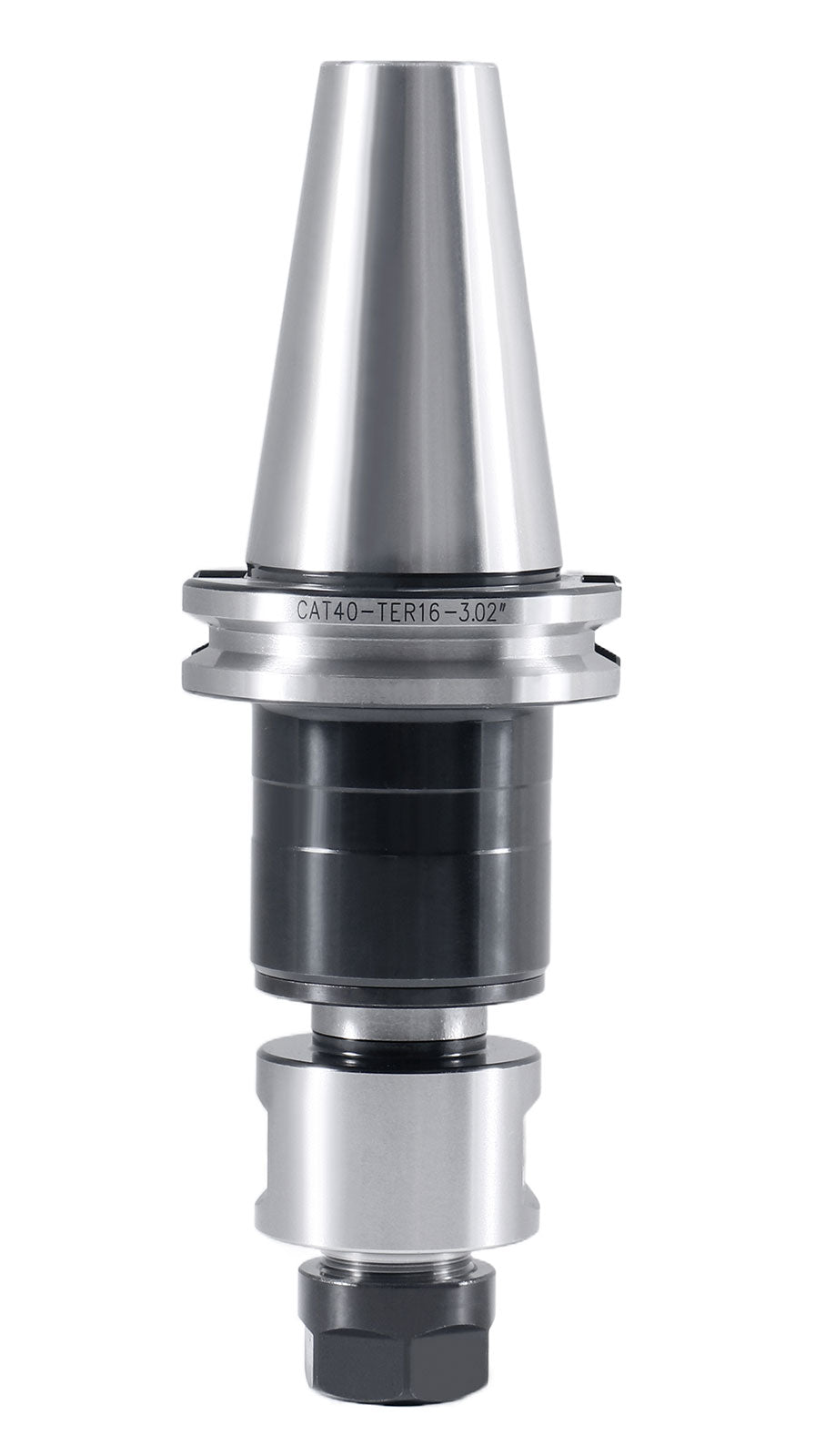

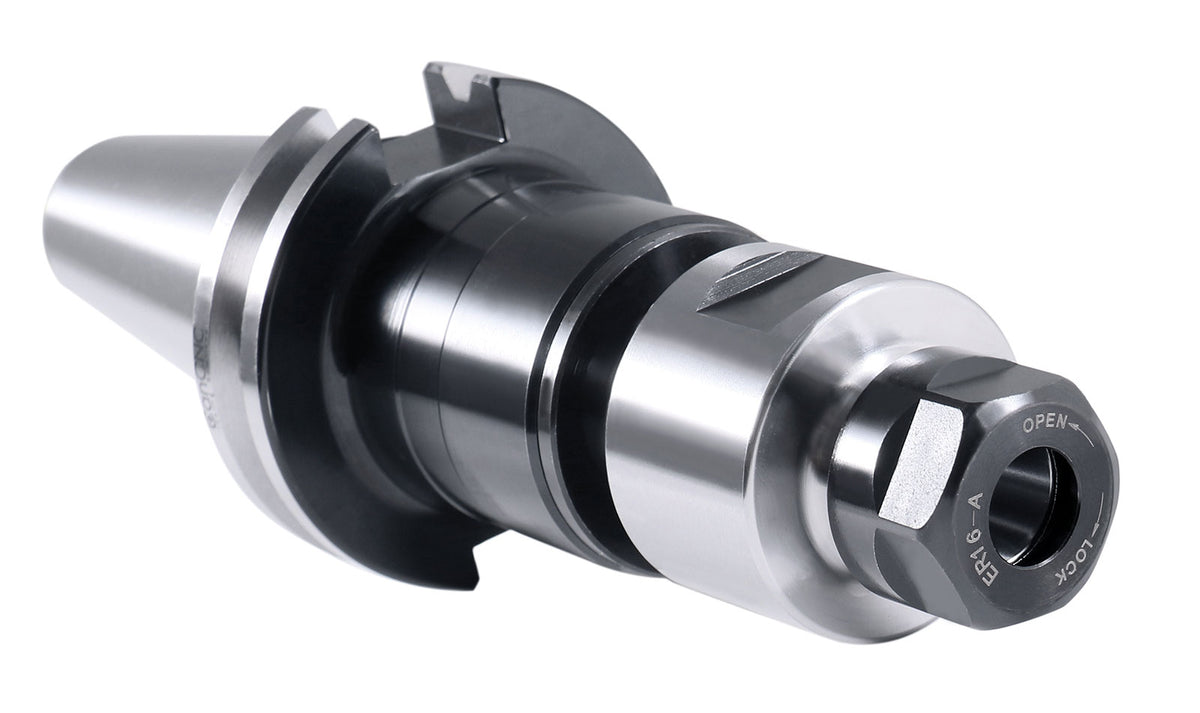

0537-5983 CAT40 ER16 1.1" 3.020" 0.197" 0.315" 3.020"

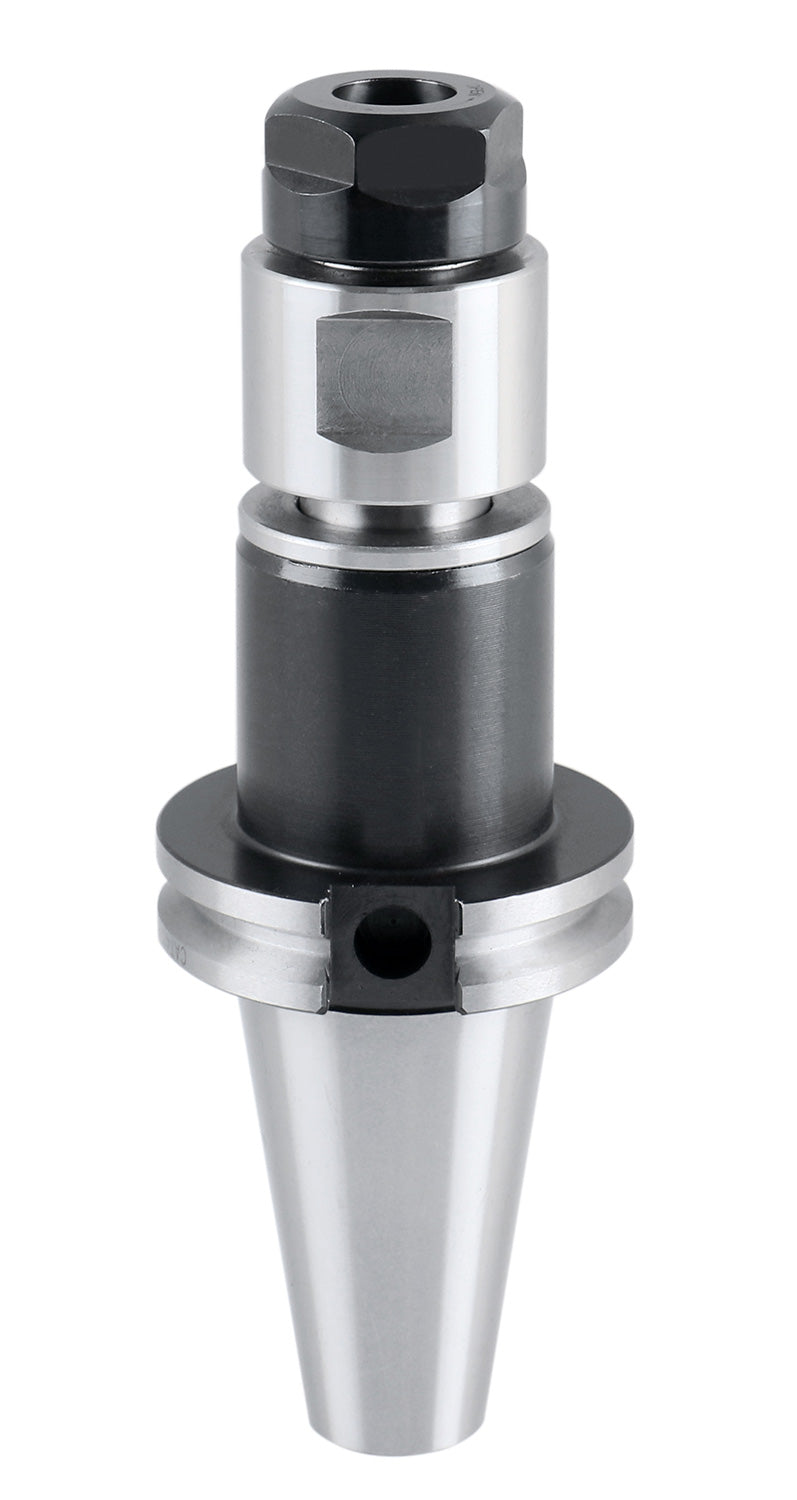

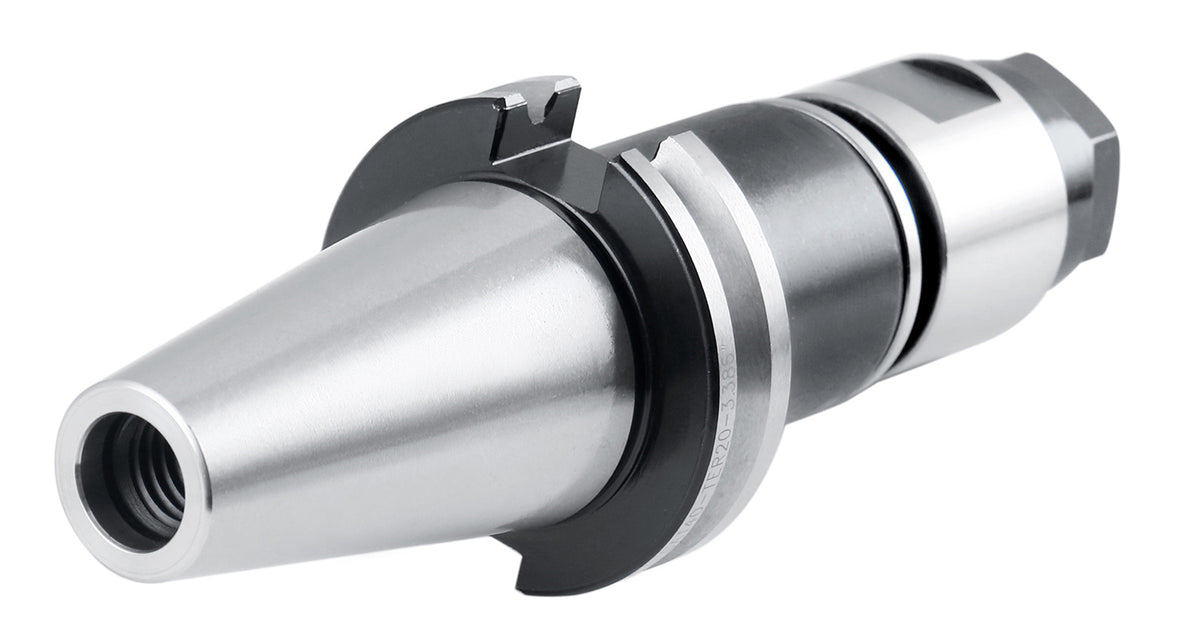

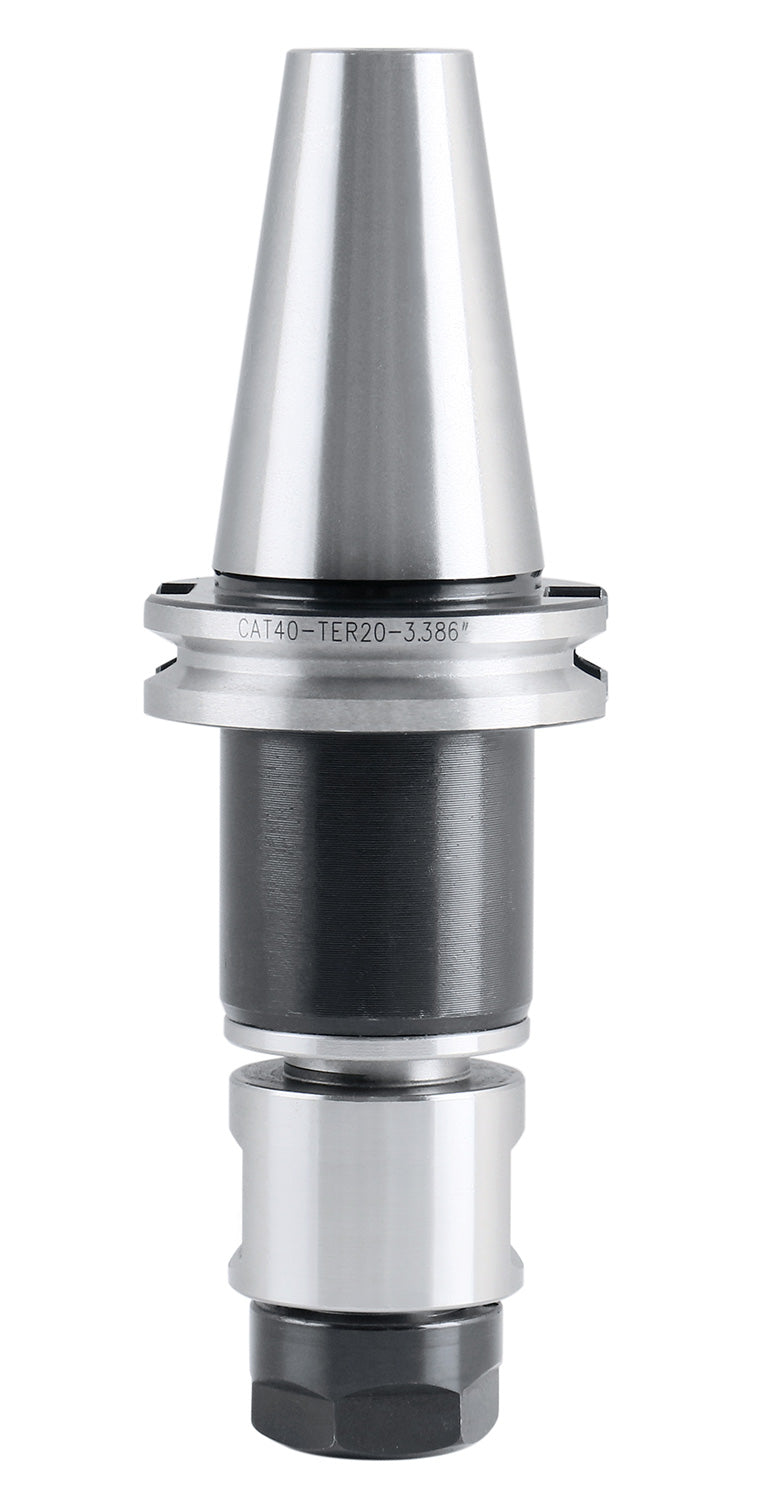

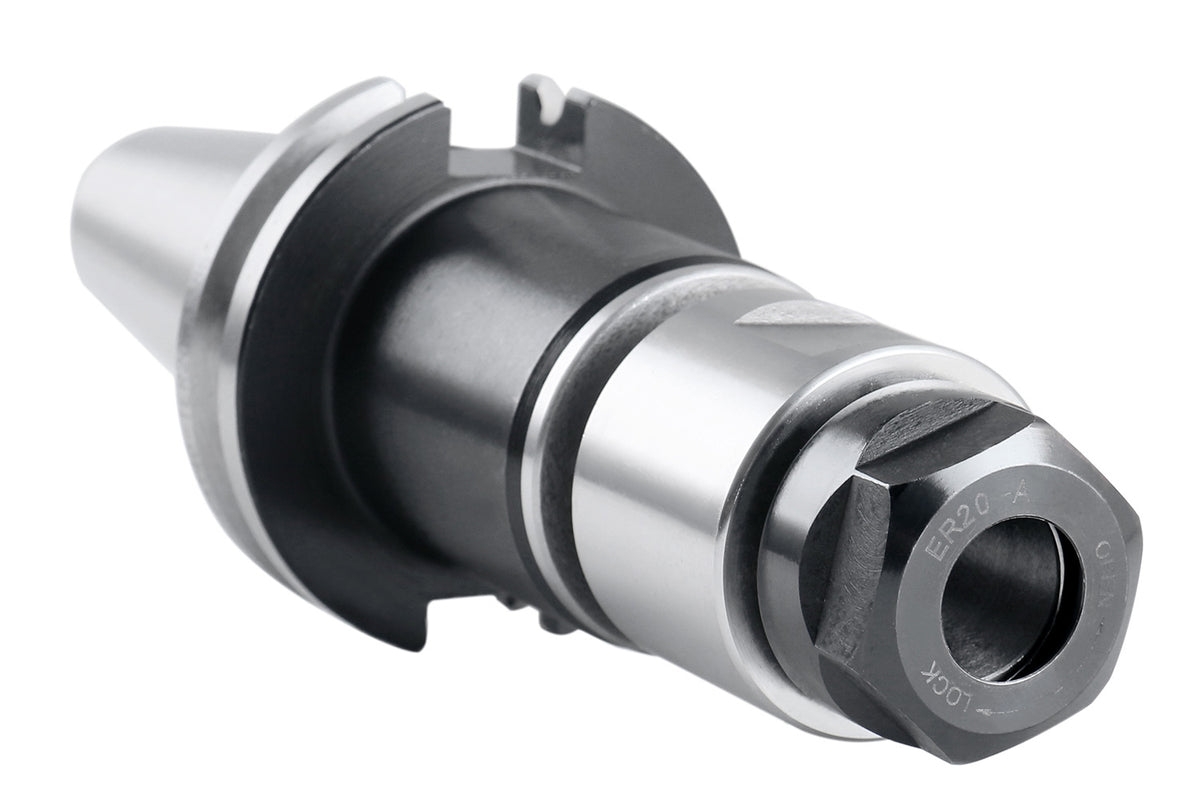

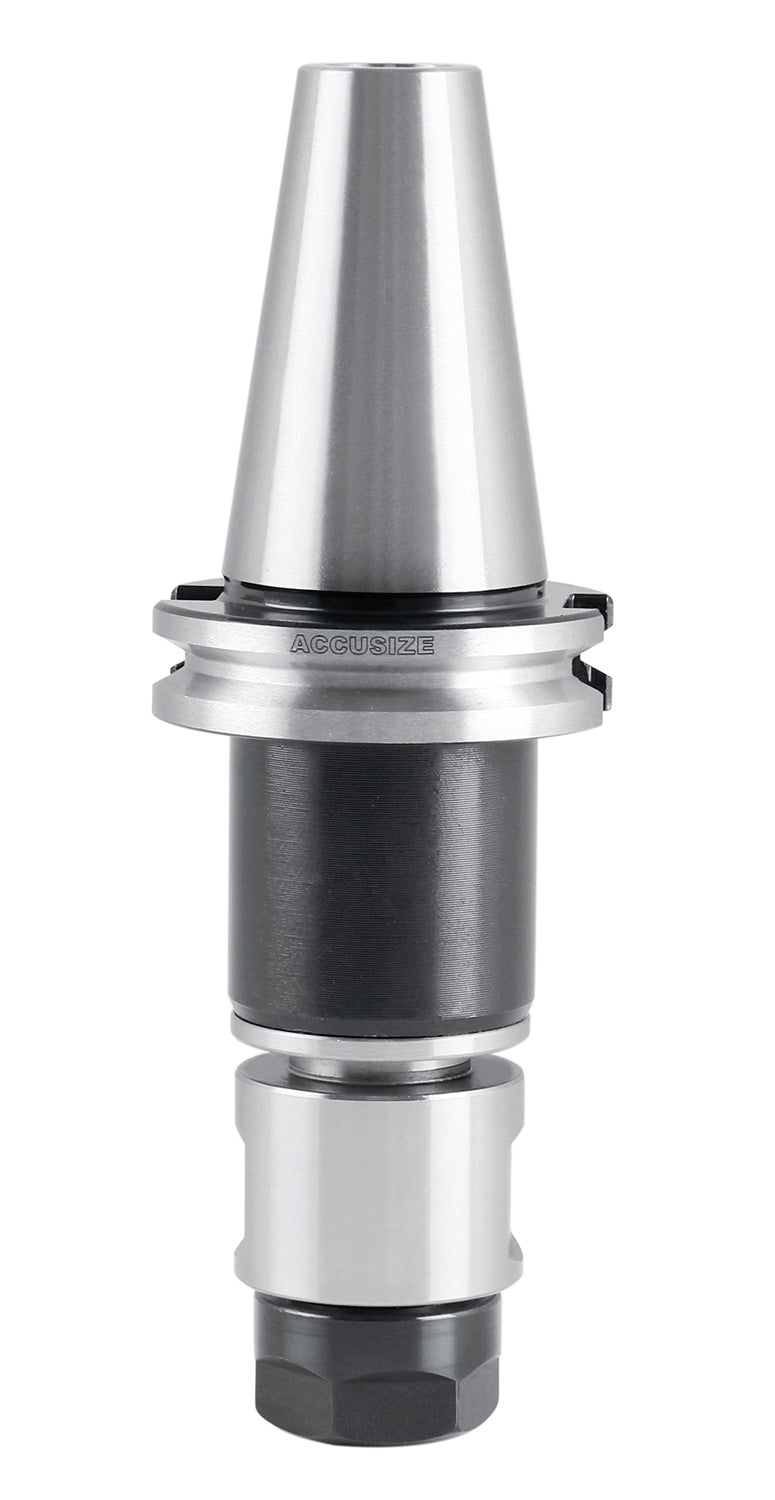

0537-5984 CAT40 ER20 1.34" 3.386" 0.197" 0.315" 3.386"

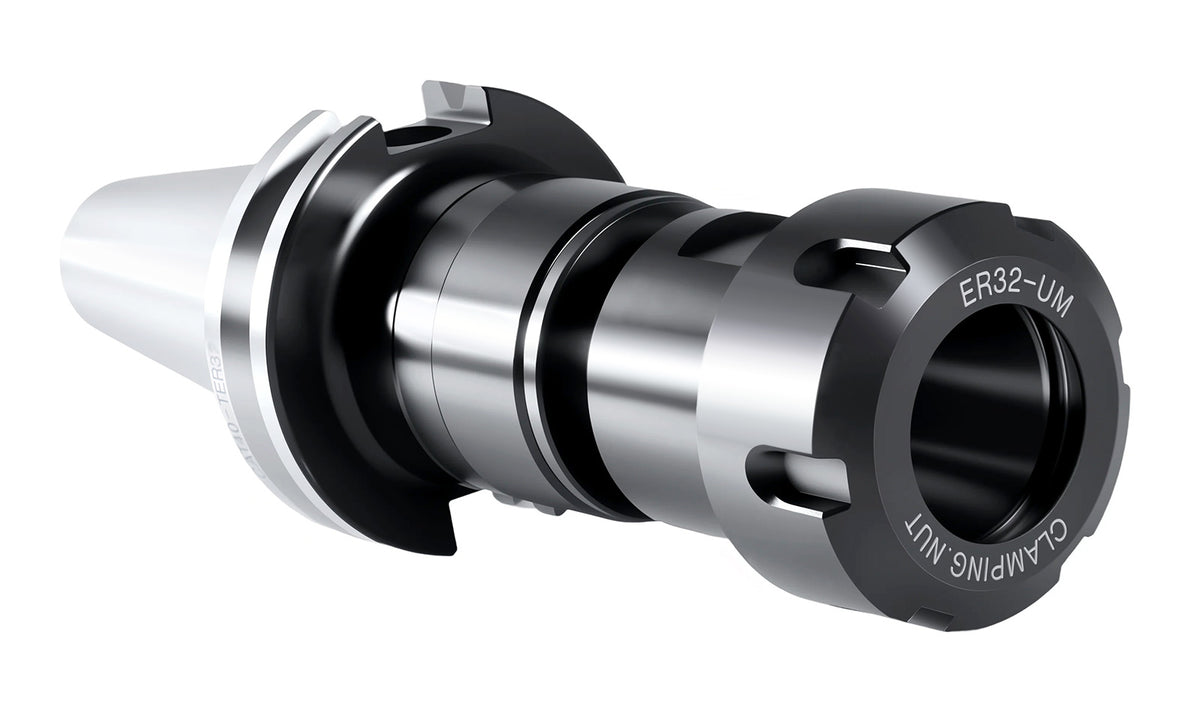

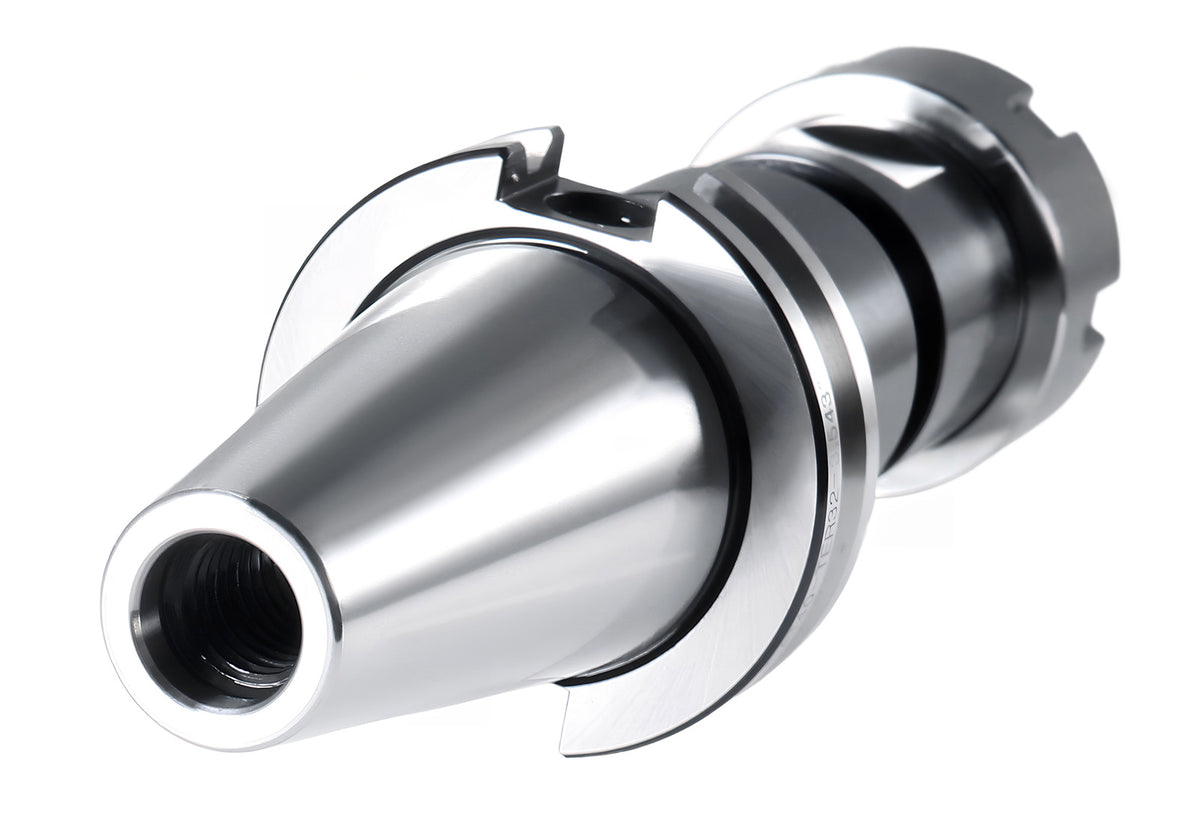

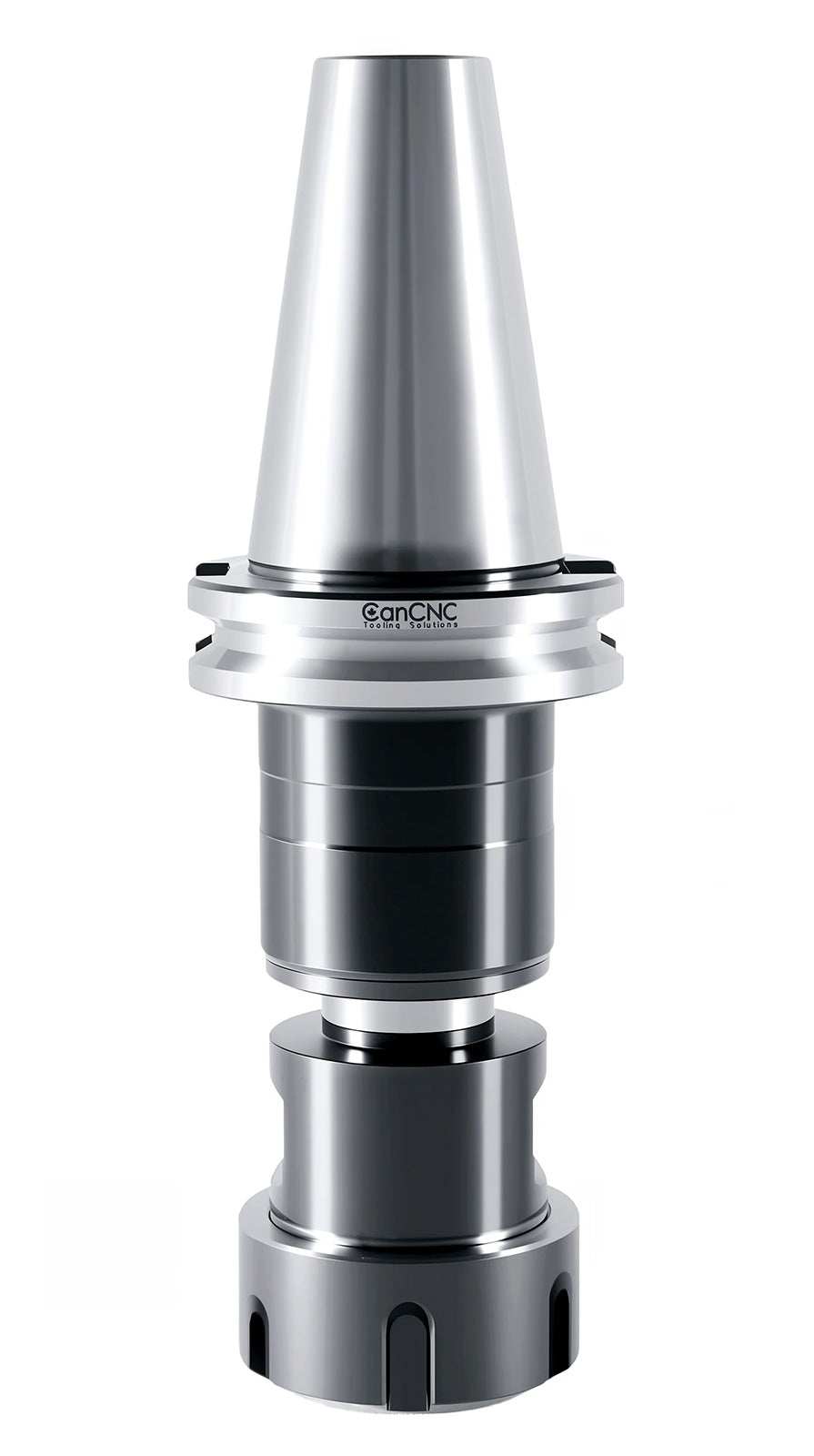

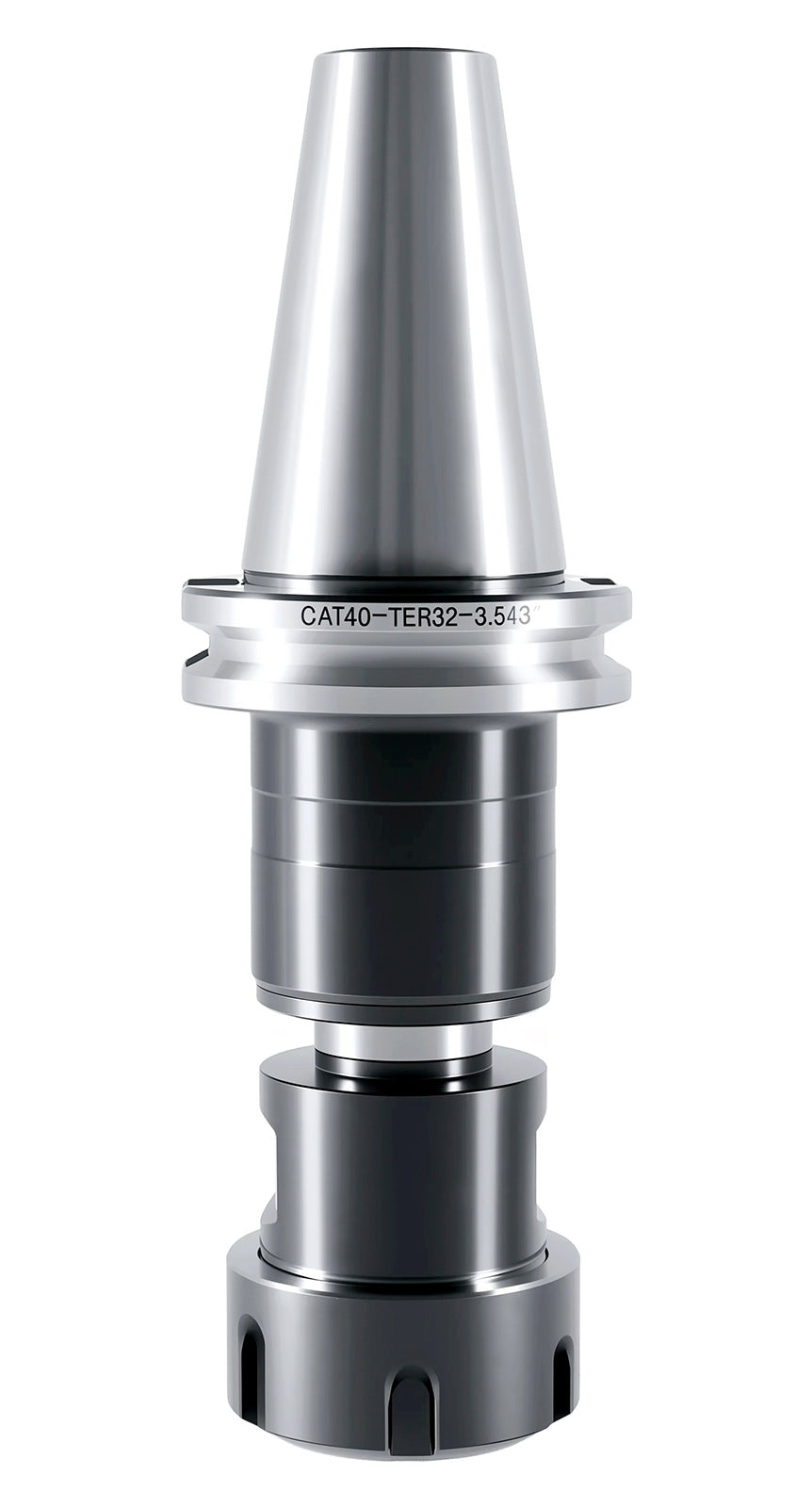

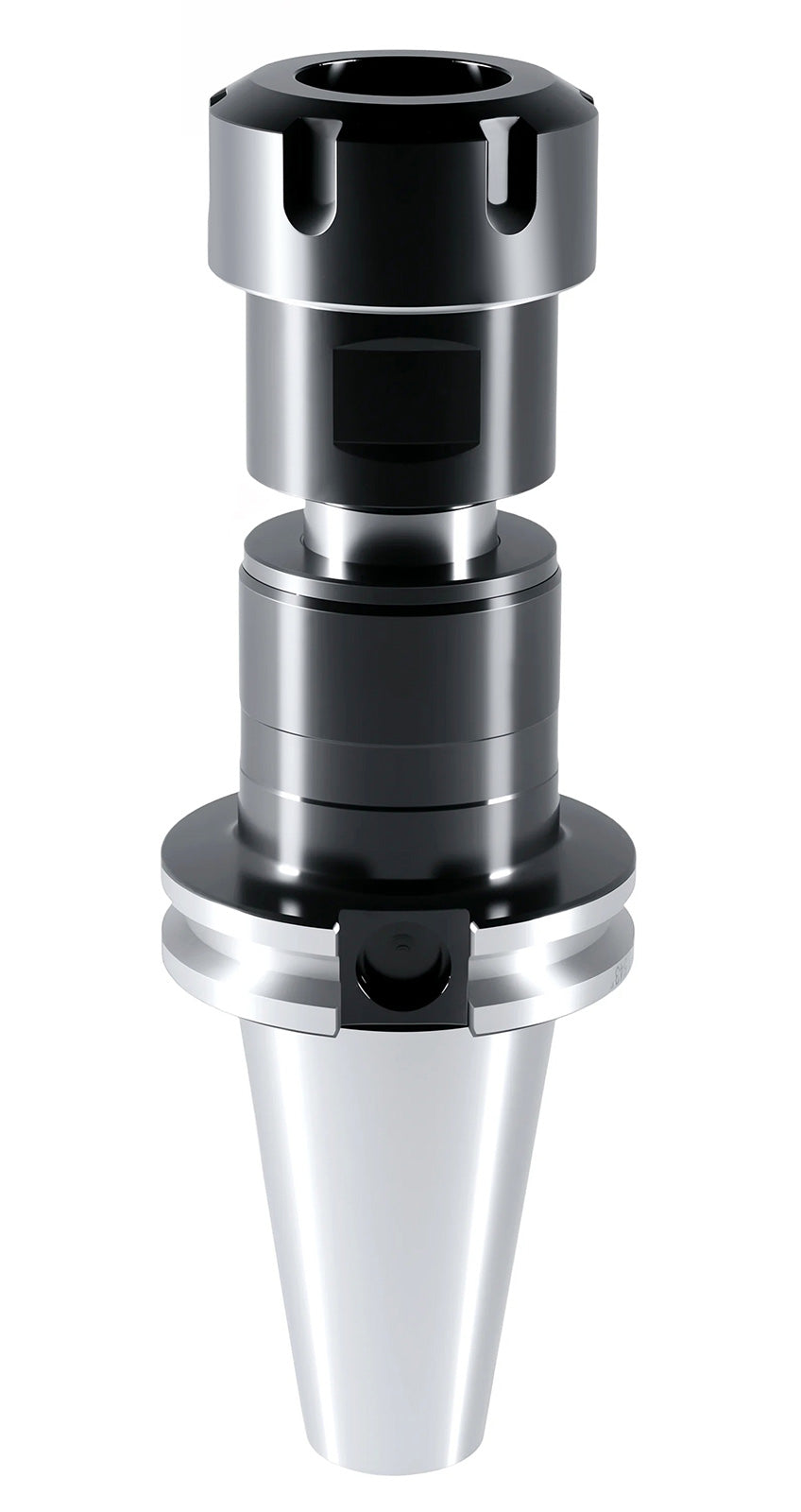

0537-5985 CAT40 ER32 1.65" 3.543" 0.197" 0.315" 3.543"
0537-6566 BT40 ER16 1.1" 3.031" 0.197" 0.315" 3.031"

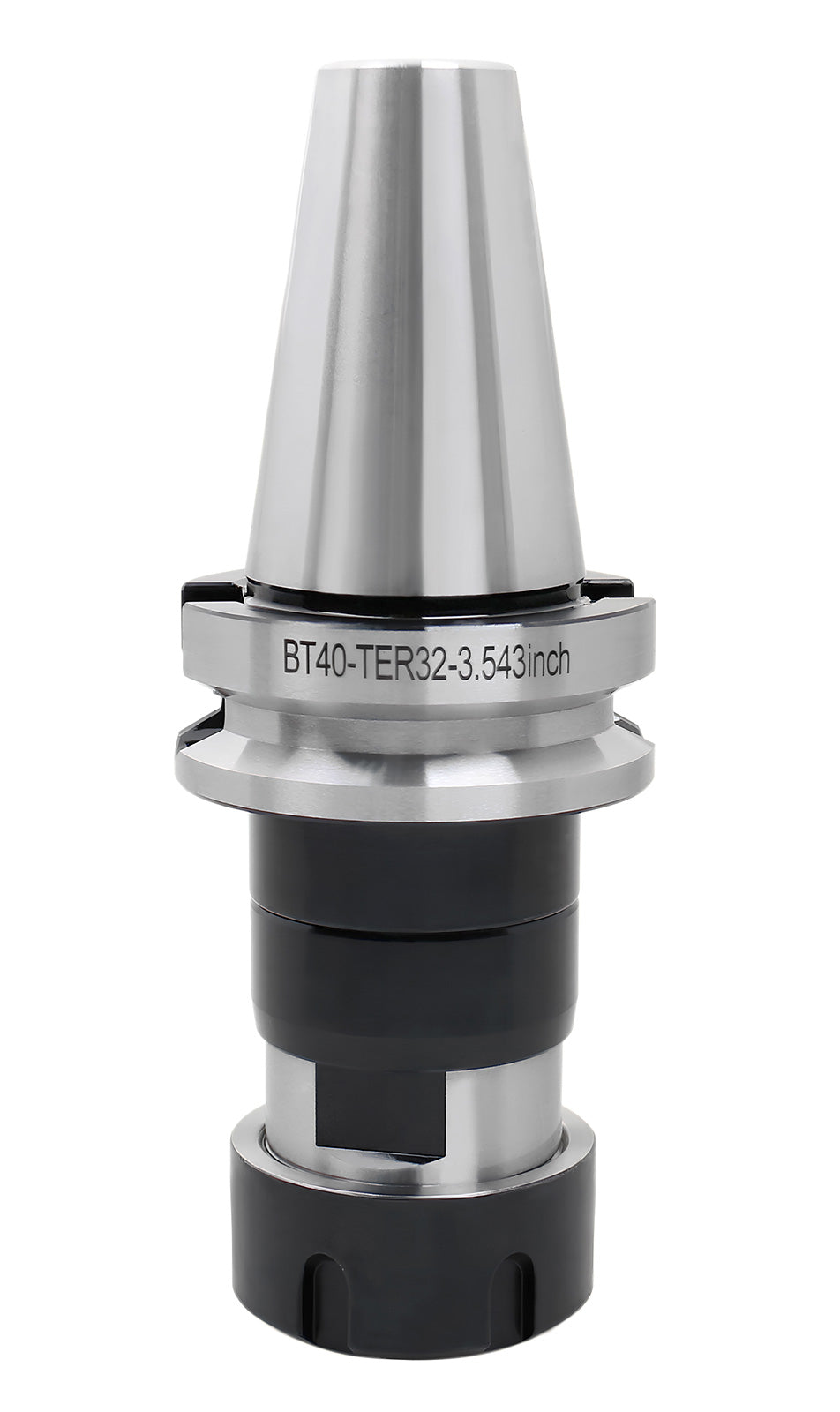

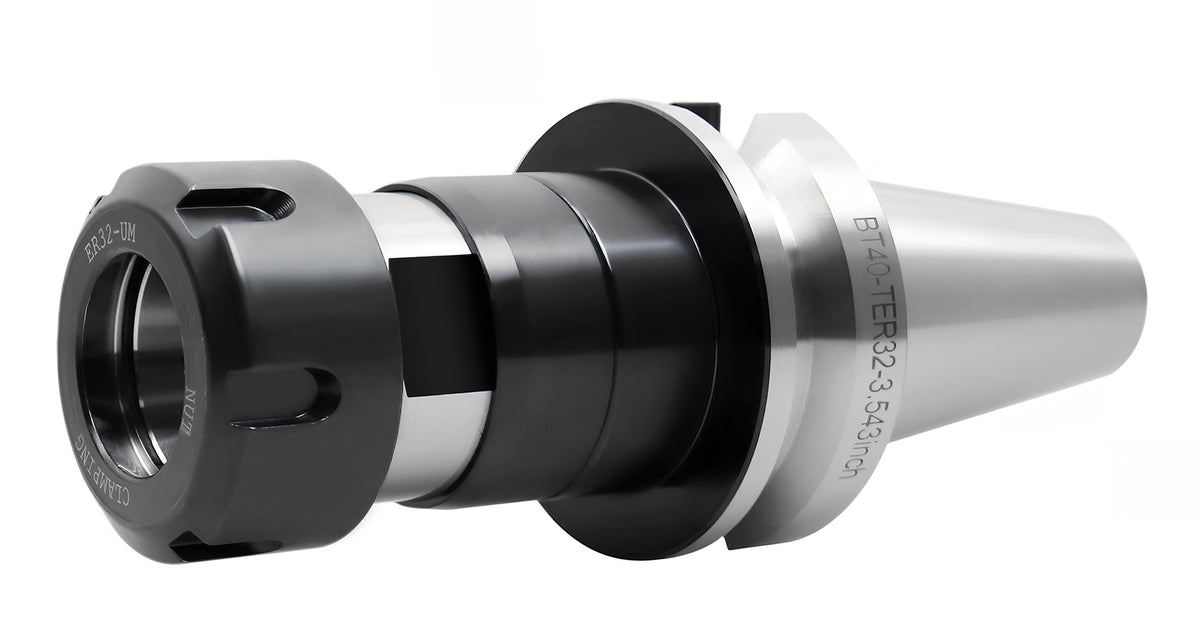

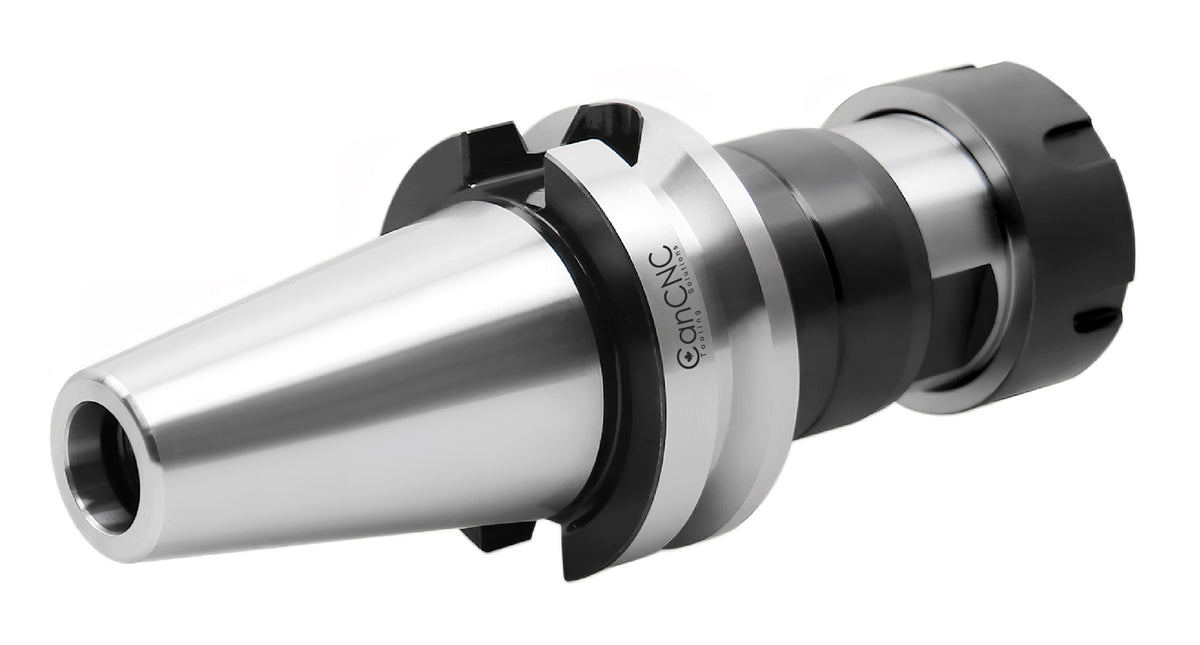

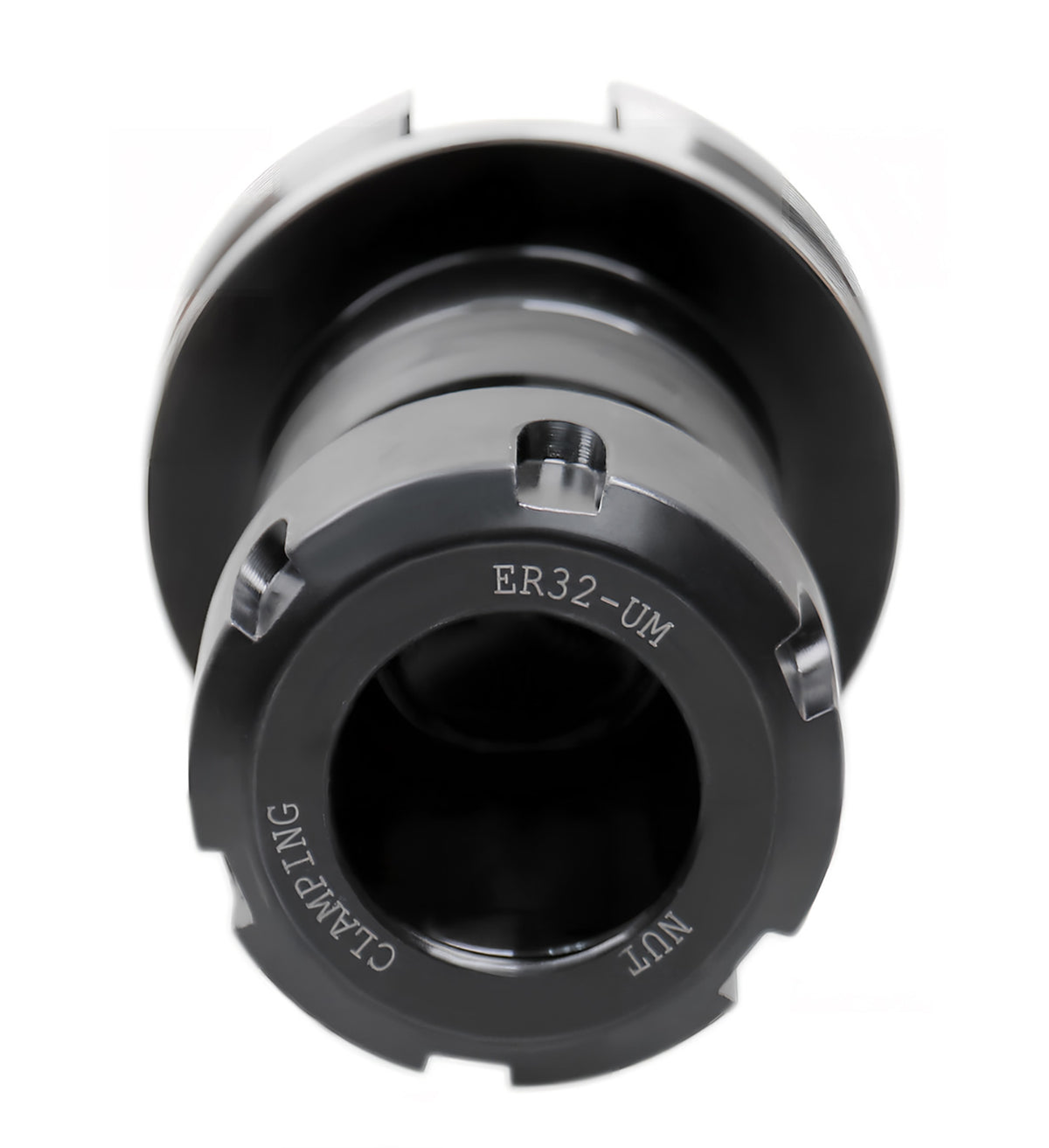

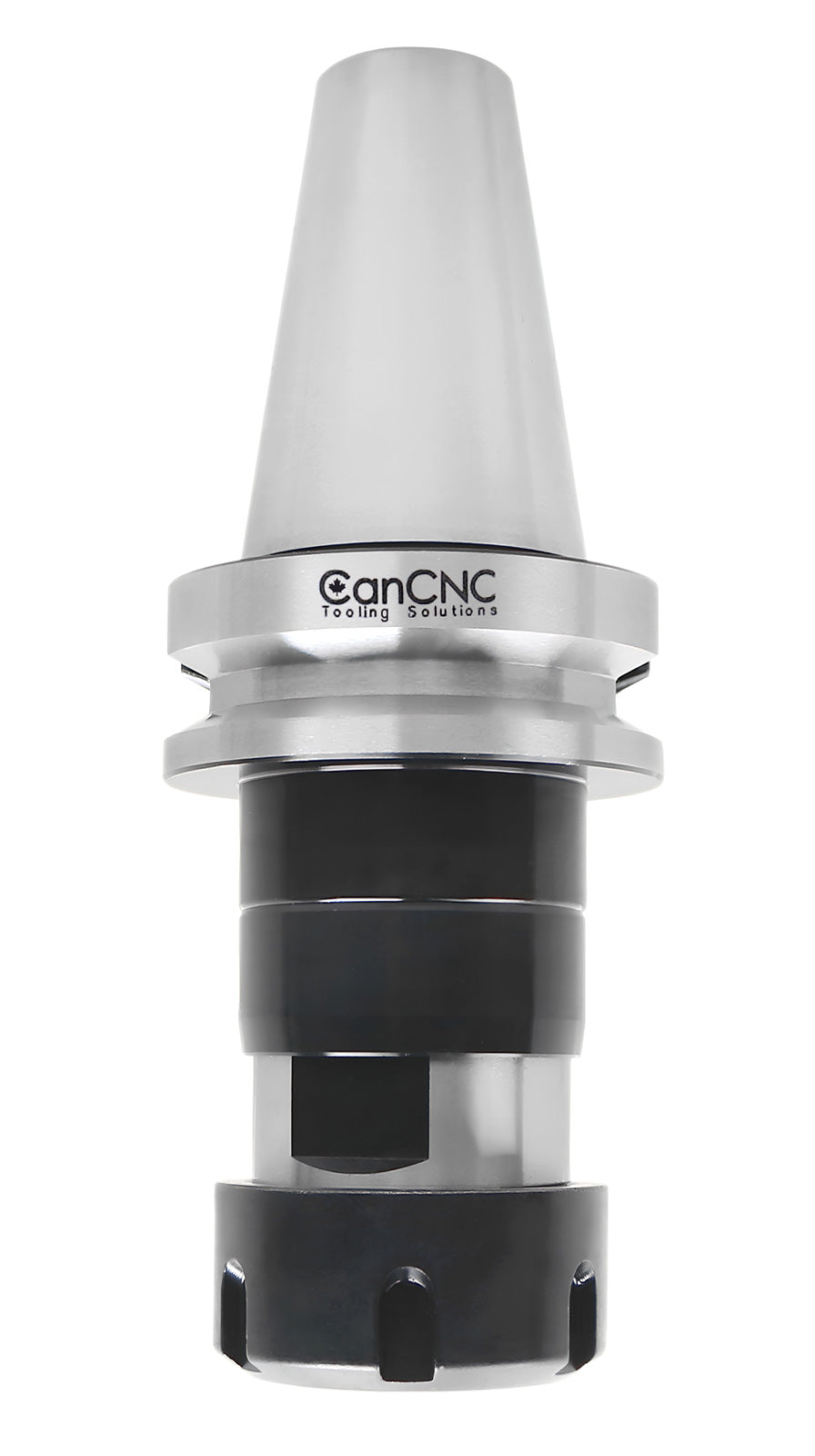

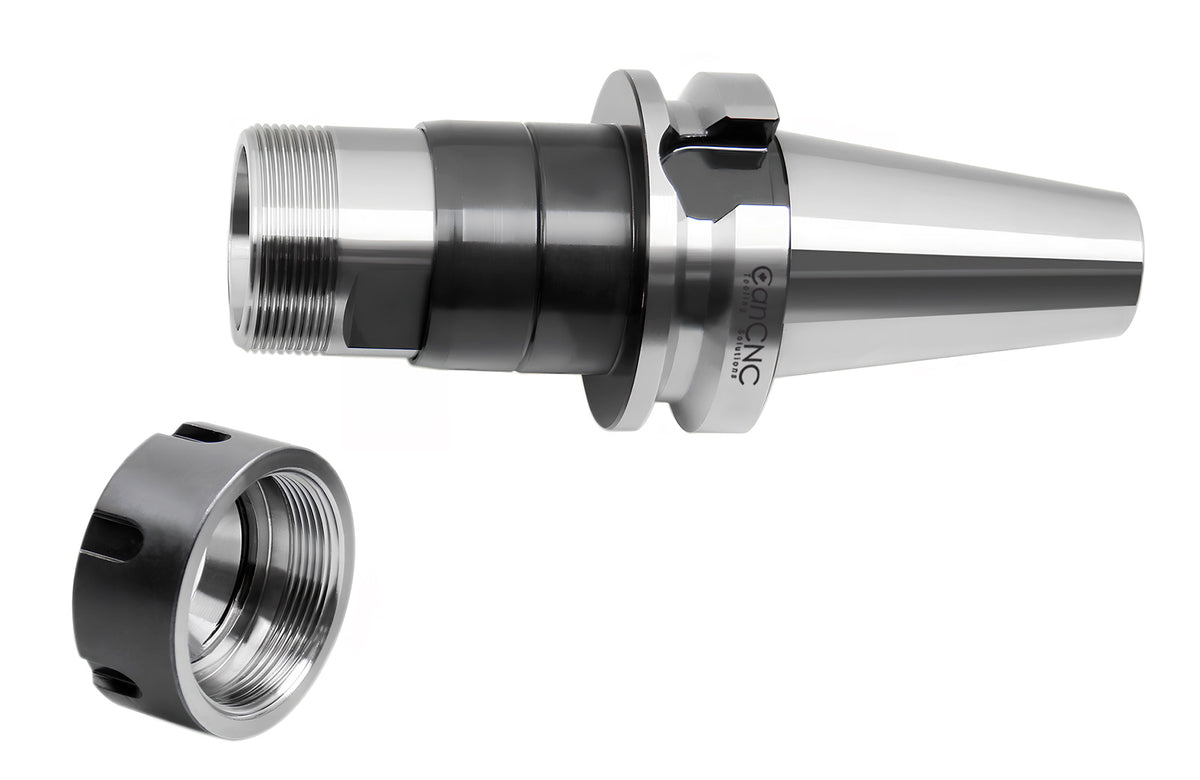

0537-6577 BT40 ER32 1.65" 3.543" 0.197" 0.315" 3.543"

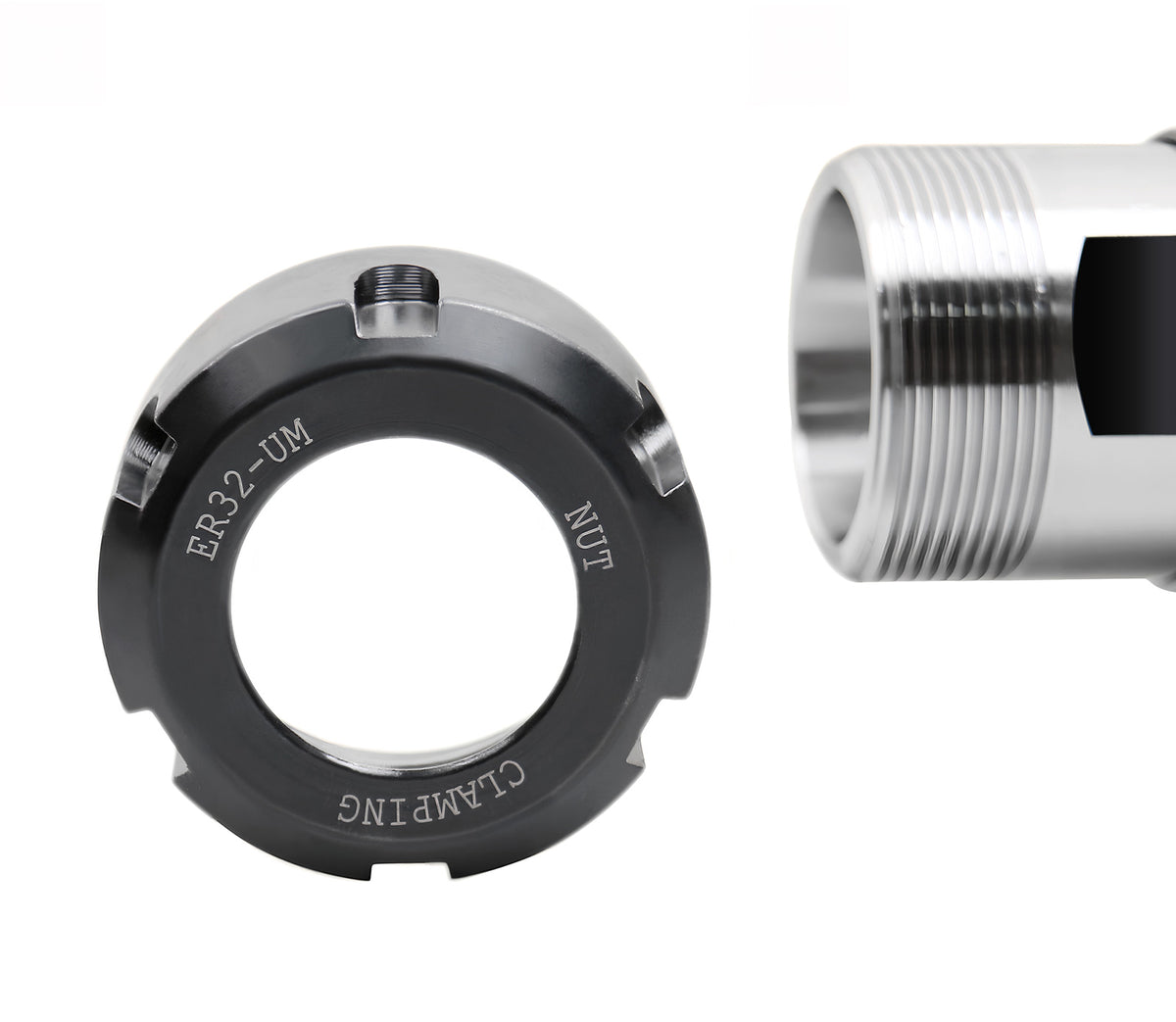

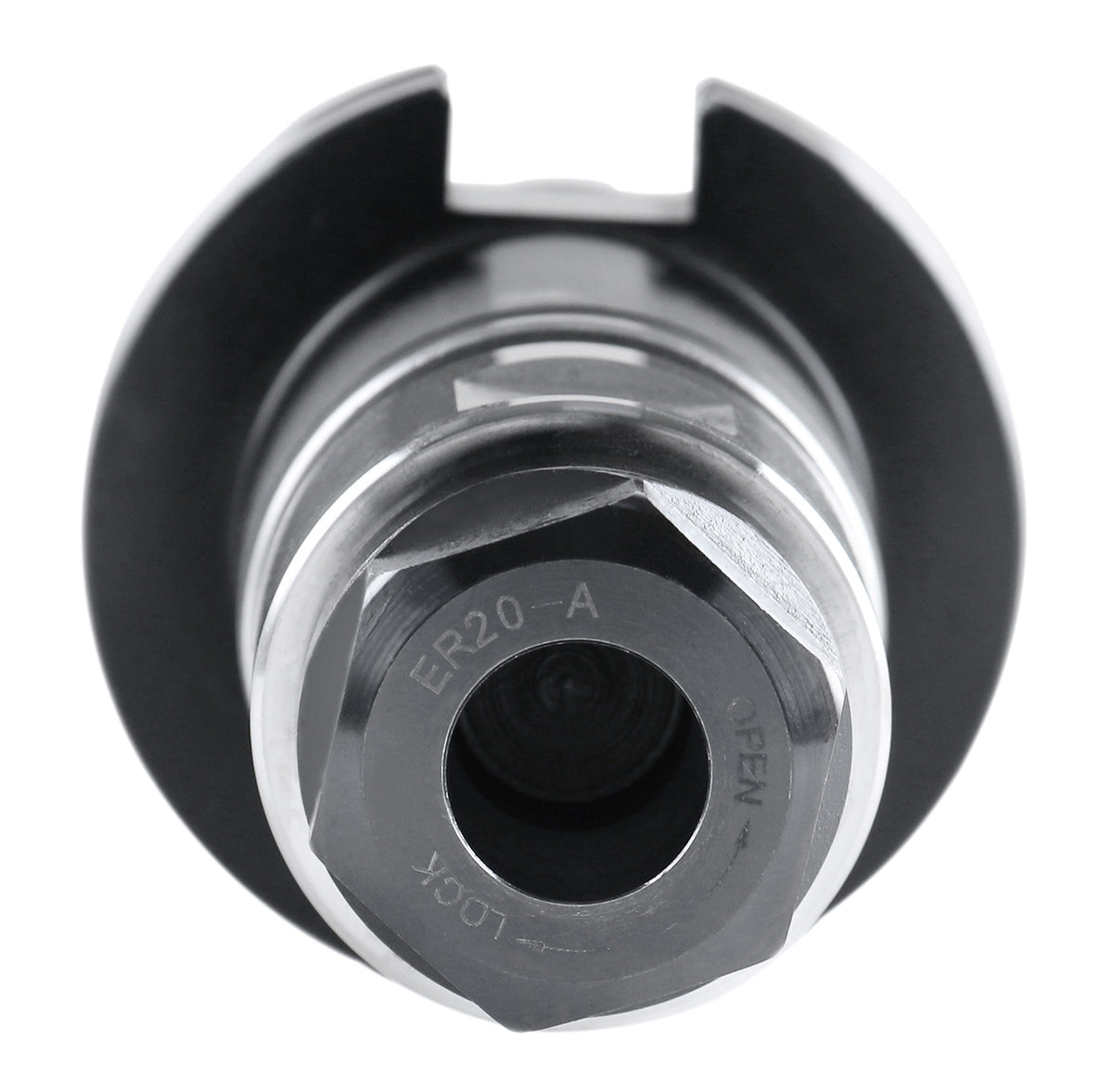

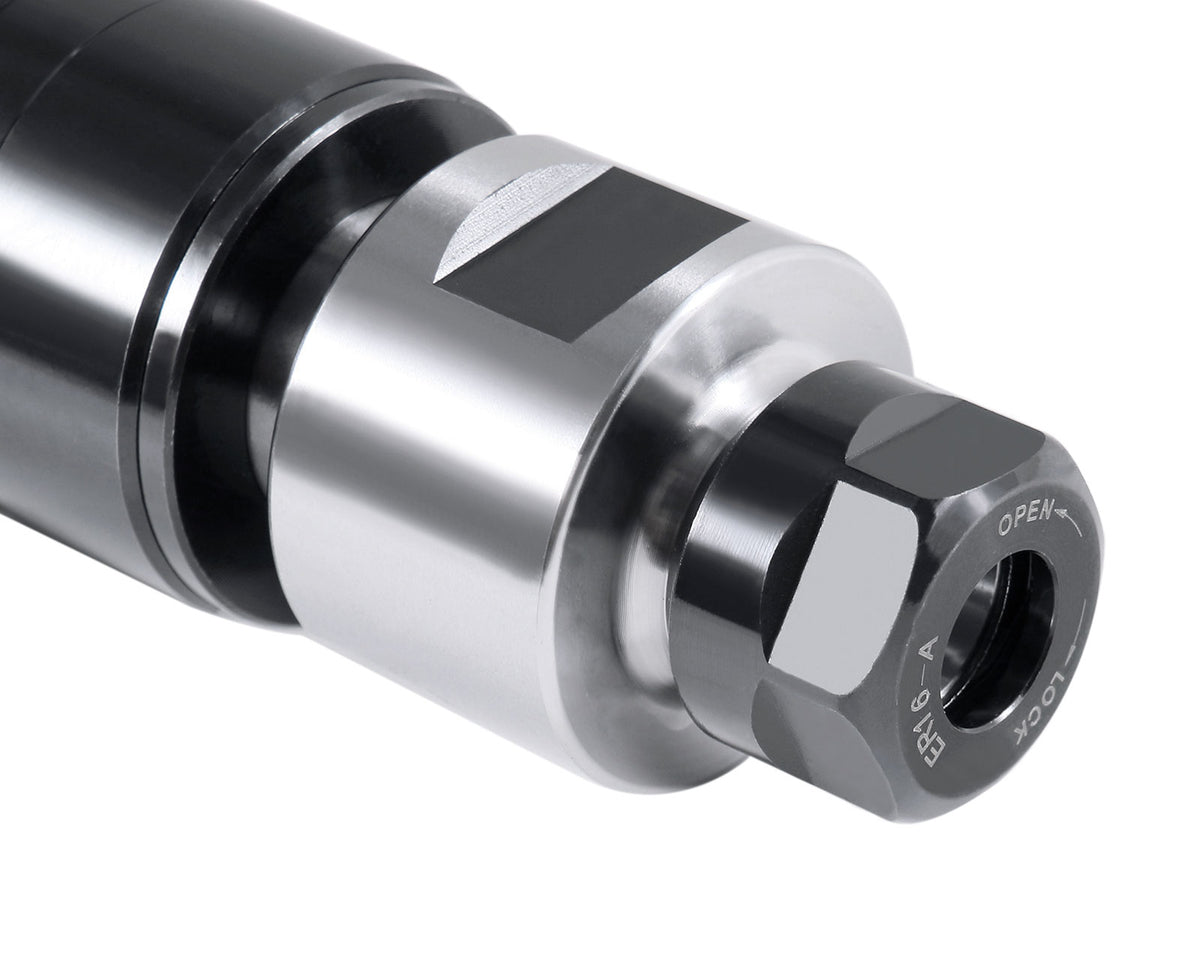

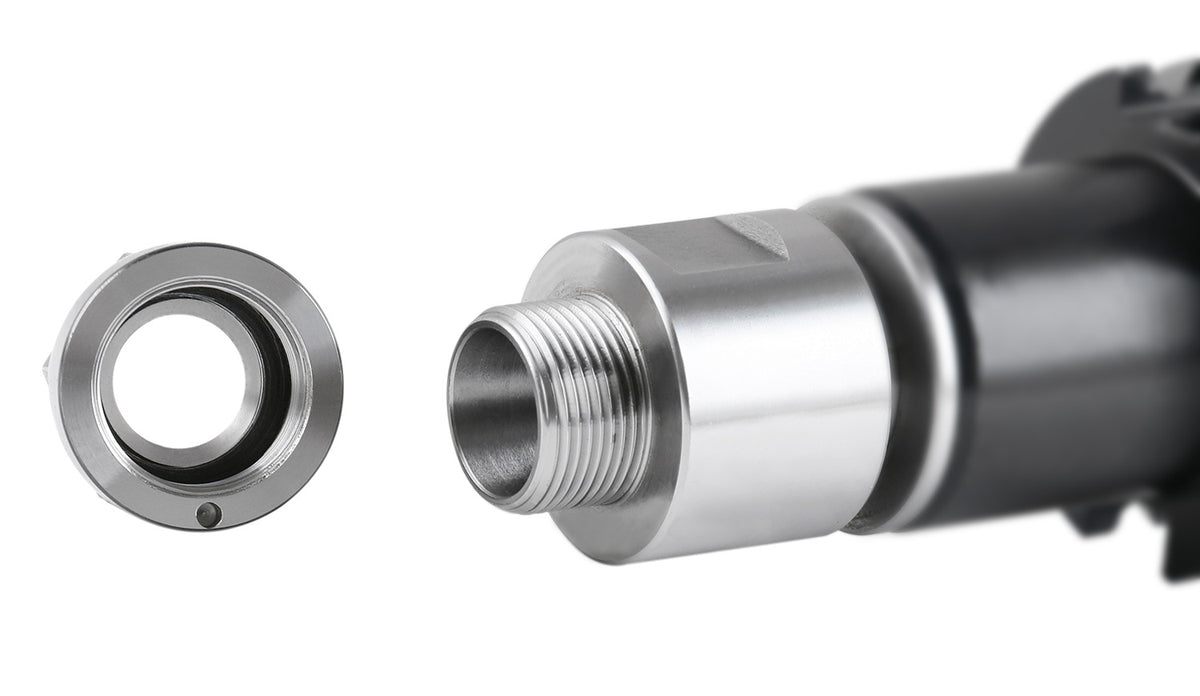

Design, Assemble, and Dissemble of ER Collet Nut

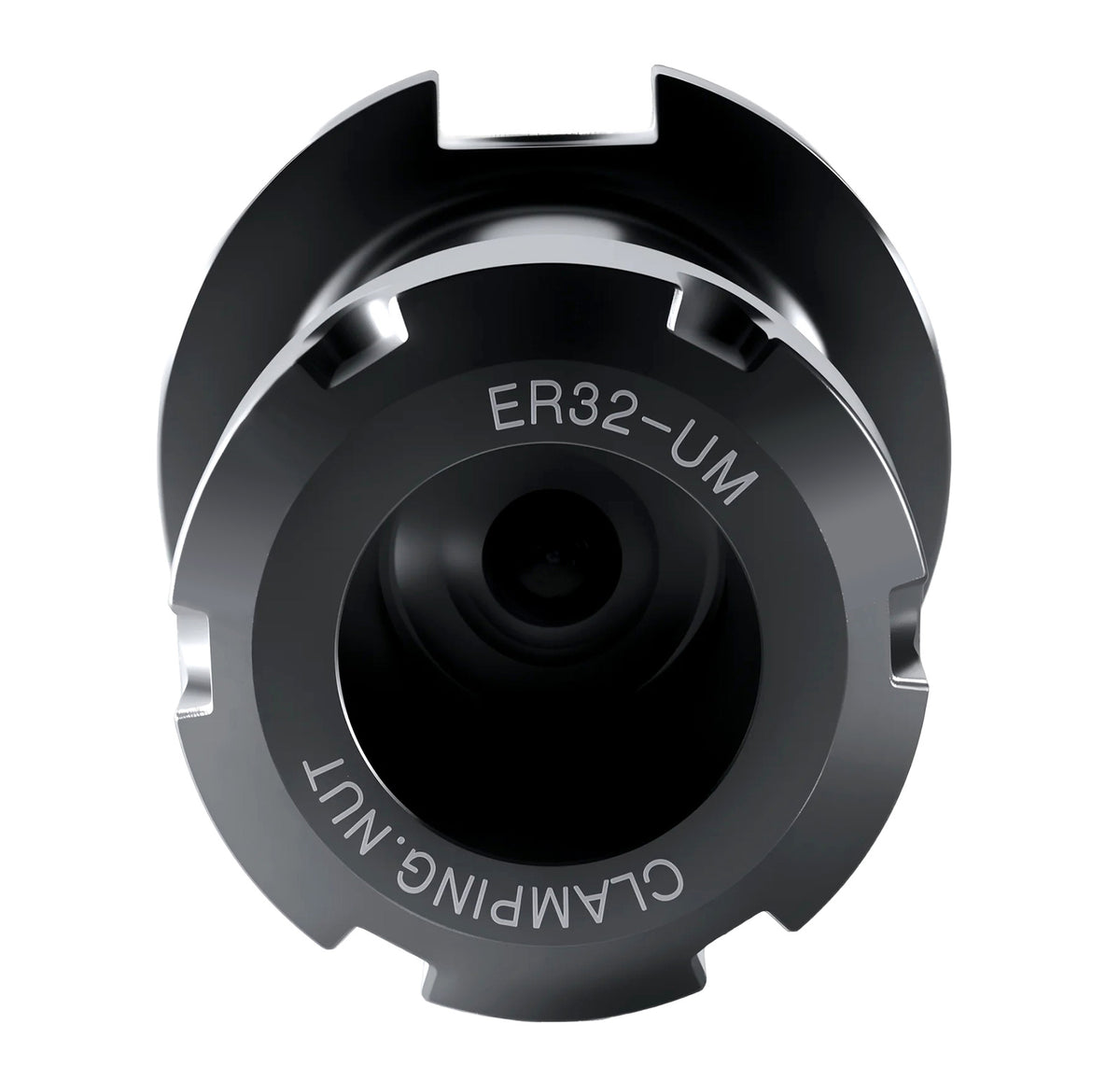

Eccentric Design, ISO 15488:2003(E), Accusize ER Collet Chuck Nut
Assemble Accusize ER Collet Nut
Inspection of Accusize ER Collet Chuck and Nut
Dissemble Accusize ER Collet Nut
Eccentric Design, ISO 15488:2003(E) Assemble Inspection Dissemble
The inside of the ER collet nut is intentionally designed like off-centering to help mount the ER collet much easier. It is in accordance with the requirements listed in ISO 15488:2003(E). If it is made symmetrical, the ER collet with the diameter larger than the inside size of the collet nut cannot be installed. Insert the ER collet into the nut at an angle. Lock it onto the eccentric groove of the collet nut and push it in. (Insert the cutter right after the step, before connect it to the holder/chuck/arbor.)

Inspect the RPM of the ER collet, ER collet nut, ER collet holder/chuck/arbor, etc. Take out the tool bit, press the end of the ER collet until the collet off the position. Push it out of the nut. (after take out the nut out of the holder.)
