Cuttermaster Journeyman JXTR Super Precision Production Package Tool and Cutter Grinder, JXTR-SP

Journeyman Tower – Corner Radius

• Advanced End mill / Tool and Cutter grinder, Lapped ways, leadscrews
• 77mm 350W, 400-4000 RPM variable speed DC motor Zero end play
• Ready-to-run. Includes PS1, Collet set, Journeyman Cam set
• Repeatability .0005
• Digital Read out and Mounted Microscope included
• Super precision Air spindle CM02 .0007 Total clearence less than .0002 Taper run out

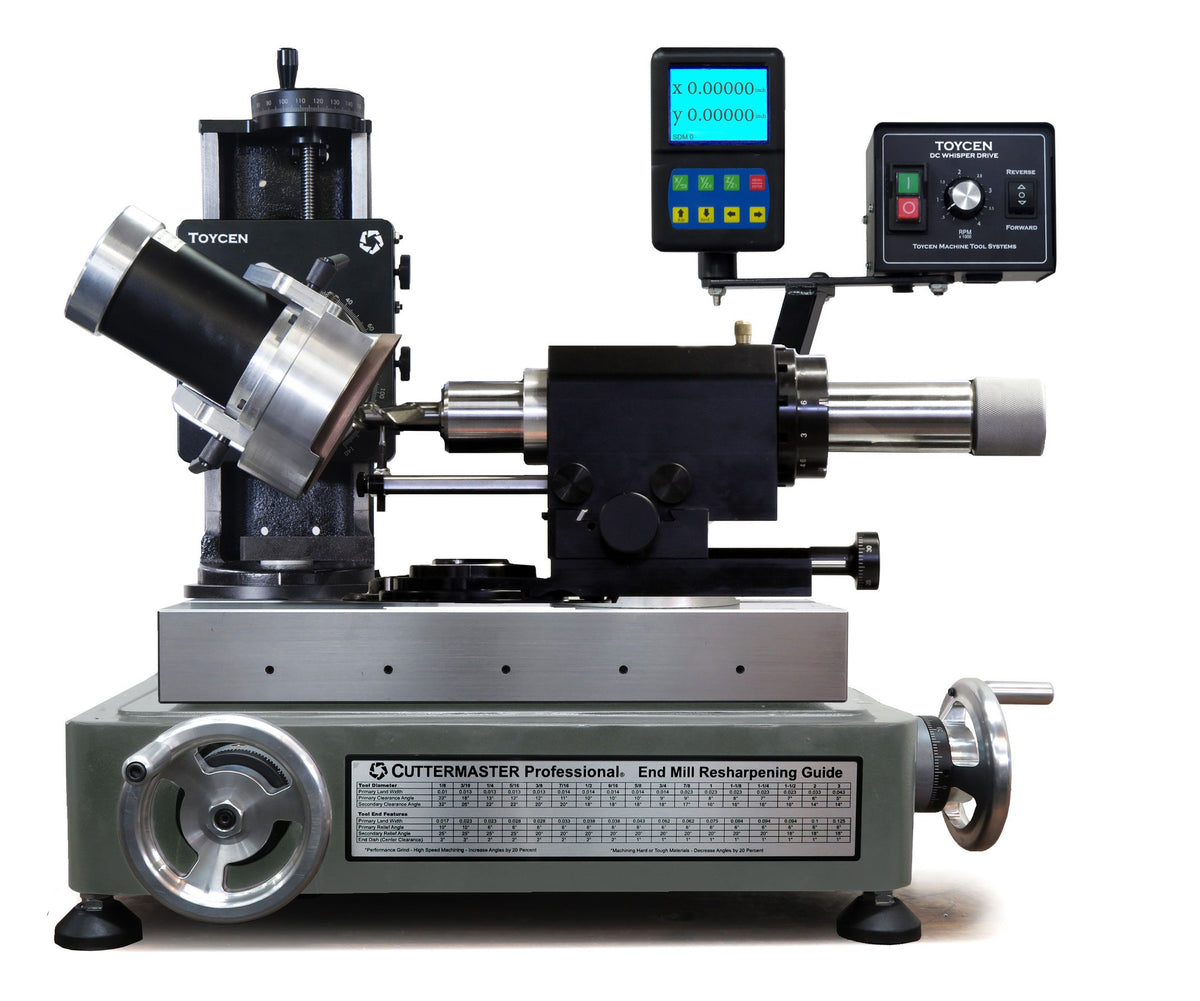

  The CUTTERMASTER Professional Journeyman JXT Toolmaker  is Jeffs favorite Machine Comes with a CM02 Air Spindle , and a CM03P Rad Linear Super precision Radius attachment. The Super precision package has Zero backlash leadscrews lapped in way and gib assemblies,  the standard air spindle has a tightened precision fit of .0004 total clearance in 5.75 inches, cherry picked  for exceptional tolerance.  The super precision CM03P is a radius grinding spindle with a honed oiled sleeve which allows for precision linear travel for grinding short flutes, taps and countersinks, Suitable for work under a microscope the super precision package comes with a full set of cams, a PS1 Wheel kit with Braked wheel dresser.
  Toycen Infinite Single Motor Tower Variable Speed reversing Whisper Drive DC Motor,  Available with a digital readout for X and Y, and Mounted Microscope with optic measuring.  This Machine is designed to support Modern Machine shop requirements.

  The Journeyman JXTR Super precision Benchtop Tool and Cutter Grinder is a state-of-the-art production machine suitable for high volume production environment.
  The Silent DC PWM drive on the reliable CUTTERMASTER base / frame, is compatible with all legacy CUTTERMASTER accessories.
  Easy to set up with the best air spindle on the market (the super presision CM02 features .0007 Total).

  The CM-03P Radius Linear Attachment for bullnose and ball nose corner rads Countersinks,  reamers very precise corner radius capability is built into this spindle,  Indexing collar capable of fast indexing in 7-1/2 degree increments.

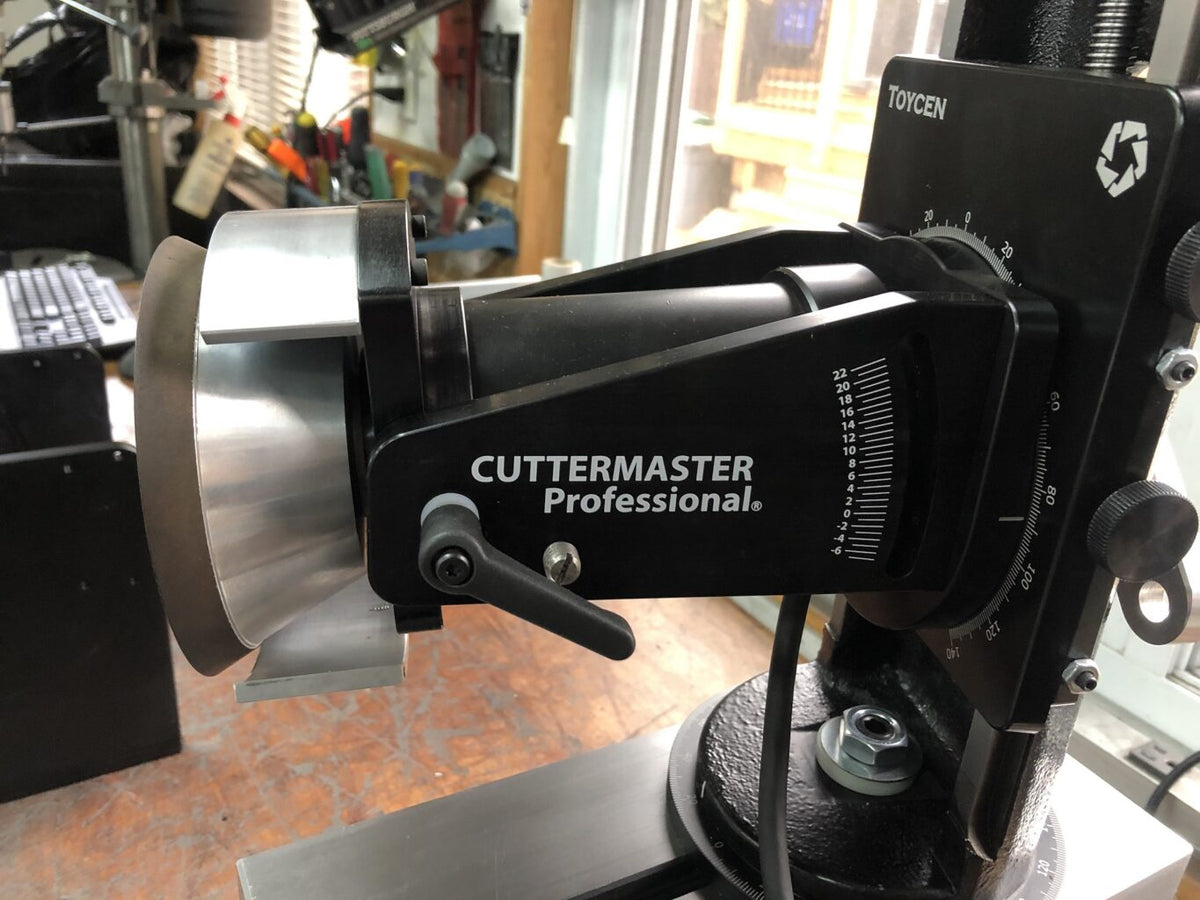

  The Cuttermaster Professional JXT PWM  DC Motor Tower is redesigned with a single wheel, with the Toycen DC whisper drive, designed to complement the Cuttermaster base layout - everything you need to grind ends, flutes. Rads, balls ends, reamers.

  We recommend Resin bond CBN (for high-speed steel tools) and diamond (for carbide) cup wheels to upgrade your sharpening system.

  The Patented Multi-Axis, Torque Compensating DC Motor Head now with a vertical axis, whisper drive helps to eliminate tool burning (and you can hear what you're doing).

  Operations Videos

  • Grind ends and flutes (primary and secondary grinds) 1/8″ to 2″ diameter
  • Grind corner radiuses: bull nose and ball nose, primary and secondary grinds
  • Reduce the neck diameter of your tools
  • Cut off your tools
  • Grind Perfect Weldon flats in your tools (grind set screw flat on carbide end mill shank)
  • End gash your tools
  • Grind annular cutters
  • Cylinder grind small rounds
  • Grind countersinks, step drills, hoggers, finishers, and reamers
  • Mounted Microscope , monitor small feature creation (optical measurement)
  • Sharpen or Modify Carbide Inserts

  Tool GrinderAccessories

  Specifications

  Air Bearing Stroke	6.5 up to 10.5″ (266.7mm)
  Air Bearing Swing Over Table	9.8″ (248.92)
  Cutting Tool Capacity	2″ shank, 9.8″ O.D.
  Flute Length	6.5 " up to 10.5″
  T-Slot Dimension	0.8″ (20.32mm) x 0.5″ (12.7mm) x 0.67″ (17.018mm)
  Table Feed Gradations	0.001″ (0.02mm)
  X-Axis Table Travel	6″ (152.4mm)
  Y-Axis Table Travel	3″ (76.2mm) + sildes back & forth 6″ (152.4mm)
  X-Axis Table Working Space	16.5″ (419.1mm) x 5.5″ (139.7mm)
  Y-Axis Table Working space	13″ (330.2) x 5.5″ (139.7)
  Z- Axis Tower	5″ Travel Dovetail Gib Assembly
  Motor Tilt	+90° -8°
  Motor and Wheel Mount	130V DC 400 watts PM Brushed Commutation 1-1/4 Hub
  Net Weight	180lbs (82Kg)
  Gross Weight	232lb (106Kg)
  Machine Dimensions excluding handles	21″ x 20″ x 21″
  Shipping Dimensions	30″ x 28″ x 29″, 200lbs
