CUTTERMASTER Professional Advanced Tool Maker CM-01P with MK2 Radius Air

CuttermastersSKU: CM-01P

Price:
$7,741.85

Shipping calculated at checkout

Currency:
USD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

Universal Tool Grinder / End mill work station - Grind anything

  • Grind End Mill Flutes, Ends, Rads, End Gash

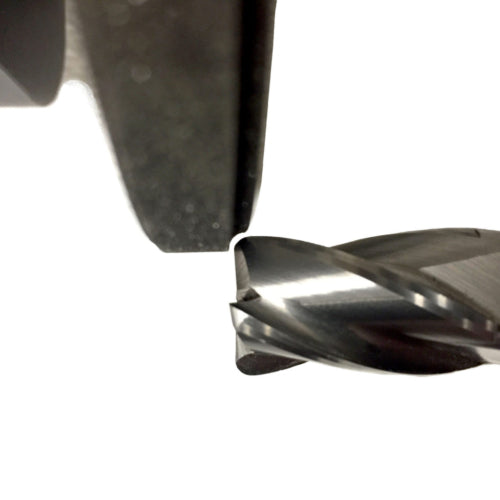

  • Ball Nose, Bull Nose with standard Toycen Radius Air Spindle (patented)

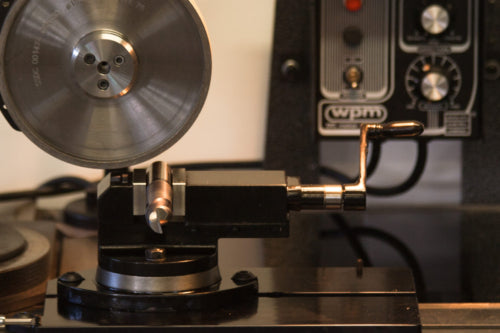

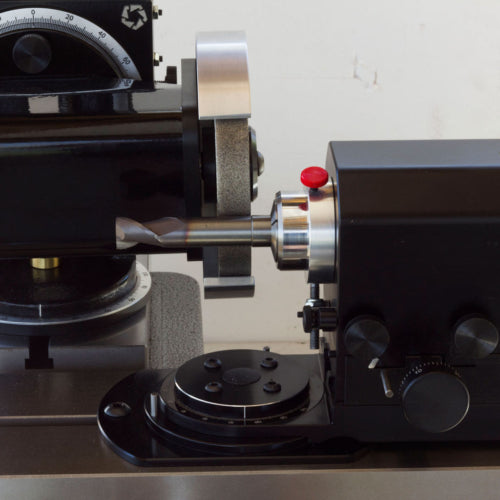

  • Carbide Cut off, Weldon Set Screw Flats, Neck Reduction
  • End Mills up to 2" diameter, Quick and Easy Ends

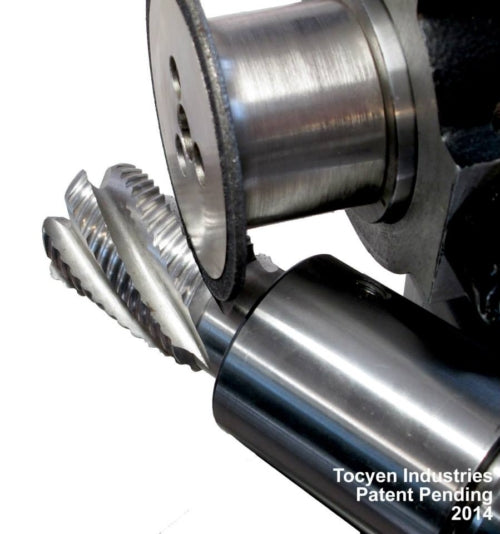

  • Grind Inside Flutes (Hoggers and Large Taps)

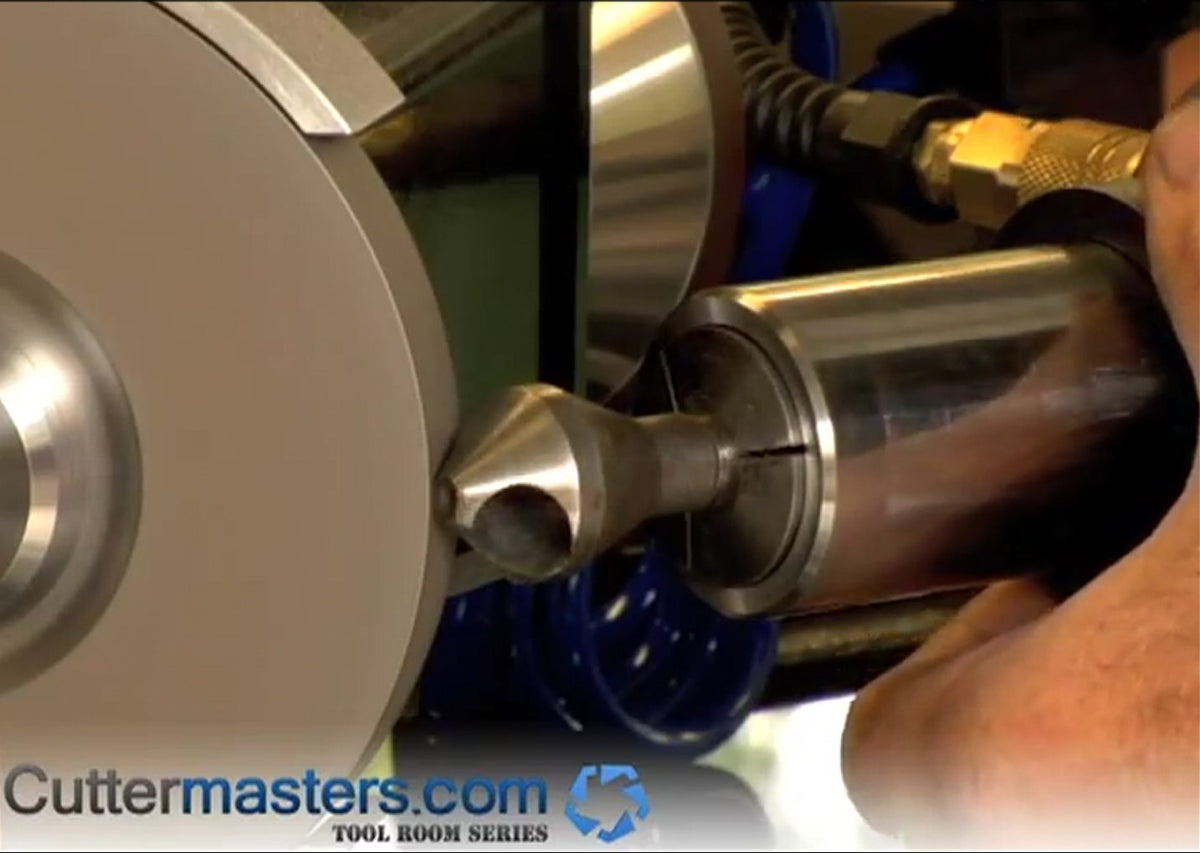

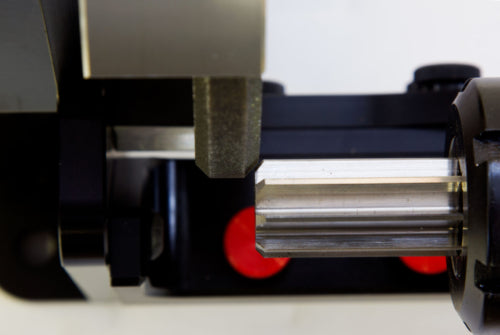

  • Sharpen Reamers and Countersinks
  • Bare machine includes collets and aluminum oxide wheel only.
  • Designed to keep the Machine tables free from grinding sparks and dust
  • Infinitely Variable DC Whisper Drive with Torque Compensation
  • And you can hear yourself think (or that .010 Radius you're grinding)

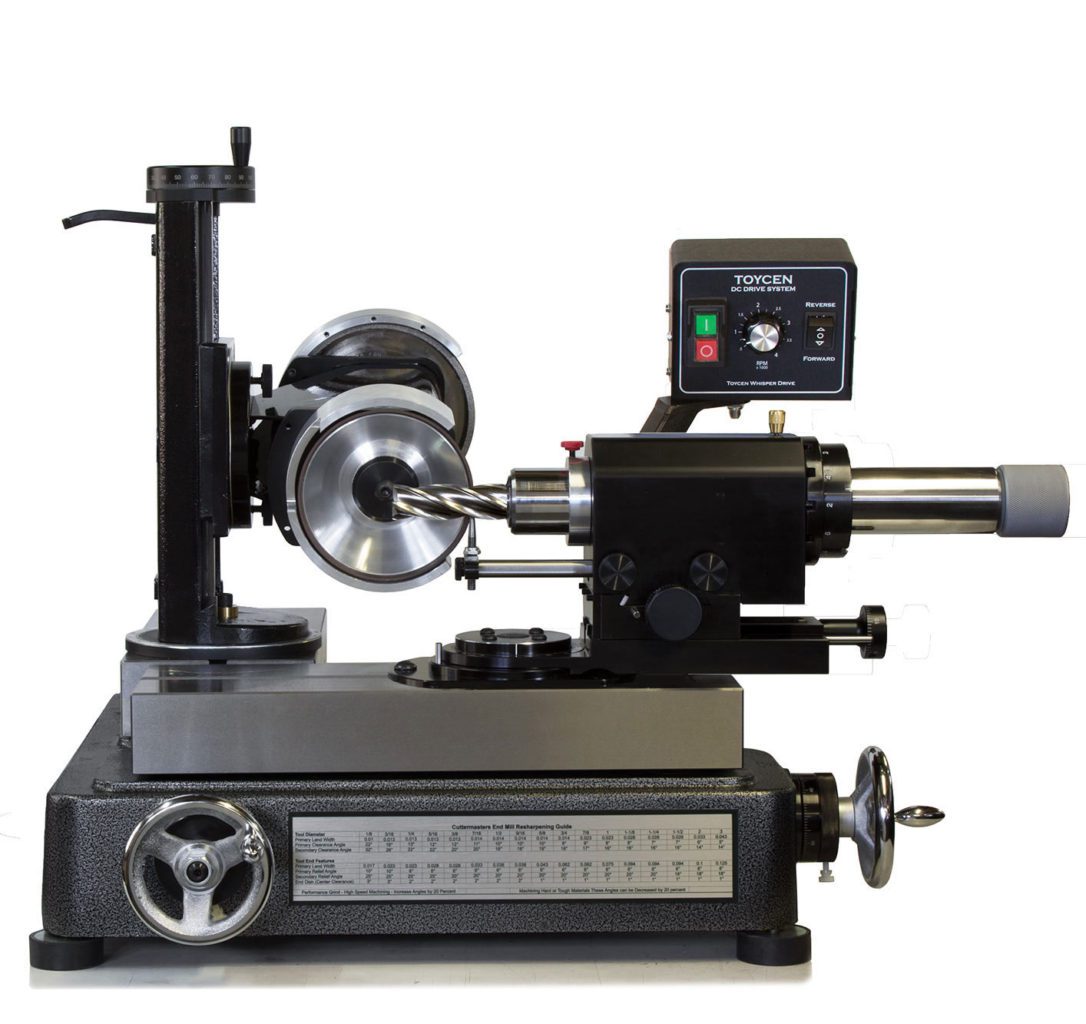

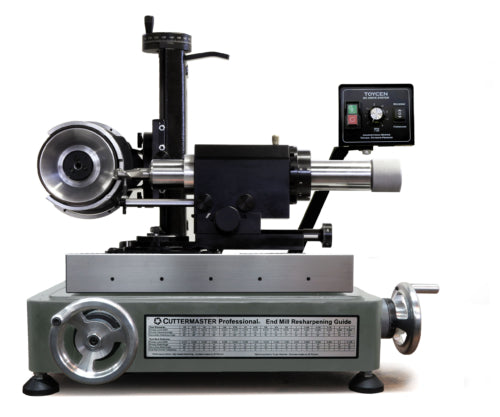

CUTTERMASTER Professional CM-01P

COOL. QUIET. POWERFUL. EASY TO USE

The latest addition to North American Made CUTTERMASTER Professional Tool Grinder line up is unlike anything on the market.

The patented Torque Compensating Twin Spindle DC Drive makes for fast set up and eliminates tool burning.  Easily grind ends and flutes of end mills as well as countersinks, reamers, annular cutters, side and face cutters, Grind Weldon flat, step drills, create T cutters from regular end mills.
The z-axis motor tower allows the operator to easily grind the end gash in end mills as well as grind the flutes of hoggers and taps – operations that are usually much more complex on other grinders.

The Patented Toycen Radius Air has a unique Tapered Step  Air spindle Bushing which can be replaced if needed after years of service (unlike any other or CUTTERMASTER tool grinders) Instead of having to replace the whole spindle assembly.

This item is the bare machine, meaning it comes complete with our collet set and only one aluminum oxide wheel.

Packing list:

  • Cuttermaster Universal Base, Lapped Fit Gibs
  • Toycen MK2 Radius Air Spindle, Advanced Indexing
  • Toycen Variable Speed, Reversing Infinite Twin DC Motor Tower and Control,
  • Y Axis Tool Clearance retract
  • Center Finder for Radius Grinding,
  • Maintenance Tool Set,
  • Operators Manual, Book on End Mills.

If you require grinding wheels we recommend one or two of our CBN (for high speed steel tools) and diamond (for carbide) cup wheels, and a CBN or diamond face wheel. Or choose one of our Production Support Packages which is a great deal on cup wheels, wheel truing device, and/or countersink and step drill cams and a plated face wheel.



CM-01P TOOL AND CUTTER GRINDER SPECIFICATIONS

Air Bore/ Fit / Straight 1.875 Dia ,.0004 Total Clearance .0001 Straight 12 in.
Air Bearing Stroke Over Table 8″ (248.92)
Cutting Tool Capacity 2″ shank, 9.8″ O.D.
Flute Length 8.5″
T-Slot Dimension 0.8″ (20.32mm) x 0.5″ (12.7mm) x 0.67″ (17.018mm)
Table Feed Gradations 0.001″ (0.02mm)
X-Axis Table Travel 6″ (152.4mm)
Y-Axis Table Travel 3″ (76.2mm) + sildes back & forth 6″ (152.4mm)
X-Axis Table Working Space 16.5″ (419.1mm) x 5.5″ (139.7mm)
Y-Axis Table Working space 13″ (330.2) x 5.5″ (139.7)
Z -Axis Tower  Twin Spindle DC Motor 8 inches Vertical Travel Infinate Positioning
Motor Tilt  Tower  infinate   Infinate Rotation
Motor, DC Drive 110v 60 HZor 220v 50 HZ Twin Spindle 400 watt 130V DC 400 to 4000 RPM
Net Weight 188lbs (82Kg)
Gross Weight 232lb (106Kg)
Machine Dimensions excluding handles 21″ x 20″ x 21″
Shipping Dimensions 30″ x 28″ x 29″
