Dial Indicators – AGD2 Style & Large-Dial Models


Price:
$46.87

Shipping calculated at checkout

Currency:
USD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

  • Dial Indicators

    • AGD2-style models with a nominal 60 mm bezel, except P900-S104 and P900-S105, which feature a nominal 80 mm bezel.
    • Rotating bezel with clamp for easy zero setting.
    • Interchangeable hardened contact point.
    • Satin chrome finish.
    • Lug back with a 1/4" mounting hole, except P900-S095.

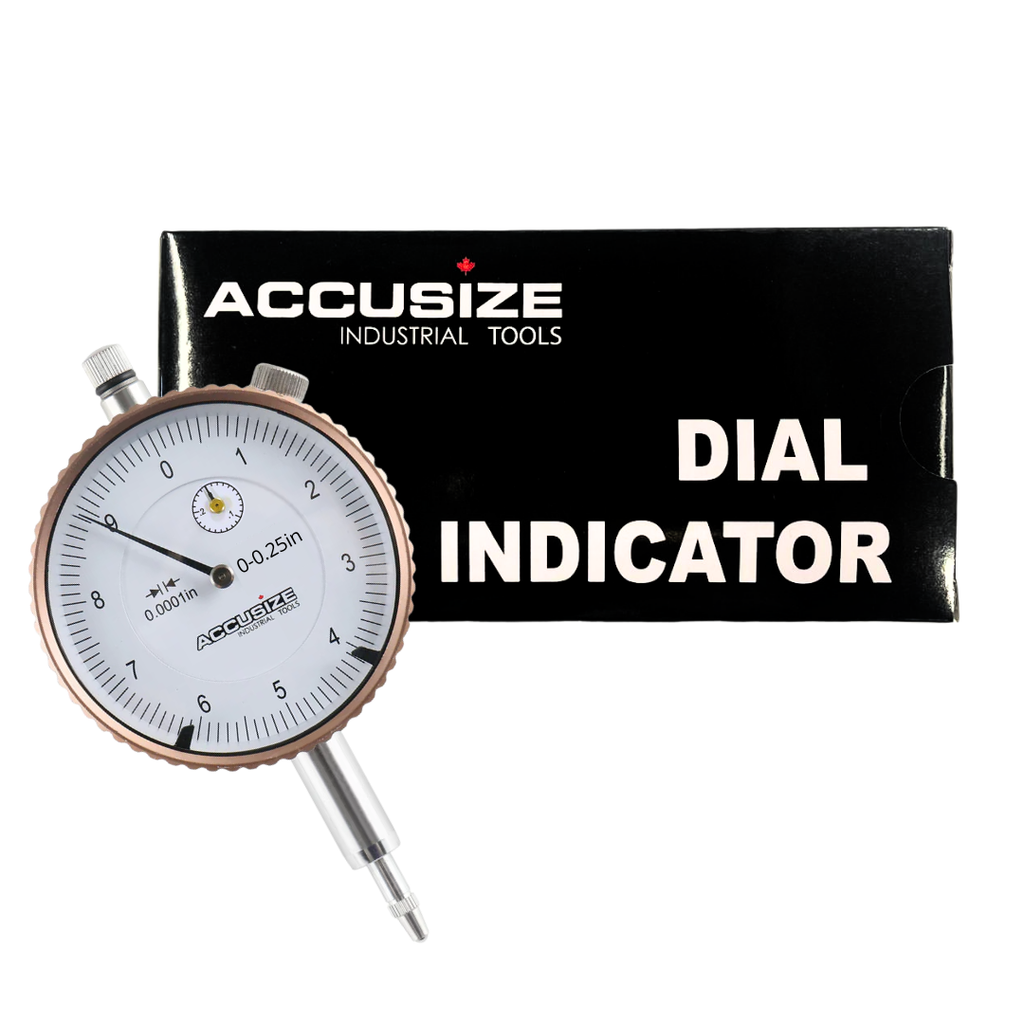

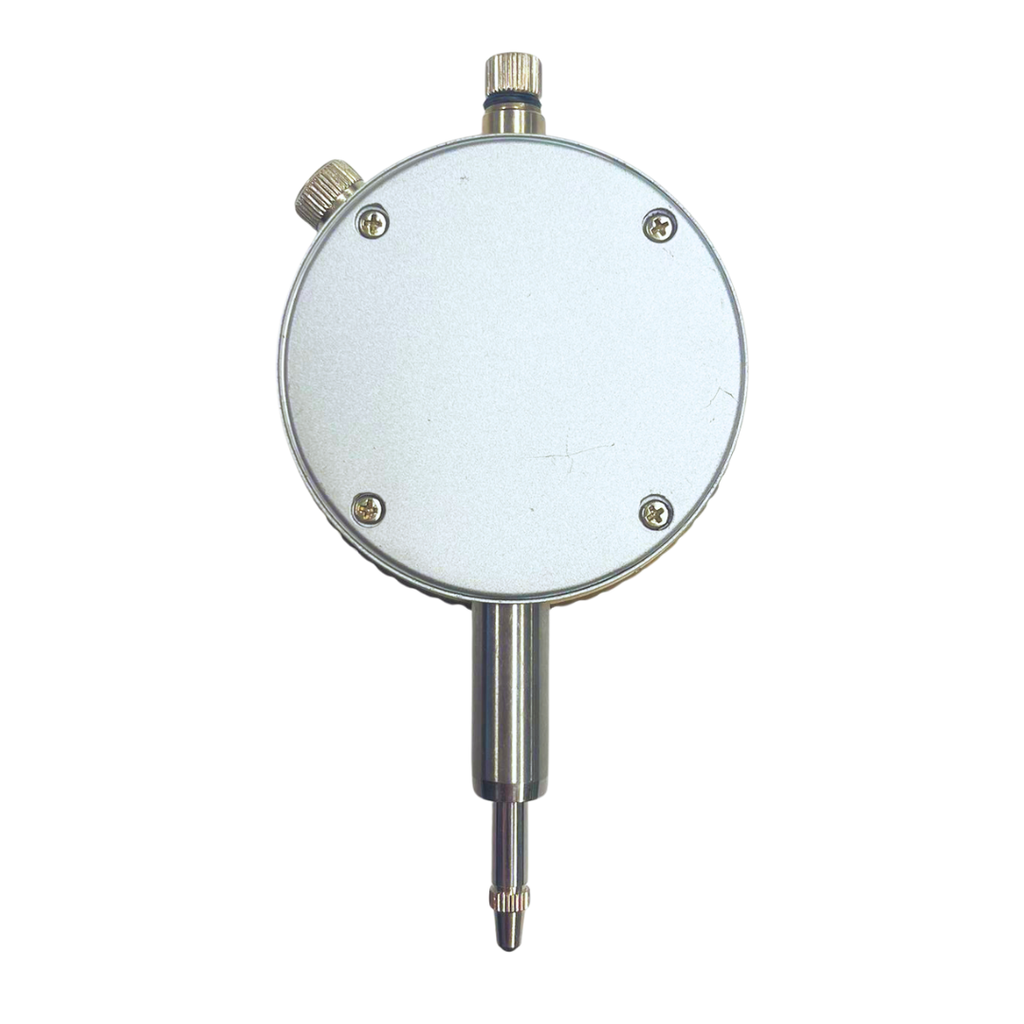

    • P900-S095 is supplied with a plain back and a 3/8" stem.

    Magnetic Back Compatibility

    The optional EG08-1605 magnetic back is compatible with all models listed below except P900-S104 and P900-S105. These two models have larger 69.5 mm backs and are not compatible with EG08-1605. Magnetic back sold separately.

    Model Specifications

    Item Range Graduation

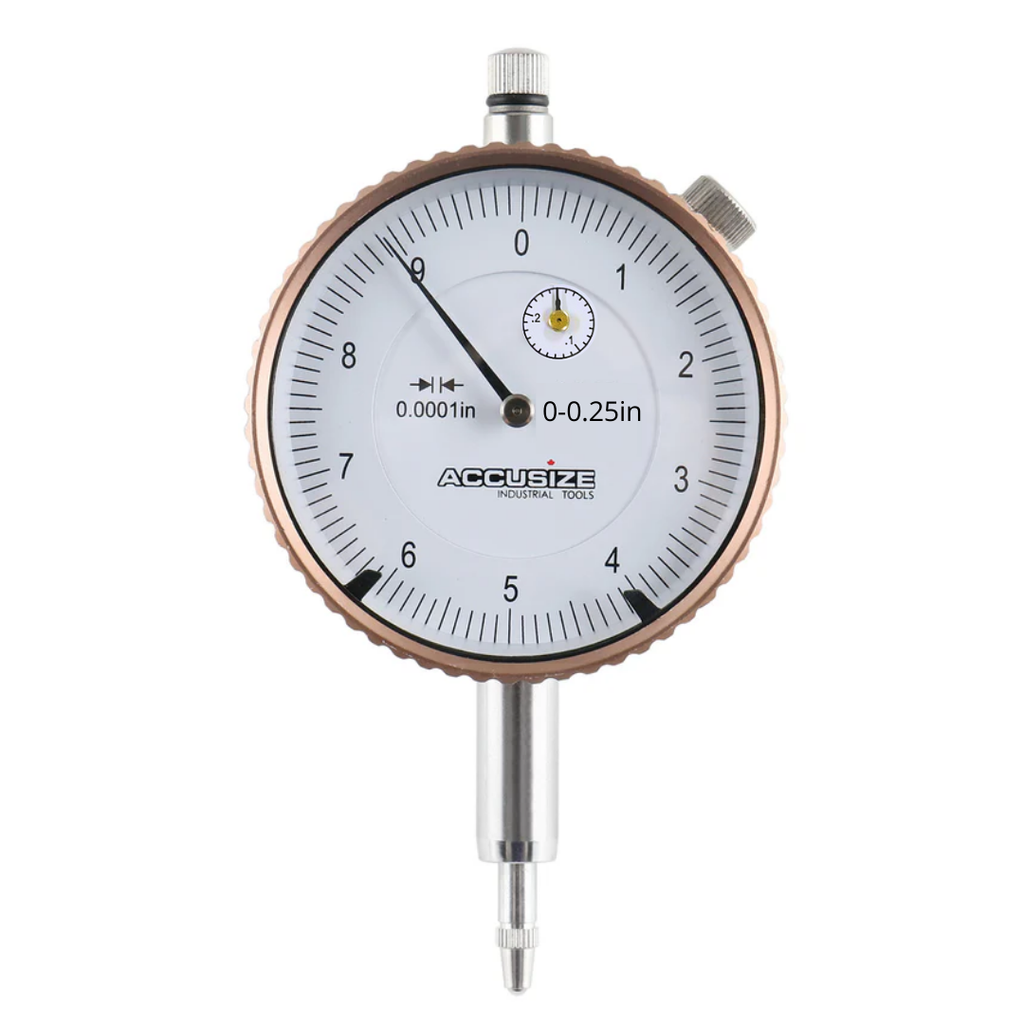

    P900-S095 0–0.25" 0.0001"
    P900-S097 0–0.05" 0.0001"
    P900-S098 0–0.25" 0.0005"
    P900-S099 0–1" 0.0005"
    P900-S100 0–0.25" 0.001"
    P900-S101 0–0.5" 0.001"
    P900-S102 0–1" 0.001"
    P900-S103 0–2" 0.001"
    P900-S112 0–2" 0.0005"
    P900-S104 0–3" 0.001"
    P900-S105 0–4" 0.001"
    P900-S001 0–10 mm 0.01 mm

    Mounting & Compatibility

    Bezel diameter is the outside diameter of the bezel. Diameter values are nominal and are given in millimetres.

    Item Bezel Ø (mm) Back Ø (mm) Back Type EG08-1605
    P900-S095 60 53 Plain back Compatible
    P900-S097 60 53 Lug back Compatible
    P900-S098 60 53 Lug back Compatible
    P900-S099 60 53 Lug back Compatible
    P900-S100 60 53 Lug back Compatible
    P900-S101 60 53 Lug back Compatible
    P900-S102 60 53 Lug back Compatible
    P900-S103 60 53 Lug back Compatible
    P900-S112 60 53 Lug back Compatible
    P900-S104 80 69.5 Lug back Not compatible
    P900-S105 80 69.5 Lug back Not compatible
    P900-S001 60 53 Lug back Compatible

    P900-S001 has a stem diameter of 0.315" (approximately 8 mm).

    Dimensions:

    Item Range Graduation A B
    P900-S095 0-0.25" 0.0001" 4.25"  0.70"
    P900-S097 0-0.05" 0.0001" 4.25" 0.70"
    P900-S098 0-1/4" 0.0005" 4.25" 0.70"
    P900-S099 0-1" 0.0005" 4.95" 1.45"
    P900-S100 0-1/4" 0.001" 4.25" 0.70"
    P900-S101 0-1/2" 0.001" 4.48" 0.97"
    P900-S102 0-1" 0.001" 4.95" 1.45"
    P900-S001 0-10mm 0.01mm 116mm 25mm



    * Stem length of #P900-S001 is 0.780'' and the diameter is 0.315''.

    Item Range Graduation A B
    P900-S112 0-2" 0.0005" 10.23" 2.4"
    P900-S103 0-2" 0.001" 10.23" 2.4"
    P900-S104 0-3" 0.001"
    P900-S105 0-4" 0.001"  -
