MDJN R/L Toolholders with Extra DNMG-432 Carbide Inserts

Accusize Industrial ToolsSKU: 2302-6020INS

Price:
$108.90

Shipping calculated at checkout

Currency:
USD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

MDJN R/L Toolholders with DNMG432 Carbide Inserts

  • 3° side cutting edge angle
  • For turning, facing and copying
  • Accept negative 55° diamond DNMG DNMA inserts
  • With 10 pcs of DNMG432 Carbide Inserts

Item

SKU#

Right/Left Hand

Tool holder

(SKU#)

Shank Square (A & B) F

OAL
(C)

Inserts Finger Clamp Clamp Screw Locking Pins Shims

Inserts

(SKU#)

I.C. T

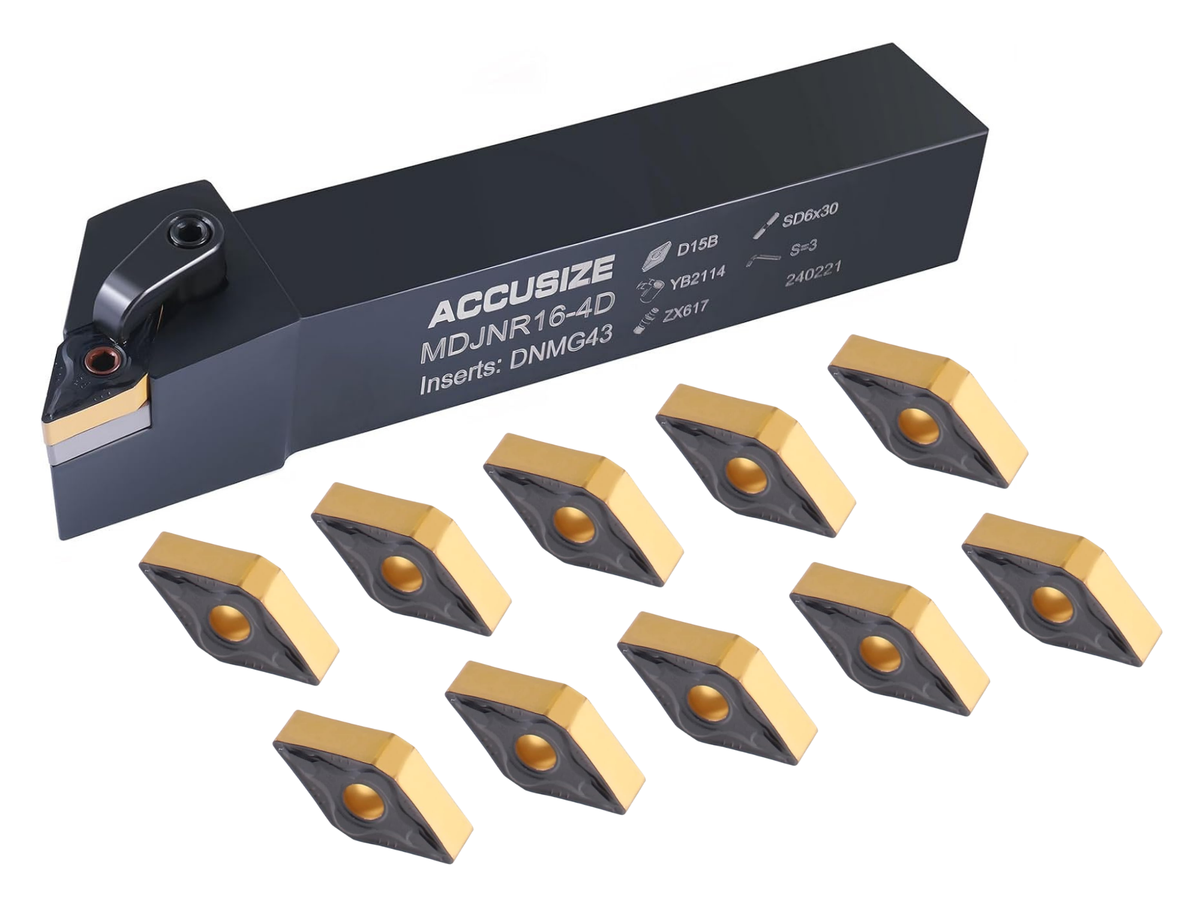

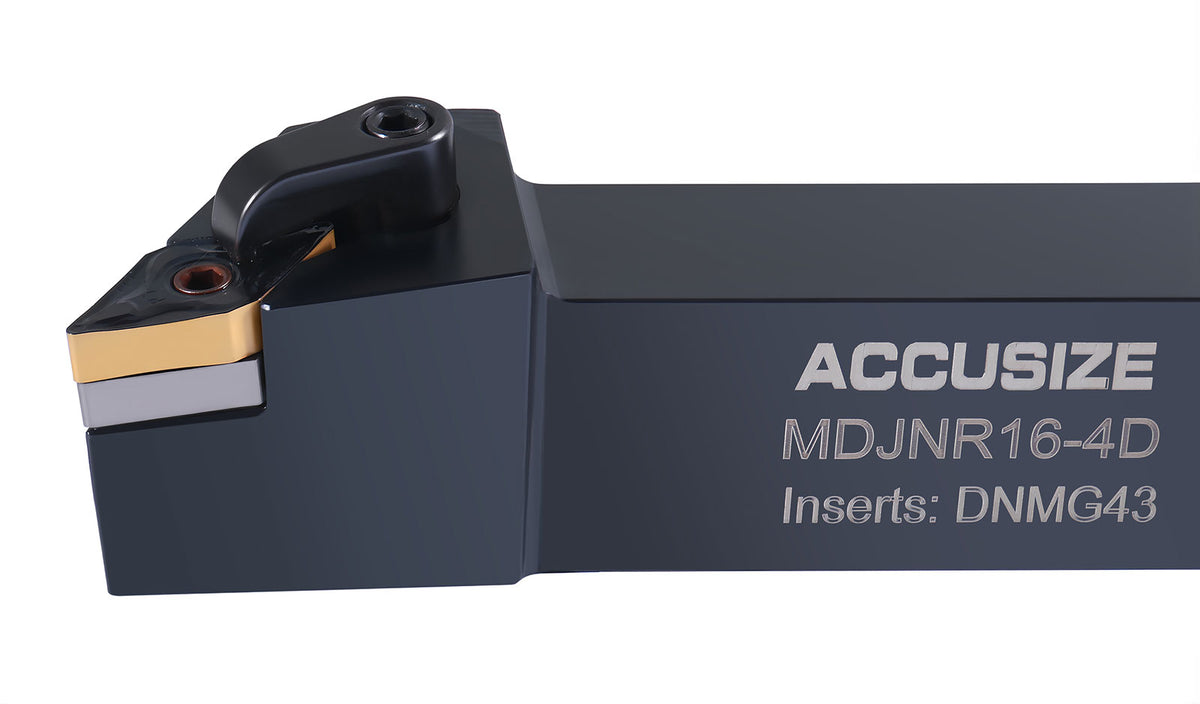

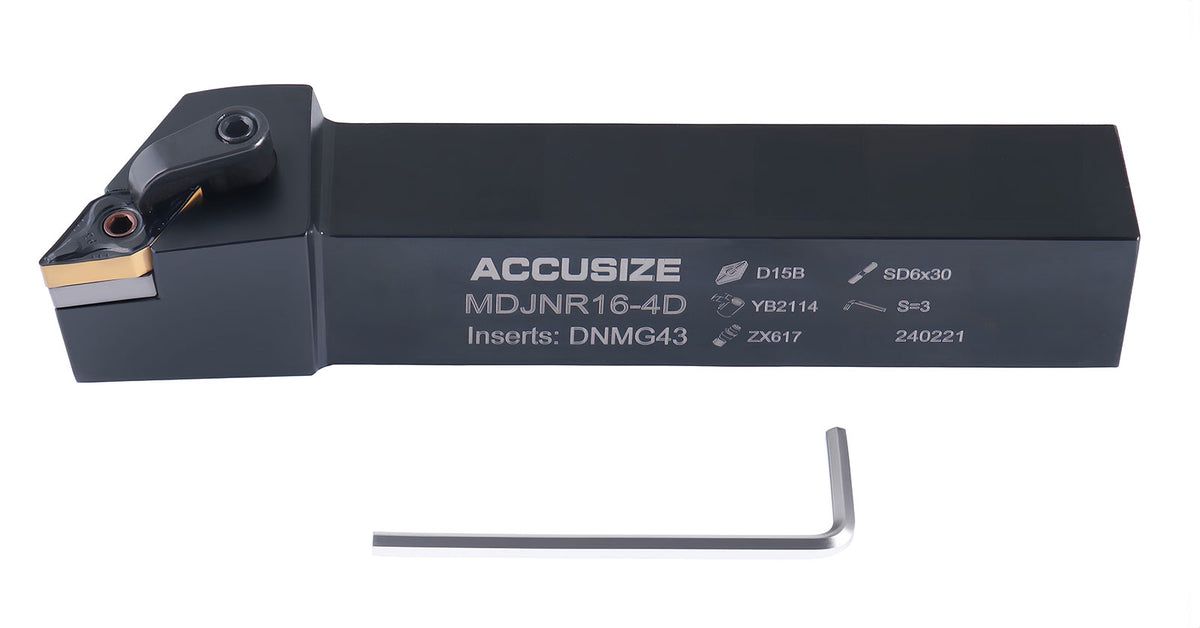

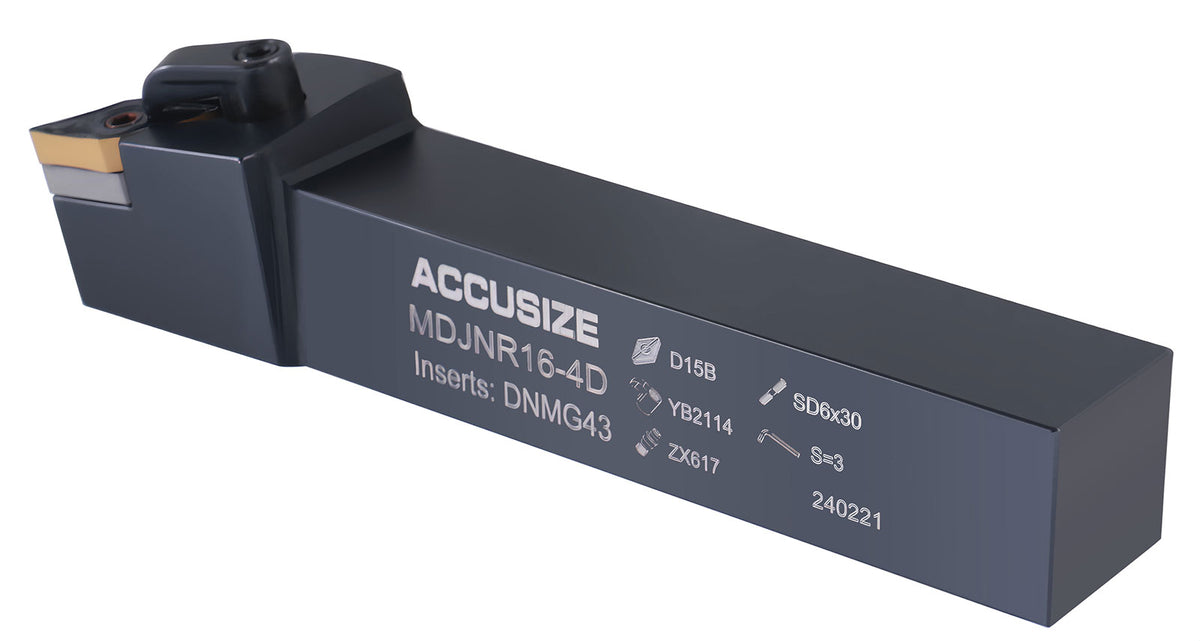

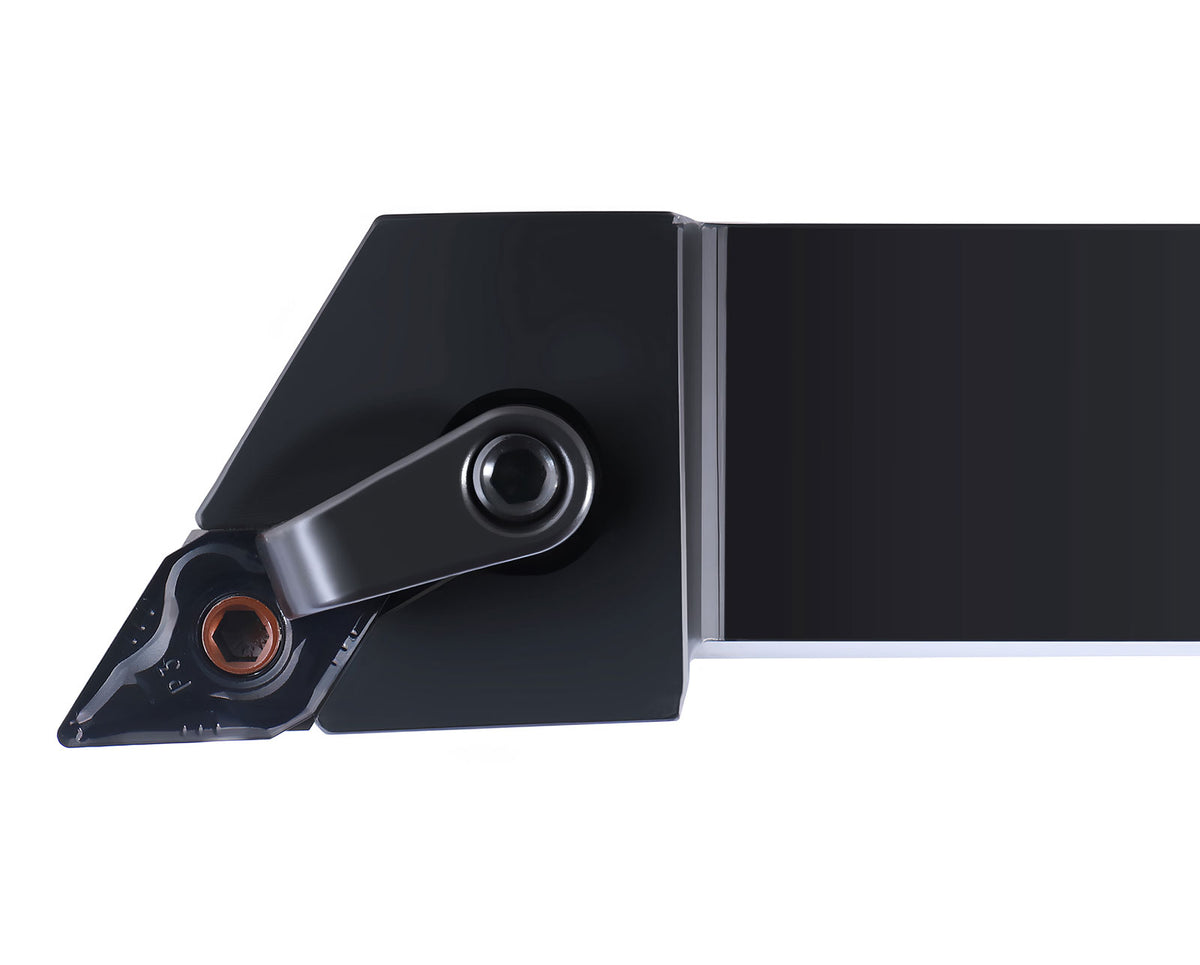

2302-5020INS Right

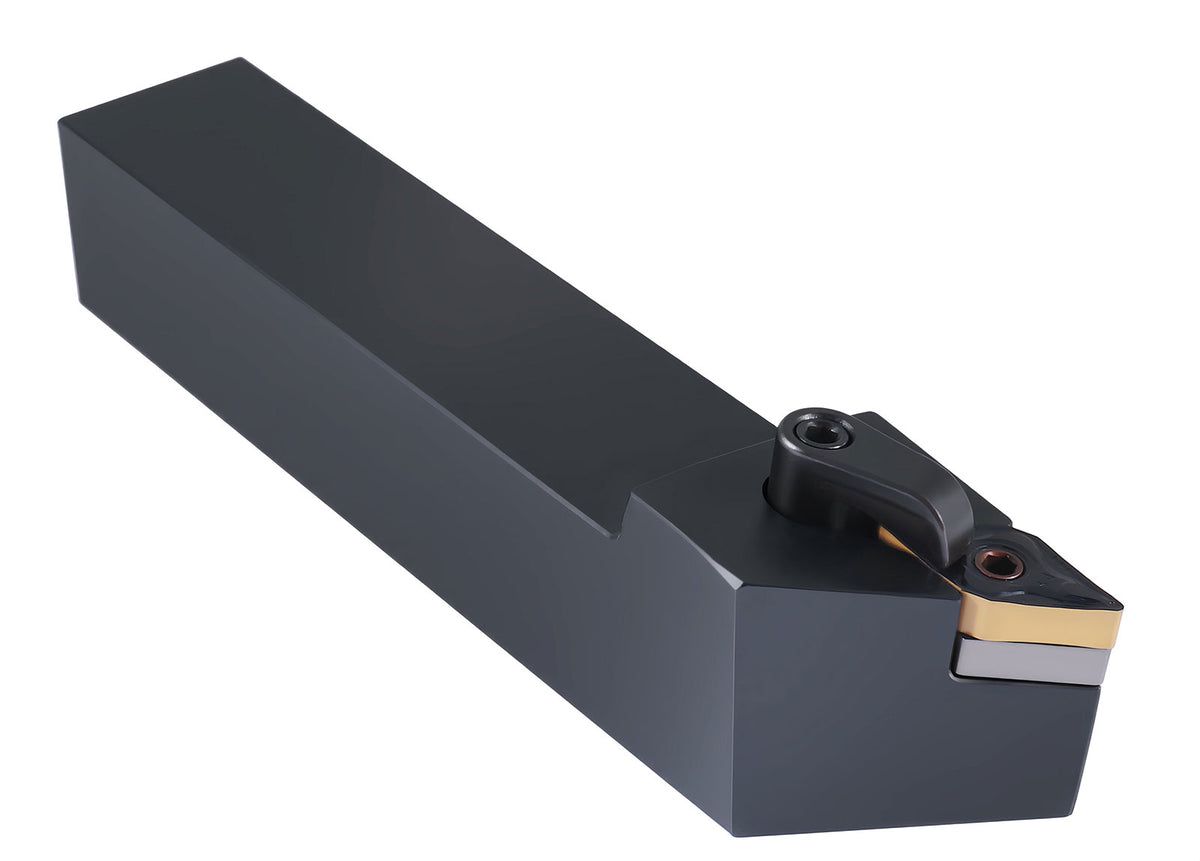

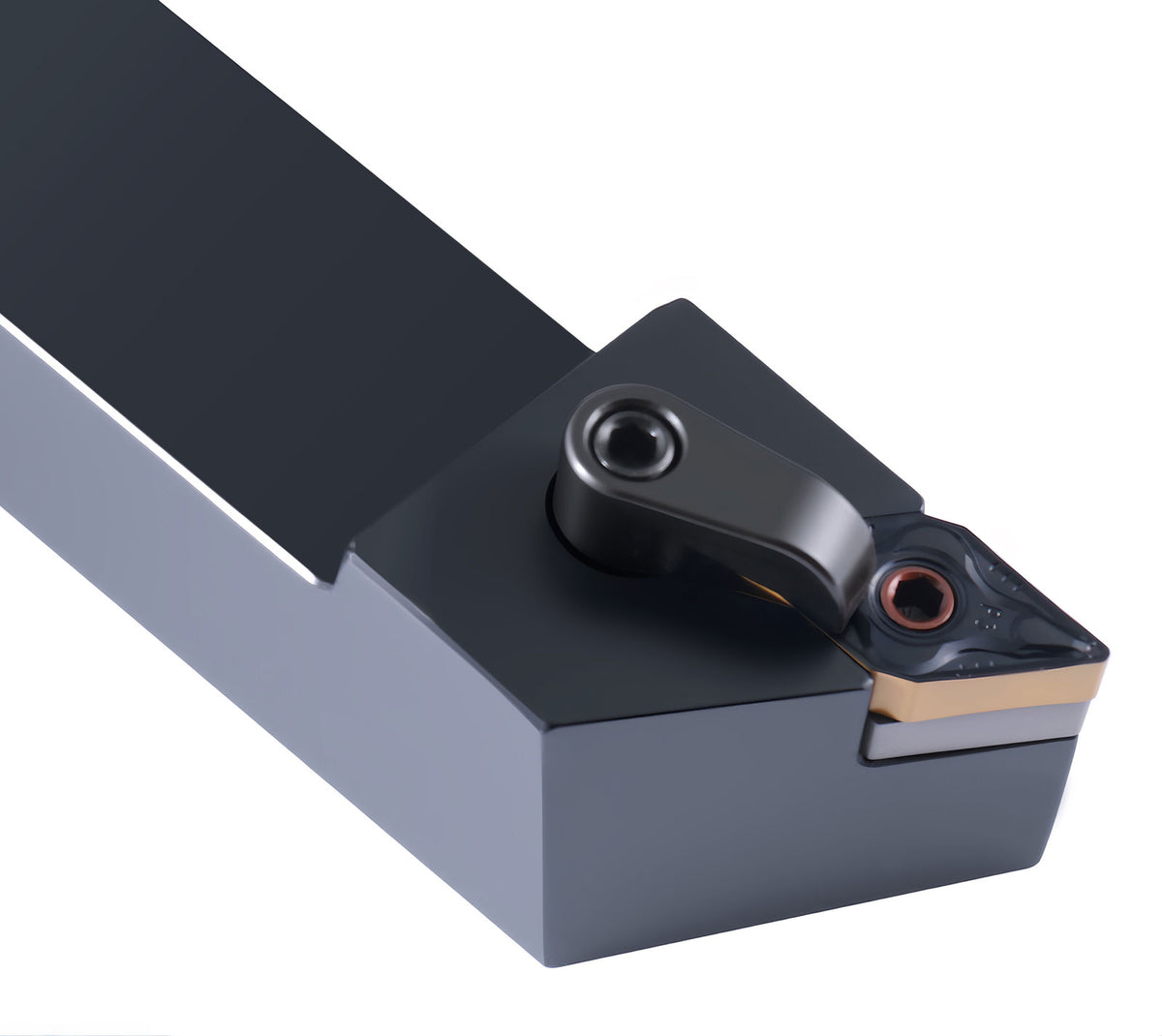

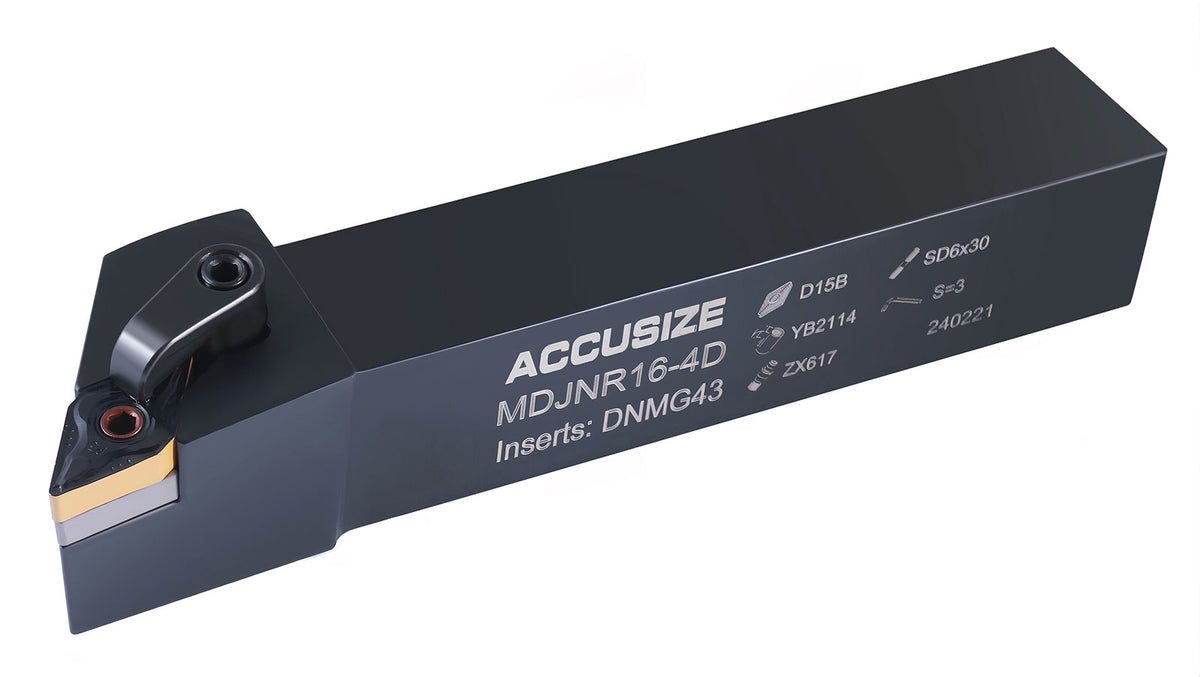

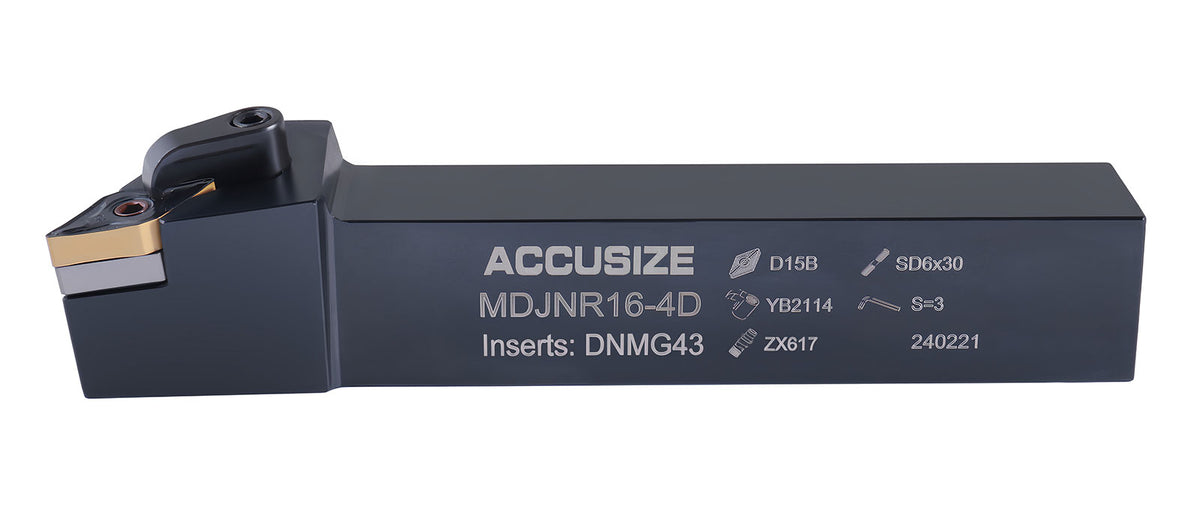

MDJN R-16-4D

(2302-5020)

1" 1.25" 6" 1/2" 3/16" CL-30 XNS0829 NL-0617 D1504B

With 10 DNMG CVD Coated

(2206-1028)

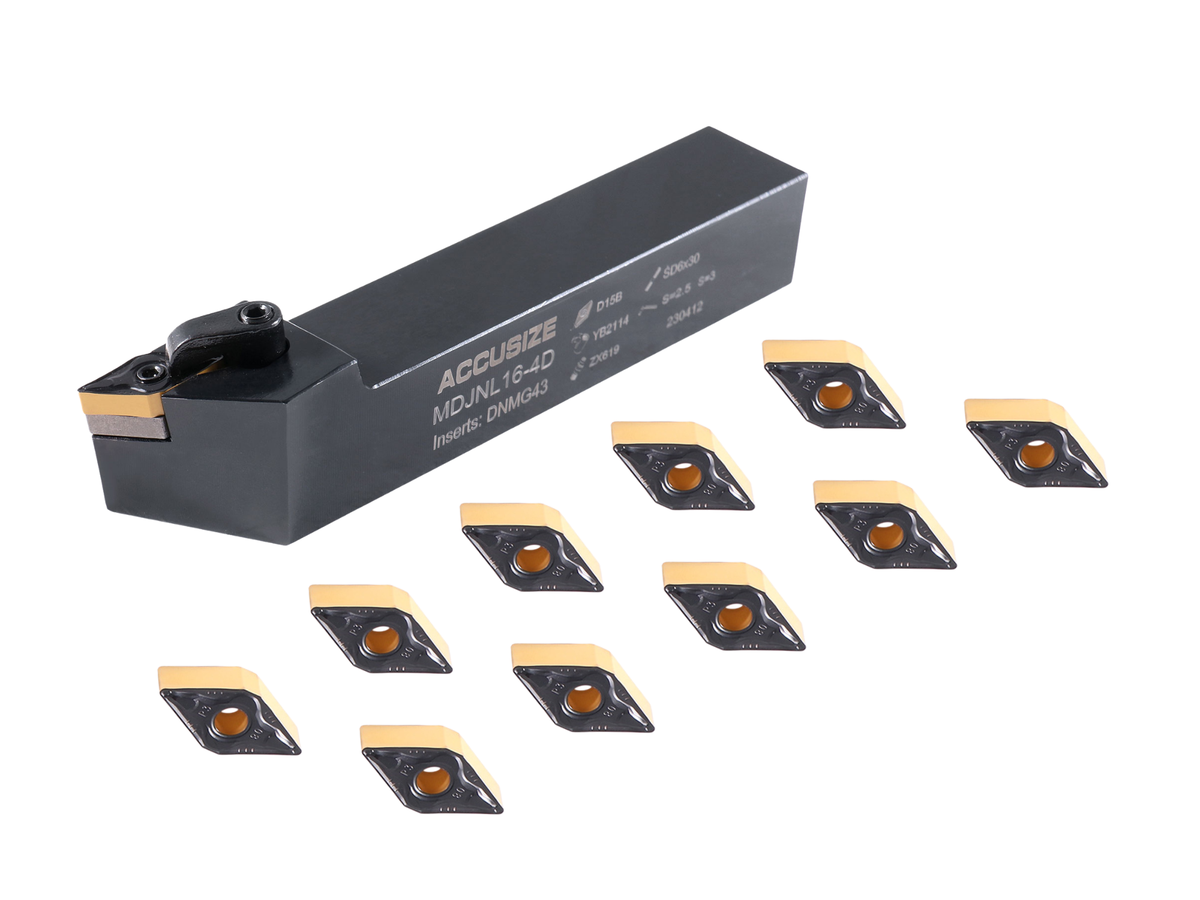

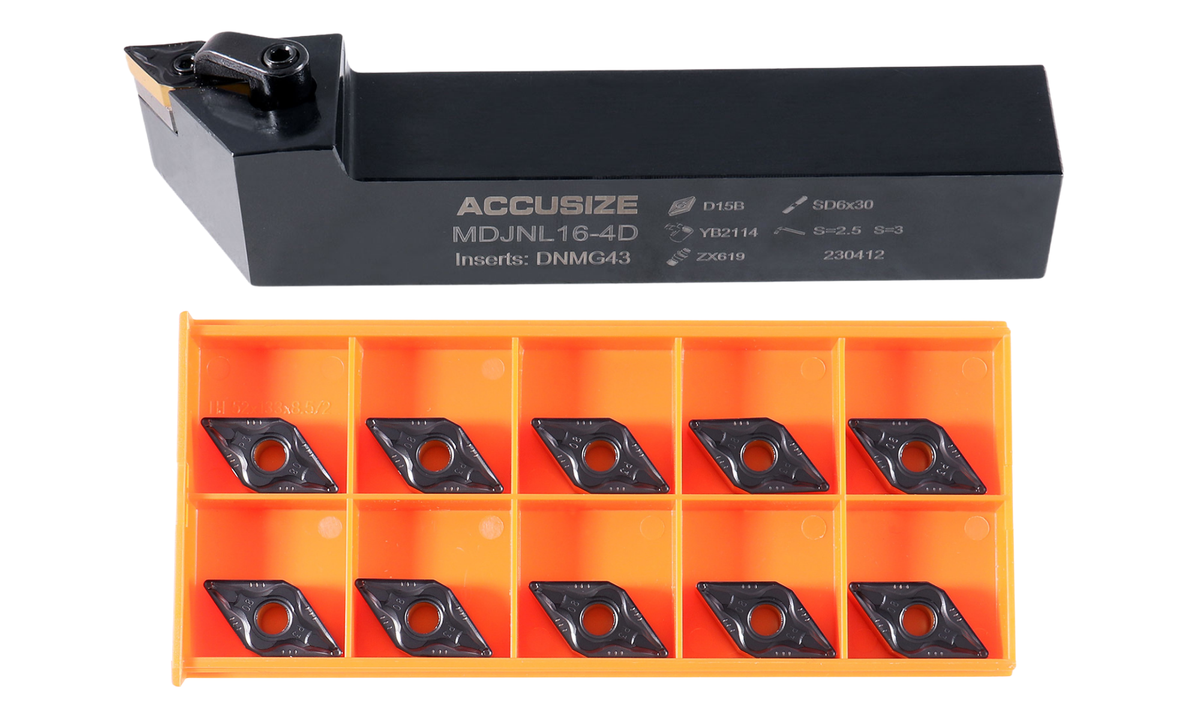

2302-6020INS Left

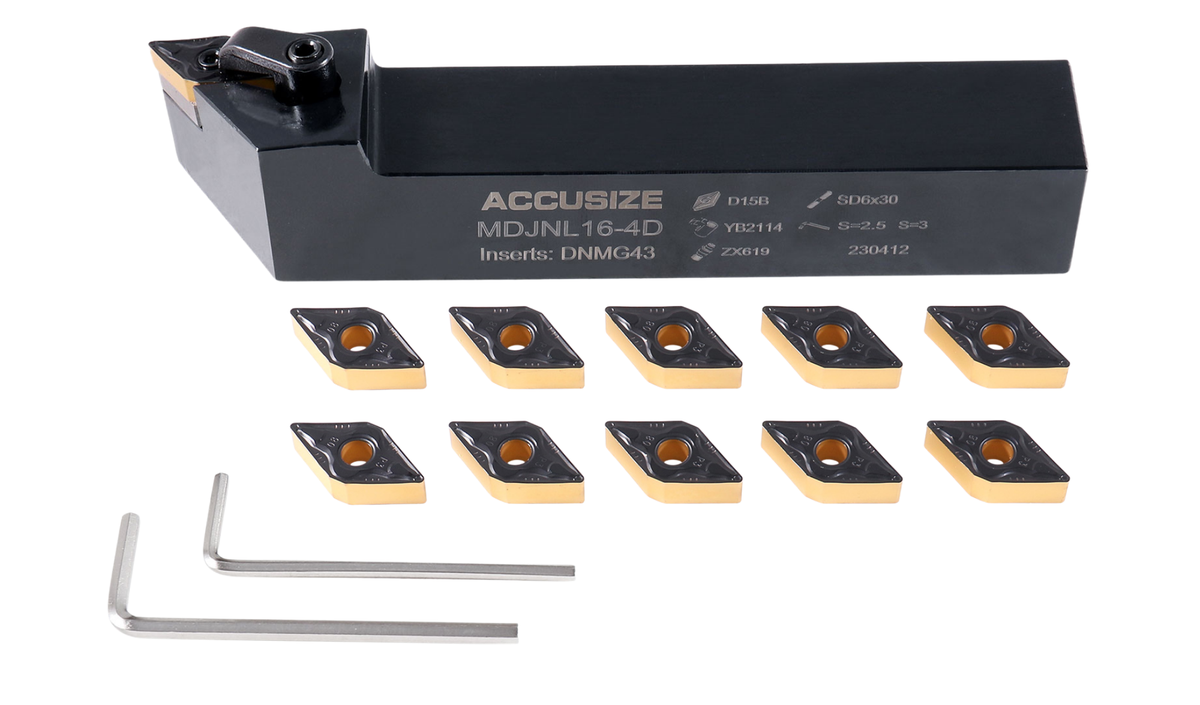

MDJN L-16-4D

(2302-6020)

1" 1.25" 6" 1/2" 3/16" CL-30 XNS0829 NL-0617 D1504B

With 10 DNMG CVD Coated

(2206-1028)

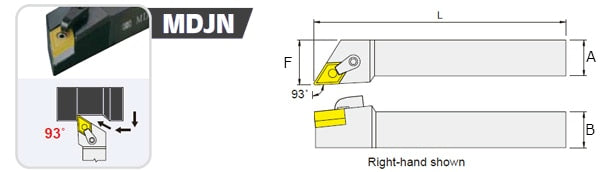

Diagram of MDJN TOOL HOLDER


Carbide Inserts

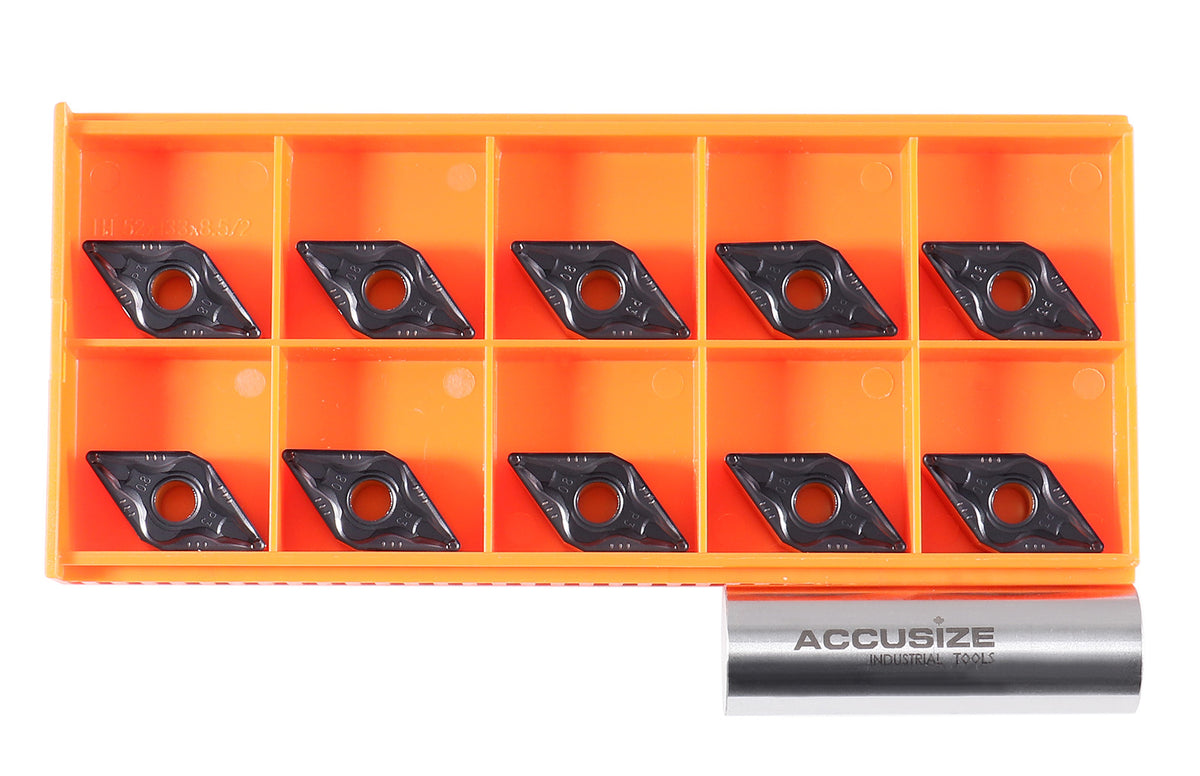

DNMG432 Carbide Inserts CVD Coated Black/Yellow 10 ps/box, #2206-1028

2206-1028

  • CVD Coated
  • Insert Grade: BPS101

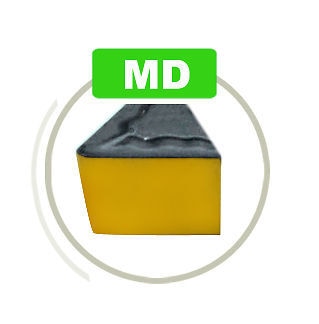

  • Chip Breaker: MD
  • Material: Carbide
  • DNMG
  • Coating: CVD Al2O3 TICN
  • Machining Parts Material: Steel
  • Machining Process: finish

Product features

  • BPS101 Black/Yellow
  • Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness.
  • Can bear high temperatures.
  • For steel and steel castings finishing to roughing processing.
  • Continue cutting to light-interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed.
  • For hard materials, continuous cutting and light-interrupted cutting from finishing to roughing.
  • Wet and dry processing.

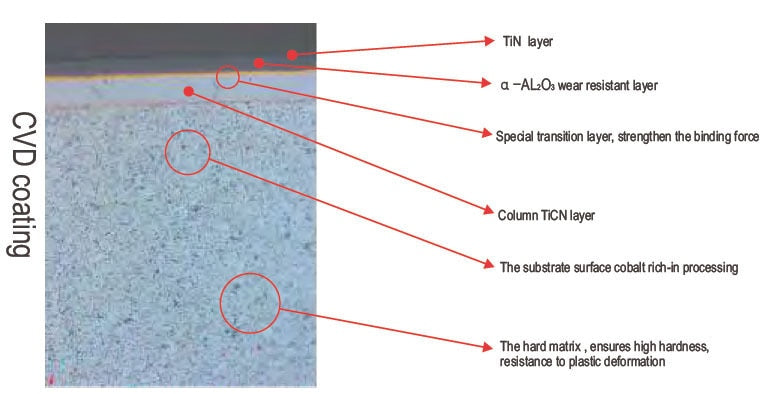

  • The combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping.
  • Preferred choice chip breaker on General Purpose Finishing

Features of chip breaker

  • For medium-duty turning
  • With the broad capability for steel, stainless steel, gray and nodular cast-iron
  • Operations: turning, facing and profiling
  • Advantages: all-round, reliable with problem-free machining
  • Limitations: depth of cut and feed, risk of overloading the cutting edge
  • Components typically: axles, shafts, hubs, gears, etc.
Item # ANSI # I.S.O. # I.C Thickness Hole Radius
2206-1028 DNMG432-MD DNMG150608-MD 1/2'' 1/4'' 13/64'' 1/32''
