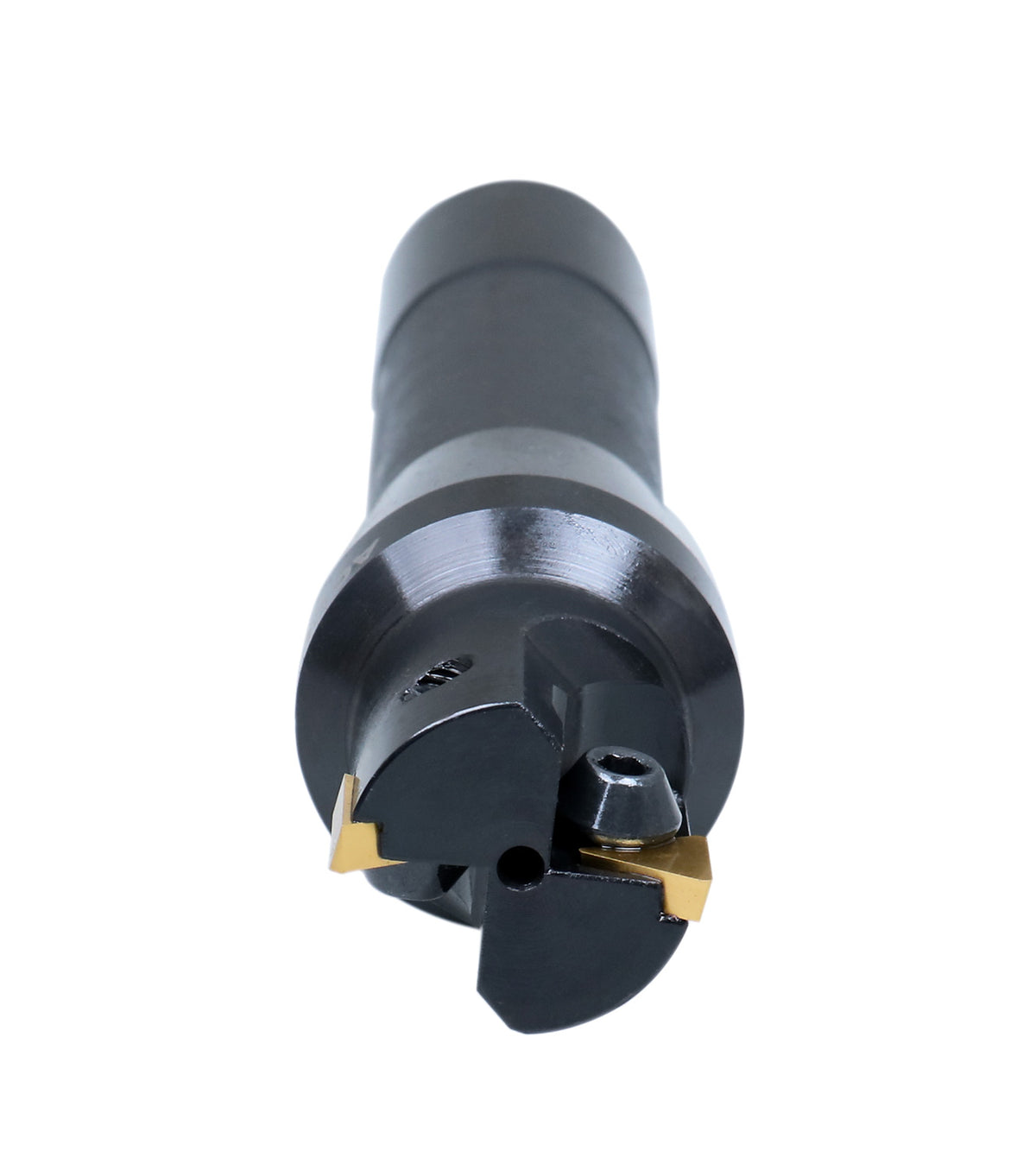

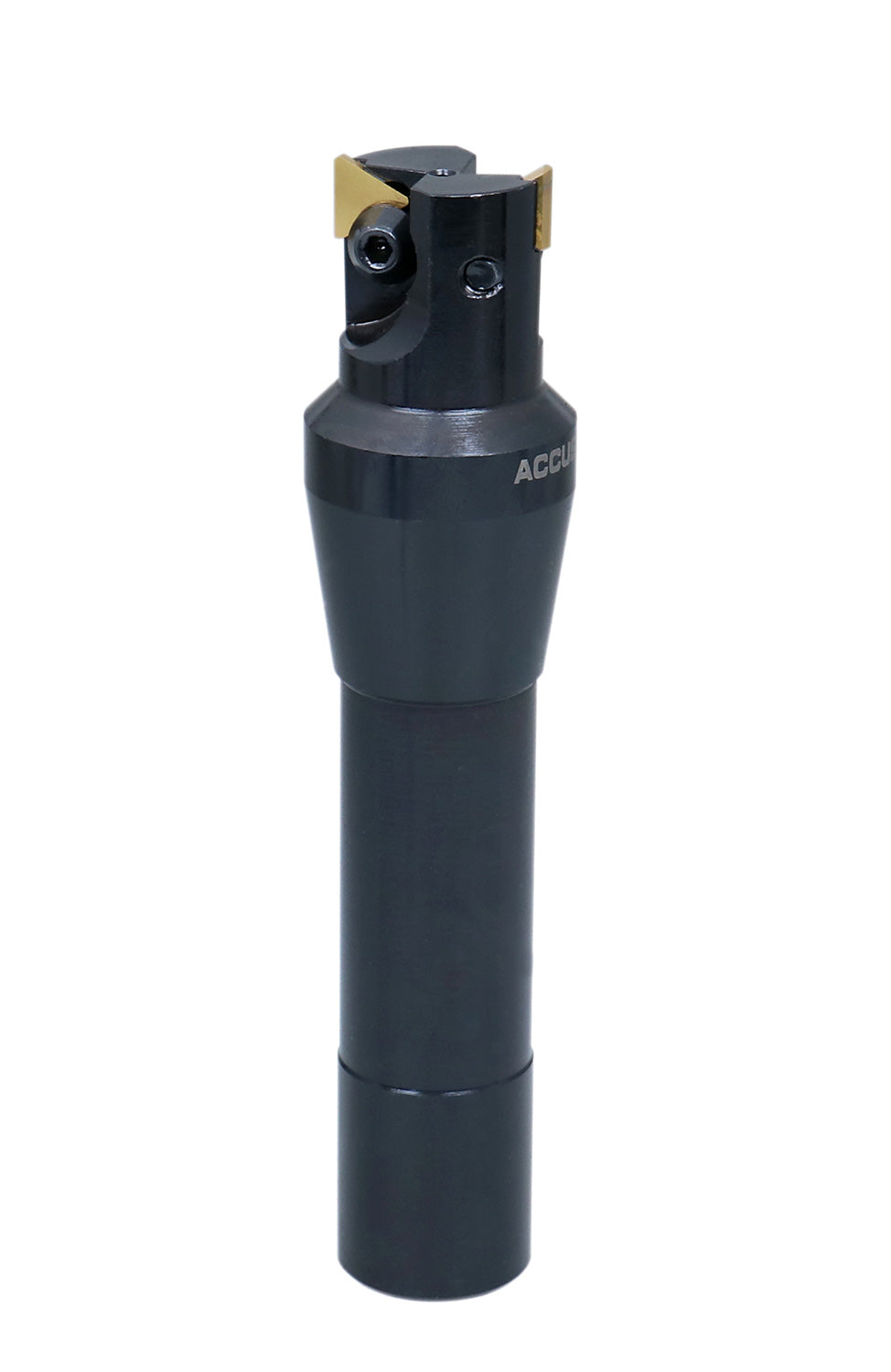

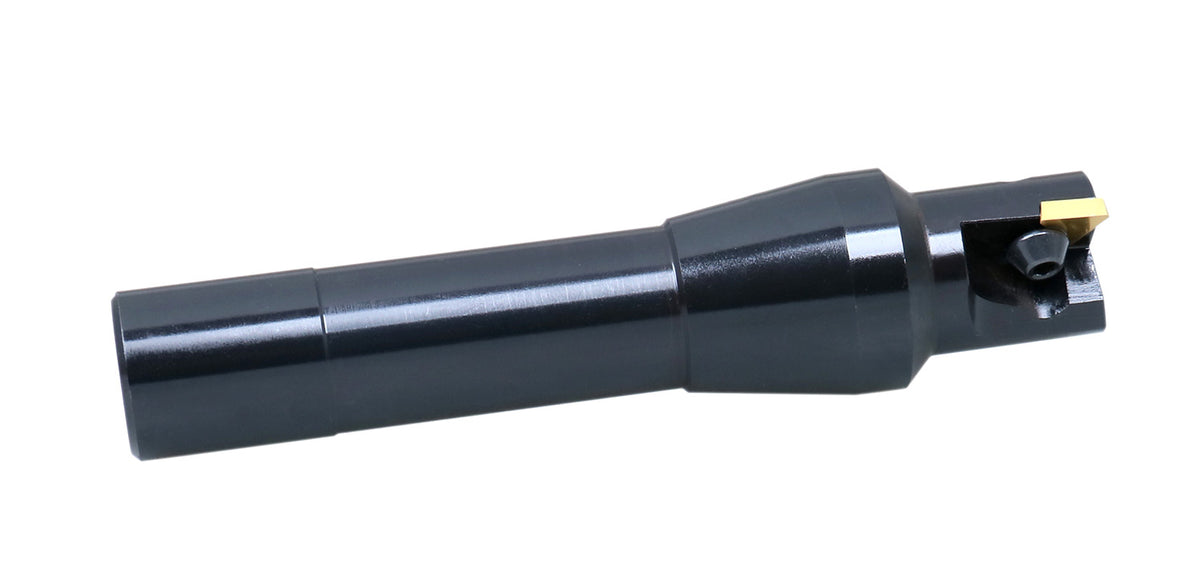

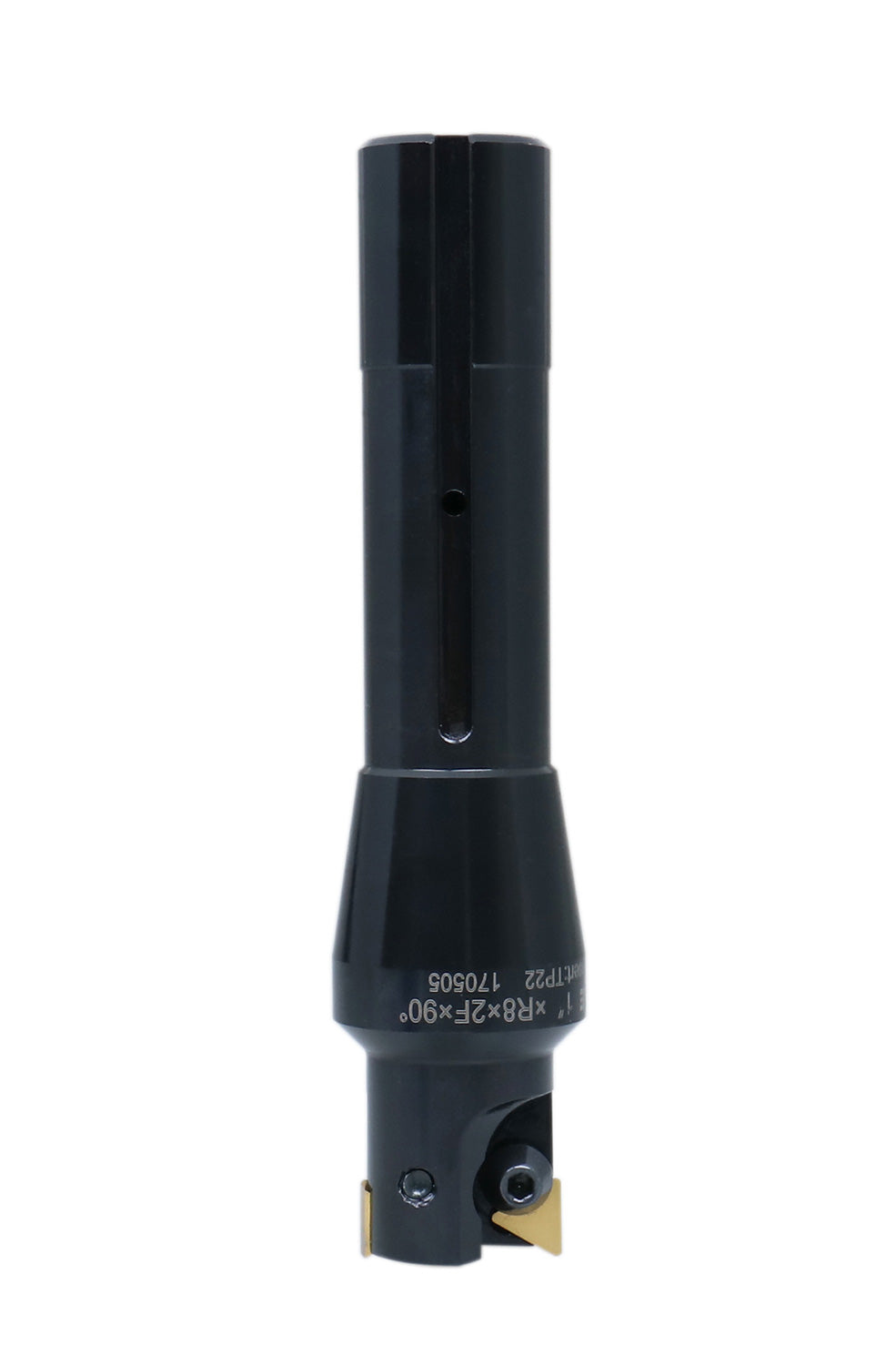

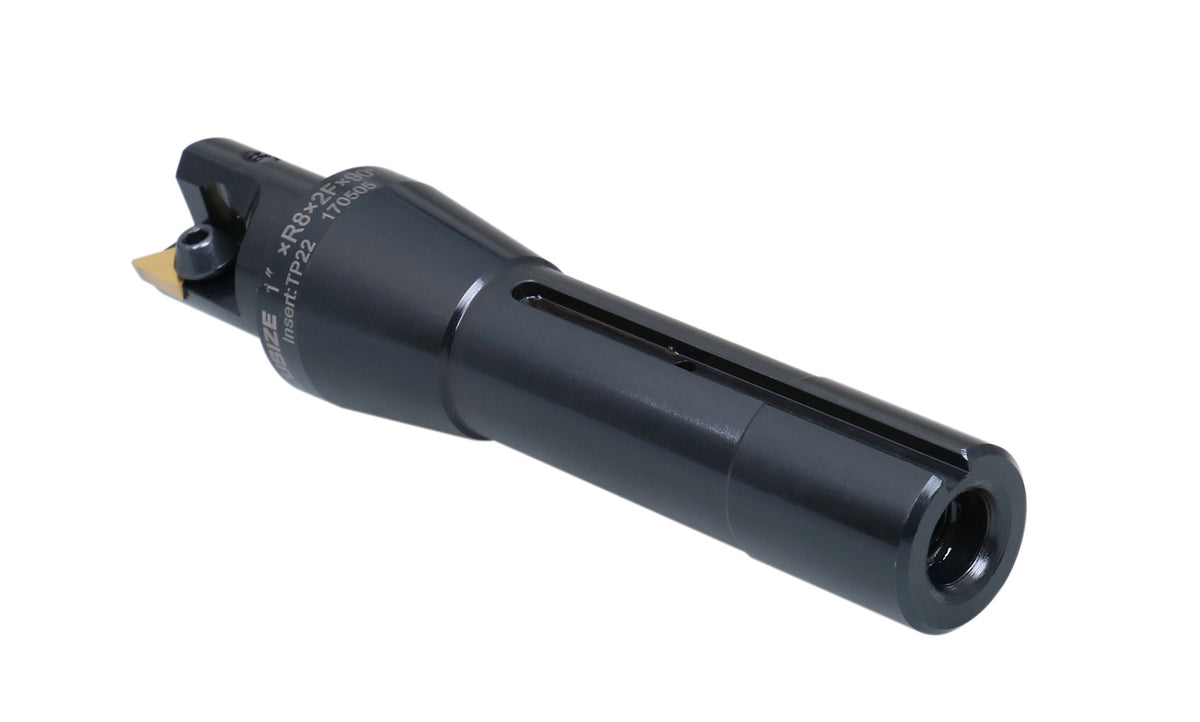

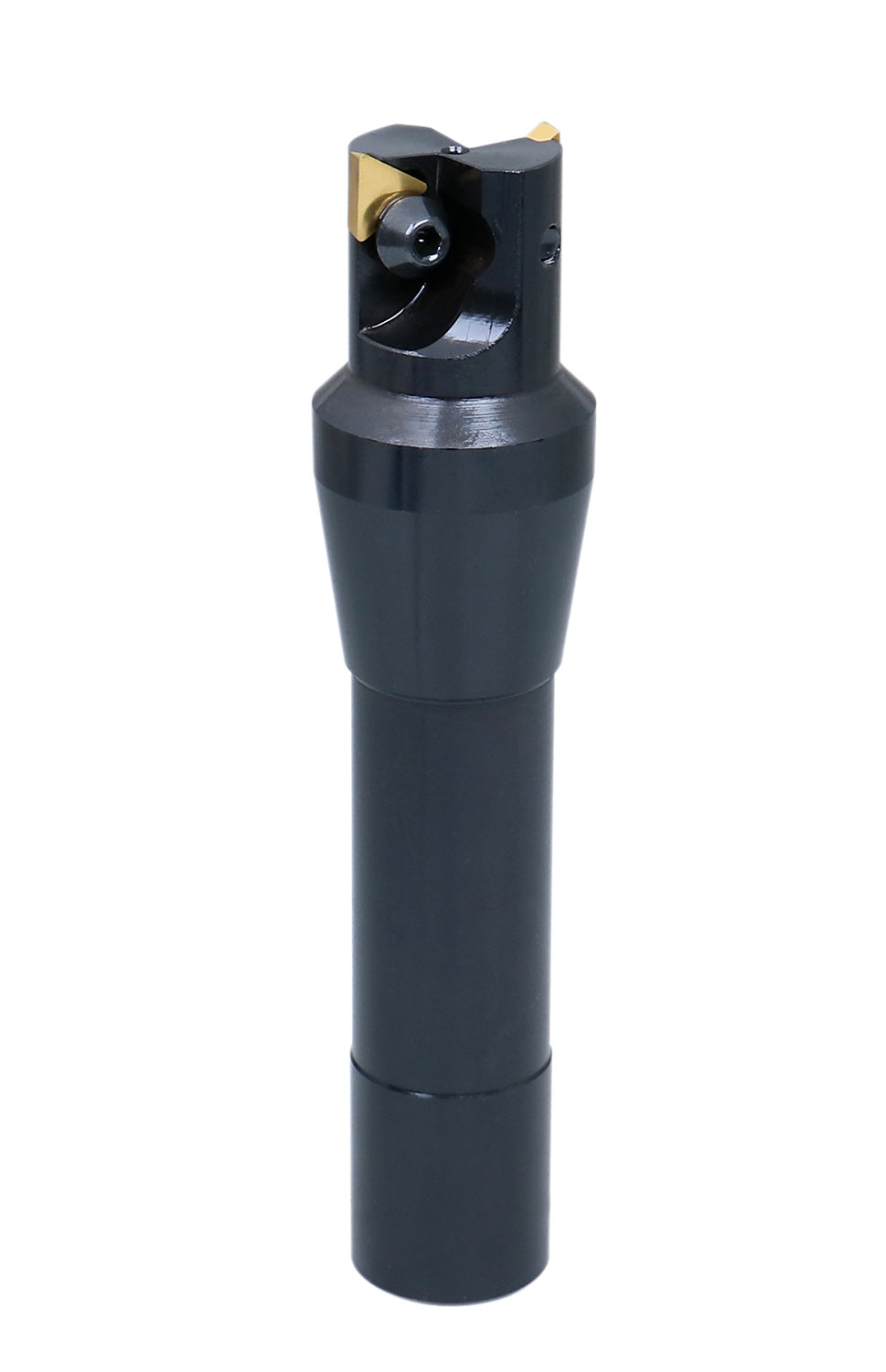

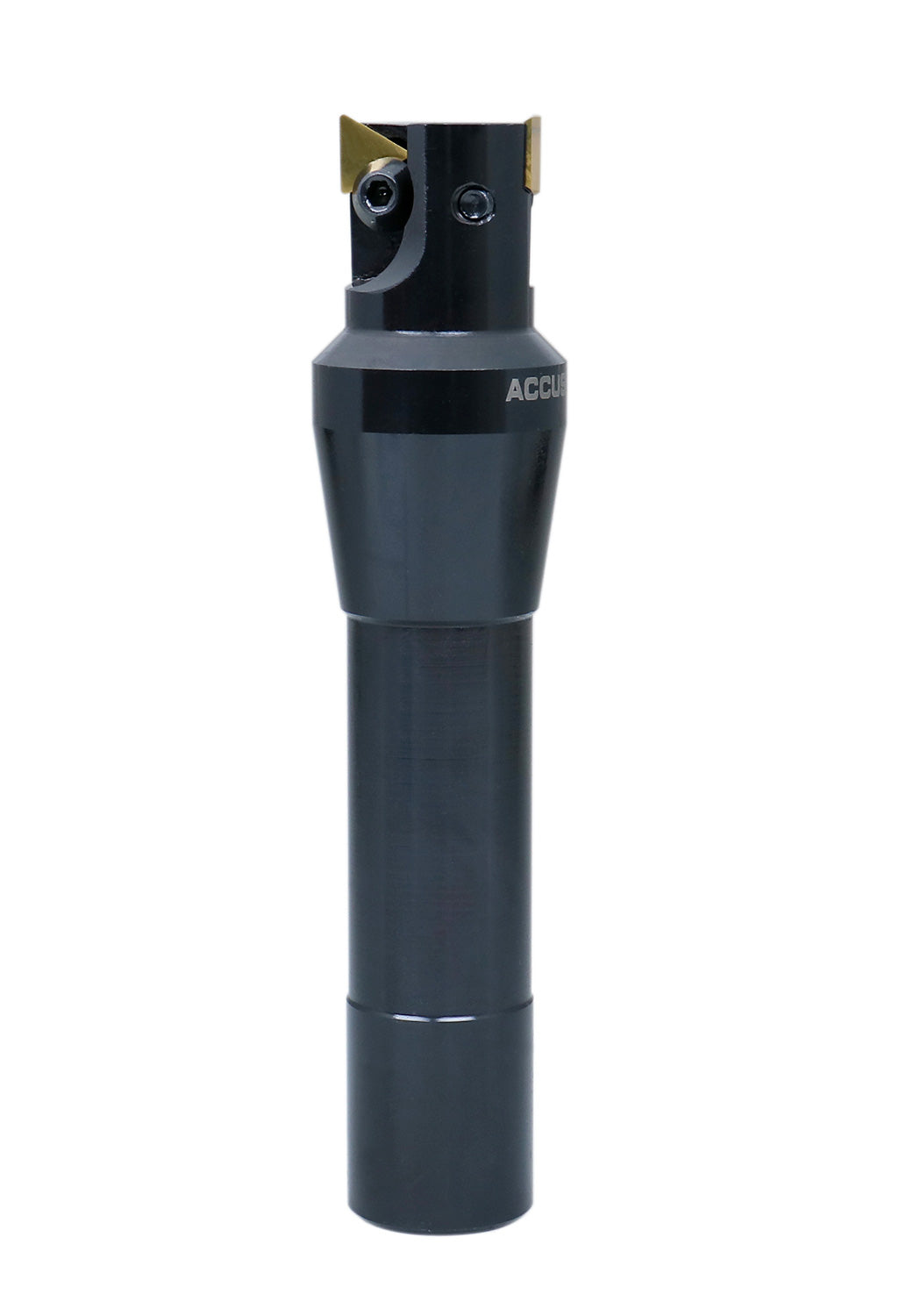

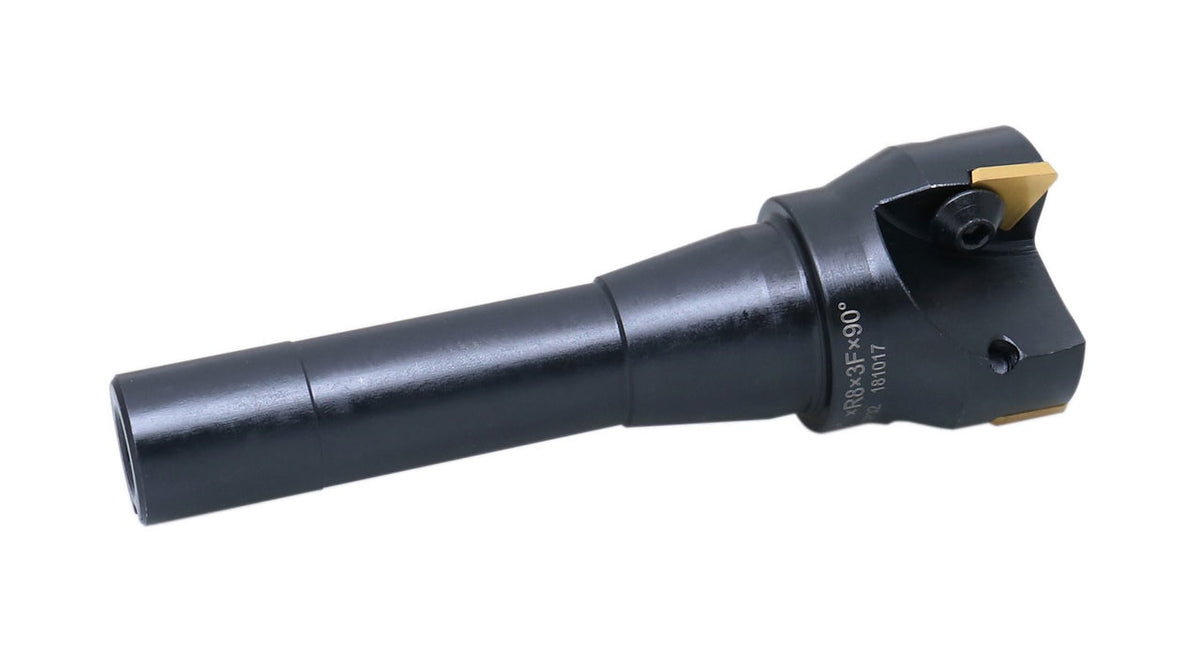

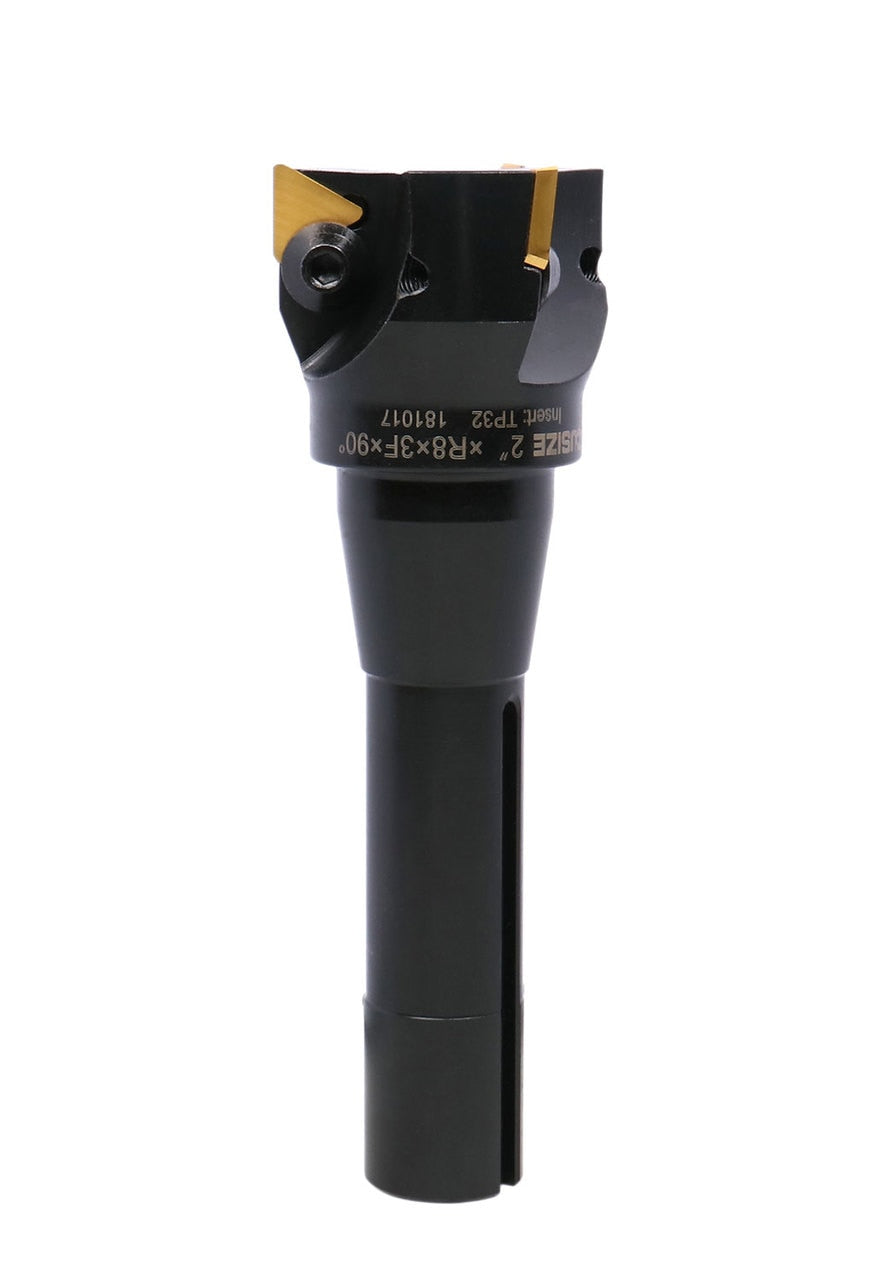

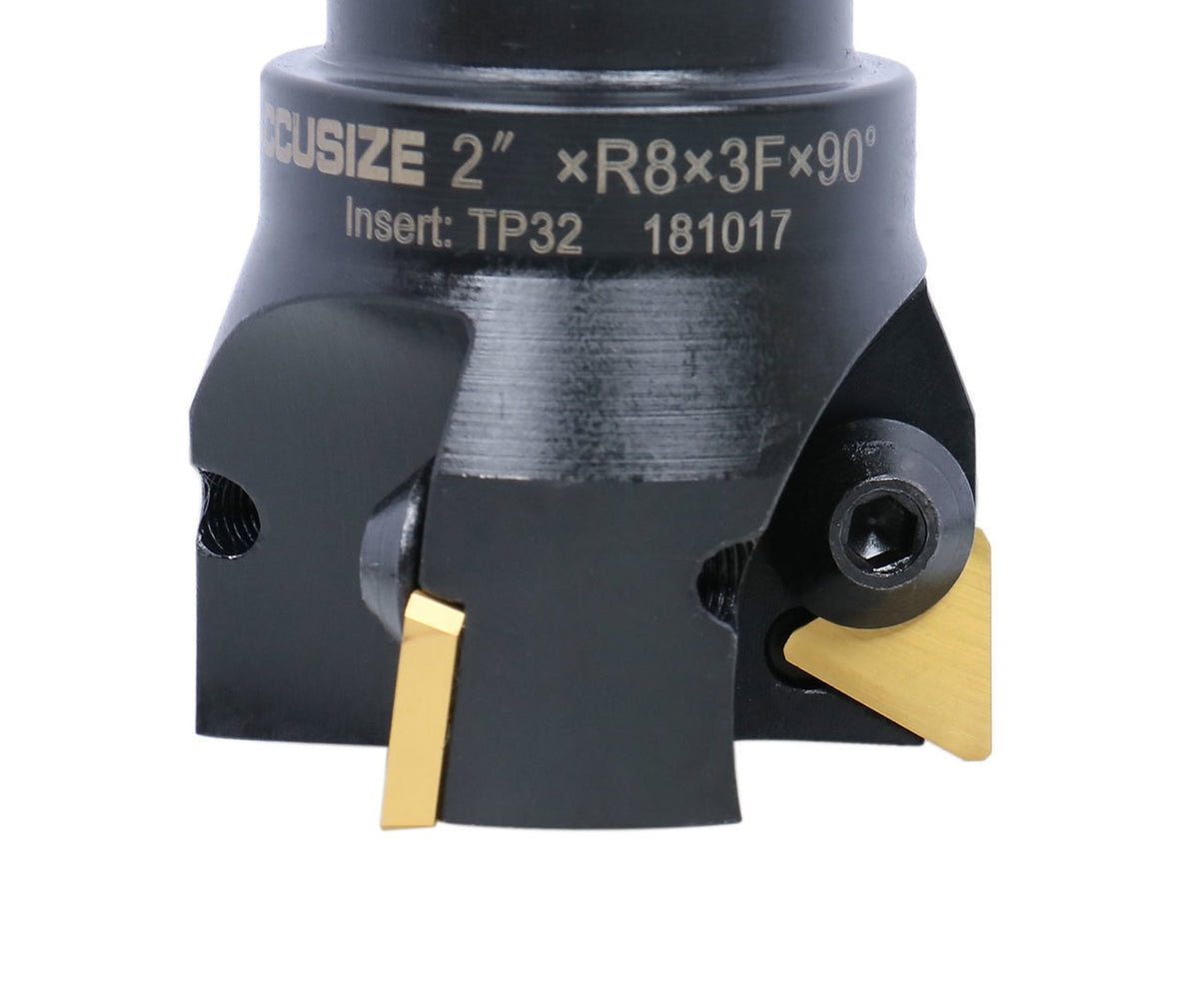

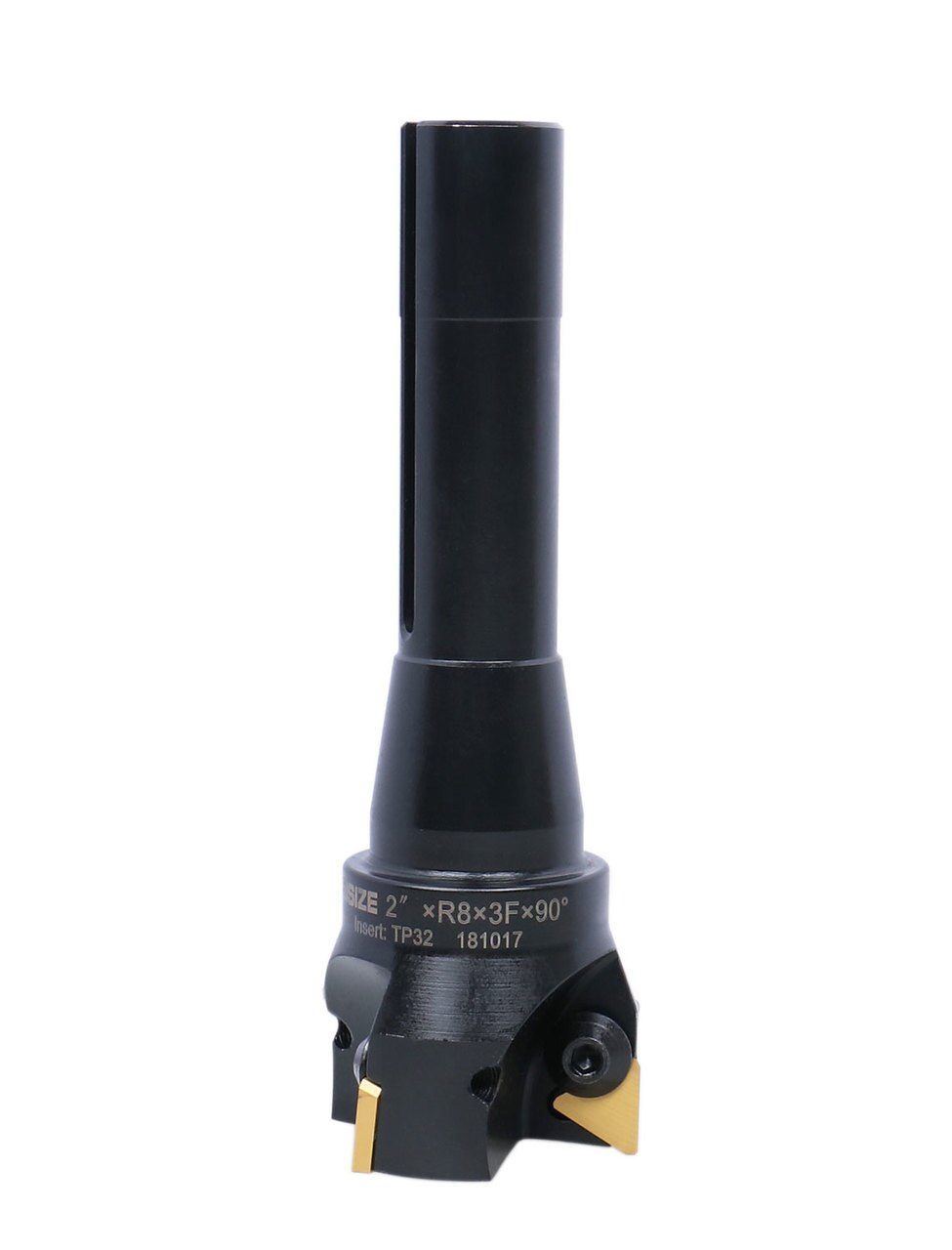

R8 Shank Carbide Indexable End Mill


Please Select the Dia. of Carbide Indexable End Mills (R8 Shank): 1" (0046-0915)
Price:
$47.50

Shipping calculated at checkout

Currency:
USD
Stock:
In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

Description

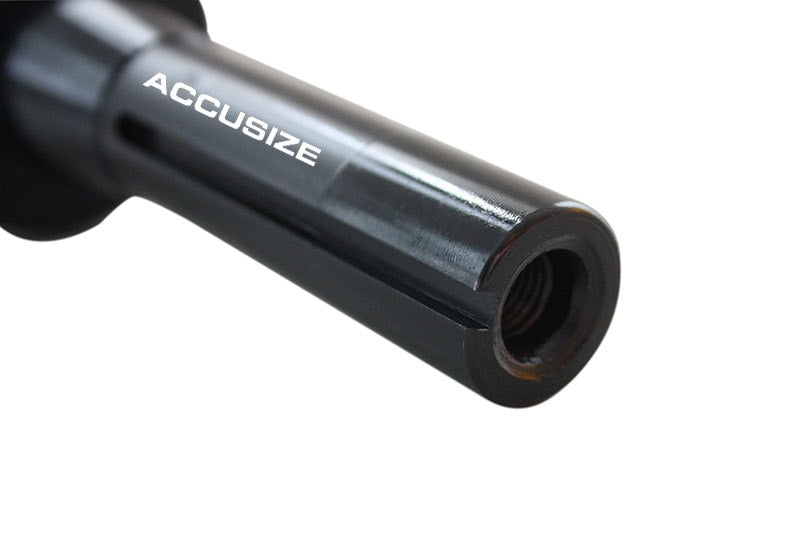

R8 Shank Carbide Indexable End Mill

  • Comes with inserts installed
  • Uses standard triangular inserts.
  • Positive rake 90°, right-hand cut.

 ** For purchasing additional inserts, you may find the corresponding Insert SKU below:

Item # Insert No. of Inserts Locking Screw Cutting Diameter

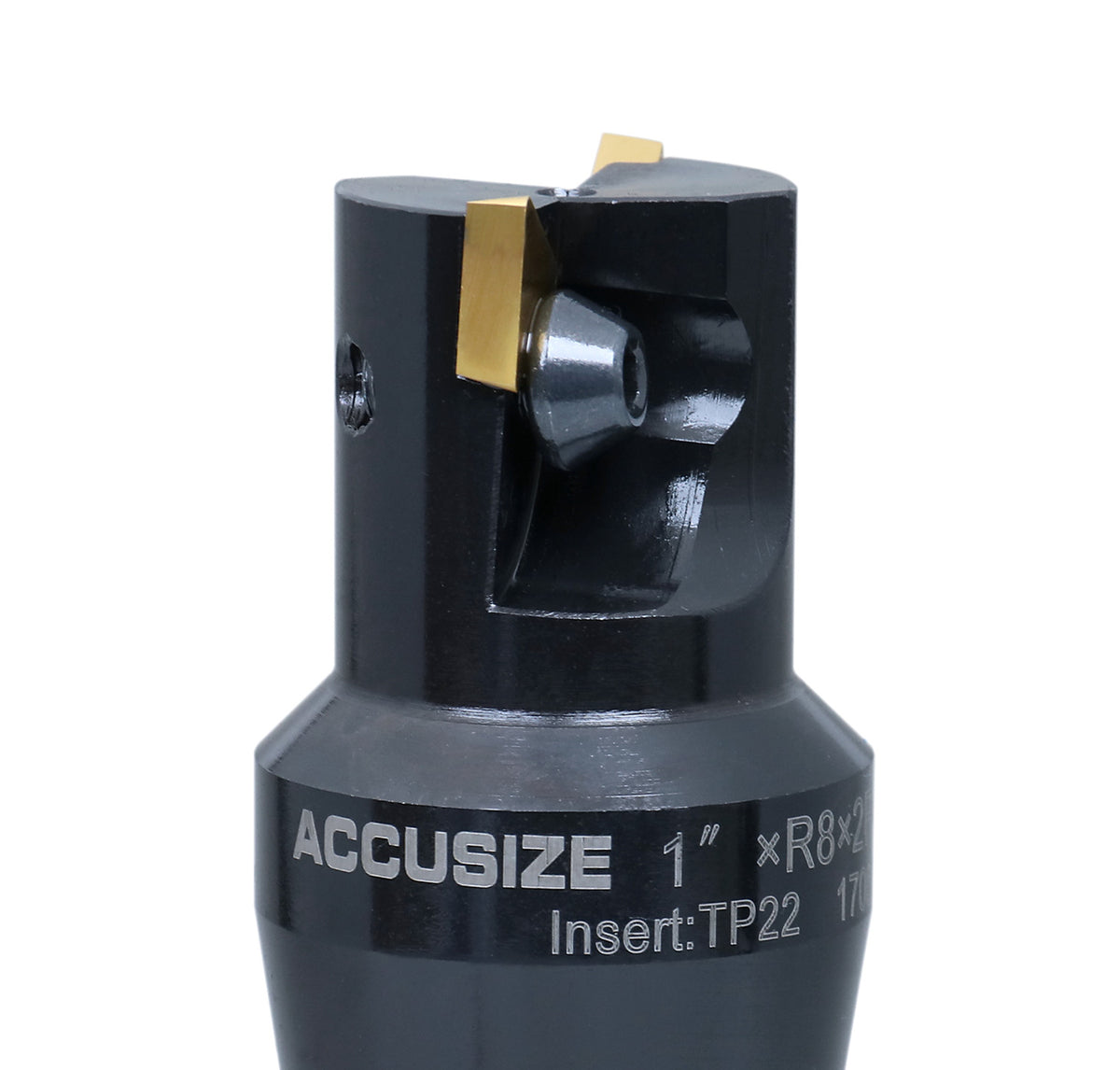

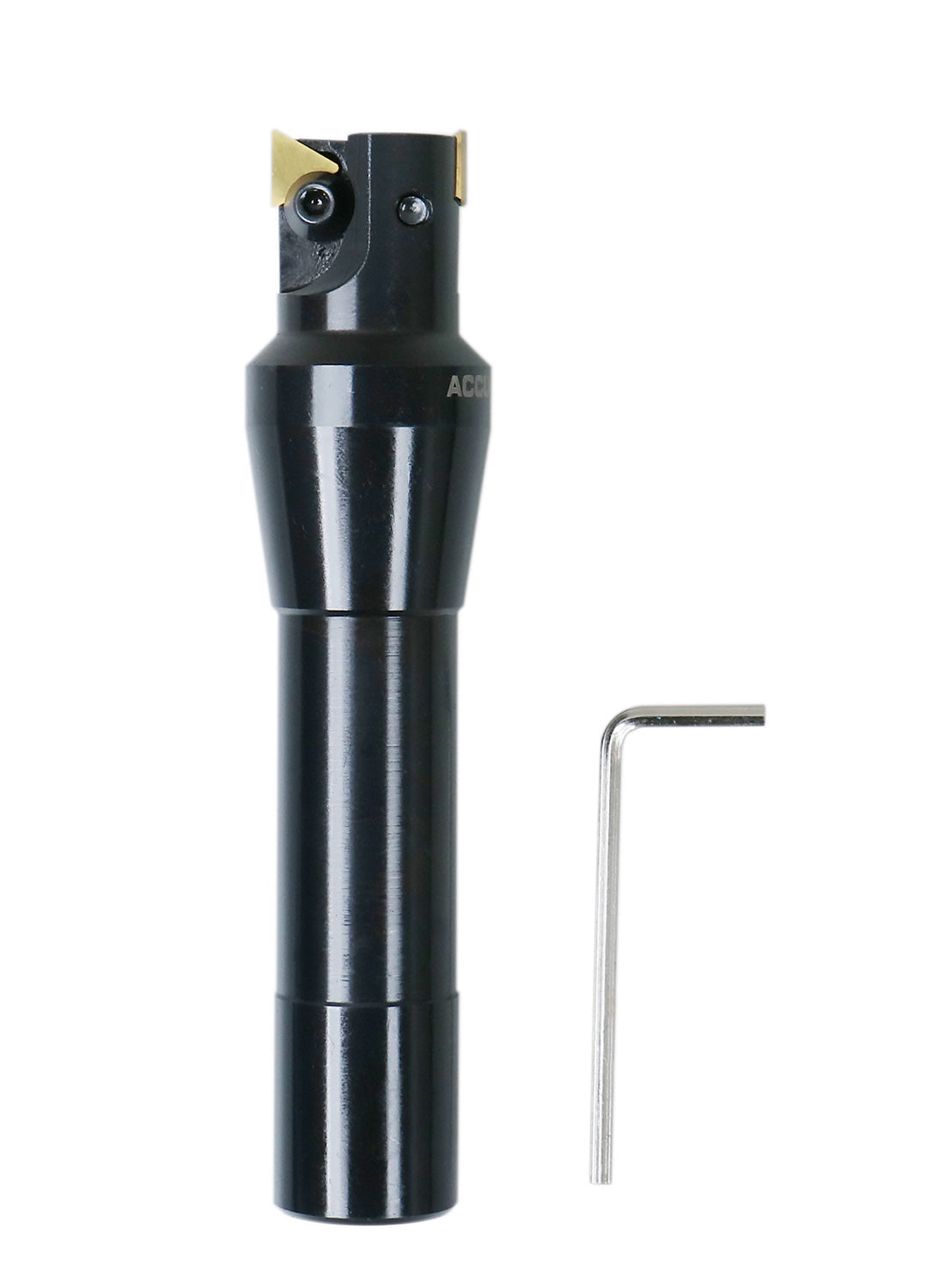

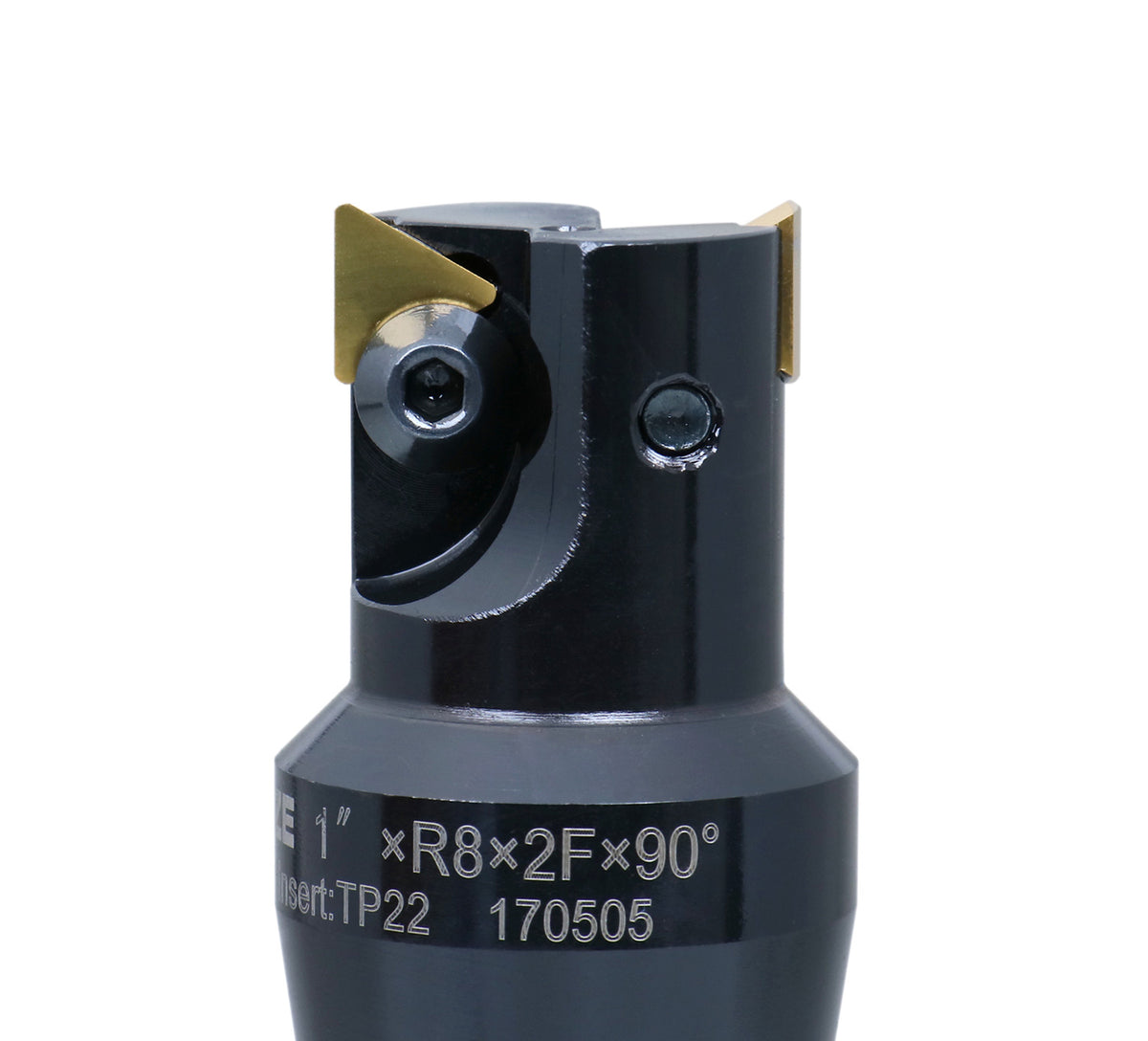

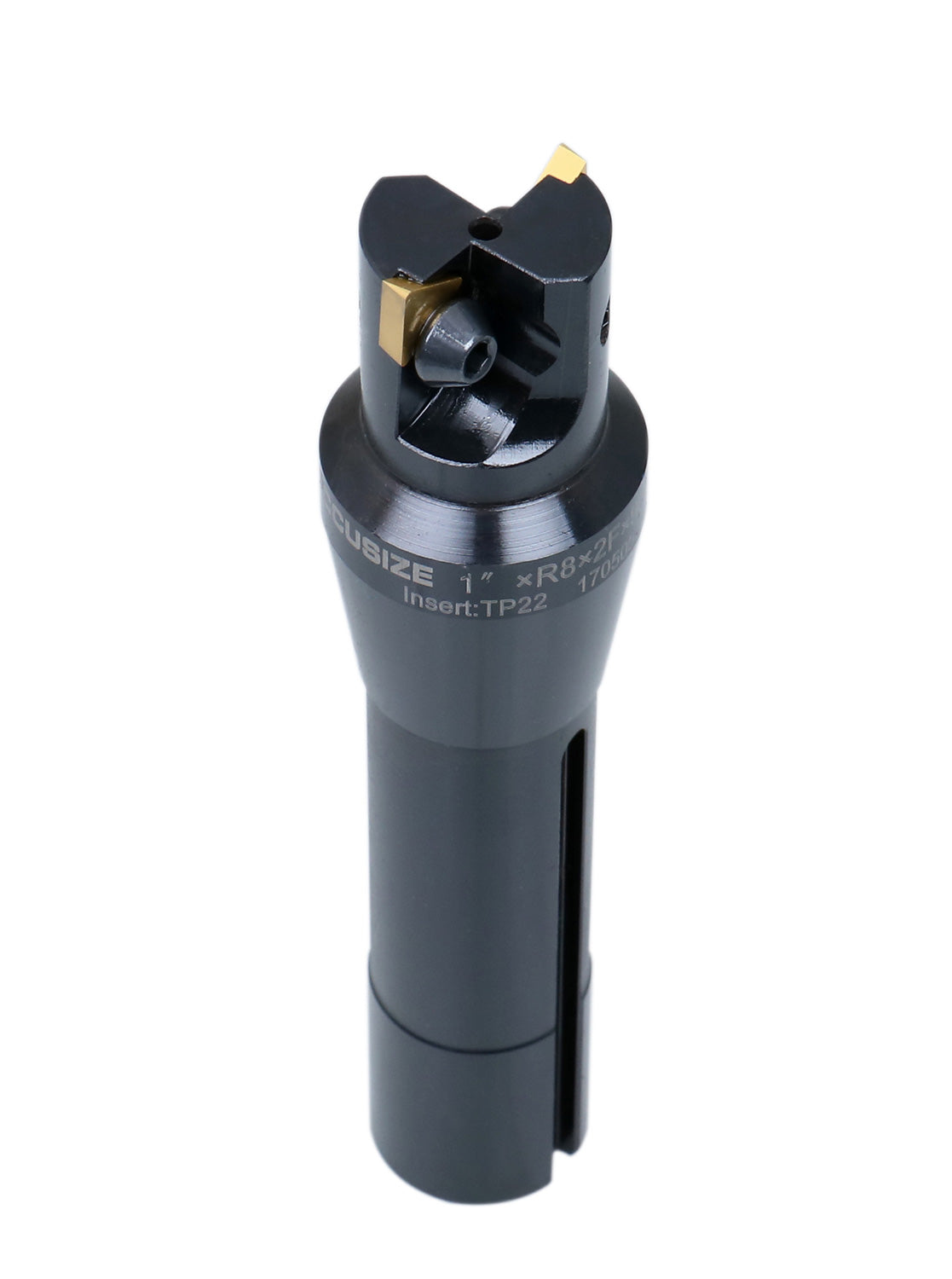

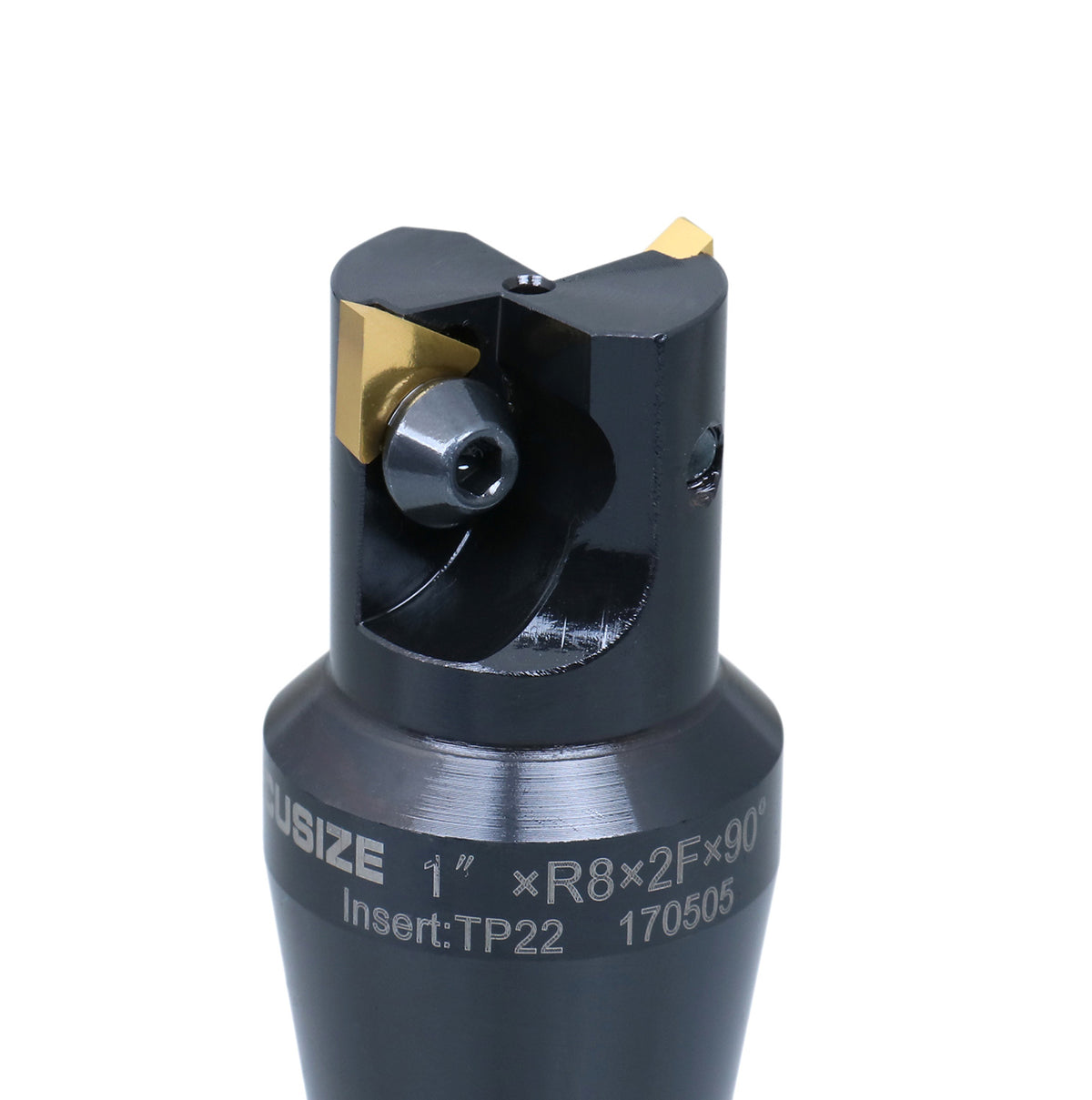

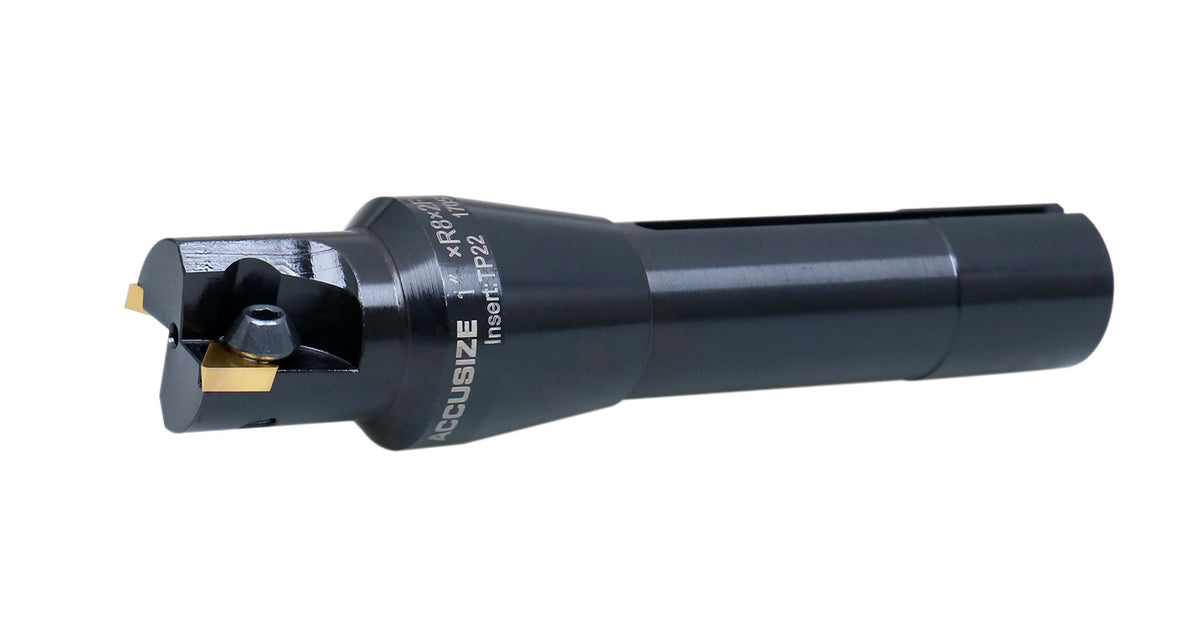

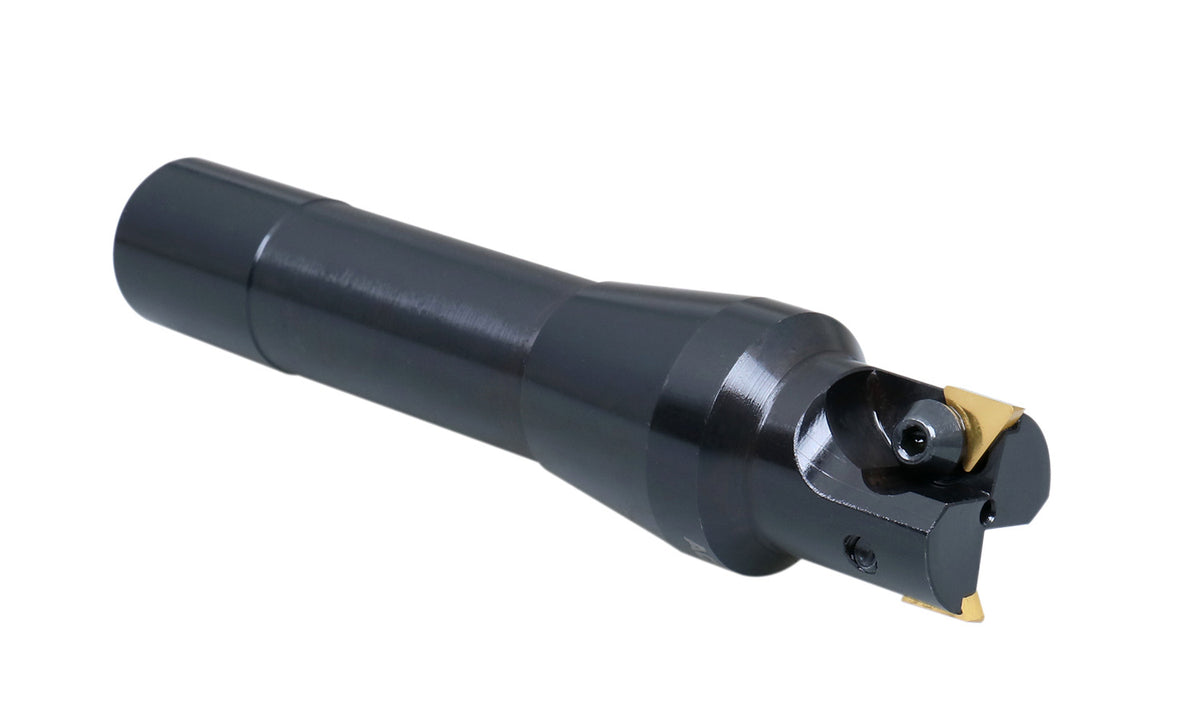

0046-0915

TPG22

(TiN Coated TPG221, 2127-1022)

(TiN Coated TPG222, 2127-1024)

(TiN Coated TPG22, 2127-1025)

2

SM5 x 10

(0045-5010)

1"

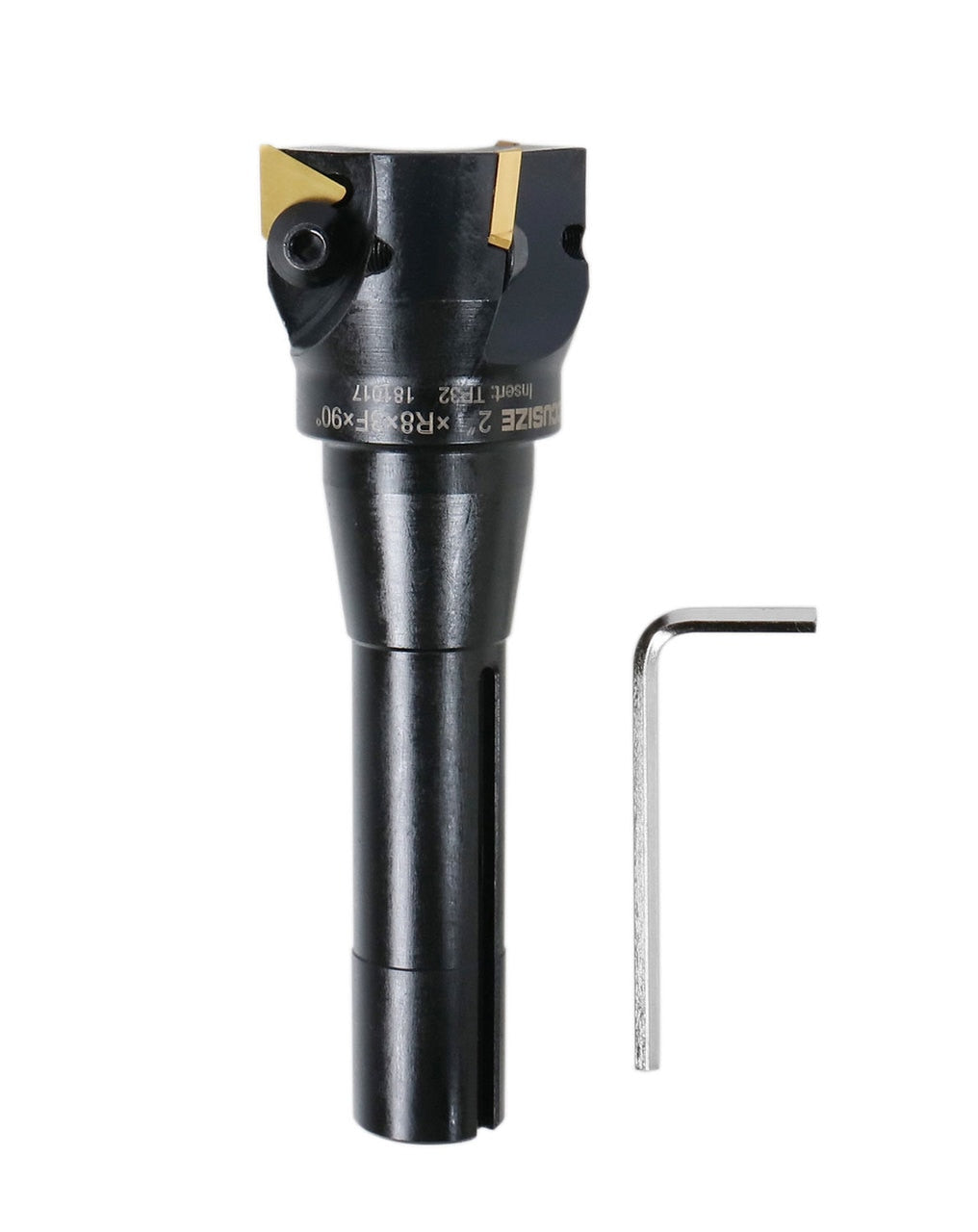

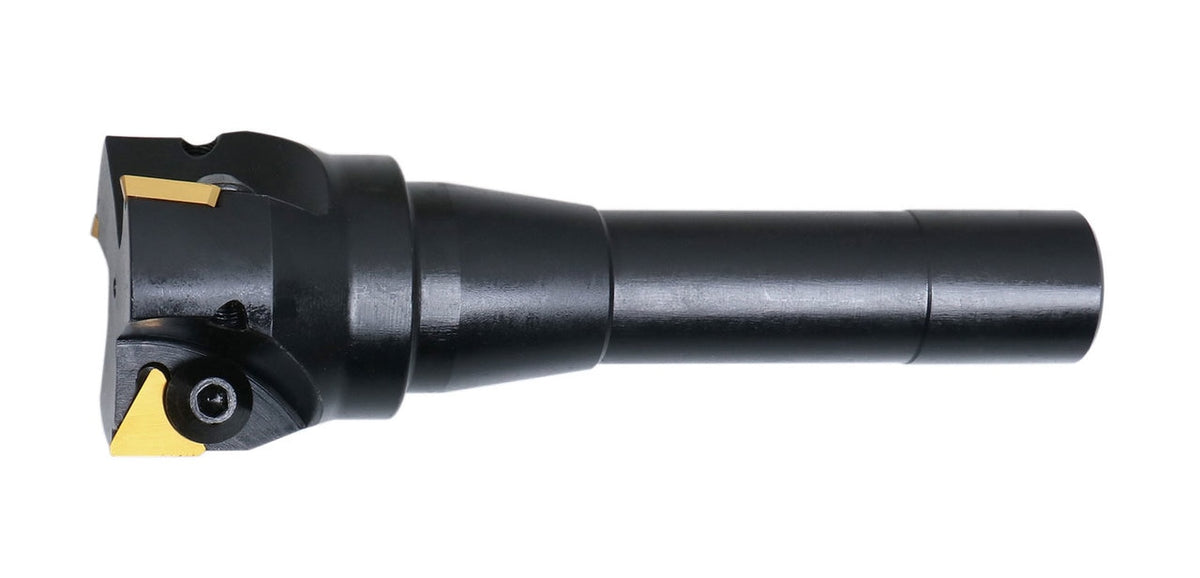

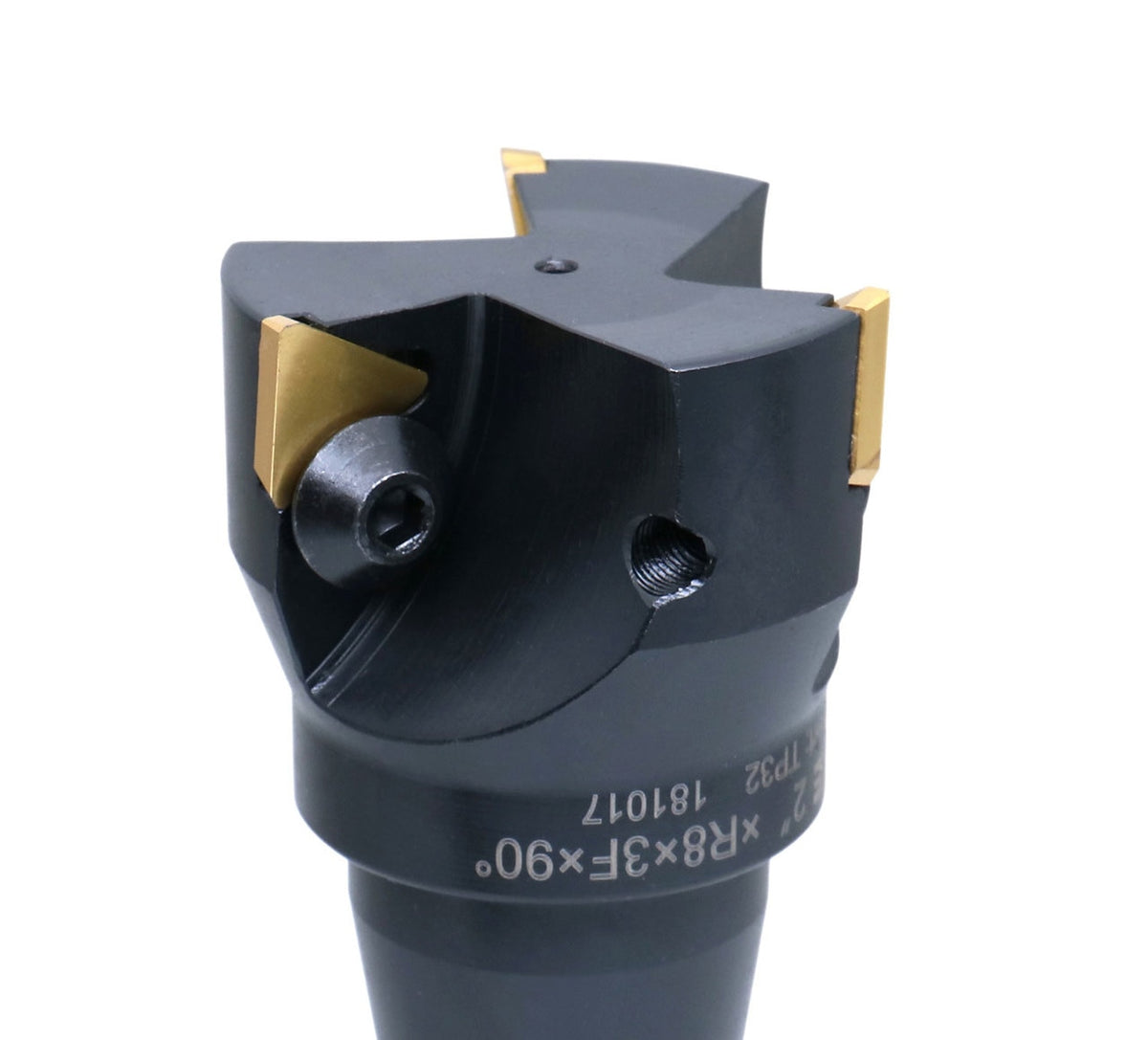

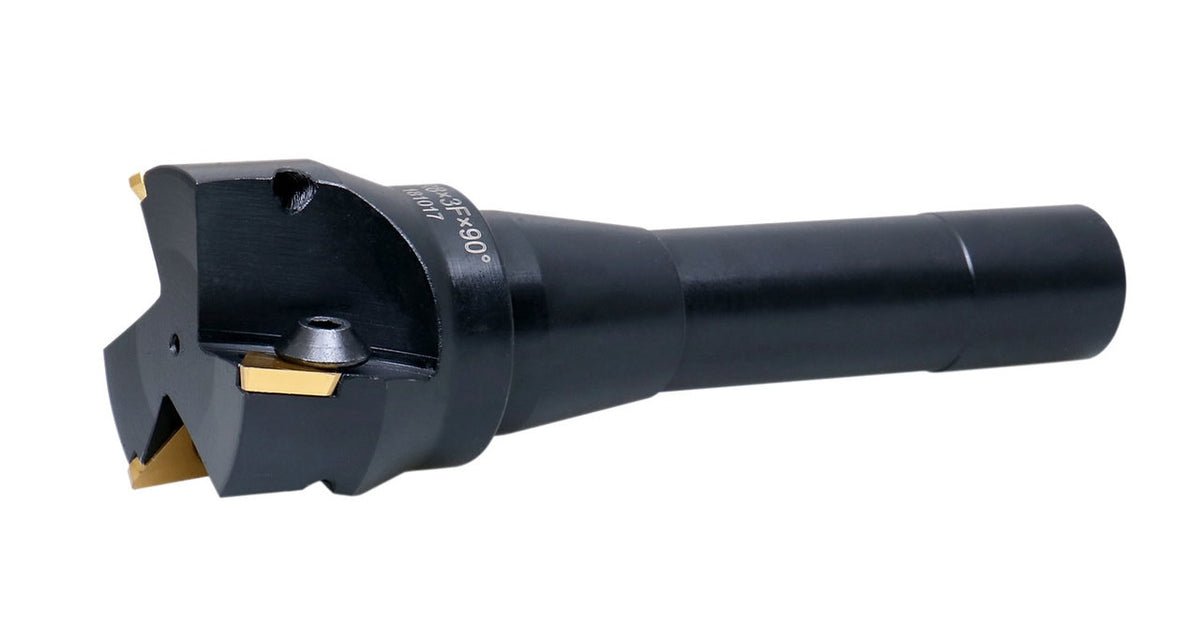

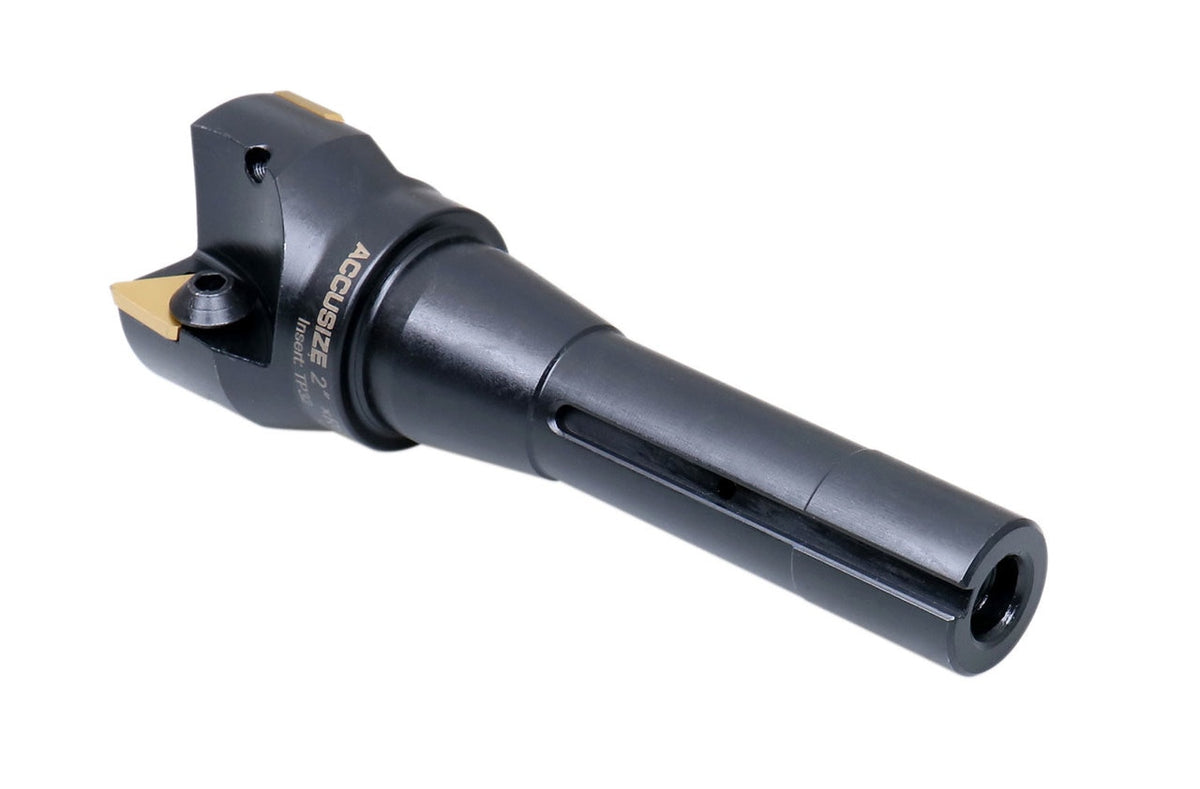

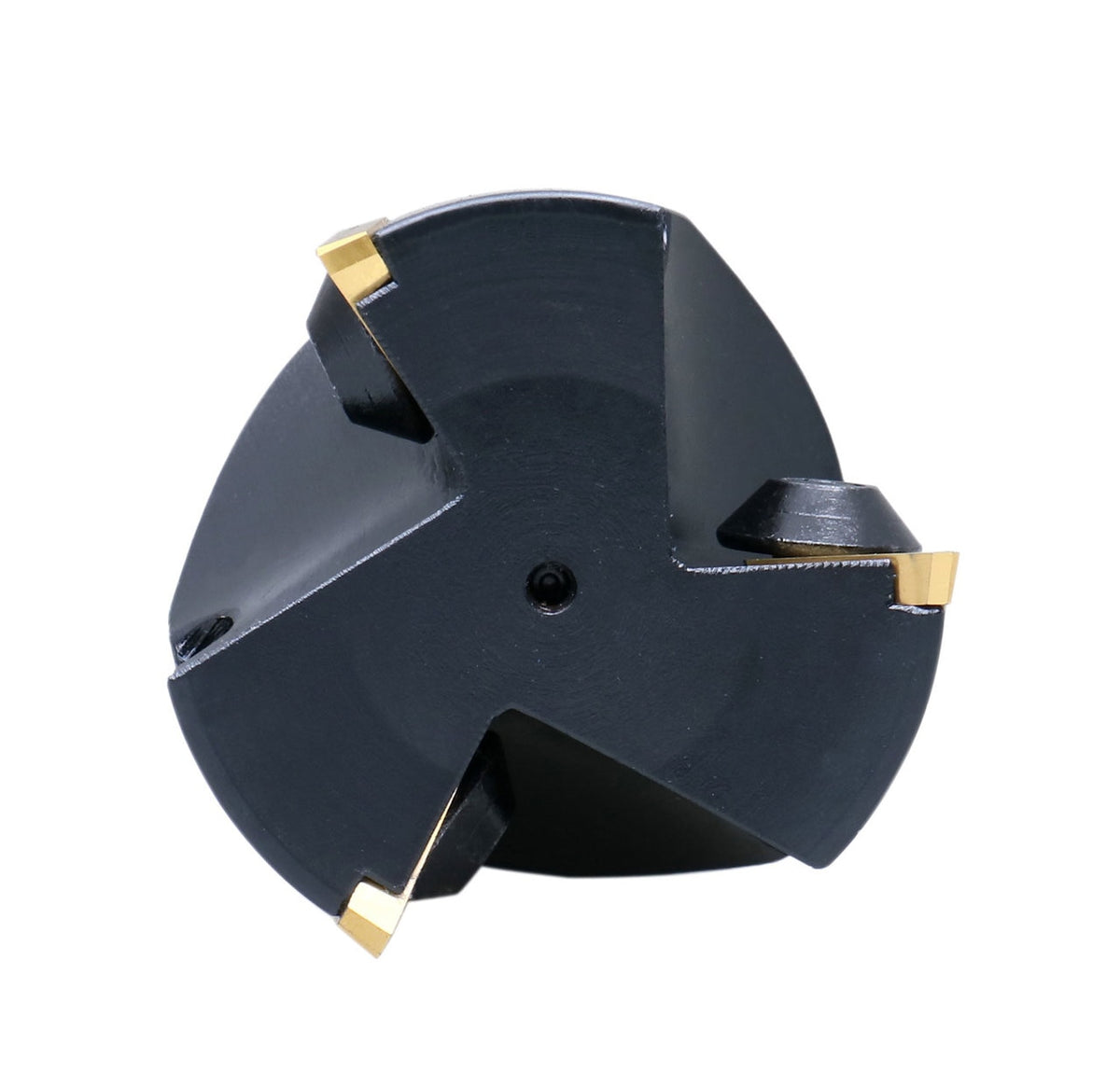

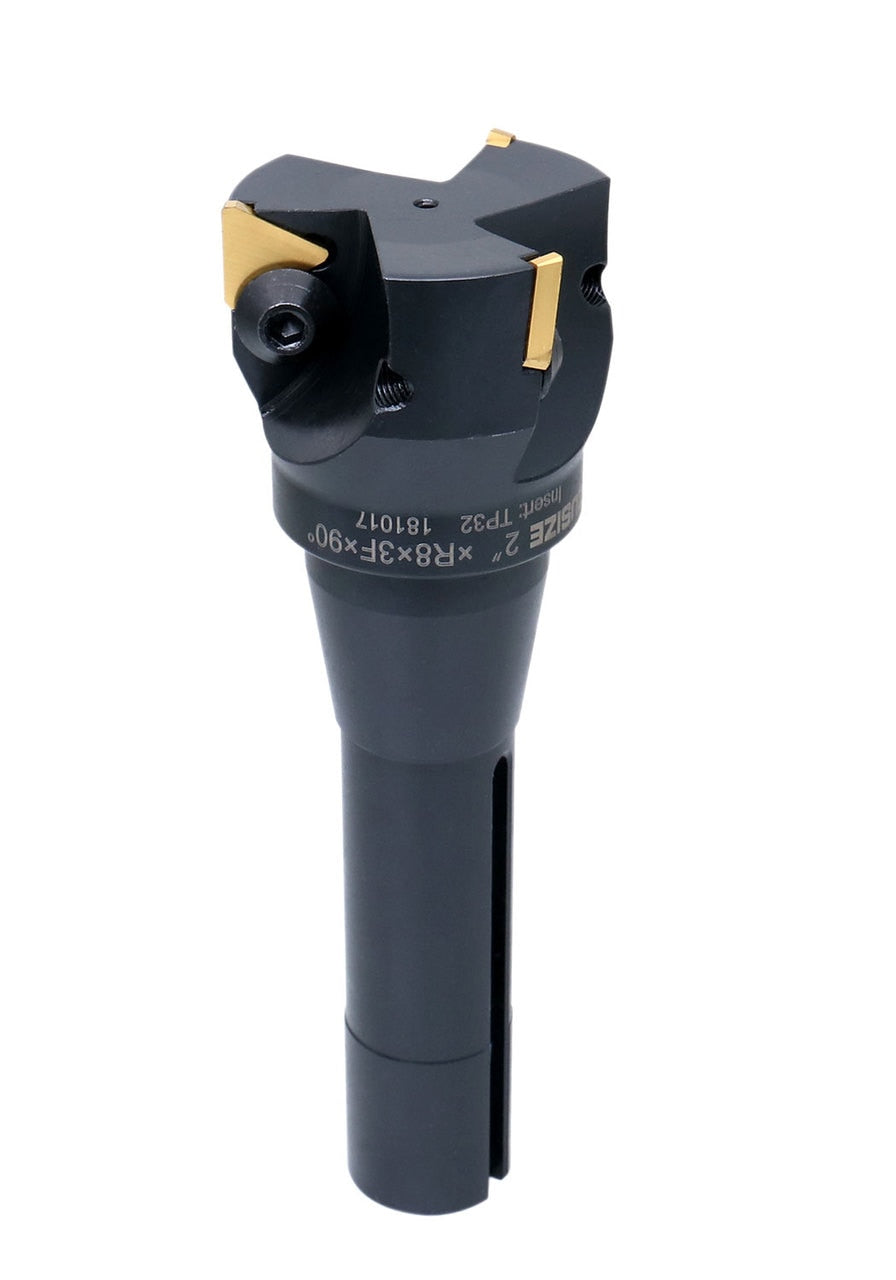

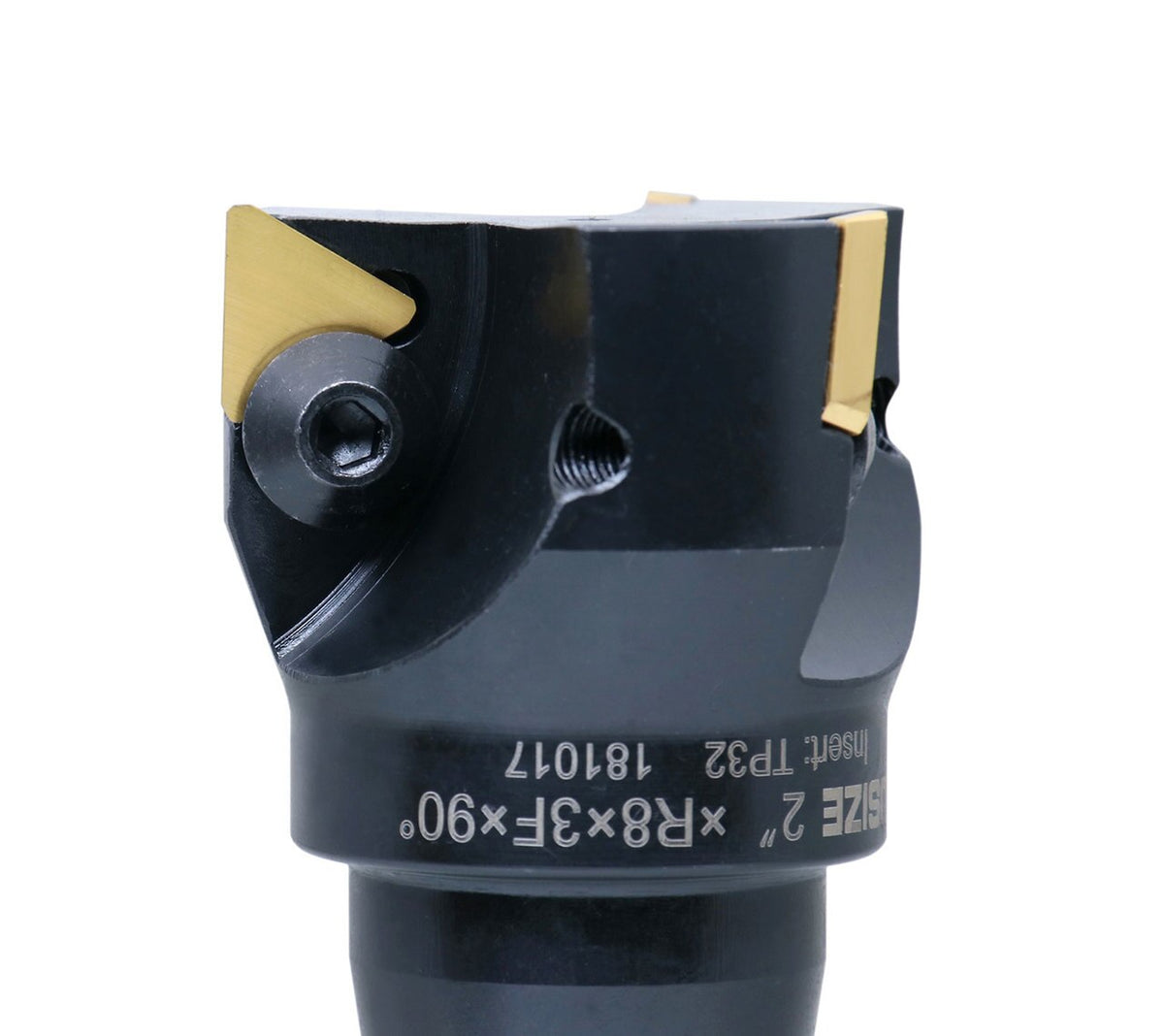

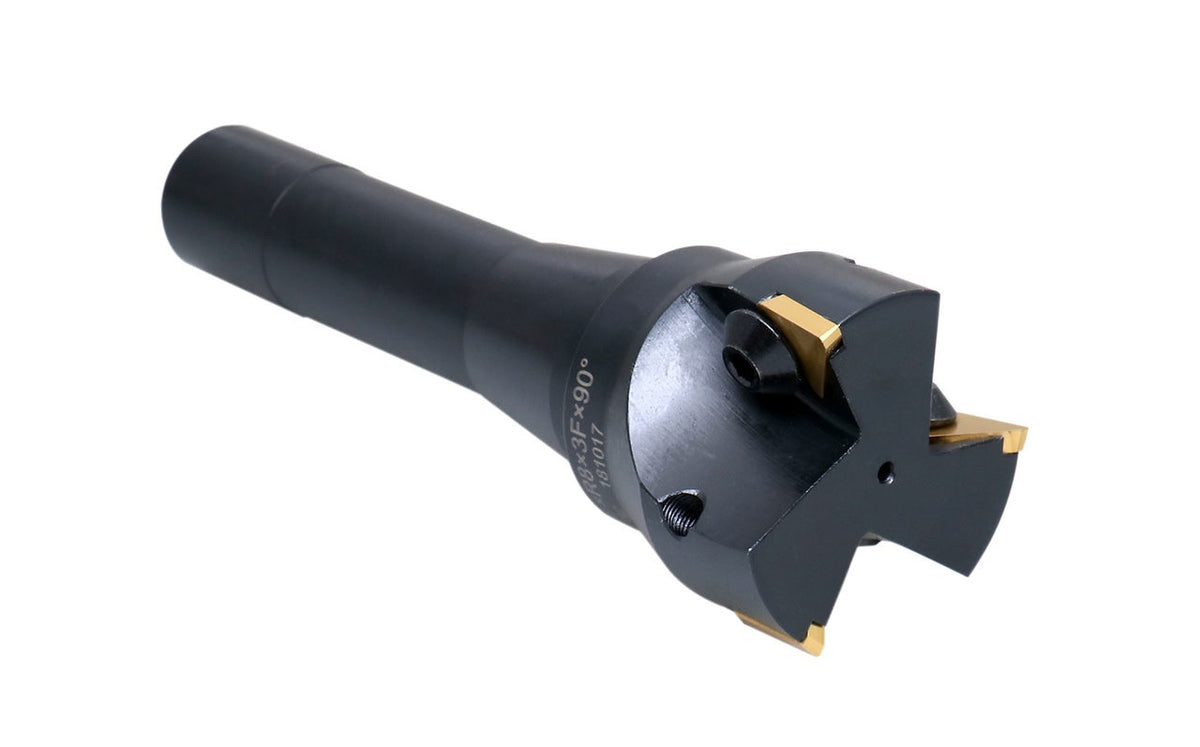

0046-0916

TPG32

(TiN Coated TPG321, 2127-1026)

(TiN Coated TPG322, 2127-1028)

(TiN Coated TPG32, 2127-1029)

3

SM6 x 12

(0045-6012)

2"

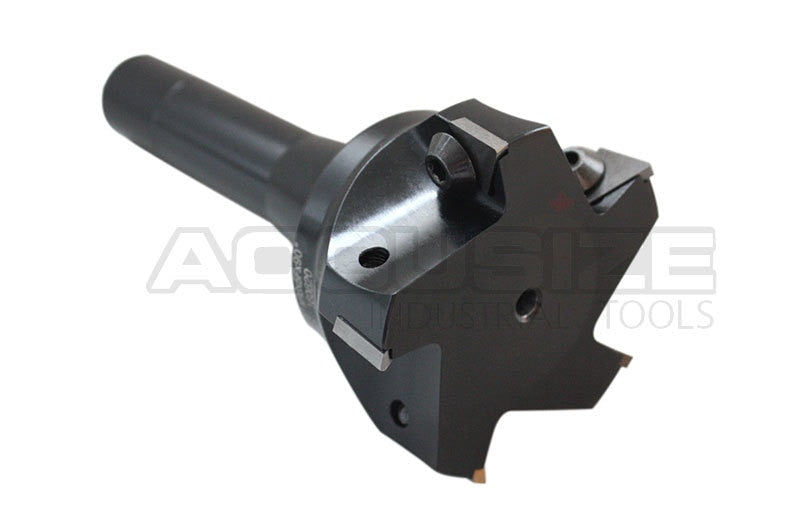

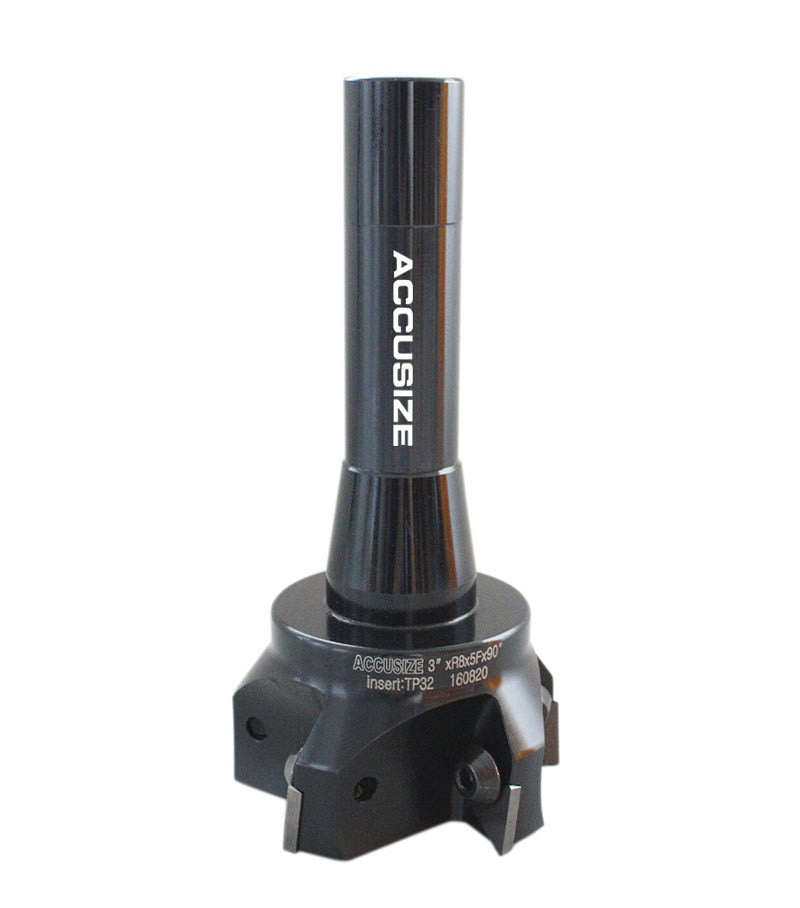

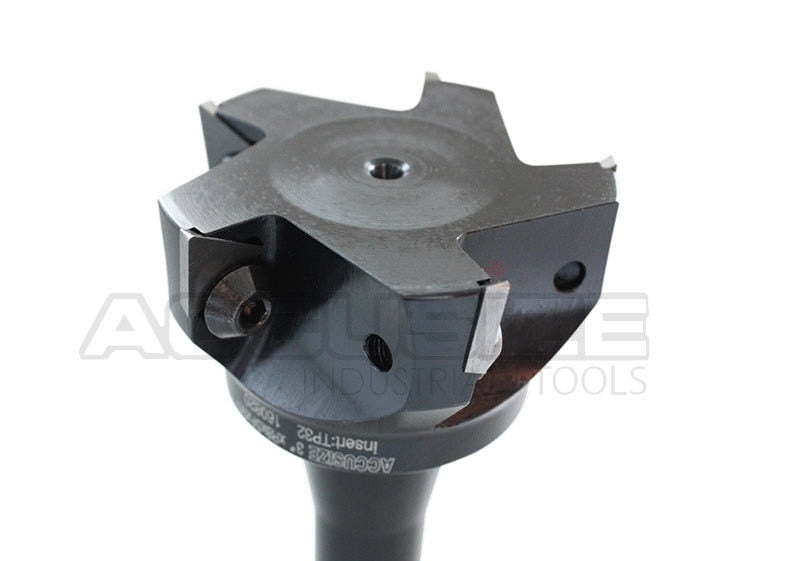

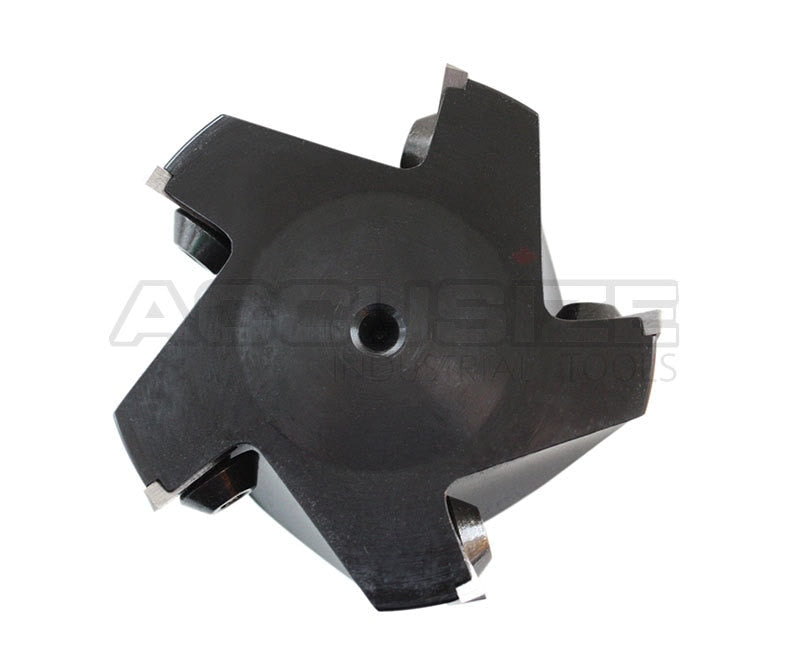

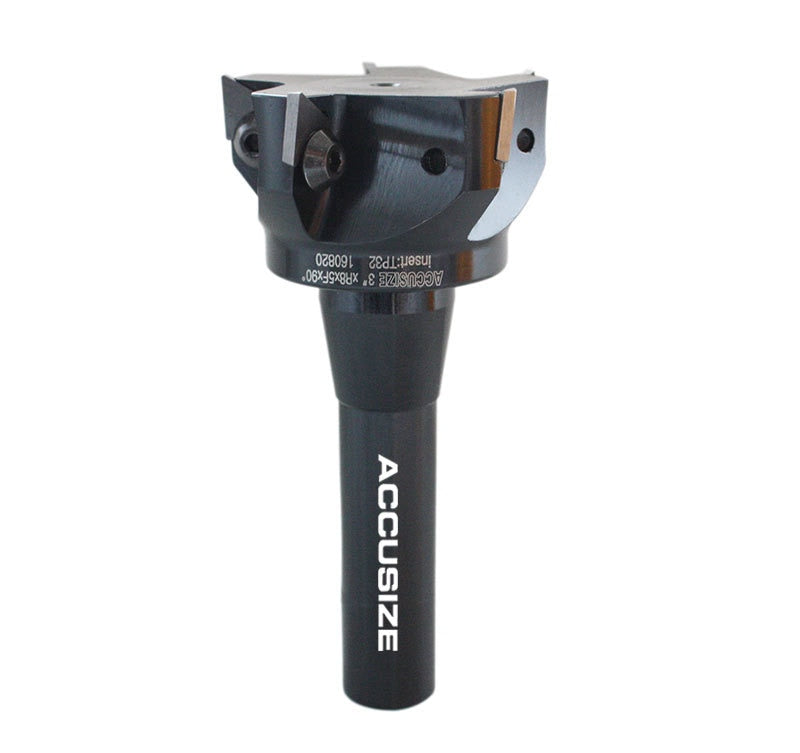

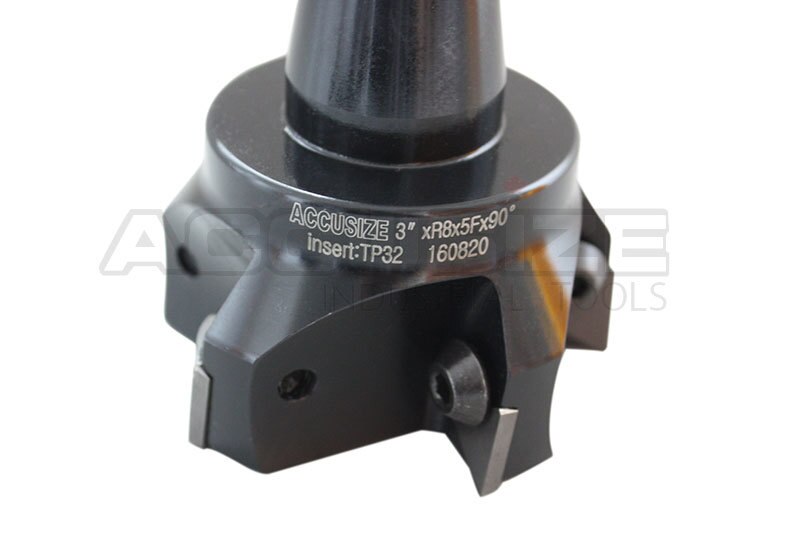

0046-0917 5 3"



Diagram of 0046-0915 1" R8 Indexable End Mills with Carbide TiN Coated TPG22 Inserts

Diagram of Accusize 0046-0915 1 in. Indexable End Mills with Carbide TiN Coated TPG22 Inserts and R8 Shank

Recommend Cutting Speed:






Item No. Description Materials Hardness(HB) Cutting parameter
V(ft /min) f(inch/Z) ae
0046-0915 1" Carbide Indexable End Mills, R8 Shank Low-carbon Steel ≤180 60-120 0.2(0.1-0.2) ≤0.5D
High-carbon Steel, Alloy Steel 180-280 60-120 0.2(0.1-0.2) ≤0.5D
Tool Steel 280-350 60-90 0.2(0.1-0.2) ≤0.5D

0046-0916 2" Carbide Indexable End Mills, R8 Shank Low-carbon Steel ≤180 40-80 0.2(0.1-0.2) ≤0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) ≤0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) ≤0.5D

0046-0917 3" Carbide Indexable End Mills, R8 Shank Low-carbon Steel ≤180 40-80 0.2(0.1-0.2) ≤0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) ≤0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) ≤0.5D



**ABOVE CUTTING PARAMETERS PROVIDED FOR REFERENCE ONLY **
