Vertex Super Indexing Spacer CS-6, 1001-060

Vertex Machinery WorksSKU: 1001-060

Price:
Sale price$1,304.97

California Proposition 65 Warning

Warning LabelWARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.
For more information, visit www.P65Warnings.ca.gov

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Security

Estimate shipping

More product information

  • Chuck Diameter: 6″
  • Chuck center Height: 4.84″/ 123mm
  • Number of dividing: 2, 3, 4, 5, 6, 8, 12, 24
  • Reduction ratio: 1 : 90
  • Scale of the micro collar: 2′
  • Center hole Diameter: 44mm
  • Overall Height: 235mm
  • Base Length: 220mm
  • Base Width: 150mm
  • Bolt Slot: 16mm
  • Brand: VERTEX
  • Weight: 106 lbs
  • Dimensions: 15.2 x 14 x 14 in

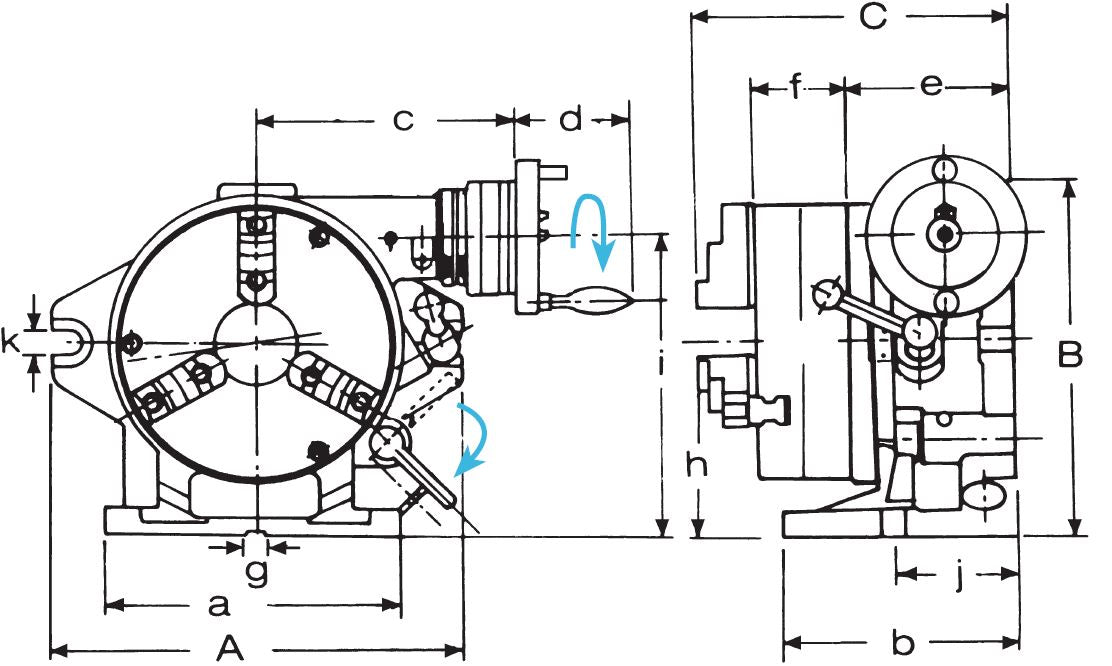

Diagram of SUPER INDEXING SPACER

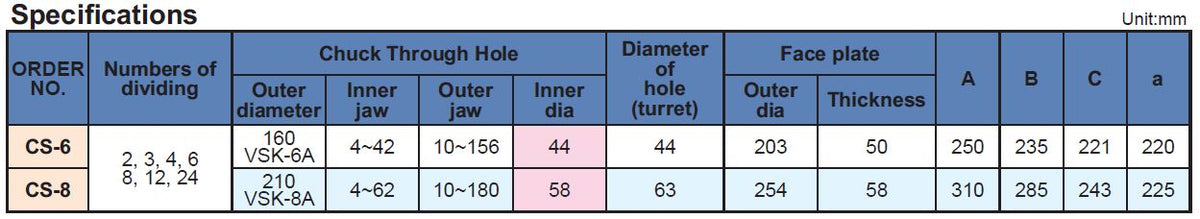

  Numbers of Dividings Chuck Through Hole Diameter of the hole (turret) Face plate A B C a
Order No  Outer Diameter Inner Jaw Outer Jaw Inner Dia Outer Dia Thickness
CS-6 2, 3, 4, 6
8, 12, 24
160
VSK-6A
4~42 10~156 44 44 203 50 250 235 221 220
CS-8 210
VSK-8A
4~62 10≤180 58 63 254 58 310 285 243 225

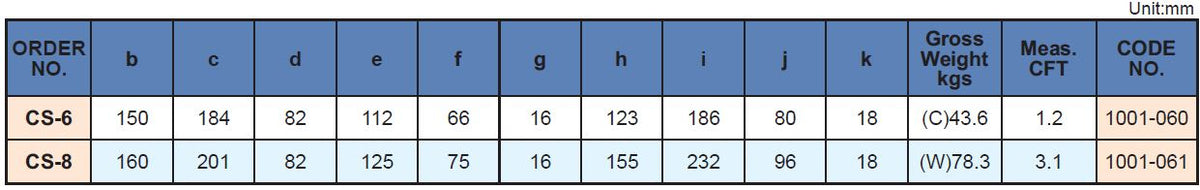

Order No b c d e f g h i j k Gross Weight kgs Meas. CFT Code No.
CS-6 150 184 82 112 66 16 123 186 80 18 (C)43.6 1.2 1001-60
CS-8 160 201 82 125 75 16 155 232 96 18 (W)78.3 3.1 1001-61
