Description

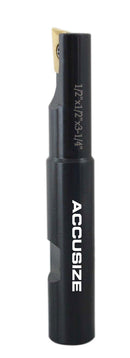

1/2" 90 Deg Square Shoulder Indexable End Mill plus 11 APKT11T308 Carbide Inserts, #0056-0913+0056-1130
Including:
0056-0913, 1/2" 90 Deg Square Shoulder Indexable End Mill
- 90° Cutting angle
- Screw down insert
- Radial rake angle: -10°
- Axial rake angle: +7°
- All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys.
- Fitted with 10° positive rectangular insert allow high depth of cut and feed per tooth
- Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)
- Cutting Diameter D: 1/2"
- Shank d1: 5/8"
- OAL: 3-1/4"
- ap: 0.410"
- No of Insert: 1
- Screw: M2.5 x 6 (SKU: 0046-2506)
- Insert: APKT11T3 (SKU: 0056-1130)
10 Pcs/Box Carbide Inserts APKT11T308 TiN Coated, #0056-1130
- TiN Coated
- APKT11T308
- Carbide
Recommended RPM
| Materials | Hardness(HB) | Cutting parameter | ||
| V(ft/min) | f(inch/Z) | ae | ||
| Low-carbon Steel | ≤180 | 197-393 | 0.002-0.004 | ≤0.5D |
| High-carbon Steel, Alloy Steel | 180-280 | 197-393 | 0.002-0.004 | ≤0.5D |
| Tool Steel | 280-350 | 197-295 | 0.002-0.004 | ≤0.5D |
