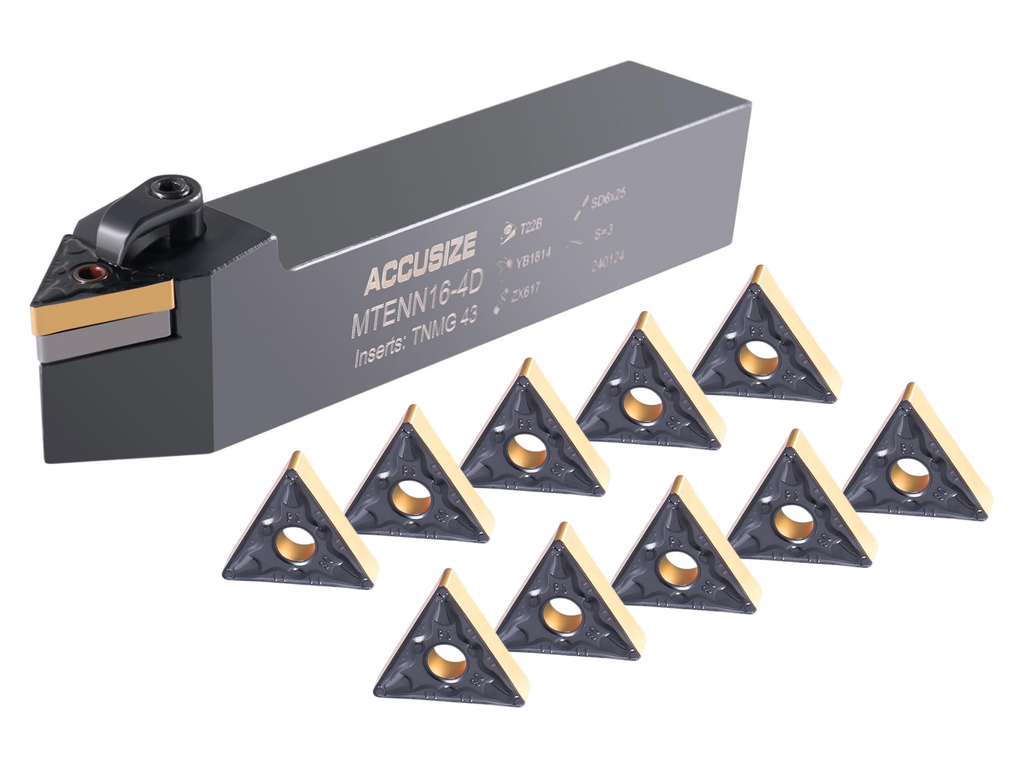

Shank Square and Model: 1" MTENN-16-4D w/ TNMG432 CVD Coated Inserts (2313-5020INS2)

Shipping calculated at checkout

In stock

California Proposition 65 Warning

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


Estimate shipping


MTENN Toolholders with TNMG Carbide Inserts

  • For facing
  • Negative rake
  • 30° end cutting edge angle
  • TNMG Carbide inserts

 ** For purchasing additional inserts, you may find the corresponding Insert SKU below:

Item# Model Shank Square F OAL
Inserts Finger Clamp Clamp Screw Locking Pins Shims
I.C. Insert Insert Coated SKU Thickness

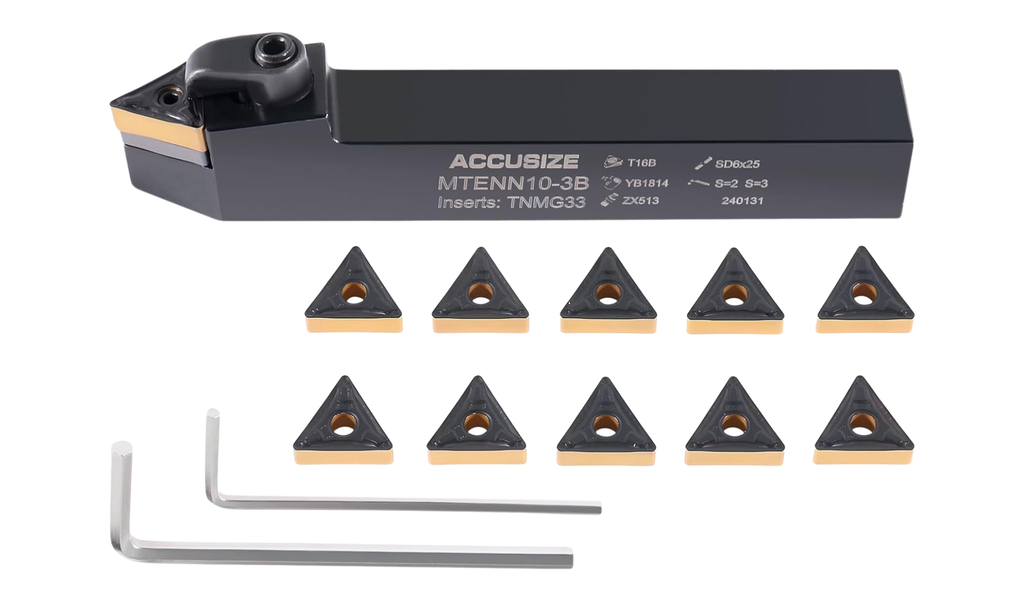

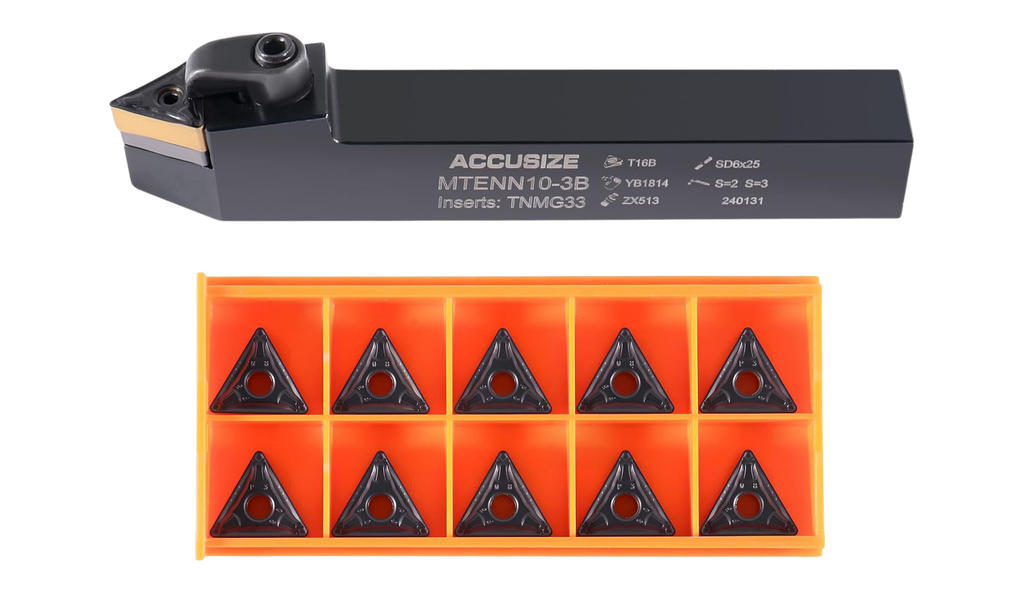

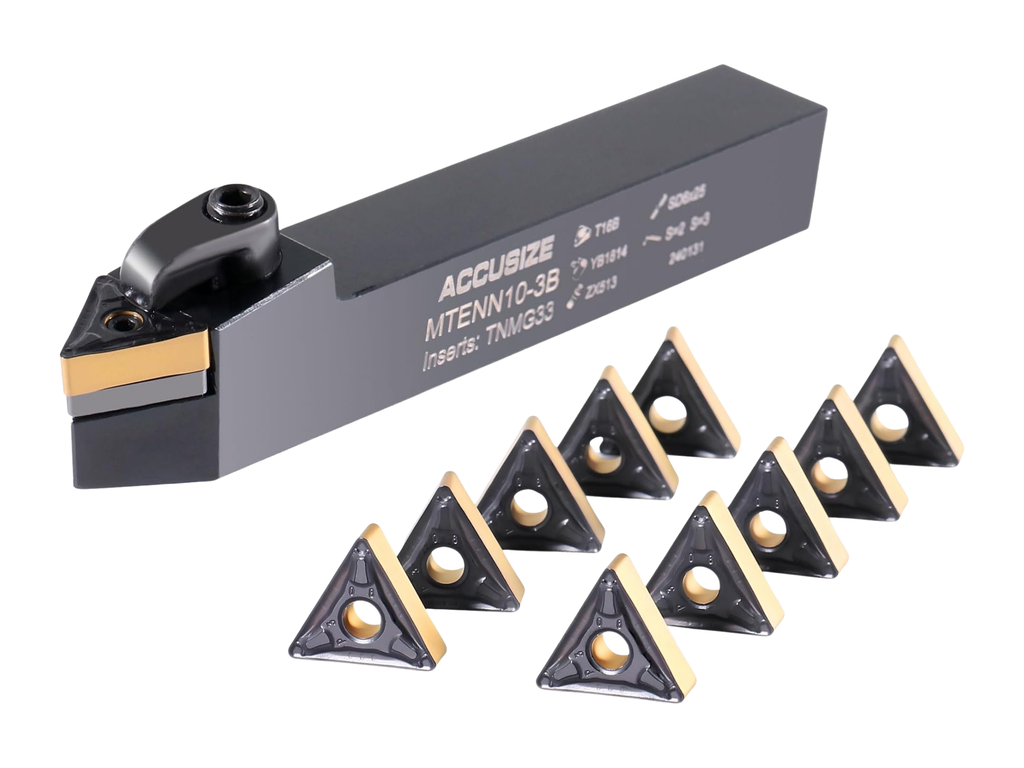

2313-5014 MTENN-10-3B 5/8" 5/16" 4-1/2" 3/8" TNMG33

TiN Coated TNMG332, 2122-1034

CVD Coated TNMG332-MD, 2222-1034

3/16" CL-6 XNS-0520 NL-0414 T1603B

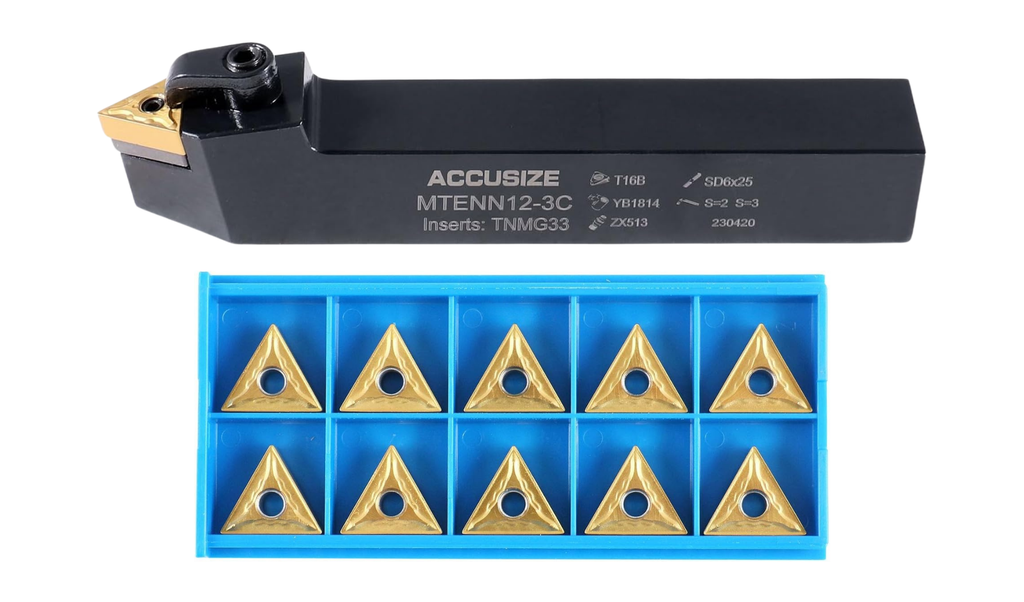

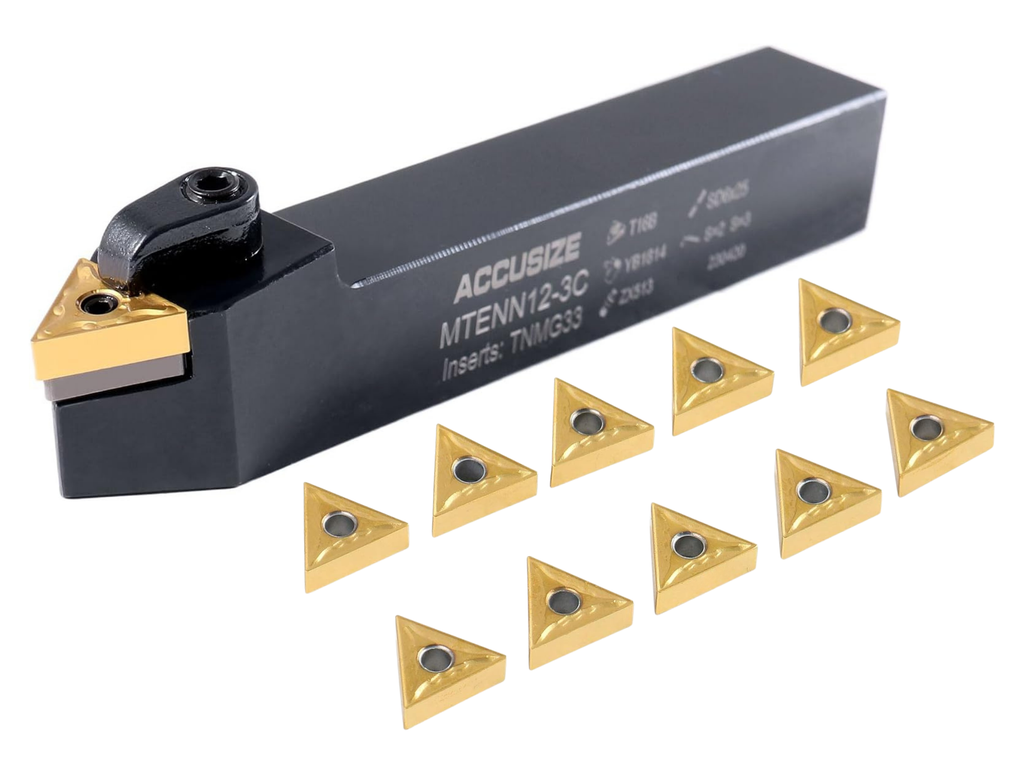

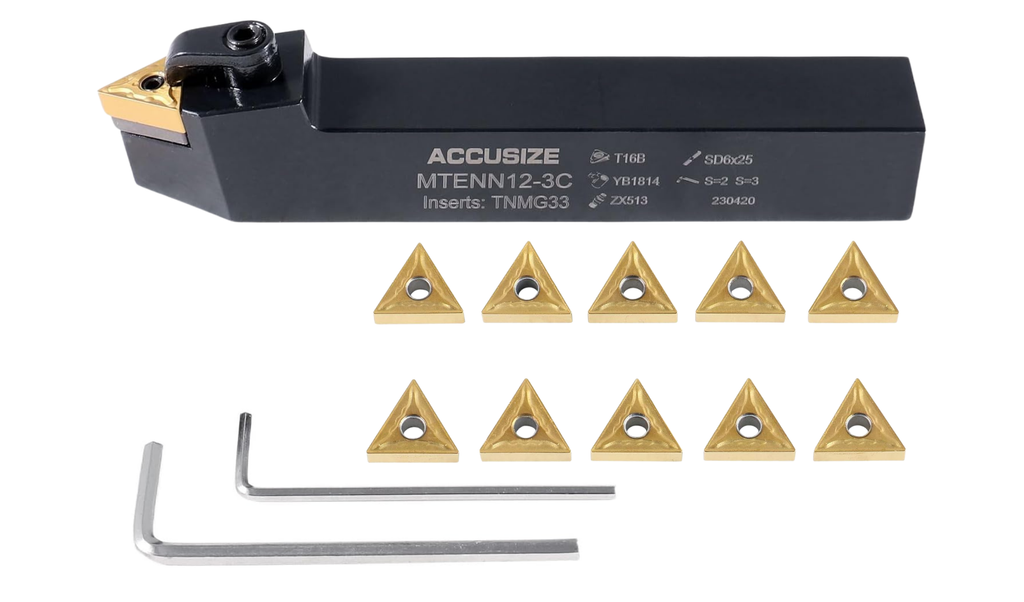

2313-5016 MTENN-12-3C 3/4" 3/8" 4-1/2" 3/8" TNMG33

TiN Coated TNMG332, 2122-1034

CVD Coated TNMG332-MD, 2222-1034

3/16" CL-6 XNS-0829 NL-0414 T1603B

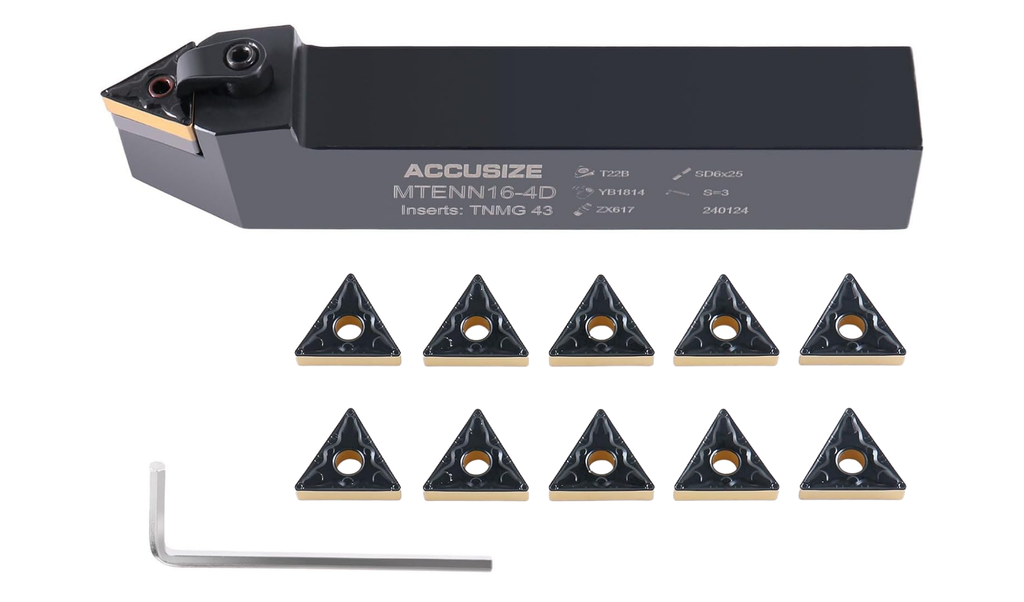

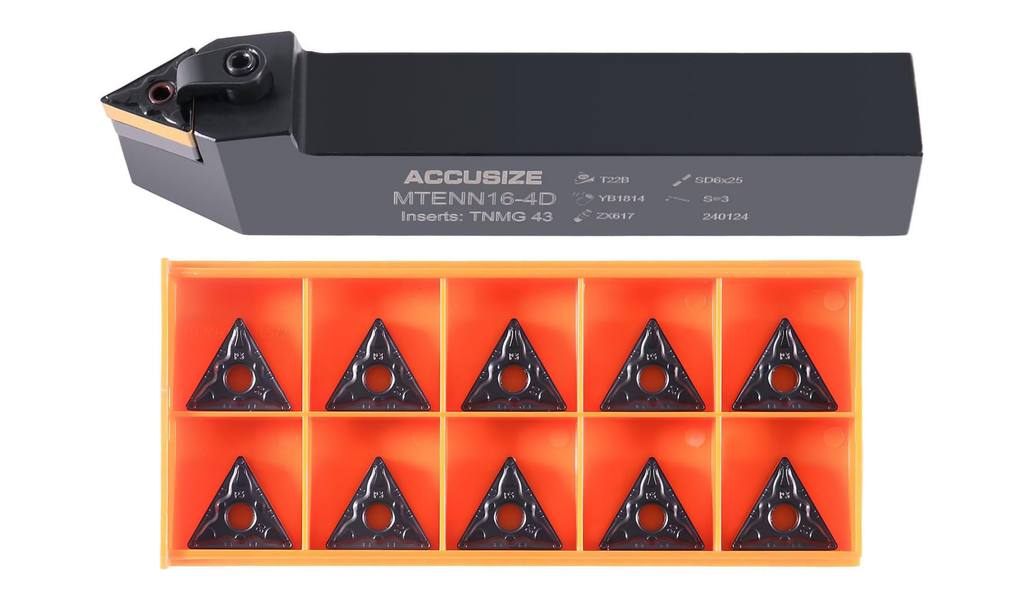

2313-5020 MTENN-16-4D 1" 1/2" 6" 1/2" TNMG43 CVD Coated TNMG432-MD, 2222-1036 3/16" CL-12 XNS-0829 NL-0617 T2203B




TNMG, Carbide Inserts, Tin Coated, 10 Pcs/Set

Image 1

  • ANSI #: TNMG332
  • ISO #: TNMG160408
  • Insert Style: TNMG
  • Insert Size: 332
  • IC: 3/8"
  • Thickness: 3/16"
  • Thru-Hole: 0.15"
  • Radius: 1/32
Item Description
2122-1034 C5 Grade Coated, TNMG332

TNMG Carbide Inserts CVD Coated Black/Yellow 10 ps/box

  • CVD Coated
  • Insert Grade: BPS101
  • Chip Breaker: MD
  • Material: Carbide
  • Coating: CVD Al2O3 TICN
  • Machining Parts Material: Steel
  • Machining Process: finish

Product features

  • BPS101 Black/Yellow
  • Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
  • Can bear high temperatures
  • For steel and steel castings finishing to roughing processing
  • Continue cutting to light interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed
  • For hard materials, continuous cutting and light interrupted cutting from finishing to roughing
  • Wet and dry processing
  • Combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping
  • Preferred choice chip breaker on General Purpose Finishing

Features of chip breaker

  • For medium-duty turning
  • With the broad capability for steel, stainless steel, grey and nodular cast-iron
  • Operations: turning, facing and profiling
  • Advantages: all-round, reliable with problem-free machining
  • Limitations: depth of cut and feed, risk of overloading the cutting edge
  • Components typically: axles, shafts, hubs, gears, etc.
Item # ANSI # I.S.O. # I.C Thickness Hole Radius
2222-1034 TNMG332-MD TNMG160408-MD 3/8'' 3/16'' 5/32'' 49/64''
2222-1036 TNMG432-MD TNMG220408-MD 1/2'' 3/16'' 13/64'' 1/32''
