Accusize Industrial ToolsSKU: 2310-5014

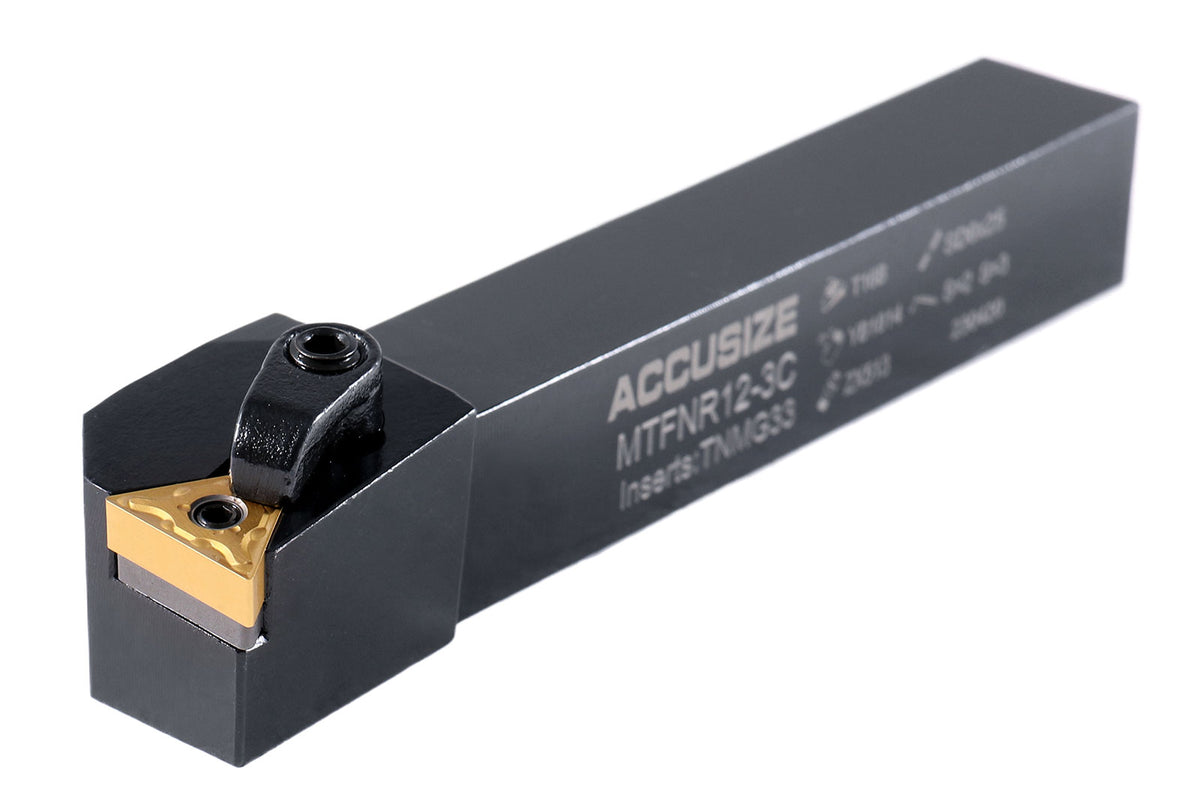

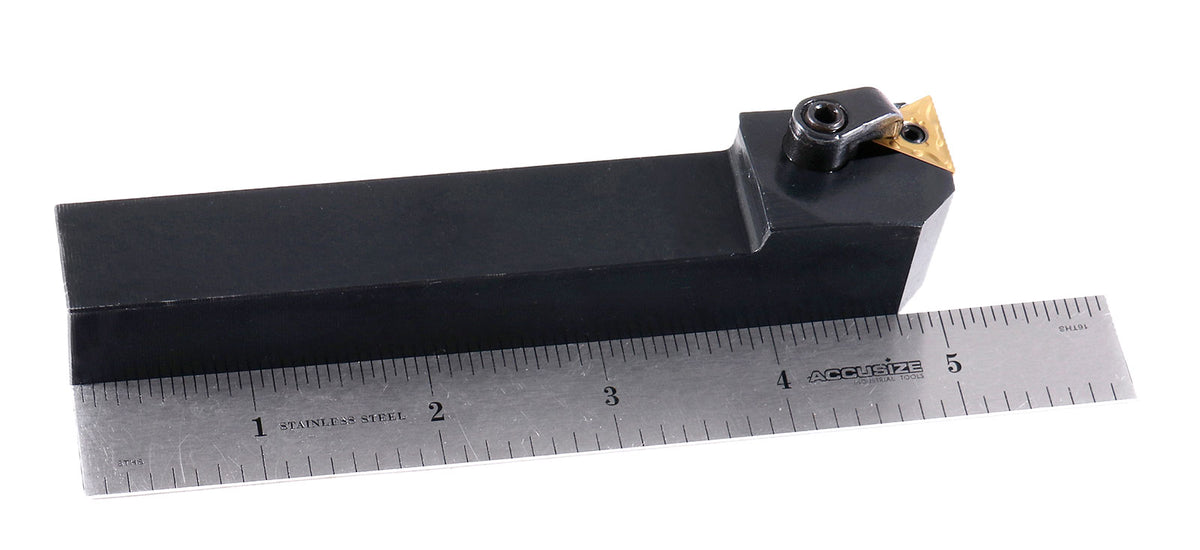

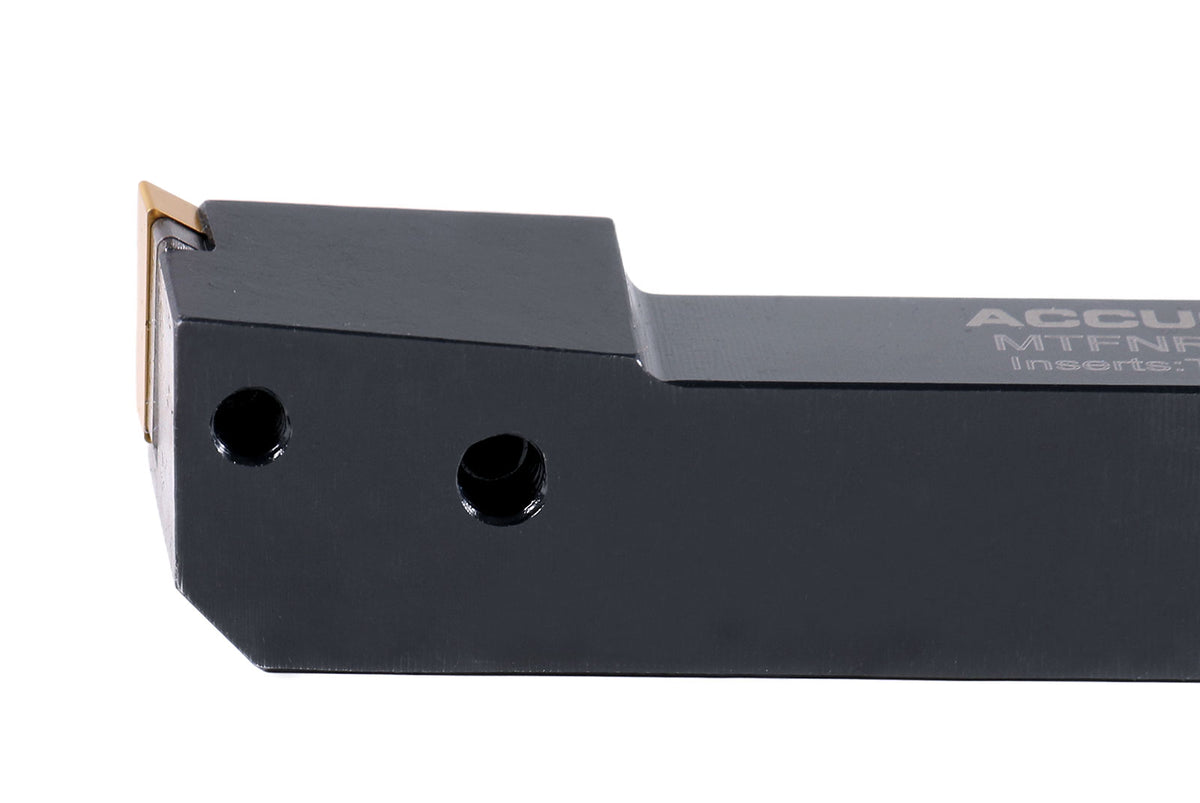

Shank Square and Model: 3/4"x4-1/2" MTFN R-12-3C (2310-5014)
Price:
$46.80

California Proposition 65 Warning

Warning LabelWARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.
For more information, visit www.P65Warnings.ca.gov

Payment & Security

Payment methods

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

Estimate shipping

More product information

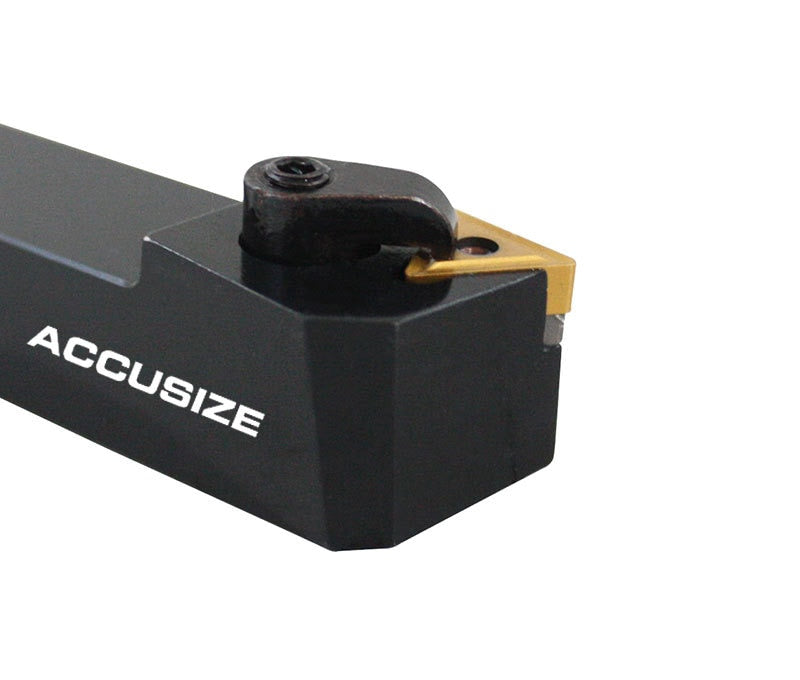

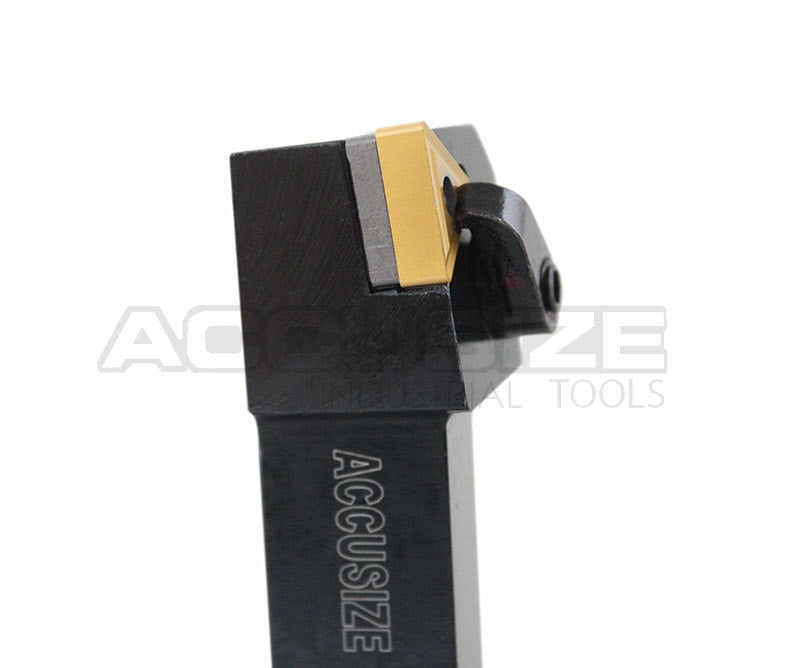

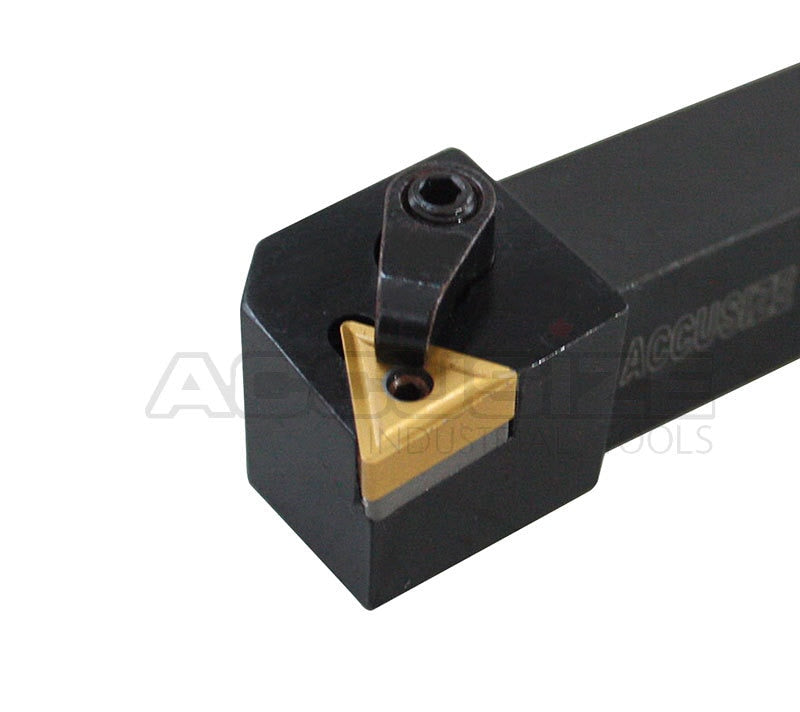

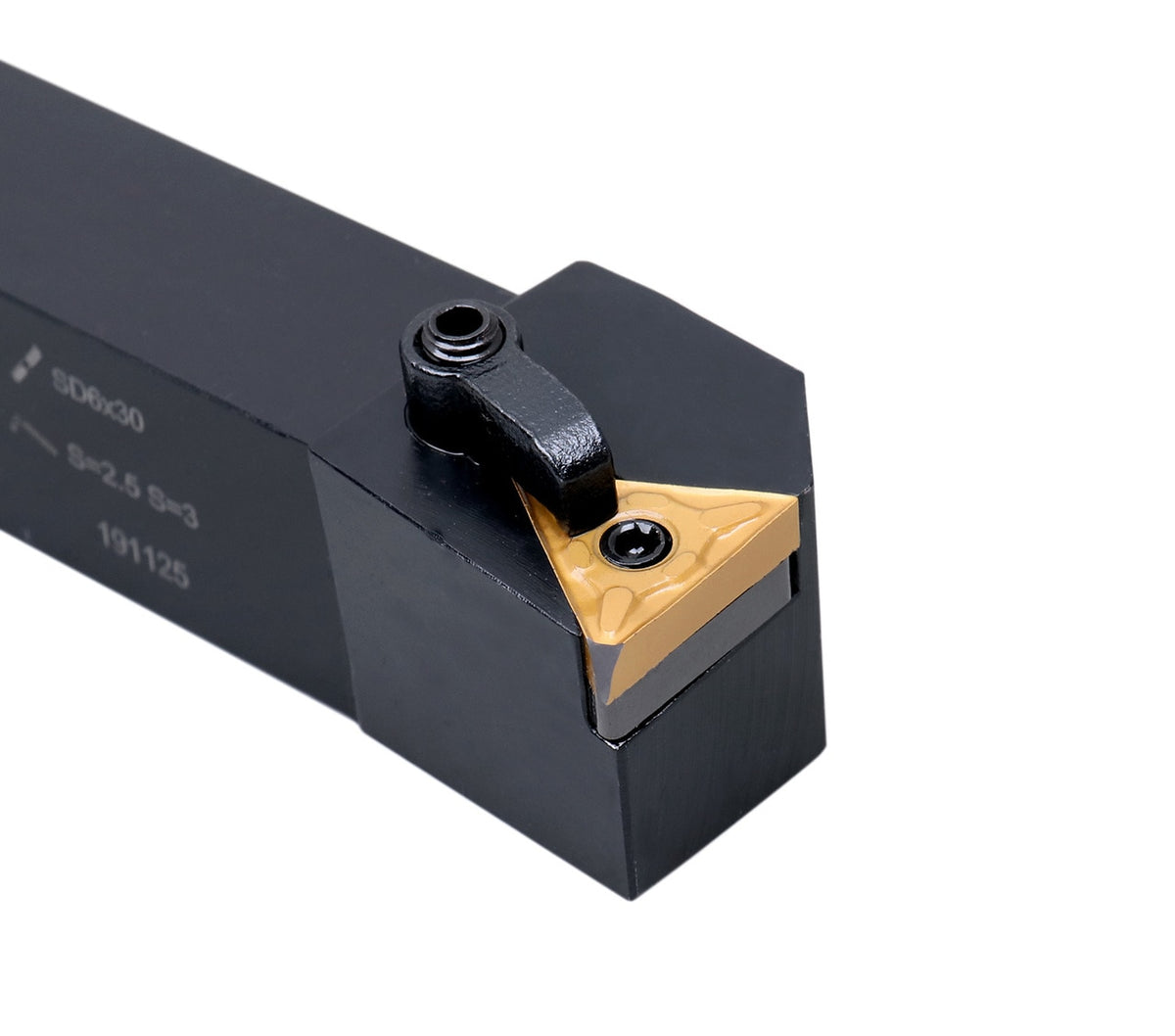

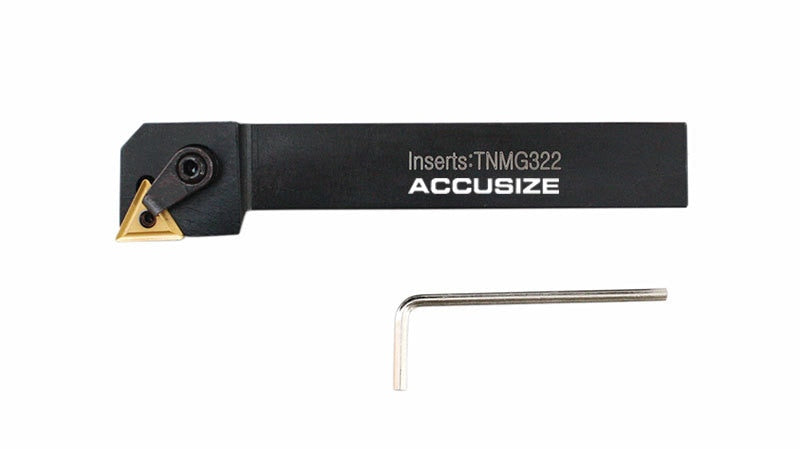

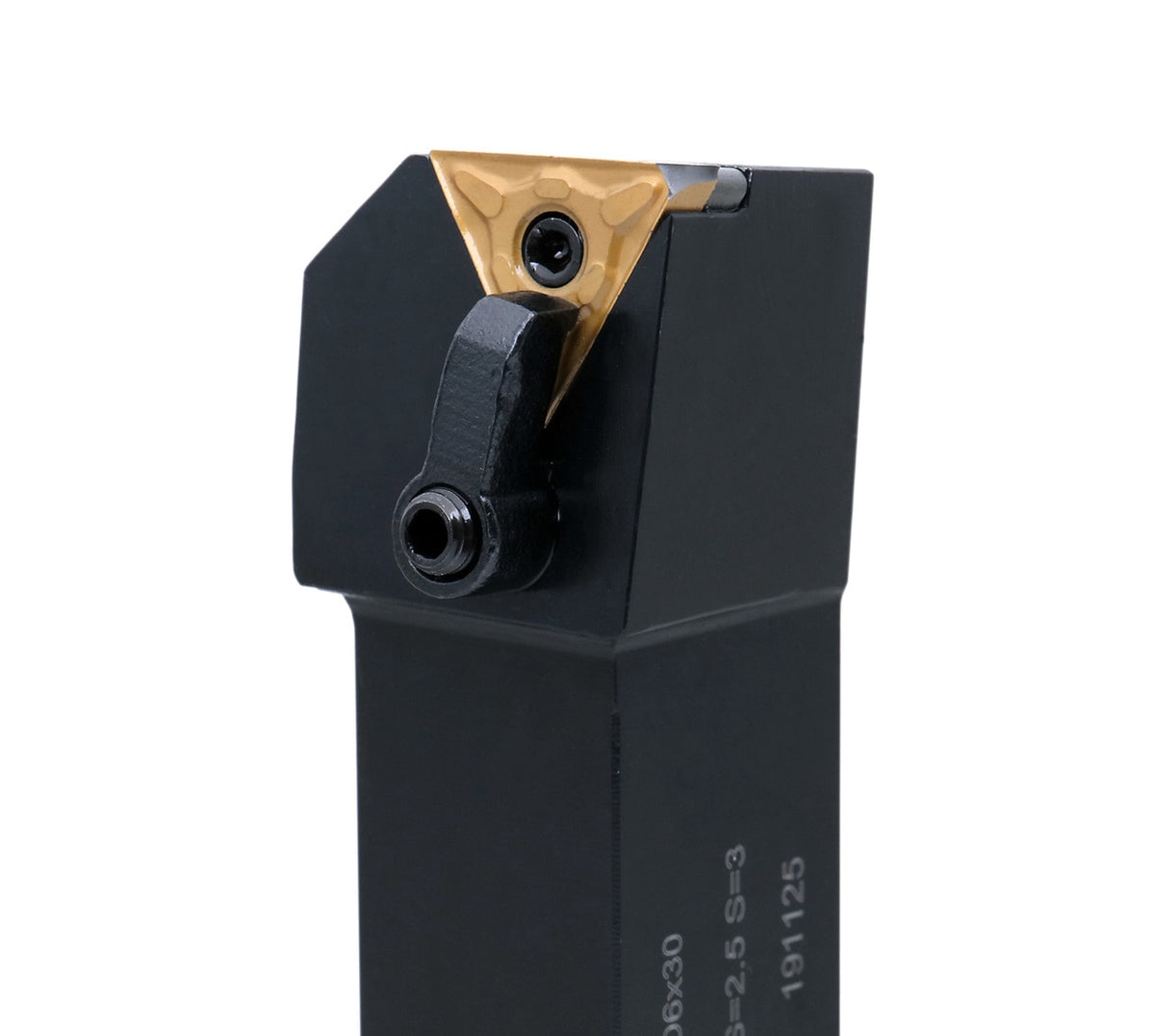

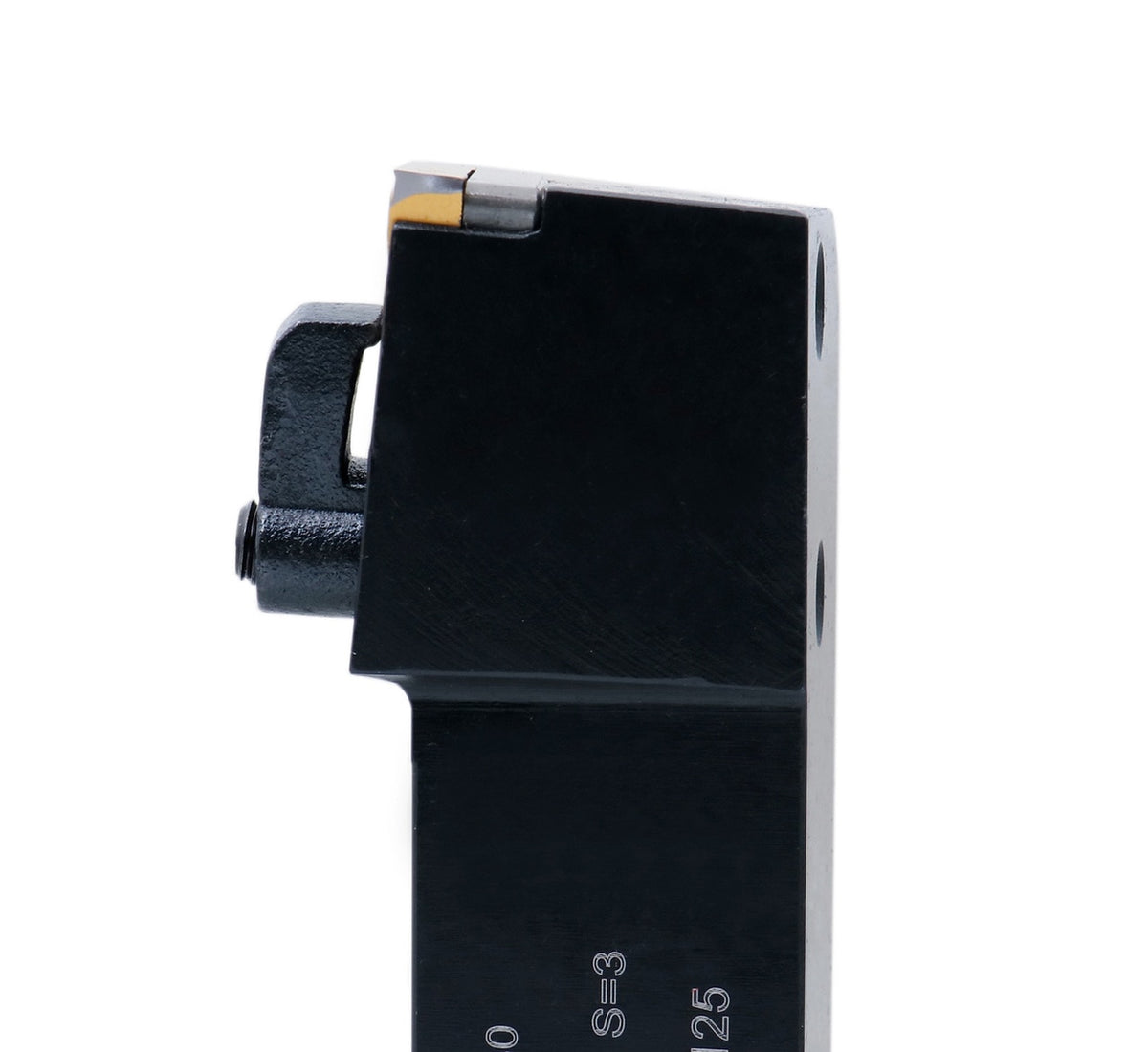

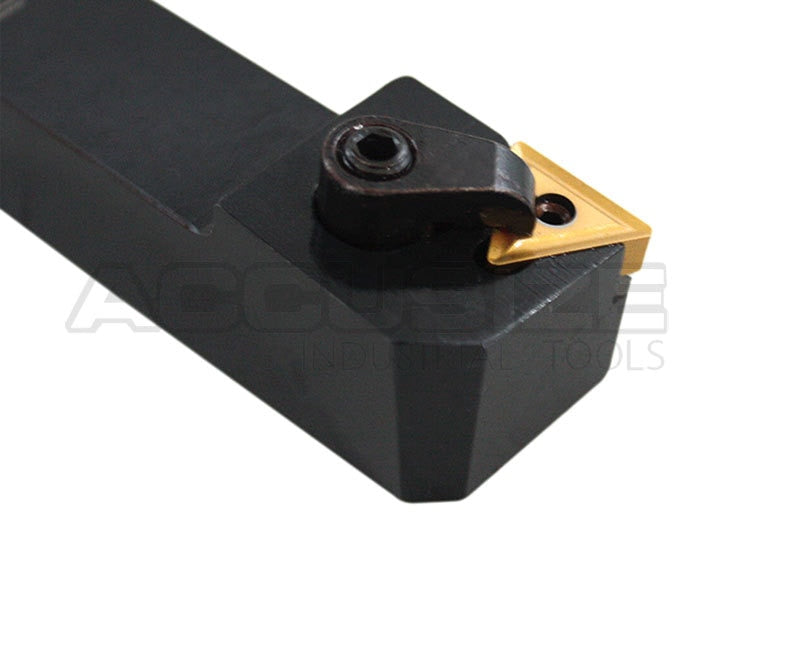

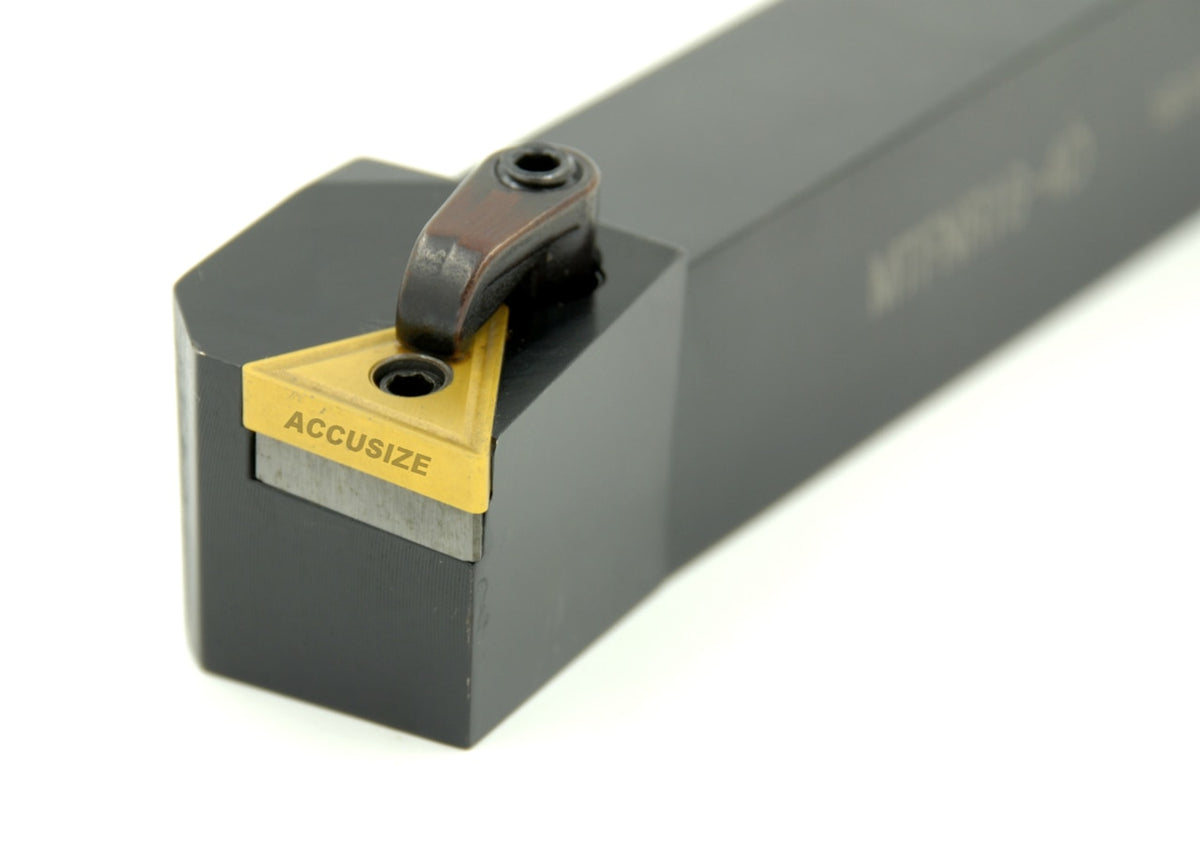

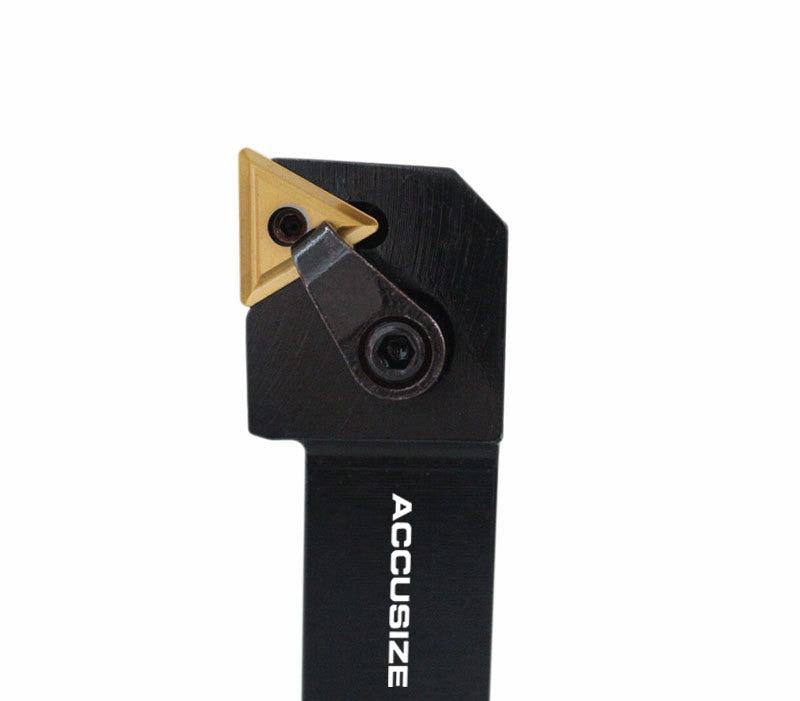

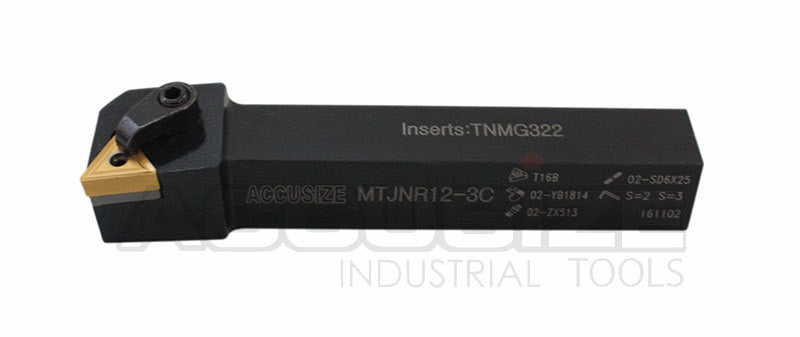

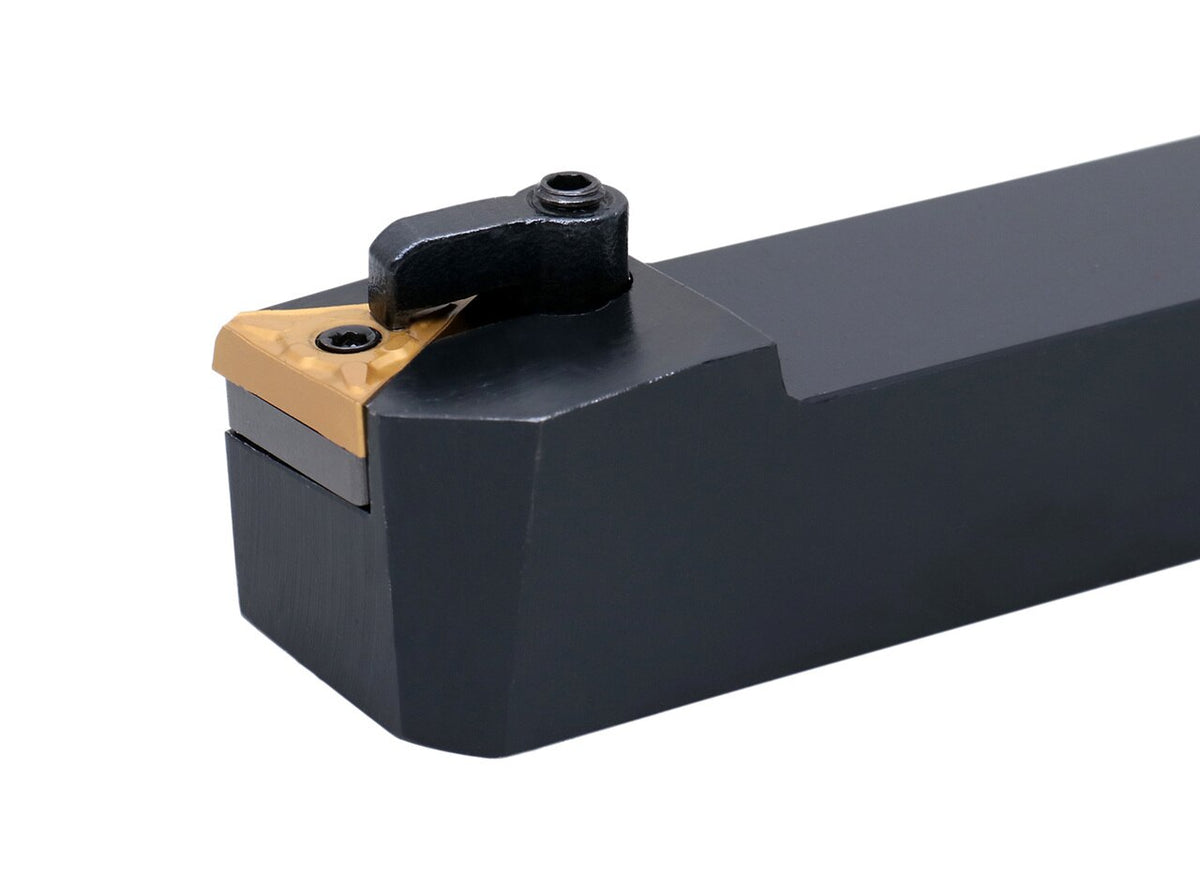

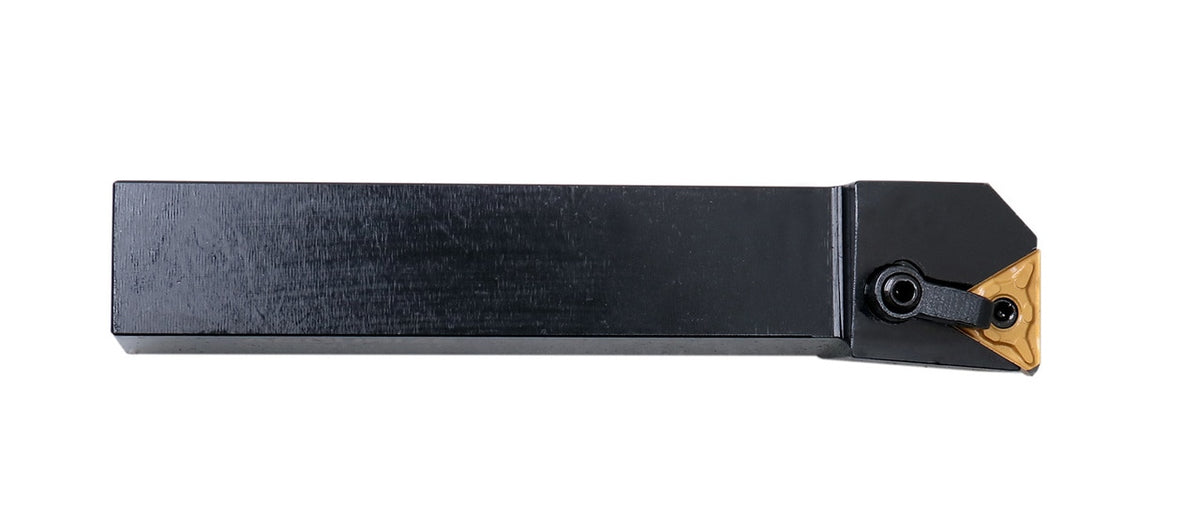

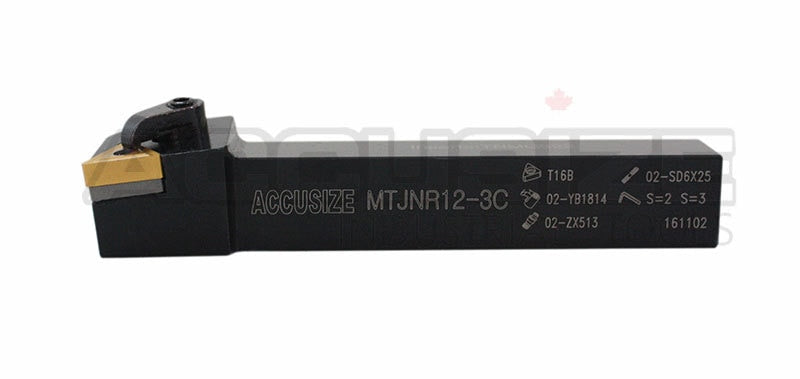

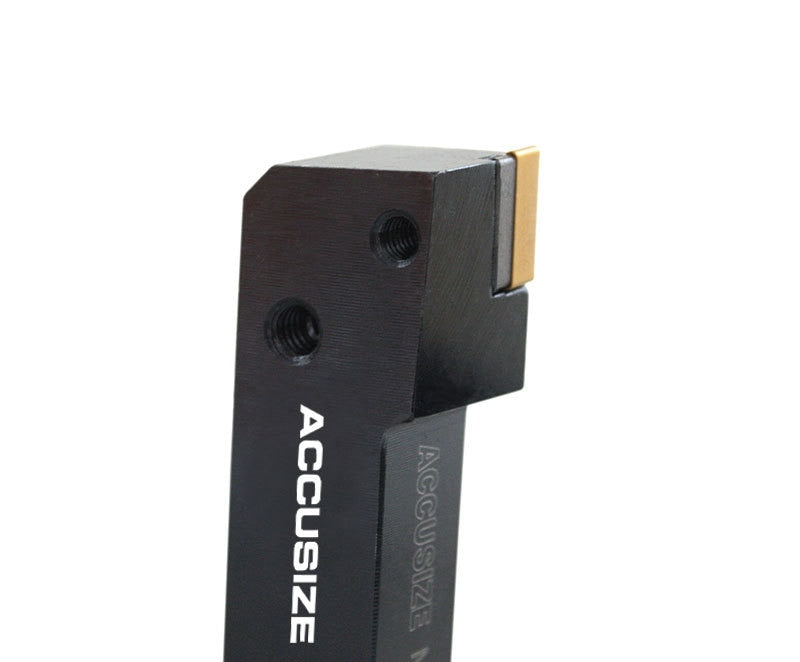

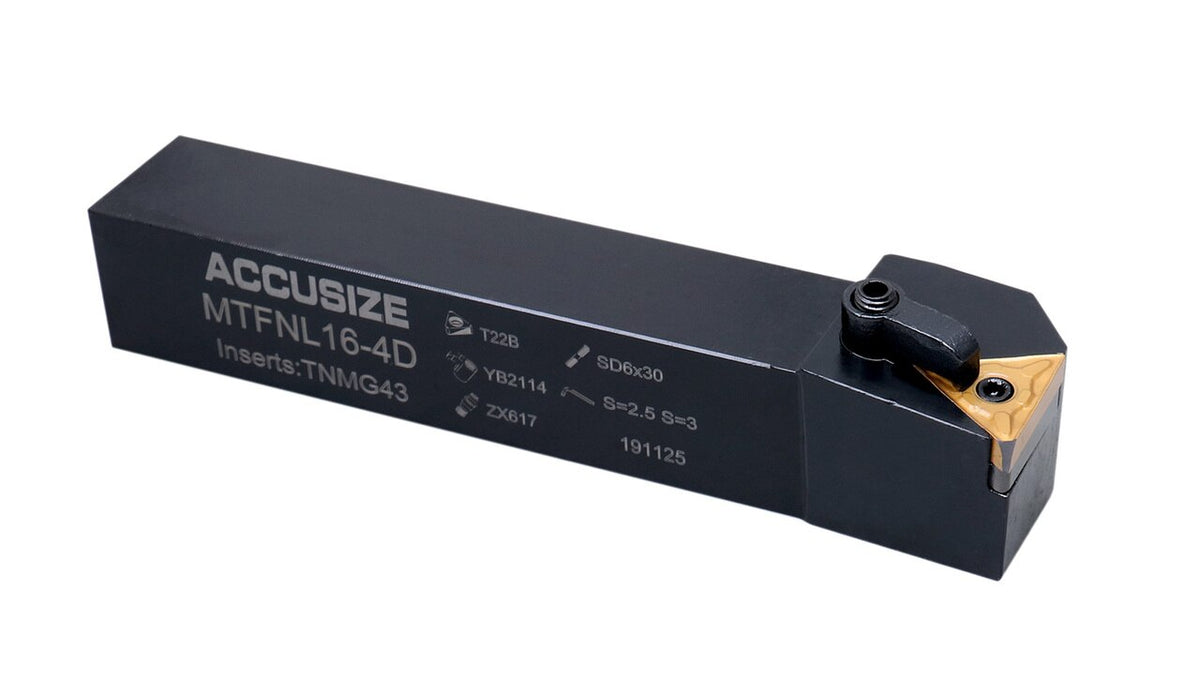

MTFN R/L Toolholders

  • Used for rough or finish facing.
  • Negative rake
  • 0° end cutting edge angle
  • TNMG inserts

 ** For purchasing additional inserts, you may find the corresponding Insert SKU below:

Item# Right/Left Hand Model Shank Square (A & B) F OAL
(C)		 Inserts Finger Clamp Clamp Locking Pins Shims  Clamp Screw
I.C. Thickness Insert Coated, (SKU)

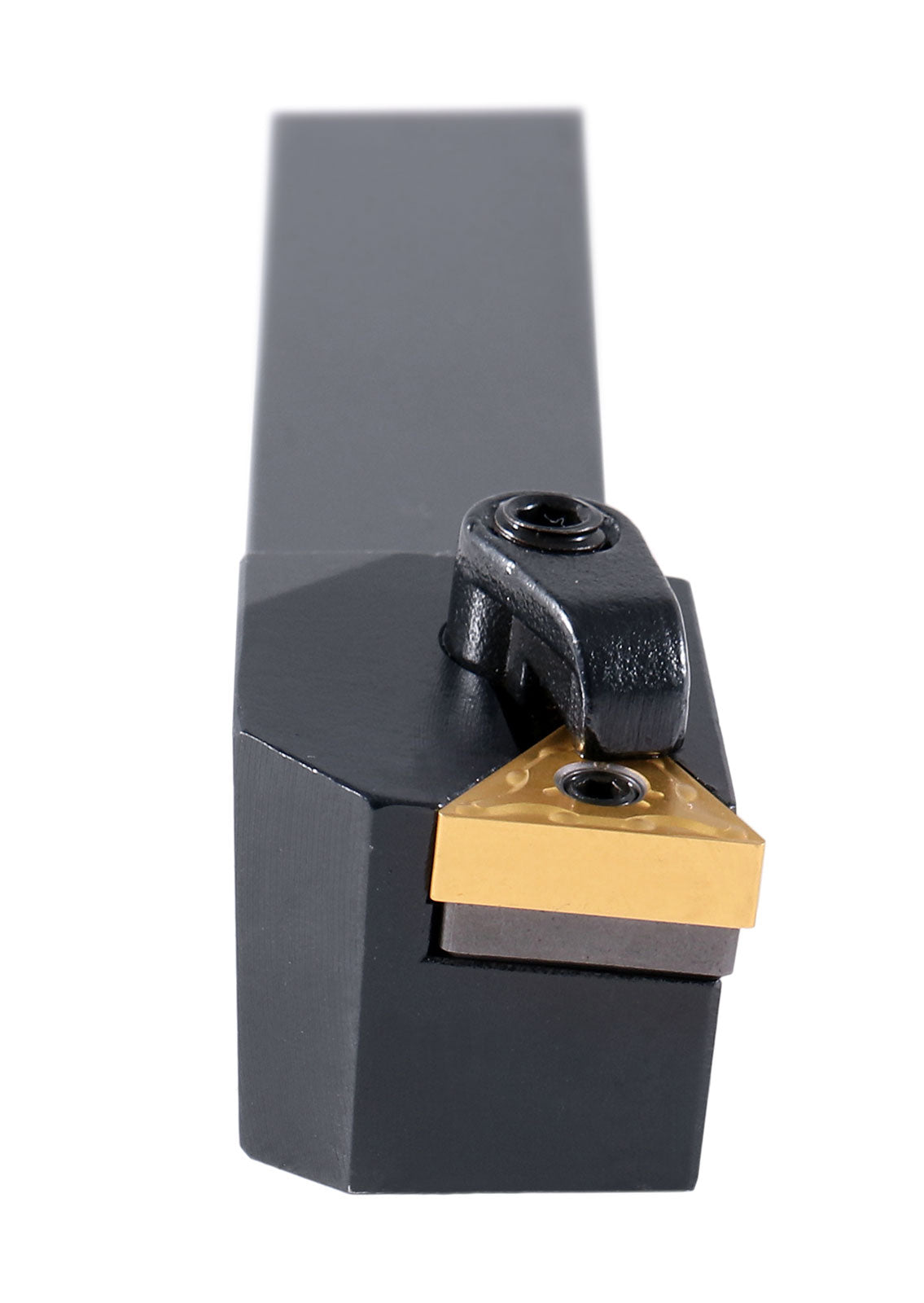

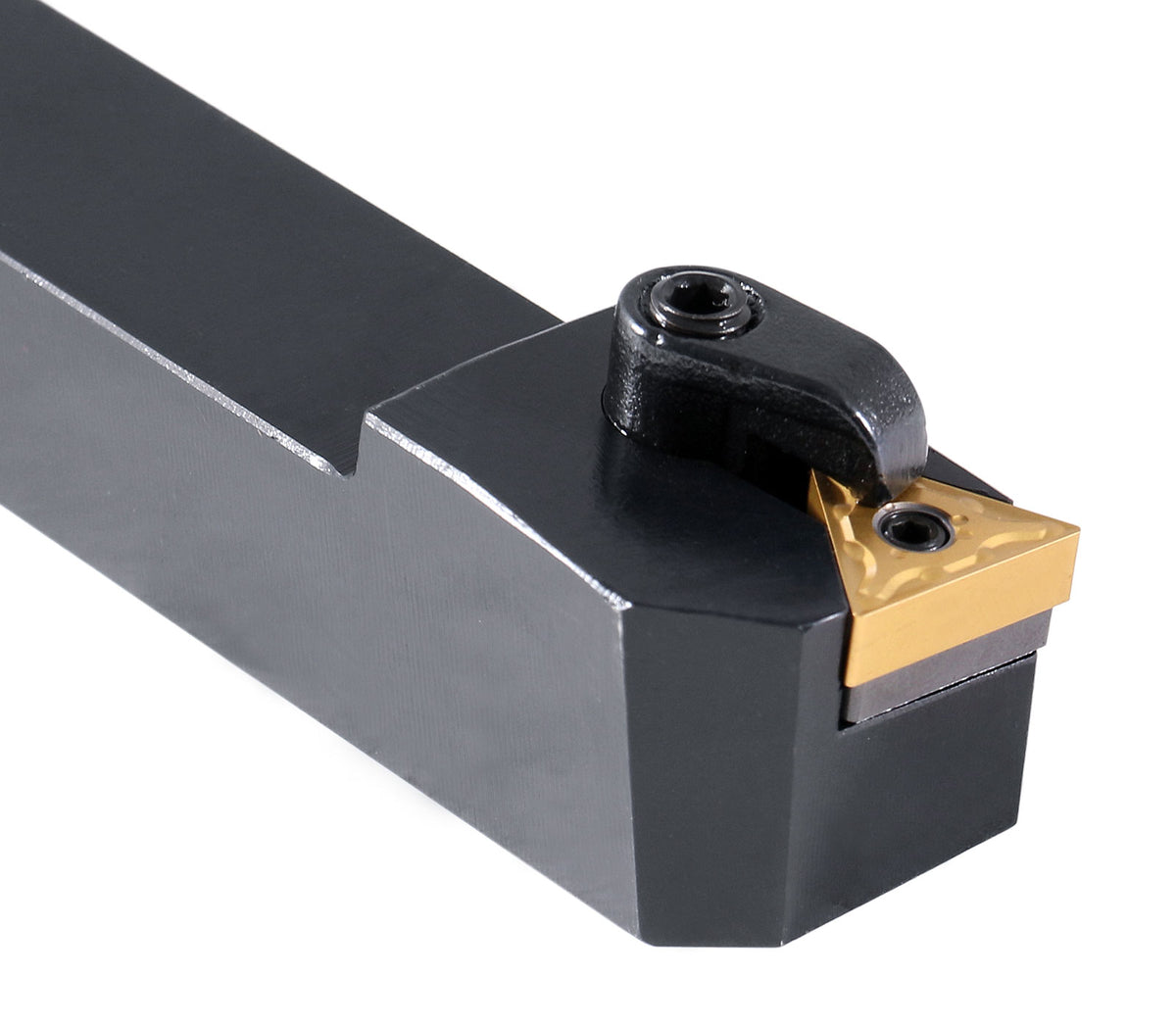

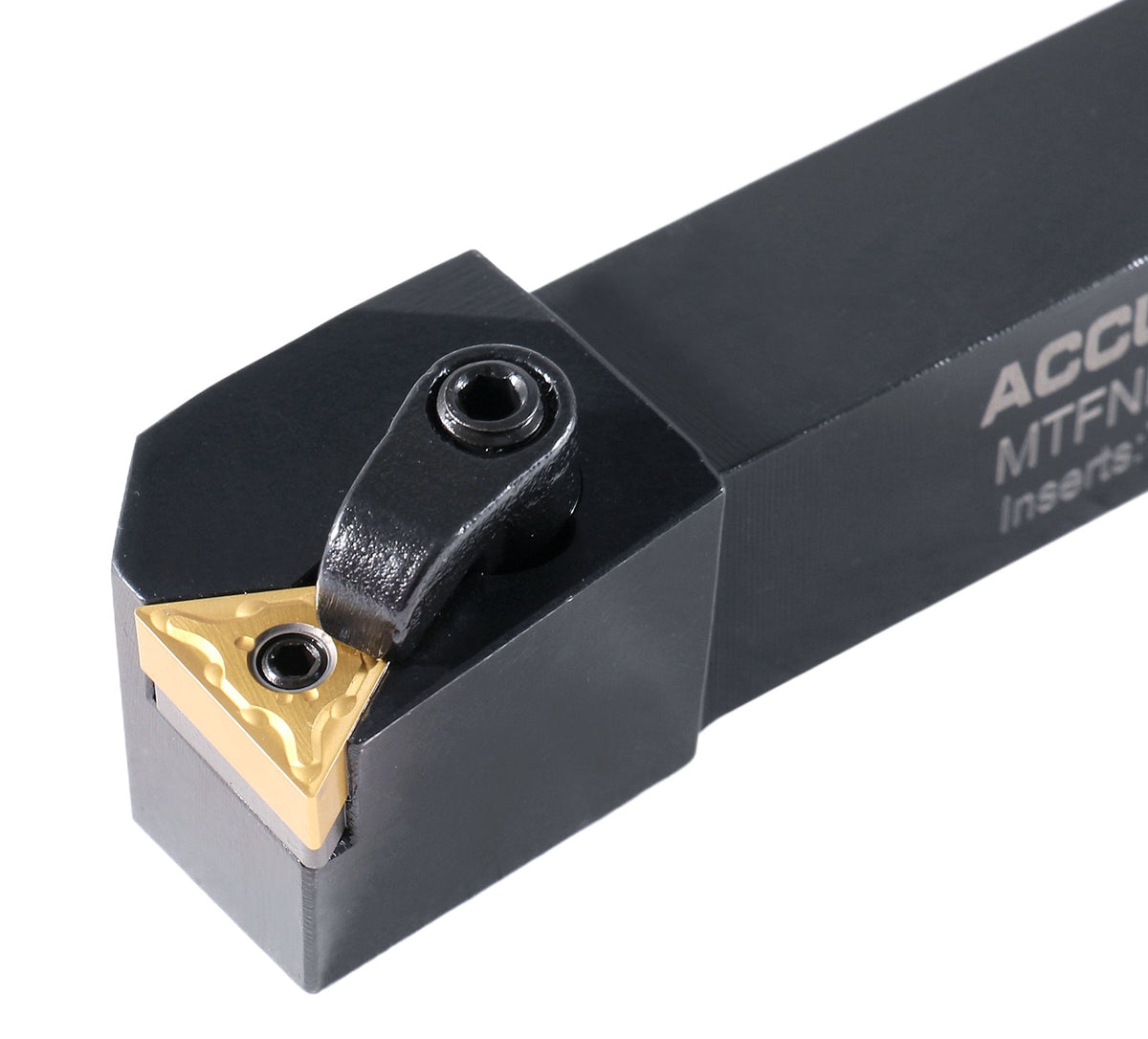

2310-5014 Right MTFN R-12-3C 3/4" 3/4" 5" 3/8" 3/16"

TNMG33

(TiN Coated TNMG332, 2122-1034)

(CVD Coated TNMG332-MD, 2222-1034)

 CL-6 YB1814

ZX513

(0028-0513)

 T16B SD6 x 25

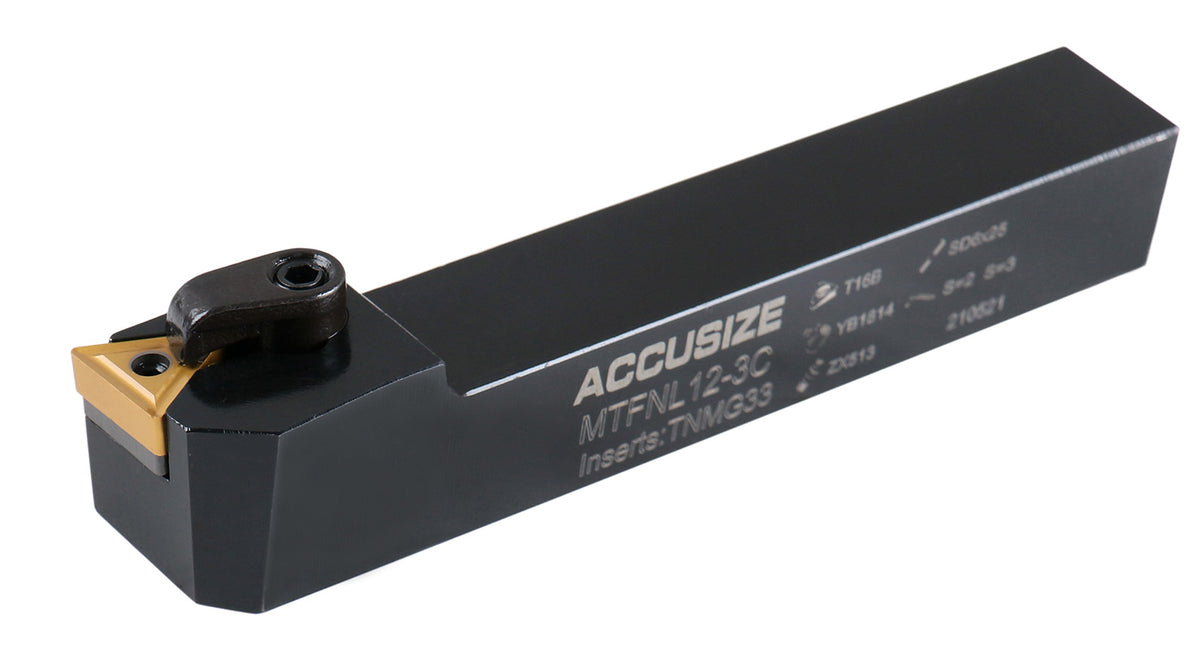

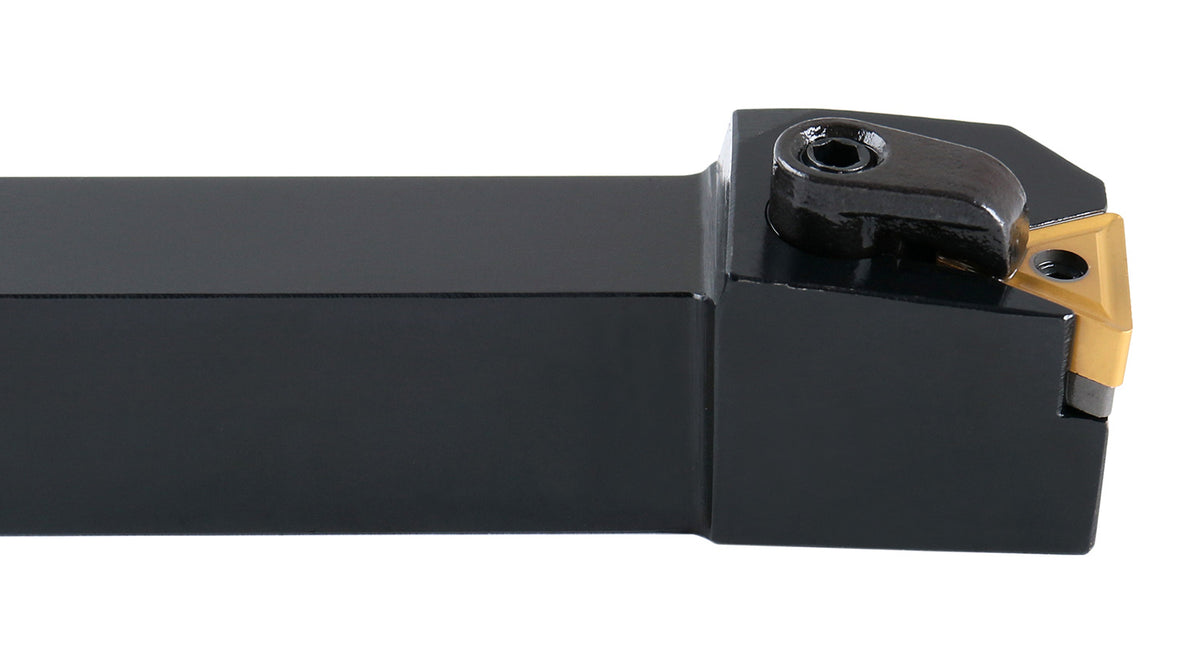

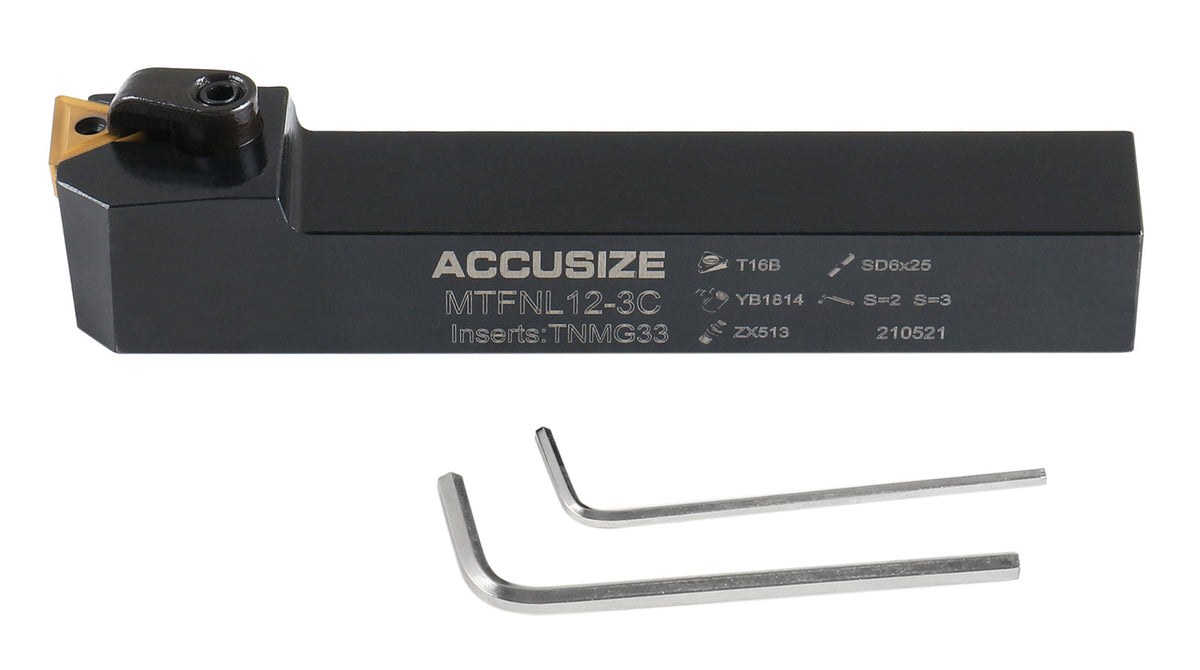

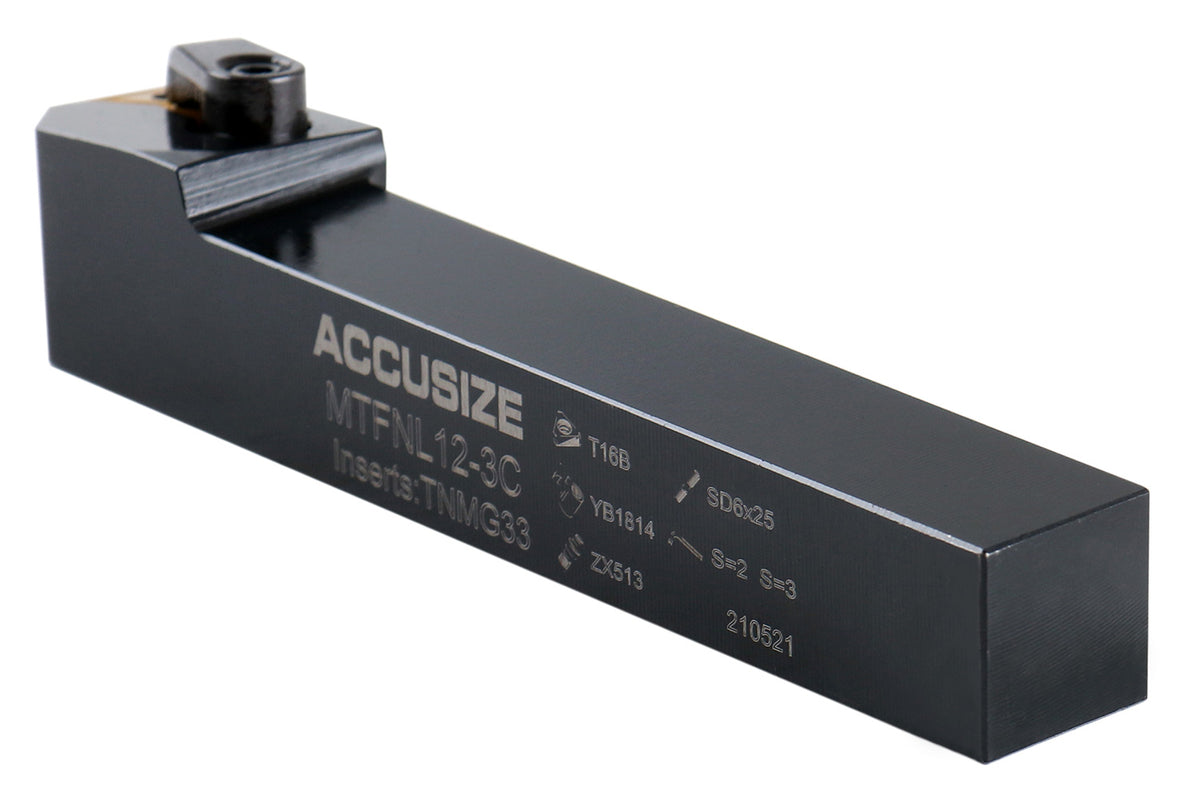

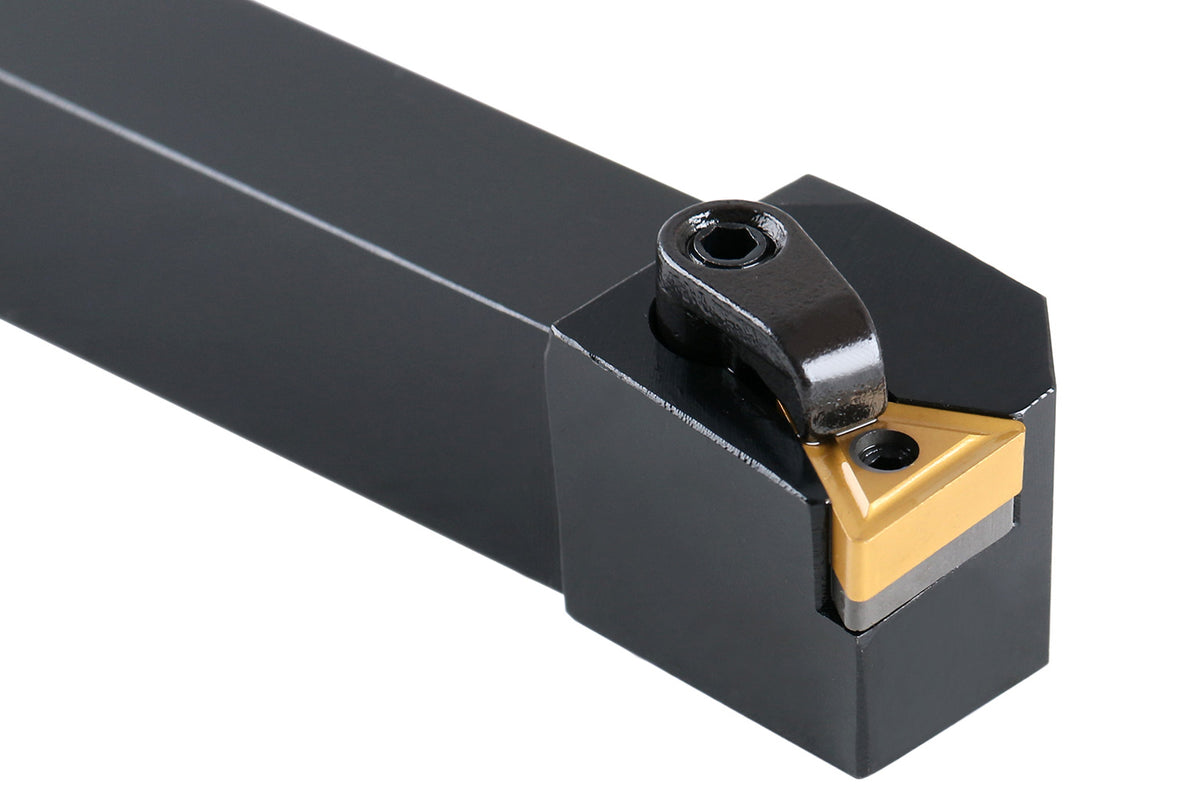

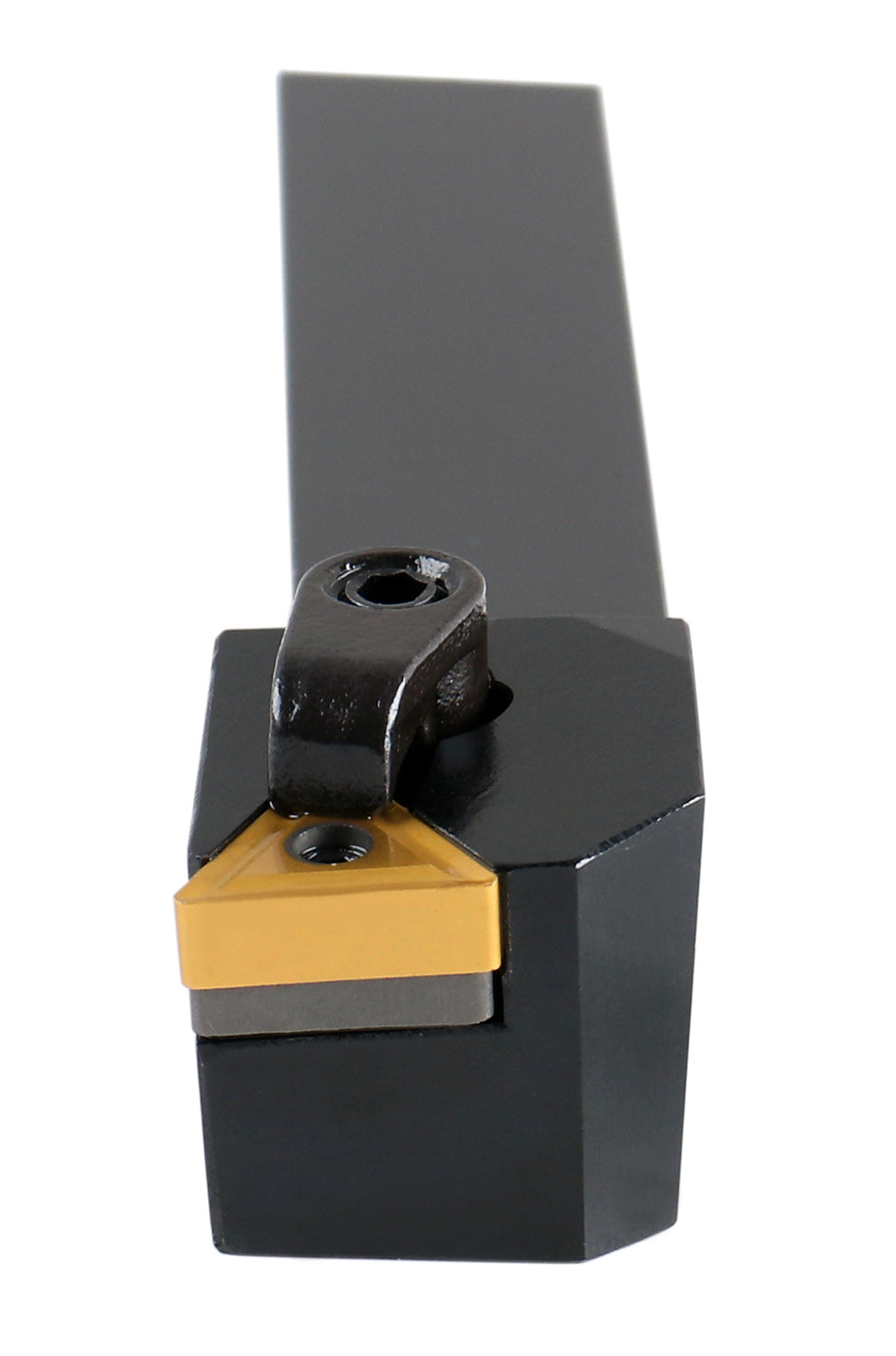

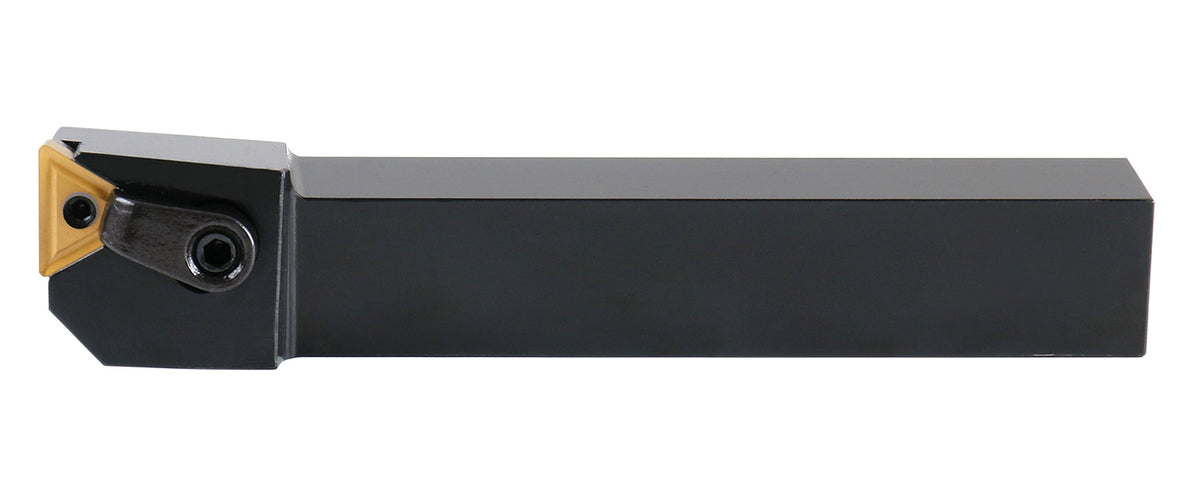

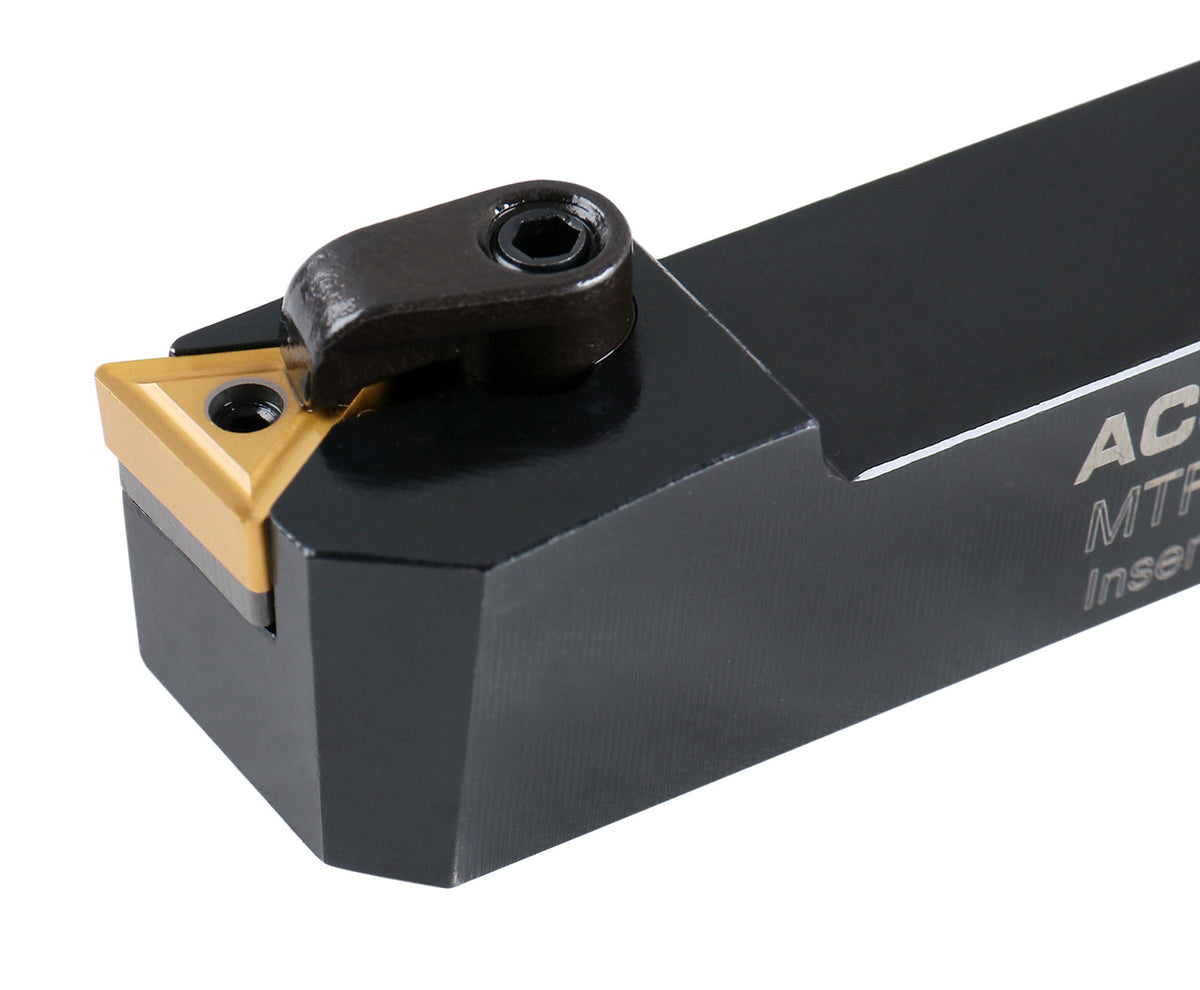

2310-6014 Left MTFN L-12-3C SD6 x 25

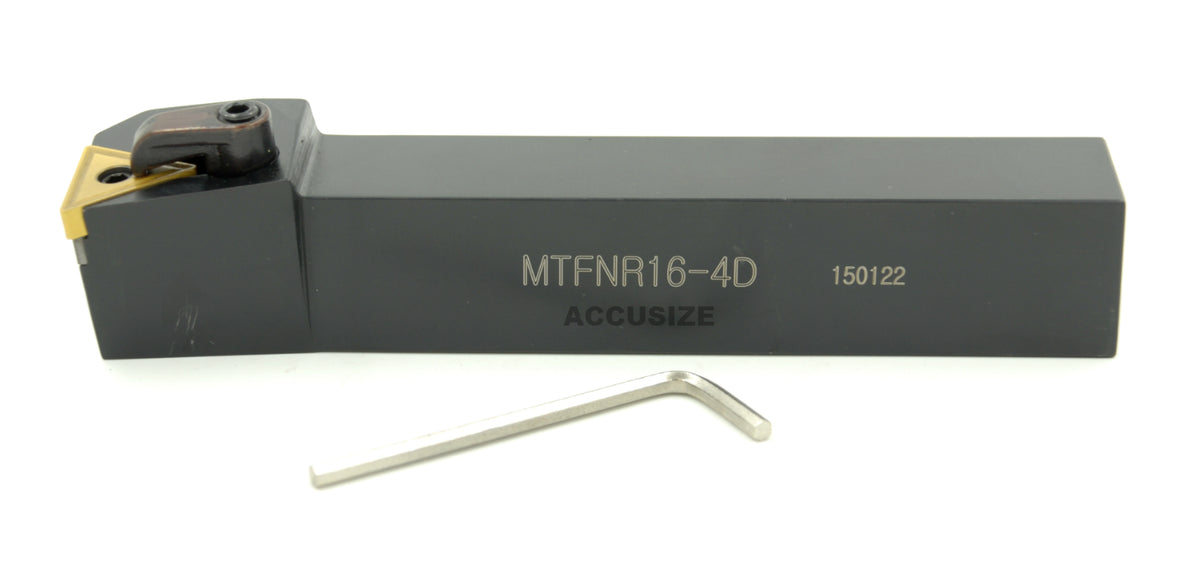

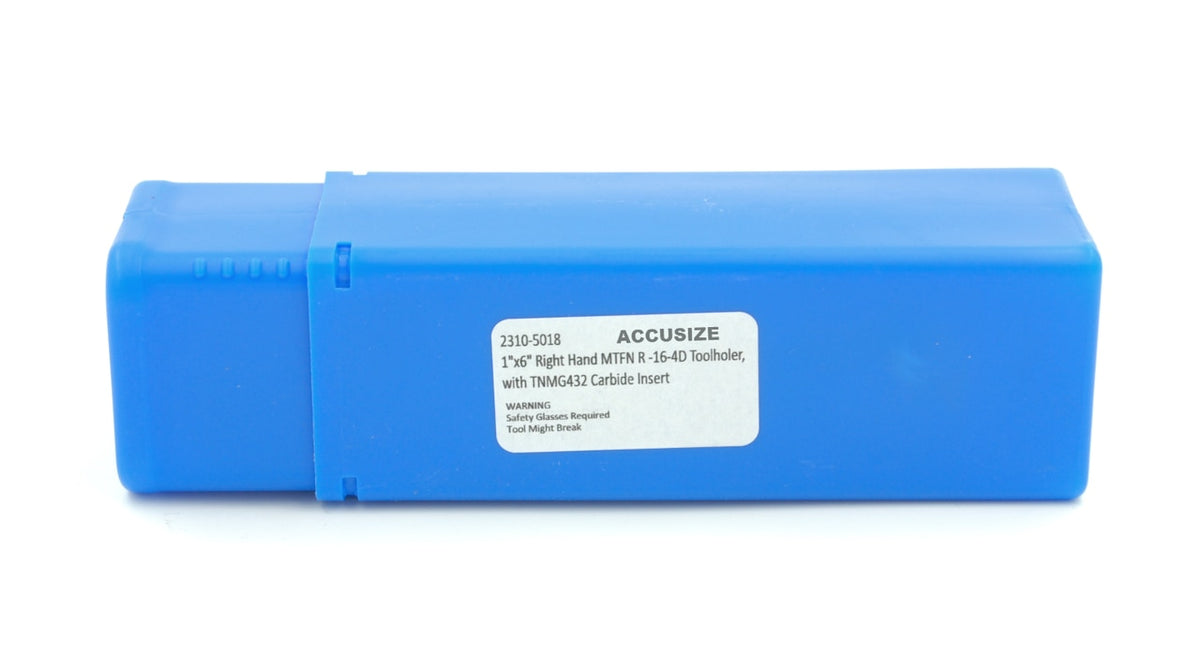

2310-5018 Right MTFN R-16-4D 1" 1-1/4" 6" 1/2" 3/16"

TNMG43

(CVD Coated TNMG432-MD, 2222-1036)

 CL-12 YB2114

ZX617

(0028-0617)

 T22B SD6 x 30

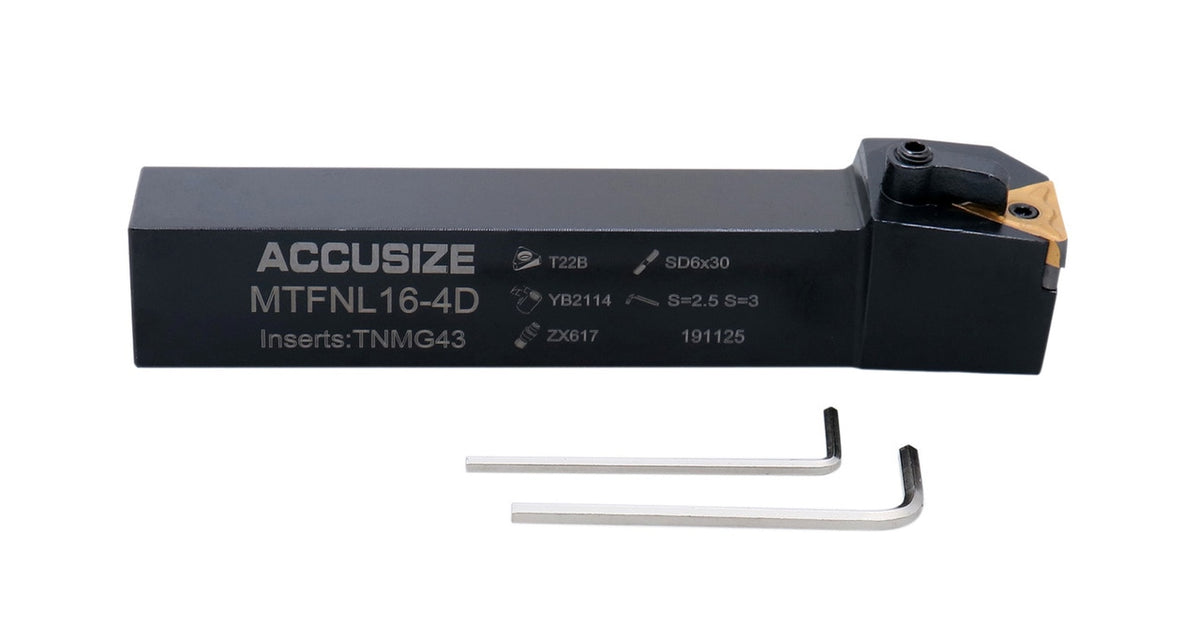

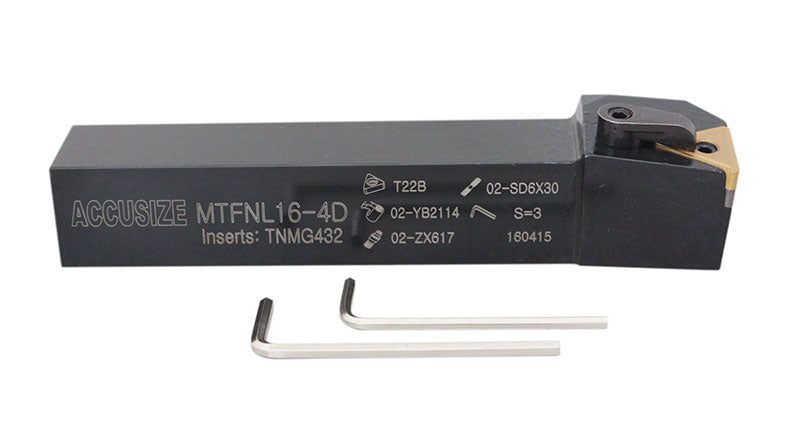

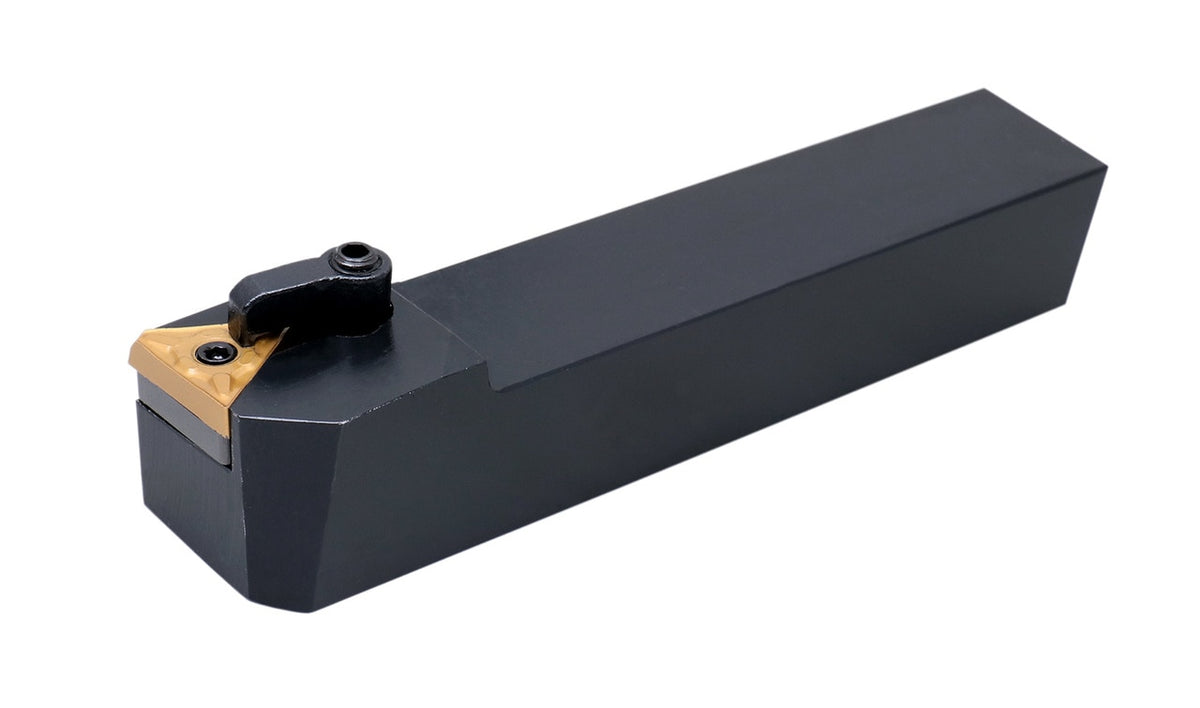

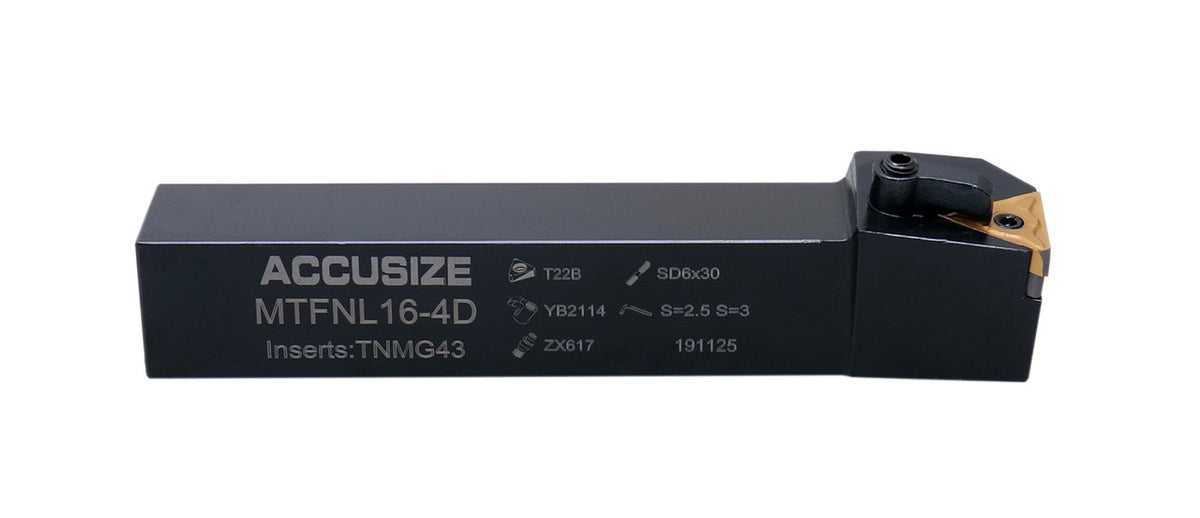

2310-6018 Left MTFN L-16-4D SD6 x 30

DIGRAM OF MTFN TOOL HOLDER

Inserts
