4 Pc 90 Deg Indexable End Mill Set with Apkt11t3 Inserts, Cutter Diameter Includes 1/2'', 5/8'', 3/4'' and 1'', 0028-8416

Passez votre souris pour zoomer Cliquez sur l'image pour zoomer

Jeu de 4 fraises amovibles plaquées nickel 90°, 1/2 po, 5/8 po, 3/4 po et 1 po avec 20 pièces d'inserts en carbure APKT11T3, #0028 -8416

Name: Jeu de 4 fraises amovibles plaquées nickel 90°, 1/2 po, 5/8 po, 3/4 po et 1 po avec 20 pièces d'inserts en carbure APKT11T3, #0028 -8416
Brand: NORTHWARD
SKU: 0028-8416
Price: 346.40 USD
Availability: InStock

NORTHWARDSKU: 0028-8416

Prix:

$346.40

Quantité:

WARNING: This product may contain materials and/or chemicals such as arsenic, lead, and others that are known by the state of California to cause cancer and/or reproductive problems.

For more information, visit www.P65Warnings.ca.gov

Méthodes de paiement

Vos informations de paiement sont gérées de manière sécurisée. Nous ne stockons ni ne pouvons récupérer votre numéro de carte bancaire.

Sécurité

Pays

Région

Code postal

Informations produit supplémentaires

Aperçu

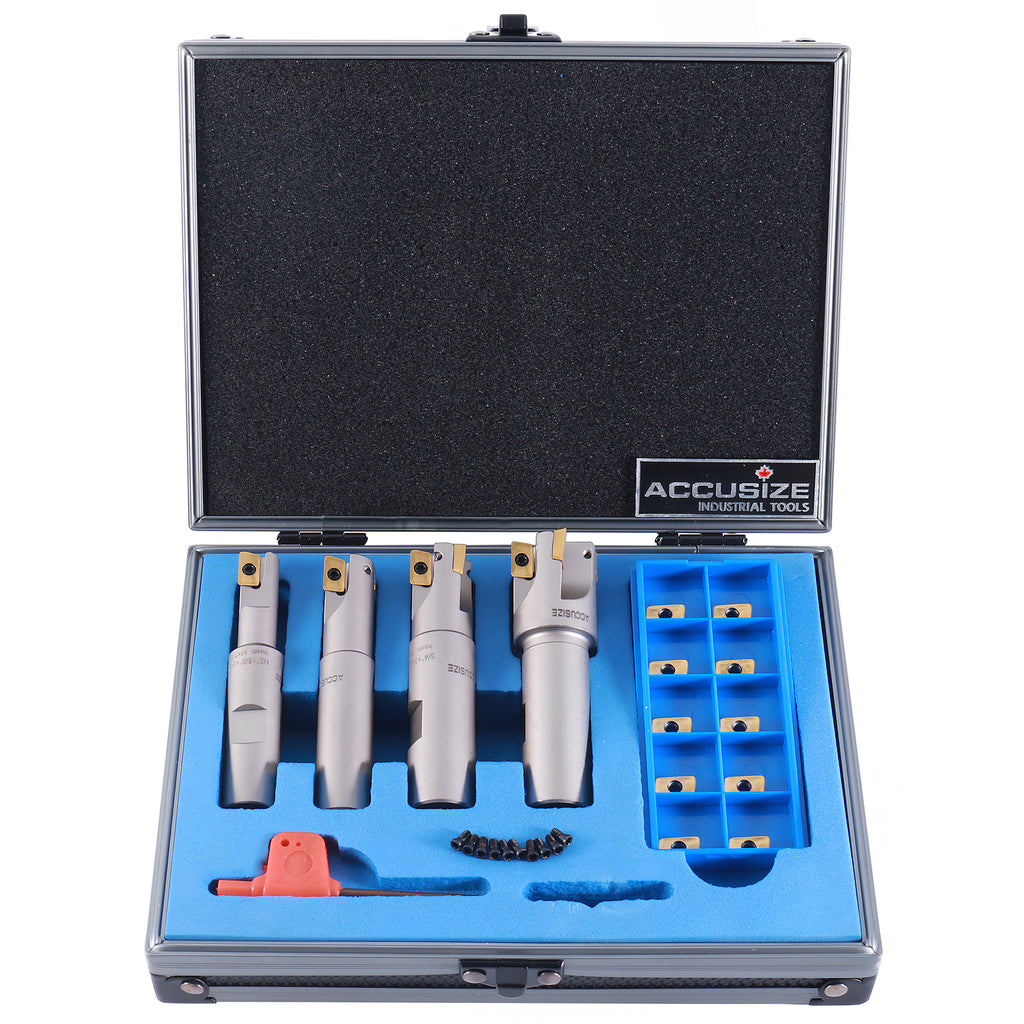

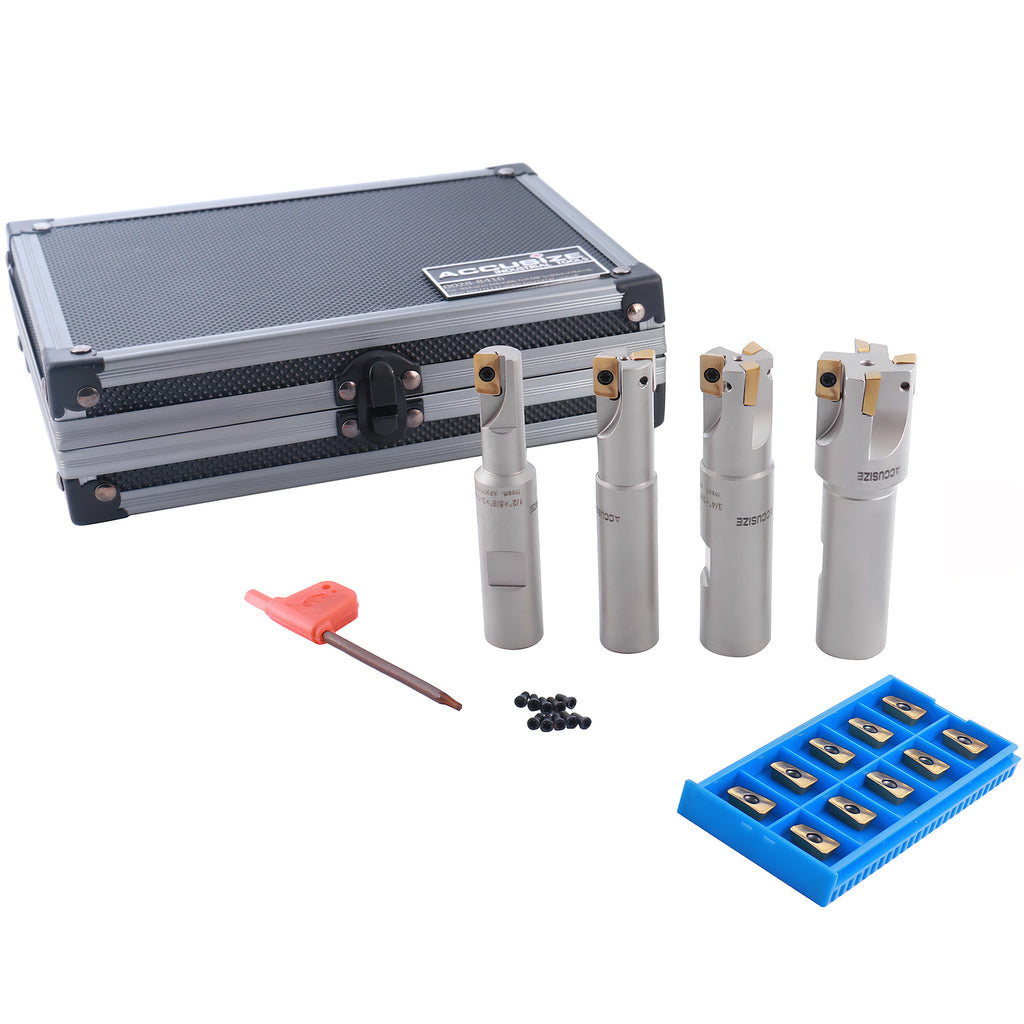

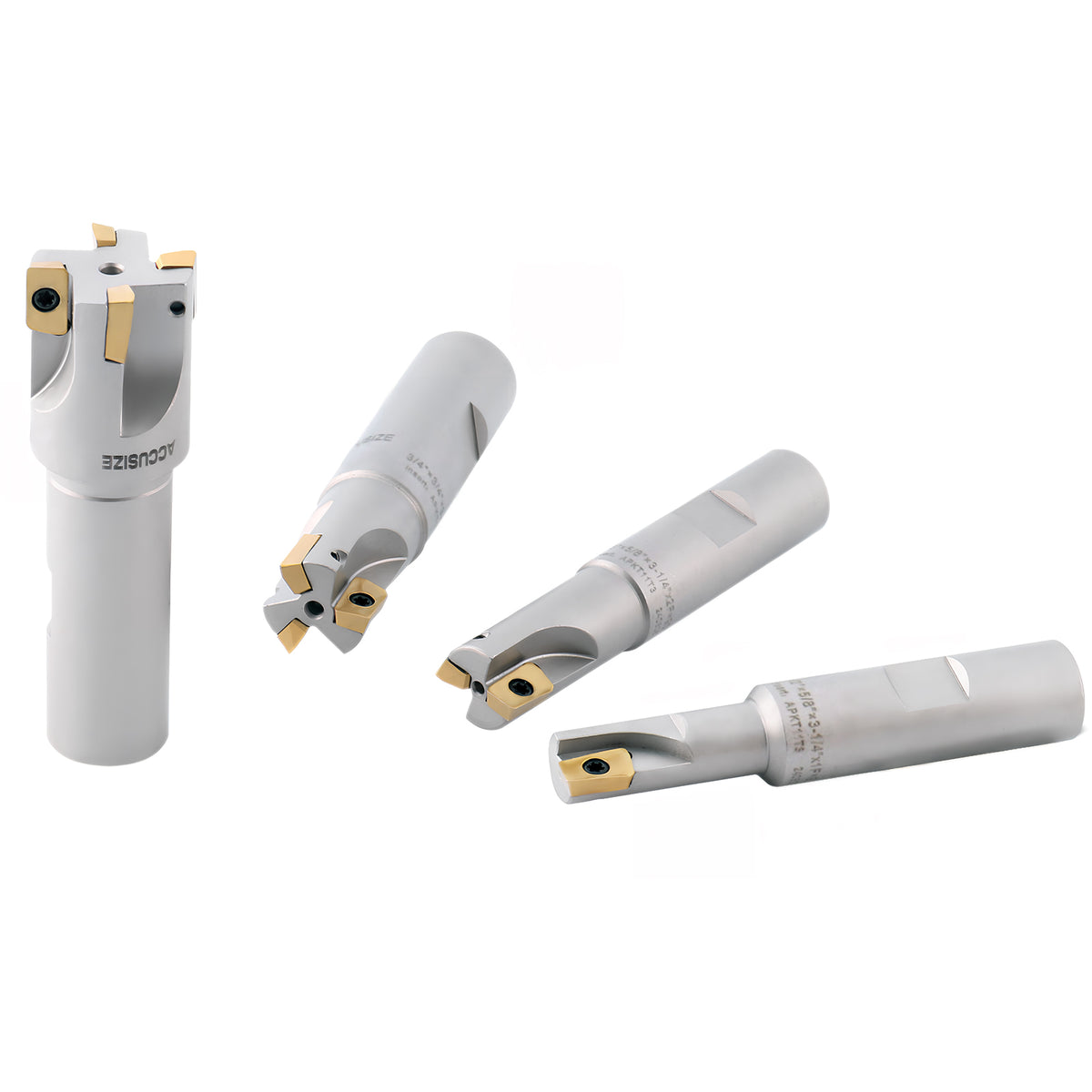

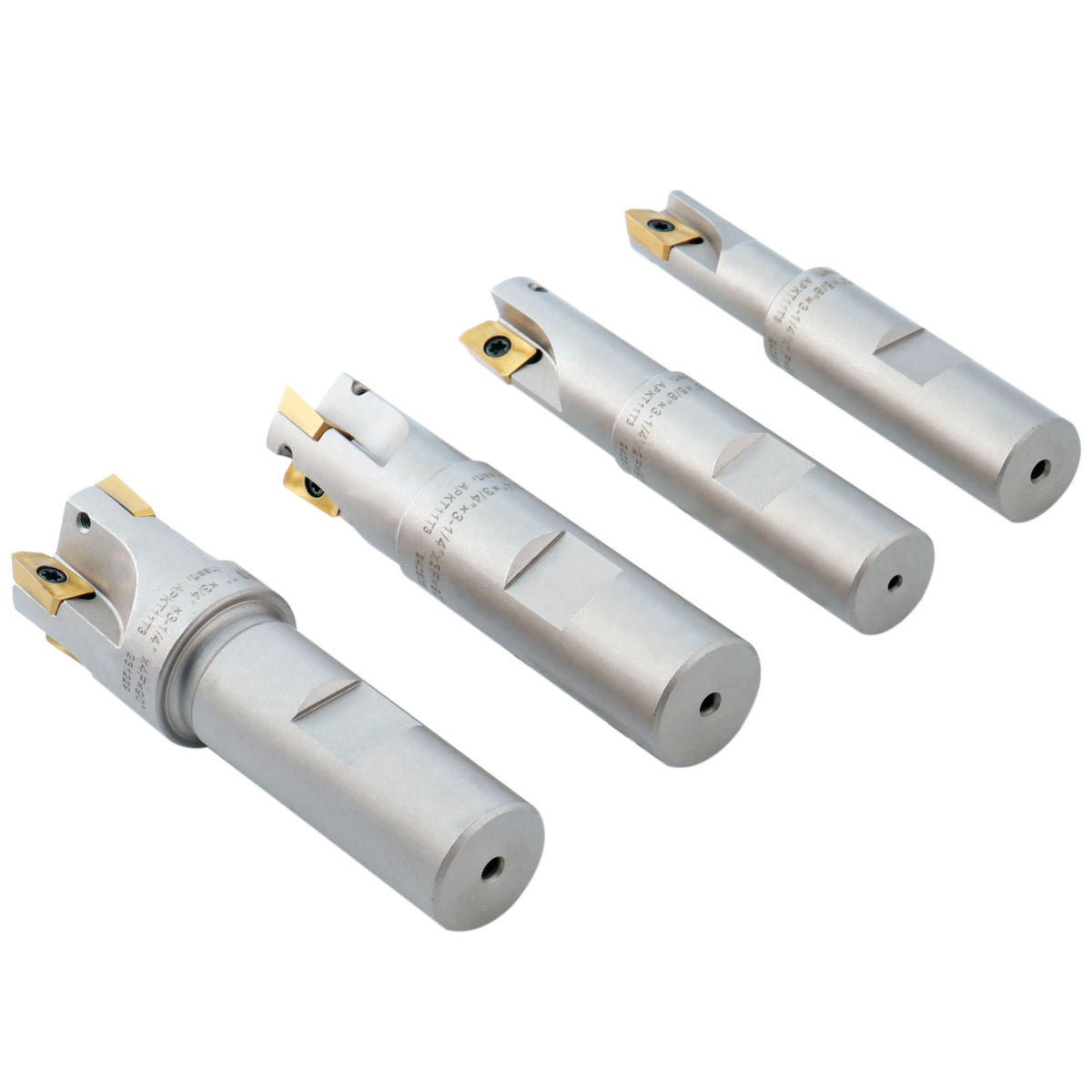

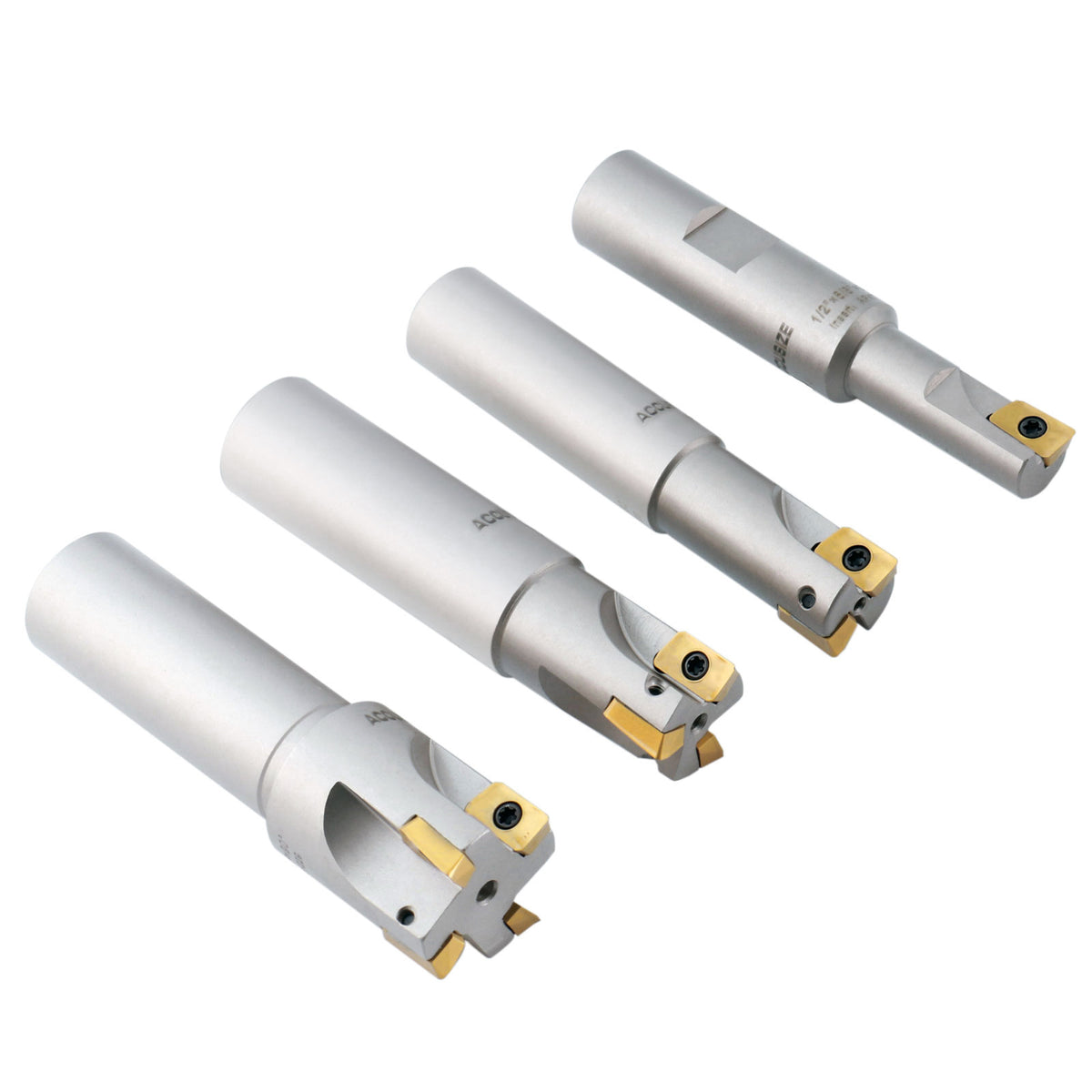

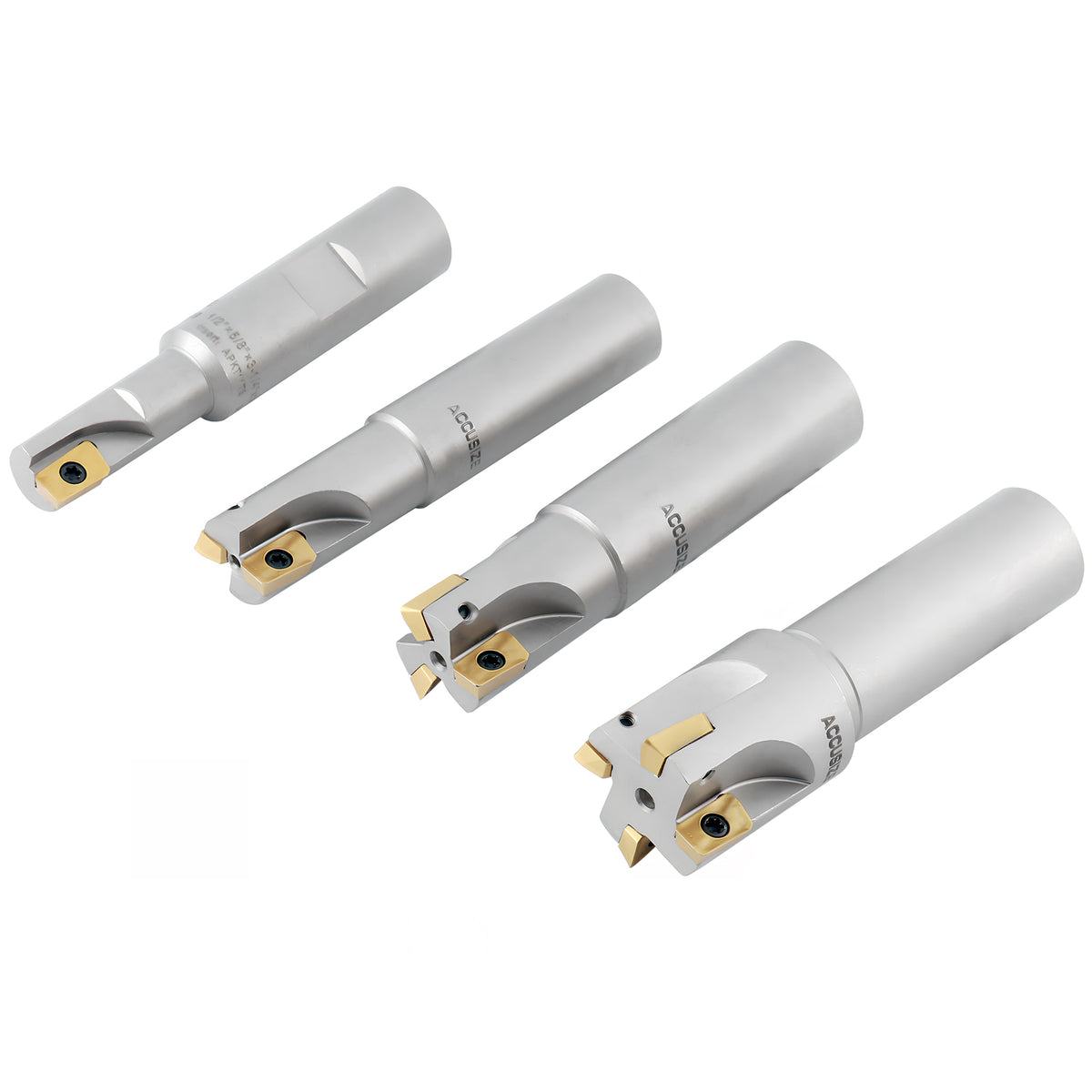

4 pc/set 90° Nickel Plated Indexable End Mill Set, 1/2 in., 5/8 in., 3/4 in., & 1 in. w/ 20 pc of APKT11T308 Carbide Inserts, #0028-8416

90° Cutting angle
Nickel Plated
Screw down insert
Radial rake angle: -10°
Axial rake angle: +7°
All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, cast irons and aluminum alloys.
Fitted with 10° positive rectangular insert allow high depth of cut and feed per tooth
with 1 Torx Wrench
Aluminum fitting case
Carbide inserts for each end mill
Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)
10pcs extra screws
10pcs extra APKT11T3 carbide inserts (TiN coated)

** For purchasing additional inserts, you may find the corresponding Insert SKU below:

Specifications:

Shank	Cutting Diameter D	Shank d1	Overall Length L	ap	No of Inserts	Flute	Insert	Screw
Shank #1	1/2"	5/8"	3-1/4"	0.433"	1	1	APKT11T308 (TiN Coated, 0056-1130)	M2.5 x 6 (0046-2506)
Shank #2	5/8"	5/8"	3-1/4"	0.433"	2	2
Shank #3	3/4"	3/4"	3-1/4"	0.433"	3	3
Shank #4	1"	3/4"	3-1/4"	0.433"	4	4

Recommended RPM

Materials		Hardness(HB)	Cutting parameter
Materials		Hardness(HB)	V(ft /min)	f(inch/Z)	ae
P	Low-carbon Steel	≤180	260≤180-380)	0.2(0.1-0.3)	≤0.5D
	High-carbon Steel, Alloy Steel	180-280	260≤180-320)	0.2(0.1-0.3)	≤0.5D
	Tool Steel	280-350	260(150-280)	0.2(0.1-0.3)	≤0.5D
