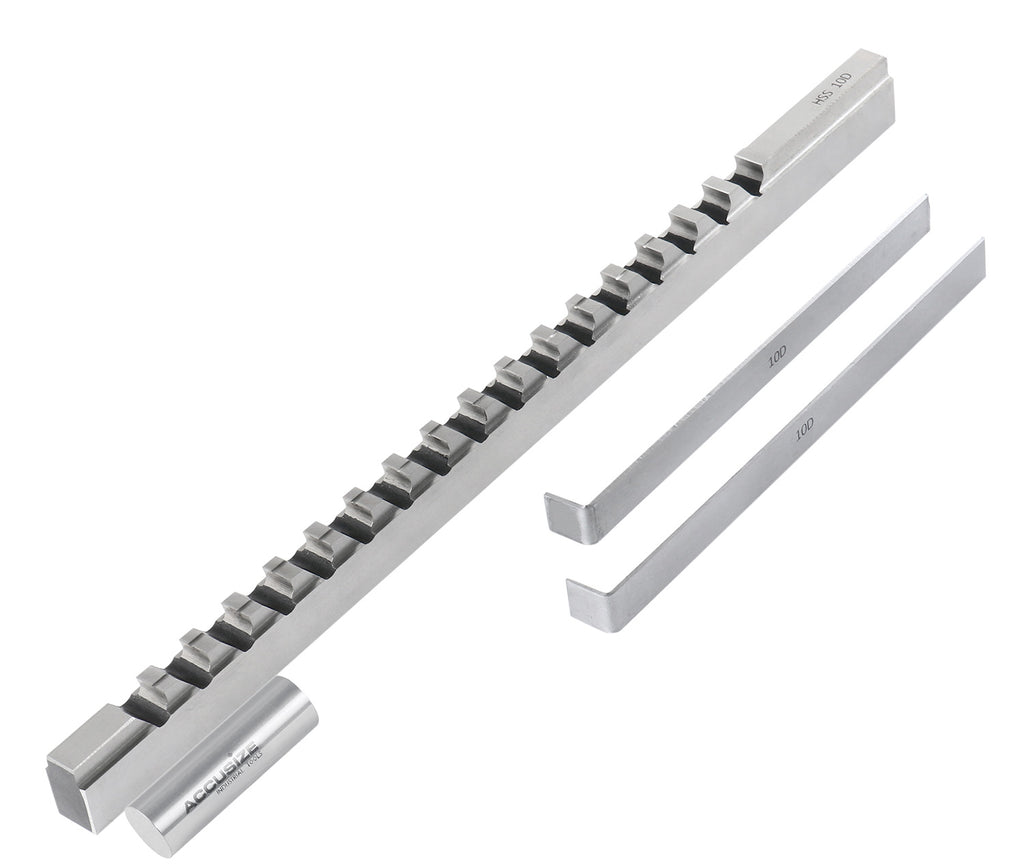

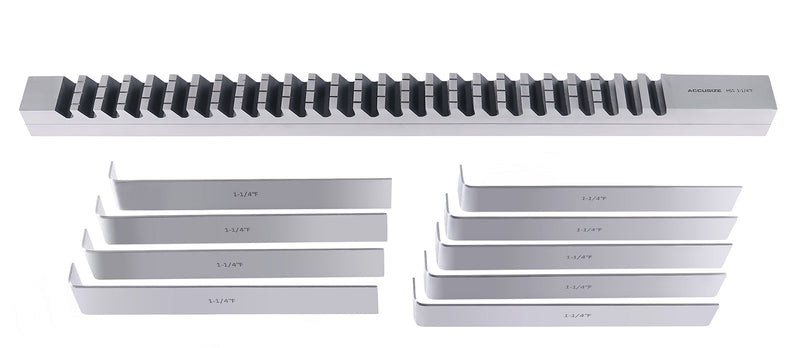

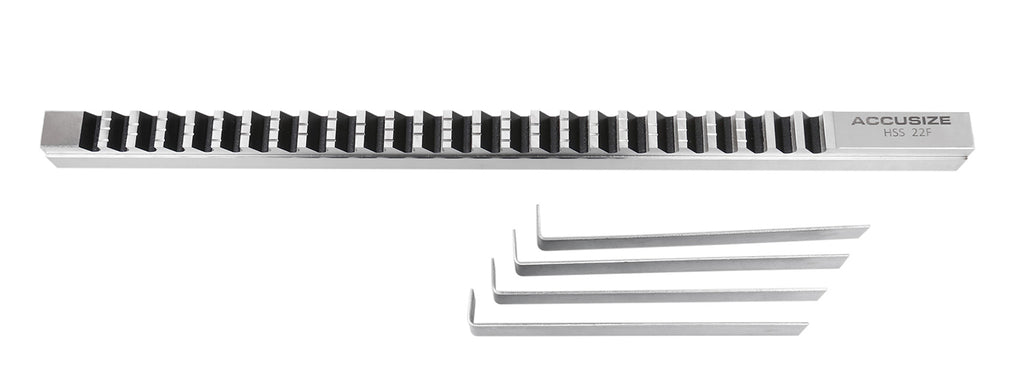

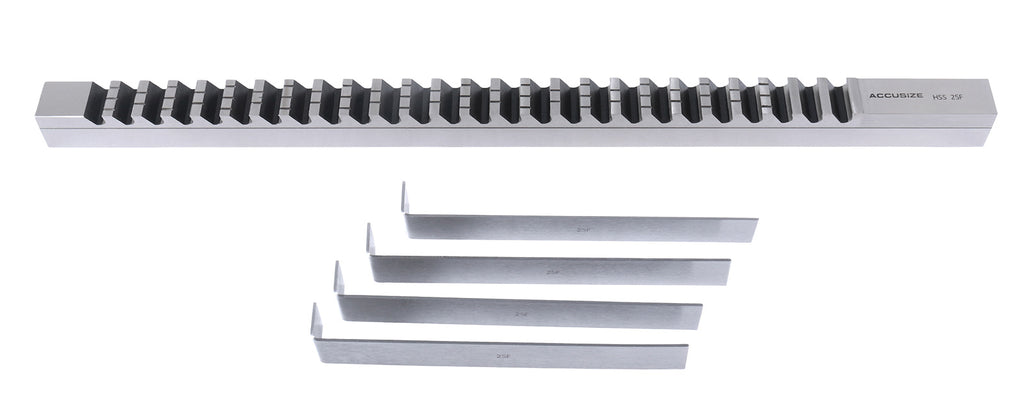

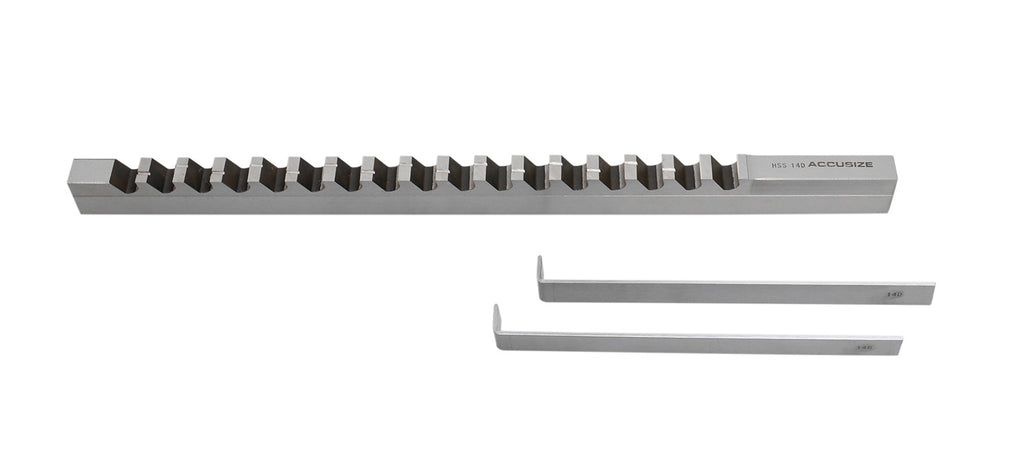

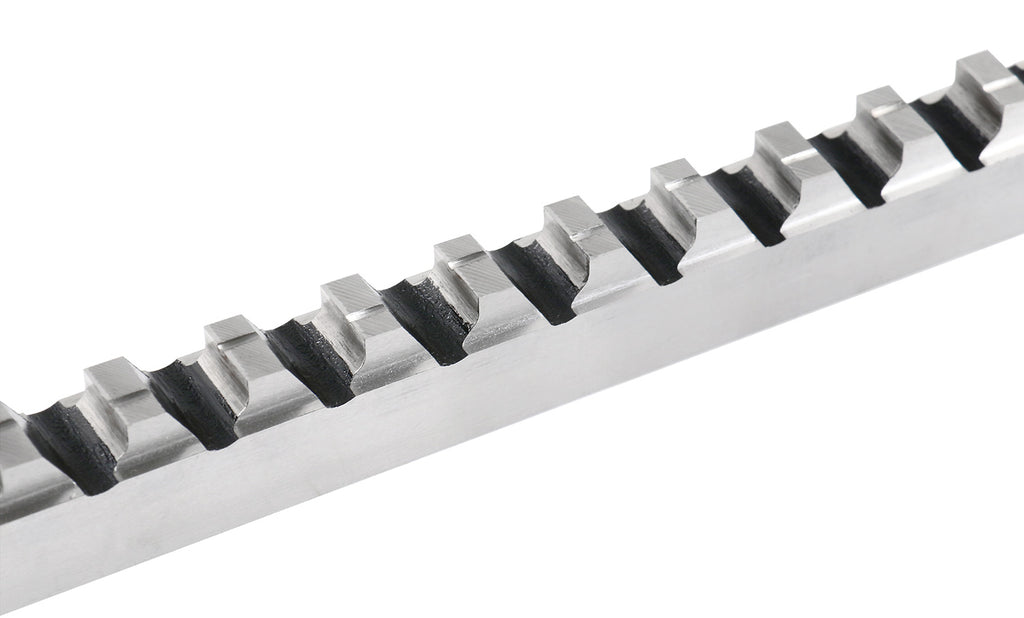

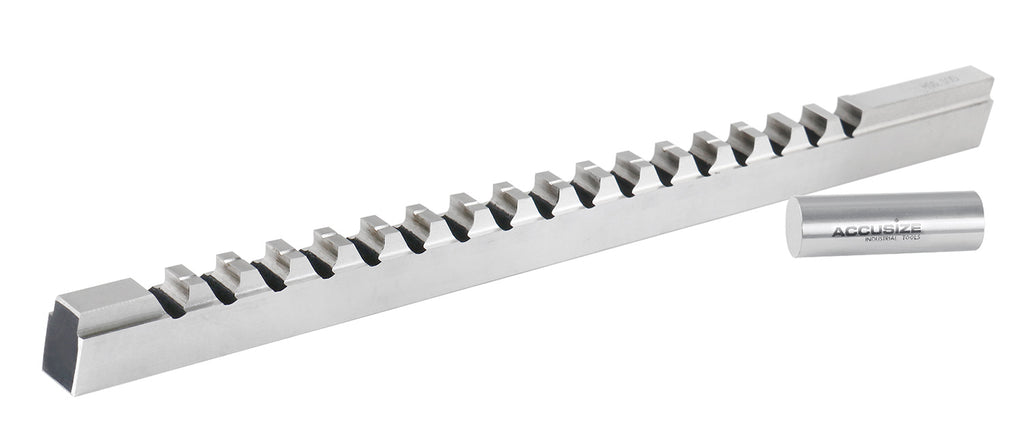

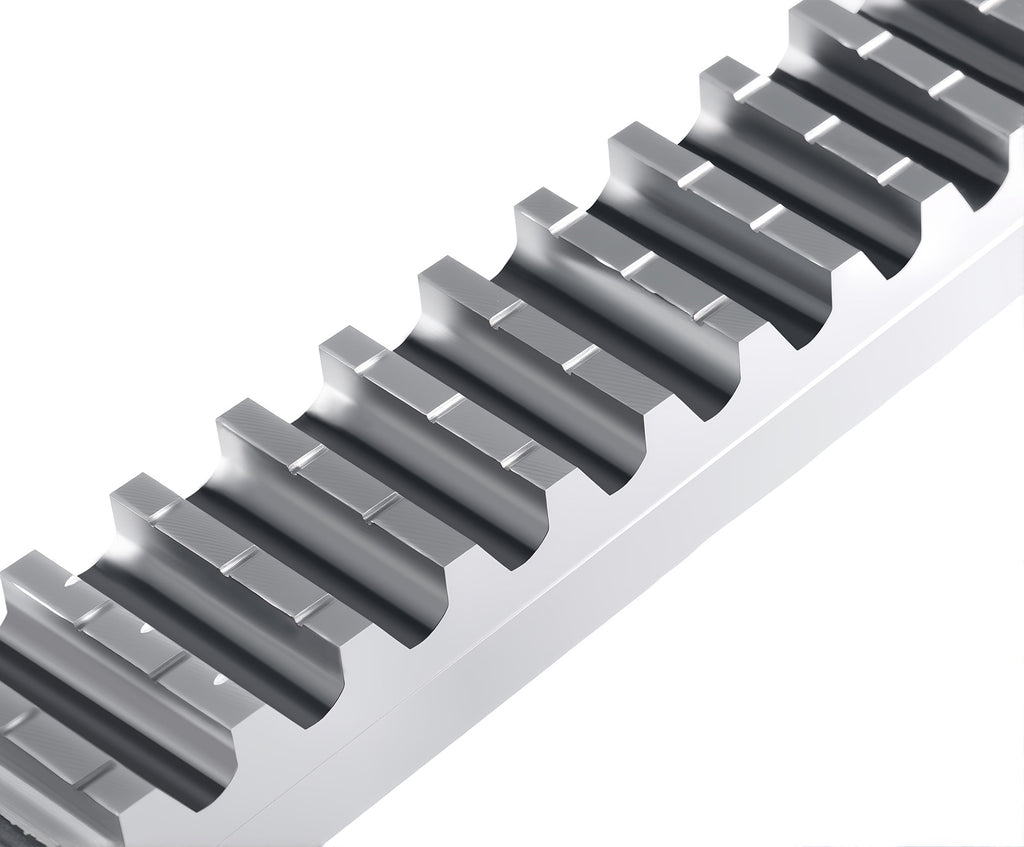

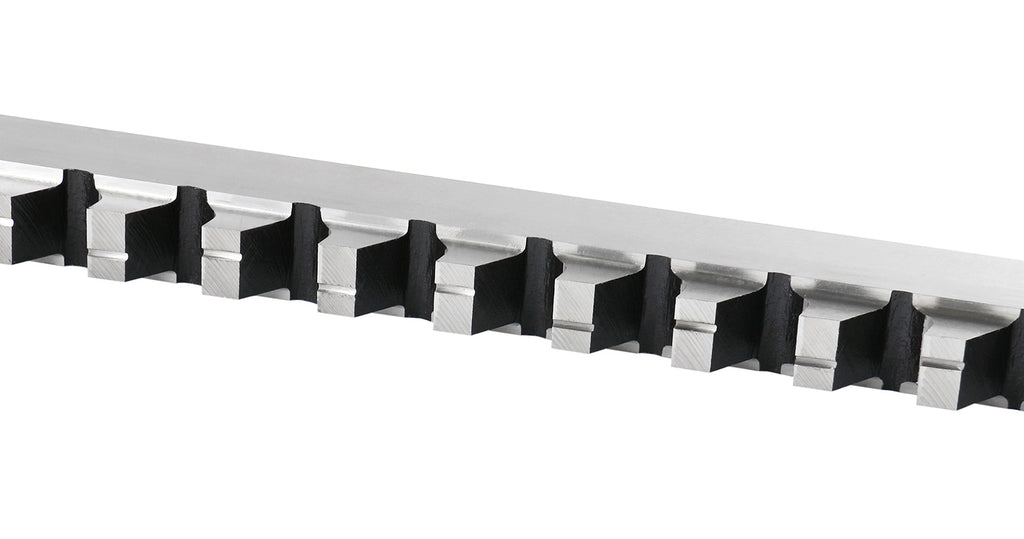

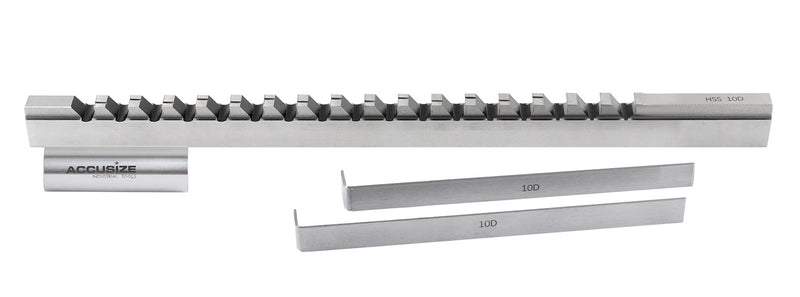

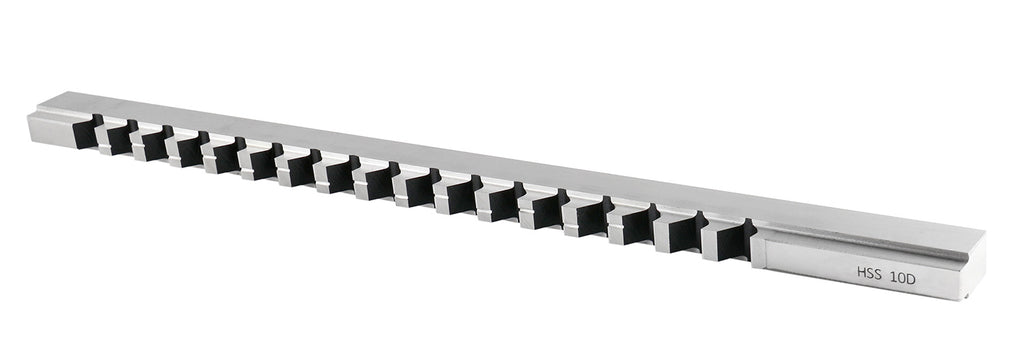

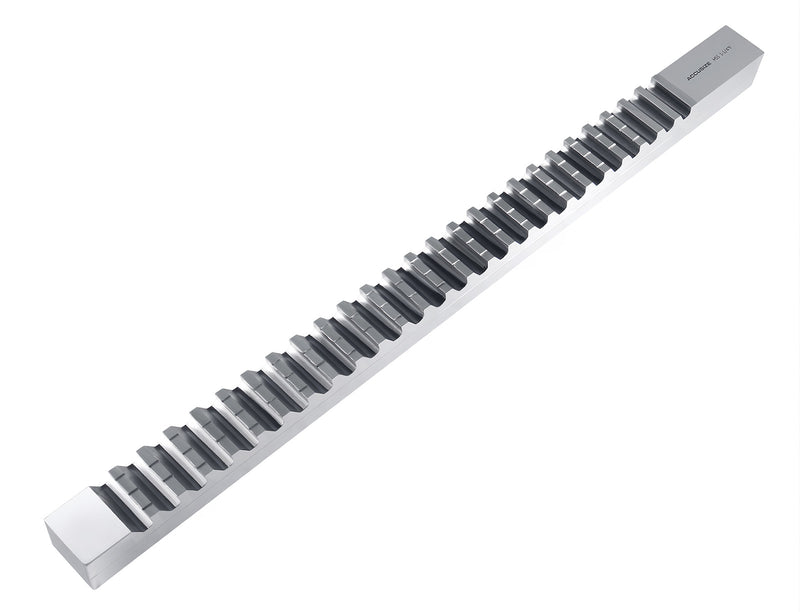

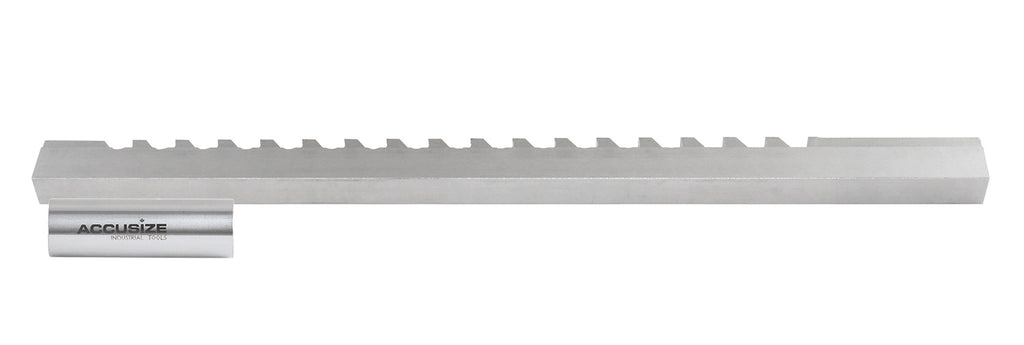

H.S.S. Keyway Broach, Metric, Inch, Style A, Style B, Style C, Style D, Style E & Style F
Technical data:
- Manufactured from H.S.S.
- Ground from solid.
- Straight teeth on one edge of the broach.
- Made to cut either inch or millimeter size keyways.
- Bright finish.
Features:
- Hardened and ground bars with cutting teeth on one side.
- Sized and proportioned to afford a good cutting range and ample rigidity.
Applications:
- Specialty tools designed for cutting keyways in machined holes.
- Typically used manually with an arbor press to produce the keyways.
- Well suited for use in a variety of ferrous and non-ferrous materials.
| Item | Broach Size | Tolerances Dec. Equiv. | Dimensions | Shims Required | Length of cut |
| 5000-0002 | 1/16"-A | 0.0625-0.0635 | 1/8"x5" | 0 | 13/64"-1-1/8" |
| 5000-0004 | 3/32"-A | 0.0938-0.0948 | 1/8"x5" | 0 | 13/64"-1-1/8" |
| 5000-0006 | 1/8"-A | 0.1252-0.1262 | 1/8"x5" | 1 | 13/64"-1-1/8" |
| 5000-0008 | 3/32"-B | 0.0938-0.0948 | 3/16"x6-3/4" | 0 | 19/64"-1-11/16" |
| 5000-0010 | 1/8"-B | 0.1252-0.1262 | 3/16"x6-3/4" | 1 | 19/64"-1-11/16" |
| 5000-0012 | 5/32"-B | 0.1564-0.1574 | 3/16"x6-3/4" | 1 | 19/64"-1-11/16" |
| 5000-0014 | 3/16"-B | 0.1877-0.1887 | 3/16"x6-3/4" | 1 | 19/64"-1-11/16" |
| 5000-0016 | 3/16"-C | 0.1877-0.1887 | 3/8"x11-3/4" | 1 | 25/46"-2-1/2" |
| 5000-0018 | 1/4"-C | 0.2502-0.2512 | 3/8"x11-3/4" | 1 | 25/46"-2-1/2" |
| 5000-0020 | 5/16"-C | 0.3127-0.3137 | 3/8"x11-3/4" | 1 | 25/46"-2-1/2" |
| 5000-0022 | 3/8"-C | 0.3755-0.3765 | 3/8"x11-3/4" | 2 | 25/46"-2-1/2" |
| 5000-0024 | 5/16"-D | 0.3127-0.3137 | 9/16"x13-7/8" | 1 | 1-6" |
| 5000-0026 | 3/8"-D | 0.3755-0.3765 | 9/16"x13-7/8" | 2 | 1-6" |
| 5000-0028 | 7/16"-D | 0.438-0.439 | 9/16"x13-7/8" | 2 | 1-6" |
| 5000-0030 | 1/2"-D | 0.5006-0.5016 | 9/16"x13-7/8" | 3 | 1-6" |
| 5000-0032 | 5/8"-E | 0.626-0.627 | 3/4"x15-1/2" | 4 | 1-6" |
| 5000-0034 | 3/4"-E | 0.7515-0.7525 | 3/4"x15-1/2" | 5 | 1-6" |
| 5000-0036 | 7/8"-F | 0.8765-0.8775 | 1"x20-1/4" | 6 | 1-6" |
| 5000-0038 | 1"-F | 1.0015-1.002 | 1"x20-1/4" | 7 | 1-6" |
| 5000-0040 | 1-1/8"-F | 1.1265-1.1275 | 1-1/8"x20-1/4" | 8 | 1-6" |
| 5000-0042 | 1-1/4"-F | 1.252-1.253 | 1-1/4"x20-1/4" | 9 | 1-1/2"-8" |
| 5001-0002 | 2mm-A | 0.0782-0.0791 | 1/8"x5" | 0 | 13/64"-1-1/8" |
| 5001-0004 | 3mm-A | 0.1176-0.1185 | 1/8"x5" | 1 | 13/64"-1-1/8" |
| 5001-0006 | 4mm-B | 0.1569-0.1579 | 1/4"x6-3/4" | 1 | 19/64"-1-11/16" |
| 5001-0008 | 5mm-B | 0.1963-0.1972 | 1/4"x6-3/4" | 1 | 19/64"-1-11/16" |
| 5001-0010 | 5mm-C | 0.1963-0.1972 | 3/8"x11-3/4" | 1 | 25/46"-2-1/2" |
| 5001-0012 | 6mm-C | 0.2356-0.2366 | 3/8"x11-3/4" | 1 | 25/46"-2-1/2" |
| 5001-0014 | 8mm-C | 0.3143-0.3155 | 3/8"x11-3/4" | 2 | 25/46"-2-1/2" |
| 5001-0016 | 10mm-D | 0.393-0.3942 | 9/16"x13-7/8" | 2 | 1-6" |
| 5001-0018 | 12mm-D | 0.4716-0.473 | 9/16"x13-7/8" | 2 | 1-6" |
| 5001-0020 | 14mm-D | 0.5503-0.5517 | 9/16"x13-7/8" | 2 | 1-6" |
| 5001-0022 | 16mm-E | 0.629-0.6304 | 3/4"x15-1/2" | 3 | 1-6" |
| 5001-0024 | 18mm-E | 0.7078-0.7092 | 3/4"x15-1/2" | 3 | 1-6" |
| 5001-0026 | 20mm-F | 0.7864-0.788 | 1"x20-1/4" | 3 | 1-6" |
| 5001-0028 | 22mm-F | 0.8651-0.8667 | 1"x20-1/4" | 4 | 1-6" |
| 5001-0030 | 24mm-F | 0.9434-0.9455 | 1"x20-1/4" | 5 | 1-6" |
| 5001-0032 | 25mm-F | 0.9832-0.9848 | 1"x20-1/4" | 4 | 1-6" |
